Article

Caenorhabditis elegans BRICHOS Domain–Containing Protein C09F5.1 Maintains Thermotolerance and Decreases Cytotoxicity of Aβ42 by Activating the UPR

by
Myungchul Song
1,
Kyunghee Song
1,2,
Sunghee Kim
1,3,
Jinyoung Lee
1,4,
Sueyun Hwang
5 and
Chingtack Han
1,*
1
Department of Life Science, Sogang University, Seoul 04107, Korea
2
LG Household & Health Care, Daejeon 34114, Korea
3
Department of Medicine, Biomedical Research Institute, Seoul National University Hospital, Seoul 03080, Korea
4
Amorepacific R&D Center, Yongin 17074, Korea
5
Department of Chemical Engineering, Hankyung National University, Anseong 17579, Korea
*
Author to whom correspondence should be addressed.
Genes 2018, 9(3), 160; https://doi.org/10.3390/genes9030160
Submission received: 11 December 2017 / Revised: 5 March 2018 / Accepted: 9 March 2018 / Published: 13 March 2018
(This article belongs to the Section Molecular Genetics and Genomics)
Browse Figures
Versions Notes

Abstract

:
Caenorhabditis elegans C09F5.1 is a nematode-specific gene that encodes a type II transmembrane protein containing the BRICHOS domain. The gene was isolated as a heat-sensitive mutant, but the function of the protein remained unclear. We examined the expression pattern and subcellular localization of C09F5.1 as well as its roles in thermotolerance and chaperone function. Expression of C09F5.1 under heat shock conditions was induced in a heat shock factor 1 (HSF-1)–dependent manner. However, under normal growth conditions, most cells types exposed to mechanical stimuli expressed C09F5.1. Knockdown of C09F5.1 expression or deletion of the N-terminal domain decreased thermotolerance. The BRICHOS domain of C09F5.1 did not exhibit chaperone function unlike those of other proteins containing this domain, but the domain was essential for the proper subcellular localization of the protein. Intact C09F5.1 was localized to the Golgi body, but the N-terminal domain of C09F5.1 (C09F5.1-NTD) was retained in the ER. C09F5.1-NTD delayed paralysis by beta-amyloid (1-42) protein (Aβ42) in Alzheimer’s disease model worms (CL4176) and activated the unfolded protein response (UPR) by interacting with Aβ42. An intrinsically disordered region (IDR) located at the N-terminus of C09F5.1 may be responsible for the chaperone function of C09F5.1-NTD. Taken together, the data suggest that C09F5.1 triggers the UPR by interacting with abnormal proteins.

1. Introduction

Organisms recognize acute environmental changes such as high temperature, high salt, oxidizing conditions, or high levels of heavy metals as stress. Some environmental stresses cause denaturation of cellular proteins and accumulation of these denatured proteins is perceived as proteotoxic damage. To minimize this damage, the denatured proteins are degraded or refolded through the unfolded protein response (UPR) or endoplasmic reticulum–associated degradation (ERAD) pathway. Various chaperone proteins are upregulated to alleviate perturbations of protein homeostasis [1]. Heat shock proteins (HSPs) are representative molecular chaperones induced by trimerization of heat shock transcription factor (HSF) following heat shock and other stresses [2,3,4]. Stress proteins can also function as chaperones under normal conditions [5,6]. In general, chaperone proteins assist in proper folding of newly synthesized polypeptides into normal proteins or facilitate the transport of precursor polypeptide chains into appropriate subcellular organelles [7].
The BRICHOS domain, which was initially described in 2002 [8], consists of about 100 amino acids (aa) and is present in more than 300 proteins of 12 distantly related families [9,10]. The designation ‘BRICHOS’ originates from the names of three proteins, which are called BRI2 (Integral transmembrane protein 2B, ITM2B), chondromodulin-I (ChM-I), and surfactant protein-C (SP-C) [8]. All three proteins are linked to major diseases. BRI2 is linked to familial British and Danish dementia (FBD and FDD) [11,12], ChM-I is related to chondrosarcoma [13,14], and SP-C is associated with respiratory distress syndrome (RDS) [15,16].
Most BRICHOS domain–containing proteins share common features including type II transmembrane topology and similar domain architectures and subcellular localization patterns [9]. In higher organisms, most of these proteins are proteolytically processed to smaller, functionally mature forms. For example, BRI2, which is well-studied and conserved in vertebrates, is secreted into the extracellular space as the BRICHOS-containing carboxyl-terminal domain following proteolytic processing in the endoplasmic reticulum (ER) and Golgi [17]. BRICHOS domains have similar secondary structures characterized by two well-conserved cysteine residues that form disulfide bridges even though they share little sequence identity at the amino acid level [8].
Three functions of BRICHOS domain–containing proteins have been proposed [8] and proven. These include promotion of targeting and secretion [18,19], assistance with specialized intracellular protease activity [20,21,22,23], and an intramolecular chaperone-like function [18,24,25,26]. Chaperone function is achieved by binding the BRICHOS domain to the β-sheet structural proteins, which prevents the formation of amyloid-like fibrils [10,25,26,27,28,29]. However, there is no known BRICHOS domain-containing protein that is induced by heat shock.
The extracellular region of BRI2, which contains the BRICHOS domain, directly interacts with the amyloidogenic ABri peptide (34 aa), which is generated by a mutation that changes the stop codon to AGA [27]. The BRICHOS domain of BRI2 also efficiently prevents fibrillation of amyloid β-peptide in vivo [30]. Prosurfactant protein-C (proSP-C) expressed in human alveolar type II cells is released to the outside of the cell as a small peptide. Along with phospholipids and various surfactant proteins (SP-A, -B, -D), proSP-C is a component of the pulmonary surfactant that abates surface tension at the interface of air and liquid [31]. Mutations in the BRICHOS domain of proSP-C cause formation of cytosolic aggregates that elicit an ER stress response [32]. The BRICHOS domain of proSP-C also serves as a molecular chaperone to prevent aggregation of amyloid-β peptide [33].
To date, two BRICHOS domain–containing proteins have been identified in C. elegans. C09F5.1 is a nematode-specific gene without a human homologue. The other is C25F6.7, which is a homologue of human ITM2B. C09F5.1 is a new type of BRICHOS domain–containing protein whose expression is induced by heat shock. In this study, we characterized the general features of this novel gene and investigate its functions in detail.

2. Materials and Methods

2.1. Caenorhabditis elegans and Mammalian Cell Cultures

All C. elegans strains were obtained from the Caenorhabditis elegans Genetic Center (University of Minnesota, St. Paul, MN, USA). Worms were cultured in nematode growth medium (NGM) at 16 °C or 20 °C as described previously [34]. N2 Bristol was used as the wild type and transgenic worms were generated by microinjection [35]. The strains used in this study are listed in Table 1.
All mammalian cells used in this study were cultured in Dulbecco’s modified Eagle’s medium (DMEM, D6429) supplemented with 10% fetal bovine serum (FBS, F2442) (SIGMA, St. Louis, MO, USA). For transient expression, cells at 50% confluence were treated with 3 µg of plasmid DNA and 15 µg of 25 kDa linear polyethylenimine (PEI; Polysciences, Warrington, PA, USA) in 150 mM CaCl2. One day after transfection, complete medium was added without replacing the medium and the cells were harvested for further analysis after an additional day.

2.2. Protein Domain Analysis

The peptide sequence of the transmembrane domain of C09F5.1 was predicted using TMHMM server v. 2.0 [36]. The BRICHOS domain was detected using Motif Scan [37].

2.3. RNA Interference

RNA interference by bacterial feeding was performed as described previously [38,39]. Briefly, HT115(DE3) was transformed with the RNA interference (RNAi) vector (L4440), which contained part of the C09F5.1 gene (chrIII:660661 + 661376). Then it was incubated for 4 h at 37 °C in LB with 100 µg/mL ampicillin and 0.4 mM isopropyl β-D-1-thiogalactopyranoside (IPTG) to induce expression of dsRNA. Induced HT115(DE3) were seeded onto an RNAi-NGM agar plate with 0.4 mM IPTG and 100 µg/mL ampicillin. Synchronized pk1426(rrf-3) L1 worms were transferred to each RNAi-NGM plate.

2.4. Thermotolerance Assay

Thermotolerance assays were performed as previously described [40] with a slight modification. Synchronized embryos were prepared from eggs collected through treatment of adult worms with alkaline hypochlorite and sodium hydroxide. L2/L3 worms (n = 30) were cultured under continuous heat shock (33 °C). Dead worms were counted every 3 h until all the worms were dead. Worms that did not respond to touch with a platinum wire were counted as dead.

2.5. Immunoblot Analysis

The C09F5.1 protein was detected by immunoblotting using a standard protocol. Worms were sonicated in lysis buffer (50 mM HEPES pH 7.5, 75 mM sucrose, 6 mM MgCl2, 1% NP-40, complete mini protease inhibitor cocktail (Roche, Indianapolis, IN, USA)) and centrifuged at 4 °C at 17,300 g for 15 min to remove insoluble materials. Cleared total lysate was quantified by Bradford protein assay (B6916; SIGMA, St. Louis, MO, USA). Twenty micrograms of protein were resolved on 12% sodium dodecyl sulfate polyacrylamide gels and then transferred onto polyvinylidene difluoride (PVDF) membrane using a Mini Trans-Blot Electrophoretic Transfer Cell (Bio-Rad, Philadelphia, PA, USA). Immunoblotting of C09F5.1 was performed with polyclonal rabbit anti-C09F5.1 antibody (GenScript, Piscataway, NJ, USA) diluted 1:5000. Actin (used as a loading control) was detected with anti-β-actin antibody (C4, Santa Cruz Biotechnology, Dallas, TX, USA). Signals were developed using Luminata Forte Western HRP Substrate (Millipore, Billerica, MA, USA). To identify beta-amyloid (1-42) (Aβ42) oligomer species in transgenic worms, immunoblotting analysis was performed as described in reference [41]. Briefly, quantified lysates were separated by Tris-tricine SDS-PAGE (13% polyacrylamide) and the PVDF membranes were boiled in PBS for 3 min after the transfer. The blotted membranes were probed with monoclonal mouse anti-Aβ (1-16) antibody (6E10, Covance, Dedham, MA, USA) in 5% nonfat milk.

2.6. Immunoprecipitation of C09F5.1 and Aβ42 in 293T Cells

HEK-293T cells transfected with human influenza hemagglutinin (HA)-tagged C09F5.1 variant and Aβ42-GFP were sonicated in immunoprecipitation buffer (50 mM Tris-HCl pH 7.5, 150 mM NaCl, 10% glycerol, 1% NP-40, 1 mM EDTA, complete protease inhibitor cocktail (Roche)), and then centrifuged at 17,300 g for 10 min at 4 °C to remove insoluble materials. Protein concentrations of cleared lysates were determined by using the Bradford assay. Each lysate (500 µg of total protein) was pre-cleared at 4 °C for 1 h with normal rabbit IgG and protein G resin (P3296; SIGMA). Cleared lysates were incubated with mouse monoclonal anti-HA antibody (F-7, Santa Cruz Biotechnology) at 4 °C for 12 h followed by incubation with protein G resin at 4 °C for 4 h. Immunoprecipitated samples were washed four times with wash buffer (50 mM Tris-HCl pH 7.5, 150 mM NaCl, 1% NP-40, 1 mM EDTA) and mixed with 2× SDS sample buffer. Samples were boiled and analyzed by immunoblotting analysis.

2.7. Aβ42 Paralysis Assay and Thioflavin T Staining

Synchronized transgenic worms were maintained at 16 °C until the L3 stage and then transferred to 25 °C to induce the expression of Aβ42 peptide and C09F5.1 variants in body wall muscle cells. Paralyzed worms, which are defined as those that did not roll over when touched with a platinum wire pick, were scored every day until all the worms were paralyzed. Thioflavin T staining was performed to detect Aβ42 aggregates in the body wall muscle. Samples prepared for the Aβ42 paralysis assay were washed with M9 and fixed with 4% formaldehyde (in PBS) at 4 °C for 24 h. The fixed samples were permeabilized overnight at 37 °C in 125 mM Tris-HCl (pH 7.5), 1% Triton X-100, and 5% β-mercaptoethanol. Then the samples were stained with 0.125% thioflavin T (SIGMA) in 50% ethanol for 2 min. The worms were de-stained with sequential ethanol washes (50%, 75%, 90%, 75%, and 50% v/v), washed with M9 buffer containing 1% Triton X-100, and then mounted on slides for microscopy. Fluorescence images of amyloid aggregates in the body wall muscles were obtained by confocal microscopy (DM4000; Leica, Wetzlar, Germany).

2.8. Detection of UPR Activity Using the ERAI System

UPR activity was detected in HEK-293T transfected with the ERAI system. pERAI plasmid DNA was constructed by using molecular cloning techniques as previously described [42] with slight modifications. The FLAG-tagged xbp1ΔDBD fragment was fused with the mVenus coding sequence in the pCAX backbone plasmid to yield pCAX-ERAI. HEK-293T cells were transfected with pCAX-ERAI and selected with G418. To confirm that the ERAI system functioned properly, tunicamycin was used as a positive control for inducing ER stress. The degree of UPR activation was determined by measuring the amount of XBP1ΔDBD-mVenus in immunoblots with the anti-GFP antibody.

2.9. Subcellular Localization of C09F5.1 Variants in COS7

All plasmid DNA used in this experiment was prepared by molecular cloning. mCherry fused with C-terminal KDEL was used as an ER marker [43,44] and mCherry with the Golgi targeting sequence of B4GALT1 was used as a Golgi marker [45]. Plasmids containing C-terminal GFP–fused C09F5.1-FL, N-terminal domain (-NTD), C-terminal domain (-CTD), or -C455S and the subcellular localization marker were co-transfected into COS7 cells using PEI. Two days after transfection, fluorescence images were obtained on a confocal microscope equipped with a CCD camera.

3. Results

3.1. Characteristics of C09F5.1

The C09F5.1 gene was isolated by differential-display reverse transcription–PCR (ddRT-PCR) between wild-type N2 and a heat-sensitive mutant. The gene contains nine exons and encodes a predicted type II membrane protein of 570 aa including a 286 aa N-terminal cytosolic region, a 23 aa transmembrane domain, a 101 aa BRICHOS domain, and a 107 aa C-terminal region (Figure 1A–C). The C09F5.1 promoter contains three heat shock elements (HSEs; nGAAnnTTCn) at nucleotides −964 to −950 (cGAAaaTTCcaaac), −950 to −925 (tGAAttTTCtccaaa), and −730 to −721 (cGAActTTCg), which implies that it is induced by the heat shock response. As expected, the transcript level of C09F5.1 was stimulated by 33 °C heat shock treatment with the highest expression at stages L2 and L4 (Figure 1D). Proteins with high identity (78–86%) to C09F5.1 were found in six Caenorhabditis species, but no protein orthologue was found in non-nematode phyla. Multiple sequence alignment analysis between C09F5.1 and other BRICHOS domain-containing protein family members revealed that the C09F5.1 family constitutes a separate group and therefore represents a distinct subfamily (Supplementary Figure S1). In addition, when the amino acid sequences of C09F5.1 homologues are divided into the N- and C-termini, the amino acid identity was found to be higher in the C-terminal than in the N-terminal region, which was determined by ClustalW (Supplementary Table S1). The two cysteine residues conserved in BRICHOS domains are present (Supplementary Figure S2A) and two of the three exons encoding the BRICHOS domain were almost identical in Nematoda (Supplementary Figure S2B), which implies that the BRICHOS domain of C09F5.1 is evolutionarily well-conserved.

3.2. Expression of C09F5.1 and Localization of Its Product In Vivo

To elucidate the physiological function of C09F5.1, we studied the spatiotemporal expression pattern of C09F5.1 in C. elegans using a GFP reporter. About 5 kb of the upstream region (from -4471 bp upstream to +503 bp downstream of the transcription initiation site) is expected to contain the C09F5.1 promoter, which was cloned from genomic DNA and subcloned into pPD95.75 known as a promoter-less GFP expression vector (see Figure 2A). Expression of GFP under the control of the C09F5.1 promoter was observed through all developmental stages (see Figure 2B). In 3-fold embryos, GFP was localized in seam cells and hypodermal cells (see Figure 2B, Emb).
In the larval stage, strong expression was detected in the sensillar region (lip) (Figure 2C, Head), seam cells, vulval cells (Figure 2C, Midbody), intestinal cells (Figure 2C, Intestine), and tail neurons (Figure 2C, Tail). Expression in the hypodermal cells gradually decreased as the worms progressed to L3 and L4 and almost no expression was detected in the hypodermal cells of young adults (Figure 2B, L3, L4, and yAd). During vulva formation, GFP was detected in a subset of vulval cells (mainly vulA) (Figure 2D, L4) in L4. After completion of vulval development, overall GFP signal in the vulval region decreased and only persisted at the vulval junction (Figure 2D). These data suggest that C09F5.1 may be involved in developing and forming the vulva. This hypothesis is supported by a previous observation that RNAi knockdown of C09F5.1 in pk1426(rrf-3) results in a protruding vulva phenotype [46].
Because transcriptional fusion may not reflect the true expression pattern of the gene, we also generated a transgenic worm expressing C09F5.1-GFP under the control of the C09F5.1 promoter. For this purpose, C09F5.1 cDNA was subcloned into pPD95.75 containing the upstream region of C09F5.1 (−4471–+1) (Figure 2E), and then injected into gonad of wild-type N2. Even though GFP expression in the early larva stage (L1–L3) was lower for the fusion construct than the promoter-GFP construct described above, GFP expression in this transgenic worm exhibited patterns similar to those observed in PC09F5.1::GFP. C. elegans has six symmetrical ‘lips’ surrounding the mouth [47] and the sensillar region contains various neurons (six IL1s, six IL2s, two OLLs, four OLQs, and cephalic neurons) that play general roles in mechanosensation or chemosensation [48]. C09F5.1-GFP was localized in the six sensillar lips and in the head region in a neuron-like pattern (Figure 2F, Head). These results suggested that C09F5.1 might function in the sensory organs. In addition, C09F5.1-GFP was detected in the vulval junction (Figure 2F, Midbody) and the tail neuron (Figure 2F, Tail), which was also observed in the PC09F5.1:GFP transgenic worm.

3.3. C09F5.1-Dependent Thermotolerance and HSF-1-Dependent C09F5.1 Expression

Because C09F5.1 transcription was induced by heat shock and the gene was identified in a heat-sensitive mutant, we performed thermotolerance assays on L2/L3 worms at 33 °C. Worms in which C09F5.1 was knocked down by bacterial feeding of RNAi were more sensitive to heat shock (33 °C) than control worms harboring the empty vector (LT50(Con/Exp) = 1.66) (Figure 3A). In addition, worms with a deletion mutation in C09F5.1(ok2863) also died sooner than wild-type N2 under heat shock conditions (33 °C) (LT50(wt/mt) = 1.17) (Figure 3B). This shows that functional inactivation of C09F5.1 increases sensitivity to heat shock. However, the sensitivity was slightly lower in the deletion mutant, which suggests that other regions of the C09F5.1 protein were not affected by the deletion contribution of thermotolerance.
In C. elegans, induction of molecular chaperone proteins under various types of cellular stress is primarily regulated by HSF-1, a FOXO-family transcription factor (TF; DAF-16), or a Nrf family TF (SKN-1) [49,50]. Because SKN-1 regulates the oxidative stress response [51,52] and does not respond to heat shock treatment [53], we did not study it in the following experiment. To determine which TF induces the expression of C09F5.1 upon heat shock, we analyzed the expression pattern of C09F5.1 in worms harboring mutations in HSF-1 or DAF-16 (see Figure 3C). In both wild-type N2 and the daf-16(mu86) mutant, expression of C09F5.1 was immediately induced after heat shock at 33 °C for 1 hr and the protein levels gradually decreased as the worms recovered (see Figure 3C). By contrast, in the hsf-1(sy441) mutant, induction of C09F5.1 gene expression was delayed, which suggests that C09F5.1 expression depends on the HSF-1 pathway and that C09F5.1 has a chaperone function related to thermotolerance but not to other stresses.

3.4. N-Terminal-Dependent Interaction of C09F5.1 with Aβ42

Because the chaperone function of BRICHOS domain-containing proteins [27,54,55] reduces amyloid toxicity by inhibiting amyloid fibril formation [33,56], we examined the chaperone function of C09F5.1 in mammalian cells. First, we demonstrated that C09F5.1 interacts with amyloid-β peptide in co-transfected HEK-293T cells (Figure 4B). To assess the role of the BRICHOS domain in chaperonin function, we dissected C09F5.1 into two parts: The two parts are the cytosolic NTD and the CTD, which contains the BRICHOS domain. Unexpectedly, the C-terminal domain did not interact with beta-amyloid (1-42) protein (Aβ42)-GFP whereas the N-terminal domain did (see Figure 4C).

3.5. Amyloid Toxicity Assay in C. elegans Alzheimer’s Disease Model Expressing C09F5.1-NTD

In light of the interaction between the N-terminal domain of C09F5.1 (C09F5.1-NTD) and Aβ42 peptide in 293T, we further examined the relationship between these proteins in a C. elegans Alzheimer’s disease model [57] by performing amyloid toxicity tests. For this purpose, we generated transgenic worms derived from CL4176 (smg-1(cc546 ts) I; dvIs27 [myo-3/Aβ42 minigene + rol-6(su1006)]) expressing HA-tagged C09F5.1s (-FL, -NTD, or -CTD) in the body wall muscles. Synchronized transgenic worms were maintained at 16 °C until stage L2/L3 and then the temperature was increased to 25 °C (non-permissive temperature) for paralysis assays. Transgenic worms co-expressing Aβ42 and C09F5.1-NTD were more resistant to Aβ42 toxicity than CL4176 (parental strain) or worms co-expressing C09F5.1-CTD and Aβ42. Transgenic worms co-expressing Aβ42 and C09F5.1-FL were more severely paralyzed than CL4176. Paralysis of transgenic worms was not related to the accumulation of C09F5.1 itself (see Figure 5A). We then performed the thioflavin T staining assay to determine whether the delayed paralysis in transgenic worms co-expressing Aβ42 and C09F5.1-NTD was due to a reduction in the amount of Aβ42 oligomer. We observed lower levels of thioflavin T–positive aggregates in worms co-expressing Aβ42 and C09F5.1-NTD than in those expressing C09F5.1-FL or C09F5.1-CTD, which exhibited disorganization of actin filaments in the body wall muscle (see Figure 5B). Immunoblot analysis of worm lysates with the anti-Aβ antibody also revealed relatively low levels of Aβ42 oligomers in worms expressing C09F5.1-NTD (Figure 5C). This was similar to the results of the thioflavin T assay. These observations indicated that C09F5.1-NTD might be involved in decreasing toxicity of Aβ42 oligomers by binding to Aβ42. However, in contrast to previously reported BRICHOS domain-containing proteins in other species, the BRICHOS domain of C09F5.1 did not have chaperone activity.

3.6. Subcellular Localization and Unfolded Protein Response

Because one of the putative functions of the BRICHOS domain is to assist in targeting and secreting proteins [8], we examined the subcellular localization of GFP fusion proteins in COS7 cells (see Figure 6A). C09F5.1-NTD without the BRICHOS domain was mainly detected in the ER whereas both C09F5.1-FL and C09F5.1-CTD (which possess the BRICHOS domain) were observed largely in the Golgi. Mutation of one of the two conserved cysteine residues in the BRICHOS domain to serine (C455S) caused the GFP signal to accumulate in the ER. These results suggested that the intact BRICHOS domain including the two conserved cysteine residues are essential for normal trafficking of C09F5.1.
In CL4176, an Alzheimer’s disease model of C. elegans, abnormal human Aβ42 proteins are retained in the ER and retrotranslocated into cytoplasm via an interaction between Aβ42 and ER chaperones [58]. The reduction of Aβ42 toxicity (see Figure 4C) and ER localization of C09F5.1-NTD (see Figure 6A) suggest that C09F5.1-NTD might be related to the ER stress response. To investigate the relationship between C09F5.1 and the UPR, we used the ER stress–activated indicator (ERAI) system in mammalian cells [42]. First, we transfected ERAI stable cells with the indicated constructs and then measured the level of UPR activity in each sample by monitoring the level of XBP1ΔDBD-mVenus protein. Treatment with an ER stress inducer, tunicamycin, was used as a positive control. When C09F5.1-FL, -NTD or Aβ42 was expressed alone, the ER stress level was similar to that in the negative control (Figure 6B, lanes 2, 3; Supplementary Figure S3). On the other hand, when C09F5.1-NTD was co-expressed with Aβ42, UPR activity was similar to that in the positive control group (Figure 6B, lanes 4, 6). Interestingly, the morphology of cells treated with tunicamycin changed drastically whereas the morphology and viability of cells co-expressing C09F5.1-NTD and Aβ42 did not (data not shown). When C09F5.1-FL or the C-terminal region containing the BRICHOS domain (C09F5.1-CTD) was co-expressed with Aβ42, the UPR was activated very little or not at all (Figure 6B, lanes 5, 7). Because the C09F5.1-NTD interacts directly with Aβ42 and is localized in the ER and the expression of C09F5.1-NTD reduced the rates of paralysis in these worms (Figure 5A), these findings indicate that the complex of C09F5.1-NTD and Aβ42 activated the UPR, which decreased the cytotoxicity of the Aβ42 oligomer.

4. Discussion

The BRICHOS domain is present in many proteins from a wide range of species [8,9,10]. Most BRICHOS domain–containing proteins consist of a cytosolic N-terminal domain, a hydrophobic TM region, a linker region followed by the BRICHOS domain, and a C-terminal region. All of these entities are considered to be type II membrane proteins. The C09F5.1 gene identified by ddRT-PCR in a heat-sensitive mutant encodes a novel protein belonging to the BRICHOS family (Figure 1; Supplementary Figures S1 and S2). The similarity between this protein and other homologues at both the genomic DNA and protein structure levels suggested that C09F5.1 plays roles similar to those previously proposed for this protein family such as assistance in the secretion pathway, cellular protease activity, and chaperone-like functions.
The expression pattern and subcellular localization of a gene product give indirect information about the function of a gene. We found that the C09F5.1 protein was expressed in junctions between vulval toroids, junctions of cells surrounding sphincter muscle, and the six symmetrical lips of the sensillar region (see Figure 2). Because these are all sites where cells are constantly exposed to external environmental signals and stresses, the intercellular interactions in these regions must be tightly regulated. In particular, the spatial expression pattern of C09F5.1 was supported by a previous report that C09F5.1 knockdown causes a protruding vulva phenotype [46]. Gastrokine-1, a BRICHOS domain-containing protein, increases the tight junction proteins to maintain the integrity of intercellular junctions [59]. In addition, c-Jun N-terminal Kinase (JNK), a stress-activated protein kinase that is expected to phosphorylate Thr-280 in C09F5.1 (Supplementary Table S2) is also involved in regulating intercellular adhesion [60]. Therefore, C09F5.1 might play a role in regulating the integrity of cells under stress or changing environmental conditions. Based on the results shown in Figure 3, it is likely that C09F5.1 is involved in temperature stress responses.
Because one of the functions of BRICHOS domain–containing protein is chaperone-like activity, we examined the effects of C09F5.1 on cytotoxicity in mammalian cells (see Figure 4) and a C. elegans Alzheimer’s disease model (see Figure 5). However, we found that the BRICHOS domain of C09F5.1 (represented by C09F5.1-FL or C09F5.1-CTD) had no apparent chaperone function. Specifically, we observed no decrease in Aβ42-induced paralysis in CL4176 worms expressing the BRICHOS domain of C09F5.1. On the other hand, Aβ42-induced paralysis was delayed by co-expression of C09F5.1-NTD in CL4176 worms. In the presence of C09F5.1-NTD, Aβ42 induced ER stress, which activates the UPR, we detected an increase in alternative splicing of xbp-1 (see Figure 6B). However, this stress did not result in cell death (data not shown). Thus, C09F5.1-NTD might possess a chaperone-like function that decreases amyloid cytotoxicity by inhibiting fibril formation. The chaperone proteins accumulated following UPR activation might prevent Aβ42 from being turned to toxic aggregates or alternatively decrease Aβ42 synthesis by downregulating overall translation.
BRICHOS domain-containing proteins act as chaperones by binding to proteins with extensive β-sheet structure and preventing formation of amyloid-like fibrils [10,25,26,27,28,29]. The chaperone functions of BRICHOS domain-containing proteins such as ChM-I, BRI2, and CA11 depend on the cysteine-rich C-terminus [24,28] whereas that of lung SP-C resides in its 35 aa transmembrane domain [24,26]. However, the chaperone function of C09F5.1 resided in its N-terminal domain. In the C09F5.1(ok2863) mutant, which was more sensitive to heat shock than the wild-type N2, the C09F5.1 protein contains a deletion in the N-terminal region and lacks aa 76–137. Interestingly, this region overlaps almost completely with the intrinsically disordered region (IDR) in the N-terminus of C09F5.1. More than half of eukaryotic proteins have IDRs that do not form well-structured domains due to the lack of large hydrophobic amino acids (I, L, and V) [60,61,62,63]. The biological functions of IDRs have been classified into 28 distinct categories by Dunker and colleagues based on previous studies [64]. Broadly, these functional categories encompass molecular recognition, molecular assembly, protein modification, and entropic chain activities [63]. IDRs interact with macromolecules weakly and transiently, but more rapidly in comparison with well-organized domains [65,66,67]. This dynamic characteristic is effective for inhibiting aggregation or solubilization of protein aggregates [63]. These facts suggest that the C09F5.1 NTD slows down oligomerization by interacting with the Aβ42 monomer through its disordered region. Consistent with this idea, Aβ42 monomers were only observed in transgenic worms expressing C09F5.1-NTD (Figure 5C). Also, IDRs are easily accessible to small molecules or proteins and therefore help to ensure specific post-translational modifications (PTMs) associated with protein stability and subcellular localization [68,69]. Indeed, the IDR deleted in C09F5.1(ok2863) covers the N-glycosylation site and GSK3 phosphorylation recognition sites as well as Ser-83 targeted by c-JNK, which is likely to play an important role in thermotolerance. However, further studies are needed to determine how these PTMs influence thermotolerance.
Another proposed function of the BRICHOS domain-containing proteins is assistance in secretory transport [8]. Two major BRICHOS domain–containing proteins, BRI2 and proSP-C, are transported through the ER and Golgi to the plasma membrane and multi-vesicular bodies [12,70]. Deletion of a part of the BRICHOS domain of SP-C prevents transport to the Golgi [32] and altering certain amino acids in the BRICHOS domain of proSP-C guides the mutant protein to various intracellular locations [71]. Likewise, when one of the two cysteines in the BRICHOS domain of C09F5.1 was replaced with a serine, the mutant protein was retained in the ER whereas intact the C09F5.1-CTD–GFP fusion protein was localized in the Golgi (see Figure 6A). Therefore, although the BRICHOS domain of C09F5.1 does not interact with Aβ42 or function as a chaperone, it is essential for the proper subcellular localization of the protein.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4425/9/3/160/s1, Figure S1. Neighbor-joining unrooted phylogenetic tree of BRICHOS domain-containing proteins, Figure S2. High conservation of BRICHOS domain of C09F5.1 in Nematoda, Figure S3. UPR activation by C09F5.1-NTD in ERAI-293T cells, Table S1. Amino acid identity between C09F5.1 nematode homologues and ceC09F5.1, Table S2. Phosphorylation site prediction of C09F5.1 by c-Jun N-terminal kinases.

Acknowledgments

We are grateful to Andrew Fire (Stanford Univ.) and Joohong Ahnn (Hanyang Univ.) for kind gifts of C. elegans expression vectors. Some strains were provided by the CGC, which is funded by NIH Office of Research Infrastructure Programs (P40 OD010440).

Author Contributions

Myungchul Song and Chingtack Han conceived and designed the experiments. Myungchul Song performed most of the experiments. Kyunghee Song carried out RT-PCR and transcriptional fusion assay. Sunghee Kim performed translational fusion assays in worms. Jinyoung Lee conducted ddRT-PCR assay. Myungchul Song wrote the paper and Sueyun Hwang and Chingtack Han revised the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bukau, B.; Weissman, J.; Horwich, A. Molecular chaperones and protein quality control. Cell 2006, 125, 443–451. [Google Scholar] [CrossRef] [PubMed]
  2. Pallepati, P.; Averill-Bates, D.A. Activation of ER stress and apoptosis by hydrogen peroxide in HeLa cells: Protective role of mild heat preconditioning at 40°C. Biochim. Biophys. Acta 2011, 1813, 1987–1999. [Google Scholar] [CrossRef] [PubMed]
  3. Wang, M.; Xu, Q.; Yuan, M. The unfolded protein response induced by salt stress in Arabidopsis. Methods Enzymol 2011, 489, 319–328. [Google Scholar] [PubMed]
  4. Homma, T.; Fujii, J. Heat stress promotes the down-regulation of IRE1α in cells: An atypical modulation of the UPR pathway. Exp. Cell Res. 2016, 349, 128–138. [Google Scholar] [CrossRef] [PubMed]
  5. Ellis, R.J. Molecular chaperones: Assisting assembly in addition to folding. Trends Biochem. Sci. 2006, 31, 395–401. [Google Scholar] [CrossRef] [PubMed]
  6. Ellis, R.J.; van der Vies, S.M. Molecular chaperones. Annu. Rev. Biochem. 1991, 60, 321–347. [Google Scholar] [CrossRef] [PubMed]
  7. Evstigneeva, Z.; Solov’eva, N.; Sidel’nikova, L. Structures and functions of chaperones and chaperonins (review). Appl. Biochem. Microbiol. 2001, 37, 1–13. [Google Scholar] [CrossRef]
  8. Sánchez-Pulido, L.; Devos, D.; Valencia, A. BRICHOS: A conserved domain in proteins associated with dementia, respiratory distress and cancer. Trends Biochem. Sci. 2002, 27, 329–332. [Google Scholar] [CrossRef]
  9. Hedlund, J.; Johansson, J.; Persson, B. BRICHOS—A superfamily of multidomain proteins with diverse functions. BMC Res. Notes 2009, 2, 180. [Google Scholar] [CrossRef] [PubMed]
  10. Willander, H.; Askarieh, G.; Landreh, M.; Westermark, P.; Nordling, K.; Keränen, H.; Hermansson, E.; Hamvas, A.; Nogee, L.M.; Bergman, T. High-resolution structure of a BRICHOS domain and its implications for anti-amyloid chaperone activity on lung surfactant protein c. Proc. Natl. Acad. Sci. USA 2012, 109, 2325–2329. [Google Scholar] [CrossRef] [PubMed]
  11. Del Campo, M.; Teunissen, C.E. Role of BRI2 in dementia. J. Alzheimer’s Dis. 2014, 40, 481–494. [Google Scholar]
  12. Matsuda, S.; Matsuda, Y.; Snapp, E.L.; D’Adamio, L. Maturation of BRI2 generates a specific inhibitor that reduces APP processing at the plasma membrane and in endocytic vesicles. Neurobiol. Aging 2011, 32, 1400–1408. [Google Scholar] [CrossRef] [PubMed]
  13. Aoyama, T.; Okamoto, T.; Nagayama, S.; Nishijo, K.; Ishibe, T.; Yasura, K.; Tsuboyama, T.; Nakayama, T.; Nakashima, Y.; Nakamura, T. Expression of the chondromodulin-I gene in chondrosarcomas. Cancer Lett. 2004, 204, 61–68. [Google Scholar] [CrossRef] [PubMed]
  14. Hayami, T.; Shukunami, C.; Mitsui, K.; Endo, N.; Tokunaga, K.; Kondo, J.; Takahashi, H.E.; Hiraki, Y. Specific loss of chondromodulin-I gene expression in chondrosarcoma and the suppression of tumor angiogenesis and growth by its recombinant protein in vivo. FEBS Lett. 1999, 458, 436–440. [Google Scholar] [CrossRef]
  15. Haitsma, J.J.; Papadakos, P.J.; Lachmann, B. Surfactant therapy for acute lung injury/acute respiratory distress syndrome. Curr. Opin. Crit. Care 2004, 10, 18–22. [Google Scholar] [CrossRef] [PubMed]
  16. Soraisham, A.; Tierney, A.; Amin, H. Neonatal respiratory failure associated with mutation in the surfactant protein C gene. J. Perinatol. 2006, 26, 67–70. [Google Scholar] [CrossRef] [PubMed]
  17. Martin, L.; Fluhrer, R.; Reiss, K.; Kremmer, E.; Saftig, P.; Haass, C. Regulated intramembrane proteolysis of BRI2 (Itm2b) by ADAM10 and SPPL2a/SPPL2b. J. Biol. Chem. 2008, 283, 1644–1652. [Google Scholar] [CrossRef] [PubMed]
  18. Dolfe, L.; Winblad, B.; Johansson, J.; Presto, J. BRICHOS binds to a designed amyloid-forming β-protein and reduces proteasomal inhibition and aggresome formation. Biochem. J. 2016, 473, 167–178. [Google Scholar] [CrossRef] [PubMed]
  19. Kihara, M.; Kiyoshima, T.; Nagata, K.; Wada, H.; Fujiwara, H.; Hasegawa, K.; Someya, H.; Takahashi, I.; Sakai, H. Itm2a expression in the developing mouse first lower molar, and the subcellular localization of Itm2a in mouse dental epithelial cells. PLoS ONE 2014, 9, e103928. [Google Scholar] [CrossRef] [PubMed]
  20. Azizan, A.; Holaday, N.; Neame, P.J. Post-translational processing of bovine chondromodulin-I. J. Biol. Chem. 2001, 276, 23632–23638. [Google Scholar] [CrossRef] [PubMed]
  21. Beers, M.F.; Lomax, C.A.; Russo, S.J. Synthetic processing of surfactant protein C by alevolar epithelial cells the COOH terminus of proSP-C is required for post-translational targeting and proteolysis. J. Biol. Chem. 1998, 273, 15287–15293. [Google Scholar] [CrossRef] [PubMed]
  22. Kim, S.-H.; Wang, R.; Gordon, D.J.; Bass, J.; Steiner, D.F.; Lynn, D.G.; Thinakaran, G.; Meredith, S.C.; Sisodia, S.S. Furin mediates enhanced production of fibrillogenic ABri peptides in familial British dementia. Nat. Neurosci. 1999, 2, 984–988. [Google Scholar] [CrossRef] [PubMed]
  23. Mitsui, S.; Osako, Y.; Yuri, K. Mental retardation-related protease, motopsin (prss12), binds to the BRICHOS domain of the integral membrane protein 2a. Cell Biol. Int. 2014, 38, 117–123. [Google Scholar] [CrossRef] [PubMed]
  24. Gustafsson, M.; Thyberg, J.; Näslund, J.; Eliasson, E.; Johansson, J. Amyloid fibril formation by pulmonary surfactant protein C. FEBS Lett. 1999, 464, 138–142. [Google Scholar] [CrossRef]
  25. Knight, S.D.; Presto, J.; Linse, S.; Johansson, J. The BRICHOS domain, amyloid fibril formation, and their relationship. Biochemistry 2013, 52, 7523–7531. [Google Scholar] [CrossRef] [PubMed]
  26. Landreh, M.; Rising, A.; Presto, J.; Jörnvall, H.; Johansson, J. Specific chaperones and regulatory domains in control of amyloid formation. J. Biol. Chem. 2015, 290, 26430–26436. [Google Scholar] [CrossRef] [PubMed]
  27. Peng, S.; Fitzen, M.; Jörnvall, H.; Johansson, J. The extracellular domain of Bri2 (ITM2B) binds the abri peptide (1–23) and amyloid β-peptide (aβ1-40): Implications for Bri2 effects on processing of amyloid precursor protein and Aβ aggregation. Biochem. Biophys. Res. Commun. 2010, 393, 356–361. [Google Scholar] [CrossRef] [PubMed]
  28. Poska, H.; Haslbeck, M.; Kurudenkandy, F.R.; Hermansson, E.; Chen, G.; Kostallas, G.; Abelein, A.; Biverstål, H.; Crux, S.; Fisahn, A. Dementia-related Bri2 BRICHOS is a versatile molecular chaperone that efficiently inhibits Aβ42 toxicity in Drosophila. Biochem. J. 2016, 473, 3683–3704. [Google Scholar] [CrossRef] [PubMed]
  29. Willander, H.; Hermansson, E.; Johansson, J.; Presto, J. BRICHOS domain associated with lung fibrosis, dementia and cancer–a chaperone that prevents amyloid fibril formation? FEBS J. 2011, 278, 3893–3904. [Google Scholar] [CrossRef] [PubMed]
  30. Kim, J.; Miller, V.M.; Levites, Y.; West, K.J.; Zwizinski, C.W.; Moore, B.D.; Troendle, F.J.; Bann, M.; Verbeeck, C.; Price, R.W. Bri2 (ITM2B) inhibits Aβ deposition in vivo. J. Neurosci. 2008, 28, 6030–6036. [Google Scholar] [CrossRef] [PubMed]
  31. Glasser, S.; Baatz, J.; Korfhagen, T. Surfactant protein-C in the maintenance of lung integrity and function. J. Allergy Ther. 2011, 7, 001. [Google Scholar] [CrossRef]
  32. Mulugeta, S.; Nguyen, V.; Russo, S.J.; Muniswamy, M.; Beers, M.F. A surfactant protein C precursor protein BRICHOS domain mutation causes endoplasmic reticulum stress, proteasome dysfunction, and caspase 3 activation. Am. J. Respir. Cell Mol. Biol. 2005, 32, 521–530. [Google Scholar] [CrossRef] [PubMed]
  33. Nerelius, C.; Gustafsson, M.; Nordling, K.; Larsson, A.; Johansson, J. Anti-amyloid activity of the C-terminal domain of proSP-C against amyloid β-peptide and medin. Biochemistry 2009, 48, 3778–3786. [Google Scholar] [CrossRef] [PubMed]
  34. Stiernagle, T. Maintenance of C. elegans. C. elegans 1999, 2, 51–67. [Google Scholar] [CrossRef] [PubMed]
  35. Mello, C.C.; Kramer, J.M.; Stinchcomb, D.; Ambros, V. Efficient gene transfer in C. elegans: Extrachromosomal maintenance and integration of transforming sequences. EMBO J. 1991, 10, 3959–3970. [Google Scholar] [PubMed]
  36. Krogh, A.; Larsson, B.; Von Heijne, G.; Sonnhammer, E.L. Predicting transmembrane protein topology with a hidden markov model: application to complete genomes1. J. Mol. Biol. 2001, 305, 567–580. [Google Scholar] [CrossRef] [PubMed]
  37. Pagni, M.; Ioannidis, V.; Cerutti, L.; Zahn-Zabal, M.; Jongeneel, C.V.; Hau, J.; Martin, O.; Kuznetsov, D.; Falquet, L. MyHits: improvements to an interactive resource for analyzing protein sequences. Nucleic Acids Res. 2007, 35, W433–W437. [Google Scholar] [CrossRef] [PubMed]
  38. Kamath, R.S.; Martinez-Campos, M.; Zipperlen, P.; Fraser, A.G.; Ahringer, J. Effectiveness of specific RNA-mediated interference through ingested double-stranded RNA in Caenorhabditis elegans. Genome Biol. 2000, 2, research0002. [Google Scholar] [CrossRef] [PubMed]
  39. Timmons, L.; Fire, A. Specific interference by ingested dsRNA. Nature 1998, 395, 854. [Google Scholar] [CrossRef] [PubMed]
  40. Hsu, A.L.; Murphy, C.T.; Kenyon, C. Regulation of aging and age-related disease by DAF-16 and heat-shock factor. Sci. Signal. 2003, 300, 1142–1145. [Google Scholar] [CrossRef] [PubMed]
  41. Wu, Y.; Wu, Z.; Butko, P.; Christen, Y.; Lambert, M.P.; Klein, W.L.; Link, C.D.; Luo, Y. Amyloid-β-induced pathological behaviors are suppressed by Ginkgo biloba extract EGb 761 and ginkgolides in transgenic Caenorhabditis elegans. J. Neurosci. 2006, 26, 13102–13113. [Google Scholar] [CrossRef] [PubMed]
  42. Iwawaki, T.; Akai, R.; Kohno, K.; Miura, M. A transgenic mouse model for monitoring endoplasmic reticulum stress. Nat. Med. 2004, 10, 98–102. [Google Scholar] [CrossRef] [PubMed]
  43. Fliegel, L.; Burns, K.; MacLennan, D.; Reithmeier, R.; Michalak, M. Molecular cloning of the high affinity calcium-binding protein (calreticulin) of skeletal muscle sarcoplasmic reticulum. J. Biol. Chem. 1989, 264, 21522–21528. [Google Scholar] [PubMed]
  44. Pelham, H.R. The dynamic organisation of the secretory pathway. Cell Struct. Funct. 1996, 21, 413–419. [Google Scholar] [CrossRef] [PubMed]
  45. Llopis, J.; McCaffery, J.M.; Miyawaki, A.; Farquhar, M.G.; Tsien, R.Y. Measurement of cytosolic, mitochondrial, and Golgi PH in single living cells with green fluorescent proteins. Proc. Natl. Acad. Sci. USA 1998, 95, 6803–6808. [Google Scholar] [CrossRef] [PubMed]
  46. Rual, J.-F.; Ceron, J.; Koreth, J.; Hao, T.; Nicot, A.-S.; Hirozane-Kishikawa, T.; Vandenhaute, J.; Orkin, S.H.; Hill, D.E.; van den Heuvel, S. Toward improving Caenorhabditis elegans phenome mapping with an orfeome-based RNAi library. Genome Res. 2004, 14, 2162–2168. [Google Scholar] [CrossRef] [PubMed]
  47. Hall, D.H.; Altun, Z.F. Introduction to C. elegans anatomy. C. elegans Atlas; Cold Spring Harbor Laboratory Press: Cold Spring Harbor, New York, NY, USA, 2008; pp. 1–15. [Google Scholar]
  48. Ward, S.; Thomson, N.; White, J.G.; Brenner, S. Electron microscopical reconstruction of the anterior sensory anatomy of the nematode Caenorhabditis elegans. J. Comp. Neurol. 1975, 160, 313–337. [Google Scholar] [CrossRef] [PubMed]
  49. Glover-Cutter, K.M.; Lin, S.; Blackwell, T.K. Integration of the unfolded protein and oxidative stress responses through SKN-1/NRF. PLoS Genet. 2013, 9, e1003701. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Mertenskötter, A.; Keshet, A.; Gerke, P.; Paul, R.J. The p38 MAPK PMK-1 shows heat-induced nuclear translocation, supports chaperone expression, and affects the heat tolerance of Caenorhabditis elegans. Cell Stress Chaperones 2013, 18, 293–306. [Google Scholar] [CrossRef] [PubMed]
  51. Pitoniak, A.; Bohmann, D. Mechanisms and functions of NRF2 signaling in Drosophila. Free Radic. Biol. Med. 2015, 88, 302–313. [Google Scholar] [CrossRef] [PubMed]
  52. Sykiotis, G.P.; Bohmann, D. Stress-activated cap’n’collar transcription factors in aging and human disease. Sci. Signal. 2010, 3, re3. [Google Scholar] [CrossRef] [PubMed]
  53. Crombie, T.A.; Tang, L.; Choe, K.P.; Julian, D. Inhibition of the oxidative stress response by heat stress in Caenorhabditis elegans. J. Exp. Biol. 2016, 219, 2201–2211. [Google Scholar] [CrossRef] [PubMed]
  54. Johansson, H.; Eriksson, M.; Nordling, K.; Presto, J.; Johansson, J. The BRICHOS domain of prosurfactant protein C can hold and fold a transmembrane segment. Protein Sci. 2009, 18, 1175–1182. [Google Scholar] [CrossRef] [PubMed]
  55. Altieri, F.; Di Stadio, C.S.; Severino, V.; Sandomenico, A.; Minopoli, G.; Miselli, G.; di Maro, A.; Ruvo, M.; Chambery, A.; Quagliariello, V. Anti-amyloidogenic property of human gastrokine 1. Biochimie 2014, 106, 91–100. [Google Scholar] [CrossRef] [PubMed]
  56. Fotinopoulou, A.; Tsachaki, M.; Vlavaki, M.; Poulopoulos, A.; Rostagno, A.; Frangione, B.; Ghiso, J.; Efthimiopoulos, S. BRI2 interacts with amyloid precursor protein (APP) and regulates amyloid β (Aβ) production. J. Biol. Chem. 2005, 280, 30768–30772. [Google Scholar] [CrossRef] [PubMed]
  57. Link, C.D.; Taft, A.; Kapulkin, V.; Duke, K.; Kim, S.; Fei, Q.; Wood, D.E.; Sahagan, B.G. Gene expression analysis in a transgenic Caenorhabditis elegans Alzheimer’s disease model. Neurobiol. Aging 2003, 24, 397–413. [Google Scholar] [CrossRef]
  58. Fonte, V.; Kapulkin, W.J.; Taft, A.; Fluet, A.; Friedman, D.; Link, C.D. Interaction of intracellular β amyloid peptide with chaperone proteins. Proc. Natl. Acad. Sci. USA 2002, 99, 9439–9444. [Google Scholar] [CrossRef] [PubMed]
  59. Walsh-Reitz, M.M.; Huang, E.F.; Musch, M.W.; Chang, E.B.; Martin, T.E.; Kartha, S.; Toback, F.G. AMP-18 protects barrier function of colonic epithelial cells: Role of tight junction proteins. Am. J. Physiol. Gastrointest. Liver Physiol. 2005, 289, G163–G171. [Google Scholar] [CrossRef] [PubMed]
  60. Lee, M.-H.; Padmashali, R.; Koria, P.; Andreadis, S.T. JNK regulates binding of α-catenin to adherens junctions and cell-cell adhesion. FASEB J. 2011, 25, 613–623. [Google Scholar] [CrossRef] [PubMed]
  61. Dunker, A.K.; Lawson, J.D.; Brown, C.J.; Williams, R.M.; Romero, P.; Oh, J.S.; Oldfield, C.J.; Campen, A.M.; Ratliff, C.M.; Hipps, K.W. Intrinsically disordered protein. J. Mol. Graph. Model. 2001, 19, 26–59. [Google Scholar] [CrossRef]
  62. Dunker, A.K.; Romero, P.; Obradovic, Z.; Garner, E.C.; Brown, C.J. Intrinsic protein disorder in complete genomes. Genome Inf. 2000, 11, 161–171. [Google Scholar]
  63. Van Der Lee, R.; Buljan, M.; Lang, B.; Weatheritt, R.J.; Daughdrill, G.W.; Dunker, A.K.; Fuxreiter, M.; Gough, J.; Gsponer, J.; Jones, D.T. Classification of intrinsically disordered regions and proteins. Chem. Rev. 2014, 114, 6589–6631. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Dunker, A.K.; Brown, C.J.; Lawson, J.D.; Iakoucheva, L.M.; Obradović, Z. Intrinsic disorder and protein function. Biochemistry 2002, 41, 6573–6582. [Google Scholar] [CrossRef] [PubMed]
  65. Kriwacki, R.W.; Hengst, L.; Tennant, L.; Reed, S.I.; Wright, P.E. Structural studies of p21Waf1/Cip1/Sdi1 in the free and Cdk2-bound state: Conformational disorder mediates binding diversity. Proc. Natl. Acad. Sci. USA 1996, 93, 11504–11509. [Google Scholar] [CrossRef] [PubMed]
  66. Wright, P.E.; Dyson, H.J. Intrinsically unstructured proteins: Re-assessing the protein structure-function paradigm. J. Mol. Biol. 1999, 293, 321–331. [Google Scholar] [CrossRef] [PubMed]
  67. Dyson, H.J.; Wright, P.E. Intrinsically unstructured proteins and their functions. Nat. Rev. Mol. Cell Biol. 2005, 6, 197–208. [Google Scholar] [CrossRef] [PubMed]
  68. Diella, F.; Haslam, N.; Chica, C.; Budd, A.; Michael, S.; Brown, N.P.; Travé, G.; Gibson, T.J. Understanding eukaryotic linear motifs and their role in cell signaling and regulation. Front. Biosci. 2008, 13, 6580–6603. [Google Scholar] [CrossRef] [PubMed]
  69. Galea, C.A.; Wang, Y.; Sivakolundu, S.G.; Kriwacki, R.W. Regulation of cell division by intrinsically unstructured proteins: Intrinsic flexibility, modularity, and signaling conduits. Biochemistry 2008, 47, 7598–7609. [Google Scholar] [CrossRef] [PubMed]
  70. Weaver, T.E. Synthesis, processing and secretion of surfactant proteins B and C. Biochim. Biophys. Acta (BBA) Mol. Basis Dis. 1998, 1408, 173–179. [Google Scholar] [CrossRef]
  71. Mulugeta, S.; Maguire, J.A.; Newitt, J.L.; Russo, S.J.; Kotorashvili, A.; Beers, M.F. Misfolded BRICHOS SP-C mutant proteins induce apoptosis via caspase-4-and cytochrome C-related mechanisms. Am. J. Physiol. Lung Cell. Mol. Physiol. 2007, 293, L720–L729. [Google Scholar] [CrossRef] [PubMed]
Genes 09 00160 g001 550

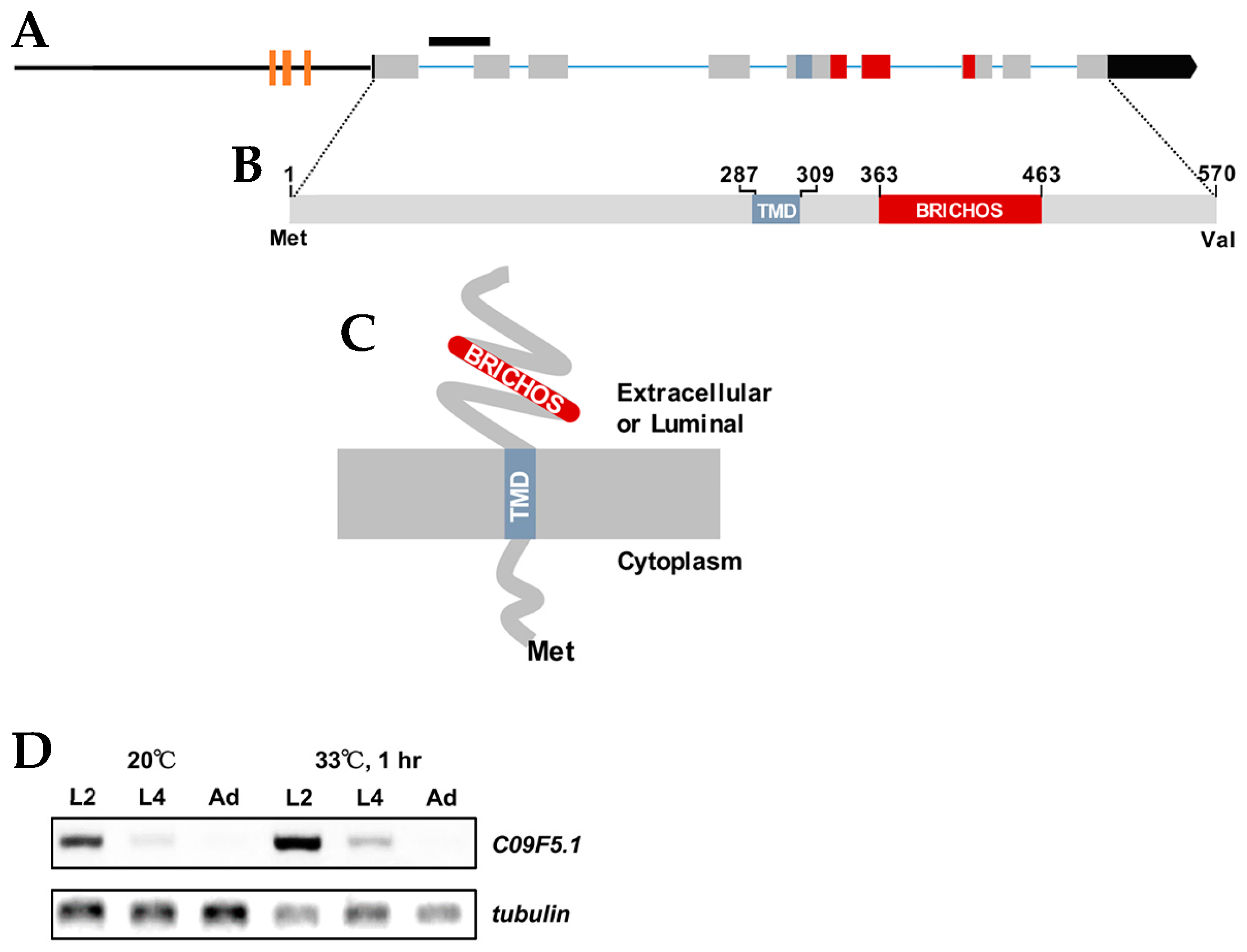

Figure 1. C09F5.1 gene and its encoded protein. (A) C09F5.1 gene structure. The black bar indicates the deletion site in the C09F5.1(ok2863) mutant VC2139 strain. Brown boxes indicate heat shock elements (HSEs) (nGAAnnTTCn) at nucleotides −964 to −950 (cGAAaaTTCcaaac), −950 to −925 (tGAAttTTCtccaaa), and −730 to −721 (cGAActTTCg). (B) C09F5.1 protein. TMD: transmembrane domain. (C) Predicted membrane topology of C09F5.1 protein. (D) Transcript levels of C09F5.1. Total RNA was isolated from synchronized N2 at each growth stage under normal growth temperature or heat stress. The reverse transcription (RT)-PCR product of total RNA was amplified with C09F5.1-specific primers. β-tubulin was used as an internal loading control. TMD: Transmembrane domain.
Figure 1. C09F5.1 gene and its encoded protein. (A) C09F5.1 gene structure. The black bar indicates the deletion site in the C09F5.1(ok2863) mutant VC2139 strain. Brown boxes indicate heat shock elements (HSEs) (nGAAnnTTCn) at nucleotides −964 to −950 (cGAAaaTTCcaaac), −950 to −925 (tGAAttTTCtccaaa), and −730 to −721 (cGAActTTCg). (B) C09F5.1 protein. TMD: transmembrane domain. (C) Predicted membrane topology of C09F5.1 protein. (D) Transcript levels of C09F5.1. Total RNA was isolated from synchronized N2 at each growth stage under normal growth temperature or heat stress. The reverse transcription (RT)-PCR product of total RNA was amplified with C09F5.1-specific primers. β-tubulin was used as an internal loading control. TMD: Transmembrane domain.
Genes 09 00160 g001
Genes 09 00160 g002 550
Figure 2. C09F5.1 expression and localization during C. elegans development. (A) C09F5.1 promoter::GFP reporter construct. The upstream region of C09F5.1 (−4471–+503) was cloned from N2 genomic DNA and fused with GFP. (B) Temporal expression pattern of C09F5.1 promoter::GFP. GFP was detected by fluorescence microscopy throughout development from embryo to adult worm. Developmental stages are displayed on the upper left. Asterisk indicates the vulva. Emb: embryo. (C) Spatial expression patterns of C09F5.1 promoter::GFP. GFP was expressed in the sensillar region (Head, blue arrow), seam cells (Head, Midbody and Tail, arrowhead), vulval cells (Midbody, asterisk), intestinal cells (Intestine, blue arrow head), and a neuron-like cell (Tail, white arrow) of a L4-stage worm. (D) Temporal expression pattern of GFP in the vulval region. Developmental stages are indicated on the upper left. yAd: young adult. (E) C09F5.1-GFP fusion construct. The putative promoter region of C09F5.1 (−4471–+1) was ligated to the C09F5.1 cDNA sequence and subcloned into pPD95.75 (promoter-less GFP reporter vector) to yield a GFP fusion protein. (F) Spatial expression pattern of C09F5.1-GFP fusion protein. Wild-type N2 was transformed with C09F5.1p::C09F5.1::GFP and the rol-6 (su1006) selection marker by microinjection. GFP was detected in young adult worms by fluorescence microscopy. C09F5.1-GFP was localized at the sensillar region (Head, white square box), head neurons (Head, asterisk), the vulval junction (Midbody, white square box), the tail neuron (Tail, asterisk), and the junction of cells around the sphincter muscle (Tail, arrowhead). Inserts show enlargements of boxed areas. CDS: Coding sequence.
Figure 2. C09F5.1 expression and localization during C. elegans development. (A) C09F5.1 promoter::GFP reporter construct. The upstream region of C09F5.1 (−4471–+503) was cloned from N2 genomic DNA and fused with GFP. (B) Temporal expression pattern of C09F5.1 promoter::GFP. GFP was detected by fluorescence microscopy throughout development from embryo to adult worm. Developmental stages are displayed on the upper left. Asterisk indicates the vulva. Emb: embryo. (C) Spatial expression patterns of C09F5.1 promoter::GFP. GFP was expressed in the sensillar region (Head, blue arrow), seam cells (Head, Midbody and Tail, arrowhead), vulval cells (Midbody, asterisk), intestinal cells (Intestine, blue arrow head), and a neuron-like cell (Tail, white arrow) of a L4-stage worm. (D) Temporal expression pattern of GFP in the vulval region. Developmental stages are indicated on the upper left. yAd: young adult. (E) C09F5.1-GFP fusion construct. The putative promoter region of C09F5.1 (−4471–+1) was ligated to the C09F5.1 cDNA sequence and subcloned into pPD95.75 (promoter-less GFP reporter vector) to yield a GFP fusion protein. (F) Spatial expression pattern of C09F5.1-GFP fusion protein. Wild-type N2 was transformed with C09F5.1p::C09F5.1::GFP and the rol-6 (su1006) selection marker by microinjection. GFP was detected in young adult worms by fluorescence microscopy. C09F5.1-GFP was localized at the sensillar region (Head, white square box), head neurons (Head, asterisk), the vulval junction (Midbody, white square box), the tail neuron (Tail, asterisk), and the junction of cells around the sphincter muscle (Tail, arrowhead). Inserts show enlargements of boxed areas. CDS: Coding sequence.
Genes 09 00160 g002
Genes 09 00160 g003 550

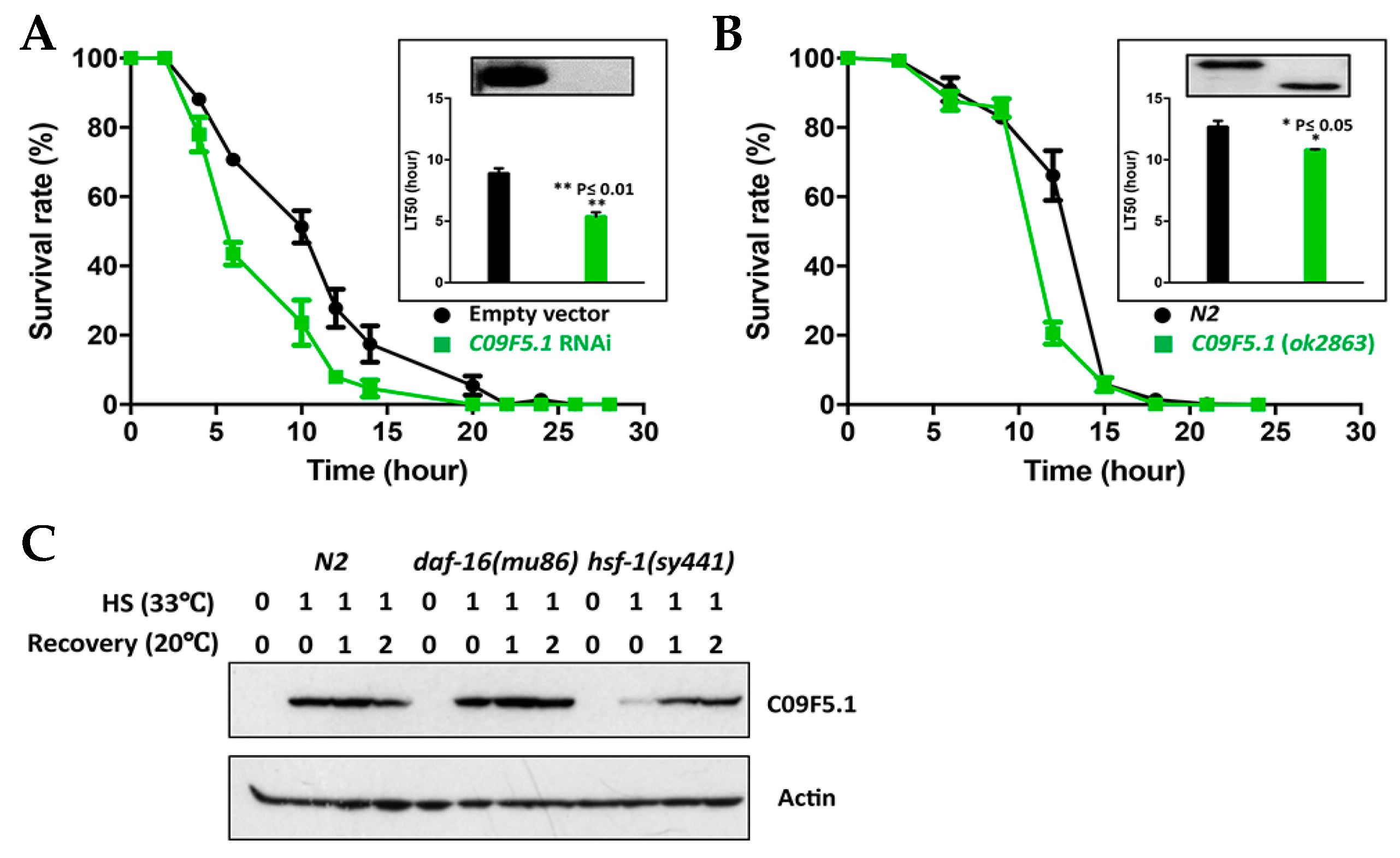

Figure 3. Contribution of C09F5.1 to thermotolerance, and HSF-1–dependent expression of C09F5.1. (A,B) Thermotolerance assay. Synchronized rrf-3(pk1426) were fed bacteria expressing C09F5.1 dsRNA. Worms grown to the L3 stage were exposed to 33 °C and observed for movement every 3 hr. The C09F5.1(ok2863) mutant was also tested in the same manner. The insert in the graph shows an immunoblot for C09F5.1 in each worm along with the median Lethal Time (LT50) value. Data represent means ± SEM (20 worms/plate, three plates). Three independent experiments were performed and yielded consistent results. (C) C09F5.1 expression in transcription factor mutants and protein levels during the recovery period. Synchronized L3 worms were recovered at 20 °C after exposure to 33 °C for the indicated times. Worm lysates prepared from each strain were quantified by the Bradford assay. Equal amounts of protein were separated by Tris-glycine SDS-PAGE and immunoblotted with anti-C09F5.1 antibody. Anti-β-actin antibody was used to detect actin (loading control). dsRNA: Double-strand RNA; RNAi: RNA Interference; SEM: Standard error of the mean; HSF: Heat shock transcription factor.
Figure 3. Contribution of C09F5.1 to thermotolerance, and HSF-1–dependent expression of C09F5.1. (A,B) Thermotolerance assay. Synchronized rrf-3(pk1426) were fed bacteria expressing C09F5.1 dsRNA. Worms grown to the L3 stage were exposed to 33 °C and observed for movement every 3 hr. The C09F5.1(ok2863) mutant was also tested in the same manner. The insert in the graph shows an immunoblot for C09F5.1 in each worm along with the median Lethal Time (LT50) value. Data represent means ± SEM (20 worms/plate, three plates). Three independent experiments were performed and yielded consistent results. (C) C09F5.1 expression in transcription factor mutants and protein levels during the recovery period. Synchronized L3 worms were recovered at 20 °C after exposure to 33 °C for the indicated times. Worm lysates prepared from each strain were quantified by the Bradford assay. Equal amounts of protein were separated by Tris-glycine SDS-PAGE and immunoblotted with anti-C09F5.1 antibody. Anti-β-actin antibody was used to detect actin (loading control). dsRNA: Double-strand RNA; RNAi: RNA Interference; SEM: Standard error of the mean; HSF: Heat shock transcription factor.
Genes 09 00160 g003
Genes 09 00160 g004 550

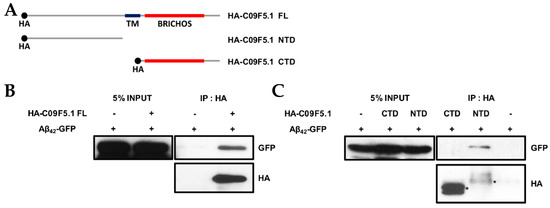

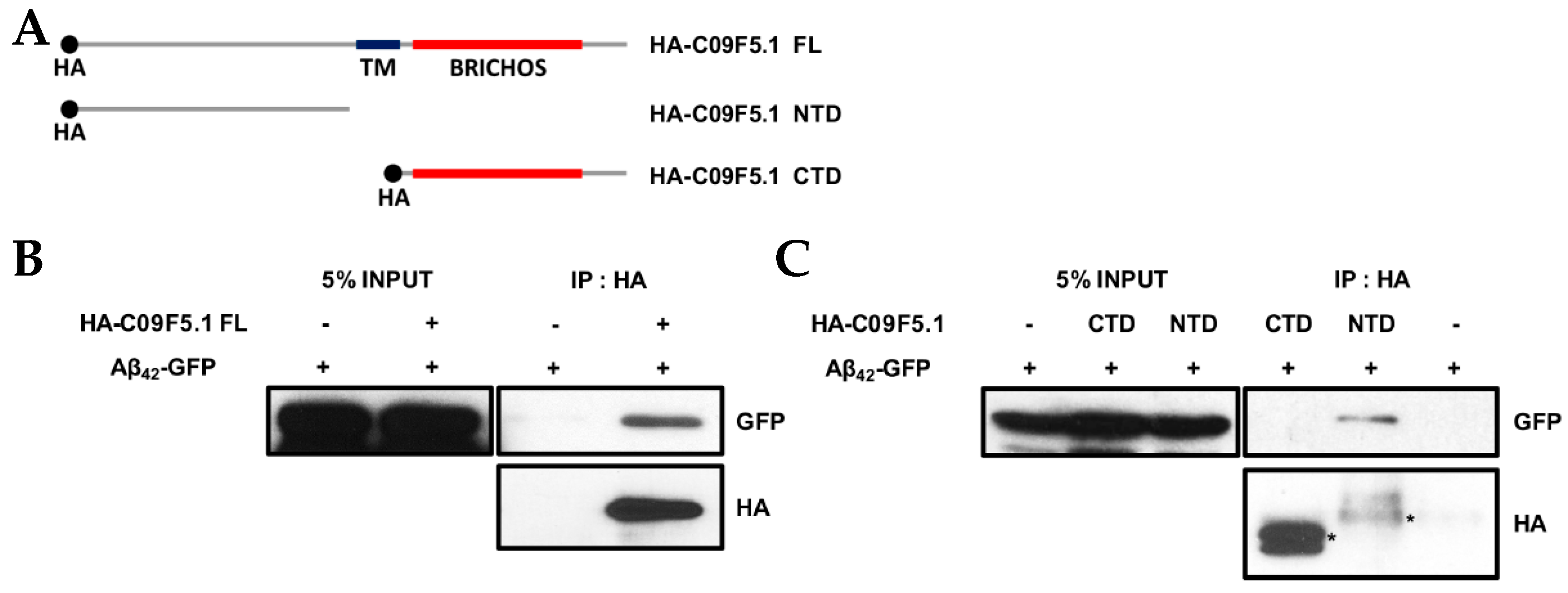

Figure 4. N-terminus–dependent interaction of C09F5.1 with Aβ42. (A) HA-fusion constructs of C09F5.1 used in the immunoprecipitation assay. (B, C) Immunoprecipitation assay of 293T cells expressing HA-fused C09F5.1 variants and Aβ42-GFP. Cell lysates prepared from transfected 293T cells were quantitated by the Bradford assay. Equal amounts of proteins were used (shown as 5% input) for immunoprecipitation assays. Asterisks indicate immunoprecipitated proteins. CTD: C-terminal domain; NTD: N-terminal domain; HA: Human influenza hemagglutinin.
Figure 4. N-terminus–dependent interaction of C09F5.1 with Aβ42. (A) HA-fusion constructs of C09F5.1 used in the immunoprecipitation assay. (B, C) Immunoprecipitation assay of 293T cells expressing HA-fused C09F5.1 variants and Aβ42-GFP. Cell lysates prepared from transfected 293T cells were quantitated by the Bradford assay. Equal amounts of proteins were used (shown as 5% input) for immunoprecipitation assays. Asterisks indicate immunoprecipitated proteins. CTD: C-terminal domain; NTD: N-terminal domain; HA: Human influenza hemagglutinin.
Genes 09 00160 g004
Genes 09 00160 g005a 550Genes 09 00160 g005b 550

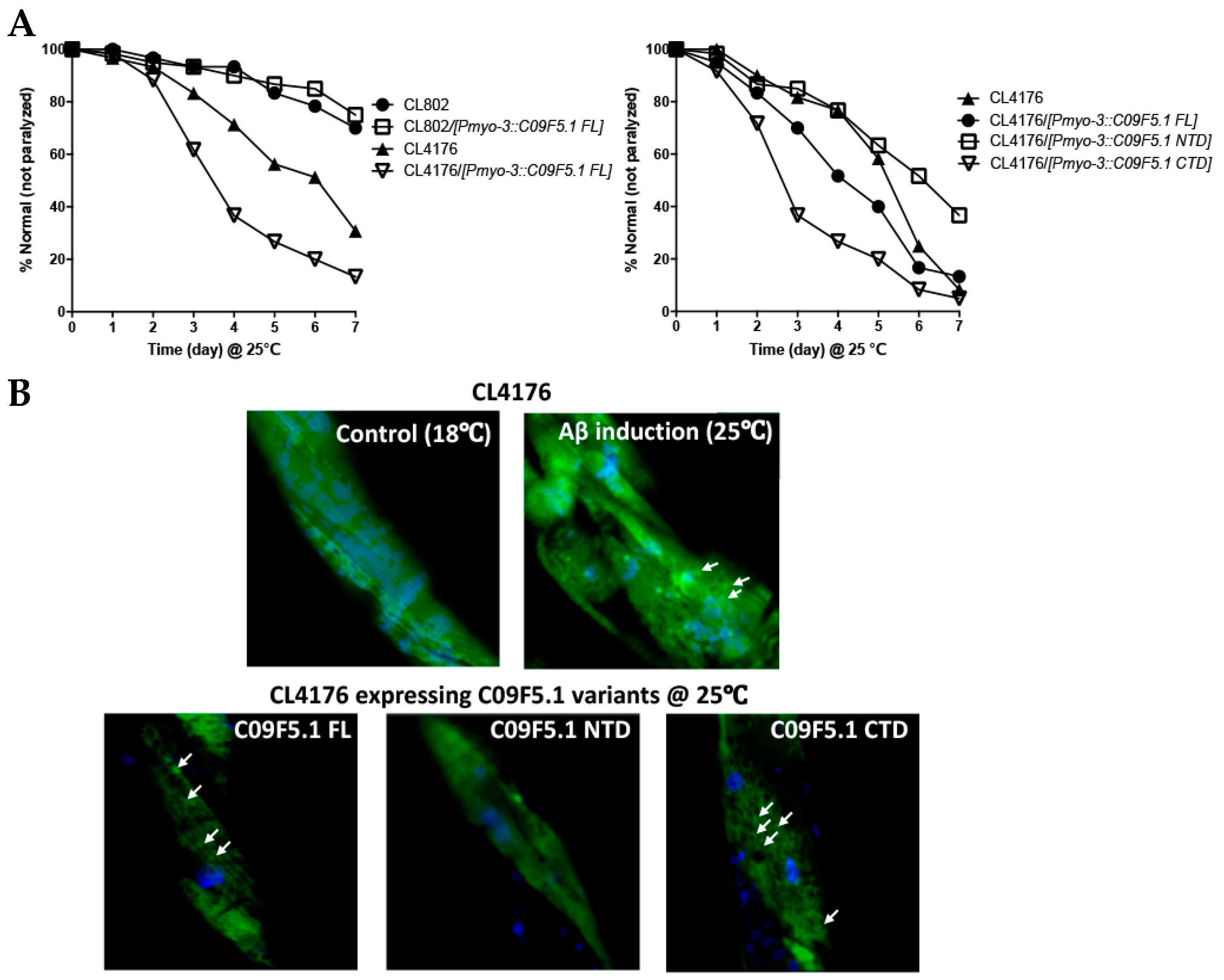

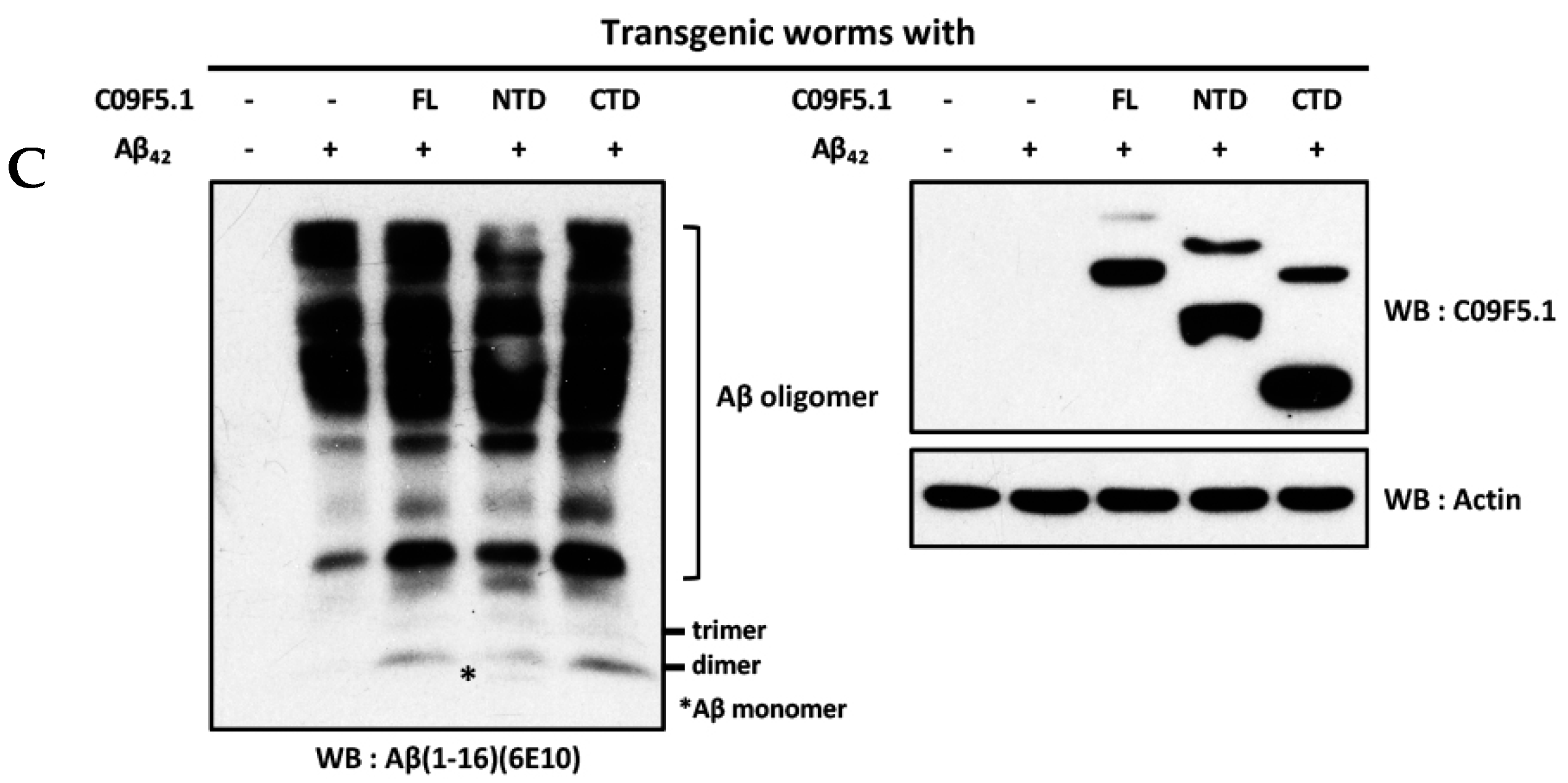

Figure 5. Cytotoxicity test of Aβ42 in Alzheimer disease model worms expressing C09F5.1 variants. (A) Aβ42 paralysis assay. Plasmid DNA encoding C09F5.1 (-FL, -NTD, or -CTD) driven by the myo-3 promoter was microinjected into CL4176 with pBCN41 (G418 resistance gene). All transgenic worms were selected by G418. L2/L3 worms synchronized at 16 °C and were temperature-shifted to 25 °C to allow accumulation of Aβ42 peptide. The number of paralyzed worms was counted daily. Twenty worms per plate and three plates per experiment were used for each transgenic line. Three independent experiments were performed and yielded consistent results. CL802 was used as a negative control for CL4176. (B) Thioflavin T staining assay. Worms prepared in the same manner as for the Aβ42 paralysis assay were harvested three days after the growth temperature was increased to 25 °C. Worms stained with thioflavin T (green) and DAPI (nuclei; blue) were analyzed by confocal microscopy. CL4176 grown at a permissive temperature (18 °C) was used as a negative control. All images were obtained by focusing on the body wall muscle in the middle of the body. White arrows indicate Aβ42 deposits. (C) Detection of Aβ42 oligomer species. Lysates were obtained from transgenic worms that had accumulated Aβ42 for 3 days and proteins were quantified by Bradford assay. Equal amounts of protein were separated by Tris-tricine SDS-PAGE (13%) with MES running buffer and immunoblot assays were performed. Aβ42 oligomers were detected with anti-Aβ antibody (6E10) and C09F5.1 variants were detected with anti-HA antibody. Anti-β-actin antibody was used to detect actin (loading control). WB: Western blot.
Figure 5. Cytotoxicity test of Aβ42 in Alzheimer disease model worms expressing C09F5.1 variants. (A) Aβ42 paralysis assay. Plasmid DNA encoding C09F5.1 (-FL, -NTD, or -CTD) driven by the myo-3 promoter was microinjected into CL4176 with pBCN41 (G418 resistance gene). All transgenic worms were selected by G418. L2/L3 worms synchronized at 16 °C and were temperature-shifted to 25 °C to allow accumulation of Aβ42 peptide. The number of paralyzed worms was counted daily. Twenty worms per plate and three plates per experiment were used for each transgenic line. Three independent experiments were performed and yielded consistent results. CL802 was used as a negative control for CL4176. (B) Thioflavin T staining assay. Worms prepared in the same manner as for the Aβ42 paralysis assay were harvested three days after the growth temperature was increased to 25 °C. Worms stained with thioflavin T (green) and DAPI (nuclei; blue) were analyzed by confocal microscopy. CL4176 grown at a permissive temperature (18 °C) was used as a negative control. All images were obtained by focusing on the body wall muscle in the middle of the body. White arrows indicate Aβ42 deposits. (C) Detection of Aβ42 oligomer species. Lysates were obtained from transgenic worms that had accumulated Aβ42 for 3 days and proteins were quantified by Bradford assay. Equal amounts of protein were separated by Tris-tricine SDS-PAGE (13%) with MES running buffer and immunoblot assays were performed. Aβ42 oligomers were detected with anti-Aβ antibody (6E10) and C09F5.1 variants were detected with anti-HA antibody. Anti-β-actin antibody was used to detect actin (loading control). WB: Western blot.
Genes 09 00160 g005aGenes 09 00160 g005b
Genes 09 00160 g006 550
Figure 6. Subcellular localization of C09F5.1 and UPR activation by Aβ42 in the ER. (A) Subcellular localization of truncated C09F5.1 variants transiently expressed in COS7 cells. COS7 cells were co-transfected with GFP-fused C09F5.1 and ER or Golgi-mCherry marker. All images were acquired using a confocal microscope equipped with a coupled-charge device (CCD) camera. (B) Activation of the unfolded protein response (UPR). The ERAI stable cell line was constructed by transfecting 293T cells with pERAI plasmid containing xbp1ΔDBD-mVenus. The cells were treated for 5 h with 5 µg/mL tunicamycin or DMSO (vehicle control) for 36 h after transfection. All cells were harvested at the same time and cell lysates were quantified by the Bradford assay. Equal amounts of protein were separated by the Tris-glycine SDS-PAGE system and immunoblotted with anti-GFP and anti-HA antibodies. Anti-β-actin antibody was used as a loading control. ER: Endoplasmic Reticulum
Figure 6. Subcellular localization of C09F5.1 and UPR activation by Aβ42 in the ER. (A) Subcellular localization of truncated C09F5.1 variants transiently expressed in COS7 cells. COS7 cells were co-transfected with GFP-fused C09F5.1 and ER or Golgi-mCherry marker. All images were acquired using a confocal microscope equipped with a coupled-charge device (CCD) camera. (B) Activation of the unfolded protein response (UPR). The ERAI stable cell line was constructed by transfecting 293T cells with pERAI plasmid containing xbp1ΔDBD-mVenus. The cells were treated for 5 h with 5 µg/mL tunicamycin or DMSO (vehicle control) for 36 h after transfection. All cells were harvested at the same time and cell lysates were quantified by the Bradford assay. Equal amounts of protein were separated by the Tris-glycine SDS-PAGE system and immunoblotted with anti-GFP and anti-HA antibodies. Anti-β-actin antibody was used as a loading control. ER: Endoplasmic Reticulum
Genes 09 00160 g006
Table
Table 1. List of Caenorhabditis elegans strains used in this study.
Table 1. List of Caenorhabditis elegans strains used in this study.
Strain aBackground GenotypeTransgene
N2C. elegans wild type
VC2139C09F5.1(ok2863) III
PS3551hsf-1(sy441) I
CF1038daf-16(mu86) I
NL2099rrf-3(pk1426) II
CL802smg-1(cc546) I; rol-6(su1006) II
CL4176smg-1(cc546) I; dvIs27 X b
MC9220smg-1(cc546) I; rol-6(su1006) II[myo-3p::HA-C09F5.1 FL::let-858 3′UTR, myo-2p::gfp(S65C),
rpl-28p::neoR]
MC9221smg-1(cc546) I; dvIs27 X[myo-3p::HA-C09F5.1 FL::let-858 3′UTR, myo-2p::gfp(S65C),
rpl-28p::neoR]
MC9222smg-1(cc546) I; dvIs27 X[myo-3p::HA-C09F5.1 NTD::let-858 3′UTR, myo-2p::gfp(S65C),
rpl-28p::neoR]
MC9224smg-1(cc546) I; dvIs27 X[myo-3p::HA-C09F5.1 CTD::let-858 3′UTR, myo-2p::gfp(S65C),
rpl-28p::neoR]
MC9226smg-1(cc546) I; dvIs27 X[myo-3p::gfp(S65C)::let-858 3′UTR, myo-2p::gfp(S65C),
rpl-28p::neoR]
KH0001N2[C09F5.1p::gfp(S65C)::unc-54 3′UTR, rol-6(su1006)]
MC0001N2[C09F5.1p::C09F5.1::gfp(S65C)::unc-54 3′UTR, rol-6(su1006)]
a All strains were obtained from C. elegans Genetic Center (CGC) except that the transgenic lines named KH- or MC- were produced in our laboratory. b dvIs27 [myo-3p::Aβ42::let-858 3′UTR] + rol-6(su1006)]. UTR: Untranslated region. HA: Human influenza hemagglutinin.

Share and Cite

MDPI and ACS Style

Song, M.; Song, K.; Kim, S.; Lee, J.; Hwang, S.; Han, C. Caenorhabditis elegans BRICHOS Domain–Containing Protein C09F5.1 Maintains Thermotolerance and Decreases Cytotoxicity of Aβ42 by Activating the UPR. Genes 2018, 9, 160. https://doi.org/10.3390/genes9030160

AMA Style

Song M, Song K, Kim S, Lee J, Hwang S, Han C. Caenorhabditis elegans BRICHOS Domain–Containing Protein C09F5.1 Maintains Thermotolerance and Decreases Cytotoxicity of Aβ42 by Activating the UPR. Genes. 2018; 9(3):160. https://doi.org/10.3390/genes9030160

Chicago/Turabian Style

Song, Myungchul, Kyunghee Song, Sunghee Kim, Jinyoung Lee, Sueyun Hwang, and Chingtack Han. 2018. "Caenorhabditis elegans BRICHOS Domain–Containing Protein C09F5.1 Maintains Thermotolerance and Decreases Cytotoxicity of Aβ42 by Activating the UPR" Genes 9, no. 3: 160. https://doi.org/10.3390/genes9030160

APA Style

Song, M., Song, K., Kim, S., Lee, J., Hwang, S., & Han, C. (2018). Caenorhabditis elegans BRICHOS Domain–Containing Protein C09F5.1 Maintains Thermotolerance and Decreases Cytotoxicity of Aβ42 by Activating the UPR. Genes, 9(3), 160. https://doi.org/10.3390/genes9030160

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
