Ancient DNA Resolves the History of Tetragnatha (Araneae, Tetragnathidae) Spiders on Rapa Nui

Department of Ecology and Evolutionary Biology, University of California, Santa Cruz, 1156 High Street, Santa Cruz, CA 95064, USA
Entomology Department, California Academy of Sciences, 55 Music Concourse Dr., Golden Gate Park, San Francisco, CA 94118, USA
Center for Comparative Genomics, California Academy of Sciences, 55 Music Concourse Dr., Golden Gate Park, San Francisco, CA 94118, USA
Department of Environmental Science, University of California, 137 Mulford Hall, Berkeley, CA 94720-3114, USA
Department of Biomolecular Engineering, University of California, Santa Cruz, 1156 High Street, Santa Cruz, CA 95064, USA
Author to whom correspondence should be addressed.
Genes 2017, 8(12), 403;
Submission received: 11 October 2017 / Revised: 2 December 2017 / Accepted: 13 December 2017 / Published: 20 December 2017
(This article belongs to the Special Issue Novel and Neglected Areas of Ancient DNA Research)


Rapa Nui is one of the most remote islands in the world. As a young island, its biota is a consequence of both natural dispersals over the last ~1 million years and recent human introductions. It therefore provides an opportunity to study a unique community assemblage. Here, we extract DNA from museum-preserved and newly field-collected spiders from the genus Tetragnatha to explore their history on Rapa Nui. Using an optimized protocol to recover ancient DNA from museum-preserved spiders, we sequence and assemble partial mitochondrial genomes from nine Tetragnatha species, two of which were found on Rapa Nui, and estimate the evolutionary relationships between these and other Tetragnatha species. Our phylogeny shows that the two Rapa Nui species are not closely related. One, the possibly extinct, T. paschae, is nested within a circumtropical species complex (T. nitens), and the other (Tetragnatha sp. Rapa Nui) appears to be a recent human introduction. Our results highlight the power of ancient DNA approaches in identifying cryptic and rare species, which can contribute to our understanding of the global distribution of biodiversity in all taxonomic lineages.

1. Introduction

Rapa Nui, or Easter Island, is one of the most isolated islands on Earth. Located in the easternmost corner of the Polynesian triangle, this subtropical island is 3500 km from the Chilean coast and 4500 km from Tahiti. The island is both small (163,61 km2) and young; it is comprised of three volcanoes—Poike, Maunga Terevaka, and Rano Kau—that range in age from 0.94 to 0.11 million years old [1,2]. Rapa Nui’s biota reflects a unique combination of species that are likely the result of long-distance dispersal from both Asia and America over the last million years, including many recent human introductions [3]. The biodiversity of the island has also been profoundly affected by ecological shifts that are driven by the complete deforestation of the island between Polynesian colonization (around 1200 AD [4]) and European contact (1722) [5,6], and by the use of the island for intensive sheep grazing over the first half of the 20th century [7]. This ecological collapse has left an impoverished arthropod fauna, where only one spider has been described as endemic, Tetragnatha paschae [8,9].
The genus Tetragnatha has a global distribution [10], and has colonized many remote archipelagoes [11]. These spiders are often among the first colonizers after habitat perturbations [12], and they have been extensively studied as a model system for adaptive radiations on islands [11]. For example, a clade of the Hawaiian species has moved into rainforests, and have become active hunters, abandoning the riparian habitat and “sit-and-wait” on an orb-web hunting strategy that is shared among other Tetragnatha [13]. Three species of Tetragnatha spiders have been reported on Rapa Nui: Tetragnatha nitens, Tetragnatha paschae, and one whose identity has yet to be established. T. nitens has a circumtropical distribution, and has been recorded on Rapa Nui in three separate surveys of the island [9]: a Swedish expedition in 1916–1917, by Jacquemart in 1976, and by Baert et al. in 1993. T. paschae has only ever been described on Rapa Nui. The only description of this species was based on a female, and was provided by Berland in [8]. The description focused mostly on highly variable characters (size, color, and eye pattern), but also provided illustrations of the carapace and chelicerae. However, the description does not include any of the key diagnostic features (genitalia). Based on the body measurements that are reported in this description [9], Baert placed it among the largest species of the genus [8]. The third Tetragnatha species on Rapa Nui has only recently been observed in a survey of spiders in 2012 by Cotoras et al. [14]. The species is morphologically distinct from Tetragnatha species that are known to inhabit other Pacific Islands and Chile (the two most likely sources of human introduction), and it has therefore been hypothesized that it may represent a second endemic Tetragnatha species on Rapa Nui [14]. The 2012 survey also found no evidence of T. paschae or T. nitens, despite covering a wide range of environments and geographic locations. Since the 1993 survey by Baert et al. also found no evidence of T. paschae [9], it has been hypothesized that T. paschae is now extinct [9,14].
Only three specimens that match the description of T. paschae were found in our searches of several museum collections (Table S1). The type specimens of the species that were described by Berland appear to have been lost, since they were not found in the Muséum national d'Histoire naturelle in Paris, where Berland was based. All of the specimens originate from Rapa Nui and are in the collection of the Natural History Museum (London, U.K.): three were collected in 1925 by P.H. Johnson, as part of the Pacific expedition of the S.Y. St. George, and one was collected in 1913, probably by Francisco Fuentes from the Museo Nacional de Historia Natural (Santiago, Chile). The three females match the original illustration in terms of the eye distribution and teeth pattern. In vial with P.H. Johnson’s collections, there is also an immature male, but its identification cannot be confirmed because the original description was based only on a female.
Since T. paschae is only known from an incomplete description and museum specimens, our understanding of the identity and evolutionary origins of these Rapa Nui spiders requires the recovery of DNA from preserved specimens. Arachnids remain challenging for ancient DNA analyses, due to their often complicated preservation histories and small sizes. The most common approach to preserve spiders in museums is to store specimens in jars filled with 70% ethanol at room temperature [15]. This liquid environment may vary for a single specimen over its preservation history, as ethanol evaporates and jars are refilled. As the proportion of water in the liquid environment increases, so does the potential for DNA hydrolysis, a common form of DNA decay [16]. Samples may also be stored in or refilled using mixed or alternative liquids, including methanol, isopropyl alcohol, acetone, or methyl ethyl ketone [17]. Different storage and refill histories, which are often impossible to reconstruct, may all influence long-term DNA preservation. Finally, liquid storage in bulk, where different species, genera, and even families are preserved in the same jar, may lead to co-extraction of DNA from different individuals, further complicating genomic reconstruction and analysis.
Several studies have assessed methods to recover DNA from pin-preserved insects [18,19,20,21], however less work has focused on recovering preserved DNA from specimens that are liquid-preserved [22,23]. In addition to the potential for degradation during liquid storage, museum-preserved insects and spiders are small and often precious, limiting the amount of sample that is available for destructive analysis. Consequently, extraction methods that do not destroy the physical structure of the specimen or that are minimally destructive are often preferred. Recently, an extraction protocol was described that used surfactants and reducing agents to lyse cells, with the goal being to recover DNA from museum-preserved insects without requiring the destruction of the samples [21].
Here, we take advantage of recent improvements in the efficiency of DNA recovery from ancient and historic remains [24] to explore the evolutionary histories of Tetragnatha spiders from Rapa Nui. We combine the use of the lysis buffer described in [21] on pulverized spider legs with a DNA purification protocol that was developed specifically for ancient DNA that requires only a small amount of input tissue [24]. We use this optimized protocol to generate mitochondrial genomic data from museum-preserved Tetragnatha. We compare these data with mitochondrial genomic data from recently collected Tetragnatha from Rapa Nui, and field sites in Asia (Myanmar), America (Chile and Peru), and French Polynesia (the Society Islands), to explore the phylogenetic relationships, possible extinction, and recent introduction of Tetragnatha spiders on Rapa Nui.

2. Methods

2.1. Samples

We gathered specimens representing nine different Tetragnatha species to generate mitochondrial assemblies for phylogenetic analysis (Table 1). We collected six new specimens during recent field expeditions to Rapa Nui, Chile, the Society Islands, Myanmar, and Peru, and selected three specimens from museum collections. We also downloaded two previously published mitochondrial genomes from Asian Tetragnatha species from GenBank. We selected these 11 species as they span a wide geographic range within the Pacific Rim (Table 1; Figure 1). We did not have access to the previous T. nitens that were collected on Rapa Nui, but we included in the analysis several published sequences for this cosmotropical species. We also downloaded the three most closely related mitochondrial genomes available on GenBank (Araneidae and Lycosidae; Table 1), which we used as outgroups in our phylogenetic analyses.

2.2. DNA Extraction

We extracted DNA from the six field-collected spiders using the Qiagen DNEasy Tissue Kit, (Venlo, The Netherlands) following the manufacturer protocol. Four legs were removed from the right side of the spider and pulverized in 200 μL of lysis bufffer (180 μL of buffer ATL + 20 μL Proteinase K). We then incubated the samples at 56 °C overnight. After digestion, we purified DNA following the manufacturer’s instructions, and eluted DNA into a final volume of 100 μL.
We extracted DNA from the three museum specimens in a geographically isolated laboratory facility that has been designed for ancient DNA research. We followed standard ancient DNA protocols throughout the experimental process [25], including the use of sterile reagents, consumables, and outerwear.
We followed slightly different extraction protocols for the three museum specimens, based on their rarity and what was known about their preservation history. We performed two different DNA extractions from Tetragnatha versicolor. From this specimen, we removed all eight legs. We then extracted DNA from four of these using the Qiagen DNEasy Tissue Kit, following manufacturer’s instructions. For the other four legs, we followed a protocol optimized to recover short fragments of DNA from ancient bone [24].
For T. paschae and Tetragnatha riveti we used a DNA extraction protocol that is based on [21,24]. Our modified protocol used a lysis buffer similar to that described in [21], which was developed for non-destructive DNA extraction from museum insects. Our lysis buffer comprised (in 100 mL) 5.3 mL 1 M Tris-HCl (pH 8.0), 5.3 mL 0.2 M EDTA, 10.6 mL 20% Sarkosyl, 1 mL 2-mercaptoethanol, and distilled water. Sock solutions of this buffer can be wrapped in foil and stored at 4 °C prior to use. At the moment of use, we added 200 μg/mL proteinase K, and incubated tissue overnight at 56 °C. We then purified the lysed DNA via centrifugation, as described in [21], as centrifugal purification has been shown to recover smaller fragments of DNA than purification using silica beads described in [21].
For T. riveti, which was stored in a jar with other spider species, we removed four legs from the right side and washed these three times in 500 μL of distilled water for one minute. The aim of this washing step was to remove potential superficial DNA that may originate from the other specimens in the same jar. After washing, we pulverized the four legs in 1 mL of the lysis buffer that is described above.
For T. paschae, because of the rarity of our specimens, we selected to remove and process only two legs from only one of the specimens using a non-destructive method. We selected one of the specimens from 1925, due to its more recent preservation. We placed these two legs in the lysis buffer without pulverization. After overnight digestion, we removed these two legs from the lysis buffer and washed them three times in 70% ethanol, and then transferred them back into their original vial.
We eluted DNA from the three museum spiders into 50 μL of Tris-EDTA (TE) buffer.

2.3. Library Preparation and Sequencing

We transformed the DNA extracts into barcoded Illumina sequencing libraries [26]. We then pooled and sequenced all of the libraries on an Illumina MiSeq (San Diego, CA, USA), using 150-cycle v3 chemistry (2 × 75), targeting an initial 300,000 reads per library. After calculating the endogenous DNA content, we sequenced the museum specimens more deeply to compensate for the amount of non-spider DNA. Total depth of sequencing is provided in Table 2. For T. versicolor, we prepared one library for each DNA extract. For T. paschae and T. riveti, we prepared multiple libraries for each species to compensate for poor preservation (specifically, the small number of unique DNA molecules recovered from each library).

2.4. Mitochondrial Genome Assembly

We combined data from samples for which more than one library was sequenced, and trimmed adapters and merged reads using a customized version of SeqPrep [27]. We then performed a reference guided mitochondrial assembly using a wrapper script (wormhole Mitochondrial Iterative Assembler, whMIA) to run the program Mitochondrial Iterative Assembler (MIA) [28], with the complete mitochondrial genome of Tetragnatha maxillosa (KP306789.1) as the initial reference. For field-collected samples, we mapped reads with the parameters -i -k 13 -w “./mia -c -U –C”–H 8000. For the museum samples, we used similar mapping parameters, but did not use a hard cutoff for the mapping score (-H 8000). The total number of mapped reads and the respective coverage are provided in Table 2.
After mapping, we called consensus mitochondrial genome sequences using two approaches [29]. Our “relaxed” approach required a minimum of 3X coverage, and at least 66% agreement per site in order to call a base. A “strict” approach required a minimum of 10X coverage and 90% agreement per site. Under both of the approaches, sites not meeting these criteria were masked as ‘N’. We assessed the resulting mitochondrial genomes by eye, including mapping genes and checking for stop codons within predicted coding regions.

2.5. Phylogenetic Reconstruction

We created two alignments; one with sequences generated using the “relaxed” approach (Table S2) and the other with sequences generated using the “strict” approach (Table S3). To each alignment, we added the five sequences downloaded from NCBI (Table 1). We aligned each data set using default parameters of MAFFT [30], as implemented in Geneious v. 5.6.7 [31]. We then used the annotated reference genome KP306789.1 to determine the locations of coding sequences, tRNAs and rRNAs. Because it was poorly assembled, we excluded the control region. The “relaxed” data set produced an alignment of 12,737 base-pairs (bp), while the “strict” data set resulted in a 12,291 bp alignment. T. paschae, for which we could only generate 242 bp of sequence meeting the “relaxed” base-calling criteria, was only included in the “relaxed” alignment.
We then reconstructed the phylogenetic relationships between the spider species in both of the alignments using RAxML v. 8.2.4 [32]. For both alignments, we used five data partitions: 1st codon positions; 2nd codon positions; 3rd codon positions; rRNAs; and, tRNAs. Following RAxML’s manual [33], we used the GTR + G model for each partition. Pirata subpiraticus (Lycosidae) was used as an outgroup. We estimated support for the inferred topology using 500 bootstrap replicates.
To test the robustness of this topology, we also performed a Bayesian phylogenetic reconstruction using MrBayes v. 3.2.6 [34,35]. Evolutionary models for each partition were chosen using PartitionFinder v. 1.1.1 [36]. For the “relaxed” alignment, the models that were selected were: CDS 1st codon position: GTR + I + G; CDS 2nd position: GTR + I + G; CDS 3rd position: HKY + I + G; rRNA and tRNA: GTR + I + G. For the “strict” alignment the models selected were: CDS 1st codon position: GTR + I + G; CDS 2nd position: GTR + G; CDS 3rd position: HKY + I + G; rRNA and tRNA: GTR + I + G. We performed two runs of four independent chains. Each run consisted of 1,000,000 generations sampling every 1000 generations. At the end of the run, the standard deviation of split frequencies was <0.01. Using Tracer v. 1.7.5, parameter convergence was determined by estimating the Effective Sample Size (ESS) [37]. All parameters had an ESS >200 after removal of burn-in (25%). A consensus tree was constructed after removal of this burn-in.
While the T. nitens in our alignment originates from China, the species is known to have a wide circumtropical distribution [38]. We therefore downloaded all available T. nitens and T. moua mitochondrial sequences from GenBank (EU796911-EU796917, EU796906-EU796908). Our aim was to determine the relationship between the T. nitens from China that we used in our main phylogenetic analyses and other T. nitens from a variety of geographic locations. Since the available sequences only included the COI gene, we estimated a phylogeny of these samples, combined with data from our “strict” alignment, based solely on this gene. Since our T. paschae sequence did not include any sites from the COI gene, it had to be excluded from this analysis. We also excluded any sequences with large numbers of missing sites for this gene, and then estimated a phylogeny using RAxML, as above.
All of the trees were visualized using FigTree v. 1.4.0 [39].

3. Results

3.1. DNA Recovery

We recovered DNA from all nine specimens for which we attempted DNA extraction. The amount of recovered DNA varied between samples, and, as expected, less DNA was recovered from the museum-preserved specimens than from the present-day specimens.

3.2. Mitochondrial Genome Assemblies

We assembled partial mitochondrial genomes from all nine spiders, although we were only able to recover a small (242 bp) fragment from the oldest and most poorly preserved specimen, T. paschae. We deposited the resulting “relaxed” partial mitochondrial genomes and the genes COI and ND4 from T. paschae in GenBank, with accession numbers (MG564492–MG564500, MG597260). The genes COI and ND5 of T. paschae and all of the “strict” assemblies are in Supplementary file 2. Details of the sequencing results are provided in Table 2.

3.3. Phylogenetic Reconstruction

The phylogenies we estimated using our “relaxed” and “strict” alignments were consistent; although not all of the nodes could be resolved, all that received high support were observed in both reconstructions (Figure 2). We also found that the topologies were robust to our use of different methods of reconstruction and evolutionary models (Figure 2). All of the Tetragnatha species that were included in our analyses form a strongly supported monophyletic group. Although T. paschae (indicated by an arrow on Figure 2) is represented by only a small fragment of DNA, we were able to establish that it falls within a strongly supported clade with the Tahitian endemic species T. moua, and sister to a T. nitens specimen from China. In the COI gene phylogeny (Figure 3), which includes more specimens from T. nitens, we found that the T. nitens and T. moua specimens that are described in Figure 2 fall within a larger clade of T. nitens, which includes other specimens from Asia (Papua New Guinea and Indonesia) and the Pacific (Mo’orea, Society Islands). The Tetragnatha sp. from Rapa Nui (indicated by an arrow with dashed line on Figure 2) appears as a sister to T. riveti, and is nested on a clade with other American species.

4. Discussion

Our phylogenies establish that the modern unidentified Tetragnatha from Rapa Nui has a distinct evolutionary origin from T. paschae. The modern Tetragnatha sp. is most closely related to T. riveti from Ecuador, and falls within a strongly supported clade with species from Chile and the United States, while, T. paschae is nested within the T. nitens species complex.

4.1. Revealing the History of Tetragnatha Species on Rapa Nui

Because of its geographic isolation and relatively recent history of colonization by humans, the biotic communities on Rapa Nui comprise mixtures of colonizing species originating from disparate geographic locations at different times [9,14,40,41]. The island therefore provides an opportunity to study dispersal and introduction patterns. This study used Tetragnatha spiders, a previously unexplored component of Rapa Nui’s biotic community, to study these patterns. We used ancient DNA approaches and mitochondrial phylogenetic reconstructions to explore the relationships between T. paschae and the Tetragnatha species that were collected on Rapa Nui in 2012, and other Tetragnatha from the surrounding geographic region.
Due to the poor preservation of the T. paschae specimens, we were able to reconstruct only a small fragment of the mitochondrial genome. Nevertheless, our results confirm that T. paschae and the newly discovered Tetragnatha belong to distinct evolutionary lineages, with independent colonization histories (Figure 2).
The genetic similarity between T. riveti and Tetragnatha sp. Rapa Nui suggests that the latter was only recently introduced to Rapa Nui (Figure 2). This is supported by the failure of previous surveys of Rapa Nui to observe this species [9]. Moreover, it is unlikely to have been misidentified in Berland’s description of the Swedish Expedition (1916–1917) [8], since Berland himself described T. riveti prior to publishing his work on Rapa Nui [42]. Our results led us to undertake a morphological comparison of these species, which revealed similarities in taxonomically relevant characters. In particular, both of the specimens share three very distinctive characteristics of the male chelicerae: (1) a median strong tooth in the promargin; (2) next to this strong tooth, a small promarginal tooth directed towards the proximal end of the chelicerae; and, (3) a dorsal spur (thorn-like projection) on the distal end. The male palp also has several distinctive traits that are common to both specimens, including a straight embolus and oval-shaped bulbus. The anterior and posterior eyes in both samples are arranged in two curved and opposite rows. Finally, they both have elongated and similarly shaped endites. These morphological similarities were not discovered in the previous analysis of the Rapa Nui specimen [14] because comparisons were only made with species that were described in Chile and Polynesia; and T. riveti has only been described for Ecuador [42].
Given the morphological similarities and the short length of the branch separating these two species in the mitochondrial phylogeny, it seems likely that the recently collected Tetragnatha from Rapa Nui is T. riveti, rather than a new endemic species. While T. riveti has only been reported for Ecuador [42], the full range of the species has not been investigated and there is no comprehensive revision for the genus in the region. In particular, it is not known whether the species’ range extends to Peru or Chile, countries that historically have had more contact with Rapa Nui than Ecuador and are therefore more likely routes of anthropogenic introduction [7]. Based on reported species distributions, fewer than 10% of known arachnid introductions to Rapa Nui are of South American origin, with the majority of the introduced species representing groups with circumtropical or circumglobal distributions [14].
Our phylogenies place T. paschae within the genetic diversity of T. nitens, a species that comprises a complex of highly structured populations [43]. While this might mean that T. paschae was incorrectly described as a distinct species, T. moua, a Tahitian endemic, also falls within the genetic diversity of T. nitens [11]. T. nitens presents strong morphological conservation across divergent genetic lineages, and T. moua, while falling within the genetic diversity of T. nitens, has a distinct genital morphology and cheliceral armature [44]. This divergence from T. nitens could reflect local adaptation or an increased influence of random drift due to a small population size. We also observed some phenotypic divergence from T. nitens in T. paschae. The chelicerae of the sequenced T. paschae is missing the posterior cusp on the fang, which is a diagnostic character of females of T. nitens [8,45]. It also differs in not having an enlarged and isolated tooth in the distal portion of the promarginal row of teeth [8,45] (Figure 4). However, since we have no description of the male T. paschae, and no adult male specimens, we cannot fully assess the morphological divergence between T. paschae and T. nitens. Also, because of the small amount of mitochondrial sequence that we were able to generate for T. paschae, and the lack of specimens of T. nitens from Rapa Nui, we cannot fully evaluate the evolutionary distance of T. paschae from T. nitens and T. moua.
If T. paschae was a distinct species that is now globally extinct, it would be the first extinct arachnid from which DNA has been amplified, and a rare description of a spider extinction. The IUCN red list currently includes only three extinct spider species, all from the Seychelles Islands [46,47]. This number of arachnid species that are recently extinct is likely to be much greater than this [48], and the paucity of described spider extinctions highlights the importance of surveys and monitoring of species, particularly island endemics. The causes and temporal dynamics of arthropod extinctions, in general, are poorly understood, and the further application of ancient DNA techniques to museum collections of arthropods and comparisons with extant species is a promising direction for future research [49].

4.2. Recovering Ancient DNA from Museum-Preserved Spiders

Our results show the combined power of field surveys and molecular analysis of museum-preserved samples to identify cryptic species and infer evolutionary relationships. However, our results also highlight the challenges of performing ancient DNA research on museum-preserved spiders. For example, the amount of recovered endogenous DNA varied considerably between the museum-preserved samples that are processed here (Table 2). Moreover, interpreting this is complicated by both the paucity of comparative molecular data from living species [50] and incomplete records of the preservation history of the specimens.
Our approach, which combines two previously published optimizations for ancient DNA [21,24] was successful in recovering DNA from very small amounts of a nearly 100 year-old spider. A previous comparison of DNA extraction methods for bone powder showed that only proteinase K and EDTA in the lysis buffer positively influenced DNA recovery [51]. For bone powder, the utility of EDTA is known to be its decalcifying effect, as preserved DNA in bone tends to form a complex with hydroxyapatite [52]. However, this does not apply to spiders, where the majority of recoverable DNA is probably preserved within cells. Based on a recently published non-destructive method for DNA recovery from museum-preserved insects [21], we included in our lysis buffer the surfactant Sarkosyl, to dissolve cellular membranes, and the reducing agent 2-mercaptoethanol, to break S-S bonds. We selected 2-mercaptoethanol instead of dithiothreitol (DTT), due to its longer half-life (>100 h 2-mercaptoethanol vs. 4 h DTT) in conditions similar to those of the lysis buffer (pH 8.5, 20 °C and 1.0 mM EDTA) [53]. We note, however, that an advantage of DTT is that the reduction of the S-S bonds is through an irreversible reaction, instead of an equilibrium reaction where the reducing agent needs to be in excess in order to move the reaction towards the reduced products [54]. To increase yield further, we combined the approach from [21] with modified DNA purification columns, as described in [24]. Although the size of individual specimens limits the feasibility of direct comparative analyses, our results suggest that the combination of these two approaches is an appropriate choice for the recovery of DNA from museum-preserved spiders.
Another challenge to ancient DNA research in spiders is the paucity of comparative genomic data from living species. Currently, only four spider genomes are published (Stegodyphus mimosarum, Acanthoscurria geniculata, Nephila clavipes, and Parasteatoda tepidariorum [55,56,57]). Since spiders originated at least 340 Million years ago (Ma) [58], these four species are not likely to be ideal references for read-mapping or calculating endogenous content for the majority of preserved specimens. However, promising developments in both genome sequencing and assembly technologies [59,60,61] are likely to increase the pace and diversity of published spider genomes, despite the sequencing challenges inherent to this taxonomic group [50]. These resources will accelerate spider research and enable more efficient and powerful research using spiders that are preserved in museum collections, as well as other environments, including lake sediments [62], sinkholes [63], permafrost [20,64], and archeological sites [65].

5. Conclusions

We assembled partial mitochondrial genomes from museum-preserved and field-collected spiders, using a modified DNA extraction approach. Using these data, we showed that the only endemic spider that has been described on Rapa Nui, T. paschae is nested within the T. nitens species complex. This brings into question whether T. paschae is truly distinct from T. nitens, and therefore whether its absence from recent surveys of Rapa Nui might reflect an extinction. We found that T. paschae is evolutionarily distant from the Tetragnatha species found in the most recent survey of Rapa Nui. Our results suggest that this recently observed species is most likely T. riveti, which is a species that has previously only been found in Ecuador, and that this species was brought to the island only recently as a human introduction. Our results show the combined power of field surveys and ancient DNA analysis of museum specimens to reveal phylogenetic and dispersal history of rare and extinct spiders.

Supplementary Materials

The following are available online at, Table S1: List of museums visited; Table S2: Genes used in the Relaxed phylogeny; Table S3: Genes used in the Strict phylogeny; Supplementary file 2: Strict consensus sequences + ND5 and COIII from T. paschae.


We thank G. Campbell, N. Cuadros, A. Dubois, O. Durán Veriveri, P. Hito, P. Lazo Hucke, S. Manuheuroroa, R. Palomino Matta, H. Paté, C. Salinas, J. Tucki, E. Tucki of CONAF-Parque Nacional Rapa Nui, L. Baert, J. Wynne and the Armada de Chile for help with fieldwork in Rapa Nui; E. Arias and S. Ocares for help with fieldwork in Chile; and F. Butaud, D. Hembry, T. Laroche, A. Luccioni, F. Jacq, L. Marae, G. Molle, H. Murphy, P. Oboyski, R. Taputuarai, T. Tetumu and Te Rau Ati Ati a Tau a Hiti Noa Tu organization, for help with fieldwork on the Society Islands. L. Hollyer (UC Berkeley), E. Tucki (Parque Nacional Rapa Nui, CONAF), J. Mesa (CONAF V Región), and J-Y. Meyer (Délégation à la Recherche, Government of French Polynesia) assisted with sampling permits. We thank J. Beccaloni (NHM London) for providing specimens of T. paschae, and the curators and staff members from the other collections visited: A. Baldinger (MCZ), G. Barrantes (UCR), M. Elgueta (MNHN Chile), N. Evenhuis (Bishop), G. Giribet (MCZ), P. Jaeger (Senckenberg), L. Leibensperger (MCZ), S. Myers (Bishop), J. Miller (Naturalis), D. Quintero (MIUP), C. Rollard (MNHN France), N. Scharff (Zoologisk Museum), D. Ubick (CAS), F. Urra (MNHN Chile) and C. Víquez (INBio). We also appreciate the support provided by D. Antoniucci, O. Bubbers, D. Pollmann, L. Valdivia and F. Zalamea during the museum visits. Moreover, we thank S. Mikheyev and Q. Lijun for instructing DDC and WBS in their DNA extraction technique. We are also grateful of S. Shirazi for her constructive suggestions. This work was supported by: Tinker Grant (Center for Latinamerican Studies, UC Berkeley), Fulbright/CONICYT fellowship, Innova BioBio (E. Arias’ grant), the Percy Sladen Memorial Fund (The Linnean Society of London), the Hagey fund (California Academy of Sciences), Research Excellence Award (California Academy of Sciences), and the Gordon & Betty Moore Foundation (GBMF 3804).

Author Contributions

D.D.C. designed the study and collected and identified the specimens used; D.D.C. and J.K. performed DNA extractions and library preparations; D.D.C. analyzed the data; G.G.R.M., R.G., C.G., W.B.S., R.E.G. and B.S. advised at the different stages of the project; D.D.C., G.G.R.M., and B.S. wrote the manuscript, and all authors contributed to editing the final product.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.


  1. Vezzoli, L.; Acocella, V. Easter Island, SE Pacific: An end-member type of hotspot volcanism. Bull. Geol. Soc. Am. 2009, 121, 869–886. [Google Scholar] [CrossRef]
  2. Azizi, G.; Flenley, J.R. The last glacial maximum climatic conditions on Easter Island. Quat. Int. 2008, 184, 166–176. [Google Scholar] [CrossRef]
  3. Wynne, J.J.; Bernard, E.C.; Howarth, F.G.; Sommer, S.; Soto-Adames, F.N.; Taiti, S.; Mockford, E.L.; Horrocks, M.; Pakarati, L.; Pakarati-Hotus, V. Disturbance relicts in a rapidly changing world: The rapa nui (Easter Island) factor. Bioscience 2014, 64, 711–718. [Google Scholar] [CrossRef]
  4. Hunt, T.L.; Lipo, C.P. Late Colonization of Easter Island. Science 2006, 311, 1603–1606. [Google Scholar] [CrossRef]
  5. Mann, D.; Edwards, J.; Chase, J.; Beck, W.; Reanier, R.; Mass, M.; Finney, B.; Loret, J. Drought, vegetation change, and human history on Rapa Nui (Isla de Pascua, Easter Island). Quat. Res. 2008, 69, 16–28. [Google Scholar] [CrossRef]
  6. Diamond, J. Collapse: How Societies Choose to Fail or Succeed. In Collapse: How Societies Choose to Fail or Succeed; Viking: New York, NY, USA, 2005. [Google Scholar]
  7. Fuentes, M.; Rovano, F.; Orellana, H. Restos industriales de la “Compañía explotadora de Isla de Pascua”. Una aproximación a la organización especial en Rapa Nui durante el ciclo ganadero (1895-1953). Rev. Atlántica-Mediterránea Prehist. y Arqueol. Soc. 2012, 9435. [Google Scholar]
  8. Berland, L. Araignées de l’île de Pâques et des îles Juan Fernandez. In The Natural History of Juan Fernandez and Easter Island; Skottsberg, C., Ed.; Almqvist & Wiksells Boktryckeri AB: Uppsala, Sweeden, 1924; pp. 419–437. [Google Scholar]
  9. Baert, L.; Lehtinen, P.; Desender, K. The spiders (Araneae) of Rapa Nui (Easter Island). Bull. Inst. R. Sci. Nat. Belg. Entomol. 1997, 67, 9–32. [Google Scholar]
  10. Aiken, M.; Coyle, F.A. Habitat Distribution, Life History and Behavior of Tetragnatha Spider Species in the Great Smoky Mountains National Park. J. Arachnol. 2000, 28, 97–106. [Google Scholar] [CrossRef]
  11. Gillespie, R.G. Biogeography of spiders on remote oceanic islands of the Pacific: Archipelagoes as stepping stones? J. Biogeogr. 2002, 29, 655–662. [Google Scholar] [CrossRef]
  12. Edwards, J.S.; Thornton, I.W.B. Colonization of an Island Volcano, Long Island, Papua New Guinea, and an Emergent Island, Motmot, in Its Caldera Lake. VI. The Pioneer Arthropod Community of Motmot. J. Biogeogr. 2016, 28, 1379–1388. [Google Scholar] [CrossRef]
  13. Gillespie, R.G. Community assembly through adaptive radiation in Hawaiian spiders. Science 2004, 303, 356–359. [Google Scholar] [CrossRef] [PubMed]
  14. Cotoras, D.D.; Wynne, J.J.; Flores-Prado, L.; Villagra, C. The spiders of Rapa Nui (Easter island) revisited. Bish. Mus. Occas. Pap. 2017, 120, 1–17. [Google Scholar]
  15. Miller, J.A.; Beentjes, K.K.; Van Helsdingen, P.; Ijland, S. Which specimens from a museum collection will yield DNA barcodes? A time series study of spiders in alcohol. Zookeys 2013, 365, 245–261. [Google Scholar] [CrossRef] [PubMed]
  16. Hofreiter, M.; Serre, D.; Poinar, H.N.; Kuch, M.; Pääbo, S. Ancient DNA. Nat. Rev. Genet. 2001, 2, 353–359. [Google Scholar] [CrossRef] [PubMed]
  17. Alcohol Specifications European Union. Alcohol Specifications European Union. Available online: (accessed on 27 November 2017).
  18. Gilbert, M.T.P.; Moore, W.; Melchior, L.; Worebey, M. DNA extraction from dry museum beetles without conferring external morphological damage. PLoS ONE 2007, 2, 1–4. [Google Scholar] [CrossRef] [PubMed]
  19. Thomsen, P.F.; Elias, S.; Gilbert, M.T.P.; Haile, J.; Munch, K.; Kuzmina, S.; Froese, D.G.; Sher, A.; Holdaway, R.N.; Willerslev, E. Non-destructive sampling of ancient insect DNA. PLoS ONE 2009, 4. [Google Scholar] [CrossRef] [PubMed]
  20. Heintzman, P.D.; Elias, S.A.; Moore, K.; Paszkiewicz, K.; Barnes, I. Characterizing DNA preservation in degraded specimens of Amara alpina (Carabidae: Coleoptera). Mol. Ecol. Resour. 2014, 14, 606–615. [Google Scholar] [CrossRef] [PubMed]
  21. Tin, M.M.Y.; Economo, E.P.; Mikheyev, A.S. Sequencing degraded DNA from non-destructively sampled museum specimens for RAD-tagging and low-coverage shotgun phylogenetics. PLoS ONE 2014, 9. [Google Scholar] [CrossRef] [PubMed]
  22. Vink, C.J.; Thomas, S.M.; Paquin, P.; Hayashi, C.Y.; Hedin, M. The effects of preservatives and temperatures on arachnid DNA. Invertebr. Syst. 2005, 19, 99–104. [Google Scholar] [CrossRef]
  23. Krehenwinkel, H.; Tautz, D. Northern range expansion of European populations of the wasp spider Argiope bruennichi is associated with global warming-correlated genetic admixture and population-specific temperature adaptations. Mol. Ecol. 2013, 22, 2232–2248. [Google Scholar] [CrossRef] [PubMed]
  24. Dabney, J.; Knapp, M.; Glocke, I.; Gansauge, M.-T.; Weihmann, A.; Nickel, B.; Valdiosera, C.; Garcia, N.; Paabo, S.; Arsuaga, J.-L.; Meyer, M. Complete mitochondrial genome sequence of a Middle Pleistocene cave bear reconstructed from ultrashort DNA fragments. Proc. Natl. Acad. Sci. USA 2013, 110, 15758–15763. [Google Scholar] [CrossRef] [PubMed]
  25. Fulton, T. L. Setting Up an Ancient DNA Laboratory. In Ancient DNA Methods and Protocols; Shapiro, B., Hofreiter, M., Eds.; Humana Press: New York, NY, USA, 2011; pp. 1–11. [Google Scholar]
  26. Meyer, M.; Kircher, M. Illumina sequencing library preparation for highly multiplexed target capture and sequencing. Cold Spring Harb. Protoc. 2010, 5, 1–11. [Google Scholar] [CrossRef] [PubMed]
  27. SeqPrep. (accessed on 18 December 2017).
  28. Mitochondrial Iterative Assembler. (accessed on 18 December 2017).
  29. Chang, D.; Knapp, M.; Enk, J.; Lippold, S.; Kircher, M.; Lister, A.; MacPhee, R.D.E.; Widga, C.; Czechowski, P.; Sommer, R.; Hodges, E.; et al. The evolutionary and phylogeographic history of woolly mammoths: a comprehensive mitogenomic analysis. Sci. Rep. 2017, 7, 44585. [Google Scholar] [CrossRef] [PubMed]
  30. Katoh, K.; Misawa, K.; Kuma, K.; Miyata, T. MAFFT: A novel method for rapid multiple sequence alignment based on fast Fourier transform. Nucleic Acids Res. 2002, 30, 3059–3066. [Google Scholar] [CrossRef] [PubMed]
  31. Kearse, M.; Moir, R.; Wilson, A.; Stones-Havas, S.; Cheung, M.; Sturrock, S.; Buxton, S.; Cooper, A.; Markowitz, S.; Duran, C.; et al. Geneious Basic: An integrated and extendable desktop software platform for the organization and analysis of sequence data. Bioinformatics 2012, 28, 1647–1649. [Google Scholar] [CrossRef] [PubMed]
  32. Stamatakis, A. RAxML version 8: A tool for phylogenetic analysis and post-analysis of large phylogenies. Bioinformatics 2014, 30, 1312–1313. [Google Scholar] [CrossRef] [PubMed]
  33. Stamatakis, A. The RAxML v8.2.X Manual. Manual 2014, 1–55. [Google Scholar]
  34. Huelsenbeck, J.P.; Ronquist, F. MRBAYES: Bayesian inference of phylogenetic trees. Bioinformatics 2001, 17, 754–755. [Google Scholar] [CrossRef] [PubMed]
  35. Ronquist, F.; Huelsenbeck, J.P. MrBayes 3: Bayesian phylogenetic inference under mixed models. Bioinformatics 2003, 19, 1572–1574. [Google Scholar] [CrossRef] [PubMed]
  36. Lanfear, R.; Calcott, B.; Ho, S.Y.W.; Guindon, S. PartitionFinder: Combined selection of partitioning schemes and substitution models for phylogenetic analyses. Mol. Biol. Evol. 2012, 29, 1695–1701. [Google Scholar] [CrossRef] [PubMed]
  37. Tracer. (accessed on 18 December 2017).
  38. World Spider Catalog. Natural History Museum Bern. Version 18.5. Available online: (accessed on 9 August 2017).
  39. Fig Tree. (accessed on 18 December 2017).
  40. Kuschel, G. Composition and relationship of the terrestrial faunas of Easter, Juan Fernandez, Desventuradas and Galápagos islands. Occas. Pap. Calif. Acad. Sci. 1963, 79–95. [Google Scholar] [CrossRef]
  41. Dransfield, J.; Flenley, J.R.; King, S.M.; Harkness, D.D.; Rapu, S. A recently extinct palm from Easter Island. Nature 1984, 312, 750–752. [Google Scholar] [CrossRef]
  42. Berland, L. Araignées. In Mission du Service Géographique de l’armée Pour la Mesure d’un arc du Méridien équatorial en Amérique du Sud (1899–1906); Gauthier-Villars, Imprimeur Libraire du Bureau des Longitudes, de l’Ecole Polytechnique: Paris, France, 1913; pp. 78–119. [Google Scholar]
  43. Gillespie, R.G.; Claridge, E.M.; Goodacre, S.L. Biogeography of the fauna of French Polynesia: Diversification within and between a series of hot spot archipelagos. Philos. Trans. R. Soc. B Biol. Sci. 2008, 363, 3335–3346. [Google Scholar] [CrossRef] [PubMed]
  44. Gillespie, R.G. Spiders of the Genus Tetragnatha (Araneae, Tetragnathidae) in the Society Islands. J. Arachnol. 2003, 31, 157–172. [Google Scholar] [CrossRef]
  45. Okuma, C. Notes on the neotropical and Mexican species of Tetragnatha (Araneae: Tetragnathidae) with descriptions of three new species. J. Fac. Agric. Kyushu Univ. 1992, 36, 219–243. [Google Scholar]
  46. The IUCN Red List of Threatened Species. Version 2017-1. Available online:
  47. Gerlach, J.; Marusik, Y. Arachnida and Myriapoda of the Seychelles Islands; Siri Scientific Press: Manchester, UK, 2010; ISBN 978-0-9558636-8-4. [Google Scholar]
  48. Shochat, A.E.; Stefanov, W.L.; Whitehouse, M.E.; Faeth, S.H. Urbanization and Spider Diversity : Influences of Human Modification of Habitat Structure and Productivity. Urb. Ecol. 2014, 14, 268–280. [Google Scholar]
  49. Chapco, W.; Litzenberger, G. A DNA investigation into the mysterious disappearance of the Rocky Mountain grasshopper, mega-pest of the 1800s. Mol. Phylogenet. Evol. 2004, 30, 810–814. [Google Scholar] [CrossRef]
  50. Brewer, M.S.; Cotoras, D.D.; Croucher, P.J.P.; Gillespie, R. G. New sequencing technologies, the development of genomics tools, and their applications in evolutionary arachnology. J. Arachnol. 2014, 42, 1–15. [Google Scholar] [CrossRef]
  51. Rohland, N.; Hofreiter, M. Comparison and optimization of ancient DNA extraction. Biotechniques 2007, 42, 343–352. [Google Scholar] [CrossRef] [PubMed]
  52. Campos, P.F.; Craig, O.E.; Turner-Walker, G.; Peacock, E.; Willerslev, E.; Gilbert, M.T.P. DNA in ancient bone—Where is it located and how should we extract it? Ann. Anat. 2012, 194, 7–16. [Google Scholar] [CrossRef] [PubMed]
  53. Stevens, R.; Stevens, L.; Price, N. The stabilities of various thiol compounds used in protein purifications. Biochem. Educ. 1983, 11, 70. [Google Scholar] [CrossRef]
  54. Bio-Rad Technical support FAQ. Available online: (accessed on 22 May 2017).
  55. Sanggaard, K.W.; Bechsgaard, J.S.; Fang, X.; Duan, J.; Dyrlund, T.F.; Gupta, V.; Jiang, X.; Cheng, L.; Fan, D.; Feng, Y.; et al. Spider genomes provide insight into composition and evolution of venom and silk. Nat. Commun. 2014, 5. [Google Scholar] [CrossRef]
  56. Babb, P. L.; Lahens, N.F.; Correa-Garhwal, S.M.; Nicholson, D.N.; Kim, E.J.; Hogenesch, J.B.; Kuntner, M.; Higgins, L.; Hayashi, C.Y.; Agnarsson, I.; Voight, B.F. The Nephila clavipes genome highlights the diversity of spider silk genes and their complex expression. Nat. Genet. 2017, 49, 895–903. [Google Scholar] [CrossRef] [PubMed]
  57. Schwager, E.E.; Sharma, P.P.; Clarke, T.; Leite, D.J.; Wierschin, T.; Pechmann, M.; Akiyama-Oda, Y.; Esposito, L.; Bechsgaard, J.; Bilde, T.; et al. The house spider genome reveals an ancient whole-genome duplication during arachnid evolution. BMC Biol. 2017, 15, 62. [Google Scholar] [CrossRef] [PubMed]
  58. Garrison, N.L.; Rodriguez, J.; Agnarsson, I.; Coddington, J. A.; Griswold, C.E.; Hamilton, C.A.; Hedin, M.; Kocot, K.M.; Ledford, J.M.; Bond, J.E. Spider phylogenomics: Untangling the Spider Tree of Life. PeerJ 2016, 4, e1719. [Google Scholar] [CrossRef] [PubMed]
  59. Goodwin, S.; McPherson, J.D.; McCombie, W.R. Coming of age: Ten years of next-generation sequencing technologies. Nat. Rev. Genet. 2016, 17, 333–351. [Google Scholar] [CrossRef] [PubMed]
  60. Putnam, N.H.; Connell, B.O.; Stites, J.C.; Rice, B.J.; Hartley, P.D.; Sugnet, C.W.; Haussler, D.; Rokhsar, D.S. Chromosome-scale shotgun assembly using an in vitro method for long-range linkage. Genome Res. 2016, 26, 342–350. [Google Scholar] [CrossRef] [PubMed]
  61. Sohn, J.; Nam, J.-W. The present and future of de novo whole-genome assembly. Brief. Bioinform. 2016. [Google Scholar] [CrossRef] [PubMed]
  62. Prebble, M.; Whitau, R.; Meyer, J.Y.; Sibley-Punnett, L.; Fallon, S.; Porch, N. Abrupt late Pleistocene ecological and climate change on Tahiti (French Polynesia). J. Biogeogr. 2016, 43, 2438–2453. [Google Scholar] [CrossRef]
  63. Liebherr, J.K.; Porch, N. Reassembling a lost lowland carabid beetle assemblage (Coleoptera) from Kauai, Hawaiian Islands. Invertebr. Syst. 2015, 29, 191–213. [Google Scholar] [CrossRef]
  64. Reiss, R.A. Ancient DNA from ice age insects: Proceed with caution. Quat. Sci. Rev. 2006, 25, 1877–1893. [Google Scholar] [CrossRef]
  65. King, G.A.; Gilbert, M.T.P.; Willerslev, E.; Collins, M.J.; Kenward, H. Recovery of DNA from archaeological insect remains: First results, problems and potential. J. Archaeol. Sci. 2009, 36, 1179–1183. [Google Scholar] [CrossRef]

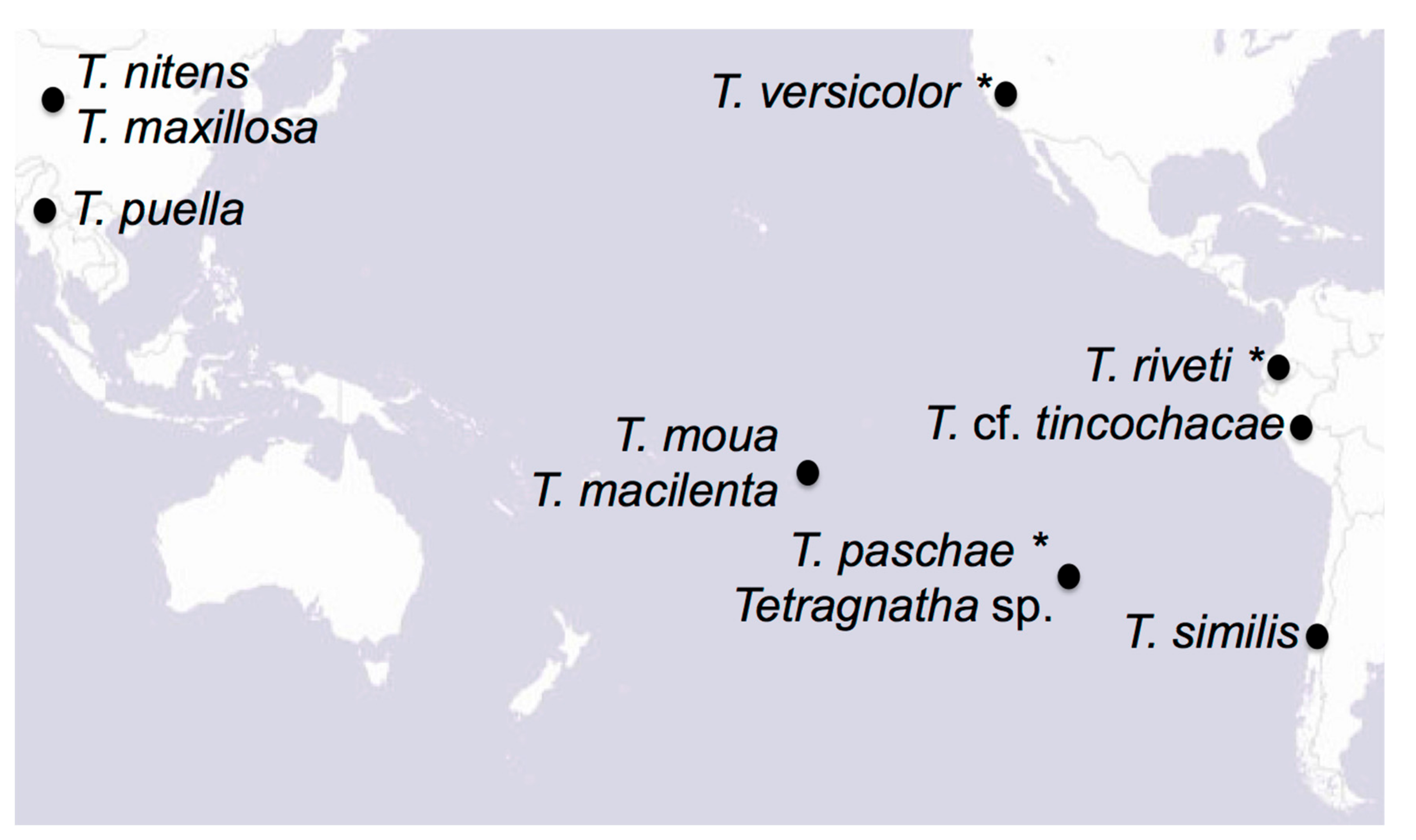

Figure 1. Map of the Pacific Rim with the species included on this study. Names with asterisks correspond to museum specimens. Map from
Figure 1. Map of the Pacific Rim with the species included on this study. Names with asterisks correspond to museum specimens. Map from
Genes 08 00403 g001

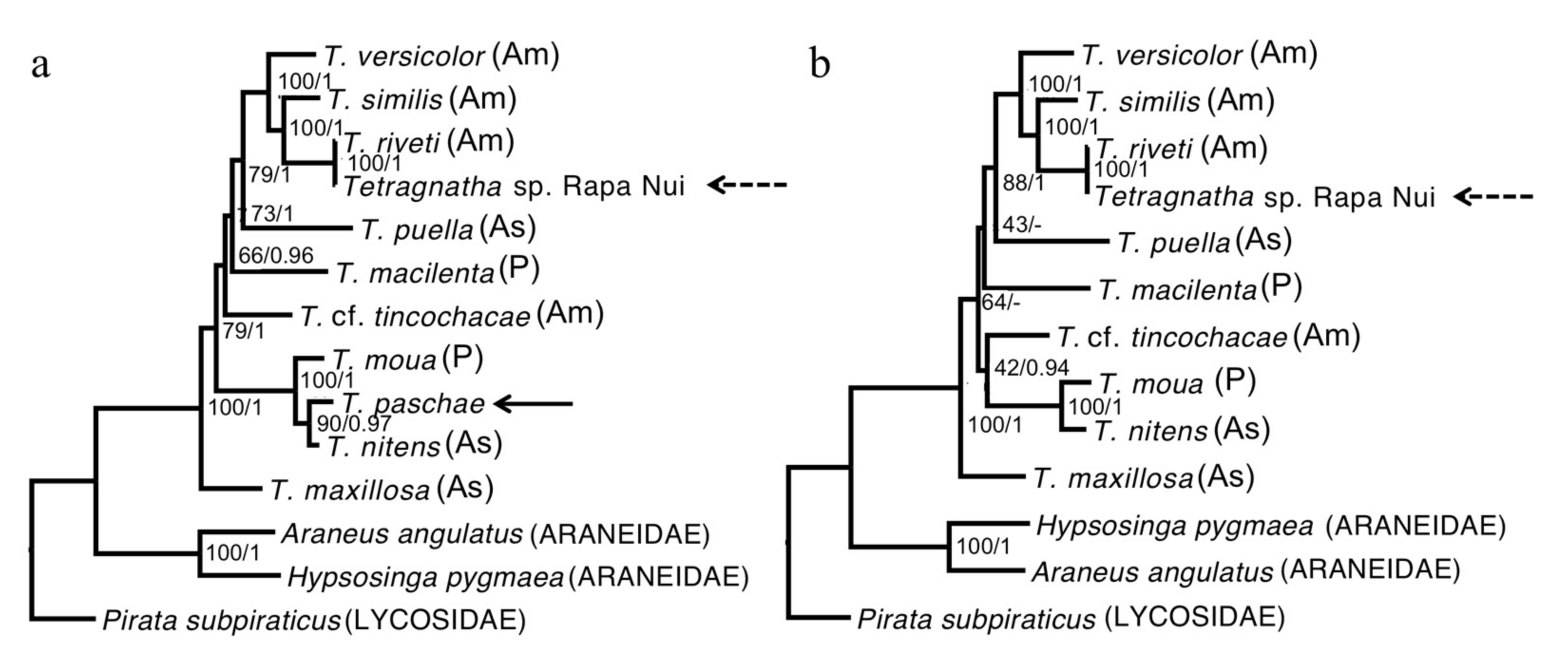

Figure 2. Maximum likelihood reconstruction. (a) Relaxed consensus including T. paschae. (b) Strict consensus not including T. paschae. The node values represent the bootstrap support/Bayesian posterior probability. As: Asia; Am: America; P: Pacific.
Figure 2. Maximum likelihood reconstruction. (a) Relaxed consensus including T. paschae. (b) Strict consensus not including T. paschae. The node values represent the bootstrap support/Bayesian posterior probability. As: Asia; Am: America; P: Pacific.
Genes 08 00403 g002

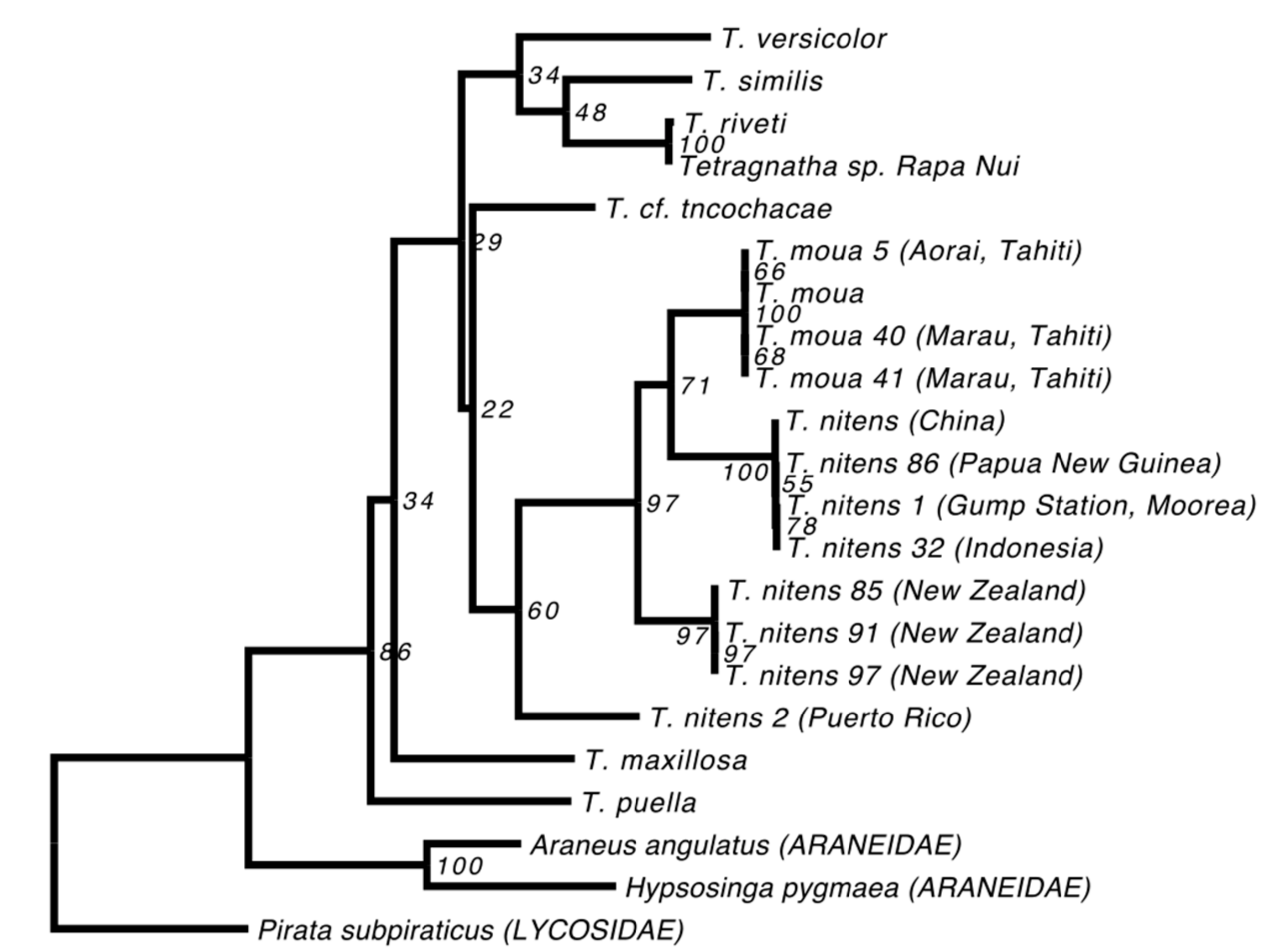

Figure 3. Maximum likelihood reconstruction including extra populations of T. nitens and specimens of T. moua. The reconstruction was done using the strict consensus sequences of COI. The T. moua and T. nitens specimens marked with asterisk correspond to the ones used on Figure 2.
Figure 3. Maximum likelihood reconstruction including extra populations of T. nitens and specimens of T. moua. The reconstruction was done using the strict consensus sequences of COI. The T. moua and T. nitens specimens marked with asterisk correspond to the ones used on Figure 2.
Genes 08 00403 g003
Figure 4. Inner view of left chelicerae of the sequenced female T. paschae. Complete arrow indicates the lack of the posterior cusp on the fang. Dashed arrow shows the absence of an enlarged and isolated tooth in the distal portion of the promarginal row of teeth. Both characters are present in T. nitens.
Figure 4. Inner view of left chelicerae of the sequenced female T. paschae. Complete arrow indicates the lack of the posterior cusp on the fang. Dashed arrow shows the absence of an enlarged and isolated tooth in the distal portion of the promarginal row of teeth. Both characters are present in T. nitens.
Genes 08 00403 g004
Table 1. Species included on the study.
Table 1. Species included on the study.
Species NameGeographic OriginCollection/GenBankPreservation ConditionsCollection Year
Tetragnatha paschaeRapa NuiNatural History Museum of LondonEthanol 70% originally and currently 80% IDA (industrial denatured alcohol), room temperature1925
Tetragnatha rivetiEcuadorCalifornia Academy of SciencesEthanol 70%, room temperature1943
Tetragnatha versicolor *United States (California)California Academy of SciencesEthanol 70%, room temperature1947
Tetragnatha puellaMyanmarCalifornia Academy of SciencesEthanol 95%, −20 °C2003
Tetragnatha cf. tincochacaePerúCalifornia Academy of SciencesEthanol 95%, −20 °C2010
Tetragnatha sp.Rapa NuiThis studyEthanol 95%, −20 °C2012
Tetragnatha similisChileThis studyEthanol 95%, −20 °C2015
Tetragnatha macilentaTahitiThis studyEthanol 95%, −20 °C2015
Tetragnatha mouaTahitiThis studyEthanol 95%, −20 °C2015
Tetragnatha maxillosaChinaKP306789.1--
Tetragnatha nitensChinaKP306790.1--
Hypsosinga pygmaeaChinaNC028078.1--
Araneus angulatusChinaKU365988.1--
Pirata subpiraticusChinaKM486623.1--
* Morphologically identified as Tetragnatha laboriosa, but cytochrome oxidase I (COI) data shows that it is more closely related to Tetragnatha versicolor. For more information about these specimens, see the metadata associated with the GenBank sequences.
Table 2. Species included on the study.
Table 2. Species included on the study.
Species NameMerged ReadsUnmerged Read PairsMapped Reads% Mapped ReadsCoverage *
T. paschae2,035,294127,6512740.0121.142
T. riveti1,152,000191,72217170.1127.754
T. versicolor1,664,11381,41819,7931.0896.616
T. puella203,936464,14246950.41527.776
T. cf. tincochacae205,455501,78128110.23216.923
Tetragnatha sp. Rapa Nui187,032411,50829440.29117.622
T. similis109,240580,11620030.15811.481
T. macilenta159,505729,38320230.12511.866
T. moua307,068732,20636630.20721.920
* Coverage before application of “Strict”/“Relaxed” filter and removal of misassembles.

Share and Cite

MDPI and ACS Style

Cotoras, D.D.; Murray, G.G.R.; Kapp, J.; Gillespie, R.G.; Griswold, C.; Simison, W.B.; Green, R.E.; Shapiro, B. Ancient DNA Resolves the History of Tetragnatha (Araneae, Tetragnathidae) Spiders on Rapa Nui. Genes 2017, 8, 403.

AMA Style

Cotoras DD, Murray GGR, Kapp J, Gillespie RG, Griswold C, Simison WB, Green RE, Shapiro B. Ancient DNA Resolves the History of Tetragnatha (Araneae, Tetragnathidae) Spiders on Rapa Nui. Genes. 2017; 8(12):403.

Chicago/Turabian Style

Cotoras, Darko D., Gemma G. R. Murray, Joshua Kapp, Rosemary G. Gillespie, Charles Griswold, W. Brian Simison, Richard E. Green, and Beth Shapiro. 2017. "Ancient DNA Resolves the History of Tetragnatha (Araneae, Tetragnathidae) Spiders on Rapa Nui" Genes 8, no. 12: 403.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
