Article

Genome-Wide Identification of the ABF/AREB/ABI5 Gene Family in Ziziphus jujuba cv. Dongzao and Analysis of Its Response to Drought Stress

by
Zhikai Zhang
1,
Xiaoming Liu
1,
Yu Wang
2,
Jun Zhou
1,3,
Zhongwu Wan
4,5,
Xin Zhang
1,3,
Jing Wang
1,3,
Binbin Si
1,3,
Lan Luo
1 and
Wendi Xu
1,3,*
1
School of Biological Science and Engineering, North Minzu University, Yinchuan 750021, China
2
Ningxia Lingwu Horticultural Farm, Lingwu 750400, China
3
Innovation Team for Genetic Improvement of Economic Forest, North Minzu University, Yinchuan 750021, China
4
Daquan Forestry Centre of Lingwu City, Lingwu 750400, China
5
Lingwu Baijitan Natural Resources Conservation Bureau, Lingwu 750400, China
*
Author to whom correspondence should be addressed.
Genes 2025, 16(7), 785; https://doi.org/10.3390/genes16070785
Submission received: 9 June 2025 / Revised: 23 June 2025 / Accepted: 27 June 2025 / Published: 30 June 2025
(This article belongs to the Section Plant Genetics and Genomics)
Browse Figures
Versions Notes

Abstract

Abscisic acid (ABA), a pivotal phytohormone regulating plant growth and stress adaptation, orchestrates abiotic stress responses through the ABA-responsive element-binding factors ABF/AREB/ABI5. Nevertheless, the functional characterization of ABF/AREB/ABI5 homologs in Z. jujuba cv. Dongzao remains unexplored. In this study, we identified seven ZjABF genes distributed across five chromosomes. Domain analyses revealed high structural conservation, particularly within the basic leucine zipper (bZIP) DNA-binding domain. Subcellular localization confirmed nuclear targeting of all seven ZjABF proteins. Phylogenetic classification resolved these factors into three clades (A–C). Cis-regulatory element profiling implicated the involvement of the ZjABFs in hormone signaling, abiotic stress transduction, and photoregulatory pathways. Synteny analyses identified three segmental duplication events within the gene family. Tissue-specific expression patterns indicated critical roles for ZjABF2 and ZjABF3 in fruit maturation, and most of the ABF/AREB/ABI5 genes were highly expressed in the root. Under drought stress, four ZjABF genes exhibited differential expression, with ZjABF2 demonstrating pronounced sensitivity. These findings establish a molecular framework for understanding ZjABF-mediated abiotic stress responses in non-model woody perennials.

1. Introduction

Z. jujuba cv. Dongzao constitutes a vital cash crop across northwestern China’s semi-arid regions, being renowned for its exceptional nutritional profile and commercial significance [1]. Lingwu City in Ningxia—a primary production hub for Z. jujuba cv. Dongzao—faces chronically hyper-arid conditions characterized by deficient precipitation (<200 mm annual mean) and excessive evaporation (>2000 mm annual mean) [2]. These abiotic constraints severely limit both the yield and quality of fruit. Drought significantly reduces fruit yield and quality, decreasing individual fruit weight by 25–30%, lowering fruit set rates by 20–40%, and diminishing per-hectare production by over 25%, while also impairing peel coloration, reducing storability, and disrupting sugar–acid balance. Recent climate change has amplified the threats posed by drought stress to agricultural productivity globally, making the dissection of Z. jujuba cv. Dongzao’s drought resilience mechanisms imperative for safeguarding regional agricultural sustainability [3]. Analyzing the drought-resistant molecular mechanism of Z. jujuba cv. Dongzao has become the key to ensuring the sustainable development of regional agriculture.
Plants deploy intricate transcriptional networks to orchestrate their adaptation to various stresses [4]. Central to these networks, ABF (ABRE-binding factor) genes—core members of the bZIP transcription factor family—function as master regulators by binding ABA-responsive elements (ABREs) to activate downstream stress-responsive genes. Also designated AREBs (ABA-responsive element-binding proteins) or ABFs (ABRE-binding factors), these proteins play non-redundant roles in abiotic stress resilience, notably in drought and salinity tolerance [5,6]. The ABF family exhibits broad phylogenetic conservation across plant lineages, though the number of members varies significantly (5–36 homologs) between species, such as Arabidopsis, rice (Oryza sativa) [7], wheat (Triticum aestivum) [8], and Z. jujuba [9]. Structurally, ABF proteins contain four conserved kinase-targeting domains (C1–C4): N-terminal C1–C3 motifs mediate signalosome interactions, while the C-terminal C4 domain stabilizes the tertiary structure through α-helix maintenance [10].
ABF family members exhibit pronounced specificity of spatiotemporal expression, enabling modular transcriptional programs during plant development. For instance, in tomato (Solanum lycopersicum), SlABF2 and SlABF10 display significant upregulation across fruit ripening stages [11]; apple (Malus domestica) orthologs predominantly accumulate in leaf tissues [12]; and wheat shows differential partitioning. TaABF5A, TaABF5B, and TaABF5D are ubiquitously expressed in seedling roots, stems, and leaves, whereas TaABF5A/B/D and Ta ABF18-B/D localize specifically to roots and leaves [8]. Collectively, these findings demonstrate ABF-mediated developmental regulation through tissue-specific transcriptional specialization.
ABF family genes function as multimodal stress sensors, dynamically activating ABA signaling cascades to coordinate downstream stress-responsive gene networks. This regulatory axis mediates adaptation to drought through three core physiological modules: modulation of stomatal closure, biosynthesis of osmoregulatory solutes, and reactive oxygen species (ROS) scavenging via antioxidant enzyme activation. Some studies have analyzed and demonstrated the important roles of the ABF/AREB/ABI5 family in enhancing the non-biological stress adaptability and resistance of rice [7], wheat [6], potato [6], sweet potato [13], cotton [14], and strawberry [15]. For example, in wheat, TaABF17-19 is significantly upregulated under drought and salt stress [8]; ten SlABFs in tomato can respond to ABA induction; SlABF3 and other genes are significantly upregulated under salt and cold stress [11]; in apple, MdABF1 is significantly upregulated under drought stress, such that overexpression of MdABF1 enhances drought resistance [12]; overexpression of Arabidopsis AtABF3 activates RD29B, significantly enhancing plant drought resistance [16]; and, in rice, OsABF1 enhances drought resistance by regulating the expression of COR413-TM1 and other genes [17]. However, as a characteristic tree species in arid areas, the systematic identification of ABF genes, their evolutionary features, and drought response mechanisms in Z. jujuba cv. Dongzao has not yet been achieved, limiting the precision of its molecular breeding.
Consequently, our genome-wide characterization of the ABF transcription factor family in Z. jujuba cv. Dongzao, integrating phylogenetic profiling, structural bioinformatics, and spatiotemporal expression mapping, establishes a mechanistic framework for abiotic stress resilience in this economically vital crop. This work further delivers actionable genetic targets for molecular breeding programs aimed at enhancing drought tolerance.

2. Materials and Methods

2.1. Materials

The experimental materials for RNA extraction, cDNA synthesis, fluorescent quantitative analysis and drought stress treatment were cultivated at the Daquan Forestry Centre of Lingwu City (106°3′32″ E, 39°57′65″ N), at an altitude of 1250 m. The experimental trees were planted in plastic greenhouses with a row spacing of 3 m × 4 m, a temperature of 18–32 °C (night/day), and a photoperiod of 14 h. The soil was sandy loam, deep and fertile, and was irrigated using Yellow River water. The average annual temperature in the region is 9.6 °C, with an average annual sunshine duration of 3002.1 h, an average frost-free period of 157 days, and an annual accumulated temperature of 3351.3 °C. Annual precipitation ranges from 179.2 to 322.4 mm.
Plant samples from different parts (young leaves, old leaves, young stems, old stems, flowers, and roots) were collected in May, and fruit samples from different stages (white ripe stage, half-red stage, and fully red stage) were harvested from June to September. The samples were quickly placed in liquid nitrogen and stored at −80 °C in a freezer.
The experiment was conducted from July to August 2024. The selected tree materials were all healthy, well grown, disease-free, and uniformly vigorous 8-year-old Z. jujuba cv. Dongzao trees with Z. jujuba var. spinosa (Bunge) Hu ex H.F. Chow as the rootstock, and the row spacing measured 2 m × 4 m. Four treatments were set up: normal irrigation treatment (about 10 kg of water every three days, denoted CK), T1 treatment (light drought stress treatment, about 7.5 kg of water every three days, denoted LD), T2 treatment (moderate drought stress treatment, about 5 kg of water every three days, denoted MD), and T3 treatment (severe drought stress treatment, about 2.5 kg of water every three days, denoted HD). The soil’s relative moisture content was monitored and controlled using a hygrometer. We performed three biological replicates for each treatment, with five cycles over a total of 15 days. For sampling, randomly selected Z. jujuba cv. Dongzao fruits without mechanical damage and exhibiting consistent developmental stages were collected, wrapped in aluminum foil, and stored in liquid nitrogen before being transported back to the laboratory and preserved in an ultra-low-temperature freezer.

2.2. Research Methods

2.2.1. Identification of the Z. jujuba cv. Dongzao ABF/AREB/ABI5 Gene Family

A total of 9 AtABF protein sequences were downloaded from the Arabidopsis database (https://www.arabidopsis.org/ (accessed on 17 April 2024)) (AtABF1 (At1g49720), AtABF2/AREB1 (At1g45249), AtABF3 (At4g34000), AtABF4/AREB2 (At3g19290), AtABI5/DPBF1 (At2g36270), AtDPBF2 (At3g44460), AtDPBF3/AREB3 (At356850), AtDPBF4 (At2g41070) and AtbZIP15 (At5g42910)) as search sequences. The genomic and proteomic data of Z. jujuba cv. Dongzao was downloaded from NCBI (https://www.ncbi.nlm.nih.gov/ (accessed on 17 April 2024)), followed by alignment, screening, and identification. Secondly, an E-value of 1e-20 was used to reduce the false positive, and the PFAM database (http://pfam.xfam.org/ (accessed on 17 April 2024)) and SMART database (http://smart.embl-heidelberg.de/ (accessed on 17 April 2024)) were used to further verify the ABF/AREB protein domain of Z. jujuba cv. Dongzao. Candidate genes that did not contain a specific domain of the ABF/AREB/ABI5 gene (cd14707) were manually eliminated.

2.2.2. Physicochemical Property Analysis of the Z. jujuba cv. Dongzao ABF/AREB/ABI5 Gene Family

The online website ExPASy was used (https://www.expasy.org/ (accessed on 18 April 2024)) to analyze and statistically predict the physicochemical properties of the identified Z. jujuba cv. Dongzao ABF/AREB/ABI5 family member proteins, including the number of amino acids, molecular weight, theoretical isoelectric point, and instability coefficient.

2.2.3. Z. jujuba cv. Dongzao ABF/AREB/ABI5 Gene Family Subcellular Localization Prediction

The validated Z. jujuba cv. Dongzao ABF/AREB/ABI5 protein sequences were submitted to the online software Wolf PSORT (https://wolfpsort.hgc.jp/ (accessed on 18 April 2024)) for subcellular localization prediction [18].

2.2.4. Z. jujuba cv. Dongzao ABF/AREB/ABI5 Gene Family Chromosome Localization

The gff gene annotation file of Z. jujuba cv. Dongzao was downloaded from NCBI to explore the chromosome location information of each gene. Using the Z. jujuba cv. Dongzao whole-genome sequence and gene structure annotation information, a chromosome localization map of the Z. jujuba cv. Dongzao ABF/AREB/ABI5 gene family was drawn using TBtools 1.047 [19].

2.2.5. Analysis of the Conserved Structural Domains and Motifs in the Z. jujuba cv. Dongzao ABF/AREB/ABI5 Family

MEME (http://meme-suite.org/tools/meme, accessed on 18 April 2024) was used to analyze conserved motifs in the Z. jujuba cv. Dongzao ABF/AREB/ABI5 transcription factor family by inputting all protein sequences into the online ABF/AREB/ABI5 analysis program [20]. The number of motifs was set to 7, while other parameters were set to default values. The Z. jujuba cv. Dongzao family was subjected to multiple sequence alignment using DNAMAN V6 software.

2.2.6. Analysis of Gene Structure in the Z. jujuba cv. Dongzao ABF/AREB/ABI5 Family

Mega 11 was used to perform multiple sequence alignment on Arabidopsis and 7 of the Z. jujuba cv. Dongzao ABF/AREB/ABI5 protein sequences. A phylogenetic tree was constructed using the maximum likelihood method and was further modified using ITOL (https://itol.embl.de/itol.cgi, accessed 19 April 2024) for better visualization [21]. TBtools software was used to analyze the gene structure of the Z. jujuba cv. Dongzao ABF/AREB/ABI5 gene family members.

2.2.7. Z. jujuba cv. Dongzao ABF/AREB/ABI5 Protein Secondary and Tertiary Structure Prediction

SOPMA (http://npsa-pbil.ibcp.fr (accessed on 20 April 2024)) was used to predict the secondary structures of the Z. jujuba cv. Dongzao ABF/AREB/ABI5 protein sequences. In addition, the online website Swiss-Model (https://robetta.bakerlab.org/, accessed on 20 April 2024) was used to draw the three-dimensional structures of the different Z. jujuba cv. Dongzao ABF/AREB/ABI5 protein sequences.

2.2.8. Z. jujuba cv. Dongzao ABF/AREB/ABI5 Gene Promoter Cis-Regulatory Element Analysis

Tbtools was used to extract the nucleotide data of the first 2000 bp of the ABF/AREB/ABI5 gene family promoter region of Z. jujuba cv. Dongzao, and the cis-acting elements of the ABF/AREB/ABI5 promoter region of Z. jujuba cv. Dongzao were predicted using the online website PlantCARE (http://bioinformatics.psb.ugent.be/, accessed on 2 May 2024). After the results were obtained, they were input into Tbtools for visual analysis of the cis-acting elements [22].

2.2.9. Z. jujuba cv. Dongzao ABF/AREB/ABI5 Gene Family Collinearity Analysis

Collinearity analysis was conducted using MCScanX, retaining syntenic blocks with at least 3 gene pairs. Duplication events were estimated using Ks values, with segmental duplication defined as Ks < 0.5 and syntenic block length ≥ 10 kb. The results were visualized using TBtools, with tandemly duplicated gene clusters highlighted in red.

2.2.10. Z. jujuba cv. Dongzao ABF/AREB/ABI5 Protein Interaction Prediction

String (https://cn.string-db.org/, accessed on 5 May 2024) was used for protein interaction prediction analysis, with Arabidopsis thaliana set as the model plant.

2.2.11. Synthesis of cDNA and qRT-PCR

Plant RNA Kit (Tiangen Biotech Co., Nanjing, China.) was used to obtain the RNA of Z. jujuba cv. Dongzao, which was extracted from the plants under abiotic stress and the young leaves, old leaves, young stems, old stems, flowers, roots, white mature fruits, half-red fruits, and all-red fruits of untreated plants. According to the instructions of the HiScript II 1st Strand cDNA Synthesis Kit (Vazyme, Nanjing, China), RNA was reverse-transcribed into cDNA.
Additionally, qRT-PCR was performed on a LightCycler 480 II Real-Time PCR System (Roche, Indianapolis, IN, USA), which is based on the SYBR Green (Sangon, Shanghai, China) method. The Primer 3 online tool was used to design specific primers of ZjABFs [23]. All reactions were performed for three biological replicates and four technical repeats.

2.2.12. Data Analysis

We used the 2−∆∆Ct method to acquire the gene expression in Microsoft Excel 2020 and analyzed whether there were significant differences in gene expression via SPSS Statistics 27 [24]. The significance of ZjABF gene expressions was analyzed by a one-way ANOVA.

3. Results

3.1. Identification of the Z. jujuba cv. Dongzao ABF/AREB/ABI5 Gene Family Members

Homology analysis identified seven ABF/AREB/ABI5 genes in Z. jujuba cv. Dongzao. The presence of the conserved bZIP_plant_BZIP46 domain (cd14707) within these genes was confirmed using the Pfam, SMART, and NCBI Conserved Domain Databases. The genes were designated ZjABF1 to ZjABF7. Chromosomal localization analysis, performed using TBtools software (v2.016), revealed an uneven distribution of the ABF/AREB/ABI5 gene family members across five of the Z. jujuba cv. Dongzao chromosomes (Figure 1): ZjABF2 and ZjABF4 reside on Chr-5, ZjABF3 on Chr-8, ZjABF1 on Chr-9, ZjABF6 and ZjABF7 on Chr-10, and ZjABF5 on Chr-11.
Analysis of the physicochemical properties of the ZjABF proteins revealed amino acid lengths ranging from 288 residues (ZjABF6) to 474 residues (ZjABF7) (Table 1), with corresponding molecular weights spanning from 32.46 kDa (ZjABF6) to 52.64 kDa (ZjABF7). The theoretical isoelectric points (pI) varied substantially from 5.39 (ZjABF4) to 9.85 (ZjABF1). Notably, only ZjABF4 was predicted to be an acidic protein (pI < 7), whereas the others exhibited basic properties (pI > 7). Stability assessment classified ZjABF2 as the sole stable protein within the family; the instability indices of the remaining six ZjABF proteins exceeded 40, categorizing them as unstable. The grand average of hydropathicity (GRAVY) values, reflecting lipid solubility propensity, ranged between 63.88 (ZjABF5) and 80.12 (ZjABF4). All ZjABF proteins exhibited negative GRAVY values, indicating their overall hydrophilic character. Subcellular localization predictions using WOLF PSORT consistently indicated nuclear localization for all seven ZjABF proteins (ZjABF1–ZjABF7), suggesting their involvement in processes related to genetic material storage and replication.

3.2. Conserved Domains and Conserved Motifs of the Z. jujuba cv. Dongzao ABF/AREB/ABI5 Family

Multiple sequence alignment of the seven Z. jujuba cv. Dongzao ABF/AREB/ABI5 genes, performed using DNAMAN V6, revealed conserved N-terminal regions containing three characteristic domains (C1, C2, C3) and C-terminal regions comprising a C4 domain coupled with a canonical basic region/leucine zipper (bZIP) module (Figure 2). The ABF/AREB/ABI5 domains harbor highly conserved sequences, including potential phosphorylation sites conforming to the R-X-X-S/T motif. The C-terminal BRLZ domain (core bZIP region) is implicated in the specific recognition of the ABA-responsive element (ABRE) cis-acting element.
To further characterize the gene family members, conserved motifs within the seven ZjABF proteins (ZjABF1–ZjABF7) were predicted using the MEME online tool. Analysis identified seven conserved motifs ranging in length from 12 to 50 amino acids (Figure 3), exhibiting high similarity. Core regulatory elements—specifically the bZIP domain and phosphorylation sites—were highly conserved across all family members, suggesting potential functional redundancy. Motif 1 constitutes the fundamental unit of the bZIP domain. The phosphorylation regulatory network appears complete, formed by Motif 5 and Motif 2 (corresponding to the C1 site), Motif 3 (C2 site), Motif 4 (C3 site), and Motif 6 (C4 site). Notably, Motif 7 is exclusively present in ZjABF1, ZjABF2, and ZjABF4, potentially conferring distinct regulatory properties to these members.

3.3. Z. jujuba cv. Dongzao ABF/AREB/ABI5 Family Gene Structure Analysis

Phylogenetic analysis of the Z. jujuba cv. Dongzao ABF/AREB/ABI5 family, based on comparison with the amino acid sequences of nine Arabidopsis thaliana ABF/AREB/ABI5 proteins, revealed the evolutionary relationships within this group (Figure 4). The analysis resolved the 16 ABF/AREB/ABI5 proteins (7 ZjABFs from Z. jujuba cv. Dongzao and 9 AtABFs from A. thaliana) into three distinct subfamilies (designated Group A, Group B, and Group C). ZjABF5 and ZjABF7 clustered within Group A; ZjABF4, ZjABF6, and ZjABF3 belonged to Group B; and ZjABF1 and ZjABF2 were assigned to Group C. Notably, ZjABF7 and ZjABF5 formed a clade with the Arabidopsis orthologs AtDPBF2 and AtABI5/DPBF1, suggesting potential functional conservation between these genes.
Analysis of gene structure demonstrated that members of the Z. jujuba cv. Dongzao ABF/AREB/ABI5 gene family contain between three and five exons and two to six introns (Figure 5). While the non-coding regions and the position and length of introns exhibited considerable variation among different family members, the exon structure and length within the coding regions were conserved.

3.4. Z. jujuba cv. Dongzao ABF/AREB/ABI5 Tertiary and Secondary Structure Prediction

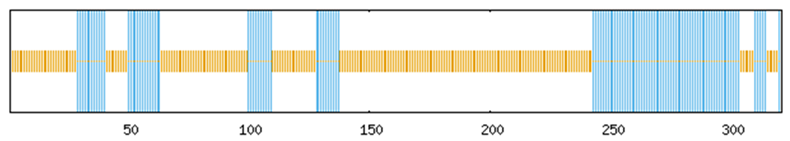

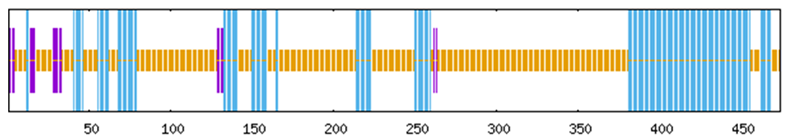

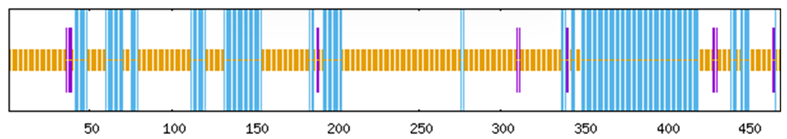

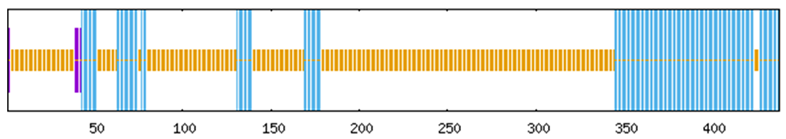

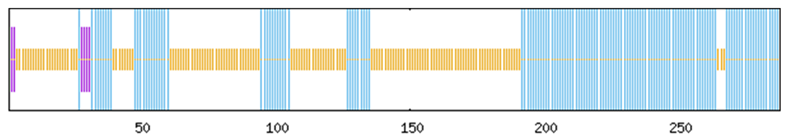

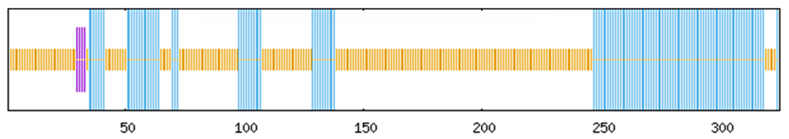

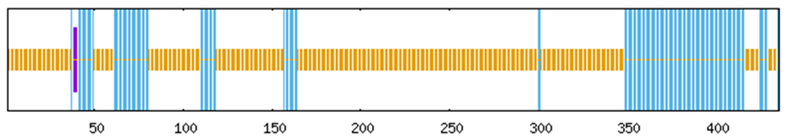

Secondary structure prediction for the Z. jujuba cv. Dongzao ABF/AREB/ABI5 protein family members, performed using SOPMA, revealed that α-helices and random coils constitute the predominant structural elements (Table 2). Specifically, α-helices account for 28.21% to 46.88% of the residues, while random coils represent 50.35% to 71.10%. Extended strands constitute a minor component, ranging from 0% to 4.43%. Tertiary structure modeling of the ZjABF proteins using Swiss-Model (Figure 6) further supports this secondary structure composition.

3.5. Analysis of Cis-Acting Elements in Promoters of Z. jujuba cv. Dongzao ABF/AREB/ABI5 Genes

To systematically investigate the functional mechanisms of the ABF/AREB/ABI5 genes in Z. jujuba cv. Dongzao, we analyzed cis-regulatory elements within the 2.0 kb upstream promoter regions using the PlantCARE database. This analysis revealed the presence of diverse elements implicated in key biological processes (Figure 7): hormone signaling—elements responsive to abscisic acid (ABA), methyl jasmonate (MeJA), salicylic acid (SA), and gibberellin (GA) (Figure 8); abiotic stress response—elements associated with drought (MBS), low temperature (LTR), anoxia (ARE), and wounding (WUN-motif); light regulation—elements involved in light signaling (GATA, MRE) and circadian control; and developmental regulation—elements conferring meristem specificity (TATC-box) and tissue specificity (GATA).
Notably, the ABA-responsive element (ABRE), characterized by a core motif similar to ACGTGGC and crucial for ABA signaling and plant responses to drought and salinity stress, was identified. ZjABF1, ZjABF2, and ZjABF5 exhibited prominent enrichment of ABREs. Furthermore, the MYB binding site (MBS), which is involved in drought stress responses (e.g., regulating genes for stomatal closure and osmoregulation), was present in the promoters of ZjABF3, ZjABF5, and ZjABF7.
Collectively, the prevalence of ABRE and MBS elements within the ZjABF promoters strongly suggests that this gene family participates in stress adaptation regulatory networks, particularly through ABA and drought signaling pathways.

3.6. Z. jujuba cv. Dongzao ABF/AREB/ABI5 Gene Family Syntenic Analysis

Gene duplication is an indispensable driver in the evolution of gene families, facilitating gene amplification and the emergence of novel functional genes. Consequently, a comprehensive analysis of duplication events within the Z. jujuba cv. Dongzao ABF/AREB/ABI5 gene family was conducted. Visualization using TBtools allowed for the identification of a total of three segmental duplication events among the family members (Figure 9). These duplicated genes are distributed across five chromosomes. Collectively, these findings indicate that segmental duplication events have contributed to the expansion and diversification of the ABF/AREB/ABI5 gene family throughout the evolution of Z. jujuba cv. Dongzao.

3.7. Prediction of Z. jujuba cv. Dongzao ABF/AREB/ABI5 Protein Interactions

To predict functionally associated proteins, interaction networks for the Z. jujuba cv. Dongzao ABF/AREB/ABI5 proteins were constructed using the STRING database, with Arabidopsis thaliana selected as the reference species. The analysis revealed ZjABF5 and ZjABF7 as central hubs within the predicted network. Both proteins exhibited interactions with key regulators, including ABI3, BZIP8, and SRK2D (Figure 10).
Notably, ABI3—a downstream transcription factor in the ABA signaling pathway characterized by its B3 domain—acts as a master regulator of seed dormancy and germination. SRK2D—an essential component and activator within the ABA signaling cascade—broadly regulates diverse ABA responses. The predicted interactions between the ZjABF proteins (particularly ZjABF5 and ZjABF7) and these core ABA signaling components suggest direct or indirect functional associations. This strongly implicates the ABF/AREB/ABI5 family, especially ZjABF5 and ZjABF7, in mediating ABA responses and critical biological processes such as seed germination in Z. jujuba cv. Dongzao.

3.8. Tissue Expression Specificity Analysis of Z. jujuba cv. Dongzao ABF/AREB/ABI5 Family Genes

To study the functions of the ZjABF genes, tissue-specific expression analysis was performed on seven ZjABF genes, and we selected nine tissues: the flower, the young leaf, the old leaf, the young stem, the old stem, the root, the white ripe fruit, the half-red fruit, and the fully red fruit.
The following key findings emerged. Most of the ABF/AREB/ABI5 genes were highly expressed in the root; the expression of ZjABF2 and ZjABF3 was markedly higher in fruits at all three ripening stages (white ripe, semi-red, all-red) relative to their expression in non-fruit tissues (Figure 11). This pronounced enrichment in developing and ripening fruits suggests potential regulatory roles for these genes during fruit maturation processes.

3.9. Expression Analysis of the Z. jujuba cv. Dongzao ABF/AREB/ABI5 Gene Family Under Drought Stress Treatment

To elucidate the roles of ABF/AREB/ABI5 genes in abiotic stress tolerance in Z. jujuba cv. Dongzao, the expression levels of the seven ZjABF genes were analyzed under drought stress treatments. The results revealed that ZjABF1, ZjABF2, ZjABF4, and ZjABF7 displayed the most pronounced upregulation (Figure 12); they were 51.67 times, 144.91 times, 45.02 times, and 29.48 times the expression in the CK, respectively. Among these, ZjABF2 emerged as the most responsive gene to drought stress.

4. Discussion

Abscisic acid (ABA) is a crucial plant hormone [25]. Members of the ABF/AREB/ABI5 family belong to the A subfamily of bZIP transcription factors. Characterized by their ability to specifically recognize the ABA-responsive element (ABRE) cis-acting motif in promoter regions of downstream genes, these factors participate in ABA signaling pathways and are collectively designated ABRE-binding factors (ABFs). Notably, ABI5 shares high homology with ABF/AREB members in both protein domain architecture and functional regulation, leading to its systematic inclusion within this subfamily [8]. This study identified seven ABF/AREB/ABI5 genes in the Z. jujuba cv. Dongzao genome. These genes are distributed across five chromosomes and include one segmental duplication event. Comparative analysis revealed variation in family size across species: tomato harbors 10 members on five chromosomes [11], black nightshade (Solanum nigrum) possesses 7 members on five chromosomes [6], and poplar (Populus trichocarpa) contains 14 members across nine chromosomes [26]. This pattern suggests a correlation between chromosome number and ABF/AREB/ABI5 gene family size, potentially driven by mechanisms such as whole-genome duplication (WGD) and tandem gene duplication. ABF/AREB/ABI5 family members are predominantly localized to the nucleus [27]. Consistent with findings in Arabidopsis, where these factors localize to the nucleus and can form heterodimers, all seven Z. jujuba cv. Dongzao ABF/AREB/ABI5 proteins were predicted to be nucleus-localized. This supports the hypothesis that dimerization represents an additional regulatory layer for modulating the activity of these transcription factors in Z. jujuba cv. Dongzao. Secondary structure analyses in adzuki bean (Vigna angularis) and common bean (Phaseolus vulgaris) indicate that AREB1 proteins are primarily composed of α-helices and random coils [28]. Similarly, our analysis of the Z. jujuba cv. Dongzao ABF/AREB/ABI5 family revealed α-helices and random coils as the dominant structural elements, with random coils being the most abundant. The prevalence of random coils may facilitate connections between diverse secondary structural elements within these regulatory proteins.
Arabidopsis thaliana ABF/AREB/ABI5 family proteins possess a conserved modular structure: the C-terminus harbors the bZIP domain responsible for DNA binding, while the N-terminus to C-terminus sequentially contains four Ser/Thr phosphorylation motifs (designated C1–C4), with C1–C3 located in the N-terminal region and C4 adjacent to the bZIP domain. The phosphorylation status of these motifs directly regulates protein activity and downstream signaling [29]. For instance, the phosphorylated active form of AREB1 can induce ectopic gene expression in vegetative tissues [30]. While a theoretical framework for phosphorylation sites in Z. jujuba cv. Dongzao ABF/AREB/ABI5 proteins remains to be established, our study reveals that, analogous to Arabidopsis, all Z. jujuba cv. Dongzao ABF/AREB/ABI5 genes encode a distinctive BRLZ domain at the C-terminus of the bZIP region, implicated in the recognition and binding of specific DNA sequences. Beyond the highly conserved bZIP domain, ZjABF proteins also contain four conserved putative phosphorylation sites. Our motif analysis indicates that Motif 1 constitutes the core bZIP domain. Furthermore, a complete phosphorylation regulatory network is formed by Motif 5 and Motif 2 (corresponding to the C1 site), Motif 3 (C2 site), Motif 4 (C3 site), and Motif 6 (C4 site). Analysis of gene structure demonstrates that Z. jujuba cv. Dongzao ABF/AREB/ABI5 genes contain between three and five exons and two to six introns. This organization is highly similar to the genetic structures observed in potato (Solanum tuberosum) and poplar [26], confirming the conserved gene composition of ABF/AREB/ABI5 family members in Z. jujuba cv. Dongzao.
A. thaliana ABF/AREB/ABI5 subfamily members exhibit tissue-specific expression during vegetative growth, with transcript activity significantly enriched in vegetative organs. Notably, AREB1/ABF2, AREB2/ABF4, and ABF3 function cooperatively to regulate ABRE-dependent ABA signaling, playing critical roles in tolerance to drought stress [31]. Phylogenetically, ZjABF1 and ZjABF2 cluster within Group C, alongside the Arabidopsis orthologs AREB1/ABF2, AREB2/ABF4, and ABF3. Mirroring the functional implications of this grouping, ZjABF1 and ZjABF2 display pronounced expression in roots, while ZjABF2 and ZjABF3 are highly expressed during fruit maturation. Furthermore, ZjABF1 and ZjABF2 exhibit the most significant induction under drought stress. These expression patterns, coupled with their phylogenetic placement, strongly suggest that Group C ZjABF genes function similarly to their Arabidopsis counterparts, likely playing pivotal roles in ABA-mediated stress response pathways in Z. jujuba cv. Dongzao. Additionally, these ABF/AREB/ABI5 transcription factors share similarities in subcellular localization, gene structure, and tissue expression profiles. Intriguingly, ZjABF4 shares cell localization and gene structure characteristics with ZjABF1 and ZjABF2 and uniquely possesses Motif 7 alongside them. This combination of shared features suggests that ZjABF4 may represent a functional homolog of ZjABF1 and ZjABF2.
Cis-regulatory elements within gene promoters serve as core hubs in plant signaling networks, integrating environmental cues and modulating downstream gene expression by specifically binding transcription factors. As key regulatory nodes, ABF/AREB/ABI5 family members are widely implicated in plant responses to abiotic stresses (e.g., drought, salinity, cold) and developmental regulation [32]. Arabidopsis ABF/AREB/ABI5 gene expression is coordinately induced by light signals, ABA, and multiple abiotic stresses (drought, high salinity, and cold), forming a multi-layered stress response network [33]. Beyond these signals, PmABFs in Prunus mume (Rosaceae) can also be activated by exogenous hormones (e.g., gibberellins, ethylene) and hypoxia stress, implying roles in broader physiological adaptation [34]. Consistent with this regulatory complexity, our analysis of ZjABF promoters reveals an abundance of cis-elements associated with hormone signaling, abiotic stress responses, and light regulation, underscoring their critical functions in the growth, development, and stress adaptation of Z. jujuba cv. Dongzao.
In this study, most of the ABF/AREB/ABI5 genes were highly expressed in the root. Under drought stress, both ZjABF1, ZjABF2, ZjABF4 and ZjABF7 were upregulated, and ZjABF2 contained the most ABRE cis-reactive elements, suggesting that the water-stress-responsive members of the AREB/ABF/ABI5 subfamily regulate the ABRE-dependent ABA signaling involved in drought stress tolerance. At the same time, they were highly expressed in the root. Based on this, we speculated that ABA is primarily synthesized in the root and then transported to the target tissues by the xylem and phloem, identifying the transport pathway between the root and shoot of Z. jujuba cv. Dongzao. Our findings agree with those regarding Arabidopsis [31].

5. Conclusions

This study conducted genome-wide identification of the ABF/AREB/ABI5 transcription factor family in Z. jujuba cv. Dongzao. Employing bioinformatic analyses, we characterized the structural features, physicochemical properties, and predicted gene functions of the identified family members. Expression profiling under graded drought stress revealed candidate genes which are responsive to water deficits. Notably, ZjABF2 emerged as a pivotal regulator, being implicated in both fruit maturation processes and adaptation to drought stress. These findings establish a foundation for elucidating the molecular mechanisms underlying drought tolerance mediated by ABF/AREB/ABI5 genes in jujube and highlight ZjABF2 as a prime candidate for further functional investigation.

Author Contributions

Conceptualization, Z.Z. and X.L.; methodology, Z.Z., Y.W., J.Z. and J.W.; software, Z.Z. and X.Z.; investigation, Z.Z., B.S. and L.L.; resources, J.Z. and Z.W.; data curation, J.Z. and W.X.; writing—original draft preparation, Z.Z.; writing—review and editing, Z.Z. and W.X.; supervision, W.X.; project administration, W.X.; funding acquisition, W.X. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China under grant number 32060669; the sixth batch of Ningxia young scientific and technological talent lifting project as part of the Graduate Innovation Program of North Minzu University, under grant number YCX24138; and the Innovation Team for Genetic Improvement of Economic Forests, under grant number 2022QCXTD04.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Hui, G.; Jin, J.; Deng, S.; Ye, X.; Zhao, M.; Wang, M.; Ye, D. Winter jujube (Zizyphus jujuba Mill.) quality forecasting method based on electronic nose. Food Chem. 2015, 170, 484–491. [Google Scholar] [CrossRef] [PubMed]
  2. Wang, B.; Zhang, L.; Zhang, T.; Ma, Y.; Song, L. Identification of ANS Gene Regulating Fruit Color in Jujube (Ziziphus Jujuba Mill. Cv. Lingwuchangzao) and Analysis of Its Expression under Elevated Temperature and Drought Stress. BMC Plant Biol. 2024, 24, 1156. [Google Scholar] [CrossRef]
  3. Zhang, Y.B.; Wang, L.; Xue, H.; Li, J.P.; Lü, Y.Z. Effects of different drought degrees on water-carbon balance and biomass allocation of jujube seedlings. Non-Wood For. Res. 2022, 40, 208–215. [Google Scholar] [CrossRef]
  4. Miller, R.N.G.; Costa Alves, G.S.; Van Sluys, M.-A. Plant immunity: Unravelling the complexity of plant responses to biotic stresses. Ann. Bot. 2017, 119, 681–687. [Google Scholar] [CrossRef]
  5. Choi, H.; Hong, J.; Ha, J.; Kang, J.; Kim, S.Y. ABFs, a Family of ABA-Responsive Element Binding Factors. J. Biol. Chem. 2000, 275, 1723–1730. [Google Scholar] [CrossRef]
  6. Liu, T.; Zhou, T.; Lian, M.; Liu, T.; Hou, J.; Ijaz, R.; Song, B. Genome-Wide Identification and Characterization of the AREB/ABF/ABI5 Subfamily Members from Solanum Tuberosum. Int. J. Mol. Sci. 2019, 20, 311. [Google Scholar] [CrossRef] [PubMed]
  7. Miyazono, K.; Koura, T.; Kubota, K.; Yoshida, T.; Fujita, Y.; Yamaguchi-Shinozaki, K.; Tanokura, M. Purification, Crystallization and Preliminary X-ray Analysis of OsAREB8 from Rice, a Member of the AREB/ABF Family of bZIP Transcription Factors, in Complex with Its Cognate DNA. Acta Crystallogr. F Struct. Biol. Cryst. Commun. 2012, 68, 491–494. [Google Scholar] [CrossRef]
  8. Guo, S.J.; Sun, Y.; Zheng, H.Y.; Zhao, H.X.; Ma, M.; Liu, X.L. Genome-wide identification and expression analysis of ABF/AREB/ABI5 gene family in wheat (Triticum aestivum L.). J. Agric. Biotechnol. 2023, 31, 667–681. [Google Scholar]
  9. Yang, C.; Cheng, S.S.; Ai, C.F.; Zhao, X.; Liu, M.J. Genome-wide identification of ABF/AREB gene family and expression analysis during fruit development in jujube (Ziziphus jujuba Mill.). Bull. Biotechnol. 2024, 40, 184–191. [Google Scholar] [CrossRef]
  10. Brocard, I.M.; Lynch, T.J.; Finkelstein, R.R. Regulation and Role of the Arabidopsis Abscisic Acid-Insensitive 5 Gene in Abscisic Acid, Sugar, and Stress Response. Plant Physiol. 2002, 129, 1533–1543. [Google Scholar] [CrossRef]
  11. Pan, X.; Wang, C.; Liu, Z.; Gao, R.; Feng, L.; Li, A.; Yao, K.; Liao, W. Identification of ABF/AREB Gene Family in Tomato (Solanum lycopersicum L.) and Functional Analysis of ABF/AREB in Response to ABA and Abiotic Stresses. PeerJ 2023, 11, e15310. [Google Scholar] [CrossRef] [PubMed]
  12. Rui, L.; Yang, Y.-Y.; Zheng, P.-F.; Wang, C.-K.; Wang, X.; Li, H.-L.; Liu, G.-D.; Liu, R.-X.; Wang, X.-F.; You, C.-X. Genome-Wide Analysis of MdABF Subfamily and Functional Identification of MdABF1 in Drought Tolerance in Apple. Environ. Exp. Bot. 2022, 199, 104904. [Google Scholar] [CrossRef]
  13. Rikiishi, K.; Matsuura, T.; Maekawa, M. TaABF1, ABA Response Element Binding Factor 1, Is Related to Seed Dormancy and ABA Sensitivity in Wheat (Triticum aestivum L.) Seeds. J. Cereal Sci. 2010, 52, 236–238. [Google Scholar] [CrossRef]
  14. Kerr, T.C.C.; Abdel-Mageed, H.; Aleman, L.; Lee, J.; Payton, P.; Cryer, D.; Allen, R.D. Ectopic Expression of Two AREB/ABF Orthologs Increases Drought Tolerance in Cotton (Gossypium hirsutum). Plant Cell Environ. 2018, 41, 898–907. [Google Scholar] [CrossRef]
  15. Li, D.; Mou, W.; Luo, Z.; Li, L.; Limwachiranon, J.; Mao, L.; Ying, T. Developmental and Stress Regulation on Expression of a Novel miRNA, Fan-miR73, and Its Target ABI5 in Strawberry. Sci. Rep. 2016, 6, 28385. [Google Scholar] [CrossRef]
  16. Zeng, J.; Huang, F.; Zhang, N.; Wu, C.; Lin, J.; Lin, S.; Pan, Z.; Lei, X.; Zheng, J.; Guo, J.; et al. Manihot esculenta PP2C26 Overexpression of genes reduced drought tolerance and abscisic acid response in transgenic Arabidopsis. Biochem. Biophys. Res. Commun. 2025, 760, 151715. [Google Scholar] [CrossRef]
  17. Zhang, C.; Li, C.; Liu, J.; Lv, Y.; Yu, C.; Li, H.; Zhao, T.; Liu, B. The OsABF1 transcription factor improves drought tolerance by activating the transcription of COR413-TM1 in rice. J. Exp. Bot. 2017, 68, 4695–4707. [Google Scholar] [CrossRef] [PubMed] [PubMed Central]
  18. Huang, F.; Abbas, F.; Fiaz, S.; Imran, M.; Yanguo, K.; Hassan, W.; Ashraf, U.; He, Y.; Cai, X.; Wang, Z.; et al. Comprehensive Characterization of Guanosine Monophosphate Synthetase in Nicotiana Tabacum. Mol. Biol. Rep. 2022, 49, 5265–5272. [Google Scholar] [CrossRef] [PubMed]
  19. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An integrative toolkit developed for interactive analyses of big biological data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef]
  20. Bailey, T.L.; Boden, M.; Buske, F.A.; Frith, M.; Grant, C.E.; Clementi, L.; Ren, J.; Li, W.W.; Noble, W.S. MEME SUITE: Tools for motif discovery and searching. Nucleic Acids Res. 2009, 37, W202–W208. [Google Scholar] [CrossRef]
  21. Letunic, I.; Bork, P. Interactive Tree Of Life (iTOL) v5: An Online Tool for Phylogenetic Tree Display and Annotation. Nucleic Acids Res. 2021, 49, W293–W296. [Google Scholar] [CrossRef]
  22. Lescot, M.; Déhais, P.; Thijs, G.; Marchal, K.; Moreau, Y.; Van de Peer, Y.; Rouzé, P.; Rombauts, S. PlantCARE, a Database of Plant Cis-Acting Regulatory Elements and a Portal to Tools for in Silico Analysis of Promoter Sequences. Nucleic Acids Res. 2002, 30, 325–327. [Google Scholar] [CrossRef]
  23. Untergasser, A.; Cutcutache, I.; Koressaar, T.; Ye, J.; Faircloth, B.C.; Remm, M.; Rozen, S.G. Primer3—New Capabilities and Interfaces. Nucleic Acids Res. 2012, 40, e115. [Google Scholar] [CrossRef] [PubMed]
  24. Livak, K.J.; Schmittgen, T.D. Analysis of Relative Gene Expression Data Using Real-Time Quantitative PCR and the 2(−Delta Delta C(T)) Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
  25. Liu, T.; Liu, L.; Zhou, T.; Chen, Y.; Zhou, H.; Lyu, J.; Zhang, D.; Shi, X.; Yuan, D.; Ye, N.; et al. Chalcone isomerase gene (OsCHI3) increases rice drought tolerance by scavenging ROS via flavonoid and ABA metabolic pathways. Crop J. 2025, 13, 372–384. [Google Scholar] [CrossRef]
  26. Ji, L.; Wang, J.; Ye, M.; Li, Y.; Guo, B.; Chen, Z.; Li, H.; An, X. Identification and Characterization of the Populus AREB/ABF Subfamily. J. Integr. Plant Biol. 2013, 55, 177–186. [Google Scholar] [CrossRef]
  27. Wei, X.; Lu, W.; Mao, L.; Han, X.; Wei, X.; Zhao, X.; Xia, M.; Xu, C. ABF2 and MYB Transcription Factors Regulate Feruloyl Transferase FHT Involved in ABA-Mediated Wound Suberization of Kiwifruit. J. Exp. Bot. 2020, 71, 305–317. [Google Scholar] [CrossRef]
  28. Li, H.L.; Duan, L.H.; Fang, S.M.; Li, J.Y.; Meng, W.K.; Liang, X.L. Bioinformatics analysis of AREB1 gene in adzuki bean (Vigna angularis) and kidney bean (Phaseolus vulgaris). Southwest China J. Agric. Sci. 2018, 31, 1559–1564. [Google Scholar] [CrossRef]
  29. Tezuka, K.; Taji, T.; Hayashi, T.; Sakata, Y. A Novel Abi5 Allele Reveals the Importance of the Conserved Ala in the C3 Domain for Regulation of Downstream Genes and Salt Tolerance during Germination in Arabidopsis. Plant Signal. Behav. 2013, 8, e23455. [Google Scholar] [CrossRef]
  30. Bastías, A.; López-Climent, M.; Valcárcel, M.; Rosello, S.; Gómez-Cadenas, A.; Casaretto, J.A. Modulation of Organic Acids and Sugar Content in Tomato Fruits by an Abscisic Acid-Regulated Transcription Factor. Physiol. Plant. 2011, 141, 215–226. [Google Scholar] [CrossRef]
  31. Yoshida, T.; Fujita, Y.; Sayama, H.; Kidokoro, S.; Maruyama, K.; Mizoi, J.; Shinozaki, K.; Yamaguchi-Shinozaki, K. AREB1, AREB2, and ABF3 Are Master Transcription Factors That Cooperatively Regulate ABRE-Dependent ABA Signaling Involved in Drought Stress Tolerance and Require ABA for Full Activation. Plant J. 2010, 61, 672–685. [Google Scholar] [CrossRef] [PubMed]
  32. Kim, S.Y. The Role of ABF Family bZIP Class Transcription Factors in Stress Response. Physiol. Plant. 2006, 126, 519–527. [Google Scholar] [CrossRef]
  33. Xu, D.; Li, J.; Gangappa, S.N.; Hettiarachchi, C.; Lin, F.; Andersson, M.X.; Jiang, Y.; Deng, X.W.; Holm, M. Convergence of Light and ABA Signaling on the ABI5 Promoter. PLoS Genet 2014, 10, e1004197. [Google Scholar] [CrossRef] [PubMed]
  34. Yong, X.; Zheng, T.; Zhuo, X.; Ahmad, S.; Li, L.; Li, P.; Yu, J.; Wang, J.; Cheng, T.; Zhang, Q. Genome-Wide Identification, Characterisation, and Evolution of ABF/AREB Subfamily in Nine Rosaceae Species and Expression Analysis in Mei (Prunus mume). PeerJ 2021, 9, e10785. [Google Scholar] [CrossRef]
Genes 16 00785 g001

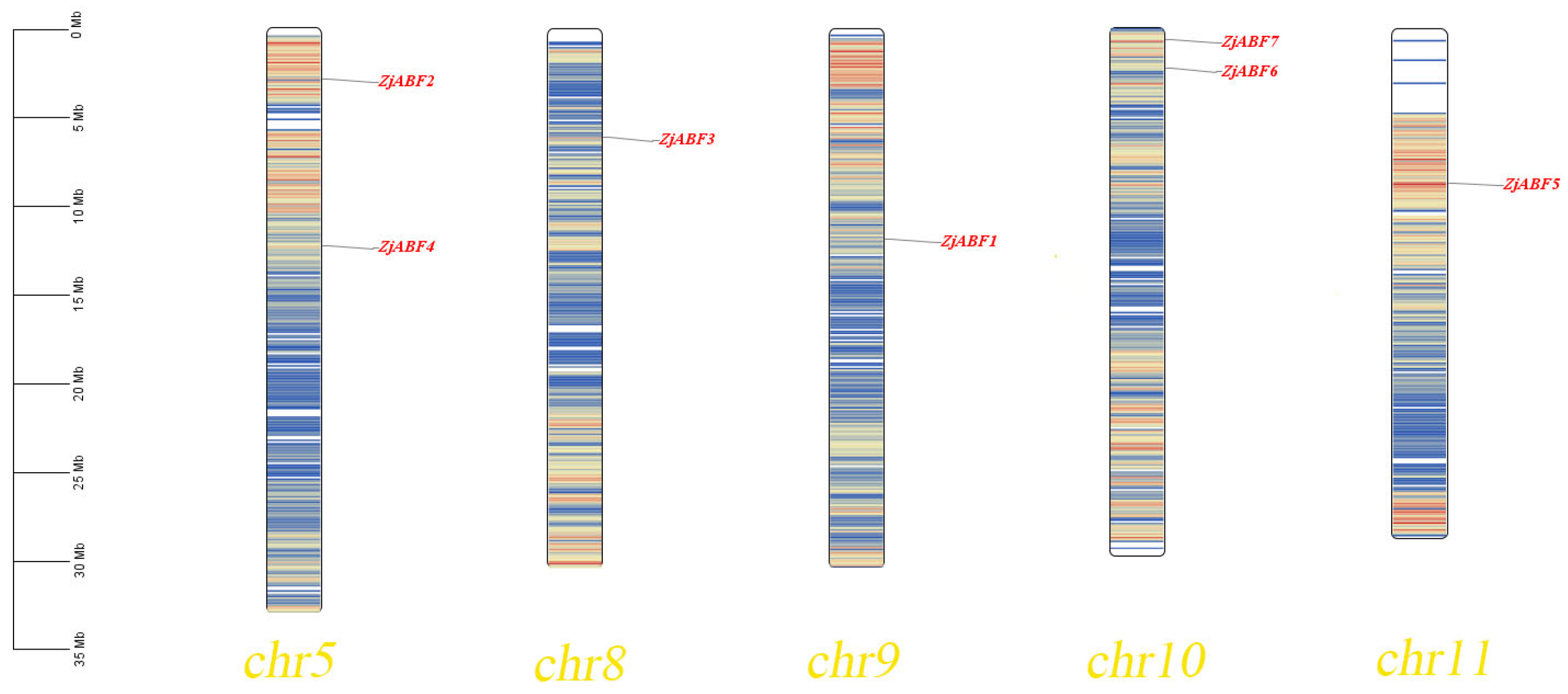

Figure 1. Chromosome location map of ZjABF family of Z. jujuba cv. Dongzao. The chromosome location map shows the location of seven ZjABF genes and the chromosome length unit is Mb.
Figure 1. Chromosome location map of ZjABF family of Z. jujuba cv. Dongzao. The chromosome location map shows the location of seven ZjABF genes and the chromosome length unit is Mb.
Genes 16 00785 g001
Genes 16 00785 g002

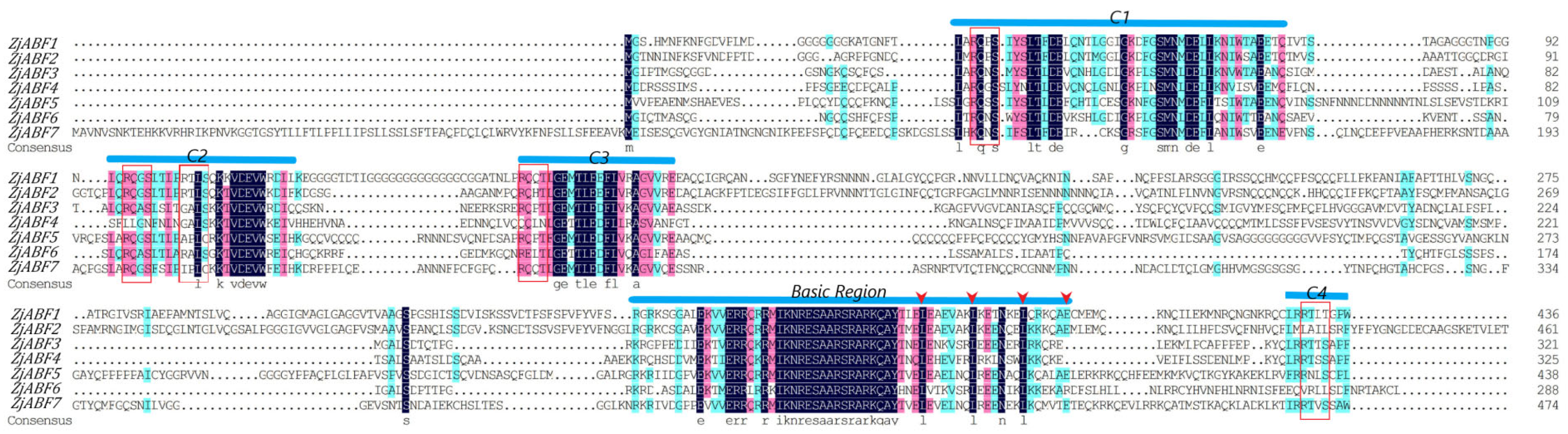

Figure 2. Multiple sequence alignment of Dongzao ABF/AREB/ABI5 members. The residues are shaded in pink, light blue, and dark blue. The positions from C1 to C4 are conserved domains, and the basic region is represented by the line above the protein sequence. The potential phosphorylation residues (R-S-SX/T) of characteristic phosphorylation sites are represented by red boxes. The conserved Leu residues are positioned in Leu zippers. Domains are represented by red triangles.
Figure 2. Multiple sequence alignment of Dongzao ABF/AREB/ABI5 members. The residues are shaded in pink, light blue, and dark blue. The positions from C1 to C4 are conserved domains, and the basic region is represented by the line above the protein sequence. The potential phosphorylation residues (R-S-SX/T) of characteristic phosphorylation sites are represented by red boxes. The conserved Leu residues are positioned in Leu zippers. Domains are represented by red triangles.
Genes 16 00785 g002
Genes 16 00785 g003

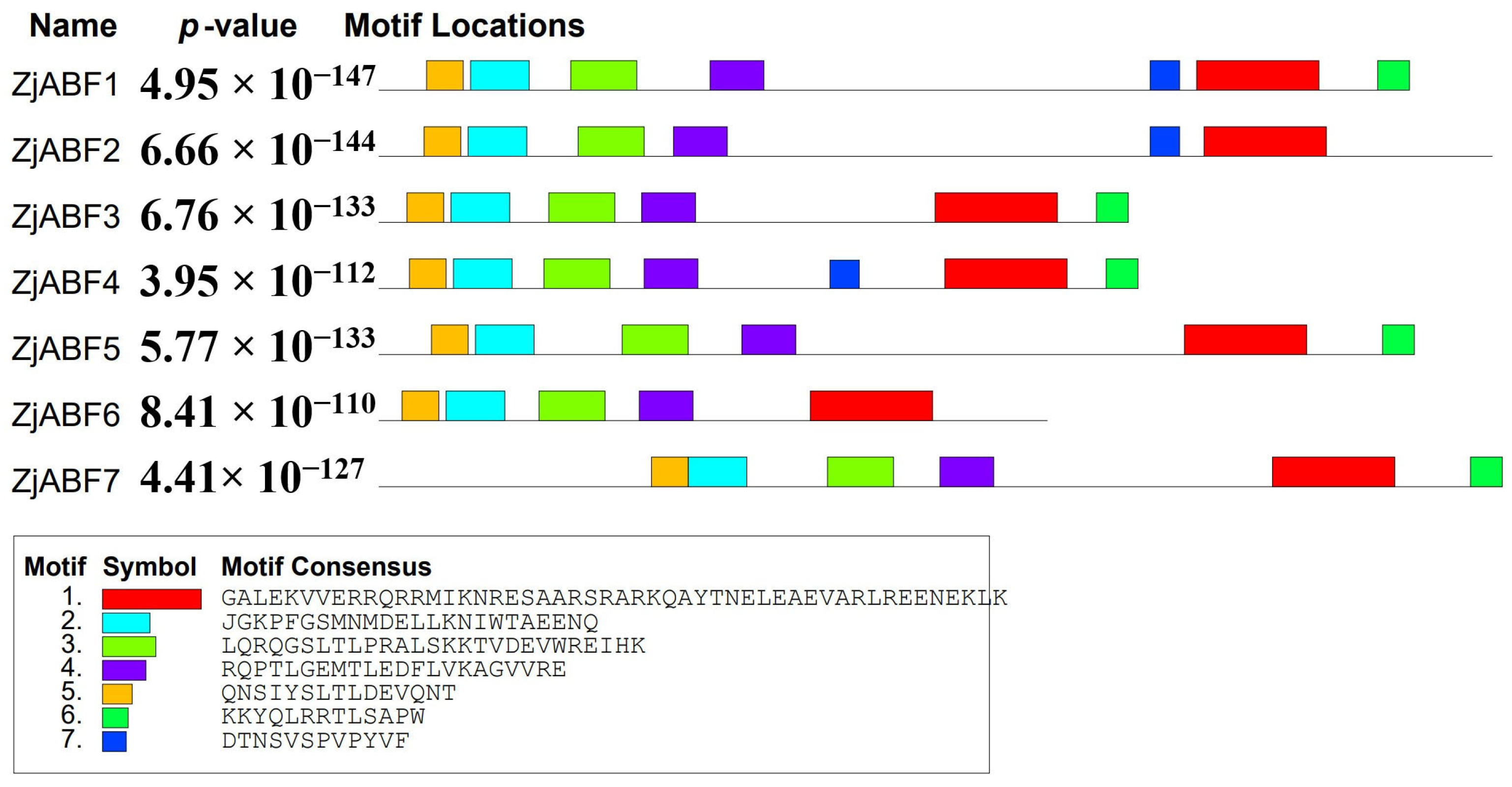

Figure 3. Sequence analysis of ABF/AREB/ABI5 gene family in Z. jujuba cv. Dongzao. Differently colored rectangles represent different motifs.
Figure 3. Sequence analysis of ABF/AREB/ABI5 gene family in Z. jujuba cv. Dongzao. Differently colored rectangles represent different motifs.
Genes 16 00785 g003
Genes 16 00785 g004

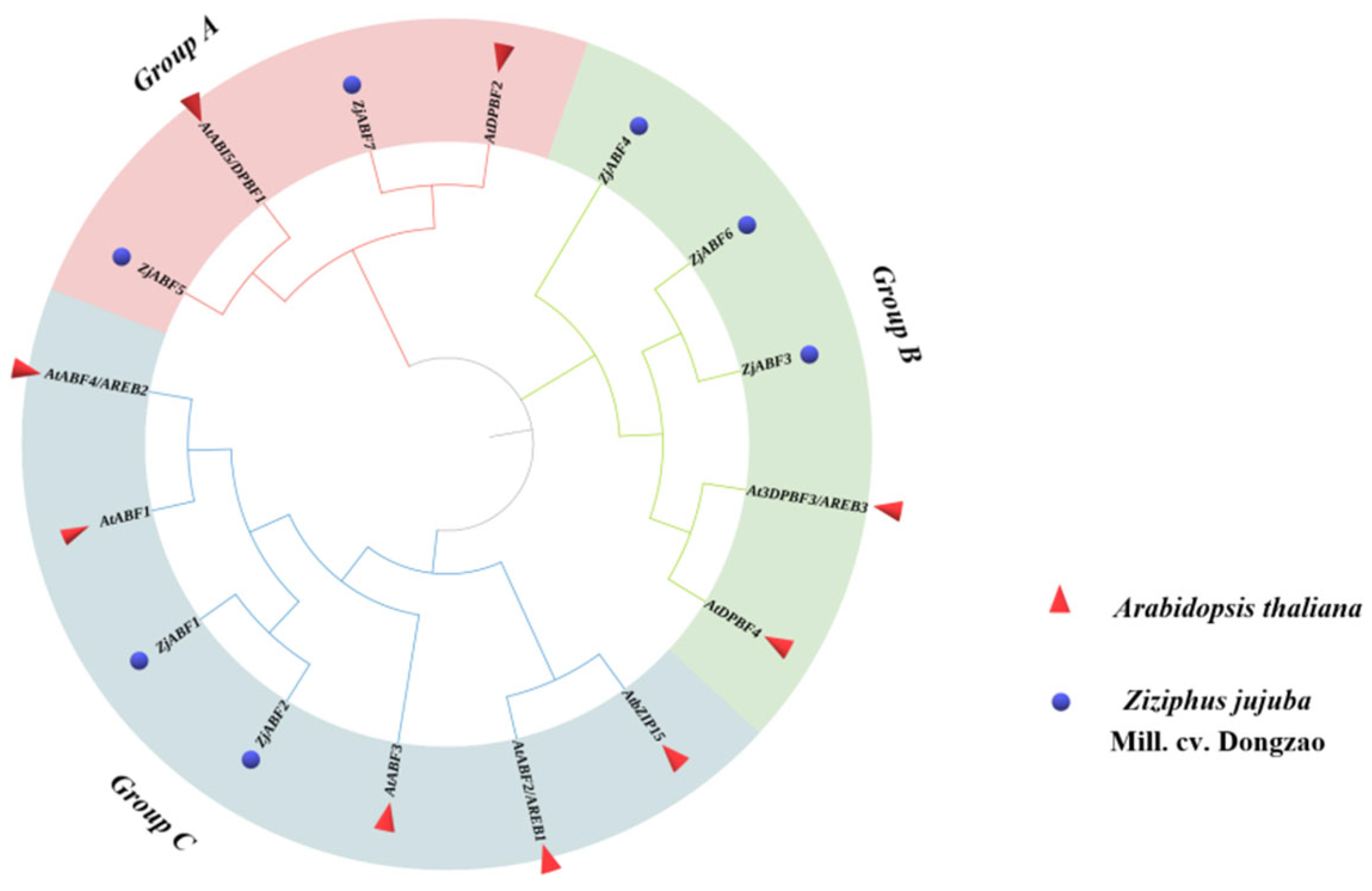

Figure 4. Phylogenetic relationships of AREB/ABF/ABI5 proteins in A. thaliana and Z. jujuba cv. Dongzao that were established by the neighbor-joining (NJ) connection method in MEGA X. The red triangle indicates AtABFs, and the blue circle indicates ZjABFs.
Figure 4. Phylogenetic relationships of AREB/ABF/ABI5 proteins in A. thaliana and Z. jujuba cv. Dongzao that were established by the neighbor-joining (NJ) connection method in MEGA X. The red triangle indicates AtABFs, and the blue circle indicates ZjABFs.
Genes 16 00785 g004
Genes 16 00785 g005

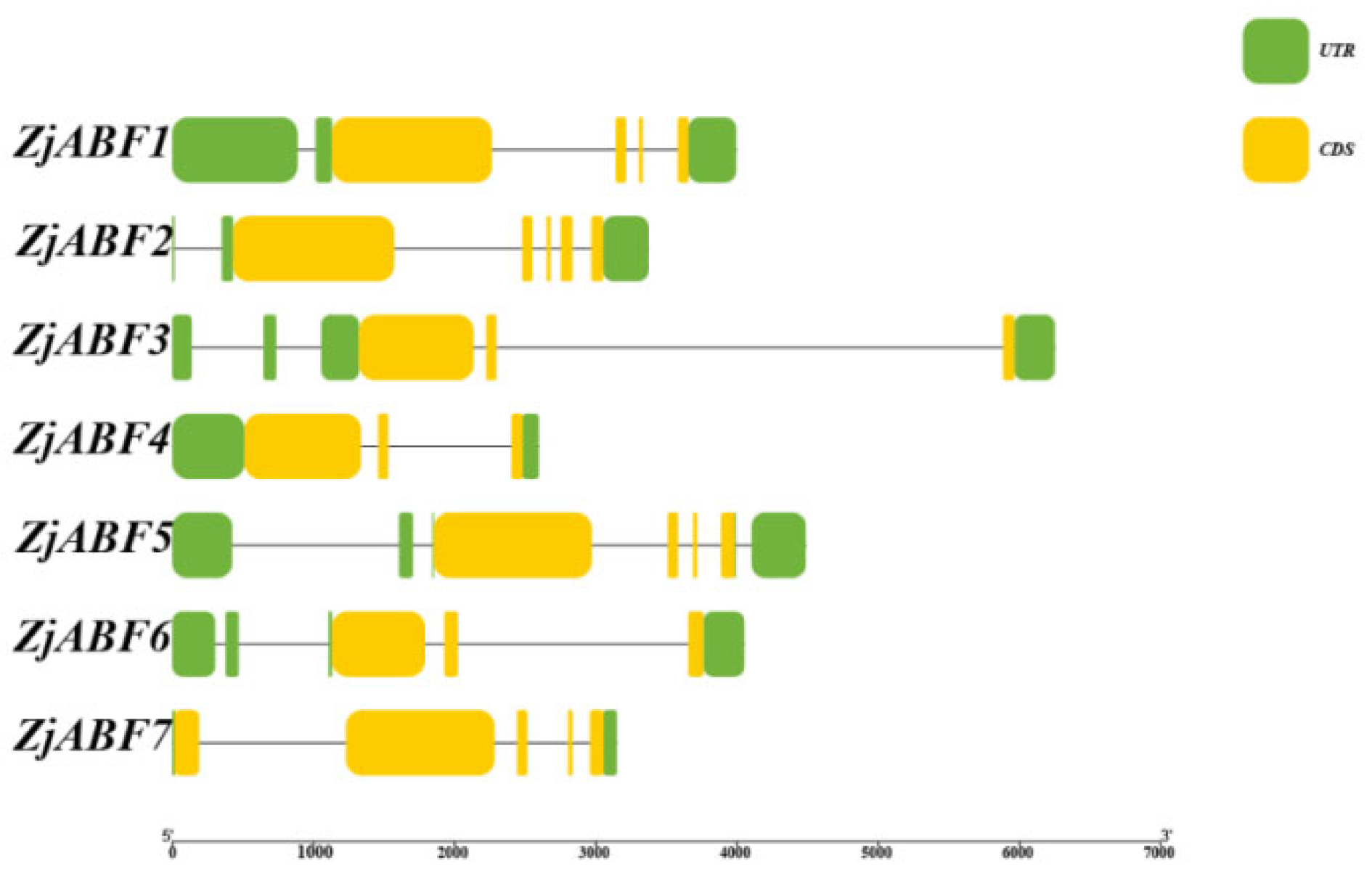

Figure 5. Schematic diagram of ZjABF family structure. These include CDS, UTRs, and introns.
Figure 5. Schematic diagram of ZjABF family structure. These include CDS, UTRs, and introns.
Genes 16 00785 g005
Genes 16 00785 g006

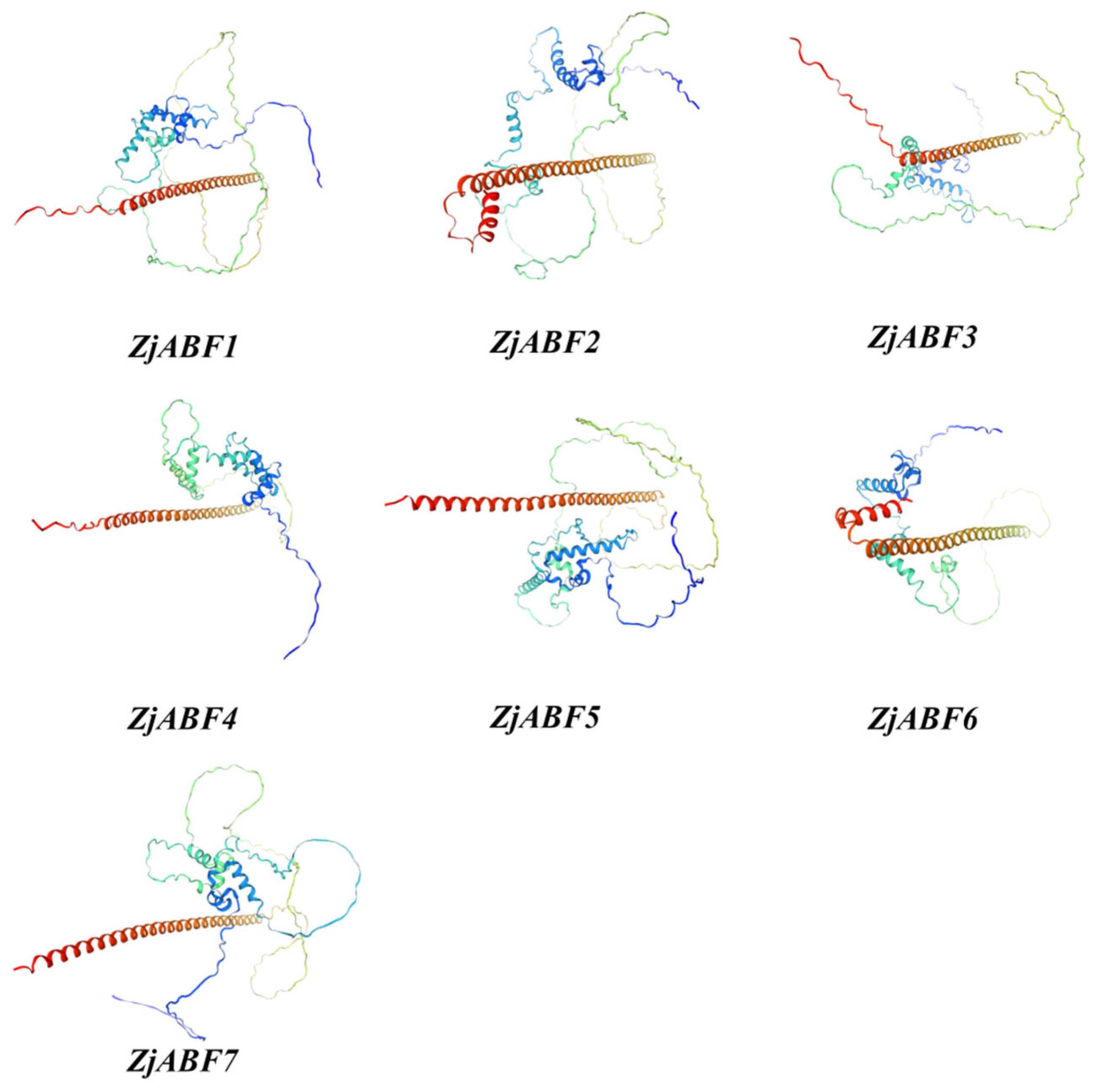

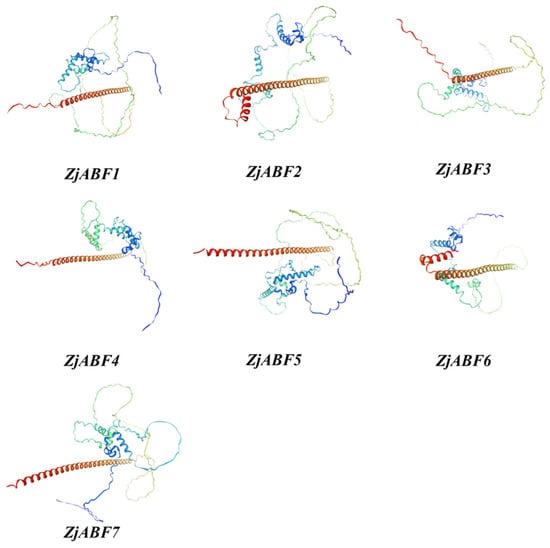

Figure 6. A schematic diagram of the tertiary structures of the ZjABF family of proteins.
Figure 6. A schematic diagram of the tertiary structures of the ZjABF family of proteins.
Genes 16 00785 g006
Genes 16 00785 g007

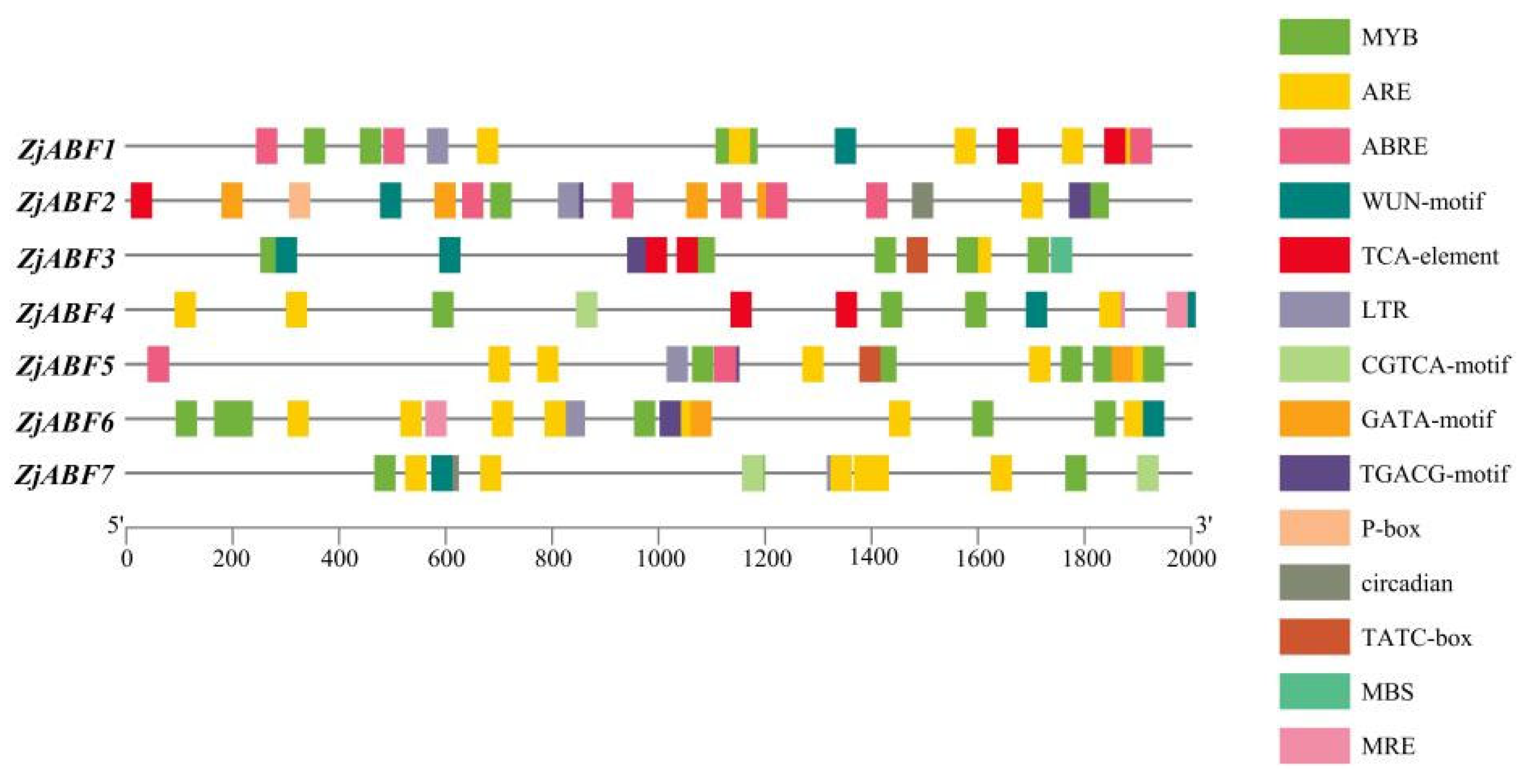

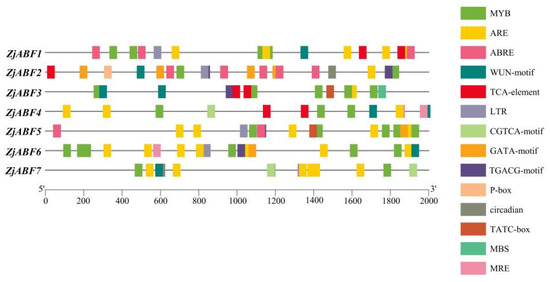

Figure 7. The distribution of cis-acting elements in the ABF/AREB/ABI5 genes of Z. jujuba cv. Dongzao. Differently colored rectangles represent different cis-acting elements. The length and position of each ZjABF gene are proportionally located. The scale bar represents the length of the DNA sequence.
Figure 7. The distribution of cis-acting elements in the ABF/AREB/ABI5 genes of Z. jujuba cv. Dongzao. Differently colored rectangles represent different cis-acting elements. The length and position of each ZjABF gene are proportionally located. The scale bar represents the length of the DNA sequence.
Genes 16 00785 g007
Genes 16 00785 g008

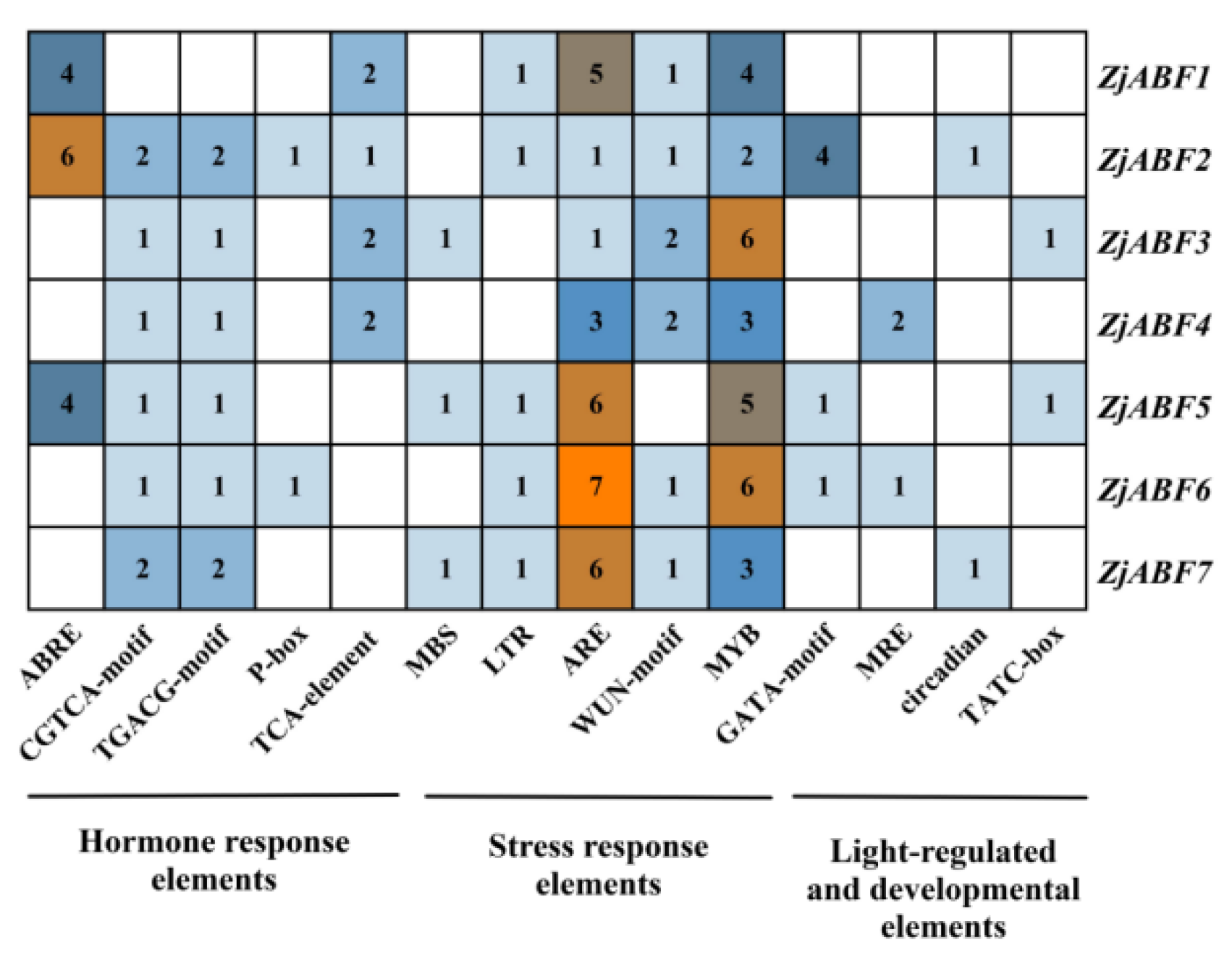

Figure 8. The number of cis-acting elements in the ABF/AREB/ABI5 genes of Z. jujuba cv. Dongzao.
Figure 8. The number of cis-acting elements in the ABF/AREB/ABI5 genes of Z. jujuba cv. Dongzao.
Genes 16 00785 g008
Genes 16 00785 g009

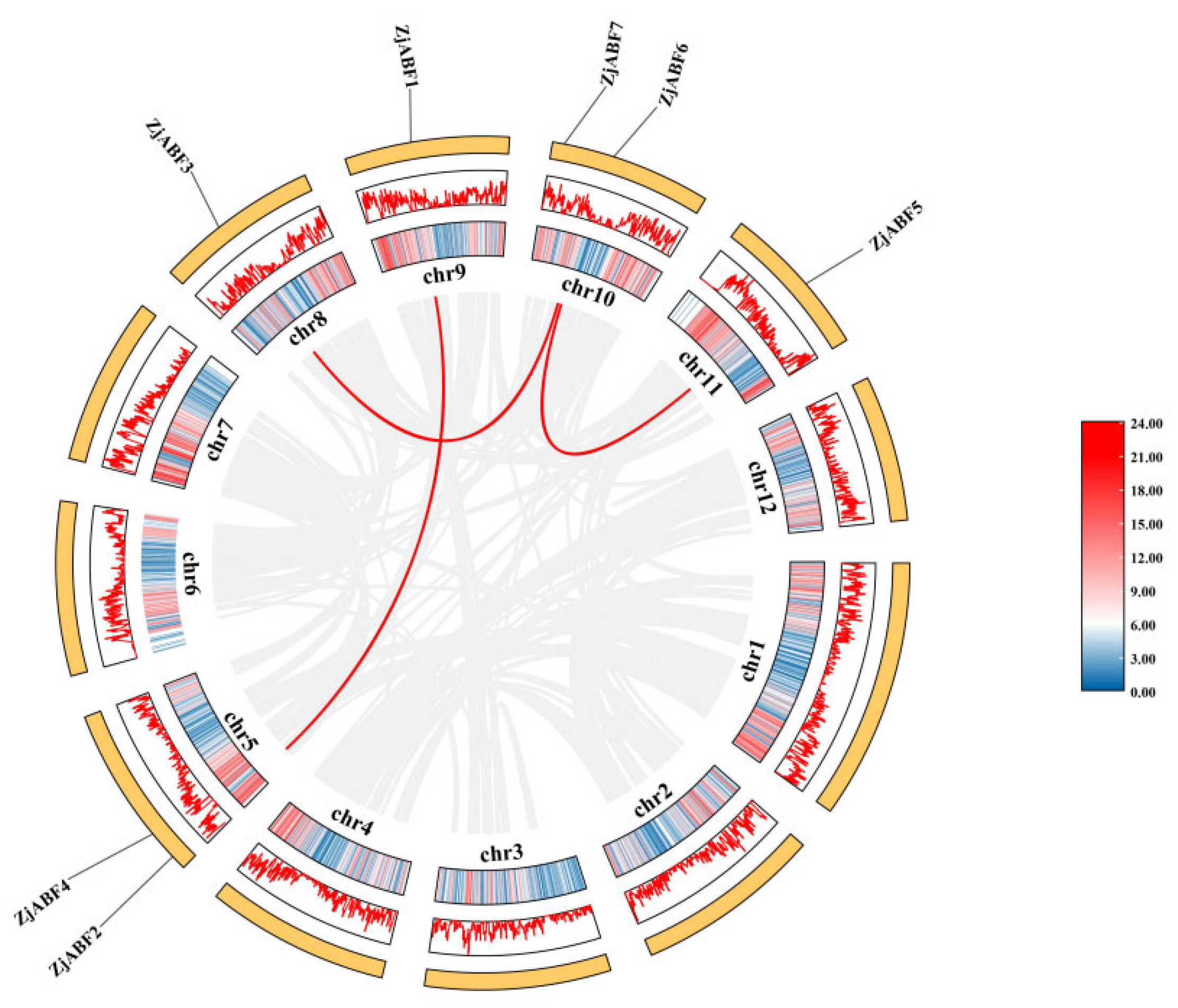

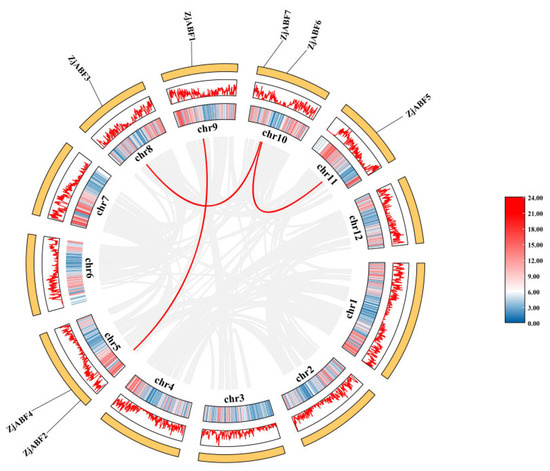

Figure 9. Schematic diagram of chromosome distribution and collinearity relationship of ABF/AREB/ABI5 gene family in Z. jujuba cv. Dongzao. The gray and red lines represent the synteny blocks in the Z. jujuba cv. Dongzao genome, and the ABF/AREB/ABI5 repeat gene pairs, respectively. The gene density heat map is in the outermost circle, shown in blue and pink.
Figure 9. Schematic diagram of chromosome distribution and collinearity relationship of ABF/AREB/ABI5 gene family in Z. jujuba cv. Dongzao. The gray and red lines represent the synteny blocks in the Z. jujuba cv. Dongzao genome, and the ABF/AREB/ABI5 repeat gene pairs, respectively. The gene density heat map is in the outermost circle, shown in blue and pink.
Genes 16 00785 g009
Genes 16 00785 g010

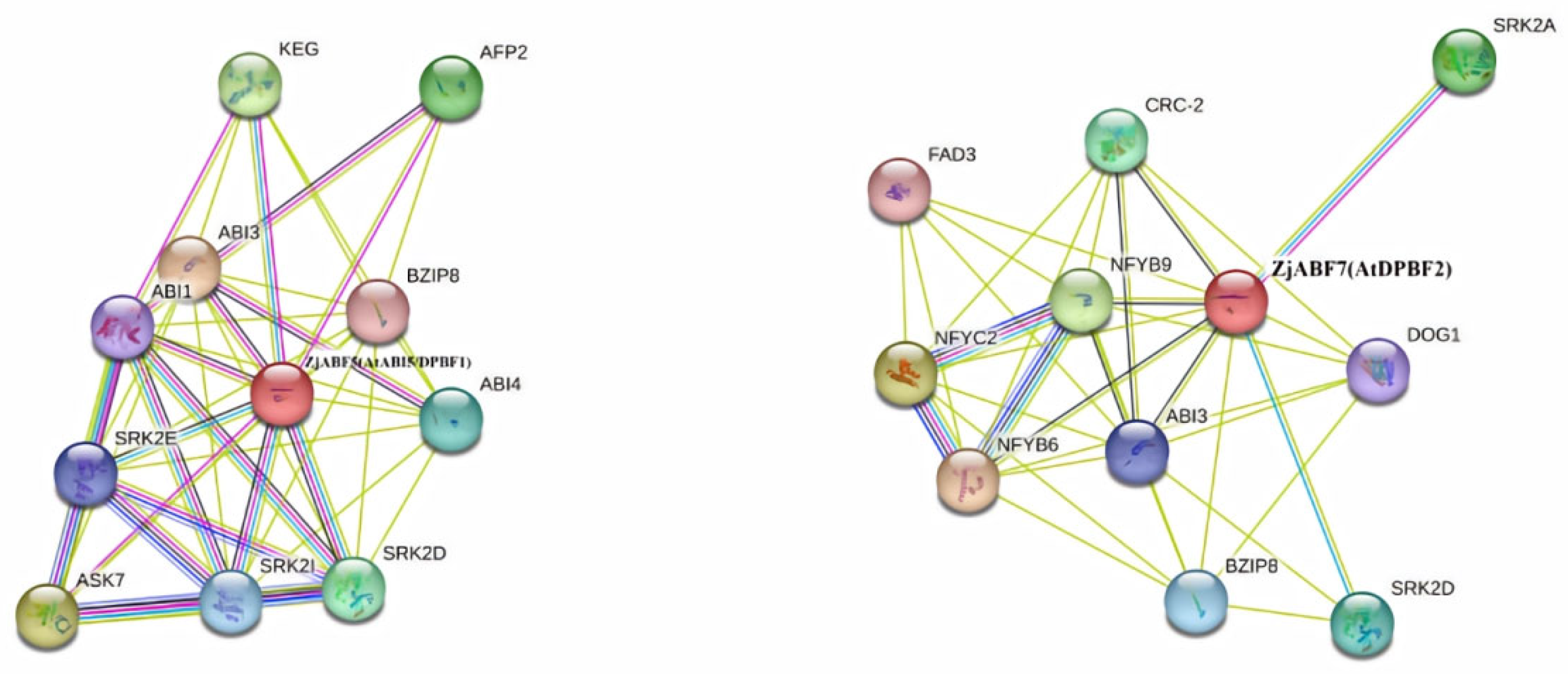

Figure 10. Protein network prediction of ZjABF protein function.
Figure 10. Protein network prediction of ZjABF protein function.
Genes 16 00785 g010
Genes 16 00785 g011

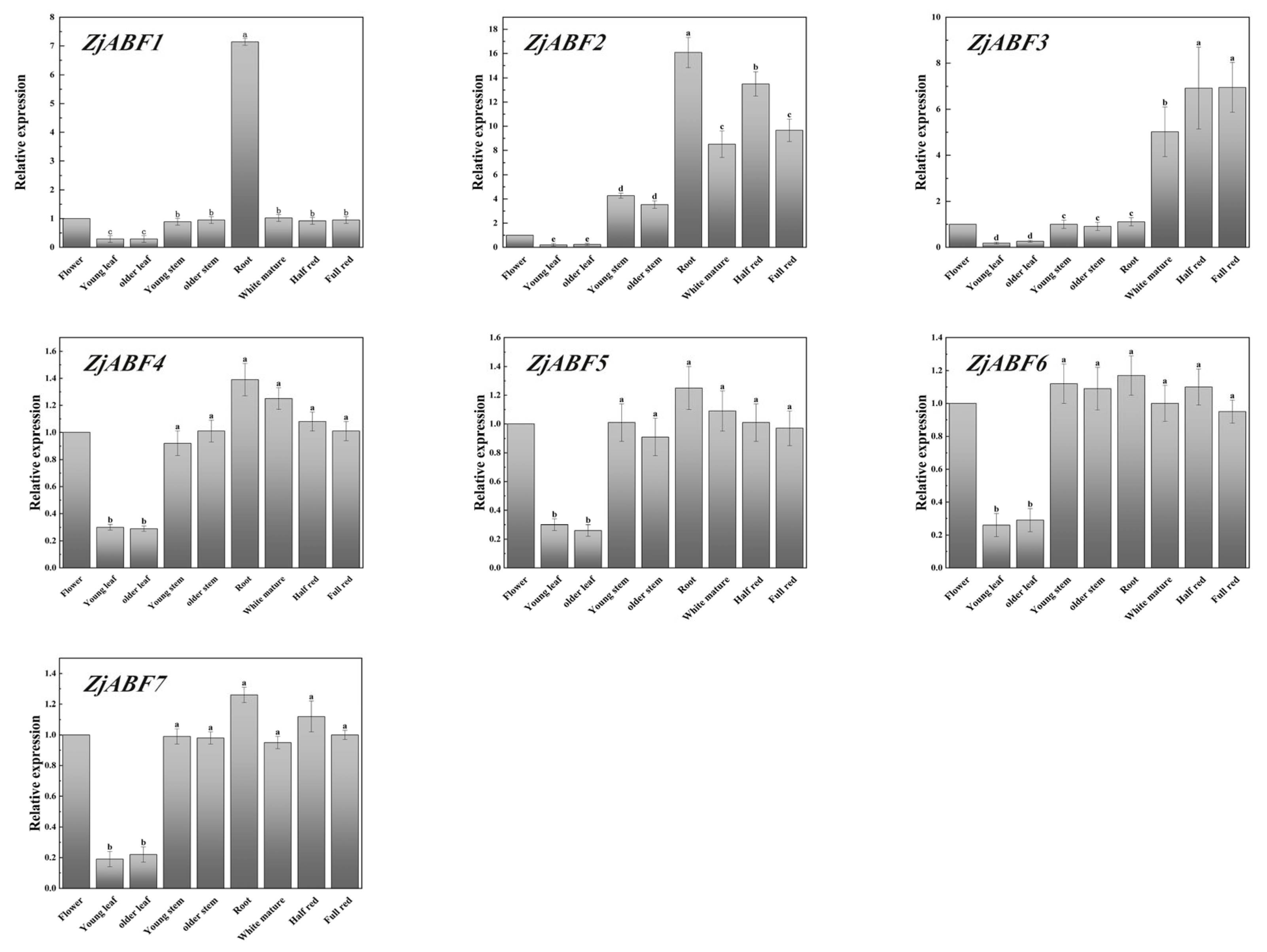

Figure 11. Expression analysis of seven ZjABF genes nine representative tissues (flowers, young leaves, old leaves, young stems, old stems, roots, white ripe stage, half-red stage, fully red stage) by qRT-PCR. The expression of the flowers was used as a control, and the 2−∆∆Ct method was used to calculate the relative expression. Error bars indicate the ± standard error (SE) of three biological replicates, and a, b, c, d, e indicate the significant difference. Marked with the same letter means p > 0.05, and marked with different letters means p < 0.05.
Figure 11. Expression analysis of seven ZjABF genes nine representative tissues (flowers, young leaves, old leaves, young stems, old stems, roots, white ripe stage, half-red stage, fully red stage) by qRT-PCR. The expression of the flowers was used as a control, and the 2−∆∆Ct method was used to calculate the relative expression. Error bars indicate the ± standard error (SE) of three biological replicates, and a, b, c, d, e indicate the significant difference. Marked with the same letter means p > 0.05, and marked with different letters means p < 0.05.
Genes 16 00785 g011
Genes 16 00785 g012

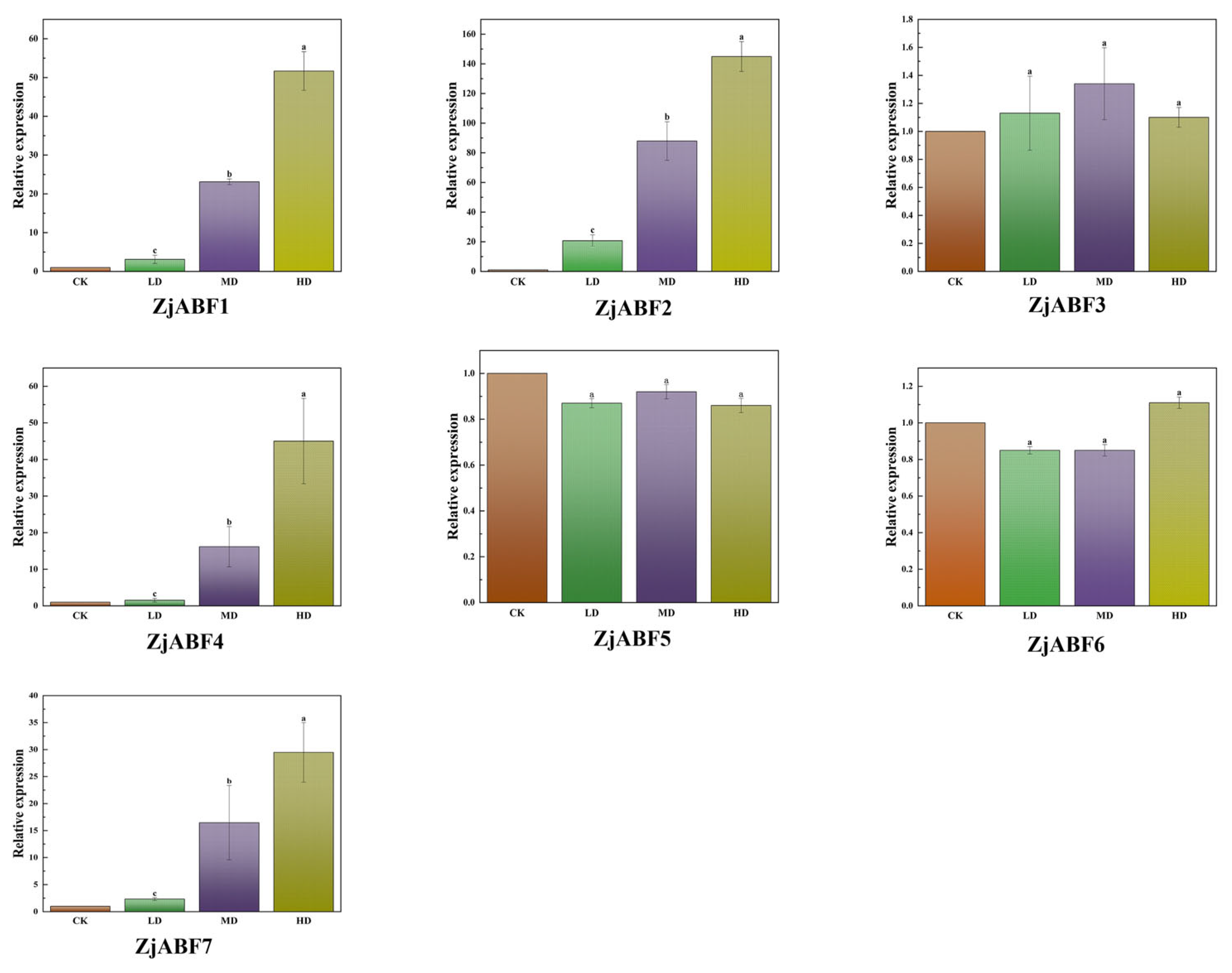

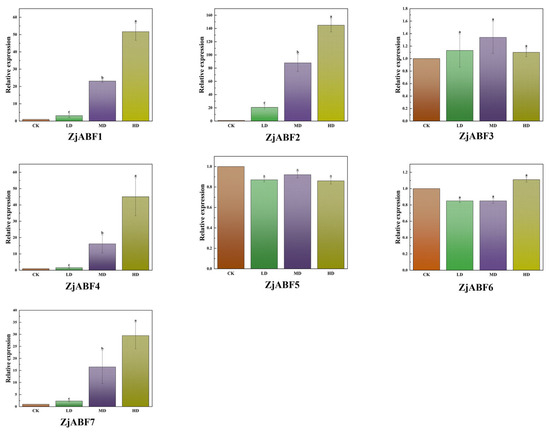

Figure 12. Relative expression analysis of ABF/AREB/ABI5 genes in Z. jujuba cv. Dongzao under drought stress (qPCR was used to determine the expression patterns of seven ZjABF genes under control and mild, moderate, and severe drought stress treatments). The data are presented as the mean ± standard error (SE) of three separate measurements, and a–c indicate the significant difference. Those marked with the same letter mean p > 0.05, and different letters mean p < 0.05.
Figure 12. Relative expression analysis of ABF/AREB/ABI5 genes in Z. jujuba cv. Dongzao under drought stress (qPCR was used to determine the expression patterns of seven ZjABF genes under control and mild, moderate, and severe drought stress treatments). The data are presented as the mean ± standard error (SE) of three separate measurements, and a–c indicate the significant difference. Those marked with the same letter mean p > 0.05, and different letters mean p < 0.05.
Genes 16 00785 g012
Table 1. Physical and chemical property analysis and subcellular localization prediction of ABF/AREB/ABI5 family members in Z. jujuba cv. Dongzao.
Table 1. Physical and chemical property analysis and subcellular localization prediction of ABF/AREB/ABI5 family members in Z. jujuba cv. Dongzao.
Gene NameGene ID
(NCBI)		Number of Amino AcidsMolecular WeightTheoretical pIInstability IndexAliphatic IndexGrand Average of HydropathicityPrediction of
Subcellular
Location
ZjABF1LOC10742708643646235.879.8552.3366.93−0.614Nuclear
ZjABF2LOC10742000247050760.937.7535.6268.09−0.592Nuclear
ZjABF3LOC10741294232135584.098.5059.6166.88−0.807Nuclear
ZjABF4LOC10742267032536397.925.3951.5880.12−0.534Nuclear
ZjABF5LOC10743218643848065.628.4761.5163.88−0.787Nuclear
ZjABF6LOC10743215628832464.479.3248.9576.28−0.739Nuclear
ZjABF7LOC10740964247452642.008.8255.8464.58−0.798Nuclear
Table 2. The secondary structure of the ABF/AREB/ABI5 gene family protein sequence in Z. jujuba cv. Dongzao. Blue represents the alpha spiral; purple represents the extended chain; orange represents irregular curls.
Table 2. The secondary structure of the ABF/AREB/ABI5 gene family protein sequence in Z. jujuba cv. Dongzao. Blue represents the alpha spiral; purple represents the extended chain; orange represents irregular curls.
ProteinAlpha Helix (%)Extended
Strand (%)		Random Coil (%)Distribution of Secondary Structure Elements
ZjABF128.21%0.69%71.10%Genes 16 00785 i001
ZjABF234.47%3.19%62.34%Genes 16 00785 i002
ZjABF335.20%0.00%64.80%Genes 16 00785 i003
ZjABF436.00%1.23%62.77%Genes 16 00785 i004
ZjABF530.37%1.60%68.04%Genes 16 00785 i005
ZjABF646.88%2.78%50.35%Genes 16 00785 i006
ZjABF731.65%4.43%63.92%Genes 16 00785 i007
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Zhang, Z.; Liu, X.; Wang, Y.; Zhou, J.; Wan, Z.; Zhang, X.; Wang, J.; Si, B.; Luo, L.; Xu, W. Genome-Wide Identification of the ABF/AREB/ABI5 Gene Family in Ziziphus jujuba cv. Dongzao and Analysis of Its Response to Drought Stress. Genes 2025, 16, 785. https://doi.org/10.3390/genes16070785

AMA Style

Zhang Z, Liu X, Wang Y, Zhou J, Wan Z, Zhang X, Wang J, Si B, Luo L, Xu W. Genome-Wide Identification of the ABF/AREB/ABI5 Gene Family in Ziziphus jujuba cv. Dongzao and Analysis of Its Response to Drought Stress. Genes. 2025; 16(7):785. https://doi.org/10.3390/genes16070785

Chicago/Turabian Style

Zhang, Zhikai, Xiaoming Liu, Yu Wang, Jun Zhou, Zhongwu Wan, Xin Zhang, Jing Wang, Binbin Si, Lan Luo, and Wendi Xu. 2025. "Genome-Wide Identification of the ABF/AREB/ABI5 Gene Family in Ziziphus jujuba cv. Dongzao and Analysis of Its Response to Drought Stress" Genes 16, no. 7: 785. https://doi.org/10.3390/genes16070785

APA Style

Zhang, Z., Liu, X., Wang, Y., Zhou, J., Wan, Z., Zhang, X., Wang, J., Si, B., Luo, L., & Xu, W. (2025). Genome-Wide Identification of the ABF/AREB/ABI5 Gene Family in Ziziphus jujuba cv. Dongzao and Analysis of Its Response to Drought Stress. Genes, 16(7), 785. https://doi.org/10.3390/genes16070785

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
