Article

Hwanhon Decoction Ameliorates Cognitive Impairment and Suppresses Neuroinflammation in a Chronic Cerebral Hypoperfusion Mouse Model: Involvement of Key Genes Identified by Network Pharmacology

1
Department of Korean Medicine, College of Korean Medicine, Dong-Eui University, Busan 47227, Republic of Korea
2
Department of Radiology, Massachusetts General Hospital and Harvard Medical School, Charlestown, MA 02129, USA
3
School of Public Health, Far East University, Eumseong 27601, Republic of Korea
4
Department of Korean Medicine, School of Korean Medicine, Pusan National University, Yangsan 50612, Republic of Korea
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Genes 2025, 16(7), 746; https://doi.org/10.3390/genes16070746
Submission received: 12 May 2025 / Revised: 20 June 2025 / Accepted: 25 June 2025 / Published: 26 June 2025
(This article belongs to the Special Issue Genetics and Treatment in Neurodegenerative Diseases)

Highlights

What are the main findings?
  1. High-dose HHex significantly preserved novel object recognition and reduced anxiety-like behavior in mice subjected to BCAS-induced chronic cerebral hypoperfusion.
  2. HHex suppressed CCH-induced astrocyte activation in white matter, attenuating neuroinflammatory responses.
  3. Integrative network pharmacology and RNA-seq analyses identified Egf, F2, Apob, and F7 as central protein targets of HHex.
  4. HHex modulated approximately 68% of genes dysregulated by CCH, down-regulating DNA replication pathways and rescuing axonogenesis-related processes.
What is the implication of the main finding?
  1. Hwanhon decoction extract emerges as a promising multi-target therapeutic candidate for vascular dementia.
  2. Combining network pharmacology with transcriptomic validation provides a robust framework for elucidating complex herbal medicine mechanisms.
  3. Targeting neuroinflammation and white matter integrity via HHex could complement existing vascular dementia management strategies.

Abstract

Background: With an aging population, dementia prevalence is increasing in Korea. Vascular dementia (VaD), often caused by cerebrovascular disease (CVD), is more common in Korea compared to Western countries. Hwanhon decoction, a traditional medicine containing Ephedrae Herba, Armeniacae Semen, and Glycyrrhizae Radix et Rhizoma, is traditionally used for CVD-related loss of consciousness. This study aimed to assess the cognitive improvement and anti-inflammatory effects of Hwanhon decoction extract (HHex) in a mouse model of VaD caused by chronic cerebral hypoperfusion (CCH). Methods: Key pharmacologically active ingredients of Hwanhon decoction were identified using network pharmacology analysis. VaD was induced in C57Bl/6 male mice through bilateral common carotid artery stenosis (BCAS). Mice were divided into sham surgery, BCAS control, low-dose HHex (L-HHex), and high-dose HHex (H-HHex) groups (n = 5/group). After CCH induction, L-HHex or H-HHex was administered thrice weekly for six weeks. Cognitive function, inflammatory markers, and RNA sequencing data were analyzed. Results: HHex administration reduced cognitive impairment and mitigated CCH-induced astrocyte activation. Inflammatory responses mediated by reactive astrocytes were suppressed, and network pharmacology predicted central proteins influencing HHex’s activity. Conclusions: HHex alleviated cognitive dysfunction and reduced inflammation in a VaD mouse model, suggesting its potential as a therapeutic agent for vascular dementia associated with impaired cerebral blood flow.

1. Introduction

Dementia is a group of diseases that affect memory and other cognitive functions, causing abnormal behavioral and personality changes, loss of emotional function, and social or occupational dysfunction. Thus, dementia, rather than cancer or cardiovascular diseases, has been a more frequent cause of concern for older adults [1,2,3]. Patients with dementia are becoming more common in Korea, and their numbers are predicted to rise steadily, surpassing 1.3 and 3 million by 2030 and 2050, respectively [4]. Furthermore, 50–60% of patients with dementia in the United States have Alzheimer’s disease (AD), 15–20% have vascular dementia (VaD), and 15–20% have AD and VaD [2,5]. VaD causes approximately 15–20% of dementia cases in North America and Europe and approximately 30% in Asia and poorer nations. VaD, being a cerebrovascular disorder, can impair different central nervous system (CNS) regions. Similarly, VaD reportedly occurs in several patients with stroke [6]. As VaD progresses to severe symptoms, patients experience difficulties in multiple areas, including a reduction in living capacity, and their burden of care is reportedly greater than that of patients with AD [7,8].
Donepezil and galantamine are clinically used drugs specifically developed for treating AD [9,10]. Similarly, lecanemab and donanemab have recently been approved by the US Food and Drug Administration (FDA), raising patient expectations for treatment [11,12,13]. In contrast, no drug has been approved by the FDA for VaD treatment. Although donepezil has demonstrated therapeutic efficacy in mild cognitive impairment, its precise mechanism of action remains unclear [5,14]; hence, uncertainty persists regarding its potential effectiveness in treating severe cognitive impairment. Furthermore, VaD manifests at a younger age than AD does, which may cause a significantly longer treatment duration [2,14]. However, the lack of approved treatments for VaD may be attributed to the relatively low interest in this condition, stemming from its lower prevalence than that of AD. Thus, considering the symptom severity and illness duration, studies on VaD, particularly in Asian countries, are necessary.
In AD, abnormal protein accumulation causes brain cell death, prompting treatment strategies that increase neurotransmitter availability or prevent neuronal degeneration [12,15,16]. VaD is a disease in which the brain tissue is damaged owing to cerebrovascular disease (CVD), and the current primary VaD treatment is to control vascular risk factors [9]. Hence, investigations into therapeutic agents for VaD treatment are necessary, and future VaD medications may operate on several targets at once, exerting beneficial effects on pathological processes, including inflammation, apoptosis, and cell adhesion [17]. Therefore, the potential contributions of traditional Asian medicines should be considered.
The Hwanhon decoction (Huanhun-Tang) is a traditional medicine prescription described in the Synopsis of Prescriptions of the Golden Chamber (Jinguiyaolue), written by Zhang Zhongjing, a famous physician during the Eastern Han Dynasty of China. This decoction has been used for emergency purposes. It comprises three medicinal herbs, namely ephedra, apricot kernels, and licorice. Recently, it has been used more frequently in clinical practice because it is effective in treating insomnia caused by cardiovascular disease [18,19]. Similarly, Hwanhon decoction has been recorded in the Donguibogam, a classical medical text published in Korea, and its composition is similar to that in the Synopsis of Prescriptions of the Golden Chamber. It has traditionally been used to treat febrile diseases and, recently, cognitive dysfunction. However, evidence regarding its efficacy is insufficient; hence, it was used in this study.
We sought to confirm whether the target protein predictions made using network pharmacology analysis were consistent with the results of RNA sequencing analysis because herbal medicines contain abundant ingredients, making it challenging to determine which specific ingredient exerts therapeutic effects. Moreover, a single component cannot exhibit only one activity. To elucidate the effects of the Hwanhon decoction in a chronic cerebral hypoperfusion (CCH)-induced VaD mouse model, we conducted the Y-maze test, novel object recognition test (NORT), and elevated plus maze (EPM) test to evaluate CCH-induced cognitive dysfunction. In addition, brain tissues were observed using immunofluorescence staining to confirm the degree of activation of immune cells involved in the inflammatory brain damage caused by ischemia and the immune response suppression activity of the Hwanhon decoction. RNA sequencing was performed to identify the genes and proteins involved in the regulation of the inflammatory response.

2. Materials and Methods

2.1. Network Pharmacology Analysis

The Traditional Chinese Medicine Systems Pharmacology Database and Analysis Platform (TCMSP), which is primarily used in Chinese medicine publications involving numerous network pharmacology study techniques, is a representative database for network pharmacology studies frequently conducted based on Asian traditional medicine databases [20]. The TCMSP database was used for the analysis in this study. After selecting the active ingredients, pharmacokinetically active substances with potential potency were chosen based on absorption, distribution, metabolism, and excretion (ADME) properties. Examples of ADME variables include oral bioavailability (OB), which indicates the ability of an orally administered drug to be delivered to the body; drug-likeness (DL), which is used to estimate the pharmacokinetic optimality of a compound and helps identify potential lead compounds; and Caco-2 permeability, which is used to assess drug absorption in the gastrointestinal tract. As recommended by the TCMSP, the cutoff values for each variable were set as follows: OB ≥ 20%, DL ≥ 0.18, and Caco-2 ≥ 0 [21,22].

2.2. Animals and Experimental Design

Male C57BL/6 mice (6-week-old; weight, 20–22 g) were purchased from Samtako Bio (Osan, Gyeonggi-do, Republic of Korea) and housed in polypropylene cages in a breeding room with a 12 h light/dark cycle and a temperature of 24 ± 4 °C. The mice were allowed free access to standard feed and water and were acclimated to the enclosed environment for ≥1 week before the experiment. All experimental procedures used in this study, including surgery, were approved by the Ethics Committee of Pusan National University (approval number PNU 2023-0259).

2.3. VaD Modeling in Mice

To mimic VaD using CCH, we performed a bilateral common carotid artery stenosis (BCAS) operation. Briefly, isoflurane in N2O/O2 (70%/30%) gas was used to anesthetize the mice until they did not react to mechanical tail stimulation. Following a midline incision in the neck area, the common carotid artery (CCA) was isolated from the surrounding tissue. Subsequently, the CCA was wrapped with a micro-coil (0.18 mm inner diameter) to induce BCAS. Throughout the entire surgical process, the body temperature was maintained at 37 ± 0.5 °C using a device equipped with a temperature sensor attached to the rectum.

2.4. Reagents

Physiological saline was obtained from Joongwae Pharmaceutical (Seoul, Republic of Korea); the tissue fixative (optimal cutting temperature, OCT) compound for frozen sections was purchased from Bio Basic (Markham, ON, Canada), and the physiological buffer (phosphate buffered saline, PBS) was obtained from Thermo Fisher Scientific (Waltham, MA, USA).

2.5. Preparation of Aqueous Extract of Hwanhon Decoction (HHex)

The medicinal ingredients of Hwanhon decoction corresponding to the daily dose for an adult weighing 60 kg are listed in Table 1. The Hwanhon decoction formula was soaked in boiling water for 2 h; residues were removed using non-woven fabric to obtain 270 mL of HHex. Because this solution is equivalent to a daily dose for a 60 kg human adult, it can be converted to a dosage of 4.5 mL/kg body weight. Considering the metabolic rate in mice, this would be approximately 13 times the human dosage [23]; hence, 58.5 mL/kg of body weight would correspond to this. Therefore, we set the low-dose HHex (L-HHex) and high-dose HHex (H-HHex) to 10 and 50 mL/kg, respectively. The daily dose was orally administered to mice at once because administering the medicine to lab animals thrice daily would be stressful. When orally administered to the mice, L-HHex was diluted five-fold with distilled water to adjust the dose volume to that of H-HHex.

2.6. Mouse Treatment with HHex

The mice were randomly divided into four experimental groups (n = 5 each), namely sham operation, BCAS control, BCAS + L-HHex, and BCAS + H-HHex groups. In the sham group, the surgical procedures, except for BCAS, were applied during the surgical procedure, and 50 mL/kg of primary distilled water was administered rather than HHex during the HHex administration period. Similarly, the BCAS control group was administered 50 mL/kg of primary distilled water, and the L-HHex and H-HHex groups were administered the corresponding HHex thrice weekly throughout the HHex administration period (Figure 1A).

2.7. Measuring Behavioral Changes Caused by BCAS-Induced CCH

The short-term spatial working memory of the mice was evaluated using the Y-maze test. A mouse with intact working memory, which includes intact prefrontal cortex functioning, will recall the arms it has visited in the past and exhibit a propensity to enter the less visited arm [24]. The mice were placed in a maze that resembled the letter Y and had three arms of the same shape (Figure 1B). Moreover, the mice were allowed to explore the maze for a certain period before they were examined. Each experimental animal was placed in the maze center and allowed to roam freely for 10 min. A digital camcorder was used to record and evaluate mouse motion in the maze to determine how thoroughly they successively investigated each of the three arms; the degree to which the three arms were studied sequentially was expressed as a percentage of the total number of times they were explored (for instance, C–A–B, B–C–A and A–B–C). The following formula was used to determine the spontaneous alternation behavior: % alternation = ((number of alternations)/(total number of arm entries − 2)) × 100. For the Y-maze test, mice were allowed to acclimate to the maze for 2 days (5 min daily) before measurement.
NORTs are used to assess changes in cognitive function using rodent traits that make them more interested in new items than in familiar ones [25,26]. Two pre-adaptation trials were conducted once daily, 2 days before the NORT. Each mouse was given 5 min to explore an open-field arena (40 × 40 × 40 cm) without objects to facilitate field box adaptation (Figure 1B). An object adaptation period was provided on the cognitive function assessment day. Briefly, two identical objects were positioned in opposite corners (zones 2 and 3) of the open-field arena (Figure 1B), and the mice were given 10 min to investigate the two items to allow familiarization. After 30 min, a familiar (F) object from the acclimation trial was swapped for a novel (N) object shortly before the experimental mouse was returned to the open-field arena for measurement. They were allowed to freely navigate the objects in the arena for 10 min, and a digital camcorder was used to capture their behavior. For each experimental group, object search time and discrimination ratio (DR) analyses were conducted using the formula: total N time/(N time + F time) × 100.
Anxiety-like behavior is commonly measured using the EPM tests. The mouse innate dislike of open, high places and their innate curiosity in unfamiliar settings served as the foundation for the EPM test. All arms were made available to the mice, and they were free to move about them. Indicators of open space-induced anxiety in mice include the number of animals that enter the open arms and the amount of time they spend there [26,27]. Thus, increased duration and transition between closed arms indicate anti-anxiety behavior. Because the maze was designed to make experimental animals feel anxious, a closed arm with a 45 cm-high wall, 50 cm above the laboratory floor, crossed an open passage horizontally (Figure 1B). Each experimental animal was positioned in the middle of the cross and allowed to roam freely along open or closed arms for 5 min. The mice were allowed to explore the maze for 2 days (5 min daily) before measurement to facilitate acclimation in the EPM. After each mouse was observed in the maze or arena, the maze or arena was cleaned with 70% alcohol to prevent the next experimental mouse from being attracted by the scent of other individuals. The behavioral pathways captured using a digital camera were examined for movement patterns in the maze using SMART software (version 3.0.06, PanLab, Barcelona, Spain).

2.8. Variations in Body Weight, Blood Pressure (BP), and Heart Rate (HR)

The body weight, BP, and HR of the experimental mice were measured at 2-week intervals during the experimental period to determine whether the reduction in blood flow and drug administration affected these parameters. Non-invasive BP and HR were measured using a specialized device (Visitech System, BP-2000, Apex, NC, USA) attached to the mouse tail.

2.9. Assessment of the Blood Serum Electrolytes

Whole blood was drawn under deep anesthesia and spun at 1500× g for 15 min at 4 °C to extract serum. Blood serum electrolytes were examined because drastic changes in electrolytes can also affect behavior. To track and rule out possible electrolyte imbalances, serum concentrations of electrolytes, such as potassium (K+), chloride (Cl), and sodium (Na+), were measured using an electrolyte analyzer (Dri-Chem 3500i, Fuji, Japan).

2.10. Animal Euthanasia, Cardiac Perfusion, and Brain Tissue Preparation via Frozen Section

The experimental mouse abdomen was cut at the center, and PBS was used to perform cardiac perfusion. A 21-gauge needle was used to puncture the left ventricle and block the pulmonary artery, and the needle was secured in the ascending aorta. The right atrium was sliced with scissors immediately after perfusion to remove the perfused blood from the body. Fixation was performed through perfusion with 4% paraformaldehyde once perfusion with PBS was sufficiently advanced. Mouse brains were successively fixed in 10%, 20%, and 30% sucrose solutions for cryoprotection. Subsequently, the tissue was frozen in OCT compound and refrigerated at −80 °C. Each mouse brain slice was deposited on a 25 μm-thick slide glass using a cryostat (Leica, Wetzlar, Germany) and refrigerated at −80 °C until needed.

2.11. Brain Tissue Immunofluorescence Staining

Brain tissue sections were removed from the refrigerator and allowed to dry. After 1 h of reaction at 25 °C with blocking buffer (5% bovine serum albumin), the blocking buffer was cleaned, and diluted primary antibodies of cluster of differentiation 68 (CD68+), ionized calcium-binding adaptor molecule 1, neuronal nuclear protein, and glial fibrillary acidic protein (GFAP) (#97778, #17198, #94403, and #12389, respectively; Cell Signaling Technology, Danvers, MA, USA) were added and reacted for 12 h at 4 °C. After the primary antibodies were washed thrice with PBS for 5 min, the tissue section was exposed to a diluted secondary antibody (Abcam, Cambridge, UK) for 2 h at 25 °C for fluorescence production. A glass slide fixation solution (ab104139; Abcam, Cambridge, UK) containing 4,6-diamidino-2-phenylindole was dropped over the tissue, and this was covered with a cover slide; the edges were sealed with nail polish after the secondary antibody was washed thrice with PBS for 5 min each. A fluorescence microscope (Ni-U, Nikon, Tokyo, Japan) was used for tissue observation, and ImageJ software (version 1.54g, NIH, MD, USA) was used to combine the tissue photographs.

2.12. Brain Tissue RNA Sequencing Analysis

After behavioral analysis, the mice were euthanized using CO2. The brain tissue was extracted under cold experimental conditions, and the cerebral cortex, which included the white matter (WM), was separated and rapidly frozen. Total RNA was isolated using TRIzol reagent, and only RNA with a confirmed amount and purity ratio suitable for analysis was used in this study. The total RNA quality was assessed using capillary electrophoresis (Agilent 2100 Bioanalyzer, Agilent, Santa Clara, CA, USA). After isolating mRNA from total RNA to synthesize cDNA, high-throughput sequencing was conducted. The RNA expression levels were determined by comparing the expression levels of the control and experimental groups to those of the sham group, with the sham group expression level set as the baseline. The relative expression comparison was displayed as a heat map using the MeV program (https://mev.tm4.org, accessed on 1 December 2023). After selecting proteins for analysis, protein–protein interaction (PPI) networks were generated using the STRING database (https://string-db.org/, accessed on 1 December 2023) and visualized using the network analysis software Cytoscape (version 3.8.2).

2.13. Statistical Analysis

The results are presented as mean ± standard deviation (SD). Prior to hypothesis testing, the distribution of each variable was assessed by the Shapiro–Wilk test implemented in SigmaPlot 12.0 (Systat Software Inc., Chicago, IL, USA). Variables with a normal distribution (Shapiro–Wilk p > 0.05) were compared among groups by one-way analysis of variance (ANOVA), followed by Holm–Sidak post hoc tests. Variables that deviated from normality (Shapiro–Wilk p < 0.05) were analyzed by the Kruskal–Wallis test with Dunn’s multiple-comparison post hoc analysis. A p-value < 0.05 was considered statistically significant.

3. Results

3.1. Network Pharmacology Analysis for HHex

When ADME variables were applied through the TCMSP database, 24 ingredients were selected from Ephedrae Herba (EH), 20 from Armeniacae Semen (AS), and 102 from Glycyrrhizae Radix et Rhizoma (GR) (Supplementary Tables S1–S3). After excluding the duplicates, 135 components were selected (Figure 2A). Among the 135 ingredients, 11 overlapping ingredients were tested for target proteins and were entered into the TCMSP database, yielding 228 targets (Figure 2B). Ingredients such as quercetin, kaempferol, and naringenin were confirmed to have more targets than others (Figure 2B). Among the 11 common ingredients, 10, excluding stigmasterol, were present in GR (Figure 2A; Tables S1 and S3), suggesting that GR may have diverse and relatively strong activities compared with those of other medicinal herbs. By constructing a PPI network using the STRING database for the 228 targets selected as described above, a network similar to that in Figure 2D was obtained, and this was reconstructed using the Cytoscape program to obtain a network similar to that in Figure 2E. In Figure 2E, the number of lines connecting each target indicates the number of interacting proteins; hence, the inner circle has a relatively higher frequency of interaction than that of the outer circle. Therefore, proteins such as tumor necrosis factor, AKT serine/threonine kinase 1, and interleukin-6 can be predicted to be primarily regulated by HHex (Figure 2E). However, whether the targets predicted through the network pharmacology analysis are regulated by HHex administration is unknown.

3.2. Effects of BCAS Operation and HHex Treatment on Physiological Parameters in Mice

A significant reduction in body weight was observed from week 6 in the BCAS-operated group, whereas no change in body weight was noted in the HHex-treated groups compared with the BCAS control group (Figure 3A). There were no physiological changes in the blood serum electrolyte content, as CCH-induced BP, HR changes, and HHex administration had no effect (Figure 3B,C). Therefore, although the BCAS operation caused weight loss, the other physiological parameters were not affected by surgery or HHex administration.

3.3. Behavioral Disorder Assessment Using the Y-Maze Test, NORT, and EPM Test

The Y-maze test is a behavioral experiment used to evaluate an animal’s spatial memory ability [24]. It comprised a Y-shaped maze (Figure 1B), and memory ability was evaluated by observing the animals’ process of navigating the maze. No significant differences were observed in the first-arm choice latency, triple-arm alternation, or total arm entries in the Y-maze among the experimental groups, including the sham group, and the SD was large overall (Figure S1). In the NORT, the natural curiosity of rodents for novel objects over familiar objects is leveraged to evaluate changes in cognitive function [25,26]. In the BCAS control group, a significant decrease was observed in the moving distance in the arena, number of entries in zone 3, and DR compared with that in the sham group, and a significant suppression of the decrease in DR was confirmed in the H-HHex-administered group (Figure 4). The EPM test is a behavioral test designed to study anxiety in rodents [26,27]. It comprises a platform with four arms, two open and two closed, elevated above the ground (Figure 1B). The test is based on the premise that rodents naturally fear open and elevated spaces; therefore, increased time spent and transitions between the closed arms indicate anti-anxiety behavior. Although the resting time in the closed arms did not differ among the experimental groups, the number of entries into the closed arms by the experimental mice was significantly reduced by BCAS-induced CCH, and this reduction was notably mitigated by H-HHex administration (Figure 5). Therefore, this study confirmed that maintaining CCH through BCAS operation for 8 weeks caused significant cognitive dysfunction in experimental mice and that administering a relatively high concentration of HHex (H-HHex) at intervals of approximately 2 days for 6 weeks suppressed this decline in cognitive function.

3.4. Identification of Cellular Markers Involved in the Inflammatory Response in the Brain

Astrocytes and microglia are glial cells that play crucial roles in neuroinflammation, an essential factor in chronic CCH-induced VaD [28,29]. WM damage is a common VaD feature that causes cognitive decline, particularly in older adults [30,31,32]. In this study, we aimed to determine whether CCH upregulates the expression of these two cell types and whether H-HHex administration modulates the expression of inflammatory cells in the WM region. The number of GFAP-positive astrocytes around the cerebral cortex, particularly in the WM, was increased; this increase was suppressed by H-HHex administration (Figure 6A). However, the number of CD68-positive microglia did not significantly increase in the BCAS control group compared with that in the sham group, and H-HHex administration did not affect the number of microglia (Figure 6B).

3.5. RNA Sequencing Analysis and PPI Network Construction

The gene expression level was confirmed through RNA sequencing analysis, and the changes in expression are shown in Figure 7. Gene expression levels in the BCAS control group were considered significant and selected as the analysis target if they decreased by <1/4 or increased by ≥4-fold compared with those in the sham group (Figure 7A). Clustering was performed using log transformation to understand the increase or decrease in values. As shown in the horizontal bar at the bottom of Figure 7A, the green area represents genes with decreased expression compared with that in the sham group, and the red area represents genes with increased expression. Therefore, genes showing significant decreases (green area) or increases (red area) in expression owing to CCH can be considered related to the pathological changes in the experimental mice. Hence, genes regulated by H-HHex administration can be found in the black marks on the rightmost panel in Figure 7A. To determine how CCH and H-HHex administration affect gene expression, we visualized the number of genes that showed increased or decreased expression (Figure 7B). Thus, 397 and 206 genes showed a >4-fold increase and a <1/4 decrease, respectively, owing to CCH. Of the 206 genes with increased expression, 115 were identified; of the 191 genes with decreased expression, 155 exhibited expression levels within a 4-fold range (>1/4 and <4), indicating near-normal expression patterns. Overall, 68% of the genes were regulated, and the effect of H-HHex administration on genes with decreased expression owing to CCH was more evident. Tables S4 and S5 detail the genes whose expression was altered—either up- or down-regulated—by CCH operation and subsequently modulated by H-HHex administration.

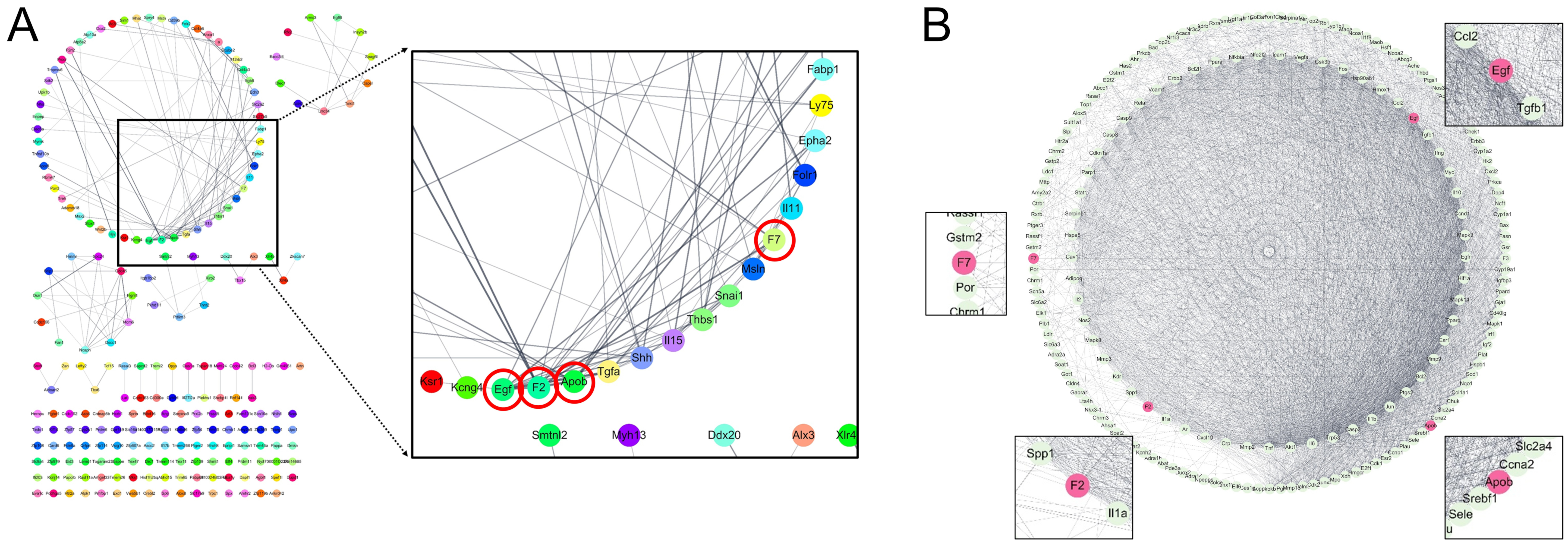

The STRING database was used to construct a PPI network targeting genes up-regulated or down-regulated by H-HHex administration to identify proteins that play a central role. The results were visualized using Cytoscape, and proteins such as epidermal growth factor (Egf), prothrombin (coagulation factor II, F2), and apolipoprotein B (Apob) frequently interacted with other proteins (Figure 8A). The proteins identified through RNA sequencing to exert a significant effect were compared with those predicted to be affected by HHex through network pharmacology analysis. The interaction frequencies with other proteins differed. However, proteins such as Egf, F2, Apob, and coagulation factor VII (F7) showed the same results as predicted (Figure 8B). GO enrichment of H-HHex-responsive genes (Tables S6–S8) revealed that H-HHex down-regulated CCH-induced DNA-replication terms (e.g., DNA duplex unwinding; Table S6) while rescuing axonogenesis-related processes (Table S7). Across all responsive transcripts, oxidoreductase activity and RNA-pol II transcription factor functions were prominently enriched (Table S8), underlining H-HHex’s dual impact on genomic stability, metabolic homeostasis, and neuronal repair.

4. Discussion

Dementia is a disorder in which an individual loses independence in everyday functions owing to cognitive impairment; this loss represents a significant departure from the previous level of performance [33]. In 2020, the number of patients with dementia among the South Korean population aged ≥65 was estimated to be approximately 840,000, with a prevalence rate of approximately 10.3%. Similarly, the number of patients with dementia is increasing in Asia and is expected to triple by 2050. This is related to risk factors such as aging, obesity, smoking, and hypertension. Among the various types of dementia, VaD is a dementia type caused by CVD and is considered a significant health challenge in Asia. The number of patients with dementia in South Korea increases as the population ages. VaD is the second most common type of dementia after AD, accounting for approximately 15–20% of patients with dementia [2,4,5].
VaD and AD have been believed to have completely different roots; however, a recent study has shown that they share a common vascular component and that these vascular factors can interact and coexist rather than being mutually exclusive [34]. Because the incidence of CVD and heart disease increases with age, AD is usually accompanied by stroke or vascular rupture. CVDs contribute to the progression and development of AD, causing the frequent co-occurrence of VaD and AD. VaD is estimated to account for 20% of all dementia cases. However, this percentage is expected to be significantly higher in Asian countries. Recent Korean studies have reported that VaD accounts for 20–30% of all dementia cases in Korea [35,36,37].
VaD treatment involves careful management of the risk factors for CVD and the use of antithrombotic drugs to prevent stroke recurrence while enhancing cognitive function. Medications such as aspirin and warfarin are used to prevent CVD recurrence and progression, whereas other drugs are used to control risk factors such as hyperlipidemia, high blood pressure, diabetes, and atrial fibrillation. Acetylcholinesterase inhibitors such as donepezil, rivastigmine, and memantine are used to improve cognitive function. Cholinesterase inhibitors also help improve cognitive dysfunction in patients with VaD [14,36,38]. Although no FDA-approved treatments exist for VaD, cholinesterase inhibitors such as donepezil, galantamine, and rivastigmine, and N-methyl-D-aspartate (NMDA) receptor antagonists such as memantine, which are occasionally used to treat AD, are primarily administered because some patients with VaD also show AD symptoms. However, cholinesterase inhibitors have side effects such as nausea, diarrhea, and insomnia, and NMDA receptor antagonists have side effects such as headache and dizziness; therefore, safe and effective treatments for VaD need to be developed [11,12,13,14,36,38].
HHex is a traditional medicine prescription comprising EH, AS, and GR. Zuo et al. [39] found that EH extract alleviated blood–brain barrier disruption and cerebral edema after subarachnoid hemorrhage in rats. Kao et al. [40] revealed that GR has neuroprotective effects and improves behavioral performance. Therefore, we aimed to confirm whether the pharmacological activity of Hwanhon decoction was clearly observed by conducting a preclinical study on mice, as Hwanhon decoction has been frequently used in treating cognitive impairment in Korean medicine clinical practice; however, evidence regarding its effectiveness remains lacking.
To simulate VaD in humans, we wrapped micro-coils around both common carotid arteries to induce CCH. Eight weeks after BCAS, mice exhibited significant impairments in object recognition (NORT) and increases in anxiety-like behavior (EPM), both of which were significantly attenuated by H-HHex administration (Figure 4 and Figure 5). In contrast, Y-maze measures of spatial working memory—including first-arm choice latency, spontaneous alternation rate, and total arm entries—did not differ significantly among sham, BCAS control, and H-HHex groups (Figure S1). Thus, while H-HHex appears to preserve recognition memory and reduce anxiety-like responses under CCH, we did not observe a clear enhancement in spatial working memory in the current cohort. Future studies with larger sample sizes and dedicated spatial-memory paradigms (e.g., Morris water maze) are required to determine whether HHex can improve Y-maze performance under CCH. The ability to recognize unfamiliar objects and reduce depressive tendencies was clearly observed by conducting the NORT (Figure 4) and the EPM test (Figure 5). This effect was believed to be owing to the suppression of astrocyte activation and reduction in immune responses by HHex (Figure 6A), which reduced degenerative changes in the brain WM. Network pharmacology analysis was performed on the medicinal ingredients that constitute the HHex, the material of this study, to select potentially active compounds.
A PPI network was constructed for the proteins predicted to be regulated by these ingredients, and proteins predicted to play a central role when HHex is active were selected (Figure 2). In addition, RNA sequencing analysis was performed by extracting the cerebral cortex, including the mouse WM, to identify genes regulated by H-HHex (Figure 7); an interaction network of proteins predicted to be regulated by these genes was constructed (Figure 8A). As described above, the major proteins predicted using network pharmacology analysis were compared with those showing expression changes identified through RNA sequencing analysis. Proteins such as Egf, F2, and Apob that played the most essential role in the extract activity were predicted through network pharmacology analysis (Figure 8B). Furthermore, approximately 68% of the genes that showed altered expression owing to ischemia were regulated through H-HHex administration (Figure 7B).
Egf is found in neurons, astrocytes, oligodendrocytes, and microglia of the CNS, and its signaling can affect inflammatory responses in the skin and CNS. Moreover, Egf signaling contributes to neuroinflammation in CNS disorders, and Egf can reappear in reactive astrocytes after an insult, which can be neuroprotective; however, Egf can also contribute to neurotoxicity [41]. F2 is a bloodborne protein that induces neuroinflammation, leading to neurodegeneration and cognitive decline. Similarly, F2 can activate microglia, which release pro-inflammatory cytokines that damage neurons [42,43]. Apob may contribute to compromised blood–brain barrier integrity, which can cause neuroinflammation [44,45,46]. F7 interacts with inflammation and the coagulation system, which can contribute to neuroinflammation [47,48,49]. Thus, Egf, F2, Apob, and F7 are proteins involved in neuroinflammation, the activation of neuroinflammatory cells such as microglia and astrocytes, and in the inflammatory response owing to CCH and subsequent cognitive dysfunction.
When the CNS is damaged, such as through stroke, dementia, or brain injury, astrocytes are transformed into reactive astrocytes, such as in hypertrophy and hyperplasia, and GFAP is used to label these reactive astrocytes [50,51,52]. BCAS-induced CCH increased the expression of astrocytes in the cerebral cortex, particularly in the corpus callosum; this overexpression was suppressed through H-HHex administration (Figure 6A). In addition, although not statistically significant (Figure 6B), CD68, a well-known microglial marker, tended to be increased by CCH, suggesting that BCAS-induced CCH increases the activation of astrocytes and microglial cells in the corpus callosum region.
The HHex sample used in this study comprised three medicinal herbs, which is relatively few compared with the number of medicinal herbs in other traditional medicine prescriptions; however, elucidating the specific mechanism of action is difficult when a prescription contains many ingredients. In this study, among the numerous ingredients in the medicinal herbs that constitute this prescription, 11 overlapping ingredients were selected through network pharmacology analysis to identify target proteins predicted to be regulated by these ingredients (Figure 2). Furthermore, HHex administration was confirmed to suppress the decrease in cognitive function induced by CCH in mouse brain (Figure 4 and Figure 5). Similarly, proteins involved in suppressing the decrease in cognitive function after HHex administration were identified using RNA sequencing analysis (Figure 7 and Figure 8). Common proteins were identified between the proteins predicted through network pharmacology analysis and those with expression regulated using HHex administration, particularly Egd, F2, and Apob, which play the most central roles (Figure 8). The activity of various components in the Hwanhon decoction may be owing to complex interactions and may depend on the activity of several major ingredients. We primarily focused on selecting major ingredients and targets and identifying target proteins involved in the activity and did not explore the major mechanisms of action. In a follow-up study, we aim to use quercetin and naringenin, which have many targets among the individual components selected in this study, to determine whether HHex inhibitory activity on cognitive function decline depends on these components. Additionally, we intend to elucidate the molecular biological mechanisms underlying HHex treatment, including the expression of Egf, F2, and Apob, which are regulated by HHex.

5. Conclusions

This study was conducted to determine whether Hwanhon decoction can suppress cognitive dysfunction caused by BCAS-induced CCH in mice. In summary, HHex administration mitigates certain cognitive deficits induced by BCAS-mediated CCH—specifically, it preserves object recognition and alleviates anxiety-like behaviors—yet it does not significantly enhance spatial working memory as assessed by the Y-maze in our present study. Network pharmacology and transcriptomic analyses have highlighted key protein targets underlying HHex’s effects. Follow-up work with larger cohorts and complementary spatial memory assays will be essential to fully establish HHex’s therapeutic potential in VaD models. This study provides a foundation for the effective application of Hwanhon decoction in addressing cognitive function decline resulting from cerebral hypoperfusion.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/genes16070746/s1, Table S1: Active ingredients of Ephedrae Herba; Table S2: Active ingredients of Armeniacae Semen; Table S3: Active ingredients of Glycyrrhizae Radix et Rhizoma; Table S4: Genes underexpressed by CCH and up-regulated by HHex administration; Table S5: Genes overexpressed by CCH and down-regulated by HHex administration; Table S6: Analysis of biological process using GO terms; Table S7: Analysis of cellular components using GO terms; Table S8: Analysis of molecular function GO terms; Figure S1: Results of the Y-maze behavioral test.

Author Contributions

Conceptualization: S.K., K.-M.K. and S.C.; methodology: S.K., C.L. and S.C.; investigation: S.K. and S.C.; data analysis: C.L. and S.L.; writing—original draft: S.K., C.L., S.L., S.C. and K.-M.K.; writing—review and editing: C.L., S.C. and K.-M.K.; supervision: S.C. and K.-M.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

All procedures, including surgical operations, were ap-proved by the Pusan University Animal Experimental Ethics Committee (approval number PNU 2023-0259, approved on 4 January 2023), and each experimental procedure was conducted in compliance with related provisions.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are not publicly available due to ethical reasons but are available from the corresponding author (SC) upon reasonable request.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
ADAlzheimer’s disease
ADMEAbsorption, distribution, metabolism, and excretion
ASArmeniacae Semen
BCASBilateral common carotid artery stenosis
CCHChronic cerebral hypoperfusion
CD68Cluster of differentiation 68
CVDCerebrovascular diseases
DAPI4,6-diamidino-2-phenylindole
DLDrug likeness
DRDiscrimination ratio
EHEphedrae Herba
EPMElevated plus maze
GFAPGlial fibrillary acidic protein
GRGlycyrrhizae Radix et Rhizoma
HHexHwanhon decoction aqueous extract
H-HHexHigh-dose HHex
L-HHexLow-dose HHex
NMDAN-methyl-D-aspartate
NORTNovel object recognition test
OBOral bioavailability
OCTOptimal cutting temperature
PPI networkProtein–protein interaction network
VaDVascular dementia
WMWhite matter

References

  1. Terracciano, A.; Stephan, Y.; Luchetti, M.; Sutin, A.R. Cognitive impairment, dementia, and personality stability among older adults. Assessment 2018, 25, 336–347. [Google Scholar] [CrossRef] [PubMed]
  2. Kalaria, R.N. Neuropathological diagnosis of vascular cognitive impairment and vascular dementia with implications for Alzheimer’s disease. Acta Neuropathol. 2016, 131, 659–685. [Google Scholar] [CrossRef] [PubMed]
  3. Merlin, S.S.; Brucki, S.M.D. Openness and age influence cognitive progression: A longitudinal study. Arq. Neuropsiquiatr. 2023, 81, 868–875. [Google Scholar] [CrossRef] [PubMed]
  4. Jang, J.W.; Park, J.H.; Kim, S.; Lee, S.H.; Lee, S.H.; Kim, Y.J. Prevalence and incidence of dementia in South Korea: A nationwide analysis of the National Health Insurance Service Senior Cohort. J. Clin. Neurol. 2021, 17, 249–256. [Google Scholar] [CrossRef]
  5. Kalaria, R.N.; Maestre, G.E.; Arizaga, R.; Friedland, R.P.; Galasko, D.; Hall, K.; A Luchsinger, J.; Ogunniyi, A.; Perry, E.K.; Potocnik, F.; et al. Alzheimer’s disease and vascular dementia in developing countries: Prevalence, management, and risk factors. Lancet Neurol. 2008, 7, 812–826. [Google Scholar] [CrossRef]
  6. Wolters, F.J.; Ikram, M.A. Epidemiology of vascular dementia. Arterioscler. Thromb. Vasc. Biol. 2019, 39, 1542–1549. [Google Scholar] [CrossRef]
  7. Allan, L.M.; Rowan, E.N.; Firbank, M.J.; Thomas, A.J.; Parry, S.W.; Polvikoski, T.M.; O’Brien, J.T.; Kalaria, R.N. Long term incidence of dementia, predictors of mortality and pathological diagnosis in older stroke survivors. Brain 2011, 134, 3716–3727. [Google Scholar] [CrossRef]
  8. Connors, M.H.; Seeher, K.; Teixeira-Pinto, A.; Woodward, M.; Ames, D.; Brodaty, H. Dementia and caregiver burden: A three-year longitudinal study. Int. J. Geriatr. Psychiatry 2020, 35, 250–258. [Google Scholar] [CrossRef]
  9. Baskys, A.; Hou, A.C. Vascular dementia: Pharmacological treatment approaches and perspectives. Clin. Interv. Aging 2007, 2, 327–335. [Google Scholar] [CrossRef]
  10. Amenta, F.; Di Tullio, M.A.; Tomassoni, D. The cholinergic approach for the treatment of vascular dementia: Evidence from pre-clinical and clinical studies. Clin. Exp. Hypertens. 2002, 24, 697–713. [Google Scholar] [CrossRef]
  11. Cummings, J.; Apostolova, L.; Rabinovici, G.D.; Atri, A.; Aisen, P.; Greenberg, S.; Hendrix, S.; Selkoe, D.; Weiner, M.; Petersen, R.C.; et al. Lecanemab: Appropriate use recommendations. J. Prev. Alzheimers Dis. 2023, 10, 362–377. [Google Scholar] [CrossRef] [PubMed]
  12. Hardy, J.; Schott, J.M. Identifying genetic risk for amyloid-related imaging abnormalities. Neurology 2024, 102, e208096. [Google Scholar] [CrossRef] [PubMed]
  13. Kang, C. Donanemab: First approval. Drugs 2024, 84, 1313–1318. [Google Scholar] [CrossRef] [PubMed]
  14. Battle, C.E.; Abdul-Rahim, A.H.; Shenkin, S.D.; Hewitt, J.; Quinn, T.J. Cholinesterase inhibitors for vascular dementia and other vascular cognitive impairments: A network meta-analysis. Cochrane Database Syst. Rev. 2021, 2, CD013306. [Google Scholar] [CrossRef]
  15. Lyu, Y.; Meng, Z.; Hu, Y.; Jiang, B.; Yang, J.; Chen, Y.; Zhou, J.; Li, M.; Wang, H. Mechanisms of mitophagy and oxidative stress in cerebral ischemia-reperfusion, vascular dementia, and Alzheimer’s disease. Front. Mol. Neurosci. 2024, 17, 1394932. [Google Scholar] [CrossRef]
  16. van Nieuwkerk, A.C.; Delewi, R.; Wolters, F.J.; Muller, M.; Daemen, M.; Biessels, G.J.; on behalf of the Heart-Brain Connection. Cognitive impairment in patients with cardiac disease: Implications for clinical practice. Stroke 2023, 54, 2181–2191. [Google Scholar] [CrossRef]
  17. Brucki, S.M.D.; Ferraz, A.C.; de Freitas, G.R.; Massaro, A.R.; Radanovic, M.; Schultz, R.R. Treatment of vascular dementia. Recommendations of the scientific department of cognitive neurology and aging of the Brazilian Academy of Neurology. Dement. Neuropsychol. 2011, 5, 275–287. [Google Scholar] [CrossRef]
  18. Wang, X. The development of Chinese medicine therapy on coronary heart disease complicated by insomnia. J. Pract. Tradit. Chin. Intern. Med. 2013, 27, 91–93. [Google Scholar] [CrossRef]
  19. Huang, R.; Wang, S.; Li, R.; Wen, X.; Chen, B.; Gao, F. Discussion on Huanhun decoction in Synopsis of Golden Chamber. Chin. Med. Mod. Distance Educ. China 2021, 19, 56–59. [Google Scholar] [CrossRef]
  20. Yang, L.; Liu, W.; Hu, Z.; Yang, M.; Li, J.; Fan, X.; Pan, H. A systems pharmacology approach for identifying the multiple mechanisms of action of the Wei Pi Xiao decoction for the treatment of gastric precancerous lesions. Evid. Based Complement. Alternat. Med. 2019, 2019, 1562707. [Google Scholar] [CrossRef]
  21. Ru, J.; Li, P.; Wang, J.; Zhou, W.; Li, B.; Huang, C.; Li, P.; Guo, Z.; Tao, W.; Yang, Y.; et al. TCMSP: A database of systems pharmacology for drug discovery from herbal medicines. J. Cheminform. 2014, 6, 13. [Google Scholar] [CrossRef] [PubMed]
  22. Yang, K.; Zeng, L.; Ge, A.; Shi, Y.; Zhu, X.; Liu, W.; Ge, J.; Ricelli, A. The effect of Hedysarum multijugum Maxim.-Chuanxiong rhizoma compound on ischemic stroke: A research based on network and experimental pharmacology. Oxid. Med. Cell. Longev. 2020, 2020, 6072380. [Google Scholar] [CrossRef] [PubMed]
  23. Nair, A.; Morsy, M.A.; Jacob, S. Dose translation between laboratory animals and human in preclinical and clinical phases of drug development. Drug Dev. Res. 2018, 9, 373–382. [Google Scholar] [CrossRef] [PubMed]
  24. Vorhees, C.V.; Williams, M.T. Assessing spatial learning and memory in rodents. ILAR J. 2014, 55, 310–332. [Google Scholar] [CrossRef]
  25. Denninger, J.K.; Smith, B.M.; Kirby, E.D. Novel object recognition and object location behavioral testing in mice on a budget. J. Vis. Exp. 2018, 141, e58593. [Google Scholar] [CrossRef]
  26. Schaar, K.L.; Brenneman, M.M.; Savitz, S.I. Functional assessments in the rodent stroke model. Exp. Transl. Stroke Med. 2010, 2, 13. [Google Scholar] [CrossRef]
  27. Lister, R.G. Interactions of three benzodiazepine receptor inverse agonists with ethanol in a plus-maze test of anxiety. Pharmacol. Biochem. Behav. 1988, 30, 701–706. [Google Scholar] [CrossRef]
  28. Poh, L.; Sim, W.L.; Jo, D.; Dinh, Q.N.; Drummond, G.R.; Sobey, C.G.; Chen, C.L.-H.; Lai, M.K.P.; Fann, D.Y.; Arumugam, T.V. The role of inflammasomes in vascular cognitive impairment. Mol. Neurodegener. 2022, 17, 4–8. [Google Scholar] [CrossRef]
  29. Zhao, Y.; Gong, C.X. From chronic cerebral hypoperfusion to Alzheimer-like brain pathology and neurodegeneration. Cell. Mol. Neurobiol. 2015, 35, 101–110. [Google Scholar] [CrossRef]
  30. Filley, C.M.; Fields, R.D. White matter and cognition: Making the connection. J. Neurophysiol. 2016, 116, 2093–2104. [Google Scholar] [CrossRef]
  31. Iadecola, C. The pathobiology of vascular dementia. Neuron 2013, 80, 844–866. [Google Scholar] [CrossRef] [PubMed]
  32. Jiwa, N.S.; Garrard, P.; Hainsworth, A.H. Experimental models of vascular dementia and vascular cognitive impairment: A systematic review. J. Neurochem. 2010, 115, 814–828. [Google Scholar] [CrossRef]
  33. Knopman, D.S. Dementia and cerebrovascular disease. Mayo Clin. Proc. 2006, 81, 223–230. [Google Scholar] [CrossRef]
  34. Skoog, I. Vascular aspects in Alzheimer’s disease. J. Neural Transm. Suppl. 2000, 59, 37–43. [Google Scholar] [CrossRef]
  35. Shabir, O.; Berwick, J.; Francis, S.E. Neurovascular dysfunction in vascular dementia, Alzheimer’s and atherosclerosis. BMC Neurosci. 2018, 19, 62–65. [Google Scholar] [CrossRef]
  36. Vijayan, M.; Reddy, P.H. Stroke, vascular dementia, and Alzheimer’s disease: Molecular links. J. Alzheimers Dis. 2016, 54, 427–443. [Google Scholar] [CrossRef]
  37. Semerano, A.; Fernández-Ruiz, J.; Cortes-Canteli, M.; Moro, M.A. From Alzheimer’s disease to vascular dementia: Different roads leading to cognitive decline. Br. J. Pharmacol. 2024, 181, 755–759. [Google Scholar] [CrossRef]
  38. Gallego, I.; Villate-Beitia, I.; Saenz-Del-Burgo, L.; Puras, G.; Pedraz, J.L. Therapeutic opportunities and delivery strategies for brain revascularization in stroke, neurodegeneration, and aging. Pharmacol. Rev. 2022, 74, 439–461. [Google Scholar] [CrossRef]
  39. Zuo, S.; Li, W.; Li, Q.; Zhao, H.; Tang, J.; Chen, Q.; Liu, X.; Zhang, J.H.; Chen, Y.; Feng, H. Protective effects of Ephedra sinica extract on blood-brain barrier integrity and neurological function correlate with complement C3 reduction after subarachnoid hemorrhage in rats. Neurosci. Lett. 2015, 609, 216–222. [Google Scholar] [CrossRef]
  40. Kao, T.; Wu, C.; Yen, G. Bioactivity and potential health benefits of licorice. J. Agric. Food Chem. 2014, 62, 542–553. [Google Scholar] [CrossRef]
  41. Chen, Y.; Hsu, C.; Shiao, Y.; Wang, H.; Lo, Y.; Lin, A.M.Y. Anti-inflammatory effect of afatinib (an EGFR-TKI) on OGD-induced neuroinflammation. Sci. Rep. 2019, 9, 2516–2517. [Google Scholar] [CrossRef] [PubMed]
  42. Kim, S.; Sharma, C.; Jung, U.J.; Kim, S.R. Pathophysiological role of microglial activation induced by blood-borne proteins in Alzheimer’s disease. Biomedicines 2023, 11, 1383. [Google Scholar] [CrossRef] [PubMed]
  43. Liddelow, S.A.; Guttenplan, K.A.; Clarke, L.E.; Bennett, F.C.; Bohlen, C.J.; Schirmer, L.; Bennett, M.L.; Münch, A.E.; Chung, W.-S.; Peterson, T.C.; et al. Neurotoxic reactive astrocytes are induced by activated microglia. Nature 2017, 541, 481–487. [Google Scholar] [CrossRef] [PubMed]
  44. Aumont-Rodrigue, G.; Picard, C.; Labonté, A.; Poirier, J. Apolipoprotein B gene expression and regulation in relation to Alzheimer’s disease pathophysiology. J. Lipid Res. 2024, 65, 100667. [Google Scholar] [CrossRef]
  45. Wu, J.; Wang, Y.; Li, H.; Tan, W.; Chen, X.; Ye, S. Serum apolipoprotein B-to-apolipoprotein A1 ratio is independently associated with disease severity in patients with acute pancreatitis. Sci. Rep. 2019, 9, 7764. [Google Scholar] [CrossRef]
  46. Picard, C.; Nilsson, N.; Labonté, A.; Auld, D.; Rosa-Neto, P.; Alzheimer’s Disease Neuroimaging Initiative; Ashton, N.J.; Zetterberg, H.; Blennow, K.; Breitner, J.C.; et al. Apolipoprotein B is a novel marker for early tau pathology in Alzheimer’s disease. Alzheimers Dement. 2022, 18, 875–887. [Google Scholar] [CrossRef]
  47. Golderman, V.; Ben-Shimon, M.; Maggio, N.; Dori, A.; Gofrit, S.G.; Berkowitz, S.; Qassim, L.; Artan-Furman, A.; Zeimer, T.; Chapman, J.; et al. Factor VII, EPCR, aPC modulators: Novel treatment for neuroinflammation. J. Neuroinflamm. 2022, 19, 138. [Google Scholar] [CrossRef]
  48. Garlapati, V.; Luo, Q.; Posma, J.; Aluia, M.; Nguyen, T.S.; Grunz, K.; Molitor, M.; Finger, S.; Harms, G.; Bopp, T.; et al. Macrophage-expressed coagulation factor VII promotes adverse cardiac remodeling. Circ. Res. 2024, 135, 841–855. [Google Scholar] [CrossRef]
  49. Bernardi, F.; Mariani, G. Biochemical, molecular and clinical aspects of coagulation factor VII and its role in hemostasis and thrombosis. Haematologica 2021, 106, 351–362. [Google Scholar] [CrossRef]
  50. Clark, R.K.; Lee, E.V.; White, R.F.; Jonak, Z.L.; Feuerstein, G.Z.; Barone, F.C. Reperfusion following focal stroke hastens inflammation and resolution of ischemic injured tissue. Brain Res. Bull. 1994, 35, 387–392. [Google Scholar] [CrossRef]
  51. Zhang, L.; Zhao, W.; Li, B.; Alkon, D.L.; Barker, J.L.; Chang, Y.H.; Wu, M.; Rubinow, D.R. TNF-alpha induced over-expression of GFAP is associated with MAPKs. NeuroReport 2000, 11, 409–412. [Google Scholar] [CrossRef] [PubMed]
  52. Guo, Z.; Su, Y.; Lou, H. GFAP-positive progenitor cell production is concentrated in specific encephalic regions in young adult mice. Neurosci. Bull. 2018, 34, 769–778. [Google Scholar] [CrossRef]

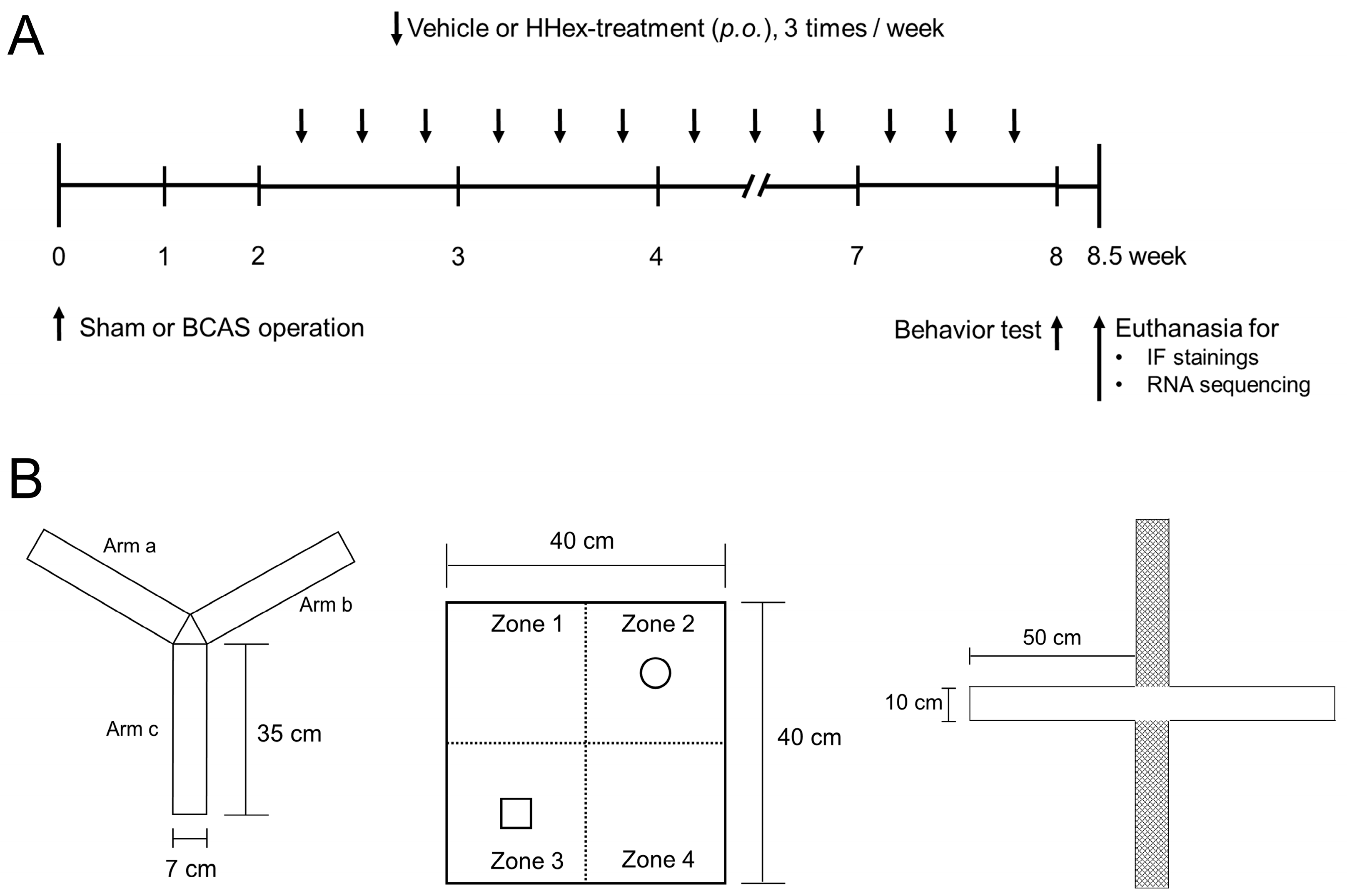

Figure 1. Overview of the experimental procedure and specification of instruments for measuring behavior. (A) Vehicle or Hwanhon decoction (HHex) were treated thrice weekly for 6 weeks following bilateral common carotid artery stenosis (BCAS) operation. Each group contained five mice. (B) Behavior tests, such as the Y-maze test, the novel object recognition test (NORT), and the elevated plus maze (EPM) test, were conducted 8 weeks following BCAS surgery. The individuals underwent anesthesia 8.5 weeks after BCAS surgery to harvest their brains for RNA sequencing and immunofluorescence (IF) staining.
Figure 1. Overview of the experimental procedure and specification of instruments for measuring behavior. (A) Vehicle or Hwanhon decoction (HHex) were treated thrice weekly for 6 weeks following bilateral common carotid artery stenosis (BCAS) operation. Each group contained five mice. (B) Behavior tests, such as the Y-maze test, the novel object recognition test (NORT), and the elevated plus maze (EPM) test, were conducted 8 weeks following BCAS surgery. The individuals underwent anesthesia 8.5 weeks after BCAS surgery to harvest their brains for RNA sequencing and immunofluorescence (IF) staining.
Genes 16 00746 g001

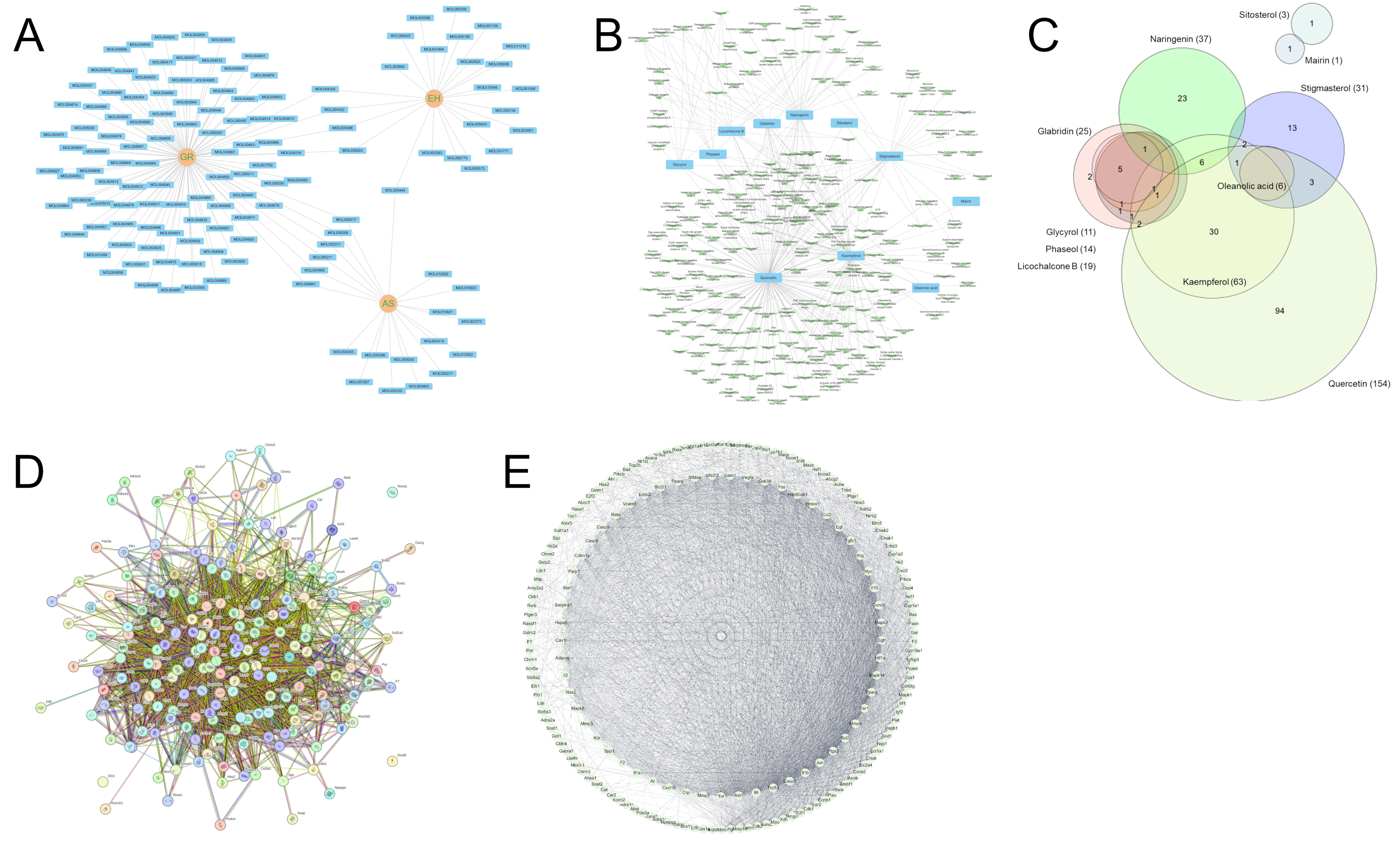

Figure 2. Screening of the active target proteins in HHex components using the TCMSP database. (A) The three medicinal herbs (Glycyrrhizae Radix et Rhizoma (GR), Ephedrae Herba (EH), and Armeniacae Semen (AS)) that constitute HHex and their active ingredients were selected, and a network of 11 overlapping ingredients and proteins predicted to be regulated by them was constructed (B,C). A protein–protein interaction (PPI) network of these target proteins was constructed using the STRING database (D), and the frequency of interaction with other proteins was visualized (E).
Figure 2. Screening of the active target proteins in HHex components using the TCMSP database. (A) The three medicinal herbs (Glycyrrhizae Radix et Rhizoma (GR), Ephedrae Herba (EH), and Armeniacae Semen (AS)) that constitute HHex and their active ingredients were selected, and a network of 11 overlapping ingredients and proteins predicted to be regulated by them was constructed (B,C). A protein–protein interaction (PPI) network of these target proteins was constructed using the STRING database (D), and the frequency of interaction with other proteins was visualized (E).
Genes 16 00746 g002

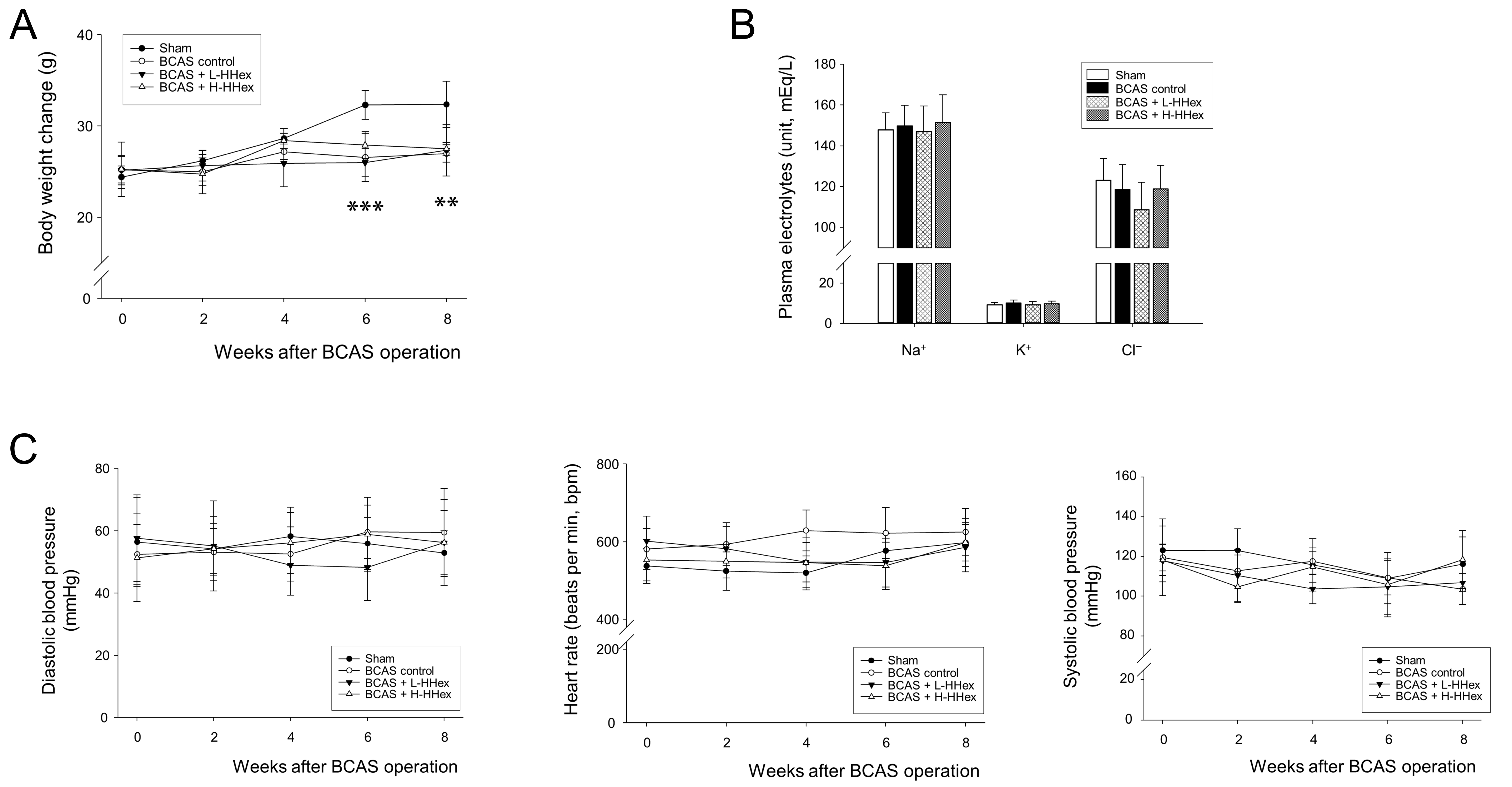

Figure 3. Influence of BCAS-induced CCH in mice and the effect of HHex treatment on physiological parameters. (A) The sham group steadily gained weight; however, the groups that underwent BCAS surgery showed a reduction in weight gain. BCAS surgery or HHex administration did not affect serum electrolytes (B), blood pressure, or pulse rate (C). Data are expressed as mean ± standard error (n = 5). ** p < 0.01, *** p < 0.001 BCAS control group vs. sham group. CCH: chronic cerebral hypoperfusion.
Figure 3. Influence of BCAS-induced CCH in mice and the effect of HHex treatment on physiological parameters. (A) The sham group steadily gained weight; however, the groups that underwent BCAS surgery showed a reduction in weight gain. BCAS surgery or HHex administration did not affect serum electrolytes (B), blood pressure, or pulse rate (C). Data are expressed as mean ± standard error (n = 5). ** p < 0.01, *** p < 0.001 BCAS control group vs. sham group. CCH: chronic cerebral hypoperfusion.
Genes 16 00746 g003
Figure 4. NORT using an open-field arena. Mice that underwent BCAS surgery showed a decrease in activity and the ability to recognize new objects in the open field. Although HHex did not affect the activity, H-HHex suppressed the decrease in the ability to recognize novel objects. Data are expressed as mean ± standard error (n = 5). * p < 0.05, ** p < 0.01 vs. compared group.
Figure 4. NORT using an open-field arena. Mice that underwent BCAS surgery showed a decrease in activity and the ability to recognize new objects in the open field. Although HHex did not affect the activity, H-HHex suppressed the decrease in the ability to recognize novel objects. Data are expressed as mean ± standard error (n = 5). * p < 0.05, ** p < 0.01 vs. compared group.
Genes 16 00746 g004

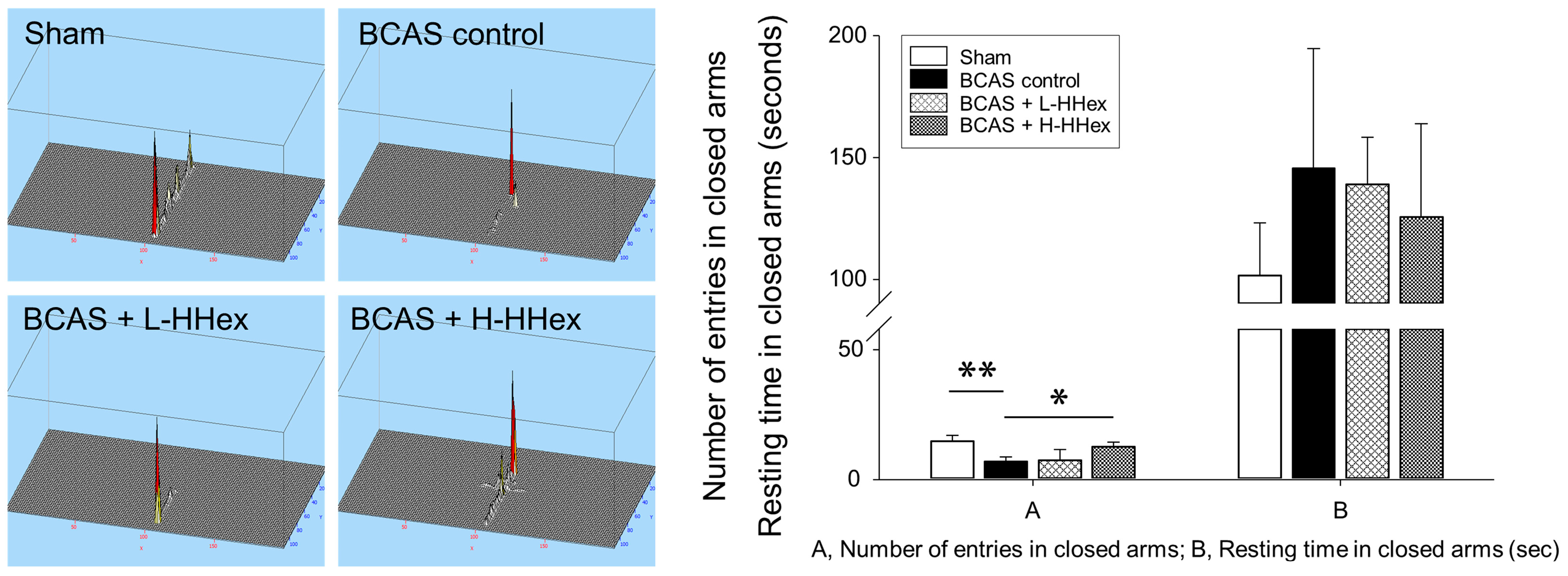

Figure 5. Results of the EPM test. Mice that underwent BCAS surgery exhibited reduced exploration of the closed arm in the EPM; however, H-HHex treatment significantly increased the exploration of the closed arm compared with that in the BCAS control group. No differences were observed in the time spent in the closed arm between each experimental group. Data are expressed as mean ± standard error (n = 5). * p < 0.05, ** p < 0.01 vs. compared group.
Figure 5. Results of the EPM test. Mice that underwent BCAS surgery exhibited reduced exploration of the closed arm in the EPM; however, H-HHex treatment significantly increased the exploration of the closed arm compared with that in the BCAS control group. No differences were observed in the time spent in the closed arm between each experimental group. Data are expressed as mean ± standard error (n = 5). * p < 0.05, ** p < 0.01 vs. compared group.
Genes 16 00746 g005

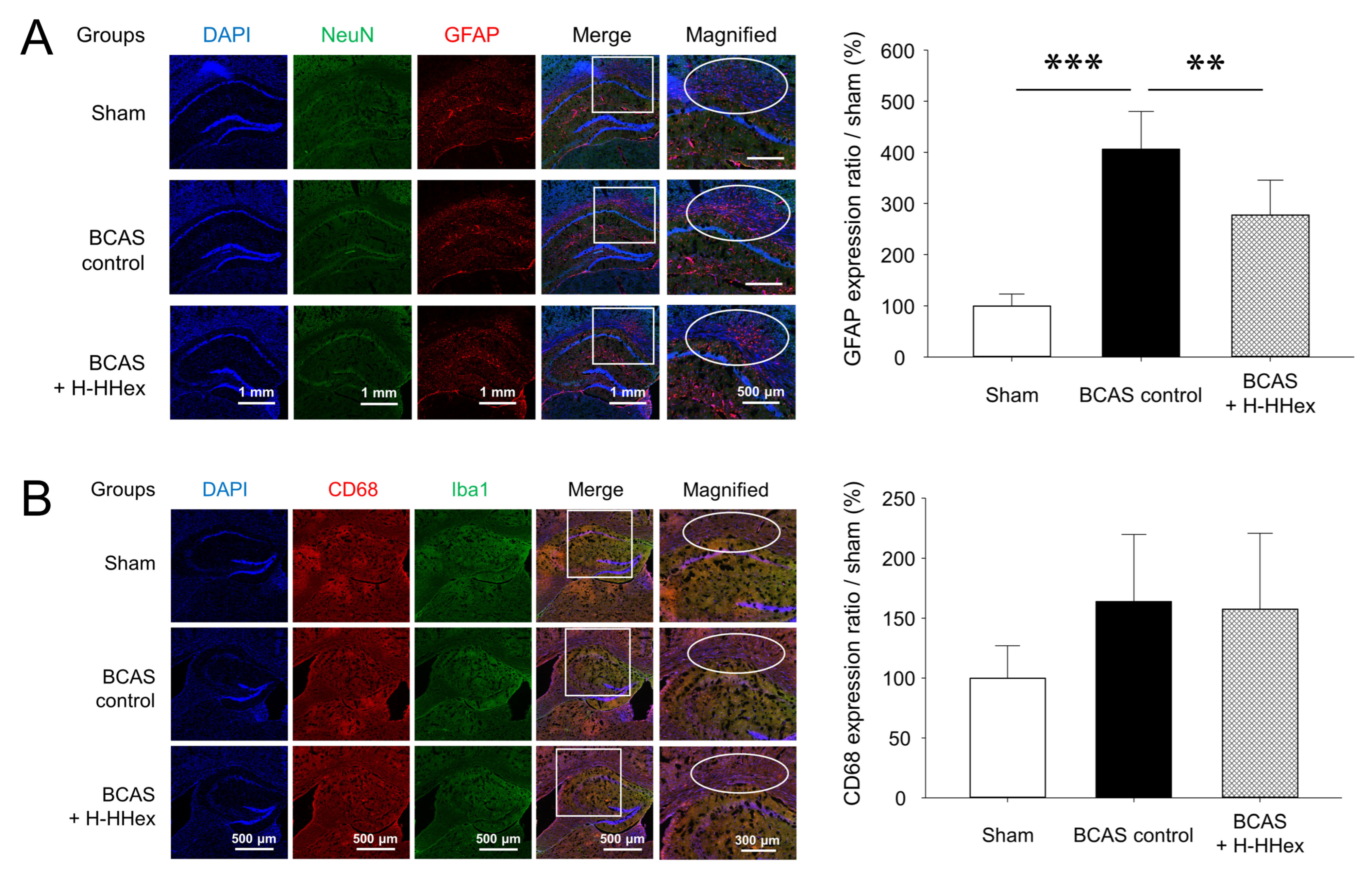

Figure 6. Observation of expression of GFAP-positive astrocytes and CD68-positive microglia using IF staining. (A) GFAP expression in the cerebral cortex, including the corpus callosum, significantly increased after BCAS-induced CCH, and this increase in expression was inhibited by HHex treatment. (B) BCAS-induced CCH or HHex treatment did not affect CD68 expression levels. Data are expressed as mean ± standard error (n = 5). ** p < 0.01, *** p < 0.001 vs. compared group.
Figure 6. Observation of expression of GFAP-positive astrocytes and CD68-positive microglia using IF staining. (A) GFAP expression in the cerebral cortex, including the corpus callosum, significantly increased after BCAS-induced CCH, and this increase in expression was inhibited by HHex treatment. (B) BCAS-induced CCH or HHex treatment did not affect CD68 expression levels. Data are expressed as mean ± standard error (n = 5). ** p < 0.01, *** p < 0.001 vs. compared group.
Genes 16 00746 g006

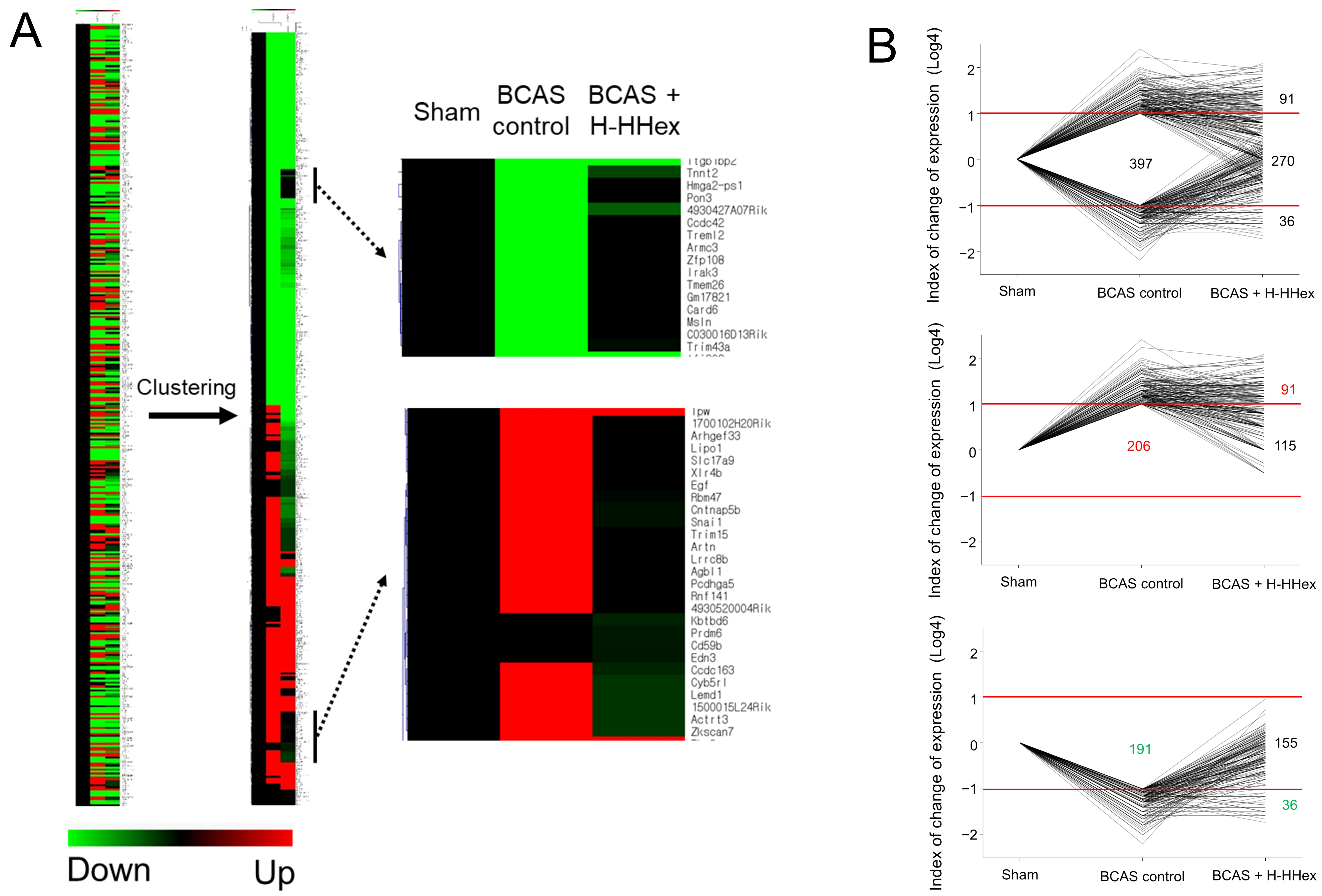

Figure 7. Analysis of gene expression using RNA sequencing. (A) Clustering analysis of the gene expression changes owing to BCAS-induced CCH and HHex administration reveal distinct expression patterns. Normalized data were hierarchically clustered according to the gene expression ratio. The intensity of the green or red color indicates levels of downregulation or upregulation in gene expression, respectively. (B) CCH-altered genes were categorized based on their direction of change (up-regulated or down-regulated), and the effect of HHex on the expression of these genes was visualized.
Figure 7. Analysis of gene expression using RNA sequencing. (A) Clustering analysis of the gene expression changes owing to BCAS-induced CCH and HHex administration reveal distinct expression patterns. Normalized data were hierarchically clustered according to the gene expression ratio. The intensity of the green or red color indicates levels of downregulation or upregulation in gene expression, respectively. (B) CCH-altered genes were categorized based on their direction of change (up-regulated or down-regulated), and the effect of HHex on the expression of these genes was visualized.
Genes 16 00746 g007
Figure 8. PPI network constructed using the STRING database. (A) A PPI network was constructed targeting genes regulated by HHex, and proteins with a high frequency of interaction with other proteins were selected. The string between the proteins indicates known or predicted interactions. (B) Comparison with the target proteins predicted through network pharmacology analysis confirmed that proteins predicted through network pharmacology analysis, such as Egf, F2, Apob, and F7, were regulated by HHex treatment and played crucial roles in the PPI network.
Figure 8. PPI network constructed using the STRING database. (A) A PPI network was constructed targeting genes regulated by HHex, and proteins with a high frequency of interaction with other proteins were selected. The string between the proteins indicates known or predicted interactions. (B) Comparison with the target proteins predicted through network pharmacology analysis confirmed that proteins predicted through network pharmacology analysis, such as Egf, F2, Apob, and F7, were regulated by HHex treatment and played crucial roles in the PPI network.
Genes 16 00746 g008
Table 1. Medicinal ingredients that constitute Hwanhon decoction: herbal names, scientific names, and daily doses for humans (60 kg body weight).
Table 1. Medicinal ingredients that constitute Hwanhon decoction: herbal names, scientific names, and daily doses for humans (60 kg body weight).
Herbal NameScientific NameWeight (g)
Ephedrae HerbaEphedra Sinica Stapf18
Armeniacae SemenPrunus armeniaca L. var. ansu Maxim.18
Glycyrrhizae Radix et RhizomaGlycyrrhiza uralensis Fischer6
Total Amount42
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kang, S.; Lim, C.; Lim, S.; Kim, K.-M.; Cho, S. Hwanhon Decoction Ameliorates Cognitive Impairment and Suppresses Neuroinflammation in a Chronic Cerebral Hypoperfusion Mouse Model: Involvement of Key Genes Identified by Network Pharmacology. Genes 2025, 16, 746. https://doi.org/10.3390/genes16070746

AMA Style

Kang S, Lim C, Lim S, Kim K-M, Cho S. Hwanhon Decoction Ameliorates Cognitive Impairment and Suppresses Neuroinflammation in a Chronic Cerebral Hypoperfusion Mouse Model: Involvement of Key Genes Identified by Network Pharmacology. Genes. 2025; 16(7):746. https://doi.org/10.3390/genes16070746

Chicago/Turabian Style

Kang, Sieun, Chiyeon Lim, Sehyun Lim, Kyoung-Min Kim, and Suin Cho. 2025. "Hwanhon Decoction Ameliorates Cognitive Impairment and Suppresses Neuroinflammation in a Chronic Cerebral Hypoperfusion Mouse Model: Involvement of Key Genes Identified by Network Pharmacology" Genes 16, no. 7: 746. https://doi.org/10.3390/genes16070746

APA Style

Kang, S., Lim, C., Lim, S., Kim, K.-M., & Cho, S. (2025). Hwanhon Decoction Ameliorates Cognitive Impairment and Suppresses Neuroinflammation in a Chronic Cerebral Hypoperfusion Mouse Model: Involvement of Key Genes Identified by Network Pharmacology. Genes, 16(7), 746. https://doi.org/10.3390/genes16070746

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
