Improving RNA Branching Predictions: Advances and Limitations

School of Mathematical and Statistical Sciences, Clemson University, Clemson, SC 29634, USA
School of Mathematics, Georgia Institute of Technology, Atlanta, GA 30308, USA
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Genes 2021, 12(4), 469;
Received: 5 February 2021 / Revised: 15 March 2021 / Accepted: 18 March 2021 / Published: 25 March 2021
(This article belongs to the Special Issue Algorithms and Workflows in RNA Bioinformatics)


Minimum free energy prediction of RNA secondary structures is based on the Nearest Neighbor Thermodynamics Model. While such predictions are typically good, the accuracy can vary widely even for short sequences, and the branching thermodynamics are an important factor in this variance. Recently, the simplest model for multiloop energetics—a linear function of the number of branches and unpaired nucleotides—was found to be the best. Subsequently, a parametric analysis demonstrated that per family accuracy can be improved by changing the weightings in this linear function. However, the extent of improvement was not known due to the ad hoc method used to find the new parameters. Here we develop a branch-and-bound algorithm that finds the set of optimal parameters with the highest average accuracy for a given set of sequences. Our analysis shows that the previous ad hoc parameters are nearly optimal for tRNA and 5S rRNA sequences on both training and testing sets. Moreover, cross-family improvement is possible but more difficult because competing parameter regions favor different families. The results also indicate that restricting the unpaired nucleotide penalty to small values is warranted. This reduction makes analyzing longer sequences using the present techniques more feasible.

1. Introduction

Accurate prediction of RNA base pairings from sequence remains a fundamental problem in bioinformatics. While new methods continue to advance the ribonomics research frontier [1,2,3,4,5,6,7,8,9], experimentalists still obtain useful functional insights from the classical minimum free energy (MFE) secondary structure predictions [10] under the Nearest Neighbor Thermodynamic Model (NNTM). Given the on-going popularity of such predictions, we focus here on characterizing accuracy improvements from one of the smallest possible changes to this approach: modifying only three of over 8000 NNTM parameters [11]. As will be explained, these three parameters govern the entropic cost of branching, which is a critical aspect of the overall molecular configuration. Moreover, they are some of the few not based on experimental data, and so are reasonable candidates for such a targeted reevaluation. Here, we consider two families of RNA molecules: transfer RNA (tRNA) and 5S ribosomal RNA (rRNA). Their sequence lengths are amenable to our current methods, while providing two different branching configurations to analyze. This enables us to confirm the extent of accuracy improvement possible on a per family basis, while also illustrating the challenges of obtaining such improvements simultaneously over two (or more) families.
An RNA secondary structure is a set of intra-sequence base pairs. For thermodynamic prediction purposes, the target pairings are typically canonical, i.e., Watson-Crick or wobble, and pseudoknot-free. (Removing these constraints, especially the latter, are active areas of research in the field.) Given a secondary structure, its free energy change from the unfolded sequence can be approximated under the NNTM; this model and the evolution of its many parameters (nearly all of which are for the special cases of small internal loops) are cataloged in an online database [11]. Under the NNTM, when given a sequence, an MFE secondary structure can be computed efficiently using dynamic programming [12,13,14,15].
Historically, the prediction accuracy is high on average for sequences of length 700 nucleotides or less [16]. In particular, it was found that an average (with standard deviation) of 83.0% (±22.2) of pairings in 484 transfer RNA (tRNA) secondary structures, totaling 10,018 base pairs (bp) and 37,502 nucleotides (nt), were predicted correctly. Likewise, 77.7% (±23.1) of pairings in 309 5S ribosomal RNA (rRNA) secondary structures, totaling 10,188 bp and 26,925 nt, were predicted correctly. While this clearly supports the value of MFE predictions, it also highlights that even at this scale of sequence lengths, i.e., ∼76 nt for tRNA and ∼120 for 5S rRNA, the prediction accuracy for an individual sequence can be low.
Recent results have demonstrated that it is possible to obtain a statistically significant increase in MFE prediction accuracy on a diverse training set of 50 tRNA sequences and 50 5S rRNA by changing the thermodynamic cost of branching [17]. Recall that an RNA secondary structure is composed of different substructures, which are scored by different components of the NNTM objective function. The substructures known as multiloops (or branching junctions) have three or more helices which radiate out as branches. A tRNA molecule has one central multiloop with four branches, while 5S rRNA has one with three. Although these branching loops are a critical aspect of the overall molecular conformation, they remain one of the most difficult aspects to predict accurately [18,19].
Previously, mathematical techniques from discrete optimization and geometric combinatorics were used to completely characterize all the secondary structures which were optimal for all possible combinations of different branching parameters on the chosen training sets [17]. It was found that 89% of tRNA and 90% of 5S rRNA predictions could be improved by altering the branching parameters from the default values. (Those which did not improve already had an accuracy well above average.) Critically, though, achieving this improvement simultaneously, i.e., for the same set of new parameters, is not possible; the intersection of all the “best possible” set of parameters for each sequence is empty.
At the time, an ad hoc combinatorial method was used to identify large combinations of non-empty intersections among the individual “best possible” sets for a given collection of training sequences. It was demonstrated that the branching parameters obtained in this way yielded a statistically significant improvement in MFE prediction accuracy over the existing values on tRNA, on 5S rRNA, and on the total 100 sequence training set, respectively. However, a significant gap remained between the average (known to be unobtainable) of the maximum attainable individual accuracies with modified branching parameters, and the best ad hoc values found.
The new method and associated results presented here eliminate that gap by giving a branch-and-bound algorithm, and an effective implementation, for finding parameters with the optimal MFE prediction accuracy across the given collection of RNA sequences. Somewhat surprisingly, we find that the improvement in prediction accuracy between the new branch-and-bound (BB) parameters and previous ad hoc (AH) ones is not statistically significant. To test this conclusion, we computed the prediction accuracies for the different branching parameters under consideration on a much larger set of 557 tRNA and 1283 5S rRNA sequences [20] from the Mathews Lab (U Rochester). We again saw no significant difference between the AH and BB parameters in MFE prediction accuracy for the testing sequences.
Moreover, we also confirmed that the new parameters give a statistically significant improvement over the current ones on the type of testing sequences, i.e., tRNA, 5S rRNA, or both, for which the parameters were trained. In conjunction, these results suggest that there may be a relatively large set of branching parameters which yield equivalent prediction accuracies that improve over the current ones. To move forward in identifying the scope of these parameters, we confirm that the current empirical strategy of focusing on the trade-off between two of the three branching parameters is well-substantiated by our analysis. This is especially useful as such a reduction in the dimension will enable the approach to be applied to longer sequences than those considered here.

2. Materials and Methods

We briefly sketch some background in the parametric analysis of RNA branching relevant to the current work before giving the new branch-and-bound algorithm. We conclude with information about the training and testing sequences used.

2.1. Parametric Analysis of RNA Branching

An RNA secondary structure decomposes into well-defined substructures. Our focus here is on the ones known as multiloops or branching junctions. Such a substructure has 3 or more helical arms which radiate out as branches. The classical tRNA cloverleaf has a single multiloop with four branches, while the single 5S rRNA one has only three. A parametric analysis seeks to understand how the MFE prediction depends on the parameters used in the thermodynamic optimization. Here we focus on the three which govern the entropic cost of loop branching. The goal of this targeted reevaluation is to characterize the impact that the branching parameters have on the prediction accuracy of the two families considered, as well as highlight the interplay between optimizing for each family.

2.1.1. Branching Parameters

We use the term branching parameters to refer to the three (learnt) parameters ( a , b , c ) in the initiation term in the multiloop scoring function:
Δ G init = a + b · [ number of unpaired nucleotides ] + c · [ number of branching helices ] .
The initiation term, together with the "stacking" energies of adjacent single-stranded nucleotides on base pairs in the loop, is used to approximate the multiloop stability under the NNTM. The stacking energies are based on experimental measurements [16,21], but the linear form of the initiation term was originally chosen for computation efficiency [21]. This simple entropy approximation has been shown to outperform other more complicated models for multiloop scoring in MFE prediction accuracy [22]. In this work we focus on possible improvements of the MFE prediction by changing the branching parameters.

2.1.2. Standard Branching Parameters

The NNTM has evolved over time, and the loop initiation parameters have changed with each major revision. Here they will be denoted T89 [21], T99 [16], and T04 [22] as in the tables in Section 3. On the two families considered, the T99 values were the most accurate overall, so they will be the primary point of comparison for the results. The older and newer values are also listed, and some trade-offs among the three will be addressed in the discussion.

2.1.3. Precision of Branching Parameters

For technical reasons, the parametric analysis is performed over the rationals with very high precision. However, all current thermodynamic optimization methods use rather low precision by comparison. In particular, the branching parameters are specified to one decimal place. For the presentation of results and discussion of their implications, the new branching parameters used were first rounded to one decimal place.

2.1.4. Branching Polytopes

The focus here is on the NNTM branching parameters, but the building blocks of our analysis are mathematical objects known as branching polytopes. The key point is that once such a branching polytope is computed for a given RNA sequence, it competely determines a division of the parameter space into regions where the ( a , b , c ) combinations from each region yield the same MFE predictions.
Branching polytopes were introduced in [23], and are the foundation of this parametric analysis of the NNTM branching parameters [17,24]. For a given RNA sequence, its branching polytope is a 4D geometric object which encloses points, called branching signatures, that correspond to all the different possible secondary structures. Since we are concerned here with parameters rather than polytopes and signatures, we refer an interested reader to [17] for a more complete description of the latter.
Through a duality from convex geometry, to the branching polytope we associate a subdivision of the 3D parameter space into convex regions. These regions are of great significance to analyzing the effects of varying the branching parameters in the NNTM. Namely, the branching parameters ( a , b , c ) from the same region yield the same MFE structures, while for parameters from different regions the model produces different predictions.

2.2. Branch-and-Bound Algorithm

We fix an ordering of the testing sequences and for each of them, we order the regions of the associated subdivision of the parameter space. The average number of regions for the training data is: 517 for tRNA and 2109 for 5S rRNA. We use Reg ( i , j ) to denote the j-th region for the i-th sequence. The part of the parameter space that contains the optimal parameters for the training set can be found by considering all the intersections that can be formed by taking one region from each sequence. Due to size, exhaustive search for the optimal region is not feasible - we use a branch-and-bound algorithm instead. We first present the basic idea behind the algorithm and how the merging and pruning steps are performed for two sequences. Then we explain how this idea can be extended to a larger training set. The straightforward extension, however, is not efficient for 50 sequences, so we perform merges along a binary tree. We also explain how performing certain pre-processing steps which require initial overhead time significantly improve the total running time.

2.2.1. Basic Idea behind the Algorithm

Suppose we are optimizing the parameters for the first two RNA sequences. In this case, we are interested in all the pairwise intersections Reg ( 1 , j 1 ) Reg ( 2 , j 2 ) of the regions that correspond to the two training sequences. Most of the intersections are empty and should thus be discarded. However, checking for nonempty intersections is computationally expensive. Therefore, before we compute intersections, we check whether the intersection could possibly provide an improvement in the prediction.
The inputs for the algorithm are the polytope for each sequence, the optimal structures that correspond to the vertices of each of the polytopes, and a lower bound L for the best average accuracy. Better lower bounds improve the running time - we used the accuracy we knew we could achieve with the ad hoc parameters. For i = 1 , 2 , let Acc i ( Reg ( i , j ) ) denote the prediction accuracy for sequence i when parameters from its j-th region are used. This value can be computed from the input by exhaustive search through the possible optimal structures. We order the regions for each sequence by decreasing accuracy. Let U i = Acc i ( Reg ( i , 1 ) ) be the maximal attainable accuracy for sequence i. The region Reg ( 1 , j ) can be discarded from consideration in the search for optimal parameters unless
Acc 1 ( Reg ( 1 , j ) ) + U 2 2 L ,
If (2) is satisfied, we say Reg ( 1 , j ) passes the pruning test. Note that since the regions for the first sequence are listed by accuracy, once j is large enough so that the pruning test fails, we can conclude that it would fail for all remaining regions for that sequence and we remove them from future consideration.
If Reg ( 1 , j ) passes the pruning test, in the next step we consider which of its intersections Reg ( 1 , j ) Reg ( 2 , k ) with regions from the second sequence are nonempty and yield accuracy better then L. We consider these candidate regions starting with the lowest j and, for a fixed j, we check for k in increasing order. The first nonempty intersection found, say Reg ( 1 , j 0 ) Reg ( 2 , k 0 ) , is a region for which the average accuracy is ( Acc 1 ( Reg ( 1 , j 0 ) ) + Acc 2 ( Reg ( 2 , k 0 ) ) ) / 2 , so we update our lower bound L. Since the regions of the second sequence are listed by accuracy, we start checking for the next value of j. Then before we compute other candidate regions Reg ( 1 , j ) Reg ( 2 , k ) , we check whether
Acc 1 ( Reg ( 1 , j ) ) + Acc 2 ( Reg ( 2 , k ) ) > 2 L
and only do polytope calculations if this inequality is satisfied. Each time we find a new nonempty intersection, the value L is updated as before. At the end, the value L is the best attainable accuracy and the last nonempty intersection that was computed is the part of the parameter space that yields this accuracy.
Note that the time spent at the beginning for ordering the regions according to accuracy saves time in performing polytope intersections later.

2.2.2. Extending to N Sequences

When we have more than two sequences, the intersections of interest can be formed by sequentially intersecting all the regions of the first sequence with all the regions of the second sequence, then taking all the nonempty pairwise intersections and intersecting them with the regions of the third sequence, etc. Figure 1 is an illustration of the linear order in which these intersections can be formed in the simplest version of the algorithm.
When checking which regions from the first sequence should be considered in forming the intersections, the criterion (2) is replaced with
Acc 1 ( Reg ( 1 , j ) ) + i = 2 N U i N L ,
where U ( i ) is the maximal attainable accuracy for the i-th sequence, computed from the input data.
In the first merge illustrated in Figure 1, for each Reg ( 1 , j ) which passes this pruning test, we consider regions Reg ( 2 , k ) from the second sequence. If
Acc 1 ( Reg ( 1 , j ) ) + Acc 2 ( Reg 2 , k ) ) + i = 3 N U i > N L ,
we check whether Reg ( 1 , j ) Reg ( 2 , k ) is nonempty, and if so we consider it in the next merge, etc. In the final merge, similarly to the case of 2 sequences, we can exploit the fact that we know that the accuracy for a nonempty intersection i = 1 N Reg ( i , j i ) is i = 1 N Acc i ( Reg ( i , j i ) ) / N , so each time we find a nonempty intersection, we update the value of L and use this new value to prune some of the remaining candidates before we actually perform polytope calculations.
In fact, the polytope calculations being the most time consuming part of the process, it turns out that it pays off to invest time in finding better upper bounds to replace the U i ’s in the pruning steps. Therefore, before we start the merges, we compute the maximal attainable accuracy for sequence i for each region Reg ( 1 , j ) , denoted by Max i ( Reg ( 1 , j ) ) . In order to do this, we identify which intersections Reg ( 1 , j ) Reg ( i , k ) are nonempty and take the maximal Acc i ( Reg ( i , k ) ) . The pruning test (3) is then replaced by
Acc 1 ( Reg ( 1 , j ) ) + i = 2 N Max i ( Reg ( 1 , j ) ) N L ,
while (4) is replaced by
Acc 1 ( Reg ( 1 , j ) ) + Acc 2 ( Reg ( 2 , k ) ) + i = 3 N Max i ( Reg ( 1 , j ) ) > N L ,

2.2.3. Binary Merge

When merging regions for k tRNA sequences, we need to consider intersections of k regions, so it is important that we maximize the number of those that can get pruned before any polytope calculations are performed. Therefore, in our implementation we replace the linear merge from Figure 1 by a binary merge order, illustrated in Figure 2. Each node of the tree represents a step in which intersections of regions from two sets of sequences are being considered.
The improved upper bounds that we compute at the beginning in order to have more efficient pruning are Max k ( Reg ( i , j ) ) - the maximal accuracy for sequence k under parameters from the region Reg ( i , j ) . While it may seem like each of these values requires intersecting with each region of the k-th sequence, here we exploit the fact that the regions are ordered by accuracy, thereby significantly reducing the computing time. Namely, we consider intersections Reg ( k , l ) Reg ( i , j ) ordered by increasing l and when the first nonempty intersection is found, we can take Max k ( Reg ( i , j ) ) = Acc k ( Reg ( k , l ) ) .
In fact, the values Max i ( Reg ( k , j ) ) computed can be used before merges start to reduce the number of regions we consider for each sequence (After this step, for L = 0.74 , the average number of regions to be considered for each of tRNA sequence is 12 and the total running time for tRNA on a machine with Intel® Core i9-9900K, 32 GB SDRAM (Santa Clara, CA, USA), is 2.5 h. For L = 0.76 , the average number of regions to be considered for each tRNA sequence is 9 and the total running time is 1.5 h). This is another instance where we pay slight overhead at the beginning in order to save time on calculating polytope intersections later. Namely, in a pre-processing step at the beginning, right after the values Max i ( Reg ( k , j ) ) are calculated, region Reg ( i , j ) is discarded from future consideration unless
k = 1 N Max k ( Reg ( i , j ) ) N L .
During merges, when the regions from sequences i I are being merged, the intersection i I Reg ( i , k i ) is not computed unless it passes the pruning test
i I Acc i ( Reg ( i , k i ) ) + j I min i I Max j ( Reg ( i , k i ) ) N L .
If the intersection passes the test, then we check that it is nonempty before we save it to be considered in future merges. However, when training on 100 sequences this still leads to checking a prohibitively large number of intersections of a large number of polytopes. For that reason, when the number of sequences being merged is at least ten, we use an additional test before we verify that i I Reg ( i , k i ) is nonempty. Namely, suppose the merge I comes from two branches, I = I 1 I 2 . Then, by construction, i I 1 Reg ( i , k i ) and i I 2 Reg ( i , k i ) are both nonempty. However, Reg ( i 1 , k i 1 ) Reg ( i 2 , k i 2 ) = implies that the whole intersection is empty, even though the opposite is not true. Therefore, we verify which pairwise intersections Reg ( i 1 , k i 1 ) Reg ( i 2 , k i 2 ) , for i 1 I 1 , i 2 I 2 , are nonempty for all the regions Reg ( i 1 , k i 1 ) , Reg ( i 1 , k i 1 ) that appear in the two lists of intersections for the sequences from the sets I 1 and I 2 , respectively, that are being merged at this step. We then check whether i I Reg ( i , k i ) can be declared empty based on this information, and if not, then we compute the intersection. Most pairwise intersections considered here are empty, and when | I | 10 , the number of regions to be considered is small enough that the overhead time used to compute the pairwise intersections at the beginning of the merge is a good trade-off for the time saved in checking the nonempty intersections when the pruning test is passed.

2.3. Data Analysis

Parameters obtained from the new branch-and-bound algorithm were trained on sequences from the previous study and tested on a much larger set available from the Mathews Lab (U Rochester) to determine the extent of possible improvement in MFE prediction accuracy by modifying the branching parameters.

2.3.1. Accuracy Measure

To determine the accuracy of a prediction we compare with a pseudoknot-free native secondary structure S from which the noncanonical base pairings have been excluded. For an MFE prediction S for that RNA sequence, we score the accuracy as the F 1 -measure:
F 1 ( S , S ) = 2 | S S | | S | + | S | ,
where | S | and | S | are the number of base pairs in S and S , respectively, and | S S | is the number of true positive base pairs common to both structures. The minimum value 0 means no accurately predicted base pairs, while 1 means perfect prediction. The accuracy of a multiloop initiation parameter triple for a sequence is the average over all possible MFE secondary structures for that fixed ( a , b , c ) .

2.3.2. Testing and Training Sequences

Two sets of sequences were used in this study, one for training and one for testing. Both consisted of tRNA and 5S rRNA sequences. These are two of the best characterized RNA families structurally while also having good diversity in MFE accuracy and other sequence characteristics. As will be discussed, sequence length was also an important factor due to computational limitations in the original polytope calculations. We note, however, that both have well-documented factors, such as post-translational modifications for tRNA and protein-binding for 5S rRNA, affecting the structure but which are not included in the NNTM. Despite these caveats, it is possible to improve their MFE prediction accuracy simply by modifying the three NNTM branching parameters.
The training set consisted of the 50 tRNA and 50 5S rRNA sequences from the previous study [17]. (A complete list with Accession number is given in the Supplementary data of the previous paper.) These sequences were obtained from the Comparative RNA Web (CRW) Site [25]. By design, they were chosen so that their MFE prediction accuracies and GC content are as uniformly distributed as reasonably possible. The GC content was used to ensure that sequences with very similar MFE accuracies were sufficiently different to generate a diverse training set.
The second set was used for testing, and consisted of the 557 tRNA and 1283 5S rRNA sequences from a larger benchmarking set first used in [20,22], which supersedes previous ones [16]. Summary statistics for some characteristics like sequence length, MFE accuracy under the Turner99 branching parameters, GC content, and number of native base pairs (bp) for both data sets broken down by family are given in Table 1. Per family differences in means between the training and testing data sets for each sequence characteristic were evaluated by a t-test. While the differences in sequence length between the training and testing data were significant for both families (tRNA: p = 0.0003 , 5S rRNA: p < 0.0001 ), the differences in MFE accuracy were not (tRNA: p = 0.0846 , 5S rRNA: p = 0.2659 ). Differences in both GC content and number of base pairs were mixed; the former had p = 0.0018 for tRNA but p = 0.0883 for 5S rRNA, whereas the latter was p = 0.2707 and p < 0.0001 . As will be seen in the results section, the training data seemed to represent well the testing sequences despite any differences in the composition of the sets.

3. Results

We first address the extent of improvement possible when the branching parameters are trained on a specific family, either tRNA or 5S rRNA. We then consider the improvement possible across both training families simultaneously. The training results are tested against a much larger set of 1840 sequences, and the conclusions are found to hold. Importantly, this demonstrates that the method is not overfitted to the training data. Finally, the relevance of parameter precision to the results is addressed.

3.1. Improving Per Family Prediction Accuracy

Previously [17], mathematical methods were used to find the best of all possible combinations of branching parameters ( a , b , c ) for each individual training sequence. Averaging these per sequence accuracies over their family, or the whole training set, yields the “max” accuracy listed in Table 2. These numbers are an upper bound on the improvement possible by modifying the branching parameters for MFE prediction accuracy on these training (sub)sets. We note that the upper bound is known not to be achievable, since the common intersection (even within a family) of the best per sequence parameter values is empty.
A lower bound on the improvement was established [17] by ad hoc means, that is by identifying large sets of sequences from each family which did have such a common intersection. Seven such large sets were found for tRNA and four for 5S rRNA. These combinations of possible parameters were considered for each family, and the one with best average accuracy over the whole family was reported. We refer to these parameter combinations here as AHt and AHs, for the tRNA and 5S rRNA families respectively. It was found that the AHt and AHs accuracy on their respective family, listed in Table 2, was a statistically significant improvement over the T99 parameters.
However, there was a sizable gap between the upper and lower bounds for the potential accuracy improvements for each family considered. The branch-and-bound algorithm presented here was implemented to determine where in this range the best possible per family accuracy lay. The new parameters are listed in Table 2 as BBt and BBs along with the corresponding accuracies.
As a technical aside, the best possible ( a , b , c ) region for 5S is unbounded in the ( 3 , 0 , 1 ) direction. The BBs parameters reported are the centroid of the finite 2D face. We also considered a strictly interior point BBs + ( 3 , 0 , 1 ) = ( 8.7 , 0.2 , 4.5 ) , which gave nearly identical accuracy for tRNA. Interestingly, this new point is very close to AHs, with a distance of (0.2, 0.1, 0).
It is worth noting that the signs of these family-optimal parameters are consistent within the family between the ad hoc and branch-and-bound combinations, but reversed between the two families. This suggests that ( a , b , c ) combinations which are optimal for different configurations, i.e., a tRNA cloverleaf versus a 5S rRNA Y-shape, may occupy different parts of the 3D parameter space. It is also relevant to future analyses that the range of the b parameters is very narrow (from 0.3 to 0.3 ) and distributed fairly evenly around 0.
As evaluated by a two-sample t-test, the differences between the ad hoc and branch-and-bound parameter accuracies within the family on which the parameters were optimized are not significant, with p = 0.7699 for tRNA and p = 0.7021 for 5S rRNA. In other words, the maximum possible accuracy per family over the training set sequences is essentially the best ad hoc accuracy, and far from the average over the per sequence maximums. This closes the gap from the previous analysis, while opening the door to new questions as discussed in the next section.

3.2. Improving cross Family Prediction Accuracy

It was observed before that the accuracy of the new AHt and AHs parameters on the other family is clearly worse than the Turner parameters. Consequently, a “best both” combination, denoted here AHb, was also identified from among the 11 possible ad hoc ones considered, 7 for tRNA and 4 for 5S rRNA. As evaluated by a two-sample t-test, the improvement over the T99 parameters on the whole training set accuracy is significant ( p = 0.0200 ). This is due entirely to tRNA; the AHb parameters raise the tRNA accuracy by an amount statistically indistinguishable (t-test p = 0.5243 ) from AHt, while the AHb accuracy for the 5S rRNA training sequences was indistinguishable (t-test p = 0.7308 ) from T99. This is interesting because it demonstrates that, in terms of trade-offs in prediction accuracy between tRNA and 5S rRNA, the former can be improved without negatively affecting the latter. We note that only per family ad hoc parameters were considered at the time, so it seemed plausible that a better parameter combination could be found when both tRNA and 5S rRNA were considered concurrently.
However, this turned out not to be the case when the branch-and-bound algorithm was run on the full 100 sequence training set. The parallelization is implemented in such a way that three combinations of “near optimal” parameters were detected, along with the absolute best one. When the parameters are rounded to 1 decimal precision, 3 of the 4 combinations give identical 0.66 average accuracy when rounded to 2 decimal places, and the fourth is only 0.02 less. Given this, we report as the BBb parameters the combination with 0.66 average accuracy which was most dissimilar to AHb. The other 2 combinations were AHb + ( 0.3 , 0 , 0.1 ) and + ( 0.1 , 0 , 0 ) , although AHb was originally optimized for tRNA and not the full training set. The fourth was more similar to BBb but the combination ( 9.7 , 0.2 , 1.8 ) was noticeably worse for 5S by 0.05 with only a 0.01 improvement for tRNA.
These results illustrate that, while it is possible to improve over the current T99 prediction accuracy by a statistically significant amount, doing so simultaneously over two different families is more challenging than improving the per family accuracy. Additionally, the best possible accuracy over the full training set is the same as the previous ad hoc one.

3.3. Results for Testing Data

We note that the summary statistics for “Both” families in Table 3 were computed as a weighted average and standard deviation, so that each family contributed 50% to the statistic although there were more than twice as many 5S rRNA as tRNA sequences in the testing set. With a total of 1840 sequences, the difference in accuracy over the whole data set for the T99 parameters versus the AHb or BBb is significant; the Tukey HSD Post-hoc Test following an ANOVA were both p < 0.0001 while the differences between AHb and BBb were not ( p = 0.5957 ). The AHb and BBb parameters performed just as well on the tRNA testing sequences as on the training ones (ANOVA p = 0.9008 ), although the 5S accuracy was less good (ANOVA p = 0.0051 ). A Tukey HSD Post-hoc Test found significant differences between the AHb training accuracy and the testing one ( p = 0.0420 ) as well as the BBb testing one ( p = 0.0156 ) for the 5S family, but the other four pairwise comparisons were indistinguishable. We also note that the parameters trained on 5S sequences have lower accuracy on the testing data.
Other than this lower accuracy for 5S rRNA, several patterns observed in Table 2 also hold in Table 3. First, parameters which were trained on one family are markedly less accurate on the other one. When appropriately combined to weigh each family equally, this yields overall accuracies comparable to the Turner values. However, parameters chosen to raise the overall accuracy can achieve a statistically significant improvement over T99. Finally, branch-and-bound and ad hoc accuracies are remarkably similar over the families on which they were trained.

3.4. Sensitivity to Parameter Precision

As discussed in Section 2, the accuracy computations here focused on branching parameters specified to one decimal precision. We note that the “exact” parameters computed, that is ones specified as a rational number to the maximum precision allowable by the size of an integer in the computer algebra system used, always gave higher accuracy on the training (sub)set used. The largest difference seen was less that 0.035 , which is not a statistically significant difference over data sets of this size with this amount of variance in the accuracy means.

4. Discussion

Previous results [17] demonstrated that it was possible to achieve a statistically significant improvement in MFE prediction accuracy by altering the three NNTM parameters which govern the entropic cost of loop branching. This was shown on a set of 50 tRNA sequences, on another of 50 5S rRNA, and on the full training set of both families combined. However, the extent of the possible improvement was unknown, although a lower bound was given by the ad hoc parameters identified— listed as AHt, AHs, and AHb respectively in Table 2. The “max” upper bound, known not to be attainable, was provided by the average maximimum accuracy (over any combination of parameters) for each individiual training sequence. Hence, the open questions was to establish the maximum simultaneous improvement over these training sets.
Here we provide a branch-and-bound algorithm which takes as input a set of RNA branching polytopes [23] and finds the parameters with the best possible accuracy over the entire set. We describe implementation details needed to insure that the basic algorithm runs efficiently enough to be useful in practice, and give results on our original training set as well as a much larger testing set available from the Mathews Lab (U Rochester) with 557 tRNA and 1283 5S rRNA. The differences in MFE accuracy under the standard T99 parameters between the training and testings sequences are not significant, and we find that the general trends observed in the training data are borne out by the testing results.
First, and most surprising, we find that the branch-and-bound parameters do not improve on the ad hoc ones in any significant way. Hence, we now know that the best possible MFE prediction accuracy for the tRNA training sequences is 0.75 on average and 0.73 for 5S rRNA. The testing data achieves a comparable accuracy for tRNA, although the ad hoc AHt parameters are actually slightly better than the branch-and-bound BBt. The AHs and BBs accuracies for the 5S rRNA testing sequences are equivalent, if lower than the training ones (but not by a statistically significant amount).
Overall, the average MFE prediction accuracy for the 5S rRNA testing sequences is consistently lower, by ∼5%, than the training accuracy for all parameter combinations considered. It is not obvious why this should be the case, since the GC content is equivalent and the length and number of native base pairs were actually lower on average for the testing sequences. In the future, it may be worthwhile to investigate what other sequence and/or structural characteristics might correlate with this training versus testing trend for 5S rRNA.
Returning to the accuracy improvement question, the branch-and-bound results for each family establish a much more realistic upper bound than the previous “max” values from Table 2. However, we also know that achieving this level of accuracy simultaneously across the two families is not possible. The testing data reinforces the point that parameters which are optimized only for one family perform much less well for the other. For the family-specific parameters, i.e., AHt, AHs, BBt, and BBs, this yields combined accuracies over both families which are on par with the Turner parameters for both training and testing data. In the case of the AHt paramaters, the improvement over T99 for the full testing set is statistically significant ( p = 0.0187 ) but not for the training set ( p = 0.1395 ).
In contrast, when the parameters are chosen to maximize the accuracy of both families, a statistically significant improvement over T99—which has the highest combined accuracy over the three Turner parameter sets—is achieved for both testing and training data. As described for the training results, there are multiple different parameter combinations that achieve essentially the same accuracy over both families. This conclusion holds true for the testing data as well. Such stability in the maximum combined accuracy strongly suggest that future studies should focus on “near optimal” parameter combinations. This is particularly appropriate when the parameters are commonly specified to 1 decimal precision.
In general, we find that the AHb and BBb parameters are better for tRNA than for 5S rRNA, relative to the family-specific parameters. It is interesting to note that the Turner parameters with the highest 5S rRNA accuracy are the earliest ones which had b = 0.4 , whereas the T99 and T04 parameters both have b = 0 . The parameters trained only on 5S rRNA which produce the highest accuracy on that family, i.e., AHs and BBs, both had b > 0 while the opposite was true for tRNA. However, it was possible to achieve the same accuracy (to two decimal places) over the entire 100 sequences training set with either b = 0.2 or b = 0.1 , and essentially the same for the 1840 sequence testing set.
Over all the new parameter combinations considered, we found a small range of b values, roughly centered around 0. Furthermore, previous results [17] had found that the thermodynamic optimization was most sensitive in the b direction. In future work, we expect to specialize the b value in our parametric analysis to better focus on the a and c trade-offs. We have preliminary results which indicate that this is not too detrimental to the overall accuracy, and this reduction in complexity will certainly improve the time and memory needed to compute the branching polytopes.
Recall that a weighs the number of multiloops while c scores the total number of branching helices. In terms of trade-offs between them, we note that the most recent Turner parameters have a significant increase in a and a c < 0 for the first time. All six new parameter combinations have opposite sign for a and c suggesting that there may be an important reward/penalty balance to be achieved. Not only did the 5S-specific parameters have b > 0 but they also both have a < 0 and c > 0 , whereas the tRNA-specific had the exact opposite signs. Although the same accuracy could be achieved over the whole training data set with b either positive or negative, there were no “near optimal” parameter combinations found which had a < 0 and c > 0 . Hence, it seems that there may be a greater range of ( a , c ) combinations which produce an acceptable 5S rRNA accuracy than there is for tRNA. In fact, BBb is quite close to T04, with a difference of ( 0 , 0.1 , 1.1 ) . This small change produces a considerable improvement in tRNA accuracy, with a smaller corresponding decrease for 5S rRNA.
In conjunction, these results suggest that there may be a relatively large set of branching parameters which yield equivalent prediction accuracies that improve over the current ones. To make progress on identifying the scope of these parameters, we confirm that the current empirical strategy of focusing on the trade-off between the a and c parameters is well-substantiated by this analysis. Moving forward, the goal is to expand the training set to include other RNA families, but this requires new algorithmic approaches to computing the branching polytopes. To date, the longest sequence attempted (an RNase P of length 354 nt) took more than 2 months. However, focusing on the a,c trade-offs only should reduce the complexity substantially, yielding further insights into the advances possible and limitation faced when improving RNA branching predictions.

5. Conclusions

We conclude by putting the results reported here into a broader context. In demonstrating that a targeted reevaluation of the NNTM branching parameters can improve MFE prediction accuracy, we also highlight the challenges of doing so across more than one family simultaneously. This is relevant not only to thermodynamic methods for RNA secondary structure prediction, but also to machine learning approaches which require large enough training sets to parameterize all the new structural features proposed. It has been demonstrated that the risk of overfitting to the training data is real [26], but also that using thermodynamic information in a machine learning method can reduce the problem while still improving prediction accuracy [27].
While the importance of training across different RNA families is well-known, to the best of our knowledge, this is the first time that the resulting parameters have been explicitly compared when trained on one family versus another, and then on both. In this way, we are able to characterize the effect on the maximum possible per family accuracy—which is now known—when optimizing the branching parameters over both of our training families. By focusing only on two families, this interplay can be clearly analyzed. We see an explicit trade-off between tRNA and 5S rRNA, and this suggests that it may be worthwhile to consider the trade-offs being made by other methods. In doing so, it is important that the training and testing data sets be balanced, i.e., where each family contributes equally to the accuracy. Otherwise, improvements in the dominant family will disproportionally affect the combined statistic.
Moving forward, we plan to extend this approach to analyze the trade-offs in branching parameters among additional families. As a first step in that direction, we did consider the prediction accuracy under the ad hoc and branch-and-bound parameters for each of the other eight families from the Mathews data set [20,22,28]. For half of these families (small subunit ribosomal RNA domains, large subunit ribosomal RNA domains, group I self-splicing introns, and group II self-splicing introns), an ANOVA on the average family accuracy found no significant differences among T99, T04, AHb, and BBb. Hence, even though the new parameters were trained on two entirely different families, this did not negatively affect the accuracy. In the four families where there was a significant change ( p < 0.05 ) in the ANOVA, two improved while two worsened—again highlighting the trade-offs in branching parameters between families. Interestingly, the former (RNase P and tmRNA) were “tRNA-like” in the sense that they performed as well under the AHt parameters (although not the BBt) whereas the latter (signal recognition particle RNA and telomerase RNA) were “5S rRNA-like” in the sense that they performed as well on AHs and BBs as on T99 and T04.
In summary, analyzing the trade-offs in MFE prediction accuracy improvements possibly by modifying the NNTM branching parameters may yield improvements more generally. At the very least, it will characterize why obtaining such improvements simultaneously over different RNA families with distinct branching configurations has remained a challenge.

Author Contributions

Conceptualization, S.P. and C.H.; methodology, S.P., C.W. and C.H.; software, S.P., C.W. and M.C.; formal analysis, C.H.; investigation, S.P., C.W. and M.C.; writing—original draft preparation, S.P., C.W. and C.H.; writing—review and editing, S.P. and C.H.; supervision, S.P. and C.H.; funding acquisition, S.P. and C.H. All authors have read and agreed to the published version of the manuscript.


This work was supported by funds from the National Science Foundation grant numbers DMS 1815832 (funding provided for SP, CW, and MC) and DMS 1815044 (CH).

Data Availability Statement

The code developed and the data used in this study are openly available at (accessed on 24 March 2021).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.


The following abbreviations are used in this manuscript:
MFEMinimum Free Energy
NNTMNearest Neighbor Thermodynamics Model


  1. Schuster, P.; Stadler, P.F.; Renner, A. RNA structures and folding: From conventional to new issues in structure predictions. Curr. Opin. Struct. Biol. 1997, 7, 229–235. [Google Scholar] [CrossRef]
  2. Major, F.; Griffey, R. Computational methods for RNA structure determination. Curr. Opin. Struct. Biol. 2001, 11, 282–286. [Google Scholar] [CrossRef]
  3. Gardner, P.P.; Giegerich, R. A comprehensive comparison of comparative RNA structure prediction approaches. BMC Bioinform. 2004, 5, 140. [Google Scholar] [CrossRef][Green Version]
  4. Ding, Y. Statistical and Bayesian approaches to RNA secondary structure prediction. RNA 2006, 12, 323–331. [Google Scholar] [CrossRef][Green Version]
  5. Leontis, N.B.; Lescoute, A.; Westhof, E. The building blocks and motifs of RNA architecture. Curr. Opin. Struct. Biol. 2006, 16, 279–287. [Google Scholar] [CrossRef][Green Version]
  6. Mathews, D.H. Revolutions in RNA secondary structure prediction. J. Mol. Biol. 2006, 359, 526–532. [Google Scholar] [CrossRef]
  7. Shapiro, B.A.; Yingling, Y.G.; Kasprzak, W.; Bindewald, E. Bridging the gap in RNA structure prediction. Curr. Opin. Struct. Biol. 2007, 17, 157–165. [Google Scholar] [CrossRef]
  8. Flamm, C.; Hofacker, I.L. Beyond energy minimization: Approaches to the kinetic folding of RNA. Monatsh. Chem. 2008, 139, 447–457. [Google Scholar] [CrossRef]
  9. Eddy, S.R. Computational Analysis of Conserved RNA Secondary Structure in Transcriptomes and Genomes. Annu. Rev. Biophys. 2014, 43, 433–456. [Google Scholar] [CrossRef][Green Version]
  10. Mathews, D.H.; Turner, D.H. Prediction of RNA secondary structure by free energy minimization. Curr. Opin. Struct. Biol. 2006, 16, 270–278. [Google Scholar] [CrossRef]
  11. Turner, D.H.; Mathews, D.H. NNDB: The nearest neighbor parameter database for predicting stability of nucleic acid secondary structure. Nucleic Acids Res. 2010, 38, D280–D282. [Google Scholar] [CrossRef]
  12. Zuker, M. Mfold web server for nucleic acid folding and hybridization prediction. Nucleic Acids Res. 2003, 31, 3406–3415. [Google Scholar] [CrossRef] [PubMed]
  13. Markham, N.R.; Zuker, M. UNAFold: Software for Nucleic Acid Folding and Hybridization. In Bioinformatics: Structure, Function, and Applications; Keith, J.M., Ed.; Humana Press: Totowa, NJ, USA, 2008; Volume 453, pp. 3–31. [Google Scholar]
  14. Gruber, A.R.; Lorenz, R.; Bernhart, S.H.; Neuböck, R.; Hofacker, I.L. The Vienna RNA Websuite. Nucleic Acids Res. 2008, 36, W70–W74. [Google Scholar] [CrossRef] [PubMed][Green Version]
  15. Reuter, J.S.; Mathews, D.H. RNAstructure: Software for RNA secondary structure prediction and analysis. BMC Bioinform. 2010, 11, 129. [Google Scholar] [CrossRef][Green Version]
  16. Mathews, D.H.; Sabina, J.; Zuker, M.; Turner, D.H. Expanded sequence dependence of thermodynamic parameters improves prediction of RNA secondary structure. J. Mol. Biol. 1999, 288, 911–940. [Google Scholar] [CrossRef] [PubMed][Green Version]
  17. Poznanović, S.; Barrera-Cruz, F.; Kirkpatrick, A.; Ielusic, M.; Heitsch, C. The challenge of RNA branching prediction: A parametric analysis of multiloop initiation under thermodynamic optimization. J. Struct. Biol. 2020, 210, 107475. [Google Scholar] [CrossRef]
  18. Giegerich, R.; Voß, B.; Rehmsmeier, M. Abstract shapes of RNA. Nucleic Acids Res. 2004, 32, 4843–4851. [Google Scholar] [CrossRef]
  19. Doshi, K.J.; Cannone, J.J.; Cobaugh, C.W.; Gutell, R.R. Evaluation of the suitability of free-energy minimization using nearest-neighbor energy parameters for RNA secondary structure prediction. BMC Bioinform. 2004, 5, 105. [Google Scholar] [CrossRef][Green Version]
  20. Sloma, M.F.; Mathews, D.H. Exact calculation of loop formation probability identifies folding motifs in RNA secondary structures. RNA 2016, 22, 1808–1818. [Google Scholar] [CrossRef]
  21. Jaeger, J.A.; Turner, D.H.; Zuker, M. Improved predictions of secondary structures for RNA. Proc. Natl. Acad. Sci. USA 1989, 86, 7706–7710. [Google Scholar] [CrossRef][Green Version]
  22. Ward, M.; Datta, A.; Wise, M.; Mathews, D.H. Advanced multi-loop algorithms for RNA secondary structure prediction reveal that the simplest model is best. Nucleic Acids Res. 2017, 45, 8541–8550. [Google Scholar] [CrossRef] [PubMed][Green Version]
  23. Drellich, E.; Gainer-Dewar, A.; Harrington, H.; He, Q.; Heitsch, C.E.; Poznanović, S. Geometric combinatorics and computational molecular biology: Branching polytopes for RNA sequences. In Algebraic and Geometric Methods in Applied Discrete Mathematics; Harrington, H.A., Mohamed Omar, M.W., Eds.; American Mathematical Society: Providence, RI, USA, 2017; Volume 685, pp. 137–154. [Google Scholar]
  24. Barrera-Cruz, F.; Heitsch, C.; Poznanović, S. On the Structure of RNA Branching Polytopes. SIAM J. Appl. Algebra Geom. 2018, 2, 444–461. [Google Scholar] [CrossRef][Green Version]
  25. Cannone, J.J.; Subramanian, S.; Schnare, M.N.; Collett, J.R.; D’Souza, L.M.; Du, Y.; Feng, B.; Lin, N.; Madabusi, L.V.; Müller, K.M.; et al. The Comparative RNA Web (CRW) Site: An online database of comparative sequence and structure information for ribosomal, intron, and other RNAs. BMC Bioinform. 2002, 3, 2. [Google Scholar]
  26. Rivas, E.; Lang, R.; Eddy, S.R. A range of complex probabilistic models for RNA secondary structure prediction that includes the nearest-neighbor model and more. RNA 2012, 18, 193–212. [Google Scholar] [CrossRef][Green Version]
  27. Sato, K.; Akiyama, M.; Sakakibara, Y. RNA secondary structure prediction using deep learning with thermodynamic integration. Nat. Commun. 2021, 12, 941. [Google Scholar] [CrossRef]
  28. Ward, M.; Sun, H.; Datta, A.; Wise, M.; Mathews, D.H. Determining parameters for non-linear models of multi-loop free energy change. Bioinformatics 2019, 35, 4298–4306. [Google Scholar] [CrossRef]

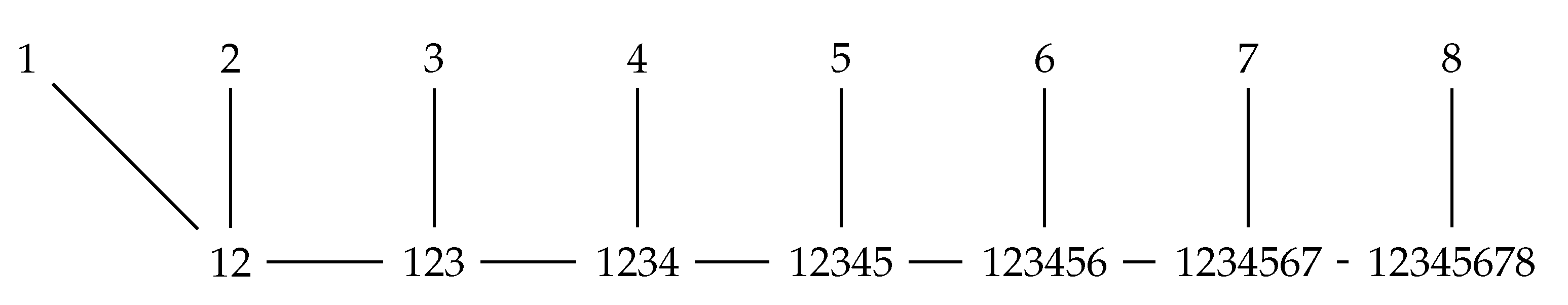

Figure 1. Order of merges under the basic branch-and-bound algorithm.
Figure 1. Order of merges under the basic branch-and-bound algorithm.
Genes 12 00469 g001

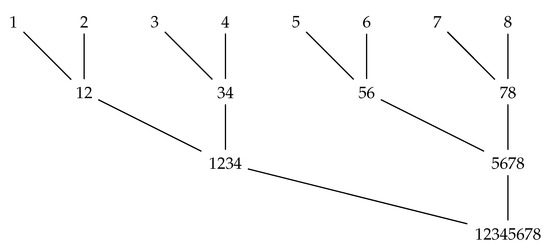

Figure 2. Improved merging order.
Figure 2. Improved merging order.
Genes 12 00469 g002
Table 1. Per family characteristics of the training and testing data sets.
Table 1. Per family characteristics of the training and testing data sets.
TypeFamilyNumSeq LengthMFE AccuracyGC ContentNative bp
Training5S rRNA50121.383.620.630.240.580.0635.183.04
Testing5S rRNA1283118.713.490.590.240.570.0533.612.38
Table 2. Parameter values and MFE prediction for the 50 tRNA training sequences and the 50 5S rRNA, as well as over both families.
Table 2. Parameter values and MFE prediction for the 50 tRNA training sequences and the 50 5S rRNA, as well as over both families.
ParameterstRNA5S rRNABoth
Table 3. MFE prediction accuracies for testing data set from Mathews Lab (U Rochester) with 557 tRNA sequences and 1283 5S rRNA. Table 2 parameters repeated for completeness.
Table 3. MFE prediction accuracies for testing data set from Mathews Lab (U Rochester) with 557 tRNA sequences and 1283 5S rRNA. Table 2 parameters repeated for completeness.
ParameterstRNA5S rRNABoth
