Repetitive DNA Restructuring Across Multiple Nicotiana Allopolyploidisation Events Shows a Lack of Strong Cytoplasmic Bias in Influencing Repeat Turnover

School of Life Sciences, University of Bedfordshire, Luton LU1 3JU, UK
School of Biological and Chemical Sciences, Queen Mary University of London, London E1 4NS, UK
Royal Botanic Gardens, Kew, Richmond TW9 3AB, UK
Department of Environment and Agriculture, Curtin University, Bentley 6102, Western Australia, Australia
Authors to whom correspondence should be addressed.
Genes 2020, 11(2), 216;
Received: 31 December 2019 / Revised: 10 February 2020 / Accepted: 13 February 2020 / Published: 19 February 2020
(This article belongs to the Special Issue Cytonuclear Interactions in Polyploid Species)


Allopolyploidy is acknowledged as an important force in plant evolution. Frequent allopolyploidy in Nicotiana across different timescales permits the evaluation of genome restructuring and repeat dynamics through time. Here we use a clustering approach on high-throughput sequence reads to identify the main classes of repetitive elements following three allotetraploid events, and how these are inherited from the closest extant relatives of the maternal and paternal subgenome donors. In all three cases, there was a lack of clear maternal, cytoplasmic bias in repeat evolution, i.e., lack of a predicted bias towards maternal subgenome-derived repeats, with roughly equal contributions from both parental subgenomes. Different overall repeat dynamics were found across timescales of <0.5 (N. rustica L.), 4 (N. repanda Willd.) and 6 (N. benthamiana Domin) Ma, with nearly additive, genome upsizing, and genome downsizing, respectively. Lower copy repeats were inherited in similar abundance to the parental subgenomes, whereas higher copy repeats contributed the most to genome size change in N. repanda and N. benthamiana. Genome downsizing post-polyploidisation may be a general long-term trend across angiosperms, but at more recent timescales there is species-specific variance as found in Nicotiana.

1. Introduction

Allopolyploidy is pervasive in flowering plants, having occurred multiple times throughout angiosperm evolutionary history and recurrently in most clades [1]. Allopolyploidy occurs where genome duplication and hybridisation happen in concert. This has led to an appreciation of polyploidy (or whole genome duplication) as an important driving force in plant evolution, with the potential for immediate disadvantages of neopolyploidy ultimately leading to evolutionary novelty and ecological persistence [2,3,4,5,6]. The combination of two divergent subgenomes within one nucleus, and the redundancy of DNA sequences, leads to complicated post-polyploidisation restructuring of the polyploid genome as it is diploidised [7]. In Nicotiana (Solanaceae), recurrent polyploidisation has led to allotetraploid species of different ages, making this an excellent model system for investigating allopolyploidisation through time [8,9,10,11,12,13]. This allows us to test whether similar outcomes occur through allopolyploidisation within one genus, over different time scales, or whether post-polyploidisation changes are instead species-specific.
A combination of genomic, cytogenetic and phylogenetic work over the past two decades has established the parentage and age of the allotetraploid species of Nicotiana [14,15,16,17,18]. At the younger end of the spectrum (<0.5 Ma) is the commercial species, N. tabacum L., the common smoking tobacco. The closest extant relatives of the parental lineages for N. tabacum (section Nicotiana) are well-established as being N. tomentosiformis Goodsp. (paternal; T-genome donor) and N. sylvestris Speg. (maternal; S-genome donor) [9,14] (Figure 1). Young polyploids are also found within the sections Rusticae and Polydicliae. Nicotiana rustica is formed from N. undulata Ruiz & Pav. (paternal) and N. paniculata L. (maternal) in <0.5 Ma ([14,19]; Figure 1). Section Repandae formed approximately 4 Ma, between N. obtusifolia M.Martens & Galeotti (paternal) and N. sylvestris (maternal) and consists of four taxa (Figure 1): N. repanda, N. stocktonii Brandegee, N. nesophila I.M.Johnst. and N. nudicaulis S.Watson [11,14,18,19]. Finally, the largest section of polyploid taxa is section Suaveolentes (approximately 50 species), which is also the oldest section of allotetraploids, appearing at approximately 6–7 Ma [18,20]. The parentage of this section is probably more complex and likely involves N. sylvestris (paternal sub-genome donor) and a homoploid hybrid as the maternal subgenome donor (between sections Noctiflorae and Petunioides; Figure 1). The section Suaveolentes also includes the important model N. benthamiana that is used extensively for plant-viral interaction studies. Recent genomic analysis using gene-based phylogenetic trees indicated that approximately 1.4 Gbp of the N. benthamiana genome is attributable to N. noctiflora Hook. as the maternal parent [20] and thus, we consider N. noctiflora as a close relative of the maternal parent for N. benthamiana.
Genome restructuring occurs post-polyploidisation, perhaps as one result of “genomic shock”, the combination of two divergent subgenomes within one nucleus (McClintock, 1984), although this phenomenon is more pronounced in herbaceous annuals than in perennials and woody groups. The nuclear-cytoplasmic interaction hypothesis (NCI) proposes to explain some of the patterns seen in the formation of allopolyploids. The paternal genome is considered as alien DNA within the context of the maternal cytoplasm, which could therefore lead to vulnerability of the paternal sub-genome, and ultimately to its paternal-specific degradation [23]. Previous results have shown a bias in the loss of paternal DNA (T-genome) for Nicotiana tabacum [9,10,23]. Similarly, the recent draft genome of N. rustica has suggested that approximately 59% originated from the maternal genome donor (N. knightiana/N. paniculata) versus 41% from the paternal genome donor, using a k-mer analysis of sequence data [24].
Here we examine the parental contribution to the allotetraploid genome across three allotetraploidisation events of different ages: (i) N. rustica (<0.5 Ma; section Rusticae); (ii) N. repanda (~4 Ma; section Repandae); and (iii) N. benthamiana (~6 Ma; section Suaveolentes). We specifically ask the following questions:
  • How do repeat dynamics vary across polyploidisation events of different ages?
  • Is there a higher contribution of maternal subgenome DNA to the allopolyploid genome, reflected in repetitive element abundances?
  • If present, do these biases vary with the age of the allopolyploid, and/or phylogenetic distance of progenitor subgenomes?

2. Materials and Methods

2.1. Illumina Sequencing Data

Genomic libraries were prepared and sequenced for N. noctiflora [SRR11051011], N. undulata [SRR11051010], N. paniculata [SRR11051009] and N. rustica [SRR11051008] as described in [25], using Illumina TruSeq PCR-free kits and 150 bp PE Illumina sequencing. Read data for the remaining taxa were downloaded from the NCBI Sequence Read Archive as follows: Nicotiana sylvestris [SRR343066]; Nicotiana obtusifolia [SRR452993]; Nicotiana repanda [SRR453021]; Nicotiana benthamiana [SRR7540368]. Reads were quality filtered (Phred score minimum >10, maximum 3 Ns) and trimmed to the same length (91 bp). Higher quality filtering can lead to biased estimates of repeat abundance, due to typically lower quality scores for AT/GC rich sequences such as satellite repeats.

2.2. Clustering of Read Data

In each case, read subsets representing a genome proportion of 2% (0.02 × coverage) were used to estimate the repetitive element abundance in each diploid and allotetraploid genome. These were combined to create three final datasets as follows: (i) Rusticae (N. rustica + ♂N. undulata + ♀N. paniculata); (ii) Repandae (N. repanda + ♂N. obtusifolia +♀N. sylvestris); and (iii) Suaveolentes (N. benthamiana + ♂N. sylvestris + ♀N. noctiflora). Reads were prefixed with five-letter sample-specific codes, and comparative clustering was run on each dataset using RepeatExplorer2, using default settings [26,27].

2.3. Statistical Analyses

Statistical analyses and graphical plots were performed in R version 3.3.0 [28]. Contaminating clusters were removed (sequence artefacts, organellar DNA), as well as clusters with fewer than 10 reads (per species) and species-specific clusters. The expected cluster size for each tetraploid species was calculated as the sum of the abundance in each parent. The cumulative deviation from expectation was calculated and plotted against the cumulative expected cluster size in order to visualise repeat dynamics across the range of cluster sizes, as in [11]. Linear regression was fitted to test parental contributions to tetraploid cluster size. Cluster sizes (number of reads) were natural log-transformed. Three-dimensional plots were plotted using the plot3D package [29] and the car package [30] was used to compare the parental regression slopes. In all analyses, residuals were viewed to ensure that model assumptions were met.

3. Results

3.1. Repeat Dynamics in Polyploids of 0.5–6 Ma

To broadly compare the repeat dynamics across polyploidisation events, we compared the deviation from expected abundance for a range of cluster sizes from ten reads upwards (Figure 2). These represent different classes of repetitive elements. The expected cluster size is the sum of the cluster size in each of the two parental subgenomes for each allotetraploid. Deviation above zero represents an increase in repeat abundance from expectation and below zero the opposite.
In the young tetraploid Nicotiana rustica there is little deviation from expectation across the range of repeat sizes (Figure 2). This indicates that N. rustica has faithfully maintained repetitive DNA without significant sequence divergence or genome size change. Comparing the deviation from expectation at the same scale across polyploidisation events (Figure 2), shows that any deviation is minimal compared with the alterations that occur in older tetraploids.
Over longer timescales, deviation from simple expectation is much greater in both of the older tetraploid groups for sections Repandae (~4 Ma) and Suaveolentes (~6 Ma). In both older tetraploids, there is limited deviation from expected cluster size at the small-medium sizes (up to about 5000 reads). As cluster size increases, however, these higher abundance elements have significantly differed from expectation in both cases. For N. repanda the larger abundance elements are more represented than expected, resulting in a final genome size that is larger than expected (Figure 2). For N. benthamiana, there is an initial increase above expectation for some larger clusters (mid-size repeats at Log 10-11), but this quickly becomes a decrease, showing appreciable genome downsizing from expectation. This appears to be almost entirely due to deletion of higher abundance repeat elements (Figure 2).

3.2. Parental Contribution to Allotetraploid Genomes

For each tetraploid, we conducted a series of regression analyses to explore the relative contribution of the paternal vs. maternal parents (Figure 3 and Figure 4). In all cases, there is no clear difference between the maternal and paternal contribution (Figure 3), with no obvious pattern across the range of cluster sizes (Figure 4).
In the youngest polyploid, N. rustica, there is a stronger correlation between the parental cluster size and that of the tetraploid (Figure 3A), with a statistically significant difference between the slope of the two parental regression lines (p = 0.0201). For both older tetraploids, N. repanda (p = 0.0002) and N. benthamiana (p = 0.0046) the slopes were found to be significantly different between the maternal and paternal progenitors (Table 1; Table S1), although visually there is a lack of obvious pattern or direction in the regressions (Figure 3B,C). Untransformed plots (Figure S1) and LOESS plots (Figure S2) are additionally shown in Supplementary Materials.
Plotting the regression results in 3D as an alternative visualisation also showed no clear pattern between maternal and paternal parents (Figure 4; Table S2). In the case of N. rustica, the cluster sizes have a much higher correlation between parents and polyploid, and hence fit closer to the regression plane (Figure 4A). For older polyploids, N. repanda (Figure 4B) and N. benthamiana (Figure 4C), there is dispersion across the range of cluster sizes and around the regression plane. Summary statistics for each dataset are given in Table S3.

4. Discussion

4.1. Repeat Restructuring across 0.5–6 Ma Timescales

In the youngest allotetraploid, N. rustica (Figure 2), repeat abundances are close to the sum of abundances expected from both parental donors. Nicotiana rustica has a genome size of 1C = 5.2 Gbp [22], which is close to the sum (5.3 Gbp) of the extant parental lineages N. paniculata (2.9 Gbp) and N. undulata (2.4 Gbp). It also has retained all 24 pairs of chromosomes (12 pairs from each subgenome). Previous studies using GISH (genomic in-situ hybridisation) showed clear additivity for both parental subgenomes and a lack of any clear genomic translocations [8,31]. Additionally, the distribution of several tandem repeats of the HRS60 family showed chromosomal locations concordant with their distribution in the parental genomes, apart from one from the N. undulata subgenome [31]. For ribosomal DNA, sequence conversion of the 18-5.8-26S locus is towards the N. undulata type (approx. 80% of sequences), the paternal genome donor [32], the same pattern found for N. tabacum. Recent studies in N. tabacum found there is much greater restructuring, including genomic translocations and significant loss of repetitive DNA from the paternal T-genome. Similar results were also found in synthetic lines of N. tabacum in the fourth generation [9,10,23].
In older tetraploids, repeat dynamics are much more variable (Figure 2), which likely reflects greater restructuring of the genome and turnover of repetitive elements. Species of section Repandae have retained all chromosomes (n = 24), ca. 4 Ma [18], but translocations identified via GISH [11] show genome exchange and reorganisation. In N. repanda, there is significant genome upsizing from the expected sum of parental subgenomes, of around 29% (observed 1C = 5.3 Gbp versus expected 1C = 4.1 Gbp) [11,13,22]. This genome size change is mostly due to an increase in high-abundance repeats, including Ty3/Gypsy chromovirus retroelements [13], and the same trajectory of repeat accumulation is found in N. stocktonii and N. nesophila [11]. Repeat dynamics are, however, to an extent species-specific, because N. nudicaulis has experienced overall genome downsizing (−14%), and its repeat abundances/types are much closer to expectation [11,13].
Section Suaveolentes is the oldest (ca. 6 Ma; [18]) and most species-rich [33] group of tetraploids in Nicotiana. In this section, most species have genome sizes that represent stark genome downsizing [34], and N. benthamiana has a genome size of 1C = 3.3 Gbp. This is in addition to a reduction in chromosome number (from n = 24 to n = 15 in some species), likely the result of descending dysploidy [34], not necessarily correlated with genome-size reduction. Ancestrally, section Suaveolentes has n = 24, but N. benthamiana has n = 18, 19. Such extensive genome reorganisation as part of the diploidisation process could potentially mask events that occurred shortly after allotetraploidisation at approx. 6 Ma [18]. It would be important to sample repeat types/abundances in several of the species with the ancestral (or nearly) chromosome numbers (there are six species with n = 23, 24) but among these, there is a wide range of genome sizes, 1C = 5.45–2.87 Gbp. Given the number of taxa in section Suaveolentes (ca. 40–50 species), investigating how repeat dynamics vary in this group will be central to discovering how it relates (or not) to chromosomal changes and genome sizes in a descending dysploid series (n = 15–24). In other groups, particularly Brassicaceae, there is extensive dysploidy post-polyploidisation [35], and this process is likely responsible for much of the diversification of angiosperms [7].

4.2. Lack of a Clear Parental Bias in Repeat Loss/Retention

As part of the “genomic shock” experienced by combining two divergent subgenomes within one neoallopolyploid nucleus, there are predictions regarding the level of genome reorganisation, and sequence loss/retention based on the direction of the cross. The maternal subgenome is expected to be favoured, relative to the paternal subgenome, due to their compatibility within the maternal cytoplasm. This potentially leads to specific degradation of various elements from the paternal subgenome, as predicted by the NCI hypothesis. In N. tabacum this was found to be the case, including synthetic lines, whereby the T-genome from N. tomentosiformis is significantly reduced relative to the S-genome from N. sylvestris [9,10]. However, not all lines showed genomic translocations, as predicted by NCI, which are therefore assumed to be more stochastic and not essential to polyploid success [23].
In the three allotetraploids studied here, we found no significant evidence of maternal bias in the repeat abundances (Figure 3 and Figure 4). Nicotiana rustica has a much closer correlation between parental cluster size and cluster size (Figure 3A and Figure 4A), but its two parents are much more closely related than those of N. tabacum (Figure 1). This could give post-tetraploid diploidisation more stochasticity due to greater overall similarity of the two parental genomes (i.e., they are simply too similar for there to be a noticeable effect favouring one subgenome over the other). Additionally, the slopes of the regression lines were not found to be statistically different (Table 1). This reveals a faithful inheritance of most repeats from both parents, N. undulata and N. paniculata, and a lack of maternal cytoplasmic bias. Previously, this was suggested on the basis of a lack of genomic translocations, particularly involving perturbation of the paternal subgenome [23,31]. It is possible that if overcoming a greater level of genomic shock involves transgenomic translocations, then the effects of genomic incompatibility are greater, leading to a maternal bias, whereas if the two parental genomes are more similar then incompatibility is a much more subtle factor. We would argue that the ages of the two older allotetraploids also makes detecting parental biases difficult to impossible–too much genomic change has taken place post-polyploidisation to detect parental biases that might have been operating at earlier stages in the process.
For N. repanda and N. benthamiana, correlation between cluster size in parental lineages and tetraploids is much less clear (Figure 3 and Figure 4), which reflects the longer timescales over which these tetraploid genomes have diverged. Slopes of parental regressions were significantly different in both cases (Figure 3B,C; Table 1), but there is no clear directionality, e.g., favourable retention of maternal repeat abundances. In both cases, repeat changes in the allotetraploid are mostly a result of changes in higher copy sequences, but these are present in both parental subgenomes and subject to overall similar pressures. In the case of N. repanda this is overall genome upsizing, whereas in the case of N. benthamiana there is significant genome downsizing (Figure 2).

5. Conclusions

Overall our analyses show extensive repeat restructuring over longer time frames in sections Repandae and Suaveolentes, with the former experiencing genome upsizing and the latter significant genome downsizing. In the younger polyploid N. rustica we show little deviation from the expected sum of parental subgenomes. We did not find significant evidence of overall maternal bias in repeat retention as found previously for N. tabacum across the three separate allotetraploidisation events of <0.5 (N. rustica) 4 (N. repanda) and 6 (N. benthamiana) Ma respectively. Future work comparing the signatures of sequence retention in repetitive DNA, dark matter (i.e., degraded repeats) and gene space will be important to understand whether different processes govern the evolution of different sequence types post-polyploidisation and how these contribute to genome reorganisation.

Supplementary Materials

The following are available online at, Table S1: Linear regression output. Repetitive element abundance (read number) was natural-log transformed; Table S2: Linear regression output in relation to 3D plots in Figure 4; Table S3: Summary statistics of the three polyploid datasets for reads 10; Figure S1: Regression analyses of cluster size (read number) in the parental subgenomes versus the tetraploid genome, untransformed. 2:1 and 1:1 lines shown; Figure S2: Regression analyses with LOESS lines fitted.

Author Contributions

Conceptualisation, S.D., M.W.C. and A.L.; data curation, S.D., M.S.G. and O.A.P.-E.; formal analysis, S.D., M.S.G. and O.A.P.-E.; investigation, S.D. and M.S.; methodology, S.D., M.S.G., O.A.P.-E., M.S., M.W.C. and A.R.L.; resources, S.D. and M.S.; supervision, M.W.C. and A.R.L.; visualisation, S.D. and M.S.G.; writing—original draft, S.D.; writing—review and editing, S.D., M.S.G., O.A.P.E., M.S., M.W.C. and A.R.L. All authors have read and agree to the published version of the manuscript.


This research received no external funding.


S.D. was funded by a NERC studentship.

Conflicts of Interest

The authors declare no conflicts of interest.


  1. Wendel, J.F. The wondrous cycles of polyploidy in plants. Am. J. Bot. 2015, 102, 1753–1756. [Google Scholar] [CrossRef][Green Version]
  2. Wood, T.E.; Takebayashi, N.; Barker, M.S.; Mayrose, I.; Greenspoon, P.B.; Rieseberg, L.H. The frequency of polyploid speciation in vascular plants. Proc. Natl. Acad. Sci. USA 2009, 106, 13875–13879. [Google Scholar] [CrossRef][Green Version]
  3. Mayrose, I.; Zhan, S.H.; Rothfels, C.J.; Magnuson-Ford, K.; Barker, M.S.; Rieseberg, L.H.; Otto, S.P. Recently formed polyploid plants diversify at lower rates. Science 2011, 333, 1257. [Google Scholar] [CrossRef] [PubMed][Green Version]
  4. Landis, J.B.; Soltis, D.E.; Li, Z.; Marx, H.E.; Barker, M.S.; Tank, D.C.; Soltis, P.S. Impact of whole-genome duplication events on diversification rates in angiosperms. Am. J. Bot. 2018, 105, 348–363. [Google Scholar] [CrossRef] [PubMed][Green Version]
  5. Eric Schranz, M.; Mohammadin, S.; Edger, P.P. Ancient whole genome duplications, novelty and diversification: The WGD Radiation Lag-Time Model. Curr. Opin. Plant Biol. 2012, 15, 147–153. [Google Scholar] [CrossRef] [PubMed]
  6. Tank, D.C.; Eastman, J.M.; Pennell, M.W.; Soltis, P.S.; Soltis, D.E.; Hinchliff, C.E.; Brown, J.W.; Sessa, E.B.; Harmon, L.J. Nested radiations and the pulse of angiosperm diversification: Increased diversification rates often follow whole genome duplications. New Phytol. 2015, 207, 454–467. [Google Scholar] [CrossRef][Green Version]
  7. Dodsworth, S.; Chase, M.W.; Leitch, A.R. Is post-polyploidization diploidization the key to the evolutionary success of angiosperms? Bot. J. Linn. Soc. 2016, 180, 1–5. [Google Scholar] [CrossRef]
  8. Lim, K.Y.; Matyasek, R.; Kovarik, A.; Leitch, A.R. Genome evolution in allotetraploid Nicotiana. Biol. J. Linn. Soc. 2004, 82, 599–606. [Google Scholar] [CrossRef]
  9. Renny-Byfield, S.; Chester, M.; Kovarik, A.; Le Comber, S.C.; Grandbastien, M.-A.; Deloger, M.; Nichols, R.A.; Macas, J.; Novak, P.; Chase, M.W.; et al. Next generation sequencing reveals genome downsizing in allotetraploid Nicotiana tabacum, predominantly through the elimination of paternally derived repetitive DNAs. Mol. Biol. Evol. 2011, 28, 2843–2854. [Google Scholar] [CrossRef][Green Version]
  10. Renny-Byfield, S.; Kovařík, A.; Chester, M.; Nichols, R.A.; Macas, J.; Novák, P.; Leitch, A.R. Independent, rapid and targeted loss of highly repetitive DNA in natural and synthetic allopolyploids of Nicotiana tabacum. PLoS ONE 2012, 7, e36963. [Google Scholar] [CrossRef][Green Version]
  11. Dodsworth, S.; Jang, T.S.; Struebig, M.; Chase, M.W.; Weiss-Schneeweiss, H.; Leitch, A.R. Genome-wide repeat dynamics reflect phylogenetic distance in closely related allotetraploid Nicotiana (Solanaceae). Plant Syst. Evol. 2017, 303, 1013–1020. [Google Scholar] [CrossRef] [PubMed][Green Version]
  12. Clarkson, J.J.; Lim, K.Y.; Kovarik, A.; Chase, M.W.; Knapp, S.; Leitch, A.R. Long-term genome diploidization in allopolyploid Nicotiana section Repandae (Solanaceae). New Phytol. 2005, 168, 241–252. [Google Scholar] [CrossRef] [PubMed]
  13. Renny-Byfield, S.; Kovarik, A.; Kelly, L.J.; Macas, J.; Novak, P.; Chase, M.W.; Nichols, R.A.; Pancholi, M.R.; Grandbastien, M.-A.; Leitch, A.R. Diploidization and genome size change in allopolyploids is associated with differential dynamics of low- and high-copy sequences. Plant J. 2013, 74, 829–839. [Google Scholar] [CrossRef] [PubMed]
  14. Clarkson, J.J.; Knapp, S.; Garcia, V.F.; Olmstead, R.G.; Leitch, A.R.; Chase, M.W. Phylogenetic relationships in Nicotiana (Solanaceae) inferred from multiple plastid DNA regions. Mol. Phylogenet. Evol. 2004, 33, 75–90. [Google Scholar] [CrossRef] [PubMed]
  15. Clarkson, J.J.; Kelly, L.J.; Leitch, A.R.; Knapp, S.; Chase, M.W. Nuclear glutamine synthetase evolution in Nicotiana: Phylogenetics and the origins of allotetraploid and homoploid (diploid) hybrids. Mol. Phylogenet. Evol. 2010, 55, 99–112. [Google Scholar] [CrossRef]
  16. Kelly, L.J.; Leitch, A.R.; Clarkson, J.J.; Hunter, R.B.; Knapp, S.; Chase, M.W. Intragenic recombination events and evidence for hybrid speciation in Nicotiana (Solanaceae). Mol. Biol. Evol. 2010, 27, 781–799. [Google Scholar] [CrossRef][Green Version]
  17. Kelly, L.J.; Leitch, A.R.; Clarkson, J.J.; Knapp, S.; Chase, M.W. Reconstructing the complex evolutionary origin of wild allopolyploid tobaccos (Nicotiana section Suaveolentes). Evolution 2013, 67, 80–94. [Google Scholar] [CrossRef]
  18. Clarkson, J.J.; Dodsworth, S.; Chase, M.W. Time-calibrated phylogenetic trees establish a lag between polyploidisation and diversification in Nicotiana (Solanaceae). Plant Syst. Evol. 2017, 303, 1001–1012. [Google Scholar] [CrossRef]
  19. Knapp, S.; Chase, M.W.; Clarkson, J.J. Nomenclatural changes and a new sectional classification in Nicotiana (Solanaceae). Taxon 2004, 53, 73–82. [Google Scholar] [CrossRef]
  20. Schiavinato, M.; Marcet-houben, M.; Dohm, J.C.; Programme, G.; Barcelona, T. Parental origin of the allotetraploid tobacco Nicotiana benthamiana. Plant J. 2019. [Google Scholar] [CrossRef][Green Version]
  21. Dodsworth, S.; Kovarik, A.; Grandbastien, M.-A.; Leitch, I.J.; Leitch, A.R. Repetitive DNA dynamics and polyploidization in the genus Nicotiana (Solanaceae). In The Tobacco Genome; Ivanov, N.V., Ed.; Springer: Basel, Switzerland, 2020. [Google Scholar]
  22. Leitch, I.J.; Hanson, L.; Lim, K.Y.; Kovarik, A.; Chase, M.W.; Clarkson, J.J.; Leitch, A.R. The ups and downs of genome size evolution in polyploid species of Nicotiana (Solanaceae). Ann. Bot. 2008, 101, 805–814. [Google Scholar] [CrossRef] [PubMed][Green Version]
  23. Leitch, A.R.; Lim, K.Y.; Skalicka, K.; Kovarik, A. Nuclear cytoplasmic interaction hypothesis and the role of translocations in Nicotiana allopolyploids. In Radiation Risk Estimates in Normal and Emergency Situations; Cigma, A.A., Durante, M., Eds.; Springer: Basel, Switzerland, 2006; pp. 319–326. [Google Scholar]
  24. Sierro, N.; Battey, J.N.D.; Bovet, L.; Liedschulte, V.; Ouadi, S.; Thomas, J.; Broye, H.; Laparra, H.; Vuarnoz, A.; Lang, G.; et al. The impact of genome evolution on the allotetraploid Nicotiana rustica—An intriguing story of enhanced alkaloid production. BMC Genom. 2018, 19, 855. [Google Scholar] [CrossRef] [PubMed]
  25. Dodsworth, S.; Guignard, M.S.; Christenhusz, M.J.M.; Cowan, R.S.; Knapp, S.; Maurin, O.; Struebig, M.; Leitch, A.R.; Chase, M.W.; Forest, F. Potential of herbariomics for studying repetitive DNA in angiosperms. Front. Ecol. Evol. 2018, 6, 1–8. [Google Scholar] [CrossRef][Green Version]
  26. Novák, P.; Neumann, P.; Macas, J. Graph-based clustering and characterization of repetitive sequences in next-generation sequencing data. BMC Bioinform. 2010, 11, 378. [Google Scholar] [CrossRef][Green Version]
  27. Novák, P.; Neumann, P.; Pech, J.; Steinhaisl, J.; Macas, J. RepeatExplorer: A Galaxy-based web server for genome-wide characterization of eukaryotic repetitive elements from next-generation sequence reads. Bioinformatics 2013, 29, 792–793. [Google Scholar] [CrossRef][Green Version]
  28. Development Core Team. A Language and Environment for Statistical Computing; Found. Stat. Comput: Vienna, Austria, 2016; ISBN 3-900051-07-0. [Google Scholar]
  29. Soetaert, K. Plotting Multi-Dimensional Data; R package: Yerseke, The Netherlands, 2014. [Google Scholar]
  30. Fox, J.; Weisberg, S.; Adler, D.; Bates, D.M.; Baud-Bovy, G.; Ellison, S.; Firth, D.; Friendly, M.; Gorjanc, G.; Graves, S.; et al. An R Companion to Applied Regression, 2nd ed.; SAGE Publishing: Thousand Oaks, CA, USA, 2014. [Google Scholar]
  31. Lim, K.Y.; Matyasek, R.; Kovarik, A.; Fulnecek, J.; Leitch, A.R. Molecular cytogenetics and tandem repeat sequence evolution in the allopolyploid Nicotiana rustica compared with diploid progenitors N. paniculata and N. undulata. Cytogenet. Genome Res. 2005, 109, 298–309. [Google Scholar] [CrossRef]
  32. Matyasek, R.; Lim, K.Y.; Kovarik, A.; Leitch, A.R. Ribosomal DNA evolution and gene conversion in Nicotiana rustica. Heredity 2003, 91, 268–275. [Google Scholar] [CrossRef][Green Version]
  33. Chase, M.W.; Christenhusz, M.J.M.; Conran, J.G.; Dodsworth, S.; Medeiros de Assis, F.N.; Felix, L.P.; Fay, M.F. Unexpected diversity of Australian tobacco species (Nicotiana section Suaveolentes, Solanaceae). Curtis Bot. Mag. 2018, 35, 212–227. [Google Scholar] [CrossRef]
  34. Dodsworth, S. Genome Skimming for Phylogenomics. Ph.D. Thesis, Queen Mary University of London, London, UK, 2015. [Google Scholar]
  35. Mandáková, T.; Lysak, M.A. Post-polyploid diploidization and diversification through dysploid changes. Curr. Opin. Plant Biol. 2018, 42, 55–65. [Google Scholar] [CrossRef]

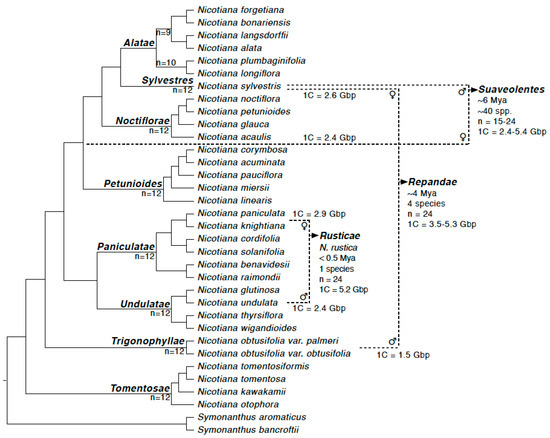

Figure 1. The evolutionary history of the three allotetraploid sections studied here (Rusticae, Repandae and Suaveolentes) including chromosome numbers, genome sizes and direction of hybridisation. Figure adapted from [19,21,22].
Figure 1. The evolutionary history of the three allotetraploid sections studied here (Rusticae, Repandae and Suaveolentes) including chromosome numbers, genome sizes and direction of hybridisation. Figure adapted from [19,21,22].
Genes 11 00216 g001

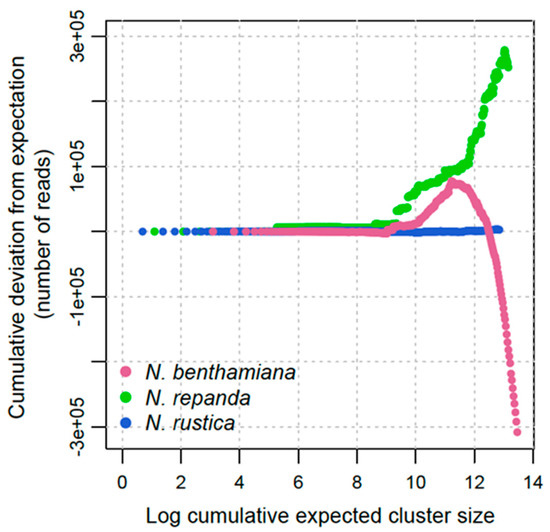

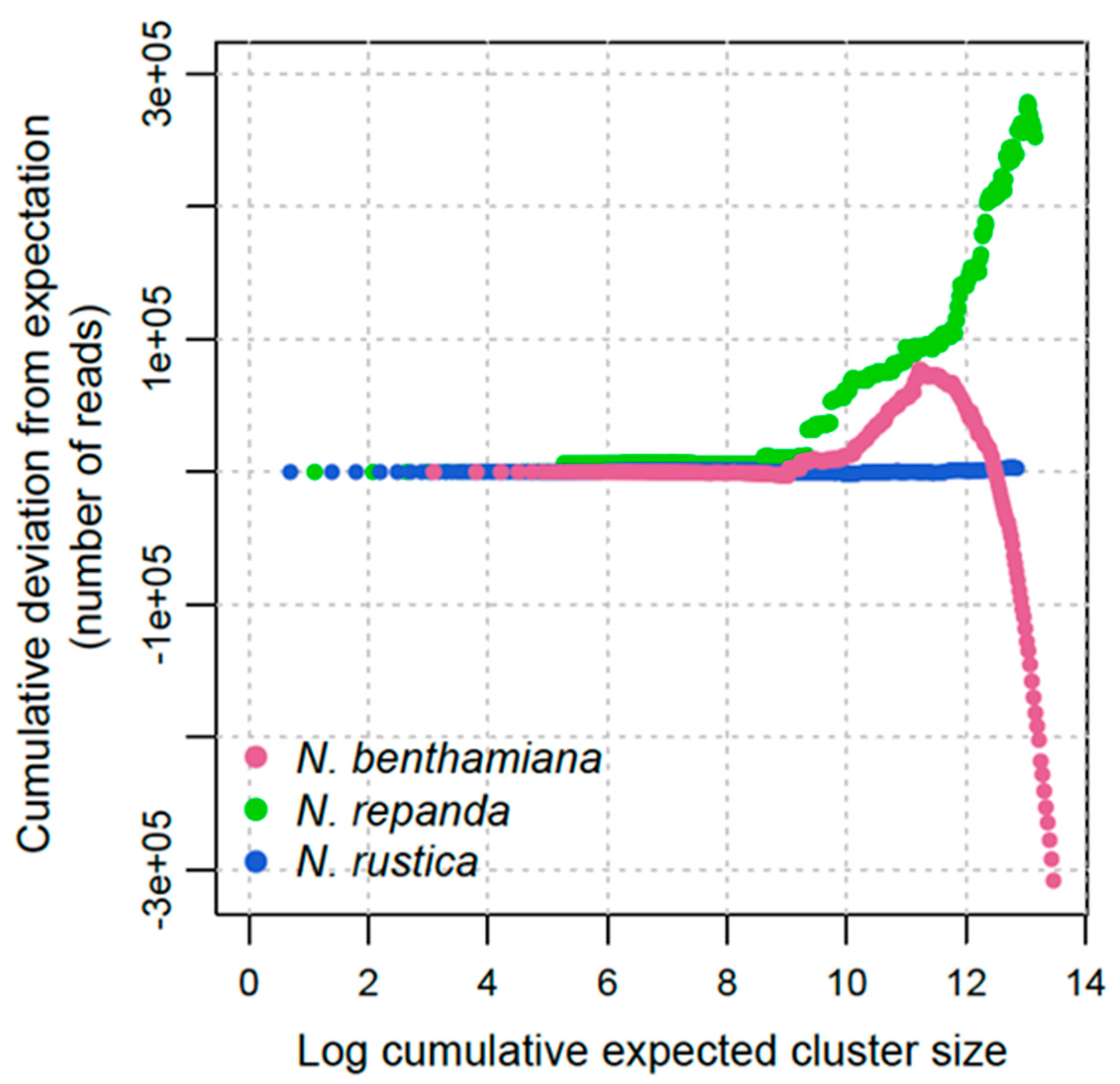

Figure 2. Repeat dynamics for N. rustica (section Rusticae), N. repanda (section Repandae) and N. benthamiana (section Suaveolentes). Curves for each accession represent the absolute cumulative deviation from expectation (sum of parental values). Clusters are ranked from smallest (left) to largest (right), plotted on a natural log scale.
Figure 2. Repeat dynamics for N. rustica (section Rusticae), N. repanda (section Repandae) and N. benthamiana (section Suaveolentes). Curves for each accession represent the absolute cumulative deviation from expectation (sum of parental values). Clusters are ranked from smallest (left) to largest (right), plotted on a natural log scale.
Genes 11 00216 g002

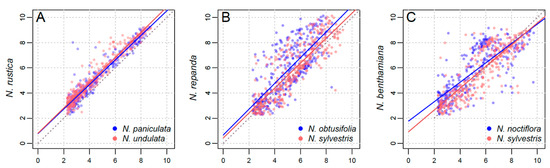

Figure 3. Regression analyses of cluster size (read number) in the parental subgenomes versus the tetraploid genome, natural log-transformed. (A) N. rustica against N. paniculata (maternal; blue) and N. undulata (paternal; red). (B) N. repanda against N. obtusifolia (paternal; blue) and N. sylvestris (maternal; red). (C) N. benthamiana against N. noctiflora (maternal; blue) and N. sylvestris (paternal; red).
Figure 3. Regression analyses of cluster size (read number) in the parental subgenomes versus the tetraploid genome, natural log-transformed. (A) N. rustica against N. paniculata (maternal; blue) and N. undulata (paternal; red). (B) N. repanda against N. obtusifolia (paternal; blue) and N. sylvestris (maternal; red). (C) N. benthamiana against N. noctiflora (maternal; blue) and N. sylvestris (paternal; red).
Genes 11 00216 g003

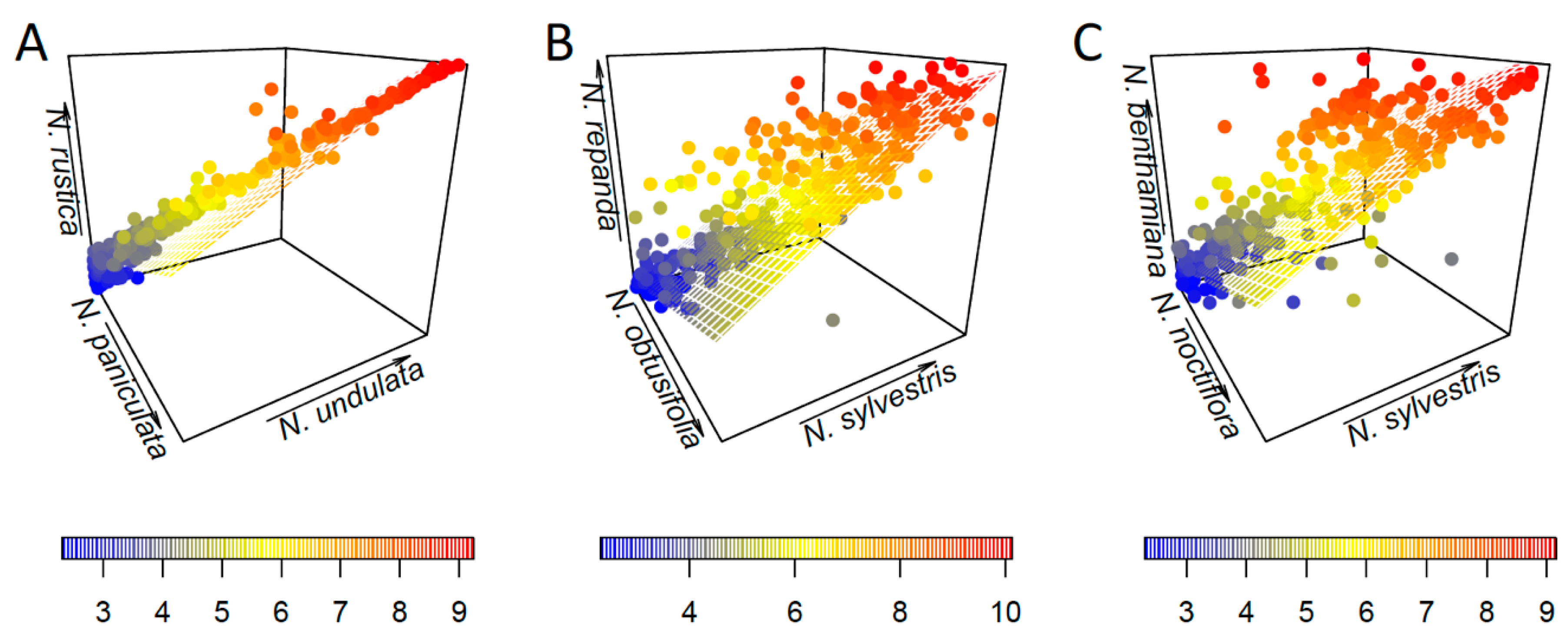

Figure 4. Results of 3D regression analyses. Cluster size is coloured from blue (low) to red (high). (A) N. rustica against N. paniculata (maternal) and N. undulata (paternal). (B) N. repanda against N. obtusifolia (paternal) and N. sylvestris (maternal). (C) N. benthamiana against N. noctiflora (maternal) and N. sylvestris (paternal).
Figure 4. Results of 3D regression analyses. Cluster size is coloured from blue (low) to red (high). (A) N. rustica against N. paniculata (maternal) and N. undulata (paternal). (B) N. repanda against N. obtusifolia (paternal) and N. sylvestris (maternal). (C) N. benthamiana against N. noctiflora (maternal) and N. sylvestris (paternal).
Genes 11 00216 g004
Table 1. Results of car package testing whether the parental slopes are equal for each polyploid taxon.
Table 1. Results of car package testing whether the parental slopes are equal for each polyploid taxon.
PolyploidParentsSum of Sq.F Statp-Value
N. benthamianaN. noctiflora, N. sylvestris8.6178.1380.0046
N. repandaN. obtusifolia, N. sylvestris14.29713.8400.0002
N. rusticaN. paniculata, N. undulata0.4915.4510.0201
