Exploring Molecular Signs of Sex in the Marine Diatom Skeletonema marinoi

Integrative Marine Ecology, Stazione Zoologica Anton Dohrn, Villa Comunale, 80121 Naples, Italy
Department of Marine Sciences, University of Gothenburg, Box 461, SE 405 30 Göteborg, Sweden
Clinical Genomics Göteborg, SciLifeLab, Medicinaregatan 1G, 413 90 Göteborg, Sweden
Gothenburg Global Biodiversity Centre, Box 461, SE 405 30 Göteborg, Sweden
Biological Oceanography, Leibniz Institute for Baltic Sea Research Warnemünde, Seestraße 15, 18119 Rostock, Germany
Author to whom correspondence should be addressed.
Genes 2019, 10(7), 494;
Received: 6 May 2019 / Revised: 14 June 2019 / Accepted: 24 June 2019 / Published: 28 June 2019
(This article belongs to the Special Issue Genetics and Genomics of Phytoplankton)


Sexual reproduction plays a fundamental role in diatom life cycles. It contributes to increasing genetic diversity through meiotic recombination and also represents the phase where large-sized cells are produced to counteract the cell size reduction process that characterizes these microalgae. With the aim to identify genes linked to the sexual phase of the centric planktonic diatom Skeletonema marinoi, we carried out an RNA-seq experiment comparing the expression level of transcripts in sexualized cells with that of large cells not competent for sex. A set of genes involved in meiosis were found upregulated. Despite the fact that flagellate gametes were observed in the sample, we did not detect the expression of genes involved in the synthesis of flagella that were upregulated during sexual reproduction in another centric diatom. A comparison with the set of genes changing during the first phases of sexual reproduction of the pennate diatom Pseudo-nitzschia multistriata revealed the existence of commonalities, including the strong upregulation of genes with an unknown function that we named Sex Induced Genes (SIG). Our results further broadened the panel of genes that can be used as a marker for sexual reproduction of diatoms, crucial for the interpretation of metatranscriptomic datasets.

1. Introduction

Sexual reproduction is a ubiquitous event in all eukaryotic lineages, although information on the molecular mechanisms at the base of this process are mostly derived from model organisms. Meiotic sex, with ploidy alternation, cell–cell recognition systems and fusion, originated in the ancestral eukaryotes, and it is widespread in unicellular organisms [1]. The increasing availability of sequenced genomes and the information on molecular mechanisms that regulate sexual reproduction in various organisms now allow for the reconstruction of the evolution of this fundamental process (e.g., References [2,3]). Sexual reproduction plays a fundamental role in diatom life cycles, unicellular microalgae that are important drivers of global biogeochemistry [4]. It is the phase in which genetic recombination occurs when haploid gametes are produced following meiosis, but it also represents the phase in which large-sized cells originate. A progressive cell size reduction during mitotic cell division is in fact a distinctive feature of diatom species [5]. This is due to the presence of a rigid siliceous cell wall (the frustule) made of two slightly unequal halves. Upon cell division, daughter cells always synthesize the inner half of the frustule, and this implies that the average cell size of the population progressively decreases. In many diatoms, large-sized cells are produced following sexual reproduction, in which the zygote (called “auxospore”), not surrounded by the rigid frustule, can expand and, within this stage, the large-sized initial cell is synthesized (Figure 1). Diatoms, which together with oomycetes and brown algae belong to the group of Stramenopiles, are broadly distinguished in two groups: the centrics, with radial symmetry, and the pennates, with bilateral symmetry [6]. A homothallic mating system (monoecious), in which morphologically and functionally different gametes are produced in a clonal culture, is reported for centric diatoms, while a heterothallic mating system (dioecious), in which sexual reproduction can only occur between cells of opposite mating type, is common in pennate diatoms [7]. In both centric and pennate diatoms, sex can be induced only when cells reach a species-specific size threshold (sexualisation size threshold (SST)), i.e., the cohorts of cells derived from large initial cells have to undergo a certain number of mitotic divisions to reduce their size before they become competent for sex (Figure 1).
The sexual phase in centric diatoms seems to be induced by external cues [5,7]. This is also the case for the centric planktonic diatom Skeletonema marinoi, where gametangia (cells that will produce gametes), motile gametes, and auxospores were obtained by transferring cultures to higher salinity conditions [8]. The pedigree fingerprinting of microsatellite markers showed that both inter- and intra-strain fertilization can occur in this species [8].
As far as our knowledge of the genetic control of the life cycle, studies available mostly focus on pennate diatoms. In the pennate benthic diatom Seminavis robusta, pheromones mediate the attraction between cells of opposite mating type [9] and determine the transition from mitosis to meiosis, triggering profound changes in gene expression [10]. Chemical cues also play a role in the marine pennate planktonic diatom Pseudo-nitzschia multistriata, where sex requires a threshold cell concentration [11] and where transcriptomic experiments provided evidence for a complex cross-talk in the early phases of interaction of the two mating types [12].
The exploration of five diatom genomes and one transcriptome led to the identification of 42 genes potentially involved in meiosis [13]. In this diatom “meiotic toolkit”, five genes are purely meiotic, i.e., they do not have known functions outside meiosis in eukaryotes, and an additional 37 genes are meiosis-related genes, i.e., may have functions in either meiosis or mitosis [13]. Expression data for these meiotic genes in a restricted number of conditions have been collected [13].
Compared to pennate diatoms, relatively little is known on the sexual processes and regulation in centric diatoms. The male gamete of centric diatoms is the only flagellate stage in diatoms life cycles. In the centric diatom Leptocylindrus danicus, 22 transcripts related to the synthesis of flagella were shown to be expressed during gametogenesis [14], representing a potential reference dataset to infer sexual events.
With the aim to identify genes linked to the sexual phase of S. marinoi, we compared the expression level of transcripts in cells below the SST, which underwent sexual reproduction when exposed to higher salinity [8], with those of large cells above the SST also exposed to higher salinity, which were not competent for sex. We searched for genes related to meiosis [13] and genes related to the formation of flagella [14,15]. We also tested for the presence of genes induced during sexual reproduction in the centric diatom Thalassiosira weissflogii [16] and genes putatively linked to the response to sexual cues secreted in the initial phase of sexual reproduction as identified in the pennate diatom P. multistriata [12]. We refined the information on the meiotic genes induced during sexual reproduction, and we highlighted unexpected differences in the set of flagellar genes required for the sperm flagella in S. marinoi compared to those expressed in the centric diatom L. danicus and identified novel sexually induced genes (SIG).

2. Materials and Methods

2.1. Experimental Setup

The S. marinoi strain C1417 was isolated from the germination of resting stages in surface sediments collected in the Gulf of Bothnia (Baltic Sea, 62°07′15″ N, 18°33′14″ E) in April 2011. The strain was deposited at the culture collection of the Finnish Marine Research Infrastructure (FINMARI) of the Finnish Environment Institute and Tvärminne Zoological Station.
For the reference transcriptome (see below), we included reads from S. marinoi strain ST54, which originates from a resting cell collected from top layer sediments in Kosterfjord, Sweden (58°51.0 N, 10°45.7 E), in May 2009.
Strain C1417 was grown in 50-mL tissue culture bottles containing 30 mL of f/2 + Si medium [17] prepared with filtered (GF/F) and autoclaved seawater adjusted to a salinity of 6. Standard culture conditions were irradiance of 50 µmol photons m−2s−1, a photocycle of 14L:10D h, and a temperature of 12 °C.
The sexual phase can be induced in Baltic strains of S. marinoi when they are below the SST (i.e., cell diameter ≤6 µm) and upon transfer from the low salinity maintenance condition (salinity 6) to a higher salinity (salinity 16) [8]. A few weeks before the transcriptome experiment, large (diameter >10 µm) and small (diameter ≤5 µm) cells of strain C1417 were isolated to obtain a set of subcultures with large cells (above the SST) and small cells (below the SST), respectively (scanning electron microscopy images in Figure 2A–C). A pilot test was carried out with small cultures of strain C1417 one week before the transcriptome experiment to confirm the timing for the recovery of sexual stages reported in Reference [8]. In this pilot test, observations were carried out after 20, 30, 40, and 62 h after the transfer to media of a higher salinity (Figure 2E). Controls were run with cells above the SST in normal conditions and cells below the SST exposed to higher salinity. The number of sexual stages was not quantified in this experiment, but based on other experiments run under the same conditions, the percentage of auxospores detected at day 3 is estimated to be around 5–9% [8].
The setup for RNA-seq included three experimental conditions: (a) large cells above the SST grown at standard salinity (control condition: no sex, no salinity stress, Figure 2A); (b) large cells above the SST transferred to higher salinity (treatment 1: no sex, salinity stress, Figure 2B); and (c) small cells below the SST transferred to higher salinity (treatment 2: sex, salinity stress, Figure 2C) (Figure S1). Replicate flasks (duplicates for control and treatment 1 and triplicates for treatment 2; see Figure 2A–C) were filled with 300 mL of f/2 medium prepared with oligotrophic seawater adjusted to the required salinity conditions with sterile double distilled water. Cells were dark synchronized for 36 h. The initial cell concentration was at 80,000 cells mL−1; bottles were incubated at the standard culture conditions. The sampling points for the RNA-seq experiment were set at 40 h (T1) and 52 h (T2) (Figure 2E).

2.2. RNA Extraction and RNA-Seq

Samples were collected onto 1.2-µm pore-size membrane filters (RAWP04700 Millipore), and RNA was extracted with Trizol™ (Invitrogen, Carlsbad, CA, United States) according to the manufacturer’s instructions. The gDNA contamination was removed by DNase I treatment (Qiagen, Hilden, Germany) followed by purification using RNeasy Plant Mini Kit (Qiagen, Hilden, Germany). Quantity of RNA was determined using a Qubit® 2.0 Fluorometer (Life Technologies, Carlsbad, CA, United States) and integrity using a Bioanalyzer (2100 Bioanalyzer Instruments, Agilent Technologies Santa Clara, CA, United States).
Single-end (SE) libraries were prepared using a Beckman Biomek FX and the Illumina® TruSeq® Stranded Total RNA Sample Preparation kit with poly-A selection and starting with 500 ng total RNA. Samples were sequenced on Illumina HiSeq2000 producing SE 50 bp reads. Library preparation and sequencing were done at the Genecore Facility of the European Molecular Biology Laboratory (EMBL), Germany.
In addition to this, in order to facilitate the de novo transcriptome assembly, we also sequenced a strand specific Paired-end (PE) TruSeq® library (2 × 150 bp) on two lanes of an Illumina HiSeq2500 at SciLifeLab Stockholm, Sweden, from a culture of S. marinoi ST54.

2.3. Transcriptome Assembly and Annotation

Quality control of raw reads was done with the program FastQC (v0.10.1) [18]. Raw SE and PE reads were preprocessed with Cutadapt v1.5 [19] to remove adaptor sequences, as well as any bases with a Phred score below 15. The program fastq_quality_filter v0.0.13 ( was then used to remove sequences with a Phred score below 20 in more than 5% of the bases. A new FastQC run was performed on the filtered data to ensure the validity of preprocessing steps.
The SE reads from the 14 samples, as well as the PE data, were assembled using Trinity v2.1.1 [20] in three different ways: (1) using paired and unpaired reads combined and normalized to a maximum read coverage of 40X, (2) using all available read pairs from the PE dataset, and (3) using only the SE reads normalized to a maximum read coverage of 40X, which resulted in 55,670, 72,727, and 33,004 transcripts, respectively. These 161,401 transcripts where then clustered with a sequence identity threshold of 94% and a word length of 10 bases using cd-hit v4.6 [21], resulting in 48,799 clusters from which one representative sequence was selected. A quality score for each transcript was then calculated using Transrate v1.0.3 [22], which resulted in 26,300 contigs scoring above the optimal assembly score. This analysis was supported by the Thalassiosira pseudonana proteome reference v3 ([23]; and the PE reads used for the assembly. An additional 13,360 contigs below this threshold had a positive contig impact score (reported by Transrate) and were also selected for further analysis. The resulting 39,660 transcripts (Table S1) were annotated using Annocript v.1.1.3 ( and the UniRef90 database (accessed in May 2019) (Supplementary file S1).

2.4. Differential Expression Analysis

Through the Trinity wrappers and [24], SE reads from each biological replicate were individually mapped to the assembled contigs using Bowtie2 v.2.2.7 [25] and the expression of each transcript was quantified using the Expectation–Maximization method (RSEM) [26]. Following the selection of transcripts that had at least one count per million (CPM) in at least 2 samples, the package edgeR 3.12. [27] was used to identify differentially expressed genes (DEGs) for each of the pairwise comparisons at T1 and T2: large cells (>SST) grown in standard condition versus large cells grown at higher salinity (= Salt Stress, SALT) and large cells (>SST) grown at higher salinity versus small cells (<SST) grown at higher salinity (= Salinity shift induced sexual reproduction, SEX) (Figure 2D, Figure S1). Contigs with an FDR < 0.05 and log2 fold-change above 0.7 or below −0.7 were considered differentially expressed.

2.5. GO Enrichment Analysis

The Gene Ontology (GO) term enrichment analysis was performed on SEX and SALT DEGs (in this case, with −1 > logFC > 1; FDR < 0.05) at T1 and T2. GO term enrichment analysis has been performed using a R plugin of the Annocript software (, with an adjusted p-value cutoff of 0.05 and applying the prop.test function.

2.6. Searching for Sex-Related Genes in S. marinoi

To identify putative meiosis, flagella, and sex-induced genes of S. marinoi, a multistep procedure of sequence homology analysis was performed. The list of meiotic-related genes was taken from Arabidopsis thaliana or Saccharomyces cerevisiae [13], the ones for flagella were taken from Emiliania huxleyi [15] and L. danicus [14], and that for the T. weissflogii SIG genes was from Reference [16]. The protein sequences were downloaded from the National Center for Biotechnology Information (NCBI) or retrieved from the Marine Microbial Eukaryote Transcriptome Sequencing Project (MMETSP) datasets ( These proteins were used as query sequences in a BLAST (Basic Local Alignment Search Tool) search, specifically a tBLASTn v2.3.0+ search against the S. marinoi transcriptome, where the top five hits with a cutoff E-value of 1E-02 were saved for each gene of interest. The identified transcripts were then compared to the Uniprot–Swissprot database using BLASTx v2.3.0+ [28] to confirm their functional annotation. For the L. danicus proteins [14], identity was confirmed with a reciprocal BLAST of the S. marinoi top hit against the L. danicus transcriptome (MMETSP0321). For the T. weissflogii SIG proteins, identity was confirmed with a reciprocal BLAST of the S. marinoi hit against the NCBI nonredundant (NR) database.
The 1122 sex-related proteins of P. multistriata [12] were used as queries to identify the S. marinoi homologs through a tBLASTn search in the whole S. marinoi transcriptome (Figure S2). To confirm homology and identity, the best S. marinoi hits were used as query in a BLASTx search against the P. multistriata gene models and against the NCBI NR database (downloaded in May 2019). For each result, the first top hit with a cutoff E-value of 1E-02 was saved. Finally, common genes between this sex-related homolog dataset and the DEGs dataset were identified (Figure S2).
The Hap2 and Gex1 genes, coding for proteins involved in cellular and nuclear fusion, respectively, were suggested as markers for sex in eukaryotes [1]. These genes were searched in the S. marinoi reference genome using the Hidden Marcov Model (HMM) approach implemented in HMMER v3.2.1 [29]. Sequences from two Stramenopiles species, Ectocarpus siliculosus (CBN75731.1) and Bicosoecid sp., Strain ms1 (CAMPEP_0203808578, CAMPEP_0203813596), were first used as query sequences in a tBLASTn search of the NCBI NR database. The top 15 (HAP2) and 21 (GEX1) BLAST matches were downloaded and aligned together with their respective query sequences using mafft-linsi v7.29b [30]. The alignment result was then examined using the alignment editor SeaView [31], after which sequences deemed to be nonhomologous were manually removed. The final alignments were then used for building an HMM for the respective gene families and subsequently used to search the S. marinoi reference genome (, Töpel et al. in prep.).

2.7. Data Deposition

Raw sequence reads were deposited in ArrayExpress (E-MTAB-8091).

3. Results

3.1. Sexual Reproduction Induced by a Change in Salinity

In cultures of S. marinoi above the SST transferred to a higher salinity culture medium (Figure 2C), gametangia, i.e., elongated cells with a bent shape which will produce gametes, were observed at 30, 40, and 62 h and swimming gametes were observed after 62 h (Figure 2E). At the latter observation point, auxospores, i.e., round structures which result from gametes fusion, still attached to the “female” gametangial cells, were also detected. In parallel, we grew large cells above the SST of the same strain. The same salinity treatment applied to these cells (Figure 2B) did not lead to the appearance of any sexual stage since diatom cells below the SST are incapable of performing sexual reproduction. A control culture of large cells not experiencing any change in salinity was also grown (Figure 2A).

3.2. De Novo Assembly, Differential Gene Expression Analysis, and GO Enrichment Analysis

To follow gene expression changes linked to the formation of sexual stages, we sampled on day 2 (40 h, T1), when we could clearly detect the presence of gametangia, and on day 3 (52 h, T2). This latter time point was chosen to capture the changes leading to the formation of all the different types of sexual stages (Figure 2E). We expected to observe the induction of genes related to meiosis at both time points, of flagellar genes mostly at T2, and possibly also of genes related to cell–cell signaling linked to the sexual phase that were detected in the pennate diatom P. multistriata (likely more pronounced at T1 but maintained at T2 as well) [12].
We sequenced 14 samples, which yielded 169 million SE reads, and an additional 143 million PE reads obtained from an independent single strain were used for the assembly. The de novo transcriptome assembly resulted in 39,660 transcripts that were included in the differential expression analysis. The transcriptome features are reported in Table S1. Two comparisons were made (Figure 2, Figure S1); the number of DEGs are reported in Figure 3A, and the number of unique and shared DEGs are shown in the Venn diagram in Figure 3B.
Although more genes were globally changing in the comparison between sexualized and non-sexualized cultures (SEX), in the GO term enrichment analysis, few functions were associated to this comparison while the highest number of significantly enriched GO terms was found for the salinity stress alone (SALT) (Table S2, Figure S3). Specifically, SALT genes displayed more than 4 and 3 times the number of enriched GO terms than SEX genes at T1 and T2, respectively. The enriched functions of the DEGs were higher at T2 in both sets of genes. For the SEX condition, microtubule-related terms were present in all three GO categories (Biological Process, BP; Molecular Function, MF; and Cellular Component, CC) at T1, while terms related to nucleic acid processing and binding (BP and MF) and nucleus (CC) were featured among the enriched GO terms at T2 (Table S2, Figure S3A). For the SALT condition, enrichments in terms linked to metabolic processes (BP and MF) and to organelles such as vacuole and lisosome (CC) were mostly found (Table S2, Figure S3B). A detailed analysis of the genes induced or repressed by the salinity stress alone will be performed in future studies.

3.3. Meiosis and Flagellar Genes in the Sexualized Cultures

The putative meiotic proteins listed in Reference [13] were searched in the S. marinoi transcriptome, and all the 42 genes of the diatom meiotic toolkit were detected. We could also detect the presence of Brca1 (breast cancer type 1 susceptibility protein), a gene required for DNA repair in mitosis and meiosis, not reported previously [13]. A total of 13 and 30 meiotic-related genes were found upregulated in sexualized cultures at T1 and T2, respectively, with only two genes, Smc2 and Smc4 (structural maintenance of chromosomes protein 2 and 4, two proteins forming a heterodimer required for chromosome condensation) being upregulated at T1 but not at T2 (Table 1).
Among the DEGs at both time points were Spo11-2, Msh4, and Msh5, known to be expressed exclusively during meiosis (Table 1). Interestingly, the meiosis-related genes Mnd1, Mer3, Mcm3, Mcm7, Mcm9, Smc6, Rad21, Rad52, Rad1, Msh2, Fancm, and Fen1, which are part of the group of genes upregulated during sexual reproduction in the pennate diatom S. robusta [13], were not differentially expressed in our transcriptomic dataset.
A search was made also for HAP2 (GCS1) and GEX1 (KAR5), two proteins known to be almost ubiquitously required in gamete fusion and karyogamy, respectively [1]. No homology was found for HAP2 in the S. marinoi genome while for GEX1 the search retrieved one region, corresponding to the gene Sm_00029435-RA, with a low similarity to the query sequence. However, a reciprocal BLAST of the S. marinoi sequence in the NCBI NR database retrieved a different best hit, not confirming Sm_00029435-RA as a GEX1 homolog.
Flagellate gametes had been seen in the sexually reproducing culture, and we thus searched for genes known to be required for flagellar assembly and intraflagellar transport (IFT). A set of genes expressed in the flagellate haploid stage of the prymnesiophycean E. huxleyi is available [15,32], and IFT genes have been recently reported also for the centric diatom L. danicus [14]. A total of 19 flagellar genes expressed in E. huxleyi appeared to be differentially regulated in S. marinoi, with the majority of changes recorded at T2 (18 DE genes versus 6 DE genes in T1), consistent with the appearance of flagellate gametes after 40 h (Figure 1, Table 2).
Of the differentially expressed flagellar genes, many were related to dyneins, specific to flagella, while others are known to have other functions in the cytoplasm. Surprisingly, none of the 22 L. danicus flagellar genes was found to be differentially expressed in S. marinoi. In fact, only eight out of the 22 L. danicus flagellar genes found homologues in the transcriptome; the remaining 14 genes did not find any homology (Table S3). To verify if the lack of flagellar gene expression could be due to a weak signal, i.e., the limited number of male gametes produced, we tested how many of the missing L. danicus flagellar genes were present in the S. marinoi draft genome sequence. We could confirm the presence of the eight genes found in the transcriptome and could retrieve two more genes of the 14 missing (Table S3), bringing the total number of homologues present in S. marinoi to 10.

3.4. Homologies with Sex-Related Genes of the Pennate Diatom Pseudo-nitzschia multistriata and of the Centric Diatom Thalassiosira weissflogii

We tested the presence in the S. marinoi transcriptome of homologues of the 1122 genes that have been found to be regulated during the early stages phases of sexual reproduction in the pennate diatom P. multistriata [12]. A total of 592 homologous transcripts were identified; 179 of them were DEGs in S. marinoi, of which 24 were also responding to the salinity shift (Table S4). Of the 155 regulated only in the SEX condition, 17 transcripts were upregulated and 9 were downregulated at both time points in S. marinoi and, with the exception of three transcripts (P. multistriata logFC marked with “a” in Table 3), they all changed in the same direction as the P. multistriata regulated genes (Table 3).
Three sex induced genes (Sig1, Sig2, and Sig3) reported for the centric diatom T. weissflogii [16] were searched in the transcriptome. One hit was found for Sig1, and two hits were found for Sig2 and Sig3 (Table S5). All transcripts were upregulated at T2; Sig1, one of the Sig2 homologous transcripts and one of the Sig3 homologous transcripts were also upregulated at T1.

3.5. Other Major Transcriptomic Changes

Most of the top upregulated transcripts were represented by proteins that had not yet received any annotation. Among the few that could be annotated and were present at both time points in the SEX but not in the SALT condition, we found a putative phosphatidylinositol phosphate kinase (STRINITY_DN15608_c0_g1_i1) with a LogFC of ~11 at both time points and a MAP kinase (Pc16572_g1_i4) with 6.7 and 9.8 logFC at T1 and T2 respectively. A Leucine-rich repeats (LRR) domain containing protein (STRINITY_DN12542_c0_g2_i2) with a logFC of 10.5 at T1 and 7.5 at T2 is interestingly homologous to numerous proteins in the centric diatom Thalassiosira oceanica but does not find similarities in any other diatom. Other strongly upregulated genes were an HMG (high mobility group) box domain containing protein (Pc29422_g1_i2), known to be important for chromatin structure and dynamics, with 9.7 and 6.2 logFC at T1 and T2, respectively, and a Predicted ATPase, AAA+ superfamily domain containing protein (STRINITY_DN21065_c0_g1_i1) with 7.8 and 10 logFC at T1 and T2, respectively. More transcripts with functions related to signal transduction and DNA dynamics could be found strongly upregulated (Table S6). As far as functions that appeared to be downregulated, we noted that the majority of the transcripts that had logFC < −3 at T2 (151 genes) were putatively localized in the chloroplast (Table S6), while this was not observed at T1, where only 12 genes had logFC < −3 and none was chloroplastic.

4. Discussion

Centric diatoms dominate planktonic communities in many regions of the world oceans [33]. The importance of their life cycles, which impact population dynamics, motivates the need to gain a better understanding of the triggers of life cycle transitions and of the genetic programmes involved in their control. For S. marinoi, a change in salinity is a reliable cue triggering sexual reproduction [8]. A transcriptomic approach was used to identify the major pathways associated with the switch from the vegetative lifestyle to sexual reproduction, with the aim to highlight similarities and differences with other known systems.
As expected, one of the strongest signals detected in the transcriptome of the sexualized diatom S. marinoi was the upregulation of genes involved in meiosis. Surprisingly, despite the fact that flagellate gametes were observed in the sample, we did not observe changes in any of the genes involved in the synthesis of the flagella that were upregulated during sexual reproduction in another centric diatom, L. danicus [14]. Actually, many of these genes were not found in the S. marinoi genome at all. Moreover, a comparison with the set of genes changing during the first phases of sexual reproduction of the pennate diatom P. multistriata revealed the existence of commonalities, including the strong upregulation of genes with an unknown function that we suggest to name Sex Induced Genes (SIG), in analogy to what has been proposed for the centric diatom T. weissflogii [16].

4.1. Meiosis-Related Genes

We selected two different time points during the process of sexual reproduction. More meiotic genes were differentially expressed at the second time point as compared to the first one. This can be explained by the fact that T2 was a more advanced phase of sexualization of S. marinoi where more types of sexual stages were present as compared to T1 where only female gametangia were clearly visible. Among the genes that are exclusively required for meiosis, Spo11-2 was recorded at both T1 and T2 with extremely high fold changes (11.9 and 8.4 logFC, respectively). This protein catalyzes meiotic DNA double strand breaks (DSB) in homologous chromosomes during meiotic recombination. In the diatom genomes examined by Reference [13], four additional meiotic-specific genes were reported, Msh4, Msh5, Mer3, and Mnd1, which were present also in the genome of S. marinoi, although only the first two genes were differentially expressed in the sexualized samples. All five meiosis-specific genes were upregulated in the transcriptome from cocultures of the pennate diatom S. robusta undergoing meiosis [13]. Msh4 and Msh5 are involved in the formation of chiasma [34], and Mer3 is reported to promote DNA recombination together with Msh4 and Msh5 [35]. Mnd1 mediates homologous DNA pairing during meiosis together with Hop2 [36], a gene which is absent in diatoms ([13] and this study). Hop2 and Mnd1 have been identified in yeast as factors supporting homologous chromosome pairing and meiotic DSB repair [37]. However, in some model organisms such as the nematode Caenorhabditis elegans and the fruit fly Drosophila melanogaster, meiosis can proceed via a recombination-independent matching and locking of homologous chromosomes in the absence of Hop2, Mnd1, and Dmc1 [38]. The same mechanism might apply to S. marinoi, in which Hop2 and Dmc1 are missing, while Mnd1, although present, is not induced during sexual reproduction.
Besides the genes exclusively linked to meiosis, an increased fold change was detected in sexualized S. marinoi also for 25 genes that, in diatoms, are linked to meiosis but have other roles also in mitosis. These genes have been shown to be all differentially expressed during the sexual phase of S. robusta [13], thus supporting the hypothesis that they are involved in meiotic events in both centric and pennate diatoms.
Together with Spo11-2, Rad51-A represents one of the earliest and strongest signals detected, confirming data in P. multistriata and S. robusta [13]. Both genes, therefore, represent good markers for meiosis detection, although their being part of multigene families [13] requires gene phylogeny analyses to support proper identification.
As far as the other genes expected to be induced, based on the S. robusta data [10,13] but not regulated in the dataset of S. marinoi, one explanation could be that their expression levels were already sufficient to allow for the meiotic machinery to function during the progression of sexual reproduction.

4.2. Flagellar Genes

The eukaryotic flagellum is an ancient structure, common in protists and in many multicellular organisms, and it is believed that its absence in some groups is due to a secondary loss [39]. While pennate diatoms have completely lost flagella, centric diatoms retain it as a transient structure in their male sperms [6].
We do not have a complete knowledge of the ultrastructure and composition of diatom flagella. The typical 9 + 2 flagellar axoneme is present in Bolidomonas, an ancestor of the diatom lineage [40]. No information on the ultrastructure of the male gamete flagella of S. marinoi or L. danicus is available, while there are four studies reporting data for Lithodesmium undulatum [41], Pleurosira laevis (as “Biddulphia levis” in Reference [42]), Coscinodiscus wailesii and Chaetoceros laciniosus [43], and Thalassiosira lacustris and Melosira moniliformis var. octogona [44]. In the studied species, the main differences from the typical flagellum in heterokonts are the presence of axonemes with a 9 + 0 configuration, lacking the central pair of microtubules and the radial spoke; the lack of microtubular roots and rhizoplast; and the presence of basal bodies constituted by nine microtubule doublets rather than nine triplets in species from the genera Melosira, Thalassiosira, Pleurosira, and Coscinodiscus [44].
As far as genes required for flagella assembly, in the genome of the centric diatom T. pseudonana, genes encoding IFT proteins (used for translocation of large protein complexes along microtubules [45]) were found for the complex B subunits, along with genes for the kinesin II motor that transports proteins to the ciliary tip [46]. However, no components of heavy and light-intermediate chains of cytoplasmic dynein 2⁄1b or IFT complex A subunits were recorded. The IFTA gene Ift140 was, however, found in the transcriptomes of five centric diatoms, T. weissflogii, L. danicus, Leptocylindrus hargravesii, Rhizosolenia setigera, and Proboscia alata [14], while another IFTA gene, Ift122, was found in the same species as well as in the transcriptomes of Stephanopyxis turris, Aulacoseira subarctica, Ditylum brightwellii, and Odontella aurita. Various IFTB genes were found in many radial and multipolar centric diatoms [14].
When looking for genes related to the formation and maintenance of flagella in S. marinoi, we found genes encoding dyneins and other cytoskeleton proteins that are part of flagella, which are expressed in the flagellate haploid life cycle stage of E. huxleyi [15]. We did not, however, find any overlap with the set of flagellar genes expressed in L. danicus sexually reproducing cultures [14]. Missing genes include key flagellar genes such as Ift122 and Ift140 (IFTA) or Ift172 and Ift80 (IFTB).
One hypothesis is that a broader set of flagellar genes is present in L. danicus and L. hargravesii, which belong to an evolutionary ancient genus at the base of diatom phylogeny, and that the number of flagellar genes gradually reduces in more recent centric diatoms such as S. marinoi. It has to be considered that flagella are present only in a very limited time interval of the life cycle of centric diatoms and that it is, thus, possible that the number of genes has been reduced over the evolutionary history, along with the presence of a simplified ultrastructure of the flagellum (see above). Functional and structural modularity within the IFT complex has been reported, and the gain and loss of IFT components in different groups have been proposed to occur in distinct modular steps [45], in line with our observations in diatoms.
It is also interesting to note that the transcriptome data of L. danicus were obtained from a culture in exponential growth phase, grown in a full-strength culture medium and not in a nitrogen depleted medium known to elicit the sexual phase [14,47]. The complete set of flagellar genes reported as upregulated in the transcriptome of L. danicus can be taken as proof that sexual reproduction must have occurred when the culture was grown in standard conditions. Similarly, the finding of flagellar genes in the MMETSP transcriptomes of several centric diatoms [14] suggests that sex may occur more frequently than expected and that these species do not require specific environmental cues to undergo the sexual phase.

4.3. Other Sex Related Genes

Some of the most induced genes were not annotated, and we propose to name those that have a logFC ≥ 3 in one of the two time points and are induced in P. multistriata as well as SIG (Sex Induced Gene) (Table 3) in analogy to what has been done for three genes found upregulated in the diatom T. weissflogii during sexual reproduction [16]. The three SIG proteins in T. weissflogii share conserved domains, which are probably involved in cell–cell interactions, and were hypothesized to be required for egg–sperm interactions [16]. Moreover, homologues of the Sig1 gene identified by Reference [16] were shown to code for proteins of the mastigonemes, the tripartite tubular hairs found on the stramenopile flagellum [48]. It has to be noted that the designation we propose for S. marinoi genes is not related to a structural homology between the genes but is based exclusively on their expression profile. The addition of novel datasets from other diatom species undergoing sexual reproduction will reveal the extent of conservation of these genes and the specificity for the process under investigation. It is possible that some of these genes in S. marinoi are required for pheromone production or sensing. Pheromones must be species-specific to avoid breeding between cells of different species; however, processes downstream of the response to the very first signals might be conserved across species.
Other genes worthy of investigation are the ones highly induced and annotated as signal transduction proteins. One of the responses to sexual cues reported for pennate diatoms is a general arrest of cell growth [10,11]. S. marinoi cells, however, do not seem to experience a marked growth arrest, and coherently, we did not find major signals related to the cell cycle control. It is interesting to note a general downregulation of genes related to the chloroplast function. A similar observation (downregulation of genes linked to photosynthesis) was made for cells collected during the late phase of sexual reproduction in P. multistriata (MI Ferrante, Personal communication). The significance of these observations remains to be explored with dedicated experiments.
We believe that a great part of the changes in our SEX comparison is due to the major change occurring in the cell population (the switch from mitosis to meiosis), as confirmed by the fact that the number of DEGs increases at the second time point when more sexual stages have been produced with respect to the first time point. It is important to mention, however, that with our experimental setup, where we compared large cells with the salinity shock with small cells with the salinity shock, we cannot exclude that some of the general changes observed (such as those described in Section 3.5) could be due to the different gene expression profiles of large versus small cells, independently of sexual reproduction. A dedicated experiment to compare the gene expression changes linked to variation in the cell size (cells above the SST versus cells below the SST) in standard growing conditions will be needed to refine our knowledge of the process.
The availability of genomic and transcriptomic resources has allowed comparative studies amongst different species with indications of a set of genes related to key phases in the life cycle of unicellular organisms. This is the case of the “meiosis” toolkit [13,49] discussed above and other potential markers of sexual reproduction in eukaryotes, such as the HAP2 and GEX1 proteins involved in cell and nuclear fusion [1]. Homologues of these proteins were not found in the transcriptome and the genome of S. marinoi and in the genome of the pennate diatom P. multistriata (MI Ferrante personal communication). Among Stramenopiles, both transcripts were reported only for an unidentified Bicosoecid (Bicosoecid sp. Strain ms1), while only Gex1 was reported in the brown macroalga E. siliculosus and in other not specified taxa [1]. A broader sampling of the stramenopile lineage is thus required to depict the evolutionary history of HAP2 and GEX1 proteins and, more in general, the evolution of sexual recognition systems that allow the haploid gamete to recognize the complementary haploid cell within the same species and then to fuse with it [2].

5. Conclusions

The growing interest in the functioning of ocean ecosystems, the awareness of the role of unicellular organisms at the base of marine food webs, and the increasing availability of genomic and transcriptomic tools is opening a new era in our understanding of the biology and ecology of these organisms. Our results contribute to the identification of a “sex toolkit”, including Spo11-2, Rad51-A, and possibly SIG genes, that will be useful to spot sexual reproduction events of diatoms in the natural environment through the interpretation of metagenomics and metatranscriptomics data. Many of the genes that turned out to be upregulated during sexual reproduction are not annotated, but it is through the comparison of datasets obtained for different species that we will be able to identify the genes involved in distinct phases of the diatom life cycle, the genomic networks in which they are involved, and their modifications during the diatom evolutionary history.

Supplementary Materials

The following are available online at Figure S1: Schematic representation of the comparisons between samples in the differential expression analysis. Figure S2: Scheme of the workflow for the identification of S. marinoi transcripts homologous to P. multistriata sex-related genes (Basu et al., 2017) which are differentially expressed in the SEX condition. Figure S3: Enriched GO terms for S. marinoi SEX (A) and SALT (B) differentially expressed genes. The pink shade highlights the Biological Process, the blue shade the Molecular Function and the yellow shade the Cellular Component categories. Table S1: Summary of the transcriptome assembly characteristics. Table S2: Enriched GO terms of differentially expressed genes (−1> logFC >1, Padj < 0.05). Table S2a: SEX genes at sampling point T1, Table S2b: SEX genes at sampling point T2, Table S2c: SALT genes at sampling point T1, Table S2d: SALT genes at sampling point T2. Table S3: Skeletonema marinoi tBLASTn hits using Leptocylindrus danicus flagellar proteins as queries. Table S4: ‘Differentially expressed contigs of S. marinoi (−1>logFC>1) with significant BLAST hits to genes linked to the initial phase of sexual reproduction in P. multistriata (E-value < 1E-5). Table S5: Thalassiosira weissflogii (Tw) Sex Induced Genes (SIG) homologs in S. marinoi (Sm). Table S6: Differentially expressed genes at T1 and T2 in S. marinoi. Supplementary file S1: Transcriptome annotation with contigs sequences.

Author Contributions

Conceptualization, M.I.F., A.K., M.M., and A.G.; data curation, M.J. and M.T.; formal analysis, M.I.F., L.E., M.J., and M.T.; investigation, A.K., M.M., and A.G.; resources, M.M. and A.G.; writing—original draft, M.I.F., M.T., and M.M.; writing—review and editing, M.I.F., M.T., A.K., M.M., and A.G.


This research was partly funded by the Stazione Zoologica Anton Dohrn and by the Flagship Project RITMARE (The Italian Research for the Sea). Funding was provided to Anke Kremp and Anna Godhe through the Assemble Transnational Access project 1530-12.


Anna Godhe prematurely passed away on 4 April 2019. She was a great and enthusiastic scientist with a true passion for understanding the biology of unicellular organisms. The authors thank Laura Vitale for the help in extracting RNA and Matthew Pinder for help with the revised version. They also thank the Linnéus Center for Marine Evolutionary Biology (CeMEB, for support.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Speijer, D.; Lukeš, J.; Eliáš, M. Sex is a ubiquitous, ancient, and inherent attribute of eukaryotic life. Proc. Natl. Acad. Sci. USA 2015, 112, 8827–8834. [Google Scholar] [CrossRef] [PubMed][Green Version]
  2. Goodenough, U.; Heitman, J. Origins of eukaryotic sexual reproduction. Cold Spring Harbor Perspect. Biol. 2014, 6, a016154. [Google Scholar] [CrossRef] [PubMed]
  3. Speijer, D. What can we infer about the origin of sex in early eukaryotes? Philos. Trans. R. Soc. B Biol. Sci. 2016, 371, 20150530. [Google Scholar] [CrossRef] [PubMed][Green Version]
  4. Treguer, P.; Bowler, C.; Moriceau, B.; Dutkiewicz, S.; Gehlen, M.; Aumont, O.; Bittner, L.; Dugdale, R.; Finkel, Z.; Iudicone, D.; et al. Influence of diatom diversity on the ocean biological carbon pump. Nat. Geosci. 2018, 11, 27–37. [Google Scholar] [CrossRef]
  5. Montresor, M.; Vitale, L.; D‘Alelio, D.; Ferrante, M.I. Sex in marine planktonic diatoms: Insights and challenges. Perspect. Phycol. 2016, 3, 61–75. [Google Scholar] [CrossRef]
  6. Kooistra, W.H.C.F.; Gersonde, R.; Medlin, L.K.; Mann, D.G. The origin and evolution of the diatoms: Their adaptation to a planktonic existence. In Evolution of Primary Producers in the Sea; Falkowski, P.G., Knoll, A.H., Eds.; Elsevier Academic Press: Burlington, VT, USA, 2007; pp. 207–250. [Google Scholar]
  7. Chepurnov, V.A.; Mann, D.G.; Sabbe, K.; Vyverman, W. Experimental studies on sexual reproduction in diatoms. Int. Rev. Cytol. 2004, 237, 91–154. [Google Scholar]
  8. Godhe, A.; Kremp, A.; Montresor, M. Genetic and microscopic evidence for sexual reproduction in the centric diatom Skeletonema marinoi. Protist 2014, 165, 401–416. [Google Scholar] [CrossRef]
  9. Gillard, J.; Frenkel, J.; Devos, V.; Sabbe, K.; Paul, C.; Rempt, M.; Inze, D.; Pohnert, G.; Vuylsteke, M.; Vyverman, W. Metabolomics enables the structure elucidation of a diatom sex pheromone. Angew. Chem. 2013, 52, 854–857. [Google Scholar] [CrossRef]
  10. Moeys, S.; Frenkel, J.; Lembke, C.; Gillard, J.T.F.; Devos, V.; Van den Berge, K.; Bouillon, B.; Huysman, M.J.J.; De Decker, S.; Scharf, J.; et al. A sex-inducing pheromone triggers cell cycle arrest and mate attraction in the diatom Seminavis robusta. Sci. Rep. 2016, 6, 19252. [Google Scholar] [CrossRef]
  11. Scalco, E.; Stec, K.; Iudicone, D.; Ferrante, M.I.; Montresor, M. The dynamics of sexual phase in the marine diatom Pseudo-nitzschia multistriata (Bacillariophyceae). J. Phycol. 2014, 50, 817–828. [Google Scholar] [CrossRef]
  12. Basu, S.; Patil, S.; Mapleson, D.; Russo, M.T.; Vitale, L.; Fevola, C.; Maumus, F.; Casotti, R.; Mock, T.; Caccamo, M.; et al. Finding a partner in the ocean: Molecular and evolutionary bases of the response to sexual cues in a planktonic diatom. New Phytol. 2017, 215, 140–156. [Google Scholar] [CrossRef] [PubMed]
  13. Patil, S.; Moeys, S.; von Dassow, P.; Huysman, M.J.J.; Mapleson, D.; De Veylder, L.; Sanges, R.; Vyverman, W.; Montresor, M.; Ferrante, M.I. Identification of the meiotic toolkit in diatoms and exploration of meiosis-specific SPO11 and RAD51 homologs in the sexual species Pseudo-nitzschia multistriata and Seminavis robusta. BMC Genom. 2015, 16, 930. [Google Scholar] [CrossRef] [PubMed]
  14. Nanjappa, D.; Sanges, R.; Ferrante, M.I.; Zingone, A. Diatom flagellar genes and their expression during sexual reproduction in Leptocylindrus danicus. BMC Genom. 2017, 18, 813. [Google Scholar] [CrossRef] [PubMed]
  15. Von Dassow, P.; Ogata, H.; Probert, I.; Wincker, P.; Da Silva, C.; Audic, S.; Claverie, J.M.; de Vargas, C. Transcriptome analysis of functional differentiation between haploid and diploid cells of Emiliania huxleyi, a globally significant photosynthetic calcifying cell. Genome Biol. 2009, 10, R114. [Google Scholar] [CrossRef] [PubMed]
  16. Armbrust, E.V. Identification of a new gene family expressed during the onset of sexual reproduction in the centric diatom Thalassiosira weissflogii. Appl. Environ. Microbiol. 1999, 65, 3121–3128. [Google Scholar] [PubMed]
  17. Guillard, R.R.L. Culture of phytoplankton for feeding marine invertebrates. In Culture of Marine Invertebrate Animals; Smith, W.L., Chanley, M.H., Eds.; Plenum Press: New York, NY, USA, 1975; pp. 29–60. [Google Scholar]
  18. Andrews, S. FastQC: A quality Control Tool for High Throughput Sequence Data. 2010. Available online: (accessed on 7 March 2014).
  19. Martin, M. Cutadapt removes adapter sequences from high-throughput sequencing reads. EMBnet J. 2011, 17, 10–12. [Google Scholar] [CrossRef]
  20. Grabherr, M.G.; Haas, B.J.; Yassour, M.; Levin, J.Z.; Thompson, D.A.; Amit, I.; Adiconis, X.; Fan, L.; Raychowdhury, R.; Zeng, Q.; et al. Full-length transcriptome assembly from RNA-Seq data without a reference genome. Nat. Biotechnol. 2011, 29, 644–652. [Google Scholar] [CrossRef] [PubMed][Green Version]
  21. Li, W.; Godzik, A. Cd-hit: A fast program for clustering and comparing large sets of protein or nucleotide sequences. Bioinformatics 2006, 11, 1658–1659. [Google Scholar] [CrossRef]
  22. Smith-Unna, R.D.; Boursnell, C.; Patro, R.; Hibberd, J.M.; Kelly, S. TransRate: Reference free quality assessment of de-novo transcriptome assemblies. Genome Res. 2016, 11, 1134–1144. [Google Scholar] [CrossRef]
  23. Armbrust, E.V.; Berges, J.A.; Bowler, C.; Green, B.R.; Martinez, D.; Putnam, N.H.; Zhou, S.; Allen, A.E.; Apt, K.E.; Bechner, M.; et al. The genome of the diatom Thalassiosira pseudonana: ecology, evolution, and metabolism. Science 2004, 306, 79–86. [Google Scholar] [CrossRef]
  24. Haas, B.J.; Papanicolaou, A.; Yassour, M.; Grabherr, M.; Blood, P.D.; Bowden, J.; Couger, M.B.; Eccles, D.; Li, B.; Lieber, M. De novo transcript sequence reconstruction from RNA-seq using the Trinity platform for reference generation and analysis. Nat. Protoc. 2013, 8, 1494. [Google Scholar] [CrossRef] [PubMed]
  25. Langmead, B.; Salzberg, S. Fast gapped-read alignment with Bowtie 2. Nat. Methods 2012, 9, 357–359. [Google Scholar] [CrossRef] [PubMed][Green Version]
  26. Li, B.; Colin, N. RSEM: Accurate transcript quantification from RNA-Seq data with or without a reference genome. BMC Bioinform. 2012, 12, 323. [Google Scholar] [CrossRef]
  27. Robinson, M.D.; McCarthy, D.J.; Smyth, G.K. edgeR: A Bioconductor package for differential expression analysis of digital gene expression data. Bioinformatics 2010, 26, 139–140. [Google Scholar] [CrossRef] [PubMed]
  28. Altschul, S.F.; Gish, W.; Miller, W.; Myers, E.W.; Lipman, D.J. Basic local alignment search tool. J. Mol. Biol. 1990, 215, 403–410. [Google Scholar] [CrossRef]
  29. Mistry, J.; Finn, R.D.; Eddy, S.R.; Bateman, A.; Punta, M. Challenges in homology search: HMMER3 and convergent evolution of coiled-coil regions. Nucleic Acids Res. 2013, 41, e121. [Google Scholar] [CrossRef] [PubMed]
  30. Katoh, S. MAFFT multiple sequence alignment software version 7: Improvements in performance and usability. Mol. Biol. Evol. 2013, 30, 772–780. [Google Scholar] [CrossRef]
  31. Gouy, M.; Guindon, S.; Gascuel, O. SeaView version 4: A multiplatform graphical user interface for sequence alignment and phylogenetic tree building. Mol. Biol. Evol. 2010, 27, 221–224. [Google Scholar] [CrossRef]
  32. Von Dassow, P.; John, U.; Ogata, H.; Probert, I.; Bendif, E.M.; Kegel, J.U.; Audic, S.; Wincker, P.; Da Silva, C.; Claverie, J.-M.; et al. Life-cycle modification in open oceans accounts for genome variability in a cosmopolitan phytoplankton. ISME J. 2014, 9, 1365–1377. [Google Scholar] [CrossRef]
  33. Malviya, S.; Scalco, E.; Audic, S.; Veluchamy, A.; Bittner, L.; Vincent, F.; Poulain, J.; Wincker, P.; Iudicone, D.; de Vargas, C.; et al. Insights into global diatom distribution and diversity in the world’s ocean. Proc. Natl. Acad. Sci. USA 2016, 113, E1516–E1525. [Google Scholar] [CrossRef]
  34. Shodhan, A.; Lukaszewicz, A.; Novatchkova, M.; Loidl, J. Msh4 and Msh5 function in SC-independent chiasma formation during the streamlined meiosis of Tetrahymena. Genetics 2014, 198, 983–993. [Google Scholar] [CrossRef] [PubMed]
  35. Lynn, A.; Soucek, R.; Börner, G.V. ZMM proteins during meiosis: Crossover artists at work. Chromosome Res. 2007, 15, 591–605. [Google Scholar] [CrossRef] [PubMed][Green Version]
  36. Zhao, W.; Saro, D.; Hammel, M.; Kwon, Y.; Xu, Y.; Rambo, R.P.; Williams, G.J.; Chi, P.; Lu, L.; Pezza, R.J. Mechanistic insights into the role of Hop2–Mnd1 in meiotic homologous DNA pairing. Nucleic Acids Res. 2013, 42, 906–917. [Google Scholar] [CrossRef] [PubMed]
  37. Tsubouchi, H.; Roeder, G.S. The Mnd1 protein forms a complex with Hop2 to promote homologous chromosome pairing and meiotic double-strand break repair. Mol. Cell. Biol. 2002, 22, 3078–3088. [Google Scholar] [CrossRef] [PubMed]
  38. Gerton, J.L.; Scott-Hawley, R. Homologous chromosome interactions in meiosis: Diversity amidst conservation. Nat. Rev. Genet. 2005, 6, 477. [Google Scholar] [CrossRef]
  39. Ginger, M.L.; Portman, N.; McKean, P.G. Swimming with protists: Perception, motility and flagellum assembly. Nat. Rev. Microbiol. 2008, 6, 838. [Google Scholar] [CrossRef] [PubMed]
  40. Guillou, L.; Chrétiennot-Dinet, M.-J.; Medlin, L.K.; Claustre, H.; Goër, S.L.d.; Vaulot, D. Bolidomonas: A new genus with two species belonging to a new algal class, the Bolidophyceae (Heterokonta). J. Phycol. 1999, 35, 368–381. [Google Scholar] [CrossRef]
  41. Manton, I.; von Stoch, H.A. Observations on the fine structure of the male gamete of the marine centric diatom Lithodesmium undulatum. J. R. Microsc. Soc. 1966, 85, 119–134. [Google Scholar] [CrossRef]
  42. Heath, I.B.; Darley, W.M. Observations on the ultrastructure of the male gametes of Biddulphia levis Ehr. J. Phycol. 1972, 8, 51–59. [Google Scholar] [CrossRef]
  43. Jensen, K.G.; Moestrup, Ø.; Schmid, A.-M.M. Ultrastructure of the male gametes from two centric diatoms, Chaetoceros laciniosus and Coscinodiscus wailesii (Bacillariophyceae). Phycologia 2003, 42, 98–105. [Google Scholar] [CrossRef]
  44. Idei, M.; Osada, K.; Sato, S.; Nakayama, T.; Nagumo, T.; Mann, D.G. Sperm ultrastructure in the diatoms Melosira and Thalassiosira and the significance of the 9+0 configuration. Protoplasma 2013, 250, 833–850. [Google Scholar] [CrossRef] [PubMed]
  45. Van Dam, T.J.; Townsend, M.J.; Turk, M.; Schlessinger, A.; Sali, A.; Field, M.C.; Huynen, M.A. Evolution of modular intraflagellar transport from a coatomer-like progenitor. Proc. Natl. Acad. Sci. USA 2013, 110, 6943–6948. [Google Scholar] [CrossRef] [PubMed][Green Version]
  46. Montsant, A.; Allen, A.E.; Coesel, S.; Martino, A.D.; Falciatore, A.; Mangogna, M.; Siaut, M.; Heijde, M.; Jabbari, K.; Maheswari, U.; et al. Identification and comparative genomic analysis of signaling and regulatory components in the diatom Thalassiosira pseudonana. J. Phycol. 2007, 43, 585–604. [Google Scholar] [CrossRef]
  47. French, F.W., III; Hargraves, P.E. Spore formation in the life cycles of the diatoms Chaetoceros diadema and Leptocylindrus danicus. J. Phycol. 1985, 21, 477–483. [Google Scholar] [CrossRef]
  48. Honda, D.; Shono, T.; Kimura, K.; Fujita, S.; Iseki, M.; Makino, Y.; Murakami, A. Homologs of the sexually induced gene 1 (sig1) product constitute the stramenopile mastigonemes. Protist 2007, 158, 77–88. [Google Scholar] [CrossRef] [PubMed]
  49. Schurko, A.M.; Logsdon, J.M. Using a meiosis detection toolkit to investigate ancient asexual “scandals” and the evolution of sex. BioEssays 2008, 30, 579–589. [Google Scholar] [CrossRef]
Figure 1. Schematic drawing of the life cycle of a centric diatom: When a vegetative cell divides mitotically (1), each daughter cell inherits one of the two halves (thecae) of the rigid silica cell wall (orange and green lines) and builds a new smaller theca (purple lines). This leads to a progressive reduction of the cell size of the cell population (2). Above a species-specific sexualization size threshold (SST), (3) diatom cells are incapable of performing sexual reproduction. Below the SST, if a proper trigger is present (such as a salinity shock for Skeletonema marinoi), meiosis is induced and cells can either produce one egg or four sperms (4). Gametes conjugation (syngamy) leads to the formation of a zygote that becomes an auxospore, a soft stage which can expand (5). A new cell wall is built inside the auxospore, which eventually becomes an initial cell of the maximum cell size (6).
Figure 1. Schematic drawing of the life cycle of a centric diatom: When a vegetative cell divides mitotically (1), each daughter cell inherits one of the two halves (thecae) of the rigid silica cell wall (orange and green lines) and builds a new smaller theca (purple lines). This leads to a progressive reduction of the cell size of the cell population (2). Above a species-specific sexualization size threshold (SST), (3) diatom cells are incapable of performing sexual reproduction. Below the SST, if a proper trigger is present (such as a salinity shock for Skeletonema marinoi), meiosis is induced and cells can either produce one egg or four sperms (4). Gametes conjugation (syngamy) leads to the formation of a zygote that becomes an auxospore, a soft stage which can expand (5). A new cell wall is built inside the auxospore, which eventually becomes an initial cell of the maximum cell size (6).
Genes 10 00494 g001

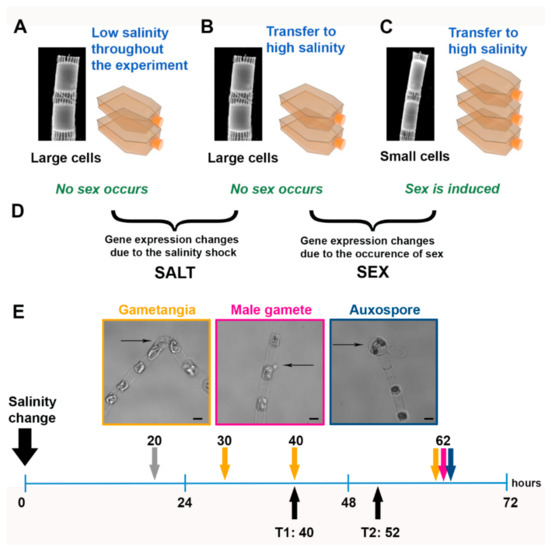

Figure 2. Experimental setup: (AC), conditions tested in the experiment. The scanning electron micrographs show two S. marinoi cells in a chain. (D) Comparisons considered for the gene expression analysis. (E) Scheme of the sexual stages of S. marinoi detected at different time points after application of the salinity cue (0 h) (see Reference [8]) and time points chosen for the transcriptomic analysis (black arrows). At 20 h (gray arrow), only vegetative cells were observed. The yellow arrows, the pink arrow, and the blue arrow indicate the presence of gametangia, gametes, and auxospores, respectively. The sexual stages, indicated by thin black arrows, are shown in the images above with a color-matching frame. Scale bar, 5 µm.
Figure 2. Experimental setup: (AC), conditions tested in the experiment. The scanning electron micrographs show two S. marinoi cells in a chain. (D) Comparisons considered for the gene expression analysis. (E) Scheme of the sexual stages of S. marinoi detected at different time points after application of the salinity cue (0 h) (see Reference [8]) and time points chosen for the transcriptomic analysis (black arrows). At 20 h (gray arrow), only vegetative cells were observed. The yellow arrows, the pink arrow, and the blue arrow indicate the presence of gametangia, gametes, and auxospores, respectively. The sexual stages, indicated by thin black arrows, are shown in the images above with a color-matching frame. Scale bar, 5 µm.
Genes 10 00494 g002

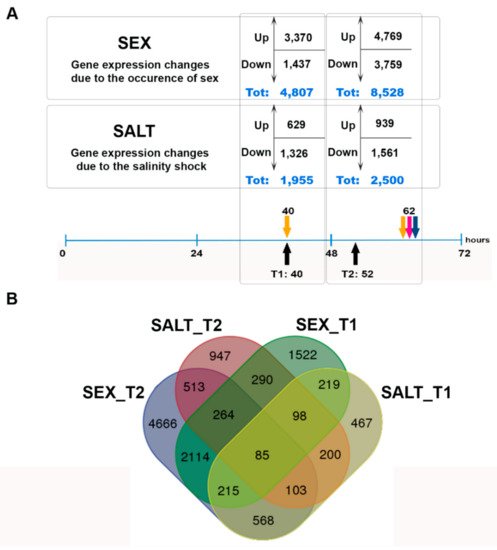

Figure 3. Number of genes differentially expressed in the SEX and SALT comparisons: (A) Number of genes up- and downregulated at the two time points. (B) Venn diagram showing the overlap between different datasets of differentially expressed genes in the SEX and SALT conditions at the two time points.
Figure 3. Number of genes differentially expressed in the SEX and SALT comparisons: (A) Number of genes up- and downregulated at the two time points. (B) Venn diagram showing the overlap between different datasets of differentially expressed genes in the SEX and SALT conditions at the two time points.
Genes 10 00494 g003
Table 1. Differentially expressed contigs of S. marinoi (−1 > logFC > 1) with significant BLAST hits to meiosis genes.
Table 1. Differentially expressed contigs of S. marinoi (−1 > logFC > 1) with significant BLAST hits to meiosis genes.
FunctionProtein NameQuery ID
S. marinoi Hit IDHit ID AnnotationSEX_T1 logFCSEX_T2 logFCSALT_T1 logFCSALT_T2 logFC
Accessory proteins required during meiosisBRCA1AAO39850.1MTRINITY_DN15891_c0_g1_i1Protein breast cancer susceptibility 1 homolog-1.54--
BRCA2 (b)AEE81814.1MTRINITY_DN15273_c1_g3_i3Breast cancer type 2 susceptibility protein homolog-1.65--
DNA2 (b)NP_001184943.1MTRINITY_DN16883_c0_g1_i2DNA replication ATP-dependent helicase/nuclease JHS1-1.51--
EXO1 (b)Q8L6Z7.2Pc10978_g1_i1Exonuclease 1-7.18--
Crossover regulationMSH4 (b)AAT70180.1Pc32435_g1_i6DNA mismatch repair protein MSH44.446.64--
MSH5 (b)NP_188683.3Pc31899_g1_i1MutS protein homolog 52.761.95--
DNA damage sensing and responseRAD50 (b)AEC08614.1MTRINITY_DN15782_c0_g2_i2DNA repair protein RAD50-2.89--
MRE11 (b)NP_200237.1Pc25688_g1_i2Double-strand break repair protein MRE11-1.74--
DNA replication and chromosome maintenanceSCC3 (b)AEC10920.1MTRINITY_DN16741_c0_g1_i1Cohesin subunit SA-3-3.45--
SMC5 (b)AED92224.1Pc30152_g1_i1Structural maintenance of chromosomes protein 5-2.24--
MCM6AED95141.1MTRINITY_DN14495_c0_g1_i2DNA replication licensing factor MCM6-1.84--
SMC4 (b)AED95695.1MTRINITY_DN13431_c0_g1_i1Structural maintenance of chromosomes protein 43.24-−1.59−1.27
SMC1 (b)AEE79265.1Pc27448_g3_i1Structural maintenance of chromosomes protein 1-2.71--
MCM2 (b)NP_001185154.1Pc31350_g2_i1DNA replication licensing factor MCM2-1.661.17-
MCM5 (b)NP_001189521.1MTRINITY_DN18289_c0_g1_i1DNA replication licensing factor MCM5-2.16--
PDS5 (b)NP_177883.5MTRINITY_DN17063_c0_g1_i3Sister chromatid cohesion protein PDS5 homolog A1.162.51--
MCM4NP_179236.3MTRINITY_DN16417_c4_g1_i2DNA replication licensing factor MCM4-2.43--
SMC3 (b)NP_180285.4MTRINITY_DN4029_c0_g2_i1Structural maintenance of chromosomes protein 31.063.00--
MCM8 (b)NP_187577.1MTRINITY_DN16028_c0_g1_i1Probable DNA helicase MCM8-1.13--
SMC2 (b)NP_201047.1Pc22708_g1_i1Structural maintenance of chromosomes protein 2-13.33-−1.41−1.31
Double-strand break formationSPO11-2 (b)AEE34178.1MTRINITY_DN15680_c0_g1_i1Meiotic recombination protein SPO11-211.928.42--
SPO11-3/TOPVINP_195902.1Pc22702_g1_i1Topoisomerase 6 subunit A3-1.58--
Double-strand break repair (recombinational repair)PMS1 (b)AAM00563.1Pc31460_g3_i1DNA mismatch repair protein PMS11.38--
RAD51-A (b)BAE99388.1STRINITY_DN8677_c0_g1_i2DNA repair protein RAD51 homolog 14.102.28-−1.52
RAD51-C (b)CAC14091.1Pc29686_g1_i1DNA repair protein RAD51 homolog 3-1.43--
MSH6 (b)NP_001190656.1MTRINITY_DN17310_c0_g1_i2DNA mismatch repair protein Msh61.362.10--
RAD51-B (b)NP_180423.3MTRINITY_DN12845_c1_g1_i3DNA repair and recombination protein RadA-1.29--
XRCC3NP_200554.1Pc31108_g1_i2DNA repair protein XRCC3 homolog1.541.23--
MLH1 (b)NP_567345.2MTRINITY_DN12931_c0_g1_i1DNA mismatch repair protein MLH1-1.56--
(a) All queries are Arabidopsis thaliana proteins except PMS1 which is from Saccharomyces cerevisiae; (b) genes that were upregulated during meiosis in the diatom Seminavis robusta [13].
Table 2. Differentially expressed contigs of S. marinoi (−1 > logFC > 1) with significant BLAST hits to flagellar genes.
Table 2. Differentially expressed contigs of S. marinoi (−1 > logFC > 1) with significant BLAST hits to flagellar genes.
Uniprot DescriptionUniprot IDS. marinoi Hit IDHit ID AnnotationSEX_T1 logFCSEX_T2 logFCSALT_T1 logFCSALT_T2 logFC
Dynein β chain, flagellar outer armDYHB_CHLREMTRINITY_DN17388_c0_g1_i3Dynein β chain flagellar outer arm-3.58--
Dynein, 70 kDa intermediate chain, flagellar outer armDYI3_CHLRESTRINITY_DN18690_c0_g1_i1Dynein 70 kDa intermediate chain flagellar outer arm-8.40--
Dynein heavy chainQ5H9M7_BOVINPc32863_g3_i1Dynein heavy chain 8 axonemal4.394.61--
Dynein light chain roadblockQ7ZUX8_DANRESTRINITY_DN2071_c0_g1_i1Dynein light chain roadblock-type 1-8.55--
Tctex1 domain-containing protein 1-BTC1DB_XENLAMTRINITY_DN20279_c0_g1_i1Tctex1 domain-containing protein 1-7.64--
Nucleoside diphosphate kinase 7NDK7_RATSTRINITY_DN12961_c0_g1_i1Nucleoside diphosphate kinase 7-2.38--
Dynein light chain Tctex-type 1DYLT1_MOUSESTRINITY_DN18525_c0_g1_i1Dynein light chain Tctex-type 1-7.05--
Uracil phosphoribosyltransferaseUPP_ROSS1MTRINITY_DN17186_c0_g1_i2ATP-dependent D- helicase Q-like 5-1.95--
EF-hand domain-containing protein 1EFHC1_MOUSESTRINITY_DN11650_c0_g1_i2EF-hand domain-containing family member C22.494.56--
Dynein regulatory complex subunit 4GAS8_CHLRESTRINITY_DN15037_c0_g1_i1Dynein regulatory complex subunit 45.387.09--
Dynein regulatory complex subunit 2CCD65_BOVINSTRINITY_DN9819_c0_g1_i1Coiled-coil-domain-containing-protein-659.268.97--
Tubulin α-2 chainTBA2_PELFASTRINITY_DN11650_c0_g2_i3Tubulin α-2 chain-2.16-−1.56
Tubulin β chainTBB_TETTHSTRINITY_DN3540_c0_g1_i1Tubulin β chain6.638.51--
Actin. non-muscle 6.2ACT_HYDVUSTRINITY_DN3928_c0_g1_i1Actin-0.98-−1.17
Glycogen synthase kinase-3 αGSK3A_RATMTRINITY_DN14448_c0_g1_i1Glycogen synthase kinase-3 β-1.18--
Microtubule-associated protein RP/EB family member 1MARE1_XENTRPc31703_g4_i1Microtubule-associated protein RP/EB family member 1B1.40--−1.47
Serine/threonine-protein phosphatase 4 regulatory subunit 1PP4R1_RATMTRINITY_DN15306_c0_g1_i1Serine/threonine-protein-phosphatase-4-regulatory-subunit-1--1.56--
Table 3. Differentially expressed contigs of S. marinoi with significant BLAST hits to sex related genes of P. multistriata [12] common at the two time points.
Table 3. Differentially expressed contigs of S. marinoi with significant BLAST hits to sex related genes of P. multistriata [12] common at the two time points.
S. marinoi Contig IdContig AnnotationSEX_T1 logFCSEX_T2 logFCP. multistriata HomologP. multistriata AnnotationP. multistriata logFCProposed Gene Name
MTRINITY_DN10312_c0_g1_i1Multidrug resistance protein 15.852.670056660.1ABC transporter B family member 32.14
Pc19236_g1_i3Anaphase-promoting complex subunit cdc204.492.320095480.1Anaphase-promoting complex subunit cdc20−1.44 (a)
MTRINITY_DN8414_c0_g2_i1-2.091.690076960.1Dynamin-like protein A−1.70 (a)
MTRINITY_DN15107_c0_g1_i1-1.673.140000630.1-−1.91 (a)
MTRINITY_DN17063_c0_g1_i3Sister chromatid cohesion protein PDS5 homolog A1.162.510089060.1-1.95
MTRINITY_DN4029_c0_g2_i1Structural maintenance of chromosomes protein 31.063.000079810.1Structural maintenance of chromosomes protein 31.67
Pc28241_g1_i1mRNA decay activator protein ZFP36L10.981.390076260.1-3.70
MTRINITY_DN12258_c1_g1_i2Translation initiation factor IF-2−2.05−2.100047520.1Translation initiation factor IF-2−2.14
MTRINITY_DN7716_c0_g1_i1Putative elongation factor TypA-like SVR3−1.46−0.870044870.1GTP-binding protein TypA/BipA homolog−1.37
MTRINITY_DN17106_c0_g1_i1Acetyl-CoA carboxylase 1−1.21−0.770084140.1Acetyl-CoA carboxylase 1−1.86
MTRINITY_DN12117_c0_g1_i1Leucine-tRNA ligase−1.06−1.050031170.1Leucine--tRNA ligase−1.60
STRINITY_DN8561_c3_g1_i1-−1.00−1.390040850.1Glucose-repressible alcohol dehydrogese transcriptional effector−2.13
STRINITY_DN13193_c0_g1_i1Pleckstrin homology domain-containing family A member 8−0.94−1.110005620.1-−1.81
MTRINITY_DN16739_c0_g1_i5Bifunctional purine biosynthetic protein ADE1−0.80−1.110025170.1Phosphoribosylformylglycimidine cyclonaligase−1.28
MTRINITY_DN9740_c0_g1_i1Arogenate dehydrogenase 2 chloroplastic−0.78−1.030020750.1Arogenate dehydrogenase 2 chloroplastic−2.34
MTRINITY_DN17191_c0_g2_i1Ribosomal RNA processing protein 1 homolog B−0.78−1.610119100.1-−1.99
(a) LogFC values not in accordance with the direction of change in S. marinoi.

Share and Cite

MDPI and ACS Style

Ferrante, M.I.; Entrambasaguas, L.; Johansson, M.; Töpel, M.; Kremp, A.; Montresor, M.; Godhe, A. Exploring Molecular Signs of Sex in the Marine Diatom Skeletonema marinoi. Genes 2019, 10, 494.

AMA Style

Ferrante MI, Entrambasaguas L, Johansson M, Töpel M, Kremp A, Montresor M, Godhe A. Exploring Molecular Signs of Sex in the Marine Diatom Skeletonema marinoi. Genes. 2019; 10(7):494.

Chicago/Turabian Style

Ferrante, Maria Immacolata, Laura Entrambasaguas, Mathias Johansson, Mats Töpel, Anke Kremp, Marina Montresor, and Anna Godhe. 2019. "Exploring Molecular Signs of Sex in the Marine Diatom Skeletonema marinoi" Genes 10, no. 7: 494.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
