Review

A Review of FoxO1-Regulated Metabolic Diseases and Related Drug Discoveries

by 1, 2, 1 and 1,3,*
1
National Institute of Biological Sciences, Beijing 102206, China
2
RPXDs (Suzhou) Co., Ltd., Suzhou 215123, China
3
Tsinghua Institute of Multidisciplinary Biomedical Research, Tsinghua University, Beijing 102206, China
*
Author to whom correspondence should be addressed.
Cells 2020, 9(1), 184; https://doi.org/10.3390/cells9010184
Received: 30 November 2019 / Revised: 8 January 2020 / Accepted: 8 January 2020 / Published: 10 January 2020
(This article belongs to the Special Issue The FoxO Transcription Factors and Metabolic Regulation)

Abstract

FoxO1 is a conserved transcription factor involved in energy metabolism. It is tightly regulated by modifications on its mRNA and protein and responds to environmental nutrient signals. FoxO1 controls the transcription of downstream genes mediating metabolic regulation. Dysfunction of FoxO1 pathways results in several metabolic diseases, including diabetes, obesity, non-alcoholic fatty liver disease, and atherosclerosis. Here, we summarize the mechanism of FoxO1 regulation behind these diseases and FoxO1-related drug discoveries.
Keywords: FoxO1; metabolic disease; drug discovery FoxO1; metabolic disease; drug discovery

1. Introduction of FoxO1

Forkhead Box O (FoxO) genes belong to a transcription factor (TF) family characterized by the presence of a conserved DNA-binding domain (the Forkhead box) in the N-terminal end of the protein [1,2,3] (Figure 1A). FOXOs bind the consensus DNA-binding element within the promoter of their target genes and regulate their transcription in response to external signal stimulation [4,5,6] (Figure 1B). There are four FoxO genes identified in mammals, including FoxO1, FoxO3a, FoxO4, and FoxO6 [7]. In the 1990s, the FoxO1 gene was first identified in studies of chromosomal translocations found in human tumors, including rhabdomyosarcomas and acute myeloid leukemias [1,3,8,9]. In addition to its important regulatory roles in oncogenesis [10], FoxO1 also transcriptionally mediates pathways behind many metabolic diseases, including gluconeogenesis, glycogenolysis, adipogenesis, thermogenesis, and feeding behavior [11,12,13,14,15], which is the focus of this review article.

2. Regulation of FoxO1

2.1. Protein Modifications

FOXO1 protein is sophisticatedly and strictly regulated by modifications on its protein and mRNA, which ensures that transcription of its downstream target genes is tightly responsive to environmental signals [16] (Figure 1C). Kinase-mediated phosphorylation of the FOXO1 protein in response to insulin or growth factors is a form of regulation [17] (Figure 1C). Phosphoinositide 3-kinase/protein kinase B (PI3K/PKB) phosphorylates the FOXO1 protein at three conserved residues, including Threonine 24, Serine 256, and Serine 319. These modifications result in disrupted interactions between the FOXO1 protein and its target DNA and lead to the translocation of the FOXO1 protein from the nucleus to the cytoplasm, thus suppressing FOXO1-dependent transcription. The FOXO1 protein can also be phosphorylated by c-Jun N-terminal kinase (JNK) or macrophage-stimulating 1 (Mst1) [18,19]. This phosphorylation results in the import of the FOXO1 protein from the cytoplasm to the nucleus, thereby antagonizing the action of PI3K/PKB.
FOXO1 protein activity is also regulated by reversible acetylation modification on lysine residues (Figure 1C). They are acetylated by histone acetyltransferase cAMP-response element-binding protein (CREB)-binding protein (CBP) and deacetylated by NAD-dependent histone deacetylase silent information regulator 2 (Sir2) on conserved residues (Lys 242, Lys 245, and Lys 262) [20,21,22]. The positive charge of these lysine residues in FOXO1 contributes to DNA binding. Thus, acetylation at these residues attenuates the ability of FOXO1 to bind DNA and suppress transcription. Interestingly, it was also found that acetylation regulated the function of FOXO1 by influencing its sensitivity for phosphorylation.
The FOXO1 protein is polyubiquitinated by E3 ligases (Figure 1C) such as S-phase kinase-associated protein 2 (SKP2) and mouse double minute 2 homolog (MDM2), and targeted for protein degradation in human primary tumors and cancer cell lines [23,24,25]. The ubiquitination and proteasome degradation of the FOXO1 protein are essential in tumorigenesis and represent a viable target for cancer treatment.

2.2. mRNA Methylation

In addition to these post-translational modifications on protein, FoxO1 is also regulated by methylation modification on its mRNA [26,27,28] (Figure 1D). There are two specific adenosine sites in the coding sequence of the FoxO1 mRNA [26,27]. The adenosine (A) at these sites can be methylated to N6-Methyladenosine (m6A) by methyltransferase like 3 (METTL3) protein, and m6A can be demethylated to A by fat mass and obesity-associated protein (FTO). These reversible m6A modifications participate in regulating FoxO1 gene translation [28].

3. FoxO1-Regulating Mechanism Behind Diseases

3.1. Glucose Production in the Liver

FoxO1 regulates many important metabolic pathways in the liver, fat tissue, and hypothalamus [30,31]. It is well established that FoxO1 regulates hepatic gluconeogenesis and glycogenolysis in response to an insulin signal in the blood (Figure 2). High concentration of insulin decreases blood glucose level by promoting glucose absorption after feeding and inhibits glucose production by hepatic gluconeogenesis and glycogenolysis in the fasting state.
In the liver, insulin activates the PI3K/PKB signaling pathway and results in FOXO1 protein phosphorylation and degradation [32]. FOXO1 TF binds and promotes transcription of glucose 6-phosphatase (G6PC) and phosphoenolpyruvate carboxykinase (PEPCK), which are key enzymes stimulating gluconeogenesis and glycogenolysis [33,34]. When FOXO1 is suppressed, transcription of G6PC and PEPCK subsequently decreases, which consequently inhibits the rates of glucose production in the liver.
It has been well established that FOXO1 is a key mediator in the signaling pathway of insulin regulating hepatic gluconeogenesis. Hepatic FOXO1 loss-of-function mutant suppresses G6PC and PEPCK expression, decreases hepatic gluconeogenesis, and improves fasting glycemia in diabetic db/db mice [32].

3.2. Lipoprotein Uptake in the Liver

Apolipoprotein C-III (ApoC3) is another downstream target of FoxO1 that functions directly in plasma triglyceride metabolism [31,35]. ApoC3 is secreted by the liver and enriched in very low-density lipoprotein (VLDL). It was reported to suppress hepatic uptake of VLDL and inhibit lipoprotein lipase [36]. ApoC3 overexpression in humans functions in atherosclerosis [37].
FOXO1 binds to the ApoC3 promoter and enhances its transcription [35] (Figure 2). FOXO1 overexpression increases hepatic ApoC3 expression and elevates plasma triglyceride levels. FOXO1 loss-of-function mutation interferes with ApoC3 expression in response to insulin stimulation. Insulin deficiency or resistance results in unrestrained ApoC3 expression and impaired triglyceride metabolism in the pathogenesis of atherosclerosis and hypertriglyceridemia.

3.3. Lipogenesis in the Liver

Clinically, it was observed that therapeutically decreasing blood glucose usually caused increased lipogenesis in the liver [11,38]. Lipogenesis is induced by suppressing the FoxO1-dependent inhibition of glucokinase (Gck) [39] (Figure 3). Hepatic Gck expression is associated with lipogenesis and fatty liver in humans. Increased Gck activity induced fatty liver and its metabolic consequences in humans.
Moreover, SIN3 Transcription Regulator Family Member A (SIN3A) was identified as an insulin-sensitive FOXO1 corepressor of Gck. SIN3A knockout interferes with Gck expression regulated by FOXO1 in response to environmental nutrients, while not affecting expression of other genes targeted by FOXO1, such as G6PC. These results may provide the opportunity to develop selective modulators of the FoxO1 pathway, which removes adverse effects of hepatic lipogenesis in therapeutically treating diabetes [39].

3.4. Lipid Metabolism in Adipocytes

FoxO1 binds to the promoter sites of peroxisome proliferator-activated receptor gamma (PPARγ) DNA and represses its transcription [40]. In response to insulin stimulation, FOXO1 protein is degraded and subsequently unable to prevent transcription of PPARγ. Because high levels of PPARγ protein initiate adipogenesis, FoxO1 suppresses adipogenesis [41].
Moreover, the FOXO1 protein is a repressor of uncoupling protein 1 (Ucp1) gene transcription [31,42]. UCP1 protein is a mitochondrial inner membrane proton channel linked to energy use that serves as a well-known biomarker of the thermogenesis state of adipose tissues [43,44,45]. FoxO1 inhibition increases UCP1 expression, thereby augmenting thermogenesis and fat loss. Selectively inhibiting FTO by inhibitors decreases FOXO1 expression and reduces body weight and fat mass in a high-fat diet-induced obesity (DIO) mouse model. Suppressing FOXO1 expression increased the energy expenditure of mice. Thermogenesis in adipose tissue was induced by reduced FOXO1 expression, which was a cause of the decreased body weight and increased energy expenditure [28].

3.5. Feeding Behavior in the Hypothalamus

FoxO1 in the central nervous system, mainly the hypothalamus, functions directly in integrating signals from peripheral tissues and mediating feeding behavior. Insulin and leptin are well-studied nutrient signals, integrating peripheral energy status to the hypothalamus. In the arcuate nucleus (ARC) of the hypothalamus, two neuronal populations express specific feeding-related neuropeptides, including pro-opiomelanocortin (POMC) and agouti-related peptide (AgRP) [46]. POMC suppresses appetite and decreases body weight. AgRP enhances food intake and increases body weight [47,48].
The PI3K/PDK1/PKB–FoxO1 signaling axis functions to integrate leptin and insulin signals to regulate POMC and AgRP secretion [49,50,51] (Figure 4). As the downstream target of these kinases, the FOXO1 protein is phosphorylated and inactivated in neurons, thus promoting POMC transcription and suppressing AgRP transcription. In mouse models, PDK1 knockout in POMC neurons suppresses FOXO1 phosphorylation and degradation, thus suppressing POMC transcription. By contrast, in AgRP neurons, PDK1 deletion results in enhanced AgRP expression and increased food intake. In the PDK1-knockout mouse models, FoxO1 inactivation rescues these phenotypes, which demonstrates the crucial roles of FoxO1 in regulating feeding behavior.
Furthermore, in a DIO rat model, the mechanism of FoxO1 in regulating feeding behavior was confirmed [52]. In these rats, because of insulin resistance, the PI3K/PDK1/PKB-FoxO1 regulatory axis was damaged, resulting in increasing the amount of FOXO1 protein and food intake. However, the intracerebroventricular (i.c.v.) micro-infusion of FoxO1-antisense oligonucleotides (FoxO1-ASOs) largely decreased the hypothalamic FoxO1 expression, food intake, and body weight gain. These suggested that pharmacological inactivation of FoxO1 may be used to suppress appetite and treat obesity.

4. FoxO1-Related Drug Discovery

Although some biologic therapies antagonizing FOXO1 activity were reported in treating cancers, wound repair, and cardiovascular diseases [53,54,55,56,57], many efforts are still focused on designing small-molecule compounds indicated for treating metabolic disorders [58].

4.1. FOXO1 Protein Inhibitors

Selectively silencing FOXO1 has the potential to treat metabolic disorders. In a mass spectrometric affinity screening, a small-molecule compound, 5-amino-7-(cyclohexylamino)-1-ethyl-6-fluoro-4-oxo-1,4-dihydroquinoline-3-carboxylic acid (AS1842856), was identified to directly bind to the FOXO1 protein, and it selectively bound to the dephosphorylated activated form, but not the phosphorylated one (Figure 5A). Cellular assay showed that AS1842856 blocked the transcription activity of FOXO1 with an IC50 of 0.03 μM but much less potently inhibited FOXO3a and FOXO4 with IC50 larger than 1 μM, which suggested that AS1842856 could be a potent and selective FOXO1 inhibitor [59,60]. In a diabetic db/db mouse model, oral administration of AS1842856 resulted in largely decreased plasma glucose after fasting and suppressed expression of gluconeogenic genes.
Focused on FOXO1 activity inhibition, one cell-based high-throughput screening of 170,000 small-molecule compounds resulted in a number of hits. Among them, FOXO1 inhibitor AS1708727 was identified with high oral activity, low clearance, and high liver distribution in mice [61] (Figure 5B). In a diabetic db/db mouse model, treatment with AS1708727 largely reduced blood glucose and blood triglyceride and decreased expression of hepatic G6PC, PEPCK, and ApoC3.

4.2. FoxO1 Pathway Modulators

Considering that FOXO1 is a TF, it is not easy to manipulate FoxO1 through pharmacological approaches. Therefore, excepting the FOXO1 protein itself, researchers also pursue design modulators to selectively mediate the FoxO1 pathway. After a small-molecule screening, a series of selective inhibitors of the FoxO1 pathway were identified [39]. Interestingly, some compounds inhibited FoxO1-dependent G6PC transcription and enhanced GCK transcription in hepatocytes, while other compounds decreased G6PC transcription without significant influence on GCK transcription. These compounds inhibited glucose production without lipogenic activity. Among them, cpd-10 was reported by a group from AstraZeneca as AZ-4490, with an IC50 of 0.02 μM [62] (Figure 5C).
In addition to experimental compound screening, selective inhibitors of the FoxO1 pathway were designed rationally. FTO protein demethylases the m6A modifications on FoxO1 mRNA and enhances its expression. Selective inhibition of FTO protein decreases the amount of FOXO1 protein in vivo. Via structure-based drug design, entacapone and its analogues were identified as selective small-molecule inhibitors of the FTO protein (Figure 5D). Entacapone decreased FOXO1 expression, thus suppressing gluconeogenesis and increasing thermogenesis in mouse models (Figure 6). Selectively suppressing FoxO1 activity through the inhibition of FTO by entacapone provides the possibility to treat type II diabetes and obesity [28].

Author Contributions

Conceptualization, S.P. and N.H. (Niu Huang); writing––original draft preparation, S.P.; writing––review and editing, W.L., N.H. (Nannan Hou), N.H. (Niu Huang); supervision, N.H. (Niu Huang). All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Anderson, M.J.; Viars, C.S.; Czekay, S.; Cavenee, W.K.; Arden, K.C. Cloning and characterization of three human forkhead genes that comprise an fkhr-like gene subfamily. Genomics 1998, 47, 187–199. [Google Scholar] [CrossRef] [PubMed]
  2. Carter, M.E.; Brunet, A. Foxo transcription factors. Curr. Biol. 2007, 17, R113–R114. [Google Scholar] [CrossRef]
  3. Galili, N.; Davis, R.J.; Fredericks, W.J.; Mukhopadhyay, S.; Rauscher, F.J., III; Emanuel, B.S.; Rovera, G.; Barr, F.G. Fusion of a fork head domain gene to pax3 in the solid tumour alveolar rhabdomyosarcoma. Nat. Genet. 1993, 5, 230–235. [Google Scholar] [CrossRef] [PubMed]
  4. Boura, E.; Silhan, J.; Herman, P.; Vecer, J.; Sulc, M.; Teisinger, J.; Obsilova, V.; Obsil, T. Both the n-terminal loop and wing w2 of the forkhead domain of transcription factor foxo4 are important for DNA binding. J. Biol. Chem. 2007, 282, 8265–8275. [Google Scholar] [CrossRef]
  5. Brent, M.M.; Anand, R.; Marmorstein, R. Structural basis for DNA recognition by foxo1 and its regulation by posttranslational modification. Structure 2008, 16, 1407–1416. [Google Scholar] [CrossRef] [PubMed]
  6. Psenakova, K.; Kohoutova, K.; Obsilova, V.; Ausserlechner, M.J.; Veverka, V.; Obsil, T. Forkhead domains of foxo transcription factors differ in both overall conformation and dynamics. Cells 2019, 8, 966. [Google Scholar] [CrossRef]
  7. Avila-Flores, A.; Arranz-Nicolas, J.; Merida, I. Transcriptional activity of foxo transcription factors measured by luciferase assays. Methods Mol. Biol. 2019, 1890, 91–102. [Google Scholar]
  8. Linardic, C.M. Pax3-foxo1 fusion gene in rhabdomyosarcoma. Cancer Lett. 2008, 270, 10–18. [Google Scholar] [CrossRef]
  9. Missiaglia, E.; Williamson, D.; Chisholm, J.; Wirapati, P.; Pierron, G.; Petel, F.; Concordet, J.P.; Thway, K.; Oberlin, O.; Pritchard-Jones, K.; et al. Pax3/foxo1 fusion gene status is the key prognostic molecular marker in rhabdomyosarcoma and significantly improves current risk stratification. J. Clin. Oncol. 2012, 30, 1670–1677. [Google Scholar] [CrossRef]
  10. Xing, Y.Q.; Li, A.; Yang, Y.; Li, X.X.; Zhang, L.N.; Guo, H.C. The regulation of foxo1 and its role in disease progression. Life Sci. 2018, 193, 124–131. [Google Scholar] [CrossRef]
  11. Dong, X.C. Foxo transcription factors in non-alcoholic fatty liver disease. Liver Res. 2017, 1, 168–173. [Google Scholar] [CrossRef] [PubMed]
  12. Eijkelenboom, A.; Burgering, B.M. Foxos: Signalling integrators for homeostasis maintenance. Nat. Rev. Mol. Cell Biol. 2013, 14, 83–97. [Google Scholar] [CrossRef] [PubMed]
  13. Link, W.; Fernandez-Marcos, P.J. Foxo transcription factors at the interface of metabolism and cancer. Int. J. Cancer 2017, 141, 2379–2391. [Google Scholar] [CrossRef]
  14. Maiese, K. Foxo transcription factors and regenerative pathways in diabetes mellitus. Curr. Neurovasc. Res. 2015, 12, 404–413. [Google Scholar] [CrossRef]
  15. Wagatsuma, A.; Shiozuka, M.; Takayama, Y.; Hoshino, T.; Mabuchi, K.; Matsuda, R. Effects of ageing on expression of the muscle-specific e3 ubiquitin ligases and akt-dependent regulation of foxo transcription factors in skeletal muscle. Mol. Cell. Biochem. 2016, 412, 59–72. [Google Scholar] [CrossRef] [PubMed]
  16. Yamagata, K.; Daitoku, H.; Takahashi, Y.; Namiki, K.; Hisatake, K.; Kako, K.; Mukai, H.; Kasuya, Y.; Fukamizu, A. Arginine methylation of foxo transcription factors inhibits their phosphorylation by akt. Mol. Cell 2008, 32, 221–231. [Google Scholar] [CrossRef]
  17. Biggs, W.H., III; Meisenhelder, J.; Hunter, T.; Cavenee, W.K.; Arden, K.C. Protein kinase b/akt-mediated phosphorylation promotes nuclear exclusion of the winged helix transcription factor fkhr1. Proc. Natl. Acad. Sci. USA 1999, 96, 7421–7426. [Google Scholar] [CrossRef]
  18. Grabiec, A.M.; Angiolilli, C.; Hartkamp, L.M.; van Baarsen, L.G.; Tak, P.P.; Reedquist, K.A. Jnk-dependent downregulation of foxo1 is required to promote the survival of fibroblast-like synoviocytes in rheumatoid arthritis. Ann. Rheumatic Dis. 2015, 74, 1763–1771. [Google Scholar] [CrossRef]
  19. Yuan, Z.; Lehtinen, M.K.; Merlo, P.; Villen, J.; Gygi, S.; Bonni, A. Regulation of neuronal cell death by mst1-foxo1 signaling. J. Biol. Chem. 2009, 284, 11285–11292. [Google Scholar] [CrossRef]
  20. Brunet, A.; Sweeney, L.B.; Sturgill, J.F.; Chua, K.F.; Greer, P.L.; Lin, Y.; Tran, H.; Ross, S.E.; Mostoslavsky, R.; Cohen, H.Y.; et al. Stress-dependent regulation of foxo transcription factors by the sirt1 deacetylase. Science 2004, 303, 2011–2015. [Google Scholar] [CrossRef]
  21. Pramanik, K.C.; Fofaria, N.M.; Gupta, P.; Srivastava, S.K. Cbp-mediated foxo-1 acetylation inhibits pancreatic tumor growth by targeting sirt. Mol. Cancer Ther. 2014, 13, 687–698. [Google Scholar] [CrossRef] [PubMed]
  22. Van der Heide, L.P.; Smidt, M.P. Regulation of foxo activity by cbp/p300-mediated acetylation. Trends Biochem. Sci. 2005, 30, 81–86. [Google Scholar] [CrossRef] [PubMed]
  23. Fu, W.; Ma, Q.; Chen, L.; Li, P.; Zhang, M.; Ramamoorthy, S.; Nawaz, Z.; Shimojima, T.; Wang, H.; Yang, Y.; et al. Mdm2 acts downstream of p53 as an e3 ligase to promote foxo ubiquitination and degradation. J. Biol. Chem. 2009, 284, 13987–14000. [Google Scholar] [CrossRef] [PubMed]
  24. Huang, H.; Tindall, D.J. Regulation of foxo protein stability via ubiquitination and proteasome degradation. Biochim. Biophys. Acta 2011, 1813, 1961–1964. [Google Scholar] [CrossRef] [PubMed]
  25. Vogt, P.K.; Jiang, H.; Aoki, M. Triple layer control: Phosphorylation, acetylation and ubiquitination of foxo proteins. Cell Cycle 2005, 4, 908–913. [Google Scholar] [CrossRef] [PubMed]
  26. Dominissini, D.; Moshitch-Moshkovitz, S.; Schwartz, S.; Salmon-Divon, M.; Ungar, L.; Osenberg, S.; Cesarkas, K.; Jacob-Hirsch, J.; Amariglio, N.; Kupiec, M.; et al. Topology of the human and mouse m6a rna methylomes revealed by m6a-seq. Nature 2012, 485, 201–206. [Google Scholar] [CrossRef]
  27. Meyer, K.D.; Saletore, Y.; Zumbo, P.; Elemento, O.; Mason, C.E.; Jaffrey, S.R. Comprehensive analysis of mrna methylation reveals enrichment in 3′ utrs and near stop codons. Cell 2012, 149, 1635–1646. [Google Scholar] [CrossRef]
  28. Peng, S.; Xiao, W.; Ju, D.; Sun, B.; Hou, N.; Liu, Q.; Wang, Y.; Zhao, H.; Gao, C.; Zhang, S.; et al. Identification of entacapone as a chemical inhibitor of fto mediating metabolic regulation through foxo1. Sci. Transl. Med. 2019, 11, eaau7116. [Google Scholar] [CrossRef]
  29. Pettersen, E.F.; Goddard, T.D.; Huang, C.C.; Couch, G.S.; Greenblatt, D.M.; Meng, E.C.; Ferrin, T.E. Ucsf chimera—A visualization system for exploratory research and analysis. J. Comput. Chem. 2004, 25, 1605–1612. [Google Scholar] [CrossRef]
  30. Henriques, V.; Machado, S.; Link, W.; Ferreira, B.I. Monitoring the transcriptional activity of foxo transcription factors by analyzing their target genes. Methods Mol. Biol. 2019, 1890, 103–113. [Google Scholar]
  31. Nakae, J.; Cao, Y.; Oki, M.; Orba, Y.; Sawa, H.; Kiyonari, H.; Iskandar, K.; Suga, K.; Lombes, M.; Hayashi, Y. Forkhead transcription factor foxo1 in adipose tissue regulates energy storage and expenditure. Diabetes 2008, 57, 563–576. [Google Scholar] [CrossRef] [PubMed]
  32. Altomonte, J.; Richter, A.; Harbaran, S.; Suriawinata, J.; Nakae, J.; Thung, S.N.; Meseck, M.; Accili, D.; Dong, H. Inhibition of foxo1 function is associated with improved fasting glycemia in diabetic mice. Am. J. Physiol. Endocrinol. Metabol. 2003, 285, E718–E728. [Google Scholar] [CrossRef] [PubMed]
  33. Matsumoto, M.; Pocai, A.; Rossetti, L.; Depinho, R.A.; Accili, D. Impaired regulation of hepatic glucose production in mice lacking the forkhead transcription factor foxo1 in liver. Cell Metabol. 2007, 6, 208–216. [Google Scholar] [CrossRef] [PubMed]
  34. Wu, Y.; Pan, Q.; Yan, H.; Zhang, K.; Guo, X.; Xu, Z.; Yang, W.; Qi, Y.; Guo, C.A.; Hornsby, C.; et al. Novel mechanism of foxo1 phosphorylation in glucagon signaling in control of glucose homeostasis. Diabetes 2018, 67, 2167–2182. [Google Scholar] [CrossRef]
  35. Altomonte, J.; Cong, L.; Harbaran, S.; Richter, A.; Xu, J.; Meseck, M.; Dong, H.H. Foxo1 mediates insulin action on apoc-iii and triglyceride metabolism. J. Clin. Investig. 2004, 114, 1493–1503. [Google Scholar] [CrossRef]
  36. Mendivil, C.O.; Zheng, C.; Furtado, J.; Lel, J.; Sacks, F.M. Metabolism of very-low-density lipoprotein and low-density lipoprotein containing apolipoprotein c-iii and not other small apolipoproteins. Arterioscler. Thromb. Vasc. Biol. 2010, 30, 239–245. [Google Scholar] [CrossRef]
  37. Bobik, A. Apolipoprotein ciii and atherosclerosis: Beyond effects on lipid metabolism. Circulation 2008, 118, 702–704. [Google Scholar] [CrossRef]
  38. Haeusler, R.A.; Hartil, K.; Vaitheesvaran, B.; Arrieta-Cruz, I.; Knight, C.M.; Cook, J.R.; Kammoun, H.L.; Febbraio, M.A.; Gutierrez-Juarez, R.; Kurland, I.J.; et al. Integrated control of hepatic lipogenesis versus glucose production requires foxo transcription factors. Nat. Commun. 2014, 5, 5190. [Google Scholar] [CrossRef]
  39. Langlet, F.; Haeusler, R.A.; Linden, D.; Ericson, E.; Norris, T.; Johansson, A.; Cook, J.R.; Aizawa, K.; Wang, L.; Buettner, C.; et al. Selective inhibition of foxo1 activator/repressor balance modulates hepatic glucose handling. Cell 2017, 171, 824–835. [Google Scholar] [CrossRef]
  40. Farmer, S.R. The forkhead transcription factor foxo1: A possible link between obesity and insulin resistance. Mol. Cell 2003, 11, 6–8. [Google Scholar] [CrossRef]
  41. Nakae, J.; Kitamura, T.; Kitamura, Y.; Biggs, W.H., III; Arden, K.C.; Accili, D. The forkhead transcription factor foxo1 regulates adipocyte differentiation. Dev. Cell 2003, 4, 119–129. [Google Scholar] [CrossRef]
  42. Kita, M.; Nakae, J.; Kawano, Y.; Asahara, H.; Takemori, H.; Okado, H.; Itoh, H. Zfp238 regulates the thermogenic program in cooperation with foxo1. iScience 2019, 12, 87–101. [Google Scholar] [CrossRef] [PubMed]
  43. Harms, M.; Seale, P. Brown and beige fat: Development, function and therapeutic potential. Nat. Med. 2013, 19, 1252–1263. [Google Scholar] [CrossRef]
  44. Inagaki, T.; Sakai, J.; Kajimura, S. Transcriptional and epigenetic control of brown and beige adipose cell fate and function. Nat. Rev. Mol. Cell Biol. 2016, 17, 480–495. [Google Scholar] [CrossRef] [PubMed]
  45. Wu, J.; Cohen, P.; Spiegelman, B.M. Adaptive thermogenesis in adipocytes: Is beige the new brown? Genes Dev. 2013, 27, 234–250. [Google Scholar] [CrossRef] [PubMed]
  46. Varela, L.; Horvath, T.L. Leptin and insulin pathways in pomc and agrp neurons that modulate energy balance and glucose homeostasis. EMBO Rep. 2012, 13, 1079–1086. [Google Scholar] [CrossRef]
  47. Belgardt, B.F.; Okamura, T.; Bruning, J.C. Hormone and glucose signalling in pomc and agrp neurons. J. Physiol. 2009, 587, 5305–5314. [Google Scholar] [CrossRef]
  48. Breen, T.L.; Conwell, I.M.; Wardlaw, S.L. Effects of fasting, leptin, and insulin on agrp and pomc peptide release in the hypothalamus. Brain Res. 2005, 1032, 141–148. [Google Scholar] [CrossRef]
  49. Belgardt, B.F.; Husch, A.; Rother, E.; Ernst, M.B.; Wunderlich, F.T.; Hampel, B.; Klockener, T.; Alessi, D.; Kloppenburg, P.; Bruning, J.C. Pdk1 deficiency in pomc-expressing cells reveals foxo1-dependent and -independent pathways in control of energy homeostasis and stress response. Cell Metab. 2008, 7, 291–301. [Google Scholar] [CrossRef]
  50. Cao, Y.; Nakata, M.; Okamoto, S.; Takano, E.; Yada, T.; Minokoshi, Y.; Hirata, Y.; Nakajima, K.; Iskandar, K.; Hayashi, Y.; et al. Pdk1-foxo1 in agouti-related peptide neurons regulates energy homeostasis by modulating food intake and energy expenditure. PLoS ONE 2011, 6, e18324. [Google Scholar] [CrossRef]
  51. Iskandar, K.; Cao, Y.; Hayashi, Y.; Nakata, M.; Takano, E.; Yada, T.; Zhang, C.; Ogawa, W.; Oki, M.; Chua, S., Jr.; et al. Pdk-1/foxo1 pathway in pomc neurons regulates pomc expression and food intake. Am. J. Physiol. Endocrinol. Metab. 2010, 298, E787–E798. [Google Scholar] [CrossRef] [PubMed]
  52. Ropelle, E.R.; Pauli, J.R.; Prada, P.; Cintra, D.E.; Rocha, G.Z.; Moraes, J.C.; Frederico, M.J.; da Luz, G.; Pinho, R.A.; Carvalheira, J.B.; et al. Inhibition of hypothalamic foxo1 expression reduced food intake in diet-induced obesity rats. J. Physiol. 2009, 587, 2341–2351. [Google Scholar] [CrossRef] [PubMed]
  53. Auguste, G.; Gurha, P.; Lombardi, R.; Coarfa, C.; Willerson, J.T.; Marian, A.J. Suppression of activated foxo transcription factors in the heart prolongs survival in a mouse model of laminopathies. Circ. Res. 2018, 122, 678–692. [Google Scholar] [CrossRef] [PubMed]
  54. Miao, C.; Li, Y.; Zhang, X. The functions of foxo transcription factors in epithelial wound healing. Australasian J. Dermatol. 2019, 60, 105–109. [Google Scholar]
  55. O’Neill, B.T.; Bhardwaj, G.; Penniman, C.M.; Krumpoch, M.T.; Suarez Beltran, P.A.; Klaus, K.; Poro, K.; Li, M.; Pan, H.; Dreyfuss, J.M.; et al. Foxo transcription factors are critical regulators of diabetes-related muscle atrophy. Diabetes 2019, 68, 556–570. [Google Scholar] [CrossRef]
  56. Roupe, K.M.; Veerla, S.; Olson, J.; Stone, E.L.; Sorensen, O.E.; Hedrick, S.M.; Nizet, V. Transcription factor binding site analysis identifies foxo transcription factors as regulators of the cutaneous wound healing process. PLoS ONE 2014, 9, e89274. [Google Scholar] [CrossRef]
  57. Stitt, T.N.; Drujan, D.; Clarke, B.A.; Panaro, F.; Timofeyva, Y.; Kline, W.O.; Gonzalez, M.; Yancopoulos, G.D.; Glass, D.J. The igf-1/pi3k/akt pathway prevents expression of muscle atrophy-induced ubiquitin ligases by inhibiting foxo transcription factors. Mol. Cell 2004, 14, 395–403. [Google Scholar] [CrossRef]
  58. Wang, Y.; Zhou, Y.; Graves, D.T. Foxo transcription factors: Their clinical significance and regulation. BioMed Res. Int. 2014, 2014, 925350. [Google Scholar] [CrossRef]
  59. Nagashima, T.; Shigematsu, N.; Maruki, R.; Urano, Y.; Tanaka, H.; Shimaya, A.; Shimokawa, T.; Shibasaki, M. Discovery of novel forkhead box o1 inhibitors for treating type 2 diabetes: Improvement of fasting glycemia in diabetic db/db mice. Mol. Pharmacol. 2010, 78, 961–970. [Google Scholar] [CrossRef]
  60. Zou, P.; Liu, L.; Zheng, L.; Liu, L.; Stoneman, R.E.; Cho, A.; Emery, A.; Gilbert, E.R.; Cheng, Z. Targeting foxo1 with as1842856 suppresses adipogenesis. Cell Cycle 2014, 13, 3759–3767. [Google Scholar] [CrossRef]
  61. Tanaka, H.; Nagashima, T.; Shimaya, A.; Urano, Y.; Shimokawa, T.; Shibasaki, M. Effects of the novel foxo1 inhibitor as1708727 on plasma glucose and triglyceride levels in diabetic db/db mice. Eur. J. Pharmacol. 2010, 645, 185–191. [Google Scholar] [CrossRef] [PubMed]
  62. Johansson, A.; Petersson, M.; Fredenwall, M. Discovery of novel FOXO1 inhibitors for the treatment of diabetes. In Proceedings of the 258th ACS National Meeting & Exposition, San Diego, CA, USA, 25–29 August 2019. [Google Scholar]
Figure 1. Regulation of FOXO1 transcription activity. (A) FOXO1 binds to the promoters of target genes and stimulates their transcription in nucleus. (B) The complex structure of the FOXO1 protein and its target-binding DNA (Protein Data Bank id: 3CO6). (C) The post-translational modifications of the FOXO1 protein. (D) Methylations on the FoxO1 mRNA regulate its expression. This figure was created with UCSF Chimera [29] and BioRender.com.
Figure 1. Regulation of FOXO1 transcription activity. (A) FOXO1 binds to the promoters of target genes and stimulates their transcription in nucleus. (B) The complex structure of the FOXO1 protein and its target-binding DNA (Protein Data Bank id: 3CO6). (C) The post-translational modifications of the FOXO1 protein. (D) Methylations on the FoxO1 mRNA regulate its expression. This figure was created with UCSF Chimera [29] and BioRender.com.
Cells 09 00184 g001

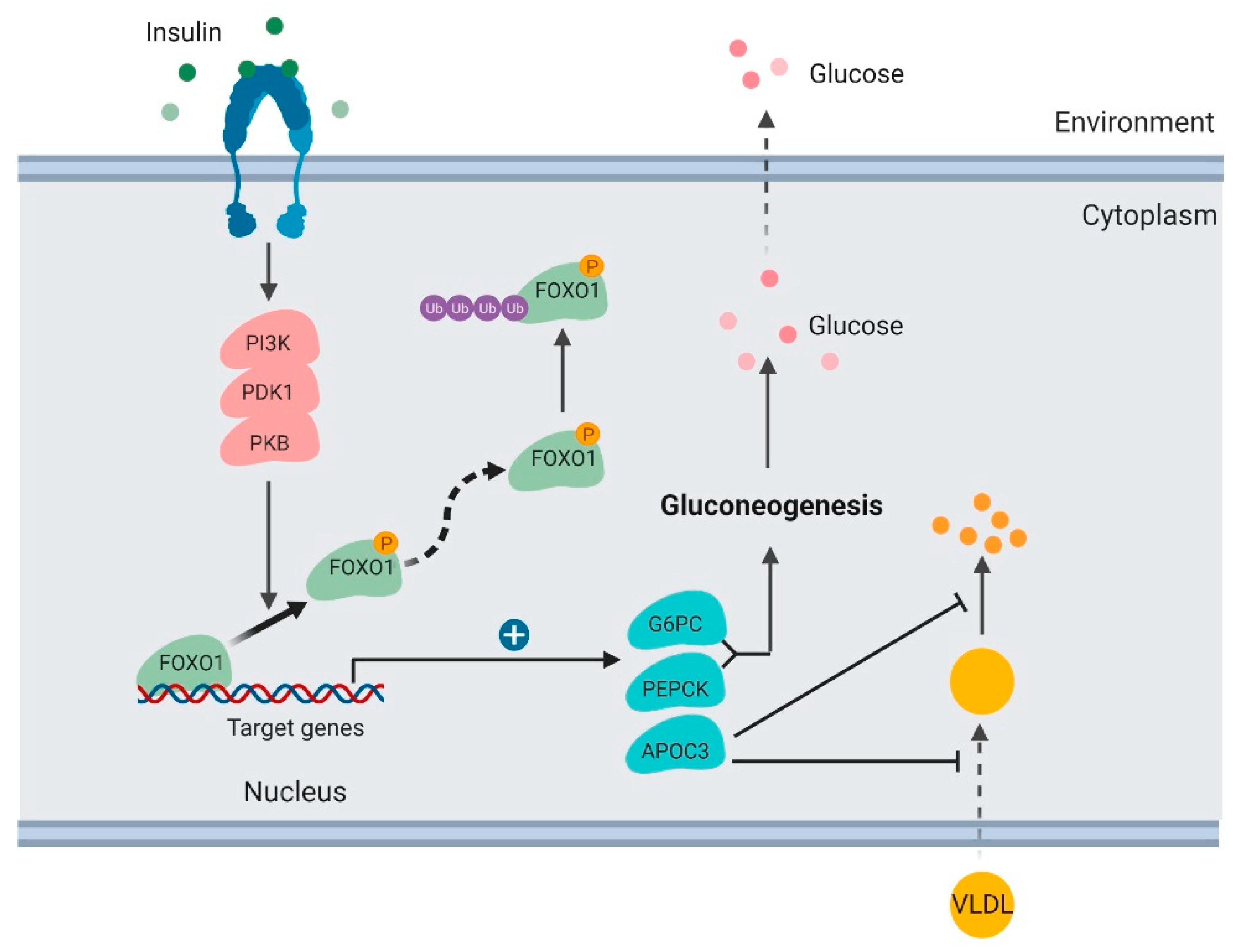

Figure 2. Regulation of glucose production and lipoprotein uptake by FOXO1 in the liver (created with BioRender.com).
Figure 2. Regulation of glucose production and lipoprotein uptake by FOXO1 in the liver (created with BioRender.com).
Cells 09 00184 g002

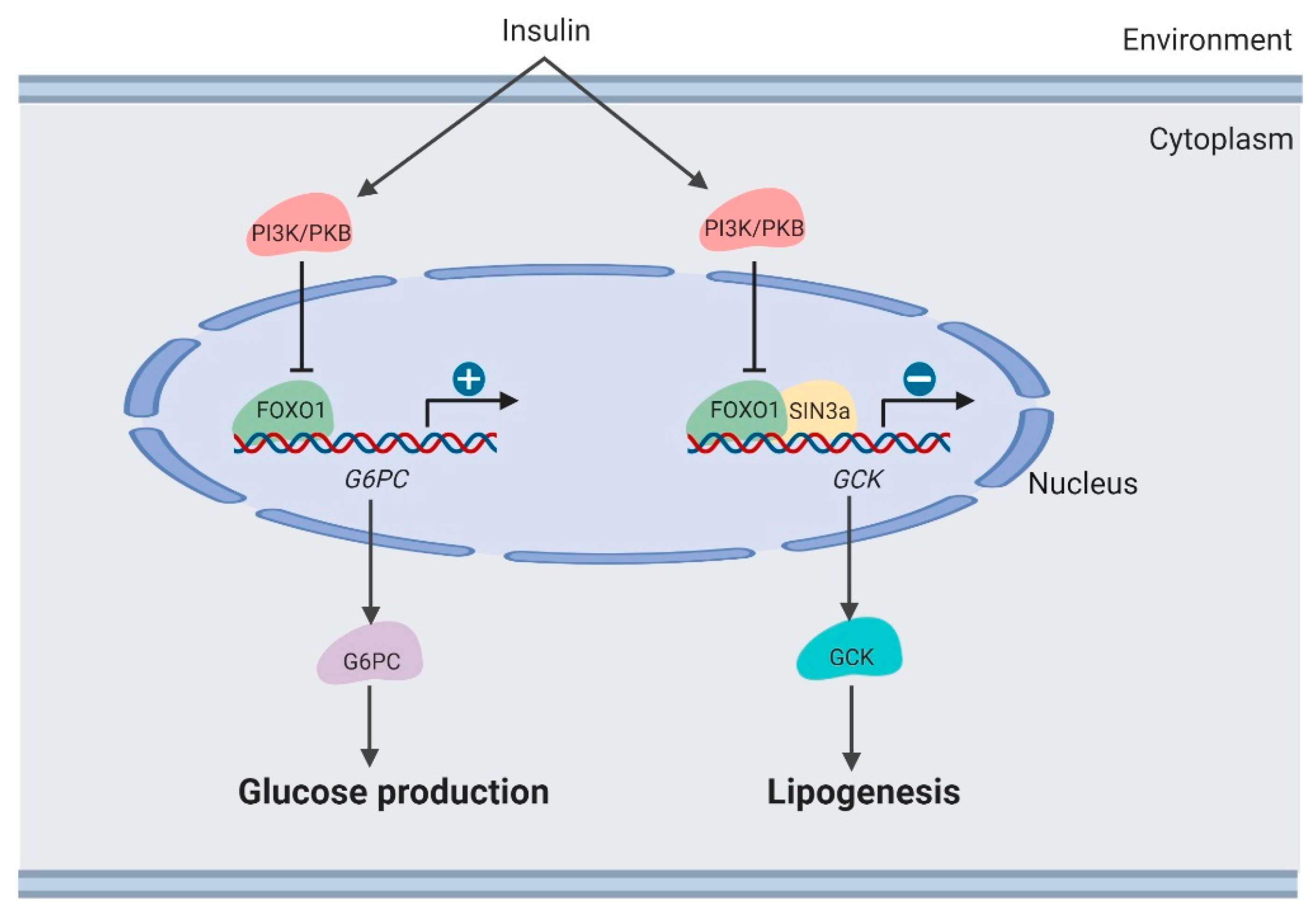

Figure 3. Regulation of lipogenesis by FOXO1 in the liver (created with BioRender.com).
Figure 3. Regulation of lipogenesis by FOXO1 in the liver (created with BioRender.com).
Cells 09 00184 g003

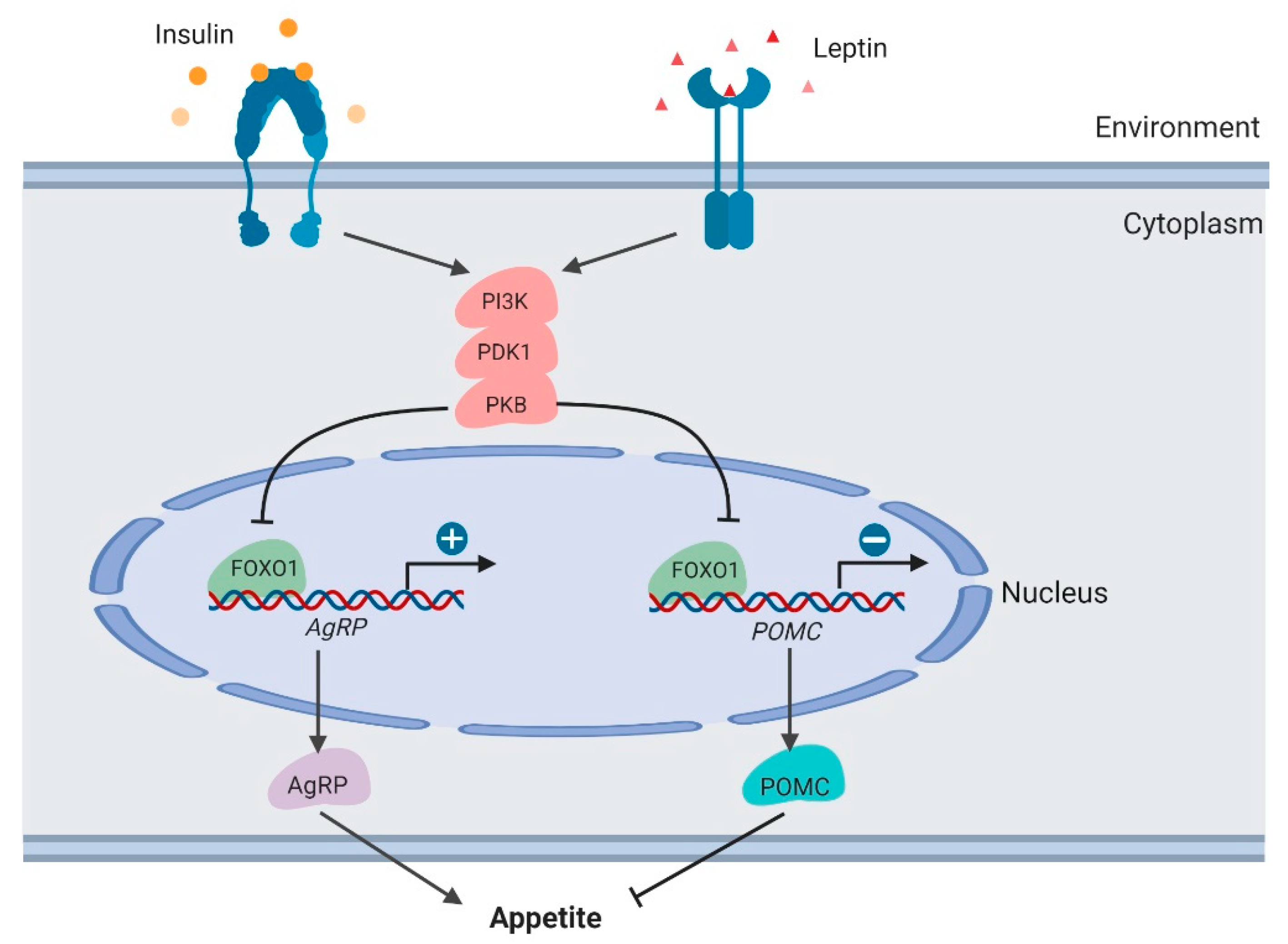

Figure 4. Regulation of appetite by FOXO1 in the hypothalamus (created with BioRender.com).
Figure 4. Regulation of appetite by FOXO1 in the hypothalamus (created with BioRender.com).
Cells 09 00184 g004

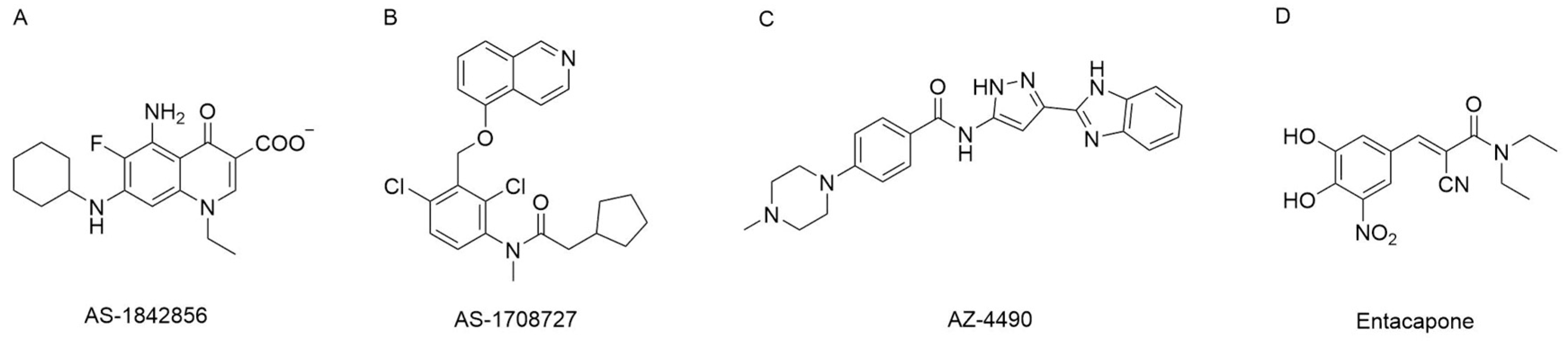

Figure 5. Inhibitors of the FOXO1 protein and FOXO1 pathway. (A,B) Inhibitors of the FOXO1 protein. (C) Inhibitors of FoxO1-dependent glucose production without enhancing lipogenesis. (D) Entacapone suppressing FOXO1 protein expression through inhibiting fat mass and obesity-associated protein (FTO) enzymatic activity.
Figure 5. Inhibitors of the FOXO1 protein and FOXO1 pathway. (A,B) Inhibitors of the FOXO1 protein. (C) Inhibitors of FoxO1-dependent glucose production without enhancing lipogenesis. (D) Entacapone suppressing FOXO1 protein expression through inhibiting fat mass and obesity-associated protein (FTO) enzymatic activity.
Cells 09 00184 g005

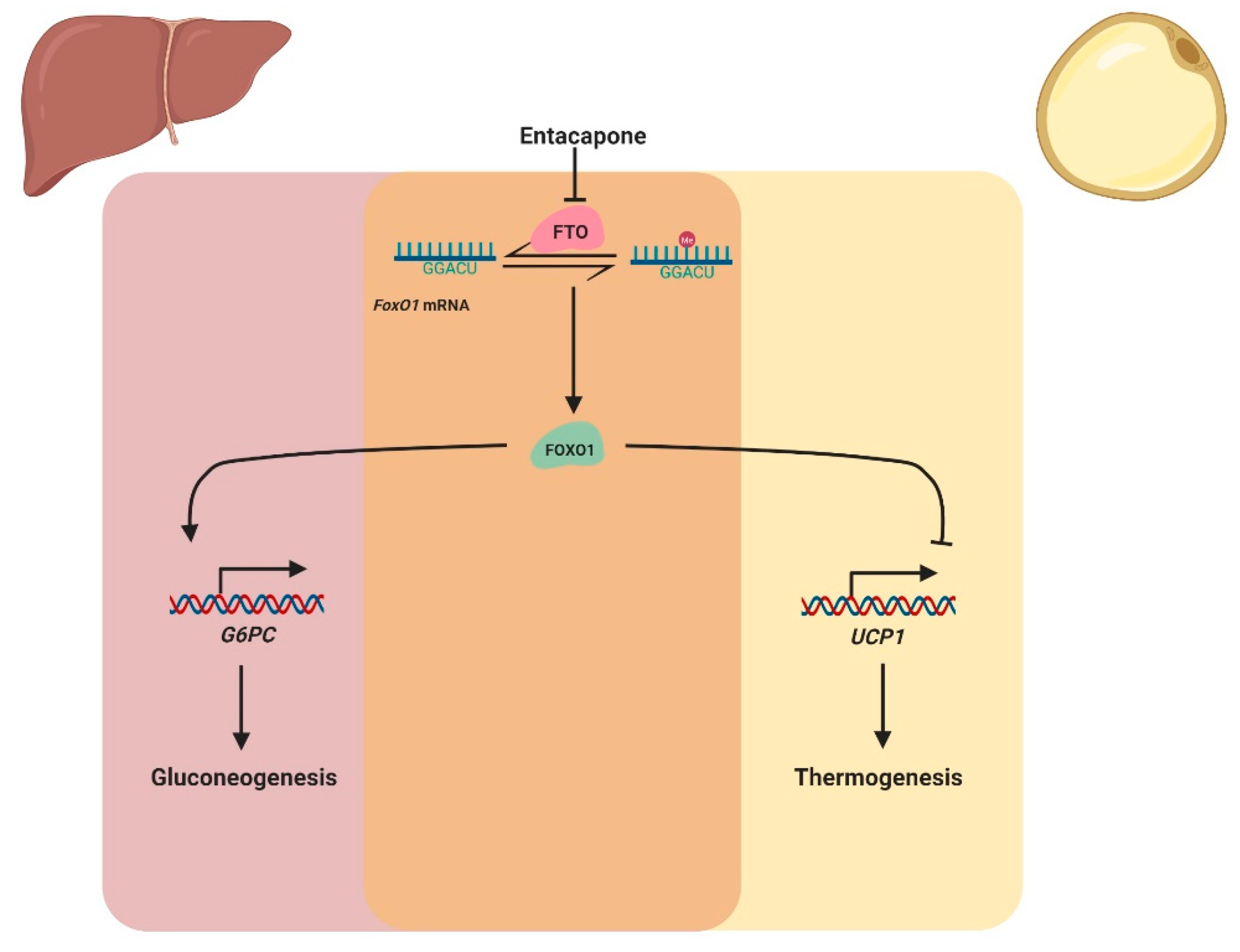

Figure 6. Entacapone suppresses gluconeogenesis in the liver and increases thermogenesis in adipocytes through reducing FOXO1 expression (created with BioRender.com).
Figure 6. Entacapone suppresses gluconeogenesis in the liver and increases thermogenesis in adipocytes through reducing FOXO1 expression (created with BioRender.com).
Cells 09 00184 g006
