Review

Structural Biology and Electron Microscopy of the Autophagy Molecular Machinery

by
Louis Tung Faat Lai
1,†,
Hao Ye
1,†,
Wenxin Zhang
1,†,
Liwen Jiang
1,2 and
Wilson Chun Yu Lau
1,*
1
School of Life Sciences, Centre for Cell and Developmental Biology and State Key Laboratory of Agrobiotechnology, The Chinese University of Hong Kong, Shatin, New Territories, Hong Kong, China
2
CUHK Shenzhen Research Institute, The Chinese University of Hong Kong, Shenzhen 518057, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Cells 2019, 8(12), 1627; https://doi.org/10.3390/cells8121627
Submission received: 12 November 2019 / Revised: 6 December 2019 / Accepted: 10 December 2019 / Published: 12 December 2019
(This article belongs to the Special Issue Advances in the Plant Autophagy)
Browse Figure
Versions Notes

Abstract

:
Autophagy is a highly regulated bulk degradation process that plays a key role in the maintenance of cellular homeostasis. During autophagy, a double membrane-bound compartment termed the autophagosome is formed through de novo nucleation and assembly of membrane sources to engulf unwanted cytoplasmic components and targets them to the lysosome or vacuole for degradation. Central to this process are the autophagy-related (ATG) proteins, which play a critical role in plant fitness, immunity, and environmental stress response. Over the past few years, cryo-electron microscopy (cryo-EM) and single-particle analysis has matured into a powerful and versatile technique for the structural determination of protein complexes at high resolution and has contributed greatly to our current understanding of the molecular mechanisms underlying autophagosome biogenesis. Here we describe the plant-specific ATG proteins and summarize recent structural and mechanistic studies on the protein machinery involved in autophagy initiation with an emphasis on those by single-particle analysis.

1. Introduction

Macroautophagy (henceforth known as autophagy) is an evolutionarily conserved eukaryotic “self-eating” process for the degradation of damaged proteins and organelles, protein aggregates, and invading pathogens [1,2,3]. Due to its vital role in nutrient recycling and the maintenance of cellular homeostasis, deregulation of autophagy has been tightly linked to the pathogenesis of a variety of human diseases including cancer, neurodegenerative disorders, and metabolic diseases. In plants, autophagy is essential for growth and development, immunity, as well as cellular responses to biotic and abiotic stresses [4,5,6]. Unlike animals, plants as sessile organisms rely on autophagy to confer tolerance and survival from various unfavorable environmental conditions including climate change and pollution. Impairment in plant autophagy is associated with early leaf senescence, hypersensitivity to nitrogen starvation, and reduced crop yield. During autophagy, a double membrane-bounded vesicle, termed the autophagosome, is formed to engulf unwanted cytoplasmic materials and subsequently fuses with the lysosome/vacuole leading to the degradation of the engulfed cargos [7]. Upon autophagy initiation, an isolated membrane known as the phagophore is formed at diverse membrane sites such as endoplasmic reticulum (ER) subdomains, mitochondria-ER contact sites, the ER-Golgi intermediate compartments, the plasma membrane, and Golgi apparatus [8,9,10,11,12]. Then, the phagophore expands into a cup-shaped structure through the acquisition of lipids and eventually seals to complete the formation of the autophagosome. Being a highly dynamic process, autophagosome biogenesis can be divided into four stages including initiation, nucleation, expansion, and maturation [13,14], all of which are highly dependent on and tightly regulated by a dedicated set of protein machineries known as the autophagy-related (Atg/ATG) proteins (denoted by the letters Atg and ATG in yeast and mammals/plants, respectively). Most of the core ATG genes are conserved from yeast to plants to humans, and together they consist of six distinct functional groups: the ATG1 kinase complex, the class III phosphoinositide 3-kinase (PI3K) complex, the transmembrane protein ATG9, the ATG2-ATG18 complex, as well as proteins belonging to the ATG8- and ATG12-conjugation systems [15,16,17]. Compared to their yeast and mammalian counterparts, plants contain some additional homologs or plant-specific components, the function of which remain to be explored [18,19,20,21,22,23]. It is noteworthy that biochemical, structural, and functional studies of plant ATG proteins are severely hampered by the difficulty in protein production, a challenge often encountered when working in plant proteins in general [24]. There exists several technologies dedicated to producing proteins in plants, including the Agrobacterium-mediated transient gene expression [24], chloroplast transformation [25], and stable transformation that integrates foreign genes into the plant nuclear genome [26]. Unfortunately, both the transient expression and the chloroplast transformation are of only limited use at present owing to the inability to either express proteins of large size or in sufficient quantity, which is particularly important for structural studies. The long time frame required for generating stable transgenic plants also renders this approach impractical for in vitro applications. As a result, large-scale production of plant proteins today still largely relies on heterologous expression in bacteria, yeast, and mammalian cells.
The goal of structural biology is to determine the three-dimensional (3D) arrangement of molecules in order to understand the protein chemistry at the atomic level. This provides indispensable information for dissecting the detailed molecular mechanism of a biological process. Until now, X-ray crystallography has been tremendously successful in the structural biology field, where more than 85% of structures deposited in the Protein Data Bank were determined by X-ray crystallography. Provided that the protein of interest can be crystallized, structures at atomic resolution can be routinely obtained by this technique, regardless of the size and complexity of the protein. However, generating protein crystals is notoriously difficult, especially for integral membrane proteins and multi-subunit protein complexes, contributing to a bottleneck for structure determination of these types of proteins [27,28,29]. Still, structural investigation of autophagy machinery has progressed for more than a decade, and most of the structures were predominantly determined by X-ray crystallography (Table 1) [30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60,61,62,63,64,65,66,67,68,69,70,71,72,73,74]. In recent years, single-particle analysis and cryo-electron microscopy (cryo-EM) have attracted considerable attention in the field, and they have matured into robust methods for solving structures at high resolution without the need for crystallization. Moreover, proteins with different compositional and conformational heterogeneity can be studied by cryo-EM [75], which is suitable for studying protein complexes with dynamic and intrinsically disordered properties such as ATG proteins.
Despite extensive research over the past decades, our knowledge on the underlying molecular mechanisms of autophagosome biogenesis remains far from complete [76,77]. Recent studies using single-particle electron microscopy (EM) has contributed remarkable progress in the structural elucidation of several ATG proteins [46,67,73,78,79]. Here we focus on the structural biology aspect of the autophagosome biogenesis with emphasis on studies by single-particle EM and discussed the structure-function relationship of the core ATG proteins involved in autophagy initiation.

2. The ULK1/ATG1 Complex

Activation of the ULK1/ATG1 complex is considered to be first step of autophagosome biogenesis and is directly regulated by the nutrition sensing machineries TOR complex [80] and AMPK complex [81,82]. Induced by starvation, autophagy signals are initially transmitted to the ULK1/ATG1 kinase complex, which is responsible for the recruitment of downstream regulators. While the assembly of the budding yeast Atg1 complex appears to be regulated by the TOR signaling pathway, the mammalian ULK1 complex is a stable complex regardless of nutritional status [83,84]. The human ULK1 complex consists of the ULK1 protein kinase, the FAK family kinase interacting protein of 200 kDa (FIP200), and the Hop/Rev7/Mad2 (HORMA) domain-containing proteins ATG13 and ATG101 (Figure 1). While ULK1 and ATG13 have orthologs in the yeast Atg1 complex, four ATG1 and two ATG13 paralogs have been found in Arabidopsis (Table 2) [17,20,32,47,56,74,77,85,86,87,88,89,90,91,92,93,94]. Furthermore, multiple canonical ATG1 loci have been identified by scanning the available plant genome sequences, including three in maize (Zea mays), four in poplar (Populus trichocarpa), and two each in rice (Oryza sativa), suggesting that ATG1 proteins are widely distributed throughout the plant kingdom and may have functional redundancy. Plants typically have more than one ATG13, phenotypical analysis to Arabidopsis atg13a/b mutant plants suggests ATG13a and ATG13b have redundant functions in autophagy. Like ATG1, orthologs of ATG13 have been found in a number of angiosperms. The yeast scaffolding protein Atg17 is predicted to function as FIP200 in mammals [95], but the budding yeast Saccharomyces cerevisiae possesses no Atg101 and its Atg1 complex subunits Atg29 and Atg31 have no orthologs in mammals [96,97]. In Arabidopsis, ATG17 and ATG101 have been identified, but how they function as regulatory and/or scaffolding subunits is largely unknown and awaits future investigation [98].
According to previous studies using X-ray crystallography, the yeast Atg17-Atg31-Atg29 trimer forms a crescent-shaped stable complex with stochiometric ratio of 2:2:2 [30]. The Atg17 monomer is composed of four α-helices folded in a crescent coiled-coil with a length of 194 Å and curvature of ≈100 Å in radius. Atg31 is comprised of N-terminal β-sheets sandwiching a β-strand of Atg29, and a C-terminal helix binding to Atg17, bridging Atg17 and Atg29 in the trimer. Atg17-Atg31-Atg29 further forms a dimeric complex in vitro [30,85]. Several possible forms of dimerization were observed in the crystal lattice, but only one form is in excellent agreement with the structural coordinates calculated from experimental solution small-angle X-ray scattering data. This dimeric form was later on supported by an independent negative stain EM study, revealing that the dimeric Atg17-Atg31-Atg29 complex exhibits an S-shaped arrangement [32]. According to the crystal structure, dimerization is mediated via hydrophobic residues (Leu355, Ile358, Leu 359, Leu366, and Ile369) at the C-terminus of Atg17. Interestingly, two-dimensional (2D) EM analysis has revealed that the Atg17 alone displayed a variety of conformations, instead of exhibiting a stable S-shaped structure. Although Atg29 and Atg31 are not directly involved in Atg17 dimerization, the study has also revealed a potential regulatory role of Atg29 and Atg31 as their interactions with Atg17 constrain the flexibility of the Atg17 dimer and stabilize the S-shaped conformation. Unlike Atg17 that can fold into stable helical bundles, Atg1 and Atg13 possess an intrinsically disordered region (IDR), which hinders structural studies on the complete Atg1 pentameric complex using X-ray crystallography [33]. Nevertheless, the interactions of Atg13 with Atg1 and Atg17 have been revealed by two crystal structures published in 2014: the tandem microtubule interacting and transport (MIT) domains within the C-terminal region of Atg1 in complex with the minimal Atg1-binding domain MIM of Atg13 and Atg17-Atg29-Atg31 in complex with the minimal Atg17-binding region (17BR) of Atg13 [33]. Consistent with these crystal structures, subsequent single-particle EM and crosslinking coupled with mass spectrometry studies also supported the binding of the C-terminal regions of Atg1 and Atg13 to the distal ends of the crescent Atg17 in the Atg1 pentameric complex [35], and that Atg17 likely interacts with C-terminal Atg29 IDR and C-terminal Atg31 IDR, both of which are missing from the Atg17-Atg29-Atg31 crystal structure.
On the contrary to the yeast Atg1 complex, structural information of the intact ULK1 complex in mammals has remained unexplored until a recent study reported the EM analysis of the complex [46]. The FIP200 N-terminal domain (NTD) was found to be a dimer. It exhibits in a highly flexible C-shaped structure, with the N-termini at the tips and the C-termini at the center of the structure, observed under negative stain EM. The FIP200 NTD is also able to bind to ATG13-ATG101 and ULK1 via a FIP200 segment (443–450 aa) to ATG13 middle region (363–460 aa) (ATG 13 MR) and FIP200 (319–326 aa) to ULK1-EAT, respectively. The interactions of FIP200 NTD with ATG13-ATG101 and ULK1 further stabilize its C-shaped structure and reduce structural flexibility of the NTD. Furthermore, the ULK1 complex is a asymmetric complex with a FIP200 NTD:ATG13:ATG101:ULK1 ratio of 2:1:1:1, where ATG13-ATG101 and ULK1 were only found on one tip of the FIP200 NTD dimer. High-resolution structural analysis by cryo-EM has resolved the FIP200 NTD-ATG13 MR complex to 12–15 Å resolution. The resolution of the map was likely hindered by the conformational heterogeneity of FIP200 NTD, suggested by the fact that cryo-EM maps with different degrees of curvature were observed after 3D classification. Together with the crystallographic study of the FIP200 Claw domain, it is proposed that FIP200 both serves as a hub for ULK1 complex formation during autophagy initiation and binds to p62 to promote the recruitment of cargo to the isolation membrane during aggrephagy [44].
Other structures of the partial components of the ULK1/ATG1 complex has also been studied in the past decade, including the kinase ATG1/ULK1/2 and the ATG13-ATG101 complex. Among them, the ATG13-ATG101 is one of the complexes that has been extensively studied [34,41,43]. The ATG13-ATG101 complex in both fission yeast and mammal displays a conserved architecture with ATG13 and ATG101 in C-Mad2 and O-Mad2 conformations, respectively. The WF finger of the ATG101, which is required for recruiting downstream regulators including WIPI1 and ZFYVE1, folds from an open to a closed conformation upon the binding to ATG13 [41,42]. In addition, the interaction between ATG13 and ATG101 induces the conversion of a β-strand to α-helical structure within the ATG101 C-terminal region, which further mediates the recruitment of PI3KC3 complex by direct interaction [43].

3. The PI3KC3 Complex

Immediately downstream of the ATG1 complex is the tetrameric autophagy-specific class III phosphatidylinositol 3-kinase (PI3KC3) complex (Figure 1). Its main function is to produce phosphatidylinositol 3-phosphate (PI3P), which is the key phospholipid required for the recruitment of downstream autophagy machinery necessary to drive the expansion of the autophagosomal membrane [99,100,101]. In yeast and mammalian cells, there exist two different PI3KC3 complexes, PI3KC3-C1 and PI3KC3-C2 (Table 2). The PI3KC3-C1 complex is essential for autophagy nucleation, whereas the PI3KC3-C2 complex is involved in both autophagosomal membrane expansion and non-autophagic processes including Golgi-ER retrograde transport, endocytic trafficking, and endosome maturation. These two complexes share a common core consisting of the Vacuolar Protein Sorting 15 (VPS15, Vps15 in yeast), phosphatidylinositol 3-kinase catalytic subunit Vacuolar Protein Sorting 34 (VPS34, Vps34 in yeast), and Bcl2-interacting protein 1 (BECN1, Vps30/Atg6 in yeast), but are distinguished by a fourth component, ATG14L (Atg14 in yeast) for PI3KC3-C1 [102,103] and UV radiation resistance-associated gene protein (UVRAG, Vps38 in yeast) for PI3KC3-C2 [104,105]. Correspondingly, these subunits can be found in plants and are expected to function similarly as their orthologs in yeast and mammals. Notably, with the exception of Arabidopsis, ATG14 is commonly absent in other plants, suggesting that there may be alternative proteins to complement the function of ATG14 [5,106]. ULK1/ATG1 complex activates PI3KC3-C1 via phosphorylation of BECN1 at Ser15, increasing its activity in generating PI3P at the phagophore [87].
Although PI3KC3 has been extensively studied for many years, most structural studies have focused on individual domains, for example, the Vps15 WD repeat domain [107], VPS34 with inhibitors [58,65,66], Atg6/PECN1 BARA domain 155 [55], Beclin 1 CC domain [63], conformational flexibility within and between domains [108,109], as well as individual domains in complex with regulatory proteins such as the complex of the BECN1 BH3 domain and BCL2 homologs [59,60,61,62]. The first 3D structure of the intact human PI3KC3-C1 complex was solved by negative stain EM and provided a glimpse of the structure at low resolution, uncovering its V-shaped architecture [67]. Subsequently, the structure of the yeast PI3KC3-C2 complex was determined by X-ray crystallography to 4.4 Å resolution [56]. This structure exhibits an overall similar architecture to that of the C1 complex at low resolution. In this higher resolution structure, Vps15 contacts and restricts the activation loop of Vps34 to inhibit its activity. The Vps15 kinase domain is also likely in the inactive state since its long activation loop protrudes into the ATP binding site, thus preventing ATP binding. The two coiled-coils from both Vps30/Atg6 and Vps38 wind up into a heterodimer in a parallel manner. Together with the Vps15 WD domain, they form one arm of PI3KC3-C2. On the other side, the kinase domains and the helical domains from both Vps15, Vps34 and Vsp34 C2 domain interact in an antiparallel manner to form the other arm. The Vsp34 C2 domain is sandwiched in the center of the complex, and it acts as a hub engaging with all other subunits. This domain is also important for tight interaction between Vps15-Vps34. In addition, the authors proposed a model for the PI3KC3-C2 complex on the membranes with the tips contacting the lipids, with one arm via Vps34 and Vps15 and the other via the Vps30 β-α repeated, autophagy-specific (BARA) domain. In a later cryo-EM study, the structures of the human PI3KC3-C1 and -C2 complexes were determined at sub-nanometer resolution (≈9 Å) [70]. EM analysis of the human PI3KC3-C1 complex on lipid monolayers revealed that the complex also interacts with the membranes via the tips of the two arms similar to the yeast PI3KC3-C2 complex. One major difference is that the ATG14L CTD in the human PI3KC3-C1 complex contacts the membrane on one tip instead of Vps30 as proposed for the PI3KC3-C2 complex in yeast. Besides the intact complexes, structures of the human PI3KC3-C2 bound to the PI3KC3-C2 binding domain (PIKBD) of its endogenous inhibitor Rubicon [79] and the human PI3KC3-C1 bound to its positive regulator Nuclear Receptor Binding Factor 2 (NRBF2) [73] have also been recently determined by cryo-EM. Rubicon was found to bind to the BECN1 BARA domain, likely inhibiting the interaction of PI3KC3-C2 with the membrane. On the other hand, the binding site of NRBF2 was mapped to the base of the V-shaped complex, and NRBF2 binding promotes the transition to its active conformation whereby the highly dynamic VPS34 kinase domain is liberated from the Vps15 kinase domain and is positioned in a precise geometry to catalyze the phosphatidylinositol phosphorylation reaction on the membrane substrate.

4. The ATG2-ATG18/WIPI Complex

ATG2-ATG18/WD-repeat protein interacting with phosphoinositides (WIPI) axis is the downstream effector of PI3P produced by the PI3KC3 complex [110,111,112,113] (Figure 1). While there exists only one homolog for Atg2 and Atg18 in yeast, there are two ATG2 homologs in mammalian cells, ATG2A and ATG2B [114], as well as four ATG18 homologs, known as WIPI 1–4 [115,116] (Table 2). WIPI4 shows a stronger binding capacity with either ATG2A or ATG2B than the other three WIPIs [51]. The conserved aromatic H/YF motif within the C terminus of ATG2 is important for ATG2-WIPI complex formation. In addition to autophagosome formation, mammalian ATG2 is also crucial for regulating the morphology and dispersion of lipid droplets [114]. In plants, eight potential Atg18 proteins were revealed from the Arabidopsis genome by BLAST searches, named AtATG18a–AtATG18h [91]. So far, only ATG18a has been shown to be required for autophagosome formation in plants.
ATG2-WIPI/ATG18 localizes at the edge of phagophore and is required for the expansion of the phagophore [93,114,117,118]. The recruitment of ATG2-WIPI to phagophore, where PI3P is enriched, is mediated through the binding of two PI3P by the motifs in blades 5 and 6 of the seven-bladed β-propeller folded WIPI, as inferred from crystal structure of Hsv2 (a homolog of Atg18) [47,48,49,119,120]. Despite knowing that ATG2-WIPI functions at the ER-phagophore contact site, the exact role of ATG2-WIPI has remained a mystery for decades, until recent structural studies revealed that ATG2 possesses lipid-transfer properties [50,53]. ATG2 is the largest protein in ATG core machinery, consisting of ≈1600–2300 residues among eukaryotes and harboring the conserved Chorein_N, ATG_C, and ATG2_CAD domains [52]. Negative stain EM and domain labelling with MBP have uncovered that human ATG2A is a rod-like protein, with the N-terminal domain located at one end and the CAD domain located on the opposite end adjacent to WIPI4 [51,52]. As expected, the overall shape of yeast Atg2-Atg18 shares high similarity with the rod-shaped mammalian ATG2-WIPI complex, suggesting functional conservation of this complex across species. Besides, ATG2A alone can tether highly curved membrane at both ends without causing fusion of two membrane sources. It has been hypothesized that the CAD tip of ATG2 together with WIPI4 attached to the PI3P-enriched omegasome, while the N-terminal tip of ATG2 associates with another membrane source to facilitate lipid transfer for phagophore expansion. The flexible attachment of WIPI4 to ATG2A may facilitate its tethering to the omegasome. Strikingly, a recent crystallographic study has elucidated that the Atg2 N-terminal domain possesses a hydrophobic pocket, which can capture phosphatidylethanolamine (PE) molecules [50]. The structure strongly suggests that Atg2 mediates direct lipid transfer between two membrane sources, which is also confirmed by in vitro lipid transfer assay. In addition, a long internal cavity extended from the N-terminal domain to the opposite end of ATG2 is observed in the cryo-EM structure, giving rise to the possibility that lipid molecule is transferred from one end to another through this cavity of ATG2 [53]. Yet, high-resolution structural information about the remaining part of ATG2 is needed to fully elucidate the detailed mechanism of lipid transfer.

5. The Transmembrane Protein ATG9

ATG9 is the only integral transmembrane protein in the core ATG machinery (Figure 1; Table 2). ATG9 localizes to the TGN, late endosomes, and tubular-vesicular membrane clusters with a 30–60 nm diameter, termed the ATG9 vesicles/compartments [121,122,123,124]. Upon autophagy initiation, ATG9-vesicles/compartments are recruited and tethered to the phagophore assembly sites in yeast or the omegasomes in plants and mammals. ATG9/Atg9 is phosphorylated by ULK1/Atg1 and dynamically interacts with the autophagosomal membrane without being stably integrated into the autophagosome. The source of the membrane required for autophagosome biogenesis remains a long-standing question in the field of autophagy. ATG9 vesicles/compartments have been suggested to provide an essential membrane source for phagophore nucleation and expansion [124,125,126]. Nevertheless, the exact function of ATG9 is still largely elusive due to the lack of structural information about this protein. ATG9 is predicted to possess six transmembrane helices, and predominantly disordered N- and C- terminal regions facing the cytoplasm. In yeast, the Atg9-core domain lacking the N- and C-terminal regions has been shown to interact with Atg17 via the crescent-forming helix α4, which also harbors the Atg31-binding site (Table 2) [127]. Due to its transmembrane and intrinsically disordered nature, structural studies on ATG9 are notoriously challenging. Nevertheless, our group has successfully determined the structure of the trimeric Arabidopsis ATG9 by cryo-EM at 7.8 Å resolution, revealing the overall architecture and domain organization [73]. Although no atomic model is available for ATG9, we have generated the first putative model of the protein by integrating co-evolutionary information and homology modelling approaches. Our model provides structural information about the orientation of the six transmembrane helices, the N-terminal region and a large loop (middle loop) within the transmembrane core. Of note, the yeast Atg1 complex binds to the middle loop of Atg9 via Atg17 and possibly tethers the Atg9-vesicles in cells [127]. Thorough analysis of the SAXS data and revisiting the crystal lattice packing observed between two Lachancea thermotolerans Atg17-Atg31-Atg29 dimers suggests that the Atg1 pentamer is capable of forming tetramers in solution, potentially allowing for scaffolding of a cluster of Atg9-containing vesicles at the PAS for phagophore nucleation [36]. In addition, our structure reveals that ATG9 self-interacts with adjacent protomers via transmembrane and cytoplasmic regions, in contrast with the previous finding that the self-interaction of Atg9 is mediated solely via the cytoplasmic C-terminal regions [128]. Based on the 2D class averages of ATG9 cryo-EM images, flexible cytoplasmic regions are observed in both monomers and dimers, but are absent from trimers, suggesting that disordered cytoplasmic regions fold into an ordered structure upon trimerization. We speculate that the cytoplasmic regions of ATG9 protomers from opposing vesicles/compartments interact during autophagy, pulling them toward each other, and eventually result in membrane fusion, through a process which likely requires the help of additional regulators. In addition, ATG9 is known to be regulated by ULK1/Atg1 via phosphorylation at the cytoplasmic regions, which is important for both trafficking [129] and binding to ATG2-ATG18 [130]. Studying the conformational change of ATG9 upon phosphorylation will be crucial for unveiling its functional role in autophagy. Our model of ATG9 provides a framework for further biochemical and cell biological studies of ATG9 mutants to dissect the mechanistic relationship of ATG9 and ULK1/Atg1 and the ATG2-ATG18 complexes during phagophore initiation and nucleation.

6. Concluding Perspectives

High-resolution structural information is imperative for the detailed understanding of ATG proteins in regulating the initiation of autophagy. Extensive past studies in yeast and mammalian cells have been shaping the model of autophagosome formation at unprecedented details. However, in plants, knowledge of the mechanism of autophagy is still in its infancy. Furthermore, plants have a much higher diversity of ATG gene families and carry plant-specific homologs, further complicating the investigation of ATG complexes and derivation of a well-defined model for plant autophagosome biogenesis. Resolving the structure of the Arabidopsis ATG9 represents a milestone in the field of plant autophagy. Nevertheless, many questions remained to be addressed such as the functional significance of the ATG9 trimer, the mode of interaction with other ATG proteins, and the underlying regulatory mechanisms. Determining cryo-EM structures of ATG9 at higher resolution will certainly help to address these questions. Single-particle cryo-EM has revolutionized the field of structural biology and has become one of the most powerful and robust techniques for determining structures and studying the conformational dynamics of a wide variety of protein complexes. In addition, electron tomography has been recently applied to the study of intracellular processes in plants with spectacular success, enabling the visualization of unperturbed cellular ultrastructures including autophagosome-related tubules inside cells [20,131]. Undoubtedly, EM will continue to contribute rapidly to the field of autophagy and promises to bring groundbreaking advances in autophagy research in the forthcoming future.

Author Contributions

Writing—Original draft preparation (L.T.F.L., H.Y., W.Z., W.C.Y.L.); Writing—Review and Editing (W.C.Y.L., L.J.); Supervision (W.C.Y.L.).

Funding

This work was supported by grants from the Research Grants Council of Hong Kong (14105517 to W.C.Y.L.) and (C4011-14R, C4012-16E, C4002-17G and AoE/M-05/12 to LJ.), National Natural Science Foundation of China (31670179 and 91854201 to L.J.), CUHK Faculty Strategic Development funding (to L.J.) and Research Committee of CUHK Direct Grant for Research (4053182 to W.C.Y.L.).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mizushima, N.; Komatsu, M. Autophagy: Renovation of Cells and Tissues. Cell 2011, 147, 728–741. [Google Scholar] [CrossRef] [Green Version]
  2. Bento, C.F.; Renna, M.; Ghislat, G.; Puri, C.; Ashkenazi, A.; Vicinanza, M.; Menzies, F.M.; Rubinsztein, D.C. Mammalian Autophagy: How Does It Work? Annu. Rev. Biochem. 2016, 85, 685–713. [Google Scholar] [CrossRef]
  3. Wen, X.; Klionsky, D.J. An overview of macroautophagy in yeast. J. Mol. Biol. 2016, 428, 1681–1699. [Google Scholar] [CrossRef] [Green Version]
  4. Liu, Y.; Bassham, D.C. Autophagy: Pathways for Self-Eating in Plant Cells. Annu. Rev. Plant. Biol. 2012, 63, 215–237. [Google Scholar] [CrossRef] [Green Version]
  5. Bozhkov, P.V. Plant autophagy: Mechanisms and functions. J. Exp. Bot. 2018, 69, 1281–1285. [Google Scholar] [CrossRef] [Green Version]
  6. Janse van Rensburg, H.C.; Van den Ende, W.; Signorelli, S. Autophagy in Plants: Both a Puppet and a Puppet Master of Sugars. Front. Plant Sci. 2019, 10. [Google Scholar] [CrossRef] [Green Version]
  7. Noda, N.N.; Inagaki, F. Mechanisms of Autophagy. Annu. Rev. Biophys. 2015, 44, 101–122. [Google Scholar] [CrossRef]
  8. Axe, E.L.; Walker, S.A.; Manifava, M.; Chandra, P.; Roderick, H.L.; Habermann, A.; Griffiths, G.; Ktistakis, N.T. Autophagosome formation from membrane compartments enriched in phosphatidylinositol 3-phosphate and dynamically connected to the endoplasmic reticulum. J. Cell. Biol. 2008, 182, 685–701. [Google Scholar] [CrossRef] [Green Version]
  9. Hayashi-Nishino, M.; Fujita, N.; Noda, T.; Yamaguchi, A.; Yoshimori, T.; Yamamoto, A. A subdomain of the endoplasmic reticulum forms a cradle for autophagosome formation. Nat. Cell Biol. 2009, 11, 1433–1437. [Google Scholar] [CrossRef]
  10. Ravikumar, B.; Moreau, K.; Jahreiss, L.; Puri, C.; Rubinsztein, D.C. Plasma membrane contributes to the formation of pre-autophagosomal structures. Nat. Cell Biol. 2010, 12, 747–757. [Google Scholar] [CrossRef] [Green Version]
  11. Ge, L.; Melville, D.; Zhang, M.; Schekman, R. The ER-Golgi intermediate compartment is a key membrane source for the LC3 lipidation step of autophagosome biogenesis. Elife 2013, 2. [Google Scholar] [CrossRef]
  12. Hamasaki, M.; Furuta, N.; Matsuda, A.; Nezu, A.; Yamamoto, A.; Fujita, N.; Oomori, H.; Noda, T.; Haraguchi, T.; Hiraoka, Y.; et al. Autophagosomes form at ER-mitochondria contact sites. Nature 2013, 495, 389–393. [Google Scholar] [CrossRef]
  13. Xie, Z.P.; Klionsky, D.J. Autophagosome formation: Core machinery and adaptations. Nat. Cell Biol. 2007, 9, 1102–1109. [Google Scholar] [CrossRef]
  14. Gomez, R.E.; Joubes, J.; Valentin, N.; Batoko, H.; Satiat-Jeunemaitre, B.; Bernard, A. Lipids in membrane dynamics during autophagy in plants. J. Exp. Bot. 2018, 69, 1287–1299. [Google Scholar] [CrossRef]
  15. Feng, Y.C.; He, D.; Yao, Z.Y.; Klionsky, D.J. The machinery of macroautophagy. Cell Res. 2014, 24, 24–41. [Google Scholar] [CrossRef] [Green Version]
  16. Hurley, J.H.; Young, L.N. Mechanisms of Autophagy Initiation. Annu. Rev. Biochem. 2017, 86, 225–244. [Google Scholar] [CrossRef]
  17. Mizushima, N.; Yoshimori, T.; Ohsumi, Y. The Role of Atg Proteins in Autophagosome Formation. Annu. Rev. Cell Dev. Biol. 2011, 27, 107–132. [Google Scholar] [CrossRef]
  18. Soto-Burgos, J.; Zhuang, X.H.; Jiang, L.W.; Bassham, D.C. Dynamics of Autophagosome Formation. Plant. Physiol. 2018, 176, 219–229. [Google Scholar] [CrossRef] [Green Version]
  19. Suttangkakul, A.; Li, F.Q.; Chung, T.; Vierstra, R.D. The ATG1/ATG13 Protein Kinase Complex Is Both a Regulator and a Target of Autophagic Recycling in Arabidopsis. Plant. Cell 2011, 23, 3761–3779. [Google Scholar] [CrossRef] [Green Version]
  20. Zhuang, X.H.; Chung, K.P.; Cui, Y.; Lin, W.L.; Gao, C.J.; Kang, B.H.; Jiang, L.W. ATG9 regulates autophagosome progression from the endoplasmic reticulum in Arabidopsis. Proc. Natl. Acad. Sci. USA 2017, 114, E426–E435. [Google Scholar] [CrossRef] [Green Version]
  21. Zhuang, X.H.; Chung, K.P.; Luo, M.Q.; Jiang, L.W. Autophagosome Biogenesis and the Endoplasmic Reticulum: A Plant Perspective. Trends Plant. Sci. 2018, 23, 677–692. [Google Scholar] [CrossRef] [PubMed]
  22. Hu, S.; Ye, H.; Cui, Y.; Jiang, L. AtSec62 is critical for plant development and is involved in ER-phagy in Arabidopsis thaliana. J. Integr. Plant. Biol. 2019. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Cui, Y.; Zhuang, X.H.; Shen, J.B.; Gao, J.; Jiang, L. Organelle biogenesis and function in plants (in Chinese). Sci. Sin. Vitae 2019, 49, 1–16. [Google Scholar]
  24. Islam, M.R.; Kwak, J.W.; Lee, J.S.; Hong, S.W.; Khan, M.R.I.; Lee, Y.; Lee, Y.; Lee, S.W.; Hwang, I. Cost-effective production of tag-less recombinant protein in Nicotiana benthamiana. Plant. Biotechnol. J. 2019, 17, 1094–1105. [Google Scholar] [CrossRef] [Green Version]
  25. Staub, J.M.; Garcia, B.; Graves, J.; Hajdukiewicz, P.T.J.; Hunter, P.; Nehra, N.; Paradkar, V.; Schlittler, M.; Carroll, J.A.; Spatola, L.; et al. High-yield production of a human therapeutic protein in tobacco chloroplasts. Nat. Biotechnol. 2000, 18, 333–338. [Google Scholar] [CrossRef]
  26. Sohn, E.J.; Lee, Y.; Park, N.; Park, M.; Kim, N.H.; Park, S.; Min, K.; Gu, S.; Park, Y.; Song, J.; et al. Development of Plant-produced E2 Protein for Use as a Green Vaccine Against Classical Swine Fever Virus. J. Plant. Biol. 2018, 61, 241–252. [Google Scholar] [CrossRef]
  27. Fernandez-Leiro, R.; Scheres, S.H. Unravelling biological macromolecules with cryo-electron microscopy. Nature 2016, 537, 339–346. [Google Scholar] [CrossRef]
  28. Cheng, Y.F. Single-Particle Cryo-EM at Crystallographic Resolution. Cell 2015, 161, 450–457. [Google Scholar] [CrossRef] [Green Version]
  29. Merk, A.; Bartesaghi, A.; Banerjee, S.; Falconieri, V.; Rao, P.; Davis, M.I.; Pragani, R.; Boxer, M.B.; Earl, L.A.; Milne, J.L.S.; et al. Breaking Cryo-EM Resolution Barriers to Facilitate Drug Discovery. Cell 2016, 165, 1698–1707. [Google Scholar] [CrossRef] [Green Version]
  30. Ragusa, M.J.; Stanley, R.E.; Hurley, J.H. Architecture of the Atg17 Complex as a Scaffold for Autophagosome Biogenesis. Cell 2012, 151, 1501–1512. [Google Scholar] [CrossRef] [Green Version]
  31. Jao, C.C.; Ragusa, M.J.; Stanley, R.E.; Hurley, J.H. A HORMA domain in Atg13 mediates PI 3-kinase recruitment in autophagy. Proc. Natl. Acad. Sci. USA 2013, 110, 5486–5491. [Google Scholar] [CrossRef] [Green Version]
  32. Chew, L.H.; Setiaputra, D.; Klionsky, D.J.; Yip, C.K. Structural characterization of the Saccharomyces cerevisiae autophagy regulatory complex Atg17-Atg31-Atg29. Autophagy 2013, 9, 1467–1474. [Google Scholar] [CrossRef] [Green Version]
  33. Fujioka, Y.; Suzuki, S.W.; Yamamoto, H.; Kondo-Kakuta, C.; Kimura, Y.; Hirano, H.; Akada, R.; Inagaki, F.; Ohsumi, Y.; Noda, N.N. Structural basis of starvation-induced assembly of the autophagy initiation complex. Nat. Struct. Mol. Biol. 2014, 21, 513–521. [Google Scholar] [CrossRef]
  34. Suzuki, H.; Kaizuka, T.; Mizushima, N.; Noda, N.N. Structure of the Atg101-Atg13 complex reveals essential roles of Atg101 in autophagy initiation. Nat. Struct. Mo.L Biol. 2015, 22, 572–580. [Google Scholar] [CrossRef]
  35. Chew, L.H.; Lu, S.; Liu, X.; Li, F.K.; Yu, A.Y.; Klionsky, D.J.; Dong, M.Q.; Yip, C.K. Molecular interactions of the Saccharomyces cerevisiae Atg1 complex provide insights into assembly and regulatory mechanisms. Autophagy 2015, 11, 891–905. [Google Scholar] [CrossRef] [Green Version]
  36. Kofinger, J.; Ragusa, M.J.; Lee, I.H.; Hummer, G.; Hurley, J.H. Solution Structure of the Atg1 Complex: Implications for the Architecture of the Phagophore Assembly Site. Structure 2015, 23, 809–818. [Google Scholar] [CrossRef] [Green Version]
  37. Yamamoto, H.; Fujioka, Y.; Suzuki, S.W.; Noshiro, D.; Suzuki, H.; Kondo-Kakuta, C.; Kimura, Y.; Hirano, H.; Ando, T.; Noda, N.N.; et al. The Intrinsically Disordered Protein Atg13 Mediates Supramolecular Assembly of Autophagy Initiation Complexes. Dev. Cell 2016, 38, 86–99. [Google Scholar] [CrossRef] [Green Version]
  38. Nanji, T.; Liu, X.; Chew, L.H.; Li, F.K.; Biswas, M.; Yu, Z.Q.; Lu, S.; Dong, M.Q.; Du, L.L.; Klionsky, D.J.; et al. Conserved and unique features of the fission yeast core Atg1 complex. Autophagy 2017, 13, 2018–2027. [Google Scholar] [CrossRef]
  39. Lazarus, M.B.; Novotny, C.J.; Shokat, K.M. Structure of the Human Autophagy Initiating Kinase ULK1 in Complex with Potent Inhibitors. ACS Chem. Biol. 2015, 10, 257–261. [Google Scholar] [CrossRef] [Green Version]
  40. Lazarus, M.B.; Shokat, K.M. Discovery and structure of a new inhibitor scaffold of the autophagy initiating kinase ULK1. Bioorgan. Med. Chem. 2015, 23, 5483–5488. [Google Scholar] [CrossRef] [Green Version]
  41. Qi, S.Q.; Kim, D.J.; Stjepanovic, G.; Hurley, J.H. Structure of the Human Atg13-Atg101 HORMA Heterodimer: An Interaction Hub within the ULK1 Complex. Structure 2015, 23, 1848–1857. [Google Scholar] [CrossRef] [Green Version]
  42. Michel, M.; Schwarten, M.; Decker, C.; Nagel-Steger, L.; Willbold, D.; Weiergraber, O.H. The mammalian autophagy initiator complex contains 2 HORMA domain proteins. Autophagy 2015, 11, 2300–2308. [Google Scholar] [CrossRef] [Green Version]
  43. Kim, B.W.; Jin, Y.; Kim, J.; Kim, J.H.; Jung, J.; Kang, S.; Kim, I.Y.; Kim, J.; Cheong, H.; Song, H.K. The C-terminal region of ATG101 bridges ULK1 and PtdIns3K complex in autophagy initiation. Autophagy 2018, 14, 2104–2116. [Google Scholar] [CrossRef] [Green Version]
  44. Turco, E.; Witt, M.; Abert, C.; Bock-Bierbaum, T.; Su, M.Y.; Trapannone, R.; Sztacho, M.; Danieli, A.; Shi, X.; Zaffagnini, G.; et al. FIP200 Claw Domain Binding to p62 Promotes Autophagosome Formation at Ubiquitin Condensates. Mol. Cell 2019, 74, 330–346 e11. [Google Scholar] [CrossRef] [Green Version]
  45. Chaikuad, A.; Koschade, S.E.; Stolz, A.; Zivkovic, K.; Pohl, C.; Shaid, S.; Ren, H.; Lambert, L.J.; Cosford, N.D.P.; Brandts, C.H.; et al. Conservation of structure, function and inhibitor binding in UNC-51-like kinase 1 and 2 (ULK1/2). Biochem. J. 2019, 476, 875–887. [Google Scholar] [CrossRef]
  46. Shi, X.Y.; Adam, L.; Wang, C.; Young, L.N.; Youle, R.J. ULK complex organization in autophagy by a C-shaped FIP200 N-terminal domain dimer. BioRxiv 2019. [Google Scholar]
  47. Watanabe, Y.; Kobayashi, T.; Yamamoto, H.; Hoshida, H.; Akada, R.; Inagaki, F.; Ohsumi, Y.; Noda, N.N. Structure-based Analyses Reveal Distinct Binding Sites for Atg2 and Phosphoinositides in Atg18. J. Biol. Chem. 2012, 287, 31681–31690. [Google Scholar] [CrossRef] [Green Version]
  48. Baskaran, S.; Ragusa, M.J.; Boura, E.; Hurley, J.H. Two-Site Recognition of Phosphatidylinositol 3-Phosphate by PROPPINs in Autophagy. Mol. Cell 2012, 47, 339–348. [Google Scholar] [CrossRef] [Green Version]
  49. Krick, R.; Busse, R.A.; Scacioc, A.; Stephan, M.; Janshoff, A.; Thumm, M.; Kuhnel, K. Structural and functional characterization of the two phosphoinositide binding sites of PROPPINs, a beta-propeller protein family. Proc. Natl. Acad. Sci. USA 2012, 109, E2042–E2049. [Google Scholar] [CrossRef] [Green Version]
  50. Osawa, T.; Kotani, T.; Kawaoka, T.; Hirata, E.; Suzuki, K.; Nakatogawa, H.; Ohsumi, Y.; Noda, N.N. Atg2 mediates direct lipid transfer between membranes for autophagosome formation. Nat. Struct. Mol. Biol. 2019, 26, 281–288. [Google Scholar] [CrossRef]
  51. Zheng, J.X.; Li, Y.; Ding, Y.H.; Liu, J.J.; Zhang, M.J.; Dong, M.Q.; Wang, H.W.; Yu, L. Architecture of the ATG2B-WDR45 complex and an aromatic Y/HF motif crucial for complex formation. Autophagy 2017, 13, 1870–1883. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Chowdhury, S.; Otomo, C.; Leitner, A.; Ohashi, K.; Aebersold, R.; Lander, G.C.; Otomo, T. Insights into autophagosome biogenesis from structural and biochemical analyses of the ATG2A-WIPI4 complex. Proc. Natl. Acad. Sci. USA 2018, 115, E9792–E9801. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Valverde, D.P.; Yu, S.; Boggavarapu, V.; Kumar, N.; Lees, J.A.; Walz, T.; Reinisch, K.M.; Melia, T.J. ATG2 transports lipids to promote autophagosome biogenesis. J. Cell Biol. 2019, 218, 1787–1798. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Heenan, E.J.; Vanhooke, J.L.; Temple, B.R.; Betts, L.; Sondek, J.E.; Dohlman, H.G. Structure and Function of Vps15 in the Endosomal G Protein Signaling Pathway. Biochemistry 2009, 48, 6390–6401. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Noda, N.N.; Kobayashi, T.; Adachi, W.; Fujioka, Y.; Ohsumi, Y.; Inagaki, F. Structure of the Novel C-terminal Domain of Vacuolar Protein Sorting 30/Autophagy-related Protein 6 and Its Specific Role in Autophagy. J. Biol. Chem. 2012, 287, 16256–16266. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Rostislavleva, K.; Soler, N.; Ohashi, Y.; Zhang, L.; Pardon, E.; Burke, J.E.; Masson, G.R.; Johnson, C.; Steyaert, J.; Ktistakis, N.T.; et al. Structure and flexibility of the endosomal Vps34 complex reveals the basis of its function on membranes. Science 2015, 350, aac7365. [Google Scholar] [CrossRef] [Green Version]
  57. Ohashi, Y.; Soler, N.; Garcia Ortegon, M.; Zhang, L.; Kirsten, M.L.; Perisic, O.; Masson, G.R.; Burke, J.E.; Jakobi, A.J.; Apostolakis, A.A.; et al. Characterization of Atg38 and NRBF2, a fifth subunit of the autophagic Vps34/PIK3C3 complex. Autophagy 2016, 12, 2129–2144. [Google Scholar] [CrossRef]
  58. Miller, S.; Tavshanjian, B.; Oleksy, A.; Perisic, O.; Houseman, B.T.; Shokat, K.M.; Williams, R.L. Shaping Development of Autophagy Inhibitors with the Structure of the Lipid Kinase Vps34. Science 2010, 327, 1638–1642. [Google Scholar] [CrossRef]
  59. Oberstein, A.; Jeffrey, P.D.; Shi, Y.G. Crystal structure of the Bcl-X-L-beclin 1 peptide complex-Beclin 1 is a novel BH3-only protein. J. Biol. Chem. 2007, 282, 13123–13132. [Google Scholar] [CrossRef] [Green Version]
  60. Feng, W.; Huang, S.Y.; Wu, H.; Zhang, M.J. Molecular basis of Bcl-xL’s target recognition versatility revealed by the structure of Bcl-xL in complex with the BH3 domain of beclin-1. J. Mol. Biol. 2007, 372, 223–235. [Google Scholar] [CrossRef]
  61. Ku, B.; Woo, J.S.; Liang, C.; Lee, K.H.; Hong, H.S.; E, X.; Kim, K.S.; Jung, J.U.; Oh, B.H. Structural and biochemical bases for the inhibition of autophagy and apoptosis by viral BCL-2 of murine gamma-herpesvirus 68. PLoS Pathog. 2008, 4. [Google Scholar]
  62. Sinha, S.; Colbert, C.L.; Becker, N.; Wei, Y.; Levine, B. Molecular basis of the regulation of Beclin 1-dependent autophagy by the gamma-herpesvirus 68 Bcl-2 homolog M11. Autophagy 2008, 4, 989–997. [Google Scholar] [CrossRef] [PubMed]
  63. Li, X.; He, L.; Che, K.H.; Funderburk, S.F.; Pan, L.; Pan, N.; Zhang, M.; Yue, Z.; Zhao, Y. Imperfect interface of Beclin1 coiled-coil domain regulates homodimer and heterodimer formation with Atg14L and UVRAG. Nat. Commun. 2012, 3, 662. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Huang, W.; Choi, W.; Hu, W.; Mi, N.; Guo, Q.; Ma, M.; Liu, M.; Tian, Y.; Lu, P.; Wang, F.L.; et al. Crystal structure and biochemical analyses reveal Beclin 1 as a novel membrane binding protein. Cell Res. 2012, 22, 473–489. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Dowdle, W.E.; Nyfeler, B.; Murphy, L. Selective VPS34 inhibitor blocks autophagy and uncovers a role for NCOA4 in ferritin degradation and iron homeostasis in vivo. Mol. Biol. Cell 2014, 25. [Google Scholar] [CrossRef] [PubMed]
  66. Ronan, B.; Flamand, O.; Vescovi, L.; Dureuil, C.; Durand, L.; Fassy, F.; Bachelot, M.F.; Lamberton, A.; Mathieu, M.; Bertrand, T.; et al. A highly potent and selective Vps34 inhibitor alters vesicle trafficking and autophagy. Nat. Chem. Biol. 2014, 10, 1013. [Google Scholar] [CrossRef] [PubMed]
  67. Baskaran, S.; Carlson, L.A.; Stjepanovic, G.; Young, L.N.; Kim, D.J.; Grob, P.; Stanley, R.E.; Nogales, E.; Hurley, J.H. Architecture and Dynamics of the Autophagic Phosphatidylinositol 3-Kinase Complex. Elife 2014, 3. [Google Scholar] [CrossRef]
  68. Mei, Y.; Glover, K.; Su, M.F.; Sinha, S.C. Conformational flexibility of BECN1: Essential to its key role in autophagy and beyond. Protein Sci. 2016, 25, 1767–1785. [Google Scholar] [CrossRef] [Green Version]
  69. Mei, Y.; Su, M.; Sanishvili, R.; Chakravarthy, S.; Colbert, C.L.; Sinha, S.C. Identification of BECN1 and ATG14 Coiled-Coil Interface Residues That Are Important for Starvation-Induced Autophagy. Biochemistry 2016, 55, 4239–4253. [Google Scholar] [CrossRef] [Green Version]
  70. Young, L.N.; Cho, K.; Lawrence, R.; Zoncu, R.; Hurley, J.H. Dynamics and architecture of the NRBF2-containing phosphatidylinositol 3-kinase complex I of autophagy. Proc. Natl. Acad. Sci. USA 2016, 113, 8224–8229. [Google Scholar] [CrossRef] [Green Version]
  71. Ma, M.; Liu, J.J.; Li, Y.; Huang, Y.; Ta, N.; Chen, Y.; Fu, H.; Ye, M.D.; Ding, Y.; Huang, W.; et al. Cryo-EM structure and biochemical analysis reveal the basis of the functional difference between human PI3KC3-C1 and -C2. Cell Res. 2017, 27, 989–1001. [Google Scholar] [CrossRef] [PubMed]
  72. Wu, S.; He, Y.; Qiu, X.; Yang, W.; Liu, W.; Li, X.; Li, Y.; Shen, H.M.; Wang, R.; Yue, Z.; et al. Targeting the potent Beclin 1-UVRAG coiled-coil interaction with designed peptides enhances autophagy and endolysosomal trafficking. Proc. Natl. Acad. Sci. USA 2018, 115, E5669–E5678. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Young, L.N.; Goerdeler, F.; Hurley, J.H. Structural pathway for allosteric activation of the autophagic PI 3-kinase complex I. Proc. Natl. Acad. Sci. USA 2019, 116, 21508–21513. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Lai, L.T.F.; Yu, C.; Wong, J.S.K.; Lo, H.S.; Benlekbir, S.; Jiang, L.; Lau, W.C.Y. Subnanometer resolution cryo-EM structure of Arabidopsis thaliana ATG9. Autophagy 2019, 1–9. [Google Scholar] [CrossRef] [PubMed]
  75. Scheres, S.H.W. Processing of Structurally Heterogeneous Cryo-EM Data in RELION. Method Enzymol. 2016, 579, 125–157. [Google Scholar]
  76. Hurley, J.H.; Nogales, E. Next-generation electron microscopy in autophagy research. Curr. Opin. Struc. Biol. 2016, 41, 211–216. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  77. Suzuki, H.; Osawa, T.; Fujioka, Y.; Noda, N.N. Structural biology of the core autophagy machinery. Curr. Opin. Struc. Biol. 2017, 43, 10–17. [Google Scholar] [CrossRef] [Green Version]
  78. Stjepanovic, G.; Baskaran, S.; Lin, M.G.; Hurley, J.H. Vps34 Kinase Domain Dynamics Regulate the Autophagic PI 3-Kinase Complex. Mol. Cell 2017, 67, 528–534. [Google Scholar] [CrossRef]
  79. Chang, C.M.; Young, L.N.; Morris, K.L.; von Bulow, S.; Schoneberg, J.; Yamamoto-Imoto, H.; Oe, Y.; Yamamoto, K.; Nakamura, S.; Stjepanovic, G.; et al. Bidirectional Control of Autophagy by BECN1 BARA Domain Dynamics. Mol. Cell 2019, 73, 339–356. [Google Scholar] [CrossRef] [Green Version]
  80. Kamada, Y.; Funakoshi, T.; Shintani, T.; Nagano, K.; Ohsumi, M.; Ohsumi, Y. Tor-mediated induction of autophagy via an Apg1 protein kinase complex. J. Cell Biol. 2000, 150, 1507–1513. [Google Scholar] [CrossRef] [Green Version]
  81. Kim, J.; Kundu, M.; Viollet, B.; Guan, K.L. AMPK and mTOR regulate autophagy through direct phosphorylation of Ulk1. Nat. Cell Biol. 2011, 13, 132–141. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  82. Egan, D.F.; Shackelford, D.B.; Mihaylova, M.M.; Gelino, S.; Kohnz, R.A.; Mair, W.; Vasquez, D.S.; Joshi, A.; Gwinn, D.M.; Taylor, R.; et al. Phosphorylation of ULK1 (hATG1) by AMP-Activated Protein Kinase Connects Energy Sensing to Mitophagy. Science 2011, 331, 456–461. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  83. Ganley, I.G.; Lam, D.H.; Wang, J.R.; Ding, X.J.; Chen, S.; Jiang, X.J. ULK1 center dot ATG13 center dot FIP200 Complex Mediates mTOR Signaling and Is Essential for Autophagy. J. Biol. Chem. 2009, 284, 12297–12305. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  84. Hosokawa, N.; Hara, T.; Kaizuka, T.; Kishi, C.; Takamura, A.; Miura, Y.; Iemura, S.; Natsume, T.; Takehana, K.; Yamada, N.; et al. Nutrient-dependent mTORC1 Association with the ULK1-Atg13-FIP200 Complex Required for Autophagy. Mol. Biol. Cell 2009, 20, 1981–1991. [Google Scholar] [CrossRef] [Green Version]
  85. Kabeya, Y.; Noda, N.N.; Fujioka, Y.; Suzuki, K.; Inagaki, F.; Ohsumi, Y. Characterization of the Atg17-Atg29-Atg31 complex specifically required for starvation-induced autophagy in Saccharomyces cerevisiae. Biochem. Bioph. Res. Commun. 2009, 389, 612–615. [Google Scholar] [CrossRef]
  86. Li, F.; Vierstra, R.D. Arabidopsis ATG11, a scaffold that links the ATG1-ATG13 kinase complex to general autophagy and selective mitophagy. Autophagy 2014, 10, 1466–1467. [Google Scholar] [CrossRef] [Green Version]
  87. Russell, R.C.; Tian, Y.; Yuan, H.; Park, H.W.; Chang, Y.Y.; Kim, J.; Kim, H.; Neufeld, T.P.; Dillin, A.; Guan, K.L. ULK1 induces autophagy by phosphorylating Beclin-1 and activating VPS34 lipid kinase. Nat. Cell. Biol. 2013, 15, 741–750. [Google Scholar] [CrossRef] [Green Version]
  88. Morris, D.H.; Yip, C.K.; Shi, Y.; Chait, B.T.; Wang, Q.J. Beclin 1-Vps34 Complex Architecture: Understanding the Nuts and Bolts of Therapeutic Targets. Front. Biol. (Beijing) 2015, 10, 398–426. [Google Scholar] [CrossRef] [Green Version]
  89. Suzuki, S.W.; Yamamoto, H.; Oikawa, Y.; Kondo-Kakuta, C.; Kimura, Y.; Hirano, H.; Ohsumi, Y. Atg13 HORMA domain recruits Atg9 vesicles during autophagosome formation. Proc. Natl. Acad. Sci. USA 2015, 112, 3350–3355. [Google Scholar] [CrossRef] [Green Version]
  90. Reggiori, F.; Tucker, K.A.; Stromhaug, P.E.; Klionsky, D.J. The Atg1-Atg13 complex regulates Atg9 and Atg23 retrieval transport from the pre-autophagosomal structure. Dev. Cell 2004, 6, 79–90. [Google Scholar] [CrossRef] [Green Version]
  91. Xiong, Y.; Contento, A.L.; Bassham, D.C. AtATG18a is required for the formation of autophagosomes during nutrient stress and senescence in Arabidopsis thaliana. Plant. J. 2005, 42, 535–546. [Google Scholar] [CrossRef] [PubMed]
  92. Kotani, T.; Kirisako, H.; Koizumi, M.; Ohsumi, Y.; Nakatogawa, H. The Atg2-Atg18 complex tethers pre-autophagosomal membranes to the endoplasmic reticulum for autophagosome formation. Proc. Natl. Acad. Sci. USA 2018, 115, 10363–10368. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  93. Gomez-Sanchez, R.; Rose, J.; Guimaraes, R.; Mari, M.; Papinski, D.; Rieter, E.; Geerts, W.J.; Hardenberg, R.; Kraft, C.; Ungermann, C.; et al. Atg9 establishes Atg2-dependent contact sites between the endoplasmic reticulum and phagophores. J. Cell Biol. 2018, 217, 2743–2763. [Google Scholar] [CrossRef] [PubMed]
  94. Shin, K.D.; Lee, H.N.; Chung, T. A Revised Assay for Monitoring Autophagic Flux in Arabidopsis thaliana Reveals Involvement of AUTOPHAGY-RELATED9 in Autophagy. Mol. Cells 2014, 37, 399–405. [Google Scholar] [CrossRef] [Green Version]
  95. Hara, T.; Mizushima, N. Role of ULK-FIP200 complex in mammalian autophagy FIP200, a counterpart of yeast Atg 17? Autophagy 2009, 5, 85–87. [Google Scholar] [CrossRef] [Green Version]
  96. Hosokawa, N.; Sasaki, T.; Iemura, S.; Natsume, T.; Hara, T.; Mizushima, N. Atg101, a novel mammalian autophagy protein interacting with Atg13. Autophagy 2009, 5, 973–979. [Google Scholar] [CrossRef] [Green Version]
  97. Noda, N.N.; Mizushima, N. Atg101: Not Just an Accessory Subunit in the Autophagy-initiation Complex. Cell Struct. Funct. 2016, 41, 13–20. [Google Scholar] [CrossRef] [Green Version]
  98. Young, P.G.; Passalacqua, M.J.; Chappell, K.; Llinas, R.J.; Bartel, B. A facile forward-genetic screen for Arabidopsis autophagy mutants reveals twenty-one loss-of-function mutations disrupting six ATG genes. Autophagy 2019, 15, 941–959. [Google Scholar] [CrossRef] [Green Version]
  99. Volinia, S.; Dhand, R.; Vanhaesebroeck, B.; Macdougall, L.; Stein, R.; Zvelebil, M.J.; Domin, J.; Panaretou, C.; Waterfield, M.D. Human Phosphatidylinositol 3-Kinase Complex Related to the Yeast Vps34p-Vps15p Protein Sorting System. Embo, J. 1995, 14, 3339–3348. [Google Scholar] [CrossRef]
  100. Stephens, L.; Smrcka, A.; Cooke, F.T.; Jackson, T.R.; Sternweis, P.C.; Hawkins, P.T. A Novel Phosphoinositide-3 Kinase-Activity in Myeloid-Derived Cells Is Activated by G-Protein Beta-Gamma-Subunits. Cell 1994, 77, 83–93. [Google Scholar] [CrossRef]
  101. Kihara, A.; Noda, T.; Ishihara, N.; Ohsumi, Y. Two distinct Vps34 phosphatidylinositol 3-kinase complexes function in autophagy and carboxypeptidase Y sorting in Saccharomyces cerevisiae. J. Cell Biol. 2001, 152, 519–530. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  102. Sun, Q.M.; Fan, W.L.; Chen, K.L.; Ding, X.J.; Chen, S.; Zhong, Q. Identification of Barkor as a mammalian autophagy-specific factor for Beclin 1 and class III phosphatidylinositol 3-kinase. Proc. Natl. Acad. Sci. USA 2008, 105, 19211–19216. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  103. Matsunaga, K.; Saitoh, T.; Tabata, K.; Omori, H.; Satoh, T.; Kurotori, N.; Maejima, I.; Shirahama-Noda, K.; Ichimura, T.; Isobe, T.; et al. Two Beclin 1-binding proteins, Atg14L and Rubicon, reciprocally regulate autophagy at different stages. Nat. Cell. Biol. 2009, 11, 385–396. [Google Scholar] [CrossRef] [PubMed]
  104. Liang, C.Y.; Lee, J.S.; Inn, K.S.; Gack, M.U.; Li, Q.L.; Roberts, E.A.; Vergne, I.; Deretic, V.; Feng, P.H.; Akazawa, C.; et al. Beclin1-binding UVRAG targets the class C Vps complex to coordinate autophagosome maturation and endocytic trafficking. Nat. Cell Biol. 2008, 10, 776–787. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  105. He, S.S.; Ni, D.J.; Ma, B.Y.; Lee, J.H.; Zhang, T.; Ghozalli, I.; Pirooz, S.D.; Zhao, Z.; Bharatham, N.; Li, B.H.; et al. PtdIns(3)P-bound UVRAG coordinates Golgi-ER retrograde and Atg9 transport by differential interactions with the ER tether and the beclin 1 complex. Nat. Cell. Biol. 2013, 15, 1206–1219. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  106. Kim, S.H.; Kwon, C.; Lee, J.H.; Chung, T. Genes for plant Autophagy: Functions and interactions. Mol. Cells 2012, 34, 413–423. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  107. Slessareva, J.E.; Routt, S.M.; Temple, B.; Bankaitis, V.A.; Dohlman, H.G. Activation of the phosphatidylinositol 3-kinase Vps34 by a G protein alpha subunit at the endosome. Cell 2006, 126, 191–203. [Google Scholar] [CrossRef] [Green Version]
  108. Mei, Y.; Su, M.F.; Soni, G.; Salem, S.; Colbert, C.L.; Sinha, S.C. Intrinsically disordered regions in autophagy proteins. Proteins 2014, 82, 565–578. [Google Scholar] [CrossRef] [Green Version]
  109. Glover, K.; Li, Y.; Mukhopadhyay, S.; Leuthner, Z.; Chakravarthy, S.; Colbert, C.L.; Sinha, S.C. Structural transitions in conserved, ordered Beclin 1 domains essential to regulating autophagy. J. Biol. Chem. 2017, 292, 16235–16248. [Google Scholar] [CrossRef] [Green Version]
  110. Nakatogawa, H.; Ichimura, Y.; Ohsumi, Y. Atg8, a ubiquitin-like protein required for autophagosome formation, mediates membrane tethering and hemifusion. Cell 2007, 130, 165–178. [Google Scholar] [CrossRef] [Green Version]
  111. Geng, J.F.; Klionsky, D.J. The Atg8 and Atg12 ubiquitin-like conjugation systems in macroautophagy. Embo Rep. 2008, 9, 859–864. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  112. Kaufmann, A.; Beier, V.; Franquelim, H.G.; Wollert, T. Molecular Mechanism of Autophagic Membrane-Scaffold Assembly and Disassembly. Cell 2014, 156, 469–481. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  113. Klionsky, D.J.; Schulman, B.A. Dynamic regulation of macroautophagy by distinctive ubiquitin-like proteins. Nat. Struct. Mol. Biol. 2014, 21, 336–345. [Google Scholar] [CrossRef] [PubMed]
  114. Velikkakath, A.K.G.; Nishimura, T.; Oita, E.; Ishihara, N.; Mizushima, N. Mammalian Atg2 proteins are essential for autophagosome formation and important for regulation of size and distribution of lipid droplets. Mol. Biol. Cell 2012, 23, 896–909. [Google Scholar] [CrossRef] [PubMed]
  115. Proikas-Cezanne, T.; Waddell, S.; Gaugel, A.; Frickey, T.; Lupas, A.; Nordheim, A. WIPI-1 alpha (WIPI49), a member of the novel 7-bladed WIPI protein family, is aberrantly expressed in human cancer and is linked to starvation-induced autophagy. Oncogene 2004, 23, 9314–9325. [Google Scholar] [CrossRef] [Green Version]
  116. Krick, R.; Henke, S.; Tolstrup, J.; Thumm, M. Dissecting the localization and function of Atg18, Atg21 and Ygr223c. Autophagy 2008, 4, 896–910. [Google Scholar] [CrossRef] [Green Version]
  117. Graef, M.; Friedman, J.R.; Graham, C.; Babu, M.; Nunnari, J. ER exit sites are physical and functional core autophagosome biogenesis components. Mol. Biol. Cell 2013, 24, 2918–2931. [Google Scholar] [CrossRef]
  118. Suzuki, K.; Akioka, M.; Kondo-Kakuta, C.; Yamamoto, H.; Ohsumi, Y. Fine mapping of autophagy-related proteins during autophagosome formation in Saccharomyces cerevisiae. J. Cell Sci. 2013, 126, 2534–2544. [Google Scholar] [CrossRef] [Green Version]
  119. Obara, K.; Sekito, T.; Niimi, K.; Ohsumi, Y. The Atg18-Atg2 complex is recruited to autophagic membranes via phosphatidylinositol 3-phosphate and exerts an essential function. J. Biol. Chem. 2008, 283, 23972–23980. [Google Scholar] [CrossRef] [Green Version]
  120. Baskaran, S.; Ragusa, M.J.; Hurley, J.H. How Atg18 and the WIPIs sense phosphatidylinositol 3-phosphate. Autophagy 2012, 8, 1851–1852. [Google Scholar] [CrossRef] [Green Version]
  121. Young, A.R.J.; Chan, E.Y.W.; Hu, X.W.; Koch, R.; Crawshaw, S.G.; High, S.; Hailey, D.W.; Lippincott-Schwartz, J.; Tooze, S.A. Starvation and ULK1-dependent cycling of mammalian Atg9 between the TGN and endosomes. J. Cell Sci. 2006, 119, 3888–3900. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  122. Mari, M.; Griffith, J.; Rieter, E.; Krishnappa, L.; Klionsky, D.J.; Reggiori, F. An Atg9-containing compartment that functions in the early steps of autophagosome biogenesis. J. Cell. Biol. 2010, 190, 1005–1022. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  123. Orsi, A.; Razi, M.; Dooley, H.C.; Robinson, D.; Weston, A.E.; Collinson, L.M.; Tooze, S.A. Dynamic and transient interactions of Atg9 with autophagosomes, but not membrane integration, are required for autophagy. Mol. Biol. Cell 2012, 23, 1860–1873. [Google Scholar] [CrossRef]
  124. Yamamoto, H.; Kakuta, S.; Watanabe, T.M.; Kitamura, A.; Sekito, T.; Kondo-Kakuta, C.; Ichikawa, R.; Kinjo, M.; Ohsumi, Y. Atg9 vesicles are an important membrane source during early steps of autophagosome formation. J. Cell Biol. 2012, 198, 219–233. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  125. Noda, T. Autophagy in the context of the cellular membrane-trafficking system: The enigma of Atg9 vesicles. Biochem. Soc. T. 2017, 45, 1323–1331. [Google Scholar] [CrossRef] [Green Version]
  126. Karanasios, E.; Walker, S.A.; Okkenhaug, H.; Manifava, M.; Hummel, E.; Zimmermann, H.; Ahmed, Q.; Domart, M.C.; Collinson, L.; Ktistakis, N.T. Autophagy initiation by ULK complex assembly on ER tubulovesicular regions marked by ATG9 vesicles. Nat. Commun. 2016, 7. [Google Scholar] [CrossRef]
  127. Rao, Y.J.; Perna, M.G.; Hofmann, B.; Beier, V.; Wollert, T. The Atg1-kinase complex tethers Atg9-vesicles to initiate autophagy. Nat. Commun. 2016, 7. [Google Scholar] [CrossRef]
  128. He, C.C.; Baba, M.; Cao, Y.; Klionsky, D.J. Self-Interaction Is Critical for Atg9 Transport and Function at the Phagophore Assembly Site during Autophagy. Mol. Biol. Cell 2008, 19, 5506–5516. [Google Scholar] [CrossRef] [Green Version]
  129. Zhou, C.Q.; Ma, K.L.; Gao, R.Z.; Mu, C.L.; Chen, L.B.; Liu, Q.Q.; Luo, Q.; Feng, D.; Zhu, Y.S.; Chen, Q. Regulation of mATG9 trafficking by Src- and ULK1-mediated phosphorylation in basal and starvation-induced autophagy. Cell Res. 2017, 27, 184–201. [Google Scholar] [CrossRef] [Green Version]
  130. Papinski, D.; Schuschnig, M.; Reiter, W.; Wilhelm, L.; Barnes, C.A.; Maiolica, A.; Hansmann, I.; Pfaffenwimmer, T.; Kijanska, M.; Stoffel, I.; et al. Early Steps in Autophagy Depend on Direct Phosphorylation of Atg9 by the Atg1 Kinase. Mol. Cell 2014, 53, 471–483. [Google Scholar] [CrossRef] [Green Version]
  131. Cui, Y.; Cao, W.H.; He, Y.L.; Zhao, Q.; Wakazaki, M.; Zhuang, X.H.; Gao, J.Y.; Zeng, Y.L.; Gao, C.J.; Ding, Y.; et al. A whole-cell electron tomography model of vacuole biogenesis in Arabidopsis root cells. Nat. Plants 2019, 5, 95–105. [Google Scholar] [CrossRef] [PubMed]
Cells 08 01627 g001 550

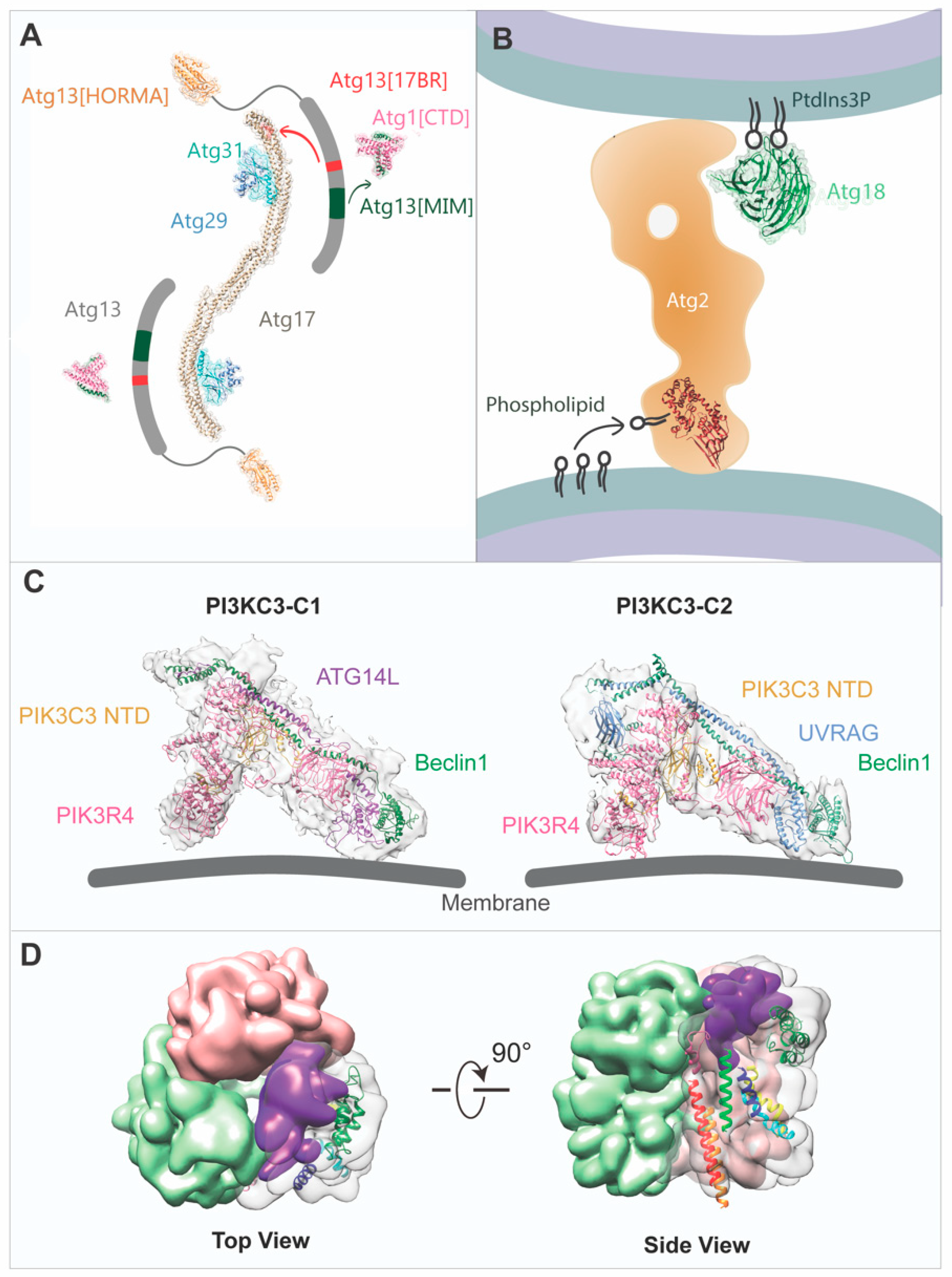

Figure 1. Models of ATG core machinery built from electron microscopy (EM) and crystallographic data. (A) Mapping of yeast Atg1 kinase complex formation. Atg13[CTD] (grey) links the Atg1[CTD] (PDB:4P1N, pink) to the Atg17-Atg31-Atg29 subcomplex (PDB: 4P1W, Atg17 in tan, Atg31 in cyan, Atg29 in blue). The Atg13 HORMA domain (orange, PDB: 4J2G) locates to the outward of the N terminus of Atg17. The MIM domain of Atg13 (shown in dark green) and the Atg17-binding region of Atg13 (shown in red) interact with Atg1[CTD] and Atg17, respectively. (B) Model of Atg2-18 complex for autophagosome formation. Crystal structures of the N-terminal region of Atg2 (PDB:6A9E, in red) and Atg18 (PDB:5LTD, in green) are fitted into the model. (C) Cryo-EM structures of PI3KC3-C1 (EMD-6785) and C2 (EMD-6787) docked with the built atomic model and yeast C2 model (PDB: 5DFZ, VPS34 CTD excluded), respectively. The atomic model of C1 generated from homology modelling of yeast VPS34, VPS15, VPS30, and ATG14 structures (PDB: 5DFZ) was fitted into the density map. (D) Surface view of Arabidopsis ATG9 trimer map (EMD-9681) with transmembrane helixes cytoplasmic regions docked into single protomer. The C-terminal region is colored in purple.
Figure 1. Models of ATG core machinery built from electron microscopy (EM) and crystallographic data. (A) Mapping of yeast Atg1 kinase complex formation. Atg13[CTD] (grey) links the Atg1[CTD] (PDB:4P1N, pink) to the Atg17-Atg31-Atg29 subcomplex (PDB: 4P1W, Atg17 in tan, Atg31 in cyan, Atg29 in blue). The Atg13 HORMA domain (orange, PDB: 4J2G) locates to the outward of the N terminus of Atg17. The MIM domain of Atg13 (shown in dark green) and the Atg17-binding region of Atg13 (shown in red) interact with Atg1[CTD] and Atg17, respectively. (B) Model of Atg2-18 complex for autophagosome formation. Crystal structures of the N-terminal region of Atg2 (PDB:6A9E, in red) and Atg18 (PDB:5LTD, in green) are fitted into the model. (C) Cryo-EM structures of PI3KC3-C1 (EMD-6785) and C2 (EMD-6787) docked with the built atomic model and yeast C2 model (PDB: 5DFZ, VPS34 CTD excluded), respectively. The atomic model of C1 generated from homology modelling of yeast VPS34, VPS15, VPS30, and ATG14 structures (PDB: 5DFZ) was fitted into the density map. (D) Surface view of Arabidopsis ATG9 trimer map (EMD-9681) with transmembrane helixes cytoplasmic regions docked into single protomer. The C-terminal region is colored in purple.
Cells 08 01627 g001
Table
Table 1. List of structures of the core autophagy-related (ATG) machinery involved in autophagy initiation determined by various structural biology techniques. Lt: Lachancea thermotolerans; Km: Kluyveromyces marxianus; Sp: Schizosaccharomyces pombe; Kl: Kluyveromyces lactis. Saccharmyces cerevisae are denoted as Yeast.
Table 1. List of structures of the core autophagy-related (ATG) machinery involved in autophagy initiation determined by various structural biology techniques. Lt: Lachancea thermotolerans; Km: Kluyveromyces marxianus; Sp: Schizosaccharomyces pombe; Kl: Kluyveromyces lactis. Saccharmyces cerevisae are denoted as Yeast.
ComplexComponentOriginMethodResolution (Å)YearReferences
ATG1 complexAtg17-Atg31-Atg29YeastX-ray3.052012[30]
Atg13 HORMAYeast (Lt)X-ray2.32013[31]
Atg17-Atg31-Atg29YeastNegative stain372013[32]
C-terminal region of Atg1(MIT)-ATG13MIMYeast (Km)X-ray2.22014[33]
Atg17-Atg29-Atg31-Atg13(17BR)Yeast (Lt)X-ray3.22014[33]
Atg101-Atg13Yeast (Sp)X-ray32015[34]
Atg1 complex (Atg17-Atg31-Atg29 and Atg17-Atg31-Atg29-Atg1[CTD]-Atg13[CTD])YeastNegative stain/2015[35]
Atg1-Atg13 and Atg17-Atg31-Atg29 subcomplexes and the Atg1 complexYeast (Kl)SAXS/2015[36]
Atg17–Atg29–Atg31-Atg13(17BR)-Atg13(17LR)Yeast (Lt)X-ray3.22016[37]
Atg17Yeast (Sp)Negative stain/2017[38]
Kinase domain of ULK1 with inhibitorMammalX-ray1.882015[39]
Kinase domain of ULK1 with inhibitorMammalX-ray1.742015[40]
ATG13 HORMA-ATG101 HORMAMammalX-ray2.22015[41]
ATG101MammalX-ray1.92015[42]
ATG101-ATG13HORMAMammalX-ray2.52018[43]
FIP200 CTRMammalX-ray3.22019[44]
Kinase domain of ULK2 with inhibitorMammalX-ray2.52019[45]
ULK1 complexMammalCryo-EM12-152019[46]
ATG2-18Hsv2 (ATG18 homolog)Yeast (Km)X-ray2.62012[47]
Hsv2 (ATG18 homolog)YeastX-ray32012[48]
Hsv2 (ATG18 homolog)Yeast (Kl)X-ray32012[49]
N-terminal domain of Atg2Yeast (Sp)X-ray3.22019[50]
ATG2B(human)-WDR45(rat)MammalNegative stain/2017[51]
ATG2A-WIPI4MammalNegative stain/2018[52]
ATG2AMammalCryo-EM152019[53]
PI3K complexVPS15 WD repeat domainYeastX-ray1.82009[54]
VPS30 BARA domainYeastX-ray2.32012[55]
PI3KC3-C2YeastX-ray4.42015[56]
ATG38 C-terminal domainYeastX-ray2.22016[57]
VPS15-VPS34YeastNegative stain282016[57]
VPS34 with inhibitorsDrosophilaX-ray2.9–3.52010[58]
Bcl-XL-Beclin 1 BH3MammalX-ray2.52007[59]
Bcl-XL-Beclin 1 BH3MammalNMR/2007[60]
M11-Beclin1 BH3MammalX-ray2.32008[61]
M11-Beclin 1 BH3MammalX-ray, NMR 2008[62]
Beclin 1 CC domainMammalX-ray1.92012[63]
Beclin 1 ECD domainMammalX-ray1.552012[64]
VPS34 with PIK-IIIMammalX-ray2.82014[65]
VPS34 with SAR405MammalX-ray2.92014[66]
PI3KC3-C1MammalNegative stain27.52014[67]
Beclin 1 FHD domainMammalX-ray1.952016[68]
Beclin 1 CC domainMammalX-ray1.462016[69]
ATG14 CC domain with/without Beclin 1 CC domainMammalSAXS/2016[69]
PI3KC3-C1 with NRBF2MammalNegative stain/2016[57]
PI3KC3-C1 with NRBF2MammalNegative stain/2017[70]
PI3KC3-C1 and PI3KC3-C2MammalCryo-EM8.5 (C1) and 8.6 (C2)2017[71]
Beclin 1-UVRAG CC domainMammalX-ray1.92018[72]
PI3KC3-C1 with NRBF2 dimerMammalCryo-EM6.62019[73]
ATG9ATG9PlantCryo-EM7.82019[74]
Table
Table 2. The core ATG machinery involved in autophagy initiation in yeast, mammals, and plants.
Table 2. The core ATG machinery involved in autophagy initiation in yeast, mammals, and plants.
Yeast (Saccharomyces cerevisiae)Mammal (Homo sapiens)Plant (Arabidopsis thaliana)Function in AutophagyProtein Interactions*Reference
ATG1 complexAtg1ULK1ATG1a
ATG1b
ATG1c
ATG1t		S/T kinaseS. cerevisiae Cells 08 01627 i001[17,32,77,85,86]
Atg13ATG13ATG13a
ATG13b		Regulatory subunitH. sapiens Cells 08 01627 i002
Atg11
Atg17
Atg29
Atg31		FIP200
ATG101		ATG11
ATG101		Scaffold and regulatoryA. thaliana Cells 08 01627 i003
Class III PI3K complex IVps34VPS34VPS34PI kinaseS. cerevisiae Cells 08 01627 i004[56,86,87,88]
Vps15VPS15VPS15Scaffold
Vps30/Atg6BECN1ATG6Regulatory subunitH. Sapiens Cells 08 01627 i005
Atg14ATG14ATG14a
ATG14b		PAS targeting (N.C. in plant)
Atg38NBRF2-Activator
ATG9 vesicleAtg9ATG9A/BATG9Phagophore formation and expansion (Autophagosome progression and closure in plant)S. cerevisiae Cells 08 01627 i006[20,73,90,91,92]
H. Sapiens Cells 08 01627 i007
A. thaliana Cells 08 01627 i008
ATG2-ATG18 complexAtg2ATG2A/BATG2PAS targeting and lipid bindingS. cerevisiae Cells 08 01627 i009[47,92,93,94,95]
Atg18WIPI1/2ATG18a-h
Abbreviations: ATG, autophagy-related gene; VPS, vacuolar protein sorting-associated protein; PI, phosphatidylinositol; WIPI, WD repeat domain phosphoinositide-interacting protein; PAS, pre-autophagic structure; N.C., not characterized. *Protein-protein interaction is based on protein structural study and biochemical data.

Share and Cite

MDPI and ACS Style

Lai, L.T.F.; Ye, H.; Zhang, W.; Jiang, L.; Lau, W.C.Y. Structural Biology and Electron Microscopy of the Autophagy Molecular Machinery. Cells 2019, 8, 1627. https://doi.org/10.3390/cells8121627

AMA Style

Lai LTF, Ye H, Zhang W, Jiang L, Lau WCY. Structural Biology and Electron Microscopy of the Autophagy Molecular Machinery. Cells. 2019; 8(12):1627. https://doi.org/10.3390/cells8121627

Chicago/Turabian Style

Lai, Louis Tung Faat, Hao Ye, Wenxin Zhang, Liwen Jiang, and Wilson Chun Yu Lau. 2019. "Structural Biology and Electron Microscopy of the Autophagy Molecular Machinery" Cells 8, no. 12: 1627. https://doi.org/10.3390/cells8121627

APA Style

Lai, L. T. F., Ye, H., Zhang, W., Jiang, L., & Lau, W. C. Y. (2019). Structural Biology and Electron Microscopy of the Autophagy Molecular Machinery. Cells, 8(12), 1627. https://doi.org/10.3390/cells8121627

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
