Stem Cells in Cardiovascular Medicine: Historical Overview and Future Prospects

Department of Laboratory Animal Science, Leibnitz-Institut für Primatenforschung, Deutsches Primatenzentrum GmbH, Kellnerweg 4, 37077 Göttingen, Germany
DZHK (German Centre for Cardiovascular Research), Partner Site Göttingen, 37075 Göttingen, Germany
Author to whom correspondence should be addressed.
Cells 2019, 8(12), 1530;
Received: 22 October 2019 / Revised: 19 November 2019 / Accepted: 23 November 2019 / Published: 27 November 2019
(This article belongs to the Special Issue Stem Cell Research on Cardiology)


Cardiovascular diseases remain the leading cause of death in the developed world, accounting for more than 30% of all deaths. In a large proportion of these patients, acute myocardial infarction is usually the first manifestation, which might further progress to heart failure. In addition, the human heart displays a low regenerative capacity, leading to a loss of cardiomyocytes and persistent tissue scaring, which entails a morbid pathologic sequela. Novel therapeutic approaches are urgently needed. Stem cells, such as induced pluripotent stem cells or embryonic stem cells, exhibit great potential for cell-replacement therapy and an excellent tool for disease modeling, as well as pharmaceutical screening of novel drugs and their cardiac side effects. This review article covers not only the origin of stem cells but tries to summarize their translational potential, as well as potential risks and clinical translation.

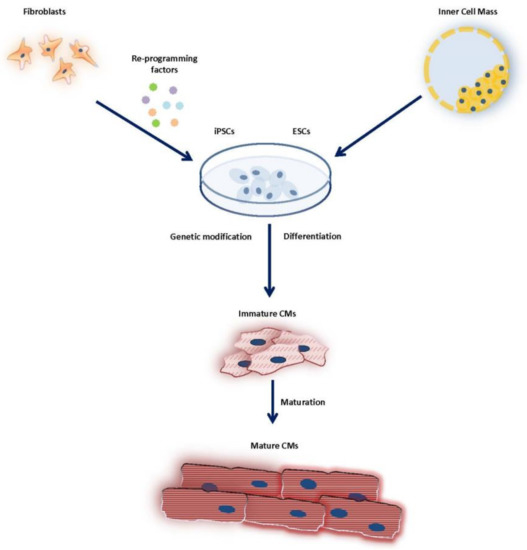

Graphical Abstract

1. Introduction

Cardiovascular diseases (CVDs) remain a plight to modern-day humans, accounting for over one-third of all deaths worldwide, according to recent World Health Organization (WHO) estimates [1]. In the US alone, one person dies of CVD-related complications every 40 s, mostly ischemic attacks [2]. To this day, catheter-based or surgical interventions, e.g., coronary bypass and implantation of assist devices, are by far the most widely applied clinical measures—albeit with several complications [3,4]. Despite great improvements, most surgical interventions available are mere preservatives, i.e., attempts to sustain the functionally intact heart tissue for as long as possible without structural compensation. Howbeit, due to the progressive nature of CVDs, heart failure (HF) is, in most cases, inevitable [5]. Regardless of etiology and severity, many end-stage HF patients will eventually need cardiac transplantation [6]. With very few treatment options, not to mention the paucity of available donor hearts, the need for alternative therapeutic measures is indispensable.
In recent decades, stem cell (SC) technologies have emerged with a great promise that could be envisaged for almost all human ailments, most importantly for noncommunicable diseases characterized by organ dysfunction and/or degeneration. In this regard, CVDs are certainly the most attractive target for SC-based therapeutic approaches [7,8,9,10]. From a mere improvement of cardiac microenvironment, to partial regeneration and/or compensation of lost functional tissue, and ending with a complete fabrication of a surrogate heart, SCs have set the hopes high. Moreover, SC-based technologies have enabled great in-depth understanding of the pathogenesis of CVD entities and served as a platform to test novel therapeutic approaches at minimal risk of adverse events to patients and much lower costs. This article aims at reviewing the available knowledge on SCs and their applications for cardiovascular research, highlighting milestone achievements in both basic and translational research, and expanding in particular on pluripotent SCs.

2. Adult Stem Cells

The body’s regenerative capacity is a well-ingrained piece of knowledge from ancient times. Modern science attributes this phenomenon to the presence of resident SC niches in different organs and tissue, i.e., adult SCs. These cells are undifferentiated, but they are capable of self-renewal and differentiation to one or more cell type, which sets them apart on a potency spectrum, e.g., multipotent SCs. Adult SCs’ regenerative potential becomes even more conspicuous in organs and/or tissues with high turnover rates, but, more importantly, as a response to tissue injury. A wealth of knowledge is now available on different adult SC populations, and efforts have been made to reap the benefits of these cells to treat CVDs. We highlight below a few examples of adult SCs, which declared themselves as powerful research targets for cardiovascular medicine and made their way to the clinic.

2.1. Skeletal Myoblasts

Intuitively, due to embryonic and morphologic commonalities between skeletal and cardiac muscle tissues, skeletal myoblasts have been among the early attractive research targets for cardiac regeneration. Skeletal myoblasts (SM) constitute a group of satellite cell-derivatives residing within skeletal muscle fibers, which are activated upon injurious insults to migrate, proliferate, and differentiate, forming new muscle fibers, i.e., myogenesis [11]. Facilitated by their being readily accessible from autologous muscle biopsies, rapid in vitro expansion, ischemic tolerability, and low risk of tumorigenicity, the cardiac regenerative potential of SMs has been the subject of several preclinical investigations in both small and large animal models of CVDs [12,13,14,15,16,17]. Indeed, results from these studies have demonstrated positive outcomes by reducing infarct size, as well as myocardial fibrosis, thwarting ventricular remodeling and improving overall cardiac function. Consequently, several clinical trials were initiated to verify their efficacy [18,19,20,21,22]. Despite initially reported improvements in cardiac parameters of patients transplanted with SMs, many have experienced ventricular arrhythmias, which were later attributed to the lack of electromechanical coupling between the transplanted SM-derived myotubules and resident cardiomyocytes where they failed to form gap junctions [23,24,25,26]. Furthermore, larger randomized, placebo-controlled, double-blinded clinical studies not only failed to show any therapeutic benefits of SMs in patients with severe ischemic heart disease at both short- and/or long-term follow-up, but also reported postoperative arrhythmic events even upon prophylactic pharmacological treatment [27,28,29,30,31]. As a result, SMs have lost their popularity as SCs for cardiac applications.

2.2. Bone-Marrow-Derived SCs

Since the mid-20th century, the BM has long been praised for its SC abundance. BM transplantation has been a clinical practice since the mid to late 1960s, intended for correction hematologic, as well as immune disorders. However, reports from the late 1990s first demonstrating the ability of BM-derived cells to migrate to injured tissues and support regeneration have instigated a wave of research on their therapeutic potentials for CVDs [32,33]. Indeed, early studies in animal models of MI corroborated the aforementioned expectations. The first tentative clinical translation of this finding was reported in 2001 in Düsseldorf, Germany, where a MI patient received autologous BM-derived nucleated cells upon catheter angioplasty and reported positive outcomes [34]. This was followed by several controlled clinical studies, albeit with inconsistent findings [35,36].
Generally speaking, BM-derived SCs can be sub-grouped into two large cell populations; hematopoietic (HSCs) and nonhematopoietic SCs. HSCs give rise to all blood-cell types and include a subpopulation of pro-vasculogenic endothelial progenitor cells (EPCs), which can be found in the circulating blood among others [37]. Of the nonhematopoietic BM-derived SCs, mesenchymal stromal/stem cells (MSCs) are the most studied, due to their greater multipotency, manifested in their ability to differentiate into osteoblasts, adipocyte, and chondrocytes under defined in vitro conditions, adding to their reported immune-modulatory and anti-inflammatory properties [38]. With better characterization of these cells based on surface-marker expression, studies were led, examining the therapeutic potential of each BM-derived SC type.
For example, BM-derived CD133- and/or CD34-positive HSCs were utilized for phase I and II clinical trials, where patients of MI received intramyocardial transplantation or intracoronary injections of these cells. Despite short-term follow-ups showing positive outcomes, characterized by enhanced left-ventricular ejection fraction (LVEF) along enhanced myocardial perfusion, these studies failed to show any long-term benefits [39,40]. Most recently, results from randomized, placebo-controlled, double-blinded phase III clinical trials also showed a congruent trajectory [41].
On the other hand, MSCs (CD73-, CD105-, and CD90-positive) have been a subject of greater scrutiny in both basic and translational research. Adding to their paracrine- and exosome-mediated immunosuppressive properties, MSCs are unique in their ability to evade the immune system [42]. This is largely due to their moderate levels of HLA class I expression, while lacking the expression of HLA class II, B7, and CD40 ligand conferring privilege to the immune system of their host, thus enabling allogenic transplantation without the need of concomitant immunosuppression [42,43]. Indeed, studies in large animals have shown improvements in LVEF upon MSC therapy in the setting of myocardial ischemia. Nevertheless, results from translational attempts of these findings in clinical studies fall into a wide spectrum of significance with regard to their benefits, notwithstanding their mode of transplantation (i.e., autologous vs. allogenic) [44]. Despite some showing significant improvements in patients with acute MI, other randomized controlled studies concluded no significant differences [45,46,47,48]. Nonetheless, two randomized pilot studies were conducted in 2012 and 2017 in patients with ischemic cardiomyopathy (ICM) and nonischemic dilated cardiomyopathy (NIDCM), respectively, comparing autologous to allogenic MSC therapy [49,50]. Results from these studies, also known as POSEIDON, alluded to the efficacy of MSC therapy in these patient cohorts, with superiority given to allogenic transplantation. However, these studies were limited to the small sample size and lack of a placebo control group.

2.3. Cardiac Progenitor Cells and Stem Cell Niches

Indeed, the heart’s endogenous regenerative capacity has been an area of extensive research over the past decades. Contrary to the long-held dogma of being a postmitotic organ, studies have challenged this notion, claiming that the mammalian heart is indeed capable of self-regeneration, albeit exiguously. Studies using mitotic index, as well as DNA labeling, have conveyed the finding that cardiomyocytes can self-renew during adulthood. However, debates have flared as to what extent this self-renewal takes place, and even to the reliability of the methods used to quantify it. Herein, nuclear labeling is not reliable, due to the characteristic polyploidy that human CMs undergo during growth or disease [51,52,53,54]. Radiocarbon (14C) dating, on the other hand, has provided more accurate estimates of cardiomyocyte turnover in the adult heart [55]. Interestingly, studies have shown a significant increase in cardiomyocyte count and/or ploidy in neonatal and preadolescent life in both rodents and humans, which contributed to heart growth [56,57].
Furthermore, the existence of SC niches harboring cardiac progenitor cells (CPCs) has also been reported and highlighted by research as evidence of the heart’s regenerative capacity, notwithstanding another yet-unresolved debate [51,58]. CPCs are multipotent as was shown by their ability to differentiate to cardiac cell lineages, including cardiomyocytes; they were claimed to confer cardiac tissue repair and regeneration. As a heterogeneous population of cells, they are each identified by expression of distinct markers. Of these cells, c-kit-, Isl1-, or epicardial Tbx18-positive (also WT1-positive) cells are three heavily studied cell populations due to their cardiomyogenic differentiation potential attributed during development, neonatal life, and even in adult hearts.
The c-kit-expressing cells are the most studied CPCs, however, with contradicting reports regarding their significance for cardiac cell repair the in adult postinjury [59,60,61]. Despite their demonstrated contribution to cardiac regeneration in the neonatal hearts, c-kit-positive CPCs’ role in the adult setting of myocardial injury is largely debated [60,62,63]. A recent report alluded to the role of c-kit-positive cells in cardiac adaptation to injury, where c-kit was shown to be upregulated in response to pathological stress [64]. Furthermore, a RNA-sequencing study recently showed that c-kit-positive cells transiently adopt a cardiomyocyte-like pattern of gene expression upon myocardial infarction in vivo [65]. Contrary to these findings, more recent studies by Li and colleagues refuted the myogenic potential of these cells in the adult by using a new genetic-lineage tracing system [66]. Furthermore, the same group has shown that early segregation of myocytes and nonmyocytes during embryonic development (E10.5 to E11.5) is the cut-off line beyond which no contribution to new cardiomyocyte formation occurs, even during neonatal life [67]. Moreover, a study published earlier this year by Elhelaly and colleagues argued that c-kit-positive cells do not contribute to cardiomyogenesis, even during neonatal life [68]. Howbeit, the commonly agreed-upon consensus in the field is that CPCs are remnant SCs from developmental stages whose role in the adult heart, if any, confines to maintaining cardiac tissue homeostasis, and their cardiomyogenic potential in the context of injury is inexistent [69,70]. Importantly, however, the repercussions of the aforementioned findings instigated a wave of research endeavors to exploit the heart’s endogenous regenerative capacity for novel therapeutic interventions. In summary, the field of cardiac progenitor cells is controversy discussed, and the regenerative potential (and existence) of the cells in the adult human heart need further investigations.

3. Pluripotent Stem Cells

Despite the efforts that have been made with adult SCs, none of these cells could meet the expectations as a reliable treatment for CVDs. That is because not even the most potent adult SC could provide an appreciable source for myocardial tissue regeneration and/or functional compensation for the lost contractile element of the heart, e.g., as a result of infarction, let alone cardiomyopathies or congenital heart disease [71]. In this regard, the pursuit after functional CMs calls for a different type of SCs, i.e., pluripotent SCs (PSCs).

3.1. Embryonic Stem Cells

The ability of a cell to give rise of all three germ layers of the developing embryo, i.e., pluripotency, is the most vivid and sought-after character of SCs, not only in the context of regenerative medicine, but also for basic research purposes. Pluripotency of embryonic blastocyst inner mass cells was first shown in the mouse as early as 1981 by Evans et al. [72]. In 1998, Thomson et al. first reported the generation of pluripotent embryonic stem cells (ESCs, Figure 1) from human blastocysts, which are capable of self-renewal and differentiation to all three germ layers [73]. Nevertheless, ethical considerations have long hovered over human ESCs (hESCs), as their derivation entails destruction of an embryo. This has prompted legislative issues, in that many countries have imposed bans on their use and/or research funding [74,75]. To add insult to injury, ESCs’ ability to form teratomas (tumors of mixed germ layers) when transplanted undifferentiated has further flared the argument against their clinical application, despite efforts to enhance differentiations and purifications protocols [76].

3.2. Induced Pluripotent Stem Cells

It was not long until the not-so-bright picture of SC research changed. Inspired by the preexisting knowledge of master regulator genes capable of imparting cellular identities, Takahashi and Yamanaka developed the first technique of somatic cell reprogramming in 2006 [77,78]. In their Nobel Prize experiment, induced pluripotent stem cells (iPSCs, Figure 1) could be generated from somatic cells, such as skin fibroblasts, by expression of four transcription factors that were found to be crucial for cellular reprograming to ESC-like inner mass cells, namely Oct3/4, Sox2, c-Myc, and Klf4 [78]. Ever since, scientist have raced to improve the reprogramming efficiencies of iPSCs by manipulating the transcription-factor cocktail and selecting for expression of other transcription factors, such as Nanog and Lin28 [79,80,81]. Generation of viable and tumor-free whole organisms with iPSCs that were capable of germ-line transmission was also made possible [82]. Unsurprisingly, human iPSCs (hiPSCs) were generated as soon as one year after their first generation in a mouse, and by the same pioneering group of scientists, as well as others [83,84].

3.3. Embryonic Stem Cells Versus Induced Pluripotent Stem Cells

The primary intended purpose of reprogramming of somatic cells and generation of iPSCs was to wipe the initial cellular identity and drive them back to the embryonic inner mass state, and hence serve as a surrogate for embryonically derived cells, i.e., ESCs. Indeed, iPSCs greatly resemble conventional ESCs in terms of growth characteristics, gene-expression profiles, epigenetic status, and developmental potential, which were shown in earlier studies by Yamanaka and colleagues, as well as others [79,84,85,86]. However, upon comparison of various undifferentiated cell lines, reports argued that iPSCs may not be perfectly identical to conventional ESCs. This is largely attributed to the unique epigenetic signatures of their parent somatic cells. Despite previous studies showing that somatic cells undergo epigenetic remodeling upon reprogramming, studies have shown that iPSCs indeed retain epigenetic patterns of their donor cells, e.g., CpG island methylation [86,87,88,89,90]. Furthermore, gene and miRNA expression signature were also shown to trail along with iPSCs (reviewed in [91]). Upon differentiation to CMs, further comparison of mature CMs differentiated from ESCs and iPSCs can be insightful. In this regard, CMs of either origin were reported to display similar ultrastructural phenotypes, upon electron microscopic examination [92]. In line with these findings, a study by Gupta et al. revealed that global transcriptional profiles of mature CMs derived from either human iPSCs or ESCs are highly similar [93]. However, iPSC-CMs were more likely to share some somatic cell signature with their undifferentiated iPSC-parents. Thus, identification of these variations between iPSC- and ESC-CMs, as well as the interline variability of either type of PSCs, is essential before they are utilized for disease modeling or clinical application.
Unlike ESCs, iPSCs derivation does not involve destruction of embryos, and hence does not fall into the same ethical pitfalls. However, other ethical considerations arose with hiPSCs, especially with regard to the possibility of reproductive cloning, the risk of generating genetically engineered human embryos, and, more extremely, human–animal chimeras [94]. Furthermore, and like ESCs, iPSCs are subject to safety concerns due to their ability to form tumors, even with rigorous protocols of differentiation and selection [95].
In recent years, substantial developments in stem cell technology in terms of reprogramming efficiency and enhancing their clinical applicability have prompted scientist to utilize pluripotent stem cells (PSCs), not only to regenerate, but also to model the human heart for basic research purposes. Furthermore, some countries have tentatively started to loosen their tight regulations, especially on hESCs; a step that coincided with the establishment of stem-cell registries in the US and Europe [96,97,98]. This has led to several initiatives on stem cell therapy for many disease conditions, including CVDs [99]. As promising as this may sound, several challenges, however, preclude the full realization of PSC-based therapy. In the following, we shall focus on PSCs by addressing efforts made over the past decades to optimize their generation, differentiation, and maturation for CVD research, as well as efficient delivery methods for late clinical and/or translational purposes.

4. Cardiac Stem-Ness

Embryology is the fundament for generation of cardiac cells from PSCs in the laboratory. The heart is the first organ to develop and function during embryogenesis [100]. In the lateral mesoderm, cardiac specification takes place, a process initiated by two T-box transcription factors, Eomesodermin and Brachyury(T), which have been shown to induce the expression of yet another critical factor, namely mesoderm posterior 1(MesP1) [101,102]. MesP1 is a basic helix-loop-helix (bHLH) transcription factor considered to be the master regulator orchestrating the differentiation and commitment of cardiac precursors [101,102]. Cardiac precursors then assume a crescent-shaped structure known as the cardiac crescent, at which cells are irreversibly committed to the cardiac lineage. This is marked by the expression of key transcription factors, namely Nkx2.5, GATA4 and Tbx5 [103]. Two waves of Nkx2.5 expression ensue, depicting the formation of two regions known as the first and second heart fields, which subsequently give rise to different heart chambers, as well as the cardiac outflow tract [76,103].
After all, heart development is a dynamic three-dimensional process governed by an intricate network of signals and gene transcription [104,105]. Howbeit, three major signaling pathways converge to drive the process, from early cardiac tissue specification of mesoderm progenitors to subsequent differentiation into cardiac progenitors, namely BMP (bone morphogenic protein) and Nodal/Activin, both being members of the TGF-β (transforming growth factor beta) cytokine family, and the Wnt/β-catenin [106,107]. Paracrine signals responsible for the fine-tuning of those pathways is crucial for heart development. For example, signals activating the Wnt/β-catenin pathways are essential for early mesoderm induction, whereas inhibitors of the same pathway are subsequently required for precardiac specification [76].

4.1. Generation/Differentiation of Pluripotent Stem Cells

Protocols for in vitro generation of cardiac stem cells (CSCs) from PSCs, either from ESCs or iPSCs, rely primarily on simulating the signaling microenvironment, which induces the aforementioned rudimental pathways, starting by initial epithelial to mesenchymal transition, mesodermal specification, and subsequent cardiogenic differentiation, followed by selection for cardiac markers [108,109,110]. The initially reported protocols relied simply on serum in culture medium as a source of inducing factors, observing spontaneous formation of aggregates called embryoid bodies (EBs) when cells are plated in suspension [111]. These EBs would later show contractions and positive staining for cardiac markers. This method was first reported in ESCs, however, with very low efficiency [111]. Nevertheless, the EB-based differentiation remained a standard protocol and was also the first differentiation method applied to generate CMs from mouse iPSCs only a couple of years after their first introduction in 2006 [112,113]. The first CMs generated from iPSCs were reported by a team of researchers from Leibniz institute in Germany, with few refinements introduced to the protocol, which led to the differentiation of typical CMs comparable to those generated from ESCs [112]. Interestingly, precisely at the same time and in the same journal issue, the iPSCs-founding team from Kyoto also published a systematic differentiation protocol of mouse iPSCs into cardiac lineages [113]. Nevertheless, and as mentioned before, the efficiency of the EB-based protocols was low, mainly due to the uncontrolled differentiation cues in the supporting media. One of the earliest and most cited protocols to differentiate ESCs to beating CMs was reported by Mummery et al. in 2003, where they delegated the differentiation cues to paracrine signaling of murine visceral endoderm-like cells (END-2) [114]. They compared their generated CMs to primary human fetal CMs, as well as primary human adult CMs, and reported comparable structural and functional properties. Improvements to differentiation protocols by temporal application of cytokines, as well as small molecule inhibitors (e.g., inhibitors of the Wnt pathway) to simulate the developmental processes have also been successful introduced to generate CMs from PSCs [108,109,110,115,116,117]. Furthermore, several groups have sought to simplify the differentiation protocols by using chemically defined culture media consisting of only a few components [115,116,117].
Nevertheless, differentiation of PSCs by using standard protocols usually yields a mixed population [118]. Thus, identification of selection markers is crucial for the purification of cardiomyocyte progenitors. Pioneering studies by Moretti and colleagues have greatly contributed to the refinement of selection protocols for cardiac organogenesis from PSCs [119]. From an embryological standpoint, myocyte progenitors are distinguished from nonmyocytes (vascular progenitors) by consistent expression of Isl1-1 transcription factor, along with Nkx2.5, whereas co-expression of Isl-1 and CD31 is a marker for endothelial progenitors [119]. Among myocytes, cardiomyocytes can be further distinguished from smooth muscle cells (SMCs) by expression of vascular cell adhesion molecule 1 (VCAM 1) and signal regulator protein alpha (SIRPα), both of which were reported to be reliable selection markers in culture conditions, yielding as much as 98% pure-cardiomyocyte populations by antibody-based sorting from PSCs [120,121]. Successful differentiation can be further confirmed by expression of other cardiomyocyte markers, such as cardiac troponins, e.g., TNNI1 [121,122]. Using lentiviral vectors, expression of selection markers, e.g., antibiotic-resistant genes or fluorescent proteins, under control of cardiomyocyte-specific promoter, has also been reported to purify cardiomyocytes [123,124]. Importantly, documented biochemical disparity between CMs and non-CMs in energy metabolism was also exploited for the so-called “metabolic purification” of CMs. In this regard, manipulation of culture conditions by altering the composition of the culture medium (e.g., glucose depletion, lactate, and glutamine supplementation) was found to be crucial for such nongenetic purification of CMs [125].
Finally, studies have pointed out the important role of MicroRNAs (small, noncoding RNAs that regulate gene expression by degradation of messenger RNAs) in CM phenotype differentiation [126,127,128].

4.2. Maturation of Pluripotent Stem Cells

To be utilized for disease modeling or regenerative medicine, one might expect PSC-CMs to recapitulate the structural and functional characteristics of adult CMs (Figure 1). Nevertheless, CM differentiation of PSCs usually yields immature cells, resembling the embryonic or fetal state [129]. This manifests in their morphology, gene expression, and electrophysiology. More recently, single-cell-transcriptomic analyses have proven to be a powerful tool to understand the transcriptional roadmap of in vitro CM differentiation, and therefore enable a better design of differentiation and maturation protocols [130,131]. The following highlights the major differences between immature PSC-derived CMs and mature and/or adult ones.
Morphologically, PSC-CMs are significantly smaller in size, compared to their adult or matured counterparts. Upon maturation, cells assume an elongated shape, reminiscent of adult CMs [132]. Sarcomeres are much less organized in immature PSC-CMs and become much more organized upon maturation, which usually correlates with isoform switch of sarcomeric proteins. A good example is troponin I, wherein different isoforms distinguish embryonic CMs from adult ones [133,134]. Stoichiometric replacement of the fetal troponin TNNI1, encoding slow skeletal troponin I (TnIs), gene with the adult TNNI3, encoding adult cardiac troponin I (TnIc), gene was reported in a study by Bedada et al. as a quantifiable marker for maturation in PSC-CMs [135]. Another well-characterized hallmark of mature CMs is the isoform switch of myosin heavy chain (MHC). Two isoforms exist, the alpha isoform (encoded by MYH6), also known as the faster isoform, and the beta isoform (encoded by MYH7), also known as the slower isoform [136]. Importantly, differences exist between rodents and humans in this regard. In small rodents (mice and rats) with faster heart rates, alpha-MHC isoform predominates and increases upon maturation, whereas, in bovine and human hearts, despite the presence of the alpha-MHC isoform, the beta MHC isoform usually predominates, regardless of the state of development, and increases with age [136,137]. However, most differentiation protocols of human PSC yield CM with both isoforms, but studies have shown that long-term cultures, especially on stiff substrates, lead to a greater shift toward the beta-isoform, reflecting maturation [138]. Titin is another key component of the sarcomere that undergoes isoform switch during maturation. Fetal titin isoforms N2BA 1 and 2 are more compliant, but they switch to the N2B isoform in postnatal and adult cardiomyocytes [139]. Genes encoding structural and force-generating myofibrillar proteins are much poorly expressed in in vitro maturated PSC-CMs when compared to adult- and fetal-heart samples [140]. This might be attributed to the absence of biomechanical stresses in vitro, which are normally present upon heart development in vivo [141].
Electrophysiological, and similar to contractile components, ion-transport related genes, such as those for voltage-gated potassium channels, e.g., KCNJ2 and Ryanodine receptor RYR2, were poorly expressed in immature CMs [142]. The lower expression level of the KCNJ2-encoding membrane protein of the inward-rectifier current, as well as genes encoding beta-subunit members of the voltage-gated potassium channels, such as KCNIP2, KCNAB1, and KCND3, all affect both the inward-rectifier (Ik1) and the transient-outward (Ito) currents, respectively, leading to the characteristic “less negative” resting membrane potential in PSC-CMs (~–60 mV) compared to adult CMs (~–90 mV) [129,132,142,143]. Furthermore, studies have shown that PSC-CMs have few to no T-tubules, which are key components of excitation–contraction coupling (ECC) and a hallmark of mature and/or adult CMs; this is typified by unsynchronized Ca2+ transients in immature CMs [144].
Metabolically, immature CMs have few and underdeveloped mitochondria, accounting for a small fraction of the cell volume. Adult CMs, on the other hand, show highly developed, well-distributed, and dense mitochondria, accounting for ~20–40% of the adult myocyte volume. During development, hypoxia is an early trigger for mesoderm cardiac specification [145]. The growing heart, thus, resorts to glycolysis as a major source (80%) of energy. As CMs mature and become terminally differentiated, mitochondrial oxidative capacity increases, with fatty acid β-oxidation (80%) becoming a major source of energy [146]. PSC-CMs recapitulate both mitochondrial structure and glycolytic dependence of embryonic-state CMs [92,147]. Recent studies have shown that tweaking the culture media composition to mimic these metabolic changes, e.g., replacing high-carbohydrate, high-insulin, glucose-based, with low-carb, low-insulin fatty-acid-based media-enhanced maturation [148]. Table 1 summarizes the major differences between human-PSC-derived and adult CM.
Over the years, efforts have been made to enhance the maturation of PSC-CMs, and these include prolonged cultures, using stiff gel micro-patterned substrates, and application of electrical and/or biochemical stimuli [132,149,150,151,152]. The overall goal was to simulate the in vivo environment of the myocardium, where CMs are under constant physical, topographic, and humoral stimuli leading to their structural and functional maturation.

4.3. Engineered Heart Tissue

Importantly, the accumulated knowledge of cardiac stem cell biology and maturation has culminated in the so called “Engineered Heart Tissue” (EHT), a milestone achievement. The nascent EHT is attributed to work done by Zimmermann and Eschenhagen in the early 2000s [153,154]. Ever since, EHT technology has rapidly progressed through refinements in mechanical loading, electrical stimulation, medium supplementation, and miniaturization. The result was a 3D cardiac tissue structure with mature CMs and near-physiological contractile forces [155]. The pioneering work of these scientists has opened the doors for more revolutionary developments, such as 3D bioprinting, organ-on-chip platforms, and laser-cut decellularized myocardium, all with ample opportunities for both basic research and clinical applicability [156,157,158].

5. Applications of PSCs in Cardiovascular Research

5.1. Pluripotent Stem Cells in Cardiovascular Disease Modeling

The use of PSCs to model cardiac disease in vitro has become highly attractive, especially after the introduction of iPSCs [107]. This is mainly because of inadequacies of other models in terms of sampling, propagation, and maintenance, as for human primary cardiomyocytes, or their ability to fully recapitulate physiological properties of human CMs, as in rodent models. Considering the relative difficulty in cloning and genetically modifying human ESCs, most established models of CVDs are iPSC-based [107]. The feasibility in sampling and propagation of iPSCs, as well as advances in reprogramming protocols, which later adopted nonintegrating genomic approaches to deliver the reprogramming factors, has greatly increased their popularity [159]. Patient-specific iPSC-CMs have enabled the study of genetic variants underlying several CVDs and establish a phenotype–genotype understanding of not only monogenic, but rather complex and difficult-to-model genetic variants (e.g., chromosomal deletions or translocations), and, most important, model congenital heart disease (CHDs) in newborns [160,161]. As a result, several patient-derived iPSCs lines have been developed to model CVDs. The first of such was reported by Carvajal-Vergara et al. in 2010 for LEOPARD syndrome, an autosomal dominant developmental disorder characterized by hypertrophic cardiomyopathy [162]. Ever since, several other cell lines have been reported, mainly modeling cardiac channelopathies, (e.g., long QT syndromes), cardiomyopathies of wide etiology spectrum (e.g., dilated, hypertrophic, arrhythmogenic, Barth syndrome, and Pompe-disease-associated), and infectious myocarditis [163,164,165,166,167,168,169,170,171,172,173,174,175,176,177].
Despite the previously discussed disparities in structural and electrophysiological characters of iPSC-derived and adult CMs, these studies have shown that patient-specific iPSC-CMs recapitulate their corresponding disease phenotypes. For example, whole-cell patch-clamp analyses of different long QT syndrome (LQTS) patient-derived iPSC-CMs showed typically prolonged APs, decreased rectifier potassium currents IK, increased late sodium currents INaL, and impaired voltage-dependent inactivation of the L-type channels (LTC), due to malfunctions in corresponding proteins of potassium (KCNQ1, KCNH2 in LQTS1 and 2), sodium (SCN5A in LQTS3), and calcium (CaV1.2 in LQTS8 or Timothy syndrome) channels, respectively. Moreover, these patient-specific models demonstrated great utility for pharmacological screening of several drugs with disease-modifying abilities, leading to both novel and/or personalized therapeutic strategies (reviewed in [160]).
Finally, patient-specific iPSC-derived non-CMs were also generated, for example, of SMCs or endothelial cells. A more recent example is an elegant publication by Gu et al., utilizing iPSC-derived endothelial cells from patients with autosomal-dominant mutations in BMPR2 associated with familial pulmonary arterial hypertension (FPAH) [178]. In their study, comparing symptomatic patients with unaffected carriers highlighted important modifiers of the BMP-receptor pathway, as well as differentially expressed genes, which imparted protection against FPAH. Their findings were of great importance as to the identification of multiple genetic factors affecting disease penetrance, which could be therapeutically targeted to modify disease progression and severity.
Importantly, the previous example behooves an important consideration when conducting studies on patient-specific iPSCs for CVD modeling, which pertains to the identification and/or the availability of proper control lines. This is because, even among patient-matched donor cohorts, genetic variability can still confound the analysis of the disease phenotype, especially in the presence of disease modifiers, or when the genotype–phenotype is less conspicuous [169,179]. In such cases, it is possible to rely on more than one control cell line—albeit a laborious approach. Alternatively, the patient’s iPSC-CMs can be compared to those from a healthy sibling, thus limiting genetic variability [171]. However, recently developed computational in silico models of iPSC-CMs and their optimization by Paci and colleagues have provided an unprecedented approach to this issue, enabling simulation and calibration of over a thousand diseased or control iPSC-CM models [180,181,182]. Finally, in case of monogenetic diseases, an isogenic cell line created by correction of the disease-causing mutation in the patient iPSCs by means of gene-editing approaches can serve as the best control cell line (discussed below). An elegant example was reported in a study by Bellin and colleagues, where they used iPSC-CMs from LQTS2 patients with a distinct mutation in potassium channel KCNH2, and compared it to an isogenic control upon correction of the genetic mutation [183]. Furthermore, they reproduced the study model in human ESC-CMs, where they introduced the same mutation, and recapitulated the disease phenotype, thus generating two genetically distinct isogenic pairs of LQTS2 and control lines.

5.2. Pluripotent Stem Cells in Pharmaceutical Screenings

Since their first introduction, iPSC-CMs have become attractive for drug testing, antiquating the hERG test, which utilizes cell lines that stably express the human ether-a-go-go-related gene (hERG) KCNH2 encoding the IKr channel involved in cardiac repolarization. Whole-cell patch-clamp screening for compounds that block the IKr current serves as a good marker of cardiotoxicity, as such blockade leads to the prolongation of the QT interval, i.e., ventricular repolarization, resulting in potentially fatal ventricular tachycardia called Torsade de Pointes [184]. Since the actual risk for cardiac toxicity is not confined to a certain channel and/or mechanism, iPSC-CMs are hence more representative in typifying cardiac toxicity to drugs. Furthermore, recent introduction of automated patch-clamp (APC) devices, all-optical cardiac electrophysiology with novel optogenetic actuation, and video microscopy have all revolutionized drug screening in iPSC-CMs and tissue constructs, enabling high-throughput testing platforms for hundreds of samples and/or drugs, thus creating a wealth of information in short time [185,186,187,188]. Furthermore, comprehensive in vitro proarrhythmic Assay (CIPA) has recently emerged as a powerful model to predict cardiac toxicity by integrating the knowledge from both in vitro and recently developed in silico computational models ( [189]. However, as discussing this is beyond the scope of this review, we refer the reader to the cited work by Paci et al.

5.3. Genetic Modification of Pluripotent Stem Cells

The advent of genome-editing methods has incited great progress in PSC research. Exploiting the cell’s inherent DNA-repair mechanisms, such as nonhomologous end-joining (NHEG) or homologous recombination (HR), has long been used to introduce small but disruptive mutations to target genes, either by insertion or deletions of base pairs, also known as “Indels”. The discovery and later advances of nucleases that can more specifically target desired sequences, such as zinc-finger nucleases (ZFNs) or transcription activator-like effector nucleases (TALENs), have enabled the study of several disease causing mutations [190,191,192]. Many PSC-lines have been generated by using this technology for both disease modeling and even clinical applications [193,194,195,196]. Vector-mediated delivery of sequence-specific nucleases along with a homologous DNA template to patient-derived iPSCs leads to the excision of targeted locus and, by virtue of cellular homology directed repair (HDR) system, can be corrected by the homologous template with the desired genetic modification. A prominent example is the combination of ZFNs and piggyBac technology which could achieve a biallelic correction of a disease-causing mutation in human iPSCs [197]. In a recent study by Karakikis et al., they reported the use of TALENs to correct gene mutations in patients with hereditary heart failure [198]. These patients harbor an amino acid deletion mutation (R14del) in the coding region of the phospholamban (PLN) gene, which is an important regulator of cardiac calcium cycling in the sarcoplasmic reticulum (SR). They display a phenotype of dilated cardiomyopathy, hypertrophy, episodic ventricular arrhythmia, and overt HF by middle age [199,200]. Skin-derived iPSCs from these patients were isolated, edited, and CM-differentiated, where further analyses showed reversal of the disease’s phenotype. Nevertheless, engineering of sequence-specific ZFNs or TALENs, as well as achieving their robust delivery for this purpose, can be laborious and technically challenging, let alone high in cost [192,194,201].
In recent years, CRISPR/Cas9 has emerged as the new horsepower of genome-editing technology, overshadowing ZFNs and TALENs [202]. The system, first described in prokaryotes as part of their adaptive immune system, relies on an RNA-guided endonuclease (Cas9) that localizes to complementary DNA sequences, where it creates double-strand break amenable for correction by the cell’s endogenous HR. Provided that a homologous sequence is available, desired gene modifications can be introduced [202]. Indeed, CRISPR/Cas9 has been zealously received by cell biologists as an attractive tool for SC research [203]. In cardiovascular biology, CRISPR/Cas9 was successfully applied to patient-derived iPSC to target disease-causing mutations of CVDs [204,205,206]. A recent study demonstrated the utility of CRISPR/Cas9 in phenotypic characterization of iPSC-CMs from patients with arrhythmogenic right ventricular dysplasia/cardiomyopathy (ARVD/C) [207]. In this patient cohort, mutations in the SCN5A encoding the Nav1.5 sodium channel protein led to the phenotype, which could be reversed in this study upon editing with CRISPR/Cas9.
A study published earlier this year by Seeger and colleagues made use of genome-editing techniques to create isogenic iPSC lines from patients with heterozygous mutations in the myosin-binding protein C3 (MYBPC3), which is deemed as the underlying cause of hypertrophic cardiomyopathy (HCM) [208]. Their results refuted previous hypotheses of either MZBPC3 haploinsufficiency or truncated poison peptide as the underlying cause of HCM. However, they were able to provide evidence for chronic activation of the nonsense-mediated decay (NMD) as the initial pathogenic trigger that leads to dysregulated gene expression and aberrant calcium signaling upon MYBPC3 mutations.
The aforementioned examples give a great promise to SC therapy of CVDs. One might also envisage the possibility of autologous cell transplantation of iPSC-derived CMs with rectified mutations to ameliorate or even cure disease conditions. However, great challenges remain as to the validation of these technologies, let alone deciding on a safe and effective clinical setting for PSCs delivery to treat CVDs. The next chapter outlines recent advances in preclinical research on SC-based therapy for CVDs.

6. Translational Potential of PSCs in Cardiovascular Regenerative Therapy

Harnessing the multifaceted potential of SCs for effective therapeutic purposes to treat CVDs is the ultimate goal of the above-introduced laborious efforts of scientists over the past decades. Provided that SC-derived CMs are sufficiently propagated, differentiated, and maturated, their application to the diseased myocardium spans a wide spectrum of delivery methods, from intravenous administration to direct myocardial injection. Nevertheless, several factors are to be considered with regard to engraftment of transplanted cells and integration, as well as functional contribution to host myocardium, electromechanical coupling between graft and host CMs, and long-term survival. The aforementioned limitations have long been challenges to preclinical and translational applications of SC therapy in general, and in cardiac regenerative therapy in particular. The following summarizes advances made in the realm of preclinical and translational research with PSCs over the past decades, in light of examples from small and large animal models and up until the first clinical initiatives.

6.1. Pluripotent Stem Cells in Rodent Models

Earlier studies attempted to engraft human ESC-derived cardiomyocytes in rodent models and reported transient functional improvement in cardiac parameters [209,210]. However, poor engraftment and survival of transplanted cells has been a challenge in these settings. Laflamme et al. utilized pro-survival factor cocktail to limit CM death upon engraftment in infarcted rat heart and reported positive outcomes [108]. To overcome poor engraftment and survival issues, Masumoto and colleagues developed a layered-sheet assembly of three cardiovascular cell populations, namely CMs, endothelial cells, and vascular mural cells, differentiated from mouse ESCs and transplanted into nude-rat model of MI. The transplanted sheets were reported to ameliorate infarct size and improve cardiac function; however, such benefits were shown to be attributed to paracrine-mediated neovascularization and not to actual contribution of transplanted cells [211]. Despite these results, the same group of scientists from Kyoto continued to optimize the stacked-sheet approach, and they recently reported successful long-term survival of engrafted cells through insertion of gelatin hydrogel microspheres between each cardiovascular cell sheet [212]. Analogously, human iPSC-CMs have recently demonstrated favorable therapeutic outcomes when injected in infarcted myocardia of mice. Interestingly, however, the engraftability and survival of those cells depended heavily on the maturation stage [142].
Importantly, electromechanical coupling between the graft and host myocytes is a rather crucial consideration to avoid ventricular arrhythmia. In a Guinea pig model, Shiba et al. reported successful engraftment of human ESC-derived CMs with a 1:1 electrophysiological coupling and improved mechanical function of injured hearts [213].

6.2. Pluripotent Stem Cells in Large-Animal Models

6.2.1. Porcine Models

Swine models were featured in the earliest attempts of cell therapy for heart disease. A number of features make the pig an attractive translational model. These include a heart weight-to-body ratio that is equal to a human’s and a similar sinus rate (~90 bpm) [214]. ESC-derived cardiomyocytes have been functionally tested in a swine model of complete atrioventricular block as biologic pacemaker for the treatment of bradycardia [215]. Hereof, Kehat et al. reported survival and functional integration of the transplanted cells, which were able to pace the porcine ventricle with complete heart block [215]. In another porcine model of acute MI, Ye and colleagues used a mixture of cardiovascular cell populations—this time from human iPSCs origin—loaded on a three-dimensional fibrin patch containing IGF-1 (insulin-like growth factor 1) and reported functional integration and significant improvements of several cardiovascular parameters [216]. More recently, Kawamura et al. took a rather unprecedented approach to enhance survival and engraftment of transplanted human iPSC-CMs by combining cell-sheets with pedicle omentum flap as a source of angiogenic factors and reported enhanced engraftment, survival, and therapeutic outcome in a porcine model of ischemic cardiomyopathy [217,218]. The aforementioned tissue sheet technology from Kyoto was also recently applied to a porcine model of MI, where a heterogeneous mixture of cardiovascular cell populations differentiated from human iPSCs and reported functional restoration of the infarcted hearts and attenuated remodeling [219]. Another study from 2018 by Gao and colleagues reported the application of human iPSC-derived fabricated cardiac muscle patches (hCMPs) composed of CMs, smooth muscle and endothelial cells, reprogramed from cardiac fibroblasts and maturated in dynamic culture conditions [220]. They transplanted these patches in infarcted pig hearts and demonstrated significant improvements upon histological and functional analyses. Altogether, these results highlight the importance of co-administration of nonmyocyte cardiac cells, which provide paracrine and angiogenic support equally important to both host and graft tissue. Furthermore, they highlight the superiority of modern tissue engineered scaffolds over direct application of cells. Finally, these studies corroborate the utility of swine models for translational cardiovascular research.

6.2.2. Non-Human Primate Models

The utility of non-human primates (NHPs) in regenerative medicine has long been appreciated, especially in transplantation medicine [221]. In this regard, certain macaque species (e.g., Macaca fascicularis or Mauritian Cynomolgus macaque) are a valuable preclinical model to study allogenic transplantation of iPSCs [222]. This is because they exhibit limited diversity in their major histocompatibility complex (MHC) genes, which are distributed only among seven haplotypes and are structurally identical to those in humans [223,224]. Indeed, allogenic transplantation of iPSC-CM among MHC-matched Cynomolgus monkeys was shown in a study by Shiba et al. to be immune-tolerable, and improved cardiac contractile function upon MI [224]. Matching MHC antigens between donors and recipients was shown by others to reduce immunogenicity upon allogenic transplantation of iPSC-CM in the Cynomolgus macaque [225].
NHPs continue to provide unmatched insights to PSC-therapy of CVDs in late-translational studies. In a recently published elegant work by Chong et al., human ESC-CMs were utilized in the pigtail macaque (Macaca nemestrina) as a model of ischemia-reperfusion injury [226]. They reported significant re-muscularization of the infarcted areas, structural and functional integration of the grafted cells via establishment of adherent junctions, and electromechanical coupling, typified by synchronous calcium transients. Such promising results were slightly relegated by the presence of arrhythmia in the grafted animals—albeit nonfatal.

7. Pluripotent Stem Cells in First Human Trials

The aforementioned successes in late-translational studies with large animal models, as well as the advances made in tissue engineering and grafting techniques, paved the way to the first clinical application of PSC therapy in cardiac settings, which was recently reported in a case study by Menasche et al., using ESC-derived cardiac progenitors [227]. They used the ESC I6 line, which was enriched in vitro by culturing on clinical-grade irradiated human foreskin fibroblasts as feeder cells. Cardiac commitment was then achieved by bone morphogenic protein-2 (BMP-2) and a specific tyrosine kinase inhibitor of the fibroblast growth factor receptor (FGFR), and then confirmed by the expression of the cardiac specific transcription factor Isl-1, as well as the stage-specific embryonic antigen-1 (SSEA-1), which was used for cell purification by immunomagnetic sorting. The cells were embedded in a fibrin scaffold patch and surgically implanted in the infarcted area of a 68-year-old woman patient with severe heart failure. The three-month follow-up showed functional integration of the patch, evident by electrocardiography, and overall symptomatic improvement marked by enhanced left-ventricular ejection fraction (LVEF), with no complications of arrhythmia, tumors, or immunosuppression-related adverse events. The results were encouraging, and the Parisian group conducted a larger-scale study, wherein six patients received cellularized patches of ESC-derived committed cardiac progenitors [228]. Their one-year follow-up demonstrated safety and tolerability of the grafted cells, with no detected tumors. Moreover, they reported modest symptomatic improvements, as well as in different cardiac parameters.
As for iPSCs, a group of scientists from Osaka have reported their granted permission to pursue with their clinical application last year and the results are yet to be reported [229].

8. Conclusions and Remarks

Stem cells are a novel source of cells which might be used as a screening tool for pharmaceutical developments. Here, single cells on iPSC status, as well as differentiated cardiomyocyte progenitors, might be used. In addition, engineered heart tissue displays a second model situation for screening of novel therapeutic options, before applying in animal experiments or clinical trials. Since these systems are based on human sources of cells, testing in these model situations might enhance safety and side effect prediction in novel approaches of cardiovascular therapies. Utilization of stem cells in patients suffering from cardiovascular disease is a second interesting field with great potential. The allogenic transplantation of stem cells requires only a modest immunosuppression and might improve cardiac function and thereby survival, as well as quality of life, in patients suffering from cardiac conditions, e.g., heart failure. However, the clinical potentials, as well as the potential side effects, need to be investigated in clinical trials before establishing stem-cell-based therapy as a standard of care in cardiovascular patients. In summary, stem cells, especially induced pluripotent stem cells, have wide therapeutic potential, but need to be characterized and investigated in more detail in preclinical, as well as clinical, trials to understand in more detail their potentials and risks.

Author Contributions

M.S., writing—original draft and visualization; R.H., writing—review and editing.


This research received no external funding.

Conflicts of Interest

The authors declare no conflicts of interest.


CM cardiomyocytes
CPC cardiac progenitor cells
CVD cardiovascular disease
ESC embryonic stem cells
iPSC induced pluripotent stem cells
LVEF left ventricular ejection fraction
MSC mesenchymal stem cells
PSC pluripotent stem cells
SM skeletal myoblast
