Article

Promising Prognosis Marker Candidates on the Status of Epithelial–Mesenchymal Transition and Glioma Stem Cells in Glioblastoma

by
Yasuo Takashima
1,
Atsushi Kawaguchi
2 and
Ryuya Yamanaka
1,*
1
Laboratory of Molecular Target Therapy for Cancer, Graduate School of Medical Science, Kyoto Prefectural University of Medicine, Kyoto 602-8566, Japan
2
Center for Comprehensive Community Medicine, Faculty of Medicine, Saga University, Saga 849-8501, Japan
*
Author to whom correspondence should be addressed.
Cells 2019, 8(11), 1312; https://doi.org/10.3390/cells8111312
Submission received: 29 September 2019 / Revised: 21 October 2019 / Accepted: 22 October 2019 / Published: 24 October 2019
(This article belongs to the Special Issue Molecular and Cellular Mechanisms of Human Astrocytomas Progression: Knowledge Increasing to Reach Therapeutic Horizons)
Browse Figures
Review Reports Versions Notes

Abstract

:
Multivariable analyses of global expression profiling are valid indicators of the prognosis of various diseases including brain cancers. To identify the candidates for markers of prognosis of glioblastoma, we performed multivariable analyses on the status of epithelial (EPI)–mesenchymal (MES) transition (EMT), glioma (GLI) stem cells (GSCs), molecular target therapy (MTT), and potential glioma biomarkers (PGBs) using the expression data and clinical information from patients. Random forest survival and Cox proportional hazards regression analyses indicated significant variable values for DSG3, CLDN1, CDH11, FN1, HDAC3/7, PTEN, L1CAM, OLIG2, TIMP4, IGFBP2, and GFAP. The analyses also comprised prognosis prediction formulae that could distinguish between the survival curves of the glioblastoma patients. In addition to the genes mentioned above, HDAC1, FLT1, EGFR, MGMT, PGF, STAT3, SIRT1, and GADD45A constituted complex genetic interaction networks. The calculated status scores obtained by principal component analysis indicated that GLI genes covered the status of EPI, GSC, and MTT-related genes. Moreover, survival tree analyses indicated that MEShigh, MEShighGLIlow, GSChighGLIlow, MEShighMTTlow, and PGBhigh showed poor prognoses and MESmiddle, GSClow, and PGBlow showed good prognoses, suggesting that enhanced EMT and GSC are associated with poor survival and that lower expression of EPI markers and the pre-stages of EMT are relatively less malignant in glioblastoma. These results demonstrate that the assessment of EMT and GSC enables the prediction of the prognosis of glioblastoma that would help develop novel therapeutics and de novo marker candidates for the prognoses of glioblastoma.

1. Introduction

The World Health Organization (WHO) classifies gliomas into four categories based on malignancy and overall survival (OS) [1]. Glioblastoma is the most malignant form of astrocytoma that is fast-growing (grade 4 glioma) [1,2]. The median OS of glioblastoma is 9–15 months and the five-year survival rate remains less than 5% [1,3,4,5]. Radiotherapy with six cycles of concomitant temozolomide, an oral alkylating agent with minimal additional toxicity, is the standard treatment after surgery in glioblastoma patients [2,4,5]. Thus, there is an immediate requirement for the early diagnosis and precise prediction of the prognosis for treatments of glioblastoma.
The invasiveness of glioblastoma depends on its high infiltration potential to invade the basement membranes of surrounding tissues [6,7,8,9]. Glioma cells are reprogrammed to have increased motility via weakened cell adhesions and a dysregulated cytoskeleton; this is known as epithelial–mesenchymal transition (EMT) [10]. EMT is a biological process that polarized epithelial cell sheets undergo, wherein multiple biochemical changes culminate in mesenchymal phenotypes [6]. Cells display altered morphology, resistance to chemotherapy, and anoikis (a form of programmed cell death of cells detached from the basement membranes) [11,12]. EMT is also involved in other biological processes, including implantation and embryo development, wound healing, tissue regeneration, and neoplasia associated with cancer progression [12]. During invasion in cancer, phenotypes also change as EMT is mainly induced by hypoxia and the transforming growth factor (TGF)-β released from glioma stem cells (GSCs), mesenchymal stem cells (MSCs), and myeloid cells recruited by hypoxia [13]. The reverse is also essential for the formation of distant or disseminated tumor nodules [10].
Stem cells, including cancer stem cells (CSCs), are pluripotent and capable of self-renewal, like induced pluripotent stem (iPS) cells induced by the transcription factors Oct3/4, Sox2, c-Myc, and Klf4 [14] or OCT4, SOX2, NANOG, and LIN28 [15]. The expression of OCT4, MYC, and KLF4 increases with increasing malignancy in astrocytomas, whereas MYC expression slightly decreases in recurrent glioblastomas [16]. Exposure to temozolomide (TMZ) increases the expression of KLF4 and reduces the expression of Nanog and OCT4 in glioma cells [16], indicating that stem cell factors, especially KLF4, play pivotal roles in GSCs. The most common GSC marker CD133, also known as prominin-1 (PROM1), is used to isolate GSCs by fluorescence-activated cell sorting (FACS) in primary glioma tissues and the cell lines U87 and T98G [17]. There are changes in metabolism in glioma and oxidative phosphorylation, glycolysis, and glutaminolysis replace redox balance, bioenergetics, and biosynthesis, respectively [18]. Tumor progression is enhanced by inflammation, which is an emerging hallmark of cancers that depends on the balance of glioma cell proliferation, migration, and escape from the immune system [18]. However, the correlation between EMT and GSCs in glioblastoma has not been reported to date.
In this study, we focused on EMT and GSCs and performed multivariable analyses using the expression data and OS in patients with glioblastoma. To determine the distribution of survival of glioblastoma patients, we composed prognosis prediction formulae for the following components: epithelium (EPI), mesenchyme (MES), glioma (GLI), GSC, molecular target therapy (MTT) genes, and potential glioma biomarkers (PGBs). Consequently, several candidate genes were identified as promising glioblastoma predictors.

2. Materials and Methods

2.1. Data Set

Expression data and clinical information of patients with glioblastoma deposited in The Cancer Genome Atlas (TCGA) and the Chinese Glioma Genome Altas (CGGA) were used [19,20]. Gene expression values of fragments per kilobase of exon per million reads mapped (FPKM) were normalized and subjected to the following analyses. The analyses were performed on the TCGA data set (151 samples) and the results were validated using the CGGA data set (135 samples) (Table S1). Tumor specimens were collected from untreated patients during surgery.

2.2. Gene Annotation

Genes of interest were annotated online at GOstat2.5 (http://gostat.wehi.edu.au/) [21] and Database for Annotation, Visualization, and Integrated Discovery (DAVID)6.8 (https://david.ncifcrf.gov/) [22].

2.3. Clustering Analysis

Gene expression values were modified with the valiances from the means of patients, followed by hierarchical clustering analysis with the Ward method using the JMP built-in module (SAS Institute Inc., Tokyo, Japan). Heat maps were drawn to visualize their expression with a color configuration with red as high and green as low [23].

2.4. Random Survival Forests Analysis

Random survival forests analysis was performed to determine the variable importance factors distinguishing gene expression associated with patient survival using the randomForestSRC package in R [24,25,26]. The variable importance values reflected the relative contribution of each variable to the prediction for the survival time, which was estimated by randomly permuting the values and recalculating the predictive accuracy of the model.

2.5. Cox Hazards Regression Analysis

Correlations between gene expression and survival times were evaluated by the Cox proportional hazards regression analysis using the JMP built-in module (SAS Institute Inc.) [25,27].

2.6. Survival Analysis

The Kaplan–Meier analysis was performed to estimate the survival distributions of subgroups with the log-rank test using the JMP built-in module (SAS Institute Inc.). The hazard ratio (HR) and confidence interval (CI) were calculated with a logistic regression model according to patients’ survival times, which were assessed with a stepwise selection to compare the subgroups. Overall survival (OS) was defined as the date of diagnosis of glioblastoma to the date of death or last follow-up [19,20].

2.7. Graphical Lasso Estimation

Genetic interactions with hub networks among variables from gene expression were analyzed by the graphical lasso estimation of Gaussian graphical models, such as a sparse inverse covariance matrix using a lasso (L1) penalty, using the glasso package in R [28,29].

2.8. Principal Component Analysis (PCA)

Score correlation analysis was performed with formulae constituted by the first principal components derived from PCA. PCA was performed with the normalized FPKM values using the JMP built-in module (SAS Institute Inc.), which was used to classify the patients into the subgroups to estimate their prognoses in simple forms as linear combinations of expression values of the genes of interest [26].

2.9. Survival Tree Analysis

Tree-structured survivals were analyzed to identify the largest differences in the Kaplan–Meier survival curves by dividing the patients into the most appropriate subgroups, harboring variable spaces as overall survival and interval censoring according to a constant model of the response variable in each partition [30]. The survival tree analysis was performed using the rpart package in R [31].

2.10. Statistics

Statistical analyses were performed using R [32], Bioconductor [33], JMP10 (SAS Institute Inc.), and Microsoft Excel (Microsoft Corporation). p < 0.05 was considered statistically significant.

3. Results

3.1. Status of EMT and GSC Gene Expression in Glioblastoma

The aim of this study is to identify promising prognosis marker candidates of glioblastoma. As glioma is caused by EMT and maintained by glioma stem cells, in this study, we used the expression data and clinical information from 286 glioblastoma patients from TCGA and CGGA (Table S1) and focused on representative genes involved in EMT and glioma (Figure 1, Table S2) [34,35,36,37]. Expression of the 126 genes in 151 samples from the TCGA data set was shown with hierarchical clusters represented by heatmaps, including those in EPI (14 genes; Figure 1a), MES (23 genes; Figure 1b), GLI (53 genes; Figure 1c), GSCs (17 genes; Figure 1d), MTT (34 genes; Figure 1e), and PGBs (24 genes; Figure 1f). However, distinct expression patterns capable of stratifying the patients into clusters were not identified, suggesting a possibility that differential expression of the genes requires combinations to evaluate the prognoses of glioblastoma patients. Thus, we tested whether combinations of the genes were associated with EMT and GSC in glioblastoma.

3.2. Importance of Significant Variables and Hazard Ratios of the Genes

Random survival forest analysis indicated the variable importance of each gene and the Cox proportional hazards regression analysis showed significant coefficient and hazard ratios (HRs) (Figure S1). A high variable associated with a significant coefficient and HR was seen in the following: DSG3 and CLDN1 as EPI markers (Figure S1a); CDH11 and FN1 as MES markers (Figure S1b); FLT1, HDAC3/7, and PTEN as GLI markers (Figure S1c); L1CAM, OLIG2, BMI3, and STAT3 as GSC markers (Figure S1d); EGFR, HDAC1/3/7, and SIRT1 as MTT genes (Figure S1e); and TIMP4, IGFBP2, GFAP, GADD45A, MMP9, and MGMT as PGBs (Figure S1f). Increased expression of DSG3 (HR 1.36, 95% confidence interval (CI) 1.11–1.67, p = 0.004), FN1 (HR 1.29, 95% CI 1.08–1.56, p = 0.006), IGFBP2 (HR 1.18, 95% CI 1.04–1.35, p = 0.011), CLDN1 (HR 1.24, 95% CI 1.05–1.46, p = 0.013), HDAC7 (HR 1.36, 95% CI 1.04–1.77, p = 0.023), and L1CAM (HR 1.10, 95% CI 1.01–1.19, p = 0.024) were associated with poor prognoses of glioblastoma (Figure S2a–f). In contrast, an increased expression of TIMP4 was associated with good prognosis of glioblastoma (HR 0.88, 95% CI 0.79–0.98, p = 0.025; Figure S2g). An increase in MGMT and MMP9 levels showed slightly poor prognoses of glioblastoma (p > 0.05) (Figure S2h,i).

3.3. Evaluation of the Formulae for the Prediction of Prognosis of Glioblastoma

To determine patient survival, formulae were composed for 22 genes (Table S3) in a simple linear form using the sum of the integration of the coefficients and fragments per kilobase of exon per million mapped fragments (FPKM) of the normalized genes (Appendix A). Glioblastoma patients were divided into two subgroups based on the median status scores using the formulae. Subsequently, Kaplan–Meier survival curves were plotted (Figure 2). All of the low score subgroups showed good prognoses such as EPIlow (HR 0.51, 95% CI 0.32–0.81, p = 0.0039; Figure 2a), MESlow (HR 0.41, 95% CI 0.27–0.62, p = 1.4 × 10−5; Figure 2b), GLIlow (HR 0.27, 95% CI 0.17–0.42, p = 1.6 × 10−9; Figure 2c), GSClow (HR 0.34, 95% CI 0.21–0.55, p = 3.4 × 10−6; Figure 2d), MTTlow (HR 0.31, 95% CI 0.19–0.51, p = 1.5 × 10−6; Figure 2e), and PGBlow (HR 0.29, 95% CI 0.18–0.48, p = 2.7 × 10−7; Figure 2f). The CGGA data set also showed similar results, although significances were not detected (Figure S3). These results indicate that the prognosis prediction formulae are useful to evaluate survival in glioblastoma patients. These formulae were associated with strong HRs for the GLI markers (HR 3.70), MTT genes (HR 3.22), and PGBs (HR 3.44), suggesting the success of the formulae. Gene ontology (GO) analysis (Table S4) indicated the gene sets that were associated with biological processes including proliferation (GO 0008284; p = 3.74 × 10−7), metabolic process (GO 0051246; p = 8.02 × 10−6), cell differentiation (GO 0030154; p = 4.81 × 10−5), migration (GO 0030334; p = 7.58 × 10−5), and histone H3 deacetylation (GO 0070932; p = 1.02 × 10−4). These results suggest that the genes used for constructing the prognosis prediction formulae are involved in cancer development and progression.

3.4. Genetic Interaction and Network Hubs within the Genes of Interest

We examined the genetic interactions based on the expression intensities to detect the network hubs and central factors in glioblastoma (Figure 3). The rates of composition of interacting to entry genes were relatively high (69.2%–95.8%). The genes constituting the formulae were also included in the genetic network: CLDN1 in EPI markers (Figure 3a); CDH11 and FN1 in MES markers (Figure 3b); HDAC1/3/7, FLT1, EGFR, PTEN, MGMT, and PGF in GLI markers (Figure 3c); OLIG2, STAT3, L1CAM, and BMI1 in GSC markers (Figure 3d); HDAC1/3/7, SIRT1, and EGFR in MTT genes (Figure 3e); and GFAP, TIMP4, IGFBP2, MGMT, and GADD45A in PGBs (Figure 3f). Of these, a part of the networks for the biomarkers of MES, GSCs, and PGBs was also replicated in the CGGA data set (Figure S4b,d,f). These results also suggest that the gene selection in this study was useful for predicting the prognosis of glioblastoma.

3.5. Correlation between EMT, GSCs, MTT, and PGBs

Correlations between the six processes were examined using principal component analysis. Each process score was calculated by the sum of the index of the integration of the first principal components and the normalized FPKM values (Appendix B). The correlation between processes was introduced into the scatter plot matrix with correlation coefficient (r) and statistical significances (p < 0.001; Figure 4a). Almost all the correlation scores were relatively high (r > 0.61; Figure 4a). The graphical lasso (Figure 4b) detected strong positive correlation between GLI–MTT (r = 0.88) and EPI–MES (r = 0.71), and weak positive correlation between other cellular processes like MES–PGB (r = 0.38), PGB–GSC (r = 0.30), and GSC–GLI (r = 0.25). However, in the CGGA validation data set, these correlation networks were not replicated, such as the negative correlation between EPI and the other processes (Figure S5a) and more complex networks drawn in Figure S5b. We validated the positive correlation between GLI–MTT (r = 0.87), GSC–PGB (r = 0.43), and MES–PGB (r = 0.43), as shown in Figure S5b. These findings suggest that considering MES and GSC as malignant conditions has little meaning in predicting the prognosis of glioblastoma. However, combining GLI with markers of GSCs, MTT genes, and PGBs may enable the development of novel therapeutics and de novo candidate gene markers for predicting the prognosis of glioblastoma.

3.6. Assessment using a Combination of EMT and GSCs in the Progression of Glioma

We tested some combinations of EMT and GSC relative to the OS of glioblastoma patients using survival tree analysis (Figure 5). Using the MES and GLI markers, MESmiddle and MESlowGLIhigh showed good prognoses, whereas MEShighGLIlow showed a poor prognosis (Figure 5a), suggesting that the expression of mesenchymal genes could be a good indicator for a prognosis of glioblastoma. MESmiddle showed a stronger prognosis than MEShigh (Figure 5b). Using the GLI and GSC markers, GSClow showed a good prognosis, whereas GSChighGLIlow showed a poor prognosis as compared with GSChighGLIhigh (Figure 5c), suggesting that GSC markers indicate malignant glioma cells. Moreover, PGBhigh and PGBmiddle showed poor prognoses as compared with PGBlow (Figure 5d,e), thereby validating the candidate markers and formulae used in this study. MEShighMTTlow showed a weaker prognosis than MESmiddle and MEShighMTThigh (Figure 5f). This suggests that reduced expression of the target genes for MTT leads to poor patient survival. In contrast, the CGGA validation data set returned that EPIlow led to a better prognosis than EPImiddle and EPIhigh (Figure S6a,b), suggesting a possibility that the overexpression of EPI genes can distinguish between the initiation of tumorigenesis and normal epithelial differentiation. Important data about GSC markers, MES markers, and PGBs could not be obtained from the CGGA data set (Figure S6c,d). Summarizing these results, the expression of EMT markers including MES, EPI, GSC, and PGBs could indicate a poor prognosis and malignant glioblastoma. Combinations of MES, GLI, and MTT gene markers might be useful for determining the prognosis of glioblastoma.

3.7. Multiple Assessments Required for Diagnosis and Predicting Prognosis of Glioblastoma

A combined formula was constituted based on the Cox proportional hazards regression analysis and our previous results (Appendix C). The formula distinguished the Kaplan–Meier survival curves of the subgroups divided by the median scores with a significant HR of 3.08 (95% CI 2.04–4.70, p < 0.0001; Figure 6a) and the validation data set with similar results, but were not statistically significant (Figure 6b). To determine the important factors in the prognosis prediction formula based on representative genes like ESI, MES, GLI/GSC markers, and PGBs, we split the formulae used previously into several equations minus various factors (Figure 6c). Interestingly, the formulae without the GSC (ΔGSC) and MES markers (ΔMES) showed the opposite results in the risk ratio compared with the normal combined formula (COMMON) in both the TCGA and CGGA data sets (Figure 6d,e), suggesting that evaluating MES and GSC markers is indispensable for the combined formula. The formulae missing EPI (ΔEPI, ΔEPIΔGSC, and ΔEPIΔPGB) and GLI markers (ΔGLI, ΔGLIΔGSC, and ΔGLIΔPGB) also weakened and/or reversed the risk ratios as compared with COMMON in both data sets (Figure 6d,e). Thus, the appropriate combination of several factors chosen based on the progression of glioma guarantees predicting the prognosis of glioblastoma.

4. Discussion

4.1. EMT and CSCs in Cancer Development and Progression

Cancer progression involves the induction of genetic stress and EMT, followed by CSC self-renewal, proliferation, and infiltration [38,39,40]. This process is also enhanced by the tumor microenvironment during angiogenesis and evasion of immune response and tumor cell properties, such as proliferation, migration, invasion, and drug resistance [38,40,41]. In glioma, chemo- and radiation-resistant GSCs have properties such as self-renewal and survival that contribute to tumor vasculature by transdifferentiating into endothelial cells upon induction with vascular endothelial growth factors (VEGFs) and hepatoma-derived growth factors (HDGFs) [38]. EMT is associated with infiltration as well as the generation and maintenance of CSCs [39]. EMT also contributes to tumor invasion, heterogeneity, chemoresistance, and robustness in reprogrammed gene expression that enables morphological and functional dedifferentiation into CSCs from differentiated tumor cells [39]. Dysregulation of splicing factors and tumor-specific isoforms frequently occurs in human tumors, indicating the importance of post-transcriptional regulation, including alternative splicing and/or gene fusion [38,42,43]. Thus, it is considered that EMT and stem cell differentiation, including dedifferentiation into CSCs, are closely related to cancer development and progression. Therefore, cellular processes and intrinsic alterations such as alternative splicing would provide the base for developing novel chemical therapeutics and de novo therapies against cancers [27].

4.2. Status Assessment and Prognosis Prediction using Multivariable Analyses on Gene Expression Profiling

Increased expression of PD-L1 correlates with a poor outcome of glioblastoma [44]. Profiling of PD-L1 expression is useful for determining patient survival time in glioblastoma [19,45]. A lower expression of type 2 T helper (Th2) cell genes compared with Th1 cell genes shows a good prognosis associated with lower expression of PD-L1 and PD-1 in glioblastoma, although estimating prognosis based on PD-L1 and PD-1 expression is difficult [19]. In the Th2low subgroup of patients with glioblastoma, a reduced expression of solute carrier family 11 (proton-coupled divalent metal ion transporter), member 1 (SLC11A1; encoding natural resistance-associated macrophage protein), tumor necrosis factor (TNF) receptor superfamily member 1B (TNFRSF1B), and lymphotoxin β receptor (LTBR) also show good prognoses [19,46]. TMZ is commonly used for treating glioblastoma and its mechanism of action is well known; however, the side effects associated are largely unknown [47,48]. The TMZ-stimulated glioblastoma cells suppress the expression of pro-inflammatory cytokines in activated periphery blood mononuclear cells. This depends on the enhanced expression of PD-L1, but no other immune checkpoint genes, such as B7-H3, herpesvirus entry mediator (HVEM), and galectin-9 (LGALS9), suggesting that TMZ controls the expression of PD-L1 in glioblastoma cells, resulting in the evasion of the immune system [41]. An increased expression of B7-H3 and the gene signature comprising GATA3 and galectin-3 (LGALS3) show poor prognoses of glioblastoma [20], suggesting the involvement of the lectin family and oligosaccharide-mediated cell–cell and cell–matrix interactions on the antigen-presenting cell surface in their efficiency to understand glioblastoma progression as well as brain lymphoma [49,50]. Prediction of prognosis based on analyzing cellular processes is applicable to various tumors including other brain tumors, such as primary central nervous system lymphoma (PCNSL). The PD-L1 protein is expressed in tumor microenvironments in 52% of cases, such as immune cells and macrophages. Patients with PCNSL (4.1%) also exhibit a rare and aggressive form of extra-nodal non-Hodgkin’s lymphoma [51,52]. This indicates that PD-L1 expression is detected in the surrounding and tumor cells. Thus, the assessment of cellular processes and prediction of prognosis with statistics from expression data are possible. Differential expression of PD-1 and PD-L2 and the Th1/Th2 balance enables the prediction of prognoses of PCNSL [27]. The formula comprising miR-30d, miR-93, and miR-181b is a promising marker for the prognosis of PCNSL [53]. The approaches and methods used in such studies could be applied to various diseases including brain tumors in assessing EMT and CSCs in this study. In addition, the candidates for diagnostic markers may also be detected from comparing with normal brain data.

5. Conclusions

In this study, we demonstrated that selective gene marker sets comprising 22 genes (Appendix A), such as DSG3, FN1, IGFBP2, CLDN1, HDAC7, and L1CAM as single gene marker candidates, are useful for predicting the prognosis of glioblastoma, based on the status assessment of EMT and GSCs that can be developed as novel target candidates for therapeutic intervention. The prognosis prediction formulae that included 12 genes (Appendix C), within a mixture of cellular processes, is effective in evaluating the survival of glioblastoma patients, which would help develop novel therapeutics and provide de novo marker candidates to predict the prognosis of glioblastoma.

Supplementary Materials

The supplementary materials are available online at https://www.mdpi.com/2073-4409/8/11/1312/s1.

Author Contributions

Y.T. and R.Y. designed the study. Y.T. and A.K. performed experiments. Y.T., A.K., and R.Y. analyzed data. Y.T. and R.Y. wrote the manuscript.

Funding

This research was funded by the MEXT KAKENHI Grant Numbers 16H05441 (R.Y.) and 18K09001 (Y.T.).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Appendix A

The formulas estimating the status of EMT, glioma, glioma stem cells, molecular target therapy genes, and potential glioma biomarkers based on the Cox proportional hazard regression analysis.
[TCGA and CGGA data sets]
Epithelial markers: 0.229 CLDN1 + 0.203 DSG3
Mesenchymal markers: 0.581 FN1 - 0.411 CDH11
Glioma markers: 0.529 HDAC7 − 0.64 HDAC1 + 0.404 MGMT − 0.627 PTEN + 0.639 HDAC3 − 0.306 EGFR − 0.33 PGF + 0.424 FLT1
Glioma stem cell markers: 0.388 L1CAM − 0.267 OLIG2 + 0.401 STAT3 − 0.307 BMI1
Molecular target therapy genes: 0.61 HDAC7 − 0.559 HDAC1 + 0.639 HDAC3 − 0.34 SIRT1 − 0.229 EGFR
Potential glioma biomarkers: 0.548 IGFBP2 − 0.634 TIMP4 + 0.482 GFAP + 0.335 MGMT − 0.369 GADD45A + 0.212 MMP9

Appendix B

The formulas estimating the status of EMT, glioma, glioma stem cells, molecular target therapy, and potential glioma biomarkers based on the principal component analysis.
[TCGA data set]
Epithelial markers: 0.134 CDH1 + 0.29 CLDN1 + 0.401 COL4A1 + 0.035 DSC1 + 0.048 DSG3 + 0.36 DSP + 0.123 KRT1 + 0.35 KRT18 + 0.113 LAMA1 + 0.284 MUC1 + 0.421 NID1 + 0.305 SDC1 + 0.321 TJP1
Mesenchymal markers: 0.224 ACTA2 + 0.259 CDH11 + 0.19 CDH2 + 0.235 COL1A1 + 0.227 COL3A1 + 0.21 CTNNB1 + 0.215 ETS1 + 0.268 FN1 + 0.21 FOXC2 + 0.126 GSC + 0.28 ITGA5 + 0.203 ITGAV + 0.284 ITGB1 + 0.063 ITGB6 + 0.192 LAMA5 + 0.216 LEF1 + 0.215 RUNX2 + 0.152 S100A4 + 0.174 SNAI1 + 0.205 SNAI2 + 0.135 TWIST1 + 0.23 VIM + 0.125 ZEB1
Glioma markers: 0.156 ATRX + 0.167 BRAF + 0.062 CDK4 + 0.037 CDKN2A + 0.122 H3F3A + 0.14 HIF1A + 0.044 MET + 0.161 NF1 + 0.166 PIK3CA + 0.179 PIK3CB + 0.108 PIK3CG + 0.147 PTEN + 0.125 RB1 + 0.072 TERT + 0.151 TP53 + 0.057 PTGS2 + 0.098 DEPTOR + 0.067 EGFR + 0.142 FLT1 + 0.12 FLT4 + 0.17 HDAC1 + 0.144 HDAC10 + 0.145 HDAC11 + 0.135 HDAC2 + 0.176 HDAC3 + 0.173 HDAC4 + 0.173 HDAC5 + 0.18 HDAC6 + 0.15 HDAC7 + 0.183 HDAC8 + 0.157 HDAC9 + 0.135 KDR + 0.162 MLST8 + 0.174 MTOR + 0.053 PDGFRA + 0.038 PGF + 0.148 RICTOR + 0.178 RPTOR + 0.173 SIRT1 + 0.105 SIRT2 + 0.168 SIRT3 + 0.133 SIRT4 + 0.173 SIRT5 + 0.169 SIRT6 + 0.184 SIRT7 + 0.082 VEGFA + 0.151 VEGFB + 0.078 VEGFC + 0.069 VEGFD + 0.027 CHI3L1 + 0.137 IDH1 + 0.154 IDH2 + 0.061 MGMT
Glioma stem cell markers: 0.251 BMI1 + 0.243 CD44 + 0.263 FUT4 + 0.298 ITGA6 + 0.249 KLF4 + 0.16 L1CAM + 0.32 MSI1 + 0.207 MYC + 0.176 NANOG + 0.269 NES + 0.204 OLIG2 + 0.129 POU5F1 + 0.15 PROM1 + 0.134 SALL4 + 0.307 SOX2 + 0.346 STAT3 + 0.266 GFAP
Molecular target therapy genes: 0.063 PTGS2 + 0.114 DEPTOR + 0.072 EGFR + 0.166 FLT1 + 0.147 FLT4 + 0.202 HDAC1 + 0.178 HDAC10 + 0.181 HDAC11 + 0.158 HDAC2 + 0.204 HDAC3 + 0.207 HDAC4 + 0.214 HDAC5 + 0.217 HDAC6 + 0.18 HDAC7 + 0.216 HDAC8 + 0.179 HDAC9 + 0.157 KDR + 0.197 MLST8 + 0.204 MTOR + 0.062 PDGFRA + 0.054 PGF + 0.176 RICTOR + 0.214 RPTOR + 0.2 SIRT1 + 0.131 SIRT2 + 0.202 SIRT3 + 0.161 SIRT4 + 0.207 SIRT5 + 0.208 SIRT6 + 0.225 SIRT7 + 0.097 VEGFA + 0.185 VEGFB + 0.095 VEGFC + 0.089 VEGFD
Potential glioma biomarkers: 0.028 AHSG + 0.281 CD63 + 0.22 CHI3L1 + 0.178 FABP5 + 0.08 FOXM1 + 0.199 FSTL1 + 0.267 GADD45A + 0.17 GFAP + 0.193 GSN + 0.248 IDH1 + 0.181 IDH2 + 0.175 IGFBP2 + 0.268 IQGAP1 + 0.166 MGMT + 0.112 MMP9 + 0.254 NAMPT + 0.178 PEA15 + 0.175 PTPRZ1 + 0.253 S100A10 + 0.27 S100A6 + 0.215 SPP1 + 0.179 STARD13 + 0.253 TBCA + 0.119 TIMP4
[CGGA data set]
Epithelial markers: − 0.15 CDH1 + 0.361 CLDN1 + 0.502 COL4A1 − 0.049 DSC1 + 0.132 DSG3 + 0.328 DSP + 0.206 KRT1 + 0.343 KRT18 + 0.221 LAMA1 + 0.072 MUC1 + 0.479 NID1 + 0.153 SDC1 − 0.038 TJP1
Mesenchymal markers: − 0.263 ACTA2 − 0.23 CDH11 − 0.116 CDH2 − 0.308 COL1A1 − 0.313 COL3A1 − 0.092 CTNNB1 − 0.144 ETS1 − 0.295 FN1 − 0.261 FOXC2 − 0.085 GSC − 0.313 ITGA5 − 0.067 ITGAV − 0.218 ITGB1 − 0.15 LAMA5 − 0.16 LEF1 − 0.149 RUNX2 − 0.214 S100A4 − 0.24 SNAI1 − 0.29 SNAI2 − 0.17 TWIST1 − 0.21 VIM + 0.007 ZEB1
Glioma markers: 0.205 ATRX + 0.249 BRAF + 0.022 CDK4 − 0.043 CDKN2A + 0.087 H3F3A + 0.041 HIF1A + 0.059 MET + 0.233 NF1 + 0.225 PIK3CA + 0.261 PIK3CB + 0.08 PIK3CG + 0.082 PTEN + 0.097 RB1 − 0.028 TERT + 0.124 TP53 − 0.058 PTGS2 + 0.132 DEPTOR + 0.088 EGFR − 0.021 FLT1 − 0.134 FLT4 − 0.182 HDAC1 − 0.081 HDAC10 + 0.15 HDAC11 + 0.089 HDAC2 − 0.09 HDAC3 + 0.125 HDAC4 + 0.258 HDAC5 + 0.047 HDAC6 + 0.007 HDAC7 − 0.149 HDAC8 + 0.114 HDAC9 − 0.002 KDR + 0.153 MLST8 + 0.205 MTOR + 0.145 PDGFRA − 0.092 PGF + 0.246 RPTOR + 0.242 SIRT1 + 0.17 SIRT2 + 0.05 SIRT3 + 0.012 SIRT4 − 0.086 SIRT5 − 0.128 SIRT6 − 0.165 SIRT7 − 0.063 VEGFB − 0.123 VEGFC − 0.003 VEGFD − 0.19 CHI3L1 + 0.164 IDH1 − 0.018 IDH2 − 0.213 MGMT
Glioma stem cell markers: 0.323 BMI1 − 0.381 CD44 − 0.342 FUT4 − 0.103 ITGA6 − 0.281 KLF4 + 0.053 L1CAM + 0.329 MSI1 + 0.003 MYC + 0.159 NANOG − 0.071 NES + 0.373 OLIG2 + 0.002 POU5F1 − 0.015 PROM1 − 0.184 SALL4 + 0.409 SOX2 − 0.23 STAT3 + 0.099 GFAP
Molecular target therapy genes: − 0.163 PTGS2 + 0.197 DEPTOR + 0.056 EGFR − 0.153 FLT1 − 0.221 FLT4 − 0.249 HDAC1 − 0.109 HDAC10 + 0.259 HDAC11 + 0.111 HDAC2 − 0.199 HDAC3 + 0.215 HDAC4 + 0.323 HDAC5 + 0.104 HDAC6 − 0.095 HDAC7 − 0.174 HDAC8 + 0.115 HDAC9 − 0.113 KDR + 0.18 MLST8 + 0.202 MTOR + 0.173 PDGFRA − 0.127 PGF + 0.246 RPTOR + 0.277 SIRT1 + 0.252 SIRT2 + 0.108 SIRT3 + 0.04 SIRT4 − 0.115 SIRT5 − 0.109 SIRT6 − 0.169 SIRT7 − 0.07 VEGFB − 0.222 VEGFC − 0.012 VEGFD
Potential glioma biomarkers: 0.056 AHSG − 0.272 CD63 − 0.328 CHI3L1 − 0.281 FABP5 + 0.073 FOXM1 − 0.283 FSTL1 − 0.215 GADD45A + 0.045 GFAP − 0.028 GSN − 0.021 IDH1 + 0.036 IDH2 − 0.258 IGFBP2 − 0.287 IQGAP1 − 0.159 MGMT − 0.248 MMP9 − 0.302 NAMPT + 0.19 PEA15 + 0.154 PTPRZ1 − 0.286 S100A10 − 0.251 S100A6 − 0.224 SPP1 + 0.047 STARD13 − 0.116 TBCA + 0.05 TIMP4

Appendix C

The formulas estimating the combined statuses of EMT, glioma, glioma stem cells, and potential glioma biomarkers based on the Cox proportional hazard regression analysis.
Combinatorial equation for status: 0.229 CLDN1 + 0.203 DSG3 + 0.581 FN1 − 0.411 CDH11 + 0.529 HDAC7 + 0.639 HDAC3 − 0.627 PTEN + 0.388 L1CAM − 0.267 OLIG2 + 0.548 IGFBP2 − 0.634 TIMP4 − 0.369 GADD45A

References

  1. Louis, D.N.; Perry, A.; Reifenberger, G.; von Deimling, A.; Figarella-Branger, D.; Cavenee, W.K.; Ohgaki, H.; Wiestler, O.D.; Kleihues, P.; Ellison, D.W. The 2016 World Health Organization Classification of Tumors of the Central Nervous System: A summary. Acta Neuropathol. 2016, 131, 803–820. [Google Scholar] [CrossRef] [PubMed]
  2. Silantyev, A.S.; Falzone, L.; Libra, M.; Gurina, O.I.; Kardashova, K.S.; Nikolouzakis, T.K.; Nosyrev, A.E.; Sutton, C.W.; Mitsias, P.D.; Tsatsakis, A. Current and Future Trends on Diagnosis and Prognosis of Glioblastoma: From Molecular Biology to Proteomics. Cells 2019, 8, 863. [Google Scholar] [CrossRef] [PubMed]
  3. Stewart, L.A. Chemotherapy in adult high-grade glioma: A systematic review and meta-analysis of individual patient data from 12 randomised trials. Lancet 2002, 359, 1011–1018. [Google Scholar] [PubMed]
  4. Stupp, R.; Hegi, M.E.; Mason, W.P.; van den Bent, M.J.; Taphoorn, M.J.; Janzer, R.C.; Ludwin, S.K.; Allgeier, A.; Fisher, B.; Belanger, K.; et al. Effects of radiotherapy with concomitant and adjuvant temozolomide versus radiotherapy alone on survival in glioblastoma in a randomised phase III study: 5-year analysis of the EORTC-NCIC trial. Lancet Oncol. 2009, 10, 459–466. [Google Scholar] [CrossRef]
  5. Tran, B.; Rosenthal, M.A. Survival comparison between glioblastoma multiforme and other incurable cancers. J. Clin. Neurosci. 2010, 17, 417–421. [Google Scholar] [CrossRef]
  6. Iser, I.C.; Pereira, M.B.; Lenz, G.; Wink, M.R. The Epithelial-to-Mesenchymal Transition-Like Process in Glioblastoma: An Updated Systematic Review and In Silico Investigation. Med. Res. Rev. 2017, 37, 271–313. [Google Scholar] [CrossRef] [PubMed]
  7. Rajesh, Y.; Biswas, A.; Mandal, M. Glioma progression through the prism of heat shock protein mediated extracellular matrix remodeling and epithelial to mesenchymal transition. Exp. Cell Res. 2017, 359, 299–311. [Google Scholar] [CrossRef]
  8. Li, L.; Wu, M.; Wang, C.; Yu, Z.; Wang, H.; Qi, H.; Xu, X. β-Asarone Inhibits Invasion and EMT in Human Glioma U251 Cells by Suppressing Splicing Factor HnRNP A2/B1. Molecules 2018, 23, 671. [Google Scholar] [CrossRef]
  9. Wu, H.; Li, X.; Feng, M.; Yao, L.; Deng, Z.; Zao, G.; Zhou, Y.; Chen, S.; Du, Z. Downregulation of RNF138 inhibits cellular proliferation, migration, invasion and EMT in glioma cells via suppression of the Erk signaling pathway. Oncol. Rep. 2018, 40, 3285–3296. [Google Scholar] [CrossRef]
  10. Iwadate, Y. Epithelial-mesenchymal transition in glioblastoma progression. Oncol. Lett. 2016, 11, 1615–1620. [Google Scholar] [CrossRef]
  11. Lee, J.M.; Dedhar, S.; Kalluri, R. Thompson EW. The epithelial-mesenchymal transition: New insights in signaling, development, and disease. J. Cell Biol. 2006, 172, 973–981. [Google Scholar] [CrossRef] [PubMed]
  12. Kalluri, R.; Weinberg, R.A. The basics of epithelial-mesenchymal transition. J. Clin. Invest. 2009, 119, 1420–1428. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Iwadate, Y. Plasticity in Glioma Stem Cell Phenotype and Its Therapeutic Implication. Neurol. Med. Chir. 2018, 58, 61–70. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Takahashi, K.; Yamanaka, S. Induction of pluripotent stem cells from mouse embryonic and adult fibroblast cultures by defined factors. Cell 2006, 126, 663–676. [Google Scholar] [CrossRef] [PubMed]
  15. Yu, J.; Vodyanik, M.A.; Smuga-Otto, K.; Antosiewicz-Bourget, J.; Frane, J.L.; Tian, S.; Nie, J.; Jonsdottir, G.A.; Ruotti, V.; Stewart, R.; et al. Induced pluripotent stem cell lines derived from human somatic cells. Science 2007, 318, 1917–1920. [Google Scholar] [CrossRef]
  16. Hattermann, K.; Flüh, C.; Engel, D.; Mehdorn, H.M.; Synowitz, M.; Mentlein, R.; Held-Feindt, J. Stem cell markers in glioma progression and recurrence. Int. J. Oncol. 2016, 49, 1899–1910. [Google Scholar] [CrossRef]
  17. Lv, D.; Ma, Q.H.; Duan, J.J.; Wu, H.B.; Zhao, X.L.; Yu, S.C.; Bian, X.W. Optimized dissociation protocol for isolating human glioma stem cells from tumorspheres via fluorescence-activated cell sorting. Cancer Lett. 2016, 377, 105–115. [Google Scholar] [CrossRef]
  18. Colquhoun, A. Cell biology-metabolic crosstalk in glioma. Int. J. Biochem. Cell. Biol. 2017, 89, 171–181. [Google Scholar] [CrossRef]
  19. Takashima, Y.; Kawaguchi, A.; Kanayama, T.; Hayano, A.; Yamanaka, R. Correlation between lower balance of Th2 helper T-cells and expression of PD-L1/PD-1 axis genes enables prognostic prediction in patients with glioblastoma. Oncotarget 2018, 9, 19065–19078. [Google Scholar] [CrossRef]
  20. Takashima, Y.; Kawaguchi, A.; Hayano, A.; Yamanaka, R. CD276 and the gene signature composed of GATA3 and LGALS3 enable prognosis prediction of glioblastoma multiforme. PLoS ONE 2019, 14, e0216825. [Google Scholar] [CrossRef]
  21. Ashburner, M.; Ball, C.A.; Blake, J.A.; Botstein, D.; Butler, H.; Cherry, J.M.; Davis, A.P.; Dolinski, K.; Dwight, S.S.; Eppig, J.T.; et al. Gene ontology: Tool for the unification of biology. The Gene Ontology Consortium. Nat. Genet. 2000, 25, 25–29. [Google Scholar] [CrossRef] [PubMed]
  22. Dennis, G., Jr.; Sherman, B.T.; Hosack, D.A.; Yang, J.; Gao, W.; Lane, H.C.; Lempicki, R.A. DAVID: Database for Annotation, Visualization, and Integrated Discovery. Genome Biol. 2003, 4, 3. [Google Scholar] [CrossRef]
  23. Takashima, Y.; Sasaki, Y.; Hayano, A.; Homma, J.; Fukai, J.; Iwadate, Y.; Kajiwara, K.; Ishizawa, S.; Hondoh, H.; Tokino, T.; et al. Target amplicon exome-sequencing identifies promising diagnosis and prognostic markers involved in RTK-RAS and PI3K-AKT signaling as central oncopathways in primary central nervous system lymphoma. Oncotarget 2018, 9, 27471–27486. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Ishwaran, H.; Kogalur, U.B.; Blackstone, E.H.; Lauer, M.S. Random survival forests. Ann. Appl. Stat. 2008, 2, 841–860. [Google Scholar] [CrossRef]
  25. Kawaguchi, A.; Iwadate, Y.; Komohara, Y.; Sano, M.; Kajiwara, K.; Yajima, N.; Tsuchiya, N.; Homma, J.; Aoki, H.; Kobayashi, T.; et al. Gene expression signature-based prognostic risk score in patients with primary central nervous system lymphoma. Clin. Cancer Res. 2012, 18, 5672–5681. [Google Scholar] [CrossRef]
  26. Kawaguchi, A.; Yajima, N.; Tsuchiya, N.; Homma, J.; Sano, M.; Natsumeda, M.; Takahashi, H.; Fujii, Y.; Kakuma, T.; Yamanaka, R. Gene expression signature-based prognostic risk score in patients with glioblastoma. Cancer Sci. 2013, 104, 1205–1210. [Google Scholar] [CrossRef]
  27. Takashima, Y.; Kawaguchi, A.; Sato, R.; Yoshida, K.; Hayano, A.; Homma, J.; Fukai, J.; Iwadate, Y.; Kajiwara, K.; Ishizawa, S.; et al. Differential expression of individual transcript variants of PD-1 and PD-L2 genes on Th-1/Th-2 status is guaranteed for prognosis prediction in PCNSL. Sci. Rep. 2019, 9, 10004. [Google Scholar] [CrossRef]
  28. Meinshausen, N.; Buhlmann, P. High dimensional graphs and variable selection with the lasso. Ann. Stat. 2006, 34, 1436–1462. [Google Scholar] [CrossRef]
  29. Friedman, J.; Hastie, T.; Tibshirani, R. Sparse inverse covariance estimation with the graphical lasso. Biostatistics 2008, 9, 432–441. [Google Scholar] [CrossRef]
  30. Leblanc, M.; Crowley, J. Survival trees by goodness of split. J. Am. Stat. Assoc. 1993, 88, 457–467. [Google Scholar] [CrossRef]
  31. Nishida, Y.; Kimura, S.; Mizobe, H.; Yamamichi, J.; Kojima, K.; Kawaguchi, A.; Fujisawa, M.; Matsue, K. Automatic digital quantification of bone marrow myeloma volume in appendicular skeletons–clinical implications and prognostic significance. Sci. Rep. 2017, 7, 12885. [Google Scholar] [CrossRef] [PubMed]
  32. R Development Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2011. [Google Scholar]
  33. Gentleman, R.C.; Carey, V.J.; Bates, D.M.; Bolstad, B.; Dettling, M.; Dudoit, S.; Ellis, B.; Gautier, L.; Ge, Y.; Gentry, J.; et al. Bioconductor: Open software development for computational biology and bioinformatics. Genome Biol. 2004, 5, 80. [Google Scholar] [CrossRef] [PubMed]
  34. Zeisberg, M.; Neilson, E.G. Biomarkers for epithelial-mesenchymal transitions. J. Clin. Invest. 2009, 119, 1429–1437. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Liang, S.; Shen, G. Biomarkers of Glioma. In Molecular Targets of CNS Tumors; Garami, M., Ed.; N InTech Europe: London, UK, 2011; p. 325. [Google Scholar]
  36. Otani, R.; Uzuka, T.; Ueki, K. Classification of adult diffuse gliomas by molecular markers-a short review with historical footnote. Jpn. J. Clin. Oncol. 2017, 47, 2–6. [Google Scholar] [CrossRef] [PubMed]
  37. Ludwig, K.; Kornblum, H.I. Molecular markers in glioma. J. Neurooncol. 2017, 134, 505–512. [Google Scholar] [CrossRef]
  38. Jhaveri, N.; Chen, T.C.; Hofman, F.M. Tumor vasculature and glioma stem cells: Contributions to glioma progression. Cancer Lett. 2016, 380, 545–551. [Google Scholar] [CrossRef]
  39. Pradella, D.; Naro, C.; Sette, C.; Ghigna, C. EMT and stemness: Flexible processes tuned by alternative splicing in development and cancer progression. Mol. Cancer 2017, 16, 8. [Google Scholar] [CrossRef]
  40. Quezada, C.; Torres, Á.; Niechi, I.; Uribe, D.; Contreras-Duarte, S.; Toledo, F.; San Martín, R.; Gutiérrez, J.; Sobrevia, L. Role of extracellular vesicles in glioma progression. Mol. Aspects Med. 2018, 60, 38–51. [Google Scholar] [CrossRef]
  41. Wang, S.; Yao, F.; Lu, X.; Li, Q.; Su, Z.; Lee, J.H.; Wang, C.; Du, L. Temozolomide promotes immune escape of GBM cells via upregulating PD-L1. Am. J. Cancer Res. 2019, 9, 1161–1171. [Google Scholar]
  42. Kloosterman, W.P.; Coebergh van den Braak, R.R.J.; Pieterse, M.; van Roosmalen, M.J.; Sieuwerts, A.M.; Stangl, C.; Brunekreef, R.; Lalmahomed, Z.S.; Ooft, S.; van Galen, A.; et al. A Systematic Analysis of Oncogenic Gene Fusions in Primary Colon Cancer. Cancer Res. 2017, 77, 3814–3822. [Google Scholar] [CrossRef]
  43. Kim, R.N.; Moon, H.G.; Han, W.; Noh, D.Y. Perspective Insight into Future Potential Fusion Gene Transcript Biomarker Candidates in Breast Cancer. Int. J. Mol. Sci. 2018, 19, 502. [Google Scholar] [CrossRef] [PubMed]
  44. Nduom, E.K.; Wei, J.; Yaghi, N.K.; Huang, N.; Kong, L.Y.; Gabrusiewicz, K.; Ling, X.; Zhou, S.; Ivan, C.; Chen, J.Q.; et al. PD-L1 expression and prognostic impact in glioblastoma. Neuro Oncol. 2016, 18, 195–205. [Google Scholar] [CrossRef] [PubMed]
  45. Wang, Z.; Zhang, C.; Liu, X.; Wang, Z.; Sun, L.; Li, G.; Liang, J.; Hu, H.; Liu, Y.; Zhang, W.; et al. Molecular and clinical characterization of PD-L1 expression at transcriptional level via 976 samples of brain glioma. Oncoimmunology 2016, 5, e1196310. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Allen, E.; Jabouille, A.; Rivera, L.B.; Lodewijckx, I.; Missiaen, R.; Steri, V.; Feyen, K.; Tawney, J.; Hanahan, D.; Michael, I.P.; et al. Combined antiangiogenic and anti-PD-L1 therapy stimulates tumor immunity through HEV formation. Sci. Transl. Med. 2017, 9, 9679. [Google Scholar] [CrossRef]
  47. Koekkoek, J.A.; Dirven, L.; Heimans, J.J.; Postma, T.J.; Vos, M.J.; Reijneveld, J.C.; Taphoorn, M.J. Seizure reduction in a low-grade glioma: More than a beneficial side effect of temozolomide. J. Neurol. Neurosurg. Psychiatry 2015, 86, 366–373. [Google Scholar] [CrossRef]
  48. Chio, C.C.; Chen, K.Y.; Chang, C.K.; Chuang, J.Y.; Liu, C.C.; Liu, S.H.; Chen, R.M. Improved effects of honokiol on temozolomide-induced autophagy and apoptosis of drug-sensitive and -tolerant glioma cells. BMC Cancer 2018, 18, 379. [Google Scholar] [CrossRef]
  49. Tsuchiya, N.; Yamanaka, R.; Yajima, N.; Homma, J.; Sano, M.; Komata, T.; Ikeda, T.; Fujimoto, I.; Takahashi, H.; Tanaka, R.; et al. Isolation and characterization of an N-linked oligosaccharide that is increased in glioblastoma tissue and cell lines. Int. J. Oncol. 2005, 27, 1231–1239. [Google Scholar] [CrossRef]
  50. Takashima, Y.; Yoshimura, T.; Kano, Y.; Hayano, A.; Hondoh, H.; Ikenaka, K.; Yamanaka, R. Differential expression of N-linked oligosaccharides in methotrexate-resistant primary central nervous system lymphoma cells. BMC Cancer 2019, 19, 910. [Google Scholar] [CrossRef]
  51. Hayano, A.; Komohara, Y.; Takashima, Y.; Takeya, H.; Homma, J.; Fukai, J.; Iwadate, Y.; Kajiwara, K.; Ishizawa, S.; Hondoh, H.; et al. Programmed Cell Death Ligand 1 Expression in Primary Central Nervous System Lymphomas: A Clinicopathological Study. Anticancer Res. 2017, 37, 5655–5666. [Google Scholar]
  52. Miyasato, Y.; Takashima, Y.; Takeya, H.; Yano, H.; Hayano, A.; Nakagawa, T.; Makino, K.; Takeya, M.; Yamanaka, R.; Komohara, Y. The expression of PD-1 ligands and IDO1 by macrophage/microglia in primary central nervous system lymphoma. J. Clin. Exp. Hematop. 2018, 58, 95–101. [Google Scholar] [CrossRef] [Green Version]
  53. Takashima, Y.; Kawaguchi, A.; Iwadate, Y.; Hondoh, H.; Fukai, J.; Kajiwara, K.; Hayano, A.; Yamanaka, R. MicroRNA signature constituted of miR-30d, miR-93, and miR-181b is a promising prognostic marker in primary central nervous system lymphoma. PLoS ONE 2019, 14, e0210400. [Google Scholar] [CrossRef] [PubMed]
Cells 08 01312 g001 550
Figure 1. Differential expression of the genes related to epithelial–mesenchymal transition and glioma in 151 patients with glioblastoma. Expression patterns with two-way clustering analysis are presented. (a) Epithelial marker gene set. (b) Mesenchymal marker gene set. (c) Glioma marker gene set. (d) Glioma stem cell marker gene set. (e) Molecular target therapy gene set. (f) Potential glioma marker gene set. Numbers in the parentheses denote the numbers of genes and glioblastoma samples.
Figure 1. Differential expression of the genes related to epithelial–mesenchymal transition and glioma in 151 patients with glioblastoma. Expression patterns with two-way clustering analysis are presented. (a) Epithelial marker gene set. (b) Mesenchymal marker gene set. (c) Glioma marker gene set. (d) Glioma stem cell marker gene set. (e) Molecular target therapy gene set. (f) Potential glioma marker gene set. Numbers in the parentheses denote the numbers of genes and glioblastoma samples.
Cells 08 01312 g001
Cells 08 01312 g002 550
Figure 2. Survival distribution of the subgroups divided by the prognosis prediction formulae in the gene sets in glioblastoma. (a) Epithelial marker set. (b) Mesenchymal marker gene set. (c) Glioma marker gene set. (d) Glioma stem cell marker gene set. (e) Molecular target therapy gene set. (f) Potential glioma marker gene set. OS, overall survival; HR, hazard ratio; cut off score, a median score from a prognosis prediction formula. High and low denote the subgroups of the patients associated with the over and under median scores of the prognosis scores.
Figure 2. Survival distribution of the subgroups divided by the prognosis prediction formulae in the gene sets in glioblastoma. (a) Epithelial marker set. (b) Mesenchymal marker gene set. (c) Glioma marker gene set. (d) Glioma stem cell marker gene set. (e) Molecular target therapy gene set. (f) Potential glioma marker gene set. OS, overall survival; HR, hazard ratio; cut off score, a median score from a prognosis prediction formula. High and low denote the subgroups of the patients associated with the over and under median scores of the prognosis scores.
Cells 08 01312 g002
Cells 08 01312 g003 550

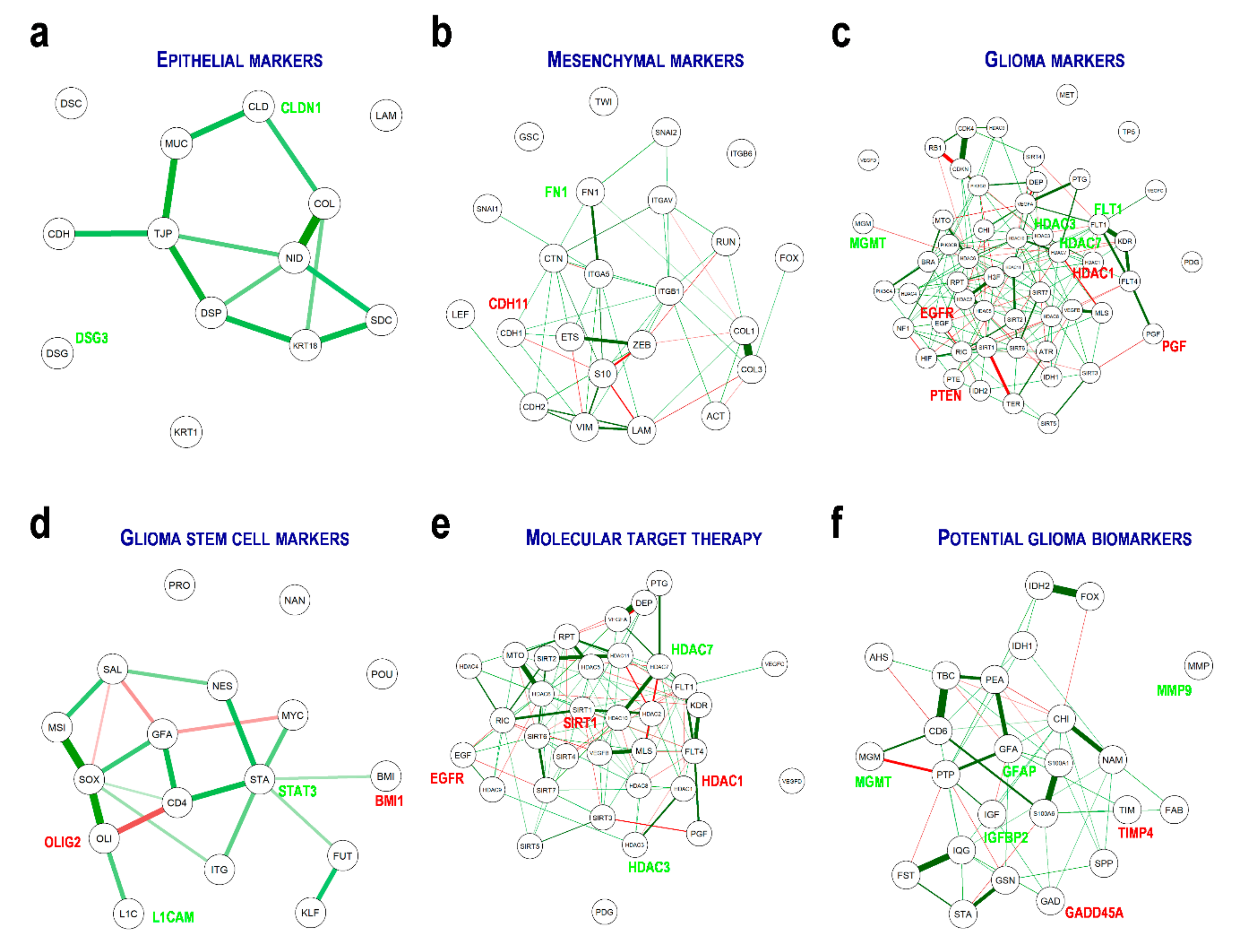

Figure 3. Genetic interaction networks based on the gene expression within the gene sets in glioblastoma. The graphical lasso estimation of the network models is drawn. (a) Epithelial marker gene set. (b) Mesenchymal marker gene set. (c) Glioma marker gene set. (d) Glioma stem cell marker gene set. (e) Molecular target therapy gene set. (f) Potential glioma marker gene set. The genes with significant hazard ratios are highlighted. Red and green represent poor and good prognosis, respectively.
Figure 3. Genetic interaction networks based on the gene expression within the gene sets in glioblastoma. The graphical lasso estimation of the network models is drawn. (a) Epithelial marker gene set. (b) Mesenchymal marker gene set. (c) Glioma marker gene set. (d) Glioma stem cell marker gene set. (e) Molecular target therapy gene set. (f) Potential glioma marker gene set. The genes with significant hazard ratios are highlighted. Red and green represent poor and good prognosis, respectively.
Cells 08 01312 g003
Cells 08 01312 g004 550
Figure 4. Correlation among the gene sets in glioblastoma. (a) Score correlation in glioblastoma. (b) The graphical lasso estimation with the network model of the gene sets related to epithelial–mesenchymal transition and glioma in glioblastoma. *** p < 0.0001.
Figure 4. Correlation among the gene sets in glioblastoma. (a) Score correlation in glioblastoma. (b) The graphical lasso estimation with the network model of the gene sets related to epithelial–mesenchymal transition and glioma in glioblastoma. *** p < 0.0001.
Cells 08 01312 g004
Cells 08 01312 g005 550

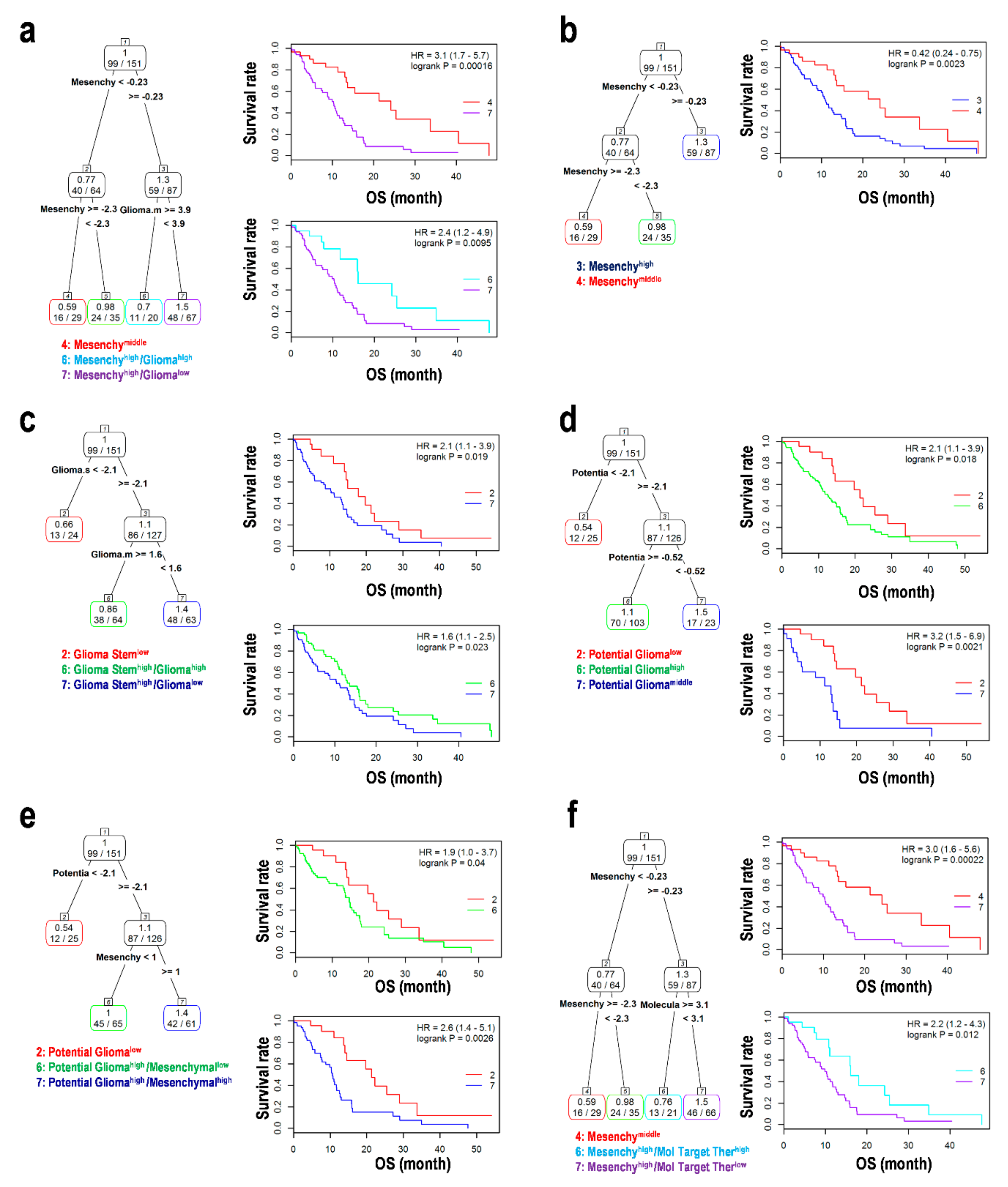

Figure 5. Survival tree analysis for the epithelial–mesenchymal transition (EMT) statuses and glioma markers in glioblastoma. (a) Mesenchymal status and glioma markers. (b) Mesenchymal status. (c) Glioma stem cell markers and glioma markers. (d) Potential glioma biomarkers. (e) Potential glioma biomarkers and mesenchymal status. (f) Mesenchymal status and molecular target therapy genes. HR; hazard ratio, OS; overall survival.
Figure 5. Survival tree analysis for the epithelial–mesenchymal transition (EMT) statuses and glioma markers in glioblastoma. (a) Mesenchymal status and glioma markers. (b) Mesenchymal status. (c) Glioma stem cell markers and glioma markers. (d) Potential glioma biomarkers. (e) Potential glioma biomarkers and mesenchymal status. (f) Mesenchymal status and molecular target therapy genes. HR; hazard ratio, OS; overall survival.
Cells 08 01312 g005
Cells 08 01312 g006 550

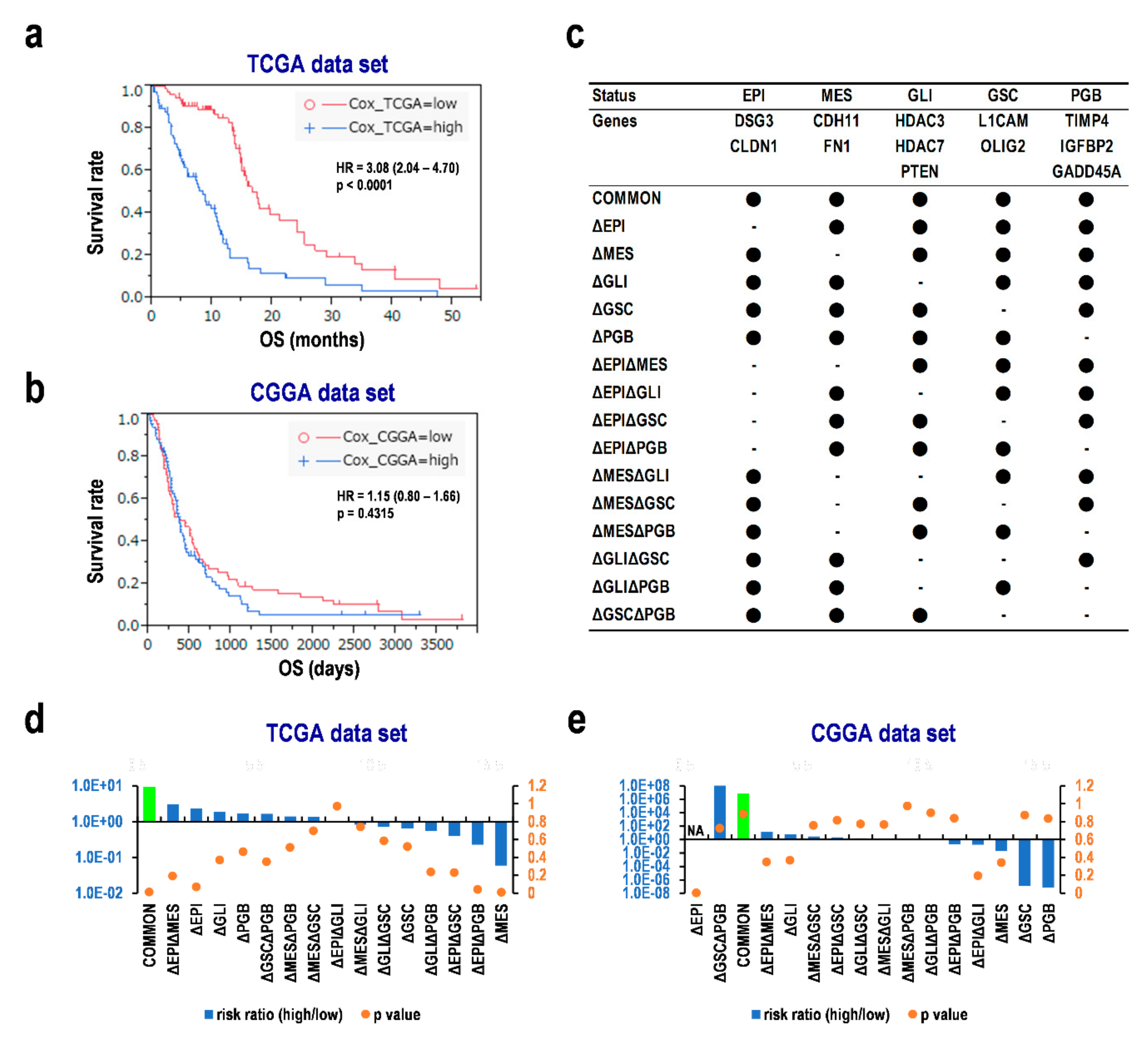

Figure 6. Contributions of EMT status and glioma stem cell markers for prognosis prediction in glioblastoma. (a–b) Survival distribution estimated with the combinatorial equation for prognosis prediction. (a) The Cancer Genome Atlas (TCGA) data set. (b) The Chinese Glioma Genome Altas (CGGA) data set. Subgroups were divided by the median score from the formula in the data set. (c) The formula composition. (d–e) The risk ratios and p-values in the subgroups with a high score compared with those with a low score. (d) The TCGA data set. (e) The CGGA data set. EPI, epithelial status; MES, mesenchymal status; GLI, glioma markers; GSC, glioma stem cell markers; PGB, potential glioma biomarkers; NA, not applicable; HR, hazard ratio. Delta (Δ) represents a difference value.
Figure 6. Contributions of EMT status and glioma stem cell markers for prognosis prediction in glioblastoma. (a–b) Survival distribution estimated with the combinatorial equation for prognosis prediction. (a) The Cancer Genome Atlas (TCGA) data set. (b) The Chinese Glioma Genome Altas (CGGA) data set. Subgroups were divided by the median score from the formula in the data set. (c) The formula composition. (d–e) The risk ratios and p-values in the subgroups with a high score compared with those with a low score. (d) The TCGA data set. (e) The CGGA data set. EPI, epithelial status; MES, mesenchymal status; GLI, glioma markers; GSC, glioma stem cell markers; PGB, potential glioma biomarkers; NA, not applicable; HR, hazard ratio. Delta (Δ) represents a difference value.
Cells 08 01312 g006

Share and Cite

MDPI and ACS Style

Takashima, Y.; Kawaguchi, A.; Yamanaka, R. Promising Prognosis Marker Candidates on the Status of Epithelial–Mesenchymal Transition and Glioma Stem Cells in Glioblastoma. Cells 2019, 8, 1312. https://doi.org/10.3390/cells8111312

AMA Style

Takashima Y, Kawaguchi A, Yamanaka R. Promising Prognosis Marker Candidates on the Status of Epithelial–Mesenchymal Transition and Glioma Stem Cells in Glioblastoma. Cells. 2019; 8(11):1312. https://doi.org/10.3390/cells8111312

Chicago/Turabian Style

Takashima, Yasuo, Atsushi Kawaguchi, and Ryuya Yamanaka. 2019. "Promising Prognosis Marker Candidates on the Status of Epithelial–Mesenchymal Transition and Glioma Stem Cells in Glioblastoma" Cells 8, no. 11: 1312. https://doi.org/10.3390/cells8111312

APA Style

Takashima, Y., Kawaguchi, A., & Yamanaka, R. (2019). Promising Prognosis Marker Candidates on the Status of Epithelial–Mesenchymal Transition and Glioma Stem Cells in Glioblastoma. Cells, 8(11), 1312. https://doi.org/10.3390/cells8111312

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
