Role of A-Kinase Anchoring Protein 1 in Retinal Ganglion Cells: Neurodegeneration and Neuroprotection

Hamilton Glaucoma Center and Shiley Eye Institute, The Viterbi Family Department of Ophthalmology, University of California San Diego, La Jolla, CA 92093, USA
National Center for Microscopy and Imaging Research, Department of Neurosciences, University of California San Diego, La Jolla, CA 92093, USA
Department of Ophthalmology and Visual Science, College of Medicine, The Catholic University of Korea, Seoul 06591, Republic of Korea
Department of Ophthalmology and Visual Science, St. Vincent’s Hospital, Jungbu-daero 93, Paldal-gu, Suwon 16247, Republic of Korea
Department of Pharmacology, Iowa Neuroscience Institute, University of Iowa, Iowa City, IA 52242, USA
Author to whom correspondence should be addressed.
Cells 2023, 12(11), 1539;
Received: 25 March 2023 / Revised: 21 May 2023 / Accepted: 1 June 2023 / Published: 3 June 2023


A-Kinase anchoring protein 1 (AKAP1) is a multifunctional mitochondrial scaffold protein that regulates mitochondrial dynamics, bioenergetics, and calcium homeostasis by anchoring several proteins, including protein kinase A, to the outer mitochondrial membrane. Glaucoma is a complex, multifactorial disease characterized by a slow and progressive degeneration of the optic nerve and retinal ganglion cells (RGCs), ultimately resulting in vision loss. Impairment of the mitochondrial network and function is linked to glaucomatous neurodegeneration. Loss of AKAP1 induces dynamin-related protein 1 dephosphorylation-mediated mitochondrial fragmentation and loss of RGCs. Elevated intraocular pressure triggers a significant reduction in AKAP1 protein expression in the glaucomatous retina. Amplification of AKAP1 expression protects RGCs from oxidative stress. Hence, modulation of AKAP1 could be considered a potential therapeutic target for neuroprotective intervention in glaucoma and other mitochondria-associated optic neuropathies. This review covers the current research on the role of AKAP1 in the maintenance of mitochondrial dynamics, bioenergetics, and mitophagy in RGCs and provides a scientific basis to identify and develop new therapeutic strategies that could protect RGCs and their axons in glaucoma.

1. Introduction

1.1. AKAP1

A-Kinase anchoring protein 1 (AKAP1) is a multifunctional mitochondrial scaffold protein that anchors protein kinase A (PKA) and other signaling proteins such as protein phosphate 1 (PP1), Ca2+-dependent phosphatase calcineurin (CaN), phosphodiesterase 4 (PDE4), and Src kinase to the outer mitochondrial membrane (OMM) [1,2,3]. As an OMM-targeted AKAP, AKAP1 regulates mitochondrial dynamics and contributes to the maintenance of mitochondrial networks and bioenergetics, cellular calcium homeostasis, and viability [4]. AKAP1 possesses a characteristic PKA binding domain capable of binding both regulatory subunits (type-I and type-II) of PKA. Thus, it is also known as D-AKAP1 (dual specificity AKAP1). Other common names are AKAP121 in mice and rats, AKAP149 in humans, and S-AKAP84, which is a unique isoform found in sperm [5,6,7]. Multiple AKAP1 splice variants are expressed from the AKAP1 gene in a variety of tissues, including the brain, heart, liver, kidney, and skeletal muscle [8]. The full-length encoded AKAP1 protein (Figure 1) consists of an N-terminal OMM domain with a mitochondrial targeting (MT) sequence (1-30aa), a PKA binding site, a highly conserved c-terminal RNA binding K homology (KH) domain, and a Tudor domain [9,10,11,12]. The MT motif is present in the first 30 residues of all AKAP1 isoforms and consists of a hydrophobic helix followed by positively charged amino acids. It is necessary for attaching the AKAP1 scaffold to the OMM [13,14,15]. The PKA binding domain, which interacts with the dimerization/docking (D/D) domain of the PKA regulatory subunit, is a 14–18 amino acid fragment that is highly conserved in structure but is poorly conserved across the AKAP family [13]. Some AKAP1 splice variants (e.g., S-AKAP84) lack the C-terminal KH and Tudor domains [10,11]. Interactions between the KH domain and AU-rich RNAs or single-strand DNA have been observed [9]. Within the KH domain, an intact hydrophobic groove is essential for proper RNA binding [14]. The Tudor domain of AKAP1 is made up of five antiparallel beta-sheets that are folded into a structure resembling a barrel. This structure can detect symmetrically di-methylated arginine and possesses mild RNase activity. As a result, the KH–Tudor domain is responsible for regulating translation as well as the stability and subcellular localization of binding RNAs [14,15]. The tubulin-binding motif, which is found inside the N-terminal MT motif (1–30 aa), is another characteristic shared by AKAP149, AKAP121, and S-AKAP84. The conserved area known as the tubulin-binding motif interacts with both tubulin polymers and soluble microtubules [9].
AKAP1 integrates various intercellular signal transduction cascades via interaction with proteins and mRNAs at the OMM to maintain mitochondrial homeostasis [3]. Thus, AKAP1 is considered a mitochondrial signaling hub and plays vital roles in the regulation of mitochondrial function and structure. AKAP1 regulates mitochondrial structure and function by recruiting PKA to the OMM. The cyclic adenosine 3′5′-monophosphate (cAMP)/PKA signaling pathway is one of the cell’s signaling cascades that most affects mitochondria. By anchoring PKA and modulating dynamin-related protein 1 (DRP1) phosphorylation, AKAP1 promotes mitochondrial elongation and increases cell survival, demonstrating its pivotal function in the PKA/DRP1 signaling axis [2]. Furthermore, AKAP1 could mediate mitochondrial bioenergetics by augmenting ATP synthesis and the mitochondrial membrane potential [16,17]. In the CNS, AKAP1 prevents neuronal cell loss during a cerebral ischemic stroke by preserving the activity of the respiratory chain, mitigating DRP1-mediated mitochondrial fission and superoxide production, and delaying the dysregulation of Ca2+ [18]. AKAP1/PKA axis-mediated neuroprotective mitochondrial remodeling protected HT22 cells by phosphorylating DRP1 and blocking glutamate-induced oxidative stress [19]. In addition, augmenting AKAP1 expression improved dendritic growth and reduced synaptic density in cultured hippocampal neurons [20].
Recent evidence indicates that AKAP-mediated signaling is critical for several fundamental neurological processes and suggests that understanding the function of AKAPs in nervous system disorders may develop novel therapeutic approaches [21]. AKAPs are involved in a wide range of neuronal functions, including neurotransmitter release [22], synaptic plasticity [23], neuronal excitability [24], ion channel function, and gene expression [25,26]. They are also crucial for adequately developing and maintaining neuronal structures such as dendrites and axons [16].

1.2. cAMP/PKA Signaling and AKAP1 Complex

cAMP, a ubiquitous second messenger, regulates growth, differentiation, and cell survival and contributes to the signal transduction pathway activated by growth factors, hormones, and neurotransmitters [21]. It is synthesized from the catalytic cyclization of ATP by adenylyl cyclases (ACs) [22] and acts through three types of effector proteins: PKA, exchange proteins activated by cAMP (EPACs), and cyclic nucleotide-gated ion channels (CNGs/HCNs) [23]. PKA is the major sensor of cAMP and could selectively phosphorylate substrates in response to different stimuli. The localization of PKA is guided by AKAPs that target it to specific substrates [24]. AKAP1 attaches PKA type-I and type-II regulatory subunits to the OMM in response to cAMP-signaling upon PKA activation [24]. AKAP1 also tethers the cyclic nucleotide PDE4, which hydrolyzes cAMP to inhibit cAMP-signal transduction [12]. Since AKAPs interact with the regulatory subunits rather than the catalytic subunits of PKA, localized signaling within the cell still needs the cAMP-mediated release of the active catalytic subunit of PKA in order to phosphorylate substrates and achieve compartmentalized signaling [20]. AKAPs provide the architectural infrastructure for the specialization of the cAMP signaling network by bringing together unique combinations of upstream and downstream signaling molecules. AKAP1/PKA signaling is crucial for adequately coordinating dendritic outgrowth during neuronal development. Dendritic complexity is increased when AKAP1 is overexpressed during development, but the number of synapses is not affected [16]. Therefore, the role of AKAP1 in coordinating cAMP/PKA signaling at the OMM is critical to maintaining neuronal health, development, metabolism, and physiology.

1.3. AKAP1 and Glaucomatous Retinal Ganglion Cells

Retinal ganglion cells (RGCs) are solely responsible for transmitting visual information from the retina of the eye to the visual cortex of the brain. In humans, approximately 50% of RGC axons cross over to the opposite side at the optic chiasm, and most of these axons end up in a specific area of the brain called the lateral geniculate nucleus. However, in rodents, almost all RGC axons cross over at the optic chiasm, and some of the axons form synapses in the superior colliculus [25,26,27,28]. RGC somas are located in the innermost layer of the retina, called the ganglion cell layer, and their dendrites ramify in the inner plexiform layer, where they receive signals from bipolar cell axons and amacrine cell processes. After processing this information, RGCs transmit it to the brain through their axons, which travel along the nerve fiber layer and optic nerve [29]. There are several types of RGCs, each with different properties and functions. Some RGCs are sensitive to light intensity and color, while others respond to movement or changes in the visual field. RGCs also vary in spatial resolution, with some cells able to detect fine details and others more suited to detecting larger objects [30]. In addition to their role in vision, RGCs also play an important role in other physiological processes, such as regulating circadian rhythms and modulating pupil size [31]. In glaucoma, RGCs and their axon degeneration are the main characteristics, resulting in vision loss. Until now, there have been several risk factors in glaucoma pathophysiology, and these include elevated intraocular pressure (IOP) [32,33], oxidative stress [34], autoimmune response [35,36], glial cell activation [37,38], mitochondrial dysfunction [3], excitotoxicity [39], and aging [40]. However, the precise pathophysiological mechanisms underlying the RGC soma and its axon degeneration still need to be elucidated. Evidence from our group demonstrated that mitochondrial dysfunction plays a critical role in the degeneration of the optic nerve axon and progressive RGC death in glaucomatous neurodegeneration [3,41,42]. Since AKAP1 protects neuronal cells and promotes neurite outgrowth in the central nervous system [18], our recent studies indicate that glaucomatous insults, including elevated IOP and oxidative stress, induce AKAP1 deficiency in RGCs [43], and increasing AKAP1 expression promotes RGC survival against oxidative stress [3]. Thus, these findings suggest that AKAP1 may play an important role in mitochondrial protection in RGCs against glaucomatous neurodegeneration.

2. AKAP1 and Its Role in Mitochondria

AKAP1 is a primary regulatory molecule in various mitochondrial activities such as oxidative phosphorylation, mitochondrial membrane potential, Ca2+ homeostasis, apoptosis, and the phosphorylation of various mitochondrial respiratory chain substrate molecules [44]. Recent evidence indicates that AKAP1 impacts the regulation of mitochondrial dynamics, bioenergetics, and mitophagy [18,43,45] (Figure 2).

2.1. AKAP1 and Mitochondrial Dynamics

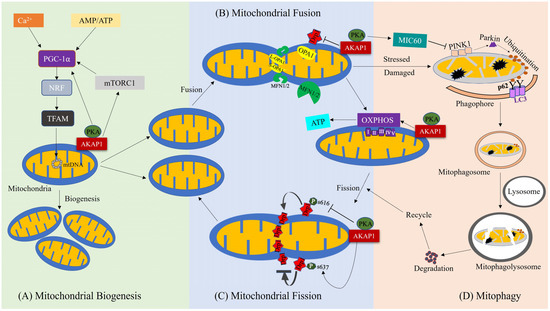

Mitochondria undergo four dynamic processes: fusion, fission, motility, and mitophagy. Mitochondrial fusion involves the joining of distinct mitochondria to form new mitochondria, while fission involves the division of a mitochondrion into separate mitochondria. Mitochondria are transported to specific sites within the cell by the microtubule network, a process called mitochondrial motility. Nonfunctional mitochondria are selectively eliminated through the mitophagy process, which involves machinery like that involved in autophagy [46]. Proper balance among these dynamic processes is critical for cellular homeostasis, and alteration in any of these processes has been linked to various pathological conditions. Multilayered regulatory mechanisms and signaling molecules ensure the proper tuning of these dynamic processes [47,48].
Mitochondria undergo continuous dynamics, fission and fusion, in a highly coordinated, balanced fashion based on the particular requirements for cellular functions such as survival, growth, division, and distribution [49]. Mitochondrial fission is mediated by DRP1 and Fis1, localized at the OMM, while mitochondrial fusion is mediated by optic atrophy type 1 (OPA1) and mitofusin (MFN) 1 and 2, localized in the inner mitochondrial membrane and the OMM, respectively. AKAP1 contributes to mitochondrial dynamics, fission, and fusion and regulates mitochondrial fission by modulating DRP1 activity through PKA. Dephosphorylation of DRP1 at Serine 637 (S637 in human isoform 1 and S656 in rat isoform 1) by CaN promotes mitochondrial fission, while PKA-mediated phosphorylation of DRP1 S637 promotes mitochondrial fusion by lowering DRP1 fission activity [50,51,52]. On the other hand, DRP1 phosphorylation at Serine 616 (S616) promotes mitochondrial fission, which is governed by cyclin-dependent kinase 1/cyclin B [53,54].
In addition, Dickey and Strack showed that PKA/AKAP1-mediated phosphorylation of DRP1 S637 increased mitochondrial length in cultured rat hippocampal neurons, leading to enhancement of dendritic outgrowth and reduction of synapse number [16]. A recent study from our group showed elevated IOP-induced AKAP1 loss, activated CaN, and increased dephosphorylation of DRP1 S637 in RGCs of glaucomatous DBA/2J mice [43]. Furthermore, AKAP1 deficiency led to increases in CaN and total DRP1 protein expression and an increase in dephosphorylation of DRP1 S637 in the retina of AKAP1 knockout (−/−) mice [43]. Of interest, electron microscopy (EM) analysis revealed that AKAP1 deficiency caused mitochondrial fragmentation and loss in AKAP1−/− RGCs [43]. Thus, these findings strongly support the notion that AKAP1 plays a critical role in regulating mitochondrial dynamics in glaucomatous RGCs.

2.2. AKAP1 and Mitochondrial Bioenergetics

Mitochondria provide energy to mammalian cells through the mitochondrial oxidative phosphorylation (OXPHOS) system. This system consists of five protein complexes and two electron carriers [55]. PKA regulates mitochondrial respiration by phosphorylating substrates like NDUFS4 and cytochrome c oxidase (COX) [56]. PKA-mediated phosphorylation of COX promotes allosteric ATP inhibition, while dephosphorylation by Ca2+ enhances respiration and ATP production [57,58]. It is unclear whether PKA acts at the IMM through holoenzymes or AKAP anchoring.
At the OMM, AKAP1 also anchors the Src tyrosine kinase via the tyrosine phosphatase PTPD1. Interestingly, phosphorylation of COX at a tyrosine residue by mitochondrial Src promotes ATP synthesis [59,60], but again, the connection between OMM and IMM or matrix localized Src has yet to be elucidated. Impairment of OXPHOS, mitochondrial respiration, and ATP production systems induces oxidative stress by generating excessive reactive oxygen species (ROS) and metabolic stress, ultimately causing mitochondrial dysfunction and apoptosis in various mitochondrial diseases [61]. Flippo and coworkers demonstrated that AKAP1 plays a critical role in maintaining the activity of respiratory complex II, an essential component of OXPHOS that generates ATP in mitochondria. In addition, deletion of AKAP1 dysregulates OXPHOS complex II, increases superoxide production, and impairs Ca2+ homeostasis in hippocampal neurons in response to glutamate excitotoxicity. These results suggest that AKAP1 is a key regulator of mitochondrial bioenergetics [18]. Although AKAP1 is located at the OMM, PKA and cAMP are located inside the mitochondria as well and thus can act on cristae proteins [62]. Interestingly, our recent study also showed that AKAP1 deficiency dysregulated OXPHOS complexes by increasing the level of Complex II and decreasing the level of Complex III-V in the retina of AKAP1−/− mice [43].
Based on these findings and increased mitochondrial fission in AKAP1−/− RGCs, we questioned, “Could AKAP1 deficiency trigger an energy deficit via a reduction in the rate of ATP production in RGCs?” Utilizing the modeling framework proposed by Song and coworkers [63], we found that the crista density was significantly lower in AKAP1−/− RGC mitochondria, corresponding to a lower rate of ATP production per mitochondrion, being about two-thirds of WT mitochondria [3]. In addition, we observed that the rate of ATP production per unit mitochondrial volume was reduced by over two-fold in AKAP1−/− RGCs [3]. This significant energy deficit in the AKAP1−/− RGC was due to a decreased rate of ATP production per mitochondrion and a reduced volume density of mitochondria. These results suggest that AKAP1 deficiency-mediated reductions in ATP production contribute to functional impairment and the loss of RGCs.

2.3. AKAP1 and Mitophagy

Mitochondrial dysfunction would be harmful to cells, but autophagy and mitophagy processes maintain energy metabolism in the case of such dysfunction [64]. Mitophagy is the conserved cellular process that removes damaged mitochondria to preserve healthy ones [65] and can occur selectively or non-selectively [66]. In yeast, mitophagy is selective [65,67], whereas non-selective mitophagy happens during nutrient deprivation when mitochondria are present in autophagosomes alongside other cellular components [68,69]. In most cases, mitophagy is associated with the removal of damaged mitochondria, but it has also been observed to play a role in reticulocyte differentiation and lens maturation. i.e., when mitochondria are no longer needed [64]. Inhibition of RGC differentiation following pharmacological or genetic inhibition of mitophagy confirmed that programmed mitophagy is required for the differentiation of RGC during embryogenesis in mice [70]. However, failure of properly functioning mitophagy can result in the accumulation of damaged mitochondria characterized by altered cristae structure, dysfunction in bioenergetics, and subsequent cellular dysfunction, which ultimately leads to tissue and organ damage [71,72]. Extensive research has been conducted on two major mitophagy pathways in mammals, namely the receptor-dependent pathway and the ubiquitin-mediated pathway. The ubiquitin-mediated pathway involved in mitochondrial quality control is regulated by PTEN-induced kinase I (PINK1) and Parkin (PARK2)-mediated mitophagy [73,74], whereas the receptor-dependent mitophagy pathway includes the involvement of Nip3-like protein X (NIX) and Bcl-2 19-kDa interacting protein 3 (BNIP3). Additionally, autophagy and beclin 1 regulator 1 (AM-BRA1) function separately from PARKIN/P62 and FK506 binding protein 8 (FKBP8), which interact with LC3. Another protein involved in this pathway is FUN14 domain-containing protein 1 (FUNDC1) [75,76,77].
AKAP1 can regulate mitophagy by interacting with PINK1, which is localized to the OMM and is activated in response to mitochondrial damage that initiates mitophagy [78]. PINK1-mediated regulation of the PKA/AKAP1 signaling axis selectively increases DRP1-mediated fission in damaged mitochondria, hence guaranteeing mitophagy initiation in mammalian cells [79]. Recent evidence demonstrated that AKAP1 deficiency-induced autophagosome/mitophagosome formation in RGCs by elevating LC3-II expression and decreasing SQSTM1/p62 expression in AKAP1−/− mice [43]. Similarly, a study on the critical function of AKAP1 in cardiac responses to myocardial ischemia showed that Akap1 deletion caused mitochondrial abnormalities and increased cardiac mitophagy. The autophagy inhibitor 3-methyladenine prevented further decline in cardiac function in AKAP1−/− mice [45]. These findings suggest that AKAP1 deficiency may compromise mitophagy and, in turn, trigger mitochondrial dysfunction. Thus, AKAP1 could be crucial in maintaining mitochondrial health by promoting mitophagy.

3. AKAP1 in Neurodegeneration

3.1. AKAP1 in Glaucomatous Neurodegeneration

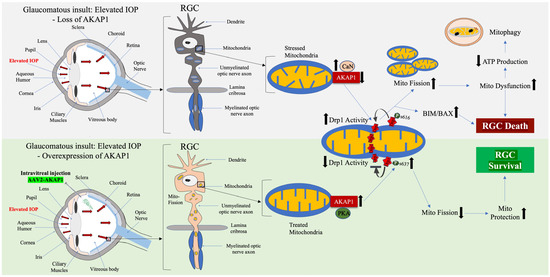

Glaucoma is a multifactorial neurodegenerative disease that causes slow, progressive, and irreversible degeneration of RGCs and deterioration of their axons. By 2040, the global prevalence of glaucoma is projected to rise to approximately 111.8 million individuals. Glaucoma progression can be examined by characteristic visual field defects, optic disc changes, and thinning of the retinal nerve fiber layer or macular RGC-inner plexiform layer [80]. Accumulating evidence indicates that multiple molecular and biological pathways, including oxidative stress and mitochondrial dysfunction, are involved in glaucoma pathogenesis [81]. Despite the high prevalence of the disease, the factors contributing to glaucoma progression are currently not well characterized. The IOP is the only proven modifiable and treatable risk factor. However, lowering the IOP is often not enough to prevent disease progression, leading to RGC death.
Recent evidence from our group and others demonstrated that impaired mitochondrial dynamics, metabolic stress, and mitochondrial dysfunction triggered by glaucomatous risk factors were crucial to RGC death in glaucomatous neurodegeneration [42,82,83,84,85,86,87,88,89]. Despite the widely appreciated disease relevance of mitochondrial dysfunction and loss, the molecular and cellular mechanisms underlying compromised mitochondrial structure and function and RGC degeneration in glaucoma need to be better understood. In addition, our recent studies demonstrated the critical contribution of mitochondrial dysfunction, oxidative stress, and apoptotic cell death in RGCs in experimental models of glaucoma [84,90]. Of note, we found that glaucomatous RGCs showed a significant loss of AKAP1, leading to the activation of CaN, an increase in DRP1 S637 dephosphorylation, and the induction of mitochondrial fragmentation and loss [43]. Emerging evidence from serial block-face scanning EM and EM tomographic analyses indicated a rise in abnormal elongation of mitochondria and an intensified pattern of branched mitochondria in the RGCs of glaucomatous DBA/2J mice [3]. In light of these findings, which align with our previous studies revealing fragmented mitochondria in glaucomatous RGC somas and axons [41], our findings suggest that the observed abnormal elongation and branching of mitochondria may have a potential correlation with the early or intermediate progression of RGC damage in glaucoma, after axonal degeneration. Of interest, these atypical mitochondrial phenotypes in RGCs suggest a considerable energy demand necessary for their survival against glaucomatous insults. These findings suggest the possibility that AKAP1-mediated phosphorylation of DRP1 S637 protects RGCs by promoting mitochondrial fusion activity against glaucomatous neurodegeneration.

3.2. AKAP1 in Other Neurodegenerative Diseases

Neurodegenerative diseases are distinguished by a progressive depletion of neuronal function and a slow, steady deterioration of selectively susceptible neurons as the disease progresses. Mitochondrial homeostasis is disrupted in several neurodegenerative diseases such as Alzheimer’s (AD) [91,92], Parkinson’s (PD) [93], and Huntington’s disease [94], as well as amyotrophic lateral sclerosis [95]. AKAP1/PKA signaling stimulates synaptic plasticity, neuronal growth, and dopamine production in neurons [16,96,97]. A reduction in AKAP1/PKA signaling contributes to early-stage degeneration in various neurodegenerative disorders, including AD and PD [96], suggesting a potential role of PKA/AKAP1 signaling in neurodegeneration and neuroprotection. Epistasis experiments using a DRP1 mutant with a deleted phosphorylation site suggested that cAMP and PKA/AKAP1 enhance mitochondrial elongation and neuronal survival by inhibiting DRP1 through a conserved PKA site [2,16].
Using a transient middle cerebral artery occlusion model of focal ischemia, Flippo and coworkers reported that AKAP1-deficient male mice were more vulnerable to focal brain ischemia and had smaller mitochondria yet a greater number of mitochondria and endoplasmic reticulum (ER) connections [18]. In addition, AKAP1 deletion dysregulated electron transport chain complex II, increased superoxide levels, and altered Ca2+ homeostasis in glutamate-exposed neurons [18]. Furthermore, neurons lacking AKAP1 showed reduced DRP1 S637 phosphorylation and experienced Ca2+ dysregulation [18].This study suggests that AKAP1/PKA inhibits DRP1-dependent mitochondrial fission, protecting neurons from ischemic stroke by sustaining respiratory chain activity, reducing superoxide production, and delaying Ca2+ dysregulation [18]. Similarly, a recent study demonstrated that endogenous AKAP1 was reduced in primary neurons treated with Aβ42 peptide in vitro and in the hippocampus and cortex of asymptomatic and symptomatic AD animals in vivo [98]. In the study, transiently expressing wild-type AKAP1 but not the PKA-binding deficient mutant of AKAP1 reduced mitochondrial fission, dendritic retraction, and death in Aβ42-treated primary neurons [98]. In addition, loss of AKAP1/PKA contributed to mitochondrial pathology and neurodegeneration in an in vitro model of AD [98].

4. AKAP1 in Neuroprotection

AKAP1 protects neuronal cells from death by inhibiting DRP1-dependent mitochondrial fission in ischemic brain injury, while AKAP1 deficiency results in DRP1 dephosphorylation, OXPHOS complex II dysfunctions, elevated ROS production, and disruption of calcium balance in neurons exposed to glutamate-induced toxicity [18]. Furthermore, upregulating AKAP1 expression restored the transport of mitochondria in the dendrites of cortical neurons lacking PINK1, utilizing the transport protein Miro-2 [99]. These findings suggest that the AKAP1/PKA axis inhibits mitochondrial fission or fragmentation, which is critical to protecting against neuronal cell death.
AD is a prevalent neurodegenerative disease potentially linked to mitochondrial dysfunction [92,100,101,102,103,104]. Mechanisms underlying mitochondrial dysfunction in AD include abnormal mitochondrial dynamics, deficits in mitochondrial trafficking and distribution, impaired mitochondrial biogenesis, abnormal ER-mitochondrial interaction, and impaired mitophagy. Mitochondrial dysfunction is an early and prominent feature of AD, suggesting a critical role for mitochondria in the early stages of AD pathogenesis [105,106]. Importantly, these pathological phenotypes of mitochondrial dysfunction in the brain of AD are like those in the glaucomatous retina, but the potential links and mechanisms underlying mitochondrial dysfunction in the retina of AD pathogenesis are not well understood. In AD mouse models and amyloid beta (Aβ) accumulation scenarios, impaired mitochondrial dynamics play a role in neurodegeneration [92,104,107]. Aβ oligomers have been found to exert inhibitory effects on the PKA/CREB pathway [108], and stimulating PKA in hippocampal neurons can mitigate the impact of acute Aβ expression on mitochondrial trafficking and the initiation of cell death [109]. A previous study showed that an agonist for estrogen receptor β (ERβ) that interacts with AKAP1 and is specifically positioned within mitochondria triggered mitochondrial fusion by increasing DRP1 S637 phosphorylation, and this led to neuroprotection in hippocampal neurons against Aβ accumulation [110]. Using an in vitro culture system, a recent study suggests that the enhancement of endogenous AKAP1 levels is protective against Aβ-induced mitochondrial pathology and neurodegeneration [98].
Using an RGC culture system, emerging evidence from our group demonstrated that paraquat (PQ)-induced oxidative stress significantly decreased mitochondrial respiration in RGCs [3]. In parallel, oxidative stress produced increased apoptosis in RGCs. Intriguingly, overexpression of AKAP1 by in vitro transduction of adeno-associated virus type 2 (AAV2)-AKAP1 resulted in a substantial enhancement of mitochondrial activity and cell viability. In addition, AKAP1 expression significantly prevented apoptotic cell death in RGCs [3]. Considering our research findings, we suggest that amplifying AKAP1 expression through an in vivo AAV delivery system holds promise as a therapeutic approach to protecting the integrity and function of the mitochondrial network. This, in turn, can enhance the survival of RGCs and provide resilience against glaucomatous insults, including elevated IOP and oxidative stress. Thus, we proposed that sustained AKAP1 expression can inhibit CaN activation and promote DRP1 phosphorylation at the S637 site. This, in turn, can prevent mitochondrial fission or induce mitochondrial elongation and preserve mitochondrial function, leading to RGC survival (Figure 3).

5. Conclusions and Future Perspectives

The disruption of mitochondrial dynamics is correlated with mitochondrial bioenergetic dysfunction, leading to neuronal loss in many neurodegenerative diseases, including glaucoma [41,42,82]. Increasing evidence indicates that impaired mitochondrial dynamics is associated with damage to the RGC and its axon in glaucomatous neurodegeneration [41,42,82,86]. Our findings and others have improved the understanding of elevated IOP- and/or oxidative stress-mediated mitochondrial dysfunction in glaucoma, demonstrating that elevated IOP and/or oxidative stress induce excessive mitochondrial fragmentation and dysfunction in glaucomatous RGCs. We also uncovered, importantly, that the modulation of mitochondrial dynamics by inhibiting DRP1 activity rescued RGCs and their axons by preserving mitochondrial integrity in glaucomatous DBA/2J mice [41]. These findings call for an increased understanding of the global picture of mitochondrial signaling, dynamics, and bioenergetics and further testing of the functional and structural endpoints impacting the survival of RGCs in glaucomatous neurodegeneration. AKAP1 plays a key role in RGC survival by facilitating DRP1 phosphorylation and subsequent mitochondrial elongation, increasing ATP generation, and maintaining proper mitochondrial membrane potential [16,17], resulting in neuroprotection [2].
Here, we have discussed the role of AKAP1 in mitochondrial protein interactions, signaling, dynamics, and bioenergetics in RGC degeneration and protection. Future studies could address the following points: (1) How does mitochondrial dynamics modulated by AKAP1 influence bioenergetics and susceptibility in models of glaucoma not covered in this review? (2) Do elongated mitochondria sustain higher metabolic activity? [111] In HeLa cells, would unopposed mitochondrial fusion due to PKA-mediated DRP1 phosphorylation be protective in glaucoma models? PKA-mediated DRP1 phosphorylation increased oxygen consumption and ATP production, and spared mitochondria from autophagic degradation [17]. However, increased oxygen consumption could also lead to increased ROS, and this might be deleterious despite the increase in ATP production. Does a similar mechanism operate in the RGC and its axon? (3) What is the relationship between AKAP1 signaling and mitochondrial structure? (4) Does AKAP1-mediated mitochondrial neuroprotection in RGCs extend to the preservation of the central visual pathway? Since the amplification of AKAP1 gene expression by in vitro transduction of the AAV system is neuroprotective in cultured RGCs against oxidative stress [3], we will further validate the protective effect of AKAP1 on mitochondrial dynamics and bioenergetics in RGCs and their axons in experimental models of glaucoma using AAV-mediated gene therapeutic approaches. Collectively, these proposed studies may help to identify the role of AKAP1 as a potential therapeutic target and open new innovative strategies for mitochondrial dynamics-related neuroprotective intervention in glaucoma and other optic neuropathies.

Author Contributions

T.B., G.A.P., J.-W.K., Z.S., S.C., K.-Y.K. and W.-K.J. were responsible for drafting the manuscript, and S.S., G.A.P. and W.-K.J. were responsible for finalizing the manuscript. All authors have read and agreed to the published version of the manuscript.


This work was supported by National Institutes of Health grants EY031697 to W.-K.J. and G.A.P.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Affaitati, A.; Cardone, L.; De Cristofaro, T.; Carlucci, A.; Ginsberg, M.D.; Varrone, S.; Gottesman, M.E.; Avvedimento, E.V.; Feliciello, A. Essential role of A-kinase anchor protein 121 for cAMP signaling to mitochondria. J. Biol. Chem. 2003, 278, 4286–4294. [Google Scholar] [CrossRef][Green Version]
  2. Merrill, R.A.; Dagda, R.K.; Dickey, A.S.; Cribbs, J.T.; Green, S.H.; Usachev, Y.M.; Strack, S. Mechanism of neuroprotective mitochondrial remodeling by PKA/AKAP1. PLoS Biol. 2011, 9, e1000612. [Google Scholar] [CrossRef][Green Version]
  3. Ju, W.-K.; Perkins, G.A.; Kim, K.-Y.; Bastola, T.; Choi, W.-Y.; Choi, S.-H. Glaucomatous optic neuropathy: Mitochondrial dynamics, dysfunction and protection in retinal ganglion cells. Prog. Retin. Eye Res. 2022, 2022, 101136. [Google Scholar] [CrossRef]
  4. Carlucci, A.; Lignitto, L.; Feliciello, A. Control of mitochondria dynamics and oxidative metabolism by cAMP, AKAPs and the proteasome. Trends Cell Biol. 2008, 18, 604–613. [Google Scholar] [CrossRef]
  5. Banky, P.; Huang, L.J.-S.; Taylor, S.S. Dimerization/Docking Domain of the Type Iα Regulatory Subunit of cAMP-dependent Protein Kinase: Requirements for Dimerization and Docking Are Distinct but Overlapping*. J. Biol. Chem. 1998, 273, 35048–35055. [Google Scholar] [CrossRef] [PubMed][Green Version]
  6. Feliciello, A.; Rubin, C.S.; Avvedimento, E.V.; Gottesman, M.E. Expression of A Kinase Anchor Protein 121 Is Regulated by Hormones in Thyroid and Testicular Germ Cells*. J. Biol. Chem. 1998, 273, 23361–23366. [Google Scholar] [CrossRef] [PubMed][Green Version]
  7. Lin, R.-Y.; Moss, S.B.; Rubin, C.S. Characterization of S-AKAP84, a Novel Developmentally Regulated A Kinase Anchor Protein of Male Germ Cells (*). J. Biol. Chem. 1995, 270, 27804–27811. [Google Scholar] [CrossRef] [PubMed][Green Version]
  8. Merrill, R.A.; Strack, S. Mitochondria: A kinase anchoring protein 1, a signaling platform for mitochondrial form and function. Int. J. Biochem. Cell Biol. 2014, 48, 92–96. [Google Scholar] [CrossRef][Green Version]
  9. Cardone, L.; de Cristofaro, T.; Affaitati, A.; Garbi, C.; Ginsberg, M.D.; Saviano, M.; Varrone, S.; Rubin, C.S.; Gottesman, M.E.; Avvedimento, E.V.; et al. A-Kinase Anchor Protein 84/121 are Targeted to Mitochondria and Mitotic Spindles by Overlapping Amino-terminal Motifs. J. Mol. Biol. 2002, 320, 663–675. [Google Scholar] [CrossRef]
  10. Lemay, J.; Maidou-Peindara, P.; Cancio, R.; Ennifar, E.; Coadou, G.; Maga, G.; Rain, J.-C.; Benarous, R.; Liu, L.X. AKAP149 Binds to HIV-1 Reverse Transcriptase and Is Involved in the Reverse Transcription. J. Mol. Biol. 2008, 383, 783–796. [Google Scholar] [CrossRef]
  11. Chen, Q.; Lin, R.-Y.; Rubin, C.S. Organelle-specific targeting of protein kinase AII (PKAII): Molecular and in situ characterization of murine A kinase anchor proteins that recruit regulatory subunits of PKAII to the cytoplasmic surface of mitochondria. J. Biol. Chem. 1997, 272, 15247–15257. [Google Scholar] [CrossRef][Green Version]
  12. Asirvatham, A.L.; Galligan, S.G.; Schillace, R.V.; Davey, M.P.; Vasta, V.; Beavo, J.A.; Carr, D.W. A-Kinase Anchoring Proteins Interact with Phosphodiesterases in T Lymphocyte Cell Lines1. J. Immunol. 2004, 173, 4806–4814. [Google Scholar] [CrossRef] [PubMed][Green Version]
  13. Kinderman, F.S.; Kim, C.; von Daake, S.; Ma, Y.; Pham, B.Q.; Spraggon, G.; Xuong, N.-H.; Jennings, P.A.; Taylor, S.S. A Dynamic Mechanism for AKAP Binding to RII Isoforms of cAMP-Dependent Protein Kinase. Mol. Cell 2006, 24, 397–408. [Google Scholar] [CrossRef] [PubMed][Green Version]
  14. Grozdanov, P.N.; Stocco, D.M. Short RNA Molecules with High Binding Affinity to the KH Motif of A-Kinase Anchoring Protein 1 (AKAP1): Implications for the Regulation of Steroidogenesis. Mol. Endocrinol. 2012, 26, 2104–2117. [Google Scholar] [CrossRef] [PubMed][Green Version]
  15. Marin, W. A-kinase anchoring protein 1 (AKAP1) and its role in some cardiovascular diseases. J. Mol. Cell. Cardiol. 2020, 138, 99–109. [Google Scholar] [CrossRef]
  16. Dickey, A.S.; Strack, S. PKA/AKAP1 and PP2A/Bβ2 regulate neuronal morphogenesis via Drp1 phosphorylation and mitochondrial bioenergetics. J. Neurosci. Off. J. Soc. Neurosci. 2011, 31, 15716–15726. [Google Scholar] [CrossRef][Green Version]
  17. Gomes, L.C.; Benedetto, G.D.; Scorrano, L. During autophagy mitochondria elongate, are spared from degradation and sustain cell viability. Nat. Cell Biol. 2011, 13, 589–598. [Google Scholar] [CrossRef][Green Version]
  18. Flippo, K.H.; Gnanasekaran, A.; Perkins, G.A.; Ajmal, A.; Merrill, R.A.; Dickey, A.S.; Taylor, S.S.; McKnight, G.S.; Chauhan, A.K.; Usachev, Y.M.; et al. AKAP1 Protects from Cerebral Ischemic Stroke by Inhibiting Drp1-Dependent Mitochondrial Fission. J. Neurosci. 2018, 38, 8233–8242. [Google Scholar] [CrossRef][Green Version]
  19. Zhang, J.; Feng, J.; Ma, D.; Wang, F.; Wang, Y.; Li, C.; Wang, X.; Yin, X.; Zhang, M.; Dagda, R.K.; et al. Neuroprotective mitochondrial remodeling by AKAP121/PKA protects HT22 cell from glutamate-induced oxidative stress. Mol. Nuerobiol. 2019, 56, 5586–5607. [Google Scholar] [CrossRef]
  20. Liu, Y.; Merrill, R.A.; Strack, S. A-kinase anchoring protein 1: Emerging roles in regulating mitochondrial form and function in health and disease. Cells 2020, 9, 298. [Google Scholar] [CrossRef][Green Version]
  21. Bouvet, M.; Blondeau, J.-P.; Lezoualc’h, F. The Epac1 protein: Pharmacological modulators, cardiac signalosome and pathophysiology. Cells 2019, 8, 1543. [Google Scholar] [CrossRef][Green Version]
  22. Kamenetsky, M.; Middelhaufe, S.; Bank, E.M.; Levin, L.R.; Buck, J.; Steegborn, C. Molecular Details of cAMP Generation in Mammalian Cells: A Tale of Two Systems. J. Mol. Biol. 2006, 362, 623–639. [Google Scholar] [CrossRef][Green Version]
  23. Kopperud, R.; Krakstad, C.; Selheim, F.; Døskeland, S.O. cAMP effector mechanisms. Novel twists for an ‘old’signaling system. FEBS Lett. 2003, 546, 121–126. [Google Scholar] [CrossRef] [PubMed][Green Version]
  24. Herberg, F.W.; Maleszka, A.; Eide, T.; Vossebein, L.; Tasken, K. Analysis of A-kinase anchoring protein (AKAP) interaction with protein kinase A (PKA) regulatory subunits: PKA isoform specificity in AKAP binding11Edited by J. A. Wells. J. Mol. Biol. 2000, 298, 329–339. [Google Scholar] [CrossRef][Green Version]
  25. Thuen, M.; Singstad, T.E.; Pedersen, T.B.; Haraldseth, O.; Berry, M.; Sandvig, A.; Brekken, C. Manganese-enhanced MRI of the optic visual pathway and optic nerve injury in adult rats. J. Magn. Reson. Imaging An. Off. Journal. Int. Soc. Magn. Reson. Med. 2005, 22, 492–500. [Google Scholar] [CrossRef] [PubMed]
  26. Berry, M.; Ahmed, Z.; Lorber, B.; Douglas, M.; Logan, A. Regeneration of axons in the visual system. Restor. Neurol. Neurosci. 2008, 26, 147–174. [Google Scholar] [PubMed]
  27. Nadal-Nicolas, F.M.; Jimenez-Lopez, M.; Salinas-Navarro, M.; Sobrado-Calvo, P.; Alburquerque-Bejar, J.J.; Vidal-Sanz, M.; Agudo-Barriuso, M. Whole number, distribution and co-expression of brn3 transcription factors in retinal ganglion cells of adult albino and pigmented rats. PLoS ONE 2012, 7, e49830. [Google Scholar] [CrossRef][Green Version]
  28. You, Y.; Gupta, V.K.; Li, J.C.; Klistorner, A.; Graham, S.L. Optic neuropathies: Characteristic features and mechanisms of retinal ganglion cell loss. Rev. Neurosci. 2013, 24, 301–321. [Google Scholar] [CrossRef]
  29. Sanes, J.R.; Masland, R.H. The Types of Retinal Ganglion Cells: Current Status and Implications for Neuronal Classification. Annu. Rev. Neurosci. 2015, 38, 221–246. [Google Scholar] [CrossRef]
  30. Kim, U.S.; Mahroo, O.A.; Mollon, J.D.; Yu-Wai-Man, P. Retinal Ganglion Cells—Diversity of Cell Types and Clinical Relevance. Front. Neurol. 2021, 12, 661938. [Google Scholar] [CrossRef]
  31. Lazzerini Ospri, L.; Prusky, G.; Hattar, S. Mood, the Circadian System, and Melanopsin Retinal Ganglion Cells. Annu. Rev. Neurosci. 2017, 40, 539–556. [Google Scholar] [CrossRef] [PubMed][Green Version]
  32. Quigley, H.A.; Addicks, E.M. Chronic experimental glaucoma in primates. II. Effect of extended intraocular pressure elevation on optic nerve head and axonal transport. Investig. Ophthalmol. Vis. Sci. 1980, 19, 137–152. [Google Scholar]
  33. Martin, K.R.; Quigley, H.A.; Valenta, D.; Kielczewski, J.; Pease, M.E. Optic nerve dynein motor protein distribution changes with intraocular pressure elevation in a rat model of glaucoma. Exp. Eye Res. 2006, 83, 255–262. [Google Scholar] [CrossRef]
  34. Tezel, G. Oxidative stress in glaucomatous neurodegeneration: Mechanisms and consequences. Prog. Retin. Eye Res. 2006, 25, 490–513. [Google Scholar] [CrossRef][Green Version]
  35. Gregerson, D.S. Immune privilege in the retina. Ocul. Immunol. Inflamm. 1998, 6, 257–267. [Google Scholar] [CrossRef]
  36. Streilein, J.W.; Okamoto, S.; Sano, Y.; Taylor, A.W. Neural control of ocular immune privilege. Ann. N. Y. Acad. Sci. 2000, 917, 297–306. [Google Scholar] [CrossRef]
  37. Tezel, G.; Wax, M.B. Increased production of tumor necrosis factor-α by glial cells exposed to simulated ischemia or elevated hydrostatic pressure induces apoptosis in cocultured retinal ganglion cells. J. Neurosci. 2000, 20, 8693–8700. [Google Scholar] [CrossRef][Green Version]
  38. Pannicke, T.; Uckermann, O.; Iandiev, I.; Biedermann, B.; Wiedemann, P.; Perlman, I.; Reichenbach, A.; Bringmann, A. Altered membrane physiology in Müller glial cells after transient ischemia of the rat retina. Glia 2005, 50, 1–11. [Google Scholar] [CrossRef] [PubMed]
  39. Dong, C.-J.; Guo, Y.; Agey, P.; Wheeler, L.; Hare, W.A. α2 adrenergic modulation of NMDA receptor function as a major mechanism of RGC protection in experimental glaucoma and retinal excitotoxicity. Investig. Ophthalmol. Vis. Sci. 2008, 49, 4515–4522. [Google Scholar] [CrossRef]
  40. Neufeld, A.H.; Gachie, E.N. The inherent, age-dependent loss of retinal ganglion cells is related to the lifespan of the species. Neurobiol. Aging 2003, 24, 167–172. [Google Scholar] [CrossRef]
  41. Kim, K.Y.; Perkins, G.A.; Shim, M.S.; Bushong, E.; Alcasid, N.; Ju, S.; Ellisman, M.H.; Weinreb, R.N.; Ju, W.K. DRP1 inhibition rescues retinal ganglion cells and their axons by preserving mitochondrial integrity in a mouse model of glaucoma. Cell Death Dis. 2015, 6, e1839. [Google Scholar] [CrossRef][Green Version]
  42. Ju, W.-K.; Kim, K.-Y.; Lindsey, J.D.; Angert, M.; Duong-Polk, K.X.; Scott, R.T.; Kim, J.J.; Kukhmazov, I.; Ellisman, M.H.; Perkins, G.A.; et al. Intraocular pressure elevation induces mitochondrial fission and triggers OPA1 release in glaucomatous optic nerve. Investig. Opthalmol. Vis. Sci. 2008, 49, 4903–4911. [Google Scholar] [CrossRef]
  43. Edwards, G.; Perkins, G.A.; Kim, K.-Y.; Kong, Y.; Lee, Y.; Choi, S.-H.; Liu, Y.; Skowronska-Krawczyk, D.; Weinreb, R.N.; Zangwill, L.; et al. Loss of AKAP1 triggers Drp1 dephosphorylation-mediated mitochondrial fission and loss in retinal ganglion cells. Cell Death Dis. 2020, 11, 254. [Google Scholar] [CrossRef][Green Version]
  44. Czachor, A.; Failla, A.; Lockey, R.; Kolliputi, N. Pivotal role of AKAP121 in mitochondrial physiology. Am. J. Physiol. Cell Physiol. 2016, 310, C625–C628. [Google Scholar] [CrossRef] [PubMed][Green Version]
  45. Schiattarella, G.G.; Cattaneo, F.; Pironti, G.; Magliulo, F.; Carotenuto, G.; Pirozzi, M.; Polishchuk, R.; Borzacchiello, D.; Paolillo, R.; Oliveti, M.; et al. Akap1 deficiency promotes mitochondrial aberrations and exacerbates cardiac injury following permanent coronary ligation via enhanced mitophagy and apoptosis. PLoS ONE 2016, 11, e0154076. [Google Scholar] [CrossRef] [PubMed][Green Version]
  46. Di Benedetto, G.; Gerbino, A.; Lefkimmiatis, K. Shaping mitochondrial dynamics: The role of cAMP signalling. Biochem. Biophys. Res. Commun. 2018, 500, 65–74. [Google Scholar] [CrossRef]
  47. Liesa, M.; Palacín, M.; Zorzano, A. Mitochondrial dynamics in mammalian health and disease. Physiol. Rev. 2009, 89, 799–845. [Google Scholar] [CrossRef] [PubMed][Green Version]
  48. Flippo, K.H.; Strack, S. Mitochondrial dynamics in neuronal injury, development and plasticity. J. Cell Sci. 2017, 130, 671–681. [Google Scholar] [CrossRef][Green Version]
  49. Chen, H.; Chan, D.C. Mitochondrial dynamics–fusion, fission, movement, and mitophagy–in neurodegenerative diseases. Hum. Mol. Genet. 2009, 18, R169–R176. [Google Scholar] [CrossRef]
  50. Cereghetti, G.; Stangherlin, A.; De Brito, O.M.; Chang, C.; Blackstone, C.; Bernardi, P.; Scorrano, L. Dephosphorylation by calcineurin regulates translocation of Drp1 to mitochondria. Proc. Natl. Acad. Sci. USA 2008, 105, 15803–15808. [Google Scholar] [CrossRef][Green Version]
  51. Chang, C.-R.; Blackstone, C. Cyclic AMP-dependent protein kinase phosphorylation of Drp1 regulates its GTPase activity and mitochondrial morphology. J. Biol. Chem. 2007, 282, 21583–21587. [Google Scholar] [CrossRef][Green Version]
  52. Cribbs, J.T.; Strack, S. Reversible phosphorylation of Drp1 by cyclic AMP-dependent protein kinase and calcineurin regulates mitochondrial fission and cell death. EMBO Rep. 2007, 8, 939–944. [Google Scholar] [CrossRef] [PubMed][Green Version]
  53. Hoppins, S.; Lackner, L.; Nunnari, J.J.A.R.B. The machines that divide and fuse mitochondria. Annu. Rev. Biochem. 2007, 76, 751–780. [Google Scholar] [CrossRef]
  54. Taguchi, N.; Ishihara, N.; Jofuku, A.; Oka, T.; Mihara, K. Mitotic phosphorylation of dynamin-related GTPase Drp1 participates in mitochondrial fission. J. Biol. Chem. 2007, 282, 11521–11529. [Google Scholar] [CrossRef][Green Version]
  55. Torraco, A.; Peralta, S.; Iommarini, L.; Diaz, F. Mitochondrial Diseases Part I: Mouse models of OXPHOS deficiencies caused by defects in respiratory complex subunits or assembly factors. Mitochondrion 2015, 21, 76–91. [Google Scholar] [CrossRef] [PubMed][Green Version]
  56. Papa, S.; De Rasmo, D.; Scacco, S.; Signorile, A.; Technikova-Dobrova, Z.; Palmisano, G.; Sardanelli, A.M.; Papa, F.; Panelli, D.; Scaringi, R.; et al. Mammalian complex I: A regulable and vulnerable pacemaker in mitochondrial respiratory function. Biochim. Biophys. Acta Bioenerg. 2008, 1777, 719–728. [Google Scholar] [CrossRef] [PubMed][Green Version]
  57. Helling, S.; Vogt, S.; Rhiel, A.; Ramzan, R.; Wen, L.; Marcus, K.; Kadenbach, B. Phosphorylation and Kinetics of Mammalian Cytochrome c Oxidase. Mol. Cell. Proteom. 2008, 7, 1714–1724. [Google Scholar] [CrossRef] [PubMed][Green Version]
  58. Ludwig, B.; Bender, E.; Arnold, S.; Hüttemann, M.; Lee, I.; Kadenbach, B. Cytochrome C oxidase and the regulation of oxidative phosphorylation. Chembiochem A Eur. J. Chem. Biol. 2001, 2, 392–403. [Google Scholar] [CrossRef]
  59. Salvi, M.; Brunati, A.M.; Toninello, A. Tyrosine phosphorylation in mitochondria: A new frontier in mitochondrial signaling. Free Radic. Biol. Med. 2005, 38, 1267–1277. [Google Scholar] [CrossRef]
  60. Guedouari, H.; Ould Amer, Y.; Pichaud, N.; Hebert-Chatelain, E. Characterization of the interactome of c-Src within the mitochondrial matrix by proximity-dependent biotin identification. Mitochondrion 2021, 57, 257–269. [Google Scholar] [CrossRef]
  61. Cadenas, E.; Davies, K.J.A. Mitochondrial free radical generation, oxidative stress, and aging. Free Radic. Biol. Med. 2000, 29, 222–230. [Google Scholar] [CrossRef]
  62. Ould Amer, Y.; Hebert-Chatelain, E. Mitochondrial cAMP-PKA signaling: What do we really know? Biochim. Biophys. Acta Bioenerg. 2018, 1859, 868–877. [Google Scholar] [CrossRef]
  63. Song, D.H.; Park, J.; Maurer, L.L.; Lu, W.; Philbert, M.A.; Sastry, A.M. Biophysical significance of the inner mitochondrial membrane structure on the electrochemical potential of mitochondria. Phys. Rev. E Stat. Nonlin Soft Matter Phys. 2013, 88, 062723. [Google Scholar] [CrossRef][Green Version]
  64. Ashrafi, G.; Schwarz, T.L. The pathways of mitophagy for quality control and clearance of mitochondria. Cell Death Differ. 2013, 20, 31–42. [Google Scholar] [CrossRef][Green Version]
  65. Kim, I.; Rodriguez-Enriquez, S.; Lemasters, J.J. Selective degradation of mitochondria by mitophagy. Arch. Biochem. Biophys. 2007, 462, 245–253. [Google Scholar] [CrossRef][Green Version]
  66. Levine, B.; Kroemer, G. Biological functions of autophagy genes: A disease perspective. Cell 2019, 176, 11–42. [Google Scholar] [CrossRef][Green Version]
  67. Takeshige, K.; Baba, M.; Tsuboi, S.; Noda, T.; Ohsumi, Y. Autophagy in yeast demonstrated with proteinase-deficient mutants and conditions for its induction. J. Cell Biol. 1992, 119, 301–311. [Google Scholar] [CrossRef] [PubMed][Green Version]
  68. Kopitz, J.; Kisen, G.; Gordon, P.B.; Bohley, P.; Seglen, P. Nonselective autophagy of cytosolic enzymes by isolated rat hepatocytes. J. Cell Biol. 1990, 111, 941–953. [Google Scholar] [CrossRef] [PubMed]
  69. Kissová, I.; Deffieu, M.k.; Manon, S.; Camougrand, N. Uth1p is involved in the autophagic degradation of mitochondria. J. Biol. Chem. 2004, 279, 39068–39074. [Google Scholar] [CrossRef] [PubMed][Green Version]
  70. Esteban-Martínez, L.; Sierra-Filardi, E.; McGreal, R.S.; Salazar-Roa, M.; Mariño, G.; Seco, E.; Durand, S.; Enot, D.; Graña, O.; Malumbres, M.; et al. Programmed mitophagy is essential for the glycolytic switch during cell differentiation. EMBO J. 2017, 36, 1688–1706. [Google Scholar] [CrossRef] [PubMed]
  71. Stallons, L.J.; Funk, J.A.; Schnellmann, R.G. Mitochondrial homeostasis in acute organ failure. Curr. Pathobiol. Rep. 2013, 1, 169–177. [Google Scholar] [CrossRef][Green Version]
  72. Devi, T.D.; Babu, M.; Mäkinen, P.; Kaikkonen, M.U.; Heinaniemi, M.; Laakso, H.; Ylä-Herttuala, E.; Rieppo, L.; Liimatainen, T.; Naumenko, N.; et al. Aggravated postinfarct heart failure in type 2 diabetes is associated with impaired mitophagy and exaggerated inflammasome activation. Am. J. Pathol. 2017, 187, 2659–2673. [Google Scholar] [CrossRef][Green Version]
  73. Kubli, D.A.; Gustafsson, Å.B. Mitochondria and mitophagy: The yin and yang of cell death control. Circ. Res. 2012, 111, 1208–1221. [Google Scholar] [CrossRef][Green Version]
  74. Rüb, C.; Wilkening, A.; Voos, W. Mitochondrial quality control by the Pink1/Parkin system. Cell Tissue Res. 2017, 367, 111–123. [Google Scholar] [CrossRef] [PubMed]
  75. Hanna, R.A.; Quinsay, M.N.; Orogo, A.M.; Giang, K.; Rikka, S.; Gustafsson, Å.B. Microtubule-associated protein 1 light chain 3 (LC3) interacts with Bnip3 protein to selectively remove endoplasmic reticulum and mitochondria via autophagy. J. Biol. Chem. 2012, 287, 19094–19104. [Google Scholar] [CrossRef] [PubMed][Green Version]
  76. Von Stockum, S.; Marchesan, E.; Ziviani, E. Mitochondrial quality control beyond PINK1/Parkin. Oncotarget 2018, 9, 12550. [Google Scholar] [CrossRef] [PubMed]
  77. Chen, G.; Kroemer, G.; Kepp, O. Mitophagy: An emerging role in aging and age-associated diseases. Front. Cell Dev. Biol. 2020, 8, 200. [Google Scholar] [CrossRef][Green Version]
  78. Lazarou, M.; Sliter, D.A.; Kane, L.A.; Sarraf, S.A.; Wang, C.; Burman, J.L.; Sideris, D.P.; Fogel, A.I.; Youle, R.J. The ubiquitin kinase PINK1 recruits autophagy receptors to induce mitophagy. Nature 2015, 524, 309–314. [Google Scholar] [CrossRef][Green Version]
  79. Pryde, K.R.; Smith, H.L.; Chau, K.-Y.; Schapira, A.H. PINK1 disables the anti-fission machinery to segregate damaged mitochondria for mitophagy. J. Cell Biol. 2016, 213, 163–171. [Google Scholar] [CrossRef][Green Version]
  80. Na, J.H.; Sung, K.R.; Baek, S.; Kim, Y.J.; Durbin, M.K.; Lee, H.J.; Kim, H.K.; Sohn, Y.H. Detection of glaucoma progression by assessment of segmented macular thickness data obtained using spectral domain optical coherence tomography. Investig. Opthalmology Vis. Sci. 2012, 53, 3817–3826. [Google Scholar] [CrossRef]
  81. Tezel, G. Multifactorial Pathogenic Processes of Retinal Ganglion Cell Degeneration in Glaucoma towards Multi-Target Strategies for Broader Treatment Effects. Cells 2021, 10, 1372. [Google Scholar] [CrossRef]
  82. Ju, W.K.; Kim, K.Y.; Duong-Polk, K.X.; Lindsey, J.D.; Ellisman, M.H.; Weinreb, R.N. Increased optic atrophy type 1 expression protects retinal ganglion cells in a mouse model of glaucoma. Mol. Vis. 2010, 16, 1331–1342. [Google Scholar]
  83. Lee, D.; Shim, M.S.; Kim, K.Y.; Noh, Y.H.; Kim, H.; Kim, S.Y.; Weinreb, R.N.; Ju, W.K. Coenzyme Q10 inhibits glutamate excitotoxicity and oxidative stress-mediated mitochondrial alteration in a mouse model of glaucoma. Investig. Ophthalmol. Vis. Sci. 2014, 55, 993–1005. [Google Scholar] [CrossRef] [PubMed][Green Version]
  84. Ju, W.K.; Kim, K.Y.; Noh, Y.H.; Hoshijima, M.; Lukas, T.J.; Ellisman, M.H.; Weinreb, R.N.; Perkins, G.A. Increased mitochondrial fission and volume density by blocking glutamate excitotoxicity protect glaucomatous optic nerve head astrocytes. Glia 2015, 63, 736–753. [Google Scholar] [CrossRef] [PubMed]
  85. Shim, M.S.; Takihara, Y.; Kim, K.Y.; Iwata, T.; Yue, B.Y.; Inatani, M.; Weinreb, R.N.; Perkins, G.A.; Ju, W.K. Mitochondrial pathogenic mechanism and degradation in optineurin E50K mutation-mediated retinal ganglion cell degeneration. Sci. Rep. 2016, 6, 33830. [Google Scholar] [CrossRef][Green Version]
  86. Williams, P.A.; Harder, J.M.; Foxworth, N.E.; Cochran, K.E.; Philip, V.M.; Porciatti, V.; Smithies, O.; John, S.W. Vitamin B3 modulates mitochondrial vulnerability and prevents glaucoma in aged mice. Science 2017, 355, 756–760. [Google Scholar] [CrossRef][Green Version]
  87. Harun-Or-Rashid, M.; Pappenhagen, N.; Palmer, P.G.; Smith, M.A.; Gevorgyan, V.; Wilson, G.N.; Crish, S.D.; Inman, D.M. Structural and Functional Rescue of Chronic Metabolically Stressed Optic Nerves through Respiration. J. Neurosci. 2018, 38, 5122–5139. [Google Scholar] [CrossRef][Green Version]
  88. Osborne, N.N. Pathogenesis of ganglion “cell death” in glaucoma and neuroprotection: Focus on ganglion cell axonal mitochondria. Prog. Brain Res. 2008, 173, 339–352. [Google Scholar] [CrossRef]
  89. Osborne, N.N.; Nunez-Alvarez, C.; Joglar, B.; Del Olmo-Aguado, S. Glaucoma: Focus on mitochondria in relation to pathogenesis and neuroprotection. Eur. J. Pharmacol. 2016, 787, 127–133. [Google Scholar] [CrossRef] [PubMed]
  90. Choi, S.-H.; Kim, K.-Y.; Perkins, G.A.; Phan, S.; Edwards, G.; Xia, Y.; Kim, J.; Skowronska-Krawczyk, D.; Weinreb, R.N.; Ellisman, M.H.; et al. AIBP protects retinal ganglion cells against neuroinflammation and mitochondrial dysfunction in glaucomatous neurodegeneration. Redox Biol. 2020, 37, 101703. [Google Scholar] [CrossRef]
  91. Rice, A.C.; Keeney, P.M.; Algarzae, N.K.; Ladd, A.C.; Thomas, R.R.; Bennett, J.P., Jr. Mitochondrial DNA copy numbers in pyramidal neurons are decreased and mitochondrial biogenesis transcriptome signaling is disrupted in Alzheimer’s disease hippocampi. J. Alzheimers Dis. 2014, 40, 319–330. [Google Scholar] [CrossRef] [PubMed][Green Version]
  92. Manczak, M.; Calkins, M.J.; Reddy, P.H. Impaired mitochondrial dynamics and abnormal interaction of amyloid beta with mitochondrial protein Drp1 in neurons from patients with Alzheimer’s disease: Implications for neuronal damage. Hum. Mol. Genet. 2011, 20, 2495–2509. [Google Scholar] [CrossRef] [PubMed]
  93. Nakamura, K.; Nemani, V.M.; Azarbal, F.; Skibinski, G.; Levy, J.M.; Egami, K.; Munishkina, L.; Zhang, J.; Gardner, B.; Wakabayashi, J.; et al. Direct Membrane Association Drives Mitochondrial Fission by the Parkinson Disease-associated Protein α-Synuclein. J. Biol. Chem. 2011, 286, 20710–20726. [Google Scholar] [CrossRef][Green Version]
  94. Johri, A.; Chandra, A.; Beal, M.F. PGC-1α, mitochondrial dysfunction, and Huntington’s disease. Free Radic. Biol. Med. 2013, 62, 37–46. [Google Scholar] [CrossRef][Green Version]
  95. Kong, J.; Xu, Z. Massive mitochondrial degeneration in motor neurons triggers the onset of amyotrophic lateral sclerosis in mice expressing a mutant SOD1. J. Neurosci. 1998, 18, 3241–3250. [Google Scholar] [CrossRef] [PubMed][Green Version]
  96. Dagda, R.K.; Banerjee, T.D. Role of protein kinase A in regulating mitochondrial function and neuronal development: Implications to neurodegenerative diseases. Rev. Neurosci. 2015, 26, 359–370. [Google Scholar] [CrossRef][Green Version]
  97. Benedetto, G.D.; Iannucci, L.F.; Surdo, N.C.; Zanin, S.; Conca, F.; Grisan, F.; Gerbino, A.; Lefkimmiatis, K. Compartmentalized Signaling in Aging and Neurodegeneration. Cells 2021, 10, 464. [Google Scholar] [CrossRef]
  98. Banerjee, T.D.; Reihl, K.; Swain, M.; Torres, M.; Dagda, R.K. Mitochondrial PKA Is Neuroprotective in a Cell Culture Model of Alzheimer’s Disease. Mol. Neurobiol. 2021, 58, 3071–3083. [Google Scholar] [CrossRef]
  99. Das Banerjee, T.; Dagda, R.Y.; Dagda, M.; Chu, C.T.; Rice, M.; Vazquez-Mayorga, E.; Dagda, R.K. PINK1 regulates mitochondrial trafficking in dendrites of cortical neurons through mitochondrial PKA. J. Neurochem. 2017, 142, 545–559. [Google Scholar] [CrossRef] [PubMed][Green Version]
  100. Zhu, X.; Perry, G.; Smith, M.A.; Wang, X. Abnormal mitochondrial dynamics in the pathogenesis of Alzheimer’s disease. J. Alzheimers Dis. 2013, 33 (Suppl. S1), S253–S262. [Google Scholar] [CrossRef][Green Version]
  101. Wang, W.; Zhao, F.; Ma, X.; Perry, G.; Zhu, X. Mitochondria dysfunction in the pathogenesis of Alzheimer’s disease: Recent advances. Mol. Neurodegener. 2020, 15, 30. [Google Scholar] [CrossRef] [PubMed]
  102. Wang, W.; Yin, J.; Ma, X.; Zhao, F.; Siedlak, S.L.; Wang, Z.; Torres, S.; Fujioka, H.; Xu, Y.; Perry, G.; et al. Inhibition of mitochondrial fragmentation protects against Alzheimer’s disease in rodent model. Hum. Mol. Genet. 2017, 26, 4118–4131. [Google Scholar] [CrossRef][Green Version]
  103. Wang, L.; Liu, M.; Gao, J.; Smith, A.M.; Fujioka, H.; Liang, J.; Perry, G.; Wang, X. Mitochondrial Fusion Suppresses Tau Pathology-Induced Neurodegeneration and Cognitive Decline. J. Alzheimers Dis. 2021, 84, 1057–1069. [Google Scholar] [CrossRef]
  104. Manczak, M.; Reddy, P.H. Abnormal interaction between the mitochondrial fission protein Drp1 and hyperphosphorylated tau in Alzheimer’s disease neurons: Implications for mitochondrial dysfunction and neuronal damage. Hum. Mol. Genet. 2012, 21, 2538–2547. [Google Scholar] [CrossRef][Green Version]
  105. Wang, X.; Wang, W.; Li, L.; Perry, G.; Lee, H.G.; Zhu, X. Oxidative stress and mitochondrial dysfunction in Alzheimer’s disease. Biochim. Biophys. Acta 2014, 1842, 1240–1247. [Google Scholar] [CrossRef] [PubMed][Green Version]
  106. Swerdlow, R.H. Mitochondria and Mitochondrial Cascades in Alzheimer’s Disease. J. Alzheimers Dis. 2018, 62, 1403–1416. [Google Scholar] [CrossRef][Green Version]
  107. Calkins, M.J.; Manczak, M.; Mao, P.; Shirendeb, U.; Reddy, P.H. Impaired mitochondrial biogenesis, defective axonal transport of mitochondria, abnormal mitochondrial dynamics and synaptic degeneration in a mouse model of Alzheimer’s disease. Hum. Mol. Genet. 2011, 20, 4515–4529. [Google Scholar] [CrossRef] [PubMed]
  108. Vitolo, O.V.; Sant’Angelo, A.; Costanzo, V.; Battaglia, F.; Arancio, O.; Shelanski, M. Amyloid beta-peptide inhibition of the PKA/CREB pathway and long-term potentiation: Reversibility by drugs that enhance cAMP signaling. Proc. Natl. Acad. Sci. USA 2002, 99, 13217–13221. [Google Scholar] [CrossRef] [PubMed][Green Version]
  109. Rui, Y.; Tiwari, P.; Xie, Z.; Zheng, J.Q. Acute impairment of mitochondrial trafficking by beta-amyloid peptides in hippocampal neurons. J. Neurosci. 2006, 26, 10480–10487. [Google Scholar] [CrossRef][Green Version]
  110. Sarkar, S.; Jun, S.; Simpkins, J.W. Estrogen amelioration of Abeta-induced defects in mitochondria is mediated by mitochondrial signaling pathway involving ERbeta, AKAP and Drp1. Brain Res. 2015, 1616, 101–111. [Google Scholar] [CrossRef][Green Version]
  111. Mishra, P.; Chan, D.C. Metabolic regulation of mitochondrial dynamics. J. Cell Biol. 2016, 212, 379–387. [Google Scholar] [CrossRef] [PubMed][Green Version]

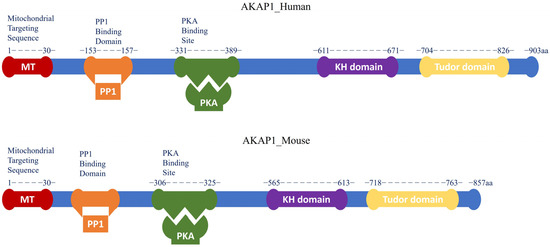

Figure 1. Schematic diagram of full-length AKAP1 protein in humans and mice. The different color boxes represent the different protein domains of full-length AKAP1 (Blue), indicated as N-terminal MT domain (Red), PP1 binding domain (Orange), PKA binding domain (Green), C-terminal mRNA binding KH domain (Purple) and Tudor domain (Yellow). Its domain structure sheds light on the molecular mechanisms by which AKAP1 modulates many cellular signaling pathways.
Figure 1. Schematic diagram of full-length AKAP1 protein in humans and mice. The different color boxes represent the different protein domains of full-length AKAP1 (Blue), indicated as N-terminal MT domain (Red), PP1 binding domain (Orange), PKA binding domain (Green), C-terminal mRNA binding KH domain (Purple) and Tudor domain (Yellow). Its domain structure sheds light on the molecular mechanisms by which AKAP1 modulates many cellular signaling pathways.
Cells 12 01539 g001
Figure 2. Role of AKAP1 in regulation of mitochondrial biogenesis, dynamics, bioenergetics, and mitophagy. (A) AKAP1 influences mitochondrial biogenesis through the activation of PGC-1α, leading to increased production of mitochondrial proteins such as TFAM to promote mitochondrial biogenesis. Along with AKAP1, Ca2+ and AMP/ATP activity also promote mitochondrial biogenesis. (B,C) AKAP1 contributes to mitochondrial dynamics and bioenergetics. Specifically, it inhibits mitochondrial fission activity by preventing the activation of DRP1 through phosphorylation of the DRP1 S637 site. On the other hand, AKAP1 promotes mitochondrial fusion activity, which is mediated by OPA1 and MFN1/2. AKAP1 also promotes ATP synthesis by regulating OXPHOS complexes, resulting in balanced mitochondrial bioenergetics. (D) AKAP1 influences mitophagy mediated by the PINK1/Parkin pathway, where PINK1 accumulates in damaged mitochondria and recruits Parkin to degrade mitochondria through ubiquitination, which then promotes the formation of autophagosomes and eliminates the damaged mitochondria.
Figure 2. Role of AKAP1 in regulation of mitochondrial biogenesis, dynamics, bioenergetics, and mitophagy. (A) AKAP1 influences mitochondrial biogenesis through the activation of PGC-1α, leading to increased production of mitochondrial proteins such as TFAM to promote mitochondrial biogenesis. Along with AKAP1, Ca2+ and AMP/ATP activity also promote mitochondrial biogenesis. (B,C) AKAP1 contributes to mitochondrial dynamics and bioenergetics. Specifically, it inhibits mitochondrial fission activity by preventing the activation of DRP1 through phosphorylation of the DRP1 S637 site. On the other hand, AKAP1 promotes mitochondrial fusion activity, which is mediated by OPA1 and MFN1/2. AKAP1 also promotes ATP synthesis by regulating OXPHOS complexes, resulting in balanced mitochondrial bioenergetics. (D) AKAP1 influences mitophagy mediated by the PINK1/Parkin pathway, where PINK1 accumulates in damaged mitochondria and recruits Parkin to degrade mitochondria through ubiquitination, which then promotes the formation of autophagosomes and eliminates the damaged mitochondria.
Cells 12 01539 g002
Figure 3. Neuroprotective effect of AKAP1 in glaucomatous RGCs. The upper panel diagrams the effect of glaucomatous insults such as elevated IOP in RGCs. Glaucomatous insults cause mitochondrial stress in RGCs, resulting in the loss of AKAP1, which triggers excessive mitochondrial fission through activation of DRP1 and the subsequent proapoptotic pathway BIM/BAX. This exacerbates mitochondrial dysfunction, ultimately leading to RGC death and a vision defect. The lower panel diagrams how restoring sustained AKAP1 expression in RGCs by intravitreal delivery of AAV2-AKAP1 protects RGCs by increasing phosphorylation of DRP1 S637, which promotes visual function in glaucomatous neurodegeneration.
Figure 3. Neuroprotective effect of AKAP1 in glaucomatous RGCs. The upper panel diagrams the effect of glaucomatous insults such as elevated IOP in RGCs. Glaucomatous insults cause mitochondrial stress in RGCs, resulting in the loss of AKAP1, which triggers excessive mitochondrial fission through activation of DRP1 and the subsequent proapoptotic pathway BIM/BAX. This exacerbates mitochondrial dysfunction, ultimately leading to RGC death and a vision defect. The lower panel diagrams how restoring sustained AKAP1 expression in RGCs by intravitreal delivery of AAV2-AKAP1 protects RGCs by increasing phosphorylation of DRP1 S637, which promotes visual function in glaucomatous neurodegeneration.
Cells 12 01539 g003
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Bastola, T.; Perkins, G.A.; Kim, K.-Y.; Choi, S.; Kwon, J.-W.; Shen, Z.; Strack, S.; Ju, W.-K. Role of A-Kinase Anchoring Protein 1 in Retinal Ganglion Cells: Neurodegeneration and Neuroprotection. Cells 2023, 12, 1539.

AMA Style

Bastola T, Perkins GA, Kim K-Y, Choi S, Kwon J-W, Shen Z, Strack S, Ju W-K. Role of A-Kinase Anchoring Protein 1 in Retinal Ganglion Cells: Neurodegeneration and Neuroprotection. Cells. 2023; 12(11):1539.

Chicago/Turabian Style

Bastola, Tonking, Guy A. Perkins, Keun-Young Kim, Seunghwan Choi, Jin-Woo Kwon, Ziyao Shen, Stefan Strack, and Won-Kyu Ju. 2023. "Role of A-Kinase Anchoring Protein 1 in Retinal Ganglion Cells: Neurodegeneration and Neuroprotection" Cells 12, no. 11: 1539.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
