Oxidative Stress and Lipid Accumulation Augments Cell Death in LDLR-Deficient RPE Cells and Ldlr−/− Mice

by
Parameswaran Gangadharan Sreekumar
1,
Feng Su
2,
Christine Spee
1,
Eduardo Araujo
3,
Steven Nusinowitz
3,
Srinivasa T Reddy
2 and
Ram Kannan
1,3,*
1
Doheny Eye Institute, Pasadena, CA 91103, USA
2
Department of Molecular and Medical Pharmacology, David Geffen School of Medicine, University of California at Los Angeles, Los Angeles, CA 90095, USA
3
Jules Stein Eye Institute, David Geffen School of Medicine, University of California at Los Angeles, Los Angeles, CA 90095, USA
*
Author to whom correspondence should be addressed.
Cells 2023, 12(1), 43; https://doi.org/10.3390/cells12010043
Submission received: 13 October 2022 / Revised: 14 December 2022 / Accepted: 18 December 2022 / Published: 22 December 2022
(This article belongs to the Special Issue The Role of Inflammation in AMD (Multifactorial Age-Related Macular Degeneration))
Browse Figures
Versions Notes

Abstract

Lipid peroxidation from oxidative stress is considered a major contributor to age-related macular degeneration (AMD). The retina is abundant with circulating low-density lipoproteins (LDL), which are taken up by LDL receptor (LDLR) in the RPE and Müller cells. The purpose of this study is to investigate the role of LDLR in the NaIO3-induced model of dry AMD. Confluent primary human RPE (hRPE) and LDLR-silenced ARPE-19 cells were stressed with 150 µM tert-butyl hydroperoxide (tBH) and caspase 3/7 activation was determined. WT and Ldlr −/− mice were administered NaIO3 (20 mg/kg) intravenously. On day 7, fundus imaging, OCT, ERG, and retinal thickness were measured. Histology, TUNEL, cleaved caspase 3 and lipid accumulation were assessed. Treatment of hRPE with tBH markedly decreased LDLR expression. Caspase 3/7 activation was significantly increased in LDLR-silenced ARPE-19 cells treated with tBH. In Ldlr −/− mice, NaIO3 administration resulted in significant (a) retinal thinning, (b) compromised photoreceptor function, (c) increased percentage of cleaved caspase 3 positive and apoptotic cells, and (d) increased lipid droplet accumulation in the RPE, Bruch membrane, choroid, and sclera, compared to WT mice. Our findings imply that LDLR loss leads to lipid accumulation and impaired retinal function, which may contribute to the development of AMD.

1. Introduction

Age-related macular degeneration (AMD), a multifactorial neurodegenerative disease, is the leading cause for legal blindness in the world. AMD includes the wet or neovascular (nAMD) form characterized by blood vessel growth and leakage, and the geographic atrophy (dry AMD) form that results in patchy loss of the retinal pigment epithelium (RPE) and photoreceptors [1,2]. Dry AMD accounts for 85% to 90% of cases, and patients experience severe visual impairment which can progress to legal blindness [1,2]. Currently, there are no approved treatments for dry AMD [2,3]. The underlying causes of AMD include persistent inflammation, lipid accumulation, oxidative stress, and impaired extracellular matrix maintenance [3,4]. However, the molecular mechanisms associated with the degenerative processes that lead to the development and progression of AMD are not well understood.
Aging-related lipid accumulation between the inner layer of the Bruch’s membrane (BrM) and the basal lamina of the retinal pigment epithelium (RPE) results in the formation of drusen, which impairs retinal function by preventing the exchange of nutrients between the choriocapillaris and the RPE [5,6]. Esterified and unesterified cholesterol, phosphatidylcholine, and other lipids make up at least 40% of the volume of drusen [5,7]. The ubiquitously expressed membrane low density lipoprotein receptor (LDLR) functions to facilitate the endocytosis of circulating LDL. Intake of lipoproteins from the bloodstream via the LDLR or phagocytosis of photoreceptor outer segments are the two major pathways that the RPE cell accumulates cholesterol [3].
Epidemiological studies showed a connection between atherosclerosis and AMD [8,9,10,11]. Extracellular lipid accumulation, oxidative stress, and inflammation are hallmarks of both diseases. The genetic deletion of Ldlr in mice raises cholesterol levels on the chow diet to 200–300 mg/dL and has been extensively used as an established murine model of atherosclerosis [12]. Ldlr −/− mice on a Western diet have plasma lipoprotein profiles similar to that of hypercholesteremic human plasma samples [13]. Therefore, Ldlr −/− mice provide a unique opportunity to test whether LDLR modifies lipid metabolism and impairs retinal function.
The role of LDLR in an atrophic model of AMD has not been studied to date. Previous work showed that LDLR deficiency caused the accumulation of membrane-bound translucent particles in the BrM, along with increased vascular endothelial growth factor (VEGF) expression when fed with a high-fat diet [10,11,12]. We hypothesized that LDLR deficiency would augment RPE cell death with oxidative stress and cause lipid accumulation and impaired retinal function in a mouse model of dry AMD. Therefore, we investigated retinal function, differences in fundus, OCT, and histology, apoptosis, and neutral lipid accumulation in Ldlr −/− mice and control mice in the NaIO3-induced model of dry AMD. Moreover, we examined the effect of NaIO3-induced oxidative stress on LDLR protein expression and regulation in hRPE cells.

2. Materials and Methods

2.1. Retinal Pigment Epithelial Cell Culture

All procedures adhered to the tenets of the Declaration of Helsinki for research involving human subjects. The RPE cells were isolated from human fetal eyes received from Advanced Bioscience Resources Inc. (Alameda, CA, USA) and Novogenix Laboratories, LLC (Los Angeles, CA, USA) and cultured as previously described [14]. Confluent cell cultures between passages 2 and 4 were used in all experiments. In brief, the hRPE cells were grown in Dulbecco’s modified Eagle medium (DMEM, Gibco) with 10% fetal bovine serum (FBS, Laguna Scientific, Laguna Niguel, CA, USA). Highly differentiated fetal human RPE cells were cultured on Transwell filters as described earlier [15].

2.2. Localization of LDLR in fhRPE Cells with and without Oxidative Stress

Localization of LDLR was performed on confluent RPE cells grown in four-well chamber slides. Confluent cells were treated with 150 μM tert-Butyl hydroperoxide (tBH; Sigma-Aldrich Corp., St. Louis, MO, USA) for 24 h in serum-free culture medium [16,17]. In this and other subsequent in vitro studies, we used serum-free conditions since fetal bovine serum contains low density (LDL) lipoproteins and LDL is a major lipoprotein component. Upon completion of the experiment, cells were fixed with 4% paraformaldehyde (PFA) for 20 min, then permeabilized in 0.2% Triton X-100 for 5 min, followed with blocking in Animal-Free Blocker (SP-5035-100, Vector Lab, Newark, CA, USA) for 30 min. Cells were incubated overnight with 1:100 dilution of LDLR antibody (# PA5-22976, Invitrogen, Carlsbad, CA, USA) and for 30 min with FITC-labeled secondary antibodies. Samples were viewed under a laser scanning confocal microscope (LSM 710, Carl Zeiss, Thornwood, NY, USA). Mean fluorescence intensity was quantified using image J [18,19]. In separate studies, we also examined polarized localization of LDLR in RPE monolayers.

2.3. siRNA-Mediated Knockdown of LDLR and Caspase-3/7 Activation Using IncuCyte Cell Apoptosis Assay

ARPE-19 cells (passage # 10, ATCC, Manassas, VA, USA) were validated by RT-PCR evidence for the expression of Keratin-18, BEST1 and CRALBP (Figure S1). The primers used are shown in the Supplemental Table S1. ARPE-19 cells at 40–50% confluence were used for all transfection studies. The siRNA targeting human LDLR sequences (Hs-LDLR_5 FlexiTube siRNA; 5′-TTGGACAGATATCATCAACGA -3′) (Qiagen, Valencia, CA, USA) and negative control siRNA (Qiagen) were mixed with RNAi MAX transfection reagent (Life Technologies, Carlsbad, CA, USA). To avoid cytotoxicity, the transfection medium was replaced with a complete medium at 6 h after siRNA transfection. LDLR mRNA expression was analyzed by real-time RT-PCR after 24 h post-transfection. To study the effect of LDLR knockdown on caspase-3/7 activation, the LDLR silenced cells were incubated with tBH (300 µM) for 24 h and assayed for cell death in serum-free medium. Caspase-3/7 reagent SYTOX Green diluted in cell culture media (1:1000 dilution) to make a total volume of 100 μL/well. Each treatment condition was performed in 10–12 wells. Cell apoptosis was monitored for 24 h using a live cell analysis system (IncuCyte ZOOM; Essen Bioscience, Ann Arbor, MI, USA), as described earlier [20].

2.4. NaIO3-Induced RPE Degeneration Mouse Model

Male C57BL6/J mice aged six to eight weeks from The Jackson Laboratory (The Jackson Laboratory, Bar Harbor, ME, USA) were used. Ldlr −/− mice on a C57BL/6J background were bred from the breeding colony of the Department of Laboratory and Animal Medicine at the David Geffen School of Medicine at the University of California, Los Angeles (UCLA). All animal procedures are approved by the UCLA Institutional Animal Care and Use Committee (# ARC 2019-060). Experimental procedures used in this study were conducted in accordance with National Institutes of Health guidelines and the Association for Research in Vision and Ophthalmology Statement for the Use of Animals in Ophthalmic Vision Research.
The NaIO3-induced mouse model of RPE atrophy has been well characterized in our laboratory [18,21,22]. Based on our previous studies, we used a single dose of 20 mg/kg BW NaIO3 administered via the tail vein. Control animals received a tail vein injection of sterile PBS. Male mice (WT and Ldlr −/−) were divided into four treatment groups, each group consisted of eight mice. Group 1: WT + PBS; Group 2: WT + NaIO3; Group 3: Ldlr −/− + PBS and Group 4: Ldlr −/− + NaIO3. All mice were maintained on a standard chow diet. Animals were euthanized on day 7 post NaIO3 injection.

2.5. Spectral Domain Optical Coherence Tomography (SD-OCT) and Fundus Imaging

Mice were anesthetized (ketamine and xylazine) and pupils were dilated with one to two drops of Tropicamide Ophthalmic Solution 1% (Bausch & Lomb, Tampa, FL, USA). To create a consistent, optically transparent interface, an ocular demulcent solution containing hydroxypropyl methylcellulose ophthalmic (Gonak, Akorn, Lake Forest, IL, USA) was applied to the eye. Ultra-high resolution spectral domain optical coherence tomography (SD-OCT) imaging was performed on both eyes at the end of experiments (Bioptigen SD-OCT system, Research Triangle Park, Durham, NC, USA) as described [21]. In short, a series of 100 b-scans were collected, stacked, and aligned spatially to form a registered three-dimensional rendering of the retinal volume. By averaging 20 separate b-scans along the same horizontal axis and spatially aligning them, a high-resolution horizontal b-scan centered on the optic nerve head was obtained. The total retinal thickness, measured as the distance (in µm) between the retinal pigment epithelium and the inner limiting membrane, was calculated for each location. The Micron II retinal imaging microscope (Phoenix Research Laboratories, Inc., CA, USA) was used to capture fundus pictures.

2.6. Electrophysiology

Following overnight dark adaptation and pupil dilation, ERGs were recorded from the corneal surface using a gold loop corneal electrode together with a mouth reference and tail ground electrode. To guarantee electrical contact and preserve corneal integrity, a drop of methylcellulose (2.5 percent) was applied to the corneal surface. A heated water pad was used to keep the body temperature at 38 °C. Responses were amplified (Grass CP511 AC amplifier, × 10,000) and digitized using an I/O board (National Instruments, Austin, TX, USA). Signal processing was performed with custom software LabWindows/CVI (National Instruments, Austin, TX, USA). For each stimulus intensity, responses were computer-averaged with up to 50 records averaged for the weakest signals. A signal rejection window was used to eliminate artifacts. Flash presentation frequency was set to 1 Hz except for the brightest flashes which were slowed to 0.2 Hz. For scotopic responses, intensity response functions were fitted with a standard Naka-Rushton function to estimate Vmax, the maximum saturated b-wave amplitude.

2.7. Retinal Histology

The posterior eye cups were embedded in OCT medium and snap-frozen in liquid nitrogen [18]. Cryostat sections (8 μm) of snap-frozen posterior eyecups were processed 7 days after NaIO3 challenge. After fixation with 4% paraformaldehyde for 30 min, sections were prepared for hematoxylin and eosin (H & E) staining and imaged with Aperio digital pathology slide scanner (Leica Biosystems, Buffalo Grove, IL, USA).

2.8. TUNEL Staining

In Situ Cell Death Detection Kit (# 12156792910, Roche, Indianapolis, IN, USA) or the terminal deoxynucleotide transferase dUTP nick end labeling (TUNEL) assay was performed on retinal sections according to the manufacturer’s instructions. Retinal sections (8 µm) were fixed in 4% paraformaldehyde (PFA), permeabilized with 0.1% Triton X-100, followed with incubation with the TUNEL reaction mixture for an hour at 37 °C, in a humid atmosphere. After washing, the label incorporated at sites of DNA damage was visualized by digital fluorescence microscope (KEYENCE, Itasca, IL, USA). TUNEL-positive cells were counted as described earlier, and data were expressed as percent of total cells undergoing apoptosis [18].

2.9. Immunofluorescence Staining

Retinal sections were fixed in 4% PFA and permeabilized with 0.1% Triton X-100. Samples were blocked with Animal-Free Blocker for 30 min. Sections were incubated with either rabbit polyclonal antibody against cleaved caspase-3 (1:100 dilution, #9661, Cell Signaling Tech, MA, USA) or rabbit polyclonal antibody against LDLR (1:100 dilution, # PA5-46987, Invitrogen, Carlsbad, CA, USA) or mouse monoclonal to perilipin 1 (1:100 dilution, # 390169, Santa Cruz Biotech, Dallas, TX, USA) overnight. Sections were then incubated with goat fluorescein-conjugated anti-rabbit secondary antibody for 30 min. Images were obtained using a Keyence fluorescence digital microscope. For quantification of immunofluorescence, digital images were analyzed (n = 5–6), and the average total corrected fluorescence (background subtracted) was calculated using ImageJ (US NIH, Bethesda, MD, USA) [18].

2.10. Oil Red O Staining

Retinal frozen sections (8 µm) were fixed (4% PFA, 5 min) and neutral lipids were stained with Oil Red O stain kit (#ab150678, Abcam, Waltham, MA, USA) overnight at RT. Slides were differentiated in 85% propylene glycol for 1 min, rinsed in 2 changes of distilled water, incubated in hematoxylin for 30 s, and then rinsed in tap water and 2 changes of distilled water. Images were captured with a digital microscope (KEYENCE, Itasca, IL, USA).

2.11. Data Analysis

Data presented are representative curves or mean ± SEM. Statistical analyses were performed by Student’s t-test and a one-way ANOVA, followed by Tukey’s post hoc test (GraphPad Software, La Jolla, CA). A p value of <0.05 was considered statistically significant.

3. Results

3.1. LDLR RPE Localization

In nonpolarized RPE cells, LDLR is homogeneously distributed to the cytoplasmic compartments (Figure 1A). Oxidative stress from tBH (150 µM) for 24 h caused not only altered distribution but also significantly decreased LDLR protein expression in hRPE cells (Figure 1A). To quantify the change in LDLR expression level, we measured the corrected total fluorescence of LDLR-positive cells. This method allows background subtraction and considers the area of the cell that is measured. Using this criterion, we found that LDLR expression was significantly lower in stressed hRPE cells (Figure 1B). RPE cells without primary antibody incubation served as a negative control (data not shown). Since the polarized hRPE monolayers mimic the native RPE monolayer, we also studied LDLR expression in polarized RPE cells. For this purpose, we used polarized RPE cells isolated from fetal donor eyes grown in Transwell filters for 6 weeks and verified their morphology and transepithelial electrical resistance (TER, >200 Ω·cm2) as in our previous studies [14]. In the polarized RPE monolayer, LDLR staining was predominantly found in the basolateral domain (Figure S2).

3.2. LDLR Knockdown Accelerated and Exacerbated tBH-Induced Cell Death

It has been reported that RPE cells take up circulating LDL via LDLR mediated mechanism [23]. Ldlr −/− mice are not able to incorporate plasma cholesterol into cells sufficiently, resulting in increased circulating total cholesterol and subsequent cell death [24]. We next examined whether absence of LDLR alters RPE survival. To explore this, we silenced LDLR in ARPE-19 cells using siRNA and then challenged the ARPE-19 cells with oxidative stress for 24 h. The silencing efficiency was verified at the mRNA level, which showed 80% LDLR knockdown (Figure 2A). The rate and degree of cell death was measured in real-time using the IncuCyte imaging system. The caspase-3/7 reagent is a cell-permeable, non-toxic dye conjugated to the caspase-3/7 recognition and cleavage sequence (DEVD) [25]. The dye can only fluoresce green when bound to DNA, enabling the identification of dead and dying cells. Cell death is indicated by widespread cell clumping of green-fluorescing cells that have cleaved the caspase-3/7 reporter reagent (Figure 2B). Our data showed that 300 µM tBH treatment significantly increased caspase activation over time in negative control siRNA transfected ARPE-19 cells. However, when LDLR silenced cells were exposed to tBH, there was a significantly higher caspase activation at later time points except for 24 h value which did not reach significance (Figure 2C). Overall, our data suggests a protective role for LDLR in tBH-induced cell survival.

3.3. Deficiency of LDLR Exacerbated Retinal Degeneration In Vivo

To address whether Ldlr deletion in vivo affects the retinal structure and function from oxidative stress, we used a murine model of NaIO3-induced acute degeneration [18,21]. We selected the dosage of 20 mg/kg NaIO3 based on previous studies that retinal structure, especially RPE morphology and function are significantly compromised with this dose [21]. At 7 days after NaIO3 administration, the number of white spots (white arrow heads), indicative of RPE degeneration, were significantly more in Ldlr −/− mice compared to WT mice, suggesting that Ldlr deletion renders retina more susceptible to oxidative stress (Figure 3A). Representative optical coherence tomography (OCT) images of the retina 7 days after NaIO3 treatment revealed a thinning of the outer layers, indicating photoreceptor loss (Figure 3B,C).

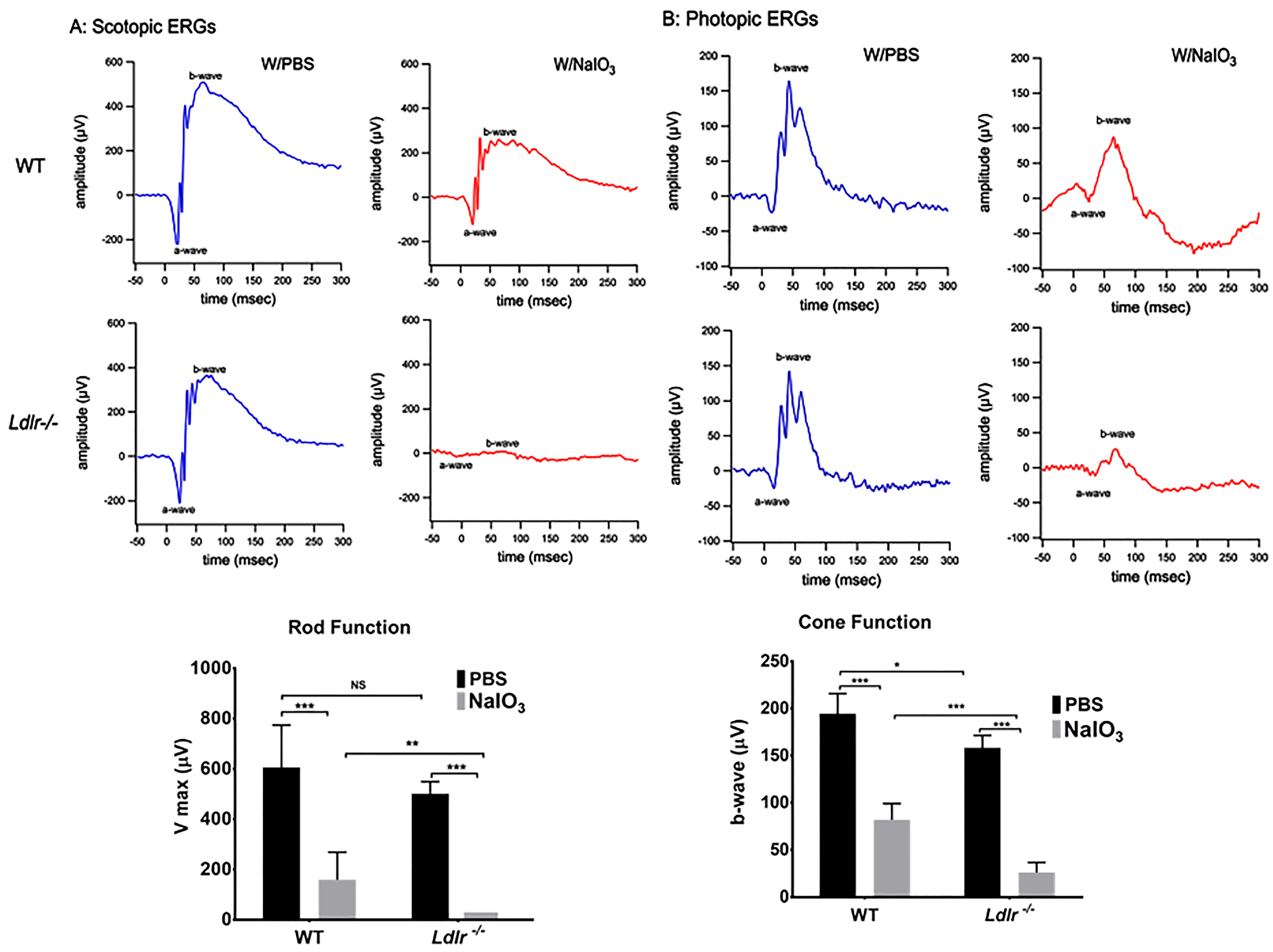

3.4. LDLR Deficiency and or Acute NaIO3 Administration Reduced Visual Performance

The LDLR receptor is widely known for its role in controlling cholesterol metabolism, which is crucial for maintaining neuronal health and visual function. Therefore, we investigated whether retinal function could be compromised due to LDLR deficiency. Functional analysis by ERG under scotopic conditions revealed substantially impaired in Ldlr −/− mice compared to age-matched WT mice of the same age (Figure 4A). Ldlr −/− mice showed a decrease in photopic ERG responses as well (Figure 4B). Scotopic and photopic ERG responses in NaIO3-treated Ldlr −/− mice were almost non-detectable compared to those of matching WT mice when challenged with NaIO3, indicating considerable photoreceptor damage, consistent with outer retinal thinning shown by our OCT image analysis (Figure 3B,C). These data are consistent with the loss of rod and cone sensitivity in Ldlr −/− mice, compared with corresponding WT mice, seven days post NaIO3 administration.

3.5. Histopathological Changes and Retinal Degeneration in NaIO3 Administered Ldlr −/− Mice

The structural integrity of the retina was assessed via histology 7 days post-NaIO3 administration. In the control eyes injected with PBS, all layers of the retina were well organized, and the RPE cell layer was evenly pigmented and could be easily distinguished. However, RPE cells in Ldlr −/− mice appeared larger, rounded, vacuolized, and started to detach from the intact RPE monolayer layer (Figure 5). Displaced cells were evident in the inner plexiform layer (IPL), and the morphology of the INL, outer plexiform layer (OPL), and ONL was abundantly altered along with the development of several atypical folds in the outer retina (Figure 5). As the representative images illustrate, Ldlr −/− mice experienced more severe damage than WT mice, with nearly full degeneration of the cone and rod photoreceptor cells. Most of the photoreceptors and their outer segments were destroyed, coinciding with the functional loss as determined by electroretinography, and the RPE layer was entirely disrupted.

3.6. Oxidative Stress Exacerbates Apoptosis in Ldlr −/− Mouse Retina

Retinal functional studies and histology demonstrated significantly increased retinal damage in the Ldlr −/− mice challenged with NaIO3. To further explore whether the compromised retinal function relates to apoptosis, we quantified apoptotic cells in the NaIO3 challenged retinas. TUNEL staining, which specifically tags fragmented DNA of late apoptosis, revealed that 20 mg/kg NaIO3 caused significantly more apoptosis in the Ldlr −/− than the corresponding WT mice treated with NaIO3. As shown in Figure 6A,B, TUNEL-positive cells increased in the ONL of the Ldlr −/− mice compared with WT mice after NaIO3 treatment, suggestive of damage in the photoreceptor nuclei. Following evidence that LDLR loss worsens cell death in response to a NaIO3 challenge, cleaved caspase-3, the primary executor of conventional cell death, was examined in retinal sections. Although there was no evidence of active caspase-3 expression in the control samples (not shown), by day 7 after NaIO3 treatment, some cleaved caspase-3 positive cells (green cells in Figure 6B,C) were seen in the RPE and ONL of WT animals. The TUNEL positive cells seen in retinal slices are consistent with the low number of activated caspase-3 signals. However, when compared to comparable WT, the fluorescence intensity for cleaved caspase-3 was considerably higher in Ldlr −/− mice treated with NaIO3. Caspase-3 staining was mostly observed only in the RPE cell layer and in a few cells in the photoreceptor layer (Figure 6C). Importantly, we found that Ldlr −/− mice have increased active caspase-3 expression, which could help to explain why they are more susceptible to apoptosis with stress.

3.7. LDLR Deficiency Resulted in Lipid Accumulation in the Outer Retina

Pathohistological examinations of drusen in human donor eyes have revealed a role for lipids in AMD [26,27]. Given the known role of LDLR in regulating lipid metabolism, we stained retinal cryosections from WT and Ldlr −/− mice challenged with NaIO3 with Oil Red O (ORO) staining to evaluate the presence of any hydrophobic lipids, including esterified cholesterol within the retinal layers. ORO revealed that lipid droplets were present in the RPE, BrM, choroid, and sclera of the Ldlr −/− mice; however, lipid staining was sparse in the RPE of the WT mice challenged with NaIO3 (Figure 7A). Notably, when compared with WT mice, which did not exhibit any ORO staining, deletion of Ldlr markedly increased neutral lipid staining, apparent as red foci, in the RPE, choroid, and sclera from the NaIO3-treated mice. Proteins of the perilipin family have been associated with surfaces of lipid droplets and consist of five members [28]. Perilipin 1 expression has been reported in RPE, and tissue samples from the retina and brain [29,30,31]. Limited perilipin 1 staining was seen in the RPE, choroid, and scleral tissues when NaIO3 was given to WT mice, but increased perilipin 1 staining was seen in the Ldlr −/− mice when challenged with stress (Figure 7B and Figure S3). These data provide evidence that the genetic deletion of Ldlr results in a delayed removal of LDL from tissues, resulting in an enhanced accumulation of neutral lipids with oxidative stress in the RPE and choroidal tissues. However, the origin of these lipids is not clear. Although it could be from delayed removal, it could also be from endogenous synthesis of lipids within these tissues. Consistently, in retinal sections, perilipin-labeled lipid surface signals were more prominently observed in the stressed Ldlr −/− sections.

4. Discussion

In this study, we investigated the significance of LDLR in hRPE survival and retinal function in an animal model of dry AMD. We provide several lines of evidence suggesting that LDLR plays an important role in dry AMD. The results obtained in this study demonstrate that the lack of LDL receptor causes: 1. exacerbation of RPE cell death when subjected to oxidative stress, 2. accelerated RPE and photoreceptor degeneration and retinal thinning, 3. impaired retinal functions, 4. augmented apoptosis, and 5. accelerated lipid accumulation in the RPE and choroid.
Intracellular lipid accumulation is dependent on the net balance of lipid transport into and out of the cells [32]. LDL is responsible for the transport of lipids into the cells via the LDLR, whereas HDL participates in the transport of lipids out of the cells [33]. The mechanisms by which HDL removes lipids is called reverse cholesterol transport (RCT) [34]. We believe that lack of regulation of the receptor for LDL may lead to an imbalance in lipid transport resulting in intracellular accumulation of lipids. Additional studies are needed for confirmation of our findings and their link to AMD pathogenesis.
AMD is a complex group of progressive diseases that lead to the degeneration of the macula in older adult individuals and is the leading cause of irreversible blindness in developed nations. The more prevalent dry AMD (also known as atrophic AMD), which affects roughly 8 out of 10 patients with AMD, is characterized by the buildup of sub-RPE deposits (drusen), which are made up of a variety of proteins and lipids that come from both inside and outside the retina. Cholesterol homeostasis of the outer retina, especially as pertains to sterol and lipid uptake and efflux across the RPE, plays a critical role in the pathogenesis of AMD [35]. The LDLR pathway is a negative feedback mechanism that is crucial for maintaining the balance between intracellular and plasma cholesterol levels. Cells accumulate excessive amounts of lipids because of dysregulated LDLR expression [36].
In hRPE cells, LDLR is mostly expressed in the cytoplasmic compartments, and oxidative stress significantly reduced its expression. Prior studies have revealed the presence of the scavenger receptor CD36 and the LDL receptor in RRE cells, which are essential for the internalization of LDL and oxidized LDL (oxLDL) [35,37]. The LDL receptor was localized to the basal RPE cell membrane in monkey retinas by immunohistochemical studies which is consistent with our findings in the polarized RPE monolayer [23]. Based on our data and previous findings, we suggest that plasma LDL appears to enter in and out of the RPE through the basolateral domain from the choriocapillaris endothelium by crossing the BrM.
In our studies on the role of LDLR in RPE cell protection, we silenced Ldlr in ARPE-19 cells since transfection studies in primary RPE cells are challenging, and transfection efficiency varies from donor to donor. The characteristics of ARPE-19 cells were assessed carefully; we verified that ARPE-19 expressed RPE-specific markers BEST1, CRALBP1, and Keratin-18 (Supplemental Figure S1). We used ARPE-19 cells at passage 10 as recommended in a recent report [38].
Although many rodent models for (dry) AMD have been generated, there has not yet been an animal model that can adequately represent the progression of dry AMD disease phenotype. The complex nature of AMD makes phenotypic modeling very difficult. As a result, studies into the etiology and effective therapeutic methods of the disease are significantly hampered by the lack of relevant models. Since NaIO3 injection exhibits some phenotypic characteristics like dry AMD, it has been widely employed as a pre-clinical model of geographic atrophy [21,39,40,41]. Similar to what is seen in atrophic AMD, modest doses of NaIO3 (corresponding to the dose used in this study) cause RPE cell death, which is followed by a subsequent death of photoreceptors [21,40,41]. The loss of RPE cells not only affects the photoreceptors but also the underlying choriocapillaris. Administration techniques (e.g., intraperitoneal or intravenous), as well as the instability of NaIO3 are factors that may be responsible for variations reported in published research [41]. In our model, we were able to confirm the patchy loss of RPE cells as well as the degeneration of the choriocapillaris and photoreceptors. A recent study supported the NaIO3 model and demonstrated that intravenous administration of NaIO3 provides consistent and reproducible results [40]. This model has already been employed as a testing ground for many experimental RPE-cell-based therapies as well as bone marrow transplantation [40,42,43,44,45].
The interaction between oxidative stress and inflammation has been the subject of numerous investigations [3,46]. A number of preclinical investigations have shown that oxidative stress stimulates the initiation and amplification of inflammatory pathways in a wide range of cell types in the retina and choroid [47,48,49]. Recent research has also shown that the NaIO3 model modulates soluble immune proteins, complement proteins, and cytokines/chemokines in a time-dependent manner, supporting the idea that this model could be used to mimic retinal inflammatory sequences [41,50]. Ldlr −/− mice fed with high-fat diet for 12 weeks had increased oxidized lipids and inflammatory markers and caused pulmonary hypertension [51], suggesting a role for LDLR and oxidized lipids in the initiation of diseases. However, in-depth research is required to specify how LDLR and oxidized lipids interact in our model of dry AMD.
We reported previously that NaIO3 treatment caused significant retinal function impairment in WT mice [22]. However, whether LDLR deficiency accentuates altered retinal dysfunction has not been hitherto addressed in detail. The LDL receptor knockout model serves as an established model for atherosclerotic pathomechanisms because of the opportunity to induce elevated plasma total cholesterol levels [52]. In addition, increased triglycerides were observed in different tissues of Ldlr −/− mice used in other disease models such as non-alcoholic fatty liver disease [53], atherosclerosis [54,55], Ldlr −/− Leiden infertility [56] and pulmonary hypertension [57]. Due to the association between the existence of such lipid deposits and AMD and the fact that these particles bind ORO and include esterified cholesterol and triglycerides [4,5,6], we utilized the Ldlr −/− model to investigate its function in dry AMD. Lipids are important components of the retina and make up to 50% of the dry matter in rod outer segment membranes [4,58]. Thus, dysregulation of LDLR could cause a change in fatty acid status and may be etiologically involved in the reduction of the ERG response seen in our study. We demonstrated that stressed Ldlr −/− mice exhibited an increased accumulation of lipid droplets in the outer retina, supporting the hypothesis that disruption of lipid homeostasis may influence retinal function. In eyes of apoB100, Ldlr −/− mice, buildup of esterified cholesterol was also observed at the basement of the retinal pigment epithelium [59]. Similar findings were observed in apoE-deficient mice, which led to a significant reduction in the amplitudes of the a- and b-waves [59,60]. Increased intracellular lipid deposition were also observed in 24-month-old male Ldlr −/− mice [24]. Ldlr −/− mice exhibited thickening of the BrM with accumulation of lipid particles, which is further increased after fat intake due to elevated blood lipid levels [61]. Although the exact mechanism of retinal degeneration in Ldlr −/− mice is unknown, it is possible that the absence of LDLR may inhibit the transfer of cholesterol from circulating LDL into RPE and other neural retinal cells, causing cholesterol buildup and this likely leads to photoreceptor loss and retinal dysfunction.
Multiple sources of evidence refer to RPE death followed by photoreceptor loss by apoptosis as the final stage leading to irreversible blindness in retinal pathologies such as AMD and retinal detachment [62,63]. The lipid metabolism–cholesterol pathway appeared genetically in candidate gene and later GWAS investigations, and it has long been linked to AMD [64,65,66,67]. Several mechanisms may be involved as to why decreased LDLR levels result in greater susceptibility to cell death. According to our in vitro results, the activation of caspase-3/7 over time and the death of RPE cells was greatly accelerated by LDLR silencing followed by stress exposure. With NaIO3 administration in the Ldlr −/− mice, we observed notable apoptotic cell death and caspase-3 activation. Cholesterol has been linked to several reports that suggest it may cause cell death [24,68,69]. Even with a normal diet, the plasma total cholesterol of Ldlr −/− mice is higher because they cannot adequately incorporate plasma cholesterol into their body cells [70,71]. Similar results have been shown in an animal model of pulmonary fibrosis and familial hypercholesterolemia, where aberrant LDL-LDLR metabolism promotes apoptosis and contributes to the dysfunction of endothelial and epithelial cells [72,73]. Distinguishing the precise pathways which causes the apoptosis, through either the ROS produced by NaIO3 or cholesterol dyshomeostasis, or a combination of the two, is of interest but will need additional work.

5. Conclusions

In summary, we demonstrated that LDLR deficiency caused caspase-3/7 activation and increased cell death in RPE. NaIO3-treated Ldlr −/− mice displayed markedly dysregulated retinal function as significant thinning of the retina and reduced ERG. Furthermore, stressed Ldlr −/− mice showed increased lipid accumulation and susceptibility to apoptotic cell death. The Ldlr −/− mouse model is thus particularly valuable for understanding the relationships between lipid metabolism and oxidative stress in the context of AMD. The Ldlr −/− mouse model may be considered a suitable platform for evaluating therapeutic approaches for dry AMD.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cells12010043/s1, Figure S1: RT-PCR of RPE specific biomarkers in cultured ARPE-19 cells; Figure S2: Localization of LDLR in polarized RPE monolayer; Figure S3: Quantification of perilipin 1 fluorescence intensity; Table S1: Primers used in this study.

Author Contributions

Conceptualization, P.G.S., S.T.R. and R.K.; methodology, validation, formal analysis, investigation, resources, and data curation, P.G.S., F.S., E.A., C.S., S.N., S.T.R. and R.K.; writing—review and editing, P.G.S., S.T.R. and R.K.; supervision, administration, and funding acquisition, S.T.R. and R.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Institutes of Health R01 EY30141 (RK), R01 HL129051 (STR), the Jules Stein Eye Institute Core Grant for Vision Research (NEI EY00331-43), the Ryan Initiative for Macular Research (RIMR) (6009), and a gift from KECK Foundation to Doheny Eye Institute (60060B).

Institutional Review Board Statement

The primary RPE cells (used in Figure 1 and Supplemental Figure S1) were isolated from human fetal eyes obtained from Advanced Bioscience Resources Inc. (Alameda, CA, USA) and Novogenix Laboratories, LLC (Los Angeles, CA, USA). The study was conducted according to the guidelines of the Declaration of Helsinki and approved by the Institutional Review Board of UCLA/Doheny Eye Institute. The UCLA Institutional Animal Care and Use Committee approved animal protocol # ARC 2019-060 was used.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We thank Ravikiran Komirisetty, UCLA, for help with manuscript preparation. We acknowledge Elise Hong for help with PCR, and the Core Services of the Doheny for histological analysis. Part of this work was presented at the Annual ARVO meeting Invest. Ophthalmol. Vis. Sci. 2022; 63(7):1956–F0374.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Fleckenstein, M.; Keenan, T.D.L.; Guymer, R.H.; Chakravarthy, U.; Schmitz-Valckenberg, S.; Klaver, C.C.; Wong, W.T.; Chew, E.Y. Age-related macular degeneration. Nat. Rev. Dis. Primers 2021, 7, 31. [Google Scholar] [CrossRef] [PubMed]
  2. Wong, W.L.; Su, X.; Li, X.; Cheung, C.M.; Klein, R.; Cheng, C.Y.; Wong, T.Y. Global prevalence of age-related macular degeneration and disease burden projection for 2020 and 2040: A systematic review and meta-analysis. Lancet Glob. Health 2014, 2, e106–e116. [Google Scholar] [CrossRef] [PubMed]
  3. Handa, J.T.; Bowes Rickman, C.; Dick, A.D.; Gorin, M.B.; Miller, J.W.; Toth, C.A.; Ueffing, M.; Zarbin, M.; Farrer, L.A. A systems biology approach towards understanding and treating non-neovascular age-related macular degeneration. Nat. Commun. 2019, 10, 3347. [Google Scholar] [CrossRef] [PubMed]
  4. Curcio, C.A.; Millican, C.L. Basal linear deposit and large drusen are specific for early age-related maculopathy. Arch. Ophthalmol. 1999, 117, 329–339. [Google Scholar] [CrossRef] [PubMed]
  5. Curcio, C.A.; Millican, C.L.; Bailey, T.; Kruth, H.S. Accumulation of cholesterol with age in human Bruch’s membrane. Invest. Ophthalmol. Vis. Sci. 2001, 42, 265–274. [Google Scholar]
  6. Curcio, C.A.; Johnson, M.; Rudolf, M.; Huang, J.D. The oil spill in ageing Bruch membrane. Br. J. Ophthalmol. 2011, 95, 1638–1645. [Google Scholar] [CrossRef]
  7. Wang, L.; Clark, M.E.; Crossman, D.K.; Kojima, K.; Messinger, J.D.; Mobley, J.A.; Curcio, C.A. Abundant lipid and protein components of drusen. PLoS ONE 2010, 5, e10329. [Google Scholar] [CrossRef]
  8. Chang, C.C.; Huang, C.H.; Chou, Y.C.; Chang, J.Y.; Sun, C.A. Association Between Age-Related Macular Degeneration and Risk of Heart Failure: A Population-Based Nested Case-Control Study. J. Am. Heart Assoc. 2021, 10, e020071. [Google Scholar] [CrossRef]
  9. Wang, S.B.; Mitchell, P.; Chiha, J.; Liew, G.; Plant, A.J.; Thiagalingam, A.; Burlutsky, G.; Gopinath, B. Severity of coronary artery disease is independently associated with the frequency of early age-related macular degeneration. Br. J. Ophthalmol. 2015, 99, 365–370. [Google Scholar] [CrossRef]
  10. Fernandez, A.B.; Ballard, K.D.; Wong, T.Y.; Guo, M.; McClelland, R.L.; Burke, G.; Cotch, M.F.; Klein, B.; Allison, M.; Klein, R. Age-related macular degeneration and progression of coronary artery calcium: The Multi-Ethnic Study of Atherosclerosis. PLoS ONE 2018, 13, e0201000. [Google Scholar] [CrossRef]
  11. Wang, J.; Zhang, H.; Ji, J.; Wang, L.; Lv, W.; He, Y.; Li, X.; Feng, G.; Chen, K. A histological study of atherosclerotic characteristics in age-related macular degeneration. Heliyon 2022, 8, e08973. [Google Scholar] [CrossRef] [PubMed]
  12. Oppi, S.; Luscher, T.F.; Stein, S. Mouse Models for Atherosclerosis Research-Which Is My Line? Front. Cardiovasc. Med. 2019, 6, 46. [Google Scholar] [CrossRef] [PubMed]
  13. Bentzon, J.F.; Falk, E. Atherosclerotic lesions in mouse and man: Is it the same disease? Curr. Opin. Lipidol. 2010, 21, 434–440. [Google Scholar] [CrossRef]
  14. Sonoda, S.; Sreekumar, P.G.; Kase, S.; Spee, C.; Ryan, S.J.; Kannan, R.; Hinton, D.R. Attainment of polarity promotes growth factor secretion by retinal pigment epithelial cells: Relevance to age-related macular degeneration. Aging 2009, 2, 28–42. [Google Scholar] [CrossRef] [PubMed]
  15. Sonoda, S.; Spee, C.; Barron, E.; Ryan, S.J.; Kannan, R.; Hinton, D.R. A protocol for the culture and differentiation of highly polarized human retinal pigment epithelial cells. Nat. Protoc. 2009, 4, 662–673. [Google Scholar] [CrossRef] [PubMed]
  16. Sreekumar, P.G.; Ishikawa, K.; Spee, C.; Mehta, H.H.; Wan, J.; Yen, K.; Cohen, P.; Kannan, R.; Hinton, D.R. The Mitochondrial-Derived Peptide Humanin Protects RPE Cells From Oxidative Stress, Senescence, and Mitochondrial Dysfunction. Invest. Ophthalmol. Vis. Sci. 2016, 57, 1238–1253. [Google Scholar] [CrossRef] [PubMed]
  17. Totsuka, K.; Ueta, T.; Uchida, T.; Roggia, M.F.; Nakagawa, S.; Vavvas, D.G.; Honjo, M.; Aihara, M. Oxidative stress induces ferroptotic cell death in retinal pigment epithelial cells. Exp. Eye Res. 2019, 181, 316–324. [Google Scholar] [CrossRef]
  18. Sreekumar, P.G.; Li, Z.; Wang, W.; Spee, C.; Hinton, D.R.; Kannan, R.; MacKay, J.A. Intra-vitreal alphaB crystallin fused to elastin-like polypeptide provides neuroprotection in a mouse model of age-related macular degeneration. J. Control. Release 2018, 283, 94–104. [Google Scholar] [CrossRef]
  19. Shihan, M.H.; Novo, S.G.; Le Marchand, S.J.; Wang, Y.; Duncan, M.K. A simple method for quantitating confocal fluorescent images. Biochem. Biophys. Rep. 2021, 25, 100916. [Google Scholar] [CrossRef]
  20. Wang, M.; Lau, L.I.; Sreekumar, P.G.; Spee, C.; Hinton, D.R.; Sadda, S.R.; Kannan, R. Characterization and Regulation of Carrier Proteins of Mitochondrial Glutathione Uptake in Human Retinal Pigment Epithelium Cells. Invest. Ophthalmol. Vis. Sci. 2019, 60, 500–516. [Google Scholar] [CrossRef]
  21. Su, F.; Spee, C.; Araujo, E.; Barron, E.; Wang, M.; Ghione, C.; Hinton, D.R.; Nusinowitz, S.; Kannan, R.; Reddy, S.T.; et al. A Novel HDL-Mimetic Peptide HM-10/10 Protects RPE and Photoreceptors in Murine Models of Retinal Degeneration. Int. J. Mol. Sci. 2019, 20, 4807. [Google Scholar] [CrossRef] [PubMed]
  22. Zhou, P.; Kannan, R.; Spee, C.; Sreekumar, P.G.; Dou, G.; Hinton, D.R. Protection of retina by alphaB crystallin in sodium iodate induced retinal degeneration. PLoS ONE 2014, 9, e98275. [Google Scholar] [CrossRef]
  23. Tserentsoodol, N.; Sztein, J.; Campos, M.; Gordiyenko, N.V.; Fariss, R.N.; Lee, J.W.; Fliesler, S.J.; Rodriguez, I.R. Uptake of cholesterol by the retina occurs primarily via a low density lipoprotein receptor-mediated process. Mol. Vis. 2006, 12, 1306–1318. [Google Scholar] [PubMed]
  24. Wang, S.H.; Huang, Y.; Yuan, Y.; Xia, W.Q.; Wang, P.; Huang, R. LDL receptor knock-out mice show impaired spatial cognition with hippocampal vulnerability to apoptosis and deficits in synapses. Lipids Health Dis. 2014, 13, 175. [Google Scholar] [CrossRef]
  25. Poreba, M.; Szalek, A.; Kasperkiewicz, P.; Rut, W.; Salvesen, G.S.; Drag, M. Small Molecule Active Site Directed Tools for Studying Human Caspases. Chem. Rev. 2015, 115, 12546–12629. [Google Scholar] [CrossRef] [PubMed]
  26. Pauleikhoff, D.; Barondes, M.; Minassian, D.; Chrisholm, J.; Wessing, A.; Bird, A.C. Drusen and their significance in age related macular degeneration. Fortschr. Ophthalmol. 1990, 87, 429–432. [Google Scholar]
  27. Curcio, C.A. Antecedents of Soft Drusen, the Specific Deposits of Age-Related Macular Degeneration, in the Biology of Human Macula. Invest. Ophthalmol. Vis. Sci. 2018, 59, AMD182–AMD194. [Google Scholar] [CrossRef]
  28. Itabe, H.; Yamaguchi, T.; Nimura, S.; Sasabe, N. Perilipins: A diversity of intracellular lipid droplet proteins. Lipids Health Dis. 2017, 16, 83. [Google Scholar] [CrossRef]
  29. Girard, V.; Jollivet, F.; Knittelfelder, O.; Celle, M.; Arsac, J.N.; Chatelain, G.; Van den Brink, D.M.; Baron, T.; Shevchenko, A.; Kuhnlein, R.P.; et al. Abnormal accumulation of lipid droplets in neurons induces the conversion of alpha-Synuclein to proteolytic resistant forms in a Drosophila model of Parkinson’s disease. PLoS Genet. 2021, 17, e1009921. [Google Scholar] [CrossRef]
  30. Shimabukuro, M.K.; Langhi, L.G.; Cordeiro, I.; Brito, J.M.; Batista, C.M.; Mattson, M.P.; Mello Coelho, V. Lipid-laden cells differentially distributed in the aging brain are functionally active and correspond to distinct phenotypes. Sci. Rep. 2016, 6, 23795. [Google Scholar] [CrossRef]
  31. Orban, T.; Palczewska, G.; Palczewski, K. Retinyl ester storage particles (retinosomes) from the retinal pigmented epithelium resemble lipid droplets in other tissues. J. Biol. Chem. 2011, 286, 17248–17258. [Google Scholar] [CrossRef] [PubMed]
  32. Roy, D.; Tedeschi, A. The Role of Lipids, Lipid Metabolism and Ectopic Lipid Accumulation in Axon Growth, Regeneration and Repair after CNS Injury and Disease. Cells 2021, 10, 1078. [Google Scholar] [CrossRef] [PubMed]
  33. Goldstein, J.L.; Brown, M.S. The LDL receptor. Arterioscler. Thromb. Vasc. Biol. 2009, 29, 431–438. [Google Scholar] [CrossRef] [PubMed]
  34. Marques, L.R.; Diniz, T.A.; Antunes, B.M.; Rossi, F.E.; Caperuto, E.C.; Lira, F.S.; Goncalves, D.C. Reverse Cholesterol Transport: Molecular Mechanisms and the Non-medical Approach to Enhance HDL Cholesterol. Front. Physiol. 2018, 9, 526. [Google Scholar] [CrossRef]
  35. Gordiyenko, N.; Campos, M.; Lee, J.W.; Fariss, R.N.; Sztein, J.; Rodriguez, I.R. RPE cells internalize low-density lipoprotein (LDL) and oxidized LDL (oxLDL) in large quantities in vitro and in vivo. Invest. Ophthalmol. Vis. Sci. 2004, 45, 2822–2829. [Google Scholar] [CrossRef] [PubMed]
  36. Zhang, Y.; Ma, K.L.; Ruan, X.Z.; Liu, B.C. Dysregulation of the Low-Density Lipoprotein Receptor Pathway Is Involved in Lipid Disorder-Mediated Organ Injury. Int. J. Biol. Sci. 2016, 12, 569–579. [Google Scholar] [CrossRef] [PubMed]
  37. Hayes, K.C.; Lindsey, S.; Stephan, Z.F.; Brecker, D. Retinal pigment epithelium possesses both LDL and scavenger receptor activity. Invest. Ophthalmol. Vis. Sci. 1989, 30, 225–232. [Google Scholar]
  38. Pfeffer, B.A.; Fliesler, S.J. Reassessing the suitability of ARPE-19 cells as a valid model of native RPE biology. Exp. Eye. Res. 2022, 219, 109046. [Google Scholar] [CrossRef]
  39. Bhutto, I.A.; Ogura, S.; Baldeosingh, R.; McLeod, D.S.; Lutty, G.A.; Edwards, M.M. An Acute Injury Model for the Phenotypic Characteristics of Geographic Atrophy. Invest. Ophthalmol. Vis. Sci. 2018, 59, AMD143–AMD151. [Google Scholar] [CrossRef]
  40. Koster, C.; van den Hurk, K.T.; Ten Brink, J.B.; Lewallen, C.F.; Stanzel, B.V.; Bharti, K.; Bergen, A.A. Sodium-Iodate Injection Can Replicate Retinal Degenerative Disease Stages in Pigmented Mice and Rats: Non-Invasive Follow-Up Using OCT and ERG. Int. J. Mol. Sci. 2022, 23, 2918. [Google Scholar] [CrossRef]
  41. Enzbrenner, A.; Zulliger, R.; Biber, J.; Pousa, A.M.Q.; Schafer, N.; Stucki, C.; Giroud, N.; Berrera, M.; Kortvely, E.; Schmucki, R.; et al. Sodium Iodate-Induced Degeneration Results in Local Complement Changes and Inflammatory Processes in Murine Retina. Int. J. Mol. Sci. 2021, 22, 9218. [Google Scholar] [CrossRef] [PubMed]
  42. Park, U.C.; Cho, M.S.; Park, J.H.; Kim, S.J.; Ku, S.Y.; Choi, Y.M.; Moon, S.Y.; Yu, H.G. Subretinal transplantation of putative retinal pigment epithelial cells derived from human embryonic stem cells in rat retinal degeneration model. Clin. Exp. Reprod. Med. 2011, 38, 216–221. [Google Scholar] [CrossRef] [PubMed]
  43. Guan, Y.; Cui, L.; Qu, Z.; Lu, L.; Wang, F.; Wu, Y.; Zhang, J.; Gao, F.; Tian, H.; Xu, L.; et al. Subretinal transplantation of rat MSCs and erythropoietin gene modified rat MSCs for protecting and rescuing degenerative retina in rats. Curr. Mol. Med. 2013, 13, 1419–1431. [Google Scholar] [CrossRef] [PubMed]
  44. Carido, M.; Zhu, Y.; Postel, K.; Benkner, B.; Cimalla, P.; Karl, M.O.; Kurth, T.; Paquet-Durand, F.; Koch, E.; Munch, T.A.; et al. Characterization of a mouse model with complete RPE loss and its use for RPE cell transplantation. Invest. Ophthalmol. Vis. Sci. 2014, 55, 5431–5444. [Google Scholar] [CrossRef]
  45. Petrus-Reurer, S.; Bartuma, H.; Aronsson, M.; Westman, S.; Lanner, F.; Andre, H.; Kvanta, A. Integration of Subretinal Suspension Transplants of Human Embryonic Stem Cell-Derived Retinal Pigment Epithelial Cells in a Large-Eyed Model of Geographic Atrophy. Invest. Ophthalmol. Vis. Sci. 2017, 58, 1314–1322. [Google Scholar] [CrossRef]
  46. Romero-Vazquez, S.; Llorens, V.; Soler-Boronat, A.; Figueras-Roca, M.; Adan, A.; Molins, B. Interlink between Inflammation and Oxidative Stress in Age-Related Macular Degeneration: Role of Complement Factor H. Biomedicines 2021, 9, 763. [Google Scholar] [CrossRef]
  47. Kim, S.Y.; Kambhampati, S.P.; Bhutto, I.A.; McLeod, D.S.; Lutty, G.A.; Kannan, R.M. Evolution of oxidative stress, inflammation and neovascularization in the choroid and retina in a subretinal lipid induced age-related macular degeneration model. Exp. Eye. Res. 2021, 203, 108391. [Google Scholar] [CrossRef]
  48. Datta, S.; Cano, M.; Ebrahimi, K.; Wang, L.; Handa, J.T. The impact of oxidative stress and inflammation on RPE degeneration in non-neovascular AMD. Prog. Retin. Eye Res. 2017, 60, 201–218. [Google Scholar] [CrossRef]
  49. Kauppinen, A.; Paterno, J.J.; Blasiak, J.; Salminen, A.; Kaarniranta, K. Inflammation and its role in age-related macular degeneration. Cell Mol. Life Sci. 2016, 73, 1765–1786. [Google Scholar] [CrossRef]
  50. Chen, S.; Liu, G.; Liu, X.; Wang, Y.; He, F.; Nie, D.; Liu, X.; Liu, X. RNA-seq analysis reveals differentially expressed inflammatory chemokines in a rat retinal degeneration model induced by sodium iodate. J. Int. Med. Res. 2022, 50, 3000605221119376. [Google Scholar] [CrossRef]
  51. Calvier, L.; Herz, J.; Hansmann, G. Interplay of Low-Density Lipoprotein Receptors, LRPs, and Lipoproteins in Pulmonary Hypertension. JACC Basic Transl. Sci. 2022, 7, 164–180. [Google Scholar] [CrossRef] [PubMed]
  52. Merkel, M.; Velez-Carrasco, W.; Hudgins, L.C.; Breslow, J.L. Compared with saturated fatty acids, dietary monounsaturated fatty acids and carbohydrates increase atherosclerosis and VLDL cholesterol levels in LDL receptor-deficient, but not apolipoprotein E-deficient, mice. Proc. Natl. Acad. Sci. USA 2001, 98, 13294–13299. [Google Scholar] [CrossRef] [PubMed]
  53. Bieghs, V.; Van Gorp, P.J.; Wouters, K.; Hendrikx, T.; Gijbels, M.J.; van Bilsen, M.; Bakker, J.; Binder, C.J.; Lutjohann, D.; Staels, B.; et al. LDL receptor knock-out mice are a physiological model particularly vulnerable to study the onset of inflammation in non-alcoholic fatty liver disease. PLoS ONE 2012, 7, e30668. [Google Scholar] [CrossRef]
  54. Yang, Z.H.; Nill, K.; Takechi-Haraya, Y.; Playford, M.P.; Nguyen, D.; Yu, Z.X.; Pryor, M.; Tang, J.; Rojulpote, K.V.; Mehta, N.N.; et al. Differential Effect of Dietary Supplementation with a Soybean Oil Enriched in Oleic Acid versus Linoleic Acid on Plasma Lipids and Atherosclerosis in LDLR-Deficient Mice. Int. J. Mol. Sci. 2022, 23, 8385. [Google Scholar] [CrossRef] [PubMed]
  55. Grover, S.P.; Coughlin, T.; Fleifil, S.M.; Posma, J.J.N.; Spronk, H.H.M.; Heitmeier, S.; Owens, A.P., 3rd; Mackman, N. Effect of combining aspirin and rivaroxaban on atherosclerosis in mice. Atherosclerosis 2022, 345, 7–14. [Google Scholar] [CrossRef]
  56. Komninos, D.; Ramos, L.; van der Heijden, G.W.; Morrison, M.C.; Kleemann, R.; van Herwaarden, A.E.; Kiliaan, A.J.; Arnoldussen, I.A.C. High fat diet-induced obesity prolongs critical stages of the spermatogenic cycle in a Ldlr(−/−).Leiden mouse model. Sci. Rep. 2022, 12, 430. [Google Scholar] [CrossRef] [PubMed]
  57. Umar, S.; Ruffenach, G.; Moazeni, S.; Vaillancourt, M.; Hong, J.; Cunningham, C.; Cao, N.; Navab, S.; Sarji, S.; Li, M.; et al. Involvement of Low-Density Lipoprotein Receptor in the Pathogenesis of Pulmonary Hypertension. J. Am. Heart Assoc. 2020, 9, e012063. [Google Scholar] [CrossRef] [PubMed]
  58. Ramachandra Rao, S.; Fliesler, S.J. Cholesterol homeostasis in the vertebrate retina: Biology and pathobiology. J. Lipid Res. 2021, 62, 100057. [Google Scholar] [CrossRef]
  59. Cao, X.; Guo, Y.; Wang, Y.; Wang, H.; Liu, D.; Gong, Y.; Wang, J.; Chen, X.; Zhang, W. Effects of high-fat diet and Apoe deficiency on retinal structure and function in mice. Sci. Rep. 2020, 10, 18601. [Google Scholar] [CrossRef]
  60. Ong, J.M.; Zorapapel, N.C.; Aoki, A.M.; Brown, D.J.; Nesburn, A.B.; Rich, K.A.; Kenney, C.M. Impaired electroretinogram (ERG) response in apolipoprotein E-deficient mice. Curr. Eye Res. 2003, 27, 15–24. [Google Scholar] [CrossRef]
  61. Rudolf, M.; Ivandic, B.; Winkler, J.; Schmidt-Erfurth, U. Accumulation of lipid particles in Bruch’s membrane of LDL receptor knockout mice as a model of age-related macular degeneration. Ophthalmologe 2004, 101, 715–719. [Google Scholar] [CrossRef] [PubMed]
  62. Dunaief, J.L.; Dentchev, T.; Ying, G.S.; Milam, A.H. The role of apoptosis in age-related macular degeneration. Arch. Ophthalmol. 2002, 120, 1435–1442. [Google Scholar] [CrossRef] [PubMed]
  63. Mitchell, P.; Liew, G.; Gopinath, B.; Wong, T.Y. Age-related macular degeneration. Lancet 2018, 392, 1147–1159. [Google Scholar] [CrossRef] [PubMed]
  64. Pennington, K.L.; DeAngelis, M.M. Epidemiology of age-related macular degeneration (AMD): Associations with cardiovascular disease phenotypes and lipid factors. Eye Vis. 2016, 3, 34. [Google Scholar] [CrossRef]
  65. Neale, B.M.; Fagerness, J.; Reynolds, R.; Sobrin, L.; Parker, M.; Raychaudhuri, S.; Tan, P.L.; Oh, E.C.; Merriam, J.E.; Souied, E.; et al. Genome-wide association study of advanced age-related macular degeneration identifies a role of the hepatic lipase gene (LIPC). Proc. Natl. Acad. Sci. USA 2010, 107, 7395–7400. [Google Scholar] [CrossRef]
  66. Fritsche, L.G.; Chen, W.; Schu, M.; Yaspan, B.L.; Yu, Y.; Thorleifsson, G.; Zack, D.J.; Arakawa, S.; Cipriani, V.; Ripke, S.; et al. Seven new loci associated with age-related macular degeneration. Nat. Genet. 2013, 45, 433–439. [Google Scholar] [CrossRef]
  67. Fritsche, L.G.; Fariss, R.N.; Stambolian, D.; Abecasis, G.R.; Curcio, C.A.; Swaroop, A. Age-related macular degeneration: Genetics and biology coming together. Annu. Rev. Genom. Hum. Genet. 2014, 15, 151–171. [Google Scholar] [CrossRef]
  68. Devries-Seimon, T.; Li, Y.; Yao, P.M.; Stone, E.; Wang, Y.; Davis, R.J.; Flavell, R.; Tabas, I. Cholesterol-induced macrophage apoptosis requires ER stress pathways and engagement of the type A scavenger receptor. J. Cell Biol. 2005, 171, 61–73. [Google Scholar] [CrossRef]
  69. Biswas, L.; Zhou, X.; Dhillon, B.; Graham, A.; Shu, X. Retinal pigment epithelium cholesterol efflux mediated by the 18 kDa translocator protein, TSPO, a potential target for treating age-related macular degeneration. Hum. Mol. Genet. 2017, 26, 4327–4339. [Google Scholar] [CrossRef]
  70. Ishibashi, S.; Brown, M.S.; Goldstein, J.L.; Gerard, R.D.; Hammer, R.E.; Herz, J. Hypercholesterolemia in low density lipoprotein receptor knockout mice and its reversal by adenovirus-mediated gene delivery. J. Clin. Invest. 1993, 92, 883–893. [Google Scholar] [CrossRef]
  71. Boren, J.; Chapman, M.J.; Krauss, R.M.; Packard, C.J.; Bentzon, J.F.; Binder, C.J.; Daemen, M.J.; Demer, L.L.; Hegele, R.A.; Nicholls, S.J.; et al. Low-density lipoproteins cause atherosclerotic cardiovascular disease: Pathophysiological, genetic, and therapeutic insights: A consensus statement from the European Atherosclerosis Society Consensus Panel. Eur. Heart J. 2020, 41, 2313–2330. [Google Scholar] [CrossRef] [PubMed]
  72. Shi, X.; Chen, Y.; Liu, Q.; Mei, X.; Liu, J.; Tang, Y.; Luo, R.; Sun, D.; Ma, Y.; Wu, W.; et al. LDLR dysfunction induces LDL accumulation and promotes pulmonary fibrosis. Clin. Transl. Med. 2022, 12, e711. [Google Scholar] [CrossRef] [PubMed]
  73. de Oliveira, J.; Engel, D.F.; de Paula, G.C.; Melo, H.M.; Lopes, S.C.; Ribeiro, C.T.; Delanogare, E.; Moreira, J.C.F.; Gelain, D.P.; Prediger, R.D.; et al. LDL Receptor Deficiency Does not Alter Brain Amyloid-beta Levels but Causes an Exacerbation of Apoptosis. J. Alzheimers Dis. 2020, 73, 585–596. [Google Scholar] [CrossRef] [PubMed]
Cells 12 00043 g001
Figure 1. Effect of stress on the expression of LDLR in primary hRPE. (A). Primary hRPE cells were cultured in serum free medium and treated with 150 µM tBH for 24 h. Cells were fixed, blocked, and stained for LDLR (green). LDLR expression and localization are altered with stress. (B). Quantification revealed that in the tBH-treated cells, LDLR expression was significantly lower than the control cells. Data are shown as mean ± SEM (n = 6, * p < 0.05).
Figure 1. Effect of stress on the expression of LDLR in primary hRPE. (A). Primary hRPE cells were cultured in serum free medium and treated with 150 µM tBH for 24 h. Cells were fixed, blocked, and stained for LDLR (green). LDLR expression and localization are altered with stress. (B). Quantification revealed that in the tBH-treated cells, LDLR expression was significantly lower than the control cells. Data are shown as mean ± SEM (n = 6, * p < 0.05).
Cells 12 00043 g001
Cells 12 00043 g002

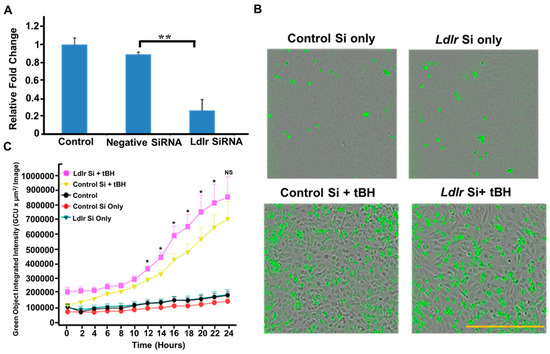

Figure 2. Absence of LDLR exacerbates tBH mediated caspase activation. (A). ARPE-19 cells were transfected with negative control siRNA (10 nM) or LDLR siRNA (10 nM). (B). The expression of LDLR mRNA in relation to GAPDH 24 h following transfection is shown (mean ± SEM, n = 3, ** p < 0.01). Representative images of caspase-3/7 positive cells 24 h post treatment. (C). Quantification of the activation of caspase-3/7 (green, fluorescent staining) for up to 24 h showing the increased activation of caspase-3/7 in LDLR silenced cells challenged with tBH (300 µM). Asterisks represent comparison of fluorescence intensities of control Si + tBH and Ldlr Si + tBH at various time points. (mean ± SEM, n = 6). NS: not significant. * p < 0.05, scale bar: 400 µm.
Figure 2. Absence of LDLR exacerbates tBH mediated caspase activation. (A). ARPE-19 cells were transfected with negative control siRNA (10 nM) or LDLR siRNA (10 nM). (B). The expression of LDLR mRNA in relation to GAPDH 24 h following transfection is shown (mean ± SEM, n = 3, ** p < 0.01). Representative images of caspase-3/7 positive cells 24 h post treatment. (C). Quantification of the activation of caspase-3/7 (green, fluorescent staining) for up to 24 h showing the increased activation of caspase-3/7 in LDLR silenced cells challenged with tBH (300 µM). Asterisks represent comparison of fluorescence intensities of control Si + tBH and Ldlr Si + tBH at various time points. (mean ± SEM, n = 6). NS: not significant. * p < 0.05, scale bar: 400 µm.
Cells 12 00043 g002
Cells 12 00043 g003
Figure 3. Effect of NaIO3 treatment on fundus and OCT in 8 wk old WT and Ldlr −/− mice. Mice were administered NaIO3 (20 mg/kg BW) and fundus (A), OCT (B,C) were performed on Day 7. In Ldlr −/− mice, retinal degeneration was more severe as evidenced by larger white patches (A). NaIO3 treatment caused significant thinning of the outer layers (red arrow heads) in WT mice which was further significantly decreased in Ldlr −/− mice (red arrow heads) (B,C). (mean ± SEM, n = 5–6; ** p < 0.01).
Figure 3. Effect of NaIO3 treatment on fundus and OCT in 8 wk old WT and Ldlr −/− mice. Mice were administered NaIO3 (20 mg/kg BW) and fundus (A), OCT (B,C) were performed on Day 7. In Ldlr −/− mice, retinal degeneration was more severe as evidenced by larger white patches (A). NaIO3 treatment caused significant thinning of the outer layers (red arrow heads) in WT mice which was further significantly decreased in Ldlr −/− mice (red arrow heads) (B,C). (mean ± SEM, n = 5–6; ** p < 0.01).
Cells 12 00043 g003
Cells 12 00043 g004
Figure 4. Effects of NaIO3 on vision function in Ldlr −/− and WT mice. ERG was used to study retinal function, and responses to single-intensity flashes were measured under scotopic and photopic conditions. Representative scotopic (A) (flash intensity = 0.02 cds/m2) and photopic (B) (flash intensity = 20.0 cds/m2) waveforms for the brightest stimulus from each group are shown (upper two panels). Averages and SEM of saturated retinal response amplitudes by group are also shown (lower panels). NaIO3 (20 mg/kg) treatment significantly reduced visual function in Ldlr −/− and WT mice, which was further compromised by Ldlr deficiency (mean ± SEM, n = 5–6; NS: ns: not significant, * p < 0.05, ** p < 0.01, *** p < 0.001).
Figure 4. Effects of NaIO3 on vision function in Ldlr −/− and WT mice. ERG was used to study retinal function, and responses to single-intensity flashes were measured under scotopic and photopic conditions. Representative scotopic (A) (flash intensity = 0.02 cds/m2) and photopic (B) (flash intensity = 20.0 cds/m2) waveforms for the brightest stimulus from each group are shown (upper two panels). Averages and SEM of saturated retinal response amplitudes by group are also shown (lower panels). NaIO3 (20 mg/kg) treatment significantly reduced visual function in Ldlr −/− and WT mice, which was further compromised by Ldlr deficiency (mean ± SEM, n = 5–6; NS: ns: not significant, * p < 0.05, ** p < 0.01, *** p < 0.001).
Cells 12 00043 g004
Cells 12 00043 g005
Figure 5. Histopathology of the retina from PBS and NaIO3-treated WT and Ldlr −/− mice. Seven days after tail vein injection of 20 mg/kg NaIO3, H & E staining was performed. The RPE layer is marked with red arrows in all panels. The epithelial RPE monolayer was entirely disrupted, and RPE cells showed a rounded, degenerative phenotype (see arrows) in NaIO3-treated groups. Predominant loss of RPE cells, distortion and thinning of ONL, and disorganization of INL and atypical folds in the outer retina was observed in Ldlr −/− mice after NaIO3 administration. Representative images from 6–8 animals are shown. Scale bar: 25 µm.
Figure 5. Histopathology of the retina from PBS and NaIO3-treated WT and Ldlr −/− mice. Seven days after tail vein injection of 20 mg/kg NaIO3, H & E staining was performed. The RPE layer is marked with red arrows in all panels. The epithelial RPE monolayer was entirely disrupted, and RPE cells showed a rounded, degenerative phenotype (see arrows) in NaIO3-treated groups. Predominant loss of RPE cells, distortion and thinning of ONL, and disorganization of INL and atypical folds in the outer retina was observed in Ldlr −/− mice after NaIO3 administration. Representative images from 6–8 animals are shown. Scale bar: 25 µm.
Cells 12 00043 g005
Cells 12 00043 g006
Figure 6. TUNEL and caspase activation in retina 7 days after a single NaIO3 (20 mg/kg) treatment in C57BL6 (WT) and Ldlr −/− mice. (A). Apoptosis was assessed by TUNEL assay. Apoptotic cells are observed in the ONL, RPE, and choroid. (B). Total number of TUNEL positive cells. The percentage of TUNEL positive cells in the Ldlr −/− + NaIO3 group was significantly increased. No cell death was observed in PBS-treated WT or Ldlr −/− (not shown). Data are shown as mean ± SEM (n = 10, * p < 0.0027). (C) Activation of caspase-3 in NaIO3 challenged mouse retina. (D). Quantification revealed that caspase-3 activation was significantly higher in NaIO3-treated Ldlr −/− mice when compared with the corresponding stressed WT mice (mean ± SEM, n = 6) ** p < 0.005.
Figure 6. TUNEL and caspase activation in retina 7 days after a single NaIO3 (20 mg/kg) treatment in C57BL6 (WT) and Ldlr −/− mice. (A). Apoptosis was assessed by TUNEL assay. Apoptotic cells are observed in the ONL, RPE, and choroid. (B). Total number of TUNEL positive cells. The percentage of TUNEL positive cells in the Ldlr −/− + NaIO3 group was significantly increased. No cell death was observed in PBS-treated WT or Ldlr −/− (not shown). Data are shown as mean ± SEM (n = 10, * p < 0.0027). (C) Activation of caspase-3 in NaIO3 challenged mouse retina. (D). Quantification revealed that caspase-3 activation was significantly higher in NaIO3-treated Ldlr −/− mice when compared with the corresponding stressed WT mice (mean ± SEM, n = 6) ** p < 0.005.
Cells 12 00043 g006
Cells 12 00043 g007
Figure 7. Deficiency of LDLR leads to lipid deposition in the mouse outer retina. Representative images of lipid deposits revealed by neutral lipid staining with Oil Red O (A) show more deposits in the Ldlr −/− retina compared to WT challenged with NaIO3. Lipid deposits can be seen marked by arrowheads in the RPE. In the WT + PBS, RPE layer is indicated with white arrows. (B) Perilipin 1, a protein associated with lipid droplets, was clearly upregulated after being treated with NaIO3. The staining was very intense and widely distributed in the Ldlr −/− mice upon NaIO3 administration. The yellow arrowheads show perilipin1 expression in the RPE layer. GCL: ganglion cell layer; INL: inner nuclear layer; ONL: outer nuclear layer; RPE: retinal pigment epithelium. Scale bar: 50 µm.
Figure 7. Deficiency of LDLR leads to lipid deposition in the mouse outer retina. Representative images of lipid deposits revealed by neutral lipid staining with Oil Red O (A) show more deposits in the Ldlr −/− retina compared to WT challenged with NaIO3. Lipid deposits can be seen marked by arrowheads in the RPE. In the WT + PBS, RPE layer is indicated with white arrows. (B) Perilipin 1, a protein associated with lipid droplets, was clearly upregulated after being treated with NaIO3. The staining was very intense and widely distributed in the Ldlr −/− mice upon NaIO3 administration. The yellow arrowheads show perilipin1 expression in the RPE layer. GCL: ganglion cell layer; INL: inner nuclear layer; ONL: outer nuclear layer; RPE: retinal pigment epithelium. Scale bar: 50 µm.
Cells 12 00043 g007
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Sreekumar, P.G.; Su, F.; Spee, C.; Araujo, E.; Nusinowitz, S.; Reddy, S.T.; Kannan, R. Oxidative Stress and Lipid Accumulation Augments Cell Death in LDLR-Deficient RPE Cells and Ldlr−/− Mice. Cells 2023, 12, 43. https://doi.org/10.3390/cells12010043

AMA Style

Sreekumar PG, Su F, Spee C, Araujo E, Nusinowitz S, Reddy ST, Kannan R. Oxidative Stress and Lipid Accumulation Augments Cell Death in LDLR-Deficient RPE Cells and Ldlr−/− Mice. Cells. 2023; 12(1):43. https://doi.org/10.3390/cells12010043

Chicago/Turabian Style

Sreekumar, Parameswaran Gangadharan, Feng Su, Christine Spee, Eduardo Araujo, Steven Nusinowitz, Srinivasa T Reddy, and Ram Kannan. 2023. "Oxidative Stress and Lipid Accumulation Augments Cell Death in LDLR-Deficient RPE Cells and Ldlr−/− Mice" Cells 12, no. 1: 43. https://doi.org/10.3390/cells12010043

APA Style

Sreekumar, P. G., Su, F., Spee, C., Araujo, E., Nusinowitz, S., Reddy, S. T., & Kannan, R. (2023). Oxidative Stress and Lipid Accumulation Augments Cell Death in LDLR-Deficient RPE Cells and Ldlr−/− Mice. Cells, 12(1), 43. https://doi.org/10.3390/cells12010043

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
