TRIP13 Participates in Immediate-Early Sensing of DNA Strand Breaks and ATM Signaling Amplification through MRE11

by
Hyeongsun Jeong
1,2,†,
Minwoo Wie
1,3,†,
In-Joon Baek
1,
Gyuwon Sohn
1,
Si-Hyeon Um
1,
Seon-Gyeong Lee
1,3,
Yuri Seo
1,4,
Jaesun Ra
1,
Eun A Lee
1,
Shinseog Kim
1,
Byung Gyu Kim
1,
Rajashree A. Deshpande
5,6,
Tanya T. Paull
5,
Joo Seok Han
1,7,
Taejoon Kwon
1,2,* and
Kyungjae Myung
1,2,*
1
Center for Genomic Integrity, Institute for Basic Science, Ulsan 44919, Republic of Korea
2
Department of Biomedical Engineering, College of Information and Biotechnology, Ulsan National Institute of Science and Technology, Ulsan 44919, Republic of Korea
3
Department of Biological Sciences, College of Information and Biotechnology, Ulsan National Institute of Science and Technology, Ulsan 44919, Republic of Korea
4
Graduate School of Analytical Science and Technology, Chungnam National University, Daejeon 34134, Republic of Korea
5
Department of Molecular Biosciences, The University of Texas at Austin, Austin, TX 78712, USA
6
Encoded Therapeutics, Inc., San Francisco, CA 94080, USA
7
Neuracle Genetics, Seoul 02841, Republic of Korea
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Cells 2022, 11(24), 4095; https://doi.org/10.3390/cells11244095
Submission received: 23 October 2022 / Revised: 7 December 2022 / Accepted: 9 December 2022 / Published: 16 December 2022
(This article belongs to the Special Issue Double-Strand DNA Break Repair and Human Disease II)
Browse Figures
Review Reports Versions Notes

Abstract

:
Thyroid hormone receptor-interacting protein 13 (TRIP13) participates in various regulatory steps related to the cell cycle, such as the mitotic spindle assembly checkpoint and meiotic recombination, possibly by interacting with members of the HORMA domain protein family. Recently, it was reported that TRIP13 could regulate the choice of the DNA repair pathway, i.e., homologous recombination (HR) or nonhomologous end-joining (NHEJ). However, TRIP13 is recruited to DNA damage sites within a few seconds after damage and may therefore have another function in DNA repair other than regulation of the pathway choice. Furthermore, the depletion of TRIP13 inhibited both HR and NHEJ, suggesting that TRIP13 plays other roles besides regulation of choice between HR and NHEJ. To explore the unidentified functions of TRIP13 in the DNA damage response, we investigated its genome-wide interaction partners in the context of DNA damage using quantitative proteomics with proximity labeling. We identified MRE11 as a novel interacting partner of TRIP13. TRIP13 controlled the recruitment of MDC1 to DNA damage sites by regulating the interaction between MDC1 and the MRN complex. Consistently, TRIP13 was involved in ATM signaling amplification. Our study provides new insight into the function of TRIP13 in immediate-early DNA damage sensing and ATM signaling activation.

1. Introduction

The HORMA domain was initially identified as a highly conserved peptide sequence in three yeast proteins that maintain genome stability in different processes: Hop1 (HORMAD1 in human) in meiotic recombination and chromosome segregation, Rev7 (MAD2L2) in the recombination choice during DNA double-strand break (DSB) repair, and Mad2 (MAD2L1) in the spindle assembly checkpoint [1,2,3]. Recent studies identified proteins with this domain that function as signal mediators, such as MAD2L1BP (also known as p31(comet)) for spindle assembly complex signaling, and ATG13 and ATG101 for autophagy signaling [2]. These proteins form physical protein–protein interactions via their HORMA domain to regulate signaling pathways; therefore, it is essential to understand their protein interaction partners.
Thyroid hormone receptor-interacting protein 13 (TRIP13, called Pch2 in yeast), a typical AAA+ ATPase, is a binding partner of members of the HORMA domain protein family in multiple contexts. In meiotic G2/prophase, TRIP13 is enriched in the nucleolus and actively involved in removing HORMAD1 from chromosomes in yeast and mammals [4]. Additionally, TRIP13, together with the MAD2-binding protein MAD2L1BP, promotes inactivation of the spindle assembly checkpoint by disassembling the mitotic checkpoint complex [5]. This checkpoint system ensures the accuracy of chromosome segregation by delaying the anaphase until the correct bipolar attachment of chromatids to the mitotic spindle is achieved. Due to its essential role in genome stability, the mutation of TRIP13 is highly associated with cancers, such as Wilms tumor [6], glioblastoma [7], and head and neck cancer [8].
Recently, it was reported that TRIP13 plays a role in DSB repair by determining the choice between the homology-directed repair (HDR) pathway and the nonhomologous end-joining (NHEJ) pathway [3,9]. The HORMA domain-containing protein MAD2L2 (Rev7) is a subunit of the Shieldin complex that protects DSBs and promotes DSB end-joining. It also participates in DNA translesion synthesis as a member of the Pol-ζ complex. The interaction between TRIP13 and MAD2L2 (Rev7) was previously reported using a high-throughput yeast two-hybrid screen [10]. In addition, two studies reported that this interaction modulates the conformation of MAD2L2 (Rev7), which determines the choice of the DNA repair pathway [3,9].
Although TRIP13 interacts with proteins with a HORMA domain, it has also been reported to interact with proteins without this domain [11,12]. For example, the TRIP13 ortholog in S. cerevisiae, Pch2, interacts with Xrs2 (the ortholog of human NBS1) based on a yeast two-hybrid assay [11]. Disruption of the interaction between Pch2 and Xrs2 causes checkpoint and recombination defects similar to those found in Pch2-knockout cells [11]. Both Pch2 and Xrs2 are conserved in mammals, but the interaction of their orthologs, TRIP13 and NBS1 in humans, has not been reported.
Here, we identified 279 proteins as interaction partners of TRIP13 based on a proximity labeling-based quantitative proteomics experiment. Many of these proteins were related to the DNA damage response, such as MRE11 of the MRN complex. This led us to speculate that TRIP13 and other proteins with a HORMA domain play a role in the DNA damage response. We revealed that TRIP13 participates in immediate-early DNA damage sensing and regulates ATM signaling independently of the MRN complex.

2. Materials and Methods

2.1. Cell Culture

ER-AsiSI U-2-OS cells were kindly gifted by Dr. Tanya Paull (The University of Texas at Austin, Austin, TX, USA) [13]. DLD-1 cells with an auxin-inducible degron in both TRIP13 alleles (DLD1-TRIP13-AID) were previously reported [14]. DLD-1 and U-2-OS cells were grown in Dulbecco’s Modified Eagle’s Medium (11965092; Thermo Fisher Scientific, Waltham, MA, USA) supplemented with 10% fetal bovine serum (FBS; TMS-013-BKR; Merck, Rahway, NJ, USA) and 1% antibiotic-antimycotic solution (15240112; Invitrogen, Waltham, MA, USA). U2OS cells carrying DR-GFP (Homologous recombination), SA-GFP (Single strand annealing), EJ2-GFP (Micro-homology mediated end joining), or EJ5-GFP (non-homologous end joining) reporters were grown in DMEM containing 10% fetal bovine serum, 1% penicillin/streptomycin (penicillin 10,000 units/mL, streptomycin 10,000 µg/mL, Gibco®, Thermo Fisher Scientific, Waltham, MA, USA) and 2 µg/mL Puromycin.

2.2. Neutral COMET Assay

The COMET assay was performed using a CometAssay® kit (Trevigen, Gaithersburg, MA, USA) according to the manufacturer’s instructions. In brief, each cell suspension (1 × 105/mL) was mixed with COMET LM Agarose at 37 °C and the mixture was spread on a 2 well COMET slideTM (Trevigen). After solidification of the agarose for 10 min at 4 °C, the slide was immersed in a lysis solution (Trevigen) overnight at 4 °C. The slide was immersed in 1× TBE buffer for 15 min at 4 °C. The slide was electrophoresis in 850 mL 1 × TBE buffer for 40 min at 4 °C. The slide was washed twice in distilled water and immerse in 70% EtOH for 5 min. After dry the slide at 37 °C, the slide was stained by SYBR Gold for 30 min at room temperature. Images were acquired with a fluorescence microscope (BX53; Olympus, Tokyo, Japan), and the tail moment was calculated using CometScore software version 2.0.

2.3. Sister Chromatid Exchange (SCE) Assay

Cells were grown in a medium containing BrdU at a final concentration of 25 µg/mL for 48 h, then 0.2 µg/mL of colcemid was added during the final four hours. Metaphase cells were collected by trypsinization, and swelled in 0.075 M KCl for 15 min at 37 °C and fixed twice with a 3:2 mixture of methanol and acetic acid. On glass microscope slides, cells were placed and stained with a 5% Giemsa solution.

2.4. Plasmids

Bio-ID2 (from #74224, Addgene, Watertown, MA, USA) was inserted into the previously generated pcDNA5-Myc-TRIP13 plasmid [14]. The pcDNA5-2xStrep-TRIP13 plasmid was generated by inserting the 2xStrep tag from the pDSG-IBA103 vector (5-5105-001; IBA, Göttingen, Germany) into the pcDNA5-Myc-TRIP13 vector. Each NBS1 domain deletion series (FHA for 1–109 aa, BRCT for 110–327 aa, and C-term for 328–754 aa) was replaced by full-length NBS1 from the pcDNA5-Myc-BioID2-NBS1 vector by Gibson assembly cloning. For microirradiation, the pENTR-GFP-MDC1 plasmid was purchased from Addgene (#26284). Using Gibson assembly cloning, the designated MRE11 fragment was inserted into the pcDNA5 3xFLAG vector for in vitro pulldown assay. For the MRN nuclease activity assay, full-length TRIP13 was purchased from OriGene Technologies (Rockville, MA, USA), and mutated forms (K185A and E253Q) were generated by site-directed mutagenesis. Wild-type TRIP13 and its two variant forms (K185A and E253Q) were inserted into the pET-His6-Sumo-TEV-LIC cloning vector (#29659, Addgene). I-SceI (pCAGGS-I-SceI, called pCBASce), empty vector (pCAGGS-BSKX), and dsRED vector were prepared as previously described [15,16,17].

2.5. Antibodies

A list of antibodies used in this study is provided in Table 1.

2.6. Regulation of TRIP13 Expression and MRE11 Exonuclease Activity

DLD1-TRIP13-AID cells were treated with 500 µM IAA (1003530010; Merck Millipore, Burlington, MA, USA) for 14 h to deplete TRIP13 as previously described [14]. Treatment with 100 µM mirin (J67462.MA; Thermo Fisher Scientific, Waltham, MA, USA) was also performed to inhibit MRE11 exonuclease activity.

2.7. DSB Induction

DSBs were induced in cultured cells, releasing one hour after exposure to 5 or 10 Gy IR using SkyScan 1176 (SKYSCAN, Kontich, Belgium) or 1 µM of CPT treatment for one hour. For microirradiation, cells in fresh medium were pretreated with Hoechst 33342 (62249, Thermo Fisher Scientific) for 5 min at 37 °C and then irradiated in a region of interest (ROI) with a 405 nm laser for ten iterations using a LSM 880 confocal microscope (Carl Zeiss AG, Oberkochen, Germany). Time-lapse images were acquired every 5 sec after microirradiation with a LSM 880 confocal microscope. Intensities in the ROI were analyzed using ZEN blue software (Version 2.3, Carl Zeiss AG). For comet assay, we applied one hour release after 30 Gy irradiation, 10 mM HU treatment for 4 h and 25 µM CPT treatment for one hour for damage induction, respectively.

2.8. Immunofluorescence Imaging

Cells were treated with 1 mL ice-cold permeabilization solution (CSK buffer; 10 mM PIPES, 100 mM NaCl, 300 mM sucrose, 3 mM MgCl2, and 1 mM EGTA containing 0.5% Triton X-100) for 10 min. Thereafter, cells were washed twice with 1 mL ice-cold phosphate-buffered saline (PBS) and then fixed with 500 µL PBS containing 4% paraformaldehyde for 15 min at room temperature. Cells were further incubated with 1 mL of 100% methanol chilled to −20 °C for 10 min, washed twice with 1 mL PBS, and incubated with 500 µL blocking solution (PBS containing 10% FBS) for 30 min. The blocking solution was removed, and a primary antibody was treated for one hour. Cells were washed with PBS containing 0.05% Triton X-100 for 5 min, incubated with a secondary antibody for 30 min at room temperature in the dark, and washed thrice with PBS containing 0.05% Triton X-100 for 5 min each time. An additional washing step with PBS and distilled water was performed, and the surrounding chamber was removed from the slide. A drop of mounting reagent (H-1200; Vector Laboratories) was applied to each sample, and the slide was covered with a cover glass. The slides were dried and completely sealed. Protein foci were detected and visualized using an LSM 880 confocal microscope and ZEN software, counting the number of foci overlapped with the DAPI. Statistical analysis was performed with Prism5 software (Version 5.01; GraphPad, San Diego, CA, USA).

2.9. Proteomics Experiments with SILAC

293AD cells (Cell BioLabs, Inc., San Diego, CA, USA) cultured in medium containing light isotope-labeled lysine and arginine (88429 and 89989, Thermo Fisher Scientific) and medium containing heavy isotope-labeled lysine and arginine (89990 and 88209, Thermo Fisher Scientific) were transfected with Myc-BioID2-TRIP13 and Myc-BioID2 plasmids, respectively. Cell lysates were mixed at a 1:1 ratio and processed by in-gel digestion, as previously described [18]. A total of 20 mg protein was reduced with 25 mM DTT, alkylated with 25 mM iodoacetamide, and digested with trypsin at 37 °C for 12 h. The solution was acidified with 0.1% trifluoracetic acid and desalted on C18 tips (87784, Thermo Fisher Scientific). Samples were analyzed using Orbitrap Fusion Lumos (Thermo Fisher Scientific). Proteins were identified using Proteome Discoverer (Thermo Fisher Scientific) and Scaffold software (Version 4.11.0; Proteome Software, Portland, OR, USA).

2.10. Western Blot Analysis

Cells were lysed in RIPA buffer (150 mM NaCl, 1% NP-40 or Triton X-100, 0.5% sodium deoxycholate, 0.1% SDS, 50 mM Tris (pH 8.0), 10 mM NaF, 1 mM Na3VO4, and protease inhibitors (Roche, Basel, Switzerland)). Lysates were heated thrice for 5 min at 95 °C. Proteins in prepared samples were separated by SDS-PAGE, transferred to nitrocellulose membranes for Western blot analysis, and detected using the antibodies listed in Table 1. Images were quantitatively analyzed using an Odyssey Imaging System (Li-COR Biosciences, Lincoln, NE, USA).

2.11. In Vitro Pulldown Assay

Purified proteins were incubated at 4 °C for 1 h in buffer (50 mM Tris-HCl, 50 mM NaCl, 1 mM DTT, 2 mM MgCl2, and 0.1% Triton X-100) supplemented with 10 μM ATPγS (11162306001, Roche). MagStrep type 3 XT beads or 3xFLAG agarose beads were incubated with purified proteins for 1 h at 4 °C. Samples were eluted in BXT buffer or Tris-buffered saline (50 mM Tris-HCl pH 7.5 containing 150 mM NaCl) containing 100 μg/mL 3xFLAG peptide.

2.12. Immunoprecipitation

Cells were lysed by incubating cells in ice-cold buffer X (100 mM Tris-HCl, 250 mM NaCl, 1 mM EDTA, 1% NP-40) with Halt™ Protease and Phosphatase Inhibitor Single-Use Cocktail (100×) and Benzonase® nuclease (250 unit/µL, Enzynomics, Daejeon, Republic of Korea) for 1 h with rotation at 4 °C. The lysate was centrifuged at 13,000 rpm for 15 min. Protein amounts were quantified with Pierce™ Detergent Compatible Bradford Assay Kit (Thermo Fisher Scientific). Flag beads (ANTI-FLAG® M2 Affinity Gel, Sigma-Aldrich, Saint Louis, MO, USA) were washed 3 times with ice-cold buffer X. The lysate was incubated with 28.6 µL bead slurry for 2 h with rotation at 4 °C. The beads were washed with ice-cold buffer X for 5 min, with rotation three times in 5 min intervals. After washing, beads were incubated overnight in 35 µL elution buffer (167 µg/mL FLAG peptide, 1X Halt™ PI cocktail, buffer X) at 4 °C.

2.13. Colony Formation Assay

A total of 5 × 105 cells were seeded in a 35 mm dish, grown overnight, and treated with the designated chemicals and IR. Then, 500 cells were spread in a 35 mm dish, incubated for 14 days, washed with 5 mL PBS, and stained with 0.5 mL of 1% methylene blue prepared in 70% ethanol for 5 min at room temperature. After removing methylene blue, stained cells were washed with distilled water and PBS, three times each. Dishes were dried for 24 h at room temperature, and images of colonies were acquired. The number of colonies was counted using ImageJ (Version 1.51) [19]. Statistical analyses were performed using Prism5 software (Version 5.01, GraphPad).

2.14. I-SceI-Induced Assay

U2OS cells stably expressing DR-GFP, SA-GFP, EJ2-GFP, or EJ5-GFP reporter were plated on a 12-well plate at 1 × 105 cells per well density. Cells were co-transfected cells with 0.5 µg of either I-SceI expression vector or empty vector with 0.1 µg of dsRED vector (used as a transfection control) using 0.1 mL Opti-mem containing Lipofectamine 3000 (Invitrogen). The percentage of GFP+ cells was analyzed by the Becton Dickinson FACSVerse flow cytometer (BD Biosciences, San Jose, CA, USA). The DNA repair frequencies were determined as previously described [15]. The experiment was repeated twice, and the two-tailed unpaired T-test was performed to determine significance.

2.15. DNA End Resection Assay

ER-AsiSI U-2-OS cells were trypsinized, harvested, and resuspended in PBS (BE17-517Q; Lonza, Basel, Switzerland) containing 0.6% low-gelling point agarose (1613111; Bio-Rad, Hercules, CA, USA) at 37 °C. Then, 50 μL of the cell suspension was dropped on a piece of parafilm to generate a solidified agar ball, which was transferred to a 1.5 mL tube. The agar ball was treated with 1 mL ESP buffer (0.5 M EDTA, 2% N-lauroylsarcosine, 1 mg/mL proteinase K, and 1 mM CaCl2, pH 8.0) for 20 h at 16 °C with rotation, followed by 1 mL HS buffer (1.85 M NaCl, 0.15 M KCl, 5 mM MgCl2, 2 mM EDTA, 4 mM Tris, and 0.5% Triton X-100, pH 7.5) for 20 h at 16 °C with rotation. After six washes with 1 mL phosphate buffer (8 mM Na2HPO4, 1.5 mM KH2PO4, 133 mM KCl, and 0.8 mM MgCl2, pH 7.4) for 1 h each time at 4 °C with rotation, the agar ball was melted by placing the tube in a 70 °C heat block for 10 min. The melted sample was diluted 15-fold with 70 °C distilled water, mixed with 10× NEB restriction enzyme buffer, and stored at 4 °C.
The level of resection adjacent to specific DSBs was measured by qPCR. The sequences of qPCR primers and probes are provided in Table 2. In total, 20 μL of genomic DNA was digested with 20 units of restriction enzymes (BsrGI and HindIII-HF; New England Biolabs, Ipswich, MA, USA) or mock digested at 37 °C overnight. Then, 3 μL of digested or mock digested samples was used as templates in a qPCR reaction with a total volume of 25 μL and containing 12.5 μL of 2xTaqMan Universal PCR Master Mix (4304437, Thermo Fisher), 0.5 mM of each primer, and 0.2 mM of the probe using a ViiATM 7 Real-Time PCR System (Thermo Fisher). The percentage of ssDNA (ssDNA%) generated by resection was determined with the following equation as previously described [13]: ssDNA% = 1/(2(ΔCt − 1) + 0.5) × 100. The percentage of ssDNA in each sample was analyzed using Prism5 software (Version 5.01, GraphPad).

2.16. MRN Endonuclease Activity Assay

Wild-type TRIP13 and its variant forms (K185A and E253Q) were purified as previously described [14]. A previously reported protocol was used for the activity assay, including purification of members of the MRN complex and other associated proteins [20].

3. Results

3.1. TRIP13 Participates in the DNA Damage Response

Previous studies claimed that TRIP13 regulates the choice of the DSB repair pathway through MAD2L2 (Rev7) [3,9]. However, these studies only investigated the impact of TRIP13 on the HDR pathway. Another study revealed that the role of TRIP13 in NHEJ through immunoglobulin class switch recombination (CSR) efficiency increases under TRIP13 depletion [21]. However, the overexpression of TRIP13 in TRF2ts MEFs did not affect the number of chromosome end-to-end fusions caused by telomere uncapping and the reduced number of chromosomal fusions by TRIP13 knockdown was lesser than the extent of MAD2L2 knockdown. To investigate whether TRIP13 has other roles in DSB repair pathways, we performed an I-SceI-based GFP-reporter assay upon TRIP13 knockdown [22]. The depletion of TRIP13 affected the HDR and single-strand annealing (SSA) pathways (Figure 1A), consistent with previous reports [3,9]. However, a significant decrease in the NHEJ and alternative NHEJ (alt-NHEJ) pathways were also observed, although they are not large (Figure 1A). These results suggest that TRIP13 is important for DSB repair, especially that requiring DNA end resection.
Next, we performed a laser microirradiation experiment to investigate when TRIP13 is recruited to DSBs. Proteins recruited to DNA lesions could be damage sensors, chromatin remodelers/signal amplifiers, and lesion repair choice/repair proteins. Their recruitment kinetics differ depending on their functions [23]. If TRIP13 is only involved in the DSB pathway choice, it may not necessarily be recruited to lesions at the early stage for damage sensing/signal amplification. TRIP13 binds to the substrate with ATP and releases the substrate after hydrolyzing ATP to change the structures of its interaction partners; therefore, we used ATPγS, a non-hydrolysable ATP analog, to stably maintain the interactions between TRIP13 and its partners. In the absence of ATPγS, the recruitment of TRIP13 on the damaged site was not clear. The addition of ATPγS clearly shows that TRIP13 was immediately recruited to the DNA damage site when a DSB was induced (Figure 1B). Therefore, we speculated that TRIP13 may be involved in DNA damage sensing and signal amplification at the immediate-early stage.
To more precisely control TRIP13 expression, we utilized the auxin-inducible degron (AID) system, which allows the rapid and effective degradation of target proteins [24]. TRIP13 depletion using the AID system sensitized cells to the induction of DSBs by ionizing radiation (IR) or hydroxyurea (HU) treatment (Figure 1C). Furthermore, DNA damage sensitization (IR, HU, CPT) under TRIP13 degradation was also observed in neutral comet assay (Scheme 1D). These results confirmed that TRIP13 is also involved in the immediate-early response to DSBs.

3.2. MRE11 Is a Novel Interaction Partner of TRIP13, but this Interaction Is Independent of the Conformation and Nuclease Activity of the MRN Complex

The interactions of TRIP13 with its partners are highly dynamic and thus difficult to identify using the conventional immunoprecipitation approach. Therefore, we performed quantitative proteomics with proximity labeling to identify proteins located near TRIP13, including its interaction partners. First, we established a U-2-OS cell line expressing BioID2-tagged TRIP13 [25] and then metabolically labeled these cells for stable isotope labeling using amino acids in cell culture (SILAC) [26,27]. We used U-2-OS cells expressing BioID2 only as a negative control. Finally, we captured biotin-labeled proteins enriched in BioID2-tagged TRIP13-expressing cells, which may be located near TRIP13 in vivo. TRIP13 is rapidly recruited to DNA damage sites, and therefore we reasoned that the identification of its intrinsic interaction partners in the absence of DNA damage would be informative to understand its function. Consequently, we performed this experiment without inducing DNA damage.
TRIP13 was the top-ranked protein among enriched proteins. Among the 279 identified proteins (the complete list of enriched proteins is provided in Supplementary Table S1), we focused on proteins related to the DNA repair pathway. MRE11, a member of the MRN complex, was one of the top candidates for a TRIP13 interaction partner (Figure 2A). Using the proteins (p31comet, MAD2, and CDC20) known to interact with TRIP13, the proximal localization using BioID2-TRIP13 was confirmed by Western blotting following biotin pulldown (Figure 2B). Furthermore, the direct interaction between MRE11 and TRIP13 was confirmed by affinity precipitation using 2xStrep-tagged TRIP13, which interacted with both endogenous MRE11 (Figure 2C) and purified 3xFLAG-tagged MRE11 (Figure 2D).
Previously, it was reported that NBS1, another member of the MRN complex, is a candidate interaction partner of TRIP13 [11]. Therefore, we tested the interaction between TRIP13 and other components of the MRN complex upon induction of DNA strand breaks by camptothecin (CPT) treatment (Figure 2E), which inhibits topoisomerase I during DNA replication. The association between TRIP13 and the MRN complex was detected in the presence and absence of DNA damage. Therefore, we speculated that TRIP13 might have a role in MRE11 regulation, even in the absence of DNA damage. In addition to MRE11 and RAD50, which are components of the MRN complex, ATM and CtIP, which are MRN complex cofactors, were labeled by BioID2 fused with TRIP13. However, we did not detect any NBS1 peptide; therefore, BioID2 tagged with TRIP13 may not be labeled NBS1. Therefore, we concluded that TRIP13 interacts with MRE11, but not with NBS1, in the MRN complex.
To identify which domain in MRE11 is responsible for TRIP13 interaction, 3xFLAG-TRIP13 IP was performed with overexpressing Myc-MRE11 domain deletion series (Figure 2F). We divided the MRE11 domain by the nuclease domain, capping domain and C-terminal domain that contains the glycine–arginine domain (GAR) and DNA binding domain. Capping domain deletion or C-terminal domain deletion did not seem to affect the interaction with TRIP13. So, we speculate that the nuclease domain is responsible for the TRIP13 interaction, but further studies would be needed.
Next, we investigated whether TRIP13 regulates the stability of the MRN complex, which is essential for its physical interactions. Surprisingly, the associations between Mre11 and other components of the MRN complex were unchanged regardless of the presence or absence of irradiation and TRIP13 (Figure 2G). In addition, an MRN endonuclease in vitro assay with TRIP13 wild-type, KA mutant (ATP-binding mutant), and EQ mutant (ATP hydrolysis mutant) showed that TRIP13 did not affect the endonuclease activity of the MRN complex (Figure 2H). These results suggest that TRIP13 participates in the DNA damage response independently of the endo/exonuclease activity of the MRN complex.

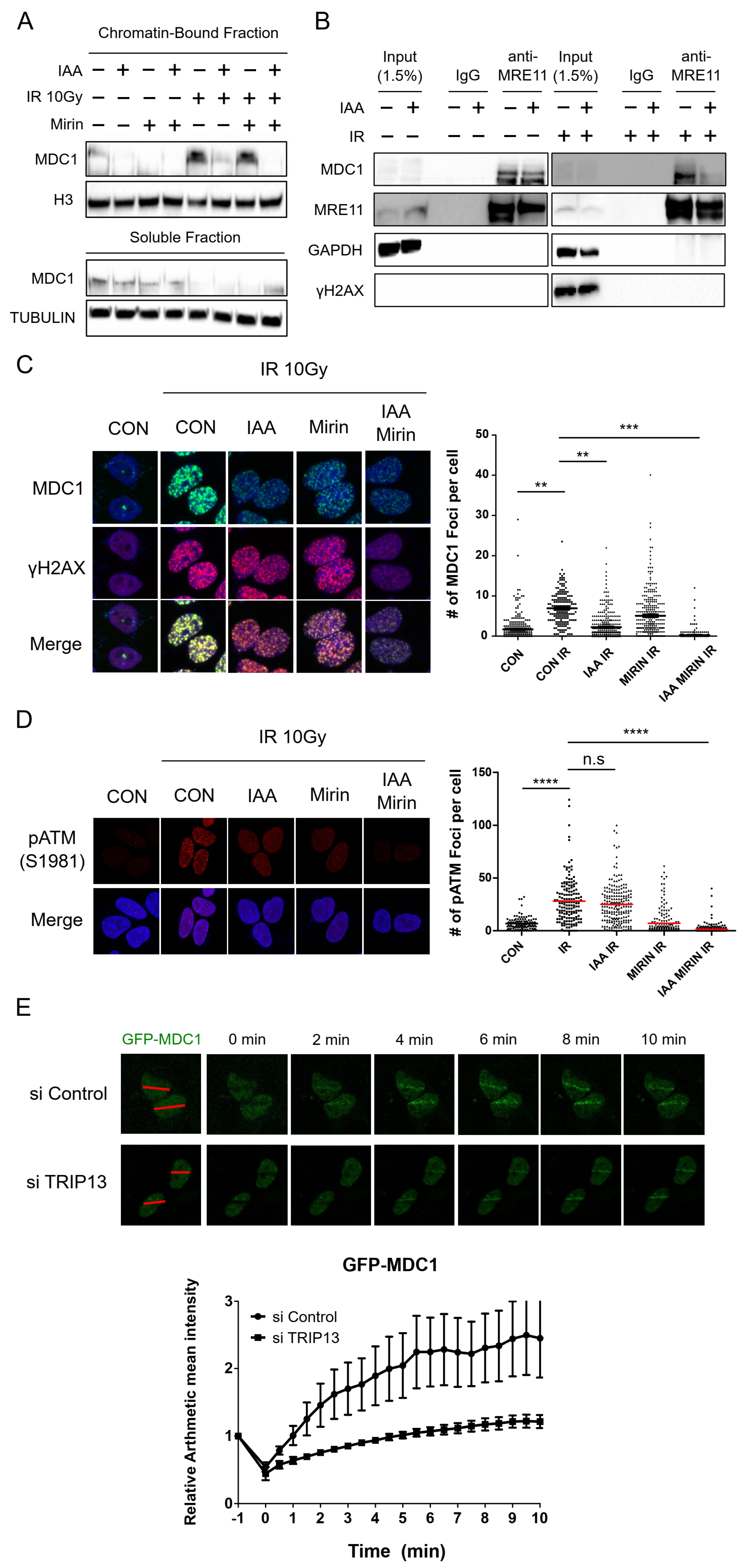

3.3. TRIP13 Depletion Inhibits the Physical Interaction of MDC1 with MRE11 and Reduces the Recruitment of MDC1 to DNA Damage Sites

DSBs are recognized by the MRN complex, which binds to DSB sites directly [28,29,30]. The MRN complex then recruits and activates ATM kinase, which phosphorylates histone H2AX (γH2AX) at DSB sites, which in turn provides a binding site for MDC1 [31]. MDC1 at DSB sites recruits more MRN-ATM complex to areas surrounding DSB sites, leading to γH2AX-MDC1 spreading and amplifying ATM signaling on adjacent chromatin [31]. We hypothesized that TRIP13 functions in the recruitment of MDC1 to DNA damage sites.
The chromatin-bound fraction of MDC1 was increased by IR-induced DNA damage and decreased by indole-3-acetic acid (IAA)-induced TRIP13 degradation (Figure 3A). MDC1 binds to the MRN complex directly through phosphorylated SDTD motifs [28,32,33,34]; therefore, we speculated that this interaction is regulated by TRIP13. The direct interaction between MDC1 and the MRE11 complex was validated by the immunoprecipitation of MRE11 (Figure 3B). The interaction of MDC1 and MRE11 was maintained regardless of TRIP13 without DNA damage but was significantly reduced in the absence of TRIP13 upon DNA damage (Figure 3B).
To investigate how TRIP13 depletion affects chromatin loading of MDC1, we analyzed the formation of γH2AX and MDC1 foci (Figure 3C). The number of MDC1 foci was significantly reduced upon TRIP13 depletion alone. To validate the role of TRIP13 in recruitment of MDC1 to DNA damage sites, we performed laser micro-irradiation of GFP-tagged MDC1-expressing cells. When TRIP13 was knocked down, recruitment of MDC1 was not only reduced but also delayed (Figure 3E). MDC1 binds directly to the C-terminal region of γH2AX [31,35], and the presence of MDC1 foci depends on γH2AX foci [36]. Surprisingly, depletion of TRIP13 did not affect γH2AX foci (Figure 3C). Similarly, 100 µM mirin treatment, which inhibits MRE11 nuclease activity, reduced the number of MDC1 foci but not that of γH2AX foci. However, the combination of mirin treatment and TRIP13 depletion inhibited the formation of both MDC1 and γH2AX foci (Figure 3C). Our results suggest that both mirin and TRIP13 regulate γH2AX phosphorylation, whereas the recruitment of MDC1 to DNA damage sites is dependent on TRIP13. It is not clear whether TRIP13 regulates the ATM signaling pathway independently of mirin because it was reported that mirin treatment at a high dose (over 500 µM) could block ATM activity [37]. In contrast to MDC1, we could not observe a significant decrease in phosphorylated ATM foci formation with TRIP13 depletion under IR irradiation (Figure 3D). Since mirin treatment alone suppressed ATM phosphorylation sufficiently, we could not evaluate the effect of TRIP13 depletion under MRE11 inhibition with mirin treatment. Collectively, TRIP13 promotes the recruitment of MDC1 to DNA damage sites by regulating the physical interaction between the MRN complex and MDC1.

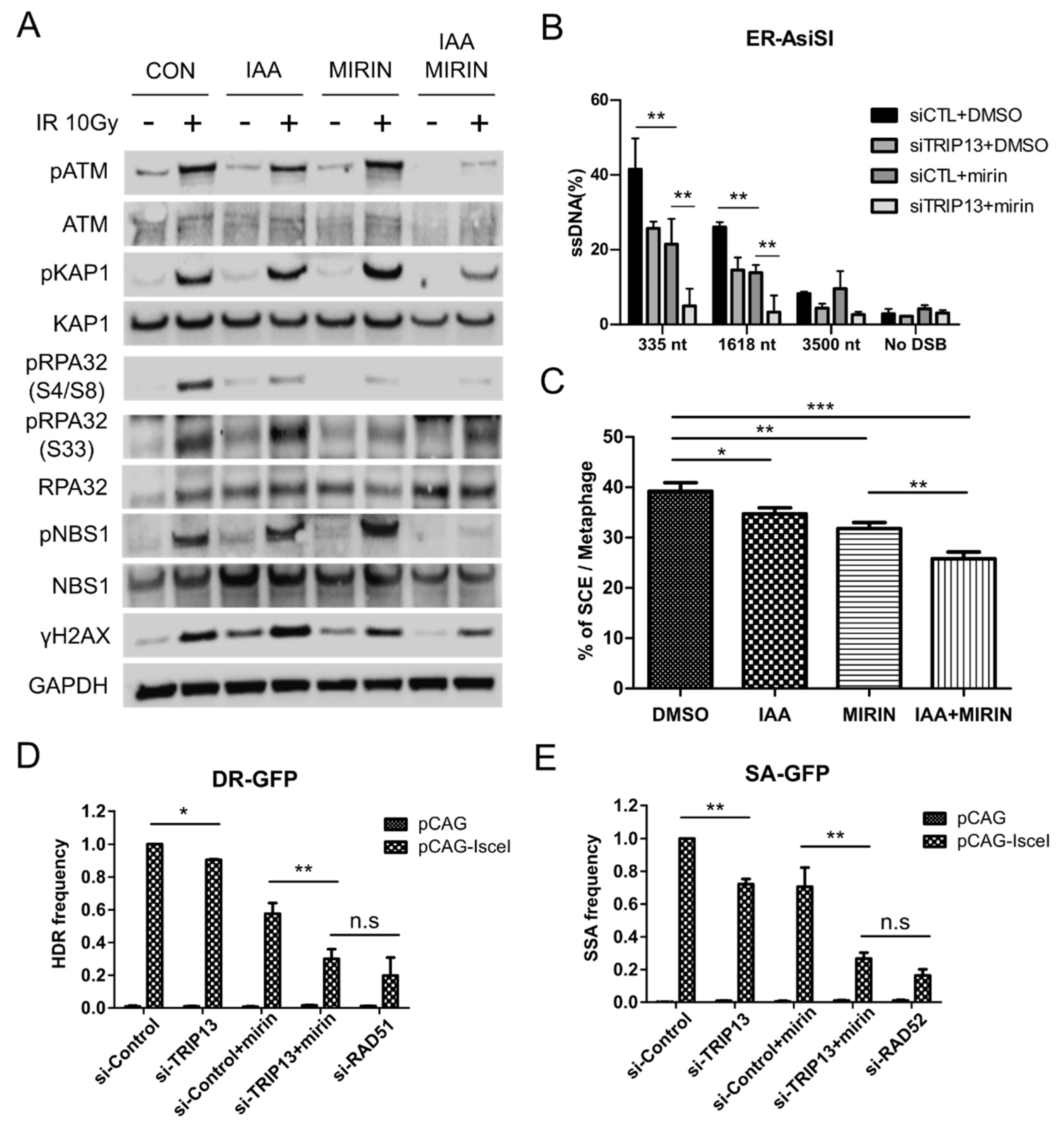

3.4. TRIP13 Enhances DNA Resection and Homologous Recombination by Regulating ATM Downstream Signaling

TRIP13 regulates MDC1 recruitment to DNA damage sites through the MRN complex; therefore, we investigated which signaling pathways downstream of DSB sensing are controlled by these interactions. The phosphorylated forms of ATM kinase substrates, such as ATM, NBS1, KAP1, and RPA32(S4/8), were not fully inhibited on either mirin treatment or IAA-induced TRIP13 depletion but were downregulated upon TRIP13 depletion with mirin (Figure 4A). Interestingly, TRIP13 depletion did not affect RPA32(S33) phosphorylated by ATR kinase. Although inhibition of the MRN complex by mirin treatment affects both ATM and ATR pathways, TRIP13 suppression only affects the ATM pathway. Additionally, TRIP13 depletion and MRN complex inhibition by mirin treatment elicited an additive inhibitory effect on the phosphorylation of ATM downstream proteins, suggesting that TRIP13 regulates DSB signaling proteins in a mirin-independent manner.
TRIP13 depletion reduced the phosphorylation of RPA32(S4/8). Therefore, we performed a DNA resection assay using the ER-AsiSI system to determine the effect of TRIP13 knockdown on DNA resection (Figure 4B). DNA resection was quantified at 335, 1618, and 3500 bp from the DSB by ER-AsiSI [38]. Long-range resection (3500 bp) from the DSB did not occur, even in the control group in our experimental schedule. TRIP13 depletion or mirin treatment reduced short-range (335 bp) and intermediate-range (1618 bp) resection. Similar to the effects on ATM signaling (Figure 3C and Figure 4A), combinatorial treatment with TRIP13-targeting siRNA (Table 3) and mirin additively reduced both short- and intermediate-range resection.
The sister chromatid exchange (SCE) frequency is a representative index of HR [39,40,41]. We investigated the role of TRIP13 in SCE. As expected, TRIP13 depletion or mirin treatment reduced the SCE frequency, and their effects were additive (Figure 4C). We also investigated the effect of TRIP13 on the HDR and SSA frequencies using the GFP-reporter system. Both TRIP13 depletion and mirin treatment blocked the HDR pathway, similar to the effect of RAD51 knockdown (Figure 4D). Furthermore, both TRIP13 depletion and mirin treatment inhibited the SSA pathway, similar to the effect of RAD52 knockdown (Figure 4E). These results indicate that TRIP13 is involved in ATM signaling and the HDR pathway via its direct interaction with MRE11, which regulates interactions between MDC1 and the MRN complex.

4. Discussion

Recently, Kieffer and Lowndes categorized the DSB repair process into three steps [42]. The ‘immediate-early step’ response is to sense the DSB region when it forms. The ‘early step’ response includes chromatin changes and ATM signaling via the recruitment of key enzymes to protect the damage and prepare for repair. The ‘late step’ response involves the choice of the proper repair pathway depending on the condition. The role of TRIP13 in the DNA damage response has only been reported in the ‘late step’ response, which regulates the choice between HDR and NHEJ [3,9]. However, our results showed that the depletion of TRIP13 does not enhance NHEJ, and that TRIP13 is recruited to a DNA damage site within a few seconds. Moreover, the depletion of TRIP13 inhibits the amplification of DNA damage signaling and recruitment of its downstream signaling proteins, which correspond to an ‘early step’ response. These results suggest that TRIP13 participates not only in the ‘late step’ response, but also in the ‘immediate-early step’ response to DNA damage.
Using a quantitative proteomics approach with a proximity-labeling method, we identified interaction partners of TRIP13 involved in the ‘intermediate-early step’ response to DNA damage. Among several DNA repair-related proteins, MRE11 was selected because the MRN complex initiates DNA strand break sensing and ATM activation [43,44,45]. We confirmed that TRIP13 directly interacts with MRE11 and RAD50, but not with NBS1, upon induction of DNA damage (Figure 2E). Proximity-labeling proteomics and conventional immunoprecipitation did not detect the interaction of TRIP13 and NBS1 (Figure 2E,F); therefore, we speculate that a MRN complex containing only MRE11 and RAD50, but not NBS1, exists. In fact, overexpression of the yeast ATM ortholog TEL1 maintains DSB repair and telomere maintenance without NBS1 [46]. Furthermore, the protein complex database based on a massive co-elution profile (hu.MAP v2) [47] reported a complex containing only MRE11 and RAD50 (HuMAP2_02474; p-value 1.98 × 10−4), and a complex containing all known MRN complex members (MRE11, NBN (NBS1), RAD50, FAM219A, and HEATR1; HuMAP2_01080; p-value 4.96 × 10−4). However, further investigation is necessary to confirm the specificity of the interaction between TRIP13 and the MRE11-RAD50 complex.
Interestingly, TRIP13 appears to interact with MRE11 even in the absence of DNA damage. MRE11 was identified as a TRIP13 interaction partner through the SILAC method without DNA damage, and this interaction did not differ in the presence and absence of DNA damage (Figure 2A). Thus, TRIP13 may play a role with MRE11 even in the absence of DNA damage. Another possibility is that TRIP13 interacts with MRE11 for the immediate response to DNA damage. Upon UV irradiation, TRIP13 was recruited at DNA damage sites within a few seconds. Therefore, TRIP13 may interact with MRE11, even in the absence of DNA damage, and rapidly react when spontaneous damage occurs. These hypotheses should be investigated in further research.
Recruitment of MDC1 to DNA damage sites and the physical interaction of MDC1 with the MRN complex were significantly reduced upon TRIP13 depletion. Previously, it was reported that TRIP13 can induce conformational changes of its physical interaction partners through ATP hydrolysis, and two motifs called Walker A (for ATP binding) and Walker B (for ATP hydrolysis) are important for this process [48]. In addition, TRIP13 releases a substrate from a protein complex by inducing a conformational change of the substrate [3,4,49]. However, our results suggest that TRIP13 promotes the interaction between MRE11 and MDC1 rather than inducing the release of MRE11 from the MRN complex or MDC1. It would be interesting to fully elucidate how TRIP13 regulates the interaction between MDC1 and the MRN complex in the future. Collectively, our results confirmed that TRIP13 regulates ATM signaling amplification and affects the interaction between MDC1 and the MRN complex by directly interacting with MRE11.
ATM phosphorylates TQXF motifs in MDC1, creating docking sites for the ubiquitin E3 ligase RNF8 [50], which ubiquitylates histone H1 or L3MBTL2 and initiates recruitment of another E3 ligase, RNF168 [51,52]. Sequentially, RNF168 ubiquitylates histone H2A and triggers the recruitment of DNA damage response factors, such as 53BP1 and its downstream proteins, including RIF1 [53,54,55], PTIP [56], and the Shieldin complex [57]. The Shieldin complex protects DSBs and promotes the NHEJ pathway, and the HORMA domain protein MAD2L2 (Rev7) is part of this complex [58,59]. Previous studies proposed that TRIP13 enhances the HDR pathway after the induction of DSBs by releasing MAD2L2 (Rev7) from the Shieldin complex [3,9]. In these studies, TRIP13 knockdown affected the HDR pathway, rather than NHEJ. Using the I-SceI-based GFP-reporter assay, we confirmed that the SSA and HDR pathways were inhibited upon depletion of TRIP13 and NHEJ and alt-NHEJ were slightly affected. It seems that TRIP13 regulates DNA end resection at DSBs to facilitate HDR and SSA, which are required for intermediate- and long-range resection. It is important to note that a subtle change of alt-NHEJ could not be detected in our experimental schedule because the frequency in the alt-NHEJ reporter assay was relatively low, even in wild-type cells.
In conclusion, TRIP13 plays a role in ATM activation by interacting with MRE11 in addition to its role in regulating the choice of the DSB repair pathway. Our results suggest that TRIP13 participates upstream of the ATM signaling pathway corresponding to an ‘immediate-early’ response in DNA damage sensing, enhancing both HDR and NHEJ. Together with the previous results [3,9], our findings demonstrate that TRIP13 is an important player in the regulation of DSB repair at several stages.

Supplementary Materials

The following supporting information can be downloaded: https://www.mdpi.com/article/10.3390/cells11244095/s1, Table S1: The list of TRIP13-interacting proteins identified by BioID2 proteomics experiment.

Author Contributions

H.J., J.S.H. and K.M. conceived and designed the project. H.J., M.W. and I.-J.B. mainly performed the experiments with the help of G.S., S.-H.U., S.-G.L., Y.S., J.R., E.A.L., S.K., B.G.K., R.A.D. and T.T.P.; H.J., T.K. and K.M. analyzed the data and wrote the manuscript with the help of all authors. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by a grant from the Institute for Basic Science (IBS-R022-D1 to K.M. and T.K.), the UNIST Future-leading Project Research Fund (1.220023.01 to T.K.), and a National Research Foundation of Korea (NRF) grant funded by the Ministry of Education of the Korean government (2018R1A6A1A03025810 to T.K.).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

Taejoon Kwon and Kyungjae Myung are shareholders in CasCure Therapeutics Inc.

References

  1. Aravind, L.; Koonin, E.V. The HORMA Domain: A Common Structural Denominator in Mitotic Checkpoints, Chromosome Synapsis and DNA Repair. Trends Biochem. Sci. 1998, 23, 284–286. [Google Scholar] [CrossRef] [PubMed]
  2. Rosenberg, S.C.; Corbett, K.D. The Multifaceted Roles of the HORMA Domain in Cellular Signaling. J. Cell Biol. 2015, 211, 745–755. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Clairmont, C.S.; Sarangi, P.; Ponnienselvan, K.; Galli, L.D.; Csete, I.; Moreau, L.; Adelmant, G.; Chowdhury, D.; Marto, J.A.; D’Andrea, A.D. TRIP13 Regulates DNA Repair Pathway Choice through REV7 Conformational Change. Nat. Cell Biol. 2020, 22, 87–96. [Google Scholar] [CrossRef] [PubMed]
  4. Wojtasz, L.; Daniel, K.; Roig, I.; Bolcun-Filas, E.; Xu, H.; Boonsanay, V.; Eckmann, C.R.; Cooke, H.J.; Jasin, M.; Keeney, S.; et al. Mouse HORMAD1 and HORMAD2, Two Conserved Meiotic Chromosomal Proteins, Are Depleted from Synapsed Chromosome Axes with the Help of TRIP13 AAA-ATPase. PLoS Genet. 2009, 5, e1000702. [Google Scholar] [CrossRef] [Green Version]
  5. Musacchio, A. The Molecular Biology of Spindle Assembly Checkpoint Signaling Dynamics. Curr. Biol. 2015, 25, R1002–R1018. [Google Scholar] [CrossRef] [Green Version]
  6. Yost, S.; de Wolf, B.; Hanks, S.; Zachariou, A.; Marcozzi, C.; Clarke, M.; de Voer, R.M.; Etemad, B.; Uijttewaal, E.; Ramsay, E.; et al. Biallelic TRIP13 Mutations Predispose to Wilms Tumor and Chromosome Missegregation. Nat. Genet. 2017, 49, 1148–1151. [Google Scholar] [CrossRef] [Green Version]
  7. Zhang, G.; Zhu, Q.; Fu, G.; Hou, J.; Hu, X.; Cao, J.; Peng, W.; Wang, X.; Chen, F.; Cui, H. TRIP13 Promotes the Cell Proliferation, Migration and Invasion of Glioblastoma through the FBXW7/c-MYC Axis. Br. J. Cancer 2019, 121, 1069–1078. [Google Scholar] [CrossRef]
  8. Banerjee, R.; Russo, N.; Liu, M.; Basrur, V.; Bellile, E.; Palanisamy, N.; Scanlon, C.S.; van Tubergen, E.; Inglehart, R.C.; Metwally, T.; et al. TRIP13 Promotes Error-Prone Nonhomologous End Joining and Induces Chemoresistance in Head and Neck Cancer. Nat. Commun. 2014, 5, 4527. [Google Scholar] [CrossRef] [Green Version]
  9. Sarangi, P.; Clairmont, C.S.; Galli, L.D.; Moreau, L.A.; D’Andrea, A.D. P31comet Promotes Homologous Recombination by Inactivating REV7 through the TRIP13 ATPase. Proc. Natl. Acad. Sci. USA 2020, 117, 26795–26803. [Google Scholar] [CrossRef]
  10. Venkatesan, K.; Rual, J.-F.; Vazquez, A.; Stelzl, U.; Lemmens, I.; Hirozane-Kishikawa, T.; Hao, T.; Zenkner, M.; Xin, X.; Goh, K.-I.; et al. An Empirical Framework for Binary Interactome Mapping. Nat. Methods 2009, 6, 83–90. [Google Scholar] [CrossRef]
  11. Ho, H.-C.; Burgess, S.M. Pch2 Acts through Xrs2 and Tel1/ATM to Modulate Interhomolog Bias and Checkpoint Function during Meiosis. PLoS Genet. 2011, 7, e1002351. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Villar-Fernández, M.A.; da Silva, R.C.; Firlej, M.; Pan, D.; Weir, E.; Sarembe, A.; Raina, V.B.; Bange, T.; Weir, J.R.; Vader, G. Biochemical and Functional Characterization of a Meiosis-Specific Pch2/ORC AAA+ Assembly. Life Sci. Alliance 2020, 3, e201900630. [Google Scholar] [CrossRef]
  13. Zhou, Y.; Caron, P.; Legube, G.; Paull, T.T. Quantitation of DNA Double-Strand Break Resection Intermediates in Human Cells. Nucleic Acids Res. 2014, 42, e19. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Kim, D.H.; Han, J.S.; Ly, P.; Ye, Q.; McMahon, M.A.; Myung, K.; Corbett, K.D.; Cleveland, D.W. TRIP13 and APC15 Drive Mitotic Exit by Turnover of Interphase- and Unattached Kinetochore-Produced MCC. Nat. Commun. 2018, 9, 4354. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Bennardo, N.; Cheng, A.; Huang, N.; Stark, J.M. Alternative-NHEJ Is a Mechanistically Distinct Pathway of Mammalian Chromosome Break Repair. PLoS Genet. 2008, 4, e1000110. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Bennardo, N.; Gunn, A.; Cheng, A.; Hasty, P.; Stark, J.M. Limiting the Persistence of a Chromosome Break Diminishes Its Mutagenic Potential. PLoS Genet. 2009, 5, e1000683. [Google Scholar] [CrossRef]
  17. Motegi, A.; Liaw, H.-J.; Lee, K.-Y.; Roest, H.P.; Maas, A.; Wu, X.; Moinova, H.; Markowitz, S.D.; Ding, H.; Hoeijmakers, J.H.J.; et al. Polyubiquitination of Proliferating Cell Nuclear Antigen by HLTF and SHPRH Prevents Genomic Instability from Stalled Replication Forks. Proc. Natl. Acad. Sci. USA 2008, 105, 12411–12416. [Google Scholar] [CrossRef] [Green Version]
  18. Lee, S.-G.; Kim, N.; Kim, S.-M.; Park, I.B.; Kim, H.; Kim, S.; Kim, B.-G.; Hwang, J.M.; Baek, I.-J.; Gartner, A.; et al. Ewing Sarcoma Protein Promotes Dissociation of Poly(ADP-Ribose) Polymerase 1 from Chromatin. EMBO Rep. 2020, 21, e48676. [Google Scholar] [CrossRef]
  19. Schneider, C.A.; Rasband, W.S.; Eliceiri, K.W. NIH Image to ImageJ: 25 Years of Image Analysis. Nat. Methods 2012, 9, 671–675. [Google Scholar] [CrossRef]
  20. Paull, T.T.; Gellert, M. The 3′ to 5′ Exonuclease Activity of Mre11 Facilitates Repair of DNA Double-Strand Breaks. Mol. Cell 1998, 1, 969–979. [Google Scholar] [CrossRef]
  21. de Krijger, I.; Föhr, B.; Pérez, S.H.; Vincendeau, E.; Serrat, J.; Thouin, A.M.; Susvirkar, V.; Lescale, C.; Paniagua, I.; Hoekman, L.; et al. MAD2L2 Dimerization and TRIP13 Control Shieldin Activity in DNA Repair. Nat. Commun. 2021, 12, 5421. [Google Scholar] [CrossRef] [PubMed]
  22. Howard, S.M.; Yanez, D.A.; Stark, J.M. DNA Damage Response Factors from Diverse Pathways, Including DNA Crosslink Repair, Mediate Alternative End Joining. PLoS Genet. 2015, 11, e1004943. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Kochan, J.A.; Desclos, E.C.B.; Bosch, R.; Meister, L.; Vriend, L.E.M.; van Attikum, H.; Krawczyk, P.M. Meta-Analysis of DNA Double-Strand Break Response Kinetics. Nucleic Acids Res. 2017, 45, 12625–12637. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Natsume, T.; Kiyomitsu, T.; Saga, Y.; Kanemaki, M.T. Rapid Protein Depletion in Human Cells by Auxin-Inducible Degron Tagging with Short Homology Donors. Cell Rep. 2016, 15, 210–218. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Kim, D.I.; Jensen, S.C.; Noble, K.A.; Kc, B.; Roux, K.H.; Motamedchaboki, K.; Roux, K.J. An Improved Smaller Biotin Ligase for BioID Proximity Labeling. Mol. Biol. Cell 2016, 27, 1188–1196. [Google Scholar] [CrossRef]
  26. Ong, S.-E.; Blagoev, B.; Kratchmarova, I.; Kristensen, D.B.; Steen, H.; Pandey, A.; Mann, M. Stable Isotope Labeling by Amino Acids in Cell Culture, SILAC, as a Simple and Accurate Approach to Expression Proteomics. Mol. Cell Proteom. 2002, 1, 376–386. [Google Scholar] [CrossRef] [Green Version]
  27. Ong, S.-E.; Mann, M. A Practical Recipe for Stable Isotope Labeling by Amino Acids in Cell Culture (SILAC). Nat. Protoc. 2006, 1, 2650–2660. [Google Scholar] [CrossRef]
  28. Lee, J.-H.; Paull, T.T. Activation and Regulation of ATM Kinase Activity in Response to DNA Double-Strand Breaks. Oncogene 2007, 26, 7741–7748. [Google Scholar] [CrossRef] [Green Version]
  29. Wang, Y.; Cortez, D.; Yazdi, P.; Neff, N.; Elledge, S.J.; Qin, J. BASC, a Super Complex of BRCA1-Associated Proteins Involved in the Recognition and Repair of Aberrant DNA Structures. Genes Dev. 2000, 14, 927–939. [Google Scholar] [CrossRef]
  30. Haber, J.E. The Many Interfaces of Mre11. Cell 1998, 95, 583–586. [Google Scholar] [CrossRef]
  31. Stucki, M.; Clapperton, J.A.; Mohammad, D.; Yaffe, M.B.; Smerdon, S.J.; Jackson, S.P. MDC1 Directly Binds Phosphorylated Histone H2AX to Regulate Cellular Responses to DNA Double-Strand Breaks. Cell 2005, 123, 1213–1226. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Chapman, J.R.; Jackson, S.P. Phospho-Dependent Interactions between NBS1 and MDC1 Mediate Chromatin Retention of the MRN Complex at Sites of DNA Damage. EMBO Rep. 2008, 9, 795–801. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Spycher, C.; Miller, E.S.; Townsend, K.; Pavic, L.; Morrice, N.A.; Janscak, P.; Stewart, G.S.; Stucki, M. Constitutive Phosphorylation of MDC1 Physically Links the MRE11-RAD50-NBS1 Complex to Damaged Chromatin. J. Cell Biol. 2008, 181, 227–240. [Google Scholar] [CrossRef] [Green Version]
  34. Wu, L.; Luo, K.; Lou, Z.; Chen, J. MDC1 Regulates Intra-S-Phase Checkpoint by Targeting NBS1 to DNA Double-Strand Breaks. Proc. Natl. Acad. Sci. USA 2008, 105, 11200–11205. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Lee, M.S.; Edwards, R.A.; Thede, G.L.; Glover, J.N.M. Structure of the BRCT Repeat Domain of MDC1 and Its Specificity for the Free COOH-Terminal End of the Gamma-H2AX Histone Tail. J. Biol. Chem. 2005, 280, 32053–32056. [Google Scholar] [CrossRef] [Green Version]
  36. Stewart, G.S.; Wang, B.; Bignell, C.R.; Taylor, A.M.R.; Elledge, S.J. MDC1 Is a Mediator of the Mammalian DNA Damage Checkpoint. Nature 2003, 421, 961–966. [Google Scholar] [CrossRef] [PubMed]
  37. Lee, J.-H.; Mand, M.R.; Deshpande, R.A.; Kinoshita, E.; Yang, S.-H.; Wyman, C.; Paull, T.T. Ataxia Telangiectasia-Mutated (ATM) Kinase Activity Is Regulated by ATP-Driven Conformational Changes in the Mre11/Rad50/Nbs1 (MRN) Complex. J. Biol. Chem. 2013, 288, 12840–12851. [Google Scholar] [CrossRef] [Green Version]
  38. Zhou, Y.; Paull, T.T. Direct Measurement of Single-Stranded DNA Intermediates in Mammalian Cells by Quantitative Polymerase Chain Reaction. Anal. Biochem. 2015, 479, 48–50. [Google Scholar] [CrossRef]
  39. Crossen, P.E.; Drets, M.E.; Arrighi, F.E.; Johnston, D.A. Aanlysis of the Frequency and Distribution of Sister Chromatid Exchanges in Cultured Human Lymphocytes. Hum. Genet. 1977, 35, 345–352. [Google Scholar] [CrossRef]
  40. Galloway, S.M.; Evans, H.J. Sister Chromatid Exchange in Human Chromosomes from Normal Individuals and Patients with Ataxia Telangiectasia. Cytogenet. Cell Genet. 1975, 15, 17–29. [Google Scholar] [CrossRef]
  41. Sonoda, E.; Sasaki, M.S.; Morrison, C.; Yamaguchi-Iwai, Y.; Takata, M.; Takeda, S. Sister Chromatid Exchanges Are Mediated by Homologous Recombination in Vertebrate Cells. Mol. Cell. Biol. 1999, 19, 5166–5169. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  42. Kieffer, S.R.; Lowndes, N.F. Immediate-Early, Early, and Late Responses to DNA Double Stranded Breaks. Front. Genet. 2022, 13, 793884. [Google Scholar] [CrossRef] [PubMed]
  43. Lee, J.-H.; Paull, T.T. Direct Activation of the ATM Protein Kinase by the Mre11/Rad50/Nbs1 Complex. Science 2004, 304, 93–96. [Google Scholar] [CrossRef] [PubMed]
  44. Paull, T.T.; Lee, J.-H. The Mre11/Rad50/Nbs1 Complex and Its Role as a DNA Double-Strand Break Sensor for ATM. Cell Cycle 2005, 4, 737–740. [Google Scholar] [CrossRef]
  45. Lee, J.-H.; Paull, T.T. ATM Activation by DNA Double-Strand Breaks through the Mre11-Rad50-Nbs1 Complex. Science 2005, 308, 551–554. [Google Scholar] [CrossRef]
  46. Limbo, O.; Yamada, Y.; Russell, P. Mre11-Rad50-Dependent Activity of ATM/Tel1 at DNA Breaks and Telomeres in the Absence of Nbs1. Mol. Biol. Cell 2018, 29, 1389–1399. [Google Scholar] [CrossRef]
  47. Drew, K.; Wallingford, J.B.; Marcotte, E.M. Hu.MAP 2.0: Integration of over 15,000 Proteomic Experiments Builds a Global Compendium of Human Multiprotein Assemblies. Mol. Syst. Biol. 2021, 17, e10016. [Google Scholar] [CrossRef]
  48. Yasugi, T.; Vidal, M.; Sakai, H.; Howley, P.M.; Benson, J.D. Two Classes of Human Papillomavirus Type 16 E1 Mutants Suggest Pleiotropic Conformational Constraints Affecting E1 Multimerization, E2 Interaction, and Interaction with Cellular Proteins. J. Virol. 1997, 71, 5942–5951. [Google Scholar] [CrossRef] [Green Version]
  49. Eytan, E.; Wang, K.; Miniowitz-Shemtov, S.; Sitry-Shevah, D.; Kaisari, S.; Yen, T.J.; Liu, S.-T.; Hershko, A. Disassembly of Mitotic Checkpoint Complexes by the Joint Action of the AAA-ATPase TRIP13 and P31(Comet). Proc. Natl. Acad. Sci. USA 2014, 111, 12019–12024. [Google Scholar] [CrossRef] [Green Version]
  50. Kolas, N.K.; Chapman, J.R.; Nakada, S.; Ylanko, J.; Chahwan, R.; Sweeney, F.D.; Panier, S.; Mendez, M.; Wildenhain, J.; Thomson, T.M.; et al. Orchestration of the DNA-Damage Response by the RNF8 Ubiquitin Ligase. Science 2007, 318, 1637–1640. [Google Scholar] [CrossRef]
  51. Nowsheen, S.; Aziz, K.; Aziz, A.; Deng, M.; Qin, B.; Luo, K.; Jeganathan, K.B.; Zhang, H.; Liu, T.; Yu, J.; et al. L3MBTL2 Orchestrates Ubiquitin Signalling by Dictating the Sequential Recruitment of RNF8 and RNF168 after DNA Damage. Nat. Cell Biol. 2018, 20, 455–464. [Google Scholar] [CrossRef] [PubMed]
  52. Thorslund, T.; Ripplinger, A.; Hoffmann, S.; Wild, T.; Uckelmann, M.; Villumsen, B.; Narita, T.; Sixma, T.K.; Choudhary, C.; Bekker-Jensen, S.; et al. Histone H1 Couples Initiation and Amplification of Ubiquitin Signalling after DNA Damage. Nature 2015, 527, 389–393. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Chapman, J.R.; Barral, P.; Vannier, J.-B.; Borel, V.; Steger, M.; Tomas-Loba, A.; Sartori, A.A.; Adams, I.R.; Batista, F.D.; Boulton, S.J. RIF1 Is Essential for 53BP1-Dependent Nonhomologous End Joining and Suppression of DNA Double-Strand Break Resection. Mol. Cell 2013, 49, 858–871. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Escribano-Díaz, C.; Orthwein, A.; Fradet-Turcotte, A.; Xing, M.; Young, J.T.F.; Tkáč, J.; Cook, M.A.; Rosebrock, A.P.; Munro, M.; Canny, M.D.; et al. A Cell Cycle-Dependent Regulatory Circuit Composed of 53BP1-RIF1 and BRCA1-CtIP Controls DNA Repair Pathway Choice. Mol. Cell 2013, 49, 872–883. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Zimmermann, M.; Lottersberger, F.; Buonomo, S.B.; Sfeir, A.; de Lange, T. 53BP1 Regulates DSB Repair Using Rif1 to Control 5′ End Resection. Science 2013, 339, 700–704. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Munoz, I.M.; Jowsey, P.A.; Toth, R.; Rouse, J. Phospho-Epitope Binding by the BRCT Domains of HPTIP Controls Multiple Aspects of the Cellular Response to DNA Damage. Nucleic Acids Res. 2007, 35, 5312–5322. [Google Scholar] [CrossRef]
  57. Noordermeer, S.M.; Adam, S.; Setiaputra, D.; Barazas, M.; Pettitt, S.J.; Ling, A.K.; Olivieri, M.; Álvarez-Quilón, A.; Moatti, N.; Zimmermann, M.; et al. The Shieldin Complex Mediates 53BP1-Dependent DNA Repair. Nature 2018, 560, 117–121. [Google Scholar] [CrossRef]
  58. Xu, G.; Chapman, J.R.; Brandsma, I.; Yuan, J.; Mistrik, M.; Bouwman, P.; Bartkova, J.; Gogola, E.; Warmerdam, D.; Barazas, M.; et al. REV7 Counteracts DNA Double-Strand Break Resection and Affects PARP Inhibition. Nature 2015, 521, 541–544. [Google Scholar] [CrossRef] [Green Version]
  59. Boersma, V.; Moatti, N.; Segura-Bayona, S.; Peuscher, M.H.; van der Torre, J.; Wevers, B.A.; Orthwein, A.; Durocher, D.; Jacobs, J.J.L. MAD2L2 Controls DNA Repair at Telomeres and DNA Breaks by Inhibiting 5′ End Resection. Nature 2015, 521, 537–540. [Google Scholar] [CrossRef]
Cells 11 04095 g001 550

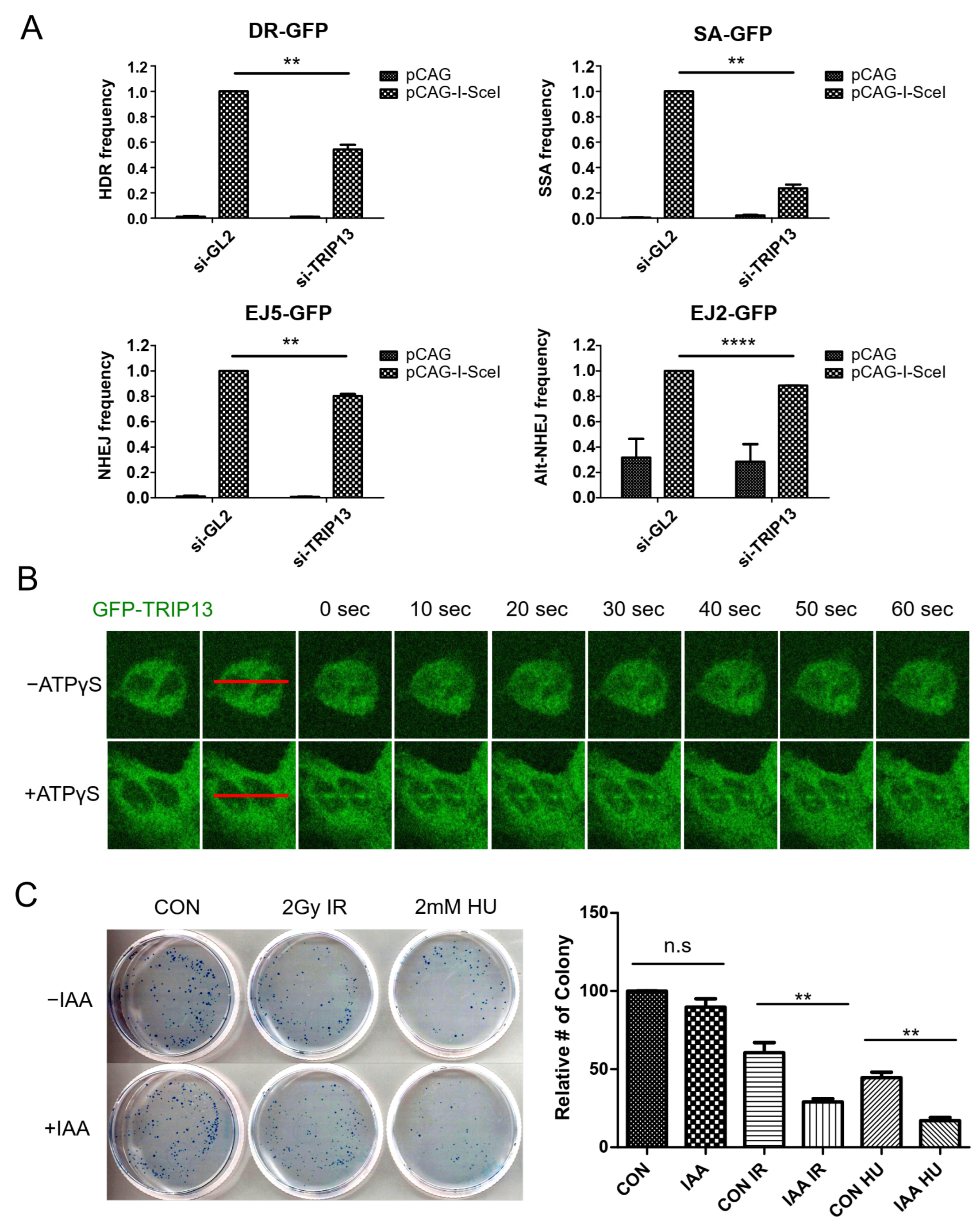

Figure 1. TRIP13 is required for DSB repair. (A) I-SceI-based GFP-reporter assays were performed to measure the contributions of mammalian chromosomal double-strand break repair pathways upon TRIP13 knockdown. TRIP13 knockdown selectively inhibited the HDR and SSA pathways but not NHEJ. DR-GFP, SA-GFP, EJ5-GFP, and EJ2-GFP were used to measure HDR, SSA, classical NHEJ, and alt-NHEJ, respectively [22]. (B) GFP-labeled TRIP13 was rapidly recruited to DNA damage sites induced by UV laser microirradiation. (C) A colony formation assay confirmed that IAA-induced degradation of TRIP13 affected cellular responses to DNA damage induced by IR or HU treatment. The two-tailed unpaired T-test was performed to determine significance (n.s: not significant; ** p  <  0.01; **** p  <  0.0001).
Figure 1. TRIP13 is required for DSB repair. (A) I-SceI-based GFP-reporter assays were performed to measure the contributions of mammalian chromosomal double-strand break repair pathways upon TRIP13 knockdown. TRIP13 knockdown selectively inhibited the HDR and SSA pathways but not NHEJ. DR-GFP, SA-GFP, EJ5-GFP, and EJ2-GFP were used to measure HDR, SSA, classical NHEJ, and alt-NHEJ, respectively [22]. (B) GFP-labeled TRIP13 was rapidly recruited to DNA damage sites induced by UV laser microirradiation. (C) A colony formation assay confirmed that IAA-induced degradation of TRIP13 affected cellular responses to DNA damage induced by IR or HU treatment. The two-tailed unpaired T-test was performed to determine significance (n.s: not significant; ** p  <  0.01; **** p  <  0.0001).
Cells 11 04095 g001
Cells 11 04095 sch001 550

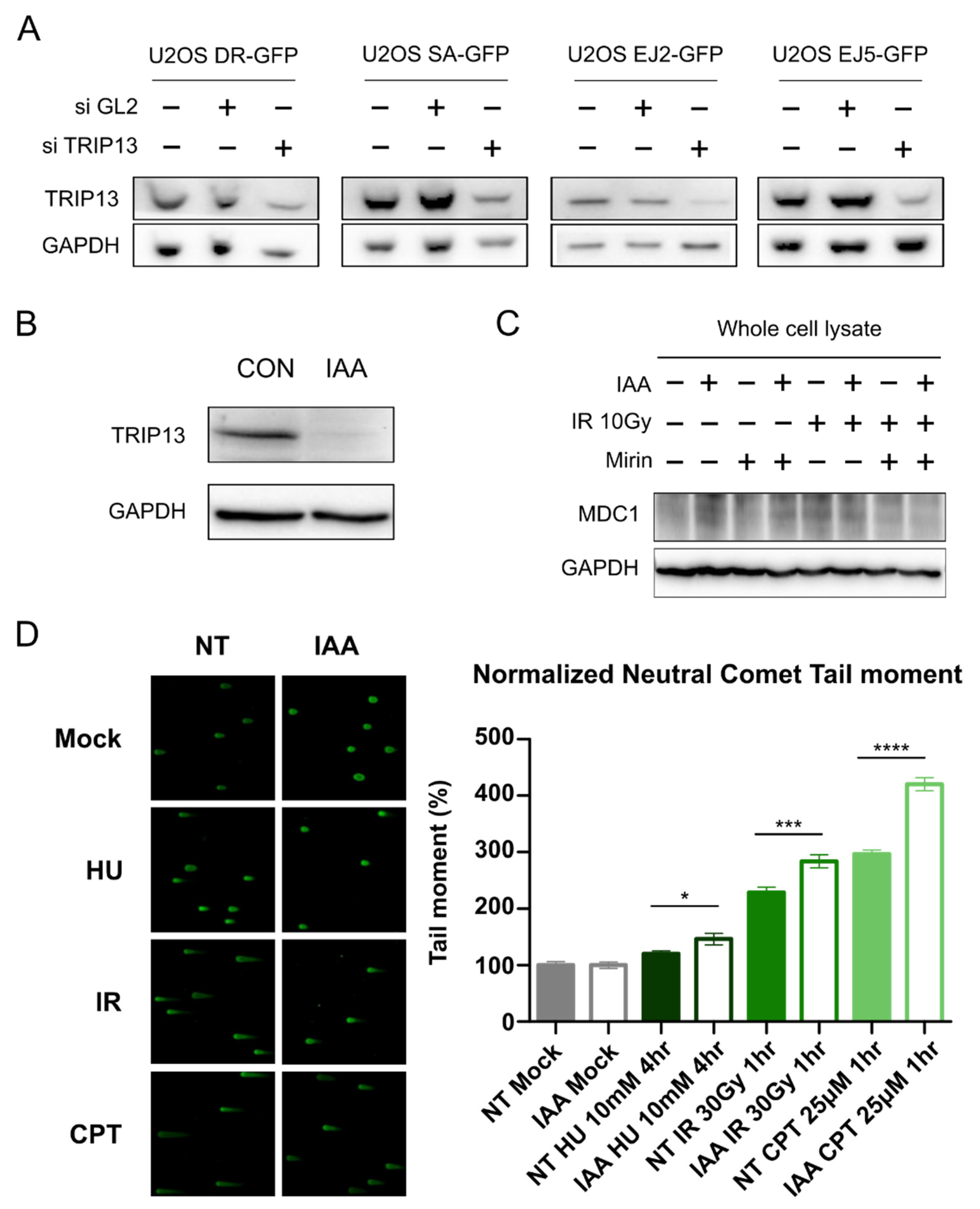

Scheme 1. Downregulated TRIP13 expression and total MDC1 expression were confirmed and DNA damage sensitization under TRIP13 depletion neutral comet. (A) Knockdown of TRIP13 in GFP−reporter U2OS cell lines. (B) IAA-induced TRIP13 degradation for 8 h was confirmed. (C) Total MDC1 expression was not affected under TRIP13 degradation, Mirin treatment and irradiation. (D) Neutral comet assay under TRIP13 degradation with various DNA damage conditions showed the sensitization (* p < 0.05; *** p  <  0.001; **** p  <  0.0001).
Scheme 1. Downregulated TRIP13 expression and total MDC1 expression were confirmed and DNA damage sensitization under TRIP13 depletion neutral comet. (A) Knockdown of TRIP13 in GFP−reporter U2OS cell lines. (B) IAA-induced TRIP13 degradation for 8 h was confirmed. (C) Total MDC1 expression was not affected under TRIP13 degradation, Mirin treatment and irradiation. (D) Neutral comet assay under TRIP13 degradation with various DNA damage conditions showed the sensitization (* p < 0.05; *** p  <  0.001; **** p  <  0.0001).
Cells 11 04095 sch001
Cells 11 04095 g002 550

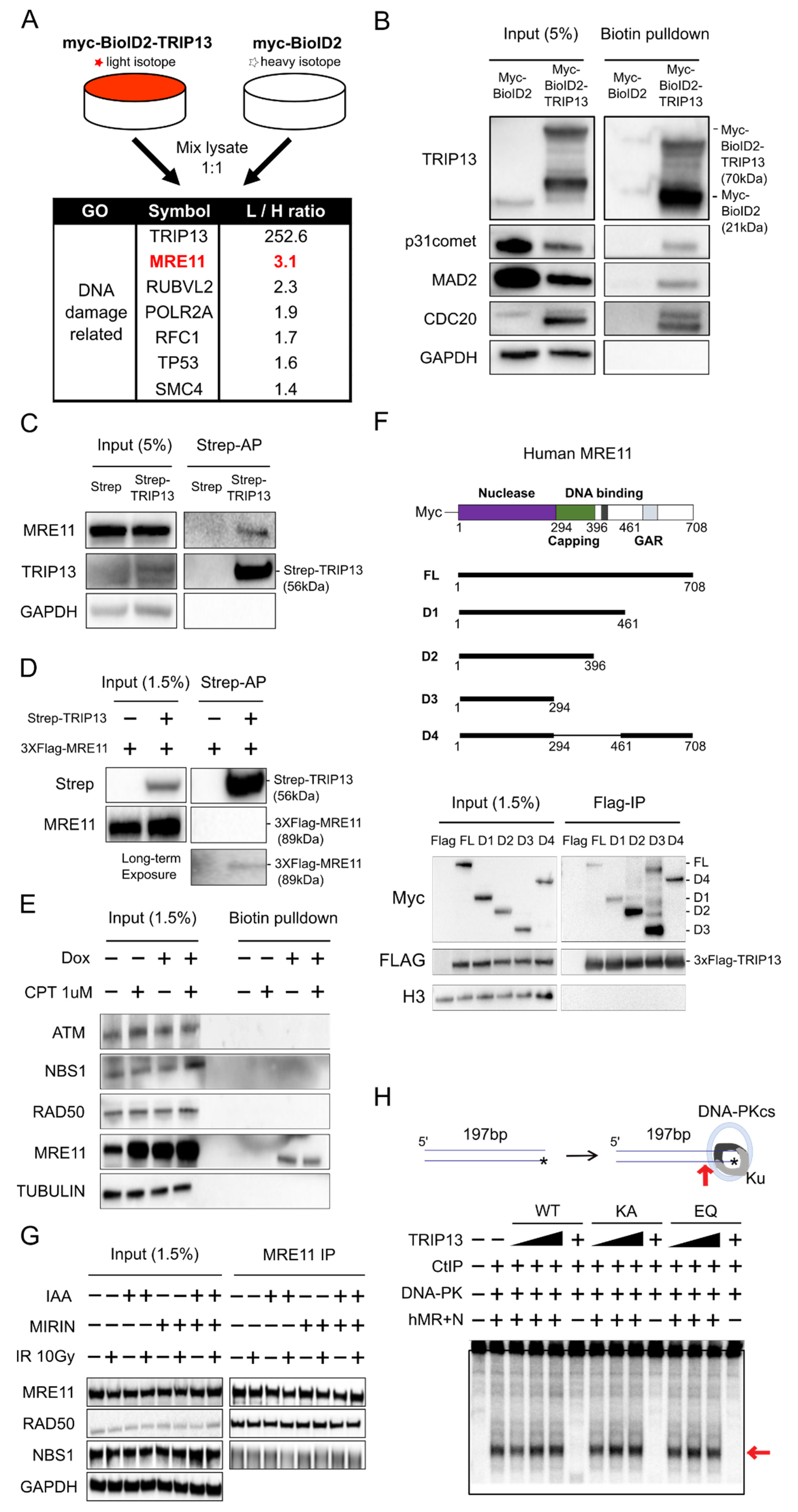

Figure 2. MRE11 is a novel interaction partner of TRIP13. (A) A proteomics experiment with BioID2-tagged TRIP13 identified 279 candidate interaction partners. (B) Well-known substrates of TRIP13 (p31comet, MAD2, and CDC20) were labeled by BioID2-TRIP13. (C) Endogenous MRE11 was detected by Strep-AP using Strep-tagged TRIP13. (D) Purified 3xFLAG tagged MRE11 was also detected by in vitro Strep-AP using purified Strep-tagged TRIP13. (E) Biotin pulldown assays of the MRN complex and cofactors (CtIP and ATM) using doxycycline induced BioID2-tagged TRIP13 expressing U-2-OS cells upon CPT treatment for one hour before analysis. (F) FLAG immunoprecipitation through overexpressing both 3xFLAG-TRIP13 and Myc-MRE11 domain deletions series (G) The interactions of MRN complex components with MRE11 were confirmed by immunoprecipitation of MRE11. Depletion of TRIP13 or mirin treatment did not affect these interactions. (H) In vitro MRN endonuclease assays showed that endonuclease activity of the MRN complex was unaffected in the presence of TRIP13 (WT: wild-type, KA: ATP-binding domain mutant, and EQ: ATP hydrolysis mutant). The red arrow indicates the predominant product in the presence of DNA-PKcs and Ku.
Figure 2. MRE11 is a novel interaction partner of TRIP13. (A) A proteomics experiment with BioID2-tagged TRIP13 identified 279 candidate interaction partners. (B) Well-known substrates of TRIP13 (p31comet, MAD2, and CDC20) were labeled by BioID2-TRIP13. (C) Endogenous MRE11 was detected by Strep-AP using Strep-tagged TRIP13. (D) Purified 3xFLAG tagged MRE11 was also detected by in vitro Strep-AP using purified Strep-tagged TRIP13. (E) Biotin pulldown assays of the MRN complex and cofactors (CtIP and ATM) using doxycycline induced BioID2-tagged TRIP13 expressing U-2-OS cells upon CPT treatment for one hour before analysis. (F) FLAG immunoprecipitation through overexpressing both 3xFLAG-TRIP13 and Myc-MRE11 domain deletions series (G) The interactions of MRN complex components with MRE11 were confirmed by immunoprecipitation of MRE11. Depletion of TRIP13 or mirin treatment did not affect these interactions. (H) In vitro MRN endonuclease assays showed that endonuclease activity of the MRN complex was unaffected in the presence of TRIP13 (WT: wild-type, KA: ATP-binding domain mutant, and EQ: ATP hydrolysis mutant). The red arrow indicates the predominant product in the presence of DNA-PKcs and Ku.
Cells 11 04095 g002
Cells 11 04095 g003 550
Figure 3. Depletion of TRIP13 inhibits MDC1 recruitment to DNA damage sites by decreasing the physical interaction between the MRN complex and MDC1. (A) The chromatin-bound fraction of MDC1 was decreased when TRIP13 was degraded by IAA treatment. We analyzed the cells after one-hour IR irradiation. We also confirmed that TRIP13 depletion did not alter the expression level of MDC1 with whole cell lysates (Scheme 1C). (B) The interaction between MDC1 and MRE11 was reduced upon exposure to IR when TRIP13 was depleted. (C) Formation of MDC1 foci was investigated upon TRIP13 degradation and mirin treatment. We counted the following number of cells for this analysis: 540 cells for control (CON), 354 cells for IR, 594 cells for IAA IR, 530 cells for MIRIN IR, and 488 cells for IAA MIRIN IR. Two-way ANOVA was performed to determine significance (** p  <  0.01; *** p  <  0.001). (D) Formation of phosphor-ATM (S1981) foci was investigated upon TRIP13 degradation and mirin treatment. Two-way ANOVA was performed to determine significance (n.s, not significant; **** p  <  0.0001). (E) TRIP13 knockdown delayed MDC1 recruitment to DNA damage sites. The red lines indicate irradiated region.
Figure 3. Depletion of TRIP13 inhibits MDC1 recruitment to DNA damage sites by decreasing the physical interaction between the MRN complex and MDC1. (A) The chromatin-bound fraction of MDC1 was decreased when TRIP13 was degraded by IAA treatment. We analyzed the cells after one-hour IR irradiation. We also confirmed that TRIP13 depletion did not alter the expression level of MDC1 with whole cell lysates (Scheme 1C). (B) The interaction between MDC1 and MRE11 was reduced upon exposure to IR when TRIP13 was depleted. (C) Formation of MDC1 foci was investigated upon TRIP13 degradation and mirin treatment. We counted the following number of cells for this analysis: 540 cells for control (CON), 354 cells for IR, 594 cells for IAA IR, 530 cells for MIRIN IR, and 488 cells for IAA MIRIN IR. Two-way ANOVA was performed to determine significance (** p  <  0.01; *** p  <  0.001). (D) Formation of phosphor-ATM (S1981) foci was investigated upon TRIP13 degradation and mirin treatment. Two-way ANOVA was performed to determine significance (n.s, not significant; **** p  <  0.0001). (E) TRIP13 knockdown delayed MDC1 recruitment to DNA damage sites. The red lines indicate irradiated region.
Cells 11 04095 g003
Cells 11 04095 g004 550
Figure 4. TRIP13 enhances HR by regulating ATM downstream signaling and DNA end resection independent of MRE11 exonuclease activity. (A) IR-induced (one-hour irradiation) ATM downstream signaling pathways were downregulated upon TRIP13 degradation with mirin treatment. (B) A quantitative DNA resection assay using the ER−AsiSI system showed that TRIP13 knockdown and mirin treatment inhibited DNA end resection. (C) SCE formation was reduced upon mirin treatment with TRIP13 depletion. (D,E) GFP-reporter assays showed the additive effects of TRIP13 knockdown and mirin treatment on HDR and SSA. The two-tailed unpaired T test was used to determine significance (* p < 0.05; ** p  <  0.01; *** p  <  0.001; n.s, not significant).
Figure 4. TRIP13 enhances HR by regulating ATM downstream signaling and DNA end resection independent of MRE11 exonuclease activity. (A) IR-induced (one-hour irradiation) ATM downstream signaling pathways were downregulated upon TRIP13 degradation with mirin treatment. (B) A quantitative DNA resection assay using the ER−AsiSI system showed that TRIP13 knockdown and mirin treatment inhibited DNA end resection. (C) SCE formation was reduced upon mirin treatment with TRIP13 depletion. (D,E) GFP-reporter assays showed the additive effects of TRIP13 knockdown and mirin treatment on HDR and SSA. The two-tailed unpaired T test was used to determine significance (* p < 0.05; ** p  <  0.01; *** p  <  0.001; n.s, not significant).
Cells 11 04095 g004
Table
Table 1. A list of the antibodies used in this study. IF, immunofluorescence; WB, Western blotting.
Table 1. A list of the antibodies used in this study. IF, immunofluorescence; WB, Western blotting.
TargetSpeciesDilution
(WB)		Dilution
(IF)		CompanyCat#
MRE11Rabbit1:2000-NOVUS, St. Louis, MO, USANB100-142
GAPDHRabbit1:5000-Santa Cruz, Dallas, TX, USAsc-32233
MycMouse1:1000-Santa Cruz, Dallas, TX, USAsc-40
TRIP13Rabbit1:1000-Bethyl, Montgomery, TX, USAA303-605A
StrepRabbit1:1000-Abcam, Cambridge, UKab76949
ATMRabbit1:1000-Abcam, Cambridge, UKab32420
NBS1Mouse1:1000-Cell Signaling Tech, Danvers, MA, USA14956S
RAD50Mouse1:1000-Santa Cruz, Dallas, TX, USAsc-74460
CtIPGoat1:1000-Santa Cruz, Dallas, TX, USAsc5970
TubulinMouse1:10000-Sigma, St. Louis, MO, USAT-5168
MDC1Rabbit1:10001:200Abcam, Cambridge, UKab11171
H3Rabbit1:1000-Santa Cruz, Dallas, TX, USAsc-8654R
γH2AXRabbit1:10001:200GeneTex, Irvine, CA, USAGTX127340
pATM(S1981)Rabbit1:1000-Abcam, Cambridge, UKab81292
pKAP1Mouse1:1000-Bethyl, Montgomery, TX, USAA300-767A
KAP1Mouse1:1000-Bethyl, Montgomery, TX, USAA300-274A
pRPA32(S4/8)Rabbit1:1000-Bethyl, Montgomery, TX, USAA300-245A
pRPA32(S33)Rabbit1:1000-Bethyl, Montgomery, TX, USAA300-246A
RPA32Rabbit1:1000-Bethyl, Montgomery, TX, USAA300-244A
pNBS1Rabbit1:1000-Cell Signaling Tech, Danvers, MA, USA3002S
Table
Table 2. A list of the primers and probes used in this study.
Table 2. A list of the primers and probes used in this study.
Primer NamePrimer Sequence
DSB1-335 bpPrimer FW5′-GAATCGGATGTATGCGACTGATC-3′
Primer REV5′-TTCCAAAGTTATTCCAACCCGAT-3′
Probe5′-6FAM-CACAGCTTGCCCATCCTTGCAAACC-TAMRA-3′
DSB1-1618 bpPrimer FW5′-TGAGGAGGTGACATTAGAACTCAGA-3′
Primer REV5′-AGGACTCACTTACACGGCCTTT-3′
Probe5′-6FAM-TTGCAAGGCTGCTTCCTTACCATTCAA-TAMRA-3′
DSB1-3500 bpPrimer FW5′-TCCTAGCCAGATAATAATAGCTATACAAACA-3′
Primer REV5′-TGAATAGACAGACAACAGATAAATGAGACA-3′
Probe5′-6FAM-ACCCTGATCAGCCTTTCCATGGGTTAAG-TAMRA-3′
No DSBPrimer FW5′-ATTGGGTATCTGCGTCTAGTGAGG-3′
Primer REV5′-GACTCAATTACATCCCTGCAGCT-3′
Probe5′-6FAM-TCTCTGCACAGACCGGCTTCCCTTC-TAMRA-3′
Table
Table 3. A list of the siRNAs used in this study.
Table 3. A list of the siRNAs used in this study.
siRNA NamesiRNA Sequence
TRIP13 mRNA-specific-sense5′-GCA AAU CAC UGG GUU CUA C-3′
TRIP13 mRNA-specific-antisense5′-G UAG AAC CCA GUG AUU UGC-3′
GL25′-CGUACGCGGAAUACUUCGA=UU-3′
5′-UCGAAGUAUUCCGCGUACG=UU-3′
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Jeong, H.; Wie, M.; Baek, I.-J.; Sohn, G.; Um, S.-H.; Lee, S.-G.; Seo, Y.; Ra, J.; Lee, E.A.; Kim, S.; et al. TRIP13 Participates in Immediate-Early Sensing of DNA Strand Breaks and ATM Signaling Amplification through MRE11. Cells 2022, 11, 4095. https://doi.org/10.3390/cells11244095

AMA Style

Jeong H, Wie M, Baek I-J, Sohn G, Um S-H, Lee S-G, Seo Y, Ra J, Lee EA, Kim S, et al. TRIP13 Participates in Immediate-Early Sensing of DNA Strand Breaks and ATM Signaling Amplification through MRE11. Cells. 2022; 11(24):4095. https://doi.org/10.3390/cells11244095

Chicago/Turabian Style

Jeong, Hyeongsun, Minwoo Wie, In-Joon Baek, Gyuwon Sohn, Si-Hyeon Um, Seon-Gyeong Lee, Yuri Seo, Jaesun Ra, Eun A Lee, Shinseog Kim, and et al. 2022. "TRIP13 Participates in Immediate-Early Sensing of DNA Strand Breaks and ATM Signaling Amplification through MRE11" Cells 11, no. 24: 4095. https://doi.org/10.3390/cells11244095

APA Style

Jeong, H., Wie, M., Baek, I.-J., Sohn, G., Um, S.-H., Lee, S.-G., Seo, Y., Ra, J., Lee, E. A., Kim, S., Kim, B. G., Deshpande, R. A., Paull, T. T., Han, J. S., Kwon, T., & Myung, K. (2022). TRIP13 Participates in Immediate-Early Sensing of DNA Strand Breaks and ATM Signaling Amplification through MRE11. Cells, 11(24), 4095. https://doi.org/10.3390/cells11244095

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
