Agronomy 2019, 9(2), 109; https://doi.org/10.3390/agronomy9020109

Article
Optimizing the Sowing Date and Irrigation Strategy to Improve Maize Yield by Using CERES (Crop Estimation through Resource and Environment Synthesis)-Maize Model
1
College of Water Resources and Architectural Engineering, Northwest A&F University, Yangling 712100, China
2
Key Laboratory of Agricultural Soil and Water Engineering in Arid and Semiarid Areas, Ministry of Education, Northwest A&F University, Yangling 712100, China
3
Nuclear Institute for Agriculture & Biology, Faisalabad 38000, Pakistan
4
Department of Soil and Physical Sciences, Lincoln University, Canterbury 85084, New Zealand
5
Department of Agronomy, University of Agriculture, Faisalabad 38040, Pakistan
6
Department of irrigation and drainage, University of Agriculture Faisalabad, Faisalabad 38000, Pakistan
*
Author to whom correspondence should be addressed.
Received: 26 January 2019 / Accepted: 20 February 2019 / Published: 25 February 2019

Abstract

:
Summer maize (Zea mays L.) is a widely cultivated crop in the arid and semi-arid Guanzhong region of China. However, due to the spatial and temporal variation in rainfall, the seasonal maize yield varies substantially and occasionally is not economical for poor farmers to produce. Recent water-saving agricultural practices were developed by the government to make it possible to apply supplementary irrigation at optimum sowing dates to maximize maize production under limited rainfall in the region. CERES (Crop Estimation through Resource and Environment Synthesis)-maize model was used to identify the appropriate irrigation strategies, crop growth stages and sowing dates for sustainable maize production. Model calibration process were carried out for full irrigation treatments of four growing seasons, (2012–2015). The data used for calibration included: Crop phenology, grain yield, aboveground biomass and leaf area index. The calibration phase model showed good agreement between simulated and observed values, with normalized root mean square error (nRMSE) ranging from 4.51% to 14.5%. The performance of the calibrated model was evaluated using the field data of grain yield, aboveground biomass, leaf area index and water use efficiency. The performance of the model during evaluation was satisfactory with acceptable nRMSE error ranging from 7% to 10%. Soil moisture content was evaluated for full irrigation treatments for both 2012 and 2013 seasons. With results showing that soil moisture content below 35 cm layer was well simulated with nRMSE, 0.57 to 0.86 respectively. Appropriate simulated sowing dates for higher production and water productivity were from 14 to 24 June. The proper amount and timing of irrigation water application was 100 mm at the flowering stage, and 100 mm at the grain filling stage respectively. Summer maize yield can be improved by adjusting the sowing date and applying supplementary irrigation when precipitation cannot meet the crop water demand in the Guanzhong Plain.
Keywords:
CERES-maize; Summer maize; Sowing date; Irrigation strategy; Guanzhong Plain

1. Introduction

The scarcity of water resources is one of the major challenges in the world, particularly for the main fresh water consumer, i.e., agriculture. In the context of the increasing shortage of water resources, improving crop water productivity (producing more crop per drop) will contribute to alleviating the water crisis, especially in arid and semi-arid regions [1]. In the Guanzhong region, water resources are limiting for crop growth and are mainly dependent on monsoon precipitation, where above 60%–70% of the precipitation comes in around June and August. This is not an appropriate time to meet water demands from a corn crop [2]. With the variability and uneven distribution of precipitation in China [3], the rainfall pattern is also irregular in the Guanzhong plain [4]. This insufficient and irregular rainfall generally results in water scarcities and droughts. Therefore, water scarcities and uneven rainfall distribution are the primary limitations on the growth of agriculture in northwest China. In the arid and semi-arid region, the farmers can apply supplementary irrigation at different crop growth stages to fulfill the deficiency of rainfall and avoid the effects of water stress on the plants. Irrigation scheduling based on supplementary irrigation can increase grain yield under scarce water conditions [5,6,7]. Supplementary irrigation provides the required amount of water at different crop growth stages to reduce the impacts of water shortage on plants. However, irrigation planners have no precise methodology to determine the amount of irrigation water to apply at which specific crop stage. Previous studies showed that supplementary irrigation amount was selected based on previous experiences. Currently this practice has been replaced by crop system models to improve the estimation of irrigation amount.
Many crop system models have been developed, such as FAO Aqua Crop model [8], Crop System [9], APSIM (Agricultural Production Systems Simulator) [10], RZWQM (Root Zoon Water Quality Management) [11], and DSSAT (Decision Support System for Agro-Technology Transfer) [12]. These crop system models have been used for the simulation of agriculture practices, with DSSAT widely used in the world for the simulation of biomass and grain yield production. CERES-maize model [13,14,15] included in DSSAT is a multi-purpose model that has been used to evaluate crop growth and development, such as phenology (mainly anthesis and physiology maturity dates), biomass production and yield [12]. CERES-maize model predicts yield and soil moisture at different depths accurately under full irrigation treatments [16,17,18,19,20]. CERES-maize model has also been used for determining optimum sowing dates using long term weather data and for yield prediction under different climate scenarios [21,22,23,24], and yield prediction response to the variability of climate [25,26,27]. DSSAT has been extensively used for multiple purposes in some regions of China, such as Northeast China, [28], in Northern China [29] and in Northwest China [30,31].
There are no studies conducted in the Guanzhong region of northwest China for maize crop production using the irrigation strategy scenario and sowing date under different climatic condition. Thus, it is necessary to identify the irrigation strategy, critical crop growth stages and sowing date under the variation of precipitation amount during the growing season for securing crop productivity. In this area, the main aim is to reduce crop water stress and improve agricultural production by employing supplementary irrigation. The objectives of this study were thus (1) to calibrate and evaluate the CERES-maize model in the Guanzhong Plain. (2) to determine the optimum sowing date, crop growth stages and irrigation amount to improve maize yield under rain-fed and irrigation conditions using the CERES-maize model.

2. Materials and Methods

2.1. Field Experiment

The experiment was conducted at the Key Laboratory of Agricultural Soil and Water Engineering (Figure 1) (34°18′ N, 108°24′ E, 506 m above sea level), Northwest A&F University, Yangling, Shaanxi Province, China. The study area is in a sub-humid to a semi-arid climate zone with a mean annual temperature of 12.9 °C and a mean annual maximum and minimum air temperatures of 40 °C and −17.4 °C, respectively. The total annual sunshine duration was 2196 h, with annual precipitation of 548 mm. Daily maximum and minimum air temperature (°C), precipitation (mm d−1), and sunshine hours for years 2012 to 2015 were obtained from the Yangling meteorological station (Figure 2a), which is located beside the field experimental site. Historical weather data (1961–2011) was collected from the Chinese meteorological administration [32] against the weather station Wugong, located beside the research station (Figure 2b).
The soil properties were determined by collecting the soil samples from the different locations of the experimental plots at five soil depths between 0 and 250 cm depth.
The soil was a brown loess loam, with on an average 26% sand, 51% silt and 23% clay content. Average soil bulk density was 1.36 g cm−3, average phosphorus (P) was 0.016%, average potassium (K) was 1.46%, and average nitrogen (N) was 0.056%. The average field capacity (FC) and permanent wilting point (PWP) of the root zone soil profile were 27.9% and 12.7%, respectively. Further detail of soil properties information is mentioned in Table 1.

2.2. Crop Management and Irrigation

The Maize cultivar Wuke-02 that is commercially cultivated in the area was used in the experiments. Crop sowing during 2012, 2013, 2014 and 2015 growing season were carried out on 19th, 23rd, 20th, and 15th of June respectively. The seeding density was six plants m−2 with row spacing of 50 cm. The dimensions (length × width × depth) of the experimental plot are 3.0 m × 2.2 m × 3.0 m. According to the local agricultural management, 180 kg N ha−1 and 120 kg P2O5 ha−1 were applied during crop planting.
The experiment was performed under moveable rainfall out shelter. Large weighing lysimeter (3 m × 2.2 m ×3 m) fitted with data loggers were installed in experimental plot to measure crop evapotranspiration (ETc) (with precision of 0.021 mm) (Figure 3). Soil and crop management conditions in the lysimeter were similar to other experimental plots. The ETc from the lysimeter was measured on hourly basis and then added to get the daily value. The irrigation was scheduled when soil moisture content of the lysimeter dropped to 65% of field capacity. The lysimeters received the full irrigation (CK), whereas other irrigation treatments received, i.e., 80% and 60% of the CK full irrigation which represents a moderate and severe soil moisture deficit condition. The flood irrigation method was used in this study. However, irrigation application was carried out with pump fitted with flow meter to ensure the same quantity of irrigation application applied to each experimental plot. Nine deficit irrigation treatments were designed with three replicates for experiments in 2012 and 2013 using the partial orthogonal experimental design method. The design scheme and irrigation amount are specified in Table 2a,b.

2.3. Water Use Efficiency

Water use efficiency calculated by a given formula
W U E = Y E T c
where, WUE is defined as (Y) grain yield (kg ha−1) per unit seasonal crop evapotranspiration ETc (mm). Seasonal crop evapotranspiration calculated for every irrigation treatment using water balance approach [33], which was analyzed seasonally and annually using the following equation
E T c = I + P R D ± Δ S
where I is the irrigation amount (mm), P is precipitation (mm), R is the surface runoff (mm), which was considered negligible, due to the cemented boundary constructed on each side of plot for the remote rainfall shelter experiment, D is the downward flux below the crop root zone (mm), which was ignored because the bottom of each plot was waterproofed in the rain-out shelter, and ΔS is the change in soil water storage (mm).

2.4. Field Measurements

Plant leaf area index was determined by using the SunScan-SS1 canopy analyzer (Delta-T Company, Burwell, Britain). Leaf area measurements were made eight times during the growing season at different growth stages. For each irrigation treatment phenology was recorded by visiting the fields four times a week. The emergence phase was observed by the visual number of plant leaf in the field. Emergence, anthesis, and maturity stages were noted in the form of the day of the year. Data on grain yield and aboveground biomass at maturity was also collected. All the cobs from each treatment plot were harvested at maturity, air dried and threshed to obtain the grain yield. Finally, yield was converted kg ha−1. For aboveground biomass, all the plants were harvested closer to the ground and fresh weight was measured. Sub samples was taken and dried at 75 °C for 48 h to get the dry aboveground biomass. Soil moisture content was determined by Theta Probe ML2x (Delta-T Devices Ltd., Cambridge, UK) installed at different soil depths from 0–250 cm.

2.5. CERES-Maize Model Description and Calibration

In the present study, the CERES-maize crop simulation model (CSM) was used, which is part of the Decision Support System for Agro Technology Transfer (DSSAT) Version 4.6 [34]. DSSAT models can simulate the growth of 30 different crops [12,35,36]. The model takes the input, which includes cultivar type with specific coefficients, [12], weather data on a daily basis, soil property information, initial soil conditions, agronomic practices, including planting density and planting dates among others. The basic crop data, emergence, anthesis and physiological maturity dates, leaf area index, final grain yield and aboveground biomass, were selected from the full irrigation treatment (CK) during the four growing seasons of 2012, 2013, 2014 and 2015 for model calibration and the estimation of cultivar coefficients of the maize crop. DSSAT-GLUE (generalized likelihood uncertainty estimation) [37] package was used to determine the genetic coefficient for summer maize Wuke-02. GLUE tool was run 3000 times to obtain the best cultivar coefficient. If these coefficients are not satisfied with the result of simulated and observed values, then trial and error method [38] was used to improve the simulation results, based on statistical indices (R2, RMSE, nRMSE and d-index).

2.6. Statistical Model Evaluation

The performance and evaluation of the DSSAT model was evaluated using the remaining irrigation treatments (T2–T9) during the 2012–2013 growing season. In this study the evaluation of the model was generally determined by different statistically analysis R2, d-index value [39], and (nRMSE) normalized root mean square error between simulated and observed data.
d = 1 [ i = 1 n ( P i O i ) 2 i = 1 n ( | P i | + | O i | ) 2 ] ,   0 d 1
where, n = number of observations,   P i   = predicted value for the ith measurement, O i = observed value for the ith measurement,   O   ¯ = the overall mean of observed values, P i = P i O ¯ and O i = O i   O ¯ . The normalized root mean square error (nRMSE) calculated by using the following equation
n R M S E = R M S E × 100 O ¯
where RMSE = root mean square error, which was calculated by using the following equation:
R M S E = i = 1 n ( P i O i ) 2 n
Higher d-index value and the lower nRMSE value indicated a good fit between the simulated and observed data.
Generally criteria of nRMSE are categorized in four standards for understanding relationship between simulation and observed data: nRMSE < 10% was considered excellent, 10% < nRMSE< 20% was considered good, 20% < nRMSE < 30% was considered fair, and nRMSE > 30% was considered poor [40].

2.7. Crop Cultivar Coefficient

In this study, the calibration of six cultivar coefficients obtained from the GLUE program for maize cultivar Wuke-02 are described in Table 3. P1: Degree days (base: 8 °C) from emergence to end of the juvenile phase, P2: Photoperiod sensitivity coefficient (0–1.0), P5: Degree days (base 8 °C) from silking to physiological maturity, G2: Potential kernel number, G3: Potential kernel growth rate mg/(kernel day), PHINT: Degree days required for a leaf tip to emerge (phyllochron interval) (degree days). The cultivar coefficient values are in the ranges found in different studies of maize crop [29,41].

2.8. Scenario Simulation

2.8.1. Optimum Sowing Date Treatments

The seasonal program was used to simulate the grain for different sowing dates [42]. The seasonal analysis was conducted using the long-term 55-year climatic data (1961 to 2015), with different crop parameters, such as crop management data, cultivar, fertilizer application rates and others to analyze the grain yield for multiple sowing dates. In this study, the purpose of seasonal analysis is to determine the best sowing date in response to different irrigation strategy scenario in Guanzhong plain climatic condition. Sowing dates were selected from 19 May to 28 July with 10 days intervals for the analysis of suitable sowing date. Box plots were used for the representation of simulation results.

2.8.2. Irrigation Strategy

The adjustment of irrigation treatments was based on the different crop growth stages emergence, flowering, grain filling, and physiology maturity stage with different irrigation treatments. Six irrigation scenarios with different combinations of crop growth stages were carried out in the simulation: Rain-fed, single irrigation, double irrigation, triple irrigation, quadruple irrigation and automatic irrigation. Each irrigation contained 100 mm of water, and automatic irrigation was 80% of the deficit level (Table 4). Crop management practices in the simulation option were kept as standard practice in the local field.

3. Results and Discussion

3.1. Calibrated Parameters Output

The different parameters of the full irrigation treatment (CK) simulated during the calibration of the model under the growing seasons from 2012–2015 and its comparison with the observed values can be found in Table 5. The simulation period of emergence to the observed period was not different. The simulated anthesis date had a slight difference ranging from 1–3 days from the observed period with relative absolute error (RAE) <1.3% and maturity date prediction varying between 1–6 days and a percent error from 0.72 to 2.11%. Simulated result of grain yield, aboveground biomass and leaf area index were in good agreement to the observed grain yield. Calibrated results are in line with the results reported by [17].

3.2. Model Simulation Evaluation

3.2.1. Grain Yield and Aboveground Biomass

The performance of the CERES-maize model was evaluated by comparison between simulated and observed grain yield and aboveground biomass under different irrigation treatments (T2–T9) (Figure 4). The observed yield ranged from 5600 to 9300 kg ha−1 during the 2012 and 2013 growing seasons respectively. The statistical analysis indicated that RMSE of simulated and observed grain yield was 970 kg ha−1, with nRMSE = 9.91%, d = 0.80, and R2 was 0.62 respectively. Aboveground biomass at maturity showed good agreement between simulated and observed data with RMSE = 1500 kg ha−1, nRMSE = 9.6% and d-index = 0.82. The range of observed data of aboveground biomass was between 12,610 and 18,910 kg ha−1. Simulated grain yield and aboveground biomass results are similar to the result obtained by [29,43]. The purpose of this evaluation was to investigate how the model predicts the effects of different irrigation treatments on the measured data of yield and aboveground biomass. The good fit between observed and simulated values results showed that the CERES-maize model could successfully simulate and predict the performances of yield and biomass for the different irrigation treatments.

3.2.2. Soil Moisture Content

The CERES-maize Model was also used to simulate and predict the effects of full irrigation of 2012 and 2013 growing seasons on soil moisture contents at different soil depths (0–23 cm, 23–35 cm, 35–95 cm and 95−120 cm). The performance of the CERES-maize model for soil moisture content ranged from moderate to good for the two growing seasons (Figure 5). Results showed that the top soil layer (0–35 cm) and lower soil layers (35−120 cm) had nRMSE from 25.6% to 51% and nRMSE from 8.8% to 13.61% in both season 2012 and 2013, respectively. The d values for the two seasons were 0.57 to 0.86 for lower soil depth and 0.37 to 0.79 for top soil depth. Soil moisture content was well simulated for the growing season in 2012 in comparison to the 2013 growing season. Simulated soil moisture content showed a good relationship with observed soil moisture contents for lower soil depths compared to the top depth, as reported in previous studies [40,44]. Overall, similar studies showed that CERES-maize model can accurately simulate soil moisture content at different soil layers.

3.2.3. Leaf Area Index

The performance evaluation of the CERES-maize model for the LAI (Leaf Area Index) was made by using the 16 limited irrigation treatments (T2–T9) of 2012 and 2013 growing season (Figure 6). Observed and simulated leaf area index is in good agreement with nRMSE at 15% and 19%, for growing season 2012 and 2013, respectively. Simulation of LAI in the initial growing season is very close to observed LAI, from 50 days after sowing. It appeared that differences between simulated and observed slightly increased for both growing seasons. Model prediction for maximum LAI for the whole growing season is under-estimated. However, the underestimation is less in 2012 compared to 2013. This was discussed earlier by [29], who observed LAI being greater than simulated. Model results showed that LAI reduced during the growing season under limited irrigation treatments. Our results are consistent with a previous study conducted using CSM-CERES-maize model [18,23,45] which proposed that non-stress irrigation treatment’s LAI was comparatively better than stress irrigation treatment’s LAI for specific environments.

3.2.4. Water Use Efficiency

Simulated and measured water use efficiency (WUE) for the 2012 and 2013 growing seasons examined and showed a goodness of fit with nRMSE of 6% and 7%, respectively. The values of simulated WUE for full irrigation are very close to the observed value of WUE in both growing seasons as was previously reported [46]. Water use efficiency for full irrigation was reasonably simulated as compared to limited irrigation. Water use efficiency simulated and observed for 2013 growing season was higher in the deficit irrigation (T3), as compared to the non-stressed irrigation (T1) [46]. Simulated WUE for (T1) in both 2012 and 2013 growing seasons had similar results compared to the irrigation treatments (T4) and (T5) WUE respectively, indicating that deficit irrigation could raise the WUE (Table 6).

3.2.5. Optimum Sowing Date

The application of seasonal analysis of the CERES-maize model indicated that grain yield was affected by the different irrigation strategies and planting dates at different crop growth stages. Simulated seasonal grain yield results summarized in Figure 7 showed that under all scenarios of irrigation strategy, changing sowing date from 15 May to 4 June resulted in increased yield from 3750 to 8750 kg ha−1, but with a lower median yield compared to sowing dates between 14 to 24 June which had highest median yield ranged 6000 to 10,500 kg ha−1. Delayed sowing dates from 24 June showed decreasing yields, with lower median a yield than the median yield of earlier sowing dates. In this region sowing dates were recommended on the basis of local farmer’s field knowledge for several years without considering local climate conditions. The finding of this study showed that variations occurred between locations and irrigation strategies with respect to optimum sowing dates and climate conditions.

3.2.6. Irrigation Strategy

After confirming the optimum sowing date of 24 June, further analysis was conducted by splitting the crop growing period on the basis of precipitation quantity P < 200 mm, 200 mm< P < 300 mm, 300 mm < P < 400 mm and P > 400 mm (Figure 8) using the long-term historical weather data. The purpose is to determine the best-growing stages for the appropriate amount of irrigation application during the entire crop growing season. Maize grain yield increased with increasing supplementary irrigation amount in the four growing period precipitation quantity scenarios.
The rain-fed yield ranged from 5600 to 7600 kg ha−1 in all four growing seasons (Figure 9). The application of single irrigation (100 mm) at emergence and flowering stages considerably increased yields from 6600 to 9650 kg ha−1 and 7800 to 9800 kg ha−1 respectively. While, the grain yield was not increased at grain filling and maturity stage as compared to irrigation applied at emergence and flowering stage. In the grain filling and maturity stage irrigation scenario, the crop may remain under stress, due to the interval of irrigation prolonged compared to the emergence and the flowering stage. In the double irrigation (I7) scenario, in which irrigation was applied 100 mm at the flowering stage and 100 mm at the grain filling stage, the yield was between 9680 and 10,900 kg ha−1.
In addition, irrigation scenario (I7) yield was significantly different from the three irrigation (300 mm) and four irrigation application (400 mm) scenario. Double irrigation treatment (I7) (200 mm) is more beneficial for obtaining higher yield compared to scenarios of higher irrigation (I9, I10 and I11). The median yield analysis carried out using the historical weather data of 55 years (1961–2015) showed that there was not much difference in yield from double irrigation scenario (I7) than full irrigation application (Figure 7). These results show that the application of irrigation has an important impact on grain yield under the limited availability of irrigation water in the Guanzhong Plain. If irrigation water resources are limited, then it is essential to consider these two stages (flowering and grain filling) for irrigation application during the crop growth season. These two stages are more critical during the growing season. When irrigation is not applied at these two stages of crop growth, plant stress and low yield are the result (Figure 9) [47]. Our results are in agreement with these findings.

3.2.7. Seasonal Water Use Efficiency

Simulated water use efficiency (WUE) was determined by dividing grain yield with seasonal evapotranspiration (ETc) in the different irrigation strategy scenarios (I1–I12). When the growing seasons were classified on the basis of precipitation (P < 200 mm, 200 mm < P < 300 mm, 300 mm < P < 400 mm and P > 400 mm) using historical weather data (1961 to 2015), the response of water use efficiency to irrigation treatment varied. In comparison, of single irrigation treatments (I2, I3, I4, I5), water use efficiency of 24.35 kg ha−1 mm−1 in irrigation treatment (I3) at flowering stage is higher compared to the rain-fed (I1) water use efficiency 20 kg ha−1 mm−1, which was between the other single irrigation treatments (I2, I4, I5) in all four growing periods. (Figure 10) In the double irrigation treatment, the growing season had significantly higher WUE than all other irrigation treatments. In the full irrigation treatments I10 and I11, WUE is lower and produced yields that were higher, resulting in higher water use compared to double irrigation (I7). Summer maize WUE was found to increase with deficit irrigation in southern Taiwan [48]. This study is in agreement with the study of Kird [49] who stated that water productivity can be increased by reducing the number of irrigation applications.

4. Conclusions

CERES-maize model proposed that early and delayed sowing date from 24 June is not beneficial for maximum yield production. The model simulation for optimum time and irrigation amount was carried out with different irrigation scenarios at different growth stages resulting in the optimum timing of irrigation application. This is during the flowering and grain filling period with optimum irrigation amount of 200 mm during the crop growing season. It is important for the crop to have access to water during these two stages as lower irrigation or precipitation leads to crop stress. Two irrigation applications for these crop growth stages are essential and could lead to the similar yield obtained from 3 or 4 irrigation applications that have no crop stress. The long-term simulation of water use efficiency is higher in a single irrigation of 100 mm at the flowering stage and also higher in two irrigation application when applied 100 mm at the flowering stage and 100 mm at grain filling stage.
Overall, the application of the CERES-maize model demonstrated that the negative effects of less rainfall or water availability on the agricultural production can be controlled by the systematic consideration of critical crop growth stages, sowing date and amount of irrigation water. Furthermore, this study serves to improve our understanding of how different irrigation strategies can be used to optimize sowing date, crop growth stages and maize yield within the region.

Author Contributions

Conceptualization, H.C. (Huanjie Cai), Q.S. and H.C. (Hui Chen); Writing—Original Draft Preparation, Q.S.; Writing—Review and Editing, W.I., M.U.C., M.U.H., H.W.C.; Data collection and analysis, Q.S., M.I.K, J.H.

Funding

This research was jointly supported by National Key Research and Development Program of China (2016YFC0400201), the National Science Foundation of China (no. 51179162),111 Project (B12007) and Chinese Government Scholarship Council.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sun, S.; Wang, P.; Engel, P. Effects of virtual water flow on regional water resources stress: A case study of grain in China. Sci. Total Environ. 2016, 550, 871–879. [Google Scholar] [CrossRef] [PubMed]
  2. Wu, Y.; Jia, Z.; Ren, X.; Zhang, Y.; Chen, X.; Bing, H.; Zhang, P. Effects of ridge and furrow rainwater harvesting system combined with irrigation on improving water use efficiency of maize (Zea mays L.) in semi-humid area of China. Agric. Water Manag. 2015, 158, 1–9. [Google Scholar] [CrossRef]
  3. Khan, M.I.; Liu, D.; Fu, Q.; Dong, S.; Liaqat, U.W.; Faiz, M.A.; Hu, Y.; Saddique, Q. Recent climate trends and drought behavioral assessment based on precipitation and temperature data series in the Songhua River basin of China. Water Resour. Manag. 2016, 30, 4839–4859. [Google Scholar] [CrossRef]
  4. Liu, H.L.; Yang, J.Y.; Ping, H.; Bai, Y.L.; Jin, J.Y.; Drury, C.F.; Zhu, Y.P.; Yang, X.M.; Li, W.J.; Xie, J.G. Optimizing parameters of CSM-CERES-maize model to improve simulation performance of maize growth and nitrogen uptake in northeast China. J. Integr. Agric. 2012, 11, 1898–1913. [Google Scholar] [CrossRef]
  5. Benjamin, J.; Nielsen, D.; Vigil, M.; Mikha, D.; Calderon, F. Cumulative deficit irrigation effects on corn biomass and grain yield under two tillage systems. Agric. Water Manag. 2015, 159, 107–114. [Google Scholar] [CrossRef]
  6. Oweis, T.; Hachum, A. Water harvesting and supplemental irrigation for improved water productivity of dry farming systems in West Asia and North Africa. Agric. Water Manag. 2006, 80, 57–73. [Google Scholar] [CrossRef]
  7. Reddy, P.P. Supplemental Irrigation, Sustainable Intensification of Crop Production; Springer: Gateway East, Singapore, 2016; pp. 253–265. [Google Scholar]
  8. Raes, D.; Steduto, P.; Hsiao, T.C.; Fereres, E. Aqua Crop the FAO crop model to simulate yield response to water: II. Main algorithms and software description. Agron. J. 2009, 101, 438–447. [Google Scholar] [CrossRef]
  9. Stockle, C.; Cabelguenne, M.; Debaeke, P. Comparison of Crop Syst performance for water management in southwestern France using submodels of different levels of complexity. Eur. J. Agron. 1997, 7, 89–98. [Google Scholar] [CrossRef]
  10. Keating, B.A.; Carberry, P.S.; Hammer, G.L.; Probert, M.E.; Robertson, M.J.; Holzworth, D.; Huth, N.I.; Hargreaves, J.N.; Meinke, H.; Hochman. An overview of APSIM, a model designed for farming systems simulation. Eur. J. Agron. 2003, 18, 267–288. [Google Scholar] [CrossRef]
  11. Cameira, M.; Sousa, P.; Farahani, H.; Ahuja, L.; Pereira, L. Evaluation of the RZWQM for the simulation of water and nitrate movement in level-basin, fertigated maize. J. Agric. Engng. Res. 1998, 69, 331–341. [Google Scholar] [CrossRef]
  12. Jones, J.W.; Hoogenboom, G.; Porter, C.H.; Boote, K.J.; Batchelor, W.D.; Hunt, L.; Wilkens, P.W.; Singh, U.; Gijsman, A.J.; Ritchie, J.T. The DSSAT cropping system model. Eur. J. Agron. 2003, 18, 235–265. [Google Scholar] [CrossRef]
  13. Jones, C.A.; Kiniry, J.; Dyke, P. CERES-Maize: A Simulation Model of Maize Growth and Development; Texas A&M University Press: College Station, TX, USA, 1986; pp. 17–39. [Google Scholar]
  14. Ritchie, J. The CERES-Maize model. CERES Maize: A Simulation Model of Maize Growth and Development; Texas A&M University Press: College Station, TX, USA, 1986; pp. 1–6. [Google Scholar]
  15. Ritchie, J.; Alocilja, E.C.; Singh, U.; Uehara, G. IBSNAT and the CERES-Rice model. Weather and Rice. 1986, 11, 17–27. [Google Scholar]
  16. Carberry, P.; Muchow, R.; McCown, M. Testing the CERES-Maize simulation model in a semi-arid tropical environment. Field Crops Res. 1989, 20, 297–315. [Google Scholar] [CrossRef]
  17. Nouna, B.; Katerji, N.; Mastrorilli, M. Using the CERES-Maize model in a semi-arid Mediterranean environment. Evaluation of model performance. Eur. J. Agron. 2000, 13, 309–322. [Google Scholar] [CrossRef]
  18. DeJonge, K.; Andales, A.; Ascough, I.I.; Hansen, N. Modeling of full and limited irrigation scenarios for corn in a semiarid environment. Trans. ASABE 2011, 54, 481–492. [Google Scholar] [CrossRef]
  19. Dogan, E.; Clark, G.; Rogers, D.; Martin, V.; Vanderlip, R. On-farm scheduling studies and ceresmaize simulation of irrigated corn. Appl. Eng. Agric. 2006, 22, 509–516. [Google Scholar] [CrossRef]
  20. Gerçek, S.; Okant, M. Evaluation of CERES-maize simulation model results with measured data using water pillow irrigation under semi-arid climatic conditions. Afr. J. Agric. Res. 2010, 5, 606–613. [Google Scholar]
  21. Braga, R.; Cardoso, M.; Coelho, J. Crop model based decision support for maize (Zea mays L.) silage production in Portugal. Eur. J. Agron. 2008, 28, 224–233. [Google Scholar] [CrossRef]
  22. Ruane, A.C.; Cecil, L.D.; Horton, R.M.; Gordón, R.; McCollum, R.; Brown, D.; Killough, B.; Goldberg, R.; Greeley, AP.; Rosenzweig, C. Climate change impact uncertainties for maize in Panama: Farm information, climate projections, and yield sensitivities. Agric. For. Meteoro. 2013, 170, 132–145. [Google Scholar] [CrossRef]
  23. Soler, C.M.T.; Sentelhas, P.C.; Hoogenboom, G. Application of the CSM-CERES-Maize model for planting date evaluation and yield forecasting for maize grown off-season in a subtropical environment. Eur. J. Agron. 2007, 27, 165–177. [Google Scholar] [CrossRef]
  24. Strzepek, K.M.; Major, D.C.; Rosenzweig, C.; Iglesias, A.; Yates, D.N.; Holt, A.; Hillel, D. New methods of modeling water availability for agriculture under climate change: The US corn belt. JAWRA J. Am. Water Resour. Assoc. 1999, 35, 1639–1655. [Google Scholar] [CrossRef]
  25. Bannayan, M.; Mansoori, H.; Rezaei, E.E. Estimating climate change, CO2 and technology development effects on wheat yield in northeast Iran. Int. J. Biometeorol. 2014, 58, 395–405. [Google Scholar] [CrossRef] [PubMed]
  26. Sultana, H.; Ali, N.; Iqbal, M.M.; Khan, A.M. Vulnerability and adaptability of wheat production in different climatic zones of Pakistan under climate change scenarios. Clim. Change 2009, 94, 123–142. [Google Scholar] [CrossRef]
  27. Yun, J.I. Predicting regional rice production in South Korea using spatial data and crop-growth modeling. Agric. Syst. 2003, 77, 23–38. [Google Scholar] [CrossRef]
  28. Lin, Y.; Feng, Z.; Wu, W.; Yang, Y.; Zhou, Y.; Xu, C. Potential Impacts of Climate Change and Adaptation on Maize in Northeast China. Agron. J. 2017, 109, 476–1490. [Google Scholar] [CrossRef]
  29. Guo, R.; Lin, Z.; Mo, X.; Yang, C. Responses of crop yield and water use efficiency to climate change in the North China Plain. Agric. Water Manag. 2010, 97, 1185–1194. [Google Scholar] [CrossRef]
  30. Ji, J.; Cai, H.; He, J.; Wang, J. Performance evaluation of CERES-Wheat model in guanzhong plain of Northwest China. Agric. Water Manag. 2014, 144, 1–10. [Google Scholar] [CrossRef]
  31. Wang, W. Optimal Irrigation Schedule for Winter Wheat in the Guanzhong Irrigation District Based on DSSAT Model; Research Center of Soil and Water Conservation and Eco-environment: Beijing, China, 2012. [Google Scholar]
  32. China Meteorological Data Service. Available online: http://data.cma.cn/data/cdcindex/cid/f0fb4b55508804ca (accessed on 29 May 2017).
  33. Allen, R.G.; Pereira, L.S.; Raes, D.; Smith, M. Crop Evapotranspiration Guidelines for Computing Crop Water Requirements-FAO IRRIGATION and Drainage Paper 56; FAO: Rome, Italy, 1998. [Google Scholar]
  34. Tsuji, G.Y.; Hoogenboom, G.; Thornton, P.K. Understanding Options for Agricultural Production; Springer Science and Business Media: Honolulu, HI, USA, 2013. [Google Scholar]
  35. Jones, J.; Keating, B.; Porter, C. Approaches to modular model development. Agric. Syst. 2001, 70, 421–443. [Google Scholar] [CrossRef]
  36. Tsuji, G.Y.; Uehara, G.; Balas, G. DSSAT version 3. International Benchmark Sites Network for Agrotechnology Transfer; Univrsity of Hawai: Honolulu, HI, USA, 1994. [Google Scholar]
  37. He, J.; Dukes, M.; Jones, J.; Graham, W.; Judge, J. Applying GLUE for estimating CERES-Maize genetic and soil parameters for sweet corn production. Trans. ASABE 2009, 52, 1907–1921. [Google Scholar] [CrossRef]
  38. Mavromatis, T.; Boote, K.; Jones, J.; Irmak, A.; Shinde, D.; Hoogenboom, G. Developing genetic coefficients for crop simulation models with data from crop performance trials. Crop Sci. 2001, 41, 40–51. [Google Scholar] [CrossRef]
  39. Willmott, C.J. Some comments on the evaluation of model performance. Bull. Am. Math. Soc. 1982, 63, 1309–1369. [Google Scholar] [CrossRef]
  40. Anothai, J.; Soler, C.; Green, A.; Trout, T.; Hoogenboom, G. Evaluation of two evapotranspiration approaches simulated with the CSM–CERES–Maize model under different irrigation strategies and the impact on maize growth, development and soil moisture content for semi-arid conditions. Agric. Forest Meteorol. 2013, 176, 64–76. [Google Scholar] [CrossRef]
  41. Adnan, A.A.; Jibrin, J.M.; Kamara, A.Y.; Abdulrahman, B.L.; Shaibu, A.S.; Garba, I.I. CERES–Maize Model for determining the optimum planting dates of early maturing maize varieties in northern Nigeria. Front. Plant Sci. 2017, 8, 1118. [Google Scholar] [CrossRef] [PubMed]
  42. Thornton, P.K.; Hoogenboom, G. A computer program to analyze single-season crop model outputs. Agron. J. 1994, 86, 860–868. [Google Scholar] [CrossRef]
  43. Dokoohaki, H.; Gheysari, M.; Mousavi, S.F.; Zand-Parsa, S.; Miguez, F.E.; Archontoulis, S.V.; Hoogenboom, G. Coupling and testing a new soil water module in DSSAT CERES-Maize model for maize production under semi-arid condition. Agric. Water Manag. 2016, 163, 90–99. [Google Scholar] [CrossRef]
  44. Thorp, K.R.; Hunsaker, D.J.; French, A.N.; White, J.W.; Clarke, T.R.; Pinter, J.R. Evaluation of the CSM-CROPSIM-CERES-Wheat model as a tool for crop water management. Trans. ASABE 2010, 53, 87–102. [Google Scholar] [CrossRef]
  45. Mubeen, M.; Ahmad, A.; Wajid, A.; Khaliq, T.; Bakhsh, A. Evaluating CSM-CERES-Maize Model for Irrigation Scheduling in Semi-arid Conditions of Punjab, Pakistan. Int. J. Agric. Biol. 2013, 15, 16–23. [Google Scholar]
  46. DeJonge, K.; Ascough, J.; Andales, A.; Hansen, N.; Garcia, L.; Arabi, M. Improving evapotranspiration simulations in the CERES-Maize model under limited irrigation. Agric. Water Manag. 2012, 115, 92–103. [Google Scholar] [CrossRef][Green Version]
  47. Igbadun, H.E.; Salim, B.A.; Tarimo, A.K.; Mahoo, H.F. Effects of deficit irrigation scheduling on yields and soil water balance of irrigated maize. Irri. Sci. 2008, 27, 11–23. [Google Scholar] [CrossRef]
  48. Greaves, G.E.; Wang, Y.M. Yield response, water productivity, and seasonal water production functions for maize under deficit irrigation water management in southern Taiwan. Plant Prod. Sci. 2017, 20, 353–365. [Google Scholar] [CrossRef]
  49. Kirda, C. Deficit irrigation scheduling based on plant growth stages showing water stress tolerance. In Deficit Irrigation Practice; Water reports 22; FAO: Rome, Italy, 2002; pp. 1–3. [Google Scholar]
Figure 1. Map location of Yangling field experiment & Wugong weather station in China.
Figure 1. Map location of Yangling field experiment & Wugong weather station in China.
Agronomy 09 00109 g001

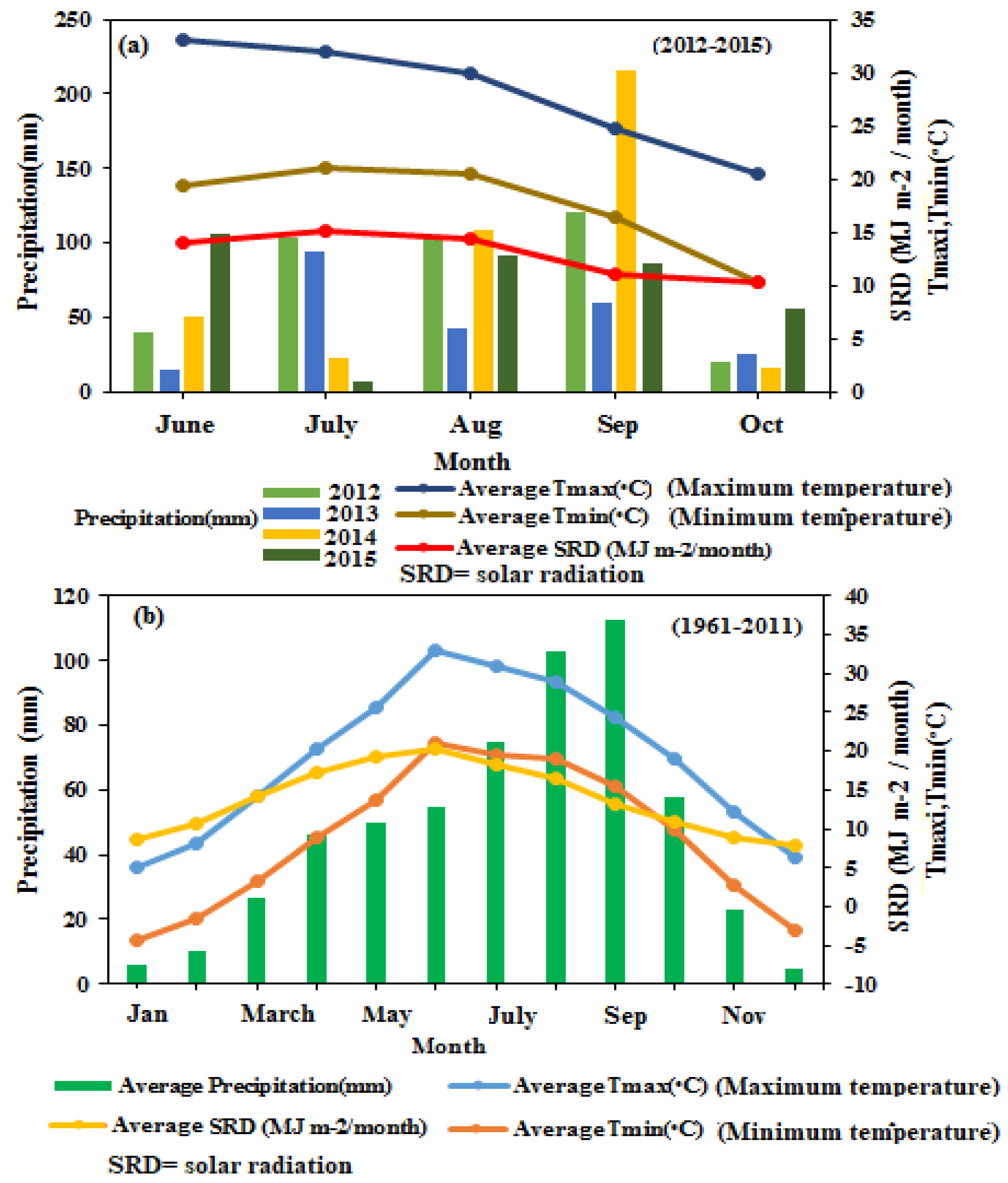

Figure 2. (a) Average monthly maximum, minimum temperature (oC) and rainfall (mm) during maize growing season (2012–2015) (b) Historical weather data (1961–2011) for Yangling, China.
Figure 2. (a) Average monthly maximum, minimum temperature (oC) and rainfall (mm) during maize growing season (2012–2015) (b) Historical weather data (1961–2011) for Yangling, China.
Agronomy 09 00109 g002

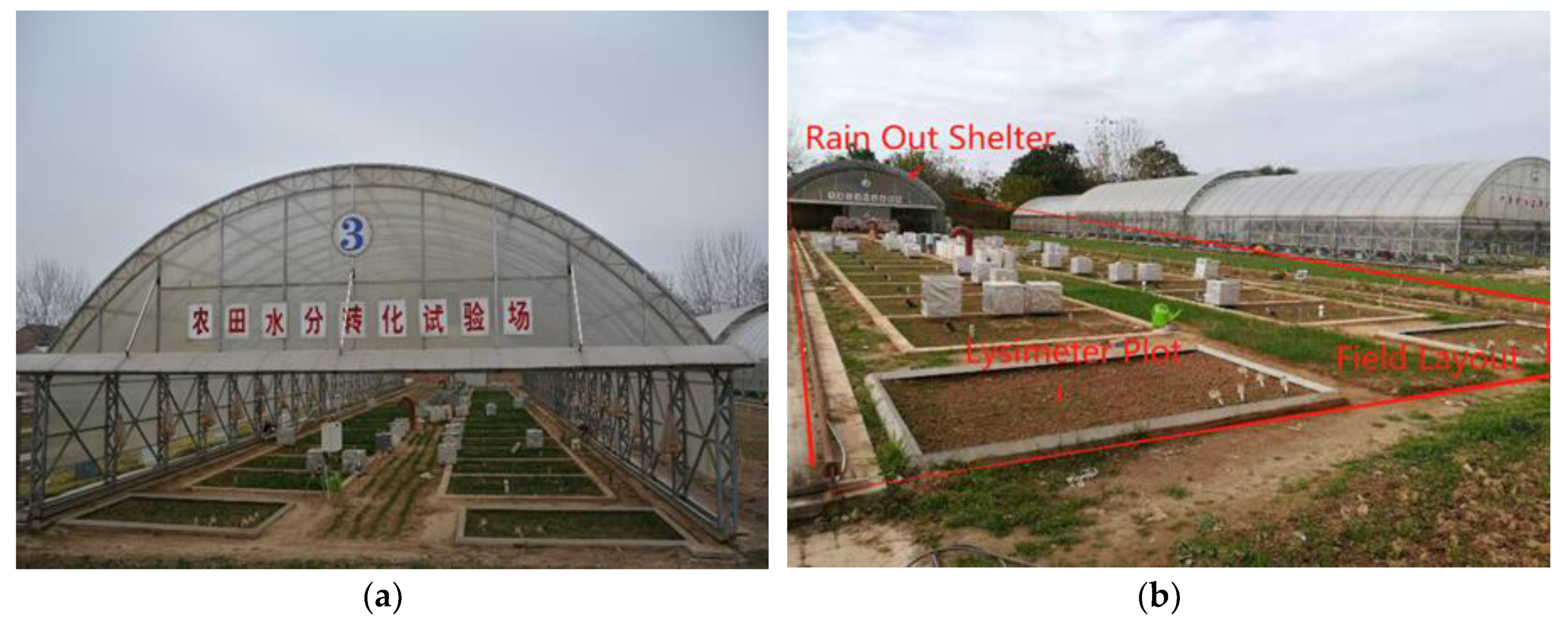

Figure 3. (ab) Field layout with and without rain-out shelter, (c) Lysimeter data recorder computer (d) Lysimeter installed structure
Figure 3. (ab) Field layout with and without rain-out shelter, (c) Lysimeter data recorder computer (d) Lysimeter installed structure
Agronomy 09 00109 g003aAgronomy 09 00109 g003b

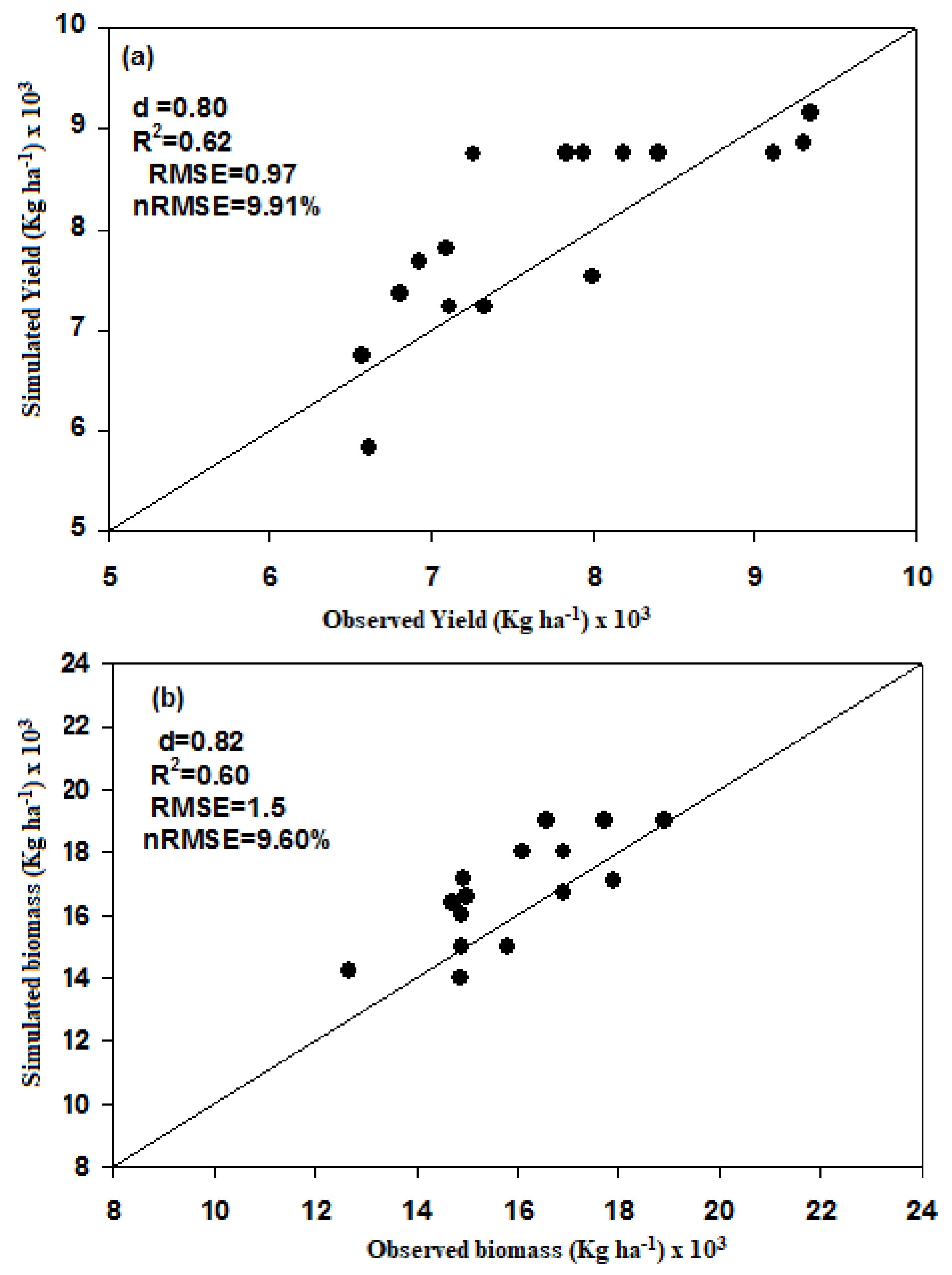

Figure 4. Comparison between simulated and observed (a) grain yield (b) aboveground biomass under different irrigation treatments for 2012 and 2013 growing season.
Figure 4. Comparison between simulated and observed (a) grain yield (b) aboveground biomass under different irrigation treatments for 2012 and 2013 growing season.
Agronomy 09 00109 g004

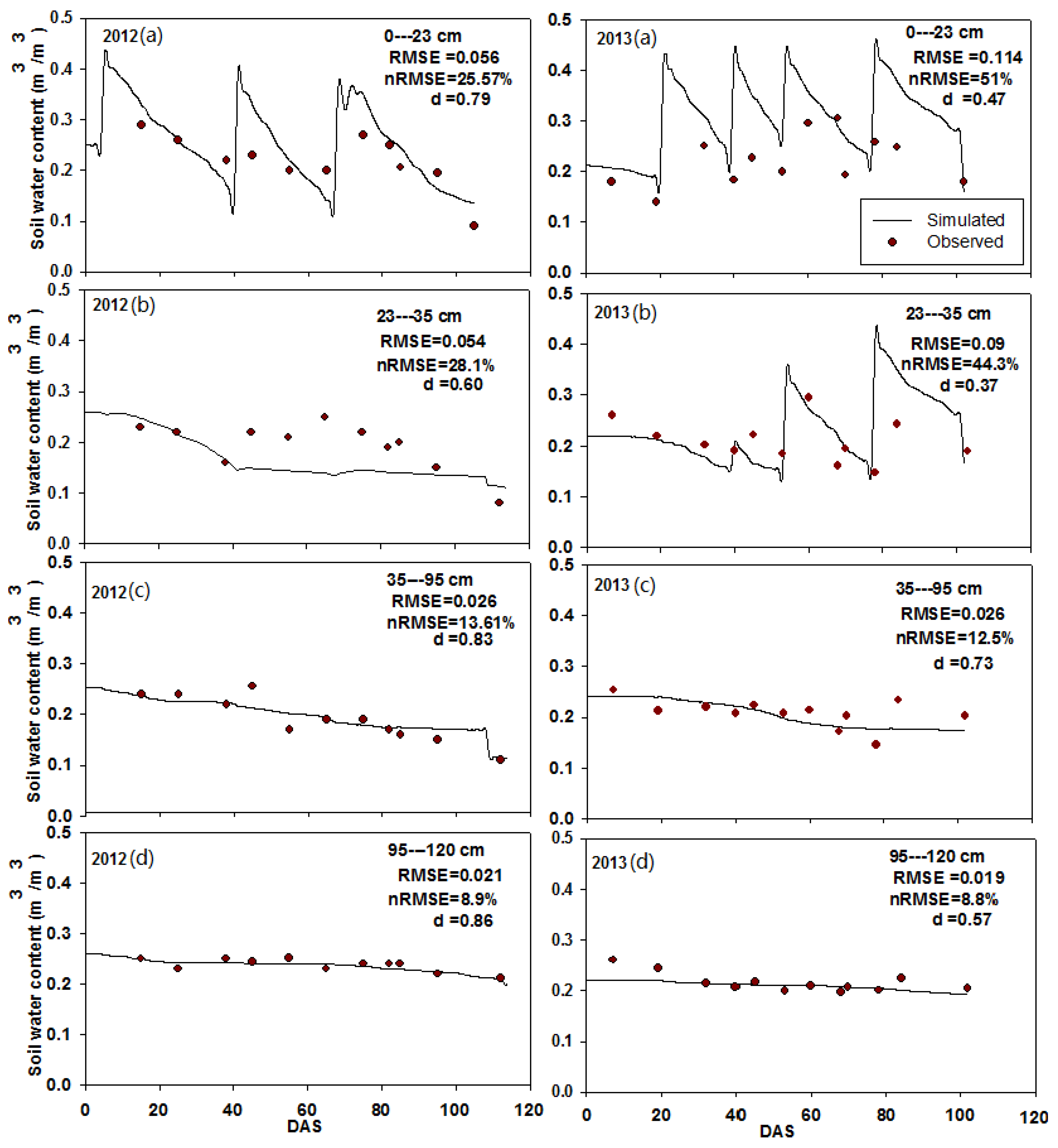

Figure 5. Simulated and observed soil moisture content at different soil depth for (ac) 2012 and (ac) 2013 growing season. DAS: Days After Sowing.
Figure 5. Simulated and observed soil moisture content at different soil depth for (ac) 2012 and (ac) 2013 growing season. DAS: Days After Sowing.
Agronomy 09 00109 g005

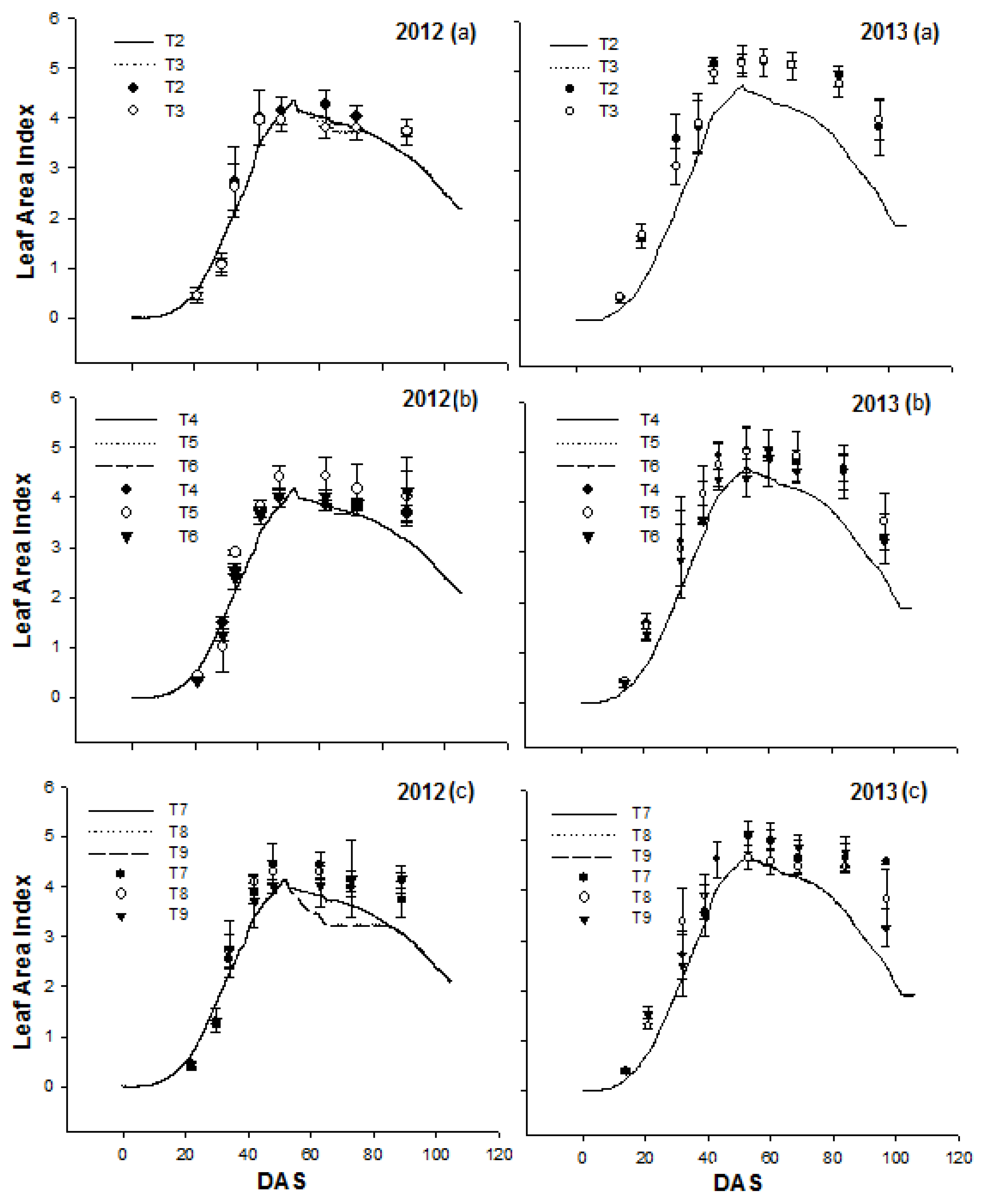

Figure 6. Simulated and observed leaf area index growing season (ac) 2012 and (ac) 2013. Horizontal bars are standard deviations DAS: Days After Sowing.
Figure 6. Simulated and observed leaf area index growing season (ac) 2012 and (ac) 2013. Horizontal bars are standard deviations DAS: Days After Sowing.
Agronomy 09 00109 g006

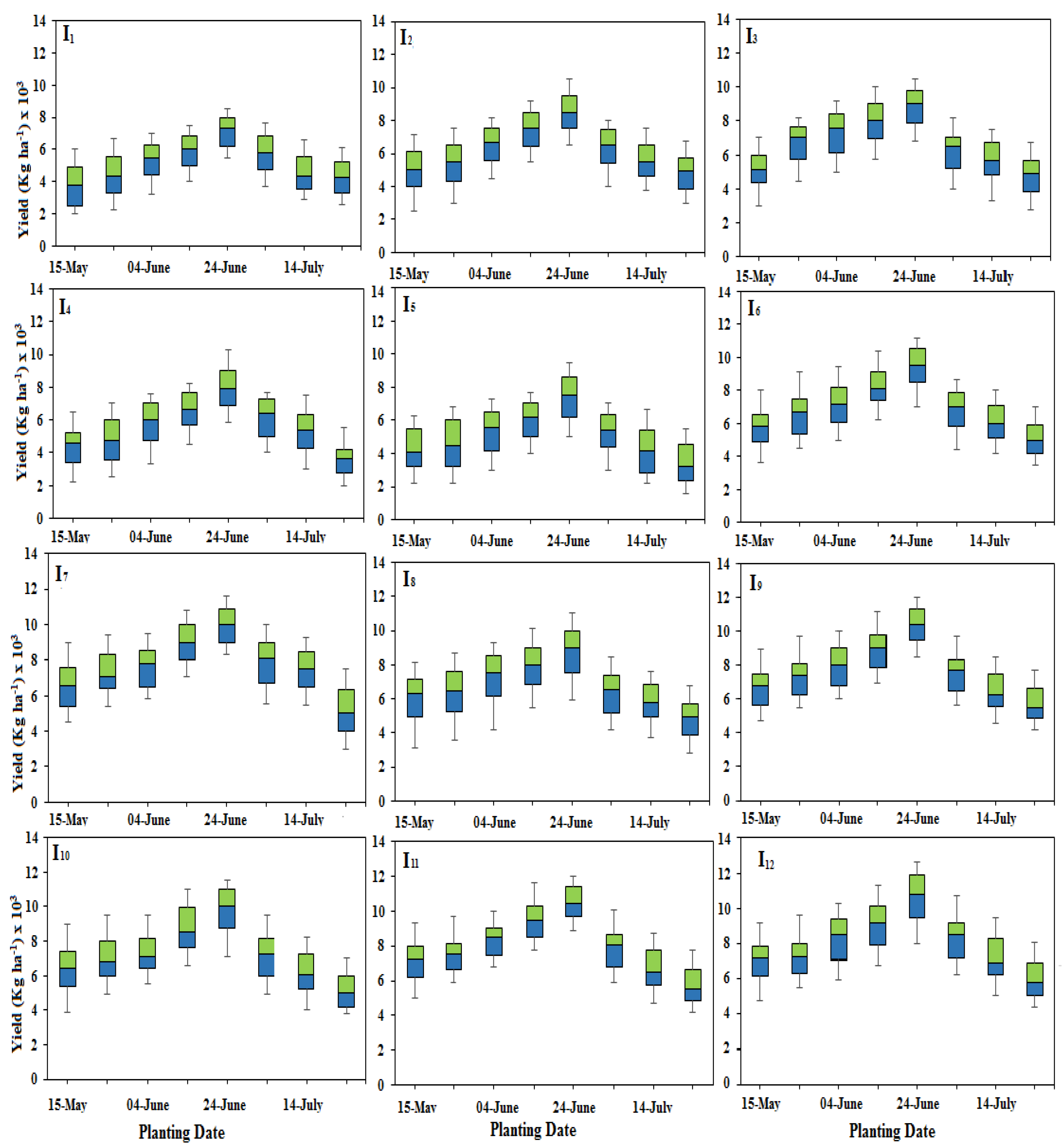

Figure 7. Simulated maize yield under different irrigation scenario (I1–I12) using historical weather data with different sowing dates.
Figure 7. Simulated maize yield under different irrigation scenario (I1–I12) using historical weather data with different sowing dates.
Agronomy 09 00109 g007

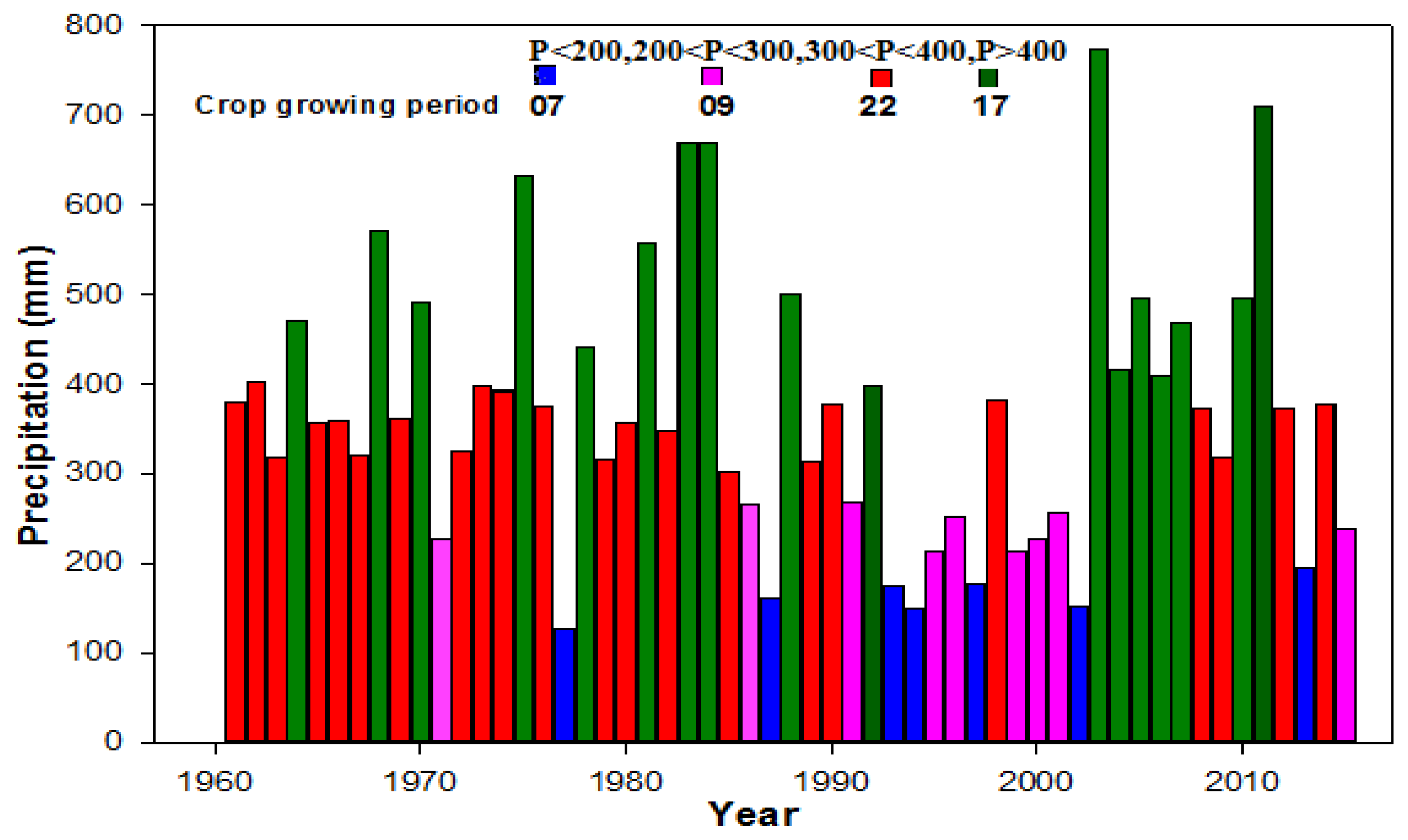

Figure 8. Summer maize crop growing period Categorized based on the precipitation quantity using the historical weather data.
Figure 8. Summer maize crop growing period Categorized based on the precipitation quantity using the historical weather data.
Agronomy 09 00109 g008

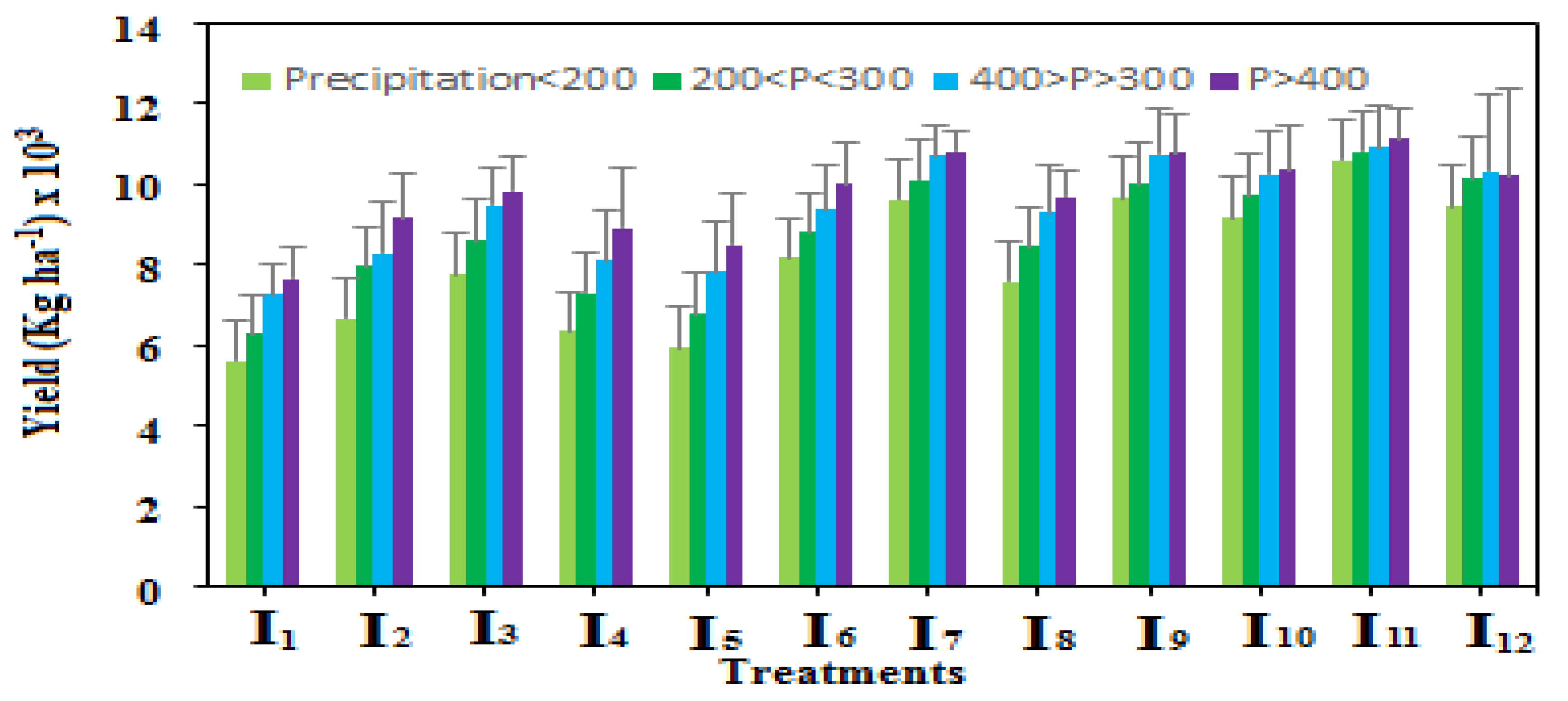

Figure 9. Simulated maize yield different irrigation scenario (I1–I12) based on the precipitation quantity using the historical weather data.
Figure 9. Simulated maize yield different irrigation scenario (I1–I12) based on the precipitation quantity using the historical weather data.
Agronomy 09 00109 g009

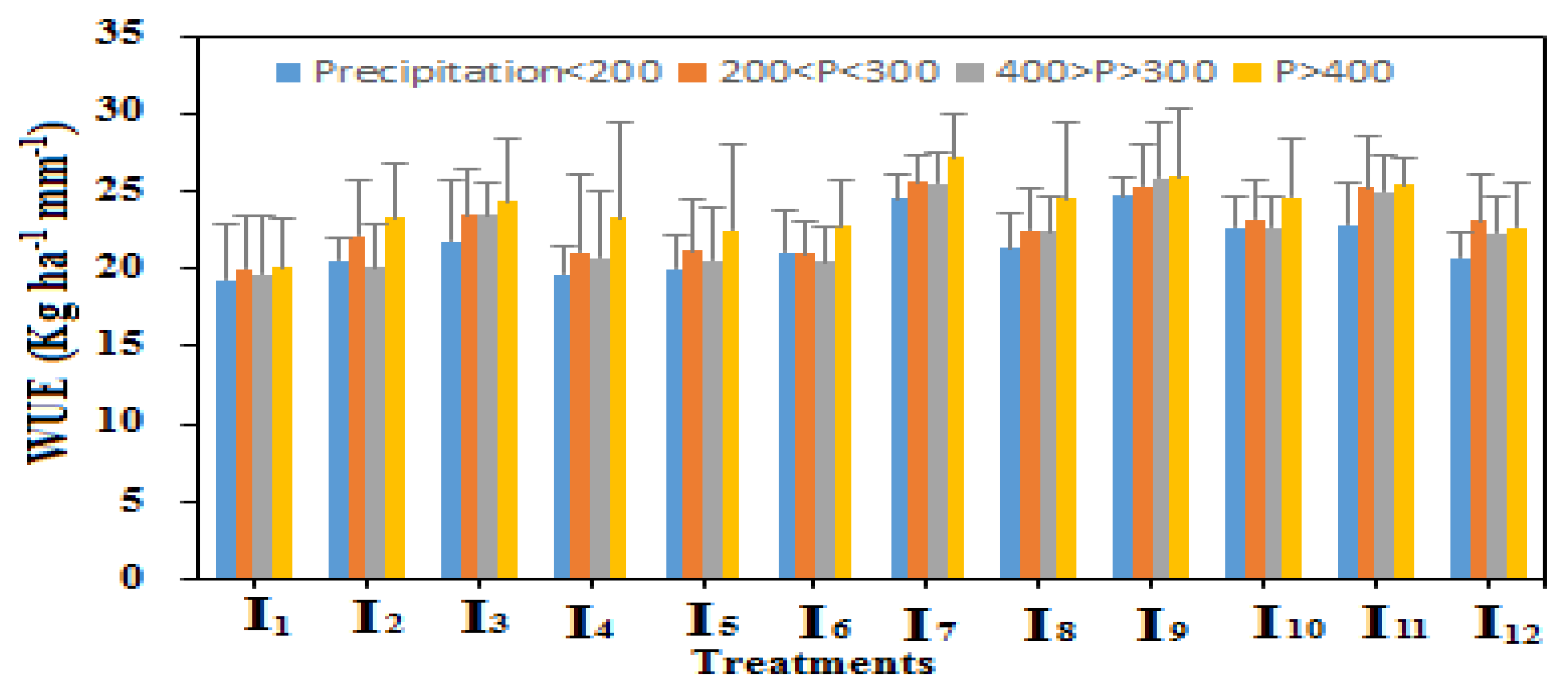

Figure 10. Simulated water use efficiency of different irrigation scenario (I1–I12) based on the precipitation quantity using the historical weather data.
Figure 10. Simulated water use efficiency of different irrigation scenario (I1–I12) based on the precipitation quantity using the historical weather data.
Agronomy 09 00109 g010
Table 1. Physical and chemical properties of the soils at five depths at the experimental site in Yangling, Shaanxi Province, China.
Table 1. Physical and chemical properties of the soils at five depths at the experimental site in Yangling, Shaanxi Province, China.
Soil PropertySoil Layers (cm)
0–2323–3535–9595–196196–250
Texturesilty clay loamsilty clay loamsilty clay loamsilt loamsilty clay loam
Sand %26.7124.9824.1121.3230.64
Silt %50.8552.7854.7548.6047.55
Clay%22.1022.1020.9030.1021.60
Bulk density, g cm−31.321.401.411.361.32
Wilting Point %10.810.912.814.514.5
Field Capacity %28.227.627.92827.8
Organic matter %1.170.650.550.640.39
Total N, % (w/w)0.090.060.050.050.03
Total P, % (w/w)0.020.020.020.010.01
Total K, % (w/w)1.741.251.201.391.75
pH8.008.208.208.208.20
Table 2. (a) Irrigation scheduling based on evapotranspiration (mm) in 2012 and 2013, growing season. (b) Total irrigation amount (mm) applied during 2012, 2013, 2014 and 2015 growing season.
(a)
(a)
Treatments20122013
23 June29 July25 August13 July8 August15 August08 September
CK1.0 a1.01.01.01.01.01.0
T21.00.8 b0.81.00.80.80.8
T31.00.6 c0.61.00.60.60.6
T40.81.00.80.81.00.80.6
T50.80.80.60.80.80.61.0
T60.80.61.00.80.61.00.8
T70.61.00.60.61.00.60.8
T80.60.81.00.60.81.00.6
T90.60.60.80.60.60.81.0
CK: Control treatment, T2–T9: Irrigation treatments a—100% of ET b—80% of ET c—60% of ET.
(b)
(b)
Treatments2012201320142015
CK175262179192
T2149220
T3123178
T4152205
T5126213
T6142211
T7129198
T8145196
T9119204
Table 3. CERES (Crop Estimation through Resource and Environment Synthesis)-maize calibrated coefficient of maize crop wuke-02 under the experiments of 2012, 2013, 2014 and 2015.
Table 3. CERES (Crop Estimation through Resource and Environment Synthesis)-maize calibrated coefficient of maize crop wuke-02 under the experiments of 2012, 2013, 2014 and 2015.
ParametersValuesDescription
P1164.6Degree days (base 8 °C) from emergence to end of juvenile phase
P20.551Photoperiod sensitivity coefficient
P5780.3Degree days (base 8 °C) from silking to physiological maturity
G2808.0Potential kernel number
G38.425Potential kernel growth rate mg/day
PHINT50.22Degree days required for a leaf tip to emerge (phyllochron interval) (degree days)
Table 4. Irrigation strategies scenario (I1–I12) simulation with CERES Maize-Model.
Table 4. Irrigation strategies scenario (I1–I12) simulation with CERES Maize-Model.
Crop Growth Stages and Irrigation Amount (mm)
Irrigation TreatmentsEmergenceFloweringGrain FillingMaturity
I1RainfedRainfedRainfedRainfed
I2100
I3 100
I4 100
I5 100
I6100100
I7 100100
I8 100 100
I9100100100
I10100100 100
I11100100100100
I12Automatic irrigation 80%Automatic irrigation 80%Automatic irrigation 80%Automatic irrigation 80%
Table 5. CERES-maize model results between simulated and observed data of full irrigation treatments for the experiments 2012–2015.
Table 5. CERES-maize model results between simulated and observed data of full irrigation treatments for the experiments 2012–2015.
ParametersYearSimulatedObservedRAE%
Emergence date (d.o.y)20121761760.00
20131791790.00
20141771770.00
20151721720.00
Anthesis date (d.o.y)2012220221−0.45
2013224225−0.44
2014219222−1.33
2015217218−0.45
Maturity date (d.o.y)2012278284−2.11
2013274275−0.36
20142762740.72
2015270273−1.09
Grain Yield (kg ha−1)2012800177003.89
2013900484007.60
2014780076002.60
201570007400−5.40
Aboveground Biomass (kg ha−1)201214,20015,500−8.38
201316,78017,800−5.73
201415,40016,100−4.3
201515,67014,710−6.52
Maximum LAI20124.344.53−4.19
20134.735.0−5.40
d.o.y: Day of the year, LAI: Leaf area index, RAE: Relative absolute error.
Table 6. Observed and simulated water use efficiency for maize crop during the 2012–2013 growing season.
Table 6. Observed and simulated water use efficiency for maize crop during the 2012–2013 growing season.
Treatments2012 Growing Season WUE (kg ha−1 mm−1)2013 growing season WUE (kg ha−1 mm−1)
ObservedSimulatedObservedSimulated
T126.425.425.926.5
T223.222.830.831.1
T320.717.534.932.4
T420.919.730.526.0
T526.125.228.825.6
T621.420.327.027.4
T721.921.228.929.2
T820.320.129.728.3
T921.818.827.025.3
T1–T9: Irrigation treatments, WUE: Water use efficiency.

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Agronomy EISSN 2073-4395 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
