Enhanced Phytoremediation for Trace-Metal-Polluted Farmland with Hibiscus cannabinus–Sedum plumbizincicola Rotation: A Case Study in Hunan, China

by
Shuaishuai Gao
1,
Yuan Guo
2,
Xueying Cao
3,
Caisheng Qiu
2,
Huajiao Qiu
2 and
Xinlin Zhao
2,*
1
Hunan Institute of Microbiology, Changsha 410009, China
2
Institute of Bast Fiber Crops, Chinese Academy of Agricultural Sciences, Changsha 410205, China
3
Rural Vitalization Research Institute, Changsha University, Changsha 410022, China
*
Author to whom correspondence should be addressed.
Agronomy 2023, 13(5), 1231; https://doi.org/10.3390/agronomy13051231
Submission received: 6 April 2023 / Revised: 20 April 2023 / Accepted: 25 April 2023 / Published: 27 April 2023
(This article belongs to the Special Issue Evaluation and Management of Heavy Metal Contamination in Agricultural Soil and Water)
Browse Figures
Versions Notes

Abstract

:
Trace metal pollution in farmland threatens the health of both crops and humans. Restoring these polluted farmlands safely and utilizing them to elevate farmers‘ incomes are extremely needed. Phytoremediation is a promising method for metal extracting but its popularization is limited by both its low efficiency and the low economic value of the plants used. Herein, a field study was conducted to investigate the potential of using a rotation with the hyperaccumulator of Sedum plumbizincicola and kenaf (Hibiscus cannabinus) for combined heavy-metal-contaminated farmland remediation. Results showed that the kenaf obtained an aerial biomass of up to 21 Mg ha−1 under combined heavy metal contaminations, which was significantly higher than that for S. plumbizincicola (<8 Mg ha−1). However, the concentrations of Cd, Cu, Pb, and Zn in S. plumbizincicola were at least 100, 2, 8, and 75 fold higher than that for kenaf, respectively. The removal of Cd, Pb, and Zn for S. plumbizincicola can be more than 3800, 720, and 104,347 g ha−1, which was at least 38, 3, and 27 times higher than that for kenaf, respectively. Finally, the removal of Cd, Cu, Pb, and Zn by rotation of the two crops was increased by 7.88%, 126%, 33.5%, and 4.39%, respectively, compared with the S. plumbizincicola monoculture. Hence, the rotation with kenaf and S. plumbizincicola can not only remove more heavy metals from the contaminated soil and accelerate the phytoremediation pace, but also can supply a large number of raw materials for industrial applications.

1. Introduction

Heavy metal (HM) pollution has long been a focus problem in the world owing to its serious toxicity to both environment and organisms [1,2,3]. Under the dual action of human activity factors and natural factors, HM pollution in soil and water is increasingly serious [4,5] and severely restricts the sustainable development of agriculture in China. Considering the increasing population but decreasing farmland area, remediating and reusing HM-polluted lands is becoming more and more necessary and urgent [6]. Among the remediation methods, phytoremediation is recognized as the most promising one for its unique advantages: in situ applicability, easy implementation, non-invasive, low-cost, and solar-driven [7,8,9]. However, every coin has two sides. Phytoremediation also has its shortcomings. On the one hand, phytoremediation always presents a discouragingly low remediation efficiency [10]. On the other hand, most of the plants used for phytoremediation are of little economic value, which cannot elevate the passion of farmers for cultivating such plants. All the above have limited the popularity of phytoremediation. Hence, the selection of a plant for remediation is often crucial and open to question.
The genus of Sedum L. possesses the most species (about 420 species) members among the family of Crassulaceae, which can endure harsh environments, such as cold and hot temperatures and dry conditions [11,12]. Among the species, the S. plumbizincicola found in Cd/Zn mining areas in Southeast China, is well known for its excellent performance in accumulating, translocating, and tolerating high concentrations of HMs, particularly for Cd and Zn, and consequently has become one of the most popular hyperaccumulators in trace metal phytoremediation [13,14,15]. It is estimated that the Cd and Zn concentrations can be up to 400 and 10,000 mg kg−1, respectively, in S. plumbizincicola [11]. However, the biomass of S. plumbizincicola is limited, which greatly lowers the remediation efficiency for HM pollution. On the other hand, the economic value of S. plumbizincicola is also much lower. Hence, seeking HM-tolerant and high-economic-value crops for phytoremediation is a better way to restore polluted farmlands.
Bast fiber crops, such as kenaf (Hibiscus cannabinus L.), flax (Linum usitatissimum L.), and hemp (Cannabis sativa L.), are traditional crops with a long cultivation history. However, they have been applied to food, medicine, biodegradable composites, and building industries, in addition to textiles, and show great economic value [16,17,18]. For example, Kong et al. found that the incorporation of kenaf straw core or kenaf fiber can increase the viscosity recovery and thickness shape retention of geopolymer and improve the satisfactory performance of printed specimens [19]. Apart from their multiple uses, these crops can grow fast with huge biomass and can be promising candidates for energy crops [20,21,22]. By theoretical calculation, it is thought that kenaf can produce 61.4 gals of biofuels per ton of biomass [23]. It has been reported that the dry stem material of kenaf can be up to 30 Mg ha−1 year−1 under suitable conditions [24]. Furthermore, bast crops have been proven to be tolerant to various HMs, such as Cd, Pb, Zn, Sb, Cr, and Ni [25,26,27,28]. A previous study found that the Cd and Pb concentrations in kenaf seedlings can reach 355 mg kg−1 and 606 mg kg−1, respectively, under pot experiments with artificially contaminated soil [26]. Despite lower bioconcentration factors compared with hyperaccumulators, given their huge biomass, bast fiber crops are still suitable to be used for phytoremediation, especially in fields no longer suitable for cultivating food crops.
Since S. plumbizincicola can resist low temperatures, it is usually planted in November in Hunan Province, China. On the contrary, kenaf is tolerant of high temperatures and is usually cultivated in May. Hence, a rotation with these two crops can make full use of farmland during the year and may improve remediation efficiency. Considering the characteristics of S. plumbizincicola (the excellent ability to extract heavy metals) and kenaf (huge biomass and multiple uses), the combined use of two crops for remediating HM-contaminated soil seems a good choice. Therefore, a field rotation trial was conducted in a typical multi-HM-contaminated field with kenaf and S. plumbizincicola for phytoremediation. This study aims to: (i) discuss the response of both crops to the combined HM pollution; and (ii) clarify the potential of a kenaf–S. plumbizincicola rotation for phytoremediation. We hypothesized that the rotation of two crops can enhance the remediation efficiency of HM-polluted soil and the cultivation of S. plumbizincicola in rotation can increase the uptake of HM when followed by kenaf.

2. Materials and Methods

2.1. Experimental Site and Design

The experimental site (28°16′42″ N, 113°55′21″ E) was located at Yonghe Town, Liuyang City, Changsha City, Hunan, China, and has a typical subtropical monsoon humid climate with an annual average temperature of 16.7 °C and an annual average rainfall of 1500 mm. The site previously belonged to Qibaoshan Town, which is famous for its rich nonferrous metal resources, such as Zn, Cu, and Pb. However, the historic development of such resources without protecting the environment has led to serious HM pollution in a wide area of farmland. The soil from the experiment field featured combined HM pollution and was classified as having a loamy clay texture (clay 27.1%, silt 39.5%, and sand 33.4%). The physicochemical properties of the soil are given in Table 1. According to the standard Risk control standard for soil contamination of agricultural land (GB 15618—2018) in China, the soil was seriously contaminated with Cd, Pb, Cu, and Zn.
A randomized block plot experiment with three treatments was designed in this study: monoculture with S. plumbizincicola (abbreviation for treatment, Sedum); kenaf (Kenaf); and a rotation with S. plumbizincicola and kenaf (Sedum–Kenaf). Each treatment in this study was replicated four times. The plot was 4 m long and 1.5 m wide. There were ditches (width, 0.5 m) between plots for distinguishing different plots and irrigation and drainage. Before growing any plants, a base fertilizer (Hubei Great Harvest Fertilizer Co., Ltd., Wuhan City, China Compound Fertilizer, N-P2O5-K2O, 15-15-15, 500 kg/ha for each season) was broadcasted onto each plot and evenly incorporated into the surface soil. In addition, urea (Henan Jinkai Chemical Investment Holding Group Co., Ltd., Urea, N, 46%, 160 kg/ha for each season) was applied by broadcasting at the vigorous growing stage for both crops. The seedlings of S. plumbizincicola were purchased from the market and planted in November 2020 with a row space of 20 cm and a line space of 20 cm. Kenaf was sown after the harvest of S. plumbizincicola in May 2021. Particularly, the kenaf seeds were sown in the same positions as the roots of the S. plumbizincicola to investigate the effects of S. plumbizincicola on the metal accumulation in kenaf. During the experimental period, weeding and irrigation were applied when it was needed.

2.2. Sampling and Measurement

Soil samples were collected two times: before the experiment began, soil samples were collected for the analysis of basic physicochemical properties; and when the experiment was finished, soil samples were collected to determine the metal concentrations in different fractions. When the soil samples were brought to the lab, the soil was air-dried and ground for further analysis. Plant samples were collected at the anthesis stage (at this stage the biomass of both plants reaches the maximum) for both kenaf and S. plumbizincicola: firstly, the total fresh biomass of the plant (roots and the aboveground part) for each trial plot was recorded, then 2 kg of the biomass per plot was brought to the lab as one sample. After that, the plant samples were divided into roots and the aboveground part and dried in an oven. The dried plant samples were then ground into fine powder for HM determination.
Soil pH was measured in a 1:2.5 soil/water suspension with a lab pH meter [29]. The total N concentration of the soil was determined with the Kjeldhal method [30]. Soil available P was extracted with 0.5 M NaHCO3 (pH 8.5) with a liquid-to-solid ratio of 20:1 and determined through a colorimetric method [26]. Soil available K was extracted with ammonium acetate (pH = 7.0, w:v, 1: 10) and determined with a flame photometer (Sherwood, M410) [29]. The soil organic matter was determined with the potassium dichromate combustion method [31]. The particle size distribution of the soil was measured by the pipette method following the procedure described by Lu [29] and the texture was classified based on the triangular chart of international soil texture. Total HM concentrations in the soil samples were determined with an inductively coupled plasma optical emission spectrometer (ICPE-9820, Shimadzu Corporation, Kyoto, Japan) after being digested by HF-HClO4-HNO3 in a microwave reaction system (CEM MARS6 CLASSIC, CEM Corporation, Charlotte City, NC, USA) [6]. The modified European Community Bureau of Reference (BCR) method was used to sequentially extract HM fractions in the soil samples [32]. In brief: (1) 1 g of the soil sample and 40 mL acetic acid (0.11 M) were added into the centrifuge tube and shaken for 16 h at room temperature, then the extract was separated by centrifugation and put through a membranes-aquo system (0.45 μm), and the final filtrate was used to determine the mild-acid-soluble fraction of metals. (2) An amount of 40 mL of hydroxylammonium chloride (0.1 M) was added to the residue from step 1 and shaken for 16 h at room temperature again, and the extract and the final filtrate were treated with the same procedure as described in Step 1. (3) Firstly, 10 mL of hydrogen peroxide (8.8 M) was added to the residue from Step 2, then the mixture was allowed to rest for 1 h at room temperature with occasional manual shaking, then, after that, the mixture was processed with a water bath (85 ± 2 °C) for another 1 h. Then the centrifuge tube was uncovered and the digestion volume was reduced to about 2–3 mL by continual heating. The above procedures were then repeated once again. When the mixture had cooled down to room temperature, 50 mL of ammonium acetate (1.0 M) was added to the mixture and shaken for 16 h at room temperature. The extract and the final filtrate were treated with the same procedure as described in Step 1. (4) The residue collected from Step 3 was digested with a mixture of aqua regia and HF and the digestion solution was used to determine the residual fraction of metals.
The powdery plant samples were digested with analytically pure nitric acid (w:v 1: 50) via a microwave reaction system (CEM MARS6 CLASSIC, USA), then the digested solutions were also used for HM concentration analysis with an inductively coupled plasma optical emission spectrometer (ICPE-9820, Japan).

2.3. Data Analysis

The translocation factor (TF) and bioconcentration factor (BCF) for each HM were calculated with the following equations [33]:
TF = HM concentration in the aerial part/HM concentration in the root
BCF = HM concentration in plant tissue/HM concentration in soil
All the data presented in tables or figures were the mean values of the four replications. The data obtained from the experiment were analyzed with Microsoft Excel 2016 (Microsoft, Redmond, DC, USA) and SPSS 22.0 (IBM, Chicago, IL, USA). The graphs were plotted with Origin 2021 (Origin Lab, Northampton, MA, USA). The mean values of the variables for each treatment were compared using Duncan’s test at p ≤ 5%.

3. Results

3.1. Plant Biomass under Combined HM Pollution

The results showed that the biomass of the two plants differed significantly for both the aerial part and the root (Figure 1). The average biomass of S. plumbizincicola (average value of Sedum and R-Sedum) under the combined HM contamination were 7700 and 1003 kg/ha for the aerial part and root, respectively. The average biomass of kenaf (average value of Kenaf and R-Kenaf) under the combined HM contamination was 19,256 and 3084 kg/ha for aerial part and root, respectively. Hence, growing kenaf can obtain at least twice the biomass of S. plumbizincicola on farmland contaminated with Cd, Pb, Cu, and Zn. No significant difference for the aerial part of S. plumbizincicola was found between Sedum and R-Sedum, however, the biomass of R-Kenaf was significantly higher than that of Kenaf. For the roots, the biomass of Sedum was notably higher than that of R-Sedum. However, the roots of R-Kenaf showed significantly higher biomass than that of Kenaf.

3.2. Heavy Metals in Plants

The HM concentrations in the aerial part and roots for both crops showed significant differences and the concentrations of the four heavy metals also differed greatly between treatments and crops (Figure 2). The concentrations of Cd in the aerial part and root of S. plumbizincicola were higher than 480 and 330 mg/kg, respectively, but were even lower than 6 mg/kg in the two parts of kenaf. Hence, the Cd concentration in S. plumbizincicola can be as high as 80 times that in kenaf. However, no significant difference in Cd concentrations was shown between Sedum and R-Sedum or Kenaf and R-Kenaf.
Unlike Cd, the concentrations of Cu were higher in the root for both crops compared with that in the aerial part. The Cu concentrations in S. plumbizincicola were far lower than the Cd concentrations, but the Cu concentrations were much higher in kenaf than the Cd concentrations. However, S. plumbizincicola still took up more Cu than kenaf in both the aerial part and roots. There were no significant differences in Cu concentrations between Kenaf and R-Kenaf in both the aerial part and roots, but the Cu concentration in R-Sedum was significantly higher than that in Sedum in the root part.
Similar to Cu, the concentrations of Pb were also higher in the root part than that in the aerial part for both crops, and they were significantly higher in S. plumbizincicola than those in kenaf. No notable difference in Pb concentrations in the aerial part was shown between Sedum and R-Sedum, but the Pb concentration in the root part was notably higher for R-Sedum than that for Sedum. There were no marked differences in Pb concentrations between Kenaf and R-Kenaf.
The Zn concentrations showed a similar variation with Cd in the two crops and three treatments. However, the concentrations of Zn in both crops were far higher compared with those of Cd in the two crops. The Zn concentrations in S. plumbizincicola ranged from 13,296 mg kg−1 to 13,993 mg kg−1 and 9830 mg kg−1 to 10,573 mg kg−1 for the aerial part and roots, respectively. The Zn concentrations in kenaf were no more than 180 mg kg−1, which was also much higher than the Cd concentrations in kenaf. The Zn concentrations for the aerial part in S. plumbizincicola were more than 70 times higher than those in kenaf. There were no marked differences in Zn concentrations between Sedum and R-Sedum or Kenaf and R-Kenaf.

3.3. Heavy Metal Status in Soil

Soil metal concentrations of different fractions can be significantly affected by the crops and treatments (Figure 3). The Cd concentration of the mild-acid-soluble fraction with the Kenaf treatment was significantly higher than that for the Sedum and Sedum–Kenaf treatments. The Cd concentration of the reducible fraction for the Kenaf treatment was notably higher than that for the Sedum–Kenaf treatment but was only insignificantly higher than that for Sedum. For the Cd concentration of the oxidizable and residual fractions, no marked differences were found between the treatments. Furthermore, the Cd concentrations of the four fractions for Sedum were all higher than those for the Sedum–Kenaf treatment despite no notable difference between the two treatments.
Unlike Cd, the Cu concentrations of the mild-acid-soluble fraction differed insignificantly between treatments. The Cu concentration of the reducible fraction for Sedum showed no notable difference compared with that for the Kenaf treatment, but was significantly higher than that for Sedum–Kenaf. For the oxidizable and residual fractions, the Cu concentrations for the Kenaf treatment were markedly higher than those for the other two treatments, but no significant differences were shown between the Sedum and Sedum–Kenaf treatments.
The mild-acid-soluble fraction of Pb showed no significant difference between three the treatments. However, the reducible and oxidizable fractions of Pb for the Kenaf treatment were notably higher than those for the Sedum and Sedum–Kenaf treatments. No notable difference in the reducible and oxidizable fractions of Pb was found between the Sedum and Sedum–Kenaf treatments. The residual fraction of Pb also differed insignificantly between treatments but this fraction of Pb for the Kenaf treatment was slightly higher than those for the other treatments.
The mild-acid-soluble fraction of Zn for the Kenaf treatment was significantly higher than those for the Sedum and Sedum–Kenaf treatments. For the residual and oxidizable fractions of Zn, they were notably higher for the Kenaf treatment than those for the Sedum–Kenaf treatment but only slightly higher than that for the Sedum treatment. No significant difference was found for the residual fraction of Zn between treatments.

3.4. Heavy Metal Removal by Plants

The removal of HMs by S. plumbizincicola and kenaf was calculated as the outcome of the dry biomass of each plant multiplied by the according metal concentrations and id shown in Figure 4. The accumulation of Cd in the aerial parts showed no significant difference between treatments for the same crop but they were significantly higher for S. plumbizincicola (3832 g ha−1 for Sedum and 4035 g ha−1 for R-Sedum) than that for kenaf (78 g ha−1 for Kenaf and 99 g ha−1 for R-Kenaf). Similar to Cd in the aerial parts, the accumulation of Cu also differed indistinctively between treatments for S. plumbizincicola, however, it was notably higher for R-Kenaf than that for Kenaf. No significant differences were shown between the two crops for Cu accumulation in the aerial parts. For Pb in the aerial parts, the accumulation did not differ significantly between treatments for each crop but was notably higher for S. plumbizincicola than that for kenaf. The accumulation of Zn for both crops (with an average value of 104,746 g ha−1 and 3354 g ha−1 for S. plumbizincicola and kenaf, respectively) was far more than those of the other three metals. The accumulation of all the metal sorts in the aerial part for R-Sedum was higher than that for the Sedum treatment even though no significant differences were shown between treatments, and this phenomenon was also reflected between the kenaf treatments.
The accumulation of four metals in the roots showed similar variations to those in the aerial parts. The accumulation of Cd in the roots of S. plumbizincicola was significantly higher than that of kenaf. Sedum accumulated a notably higher Cd than R-Sedum, but the Cd accumulation differed indistinctively between Kenaf and R-Kenaf. The accumulation of Cu in roots showed no notable difference between crops or treatments. The Pb accumulation differed indistinctively between treatments for the same crop but was significantly higher in S. plumbizincicola than in kenaf. S. plumbizincicola can accumulate a significantly higher amount of Zn than kenaf. The Cd accumulation in roots for Sedum were notably higher than that for R-Sedum but they differed indistinctively between Kenaf and R-Kenaf. The removal of all the metal sorts for R-Kenaf were higher than those for the Kenaf treatment even though no significant differences were shown between treatments. The removal of Pb and Cu by roots for R-Sedum was higher than that for the Sedum treatment even though no significant differences were shown between treatments. However, the removal of Cd and Zn for R-Sedum was notably lower than that for the Sedum treatment.

3.5. Translocation Factors (TF) and Bioconcentration Factors (BCF) for Each HM

The TF and BCF varied between treatments and crops (Table 2). The TFs for Sedum and R-Sedum were significantly higher than that for Kenaf and slightly higher than that for R-Kenaf. The TFs of Cu for kenaf from both the Kenaf and R-Kenaf treatments were notably higher than that for R-Sedum but showed no significant difference compared with that for the Sedum treatment. For Pb, the TF for Sedum was significantly higher than that for the other three treatments. However, no marked difference was found in the TFs of Zn between treatments. The BCFs of the four HMs in the aerial parts for S. plumbizincicola were significantly higher than those for kenaf. Furthermore, in the aerial part, the BCFs of the R-Kenaf treatment were slightly higher than those of the Kenaf treatment, regardless of the HM sort. The BCFs in the root varied similarly to the aerial part.

4. Discussion

HM contaminations have seriously affected the normal use of farmlands, which not only reduces the utilization efficiency of limited land resources but also lowers farmers’ incomes [34]. Hence, restoring contaminated farmlands with green techniques is urgent. Although phytoremediation has many merits, the low remediation efficiency and low economic value of most of hyperaccumulators hinder its application [10]. Thus, in this study, a remediation strategy with the rotation of S. plumbizincicola and kenaf was put forward. On the one hand, S. plumbizincicola has a great ability to concentrate HMs [11] and can remove metals at a relatively fast pace. On the other hand, kenaf has good tolerance to serval HMs [26] and can obtain a huge amount of biomass, which can remove a certain amount of metals and be used for industrial applications, such as concrete reinforcement, fiber-reinforced polymer, decorative plate manufacture, energy production, textiles, and so on [20,35]. Therefore, it was expected that the rotation with two crops could improve the remediation efficiency and produce economic profits at the same time.
The results in the present study showed that the kenaf can obtain a huge aerial biomass (more than 21 Mg ha−1) on farmland heavily contaminated with complex HMs. However, under good conditions, kenaf can produce up to 30 Mg ha−1 year−1 of dry stem material [24]. This indicated that the growth of kenaf was restrained by the metal contamination. Owing to the gradual exhaustion of fossil resources and global climate change, bio-energy has attracted more and more attention [21,22,36], and the biomass or straw resources of crops will play an important role in the future [37]. It has been reported that kenaf stems can produce a heating value of 19.23 MJ/kg and can yield 106.8 gallons of ethanol per ton of dry biomass [22]. Since the current price of ethanol is about 1000 USD/Mg, cultivating kenaf on contaminated farmland can achieve a production value of 7000 USD/ha. Hence, if the production cost of ethanol can be further reduced, soil decontamination and economic profits can be obtained together. To cope with global climate change, greenhouse gas (GHG) emissions must be controlled [38]. The Chinese government has set a goal of ‘peaking carbon dioxide emissions by 2030 and striving to achieve carbon neutrality by 2060’ [39]. Phyto-sequestration seems to be an efficient way to achieve this goal because plants consume lots of CO2 to produce biomass [40,41]. For this aspect, a huge amount of kenaf biomass can serve as a temporary carbon pool. Furthermore, when kenaf biomass is applied to composite materials, reinforced concrete, and so on, this temporary carbon pool will turn into a long-term carbon pool. Hence, as a crop featuring a high biomass, fast growth rate, and strong tolerance to HMs, kenaf should be a good choice for farmland that is no longer suitable for food production. Compared with kenaf, the biomass of S. plumbizincicola (less than 8 Mg ha−1) was much lower. However, the metal removal abilities of S. plumbizincicola are somewhat higher than those of kenaf. Results in this study showed that the concentrations of Cd, Cu, Pb, and Zn in S. plumbizincicola was at least 100, 2, 8, and 75 times higher than that for kenaf, respectively. Hence, despite the relatively small biomass, the removal of Cd, Pb, and Zn can be more than 3800, 720, and 104,347 g ha−1, which is at least 38, 3, and 27 times higher than that for kenaf. Interestingly, the metal removals for kenaf in rotation were slightly higher than those for the monoculture kenaf. This can be explained by the higher biomass of the kenaf in rotation (Figure 1). On the other hand, root-induced soil acidification and cadmium mobilization in the rhizosphere of S. plumbizincicola could also have contributed to the higher HM removals for the R-Kenaf treatment [42]. Besides, this also indicates that the cultivation of S. plumbizincicola might have promoted the growth of the kenaf in rotation. This may be caused by the relatively lower metal concentration in soil (Figure 3), which decreased the suppression effects of metals on the kenaf in rotation.
The TF evaluates the ability of a plant to translocate the HM from the root to the aerial part [33]. The results from this study show that both S. plumbizincicola and kenaf have a higher TF for Cd and Zn than for Cu and Pb. The TF values for Cd and Zn were higher than one (except for the Kenaf treatment for Cd), which suggests that S. plumbizincicola has a better ability to transport Cd and Zn from the roots to the shoots, and the cultivation of S. plumbizincicola might have the potential to promote the translocation of Cd in kenaf. The BCF evaluates metal accumulation efficiency [33], and the higher the BCF values, the higher the remediation pace for the contaminated soil. The results also indicate that both crops performed better in terms of Cd and Zn remediation. Compared with S. plumbizincicola, the remediation ability of kenaf is negligible for Cd and Zn. However, both crops are not ideal candidates for Cu and Pb remediation.
By comparing the metal accumulations in the aerial part and roots, the results show that the accumulation of Cd, Cu, Pb, and Zn in the roots amounts to 8.7%, 122%, 37.6%, and 9.6%, respectively, of that in the aerial part for S. plumbizincicola. The accumulation of Cd, Cu, Pb, and Zn in the roots amount to 16.6%, 80.4%, 75.0%, and 10.9%, respectively, of that in the aerial part for kenaf. Hence, the role of the underground part in phytoremediation cannot be neglected [33]. When we harvest HM accumulators in the field, the roots should also be taken away to elevate the remediation efficiency to some extent.
Above all, the rotation with kenaf (summer) and S. plumbizincicola (winter) can not only make full use of the farmland at a time scale but can also make up the shortfall of the monoculture with either kenaf (high biomass but low metal removal) or S. plumbizincicola (low biomass but high metal removal). In this study, the removal of Cd, Cu, Pb, and Zn by the rotation of two crops increased by 7.88%, 126%, 33.5%, and 4.39%, respectively, compared with the S. plumbizincicola monoculture. Hence, the rotation with kenaf and S. plumbizincicola can remove more metals from the soil and accelerate the phytoremediation pace.
Although remediation efficiency can be greatly improved by a kenaf–S. plumbizincicola rotation, a new problem occurred. Results showed that a large amount of Zn would be removed by the rotation, particularly by the S. plumbizincicola. As a necessary element for plants [43], continual cultivation of S. plumbizincicola might lead to a Zn deficiency in the soil. Hence, if the method put forward in the current study is used for arable land remediation, the concentrations of nutrient elements must be monitored periodically to avoid decreasing soil fertility.

5. Conclusions

Through the present study, several conclusions can be drawn:
(1) Kenaf can survive under combined HM contamination and can still obtain a huge amount of aerial biomass (17–21 Mg/ha) but cannot accumulate much metal in one season. (2) S. plumbizincicola can be used for combined HM contamination remediation for its excellent removal ability but its aerial biomass is quite low (7.5–7.9 Mg/ha). (3) Rotation with kenaf and S. plumbizincicola can greatly improve the remediation efficiency (HM removal for Cd was 7.88%, for Cu 126%, for Pb 33.5%, and for Zn 4.39% higher than S. plumbizincicola monoculture) and supply a huge amount of industrial raw material at the same time. (4) The underground part of HM-accumulators also plays an important role in phytoremediation and the roots should also be harvested to elevate the remediation efficiency. (5) Rotation with bast fiber crops and hyperaccumulators can accelerate the pace of phytoremediation and produce economic value by reusing contaminated farmlands.

Author Contributions

Conceptualization, X.Z.; methodology, S.G., X.C. and X.Z.; software, S.G. and X.Z.; validation, X.Z.; formal analysis, S.G. and X.Z.; investigation, S.G. and X.Z.; resources, Y.G.; data curation, S.G. and X.Z.; writing—original draft preparation, S.G. and X.Z.; writing—review and editing, Y.G., X.C., C.Q., H.Q. and X.Z.; visualization, S.G. and X.Z.; supervision, X.Z.; project administration, S.G. and X.Z.; funding acquisition, X.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Agricultural Science and Technology Innovation Program, grant number ASTIP-IBFC, the Central Public-interest Scientific Institution Research Fund, grant number 1610242021001 and the Hunan Innovative Province Construction Special Fund, grant number 2020NK2001. The APC was funded by the Agricultural Science and Technology Innovation Program, grant number ASTIP-IBFC-04.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

We appreciate Guoqian Zhong, Xianghong Xiao, and Sulan Liu very much for their kind help in conducting the experiment, sampling, and pre-treatment of samples.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wu, Q.; Zhu, X.; Zhao, X.; Shen, R. Potassium affects cadmium resistance in Arabidopsis through facilitating root cell wall Cd retention in a nitric oxide dependent manner. Environ. Exp. Bot. 2020, 178, 104175. [Google Scholar] [CrossRef]
  2. Cabral, M.; Toure, A.; Garçon, G.; Diop, C.; Bouhsina, S.; Dewaele, D.; Cazier, F.; Courcot, D.; Tall-Dia, A.; Shirali, P.; et al. Effects of environmental cadmium and lead exposure on adults neighboring a discharge: Evidences of adverse health effects. Environ. Pollut. 2015, 206, 247–255. [Google Scholar] [CrossRef] [PubMed]
  3. Mei, H.; Huang, W.; Wang, Y.; Xu, T.; Zhao, L.; Zhang, D.; Luo, Y.; Pan, X. One stone two birds: Bone char as a cost-effective material for stabilizing multiple heavy metals in soil and promoting crop growth. Sci. Total Environ. 2022, 840, 156163. [Google Scholar] [CrossRef]
  4. Zhao, H.; Wei, Y.; Wang, J.; Chai, T. Isolation and expression analysis of cadmium-induced genes from Cd/Mn hyperaccumulator Phytolacca americana in response to high Cd exposure. Plant Biol. 2019, 21, 15–24. [Google Scholar] [CrossRef] [PubMed]
  5. Cao, X.; Tan, C.; Wu, L.; Luo, Y.; He, Q.; Liang, Y.; Peng, B.; Christie, P. Atmospheric deposition of cadmium in an urbanized region and the effect of simulated wet precipitation on the uptake performance of rice. Sci. Total Environ. 2020, 700, 134513. [Google Scholar] [CrossRef]
  6. Zhao, X.; Luan, M.; Qiu, C.; Guo, Y.; Long, S.; Wang, Y.; Qiu, H. Analysis of the potential of 165 ramie germplasms to be used for cadmium-contamination remediation. Ind. Crops Prod. 2021, 171, 113841. [Google Scholar] [CrossRef]
  7. Shah, V.; Daverey, A. Phytoremediation: A multidisciplinary approach to clean up heavy metal contaminated soil. Environ. Technol. Innov. 2020, 18, 100774. [Google Scholar] [CrossRef]
  8. Khalid, S.; Shahid, M.; Niazi, N.K.; Murtaza, B.; Bibi, I.; Dumat, C. A comparison of technologies for remediation of heavy metal contaminated soils. J. Geochem. Explor. 2017, 182, 247–268. [Google Scholar] [CrossRef]
  9. Ali, H.; Khan, E.; Sajad, M.A. Phytoremediation of heavy metals—Concepts and applications. Chemosphere 2013, 91, 869–881. [Google Scholar] [CrossRef]
  10. Thomas, G.; Sheridan, C.; Holm, P.E. A critical review of phytoremediation for acid mine drainage-impacted environments. Sci. Total Environ. 2022, 811, 152230. [Google Scholar] [CrossRef]
  11. Liu, H.; Zhao, H.; Wu, L.; Xu, W. A genetic transformation method for cadmium hyperaccumulator Sedum plumbizincicola and non-hyperaccumulating ecotype of Sedum alfredii. Front. Plant Sci. 2017, 8, 1047. [Google Scholar] [CrossRef] [PubMed]
  12. Nikulin, V.Y.; Gontcharova, S.B.; Stephenson, R.; Gontcharov, A.A. Phylogenetic relationships between Sedum L. and related genera (Crassulaceae) based on ITS rDNA sequence comparisons. Flora 2016, 224, 218–229. [Google Scholar] [CrossRef]
  13. Huang, Y.; Huang, Y.; Hou, J.; Wu, L.; Christie, P.; Liu, W. Microbial community assembly of the hyperaccumulator plant Sedum plumbizincicola in two contrasting soil types with three levels of cadmium contamination. Sci. Total Environ. 2023, 863, 160917. [Google Scholar] [CrossRef]
  14. Lu, Z.; Qiu, W.; Jin, K.; Yu, M.; Han, X.; He, X.; Wu, L.; Wu, C.; Zhuo, R. Identification and analysis of bZIP family genes in Sedum plumbizincicola and their potential roles in response to cadmium stress. Front. Plant Sci. 2022, 13, 859386. [Google Scholar] [CrossRef]
  15. Xing, Q.; Cao, X.; Tan, C.; Sun, L.; Deng, Y.; Yang, J.; Tu, C. Effects of single and combined applications of three root exudates of Sedum plumbizincicola on the phytoremediation efficiency of paddy soil contaminated with Cd. Front. Environ. Sci. 2023, 10, 1086753. [Google Scholar] [CrossRef]
  16. Barkoula, N.M.; Garkhail, S.K.; Peijs, T. Biodegradable composites based on flax/polyhydroxybutyrate and its copolymer with hydroxyvalerate. Ind. Crops Prod. 2010, 31, 34–42. [Google Scholar] [CrossRef]
  17. Sim, Y.Y.; Nyam, K.L. Hibiscus cannabinus L. (kenaf) studies: Nutritional composition, phytochemistry, pharmacology, and potential applications. Food Chem. 2021, 344, 128582. [Google Scholar] [CrossRef]
  18. Aloo, S.O.; Mwiti, G.; Ngugi, L.W.; Oh, D.-H. Uncovering the secrets of industrial hemp in food and nutrition: The trends, challenges, and new-age perspectives. Crit. Rev. Food Sci. Nutr. 2022, 1–20. [Google Scholar] [CrossRef]
  19. Kong, X.; Dai, L.; Wang, Y.; Qiao, D.; Hou, S.; Wang, S. Influence of kenaf stalk on printability and performance of 3D printed industrial tailings based geopolymer. Constr. Build. Mater. 2022, 315, 125787. [Google Scholar] [CrossRef]
  20. Shi, G.; Cai, Q. Cadmium tolerance and accumulation in eight potential energy crops. Biotechnol. Adv. 2009, 27, 555–561. [Google Scholar] [CrossRef]
  21. Finnan, J.; Styles, D. Hemp: A more sustainable annual energy crop for climate and energy policy. Energy Policy 2013, 58, 152–162. [Google Scholar] [CrossRef]
  22. Das, L.; Liu, E.; Saeed, A.; Williams, D.W.; Hu, H.; Li, C.; Ray, A.E.; Shi, J. Industrial hemp as a potential bioenergy crop in comparison with kenaf, switchgrass and biomass sorghum. Bioresour. Technol. 2017, 244, 641–649. [Google Scholar] [CrossRef]
  23. Saba, N.; Jawaid, M.; Hakeem, K.R.; Paridah, M.T.; Khalina, A.; Alothman, O.Y. Potential of bioenergy production from industrial kenaf (Hibiscus cannabinus L.) based on Malaysian perspective. Renew. Sustain. Energ. Rev. 2015, 42, 446–459. [Google Scholar] [CrossRef]
  24. Meryemoglu, B.; Irmak, S.; Hasanoglu, A. Production of activated carbon materials from kenaf biomass to be used as catalyst support in aqueous-phase reforming process. Fuel Process. Technol. 2016, 151, 59–63. [Google Scholar] [CrossRef]
  25. Bjelková, M.; Gencurova, V.; Griga, M. Accumulation of cadmium by flax and linseed cultivars in field-simulated conditions: A potential for phytoremediation of Cd-contaminated soils. Ind. Crops Prod. 2011, 33, 761–774. [Google Scholar] [CrossRef]
  26. Zhao, X.; Guo, Y.; Papazoglou, E.G. Screening flax, kenaf and hemp varieties for phytoremediation of trace element-contaminated soils. Ind. Crops Prod. 2022, 185, 115121. [Google Scholar] [CrossRef]
  27. De Vos, B.; Souza, M.F.; Michels, E.; Meers, E. Industrial hemp (Cannabis sativa L.) in a phytoattenuation strategy: Remediation potential of a Cd, Pb and Zn contaminated soil and valorization potential of the fibers for textile production. Ind. Crops Prod. 2022, 178, 114592. [Google Scholar] [CrossRef]
  28. Arbaoui, S.; Evlard, A.; Mhamdi, M.E.W.; Campanella, B.; Paul, R.; Bettaieb, T. Potential of kenaf (Hibiscus cannabinus L.) and corn (Zea mays L.) for phytoremediation of dredging sludge contaminated by trace metals. Biodegradation 2013, 24, 563–567. [Google Scholar] [CrossRef]
  29. Lu, R. Analytical Methods of Soil Agrochemistry; China Agricultural Science and Technology Press: Beijing, China, 1999; pp. 85–96. (In Chinese) [Google Scholar]
  30. Bremner, J.M.; Mulvaney, C.S. Nitrogen-total. In Methods of Soil Analysis, Part 2—Chemical and Microbiological Properties; Page, A.L., Miller, R.H., Keeney, D.R., Eds.; ASA-SSSA: Madison, WI, USA, 1982; pp. 595–624. [Google Scholar]
  31. Yeomans, J.C.; Bremner, J.M. A rapid and precise method for routine determination of organic carbon in soil. Commun. Soil Sci. Plant Anal. 1988, 19, 1467–1476. [Google Scholar] [CrossRef]
  32. Nemati, K.; Abu Bakar, N.K.; Abas, M.R.; Sobhanzadeh, E. Speciation of heavy metals by modified BCR sequential extraction procedure in different depths of sediments from Sungai Buloh, Selangor, Malaysia. J. Hazard. Mater. 2011, 192, 402–410. [Google Scholar] [CrossRef]
  33. Douchiche, O.; Chaïbi, W.; Morvan, C. Cadmium tolerance and accumulation characteristics of mature flax, cv. Hermes: Contribution of the basal stem compared to the root. J. Hazard. Mater. 2012, 235–236, 101–107. [Google Scholar] [CrossRef] [PubMed]
  34. Salem, H.M.; Abdel-Salam, A.; Abdel-Salam, M.A.; Seleiman, M.F. Phytoremediation of metal and metalloids from contaminated soil. In Plants under Metal and Metalloid Stress; Hasanuzzaman, M., Nahar, K., Fujita, M., Eds.; Springer: Singapore, 2018; pp. 249–262. [Google Scholar] [CrossRef]
  35. Nwankwo, C.O.; Mahachi, J.; Olukanni, D.O.; Musonda, I. Natural fibres and biopolymers in FRP composites for strengthening concrete structures: A mixed review. Constr. Build. Mater. 2023, 363, 129661. [Google Scholar] [CrossRef]
  36. Rheay, H.T.; Omondi, E.C.; Brewer, C.E. Potential of hemp (Cannabis sativa L.) for paired phytoremediation and bioenergy production. GCB Bioenergy 2020, 13, 525–536. [Google Scholar] [CrossRef]
  37. Cherubini, F.; Gasser, T.; Bright, R.M.; Ciais, P.; Strømman, A.H. Linearity between temperature peak and bioenergy CO2 emission rates. Nat. Clim. Chang. 2014, 4, 983–987. [Google Scholar] [CrossRef]
  38. Ramanathan, V.; Xu, Y. The Copenhagen Accord for limiting global warming: Criteria, constraints, and available avenues. Proc. Natl. Acad. Sci. USA 2010, 107, 8055–8062. [Google Scholar] [CrossRef]
  39. Huang, W.; Wu, F.; Han, W.; Li, Q.; Han, Y.; Wang, G.; Feng, L.; Li, X.; Yang, B.; Lei, Y.; et al. Carbon footprint of cotton production in China: Composition, spatiotemporal changes and driving factors. Sci. Total Environ. 2022, 821, 153407. [Google Scholar] [CrossRef]
  40. Wright, L.S.; Pessarrodona, A.; Foggo, A. Climate-driven shifts in kelp forest composition reduce carbon sequestration potential. Glob. Chang. Biol. 2022, 28, 5514–5531. [Google Scholar] [CrossRef] [PubMed]
  41. Bai, Y.; Cotrufo, M.F. Grassland soil carbon sequestration: Current understanding, challenges, and solutions. Science 2022, 377, 603–608. [Google Scholar] [CrossRef]
  42. Sun, X.; Li, Z.; Wu, L.; Christie, P.; Luo, Y.; Fornara, D.A. Root-induced soil acidification and cadmium mobilization in the rhizosphere of Sedum plumbizincicola: Evidence from a high-resolution imaging study. Plant Soil 2019, 436, 267–282. [Google Scholar] [CrossRef]
  43. Lilay, G.H.; Persson, D.P.; Castro, P.H.; Liao, F.; Alexander, R.D.; Aarts, M.G.M.; Assuncao, A.G.L. Arabidopsis bZIP19 and bZIP23 act as zinc sensors to control plant zinc status. Nat. Plants 2021, 7, 137–143. [Google Scholar] [CrossRef]
Agronomy 13 01231 g001 550

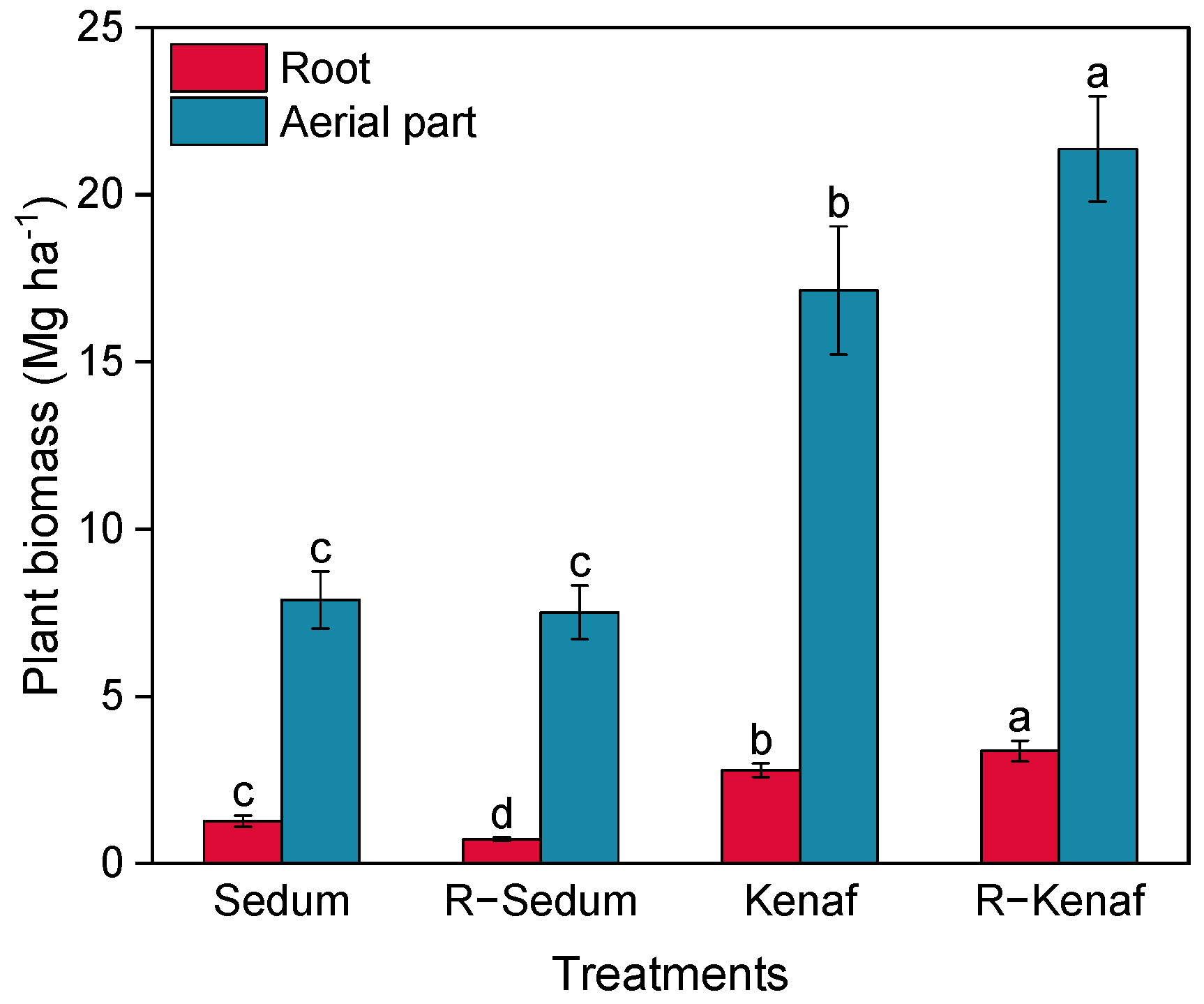

Figure 1. The biomasses of kenaf and S. plumbizincicola. Letters above the columns for each variable indicate significant differences between treatments or crops. R−Sedum means the S. plumbizincicola in rotation with kenaf; R−Kenaf means the kenaf in rotation with S. plumbizincicola.
Figure 1. The biomasses of kenaf and S. plumbizincicola. Letters above the columns for each variable indicate significant differences between treatments or crops. R−Sedum means the S. plumbizincicola in rotation with kenaf; R−Kenaf means the kenaf in rotation with S. plumbizincicola.
Agronomy 13 01231 g001
Agronomy 13 01231 g002 550

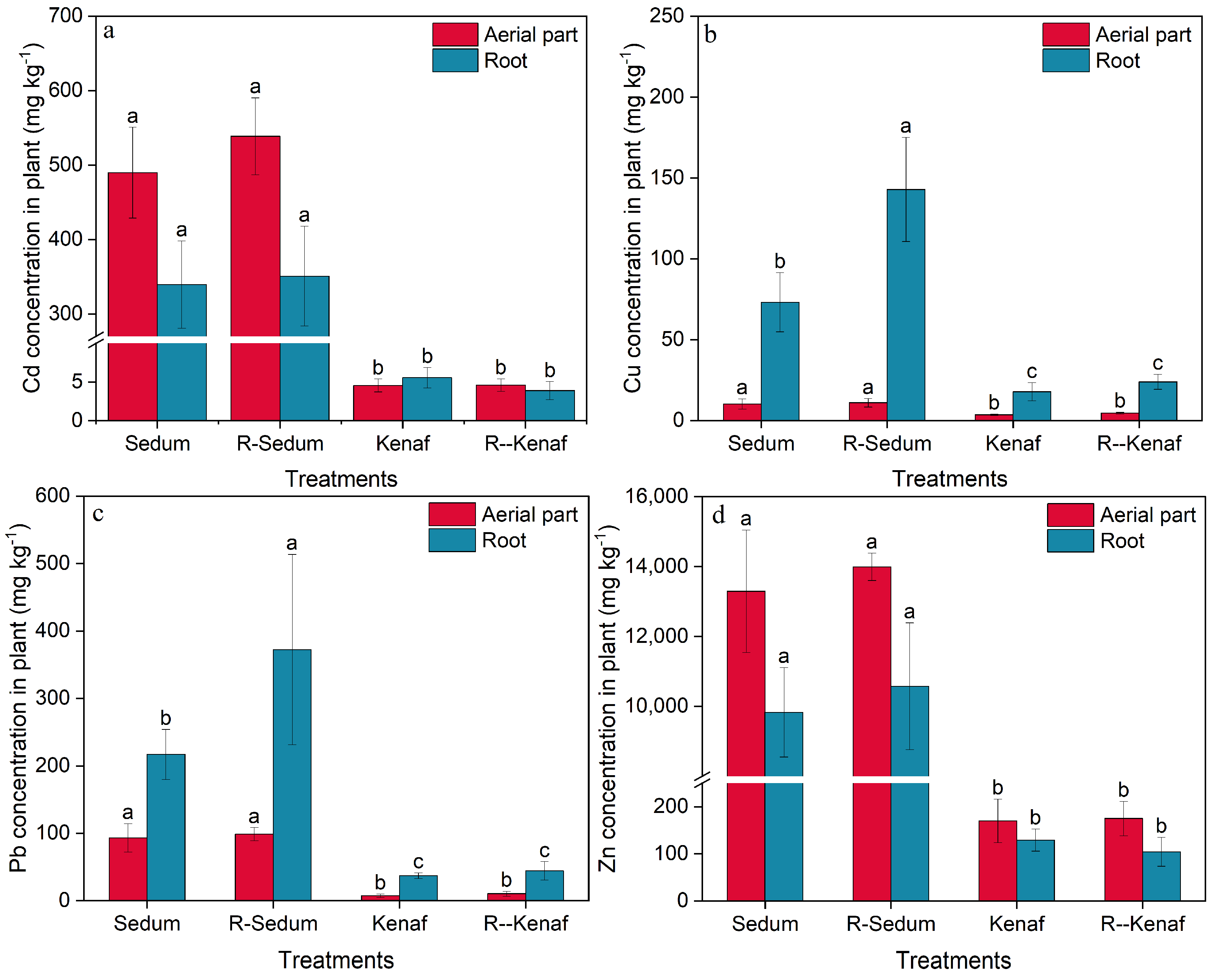

Figure 2. Metal concentrations of Cd (a), Cu (b), Pb (c), and Zn (d) in the aerial part and root for both kenaf and S. plumbizincicola. Letters above the columns for each variable indicate significant differences between treatments or crops. R−Sedum means the S. plumbizincicola in rotation with kenaf; R−Kenaf means the kenaf in rotation with S. plumbizincicola.
Figure 2. Metal concentrations of Cd (a), Cu (b), Pb (c), and Zn (d) in the aerial part and root for both kenaf and S. plumbizincicola. Letters above the columns for each variable indicate significant differences between treatments or crops. R−Sedum means the S. plumbizincicola in rotation with kenaf; R−Kenaf means the kenaf in rotation with S. plumbizincicola.
Agronomy 13 01231 g002
Agronomy 13 01231 g003 550
Figure 3. The soil metal concentrations of Cd (a), Cu (b), Pb (c), and Zn (d) in different fractions extracted with the BCR method at the end of the field experiment. Letters above the columns for each variable indicate significant differences between treatments or crops.
Figure 3. The soil metal concentrations of Cd (a), Cu (b), Pb (c), and Zn (d) in different fractions extracted with the BCR method at the end of the field experiment. Letters above the columns for each variable indicate significant differences between treatments or crops.
Agronomy 13 01231 g003
Agronomy 13 01231 g004 550

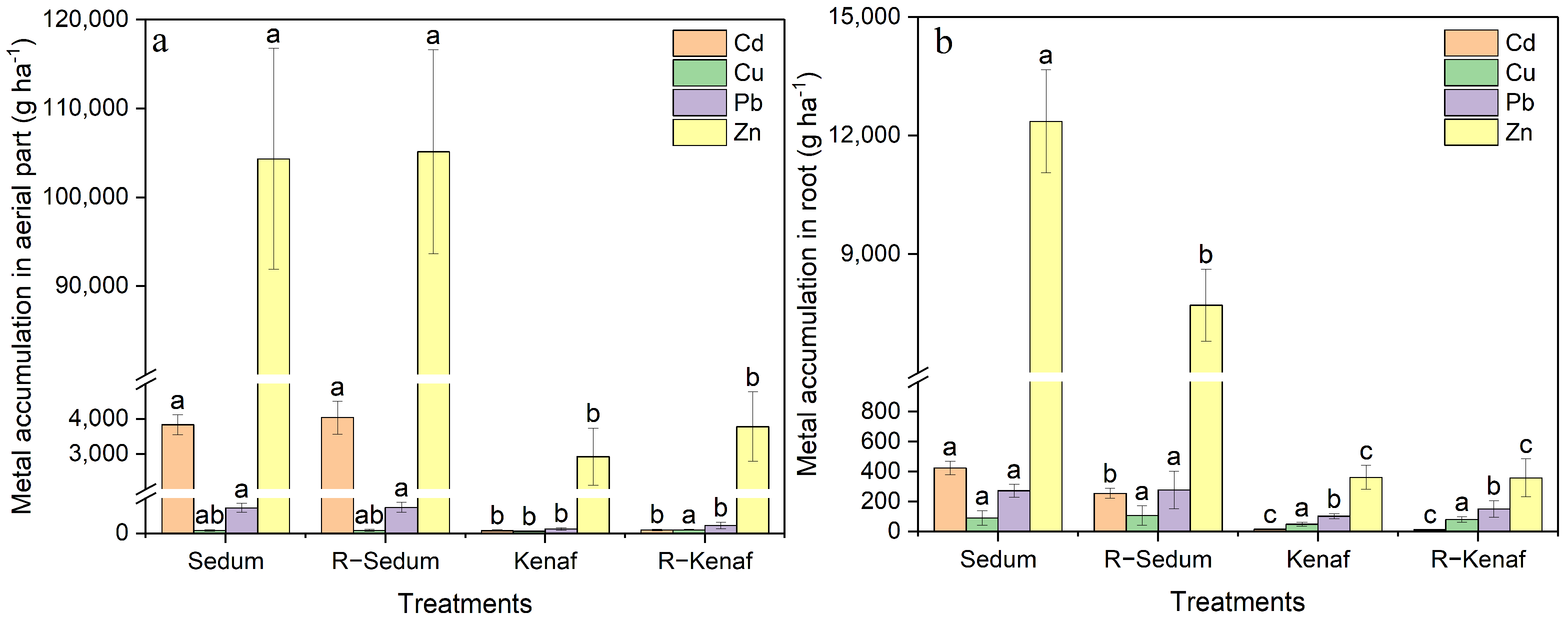

Figure 4. Metal accumulations in aerial part (a) and root (b) for kenaf and S. plumbizincicola under different treatments. Letters above the columns for each variable indicate significant differences between treatments or crops. R−Sedum means the S. plumbizincicola in rotation with kenaf; R−Kenaf means the kenaf in rotation with S. plumbizincicola.
Figure 4. Metal accumulations in aerial part (a) and root (b) for kenaf and S. plumbizincicola under different treatments. Letters above the columns for each variable indicate significant differences between treatments or crops. R−Sedum means the S. plumbizincicola in rotation with kenaf; R−Kenaf means the kenaf in rotation with S. plumbizincicola.
Agronomy 13 01231 g004
Table
Table 1. The physicochemical properties of the soil in the experimental site.
Table 1. The physicochemical properties of the soil in the experimental site.
ItemsSoil Organic MatterTotal
Nitrogen		Available
P		Available KTotal
Cd		Total
Pb		Total
Cu		Total
Zn		pH
g/kgmg/kg
Values42.2200027.62085.1013768407705.70
Critical
Values 1		 ---0.30901502005.5 < pH ≤ 6.5
1 Soil pollution risk screening values of agricultural land according to the standard Risk control standard for soil contamination of agricultural land (GB 15618—2018) of China.
Table
Table 2. Translocation factors and bioconcentration factors for HMs of two plants.
Table 2. Translocation factors and bioconcentration factors for HMs of two plants.
ItemsElementSedumR-SedumKenafR-Kenaf
TF 1Cd1.458 a 31.568 a0.875 b1.218 ab
Cu0.164 a0.089 b0.214 a0.197 a
Pb0.437 a0.292 b0.208 b0.233 b
Zn1.362 a1.352 a1.368 a1.732 a
BCF 2-aerial partCd111.29 b254.02 a1.207 c3.280 c
Cu0.0136 a0.0138 a0.00524 b0.00715 b
Pb0.0585 a0.0601 a0.00558 b0.00759 b
Zn11.87 a13.34 a0.153 b0.183 b
BCF-rootCd75.14 b164.30 a1.547 c2.662 c
Cu0.0845 b0.204 a0.0258 b0.0380 b
Pb0.129 b0.250 a0.0235 c0.0322 c
Zn8.62 a9.86 a0.120 b0.114 b
1 Translocation factor; 2 Bioconcentration factor; 3 Different letters in each line indicate significant differences between treatments.
