Article

Prediction Model of Pumpkin Rootstock Seedlings Based on Temperature and Light Responses

College of Horticulture, Qingdao Agricultural University, Qingdao 266109, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Agronomy 2023, 13(2), 516; https://doi.org/10.3390/agronomy13020516
Submission received: 24 December 2022 / Revised: 8 February 2023 / Accepted: 10 February 2023 / Published: 10 February 2023

Abstract

:
Temperature and light are the key factors that affect the quality of pumpkin rootstock seedlings’ growth process. Responses to temperature and light are an important basis for optimizing the greenhouse environment. In order to determine the quantitative effects of temperature and light on the growth and development of pumpkin (Cucurbita moschata cv. RTWM6018) rootstock seedlings, relationships between temperature, light, and pumpkin rootstock seedlings growth were established using regression analysis. The results indicated that the daily average temperature had a significant negative correlation with the development time of pumpkin rootstock seedlings, and the shoot dry weight of pumpkin rootstock seedlings increased within a certain range of the daily light integral (DLI). We established a prediction model of pumpkin rootstock seedling quality indicators (hypocotyl length, stem diameter, shoot dry weight, root dry weight, root shoot ratio, and seedling quality index) based on thermal effectiveness and photosynthetic photon flux density (TEP). The coefficient of determinations (R2) of the hypocotyl length and seedling quality index prediction models of pumpkin rootstock seedlings, based on accumulated TEP, were 0.707 and 0.834, respectively. The hypocotyl length and seedling quality index prediction models of pumpkin rootstock seedlings, based on accumulated TEP, were y1 = 0.001 x2 − 0.180 x + 13.057 and y2 = 0.008 x0.722, respectively, which could be used for predicting the growth of pumpkin rootstock seedlings grown under different temperature and light conditions.

1. Introduction

In modern agriculture, the vegetable seedling stage and its subsequent cultivation stage are often separated due to planting density, environmental conditions, and management [1]. Prior studies indicated that the seedling quality affects the subsequent growth and mature plants’ yield [2]. Moreover, the demand in China for vegetable seedlings reached 680 billion in 2018 [3]. Thus, cultivating high-quality seedlings is vital for the vegetable seedling industry.
Grafting has been gradually applied in vegetable seedling production to improve seedling quality in terms of plant resistance to pathogens and abiotic stresses [4]. Grafting has long been utilized to improve water and nutrient uptake by strengthening the vascular connection between the scion and rootstock tissues [5]. Suitable rootstocks can be used to absorb mineral nutrients from the soil or substrate, and a previous study [6] indicated that the influences of grafting mainly depend on the rootstock. Pumpkin (Cucurbita moschata Duch.) is one of the most important vegetables and is commercially cultivated worldwide. Asia led in worldwide pumpkin production at 59.9% in 2020, followed by Europe (17.5%) and America (11.9%). In China, the area harvested, and production of pumpkin reached 0.40 million hectares and 7.48 million tones, accounting for 20.0% and 26.8% worldwide, respectively [7]. In addition, pumpkin is often applied as a rootstock in grafted watermelon seedlings [5,8] and grafted cucumber seedlings [9,10].
Crop models, also known as crop growth and development models, can quantitatively describe and predict crop growth and the development process and their relationships with the environment [11]. As for simulation models of the greenhouse crop development period, Perry et al. [12] used the accumulated temperature method to predict the harvest time of cucumber; Uzun et al. [13] established a simple regression model based on mean temperature for predicting the time elapsed from seed sowing to seedling emergence for some vegetable crops (namely, tomato, pepper, aubergine, pea, and carrot); and Sarba et al. [14] established a polynomial mathematical model of the number of days required for tomato seedlings development based on temperature and light intensity. Moreover, artificial intelligence methods (including neural networks, fuzzy logic, and deep learning) [15,16,17] were used to predict lettuce harvest time. Regarding simulation models of greenhouse crop quality index, Hang et al. [18] established a lettuce leaf area model based on the accumulated product of thermal effectiveness and photosynthetically active radiation (TEP) method; Chen et al. [19] proposed a method for obtaining the regulatory target value using the U-chord length curvature method based on the dry-weight model-fitted curve characteristics to obtain the optimum light intensity at the tomato seedling stage; and Liu et al. [20] proposed using a photothermal ratio (PTR) to quantify the effects of PTR during vegetative (PTRv) or reproductive (PTRr) phases on the quality of fully grown ‘Freedom’ poinsettia. These models clarified the relationships between plant growth, development, quality, and environmental conditions, which could be widely used in regulating the temperature and light environment during crop growth. However, prediction models for pumpkin rootstock seedlings’ development time and quality index are rarely reported.
The key indicators affecting grafting are seedling age, hypocotyl length, stem diameter, and seedling quality index [21]. The quality of pumpkin rootstock seedlings significantly influences the subsequent grafting process, such as the grafting survival rate and grafted seedling quality, growth, and yield [5]. Pumpkin rootstock seedlings are affected by various environmental factors during plant growth and development, especially temperature and light. Under high-temperature and low-light conditions, vegetable seedlings exhibit rapid development rates and slender hypocotyls, resulting in decreased dry matter accumulation and seedling quality [2]. In contrast, vegetable seedlings’ relative growth rate and hypocotyl length decrease significantly in winter with low temperature and weak light [22], and the grafting interface may be buried by soil. Until now, quality indices affecting the grafting survival rate and the quality of grafted seedlings, such as the seedling age, hypocotyl length, and stem diameter of pumpkin rootstock seedlings, have not been able to be predicted due to the lack of a development time and quality index prediction model. Thus, quantitative control of the temperature and light environment is of great significance in growing pumpkin rootstock seedlings in a greenhouse.
Considering this, the present study aimed to evaluate the impacts of light intensity and temperature on the growth of pumpkin seedlings and establish models for the environmental factors and representative parameters of pumpkin rootstock seedlings. The results could provide guidelines for regulating the temperature and light environment during the cultivation of pumpkin rootstock seedlings grown in a greenhouse.

2. Materials and Methods

2.1. Plant Materials and Growth Conditions

Pumpkin (Cucurbita maxima cv. RTWM6018) seeds (Golden Ma Ma Agricultural Science & Technology Co., Ltd., Qingdao, China) were sown in 50-cell plug trays (54 cm × 28 cm × 4.5 cm) (Shandong Lige Technology Co., Ltd., Jinan, China) filled with a mixture of vermiculite (Shandong Lige Technology Co., Ltd., Jinan, China), peat (The Pindstrup Group, Kongersle, Denmark), and perlite (Shandong Lige Technology Co., Ltd., Jinan, China) (3:1:1, V/V) in a glass greenhouse with a floor area of 2736 m2 at Qingdao Agricultural University (36°19′ N, 120°23′ E), Qingdao, Shandong Province, China. The greenhouse was equipped with a hot-air heating system and a pad-and-fan cooling system to control the temperature between 15 °C and 32 °C. The relative humidity was maintained at 60–70%, and the CO2 concentration was not controlled during the growth period.

2.2. Collection of Environmental Data

Seventy experiments were conducted in the greenhouse between March 2021 and October 2022, with 3 replicates and 50 seedlings per replicate in each experiment. Environmental data collectors (Hobo, Onset Computer Corp., Bourne, MA, USA) were used to record temperature and light intensity during each experiment (Table 1, Figure 1). Eight experiments were randomly selected among the experiments conducted in 2021 to analyze the effects of environmental factors on the growth of pumpkin seedlings. The temperature, light environment, and seedling growth data collected in 2021 were used to establish the prediction model, and the data collected in 2022 were used to verify the prediction model.

2.3. Measurement of Plant Growth Characteristics

The sowing date, seedling emergence date, and seedling date were recorded to calculate pumpkin rootstock seedlings’ emergence time and seedling time in each experiment. Seedling emergence time and the seedling time accounted for the period from sowing to emergence and from emergence to the growth of a seedling with one true leaf, respectively. The hypocotyl length, stem diameter, and dry weight of the pumpkin rootstock seedlings were measured when the seedlings reached the last stage (with one true leaf). The stem diameters of the pumpkin rootstock seedlings were measured with a vernier caliper (DL91150, Deli Tools Co., Ltd., Ningbo, China). The leaves and roots were dried in an oven at 105 °C for 3 h and subsequently left at 80 °C until reaching a constant weight, and then the dry weight of leaves and roots were recorded. The shoot dry weight and root dry weight of the pumpkin rootstock seedlings were measured with an electronic analytical balance. Root shoot ratio and seedling quality index [24] were calculated using the following formula:
S e e d l i n g   q u a l i t y   i n d e x = s t e m   d i a m e t e r ( mm ) p l a n t   h e i g h t ( cm ) × t o t a l   d r y   w e i g h t ( g )

2.4. Establishment of Prediction Model for Pumpkin Rootstock Seedlings

The relationships between the development times (emergence time and seedling time) of pumpkin rootstock seedlings, daily average temperature, and daily light integral were established via stepwise regression of multiple factors and quadratic terms with daily average temperature and daily light integral as variables and emergence time and seedling time of pumpkin rootstock seedlings as dependent variables.
TEP [25,26] is the product of thermal effectiveness (TE) and photosynthetic photon flux density (PPFD). A model for predicting the growth and development of pumpkin rootstock seedlings was established with the accumulated TEP as the independent variable and the seedling quality indicators as the dependent variables. Accumulated TEP was calculated using the daily TEP (DTEP); the calculation formula is as follows:
D T E P i = j = 1 n ( R T E j × P P F D j × L × 10 6 )
T E P = i = 1 k D T E P i
R T E = { 0 ,   T < T b ( T T b ) / ( T o b T b ) ,   T b T < T o b 1 ,   T o b T < T o u ( T m T ) / ( T m T o u ) ,   T o u T T b 0 ,   T T m
where L is the observation time step and n is the number of observations per day. Data on temperature and light intensity were collected every 10 min in this study; RTEj and PPFDj are the relative thermal effect and photosynthetic photon flux density (PPFD; μmol m −2 s−1) at time j of any day, respectively; i and k indicate seedling development days and the total days of seedling development, respectively; DTEP is the accumulated the product of the daily thermal effect combined with the photosynthetic photon flux density; Tb, Tob, Tou, and Tm are the lower development threshold temperature, the lower optimum temperature threshold, the upper optimum temperature threshold, and the higher development temperature threshold, respectively. The three fundamental temperatures of pumpkin rootstock seedlings are shown in Table 2 [27,28,29].

2.5. Model Evaluation

The prediction accuracy of the pumpkin rootstock seedling prediction model was evaluated using the coefficient of determination (R2) of regression analysis and the calculation of root mean square error (RMSE). The calculation formula of RMSE is as follows:
R M S E = 1 n i = 1 n ( x o b s , i x m o d e l , i ) 2
where xobs,i, xmodel,i, and n are the observed value, the predicted value, and the number of observations, respectively.

2.6. Statistical Analysis

One-way ANOVA and stepwise regression analysis of experimental data were carried out using DPS (version 7.05, Hangzhou Ruifeng Information Technology Co., Ltd., Hangzhou, China). Significant differences were considered at p < 0.05. The scatter plot was drawn using Microsoft Excel 2016 software and made to fit the variation curves of the accumulated TEP and pumpkin rootstock seedling quality index. Origin (version 9.8, Origin Lab Corporation, Northampton, MA, USA) was used to compare the relationships between predicted and measured values.

3. Results and Discussion

3.1. Effects of Temperature and Light Intensity on Growth of Pumpkin Rootstock Seedlings

The average daily temperature in the range of 21.7–26.9 °C significantly affected pumpkin rootstock seedlings’ emergence and seedling time (Table 3). The pumpkin rootstock seedlings’ emergence and seedling time decreased gradually with increasing daily average temperature. The pumpkin rootstock seedlings’ emergence and seedling times (2.8 and 4.3 days, respectively) were the shortest under the environment of T8L8.
The pumpkin rootstock seedlings grown under lower and higher DLIs had a shorter plant height and hypocotyl length than seedlings grown under the optimized DLI. The plant height and hypocotyl length of pumpkin rootstock seedlings was the largest under T4L4 and T8L8. The stem diameter of pumpkin rootstock seedlings grown under a higher daily average temperature was smaller than that of seedlings grown under a lower daily average temperature; however, different trends were observed in the stem diameter of pumpkin rootstock seedlings grown under different DLIs. The shoot dry weight, root dry weight, root shoot ratio, total dry weight, and seedling quality index of pumpkin rootstock seedlings grown under T7L7 were higher than those of other pumpkin rootstock seedlings (Table 3).
The development processes of tomato [14], cucumber [30], pepper [31], and lettuce [32] have been reported to be significantly affected by temperature; however, a relationship between temperature and the development time of pumpkin rootstock seedlings has rarely been reported. The hypocotyl of pumpkin rootstock seedlings is an important organ in grafting and is closely related to grafting quality [33]. The hypocotyl length of pumpkin rootstock seedlings grown under DLI of 14.5 mol m−2 d−1 was lower than that of seedlings grown under a DLI of 5.2 mol m−2 d−1 (Table 3). Increasing the DLI within a certain range may lead to shorter cell and plant heights, thicker stems, and higher-quality plants. Hwang et al. [34] found the stem length of tomato and red pepper seedlings increased as the DLI increased within a certain range; however, an excessive DLI inhibited the extension of hypocotyl. Kitaya et al. [35] also indicated that the hypocotyl length of lettuce increased as the DLI increased from 5.8 to 8.6 mol m −2 d−1. Studies have shown that increasing the DLI is beneficial to increase the dry matter accumulation of seedlings, including lettuce [36], cucumber [37,38,39], and tomato [20] seedlings. The current findings on the development time and quality indicators of pumpkin rootstock seedlings are parallel to those reported by previous researchers.

3.2. Prediction Model of Development Time of Pumpkin Rootstock Seedlings Based on Daily Average Temperature and DLI

The prediction models of pumpkin rootstock seedlings’ emergence and seedling time were y1 = 0.009 x12 − 0.720 x1 + 16.463 and y2 = 14.781 − 0.405 x1 + 0.007 x22, respectively (Table 4). The daily average temperature was a key indicator affecting the pumpkin rootstock seedlings’ emergence and seedling time in the regression model, and the daily average temperature and pumpkin rootstock seedlings showed a quadratic relationship. The pumpkin rootstock seedlings’ emergence and seedling time, according to daily average temperature and the DLI, were 78.9% and 78.9%, respectively (Table 4). The daily average temperature and DLI had a high potential for predicting pumpkin rootstock seedlings’ emergence time and seedling time.
Previous researchers [40] used the effective accumulated temperature to establish crop growth and development models to simulate the growth period of crops. The effective temperature accumulation method considered that a certain temperature was required to predict crops’ development stage. This method was applicable to field crops and the environment temperature within the upper and lower limit of the temperature range. However, it produced large errors in predicting the growth period beyond the physiological temperature range. The regression model showed that temperature was the key factor affecting the pumpkin rootstock seedlings’ emergence time. The daily average temperature inversely correlated to the pumpkin rootstock seedlings’ emergence time (Table 4). The pumpkin rootstock seedlings’ emergence and seedling time decreased with the increasing daily average temperature.
Moreover, a nonlinear relationship between the temperature and the emergence time of pumpkin rootstock seedlings was found in our study, which was similar to the emergence time of sugar beet reported by Rimaz et al. [41]. Uzun et al. [14] also established a simple regression model based on the average temperature (D = a − b × T + c × T2) to predict the time from sowing to the emergence of tomato, pepper, eggplant, and other vegetable crops. The regression model of pumpkin rootstock seedling growth time showed that the duration from emergence to the stage with one true leaf decreased linearly with increasing of the daily average temperature (Table 4), which was similar to the results of Sarba et al. [15]. The correlation coefficients of daily average temperature and DLI with the seedling time of pumpkin rootstock seedlings were 0.84 and 0.45 (Table 5), respectively, which indicates that the daily average temperature and DLI had a significant effect on the pumpkin rootstock seedlings’ seedling time. The direct effect of daily average temperature on the pumpkin rootstock seedlings’ seedling time was greater than that of DLI, as determined through path analysis.

3.3. Development of the Simulation Model for Seedling Quality Indices

The hypocotyl length of pumpkin rootstock seedlings increased with decreasing accumulated TEP, showing a quadratic relationship between the hypocotyl length of pumpkin rootstock seedling and accumulated TEP. However, the stem diameter, shoot dry weight, root dry weight, root shoot ratio, and the seedling quality index of pumpkin rootstock seedlings increased with increasing accumulated TEP, showing a power function relationship for the stem diameter, shoot dry weight, root dry weight, root shoot ratio, and seedling quality index of pumpkin rootstock seedlings with the accumulated TEP (Figure 2). The prediction model of the hypocotyl length of pumpkin rootstock seedlings was y = 0.001 x2 – 0.18 x + 13.06, and the coefficient of determination (R2) between accumulated TEP and hypocotyl length of pumpkin rootstock seedlings was 0.707 (Figure 2). However, the coefficient of determinations between accumulated TEP and the diameter of the cotyledon base, shoot dry weight, root dry weight, and root shoot ratio of pumpkin rootstock seedlings was 0.398, 0.383, 0.541, and 0.213, respectively. Our results indicated that the stem diameter, shoot dry weight, root dry weight, and root shoot ratio of pumpkin rootstock seedlings were not suitable for establishing a prediction model based on cumulative TEP according to the lower coefficient of determination. The prediction model of the seedling quality index of pumpkin rootstock seedlings was y = 0.008 x0.722, and the fitting curve of accumulated TEP and seedling quality index of pumpkin rootstock seedling had a higher R2 value (0.834) (Figure 2). Due to the prediction models of the hypocotyl length and the seedling quality index of pumpkin rootstock seedlings having higher R2 values, the prediction models of hypocotyl length and seedling quality index of pumpkin rootstock seedlings could be further verified.
TEP was a comprehensive factor of the combinations of temperature, light intensity, and photoperiod. There have been many reports on greenhouse crop models based on TEP [19,42]. Our results suggest that the curve fitting degree between the accumulated TEP and the hypocotyl length of pumpkin rootstock seedlings was higher, but the curve fitting degree between the accumulated TEP and the stem diameter, shoot dry weight, root dry weight, and root–shoot ratio of pumpkin rootstock seedlings was lower. The reason for the lower fitting degree of the prediction model of the stem diameter of pumpkin rootstock seedling was that the stem diameter was smaller at the early stage of seedling. Similarly, the reason for the lower fitting degree of the prediction of shoot dry weight, root dry weight, and root–shoot ratio of pumpkin rootstock seedlings was that there was less biological accumulation in the early stage of seedlings, which affected the accuracy of the seedling prediction model. This result is consistent with the research results of Ming et al. [25] and Zhou et al. [26]. In addition, the curve fitting degree of the prediction model of the seedling quality index of pumpkin rootstock seedlings based on the accumulated TEP was higher, which may be due to the fact that the seedling quality index contained more information on seedlings, especially in terms of dry matter accumulation [43].

3.4. Validation of Prediction Model

The environmental data and seedling quality index of pumpkin rootstock seedlings collected in 2022 were used to verify the prediction model. The emergence time, seedling time, hypocotyl length, and seedling quality index of pumpkin rootstock seedlings were predicted by the prediction model, and the RMSE value was calculated to determine the accuracy of the model. Generally, the closer the predicted value to the observed value and the smaller the RMSE value, the more accurate the prediction ability of the model [44]. The results showed that the RMSE values of seedling emergence time and seedling time were 0.399 and 0.408, respectively. In addition, the RMSE values of hypocotyl length and seedling quality index of pumpkin rootstock seedlings were 0.571 and 0.033, respectively. Small RMSE and high R2 values in the validation phase indicate the goodness of fit of the predictive model. The R2 values of seedling emergence time, seedling time, hypocotyl length, and seedling quality index of pumpkin rootstock seedlings were 0.936, 0.881, 0.829, and 0.189, respectively (Figure 3).

4. Conclusions

Daily average temperature and the DLI were used as indicators of the development time of pumpkin rootstock seedlings using a regression model, and the accumulated TEP was a potential indicator for predicting the quality index of pumpkin rootstock seedlings. Prediction models of hypocotyl length and seedling quality index based on accumulated TEP for pumpkin rootstock seedlings were established in this study. The prediction model for pumpkin rootstock seedlings’ development time, hypocotyl length, and seedling quality index could be used not only for predicting growth grown under different temperature and light conditions but also to optimize the greenhouse temperature and light environment and to cultivate high-quality seedlings within a certain timeframe to meet grafting needs.

Author Contributions

Conceptualization, D.L. and Y.Y.; methodology, Y.Y. and J.C.; data analysis, J.C., Z.W. and B.W.; image modification, Z.W. and B.W.; investigation, J.C. and Z.Y.; resources, D.L. and Y.Y.; Writing—original draft preparation, Y.Y. and J.C.; Writing—review and editing, Z.Y., J.C., D.L. and Y.Y.; supervision, D.L. and Y.Y.; project administration, Y.Y.; funding acquisition, Y.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported the Science and Technology of People-benefiting Project of Qingdao (No. 21-1-4-ny-6-nsh), Modern Agricultural Industrial Technology System of Shandong Province (No. SDAIT-05), and Key Research and Development Program of Shandong Province (No. 2021TZXD007-02).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is reported in Section 3. Please contact the corresponding author for any additional information.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Vatakait-Kairien, V.; Brazaityt, A.; Virsile, A.; Samuoliene, G.; Miliauskiene, J.; Jankauskiene, J.; Novickovas, A.; Duchovskis, P. The Nutritional Value of Brassica Leafy Greens in Different Growth Stages. Acta Hortic. 2020, 1271, 455–464. [Google Scholar] [CrossRef]
  2. Yan, Z.; He, D.; Niu, G.; Zhai, H. Evaluation of Growth and Quality of Hydroponic Lettuce at Harvest as Affected by The Light Intensity, Photoperiod and Light Quality at Seedling Stage. Sci. Hortic. 2019, 248, 138–144. [Google Scholar] [CrossRef]
  3. Liu, M.; Ji, Y.; Wu, Z.; He, W. Current Situation and Development Trend of Vegetable Seedling Industry in China. China Veg. 2018, 11, 1–7. [Google Scholar]
  4. Niu, M.; Wei, L.; Peng, Y.; Huang, Y.; Bie, Z. Mechanisms of Increasing Salt Resistance of Vegetables by Grafting. Veg. Res. 2022, 2, 8. [Google Scholar] [CrossRef]
  5. Shireen, F.; Nawaz, M.A.; Xiong, M.; Ahmad, A.; Sohail, H.; Chen, Z.; Abouseif, Y.; Huang, Y.; Bie, Z. Pumpkin Rootstock Improves The Growth and Development of Watermelon by Enhancing Uptake and Transport of Boron and Regulating The Gene Expression. Plant Physiol. Biochem. 2020, 154, 204–218. [Google Scholar] [CrossRef]
  6. Zhen, A.; Bie, Z.; Huang, Y.; Liu, Z.; Li, Q. Effects of Scion and Rootstock Genotypes on The Antioxidant Defense Systems of Grafted Cucumber Seedlings Under NaCl Stress. Soil Sci. Plant Nutr. 2010, 56, 263–271. [Google Scholar] [CrossRef]
  7. FAO. Available online: http://www.fao.org/faostat/en/#data/QC (accessed on 27 July 2022).
  8. Nawaz, M.A.; Wang, L.; Chen, C.; Zhao, L.; Mei, M.; Yu, Y.; Bie, Z.; Huang, Y. Pumpkin Rootstock Improves Nitrogen Use Efficiency of Watermelon Scion by Enhancing Nutrient Uptake, Cytokinin Content, and Expression of Nitrate Reductase Genes. Plant Growth Regul. 2017, 82, 233–246. [Google Scholar] [CrossRef]
  9. Liu, W.; Xiang, C.; Li, X.; Wang, T.; Lu, X.; Liu, Z.; Gao, L.; Zhang, W. Identification of Long-Distance Transmissible mRNA between Scion and Rootstock in Cucurbit Seedling Heterografts. Int. J. Mol. Sci. 2020, 21, 5253. [Google Scholar] [CrossRef]
  10. Fu, X.; Feng, Y.; Zhang, X.; Zhang, Y.; Bi, H.; Ai, X. Salicylic Acid Is Involved in Rootstock–Scion Communication in Improving the Chilling Tolerance of Grafted Cucumber. Front. Plant Sci. 2021, 12, 693344. [Google Scholar] [CrossRef]
  11. Kasampalis, D.A.; Alexandridis, T.; Deva, C.; Challinor, A.; Moshou, D.; Zalidis, G. Contribution of Remote Sensing on Crop Models: A Review. J. Imaging 2018, 4, 52. [Google Scholar] [CrossRef]
  12. Perry, K.B.; Wehner, T.C.; Johnson, G.L. Comparison of 14 Methods to Determine Heat Unit Requirements for Cucumber Harvest. Hortscience 1986, 21, 419–423. [Google Scholar] [CrossRef]
  13. Uzun, S.; Marangoz, D.; Ozkaraman, F. Modeling the Time Elapsing from Seed Sowing to Emergence in Some Vegetable Crops. Pak. J. Biol. Sci. 2001, 4, 442–445. [Google Scholar] [CrossRef]
  14. Sarba, H.E.; Uzun, S. A Model to Determine Quantitative Effects of Light and Temperature on Organic Tomato Seedlings. Acta scientiarum Polonorum. Hortorum Cultus 2019, 18, 175–185. [Google Scholar]
  15. Chang, C.; Chung, S.; Fu, W.; Huang, C. Artificial Intelligence Approaches to Predict Growth, Harvest Day, and Quality of Lettuce (Lactuca sativa L.) in a IoT-enabled Greenhouse System. Biosyst. Eng. 2021, 212, 77–105. [Google Scholar] [CrossRef]
  16. Rizkiana, A.; Nugroho, A.P.; Salma, N.M.; Afif, S.; Masithoh, R.E.; Sutiarso, L.; Okayasu, T. Plant Growth Prediction Model for Lettuce (Lactuca sativa.) in Plant Factories Using Artificial Neural Network. IOP Conf. Ser. Earth Environ. Sci. 2021, 733, 012027. [Google Scholar] [CrossRef]
  17. Concepcion, R.; Dadios, E.P.; Bandala, A.; Sybingco, E. Prediction of Cultivation Period and Canopy Area in Lettuce Using Multi- Temporal Visible RGB-Based Vegetation Indices and Computational Intelligence. Int. J. Adv. Sci. Technol. 2020, 29, 12600–12625. [Google Scholar]
  18. Hang, T.; Lu, N.; Takagaki, M.; Mao, H. Leaf Area Model Based on Thermal Effectiveness and Photosynthetically Active Radiation in Lettuce Grown in Mini-plant Factories Under Different Light Cycles. Sci. Hortic. 2019, 252, 113–120. [Google Scholar] [CrossRef]
  19. Chen, D.; Zhang, J.; Zhang, B.; Wang, Z.; Xing, L.; Zhang, H.; Hu, J. Obtaining a Light Intensity Regulation Target Value Based on The Tomato Dry Weight Model. Sci. Hortic. 2022, 295, 110879. [Google Scholar] [CrossRef]
  20. Liu, B.; Heins, R.D. Photothermal Ratio Affects Plant Quality in `Freedom’ Poinsettia. J. Am. Soc. Hortic. Sci. Am. Soc. Hortic. Sci. 2002, 127, 20–26. [Google Scholar] [CrossRef]
  21. Maurya, D.; Pandey, A.K.; Kumar, V.; Dubey, S.; Prakash, V. Grafting techniques in vegetable crops: A review. AkiNik Publ. 2019, 7, 1664–1672. [Google Scholar]
  22. Alshoaibi, A. Estimation of Growth and Photosynthetic Performance of Two C4 Species (Pennisetum spicatum (L.) Krn. and Zea mays L.) under a Low Temperature Treatment. Phyton-Int. J. Exp. Bot. 2022, 91, 11. [Google Scholar]
  23. Kozai, T.; Tsukagoshi, S.; Sakaguchi, S. Reconsidering the Terminology and Units for Light and Nutrient Solution: The Next Generation Indoor Vertical Farms. Smart Plant Factory; Kozai, T., Ed.; Springer: Singapore, 2018; pp. 183–193. [Google Scholar]
  24. Sun, L.; Zhao, W.; Jiang, M.; Yang, R.; Sun, X.; Wang, J.; Wang, S. Rootstock Screening for Greenhouse Tomato Production Under a Coconut Coir Cultivation System. Chil. J. Agric. Res. 2021, 81, 202–209. [Google Scholar] [CrossRef]
  25. Ming, C.; Jiang, F.; Wang, G.; Hu, H.; Wu, Z. Simulation Model of Cucumber Healthy Indexes Based on Radiation and Thermal Effectiveness. J. Agric. Eng. 2012, 28, 109–113. [Google Scholar]
  26. Zhou, T.; Wu, Z.; Wang, Y.; Su, X.; Qin, C.; Huo, H.; Jiang, F. Modelling Seedling Development Using Thermal Effectiveness and Photosynthetically Active Radiation. J. Integr. Agric. 2019, 18, 2521–2533. [Google Scholar] [CrossRef]
  27. Khoramivafa; Jalilian, N.E.A.; Sayyadian, K. Estimation of Base Temperature for Germination and Study of Growth Degree Day at Various Phenological Stages in Medicinal Pumpkin. Eur. J. Sci. Res. 2011, 66, 319–324. [Google Scholar]
  28. Teotia, M.S.; Saxena, A.K.; Berry, S.K.; Ahuja, D.K. Development of Instant Pumpkin Kofta. J. Food Sci. Technol. 2004, 6, 41. [Google Scholar]
  29. Qu, S. Key Techniques of High Quality and Efficient Cultivation of Seed Pumpkin; Heilongjiang Science and Technology Press: Harbin, China, 2008; p. 56. [Google Scholar]
  30. Kahlen, K.; Zinkernagel, J.; Stutzel, H. Modeling Temperature-Modulated Stem Growth of Cucumber Plants (Cucumis sativus L.). In Proceedings of the IEEE Fourth International Symposium on Plant Growth Modeling, Simulation, Visualization and Applications (PMA 2012), Shanghai, China, 31 October–3 November 2012; pp. 188–191. [Google Scholar]
  31. Takagaki, M. Influence of Day Temperature on Relative Growth Rate and Net Photosynthetic Rate of Four Pepper, Capsicum annuum, varieties. Jpn. J. Trop. Agric. 2010, 37, 277–283. [Google Scholar]
  32. Lee, A.C.; Liao, F.S.; Lo, H.F. Temperature, Daylength, and Cultivar Interact to Affect the Growth and Yield of Lettuce Grown in High Tunnels in Subtropical Regions. Hortscience 2015, 50, 1412–1418. [Google Scholar] [CrossRef]
  33. Onur, K.; Ahmet, B.; Gocmen, M.; Ismail, S.; Dilek, K. Use of Phenotypic Selection and Hypocotyl Properties as Predictive Selection Criteria in Pumpkin (Cucurbita moschata Duch.) Rootstock Lines Used for Grafted Cucumber (Cucumis sativus L.) Seedling Cultivation. Turk. J. Agric. For. 2018, 42, 124–135. [Google Scholar]
  34. Hwang, H.; An, S.; Pham, M.D.; Cui, M.Y.; Chun, C. The Combined Conditions of Photoperiod, Light Intensity, and Air Temperature Control the Growth and Development of Tomato and Red Pepper Seedlings in a Closed Transplant Production System. Sustainability 2020, 12, 9939. [Google Scholar] [CrossRef]
  35. Kitaya, Y.; Niu, G.; Kozai, T.; Ohashi, M. Photosynthetic Photon Flux, Photoperiod, and CO2 Concentration Affect Growth and Morphology of Lettuce Plug Transplants. HortScience 1998, 33, 988–991. [Google Scholar] [CrossRef]
  36. Kelly, N.; Choe, D.; Meng, Q.; Runkle, E. Promotion of Lettuce Growth Under an Increasing Daily Light Integral Depends on The Combination of The Photosynthetic Photon Flux Density and Photoperiod. Sci. Hortic. 2020, 272, 109565. [Google Scholar] [CrossRef]
  37. Liu, H. Effect of Daily Light Integral on Cucumber Plug Seedlings in Artificial Light Plant Factory. Horticulturae 2021, 7, 139. [Google Scholar]
  38. Yan, Z.; Wang, L.; Dai, J.; Lui, Y.; Lin, D.; Yang, Y. Morphological and Physiological Responses of Cucumber Seedlings to Different Combinations of Light Intensity and Photoperiod with the Same Daily Light Integral. HortScience 2021, 11, 56. [Google Scholar] [CrossRef]
  39. Ji, F.; Wei, S.; Liu, N.; Xu, L. Growth of Cucumber Seedlings in Different Varieties as Affected by Light Environment. Int. J. Agric. Biol. Eng. 2020, 13, 73–78. [Google Scholar] [CrossRef]
  40. Wang, R.; Sun, Z.; Yang, D.; Ma, Y. Simulating Cucumber Plant Heights Using Optimized Growth Functions Driven by Water and Accumulated Temperature in a Solar Greenhouse. Agric. Water Manag. 2022, 259, 107170. [Google Scholar] [CrossRef]
  41. Rimaz, H.R.; Zand-Parsa, S.; Taghvaei, M.; Kamgar-Haghighi, A.A. Predicting the Seedling Emergence Time of Sugar beet (Beta vulgaris) Using Beta Models. Physiol. Mol. Biol. Plants 2020, 26, 2329–2338. [Google Scholar] [CrossRef]
  42. Zhang, H.; Dai, J.; Luo, W.; Zhuang, K. Model for Simulating Development and Growth of Pot Planted Poinsettia (Euphorbia pulcherrima) Grown in Greenhouse. Trans. Chin. Soc. Agric. Eng. 2009, 25, 241–247. [Google Scholar]
  43. Cao, L.; Tian, Y.; Zhao, L.; Tai, S. Current Status of Relevant Standards for Vegetable Seedling Cultivation and Evaluation Methods for Strong Seedlings. Agric. Eng. Technol. 2017, 37, 3. [Google Scholar]
  44. Xin, P.; Zhang, H.; Hu, J.; Wang, Z.; Zhang, Z. An Improved Photosynthesis Prediction Model Based on Artificial Neural Networks Intended for Cucumber Growth Control. Appl. Eng. Agric. 2018, 34, 769–787. [Google Scholar] [CrossRef]

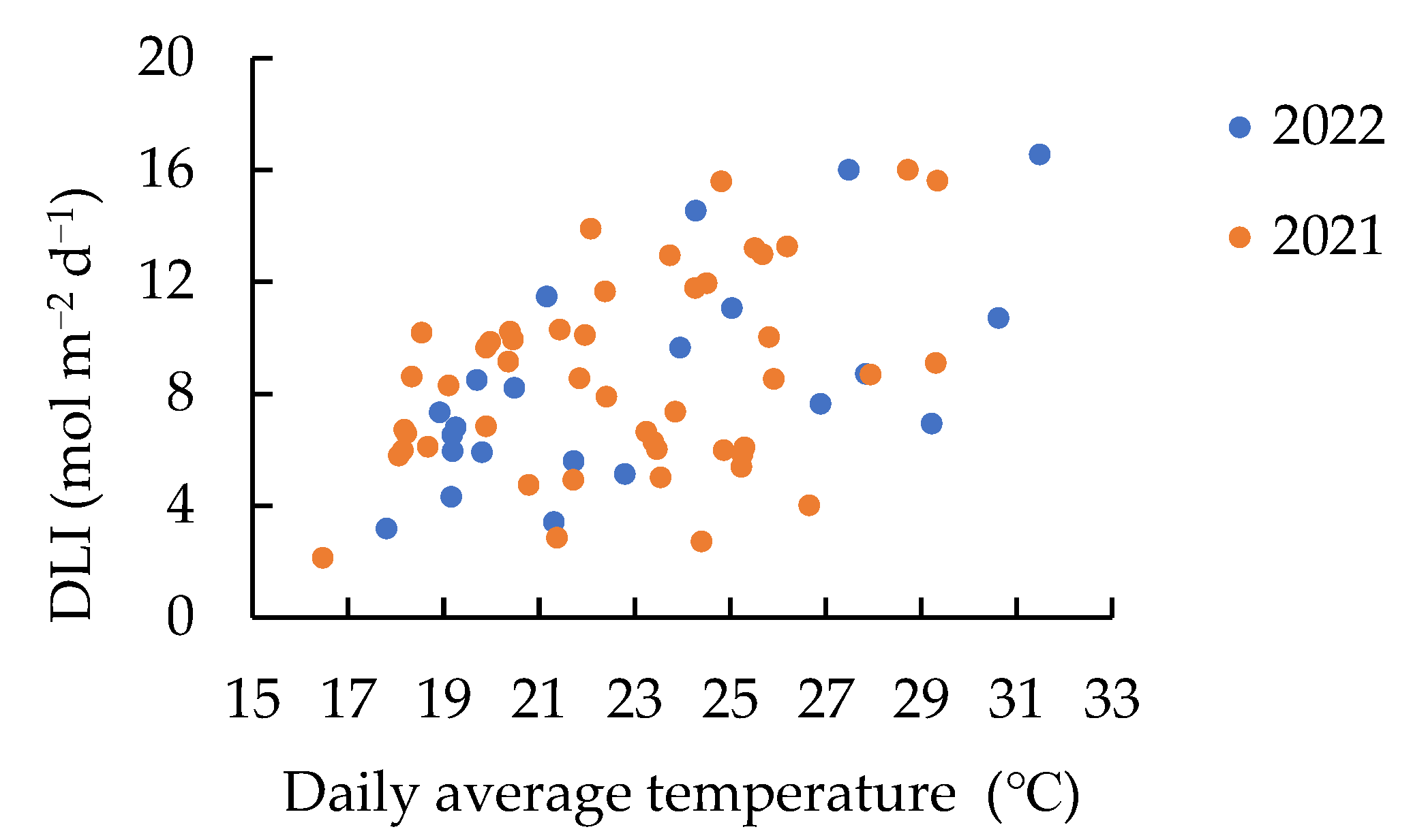

Figure 1. Daily average temperature (°C) and DLI (mol m−2 d−1) during the growth of pumpkin rootstock seedlings in 2021 and 2022. Note: The DLI is the product of the photosynthetic photon flux density and photoperiod or the total sum of radiation in a 24 h period [23].
Figure 1. Daily average temperature (°C) and DLI (mol m−2 d−1) during the growth of pumpkin rootstock seedlings in 2021 and 2022. Note: The DLI is the product of the photosynthetic photon flux density and photoperiod or the total sum of radiation in a 24 h period [23].
Agronomy 13 00516 g001

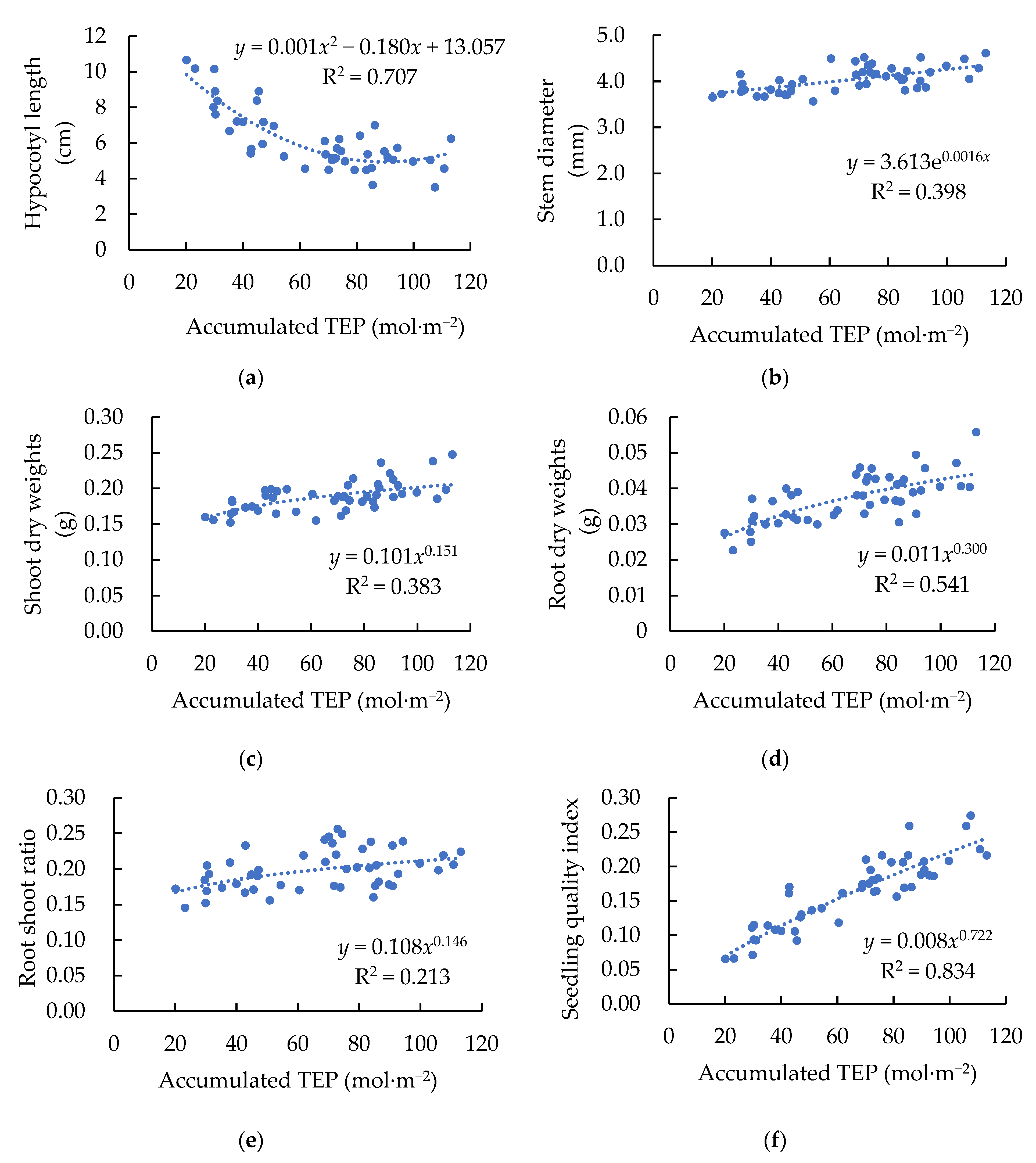

Figure 2. The relationships between the quality indicators of pumpkin rootstock seedlings and accumulated TEP (n = 48); (a) hypocotyl length; (b) stem diameter; (c) shoot dry weight; (d) root dry weight; (e) root shoot ratio; (f) seedling quality index. R2 represents the coefficient of determination.
Figure 2. The relationships between the quality indicators of pumpkin rootstock seedlings and accumulated TEP (n = 48); (a) hypocotyl length; (b) stem diameter; (c) shoot dry weight; (d) root dry weight; (e) root shoot ratio; (f) seedling quality index. R2 represents the coefficient of determination.
Agronomy 13 00516 g002

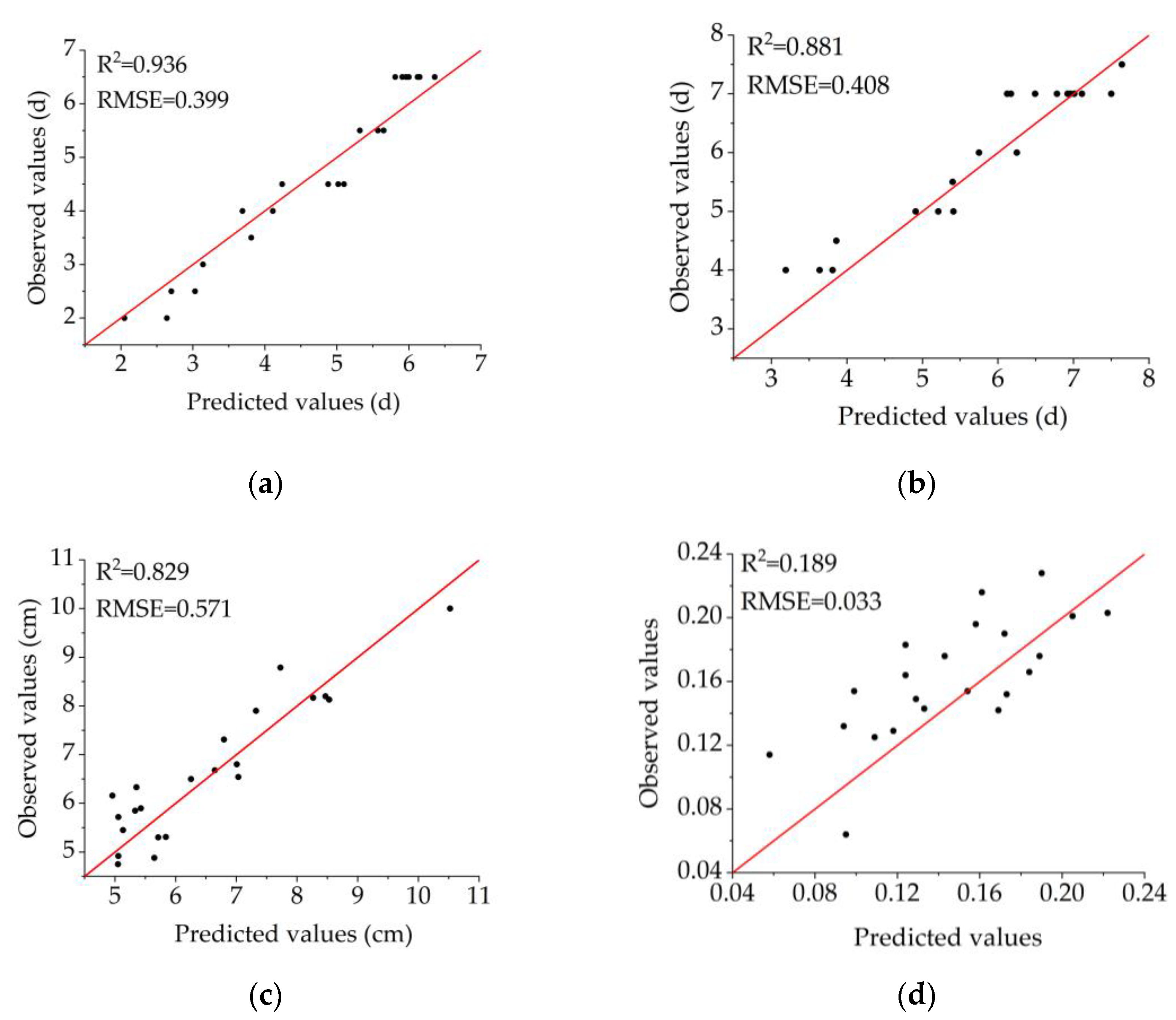

Figure 3. Comparison between predicted and observed values of seedling emergence time (a), seedling time (b), hypocotyl length (c), and seedling quality index (d) in pumpkin rootstock seedlings. RMSE represent the root mean square error.
Figure 3. Comparison between predicted and observed values of seedling emergence time (a), seedling time (b), hypocotyl length (c), and seedling quality index (d) in pumpkin rootstock seedlings. RMSE represent the root mean square error.
Agronomy 13 00516 g003
Table 1. Daily average temperature and DLI during the growth of pumpkin rootstock seedlings in 2021 and 2022.
Table 1. Daily average temperature and DLI during the growth of pumpkin rootstock seedlings in 2021 and 2022.
YearsVariablesMin.Max.AverageSD
2021
(n = 48)
Daily average temperature (°C)16.529.322.73.2
DLI
(mol m−2 d−1)
2.116.08.63.5
2022
(n = 22)
Daily average temperature (°C)17.831.523.04.2
DLI
(mol m−2 d−1)
3.216.68.43.8
Note: n indicates the number of experiments.
Table 2. Fundamental temperatures of pumpkin rootstock seedlings.
Table 2. Fundamental temperatures of pumpkin rootstock seedlings.
Temperature ParametersFundamental Temperature
(°C)
Tb10
Tob–Tou25–30
Tm50
Note: Tb, Tob, Tou, and Tm are the lower development threshold temperature, the lower optimum temperature threshold, the upper optimum temperature threshold, and the higher development temperature threshold, respectively.
Table 3. Effects of temperature and light on the morphology of rootstock pumpkin seedlings.
Table 3. Effects of temperature and light on the morphology of rootstock pumpkin seedlings.
VariablesDaily Average Temperature and Daily Light Integral (°C, mol m−2 d−1)
T1L1
(21.7,5.6)
T2L2
(24.3,14.5)
T3L3
(24.0,9.7)
T4L4
(23.7,7.2)
T5L5
(25.0,9.3)
T6L6
(22.8,5.2)
T7L7
(25.0,11.2)
T8L8
(26.9,7.8)
Emergence time
(d)
4.8 ± 0.3 a4.1 ± 0.2 b4.6 ± 0.2 a4.6 ± 0.2 a4.1 ± 0.2 b4.0 ± 0.4 b3.8 ± 0.3 b2.8 ± 0.3 c
Seedling time
(d)
6.9 ± 0.2 a5.2 ± 0.3 bc4.2 ± 0.3 f5.0 ± 0.4 cd4.8 ± 0.3 d5.5 ± 0.4 b4.7 ± 0.3 de4.3 ± 0.3 ef
Plant height
(cm)
8.2 ± 0.5 b6.6 ± 0.1 c6.8 ± 0.1 c9.7 ± 0.2 a5.6 ± 0.4 d8.2 ± 0.8 b6.0 ± 0.4 cd9.3 ± 0.7 a
Hypocotyl length
(cm)
7.8 ± 0.5 b6.3 ± 0.2 c6.5 ± 0.1 c9.3 ± 0.3 a4.9 ± 0.5 d7.9 ± 0.8 b5.5 ± 0.7 d8.8 ± 0.7 a
Stem diameter
(mm)
4.77 ± 0.14 b4.27 ± 0.24 cd5.15 ± 0.31 a4.25 ± 0.11 cd4.41 ± 0.32 cd4.25 ± 0.24 d4.41 ± 0.27 cd4.52 ± 0.22 bc
Shoot dry weight
(mg)
183.7 ± 17.6 d220.5 ± 13.9 ab211.8 ± 16.4 abc208.0 ± 19.9 bc191.8 ± 10.7 cd200.0 ± 13.4 c233.3 ± 15.3 a204.2 ± 16.6 bc
Root dry weight
(mg)
42.7 ± 2.1 cd51.0 ± 3.5 b46.5 ± 1.9 bc44.6 ± 3.8 c45.5 ± 4.1 c33.4 ± 1.9 e58.4 ± 4.8 a38.7 ± 2.8 d
Total dry weight
(mg)
226.0 ± 18.0 d269.0 ± 17.6 ab257.5 ± 17.1 bc252.6 ± 22.5 bc235.4 ± 14.9 cd236.4 ± 15.2 cd287.9 ± 19.0 a242.0 ± 17.8 cd
Root shoot ratio0.199 ± 0.013 bc0.216 ± 0.016 ab0.199 ± 0.010 bc0.215 ± 0.017 ab0.235 ± 0.016 a0.187 ± 0.012 c0.218 ± 0.019 ab0.190 ± 0.018 c
Seedling quality index0.143 ± 0.011 cd0.207 ± 0.016 b0.189 ± 0.015 b0.115 ± 0.011 e0.159 ± 0.009 c0.117 ± 0.010 e0.249 ± 0.018 a0.134 ± 0.006 d
Note: different letters in the same row indicate significant differences based on the least significant difference (LSD) test at p < 0.05.
Table 4. Regression model of emergence time and seedling time of pumpkin rootstock seedlings based on daily average temperature and daily light integral.
Table 4. Regression model of emergence time and seedling time of pumpkin rootstock seedlings based on daily average temperature and daily light integral.
VariablesnRegression EquationR2F Valuep
Emergence Time (d)48y1 = 0.009 x12 − 0.720 x1 + 16.4630.789242.0890.0001
Seedling Time
(d)
48y2 = 14.781 − 0.405 x1 + 0.007 x220.78986.0250.0001
Notes: n indicates the number of experiments; x1 is the daily average temperature (°C); x2 is the daily light integral (mol m−2 d−1).
Table 5. Path analysis of rootstock pumpkin seedling time on daily average temperature and daily light integral (DLI).
Table 5. Path analysis of rootstock pumpkin seedling time on daily average temperature and daily light integral (DLI).
Contribution FactorsCorrelation CoefficientDirect EffectThrough Daily Average TemperatureThrough DLI
Daily average temperature–0.866 **–1.006 0.147
DLI–0.45 **0.219–0.674
Notes: ** indicates the significance at p ≤ 0.01.
