Article

Environmental Impact Assessment of Sustainable Pig Farm via Management of Nutrient and Co-Product Flows in the Farm

1
Faculty of Engineering, Agriculture Academy, Vytautas Magnus University, K. Donelaičio g. 58, LT-44248 Kaunas, Lithuania
2
Lithuanian Research Centre for Agriculture and Forestry, Instituto al. 1, Akademija, LT-58344 Kėdainiai District, Lithuania
*
Author to whom correspondence should be addressed.
Agronomy 2022, 12(4), 760; https://doi.org/10.3390/agronomy12040760
Submission received: 12 February 2022 / Revised: 13 March 2022 / Accepted: 18 March 2022 / Published: 22 March 2022
(This article belongs to the Special Issue Agricultural Automation and Innovative Agricultural Systems)

Abstract

:
This study evaluates the environmental impact assessment of sustainable pig farm via management of nutrient and co-product flows in the farm. Manure management and biogas production are among the most promising pathways towards fully utilizing organic waste within a circular bioeconomy as the most environmentally friendly solution mitigating gaseous emissions and producing bioenergy and high-quality bio-fertilizers. The concept of farm management includes rearing pig, growing all the feeds needed, and managing the nutrients and co-product flows in the farm. A consequential life cycle assessment (LCA) was performed to examine three scenarios in which all the generated manure is used as fertilizer for barley cultivation and mineral fertilizer is used where necessary (SC1); produced surplus straw is used for thermal energy generation and maize is used for sale, substituting maize biomass in the market (SC2); and all co-products are circulated in a closed system (SC3). The functional unit (FU) was defined as a “farm with 1000 fattening pigs at farm gate”. The analysis showed that heat generation from wheat, barley and legumes straw has a significantly higher positive environmental impact than the use of these cereal straw for biogas production. The partial replacement of mineral fertilizers with digestate has positive environmental effects in terms of abiotic depletion, photochemical oxidation, terrestrial ecotoxicity, freshwater aquatic ecotoxicity, human toxicity, and marine aquatic ecotoxic aspects. The amount of digestate generated on a farm is not sufficient to completely eliminate the use of mineral fertilizers for plant fertilization. The generated pig manure (SC1) and digestate (SC2) is only enough for the fertilization of 8.3% of the total cultivated land of farm applying 22.9 t/ha rate.

1. Introduction

Many countries in the world are facing the challenge of increasing waste and im-proving their recycling efficiencies. Effective production systems should be established to meet increasing human needs and at the same time optimized for environmental efficiency [1].
Pig production has increased during the last decade [2] and continues to increase. Pig supply chains are estimated to produce 0.7 Gt CO2 eq per annum with the average GHG emission intensity of 6.1 kg CO2 eq per kg of meat [3]. Feed production contributes 60% of the emissions arising from global pig supply chains, and manure storage/processing 27%. The remaining 13% arises from a combination of post-farm processing and the transport of meat. N2O resulting from the application of synthetic and organic fertilizers in feed crop production accounts for 17% of total pig emissions, while CO2 from the use of energy in field operations, crop transport and processing, and the manufacture of fertilizer and synthetic feed materials accounts for 27% [3]. On-farm energy consumption represents only 3.5% of emissions. On a global scale, intensive large-scale systems account for most of both total production and emissions. Backyard systems have relatively high manure emissions, caused by larger amounts of volatile solids and N excretion per kg of meat produced. Higher manure emissions in backyard systems are controlled by relatively low emissions from feed, as the provision of low-quality feed has low emissions [3]. Recovering heat waste and using the digestate as fertilizers would improve the environmental sustainability of a farm containing biogas plant [4,5].
The importance of nitrogen (N) across different sectors has been established over the years, especially in the agricultural sector. One of the highlighted historical needs for reactive nitrogen is to provide fertilizers to increase food production [6]. Food production and livestock production have increased via the contribution of N sources to meet the demand of the human population. However, the usefulness of N has come at a huge cost as supply has increased more than the demand (consumption), hence creating an imbalance in the N cycle. The tilt in the N imbalance has recently been receiving the attention it deserves to ensure that N sources are efficiently and sustainably managed in a circular economy. Intensive agricultural production is highly dependent on the effective recycling of nitrogen, made possible by the use of organic and inorganic fertilizers which are ready sources of N and which are needed for the productivity of crops and soil [7]. With these in perspective, the next step of integration in the N flow is that of nutrient management. The excessive application of N inadvertently leads to poor water quality resulting from algae boom and low oxygen level concentration, air quality, greenhouse balance, and ecosystems soil quality (inorganic N acidification) [8,9,10]. The application of the digestate products to agricultural fields has received a significant boost in recent years due to the drive for organic farming, improved crop yield, enhanced soil health [11], and increased soil biodiversity when compared to inorganic fertilizers [12,13,14]. The application of digestate derived from pig farm co-products provides a win–win in pollution control and agricultural use as effective management would help channel N sources to meet N demands by crops and soil for uptake and utilization. Secondly, the act of making result-driven decisions to assess and continuously monitor the impacts and selection of the best agronomic and environmental targets for N management is deemed necessary. This would lead to a better execution of the management plan that would involve evaluating and the control of the input–output N balance sheet, the collection of data on yield and N contents all aimed at minimising the N loss. Hence, focusing on understanding the nitrogen flow while maximising their useability will inform policy development for sustainable nitrogen management.
In agriculture, one of the most effective uses of waste and non-food crops in this area is anaerobic digestion—biogas production. In this process, biomass is recycled, biogas is produced and the secondary product—digestate is generated. Biogas can be used as a renewable energy source for heat and electricity or for transportation fuel. According to its chemical composition, it is likely that digestate is a suitable organic fertilizer for agricultural crops and could contribute both to increasing the efficiency of biogas and to the increase in the economic efficiency of agriculture and the use of wasteless technologies in agriculture [4]. Biogas production is one of the most promising avenues for fully utilizing organic waste within a circular economy [15]. The anaerobic digestion of manure has been suggested as the most environmentally friendly solution mitigating methane (CH4) and ammonia (NH3) emissions and producing bioenergy and high-quality bio-fertilizers [16]. The use of digestate for fertilizing agricultural crops as well as the biogas production process has deep historical origins. In the 13th century, the anaerobic digestion of manure began in China when local people found that manure processed in anaerobic digesters is more suitable for plant fertilization than fresh manure because it does not burn the roots of plants [17,18,19]. The targeted and effective use of bio-substrate contributes to the economic efficiency of the biogas production process [20]. In the anaerobic process, organic matter is mineralized into water-soluble compounds that can easily be absorbed by plants [21]. In the biogas production process, most of the organic nitrogen is converted into ammonia nitrogen, which is more accessible to plant roots than other nitrogen compounds or by nitrifying the bacteria/fungi processed into nitrates [22,23].
The environmental impact assessment makes it possible to compare the environmental impact of the raw materials, energy, and co-products processing cycles [5]. This approach is widely used to assess the technological processes from an environmental point of view throughout their life cycle [24]. The environmental impact assessment of the entire sustainable pig farm as a single complex process was performed based on the life cycle assessment (LCA) methodology [25]. Specific environmental impact categories are usually considered to assess the environmental impact of a process, which are related to the use of resources, the emissions of environmentally harmful substances (such as greenhouse gases), which can also affect human health [26,27]. Environmental impact assessment methods shall use models to quantify the causal links between the materials, energy inputs and emissions associated with the biomass preparation, processing, and farm maintenance cycle and with each environmental impact category considered [28]. The LCA study included all steps of sustainable pig farming: feed production, crop and biomass cultivation, pig rearing, slurry treatment, biogas production, transportation, and the application of produced organic fertilizers and surplus grains or straw, to prevent the production, transportation, and application of replaced mineral fertilizers including emissions from the treatment and fertilizer application.
The objective of this investigation was to evaluate the environmental performance of a pig farm as a single unit with different scenarios of nutrient and co-product flows.

2. Materials and Methods

2.1. Description of the System Analysed

The scope of the assessment includes the environmental impact in the whole cycle of the pig farm operation under different scenarios based on different fertilization rates and types, and surplus biomass usage in other systems as suggested by [29]. The aforementioned study investigated four slurry management options that would enable N and P to be exported from a pig-producing farm (‘donor’ farm) to a farm with the capacity to utilise slurry products for crop production (‘recipient’ farm) and the anaerobic digestion of the slurry without the export of slurry products was included as an additional option. Similarly to the study of [30], our analysis was performed through a cradle-to-farm gate perspective, as suggested by [31]. Here, further stages of slaughtering, packaging, distribution, and meat consumption were excluded from the assessment.
Three scenarios of pig farm management were considered.
To assess the environmental impact of a pig farm during the various supply chain stages and the exploitation of resources throughout its life cycle, we used an LCA method according to ISO standards [25], in which the life cycle assessment consists of four interrelated stages: the definition of the objectives and scope of the research, inventory analysis, impact assessment, and an interpretation of the results. The assessment was performed with SimaPro 9.2 software, which simplifies the developed virtual model, sets the energy level and the corresponding potential impact on the environment. The CML-I baseline model [32] was chosen because it is widely used in LCA studies [33]. LCA was undertaken across 11 environmental impact categories based on global warming (GWP), eutrophication (EP), acidification (AP), ozone layer depletion (ODP), abiotic depletion (AD), photochemical oxidation (PO), terrestrial ecotoxicity (TE), freshwater aquatic ecotoxicity (FWAE), human toxicity (HT), abiotic depletion (fossil fuels) (ADF), marine aquatic ecotoxicity (MAE). Data on feed production, biomass and crop cultivation, transport, fertilization and other equipment were used from the Ecoinvent v3 database [34].
The schematic diagram covering the analysed farm system is shown in Figure 1. The system studied included environmental impacts related to infrastructure and equipment needed for pig farm system.
The assessment was carried out using a four-field farming system (4 fields of 276 ha each) which would ensure the needs of 1790 t of fodder per year (more details and explanations are given in Section 2.2). The crop rotation was selected according to the need for safer crop production and an improvement in soil quality. The key points were including legumes and ensuring that the same crop would come back to the field every 4 years.

2.2. Functional Unit, System Boundary and the Environmental Impact Categories

2.2.1. Scope of System

Three pig farm scenarios were analysed in order to reflect the differences in the farm management systems, where a reference situation, or “baseline scenario”, when all generated manure was used as fertilizer for barley cultivation and mineral fertilizer was used where necessary Scenario 1 (SC1); was supplemented with a system where produced surplus straw and crops were used for energy generation and for sale, substituting other crops in the market (SC2); and with a system where all side-streams were circulated in a closed system (SC3).

2.2.2. Scenario 1 (SC1)

Scenario 1 (SC1) is a reference situation, or “baseline scenario”. All generated manure is used as fertilizer for barley cultivation and mineral fertilizer is used where necessary. The analysed farm uses landless pig farming; thus, no bedding is used. The need for organic fertilizers has been calculated on the assumption that the N concentration in manure is 0.3%; therefore, 91.5 ha of barley can be fertilized with the amount of manure generated on the farm. Other barley, wheat and maize are fertilized with mineral nitrogen fertilizers 70, 103 and 150 kg N/ha, respectively. As it is not enough organic fertilizer for all crops, it was decided that barley fertilization with organic fertilizer will have the highest effect on rotation in the future. Annually, 2100 tons of liquid manure are produced by 1000 pigs, which was calculated based on [35] (Table 1). The assumption was developed that 1000 pigs are reared on the farm, 50% of pigs are 30–60 kg live weight and 50% are 60–100 kg live weight. Feed composition and consumption for pig rearing is given in Table 2. Barley, wheat and pea flour are produced on the farm from grown crops. The other feed materials are purchased from the market.
According to the feed ration, it is assumed that 276 ha of peas (with a yield of 2.14 t/ha), 183 ha of barley (with a yield of 3.29 t/ha) and 132 ha of wheat (with a yield of 4.53 t/ha) need to be grown. The land area requirement for rearing 1000 pigs on a farm and the yearly surplus feedstock for substituting crops on the market are given in Table 3. The data on crop yield were taken from Official Statistics Portal of Lithuania [36]. It was planned that all crops are grown under conventional tillage. Maize is grown in one field (276 ha) for sale substituting maize silage biomass in the market (moisture content 72% [34]). The surplus wheat (standard humidity 14%) and barley (standard humidity 14%) produced on the farm are intended for sale (replaces cereals on the market).
Schematic representation of the main processes and pathways considered for the pig farm is depicted in Figure 2. Cereal straw is a co-product is used for energy production by combustion (replacing thermal energy from natural gas). A similar method, whereby the resulting by-products or surpluses replace conventional products on the market, has been used by other researchers [37,38].

2.2.3. Scenario 2 (SC2)

A biogas plant is incorporated to solely treat pig manure (Figure 3). Produced biogas substitutes biogas in the market generated from pig manure. The anaerobic digestion of manure includes pig manure transportation (3 km) to the biogas plant, anaerobic fermentation, and the storage of digestate after fermentation. The digestate is applied to farm fields as fertilizer and using mineral fertilizer is avoided if possible. In this scenario, the farm replaces the purchased mineral nitrogen fertilizers by the digestate produced on farm from pig manure. The mineral fertilizer equivalent for N derived from an organic fertilizer is 75% [30] following that every 100 kg of N applied as pig manure or digestate should replace 75 kg of N from mineral fertilizers. The mineral fertilizer equivalent values for P and K in manure or digestate are considered 100% in most cases [30,39]. The quantity of generated digestate is 97.1% from input manure quantity, as having 24.3 L/kg biogas yield from pig manure and 0.040 kg/m3 biogas water vapour, the mass loss is 60,651 kg. Therefore, the digestate for fertilization is 2038 tons, which was used for modelling fertilization.

2.2.4. Scenario 3 (SC3)

SC3 is the most complicated system, in which all co-products circulate in a closed system (Figure 4). The produced surplus straw and all grown maize biomass are co-digested with pig manure in the biogas plant. The digestate is used on farm fields as fertilizer and avoids mineral fertilizer. The farm replaces purchased mineral nitrogen fertilizers by digestate produced on the farm from pig manure, straw and maize co-digestion. The need for organic fertilizers was calculated on the assumption that the N concentration in digestate is 0.3%; therefore, 276 ha of barley and 181 ha of wheat can be fertilized with the amount of digestate (12,739 t) generated on the farm. The rest fields are fertilized by mineral nitrogen fertilizers. The average crop straw total solids (TS) concentration is assumed to be 90% [40]. The silage of maize contains 25% TS [41]. Digestate has a lower TS content than the undigested feedstock. It is suggested that at least 50–90% of the TS content is converted to biogas [42,43,44], and thus the substrate liquifies. Assuming the straw and maize silage TS biodegradation ratio of 60% and that of pig manure being 50%, the calculated TS concentration in the anaerobic digester is 15%, which is favourable for liquid completely stirred digesters [45,46].
Biogas yield from maize silage (at 25% TS) was assumed to be 156 L/kg, from wheat straw (at 90% TS)—370 L/kg [47], from barley straw (at 90% TS)—544 L/kg [48] and from pea straw (at 90% TS)—317 L/kg [49].

2.2.5. Functional Unit

The functional unit of the pig farm system was selected for a comparison of the scenarios of the whole pig farm cycle. The functional unit (FU) was defined as the “farm with 1000 fattening pigs at farm gate”.

2.3. Allocation Procedures

In general, a common methodological decision in LCA occurs when the system being studied produces co-products. When more co-products are created from the analysed process, less environmental impact will be allocated to the process. The co-products linked to the pig farm systems are substituted for other products on the market, such as surplus grain, heat and electricity [50]. Thus, the boundaries of the analysed system must be widened to include the system using all the co-products [51]. In the analysed system, the pigs after the fattening stage and surplus crops were as the main products which have an important commercial value. The manure from pigs and straw can be also considered as valuable co-products. The ISO standard [25] recommends avoiding allocation by expanding the assessed system. Following the recommendation, pig manure, digestate, straw and surplus crops were assumed to substitute mineral fertilizers and heat generation from the fossil fuels and crops in existing markets or other farms. The credits related to the production and further application of avoided products was assigned to the reduction in environmental loads, and thereby contributing with a negative number of emissions [52,53] and a lower consumption of energy [54]. Manure negatively affects the environment because it causes emissions of ammonia, nitrous oxide, nitrate and phosphate, both during storage and when the manure is applied as fertilizer to field-grown crops [55]. In an integrated farming system where manure is recycled to feed crops only, it does not matter whether manure emissions are allocated to the pigs or the feed crops, since the environmental burden will be allocated to the pigs in any case. The calculation of the emissions from the stable, storage and field was based on [55]. The digestate can be used as fertilizer on agricultural land. The digestate contains active fertilizer ingredients of superphosphate (P2O5), potassium chloride (K2O) and ammonium nitrate (NH4-N) fertilizers. The quantity of mineral fertilizers substituted was defined considering the nutrients content within the digestate. If the manure was used for biogas production, the net benefit in terms of avoided CO2 emissions—and any other avoided emissions—were deducted from the environmental assessment of the pig products. Allocation by physical causality (weight or volume) was applied as suggested in [56]. It is suggested to allocate co-products in proportion to their energy content; however, using the energy value of organic fertilizer does not accurately value its nutrient content; moreover, slurry and digestate, particularly in liquid form, have a limited energy content [51]. It has been suggested that one should use a substitute approach by giving credit to the mineral fertilizer displaced by the organic fertilizer [57]. Credits for avoided fertilizer application which involved avoided manufacture were used from the Ecoinvent database [34].

3. Results

3.1. Energy Inputs

The field machinery operational characteristics and energy inputs that are directly or indirectly linked with the agricultural machinery use are shown in Table 4.
The diesel energy coefficient that corresponds to the chemical energy of diesel is equal to 41.2 MJ/L. This coefficient is recommended and adopted across Europe because of the shorter distance across which crude oil is transported from the Middle East [58]. It includes the crude oil energy content, production energy consumption, shipping energy consumption, and refining/distribution energy consumption.

3.2. Inventory Analysis

Data are collected based on official statistics or scientific publications. According to the recommended data quality assessment methodology [59], our data indicate that the Data Quality Score is lower than three, showing a good quality level.
Table 5 summarises the life cycle inventory of the pig farm technology for SC1, SC2 and SC3 inputs and outputs, underpinning the LCA results across 11 impact categories. The comparative total energy, water and material input were calculated based on the assumption of the defined functional unit as a “farm with 1000 fattening pigs at the farm gate”.

3.3. Environmental Indicators of Pig Farming

The environmental impact assessment of the sustainable life cycle of the entire pig farm shows that some impact categories (GWP, EP, AP) have negative indicators, some (AD, PO, TE, FWAE, HT, MAE) have positive indicators, while ODP and ADF impact categories have both positive and negative. A negative indicator characterizes emission savings. Emissions are reduced by the supplying of surplus farmed cereals and maize to the market, which avoids the production of similar products on other farms (in SC1 and SC2) and avoiding the energy generation from other sources or mineral fertilizer production (SC3).
The total annual CO2 emissions of the whole farm is from −2181.7 t CO2 eq (SC2) to -269.4 t CO2 eq (SC3) (Table 6). The greatest environmental impact of all the considered categories occurs for SC3.
All 11 environmental impact categories were evaluated (Figure 5) and the largest differences between the studied scenarios were found in the GWP, ODP, and ADF categories. Therefore, it will be mainly these categories that will be discussed.
The amount of generated digestate is not sufficient (SC3, SC2) to eliminate the use of mineral fertilizers on the farm. The generated pig manure (SC1) and digestate (SC2) are enough for the fertilization of 91.5 ha of barley applying a 22.9 t/ha rate. SC3 generates more digestate from pig manure, straw and maize, thus applying 22.9 t/ha for barley and 34.3 t/ha for wheat, it is possible to fertilize 457 ha of crops (276 ha of barley and 181 ha of wheat). However, the partial replacement of mineral fertilizers with digestate has positive environmental effects in terms of AD, PO, TE, FWAE, HT, MAE aspects (Figure 5, SC3). Additionally, in the case of SC2, removing straw from the field reduces carbon sequestration in the soil, limiting the availability of soil nutrients. Additionally, this leads to a greater need for the use of compensatory mineral fertilizers [60,61]. Therefore, the replacement of some mineral fertilizers with digestate may help compensate for most of the potential effects of GWP, EP, AP, AD and ODP (Figure 5, SC2). Assessing the GWP for each process separately, it was found that processes such as wheat cultivation with mineral fertilizers, maize cultivation and legumes cultivation have the greatest negative impact on the global worming potential (Figure 6). A comparison of barley and wheat fertilization with digestate and fertilization with mineral fertilizers showed a lower negative effect on the environment for barley and wheat cultivation with digestate (SC3), −43,015 and −200,452 kg CO2 eq, respectively. The evaluation was performed by summing up the results of barley and wheat fertilization with digestate and fertilization with mineral fertilizers.
According to [61], the conversion of straw to heat increases the effect of eutrophication and acidification compared to natural gas, as it is related to the use of compensatory mineral fertilizers. Replacing some mineral fertilizers with digestate can help offset much of the potential effects of GWP, AD and PO.
Pardo et al. (2017) [62] reported that the use of maize improved the efficiency of the anaerobic digestion process, but their cultivation for energy purposes was associated with a significant environmental burden related to energy and fertilizer consumption, as well as indirect land use change. The results of these studies revealed that biogas production from maize is a more sustainable solution from an environmental point of view of the GWP category (−374,434 CO2 eq) than replacing maize on the market (−339,272 CO2 eq) (Figure 6). However, considering other impact categories (abiotic depletion fossil fuel and ozone layer depletion) (Figure 7 and Figure 8), maize substitution has a greater environmental impact than biogas production. Fifty-six percent of the total impact is linked to greenhouse gas emissions related to activities associated with previous processes (pressing and loading, shredding and transportation). It is estimated that 40% of the total impact is related to the transport process, followed by combined processes: pressing and loading (15%) and the rest to the chopping of residues. Downstream electricity, particularly for primary combustion, is estimated to cover 29% (i.e., 1.23 g CO2-eq/MJ heat) of total GWP. The energy stored in biomass can be converted into heat by biomass combustion, pyrolysis or gasification. Theoretical conversion efficiencies and process conditions often differ from those achieved in practice due to commercial constraints and raw material variability [63]. However, the results of wheat and barley substitution are identical in all scenarios (−246,427 and −112,537 kg CO2 eq, respectively). The use of maize for biogas production has a higher positive environmental effect (SC3) compared to the substitution of maize (SC1, SC2)—−339,272 kg CO2 eq.
Heat generation from wheat, barley and legume straw has a significantly higher positive environmental impact than the use of cereal straw for biogas production (Figure 7 and Figure 8). It was found that in the GWP impact category, biogas production from straw (wheat, legume, barley) has eight times less positive environmental impact than straw processing to heat energy, ADF—28 times; in the ODP category—22 times. Unsurprisingly, thermochemical processes are more efficient than biochemical/biological processes, have a faster reaction time and are excellent at converting most organic compounds, such as lignin in biomass, which is generally considered to be a non-biodegradable substance under anaerobic conditions and therefore cannot be completely degraded by biological methods during 20–30 days [63]. Therefore, based on the results of the study, it is appropriate to substitute straw on the market for the production of thermal energy from an environmental and energy point of view. Additionally, according to [61], the reduction in GWP is mainly due to the avoidance of CO2 emissions that would have been possible due to the biomass decomposition process if straw had been applied to the soil alternately. Nevertheless, the soil incorporation of straw for C sequestration, especially where straw is used for bedding to improve animal welfare, play an important role at farm level. Therefore, more environmental indicators such as the activity of soil microorganisms and soil C sequestration potential should be evaluated.
It is appropriate to produce biogas from by-products such as pig manure reducing emissions, recovering energy from the manure and producing digestate, which can be used as a substitute for mineral fertilizers. The authors in [64] investigated the most appropriate way to convert biomass into bioenergy. They concluded that unlocking the energy potential of manure and straw a major opportunity to reduce greenhouse gas emissions in both the energy and agricultural sectors. The results of this study also confirmed the conclusions of these researchers—the most promising technology for manure treatment is anaerobic digestion and incineration for heat and energy recovery from straw. Incorporating on-farm bioenergy production into the system allowed GHG emissions to be offset by energy generation. In this case, energy generation from crop residues gave negative net GHG emissions [65].
Researchers [66] performed cultivation experiments on wheat (Triticum spp. L.) using anaerobically digested pig manure and urea. The emissions of greenhouse gases (CO2, CH4 and N2O, and growth characteristics were monitored during this study, and the concentrations of heavy metals and pathogens were further investigated. Results indicated that the digestate used for fertilization was found to have a small effect on CO2 and CH4 emissions from the soil. However, digestate fertilizers significantly increased N2O emissions, which were five times higher than those used for urea fertilization, or 63 times higher compared to the control soil.
The field application of both mineral and organic fertilizers results in direct emissions into the air, soil and water [67]. Emission reductions were determined based on the avoided production and distribution of chemical fertilizers substituted by the manure or digestate. The digestate applied to the soil emits some biogenic N2O which occurs due to the release of N from organic fertilizers during periods in which vegetation is not able to take up nitrogen. Therefore, following [68,69], the N2O emission from the digestate converted to a global warming factor was on average 46.5 kg CO2 eq/t digestate.
Based on the results of the study, the authors concluded that anaerobically processed pig manure is rich in nutrients, low in heavy metals and pathogens, does not affect higher CH4 and CO2 emissions when it is used for soil fertilization, but increases N2O emissions [66]. According to [66], the case of the SC3 scenario in the ODP category can be considered as the influence of N2O on the strongly increased negative impact. N2O emissions from agricultural sources are among the main contributors to global warming. Scientists estimate that livestock accounts for 68% of N2O gas from human activities, which has 298 times the global warming potential of a carbon dioxide [70]. N2O from soils enters the environment through direct (synthetic and organic fertilizers, manure and crop residues, and nitrogen mineralization due to organic carbon loss due to land use change) and indirect (nitrogen emissions and nitrogen leaching/run-off) [71].

4. Conclusions

This study aimed to provide the evaluation of environmental impacts of conventional and sustainable pig slurry management practice via the adjustment of nutrient flows in the farm. With comparative life cycle assessment modelling, the analysis showed that heat generation from wheat, barley and legume straw has a significantly higher positive environmental impact than the use of cereal straw for biogas production. The partial replacement of mineral fertilizers with digestate has positive environmental effects in terms of abiotic depletion, photochemical oxidation, terrestrial ecotoxicity, freshwater aquatic ecotoxicity, human toxicity and marine aquatic ecotoxicity. The amount of digestate generated on farm is not sufficient to completely eliminate the use of mineral fertilizers for plant fertilization. The generated pig manure (SC1) and digestate (SC2) is only enough for the fertilization of 91.5 ha of barley applying 22.9 t/ha rate. SC3 generates more digestate from pig manure, straw and maize, thus applying 22.9 t/ha for barley and 34.3 t/ha for wheat it is possible to fertilize a total of 457 ha of crops (276 ha of barley and 181 ha of wheat).

Author Contributions

Conceptualization, K.V. and K.N.; methodology, K.N.; software, K.V.; validation, V.T. and S.S.; investigation, M.R., K.B. (Kristina Bunevičienė), A.B. and K.B. (Karolina Barčauskaitė); writing—original draft preparation, K.V.; writing—review and editing, M.O.D.; visualization, K.V.; supervision, K.N.; project administration, V.T.; funding acquisition, V.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Research Council of Lithuania (LMTLT), agreement No. S-SIT-20-5.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Awasthi, A.K.; Cheela, V.R.S.; D’Adamo, I.; Iacovidou, E.; Islam, M.R.; Johnson, M.; Miller, T.R.; Parajuly, K.; Parchomenko, A.; Radhakrishan, L.; et al. Zero waste approach towards a sustainable waste management. Resour. Environ. Sustain. 2021, 3, 100014. [Google Scholar] [CrossRef]
  2. MacLeod, M.J.; Hasan, M.R.; Robb, D.H.F.; Mamun-Ur-Rashid, M. Quantifying greenhouse gas emissions from global aquaculture. Sci. Rep. 2020, 10, 11679. [Google Scholar] [CrossRef] [PubMed]
  3. Macleod, M.; Gerber, P.; Mottet, A.; Tempio, G.; Falcucci, A.; Opio, C.; Vellinga, T.; Henderson, B.; Steinfeld, H. Greenhouse Gas Emissions from Pig and Chicken Supply Chains—A Global Life Cycle Assessment; Food and Agriculture Organization of the United Nations: Rome, Italy, 2013; ISBN 9789251079447. [Google Scholar]
  4. Bacenetti, J.; Sala, C.; Fusi, A.; Fiala, M. Agricultural anaerobic digestion plants: What LCA studies pointed out and what can be done to make them more environmentally sustainable. Appl. Energy 2016, 179, 669–686. [Google Scholar] [CrossRef] [Green Version]
  5. Saracevic, E.; Koch, D.; Stuermer, B.; Mihalyi, B.; Miltner, A.; Friedl, A. Economic and global warming potential assessment of flexible power generation with biogas plants. Sustainability 2019, 11, 2530. [Google Scholar] [CrossRef] [Green Version]
  6. Sutton, M.A.; Howard, C.M.; Erisman, J.W.; Billen, G.; Bleeker, A.; Grennfelt, P.; van Grinsven, H.; Grizzetti, B. Assessing our nitrogen inheritance. In The European Nitrogen Assessment; Sutton, M.A., Howard, C.M., Erisman, J.W., Billen, G., Bleeker, A., Grennfelt, P., van Grinsven, H., Grizzetti, B., Eds.; Cambridge University Press: Cambridge, UK, 2011; pp. 1–6. [Google Scholar] [CrossRef]
  7. Howarth, R. Nitrogen in Freshwater Systems and Estuaries Nitrogen; Elsevier Inc.: Amsterdam, The Netherlands, 2014; ISBN 9780124095489. [Google Scholar]
  8. Chandini, R.K.; Kumar, R.; Om, P. The impact of chemical fertilizers on our environment and ecosystem. In Research Trends in Environmental Sciences, 2nd ed.; AkiNik Publications: New Delhi, India, 2019; pp. 69–86. [Google Scholar]
  9. Yousaf, M.; Li, J.; Lu, J.; Ren, T.; Cong, R.; Fahad, S.; Li, X. Effects of fertilization on crop production and nutrient-supplying capacity under rice-oilseed rape rotation system. Sci. Rep. 2017, 7, 1270. [Google Scholar] [CrossRef]
  10. Mari, G.R.; Ji, C.; Zhou, J. Effects of soil compaction on soil physical properties and nitrogen, phosphorus, potassium uptake in wheat plants. Trans. CSAE 2008, 24, 74–79. [Google Scholar]
  11. Manici, L.M.; Caputo, F.; Cappelli, G.A.; Ceotto, E. Can repeated soil amendment with biogas digestates increase soil suppressiveness toward non-specific soil-borne pathogens in agricultural lands? Renew. Agric. Food Syst. 2020, 36, 353–364. [Google Scholar] [CrossRef]
  12. Brenzinger, K.; Drost, S.M.; Korthals, G.; Bodelier, P.L.E. Organic Residue amendments to modulate greenhouse gas emissions from agricultural soils. Front. Microbiol. 2018, 9, 3035. [Google Scholar] [CrossRef] [Green Version]
  13. Sapp, M.; Harrison, M.; Hany, U.; Charlton, A.; Thwaites, R. Comparing the effect of digestate and chemical fertiliser on soil bacteria. Appl. Soil Ecol. 2015, 86, 1–9. [Google Scholar] [CrossRef]
  14. Corden, C.; Bougas, K.; Cunningham, E.; Tyrer, D.; Kreißig, J.; Crookes, M. Digestate and Compost as Fertilisers: Risk Assessment and Risk Management Options; European Commission, Directorate General–Environment: Brussels, Belgium, 2019. [Google Scholar]
  15. Timonen, K.; Sinkko, T.; Luostarinen, S.; Tampio, E.; Joensuu, K. LCA of anaerobic digestion: Emission allocation for energy and digestate. J. Clean. Prod. 2019, 235, 1567–1579. [Google Scholar] [CrossRef]
  16. Duan, N.; Khoshnevisan, B.; Lin, C.; Liu, Z.; Liu, H. Life cycle assessment of anaerobic digestion of pig manure coupled with different digestate treatment technologies. Environ. Int. 2020, 137, 105522. [Google Scholar] [CrossRef] [PubMed]
  17. Barzee, T.J.; Edalati, A.; El-Mashad, H.; Wang, D.; Scow, K.; Zhang, R. Digestate biofertilizers support similar or higher tomato yields and quality than mineral fertilizer in a subsurface drip fertigation system. Front. Sustain. Food Syst. 2019, 3, 58. [Google Scholar] [CrossRef]
  18. He, P.J. Anaerobic digestion: An intriguing long history in China. Waste Manag. 2010, 30, 549–550. [Google Scholar] [CrossRef] [PubMed]
  19. Nianguo, L. Biogas in China. Trends Biotechnol. 1984, 2, 77–79. [Google Scholar] [CrossRef]
  20. Alburquerque, J.A.; de la Fuente, C.; Ferrer-Costa, A.; Carrasco, L.; Cegarra, J.; Abad, M.; Bernal, M.P. Assessment of the fertiliser potential of digestates from farm and agroindustrial residues. Biomass Bioenergy 2012, 40, 181–189. [Google Scholar] [CrossRef]
  21. Wilkie, A.C. Anaerobic Digestion of Dairy Manure: Design and Process Consideration; Natural Resource, Agriculture, and Engineering Service, Cornell University: New York, NY, USA, 2005; pp. 301–312. [Google Scholar]
  22. Drury, C.F.; Tan, C.S.; Welacky, T.W.; Reynolds, W.D.; Zhang, T.Q.; Oloya, T.O.; McLaughlin, N.B.; Gaynor, J.D. Reducing nitrate loss in tile drainage water with cover crops and water-table management systems. J. Environ. Qual. 2014, 43, 587–598. [Google Scholar] [CrossRef]
  23. Ibrahim, M.; Alhameid, A.; Kumar, S.; Chintala, R.; Sexton, P.; Malo, D.; Schumacher, T. Long-Term Tillage and Crop Rotation Impacts on a Northern Great Plainsmollisol. Adv. Crop Sci. Technol. 2015, 3, 1000178. [Google Scholar] [CrossRef]
  24. Styles, D.; Dominguez, E.M.; Chadwick, D. Environmental balance of the UK biogas sector: An evaluation by consequential life cycle assessment. Sci. Total Environ. 2016, 560–561, 241–253. [Google Scholar] [CrossRef] [Green Version]
  25. ISO 14040:2006; The International Standards Organisation. International Organization for Standardization: Geneva, Switzerland, 2006.
  26. Rejane Rigon, M.; Zortea, R.; Alberto Mendes Moraes, C.; Célia Espinosa Modolo, R. Suggestion of life cycle impact assessment methodology: Selection criteria for environmental impact categories. In New Frontiers on Life Cycle Assessment-Theory and Application; IntechOpen: London, UK, 2019. [Google Scholar]
  27. Park, W.-J.; Kim, R.; Roh, S.; Ban, H. Analysis of major environmental impact categories of road construction materials. Sustainability 2020, 12, 6951. [Google Scholar] [CrossRef]
  28. Product Environmental Footprint (PEF) Guide. Available online: http://ec.europa.eu/environment/eussd/pdf/footprint/PEF methodology final draft.pdf (accessed on 11 February 2022).
  29. Hutchings, N.J.; Hoeve, M.T.; Jensen, R.; Bruun, S.; Søtoft, L.F. Modelling the potential of slurry management technologies to reduce the constraints of environmental legislation on pig production. J. Environ. Manag. 2013, 130, 447–456. [Google Scholar] [CrossRef]
  30. Noya, I.; Villanueva-Rey, P.; González-García, S.; Fernandez, M.D.; Rodriguez, M.R.; Moreira, M.T. Life cycle assessment of pig production: A case study in Galicia. J. Clean. Prod. 2017, 142, 4327–4338. [Google Scholar] [CrossRef]
  31. Ogino, A.; Osada, T.; Takada, R.; Takagi, T.; Tsujimoto, S.; Tonoue, T.; Matsui, D.; Katsumata, M.; Yamashita, T.; Tanaka, Y. Life cycle assessment of Japanese pig farming using low-protein diet supplemented with amino acids. Soil Sci. Plant Nutr. 2013, 59, 107–118. [Google Scholar] [CrossRef]
  32. Guinée, J.B.; Heijungs, R.; Huppes, G.; Kleijn, R.; de Koning, A.; van Oers, L.; Wegener Sleeswijk, A.; Suh, S.; Udo de Haes, H.A.; de Bruijn, H.; et al. Life Cycle Assessment. Operational Guide to the ISO Standards. I: LCA in Perspective. IIa: Guide. IIb: Operational Annex. III: Scientific Background; Ministries of the Netherlands: Dordrecht, The Netherlands, 2002; p. 692.
  33. Castellani, V.; Sala, S.; Benini, L. Hotspots analysis and critical interpretation of food life cycle assessment studies for selecting eco-innovation options and for policy support. J. Clean. Prod. 2017, 140, 556–568. [Google Scholar] [CrossRef]
  34. Wernet, G.; Bauer, C.; Steubing, B.; Reinhard, J.; Moreno-Ruiz, E.; Weidema, B. The ecoinvent database version 3 (part I): Overview and methodology. Int. J. Life Cycle Assess. 2016, 21, 1218–1230. [Google Scholar] [CrossRef]
  35. Order No. 3D-419 Order of the Minister for Agriculture for the Minister of Agriculture in 27 January 2010 Order No. 3D-50 “On the Amendment of the Rules for the Technological Design of Pigs in the Agriculture TPT 02: 2010” (1 July 2021 No. 3D-419, TAR, 2021-07-01, code 202. 2021. Available online: https://www.e-tar.lt/portal/en/legalAct/6d1c98b0da3311eb9f09e7df20500045 (accessed on 6 December 2021).
  36. Yield of Agricultural Crops. Available online: https://osp.stat.gov.lt/statistiniu-rodikliu-analize?hash=80098c78-93c6-447e-98a1-acccae5ff144#/ (accessed on 8 October 2021).
  37. Parajuli, R.; Dalgaard, T.; Birkved, M. Can farmers mitigate environmental impacts through combined production of food, fuel and feed? A consequential life cycle assessment of integrated mixed crop-livestock system with a green biorefinery. Sci. Total Environ. 2018, 619–620, 127–143. [Google Scholar] [CrossRef] [Green Version]
  38. Beausang, C.; McDonnell, K.; Murphy, F. Anaerobic digestion of poultry litter—A consequential life cycle assessment. Sci. Total Environ. 2020, 735, 139494. [Google Scholar] [CrossRef]
  39. Sommer, S.G.; Maahn, M.; Poulsen, H.D.; Hjorth, M.; Sehested, J. Interactions between phosphorus feeding strategies for pigs and dairy cows and separation efficiency of slurry. Environ. Technol. 2008, 29, 75–80. [Google Scholar] [CrossRef]
  40. Xi, Y.; Liu, Y.; Ye, X.; Du, J.; Kong, X.; Guo, D.; Xiao, Q. Enhanced anaerobic biogas production from wheat straw by herbal-extraction process residues supplementation. Front. Bioeng. Biotechnol. 2021, 9, 281. [Google Scholar] [CrossRef]
  41. Franco, R.T.; Buffière, P.; Bayard, R. Ensiling for biogas production: Critical parameters. A review. Biomass Bioenergy 2016, 94, 94–104. [Google Scholar] [CrossRef] [Green Version]
  42. Murphy, J.; Bochmann, G.; Weiland, P.; Wellinger, A. Biogas from Crop Digestion. In IEA Bioenergy-Task 37; Vienna University of Technology: Vienna, Austria, 2011. [Google Scholar]
  43. Marcato, C.E.; Pinelli, E.; Pouech, P.; Winterton, P.; Guiresse, M. Particle size and metal distributions in anaerobically digested pig slurry. Bioresour. Technol. 2008, 99, 2340–2348. [Google Scholar] [CrossRef] [Green Version]
  44. Møller, H.B.; Sørensen, P.; Olesen, J.E.; Petersen, S.O.; Nyord, T.; Sommer, S.G. Agricultural biogas production—climate and environmental impacts. Sustainability 2022, 14, 1849. [Google Scholar] [CrossRef]
  45. Wang, Z.; Jiang, Y.; Wang, S.; Zhang, Y.; Hu, Y.; Hu, Z.-H.; Wu, G.; Zhan, X. Impact of total solids content on anaerobic co-digestion of pig manure and food waste: Insights into shifting of the methanogenic pathway. Waste Manag. 2020, 114, 96–106. [Google Scholar] [CrossRef] [PubMed]
  46. Yang, L.; Xu, F.; Ge, X.; Li, Y. Challenges and strategies for solid-state anaerobic digestion of lignocellulosic biomass. Renew. Sustain. Energy Rev. 2015, 44, 824–834. [Google Scholar] [CrossRef]
  47. Cotana, F.; Cavalaglio, G.; Petrozzi, A.; Coccia, V. Lignocellulosic biomass feeding in biogas pathway: State of the art and plant layouts. Energy Procedia 2015, 81, 1231–1237. [Google Scholar] [CrossRef] [Green Version]
  48. Feng, L.; Perschke, Y.M.L.; Fontaine, D.; Ward, A.J.; Eriksen, J.; Sørensen, P.; Møller, H.B. Co-ensiling of cover crops and barley straw for biogas production. Renew. Energy 2019, 142, 677–683. [Google Scholar] [CrossRef]
  49. Gunnarsson, A. Plant-Based Biogas Production for Improved Nutrient Management of Beetroot in Stockless Organic Farming; Sveriges lantbruksuniversitet: Uppsala, Sweden, 2012. [Google Scholar]
  50. Liao, X.; Gerichhausen, M.J.W.; Bengoa, X.; Rigarlsford, G.; Beverloo, R.H.; Bruggeman, Y.; Rossi, V. Large-scale regionalised LCA shows that plant-based fat spreads have a lower climate, land occupation and water scarcity impact than dairy butter. Int. J. Life Cycle Assess. 2020, 25, 1043–1058. [Google Scholar] [CrossRef] [Green Version]
  51. Benoist, A.; Dron, D.; Zoughaib, A. Origins of the debate on the life-cycle greenhouse gas emissions and energy consumption of first-generation biofuels—A sensitivity analysis approach. Biomass Bioenergy 2012, 40, 133–142. [Google Scholar] [CrossRef]
  52. Weidema, B. Market Information in Life Cycle Assessment; Miljøstyrelsen: København, Denmark, 2003; p. 863. [Google Scholar]
  53. Lechón, Y.; Cabal, H.; Saez, R. Life cycle analysis of wheat and barley crops for bioethanol production in Spain. Int. J. Agric. Resour. Gov. Ecol. 2005, 4, 113. [Google Scholar] [CrossRef]
  54. Lijó, L.; González-García, S.; Bacenetti, J.; Fiala, M.; Feijoo, G.; Lema, J.M.; Moreira, M.T. Life Cycle Assessment of electricity production in Italy from anaerobic co-digestion of pig slurry and energy crops. Renew. Energy 2014, 68, 625–635. [Google Scholar] [CrossRef] [Green Version]
  55. Dalgaard, R.; Halberg, N.; Kristensen, I.S.; Larsen, I. Modelling representative and coherent Danish farm types based on farm accountancy data for use in environmental assessments. Agric. Ecosyst. Environ. 2006, 117, 223–237. [Google Scholar] [CrossRef] [Green Version]
  56. Arulnathan, V.; Heidari, M.D.; Pelletier, N. Internal causality in agri-food Life Cycle Assessments: Solving allocation problems based on feed energy utilization in egg production. J. Environ. Manag. 2022, 309, 114673. [Google Scholar] [CrossRef] [PubMed]
  57. Adams, P.; Mezzullo, W.; McManus, M. Biomass sustainability criteria: Greenhouse gas accounting issues for biogas and biomethane facilities. Energy Policy 2015, 87, 95–109. [Google Scholar] [CrossRef] [Green Version]
  58. Rodias, E.; Berruto, R.; Busato, P.; Bochtis, D.; Sørensen, C.G.; Zhou, K. Energy Savings from Optimised In-Field Route Planning for Agricultural Machinery. Sustainability 2017, 9, 1956. [Google Scholar] [CrossRef] [Green Version]
  59. Salemdeeb, R.; Saint, R.; Clark, W.; Lenaghan, M.; Pratt, K.; Millar, F. A pragmatic and industry-oriented framework for data quality assessment of environmental footprint tools. Resour. Environ. Sustain. 2021, 3, 100019. [Google Scholar] [CrossRef]
  60. Montemayor, E.; Bonmatí, A.; Torrellas, M.; Camps, F.; Ortiz, C.; Domingo, F.; Riau, V.; Antón, A. Environmental accounting of closed-loop maize production scenarios: Manure as fertilizer and inclusion of catch crops. Resour. Conserv. Recycl. 2019, 146, 395–404. [Google Scholar] [CrossRef]
  61. Parajuli, R.; Løkke, S.; Østergaard, P.A.; Knudsen, M.T.; Schmidt, J.H.; Dalgaard, T. Life Cycle Assessment of district heat production in a straw fired CHP plant. Biomass Bioenergy 2014, 68, 115–134. [Google Scholar] [CrossRef]
  62. Pardo, G.; Moral, R.; del Prado, A. SIMSWASTE-AD—A modelling framework for the environmental assessment of agricultural waste management strategies: Anaerobic digestion. Sci. Total Environ. 2017, 574, 806–817. [Google Scholar] [CrossRef]
  63. Adams, P.; Bridgwater, T.; Lea-Langton, A.; Ross, A.; Watson, I. Chapter 8–Biomass Conversion Technologies. In Greenhouse Gas Balances of Bioenergy Systems; Academic Press: Cambridge, MA, USA, 2018; pp. 107–139. [Google Scholar] [CrossRef]
  64. Tonini, D.; Vadenbo, C.; Astrup, T.F. Priority of domestic biomass resources for energy: Importance of national environmental targets in a climate perspective. Energy 2017, 124, 295–309. [Google Scholar] [CrossRef]
  65. Cooper, J.; Butler, G.; Leifert, C. Life cycle analysis of greenhouse gas emissions from organic and conventional food production systems, with and without bio-energy options. NJAS Wagening. J. Life Sci. 2011, 58, 185–192. [Google Scholar] [CrossRef] [Green Version]
  66. Pampillón-González, L.; Luna-Guido, M.; Valdiviezo, V.M.R.; Franco-Hernández, O.; Fernández-Luqueño, F.; Paredes-López, O.; Hernández, G.; Dendooven, L. Greenhouse Gas Emissions and Growth of Wheat Cultivated in Soil Amended with Digestate from Biogas Production. Pedosphere 2017, 27, 318–327. [Google Scholar] [CrossRef]
  67. Brockmann, D.; Hanhoun, M.; Négri, O.; Hélias, A. Environmental assessment of nutrient recycling from biological pig slurry treatment—Impact of fertilizer substitution and field emissions. Bioresour. Technol. 2014, 163, 270–279. [Google Scholar] [CrossRef] [PubMed]
  68. Møller, J.; Boldrin, A.; Christensen, T.H. Anaerobic digestion and digestate use: Accounting of greenhouse gases and global warming contribution. Waste Manag. Res. 2009, 27, 813–824. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Slorach, P.C.; Jeswani, H.K.; Cuéllar-Franca, R.; Azapagic, A. Environmental sustainability of anaerobic digestion of household food waste. J. Environ. Manag. 2019, 236, 798–814. [Google Scholar] [CrossRef] [PubMed]
  70. Shakoor, A.; Shakoor, S.; Rehman, A.; Ashraf, F.; Abdullah, M.; Shahzad, S.M.; Farooq, T.H.; Ashraf, M.; Manzoor, M.A.; Altaf, M.M. Effect of animal manure, crop type, climate zone, and soil attributes on greenhouse gas emissions from agricultural soils—A global meta-analysis. J. Clean. Prod. 2021, 278, 124019. [Google Scholar] [CrossRef]
  71. Tonhauzer, K.; Tonhauzer, P.; Szemesová, J.; Šiška, B. Estimation of N2O emissions from agricultural soils and determination of Nitrogen Leakage. Atmosphere 2020, 11, 552. [Google Scholar] [CrossRef]

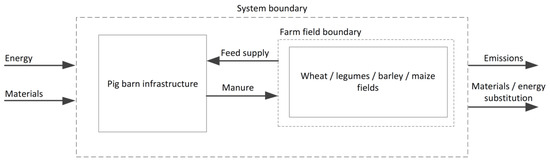

Figure 1. Schematic diagram of the analysed farm system.
Figure 1. Schematic diagram of the analysed farm system.
Agronomy 12 00760 g001

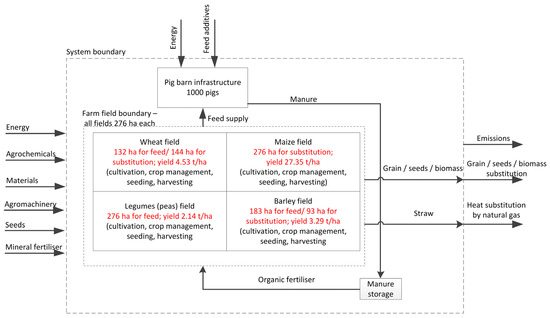

Figure 2. Schematic representation of the main processes and pathways considered for the pig farm in CS1.
Figure 2. Schematic representation of the main processes and pathways considered for the pig farm in CS1.
Agronomy 12 00760 g002

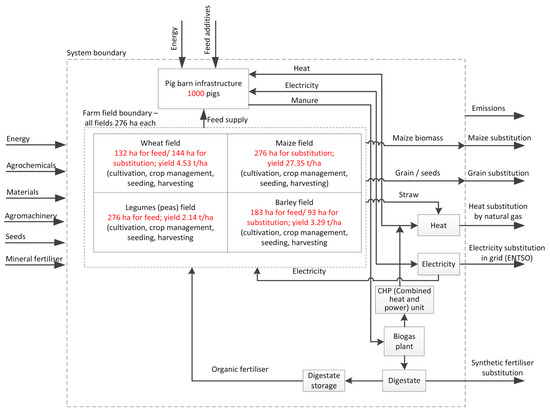

Figure 3. Schematic representation of the main processes and pathways considered for the pig farm in CS2.
Figure 3. Schematic representation of the main processes and pathways considered for the pig farm in CS2.
Agronomy 12 00760 g003

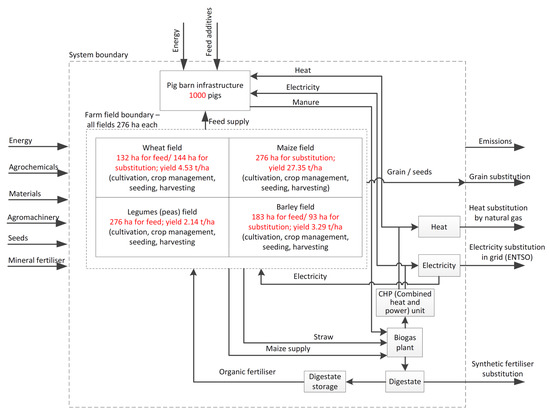

Figure 4. Schematic representation of the main processes and pathways considered for the pig farm in SC3.
Figure 4. Schematic representation of the main processes and pathways considered for the pig farm in SC3.
Agronomy 12 00760 g004

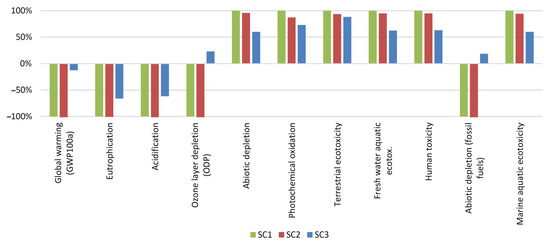

Figure 5. Environmental impact assessment diagrams for three compared systems. The x-axis shows the impact categories and the percentage of 100% impact for the scenario that generates the greatest impact within each category.
Figure 5. Environmental impact assessment diagrams for three compared systems. The x-axis shows the impact categories and the percentage of 100% impact for the scenario that generates the greatest impact within each category.
Agronomy 12 00760 g005

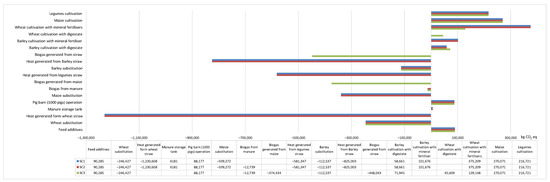

Figure 6. Results of processes for global warming potential.
Figure 6. Results of processes for global warming potential.
Agronomy 12 00760 g006

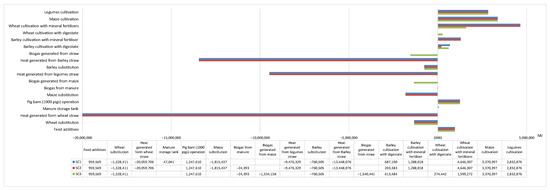

Figure 7. Results of processes for the abiotic depletion fossil fuel potential.
Figure 7. Results of processes for the abiotic depletion fossil fuel potential.
Agronomy 12 00760 g007

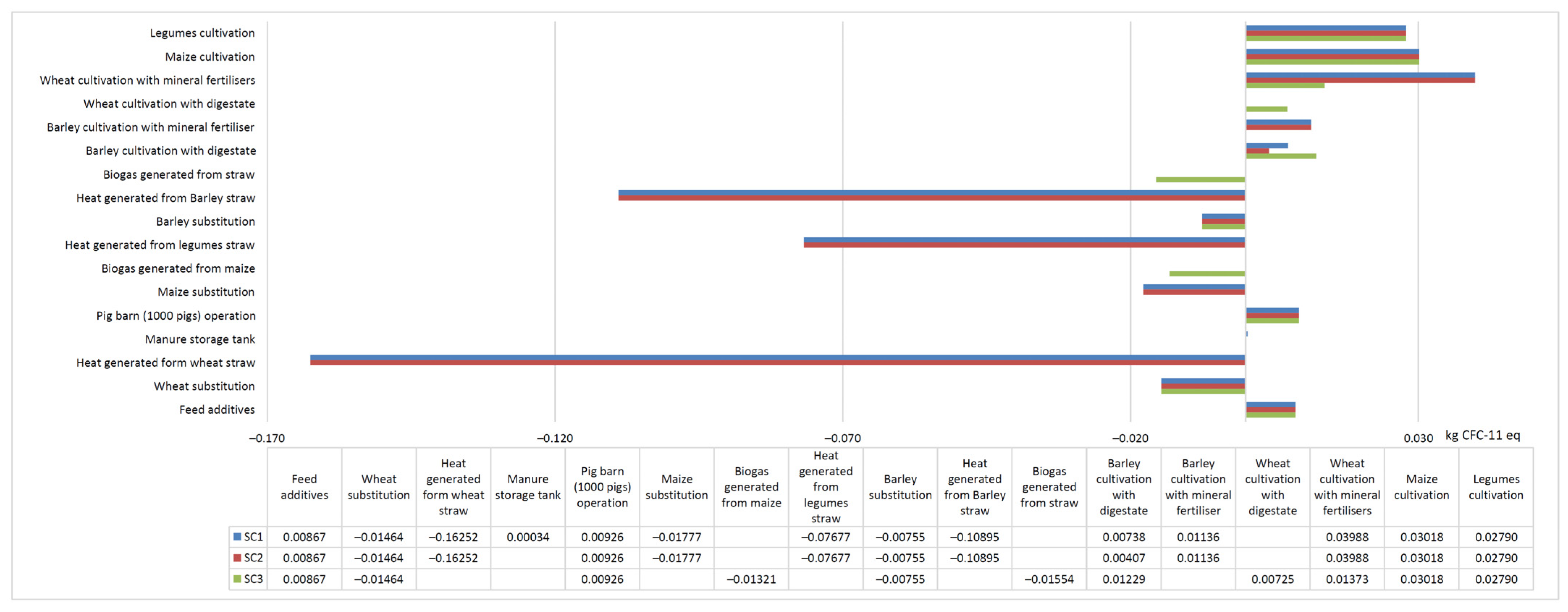

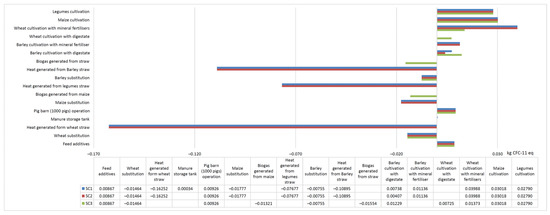

Figure 8. Results of processes for ozone layer depletion potential.
Figure 8. Results of processes for ozone layer depletion potential.
Agronomy 12 00760 g008
Table 1. On-farm liquid manure generation.
Table 1. On-farm liquid manure generation.
Indicator30–60 kg Live Weight Pigs60–100 kg Live Weight Pigs
Liquid manure generation per pig, kg/day5.06.5
Totally manure kg/day5750.0
Totally manure t/year2098.8
Table 2. Feed composition and consumption for pig rearing.
Table 2. Feed composition and consumption for pig rearing.
IndicatorFeed Composition, %Totally per Year, t
Live Weight 30–60 kg60–100 kg
Barley flour27.932.5602.0
Wheat flour27.632.3597.2
Pea flour30.030.0591.3
Sunflower meal5.00.042.0
Rapeseed cake4.22.057.9
Fish meal1.50.012.6
Dicalcium phosphate0.81.119.2
Feed chalk1.00.918.6
Premix (vitamin complex)1.01.019.7
Table salt (NaCl)1.00.210.7
Totally1001001971.2
Table 3. Land area requirement for rearing 1000 pigs on a farm.
Table 3. Land area requirement for rearing 1000 pigs on a farm.
Plant TypeYield, t/haYearly Consumption for Feed, tYearly Surplus Feedstock for Substituting Crops on Market, tLand Area Requirement to Meet Farm Needs, ha
Barley3.29602306183
Wheat4.53597652132
Pea2.145910276
Maize27.35-7549276
Table 4. Field machinery operational characteristics and energy input (MJ/ha) for three scenarios.
Table 4. Field machinery operational characteristics and energy input (MJ/ha) for three scenarios.
OperationOperating Machinery, Implements, PowerSpring BarleySpring WheatMaizeLegumes (Peas)
SC1SC2SC3SC1SC2SC3SC1, SC2, CS3SC1, SC2, CS3
Units MJ/haMJ/haMJ/haMJ/haMJ/haMJ/haMJ/haMJ/ha
PloughingTractor 120 kW + 4-share plough402402402402402402402402
Disc harrowingTractor 120 kW + Rotary Harrow 6 m257257257257257257257257
Transportation of mineral fertilizersTruck 24 t, 440 kW1111-11111111-
Fertilizer spreadingTractor 78 kW + Fertilizer Spreader2929-2929293236
Pre-sowing tillageCase 160 AG, germinator 6 mg181181181181181181181181
SowingTractor 78 kW; Seeder Fiona 3 m250250250250250250250250
Application of organic liquid fertilizers. First insertionCase 160 AG + 8.8 m3 capacity GT series slurry truck with insertion system367367367-375375--
Spring sprayingCASE 105 AG, sprayer, 12 m6060606060606060
Application of organic liquid fertilizers. Second insertionCase 160 AG + 8.8 m3 capacity GT series slurry truck with insertion system367367367-375375--
Spraying 1CASE 105 AG, sprayer, 12 m6060606060606060
Spraying 2CASE 105 AG, sprayer, 12 m60606060606060-
Spraying 3CASE 105 AG, sprayer, 12 m606060606060--
Harvesting (crops)Class Tucano, 238 AG, 5.4 m982982982982982982-982
Harvesting (maize)Self-propelled forage harvester, 580 kW + tractor 160 kW------470-
Transportation of organic liquid fertilizersTank truck MAN, 162 kW, capacity 8 m3884884884-884884--
Total39703970393023523986398617832228
Table 5. Inventory of inputs and outputs for a reference flow of 1000 pig farm of three scenarios.
Table 5. Inventory of inputs and outputs for a reference flow of 1000 pig farm of three scenarios.
StageInput/Output/ProcessUnitsSC1SC2SC3
InOutInOutInOut
CultivationFuel (diesel)kg231,389 231,389 197,252
Nitrogen fertilizer, inorganickg55,658.4 55,658.4 17,732.6
Potassium chloride as K2Okg64,086.5 64,086.5 25,801.3
Agrochemicals (pesticides, herbicides, fungicides)kg1959.4 1959.4 2186.6
Landha1104 1104 1104
ElectricityMJ196,290 196,290 219,330
HeatMJ2,899,980 2,899,980 36,105
Waterm36714.2 6714.2 6714.2
Barleykg 908,040 908,040
Barley strawkg 1,089,648 1,089,6481,089,648
WheatKg 1,250,280 1,250,280
Wheat strawkg 1,625,364 1,625,3641,625,364
Peakg 590,640 590,640
Pea strawkg 767,832 767,832767,832
Maizekg 7,548,600 7,548,6007,548,600
Manurekg 2,098,800 2,098,800 2,098,800
Digestatekg 2,038,150 12,738,651
Transportationt·km218,725 225,668 257,597
Agricultural machinerykg7334.3 7448.2 2941
Substituted productsSubstituted wheat grainkg−652,000 −652,000 −652,000
Substituted barley grainkg−306,000 −306,000 −306,000
Substituted maize silagekg−7,548,600 −7,548,600 0
Substituted ammonium nitratekg−6405 −6405 −122,207
Substituted heatGJ−146,847 −146,849 −4657
Avoided dieselkg−4310 −4310 −13,340
Table 6. Summary results per functional unit (farm with 1000 fattening pigs at farm gate) management.
Table 6. Summary results per functional unit (farm with 1000 fattening pigs at farm gate) management.
Impact CategoryUnitSC1SC2SC3
Global warming (GWP100a)kg CO2 eq−2,127,937−2,181,688−269,389
Eutrophicationkg PO4 eq−13,775−13,894−9105
Acidificationkg SO2 eq−13,388−13,703−8269
Ozone layer depletion (ODP)kg CFC-11 eq−0.253−0.2570.0584
Abiotic depletionkg Sb eq21.720.813.0
Photochemical oxidationkg C2H4 eq92.380.767.4
Terrestrial ecotoxicitykg 1,4-DB eq470944244160
Fresh water aquatic ecotoxicitykg 1,4-DB eq605,735574,248378,655
Human toxicitykg 1,4-DB eq853,425809,332539,232
Abiotic depletion (fossil fuels)MJ−31,809,456−32,364,6975,934,459
Marine aquatic ecotoxicitykg 1,4-DB eq1,257,615,7041,187,382,468755,845,079
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Venslauskas, K.; Navickas, K.; Rubežius, M.; Tilvikienė, V.; Supronienė, S.; Doyeni, M.O.; Barčauskaitė, K.; Bakšinskaitė, A.; Bunevičienė, K. Environmental Impact Assessment of Sustainable Pig Farm via Management of Nutrient and Co-Product Flows in the Farm. Agronomy 2022, 12, 760. https://doi.org/10.3390/agronomy12040760

AMA Style

Venslauskas K, Navickas K, Rubežius M, Tilvikienė V, Supronienė S, Doyeni MO, Barčauskaitė K, Bakšinskaitė A, Bunevičienė K. Environmental Impact Assessment of Sustainable Pig Farm via Management of Nutrient and Co-Product Flows in the Farm. Agronomy. 2022; 12(4):760. https://doi.org/10.3390/agronomy12040760

Chicago/Turabian Style

Venslauskas, Kęstutis, Kęstutis Navickas, Mantas Rubežius, Vita Tilvikienė, Skaidrė Supronienė, Modupe Olufemi Doyeni, Karolina Barčauskaitė, Aušra Bakšinskaitė, and Kristina Bunevičienė. 2022. "Environmental Impact Assessment of Sustainable Pig Farm via Management of Nutrient and Co-Product Flows in the Farm" Agronomy 12, no. 4: 760. https://doi.org/10.3390/agronomy12040760

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
