The Potential of Biochar to Enhance the Water Retention Properties of Sandy Agricultural Soils

Abstract

The impact of climate change has become increasingly severe in drylands, resulting in heat stress and water deficiency and, consequently, reducing agricultural production. Biochar plays an important role in improving soil fertility. The properties of sandy soils where water deficiency occurs with a greater frequency need to be enhanced by biochar amendments to increase the water retention capacity (WRC). Few studies have reported the effects of biochar on the readily available water (RAW) of these soils or an evaluation of the optimal application rate of the biochar. In this study, we aimed to assess the effect of different biochar types and application rates on the soil properties related to water retention. Under laboratory conditions, we amended sandy soil with four different types of biochar (woodchip (WBC), waterweed of Ludwigia grandiflora (WWBC), poultry litter (PLBC) and bagasse (BBC)) at rates of 0%, 5%, 10%, 15%, 25%, 50%, 75% and 100%. Soils treated with zeolite and perlite, both conventional materials, were arranged for a comparative study. The water content in the amended soils was recorded at saturation, field capacity, wilting point and oven-dry. Our results show a reduction in the bulk density by increasing the amendment rate across all biochar types. Although the WRC increased with the application rate, the RAW reduced and peaked at a 5% (v/v) biochar content for almost all the biochar types. WBC and WWBC showed the highest RAW increments of 165% and 191%, respectively, at a 10% (v/v) rate. In most cases, higher rates (such as 75% (v/v) of PLBC) caused negative effects on the RAW. Following these results, it is clear that both the biochar type and the application rate significantly influence the hydrological properties and the RAW capacity of sandy soils. A 5% (v/v) biochar amendment could significantly improve the readily available water to mitigate drought in sandy agricultural soils.

1. Introduction

Recently, climate change and the related impacts—for example, drought—have become more severe and widespread across the globe, especially in arid and semi-arid regions (ASALs) [1]. Rainfall is becoming irregular, average temperatures are generally rising and land and water resources deteriorate daily, resulting in heavy agricultural losses [2]. These situations present most regions with the cruel reality of frequent extreme climate events, associated hunger and rampant poverty. In addition, the global population is projected to rise to almost 10 billion people by the year 2050 [3], which may further stress the food systems. As the situation worsens, there is an increased need to explore interventions to improve food security amidst these impactful events to save humanity and the planet alike.

Emerging concepts such as climate-smart agriculture (CSA) gain traction as next-generation interventions to intensify food production with reduced climate impacts. As such, climate change adaptation has become key in modern-day farming activities. The proper management of soil and water resources and the adoption of smart cropping systems are considered to be helpful in this approach [4]. In this regard, drought mitigation is crucial both in rain-fed and irrigated agriculture. Therefore, farming systems should embrace activities that improve water retention and efficiency through on-farm water management interventions. This is an initial step toward the conservation of this diminishing resource.

One of the most common agricultural practices is the use of soil conditioning materials to ameliorate sandy soils that are often less able to retain water. These materials can improve the water retention of agricultural soils, among other benefits. Previous studies have indicated that products such as zeolite and superabsorbent polymers (SAP) can improve water retention in agricultural soils on a limited scale [5,6,7,8,9,10]. Apart from their minimal effect on the retention of available water, most of them also have a short lifespan in the soil [11]; a few are inorganic and are usually costly to the average farmer. Therefore, there is a need for alternative amendment materials that are sustainable from economic and ecological viewpoints. Biochar, a highly porous carbonaceous product of biomass pyrolysis, provides multifunctionalities in the agricultural and ecological sectors [12]. It can be produced from any organic materials that would otherwise be wasted, such as crop harvest residues or by-products of food processing [13]. Bagasse, maize stalks, maize cobs, coffee husks, rice husks and livestock manure are well-known feedstocks that can be carbonized for biochar production [14,15].

Biochar is a high carbon sequester and climate change mitigation agent [16] and is believed to improve nutrient retention and ameliorate soil water conditions, leading to improved crop performances [12,17,18,19]. These benefits result from its amendment impacts on the soil as dictated by its physicochemical characteristics [20,21], which vary with the feedstock and pyrolysis process [22]. The heating temperature during the pyrolysis process is one of the critical factors to determine the biochar property. An elevated temperature typically creates a biochar product with a greater carbon content along with a high micro-surface and pore volume, whereas a lower temperature produces another type with a more volatile content [23]. Physical properties such as the particle size/shape, porosity, the total volume of pores (especially equivalent to the RAW) and the specific surface area are essential for the enhancement of soil fertility [24,25]. Various studies have reported that biochar can increase the soil water retention capacity (WRC) [24,25,26,27]. With such improved hydraulic properties, agricultural soils can hold a greater amount of water for longer [28], which can then reduce irrigation requirements and frequency.

Although it is essential to manage the soil to hold a greater amount of water, soil water is of greater use when freely held for effective crop uptake [29]. Thus, whether and how the interactions between biochar and the amended soil help to create such a condition need to be studied with greater discernment. Numerous studies have tested and reported the impact of amending agricultural soils with various biochar types on the soil properties and WRC [24,25,26,27] but only a few have investigated the effects of plant-available water [30,31] on poor soils such as sandy soil. Basso et al. [26] conducted a study on the WRC of sandy loam amended with hardwood biochar. They discovered that the WRC increased by up to 84% and 38% for biochar addition rates of 3% and 6% (w/w), respectively. As in most of the other studies, they pointed out that such biochar amendments improved the RAW capacity of the studied soil. However, the mechanism and extent of this effect on different feedstocks were not entirely clear. These effects are believed to be influenced by the physical characteristics of the biochar type used; properties such as the particle size and shape were reported by Liu et al. [25] to be influential on soil hydrology. In this study, we investigate how sandy soils would interact with varying amounts of biochar from different feedstocks, analyze the resulting impact on the readily available water (RAW) capacity and provide a comparison with the existing soil conditioners zeolite and perlite.

2. Materials and Methods

2.1. Soil Sample

A soil sample was collected from a biochar-free farm in Awagasaki, Kanazawa City, Japan (36°37′15″ N, 136°36′59″ E), in gunny bags to protect it from contamination during transportation and storage. It was then cleaned of unwanted solid materials and air-dried in a greenhouse to below a 10% moisture content before sieving through a 2.0 mm mesh. The soil sample was analyzed using a pipette [32] and its particle size distribution was classified as fine sandy soil based on a textural triangle with 97.1% sand, 0.0% silt and 2.9% clay contents.

The dry bulk density (${\rho }_b$) was determined by filling a 100 cm³ stainless steel cylindrical can with the soil sample and oven-drying it at 105 °C in a Yamato Drying Oven (DV41) for 24 h. The sample was weighed and its mass was determined. Equation (1) below was then applied to compute ${\rho }_b$:

$${\rho }_b=\frac{M_d}{V}{\mathrm{g} \mathrm{cm}}^{-3}$$

(1)

where $M_d$ is the mass of the oven-dry sample and $V$ is the total volume of the can. The computed ${\rho }_b$ of the studied soil was 1.408 g cm⁻³.

2.2. Biochar Sample

The production of biochar was conducted at Meiwa Co., Ltd. in Kanazawa City, Ishikawa Prefecture, Japan. The biochar used in this study was produced from woodchips (WBC), bagasse (BBC), pelletized poultry litter (PLBC) and waterweed Ludwigia grandiflora (WWBC). The sample of WBC, which was a woodchip of Japanese cedar, was acquired from the Kidagen Company, Ro-52, Sano Town, Nomi City, Ishikawa Prefecture, 923-1112, Japan. The sample of PLBC was obtained from the Oka Poultry Company, 952-1, Myojin, Nikko City, Tochigi Prefecture, 321-1101, Japan. Ludwigia grandiflora was sampled from Biwa Lake and dried for biochar production. All the materials were well dried and then pyrolyzed using a batch-type carbonizer “Carbon Box” (width: 2250 mm; length: 6250 mm; height: 2100 mm) and a small improvised electric carbonizer (of approximately a 10 L capacity). These two products were in-house biomass carbonization technologies of Meiwa Co., Ltd. (https://www.meiwa-ind.co.jp/en/ (accessed on 14 January 2022)). The temperature of the pyrolysis was approximately 450 to 500 °C. The heating time was 7 h and the cooling time to reach 100 °C was 8 h. An anaerobic environment was achieved by: (1) keeping the carbonization chamber of the ECO5000 tightly closed using packing and screws; and (2) continuously purging the oxygen by carbonized gas generated from the feedstock during carbonization. The continuation of the anaerobic environment was confirmed by visually observing the sustained supply of carbonized gas from the carbonization chamber to the combustion chamber where the gas was combusted as an extra energy source to further heat the carbonization chamber.

The produced biochar was stored separately in sealed plastic bags according to the feedstock type and later air-dried and sieved to the required particle size. In this study, biochar samples with a particle size of 0.5–1.0 mm were used after homogenously being sieved. The prepared biochar samples were again stored in sealed plastic bags and later mixed with the soil sample to form a uniform substrate sample.

Table 1. Properties of the biochar samples produced from woodchips (WBC), bagasse (BBC), pelletized poultry litter (PLBC) and waterweed Ludwigia grandiflora (WWBC).

Property	Biochar Type
	WBC	BBC	PLBC	WWBC
Pyrolysis temperature (°C)	450–500	450–500	450–500	450–500
Bulk density (g cm−3)	0.107	0.054	0.583	0.263
Specific surface area (m2 g−1)	361.5	29.4	9.5	29.4
Peak pore size (nm)	0.63	0.80	1.00–2.00	1.50

shows a few of the relevant properties of the various biochar samples used in this study.

2.3. Zeolite and Perlite

Zeolite and perlite are two commercial amendment materials that were used in this study for a comparison with the biochar types. Zeolite was procured from Akagi Horticulture Co., Ltd. Nagano, Japan and perlite from Iseki & Co., Ltd. Kanazawa, Japan. These materials are already in use by farmers as soil conditioners in different regions. Following the manufacturer’s recommendation of 5% zeolite and 10% perlite (v/v), the samples were measured and homogeneously mixed with the soil samples.

2.4. Experiment Design

The soil sample was amended with biochar rates of 0%, 5%, 10%, 15%, 25%, 50%, 75% and 100% (v/v). Each substrate sample was poured into stainless steel cylindrical cans with a volume of approximately 100 cm³ (5.03 cm diameter and 5.03 cm height). Each was then mixed manually by careful stirring to achieve a proper homogeneity of the mixture. The resulting substrates were set up in a completely randomized laboratory experimental design with four replicates each. The water retention of the biochar and soil-biochar samples was analyzed using a series of simple hydrostatic column experiments [33] based on the guidelines of the Ministry of Agriculture, Forestry and Fisheries, Tokyo, Japan. In addition to the saturation point (suction) (pF = 0), the water content was determined at the field capacity (FC) (pF = 1.5) and depletion point (DP) (pF = 2.7) using a similar sand (hanging water) column and ceramic tension plates, respectively.

The cans containing the samples were set up in a shallow basin of water for 24 h to achieve a uniform saturation by capillary rise. The mass of the amended soil with the biochar was recorded (mass at pF = 0) before they were transferred onto the sand column for 48 h. Again, the mass of each sample (mass at pF = 1.5) was noted. They were then set up on dry ceramic plates and covered for another 48 h and the mass (mass at pF = 2.7) was recorded before oven-drying in a Yamato Drying Oven (DV41) for a further 24 h. The masses of the can and the sample were recorded before weighing the can alone. The gravimetric water content (${\theta }_g$) of each sample was computed and multiplied by the corresponding bulk density (${\rho }_b$) to obtain the respective volumetric water content (${\theta }_v$) in cm³ cm⁻³. The WRC and its effective portion, the RAW capacity, affected by each treatment at the FC were then computed by Equation (2) and Equation (3), respectively:

$$WRC\left\{{\theta }_v=\frac{M_w}{M_d}\times {\rho }_b\right\}\times 100\%$$

(2)

where $M_w$ is the mass of the total retained water at the field capacity calculated by the difference between the mass of the sample at the FC ($M_{\mathrm{pF}=1.5}$) and that of an oven-dry sample ($M_{os}$) and:

$$RAW\left\{{\theta }_v=\frac{M_{eff}}{M_d}\times {\rho }_b\right\}\times 100\%,$$

(3)

where $M_{eff}$ is the mass of the retained water effective for plant use. It was computed by subtracting the mass of the sample at the DP ($M_{\mathrm{pF}=2.7}$) from that at the FC ($M_{\mathrm{pF}=1.5}$).

2.5. Statistical Analysis

An analysis of variance (ANOVA) for the RAW data was performed using the R program (3.5.1 version, RStudio Inc., Boston, MA, USA). A Tukey’s honest significant difference (HSD) test was conducted to analyze the significant variations and comparisons among the data of the pairwise treatments. All measurements were conducted with four replications for each sample. All other statistical calculations were performed in Microsoft Excel 2013; graphs and figures were prepared and drawn using SigmaPlot Software (v14.0, Systat Software, Point Richmond, CA, USA).

3. Results and Discussion

3.1. Bulk Density

As shown in Table 1, we observed that the values of ${\rho }_b$ were in the reducing order of PLBC, WWBC, WBC and BBC. This was aligned with other previous studies such as Rajkovich et al. [34], which pointed out that biochar values are related to the ${\rho }_b$ of the respective parent feedstock. The trend was consistent with the results, as shown in Figure 1.

Bulk density is a direct function of porosity and specific surface area. In this study, PLBC depicted the highest ${\rho }_b$ with a considerably low specific surface area compared with that of wood-based biochar types (WBC and WWBC). This could be due to the shape of the biochar particles that were almost even in PLBC but quite rugged in the wood-based biochar types. Uneven biochar surfaces create a greater number of inter-particle pores that may result in a lower value ${\rho }_b$ [25,35].

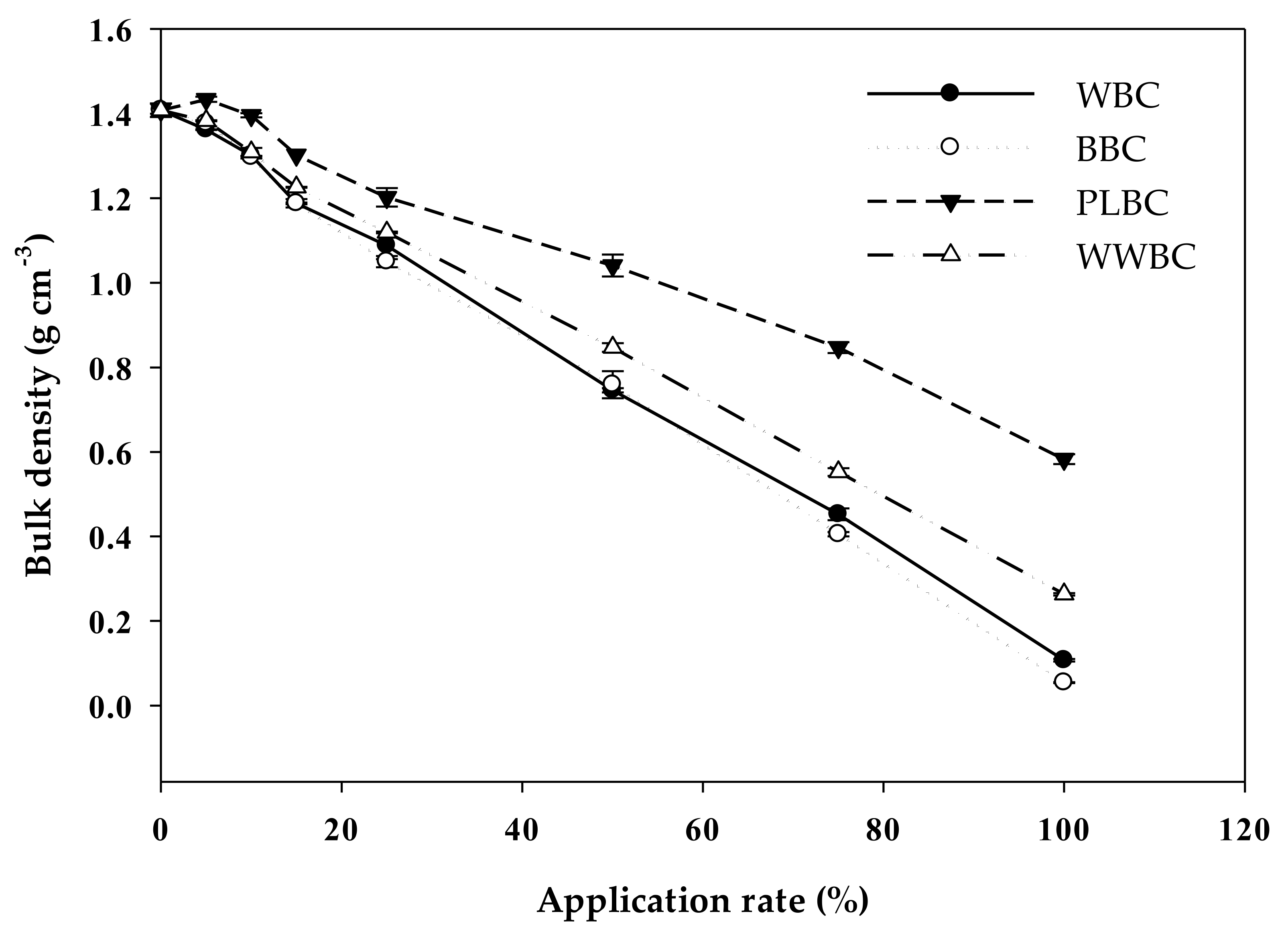

Biochar amendments significantly reduced the bulk density of sandy soil (Figure 1), decreasing it consistently with every additional biochar application rate, as Abel et al. [36], Gamage et al. [37] and Obia et al. [38] had similarly reported previously. As biochar generally has a lower bulk density than sandy soil, the amendments resulted in a decrease in the bulk density of the sandy soil. This effect was more pronounced with higher application rates. All the biochar types and application rates affected a decrease in the ${\rho }_b$ value except for the 5% (v/v) addition of PLBC, which increased it by almost 3%. The biochar addition of 5% for WBC, BBC and WWBC showed a reduction of 4.5%, 3.1% and 2.6% in the values of ${\rho }_b$, respectively, compared to the control. The variation of the ${\rho }_b$ values was attributed to the physical properties of both the sand and biochar particles [39], which interacted and altered in the biochar–sand mixture.

3.2. Water Retention Capacity and Readily Available Water Capacity

Table 2. ANOVA for the readily available water (RAW) of sandy soil amended with biochar from woodchip (WCB), bagasse (BBC), poultry litter (PLBC) and waterweed (WWBC) at different application rates compared with zeolite and perlite.

Application Rate (%)	RAW Content (cm3 cm−3)				Mean	CV
	WBC	BBC	PLBC	WWBC
5	0.085 ± 0.009a ***	0.065 ± 0.004a ***	0.059 ± 0.001a ***	0.093 ± 0.008a ***	0.076a ***	0.11
10	0.085 ± 0.002a ***	0.064 ± 0.003a ***	0.058 ± 0.002a ***	0.094 ± 0.007a ***	0.075ab **	0.06
15	0.078 ± 0.010b n.s	0.056 ± 0.003b n.s	0.056 ± 0.002b n.s	0.088 ± 0.007b **	0.070b *	0.10
25	0.074 ± 0.009bc n.s	0.047 ± 0.003bc n.s	0.040 ± 0.005bc n.s	0.069 ± 0.011cd n.s	0.057c n.s	0.23
50	0.064 ± 0.002c n.s	0.041 ± 0.005c n.s	0.033 ± 0.004c n.s	0.053 ± 0.006d n.s	0.048cd n.s	0.19
75	0.050 ± 0.003d n.s	0.033 ± 0.007d n.s	0.026 ± 0.004d n.s	0.040 ± 0.003de n.s	0.037d n.s	0.21
100	0.031 ± 0.001e n.s	0.022 ± 0.002e n.s	0.016 ± 0.001e n.s	0.033 ± 0.004e n.s	0.026e n.s	0.19
Zeolite	-	-	-	-	0.047cd n.s	0.12
Perlite	-	-	-	-	0.038d n.s	0.17
Mean	0.067a **	0.047b n.s	0.041b n.s	0.067a **
CV	0.12	0.16	0.15	0.19

Means ± SE (n = 4). Different letters in the same column for each treatment are significantly different using a two-way ANOVA, *** significantly different at the 0.001 probability level; ** significantly different at the 0.01 probability level; * significantly different at the 0.05 probability level; ^n.s not significant, based on Tukey’s HSD test of means; CV: coefficient of variation.

shows the ANOVA of the RAW as posted by each of the biochar types at various application rates. Generally, sandy soils have a low water retention ability, and this was affirmed in this study. The minimal proportion of fine-textured particles—silt (0.0%) and clayey (2.9%)—as well as the surface area of the smaller particles and the absence of effective pore sizes could have caused this [40]. When homogeneously blended, the sand–biochar mixture underwent aggregation that improved its physical structure; thus, it had the ability to hold a larger amount of water for a longer time.

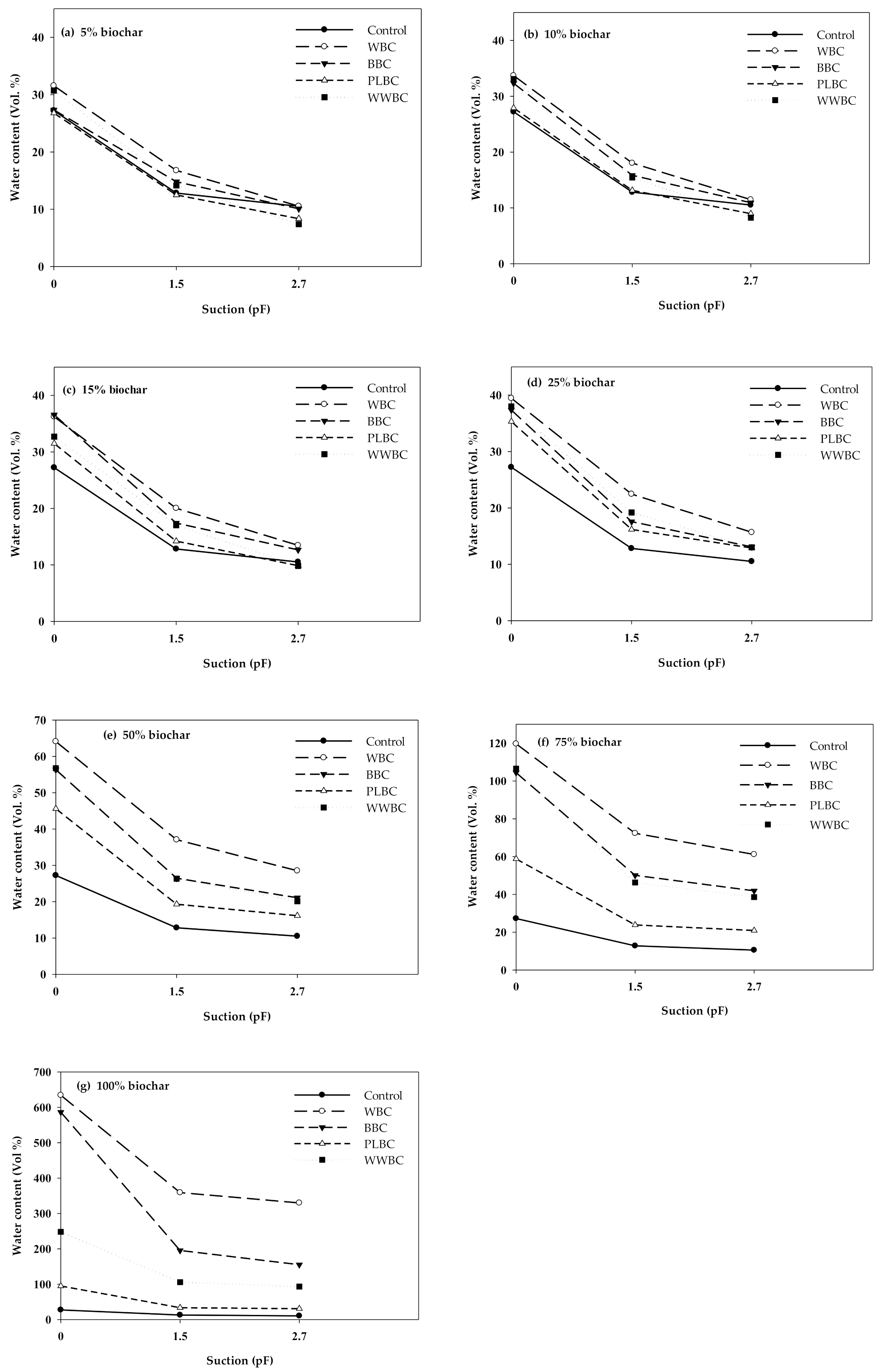

Generally, all the biochar types and amendment rates increased the amount of water retained at pF = 0 and pF = 1.5 (Figure 2). Notably, most of the biochar types at the application rates of 5%, 10% and 15% (v/v) reduced the water held at the DP (pF = 2.7) whilst increasing the FC (pF = 1.5) because the interactions between the biochar and the sand particles through the aggregation created water-holding pores with greater effectiveness [24]. The difference between the FC and DP represented the RAW capacity, which reduced as a greater biochar application rate was added to the sandy soil. This showed the diminishing ability of biochar to hold water that plants can easily extract, implying that a smaller amount of biochar amendment was of greater benefit.

In Table 2, it can be seen that the RAW for the 5% and 10% (v/v) biochar application rates was significantly higher ($p<0.001$) than the value of the other rates across all the biochar types. The biochar from wood-based feedstocks (WBC and WWBC) significantly increased the WRC of the sandy soil at successive application rates. This was consistent with the report from Kameyama et al. [20]. The biochar from bagasse (BBC) had a non-uniform effect on the WRC even as more biochar was added, whereas PLBC had a minimal difference between the various biochar rates (see Figure 3).

The ability of biochar to affect the hydraulic properties and water retention of agricultural soils is a direct result of its physical properties. Properties such as particle size, bulk density [25], specific surface area [41] and pore size distribution [24] play an essential role in the capacity of biochar-amended soil to hold water. The biochar samples with a larger specific surface area, such as WBC (Table 1), tended to enable a greater amount of water retention [24] (Table 2). This resulted from an increased general porosity, including intra-particle pores and inter-particle pores, due to the sand–biochar aggregation [41]. When biochar and soil particles interact, the volume of inter-particle pores can increase or decrease depending on the particle size and shape of the biochar samples [25]. Ibrahim et al. [41] discovered that a biochar with a particle size of 0.5–1.0 mm could effectively optimize the WRC of sandy soils. However, this particle size could also negatively affect the WRC of the soil, especially when the particles were feathery and flat in shape. This could explain why the BBC had a lower capacity to hold more water effectively for plant use. The wood-based biochar types had irregular surface shapes that did not interlock with the sand particles, thus creating a larger specific surface area and greater number of pores between them for water holding [21,22,24]. In part, this justified why WBC and WWBC improved the RAW capacity with a greater significance than the other treatments ($p<0.01$) (see Table 2).

In this study, we sought to establish how a biochar amendment of sandy soil would affect its capacity to hold water that is easily accessible for an effective uptake by plants. The results, as shown in Table 2, confirmed our hypothesis that biochar could improve the RAW capacity. In almost all the biochar treatments, the RAW increased against the control. It is interesting to note that the effect of the biochar–sand amendment on the RAW capacity was inversely related to the WRC. As the biochar amount increased, there was a general increase in the WRC with a reducing RAW capacity (Figure 3). The RAW capacity peaked at a 5% (v/v) biochar application with a value of 0.065 and 0.059 cm³ cm⁻³ for BBC and PLBC, respectively; at 10% (v/v), it was 0.085 and 0.094 cm³ cm⁻³ for WBC and WWBC, respectively. However, for the latter duo, the difference between the RAW capacity at the 5% and 10% (v/v) rates was almost negligible.

A further analysis revealed that 5% biochar was generally the optimal rate for the highest RAW capacity ($p<0.001$) except in the case of PLBC, where it caused a negative increment. The reduction affected by PLBC could be associated with an increased bulk density of up to 2.7% (see Figure 1). Beyond a 5% (v/v) biochar addition, there was a consistent indication that the volume of the RAW-equivalent pores reduced, a situation that negatively affects the hydraulic conductivity of the soil [42]. An analysis of the intra-particle pore size distribution of the biochar samples revealed that most of the pores were in the micropore range with peak diameters below 2 nm (see Table 1). A previous study observed that biochar macropores and sand–biochar inter-particle pores play a significant role in improving the RAW of soil [24] and are most effective in such coarse-textured soils.

The RAW figures posted by the biochar amendments at 5% and 10% (v/v) were higher ($p<0.001$) than those affected by commercial conditioners, zeolite and perlite, of 0.047 and 0.038 cm³cm⁻³, respectively (see Table 2). Although the two reduced the WRC of the sandy soil, the capacity to hold RAW was slightly higher but almost insignificant compared with the control. The biochar proved to be superior in availing the retained water for effective plant utilization. However, higher application rates of biochar had a minimal effect on the RAW with a few treatments (such as 75% (v/v) PLBC) reducing its value by up to 22% (Figure 4). This indicated that the majority of the water retained was held in micropores and thus not readily available for plant uptake. The addition of large biochar quantities to the sandy soil decreased the inter-particle pores that would have held water less tightly for plant use.

In most cases, the addition of biochar to agricultural soil can improve the ability of that soil to hold a greater amount of water that is readily available for plant uptake. In Figure 4, we illustrate how various biochar treatments affected the RAW increment in sandy soil in this study. There was a general tendency shown by all treatments to increase the RAW capacity except at 100%, v/v for WBC and BBC and at 75% and 100% for PLBC, which caused a reduction of 3.1%, 33.3%, 22.5% and 50.4%, respectively. Although biochar is famed for drought mitigation, this could be an indication that biochar may not be advantageous as a standalone planting medium. However, this condition may have been caused by the mechanical crushing of the biochar materials to attain the required particle size of between 0.5 and 1.0 mm. This process causes a damaging effect on the pores and considerably reduces the intra-particle mesopores and macropores necessary to hold water equivalent to the RAW [24,43].

Among the various biochar types, the 5% (v/v) and 10% (v/v) applications caused the highest RAW increment with peaks at 5% (BBC = 101.6%; PLBC = 84.0%) and 10% (WBC = 164.6%; WWBC = 191.5%), respectively. This was consistent with the findings of Wang et al. [42], who pointed out that beyond a 5% biochar application comes a diminishing return on the plant-available water. Previously, hydrophobicity has been highlighted as a contributor to a low WRC and RAW in biochar-amended soils [44]. This phenomenon often occurs when certain complex volatile organic compounds stick on the surface of the biochar during the pyrolysis process and is common in fresh biochar [39]. We speculated that this could partly explain why BBC and PLBC, which were both freshly produced biochar, posted lower values (Table 2, Figure 4). It should also be noted that economic viability is an essential concern for the implementation of biochar use in practice [45]. Given that a 100% biochar addition showed no remarkable effect in our study, it is relevant to recommend lower dosages to end users.

4. Conclusions

It is vital to conclude that biochar made from woody feedstocks has a higher capacity to retain more water that is readily available for effective plant use. Biochar is also more beneficial to water retention for plant uptake than most of the existing soil conditioners on the market. Zeolite and perlite, two of the most common materials today, cannot easily avail the retained water for plant uptake. Thus, as the impact of global climate change on drought grows, the ability of biochar to hold a greater amount of RAW for longer is useful for improving the situation. Agriculture, particularly rain-reliant, could improve as drought is reduced; irrigated agriculture could experience a reduced irrigation requirement and frequency.

It is advisable to limit biochar addition to sandy soils to below 10% (v/v) to improve the readily available plant water. As our study revealed that the RAW increments affected by the 5% (v/v) and 10% (v/v) biochar applications were almost equal, the former is of optimum economic and technical benefit for farmers. In addition to the soil water hydrologic advantages, this would render biochar useful for increasing and sustaining agricultural productivity.
