Article

Phenotypic Variation and Molecular Marker Network Expression of Some Agronomic Traits in Rice (Oryza sativa L.) RILS of Gr 89-1×Shuhui 527

College of Life Sciences, Chongqing Normal University/Chongqing Engineering Research Center of Specialty Crop Resources, Chongqing 401331, China
*
Author to whom correspondence should be addressed.
Agronomy 2022, 12(12), 2980; https://doi.org/10.3390/agronomy12122980
Submission received: 17 October 2022 / Revised: 20 November 2022 / Accepted: 23 November 2022 / Published: 27 November 2022
(This article belongs to the Section Crop Breeding and Genetics)

Abstract

:
In this study, a Glutinous rice 89-1 (Gr 89-1) × Shuhui 527 recombinant inbred line population (RIL) comprising 309 F9-generations was used to screen gradient molecular markers. The phenotypic variation and distribution of eight agronomic traits obtained from multiyear and multilocation samples, as well as the network expression relationships between agronomic traits and molecular markers, were investigated. The results showed that there were 14 phenotypic lines with significant differences in the RILs, and the molecular testing results of most of the lines were consistent with the phenotype. The correlation degree between the first-level molecular markers and the eight agronomic traits was 100%. Excluding the correlations of third-level markers with grain width and grain length, the degree of correlation between molecular markers and agronomic traits decreased with an increase in marker levels. The RILs were divided into eight core populations and one approximate population, revealing genetic correspondence between agronomic traits and molecular markers.

1. Introduction

The selection of hybrid offspring is the key to rice breeding. Conventional breeding strategies directly select plants with ideal traits using the pedigree method, mixed selection method, preterm birth test method, and single-grain inheritance selection method in the segregation generation of rice sexual hybridization [1,2,3]. However, these methods are less effective in long-term breeding practices because with the continuous segmentation of genes starting from the hybrid F2 generation, some excellent traits disappear when the traits of the hybrid offspring become stable. Determining the selection period and method based on the magnitude of heritability has improved the accuracy and reliability of the selection of target traits. When heritability is high, the phenotype of the trait is highly correlated with the genotype, the effect of using the pedigree method and the mixed selection method is similar, and the selection effect in early generations is better; when heritability is low, the phenotype of the trait cannot represent its genotype, and the trade-offs rely on the offspring tested by the pedigree method or inbreeding, which were selected in later generations. Over the last two decades, molecular techniques have been used for indirect selection [4,5,6,7,8]. For example, marker-assisted selection (MAS), quantitative trait loci (QTL), and linkage disequilibrium (LD) are used to indirectly select superior traits determined by genetic factors. The combination of traditional methods and molecular biotechnology has greatly improved breeding selection efficiency.
The genetic relationship between the parents and progeny of rice is very complex. To date, the genetic processes and mechanisms of these traits have not been fully clarified. The genetic relationships between progeny and progeny, between different progeny lines, and between progeny and parents are not clear, leading to an inability to accurately grasp the selection of the hybrid progeny. In this study, 309 F9-generation RILs constructed by crossing rice (Oryza sativa L.) cultivar Gr 89-1 and Shuhui 527 were used to study the genetic relationships between parents and progeny and different lines of progeny, and the relationships between phenotypic traits and molecular markers [9]. The network expression relationship map between agronomic traits and molecular markers was constructed to provide an important reference for correlation analyses between agronomic traits and molecular markers, and improve the breeding selection efficiency.

2. Materials and Methods

2.1. Experimental Materials

In the spring of 2014, at the Bishan Rice Breeding Base of Chongqing Normal University, the rice variety Gr 89-1 was crossed with the restorer line Shuhui 527, bred by the Sichuan Agricultural University, and underwent an additional generation propagation in Hainan in the winter seasons; subsequently, the 309 F9-generation RILs were constructed in 2019.

2.2. Field Planting and Investigating Seeds

The parental and recombinant inbred lines (RILs) were planted in the Bishan Rice Breeding Base of Chongqing Normal University during the spring of 2019, in Guangpo Town, Lingshui Country, Hainan Province during the winter of the same year, and again in Laifeng Town, Bishan District, Chongqing City during the spring of 2020. Two years and three points (times) were planted in different locations in Chongqing and Hainan during different years. Each variety was planted in three rows with twelve plants in each row, and the spacing between rows was 16.7 cm × 30.0 cm. The soil fertility in the field was medium and fertilization was performed using conventional fertilization management. Strict pest and weed control were in place throughout the growth period. After maturity, the agronomic traits of each line were investigated.

2.3. Molecular Marker Grading Screening

Through the identification and evaluation of agronomic traits in the field, eight agronomic traits with large phenotypic differences were selected: plant height (PH), panicle length (PL), grain number per panicle (GPP), seed setting rate (SSR), thousand-grain weight (TGW), flag leaf length (FLL), grain length (GL), and grain width (GW). Ten extreme lines were selected for each agronomic trait, gene pools were established, and differential molecular markers were identified. The level of grading markers was determined by comparing the differential grading markers screened out of the eight agronomic traits. The molecular markers shared by the eight agronomic traits were designated as first-level markers. The molecular markers shared by the seven agronomic traits were designated as second-level markers. The molecular markers shared by the six agronomic traits were designated as third-level markers. The molecular markers shared by the five agronomic traits were designated as fourth-level markers. The molecular markers shared by the four agronomic traits were designated as fifth-level markers. The molecular markers shared by the three agronomic traits were designated as sixth-level markers. The molecular markers shared by the two agronomic traits were designated as seventh-level markers, and the molecular markers shared by only one agronomic trait were designated as eighth-level markers.

2.4. Data Calculation and Processing

The experimental data were analyzed using Origin 8.5 and SPSS 18 statistical software and were expressed as means ± standard deviations. One-way analysis of variance (ANOVA) and Duncan multiple comparisons were used to test the significance of differences in the data between the different treatments.

3. Results

3.1. Phenotypic Variation and Trait Distribution of RILs

From 2019 to 2020, the parental Gr 89-1, parental Shuhui 527, and the 309 F9-generation RILs were planted in Laifeng Town, Bishan District, Chongqing City and Guangpo Town, Lingshui Country, Hainan Province. Eight agronomic traits, PH, PL, GPP, SSR, TGW, FLL, GL, and GW, were investigated and analyzed. As shown in Table 1, in the three environments, the phenotypic values of the eight agronomic traits were similar in the two years in Bishan, Chongqing, but smaller in Lingshui, Hainan than in the other environments. The variation range in the number of GPP and SSR was large, and the range was more than double the minimum value. The coefficient of variation of the SSR was the largest at 21.05%–22.57%, the coefficient of variation of the other traits was less than 14.47%, and the coefficient of variation of TGW was the smallest at 4.48%–5.76%. The skewness coefficient was between −0.625 and 0.783 and the kurtosis coefficient was between −0.902 and 1.117. The skewness of both PH and SSR was less than 0, showing obvious left deviation, and the kurtosis was less than 0, showing a peak. The skewness of FLL and TGW was greater than 0, indicating obvious right skewness.
The eight agronomic traits showed a normal distribution across the different years and locations. In the three environments of the RILs: PH was mainly distributed between 110.85–123.09 cm, accounting for 61.81% of the total (Figure 1a); PL was mainly distributed between 24.81 and 26.67 cm, accounting for 56.31% of the total (Figure 1b); GPP was mainly distributed between 136.73 and 157.59, accounting for 67.31% of the total (Figure 1c); SSR was mainly distributed between 63.21% and 76.91%, accounting for 55.66% of the total (Figure 1d); TGW was mainly distributed between 26.38 and 27.44 g, accounting for 60.84% of the total (Figure 1e); and GL was mainly distributed between 5.34 and 7.06 mm, accounting for 88.99% of the total (Figure 1g).
In the RILs, there were 307 lines with GW greater than 2.26 mm (three-location average of the Shuhui 527 parent), accounting for 99.35% of the total (Figure 1h), and the GW showed a normal distribution tending to Gr 89-1. There were 265 lines with FLL longer than 26.79 cm (three-location average of the Gr 89-1 parent), accounting for 85.76% of the total, and the FLL showed a normal distribution tending to Shuhui 527 (Figure 1f).

3.2. Lines Differential Expression

According to the phenotypic differences of several agronomic traits, such as plant height, panicle type, and flag leaf, 14 widely different phenotypes were found in Gr 89-1, Shuhui 527, and the 309 F9-generation RILs. No. 1, 2, 5, 12, and 14 had many awns, and No. 12 and 14 had red awns (Figure 2). No. 1, 3, 7, and 10 had lower PH than the others, with the lowest PH being 81.57 cm for No. 7, and No. 6 had a maximum PH of 122.57 cm. No. 4 had the longest FLL at 34.33 cm (Table 2). The molecular detection of 14 widely differential lines was carried out using three first-level markers: aRM85, aRM274, and aRM5414. It was found that the band types of lines No. 1, 3, 7, 9, 10, and 11 were close to the parent Gr 89-1 and the band types of lines No. 2, 4, 5, 6, and 14 were similar to that of the parent Shuhui 527. The phenotypes also tended to differ between parents, and the molecular detection results of most lines were relatively consistent with the phenotypes (Table 2; Figure 2).

3.3. Molecular Network Expression

F9-generation RILs of 309 lines constructed by crossing Gr 89-1 and Shuhui 527 were selected for eight agronomic traits (PH, PL, GPP, SSR, TGW, FLL, GL, and GW). Gene pools were established for ten extreme lines of the eight agronomic traits. From the 589 initially screened markers, 196 polymorphic markers (Table S1 for detailed primer information) were obtained, including 3 first-level markers, 6 second-level markers, 11 third-level markers, 17 fourth-level markers, 21 fifth-level markers, 28 sixth-level markers, 40 seventh-level markers, and 70 eighth-level markers (Table 3). The network expression relationship map was constructed to explain the correspondence between the agronomic traits and molecular markers. The three first-level markers showed polymorphism in all eight agronomic traits with corresponding network lines. As the level of markers increased, fewer agronomic traits showed polymorphism in each molecular marker. In the eighth-level markers, only one agronomic trait showed polymorphism in each molecular marker, and there was a single network line between markers and agronomic traits, which corresponded one to one (Figure 3). For the correlation between the eight grades of molecular markers and the eight agronomic traits, as can be seen in Table 4, the correlation degree between the first-level markers and the eight agronomic traits was 100%. Except for the correlation between the third-level markers and GW and GL, the correlations between molecular markers and agronomic traits decreased gradually with the increase of marker levels. Moreover, the correlations between the molecular markers and agronomic traits of the eighth-level markers were the lowest, and the correlation degrees with GW, SSR, TGW, PL, GPP, PH, GL, and FLL were 8.57%, 25.71%, 11.43%, 5.71%, 7.14%, 10.00%, 11.43%, and 20.00%, respectively. Three first-level markers were used to detect the 309 F9-generation RILs, and 76 resources were found to have molecular differences, from the first-level marker to the eighth-level marker, step-by-step and filter-by-level. Finally, 70 eighth-level markers were used to detect the RILs, and, as a result, 28 markers showed polymorphism, and only seven lines showed differences. Moreover, all of these showed differences in the level 1-8 grade markers and formed the first core group with a relatively distant genetic relationship. The 13 lines selected by the seventh-level markers constituted the second core group; the 17 lines selected by the sixth-level markers constituted the third core group; and the 76 lines selected by the first-level markers comprised the eighth core group (Table 5). The remaining 233 lines showed no difference in each level marker, belonged to an approximate group, and had a close genetic relationship.

4. Discussion

The key to breakthroughs in rice breeding is the exploration and application of new genes [10,11,12]. New gene mining and functional research and utilization are currently research hotspots [13,14,15,16,17,18]. Chen et al. [19] discovered a natural C2H2 transcription factor allele in rice. Zhou Wenbin’s team [20] found a high-yield gene (OsDREB1C) in rice. The key to creating new gene resources is to clarify the genetic relationships and choose hybrid offspring [21,22,23,24]. Hybrid offspring are the foundation of gene resource innovation, and excellent gene resources are sources of various innovations [25,26,27,28]. It is difficult to select the population separated by parents, especially in the early generation, mainly because the selection in the field can only be judged by phenotype and not by genotype. Most traits in rice are quantitative and controlled by multiple QTL genes. The research results from interval mapping, composite interval mapping, inclusive composite interval mapping, and genome-wide composite interval mapping have been successfully used to map quantitative trait loci (QTLs) in bi-parental segregation populations, laying a good foundation for molecular-marker-assisted selection, and improving the accuracy of hybrid offspring selection [29,30,31]. Based on single gene marker analysis, this study studied the relationship between molecular markers and agronomic traits and proposed a new method for the selection of hybrid offspring.
The relationship between phenotypic traits and their corresponding genes is the core of the discovery, creation, and selection of excellent gene resources [32]. In this study, 309 F9-generation RILs were constructed by crossing Gr 89-1 with Shuhui 527 and were used as materials to study the phenotypic variation and distribution of eight agronomic traits over many years and time points, and 14 phenotypes with significant differences were found. Subsequently, according to the phenotypic traits of the extreme lines, gradient grading markers were screened, and the RILs were graded and identified. Furthermore, according to the number of differences detected by gradient markers at different levels, the RILs were divided into eight core groups and one approximate group to evaluate their genetic relationship at the molecular level. Through molecular network expression, genetic correspondence between agronomic traits and molecular markers was revealed, which provided a reference for the genetic selection of hybrid offspring.
There are abundant rice germplasm resources in the world, but their utilization rate is not high. One reason for this is that the traditional classification and research evaluation of rice germplasm resources are limited to the simple description and identification of morphological characteristics. Although there are enzyme markers that were developed more recently than traditional techniques, owing to the influence of quantity, environment, and biological growth and development stage, the exact identification and evaluation of rice germplasm resources cannot be carried out, hence their application scope is limited to a certain extent. Molecular markers can reveal differences in rice seed resource materials at the DNA molecular level and become a reliable and efficient tool for the identification and analysis of germplasm resources. At present, molecular markers are widely used in indica and japonica subspecies, main cultivars, landraces, backbone parents of hybrid rice, and genetic diversity of rice seed resources [33]. Many studies have been conducted on the classification and identification of rice seed resources using genetic markers. Yang et al. [34] used 48 SSR molecular markers to analyze the genetic similarity of ninety rice varieties from nine different countries. Shu et al. [35] used 34 pairs of SSR primers to conduct genetic similarity and cluster analyses of 313 japonica rice varieties from different geographical sources. Li et al. [36] analyzed the polymorphisms of 33 American rice and 13 Chinese rice germplasm resources using 24 pairs of SSR primers. As there are only a few polymorphic markers in these studies, the identification results are often not ideal, especially for resources with close relationships. The results of this research can also be used to identify the genetic relationships among different resources. Through the relationships between phenotype and molecular markers and different genetic groups, we can improve the accuracy and reliability of germplasm resource identification, compensate for the shortcomings of traditional phenotypic identification techniques, employ techniques that play an important role in the rational utilization of resources, and promote new breakthroughs in crop breeding.

5. Conclusions

Eight gradient molecular markers were screened using a Glutinous rice 89-1 (Gr 89-1) × Shuhui 527 recombinant inbred line population (RILs) comprising 309 F9-generations. The RILs were divided into eight core populations and one approximate population. Molecular network expression revealed genetic correspondence between agronomic traits and molecular markers.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/agronomy12122980/s1; Table S1: sequences of the primers used in this study.

Author Contributions

L.G. and Z.Z. conceived and designed the study. L.G., Z.Z., L.H., H.W., F.J. and J.H. performed the experiments. J.Y., Q.L., K.Y., Q.Z., M.F. and Z.Z. analyzed all experimental data. L.G., Z.Z. and L.H. wrote the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

The National Natural Science Foundation of China (31670326); the Program for Innovative Research Team in University, Chongqing (CXTDX201601018).

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Brim, C.A. A modified pedigree method of selection in soybeans. Crop Sci. 1966, 6, 220. [Google Scholar] [CrossRef] [Green Version]
  2. Choo, T.M.; Reinbergs, E.; Park, S.J. Comparison of frequency distribution of doubled haploid and single seed descent lines in barley. Theor. Appl. Genet. 1982, 61, 215–218. [Google Scholar] [CrossRef] [PubMed]
  3. Luedders, V.D.; Duclos, L.A.; Matson, A.L. Bulk, pedigree, and early generation testing breeding methods compared in soybeans. Crop Sci. 1973, 13, 363–364. [Google Scholar] [CrossRef]
  4. Cho, J.J.; Custer, D.M.; Brommonschenkel, S.H.; Tanksley, S.D. Conventional breeding: Host-plant resistance and the use of molecular markers to develop resistance to tomato spot wilt virus in vegetables. Acta Hortic. 1996, 431, 367–378. [Google Scholar] [CrossRef]
  5. Tanksley, S.D.; Young, N.D.; Paterson, A.H.; Bonierbale, M.W. RFLP mapping in plant breeding: New tools for an old science. Nat. Biotechnol. 1989, 7, 257–264. [Google Scholar] [CrossRef]
  6. Georges, M.; Nielsen, D.; Mackinnon, M.; Mishra, A.; Okimoto, R.; Pasquino, A.T.; Sargeant, L.S.; Sorensen, A.; Steele, M.R.; Zhao, X. Mapping quantitative trait loci controlling milk production in dairy cattle by exploiting progeny testing. Genetics 1995, 139, 907–920. [Google Scholar] [CrossRef]
  7. Fernando, R.L.; Grossman, M. Marker assisted selection using best linear unbiased prediction. Genet. Sel. Evol. 1989, 21, 467–477. [Google Scholar] [CrossRef]
  8. Meuwissen, T.H.E.; Goddard, M.E. The use of marker haplotypes in animal breeding schemes. Genet. Sel. Evol. 1996, 28, 161–176. [Google Scholar] [CrossRef]
  9. Deng, X.; Gan, L.; Liu, Y.; Luo, A.; Jin, L.; Chen, J.; Tang, R.; Lei, L.; Tang, J.; Zhang, J.; et al. Locating QTLs controlling overwintering seedling rate in perennial glutinous rice 89-1 (Oryza sativa L.). Genes Genom. 2018, 40, 1351–1361. [Google Scholar] [CrossRef]
  10. Zhao, K.; Tung, C.W.; Eizenga, G.C.; Wright, M.H.; Ali, M.L.; Price, A.H.; Norton, G.J.; Islam, M.R.; Reynolds, A.; Mezey, J.; et al. Genome-wide association mapping reveals a rich genetic architecture of complex traits in Oryza sativa L. Nat. Commun. 2011, 2, 467. [Google Scholar] [CrossRef] [Green Version]
  11. Glaszmann, J.C.; Kilian, B.; Upadhyaya, H.D.; Varshney, R.K. Accessing genetic diversity for crop improvement. Curr. Opin. Plant Biol. 2010, 13, 167–173. [Google Scholar] [CrossRef] [Green Version]
  12. Chen, J.; Tai, L.; Luo, L.; Xiang, J.; Zhao, Z. Mapping QTLs for yield component traits using overwintering cultivated rice. J. Genet. 2010, 100, 31. [Google Scholar] [CrossRef]
  13. Pratap, A.; Bisen, P.; Loitongbam, B.; Rathi, S.R.; Parmita, P.; Singh, B.P.; Singh, P.K. Assessment of genetic diversity in rice germplasm (Oryza sativa L.) using SSR markers. Int. J. Curr. Microbiol. 2020, 9, 3346–3355. [Google Scholar] [CrossRef]
  14. Dedeurwaerdere, T.; Hannachi, M. Socio-economic drivers of coexistence of landraces and modern crop varieties in agro-biodiversity rich Yunnan rice fields. Ecol. Econ. 2019, 159, 177–188. [Google Scholar] [CrossRef]
  15. Thakur, S.; Bhardwaj, N.; Chahota, R.K. Evaluation of genetic diversity in ricebean [Vigna umbellata (Thunb.) Ohwi and Ohashi] germplasm using SSR markers. Electron. J. Plant Breed. 2017, 8, 674–679. [Google Scholar] [CrossRef]
  16. Xie, F.; Tian, P.; Ma, S.; Bai, T.; Chen, J.; Zhang, Q.; Tian, R.; Yang, Z.; Tian, L.; Li, P. Association analysis between SSR markers and salt-tolerant traits at seedling stage in japonica rice germplasm resource. J. Henan Agric. Sci. 2019, 48, 13–22. [Google Scholar] [CrossRef]
  17. Wu, Y.; Zhao, S.; Li, X.; Zhang, B.; Jiang, L.; Tang, Y.; Zhao, J.; Ma, X.; Cai, H.; Sun, C.; et al. Deletions linked to PROG1 gene participate in plant architecture domestication in Asian and African rice. Nat. Commun. 2018, 9, 4157. [Google Scholar] [CrossRef] [Green Version]
  18. Xu, J.; Zhang, X.; Xue, H. Rice aleurone layer specific OsNF-YB1 regulates grain filling and endosperm development by interacting with an ERF transcription factor. J. Exp. Bot. 2016, 67, 6399–6411. [Google Scholar] [CrossRef]
  19. Li, W.; Zhu, Z.; Chern, M.; Yin, J.; Yang, C.; Ran, L.; Cheng, M.; He, M.; Wang, K.; Wang, J.; et al. A natural allele of a transcription factor in rice confers broad-spectrum blast resistance. Cell 2017, 170, 114–126. [Google Scholar] [CrossRef] [Green Version]
  20. Wei, S.; Li, X.; Lu, Z.; Zhang, H.; Ye, X.; Zhou, Y.; Li, J.; Yan, Y.; Pei, H.; Duan, F.; et al. A transcriptional regulator that boosts grain yields and shortens the growth duration of rice. Science 2022, 377, eabi8455. [Google Scholar] [CrossRef]
  21. Yu, X.; Zhao, Z.; Zheng, X.; Zhou, J.; Kong, W.; Wang, P.; Bai, W.; Zheng, H.; Zhang, H.; Li, J.; et al. A selfish genetic element confers non-Mendelian inheritance in rice. Science 2018, 360, 1130–1132. [Google Scholar] [CrossRef] [Green Version]
  22. Jia, Z. Scientific reports: Controlling the overfitting of heritability in genomic selection through cross validation. Sci. Rep. 2017, 7, 13678. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Gan, L.; Deng, X.; Liu, Y.; Luo, A.; Chen, J.; Xiang, J.; Zhao, Z. Genetic separation of chalkiness by hybrid rice of Huanghuazhan and CS197. Biocell 2020, 44, 451–459. [Google Scholar] [CrossRef]
  24. Dong, J.; Zeng, Y.; Ji, Z.; Chen, Y.; Wang, S.; Liang, Y.; Yang, C. Mining favorable alleles for rice sheath blight resistance by association mapping. Plant Growth Regul. 2021, 94, 61–72. [Google Scholar] [CrossRef]
  25. Bashyal, B.M.; Kirti, R.; Dhiraj, S.; Krishnan, S.G.; Singh, A.K.; Singh, N.K.; Rashmi, A. Screening and identification of new sources of resistance to sheath blight in wild rice accessions. Indian J. Genet. Plant Breed. 2017, 77, 341–347. [Google Scholar] [CrossRef] [Green Version]
  26. Karmegham, N.; Vellasamy, S.; Natesan, B.; Sharmac, M.P.; Farraj, D.A.; Elshikhd, M.S. Characterization of antifungal metabolite phenazine from rice rhizosphere fluorescent pseudomonads (FPs) and their effect on sheath blight of rice. Saudi J. Biol. Sci. 2020, 27, 3313–3326. [Google Scholar] [CrossRef]
  27. Ye, C.; Argayoso, M.A.; Redoña, E.D.; Sierra, S.N.; Laza, M.A.; Dilla, C.J.; Mo, Y.; Thomson, M.J.; Chin, J.; Delaviña, C.B.; et al. Mapping QTL for heat tolerance at flowering stage in rice using SNP markers. Plant Breed. 2012, 131, 33–41. [Google Scholar] [CrossRef]
  28. Huang, J.; Yan, M.; Zhu, X.; Zhang, T.; Shen, W.; Yu, P.; Wang, Y.; Sang, X.; Yu, G.; Zhao, B.; et al. Gene mapping of starch accumulation and premature leaf senescence in the ossac3 mutant of rice. Euphytica 2018, 214, 177. [Google Scholar] [CrossRef]
  29. Jang, S.-G.; Park, S.-Y.; Lar, S.M.; Zhang, H.; Lee, A.-R.; Cao, F.-Y.; Seo, J.; Ham, T.-H.; Lee, J.; Kwon, S.-W. Genome-Wide Association Study (GWAS) of Mesocotyl Length for Direct Seeding in Rice. Agronomy 2021, 11, 2527. [Google Scholar] [CrossRef]
  30. Zhang, Y.; Wen, Y.; Dunwell, J.M.; Zhang, Y. QTL.gCIMapping.GUI v2.0: An R software for detecting small-effect and linked QTLs for quantitative traits in bi-parental segregation populations. Comput. Struct. Biotechnol. J. 2020, 18, 59–65. [Google Scholar] [CrossRef]
  31. Liu, H.; Zhan, J.; Li, J.; Lu, X.; Liu, J.; Wang, Y.; Zhao, Q.; Ye, G. Genome-wide Association Study (GWAS) for Mesocotyl Elongation in Rice (Oryza sativa L.) under Multiple Culture Conditions. Genes 2019, 11, 49. [Google Scholar] [CrossRef] [Green Version]
  32. Tong, W.; He, Q.; Park, Y.J. Genetic variation architecture of mitochondrial genome reveals the differentiation in Korean landrace and weedy rice. Sci Rep. 2017, 7, 43327. [Google Scholar] [CrossRef] [Green Version]
  33. Huang, Q.; Ju, C.; Cheng, Y.; Cui, D.; Han, B.; Zhao, Z.; Ma, X.; Han, L. QTL Mapping of Mesocotyl Elongation and Confirmation of a QTL in Dongxiang Common Wild Rice in China. Agronomy 2022, 12, 1800. [Google Scholar] [CrossRef]
  34. Yang, W.; Yan, H.; Dong, C.; Zhang, E.; Xinxiang, A.; Tang, C.; Yang, Y.; Zhang, F.; He, J.; Xu, F. Analysis of genetic similarity based on SSR markers of the rice varieties from different geographic regions. Chin. Agric. Sci. Bull. 2011, 27, 24–30. Available online: https://en.cnki.com.cn/Article_en/CJFDTOTAL-ZNTB201112007.htm (accessed on 26 September 2022).
  35. Shu, A.; Kim, J.; Zhang, S.; Cao, G.; Nan, Z.; Lee, K.; Lu, Q.; Koh, H.; Han, L. Analysis on genetic similarity analysis of Japonica rice variety from different geography origin in the world. Sci. Agric. Sin. 2008, 41, 1879–1886. [Google Scholar] [CrossRef]
  36. Li, Y.; Zhong, B.; Yang, Z.; Luo, H.; He, G. Polymorphism analysis of SSR marker among American rice and Chinese rice. Mol. Plant Breed. 2004, 2, 801–806. [Google Scholar] [CrossRef]

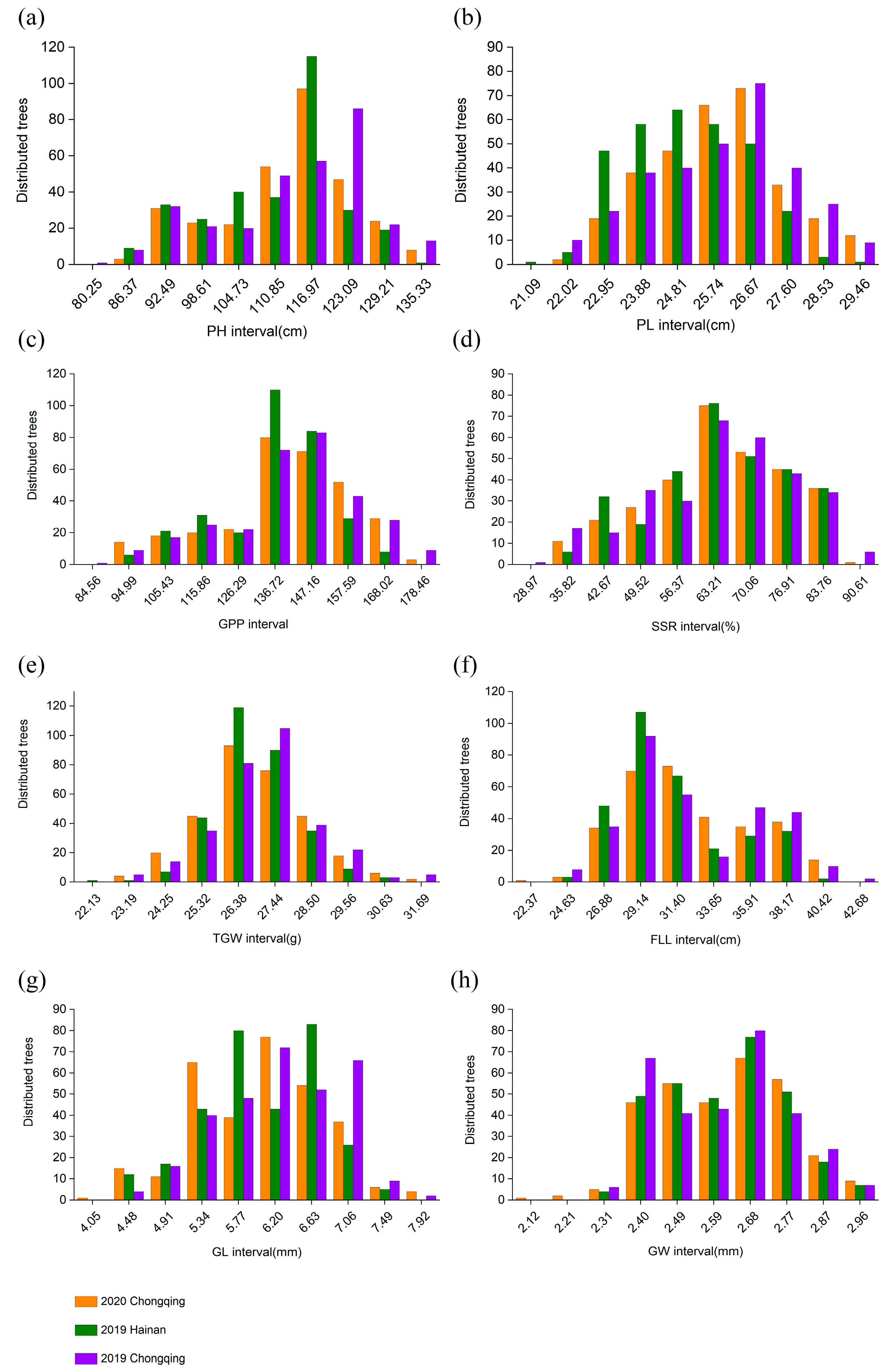

Figure 1. Multiyear and multisite phenotypic interval distribution of the eight agronomic traits in F9 RILS of Gr 89-1 × Shuhui 527: (a) PH interval, (b) PL interval, (c) GPP interval, (d) SSR interval, (e) TGW interval, (f) FLL interval, (g) GL interval, and (h) GW interval.
Figure 1. Multiyear and multisite phenotypic interval distribution of the eight agronomic traits in F9 RILS of Gr 89-1 × Shuhui 527: (a) PH interval, (b) PL interval, (c) GPP interval, (d) SSR interval, (e) TGW interval, (f) FLL interval, (g) GL interval, and (h) GW interval.
Agronomy 12 02980 g001
Figure 2. Main stem, panicle, flag leaf, and corresponding molecular markers of 14 different plant types in F9 RILs of Gr 89-1 × Shuhui 527; (a) main stem; (b) panicle; (c) flag leaf; P1 represents Gr 89-1; P2 represents Shuhui 527; the numbers (1–14) represent 14 different plant types in F9 RILS of Gr 89-1 × Shuhui 527.
Figure 2. Main stem, panicle, flag leaf, and corresponding molecular markers of 14 different plant types in F9 RILs of Gr 89-1 × Shuhui 527; (a) main stem; (b) panicle; (c) flag leaf; P1 represents Gr 89-1; P2 represents Shuhui 527; the numbers (1–14) represent 14 different plant types in F9 RILS of Gr 89-1 × Shuhui 527.
Agronomy 12 02980 g002

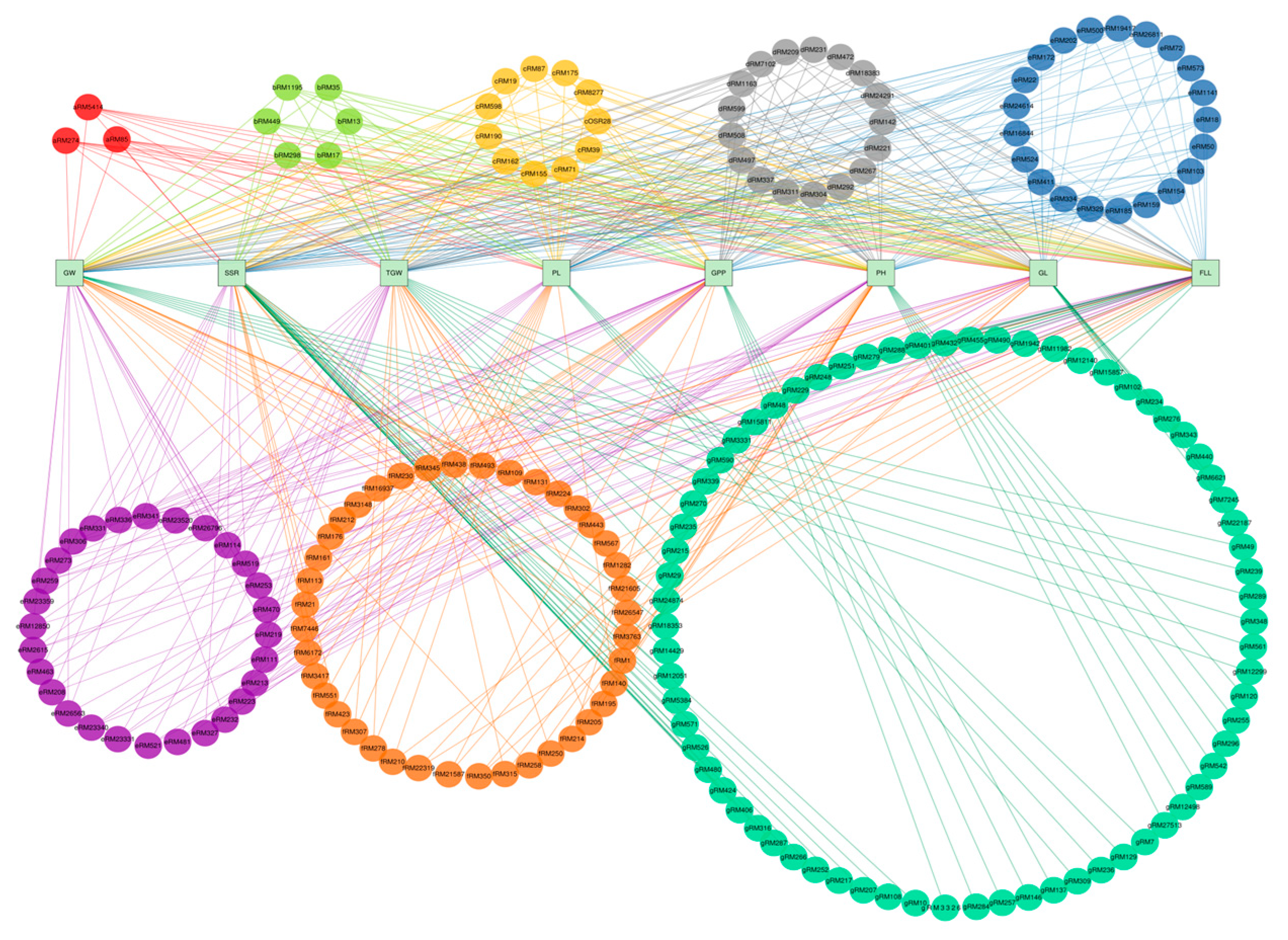

Figure 3. Network diagram of the relationship between eight agronomic traits and gradient molecular markers in F9 RILS of Gr 89-1 × Shuhui 527.
Figure 3. Network diagram of the relationship between eight agronomic traits and gradient molecular markers in F9 RILS of Gr 89-1 × Shuhui 527.
Agronomy 12 02980 g003
Table 1. Phenotypic variation of 8 agronomic traits in different years and locations in F9 RILS of Gr 89-1 × Shuhui 527.
Table 1. Phenotypic variation of 8 agronomic traits in different years and locations in F9 RILS of Gr 89-1 × Shuhui 527.
TraitEnvironmentParentsRIL Population
Gr 89-1Shuhui 527Mean ± SERange (%)CV (%)SkewnessKurtosis
PH/cmE1113.68121.92110.96 ± 0.69 a80.25~135.3311.04−0.583 ± 0.138−0.438 ± 0.276
E2105.88117.32108.03 ± 0.61 b82.39~129.6410.01−0.516 ± 0.138−0.561 ± 0.276
E3112.57120.37110.22 ± 0.63 a82.69~132.4510.13−0.477 ± 0.138−0.5 ± 0.276
PL/cmE123.1927.6825.43 ± 0.11 a21.17~29.467.35−0.251 ± 0.138−0.693 ± 0.276
E222.2626.0324.54 ± 0.09 b21.09~28.696.280.02 ± 0.138−0.74 ± 0.276
E324.0328.0525.49 ± 0.09 a21.68~29.176.26−0.11 ± 0.138−0.484 ± 0.276
GPPE1123.76165.34136.09 ± 1.12 a84.56~178.4614.47−0.49 ± 0.138−0.094 ± 0.276
E2119.63153.14131.63 ± 0.89 b89.16~164.1012.92−0.625 ± 0.138−0.035 ± 0.276
E3125.84168.37134.4 ± 1.07 a86.12~177.6414.08−0.576 ± 0.1380.003 ± 0.276
SSR/%E190.288.1261.18 ± 0.78 a28.97~90.1222.57−0.287 ± 0.138−0.575 ± 0.276
E287.6385.4661.15 ± 0.73 a30.13~87.6321.05−0.223 ± 0.138−0.667 ± 0.276
E389.0388.9661.23 ± 0.74 a28.98~90.6121.39−0.229 ± 0.138−0.444 ± 0.276
TGW/gE125.330.5326.55 ± 0.09 a23.08~31.695.760.323 ± 0.1380.45 ± 0.276
E224.9629.1926.34 ± 0.07 a22.13~30.334.480.174 ± 0.1381.117 ± 0.276
E325.230.7926.43 ± 0.08 a22.16~31.495.60.31 ± 0.1380.5 ± 0.276
FLL/cmE126.735.1531.05 ± 0.23 a23.45~42.6813.330.459 ± 0.138−0.902 ± 0.276
E225.7736.1730.04 ± 0.2 b24.28~38.9211.720.783 ± 0.138−0.477 ± 0.276
E327.936.2831.22 ± 0.22 a22.37~40.1912.430.369 ± 0.138−0.799 ± 0.276
GL/mmE14.67.316 ± 0.04 a4.21~7.5211.83−0.213 ± 0.138−0.68 ± 0.276
E24.577.085.82 ± 0.04 b4.10~7.3612.20−0.219 ± 0.1380.463 ± 0.276
E34.657.265.85 ± 0.04 b4..05~7.9213.85−0.092 ± 0.138−0.215 ± 0.276
GW/mmE12.872.282.57 ± 0.01 a2.27~2.966.230.136 ± 0.138−0.901 ± 0.276
E22.82.192.56 ± 0.01 a2.19~2.935.860.00 ± 0.138−0.751 ± 0.276
E32.852.312.57 ± 0.01 a2.12~2.966.23−0.087 ± 0.138−0.615 ± 0.276
E1: 2019 Chongqing Bishan Spring (F9); E2: 2019 Hainan Lingshui Winter (F10); E3: 2020 Chongqing Bishan Spring (F11); the different letters in the same column of the table indicate that the same trait is significantly different at the 0.05 level.
Table 2. Phenotypes of 14 different lines.
Table 2. Phenotypes of 14 different lines.
NumberingCodeABCPH (cm)PL (cm)GPPSSR (%)TGW (g)FLL (cm)GL (mm)GW (mm)
Gr 89-1 113.71 ± 4.2223.16 ± 0.89123.08 ± 3.1688.95 ± 1.2925.15 ± 0.1726.79 ± 1.075.61 ± 0.042.84 ± 0.04
Shuhui 527 119.87 ± 2.3427.25 ± 1.08162.28 ± 8.0687.51 ± 1.8330.17 ± 0.8635.87 ± 0.627.22 ± 0.122.36 ± 0.06
15 87.77 ± 1.3325.66 ± 1.07105.91 ± 2.3257.23 ± 326.15 ± 0.7225.42 ± 1.036.07 ± 0.282.61 ± 0.27
226 121.17 ± 5.9128.37 ± 0.9165.65 ± 6.1344.48 ± 6.2428 ± 0.3133.17 ± 1.36.18 ± 0.222.53 ± 0.03
3137 83.43 ± 1.127.83 ± 1.3396.44 ± 2.1482.71 ± 1.326.18 ± 0.2126.95 ± 2.255.46 ± 0.282.61 ± 0.03
484 115.57 ± 3.928.01 ± 0.71133.97 ± 3.9842.65 ± 3.5626.25 ± 0.334.33 ± 1.817.49 ± 0.192.34 ± 0.03
5111 120.74 ± 2.3826.43 ± 0.98151.25 ± 8.7266.59 ± 2.7726.33 ± 0.3527.78 ± 1.396.05 ± 0.392.36 ± 0.05
6122 122.57 ± 2.3127.06 ± 0.6590.1 ± 5.4172.48 ± 2.926.81 ± 0.630.56 ± 2.715.66 ± 0.152.65 ± 0.04
7210 81.57 ± 1.4726.82 ± 0.56113.57 ± 3.7683.96 ± 1.5225.42 ± 0.6527.97 ± 2.525.36 ± 0.242.82 ± 0.06
8256 119.72 ± 2.6128.3 ± 0.83140.27 ± 5.3561.05 ± 2.1425 ± 0.8525.88 ± 4.055.33 ± 0.32.66 ± 0.07
9274 113.37 ± 1.6822.76 ± 1.52144.72 ± 3.1445.55 ± 2.0828.37 ± 0.4830.93 ± 4.66.14 ± 0.342.66 ± 0.04
10303 86.34 ± 5.2424.4 ± 0.2298.97 ± 10.6674.24 ± 2.3926.79 ± 0.7227.14 ± 1.474.95 ± 0.412.73 ± 0.03
11288 114.19 ± 1.7625.87 ± 0.44134.66 ± 2.4559.48 ± 3.4326.02 ± 0.2728.01 ± 3.185.89 ± 0.252.40 ± 0.04
12176 113.29 ± 2.0525.57 ± 1.06128.3 ± 1.3476.36 ± 1.1626.43 ± 0.6834.67 ± 1.745.46 ± 0.312.66 ± 0.03
1353 115.82 ± 1.8924.46 ± 0.63119.19 ± 6.4347.99 ± 1.2925.92 ± 1.2237.94 ± 1.415.93 ± 0.162.88 ± 0.03
14234 111.24 ± 8.8926.03 ± 0.34123.88 ± 3.7370.87 ± 2.5927.2 ± 0.2426.92 ± 0.465.58 ± 0.432.39 ± 0.04
A represents aRM85, B represents aRM274, and C represents aRM5414. The gray, red, and black boxes denote the genotypes of Gr 89-1, Shuhui 527, and the heterozygote, respectively.
Table 3. Molecular markers of eight different agronomic traits.
Table 3. Molecular markers of eight different agronomic traits.
TraitDifferential Molecular Markers (Table S1 for Detailed Primer Information)
PHaRM85, aRM274, aRM5414; bRM13, bRM17, bRM298, bRM449, bRM1195; cOSR28, cRM39, cRM71, cRM155, cRM162, cRM190, cRM598; dRM142, dRM221, dRM267, dRM292, dRM304, dRM311, dRM337, dRM497, dRM508, dRM599, dRM1163, dRM7102; eRM18, eRM50, eRM103, eRM154, eRM159, eRM185, eRM329, eRM334, eRM411, eRM524, eRM16844, eRM24614; fRM111, fRM213, fRM223, fRM232, fRM327, fRM481, fRM521, fRM23331, fRM23340, fRM26563; gRM1, gRM140, gRM195, gRM205, gRM214, gRM250, gRM258, gRM315, gRM350, gRM21587, gRM22319; hRM120, hRM255, hRM296, hRM542, hRM589, hRM12498, hRM27513
PLaRM85, aRM274, aRM5414; bRM17, bRM35, bRM298, bRM449, bRM1195; cRM19, cRM39, cRM71, cRM87, cRM155, cRM162, cRM175, cRM8277; dRM209, dRM221, dRM231, dRM267, dRM292, dRM337, dRM472, dRM497, dRM508, dRM18383, dRM24291; eRM22, eRM50, eRM154, eRM159, eRM172, eRM202, eRM411, eRM500, eRM524, eRM19417, eRM26811; fRM208, fRM327, fRM463, fRM2615, fRM12850, fRM23359; gRM140, gRM210, gRM278, gRM307, gRM423, gRM551, gRM3417, gRM6172, gRM7446; hRM7, hRM129, hRM236, hRM309
GPPaRM85, aRM274, aRM5414; bRM13, bRM17, bRM35, bRM449, bRM1195; cOSR28, cRM71, cRM87, cRM175, cRM190, cRM598, cRM8277; dRM142, dRM209, dRM231, dRM304, dRM337, dRM472, dRM497, dRM599, dRM1163, dRM7102, dRM18383; eRM18, eRM22, eRM72, eRM103, eRM159, eRM185, eRM329, eRM334, eRM573, eRM16844, eRM19417, eRM26811; fRM111, fRM213, fRM232, fRM259, fRM273, fRM306, fRM331, fRM336, fRM341, fRM481, fRM23331, fRM23340, fRM23520, fRM26796; gRM21, gRM113, gRM161, gRM176, gRM212, gRM214, gRM3148, gRM6172, gRM16937, gRM21587; hRM137, hRM146, hRM257, hRM284, hRM332
SSRaRM85, aRM274, aRM5414; bRM13, bRM35, bRM298, bRM449, bRM1195; cRM19, cRM39, cRM71, cRM87, cRM155, cRM162, cRM175, cRM190, cRM598; dRM209, dRM221, dRM231, dRM267, dRM304, dRM311, dRM472, dRM508, dRM7102, dRM24291; eRM22, eRM72, eRM103, eRM172, eRM185, eRM202, eRM334, eRM411, eRM573, eRM1141, eRM24614; fRM114, fRM208, fRM327, fRM331, fRM463, fRM519, fRM23359, fRM26563; gRM113, gRM176, gRM195, gRM230, gRM345, gRM423, gRM438, gRM493, gRM551, gRM3417; hRM10, hRM108, hRM207, hRM217, hRM252, hRM266, hRM287, hRM316, hRM406, hRM424, hRM480, hRM526, hRM571, hRM5384, hRM12051, hRM14429, hRM18353, hRM24874
TGWaRM85, aRM274, aRM5414; bRM13, bRM17, bRM35, bRM298, bRM449, bRM1195; cRM19, cOSR28, cRM87, cRM155, cRM162, cRM190, cRM8277; dRM142, dRM221, dRM267, dRM292, dRM304, dRM311, dRM337, dRM599, dRM1163, dRM18383, dRM24291; eRM18, eRM50, eRM154, eRM500, eRM1141, eRM16844, eRM24614, eRM26811; fRM114, fRM213, fRM223, fRM253, fRM306, fRM341, fRM470, fRM481, fRM521, fRM23331, fRM23520, fRM26796; gRM1, gRM109, gRM131, gRM205, gRM224, gRM230, gRM250, gRM278, gRM302, gRM307, gRM315, gRM443; hRM29, hRM215, hRM235, hRM270, hRM339, hRM590, hRM3331, hRM15811
FLLaRM85, aRM274, aRM5414; bRM13, bRM17, bRM35, bRM298, bRM449, bRM1195; cRM19, cOSR28, cRM39, cRM71, cRM175, cRM190, cRM598, cRM8277; dRM142, dRM209, dRM231, dRM292, dRM311, dRM472, dRM508, dRM599, dRM18383; eRM18, eRM72, eRM185, eRM329, eRM500, eRM573, eRM1141, eRM16844, eRM19417, eRM26811; fRM111, fRM208, fRM219, fRM253, fRM259, fRM273, fRM306, fRM331, fRM470, fRM519, fRM2615, fRM12850, fRM23340; gRM443, gRM493, gRM567, gRM1282, gRM3148, gRM7446, gRM21605, gRM22319, gRM26547; hRM48, hRM229, hRM248, hRM251, hRM279, hRM288, hRM401, hRM432, hRM455, hRM490, hRM1942, hRM11982, hRM12140, hRM15857
GLaRM85, aRM274, aRM5414; bRM13, bRM17, bRM35, bRM298, bRM449; cRM19, cOSR28, cRM39, cRM87, cRM155, cRM162, cRM175, cRM190, cRM598, cRM8277; dRM209, dRM304, dRM337, dRM472, dRM497, dRM508, dRM599, dRM1163, dRM7102, dRM18383, dRM24291; eRM50, eRM72, eRM172, eRM202, eRM411, eRM500, eRM524, eRM573, eRM24614; fRM219, fRM223, fRM259, fRM336, fRM341, fRM463, fRM521, fRM2615, fRM23520; gRM21, gRM161, gRM210, gRM350, gRM438, gRM1282, gRM3763, gRM16937; hRM102, hRM234, hRM276, hRM343, hRM440, hRM6621, hRM7245, hRM22187
GWaRM85, aRM274, aRM5414; bRM13, bRM17, bRM35, bRM298, bRM1195; cRM19, cOSR28, cRM39, cRM71, cRM87, cRM155, cRM162, cRM175, cRM598, cRM8277; dRM142, dRM221, dRM231, dRM267, dRM292, dRM311, dRM497, dRM1163, dRM7102, dRM24291; eRM22, eRM103, eRM154, eRM159, eRM172, eRM202, eRM329, eRM334, eRM524, eRM1141, eRM19417; fRM114, fRM219, fRM232, fRM253, fRM273, fRM336, fRM470, fRM519, fRM12850, fRM23359, fRM26563, fRM26796; gRM109, gRM131, gRM17, gRM212, gRM224, gRM258, gRM302, gRM345, gRM567, gRM3763, gRM21605, gRM26547; hRM49, hRM239, hRM289, hRM348, hRM561, hRM12299
Superscripts in the table represent the marker levels; a: first-level markers, b: second-level markers, c: third-level markers, d: fourth-level markers, e: fifth-level markers, f: sixth-level markers, g: seventh-level markers, and h: eighth-level markers.
Table 4. Correlation between different grade markers and agronomic traits.
Table 4. Correlation between different grade markers and agronomic traits.
Marker LevelNTMGWSSRTGWPLGPPPHGLFLL
NAMCD (%)NAMCD (%)NAMCD (%)NAMCD (%)NAMCD (%)NAMCD (%)NAMCD (%)NAMCD (%)
133100.003100.003100.003100.003100.003100.003100.003100.00
26583.33583.336100.00583.33583.33583.33583.336100.00
3111090.91981.82763.64872.73763.64763.641090.91872.73
4171058.821058.821164.711164.711164.711270.591164.71952.94
5211152.381152.38838.101152.381257.141257.14942.861047.62
6281242.86828.571242.86621.431450.001035.71932.141346.43
7401127.501025.001230.00922.501025.001127.50820.00922.50
87068.571825.71811.4345.7157.14710.00811.431420.00
Note: number of total markers of the level (NTM), number of associated markers of the level (NAM), and the ratio of NAM to NTM of the corresponding marker level is the correlation degree (CD).
Table 5. Molecular detection results of 309 F9 RILs derived from Gr 89-1 × Shuhui 527 by eight-grade markers.
Table 5. Molecular detection results of 309 F9 RILs derived from Gr 89-1 × Shuhui 527 by eight-grade markers.
Marker LevelLabel NumberNumber of Detection ResourcesNumber of Differential ResourcesNumber of Polymorphic Markers
First-level marker3309763
Second-level marker676535
Third-level marker1153418
Fourth-level marker17412811
Fifth-level marker21282113
Sixth-level marker28211715
Seventh-level marker40171321
Eighth-level marker7013726
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Gan, L.; Huang, L.; Wei, H.; Jiang, F.; Han, J.; Yu, J.; Liu, Q.; Yu, K.; Zhang, Q.; Fan, M.; et al. Phenotypic Variation and Molecular Marker Network Expression of Some Agronomic Traits in Rice (Oryza sativa L.) RILS of Gr 89-1×Shuhui 527. Agronomy 2022, 12, 2980. https://doi.org/10.3390/agronomy12122980

AMA Style

Gan L, Huang L, Wei H, Jiang F, Han J, Yu J, Liu Q, Yu K, Zhang Q, Fan M, et al. Phenotypic Variation and Molecular Marker Network Expression of Some Agronomic Traits in Rice (Oryza sativa L.) RILS of Gr 89-1×Shuhui 527. Agronomy. 2022; 12(12):2980. https://doi.org/10.3390/agronomy12122980

Chicago/Turabian Style

Gan, Lu, Lunxiao Huang, Hongyu Wei, Fei Jiang, Jiajia Han, Jie Yu, Qian Liu, Kunchi Yu, Qiuyu Zhang, Mao Fan, and et al. 2022. "Phenotypic Variation and Molecular Marker Network Expression of Some Agronomic Traits in Rice (Oryza sativa L.) RILS of Gr 89-1×Shuhui 527" Agronomy 12, no. 12: 2980. https://doi.org/10.3390/agronomy12122980

APA Style

Gan, L., Huang, L., Wei, H., Jiang, F., Han, J., Yu, J., Liu, Q., Yu, K., Zhang, Q., Fan, M., & Zhao, Z. (2022). Phenotypic Variation and Molecular Marker Network Expression of Some Agronomic Traits in Rice (Oryza sativa L.) RILS of Gr 89-1×Shuhui 527. Agronomy, 12(12), 2980. https://doi.org/10.3390/agronomy12122980

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
