Temporal Analysis of Candidatus Liberibacter asiaticus in Citrandarin Genotypes Indicates Unstable Infection

by
Thais Magni Cavichioli
1,†,
Maiara Curtolo
1,
Mariangela Cristofani-Yaly
1,
Josiane Rodrigues
2 and
Helvécio Della Coletta-Filho
1,*
1
Centro APTA Citros Sylvio Moreira, Instituto Agronômico de Campinas, Cordeirópolis 13492-442, SP, Brazil
2
Department of Tecnologia Agroindustrial e Socioeconomia Rural, Univeridade Federal de São Carlos, Araras 13600-970, SP, Brazil
*
Author to whom correspondence should be addressed.
†
Unesp, FCAV, Jaboticabal 14884-900, SP, Brazil.
Agronomy 2022, 12(10), 2566; https://doi.org/10.3390/agronomy12102566
Submission received: 29 August 2022 / Revised: 1 October 2022 / Accepted: 5 October 2022 / Published: 19 October 2022
(This article belongs to the Section Pest and Disease Management)
Browse Figures
Review Reports Versions Notes

Abstract

:
Background: Huanglongbing (HLB) is currently one of the most devasting diseases in citrus plants worldwide. Resistance against its causal agent, Candidatus Liberibacter asiaticus (CLas), in commercial Citrus species remains a challenge, even though they show differences in CLas multiplication. Methods: A total of 14 citrandarins and their parents (Sunki mandarin and Poncirus trifoliata cv. Rubidoux) were top-grafted onto the canopy of potted ‘Valencia’ sweet orange plants with high CLas titers. The grafted genotypes were tested for CLas infection and physiological effects of the disease (starch accumulation and callose deposition) for 12 months. Results: All tested genotypes were infected by CLas during the time frame of the experiment. However, a decrease in the infection rate ranging from 50% to 80% for the hybrids H109, H126, H157, and H222 was observed 360 days from the top-grafting. CLas was undetected by real-time PCR in H106 at the end of the experiment, which had low levels of starch and callose deposition. Conclusions: CLas infected all of the tested citrandarins, but a decrease in the infection rate over time was detected for some specific genotypes, which led to less starch accumulation and callose deposition.

1. Introduction

Huanglongbing (HLB) has been considered one of the most important diseases occurring in citrus plants worldwide, causing severe economic losses in commercial production [1]. The Gram-negative bacterium Candidatus Liberibacter asiaticus (CLas), vectored by the insect Diaphorina citri [2], is the main pathogen associated with HLB. The bacterium colonizes the phloem vessels of the host plant, causing symptoms such as chlorotic mottling of leaves, small and deformed fruits, fruit drop, aborted seeds, and bitter juice [2]. The decline of plants due to CLas infection is attributed to a series of physiological, cellular, and molecular disorders, such as phloem collapse, disintegration of the root system, and drastic disruption in the translocation of carbohydrates [3]. The latter includes starch accumulation in leaves and callose deposition in the phloem [4,5], which negatively affect the carbohydrate distribution for sink tissues (roots or flushing leaves) [6].
The management of HLB comprises complementary actions, such as the exclusion of the pathogen by the use of healthy propagating material, the eradication of the CLas-inoculum source by uprooting the infected plants, and the application of insecticides to suppress the vector [7]. Even though the mentioned strategies are technically well-supported, adoption by growers has decreased over time, likely for economic reasons. The use of fewer HLB-susceptible varieties, such as those used as rootstocks, has been discussed as a complement aiming to increase the management efficiency as well as to reduce the disease impact [8].
No CLas-resistant commercial citrus genotypes have been reported in the literature so far. However, the multiplication of CLas differs among Citrus species belonging to the tribe Citreae [9,10]. Poncirus trifoliata (L. Raf.) and some of its hybrids exhibited tolerance to the bacteria [11,12,13,14]. In addition, some hybrids of P. trifoliata used as citrus rootstocks can increase scion fruit quality by improving the total soluble solids content and contributing to reduced plant size [15,16].
Previous studies from our group have shown differences in the multiplication of CLas in the progeny of citrandarins, hybrids of P. trifoliata cultivar Rubidoux (Pt cv Rub), and Sunki mandarin [Citrus sunki (Hayata) hort. ex Tanaka], as well as in their parents [14,17]. Field experiments in Cordeirópolis—São Paulo, Brazil (an area with high CLas inoculum pressure) using 275 citrandarin genotypes grafted as scions on the Rangpur lime (C. limonia Osbeck) rootstock revealed that some genotypes were not infected by the pathogen through natural transmission [17]. However, these authors could not exclude the failure of inoculation by the vector. Next, some hybrids selected based on the absence of CLas detection were challenged with CLas via infected buds, and any bacteria were detected 12 months after grafting [13,14]. In addition to differences in the infection rate and CLas titer, the authors also revealed variations in the accumulation of starch and callose deposition among the genotypes, indicating differential responses to CLas infection. Despite the evidence of resistance against CLas, the transmission of bacteria by grafting vegetative material from HLB-infected plants still varies due to the irregular distribution of bacteria in the infected plants [18,19].
This work aimed to investigate the colonization of CLas in 14 different citrandarins regarding their HLB resistance. For that, those different genotypes were grafted on sweet orange Valencia plants with HLB symptoms and high CLas titers. These genotypes were previously identified as resistant to CLas because no bacteria were detected in the plants [14,17], or were selected based on their horticultural advantages, such as fruit yields and drought tolerance (Christofany-Yale, personal communication). CLas frequencies and titers in the grafted plants were determined by qRT-PCR, and physiological responses to the infection (i.e., starch accumulation and callose deposition) were examined for 12 months. The tested genotypes showed no resistance to CLas. However, after 12 months from inoculation, some genotypes showed a reduction in the percentage of CLas-infected replicates, including no detection of bacteria in all reps of one of the tested genotypes, which characterizes a transient infection in these genotypes.

2. Materials and Methods

2.1. Plant Material and CLas Infection

To evaluate the resistance of citrandarin genotypes against CLas, 14 hybrids (Table 1) were selected based on previous information such as: (i) no natural infection by CLas after 12 years in field experiments (H106, H222, and H199-[17]); (ii) no infection by graft inoculation (H68 and H106-[14]); and (iii) lack of information for hybrids with no HLB symptoms and no CLas detection, even when these genotypes were cropped for 12 years in field conditions under high HLB incidence. Five-centimeter budsticks from the 14 hybrids and the parents Sunki mandarim and Poncirus trifoliata cv Rubidoux (Pt cv Rub), whose mother plants had been maintained in a greenhouse, were top-grafted on three-year-old HLB-symptomatic sweet orange Valencia scion grafted on Rangpur lime (Citrus X limonia hybrid) grown in 30-litre-pots containing commercial substrate PlantMax® (pine bark, charcoal, vermiculite, lime, and nutrients—NPK and micronutrients) from Terra do Paraiso company (Holambra, Sao Paulo, Basil). Branches from the HLB-affected Valencia plants that received budsticks from the selected genotypes (citrandarins and parentals) were confirmed for the presence of CLas by real-time quantitative PCR (qPCR). All grafted budsticks were protected with a small plastic bag for 30 days after the top-grafting to maintain high humidity and improve the grafting success (Figure S1). Each Valencia HLB-diseased plant received from four to six different genotypes, and a total of six replicates of each genotype were grafted. Unfortunately, failure in the grafting process led to a variable number of replicates (n = 3 to 6) for each genotype. The Valencia HLB-diseased plants containing the top-grafted plants were randomly distributed in the greenhouse under natural lighting conditions and the temperature did not exceed 30 °C during the entire experimental period. All plants were automatically irrigated twice daily (0.8 L of water/plant/day) and weekly fertilized with a solution containing N: P2O5: K2O and micronutrient complex. Phytosanitary treatments, mainly for spider mite control, were done when necessary.

2.2. Sampling

Completely expanded leaves of the tested genotypes showing dark green color were harvested at 90, 180, 270, and 360 days after top-grafting. Petioles and leaf blades were used for CLas and starch quantification, respectively. The same parameters were determined in Valencia HLB-diseased plants.

2.3. DNA Extraction and RT-qPCR Analysis

Aliquots (200 mg of petiole slices from hybrids, parentals, and Valencia HLB-diseased plants) were used for DNA extraction. In summary, the petioles were homogenized in plastic tubes containing two 5 mm diameter tungsten spheres using the TissueLyser II (Qiagen, São Paulo, Brazil), followed by DNA extraction with CTAB [20]. The total DNA was eluted in 200 µL of 1/10 TE + RNAse.
The diagnosis and quantification of CLas were performed using qPCR based on the protocol of Li et al. [21]. The amplifications were performed in duplex using an ABI Prism 7500 Sequence Detection System thermocycler (Applied Biosystem, Walthan, MA, USA). The reaction contained 6.25 mL of 1X TaqMan Universal Master Mix (Applied Biosystem), 216 nM of each primer, and 135 nM of the CLas (HLBp) probe, for a total volume of 14 µL. Primers and probes targeting the glyceraldehyde 3-phosphate dehydrogenase (GAPDH) gene of citrus were used as internal controls, with 270 nM of each primer and 135 nM of the probe [17]. Aliquots (3 µL) of total DNA standardized at 100 ng/µL were added per reaction. The amplification cycle followed the default settings of the equipment: 95 °C for 5 min, followed by 40 cycles of 95 °C for 30 s, and 58 °C for 45 s.

2.4. Determination of the Cycle Threshold (CT) for the Detection and Quantification of CLas

To determine the threshold CT value used to infer whether the plants were CLas-positive (infected) or CLas-negative (free from the pathogen), a standard curve for estimating the bacterial titer based on the 16S rDNA content of CLas [21] was generated according to Wang et al. [22] (Figure S2). The target fragment was cloned into the recombinant plasmid using the pGEM—T-Easy Vector System (Promega Corporation), sequenced by the Sanger method, and blasted against the NCBI database (https://blast.ncbi.nlm.nih.gov/ accessed on 30 June 2020), using the BLASTn tool to certify the origin of the amplicon. The bacterial population was measured as the copy number of the 16S rDNA target gene g−1 of tissue using serial dilutions of the plasmid DNA (from 3.0 × 109 to 0.3 molecules 16S rDNA copies/µL). The standard curve obtained shows a linear regression (y = −3.1828x + 40.004) with a very high correlation between the variables (R2 = 0.9994) and with efficiency (E) of 1.06 (Figure S2).

2.5. Starch Quantification

The enzymatic quantification of starch in all tested plants was carried out using 10 mg of dry plant material according to Amaral et al. [23]. Briefly, soluble sugars were extracted with 80% ethanol three times and the remaining pellet was treated with α-amylase and amyloglucosidase. Aliquots of 20 μL were incubated with glucose released by the enzymatic digestion of starch and quantified with the commercially available Glucose PAP Liquiform kit (Centerlab, Lagoa Santa, MG, Brazil) using a microplate reader (Model 3550—BIO-RAD) at 490 nm (Figure S3).

2.6. Callose Visualization and Quantification

The quantification of callose in leaf petioles was carried out at 360 days from inoculation using 10 cross sections 0.02 mm thick obtained by an automatic slide microtome (Leica SM2010R). Samples were stained with blue aniline at a concentration of 0.01% in 0.1 M phosphate buffer (pH 9.0) [24] and imaged using an Olympus BX61 fluorescence microscope at a magnification of 10×, with a 355–375 nm excitation filter, a 400 nm dichromatic mirror, and a 435–490 nm emission filter. Callose was quantified from the fluorescence intensity emitted by the stain (pixel/mm2) using ImageJ software (Version 1.45 s) (https://imagej.nih.gov/ij/ downloaded on 24 March, 2021) according to Granatto et al. [25].

2.7. Statistical Analysis

The Scott–Knott test was carried out at 5% significance using R software. For the percentage dataset, the arc-sin transformation was applied before the analysis.

3. Results

3.1. CLas Detection and Quantification in Valencia HLB-Diseased Plants

Based on interpolation of the CT value and the number of copies of CLas 16S rDNA added to the reaction, the minimum amount of the CLas-16S rDNA insert that was reproducibly amplified was equivalent to approximately 90 copies of the 16S rDNA molecule. The calculations took into account the presence of three copies of 16S rDNA in the CLas genome [26], equivalent to CT = 31.73 ± 0.75 (Table S1). Amplifications using total DNA from negative controls (micrografted citrus plants kept in a greenhouse) showed CT values ranging from “undetermined” to 33.29 (average of 34.53 ± 1.24). As the CT values are inversely proportional to the concentration of bacteria in the sample, under our experimental conditions, samples were considered positive for CLas when CT < 32 and negative when CT > 32. Amplifications with a CT value close to 32 (±1) were repeated and the results were considered only if reproducible.
All the Valencia HLB-diseased plants, including the specific branches that received the grafted budsticks (citrandarins and parents), were already infected with CLas at the time of the top-grafting, and the plants showed regular HLB symptoms such as leaf mottling (data not shown). In general, CLas titer varied significantly through the experimental period within the same Valencia plant, and the maximum absolute range was 3.93 CT units for the Valencia HLB-diseased plant SP16, followed by the SP05 and SP26 with 3.17 and 2.5 CT units, respectively (Table 1). Variation in CLas titer among the Valencia plants was also detected (Table 1) but with a similar median for the CT values among the sampling points, indicating a narrow range of bacteria titer (16S rDNA CLas copy number from 3.70 × 105 to 7.41 × 105 per g of tissue). Significant deviation from the median was observed in a few CLas Valencia plants such as for the sampling points SP05 at 90 days after top-grafting, SP02 and SP16 at 360 days after top-grafting (Table 1).

3.2. Temporal Infection of CLas in Top-Grafted Genotypes

CT values at the first sampling time (90 days after top-grafting) showed that in the majority of the 14 hybrids, 50% of their replicates were positive for CLas infection. However, in the subsequent sampling times, a decrease in the number of infected replicates was observed for H109, H126, H157, H222, and the Pt cv Rub parent. Additionally, no CLas-infected replicate was observed for H106 360 days after top-grafting (Table 2). The four groups of hybrids were significantly different from each other based on the frequency of CLas-infected replicates. H106 was unique because it had no CLas-infected replicates at the end of the experiment. The second group had a frequency of positive replicates ranging from 25% (H222) to 60% (H68), and was composed of H68, H75, H109, H126, H157, H181, H222, H303, and the P. trifoliata parent. H254 and H283 formed the third group, with 80% of replicates infected with CLas, while H158, H199, H282, and the Sunki mandarin parent formed the fourth group, with 100% of CLas-positive replicates (Table 2).
Despite the decrease in the number of infected replicates over time, the concentration of CLas in all positive replicates of the hybrids and their parents, based on CT values, was similar during the whole experimental period, with a few exceptions at 360 days after the top-grafting (Table 3). We could distinguish two groups, with lower and higher CT values. H283, H282, H222, H199, H157, H68, and the CLas-susceptible parent Sunki mandarin belong to the first group, with a CLas titer reaching 8.84 × 105 copy number/g tissue. Another citrandarin group (H75, H106, H126, H158, H181, H254, H303) and the tolerant parent Pt cv Rub had a CLas titer reaching a maximum of 9.94 × 103 copy number/g tissue (Table 3). A sudden decrease of CLas-infection was observed for H106 at 360 days after top-grafting, with no CLas detection in all replicates (Table 2 and Table 3). As previously mentioned, during whole the experimental period, all tested plants were top-grafted over HLB-diseased Valencia plants constantly having a high volume of CLas, from 3.7 to 7.41 × 105 copy number of bacteria/g tissue (Table 1).

3.3. Physiological Response of Citrandarins to CLas Infection Based on Starch Accumulation and Callose Deposition

HLB symptom expression in P. trifoliata and seedlings suchs as citrandarin genotypes is often inconsistent probably due to seedlings variation. The same is valide for determination of sprout lenght of the graphed citrandarins during the experiment based on know variation of vigor within the citrandains poopulations. Therefore starch accumulation and callose deposition was quantified as a measure of the response to CLas infection. Starch accumulation in the tested plants was significantly lower than in the corresponding Valencia HLB-diseased plants. The exception was the susceptible parent Sunki mandarin, as this difference was not significant (76.41 and 87.27 mg glucose/g of dry tissue in Sunki and Valencia, respectively). However, the average starch content in the 14 citrandarins was significantly lower compared to the parent Sunki. Parent Pt cv Rub had lower starch (12.41 mg glucose/g of tissue), similar to genotypes H109, H126, H181, H199, H222, H282, and H303 (12.41 to 20.88 mg glucose/g dry tissue) (Figure 1A). Genotypes with a starch content ranging from 26.23 to 49.11 mg glucose/g of dry tissue (H68, H106, H158, H157, H254, and H282) had intermediate levels of starch compared to parents Sunki and Pt cv Rub. Hybrids with a high frequency of infection, such as H181, or with no detectable bacterium (H106) 12 months after the top-grafting (Table 2) accumulated similar amounts of starch (Figure 1A). Based on the frequency of infection and starch accumulation, parents and some hybrids were selected for the determination of callose deposition (Figure 1B). The parent Pt cv Rub, considered resistant, showed significantly less callose deposition in the petiole, followed by H106. Hybrids with a high (H199 and H282) or lower (H157) frequency of CLas-positive replicates showed similar values for callose deposits that were significantly lower than those observed for Sunki mandarin, the susceptible genotype (Figure 1B).

4. Discussion

There is still no effective method to control CLas in the host plants and, consequently, the HLB. The current strategy of HLB management is based on planting healthy plants, controlling the vector (psyllids) using insecticides or biological agents, and removing Clas inoculum sources (infected trees) [1]. Strategies aiming to reduce the infection or increase the plant response against the disease by supplying antimicrobial molecules based on plant metabolites, nutrients, and biostimulants applied to soil [27,28,29,30] showed variable beneficial results. These studies have been carried out on scion-rootstock combinations with known susceptibility to CLas infection and showing HLB symptoms. Although CLas can infect most Citrus and relative species, some are more tolerant to HLB than others. For instance, C. sinensis, C. reticulata, C. paradisi, C. maxima, and C. aurantifolia are CLas-sensitive species [31,32,33], whereas P. trifoliata and some hybrids are considered more tolerant, as also are other citrus relatives such as Microcitrus spp. and Eremocitrus glauca. Variations within these more tolerant species have been reported [10,34]. P. trifoliata and some of its hybrids have received special attention concerning the lower and/or variable CLas titer detected [11,17,31] and milder HLB symptoms and physiological responses to CLas infection [11,13].
In this work, we detected no widespread resistance against CLas in the studied genotypes, which is in agreement with previous reports [11,13,14,17,35]. However, many different selections of these species exist, and they have shown variable responses to CLas [34], as also observed in this work (Table 2 and Table 3). Interestingly, the frequency of CLas-positive replicates dropped over time for some hybrids (H109, H126, H157, and H222). For example, H222 and H106 had 100% of infection at 90 days after top-grafting, which fell to 20% and zero (i.e., no CLas detection) at 360 days after the top-grafting, respectively. CLas was also not detectable in the scion of the hybrid H106, even by graft inoculation [14] or natural infection by the vector [17]. CLas infection was detected in H106 under our experimental setup (high CLas titer in the Valencia HLB-disease plants), which, from our point of view, minimizes possible failures of inoculation by the constant flux of CLas from the Valencia HLB-disease (source of CLas) plant to the pathogen-free grafted genotypes [36] (Figure S1, Table 1). Following this hypothesis, H68 previously reported as noninfected by graft inoculation [14], had 65% of CLas-positive replicates (Table 2). The grafting transmission of pathogens can fail due to the irregular distribution of pathogens in the infected tissue [37]. Furthermore, successful grafting involves complex processes including the initial anatomical deformities of vascular tissue followed by the time-dependent connection and differentiation into xylem and phloem at the graft junction [38], which could impair vascular pathogen transmission. These anatomical deformities could explain CLas-positive budsticks and noninfected grafted plants 18 months after inoculation [13]. Our top working strategy was used by Fadel et al. [39] to demonstrate the tolerance of sweet orange Navelina Iso 315 against X. fastidiosa bacterium.
Starch accumulations in leaves and callose deposition in phloem have been positively associated with host susceptibility to CLas [13,25,40,41,42,43]. Starch content in the Valencia HLB disease branches (CLas-positive) and in the susceptible Sunki mandarin parent were similar and statistically different from citrandarins and Pt cv Rub (Figure 1A). All citrandarins and Pt cv Rub whether infected or not by CLas accumulated significantly less starch in comparison with Sunki or Valencia plants, but with variation among the citrandarin genotypes and the parental P. trifoliata (Figure 1A). These results reinforce previous information about the variation in starch levels in P. trifoliata and hybrids under CLas infection [13,14]. Nonetheless, parameters such as the frequency of CLas-infected replicates and bacteria titer could not be directly associated with the starch content, as exemplified by the hybrids H157, H181, H199, H283, and H303 (Table 2 and Table 3, Figure 1A). Specifically, variation in the starch content in H106 throughout the experiment was observed, from 35.78 (±1.77) mg glucose/g of tissue at 90 days after top-grafting to 20.15 (±0.64) at the end of the experiment, when CLas could not be detected. We believe that the previous selection of these hybrids based on higher tolerance to HLB could explain this low starch content, even in the presence of CLas. Callose deposition was also lower in H106, reinforcing its better response against the effects of CLas infection, as reported by Curtolo et al. [14] (Figure 1B). Our results corroborate previous findings on fewer pronounced physiological events associated with CLas infection, such as massive starch accumulation in leaves, excessive callose deposition in sieve pores of phloem, and imbalance of carbohydrates within the plant [42] in P. trifoliata [13,14].
Explaining the probable mechanism of tolerance to HLB of some P. trifoliata-related genotypes, and in a few cases, to CLas (e.g., H106), is still in the early stages. Genes related to bacterial cell lysis, such as endochitinase B [44], were upregulated in the pool of CLas-resistant citrandarins [14]; as well, candidate genes for CLas tolerance such as the transcriptor factor WRKY70 and two nucleotidebinding site (NBS)-leucine-rich repeat (LRR) clusters were identified in Poncirus genotypes [45,46]. In addition, stable antimicrobial peptides (SAMPs) found in Microcitrus australiasica, which were shown to effectively reduce CLas titer, HLB symptoms, and induce innate immunity to prevent and inhibit CLas infections, were found equally expressed in P. trifoliata cultivar Texas, but not in the other trifoliata cultivars tested [47].
The use of more tolerant rootstocks could be one additional strategy against the deleterious effects of HLB in citrus plants, including the ones affecting the root system [6]. In this work, we showed that CLas was detected in all tested hybrids, suggesting no resistance to this pathogen. However, variation on response to CLas infection based on starch accumulation, calloses deposition, and bacteria concentration has emerged, including a decrease in infection ratio in some hybrids (H109, H126, H157, and H222), mainly in H106. This was accompanied by more modest physiological effects on starch and callose accumulation, even under higher CLas-inoculum pressure. It is important to highlight that all citrandarin genotypes tested here are potential citrus rootstocks. However, further studies focusing on the putative benefits of these genotypes used as rootstocks to the citrus canopy, as well as on the effect of CLas on their root systems, are necessary to continue to form combative strategies against HLB.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/agronomy12102566/s1. Absolute quantification of CLas dataset (Table S1), representation of experimental setup (Figure S1), standard curves for CLas quantification (Figure S2), and for the starch content (Figure S3) are reported in Supplementary Materials.

Author Contributions

Conceptualization: H.D.C.-F., M.C.-Y.; methodology: M.C., T.M.C.; formal analysis: T.M.C. and J.R.; investigation: M.C., T.M.C., and J.R.; original draft preparation: M.C.; T.M.C., H.D.C.-F.; supervision: H.D.C.-F.; funding acquisition: H.D.C.-F. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financed by the São Paulo Research Foundation (FAPESP—2020/07045-3). T.M. Cavichioli (FAPESP—2019/06412-5) and M. Curtulo (FAPESP—2021/03989-0) are grateful for their fellowships. H.D.C.F. and M.C.Y. are recipients of research fellowships from CNPq (proc. no. 308164/2021-0 and 313295/2020-4, respectively).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

All individuals included in this section have read and agreed to the published version of the manuscript.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

We thank Luis Fernando Carvalho Silva, Derik Festa, and Franciel Santos Barbosa for their assistance with the plants in the greenhouse.

Conflicts of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Bassanezi, R.B.; Lopes, S.A.; de Miranda, M.P.; Wulff, N.A.; Volpe, H.X.L.; Ayres, A.J. Overview of Citrus Huanglongbing Spread and Management Strategies in Brazil. Trop. Plant Pathol. 2020, 45, 251–264. [Google Scholar] [CrossRef]
  2. Bové, J.M. Huanglongbing: A Destructive, Newly-Emerging, Century-Old Disease of Citrus. J. Plant Pathol. 2006, 88, 7–37. [Google Scholar]
  3. Folimonova, S.Y.; Achor, D.S. Early Events of Citrus Greening (Huanglongbing) Disease Development at the Ultrastructural Level. Phytopathology 2010, 100, 949–958. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Fan, J.; Chen, C.; Brlansky, R.H.; Gmitter, F.G., Jr.; Li, Z. Changes in Carbohydrate Metabolism in Citrus Sinensis Infected with ‘Candidatus Liberibacter Asiaticus’. Plant Pathol. 2010, 59, 1037–1043. [Google Scholar] [CrossRef]
  5. Koh, E.; Zhou, L.; Williams, D.S. Callose Deposition in the Phloem Plasmodesmata and Inhibition of Phloem Transport in Citrus Leaves Infected with “Candidatus Liberibacter Asiaticus”. Protoplasma 2012, 249, 687–697. [Google Scholar] [CrossRef]
  6. Johnson, E.G.; Wu, J.; Bright, D.B.; Graham, J.H. Association of “Candidatus Liberibacter Asiaticus” Root Infection, but Not Phloem Plugging with Root Loss on Huanglongbing-Affected Trees Prior to Appearance of Foliar Symptoms. Plant Pathol. 2014, 63, 290–298. [Google Scholar] [CrossRef]
  7. Belasque, J.; Bassanezi, R.B.; Yamamoto, P.T.; Ayres, A.J.; Tachibana, A.; Violante, A.R.; Tank, A.; Di Giorgi, F.; Tersi, F.E.A.; Menezes, G.M.; et al. Lessons from Huanglongbing Management in São Paulo State, Brazil. J. Plant Pathol. 2010, 92, 285–302. [Google Scholar] [CrossRef]
  8. Munir, S.; He, P.; Wu, Y.; He, P.; Khan, S.; Huang, M.; Cui, W.; He, P.; He, Y. Huanglongbing Control: Perhaps the End of the Beginning. Microb. Ecol. 2018, 76, 192–204. [Google Scholar] [CrossRef]
  9. Viteri, D.M.; Jensen, C.E. De Response of Citrus Spp. Germplasm from Puerto Rico Grafted on Two Rootstocks to Early Infection of Huanglongbing. Eur. J. Plant Pathol. 2021, 160, 589–597. [Google Scholar] [CrossRef]
  10. Alves, M.N.; Lopes, S.A.; Raiol-junior, L.L.; Wulff, N.A.; Girardi, E.A.; Ollitrault, P.; Peña, L. Resistance to ‘Candidatus Liberibacter Asiaticus,’ the Huanglongbing Associated Bacterium, in Sexually and/or Graft-Compatible Citrus Relatives. Front. Plant Sci. 2021, 11, 617664. [Google Scholar] [CrossRef]
  11. Albrecht, U.; Bowman, K.D. Tolerance of the Trifoliate Citrus Hybrid US-897 (Citrus Reticulate Blanco × Poncirus Trifoliata L. Raf.) to Huanglongbing. HortScience 2011, 46, 16–22. [Google Scholar] [CrossRef]
  12. Albrecht, U.; Bowman, K.D. Scientia Horticulturae Tolerance of Trifoliate Citrus Rootstock Hybrids to Candidatus Liberibacter Asiaticus. Sci. Hortic. (Amsterdam). 2012, 147, 71–80. [Google Scholar] [CrossRef]
  13. Boava, L.P.; Machado, M.A. Physiologic, Anatomic, and Gene Expression Changes in Citrus Sunki, Poncirus Trifoliata, and Their Hybrids After ‘Candidatus Liberibacter Asiaticus’ Infection. Phytopathology 2017, 107, 590–599. [Google Scholar] [CrossRef] [Green Version]
  14. Curtolo, M.; Pacheco, I.D.S.; Boava, L.P.; Takita, M.A.; Granato, L.M.; Galdeano, D.M.; De Souza, A.A.; Yaly, M.C.; Machado, M.A. Wide-Ranging Transcriptomic Analysis of Poncirus Trifoliata, Citrus Sunki, Citrus Sinensis and Contrasting Hybrids Reveals HLB Tolerance Mechanisms. Sci. Rep. 2020, 10, 1–14. [Google Scholar] [CrossRef]
  15. Liu, X.; Li, J.; Huang, M.; Chen, J. Mechanisms for the Influence of Citrus Rootstocks on Fruit Size. J. Agric. Food Chem. 2015, 63, 2618–2627. [Google Scholar] [CrossRef]
  16. Bowman, K.D.; Mccollum, G.; Albrecht, U. Scientia Horticulturae Performance of ‘Valencia’ Orange (Citrus Sinensis [L.] Osbeck) on 17 Rootstocks in a Trial Severely Affected by Huanglongbing. Sci. Hortic. 2016, 201, 355–361. [Google Scholar] [CrossRef] [Green Version]
  17. Boava, L.P.; Sagawa, C.H.D.; Cristofani-Yaly, M.; Machado, M.A. Incidence of Candidatus Liberibacter Asiaticus -Infected Plants Among Citrandarins as Rootstock and Scion Under Field Conditions. Phytopathology 2015, 105, 518–524. [Google Scholar] [CrossRef] [Green Version]
  18. Hilf, M.E.; Lewis, R.S. Transmission and Propagation of ‘Candidatus Liberibacter Asiaticus’ by Grafting with Individual Citrus Leaves. Phytopathology 2016, 106, 452–458. [Google Scholar] [CrossRef] [Green Version]
  19. Lopes, S.A.; Luiz, F.Q.B.F.; Oliveira, H.T.; Cifuentes-arenas, J.C.; Raiol-junior, L.L.; Paulista, U.E. Seasonal Variation of ‘Candidatus Liberibacter Asiaticus’ Titers in New Shoots of Citrus in Distinct Environments. Plant Dis. 2017, 101, 583–590. [Google Scholar] [CrossRef] [Green Version]
  20. Murray, M.G.; Thompson, W.F. Rapid isolation of high-molecular-weight plant DNA. Nucleic Acids Res. 1980, 8, 4321–4325. [Google Scholar] [CrossRef] [Green Version]
  21. Li, W.; Hartung, J.S.; Levy, L. Quantitative Real-Time PCR for Detection and Identification of Candidatus Liberibacter Species Associated with Citrus Huanglongbing. J. Microbiol. Methods 2005, 66, 104–115. [Google Scholar] [CrossRef]
  22. Wang, Z.; Yin, Y.; Hu, H.; Yuan, Q.; Peng, G.; Xia, Y. Development and Application of Molecular-Based Diagnosis for ‘Candidatus Liberibacter Asiaticus’, the Causal Pathogen of Citrus Huanglongbing. Plant Pathol. 2006, 55, 630–638. [Google Scholar] [CrossRef]
  23. Do Amaral, L.I.V.; Gaspar, M.; Costa, P.M.F.; Aidar, M.P.M.; Buckeridge, M.S. Novo Método Enzimático Rápido e Sensível de Extração e Dosagem de Amido Em Materiais Vegetais. Hoehnea 2007, 34, 425–431. [Google Scholar] [CrossRef] [Green Version]
  24. Zavaliev, R.; Epel, B.L. Imaging Callose at Plasmodesmata Using Aniline Blue: Quantitative Confocal Microscopy. In Plasmodesmata; Humana Press: New York, NY, USA, 2015; pp. 105–119. [Google Scholar]
  25. Granato, L.M.; Galdeano, D.M.; Breton, M.C.; Machado, M.A. Callose Synthase Family Genes Plays an Important Role in the Citrus Defense Response to Candidatus Liberibacter Asiaticus. Eur. J. Plant Pathol. 2019, 155, 25–38. [Google Scholar] [CrossRef] [Green Version]
  26. Kim, J.; Wang, N. Characterization of Copy Numbers of 16S RDNA and 16S RRNA of Candidatus Liberibacter Asiaticus and the Implication in Detection in Planta Using Quantitative PCR. BMC Res. Notes 2009, 2, 37. [Google Scholar] [CrossRef] [Green Version]
  27. Canales, E.; Coll, Y.; Hernández, I.; Portieles, R.; García, M.R.; López, Y.; Aranguren, M.; Alonso, E.; Delgado, R.; Luis, M.; et al. “Candidatus Liberibacter Asiaticus”, Causal Agent of Citrus Huanglongbing, Is Reduced by Treatment with Brassinosteroids. PLoS ONE 2016, 11, e0146223. [Google Scholar] [CrossRef]
  28. Pitino, M.; Sturgeon, K.; Dorado, C.; Cano, L.M.; Manthey, J.A.; Shatters, R.G.; Rossi, L. Plant Physiology and Biochemistry Quercus Leaf Extracts Display Curative e Ff Ects against Candidatus Liberibacter Asiaticus That Restore Leaf Physiological Parameters in HLB-a Ff Ected Citrus Trees. Plant Physiol. Biochem. 2020, 148, 70–79. [Google Scholar] [CrossRef]
  29. Bassanezi, R.B.; Primiano, I.V.; Vescove, H. V Effect of Enhanced Nutritional Programs and Exogenous Auxin Spraying on Huanglongbing Severity, Fruit Drop, Yield and Economic Profitability of Orange Orchards. Crop Prot. 2021, 145, 105609. [Google Scholar] [CrossRef]
  30. Castellano-Hinojosa, A.; Meyering, B.; Nuzzo, A.; Strauss, S.L.; Albrecht, U. Effect of Plant Biostimulants on Root and Plant Health and the Rhizosphere Microbiome of Citrus Trees in Huanglongbing-Endemic Conditions. Trees 2021, 35, 1525–1539. [Google Scholar] [CrossRef]
  31. Folimonova, S.Y.; Robertson, C.J.; Garnsey, S.M.; Gowda, S.; Dawson, W.O. Examination of the Responses of Different Genotypes of Citrus to Huanglongbing ( Citrus Greening ) Under Different Conditions. Phytopathology 2009, 99, 1346–1354. [Google Scholar] [CrossRef] [Green Version]
  32. Stover E and McCollum G Incidence and Severity of Huanglongbing and Candidatus Liberibacter Asiaticus Titer among Field-Infected Citrus Cutivars. HortScience 2011, 46, 1344–1348. [CrossRef]
  33. Boscariol-camargo, R.L.; Cristofani-yaly, M.; Malosso, A.; Della Coletta-filho, H.; Machado, M.A. Avaliação de Diferentes Genótipos de Citros à Infecção Por Candidatus Liberibacter Asiaticus. Citrus Res. Technol. 2017, 31, 85–90. [Google Scholar] [CrossRef]
  34. Ramadugu, C.; Keremane, M.L.; Halbert, S.E.; Duan, Y.P.; Roose, M.L.; Stover, E.; Lee, R.F. Long-Term Field Evaluation Reveals Huanglongbing Resistance in Citrus Relatives. Plant Dis. 2016, 100, 1858–1869. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Albrecht, U.; Bowman, K.D. Plant Science Transcriptional Response of Susceptible and Tolerant Citrus to Infection with Candidatus Liberibacter Asiaticus. Plant Sci. 2012, 185–186, 118–130. [Google Scholar] [CrossRef] [PubMed]
  36. Raiol-junior, L.L.; Cifuentes-arenas, J.C.; De Carvalho, E.V.; Girardi, E.A.; Lopes, S.A. Evidence That ‘Candidatus Liberibacter Asiaticus’ Moves Predominantly Toward New Tissue Growth in Citrus Plants. Plant Dis. 2021, 105, 34–42. [Google Scholar] [CrossRef] [PubMed]
  37. Tatineni, S.; Sagaram, U.S.; Gowda, S.; Robertson, C.J.; Dawson, W.O.; Iwanami, T.; Wang, N. In Planta Distribution of “Candidatus Liberibacter Asiaticus” as Revealed by Polymerase Chain Reaction (PCR) and Real-Time PCR. Phytopathology 2008, 98, 592–599. [Google Scholar] [CrossRef] [Green Version]
  38. Rasool, A.; Mansoor, S.; Bhat, K.M.; Hassan, G.I.; Baba, T.R.; Alyemeni, M.N.; Alsahli, A.A.; El-serehy, H.A. Mechanisms Underlying Graft Union Formation and Rootstock Scion Interaction in Horticultural Plants. Front. Plant Sci. 2020, 11, 590847. [Google Scholar] [CrossRef]
  39. Fadel, A.L.; Stuchi, E.S.; Alves de Carvalho, S.; Federici, M.T.; Della Coletta-Filho, H. Navelina ISA 315: A Cultivar Resistant to Citrus Variegated Chlorosis. Crop Prot. 2014, 64, 115–121. [Google Scholar] [CrossRef]
  40. Etxeberria, E.; Gonzalez, P.; Achor, D.; Albrigo, G. Physiological and Molecular Plant Pathology Anatomical Distribution of Abnormally High Levels of Starch in HLB-Affected Valencia Orange Trees. Physiol. Mol. Plant Pathol. 2009, 74, 76–83. [Google Scholar] [CrossRef]
  41. Yasser Nehela, N.K. Revisiting the Complex Pathosystem of Huanglongbing : Deciphering the Role of Citrus Metabolites in Symptom Development. Metabolites 2020, 10, 409. [Google Scholar] [CrossRef]
  42. Rubin, R.L.; van Groenigen, K.J.; Hungate, B.A. Plant Growth Promoting Rhizobacteria Are More Effective under Drought: A Meta-Analysis. Plant Soil 2017, 416, 309–323. [Google Scholar] [CrossRef]
  43. Welker, S.; Pierre, M.; Santiago, J.P.; Dutt, M.; Vincent, C.; Levy, A. Phloem Transport Limitation in Huanglongbing-Affected Sweet Orange Is Dependent on Phloem-Limited Bacteria and Callose. Tree Physiol. 2022, 42, 379–390. [Google Scholar] [CrossRef]
  44. Rathore, A.S.; Gupta, R.D. Chitinases from Bacteria to Human: Properties, Applications, and Future Perspectives. Enzym. Res. 2015, 2015, 1–8. [Google Scholar] [CrossRef] [Green Version]
  45. Peng, Z.; Bredeson, J.V.; Wu, G.A.; Shu, S.; Rawat, N.; Du, D.; Parajuli, S. A Chromosome-Scale Reference Genome of Trifoliate Orange (Poncirus Trifoliata) Provides Insights into Disease Resistance, Cold Tolerance and Genome Evolution in Citrus. Plant J. 2020, 104, 1215–1232. [Google Scholar] [CrossRef]
  46. Huang, M.; Roose, M.L.; Yu, Q.; Du, D.; Yu, Y.; Zhang, Y.; Deng, Z.; Stover, E.; Gmitter, F.G. Construction of High-Density Genetic Maps and Detection of QTLs Associated with Huanglongbing Tolerance in Citrus. Front. Plant Sci. 2018, 9, 1694. [Google Scholar] [CrossRef] [Green Version]
  47. Huang, C.-Y.; Araujo, K.; Sánchez, J.N.; Kund, G.; Trumble, J.; Roper, C.; Godfrey, K.E.; Jin, H. A stable antimicrobial peptide with dual functions of treating and preventing citrus Huanglongbing. Proc. Natl. Acad. Sci. USA 2021, 118, e2019628118. [Google Scholar] [CrossRef]
Agronomy 12 02566 g001a 550Agronomy 12 02566 g001b 550

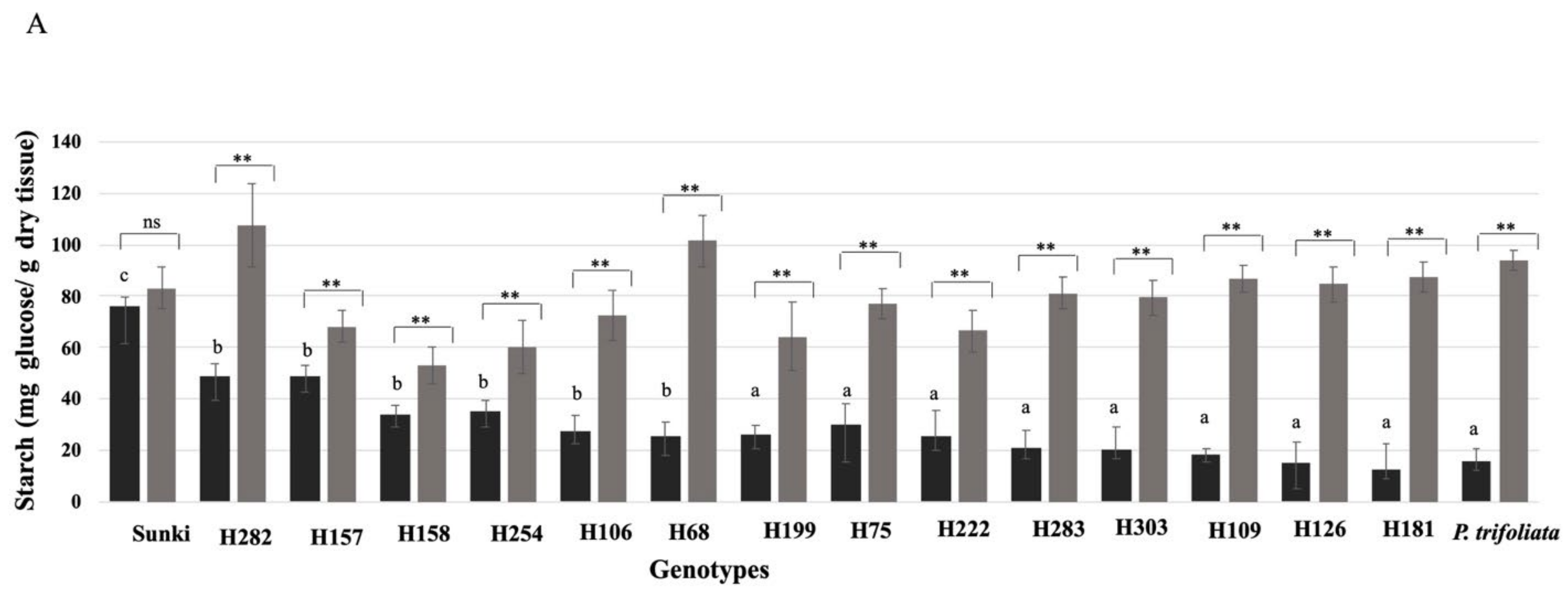

Figure 1. Physiological responses of citrandarins and parent species C. sunki and Poncirus trifoliata to CLas infection. (A) Average starch content obtained from four sampling points (90, 180, 270, and 360 days from top-grafting). Vertical bars represent standard deviations of replicates for each genotype across sampling dates. Significant differences (Scott-Knott testing for comparison of the means) among citrandarins are shown by letters. Significant differences (t-testing for comparison of the means) between hybrids or parents (black bars) and the Valencia HLB-diseased plants (gray bars) are indicated by asterisks (** p < 0.001); NS—no significant. (B) Callose quantification in leaf petioles of selected genotypes. Vertical bars represent standard deviations of 10 cross-sections for each genotype sampled 12 months after top-grafting. Significant differences (Scott–Knott testing for comparison of the means, p < 0.05) among citrandarins are shown by letters.
Figure 1. Physiological responses of citrandarins and parent species C. sunki and Poncirus trifoliata to CLas infection. (A) Average starch content obtained from four sampling points (90, 180, 270, and 360 days from top-grafting). Vertical bars represent standard deviations of replicates for each genotype across sampling dates. Significant differences (Scott-Knott testing for comparison of the means) among citrandarins are shown by letters. Significant differences (t-testing for comparison of the means) between hybrids or parents (black bars) and the Valencia HLB-diseased plants (gray bars) are indicated by asterisks (** p < 0.001); NS—no significant. (B) Callose quantification in leaf petioles of selected genotypes. Vertical bars represent standard deviations of 10 cross-sections for each genotype sampled 12 months after top-grafting. Significant differences (Scott–Knott testing for comparison of the means, p < 0.05) among citrandarins are shown by letters.
Agronomy 12 02566 g001aAgronomy 12 02566 g001b
Table
Table 1. CT values of different Valencia HLB-diseased plants infected by Candidatus Liberibacter asiaticus (CLas) that received the citrandarin genotypes (hybrids and parents) by top-grafting. Plants were analyzed for 12 months.
Table 1. CT values of different Valencia HLB-diseased plants infected by Candidatus Liberibacter asiaticus (CLas) that received the citrandarin genotypes (hybrids and parents) by top-grafting. Plants were analyzed for 12 months.
Valencia HLB-Diseased Plants (VP)Grafted Genotypes 1Days After Top-Grafting 2
90180270360
VP02126, 158, 181, 303, 10624.98 Bb22.72 Bc24.65 Ab26.95 Aa
VP05109, 199, 222, 254, 30327.70 Aa22.10 Bc23.87 Bb24.53 Ab
VP11158, 282, Pt, 75, 30321.00 Cb21.41 Cb20.82 Cb23.06 Ba
VP1475, 109, 126, 222, 282, Pt24.16 Ba24.84 Aa25.37 Aa 25.40 Aa
VP16158, 283, Pt, 303, 7522.08 Cb22.63 Bb25.54 Aa26.01 Aa
VP19181, 222, 303,109, 18122.93 Ca23.89 Aa22.98 Ba21.08 Bb
VP20199, 254, 283, 106, Sk22.51 Ca19.41 Cb21.54 Ca21.81 Ba
VP21106, 199, 282, 68, Sk21.31 Ca20.82 Ca19.33 Cb21.74 Ba
VP2268, 106, 222, 109, 15821.57 Ca22.35 Ba21.81 Ca21.23Ba
VP2368, 109, 303, Sk, Pt 23.11 Ca21.24 Cb20.66 Cb23.00 Ba
VP24126, 157, 254, 283, Sk21.70 Ca20.42 Ca20.66 Ca21.59 Ba
VP2568, 75, 157, 254, 283, Pt19.44 Da20.29 Ca20.71Ca19.89 Ba
VP26106, 157, 222, 254, 283, Sk 18.98 Dc20.81 Cb23.54 Ba21.48 Bb
VP2768, 106, 282, 283, 10920.58 Da21.21 Ca22.75 Ba21.68 Ba
Median/CLas titer 321.89 4.91 × 105 21.32 7.41 × 10522.28 3.70 × 10521.77 5.35 × 105
1 Numbers refer to the identification of citrandarins. Pt and Sk are the parentals Poncirus trifoliata cv and Rubidoux and Sunki mandarin, respectively. Numbers represent average of CT values of branches on Valencia plants where the tested genotypes were grafted. Significant differences (Scott-Knott test for comparison of the means, p < 0.05%) are indicated by letters. Small letters (within lines) compare values from different days after grafting. Capital letters (within columns) compare different Valencia HLB-diseased plants. 3 Based on the 16S rDNA CLas copy number per g of fresh tissue.
Table
Table 2. Number of CLas-infected shoots from citrandarins and parents top-grafted onto HLB-diseased Valencia plants.
Table 2. Number of CLas-infected shoots from citrandarins and parents top-grafted onto HLB-diseased Valencia plants.
GenotypesDays After Top-Grafting 1
90180270360
Hybrids
H684/5 2 b2/5 c4/5 b3/5 c
H751/4 c2/4 c2/4 b2/4 c
H1063/4 b3/4 b3/4 b0/4 d
H1095/6 b2/6 c1/6 c2/6 c
H1262/3 b2/3 b2/3 b1/3 c
H1573/3 a1/3 c1/3 c1/3 c
H1584/4 a4/4 a4/4 a4/4 a
H1812/3 b2/3 b2/3 b2/3 c
H1993/3 a3/3 a3/3 a3/3 a
H2225/5 a3/5 b3/5 b1/5 c
H2545/5 a4/5 b3/5 b4/5 b
H2824/4 a4/4 a4/4 a4/4 a
H2835/6 b4/6 b4/6 b4/5 b
H3034/6 b4/6 b3/6 b3/4 b
Parents
Sunki mandarin5/5 a5/5 a5/5 a5/5 a
P. trifoliata cv Rubidoux3/6 c2/6 c2/5 b2/5 c
1 Plants were harvested within one year after the top-grafting and CLas propagation was analyzed by RT-qPCR. The mean CT values in those plants can be seen in Table 1. 2 Number of positive hybrids/ total number of grafts. Dead grafts led to reductions in the number of analyzed samples in relation to previous sampling times. Significant differences (Scott–Knott testing for comparison of the means) among the genotypes are shown by letters.
Table
Table 3. CT values and concentrations of Candidatus Liberibacter asiaticus (CLas) citrandarins. Plants were analyzed for 12 months and a decrease in the number of replicates positive for CLas infection was observed over time.
Table 3. CT values and concentrations of Candidatus Liberibacter asiaticus (CLas) citrandarins. Plants were analyzed for 12 months and a decrease in the number of replicates positive for CLas infection was observed over time.
GenotypesDays After Top-Grafting (DATg) 1CLas Titer at 360 DATg 2
90180270360
Hybrids
H6828.92 a25.55 a23.66 a23.37 b1.68 × 105
H7519.72 c23.28 a20.76 a28.65 a3.69 × 103
H10629.40 a25.02 a26.05 a40.00 3no-detected cells
H10925.96 a26.62 a25.42 a27.28 a9.95 × 103
H12625.39 a25.15 a30.13 a25.74 a3.03 × 104
H15727.71 a23.64 a24.18 a23.10 b2.05 × 105
H15823.45 b24.40 a25.81 a27.59 a7.94 × 103
H18126.63 a26.68 a28.25 a29.05 a 2.76 × 103
H19924.77 b23.70 a21.17 a22.95 b2.28 × 105
H22227.15 a25.98 a24.31 a24.93 b5.44 × 104
H25428.00 a27.28 a28.09 a27.28 a9.94 × 103
H28225.58 a24.46 a22.46 a23.31 b1.76 × 105
H28323.02 b23.93 a21.47 a21.14 b8.84 × 105
H30327.29 a26.95 a22.66 a27.68 a7.44 × 103
Parents
Sunki mandarin27.50 a25.50 a24.02 a23.93 b1.12 × 105
P. trifoliata cv Rubidoux28.93 a25.69 a26.31 a29.99 a1.40 × 103
CV (%)11.6711.3911.9710.03
1 Significant differences (Scott–Knott testing for comparison of the means, p < 0.05%) in a genotype among sampling times are shown by letters. Numbers represent the average CT values of CLas present in sprouts of citrandarin genotypes and the parents. 2 Copy number of CLas 16S rDNA target gene per gram of fresh tissue. 3 Not included in the statistical analysis.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Cavichioli, T.M.; Curtolo, M.; Cristofani-Yaly, M.; Rodrigues, J.; Coletta-Filho, H.D. Temporal Analysis of Candidatus Liberibacter asiaticus in Citrandarin Genotypes Indicates Unstable Infection. Agronomy 2022, 12, 2566. https://doi.org/10.3390/agronomy12102566

AMA Style

Cavichioli TM, Curtolo M, Cristofani-Yaly M, Rodrigues J, Coletta-Filho HD. Temporal Analysis of Candidatus Liberibacter asiaticus in Citrandarin Genotypes Indicates Unstable Infection. Agronomy. 2022; 12(10):2566. https://doi.org/10.3390/agronomy12102566

Chicago/Turabian Style

Cavichioli, Thais Magni, Maiara Curtolo, Mariangela Cristofani-Yaly, Josiane Rodrigues, and Helvécio Della Coletta-Filho. 2022. "Temporal Analysis of Candidatus Liberibacter asiaticus in Citrandarin Genotypes Indicates Unstable Infection" Agronomy 12, no. 10: 2566. https://doi.org/10.3390/agronomy12102566

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
