Article

Modifications Induced by Rootstocks on Yield, Vigor and Nutritional Status on Vitis vinifera Cv Syrah under Hyper-Arid Conditions in Northern Chile

by
Nicolás Verdugo-Vásquez
1,
Gastón Gutiérrez-Gamboa
2,*,
Irina Díaz-Gálvez
3,
Antonio Ibacache
4 and
Andrés Zurita-Silva
1,*
1
Centro de Investigación Intihuasi, Instituto de Investigaciones Agropecuarias INIA, Colina San Joaquín s/n, La Serena 1700000, Chile
2
Escuela de Agronomía, Facultad de Ciencias, Universidad Mayor, Camino La Pirámide 5750, Huechuraba 8580000, Chile
3
Centro de Investigación Raihuén, Instituto de Investigaciones Agropecuarias INIA, Casilla 34, San Javier 3660000, Chile
4
Private Consultant, La Serena 1700000, Chile
*
Authors to whom correspondence should be addressed.
Agronomy 2021, 11(5), 979; https://doi.org/10.3390/agronomy11050979
Submission received: 5 April 2021 / Revised: 25 April 2021 / Accepted: 29 April 2021 / Published: 14 May 2021
Browse Figures
Review Reports Versions Notes

Abstract

:
Hyper-arid regions are characterized by extreme conditions for growing and lack of water (<100 mm annual rainfall average), where desertification renders human activities almost impossible. In addition to the use of irrigation, different viticultural strategies should be taken into account to face the adverse effects of these conditions in which rootstocks may play a crucial role. The research aim was to evaluate the effects of the rootstock on yield, vigor, and petiole nutrient content in Syrah grapevines growing under hyper-arid conditions during five seasons and compare them to ungrafted ones. St. George induced lower yield than 1103 Paulsen. Salt Creek induced higher plant growth vigor and Cu petiole content than ungrafted vines in Syrah, which was correlated to P petiole content. However, Salt Creek and St. George rootstocks induced an excess of vigor in Syrah according to Ravaz Index. Rootstocks with V. berlandieri genetic background should be used in Syrah growing under hyper-arid conditions to maintain adequate levels of plant vigor and to avoid deficiencies or toxicity of macro and micronutrients.

1. Introduction

Chilean viticulture was developed for many years with ungrafted (own-rooted) vineyards, unlike what occurs in other viticultural countries with long winemaking tradition, such as Portugal, Spain, Italy, or France that were forced to use rootstocks mainly due to the presence of phylloxera (Daktulosphaira vitifoliae) [1,2,3]. Since this root parasite is not yet reported in Chile, there is limited local experience in the use of rootstocks in the national viticulture for wine grapes [4,5,6]. However, plant-parasitic nematodes are a main constraint in the national viticulture, affecting vine root development [7]. These nematodes may cause several damages that are typically reflected in lower production and, in some cases, total crop loss [7]. Rootstock adoption in Chile is justified not only by the need for resistance against nematodes or the need to replace old or unproductive vineyards but also by the need to overcome soil limitations, especially in the arid, northern region of the country [4,5,6].
Grafting is a millennial horticultural technique performed in perennial and annual crops, which is used to join scion and root from two plants, allowing one to enable the desirable traits of these different genotypes to be combined in a single plant [8]. Grafting allows some grape grower control over important agronomic traits and provides flexibility in growing a particular scion or cultivar across diverse soil and environmental conditions [9]. Vine rootstocks are commonly characterized according to the vigor attributes conferred to the scion and are able to modify scion gas exchange, water use efficiency, and, by consequence, crop productivity [10,11]. Recent reports showed significant effects on technological parameters, organic acids, yeast assimilable nitrogen, and phenolic and volatile compounds in grapes and wines obtained from grafted and ungrafted vines [2,12,13,14]. On the other hand, some researchers reported that rootstocks modified mineral composition of scion petioles and blades [5,8,15]. In this regard, Gautier et al. [8] determined that the genetic background of a rootstock is related to the ability to modify accumulation and concentrations of phosphorus, magnesium, and sulfur in the scion petioles. Thus, the rootstock confers vigor to the scion, which is related to nitrogen concentration in petioles, where higher vigor is related to higher concentrations [5].
Scion–rootstock relationships are extremely specific and depend on affinity and compatibility of the grafting combination and soil and climatic adaptation [16]. Indeed, Carrasco-Quiroz et al. [2] reported that wines produced from ungrafted vines had lower ester concentration compared to wines elaborated from vines grafted onto 99 Richter, 140 Ruggeri, 110 Richter, 1103 Paulsen, and Gravesac. Diverging from this, Olarte Mantilla et al. [13] reported that most esters were higher in the wines made from vines on their own roots. These contradictory results could have occurred due to the differences in vigor caused by the rootstock, since, in the report published by Olarte Mantilla [13], the ungrafted vines had a higher pruning mass compared to the grafted vines, contrary to the results published by Carrasco-Quiroz et al. [2].
Recent studies suggest that rootstocks could be useful to mitigate the negative effects of climate change, enhancing tolerance against temperature, salinity, and drought stress [17,18,19]. Rootstock could be an interesting tool for the viticulture management of hyper-arid zones that are characterized by the shortage of water, limited resources, salinity, and the permanent uncertainty of the desert climate. To our knowledge, there is insufficient information in Chile about the use of rootstocks under hyper-arid climatic conditions. Therefore, the aim of this field trial was to evaluate yield, vigor, and nutritional status of Syrah grapevines own-rooted and grafted onto eight rootstocks under hyper-arid climatic conditions over five consecutive seasons.

2. Materials and Methods

2.1. Study Site and Plant Material

The field trial was conducted in an experimental vineyard located at the Vicuña Experimental Center belonging to the Instituto de Investigaciones Agropecuarias (INIA) (30°02′ S, 70°41′ W, 630 m above sea level; Coquimbo region, Chile) in five consecutive seasons (2003–2004, 2004–2005, 2005–2006, 2006–2007, and 2007–2008). Syrah grapevines own-rooted and grafted onto 1103 Paulsen, 140 Ruggeri, 99 Richter, Freedom, Harmony, Salt Creek, SO4 (Selection Oppenheim 4), and St. George (Rupestris du Lot) were established in 2001 in a replanting soil previously planted with avocado (Persea americana). The vines were grafted using the Omega technique following the procedure stated by Ibacache and Sierra (2009). The vines were planted at a distance of 1.5 m × 2.5 m, formed in bilateral cordon, trained on a vertical shoot position trellis system, and spur pruned to two buds. Syrah grapevines were managed according to the standard viticultural practices used in commercial vineyard in terms of fertilization, pruning, pest, and disease in each growing season. Briefly, fertilization program consisted of applications of N, P2O5, and K2O (90, 50, 70 kg ha−1) by means of fertigation in spring and early summer.
Soil conditions were previously reported by Ibacache and Sierra [20]. The vineyard soil is a loamy alluvial Entisol and has a flat topography (<1% slope). The soil has moderate depth (>50 cm), alkaline pH (7.9), 2.4% of organic matter, and an electrical conductivity of 1.0 dS m−1 in saturated paste. The mineral N, P Olsen, and exchangeable K levels were 9, 12, and 237 mg kg−1, respectively. Before the vineyard establishment, a nematological analysis was performed into the vineyard soil, reporting a presence of Pratylenchus, Meloidogyne, Criconemoides, Pratylenchus, and Tylenchulus semipenetrans species lower than 18 individuals per 250 g of soil.
To characterize the vineyard climatic conditions in terms of temperature and precipitation during the seasons, an automatic weather station (AWS) located at 100 m from the experimental vineyard was utilized. Based on the data provided by the AWS, different bioclimatic indices, such as growing season temperature (GST), cool night index (CI), heliothermal index (HI), growing degree days (GDD), biologically effective degree days (BEDD), mean spring temperature summation (SON Mean), maximum spring temperature summation (SON Max), and the accumulated precipitation from May (year n) to April (year n + 1), were calculated and are shown in Table 1.
The zone under study is classified as hyper-arid (dry index = 0.05) based on the United Nations Environmental Program [27]. Due to the low rainfall that is recorded during the season and the high vapor pressure deficit, it is necessary to apply water through irrigation. In this regard, the vines were drip irrigated using one irrigation line per row with emitters supplying water at a rate of 4 L h−1 spaced at 1 m. The reference evapotranspiration (ET0) during the five seasons varied between 1127 and 1162 mm (September–April). Annual ET0 ranged between 1368 and 1420 mm (January–December).

2.2. Experimental Design

Syrah grapevines own-rooted and grafted onto 1103 Paulsen, 140 Ruggeri, 99 Richter, Freedom, Harmony, Salt Creek, SO4, and St. George rootstocks were assigned in a completely randomized design at planting. The experimental design consisted in nine treatments (one: own-rooted and eight: grafted vines) and four replicates of four adjacent vines each to cope for soil variability along the vineyard. The descriptions of the rootstocks under study are shown in Table 2.

2.3. Measurements

2.3.1. Yield and Yield Components

Harvest was carried out when berries reached a total soluble solids content between 22 and 23 °Brix. All bunches of the replicates were manually harvested and weighed in a digital weight scale, recording yield by vine (kg vine−1) and the number of bunches per vine. The bunch weight (g) was obtained, dividing the yield by the number of bunches per plant. During spring of each season, budburst percentage (ratio of number of buds that burst vs. total number of buds left at pruning) and fruitfulness percentage (ratio of number of bunches vs. total number of buds left at pruning) were measured on each plant.

2.3.2. Vine Vigor and Balance

Vines of each replicate were manually pruned in winter and the pruning weight (kg vine−1) was determined. Based on yield and pruning weight obtained, the Ravaz index was calculated as the ratio between yield and pruning weight, representing the balance between vine reproductivity and vegetative activity. Scion trunk circumference (cm) was measured at the end of each season (April) at 30 cm above the ground using a metric tine.

2.3.3. Petiole Nutrient Content

Petioles of leaves opposite to the bunches were collected at flowering stage of each study season. Forty petioles per treatment and per replicates were sampled. The samples were dried in an oven at 65 °C until a constant mass was achieved, then samples were milled and sieved through a 1 mm mesh. Then, concentrations of macro (N, P, K, Ca, and Mg) and micro (Zn, Mn, and Cu) nutrients were analyzed at the Foliar Analysis Laboratory of Vicuña Experimental Center. The Kjeldahl method was used to analyze N content of leaf petioles according to methodology described by Nikolaou et al. [28]. The Olsen colorimetric method was utilized to analyze P content in leaf petioles using a Spectronic 21 spectrophotometer (Spectronic Instruments, Garforth, UK) at 440 nm. K was determined by atomic absorption spectrophotometry (Unicam 929, Unicam Ltd., Cambridge, UK) according to the method described by Garcia et al. [29]. Ca and Mg were determined by atomic absorption. Zn, Mn, and Cu concentrations were analyzed by sample calcination and atomic absorption spectrophotometry. Macronutrient concentration was expressed in terms of percentage (w w−1), while micronutrients were expressed in ppm.

2.4. Statistical Analysis

The variables were analyzed considering a completely randomized design with factorial arrangement, accounting for nine treatments (eight rootstocks plus own-rooted) by five study seasons. Variables were subjected to an analysis of variance (ANOVA). The significance of the differences was determined by Tukey’s test (p ≤ 0.05). Additionally, a principal component analysis (PCA) was performed to determine relationships among variables according to treatment (rootstocks) and season, using the average data in each case. Both analyses were performed using the Xlstat Software version 2020.3.1 (Addinsoft SARL, Paris, France).

3. Results

3.1. Weather Conditions

Among seasons, 2007–2008 displayed lower growing season temperature (GST) calculated from 1 September to 31 March than the rest of the studied seasons (2003–2004, 2004–2005, 2005–2006, 2006–2007) and the 30 year average (Table 1). This resulted in a lower heat accumulation for the 2007–2008 season than the rest of the seasons in terms of heliothermal index (HI), growing degree days (GDD), biologically effective degree days (BEDD), mean spring temperature summation (SON Mean), and maximum spring temperature summation (SON Max). According to HI, 2004–2005, 2005–2006, and 30 year average were classified as hot seasons, whereas 2003–2004, 2006–2007, and 2007–2008 were classified as warm seasons [23]. The sum of daily temperature during spring (SON Mean) and the sum of daily maximum temperature (SON Max) were higher in 2003–2004, 2004–2005, and 2006–2007 compared to the rest of the seasons and the 30 year average. These indices were calculated for months of September, October, and November with no upper or lower temperature thresholds imposed [26]. The cool night index (CI) indicated that all seasons presented very cool nights [22]. In this way, 2005–2006 and 2007–2008 presented lower CI than the rest of the seasons, while 2004–2005 season showed the highest CI. Regarding precipitations, 2007–2008 was a very dry season having a precipitation of 17.8 mm from May (year n) to April (year n + 1), while the maximum level of rainfall in this study was reached in 2003–2004 season, quantifying 93.3 mm, close to the 30 year average (93.1 mm).

3.2. Yield and Its Components

Season factor significantly affected yield, number of bunches per vine, bunch weight, and percentage of budburst and fruitfulness, while rootstock factor only affected yield in Syrah grapevines growing under hyper-arid conditions (Table 3). Syrah grapevines grafted onto 1103 Paulsen reached a higher yield (7.9 kg) than vines grafted onto St. George (5.9 kg). Vine yield and bunch weight decreased as seasons passed with the exception of the last year of study, which exhibited an intermediate level of these variables. The number of bunches per vine was higher in 2004–2005 than 2003–2004, 2006–2007, and 2007–2008 seasons, while 2006–2007 displayed lower number of bunches per vines than rest of the seasons with the exception of 2007–2008. Normally, percentages of budburst and fruitfulness were higher in 2004–2005 and 2006–2007 seasons and lower in 2005–2006 than other seasons. The interaction of factors did not affect yield or any of its components in Syrah grapevines cultivated under hyper-arid conditions.

3.3. Vine Vigor and Balance

Both rootstock and season factors affected pruning weight, Ravaz index, and scion trunk circumference in Syrah grapevines cultivated under hyper-arid conditions (Table 4). Syrah grapevines grafted onto Salt Creek (2.5 kg), SO4 (2.2 kg), and St. George (2.3 kg) rootstocks showed higher pruning weight than the ungrafted ones (1.6 kg) vines. Ungrafted Syrah grapevines reached higher Ravaz index than vines grafted onto Salt Creek and St. George rootstocks and higher scion trunk circumference than vines grafted onto Freedom. Concerning the season factor, 2005–2006 resulted in vines with lower pruning weight than 2004–2005 and 2006–2007 seasons, while the latter showed the lowest Ravaz index. This trait was higher in 2003–2004 and 2005–2006 than in the rest of the seasons. Factor interactions did not affect any of the measured parameters of this section in Syrah grapevines cultivated under hyper-arid conditions.

3.4. Petiole Nutrient Concentration

The nutrient content varied between 0.8% and 1.2% for total N (ungrafted and St. George, respectively), 0.14% and 0.43% for P (ungrafted and St. George, respectively), 2.2% and 3.5% for K (SO4 and Harmony, respectively), 1.4% and 1.9% for Ca (ungrafted and Harmony, respectively), 0.3% and 0.6% for Mg (SO4 and ungrafted, respectively), 35 ppm and 61 ppm for Zn (Harmony and Salt Creek, respectively), 38 ppm and 82 ppm for Mn (Harmony and 140 Ruggeri, respectively), and 6 ppm and 10 ppm for Cu (Harmony and Salt Creek, respectively).
Rootstock affected significantly N, P, K, Ca, Mg, Zn, Mn, and Cu petiole content. Syrah ungrafted grapevines presented lower N petiole concentration than Harmony and St. George. Syrah ungrafted grapevines presented lower P petiole content than most of the rootstocks with the exception of Harmony. Ca petiole content was lower in Syrah ungrafted grapevines than in most of the rootstocks, with the exception of 99 Richter, Freedom, and Salt Creek (Table 5). Syrah grapevines grafted onto Harmony presented the highest K petiole content and lower Zn petiole content than most of studied rootstocks with the exception of 1103 Paulsen and 140 Ruggeri. The rootstocks induced lower Mg petiole content compared to ungrafted vines in Syrah. Vines grafted onto Harmony presented lower Mn petiole content than vines grafted onto 140 Ruggeri and St. George, whereas vines grafted onto Salt Creek showed higher Cu petiole content than vines grafted onto 99 Richter, Freedom, Harmony, SO4, and St. George rootstocks.
Season factor also affected N, P, K, Ca, Mg, Mn, and Cu petiole content in Syrah grapevines. Zn petiole content in Syrah grapevines was not affected by season. N petiole content in Syrah grapevines was higher in 2003–2004, 2005–2006, and 2006–2007 than in the 2004–2005 season, while P petiole content in vines was higher in the last three study seasons than in the first two ones. K petiole content was higher in 2003–2004 and 2005–2006 than in the 2006–2007 season in Syrah grapevines, while the latter exhibited the highest Ca petiole content in Syrah vines. Mg petiole content was lower in 2007–2008 than in 2006–2007 and 2003–2004 seasons, while Mn petiole content in this latter season was higher than in 2004–2005 and 2007–2008 seasons in Syrah grapevines. Cu petiole content was higher in 2005–2006 and 2006–2007 than in 2004–2005 and 2007–2008 seasons in Syrah grapevines. Factor interaction only influenced Mg petiole content in Syrah grapevines cultivated under hyper-arid conditions. Ungrafted vines growing in 2003–2004 season presented the highest Mg petiole content. In addition, Syrah grapevines grafted onto St George (2007–2008), Salt Creek (all seasons, except 2006–2007), Freedom (all seasons), and SO4 (all seasons) showed lower Mg petiole content than those corresponding to other rootstock–year interactions for Mg petiole concentration (Supplementary Table S1).

3.5. Principal Component Analysis (PCA)

In order to classify the different rootstocks assessing their influence on productivity, viticultural parameters, and petiole nutrient content, a principal component analysis (PCA) was performed (Figure 1). Principal component 1 (PC 1) explained 43.13% of the variance, and principal component 2 (PC2) explained 25.44%, representing 68.57% of all the variance. PC 1 was most closely correlated (−) with N, Ca, and (+) to number of bunches per vine and yield, while PC 2 was most closely (+) correlated with Zn. Ungrafted vines were inversely correlated with P petiole content and pruning weight, and these variables were inversely correlated with Ravaz index. According to PC 1, St. George and Harmony rootstocks were positively correlated with N, Ca, and K petiole content, and these variables were negatively correlated with number of bunches per vine, yield, Ravaz index, and percentage of fruitfulness. According to PC 2, Salt Creek rootstock was inversely correlated with Mg petiole content and scion trunk circumference. Pearson correlations confirmed some relationships (Supplementary Table S2), such as N petiole content that was positively related to K (r = 0.70) and Ca, (r = 0.82) and negatively related to number of bunches per vine (r = −0.85), yield (r = −0.85), Ravaz index (r = −0.80), and percentage of fruitfulness (r = −0.70). P petiole content was directly related to pruning weight (r = 0.76) and inversely to Ravaz index (r = −0.84). K petiole content was positively related to Ca (r = 0.76) and inversely related to yield (r = −0.67) and percentage of fruitfulness (r = −0.84). Ca was inversely correlated with number of bunches per vines (r = −0.75), yield (r = −0.76) and percentage of fruitfulness (r = −0.91). Mg petiole content was positively correlated with scion trunk circumference (r = 0.67).
In order to classify the different seasons and to assess their influence in viticultural productivity parameters and petiole nutrient content, a PCA was also performed (Figure 2). PC 1 explained 43.42% of the variance, and principal component 2 (PC2) explained 26.78%, representing 70.20% of all the variance. PC 1 was most closely correlated (−) with K and (+) to yield, number of bunches per vine, and Ravaz index, while PC 2 was most closely (−) correlated with P and Zn and (+) to percentage of budburst and fruitfulness. The 2007–2008 season was positively correlated with N, whereas P petiole content was correlated positively with Zn petiole content. The 2006–2007 season was directly correlated, especially to K, and according to PC1, it was inversely correlated with yield, Ravaz index, and 2003–2004 season. The 2005–2006 season was inversely correlated with percentage of budburst and fruitfulness, pruning weight, and, to a lesser extent, Mg. The 2004–2005 season was directly correlated to Mn and was inversely correlated to scion trunk circumference. Indeed, Pearson correlations confirmed some relationships (Supplementary Table S3). N petiole content was positively related to Cu (r = 0.88). P petiole content was directly related to Zn (r = 0.93). K petiole content was inversely related to yield (r = −0.96) and Ravaz index (r = −0.96). Ca petiole content was directly related to Cu (r = 0.97). Mn petiole content was inversely related to scion trunk circumference (r = −0.90).

4. Discussion

This five year study evaluated scion performance and petiole nutrient content effects of ungrafted Syrah young grapevines in comparison to eight rootstocks in a hyper-arid irrigated vineyard. St. George induced lower yield than 1103 Paulsen rootstock in Syrah, and there were no statistical differences among the rest of the rootstocks and the ungrafted vines. Previous studies showed that rootstocks significantly affected scion yield [30,31,32,33,34]. Bascuñán-Godoy et al. [32] reported that yield was related to number and weight of bunches and pruning weight in vines grafted onto different rootstocks growing under hyper-arid conditions. These results partially coincided to those presented here, since yield was positively related to number (r = 0.96) and weight (r = 0.73) of bunch (Supplementary Tables S2 and S3), but these components were not affected by rootstock factor and were not related to pruning weight (Table 3). Recently, Clingeleffer et al. [35] showed that scion–rootstock interactions affected yield, yield components, pruning weight, and Ravaz index in vines grafted onto different rootstocks. These findings indicate that specific rootstocks are required to optimize scion variety performance under our studied conditions. Agreeing with our results, some reports evidenced that rootstocks did not affect scion yield components in different grapevine varieties growing under cold and tropical climate conditions [36,37]. In this way, season was the most important factor influencing yield components in Syrah grapevines growing under hyper-arid climatic conditions (Table 3). As expected, annual precipitation was correlated with vine yield (r = 0.71), whereas mean (SON Mean) and maximum (SON Max) spring temperature summation were correlated with budburst percentage (r = 0.75 and r = 0.82, respectively) (data not shown). These last bioclimatic indices were elaborated upon based on heat summation method during bud break and flowering [26]. Mean and maximum springtime temperatures modulate timing of bud break as well as growth rate throughout the season [26,38,39]. Number of bunches per vines was correlated with different bioclimatic indices such as growing season temperature (GST) (r = 0.74), heliothermal index (HI) (r = 0.69), and growing degree days (GDD) (r = 0.75) (data not shown). Recently, it was reported that bud fruitfulness was mostly influenced by bud light interception, while inflorescence primordia size was positively correlated with shoot growth capacity and carbohydrate level of buds [40].
Rootstocks have the ability to modulate yield by modifying several plant traits [41,42]. In this fashion, water and nutrient uptake were identified as two key processes that differ between own-rooted and grafted plants [8,20,41]. Indeed, Salt Creek induced higher plant growth vigor than ungrafted vines in Syrah measured as pruning weight (Table 4), which was also correlated with P petiole content (r = 0.79) (Supplementary Table S2). A previous study showed that Salt Creek induced an increment in N and P concentrations in aerial portion of Red Globe vines, which could be positively related to plant growth vigor [20]. Phosphorus is an essential element for plant growth and is involved in many fundamental processes, including photosynthesis, biosynthesis, and respiration because of its role in energy generation via adenosine triphosphate [8,43]. Low P availability in vines may limit cell division, restricting leaf initiation of shoot apical meristem, expansion of newly developed leaves, and lateral shoot growth [44,45]. P deficiency may decrease root hydraulic conductance so that reduction in water supply to growing organs restricts cell expansion, which in turn strongly limits leaf expansion [45,46]. Despite the above, ungrafted vines presented the highest Ravaz index, defined as the ratio yield of pruning wood weight, and that value indicated that these vines were vegetatively balanced. In this way, Syrah grapevines grafted onto Salt Creek and St. George rootstocks held an excess of vigor according to their Ravaz index (Table 4), confirming previous rationale. K petiole content was inversely correlated with yield and Ravaz index according to Figure 2. Based on our results, the vines that reached high K levels in their leaves tissues presented lower yield (Table 4 and Table 5). In addition, in most of the samples, K content in petioles was above the optimal nutritional content (>1.8%) [45] (Table 5). K is the most abundant cation in grape berry [47]. Plant growth and development require large K fluxes to provide this ion to growing tissues, and deficiencies in K may reduce xylem sap flow, limiting shoot and fruit growth and, by consequence, affecting yield [45,47]. Nevertheless, according to our results, K management should be considered a priority in the nutritional management program by vine growers of Northern Chile to avoid problems of excesses of this nutrient. Scion trunk circumference (STC) was higher in ungrafted vines than in vines grafted onto Freedom rootstock, and STC increased as seasons passed (Table 4). The vines under study were young, thus STC was strongly influenced by the season since vines were actively growing season to season. Most of published studies showed that STC allowed one to characterize vine vigor, which was strongly related to pruning weight [48,49]. Nevertheless, in our study, vines were young, and STC was not related to pruning weight (r = 0.14) or yield (r = 0.46), and possibly other variables may affect their changes, such as Mg petiole content (r = 0.67). In this regard, graft union may play a key role in water transport [41] and thus in vigor, especially in the first years of vine development. A successful graft union must differentiate functional phloem and xylem connections across graft surface with the aim to uptake and transport water, nutrients, and photo-assimilates [41,45]. Grafting can have a negative impact on hydraulic conductivity and therefore on development and lifespan of the scion [41,50]. Therefore, it is possible that, during first years of development, ungrafted vines do not possess these limitations and can grow quickly compared to grafted vines.
Normally, the region under study presents a significant amount of alkaline soils that have a high pH and presence of CaCO3, which affects essential nutrient availability for crop development [51]. These soils can display an accumulation of soluble salts and a high content of exchangeable Na, resulting in micronutrient deficiencies such as Fe, Zn, Mn, and Cu in crops [52,53,54]. However, according to nutritional standards for viticultural management [55], Syrah ungrafted and grafted grapevines under study exhibited adequate levels in all nutrients analyzed in petioles with the exception of ungrafted vines for P (deficient), St. George for N (excess) and K (excess), and Harmony for K (excess). St. George and Harmony rootstocks induced higher petiole N concentration than ungrafted vines in Syrah (Table 5). Similar results were found in Thompson Seedless and Red Globe varieties cultivated under hyper arid conditions [20]. St. George is a very vigorous rootstock and presents a long vegetative cycle and delays scion maturity [56,57,58]. Due to this, St. George is not suitable for varieties with irregular set, such as Carmenère, Pinot Noir, Chardonnay, or Merlot [56]. Concerning N, this essential macronutrient was inversely correlated with bunch numbers per vines (r = −0.85), yield (r = −0.85), Ravaz index (r = −0.81), and fruitfulness percentage (r = −0.70). Guilpart et al. [59] reported that, during a critical period of vine growing (400- and 700-degree days), water and N stress drove bud fertility and berry number and determined 65–70% of vine yield in the next season.
Syrah ungrafted grapevines exhibited lower P and Ca petiole content than most of the grafted vines and the highest Mg petiole content, whereas St. George induced high P petiole content, while Harmony induced high Ca petiole content in Syrah grapevines (Table 5). Vines grafted onto St. George in high P soil availability induced less shoot dry weight than those grafted onto Freedom, which were greatly inhibited by low P availability in soils [60]. St. George seemed to use P inefficiently for vine growth under these soil conditions. Recently, it was reported that genetic background of vine rootstock may affect petiolar nutrient concentration in scions [8,61]. Rootstocks that present V. riparia genetic background confer low P and Mg petiolar concentrations [8]. These findings are similar to our results, since SO4 rootstocks leant to induce low P and Mg petiolar content compared to the rest of the rootstocks tested in Syrah grapevines (Table 5). Vines growing under low P soil availability showed symptoms of Mg deficiency that were relieved by application of P fertilizer [62]. This lack of P uptake capacity could also affect uptake of Mg by rootstocks that present V. riparia genetic background and its subsequent translocation to shoots [8]. St. George and Harmony rootstocks induced higher K petiole content than the rest of the rootstocks in Syrah grapevines (Table 5). Rootstocks differed significantly in petiole K content at flowering, and rootstocks that presented V. berlandieri genetic background contained lower levels of petiole K [63], which was in agreement in most cases with our results (Table 5). High levels of K uptake may increase pH, leading to wine instability and altering taste, acidity, and color in wines [47]. Based upon these findings, it is important to select rootstocks that confer low potassium absorption, even more in vines growing under hyper-arid climatic conditions, probably by using Vitis berlandieri rootstocks. Season factor also affected most of the nutrient petiole content in Syrah grapevines (Table 5). The accumulation of K, Mg, and especially Ca is higher in berries that have higher transpiration rates, even at veraison [45,64]. In addition, Ca content increased from anthesis to ripeness in the whole berry [65]. Confirming these findings, our results showed that, in 2006–2007 season, Syrah grapevines presented higher content of several nutrients in petiole, including Ca, and the highest SON Max, thus nutrient petiole content could be determined by temperature accumulation between budburst and flowering.
Salt Creek rootstocks induced higher Zn and Cu and lower Mn petiole content than most of grafted vines in Syrah, although 140 Ruggeri induced higher Mn petiole content than most of the rootstocks in Syrah (Table 5). High Cu concentration in vineyard soils may provoke increases in Cu toxicity symptoms in young vines [66]. Cu concentrations may affect Mn, Zn, and Fe concentrations in vine plant tissues, but effects provoked by Cu toxicity on micronutrients concentrations (Mn and Zn) depend on rootstock genotype [67]. Season also affected the content of most micronutrients in petioles of Syrah grapevines (Table 5). Commonly, concentrations of ions increased across berry development and ripening, but Zn and Mn accumulated before veraison [45,68]. Salt Creek could be a rootstock that should not be used in Syrah due to its high Cu uptake, which could limit uptake of other micronutrients of importance to vines.

5. Conclusions

Rootstocks and seasons affected vigor and petiole nutrient content in Syrah grapevines grown under hyper-arid conditions. As for the yield components, the season influenced all the parameters tested, while the rootstock only affected the yield per vine. Therefore, in our experimental conditions, the genotype of the root system did not show to significantly affect number of bunches, bunch weight, budburst, and fruitfulness. St. George rootstock resulted in lower yield than 1103 Paulsen in Syrah grapevines. Salt Creek induced higher plant growth vigor than ungrafted vines, which was correlated with P petiole content. However, Salt Creek and St. George rootstocks induced unbalanced vines with an excess of vigor according to their Ravaz index values. St. George and Harmony rootstocks induced a higher petiole N concentration than ungrafted vines in Syrah, whereas Salt Creek rootstocks induced high Zn and Cu petiole content than most of the grafted vines in Syrah. In summary, Vitis berlandieri rootstocks induced intermediate and low levels of K concentration in petioles of Syrah grapevines. The use of St. George, Salt Creek, and Harmony rootstocks in Syrah grapevines growing under hyper-arid conditions should be limited with the aim to avoid irregular set and imbalances of some nutrients. According to our results, rootstocks that present Vitis berlandieri genetic background should be used in Syrah grapevines grown under hyper-arid conditions. These results are relevant for wine industry and may contribute to viticultural management of vines cultivated under hyper-arid climatic conditions. In this way, future research should be carried out considering the effect of rootstocks on oenological variables in order to have more information about its effects on the Syrah variety cultivated under hyper-arid conditions.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/agronomy11050979/s1, Table S1: Interaction effect of rootstock and season for Mg (%) petiole concentration. Table S2: Pearson’s correlation obtained from principal component analysis of rootstock. Table S3: Pearson’s correlation obtained from principal component analysis of season.

Author Contributions

Conceptualization, N.V.-V., G.G.-G. and A.Z.-S.; methodology, N.V.-V. and I.D.-G.; formal analysis, N.V.-V.; data collection, N.V.-V. and A.I.; resources A.Z.-S.; data curation, N.V.-V. and A.I.; writing—original draft preparation, N.V.-V. and G.G.-G.; writing—review and editing, G.G.-G., N.V.-V., I.D.-G., A.I. and A.Z.-S.; project administration, N.V.-V. and A.Z.-S.; funding acquisition, N.V.-V. and A.Z.-S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Agencia Nacional de Investigación y Desarrollo ANID–Postdoctoral Fondecyt (Grant No 3180252 2018/INIA) and support of Instituto de Investigaciones Agropecuarias—INIA.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding and the first author.

Acknowledgments

Authors are also grateful to Elizabeth Pastén, Carmen Jopia, and María Isabel Rojas for their valuable technical support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rubio, B.; Lalanne-Tisné, G.; Voisin, R.; Tandonnet, J.P.; Portier, U.; Van Ghelder, C.; Lafargue, M.; Petit, J.P.; Donnart, M.; Joubard, B.; et al. Characterization of genetic determinants of the resistance to phylloxera, Daktulosphaira vitifoliae, and the dagger nematode Xiphinema index from muscadine background. BMC Plant. Biol. 2020, 20, 213. [Google Scholar] [CrossRef]
  2. Carrasco-Quiroz, M.; Martínez-Gil, A.M.; Gutiérrez-Gamboa, G.; Moreno-Simunovic, Y. Effect of rootstocks on volatile composition of Merlot wines. J. Sci. Food Agric. 2020, 100, 3517–3524. [Google Scholar] [CrossRef] [PubMed]
  3. Vincent, C.; Isaacs, R.; Bostanian, N.J.; Lasnier, J. Principles of arthropod pest management in vineyards. In Arthropod Management in Vineyards: Pests, Approaches, and Future Directions; Bostanian, N.J., Charles, V., Isaacs, E., Eds.; Springer: Dordrecht, The Netherlands, 2012; pp. 1–16. [Google Scholar]
  4. Gutiérrez-Gamboa, G.; Carrasco-Quiroz, M.; Martínez-Gil, A.M.; Pérez-Álvarez, E.P.; Garde-Cerdán, T.; Moreno-Simunovic, Y. Grape and wine amino acid composition from Carignan noir grapevines growing under rainfed conditions in the Maule Valley, Chile: Effects of location and rootstock. Food Res. Int. 2018, 105, 344–352. [Google Scholar] [CrossRef]
  5. Ibacache, A.; Verdugo-Vásquez, N.; Zurita-Silva, A. Rootstock: Scion combinations and nutrient uptake in grapevines. In Fruit Crops: Diagnosis and Management of Nutrient Constraints; Srivastava, A.K., Hu, C., Eds.; Elsevier: Amsterdam, The Netherlands, 2020; pp. 297–316. [Google Scholar]
  6. Franck, N.; Zamorano, D.; Wallberg, B.; Hardy, C.; Ahumada, M.; Rivera, N.; Montoya, M.; Urra, C.; Meneses, C.; Balic, I.; et al. Contrasting grapevines grafted into naturalized rootstock suggest scion-driven transcriptomic changes in response to water deficit. Sci. Hortic. 2019, 262, 109031. [Google Scholar] [CrossRef]
  7. Aballay, E.; Prodan, S.; Correa, P.; Allende, J. Assessment of rhizobacterial consortia to manage plant parasitic nematodes of grapevine. Crop. Prot. 2020, 131, 105103. [Google Scholar] [CrossRef]
  8. Gautier, A.T.; Cookson, S.J.; Lagalle, L.; Ollat, N.; Marguerit, E. Influence of the three main genetic backgrounds of grapevine rootstocks on petiolar nutrient concentrations of the scion, with a focus on phosphorus. OENO One 2020, 54, 1–13. [Google Scholar] [CrossRef]
  9. Gambetta, G.A.; Manuck, C.M.; Drucker, S.T.; Shaghasi, T.; Fort, K.; Matthews, M.A.; Walker, M.A.; McElrone, A.J. The relationship between root hydraulics and scion vigour across Vitis rootstocks: What role do root aquaporins play? J. Exp. Bot. 2012, 63, 6445–6455. [Google Scholar] [CrossRef]
  10. Frioni, T.; Biagioni, A.; Squeri, C.; Tombesi, S.; Gatti, M.; Poni, S. Grafting cv. Grechetto Gentile vines to new M4 rootstock improves leaf gas exchange and water status as compared to commercial 1103P rootstock. Agronomy 2020, 10, 708. [Google Scholar] [CrossRef]
  11. Fleishman, S.M.; Eissenstat, D.M.; Centinari, M. Rootstock vigor shifts aboveground response to groundcover competition in young grapevines. Plant. Soil 2019, 440, 151–165. [Google Scholar] [CrossRef]
  12. Wang, Y.; Chen, W.K.; Gao, X.T.; He, L.; Yang, X.H.; He, F.; Duan, C.Q.; Wang, J. Rootstock-mediated effects on Cabernet Sauvignon performance: Vine growth, berry ripening, flavonoids, and aromatic profiles. Int. J. Mol. Sci. 2019, 20, 401. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Olarte Mantilla, S.M.; Collins, C.; Patrick, G.I.; Kidman, C.M.; Ristic, R.; Boss, P.K.; Jordans, C.; Bastian, S.E.P. Shiraz (Vitis vinifera L.) berry and wine sensory profiles and composition are modulated by rootstocks. Am. J. Enol. Vitic. 2018, 69, 32–44. [Google Scholar] [CrossRef]
  14. Gutiérrez-Gamboa, G.; Gómez-Plaza, E.; Bautista-Ortín, A.B.; Garde-Cerdán, T.; Moreno-Simunovic, Y.; Martínez-Gil, A.M. Rootstock effects on grape anthocyanins, skin and seed proanthocyanidins and wine color and phenolic compounds from Vitis vinifera L. Merlot grapevines. J. Sci. Food Agric. 2019, 99, 2846–2854. [Google Scholar] [CrossRef] [PubMed]
  15. Verdugo-Vásquez, N.; Gutiérrez-Gamboa, G.; Villalobos-Soublett, E.; Zurita-Silva, A. Effects of rootstocks on blade nutritional content of two minority grapevine varieties cultivated under hyper-arid conditions in Northern Chile. Agronomy 2021, 11, 327. [Google Scholar] [CrossRef]
  16. Vršič, S.; Pulko, B.; Kocsis, L. Factors influencing grafting success and compatibility of grape rootstocks. Sci. Hortic. 2015, 181, 168–173. [Google Scholar] [CrossRef]
  17. Santos, J.A.; Fraga, H.; Malheiro, A.C.; Moutinho-Pereira, J.; Dinis, L.-T.; Correia, C.; Moriondo, M.; Leolini, L.; Dibari, C.; Costafreda-Aumedes, S.; et al. A review of the potential climate change impacts and adaptation options for European viticulture. Appl. Sci. 2020, 10, 3092. [Google Scholar] [CrossRef]
  18. van Leeuwen, C.; Destrac-Irvine, A.; Dubernet, M.; Duchêne, E.; Gowdy, M.; Marguerit, E.; Pieri, P.; Parker, A.; de Rességuier, L.; Ollat, N. An update on the impact of climate change in viticulture and potential adaptations. Agronomy 2019, 9, 514. [Google Scholar] [CrossRef] [Green Version]
  19. Ollat, N.; Bordenave, L.; Tandonnet, J.P.; Boursiquot, J.M.; Marguerit, E. Grapevine rootstocks: Origins and perspectives. Acta Hortic. 2016, 1136, 11–22. [Google Scholar] [CrossRef]
  20. Ibacache, A.; Sierra, C. Influence of rootstocks on nitrogen, phosphorus and potassium content in petioles of four table grape varieties. Chil. J. Agric. Res. 2009, 69, 503–508. [Google Scholar] [CrossRef] [Green Version]
  21. Jones, G.V. Climate and terroir: Impacts of climate variability and change on wine. GeoSci. Can. 2006, 9, 1–14. [Google Scholar]
  22. Tonietto, J.; Carbonneau, A. A multicriteria climatic classification system for grape-growing regions worldwide. Agric. For. Meteorol. 2004, 124, 81–97. [Google Scholar] [CrossRef] [Green Version]
  23. Huglin, P. Nouveau mode d’évaluation des possibilités héliothermiques d’un milieu viticole. Comp. Rend. Acad. Agric. Fr. 1978, 64, 1117–1126. [Google Scholar] [CrossRef] [Green Version]
  24. Amerine, M.A.; Winkler, A.J. Composition and quality of musts and wines of California grapes. Hilgardia 1944, 15, 493–675. [Google Scholar] [CrossRef] [Green Version]
  25. Gladstones, J. Viticulture and Environment; Winetitles: Adelaide, Australia, 1992. [Google Scholar]
  26. Jarvis, C.; Barlow, E.; Darbyshire, R.; Eckard, R.; Goodwin, I. Relationship between viticultural climatic indices and grape maturity in Australia. Int. J. Biometeorol. 2017, 61, 1849–1862. [Google Scholar] [CrossRef]
  27. Sahin, S. An aridity index defined by precipitation and specific humidity. J. Hydrol. 2012, 444–445, 199–208. [Google Scholar] [CrossRef]
  28. Nikolaou, N.; Koukourikou, M.A.; Karagiannidis, N. Effects of various rootstocks on xylem exudates cytokinin content, nutrient uptake and growth patterns of grapevine Vitis vinifera L. cv. Thompson seedless. Agronomie 2000, 20, 363–373. [Google Scholar] [CrossRef]
  29. Garcia, M.; Gallego, P.; Daverède, C.; Ibrahim, H. Effect of three roots tocks on grapevine (Vitis vinifera L.) cv. Négrette, grown hydroponically. I. Potassium, calcium and magnesium nutrition. S. Afr. J. Enol. Vitic. 2001, 22, 101–103. [Google Scholar] [CrossRef] [Green Version]
  30. Li, M.; Guo, Z.; Jia, N.; Yuan, J.; Han, B.; Yin, Y.; Sun, Y.; Liu, C.; Zhao, S. Evaluation of eight rootstocks on the growth and berry quality of ‘Marselan’ grapevines. Sci. Hortic. 2019, 248, 58–61. [Google Scholar] [CrossRef]
  31. Loureiro, M.D.; Moreno-Sanz, P.; García, A.; Fernández, O.; Fernández, N.; Suárez, B. Influence of rootstock on the performance of the Albarín Negro minority grapevine cultivar. Sci. Hortic. 2016, 201, 145–152. [Google Scholar] [CrossRef]
  32. Bascuñán-Godoy, L.; Franck, N.; Zamorano, D.; Sanhueza, C.; Carvajal, D.E.; Ibacache, A. Rootstock effect on irrigated grapevine yield under arid climate conditions are explained by changes in traits related to light absorption of the scion. Sci. Hortic. 2017, 218, 284–292. [Google Scholar] [CrossRef]
  33. Keller, M.; Mills, L.J.; Harbertson, J.F. Rootstock effects on deficit-irrigated winegrapes in a dry climate: Vigor, yield formation, and fruit ripening. Am. J. Enol. Vitic. 2012, 63, 29–39. [Google Scholar] [CrossRef]
  34. da Silva, M.J.R.; Paiva, A.P.M.; Pimentel, A.; Sánchez, C.A.P.C.; Callili, D.; Moura, M.F.; Leonel, S.; Tecchio, M.A. Yield performance of new juice grape varieties grafted onto different rootstocks under tropical conditions. Sci. Hortic. 2018, 241, 194–200. [Google Scholar] [CrossRef] [Green Version]
  35. Clingeleffer, P.; Morales, N.; Davis, H.; Smith, H. The significance of scion × rootstock interactions. OENO One 2019, 53, 335–346. [Google Scholar] [CrossRef]
  36. Tecchio, M.A.; da Silva, M.J.R.; Callili, D.; Hernandes, J.L.; Moura, M.F. Yield of white and red grapes, in terms of quality, from hybrids and Vitis labrusca grafted on different rootstocks. Sci. Hortic. 2020, 259, 108846. [Google Scholar] [CrossRef]
  37. Reynolds, A.G.; Wardle, D.A. Rootstocks impact vine performance and fruit composition of grapes in British Columbia. Horttechnology 2001, 11, 419–427. [Google Scholar] [CrossRef] [Green Version]
  38. Urhausen, S.; Brienen, S.; Kapala, A.; Simmer, C. Climatic conditions and their impact on viticulture in the Upper Moselle region. Clim. Chang. 2011, 109, 349–373. [Google Scholar] [CrossRef]
  39. Malheiro, A.C.; Campos, R.; Fraga, H.; Eiras-Dias, J.; Silvestre, J.; Santos, J.A. Winegrape phenology and temperature relationships in the Lisbon wine region, Portugal. OENO One 2013, 47, 287. [Google Scholar] [CrossRef] [Green Version]
  40. Wang, X.; Lesefko, S.; de Bei, R.; Fuentes, S.; Collins, C. Effects of canopy management practices on grapevine bud fruitfulness. OENO One 2020, 54, 313–325. [Google Scholar] [CrossRef]
  41. Serra, I.; Strever, A.; Myburgh, P.A.; Deloire, A. Review: The interaction between rootstocks and cultivars (Vitis vinifera L.) to enhance drought tolerance in grapevine. Aust. J. Grape Wine Res. 2014, 20, 1–14. [Google Scholar] [CrossRef]
  42. Ibacache, A.; Albornoz, F.; Zurita-Silva, A. Yield responses in Flame seedless, Thompson seedless and Red Globe table grape cultivars are differentially modified by rootstocks under semi arid conditions. Sci. Hortic. 2016, 204, 25–32. [Google Scholar] [CrossRef]
  43. Bieleski, R.L. Phosphate pools, phosphate transport, and phosphate availability. Annu. Rev. Plant. Physiol. 1973, 24, 225–252. [Google Scholar] [CrossRef]
  44. Chiera, J.; Thomas, J.; Rufty, T. Leaf initiation and development in soybean under phosphorus stress. J. Exp. Bot. 2002, 53, 473–481. [Google Scholar] [CrossRef] [Green Version]
  45. Keller, M. The Science of Grapevines. Anatomy and Physiology, 3rd ed.; Academic Press: Cambridge, MA, USA, 2020; ISBN 9780128167021. [Google Scholar]
  46. Clarkson, D.T. Root hydraulic conductance: Diurnal aquaporin expression and the effects of nutrient stress. J. Exp. Bot. 2000, 51, 61–70. [Google Scholar] [CrossRef]
  47. Rogiers, S.Y.; Coetzee, Z.A.; Walker, R.R.; Deloire, A.; Tyerman, S.D. Potassium in the grape (Vitis vinifera L.) berry: Transport and function. Front. Plant. Sci. 2017, 8, 1629. [Google Scholar] [CrossRef] [PubMed]
  48. Trought, M.C.T.; Dixon, R.; Mills, T.; Greven, M.; Agnew, R.; Mauk, J.L.; Praat, J.P. The impact of differences in soil texture within a vineyard on vine vigour, vine earliness and juice composition. J. Int. Sci. Vigne Vin 2008, 42, 62–72. [Google Scholar] [CrossRef]
  49. Satisha, J.; Somkuwar, R.G.; Sharma, J.; Upadhyay, A.K.; Adsule, P.G. Influence of rootstocks on growth yield and fruit composition of Thompson seedless grapes grown in the Pune region of India. S. Afr. J. Enol. Vitic. 2010, 31, 1–8. [Google Scholar] [CrossRef] [Green Version]
  50. Bavaresco, L.; Lovisolo, C. Effect of grafting on grapevine chlorosis and hydraulic conductivity. Vitis 2000, 39, 89–92. [Google Scholar] [CrossRef]
  51. Sierra, C.; Lancelloti, A.; Vidal, I. Elemental sulphur as pH and soil fertility amendment for some Chileans soils of Regions III and IV. Agric. Técnica 2007, 67, 173–181. [Google Scholar] [CrossRef] [Green Version]
  52. Pistocchi, C.; Ragaglini, G.; Colla, V.; Branca, T.A.; Tozzini, C.; Romaniello, L. Exchangeable sodium percentage decrease in saline sodic soil after basic oxygen furnace slag application in a lysimeter trial. J. Environ. Manag. 2017, 203, 896–906. [Google Scholar] [CrossRef] [PubMed]
  53. Rengasamy, P. Soil chemistry factors confounding crop salinity tolerance—A review. Agronomy 2016, 6, 53. [Google Scholar] [CrossRef] [Green Version]
  54. Machado, R.; Serralheiro, R. Soil salinity: Effect on vegetable crop growth. Management practices to prevent and mitigate soil salinization. Horticulturae 2017, 3, 30. [Google Scholar] [CrossRef]
  55. Robinson, J.B. Critical plant tissue values and application of nutritional standards for practical use in vineyards. In Proceedings of the Soil Environment and Vine Mineral Nutrition Symposium; Smart, D.R., Christensen, L.P., Eds.; The American Society for Enology and Viticulture: Davis, CA, USA, 2005; pp. 61–68. [Google Scholar]
  56. Goldammer, T. Grape Grower’s Handbook: A Guide to Viticulture for Wine Production, 3rd ed.; APEX Publishers: Colchester, UK, 2018. [Google Scholar]
  57. Ough, C.S.; Lider, L.A.; Cook, J.A. Rootstock-scion interactions concerning wine making. I. Juice composition changes and effects on fermentation rate with St. George and 99-R rootstocks at two nitrogen fertilizer levels. Am. J. Enol. Vitic. 1968, 19, 213–227. [Google Scholar]
  58. Williams, L.E.; Smith, R.J. The effect of rootstock on the partitioning of dry weight, nitrogen and potassium, and root distribution of Cabernet Sauvignon grapevines. Am. J. Enol. Vitic. 1991, 42, 118–122. [Google Scholar]
  59. Guilpart, N.; Metay, A.; Gary, C. Grapevine bud fertility and number of berries per bunch are determined by water and nitrogen stress around flowering in the previous year. Eur. J. Agron. 2014, 54, 9–20. [Google Scholar] [CrossRef]
  60. Stanley Grant, R.; Matthews, M.A. The influence of phosphorus availability, scion, and rootstock on grapevine shoot growth, leaf area, and petiole phosphorus concentration. Am. J. Enol. Vitic. 1996, 47, 217–224. [Google Scholar]
  61. Gautier, A.T.; Cochetel, N.; Merlin, I.; Hevin, C.; Lauvergeat, V.; Vivin, P.; Mollier, A.; Ollat, N.; Cookson, S.J. Scion genotypes exert long distance control over rootstock transcriptome responses to low phosphate in grafted grapevine. BMC Plant. Biol. 2020, 20, 367. [Google Scholar] [CrossRef]
  62. Skinner, P.W.; Cook, J.A.; Matihews, M.A. Responses of grapevine cvs Chenin blanc and Chardonnay to phosphorus fertilizer applications under phosphorus-limited soil conditions. Vitis 1988, 27, 95. [Google Scholar] [CrossRef]
  63. Wolpert, J.A.; Smart, D.R.; Anderson, M. Lower petiole potassium concentration at bloom in rootstocks with Vitis berlandieri genetic backgrounds. Am. J. Enol. Vitic. 2005, 56, 163–169. [Google Scholar]
  64. Doring, H.; Ügglonni, F. Transpiration and accumulation of mineral nutrients in grape berries. Vitis 1986, 25, 59–66. [Google Scholar]
  65. Cabanne, C.; Donèche, B. Calcium accumulation and redistribution during the development of grape berry. Vitis 2003, 42, 19–21. [Google Scholar]
  66. Marastoni, L.; Sandri, M.; Pii, Y.; Valentinuzzi, F.; Cesco, S.; Mimmo, T. Morphological root responses and molecular regulation of cation transporters are differently affected by copper toxicity and cropping system depending on the grapevine rootstock genotype. Front. Plant. Sci. 2019, 10, 946. [Google Scholar] [CrossRef] [Green Version]
  67. Marastoni, L.; Sandri, M.; Pii, Y.; Valentinuzzi, F.; Brunetto, G.; Cesco, S.; Mimmo, T. Synergism and antagonisms between nutrients induced by copper toxicity in grapevine rootstocks: Monocropping vs. intercropping. Chemosphere 2019, 214, 563–578. [Google Scholar] [CrossRef] [PubMed]
  68. Rogiers, S.Y.; Greer, D.H.; Hatfield, J.M.; Orchard, B.A.; Keller, M. Mineral sinks within ripening grape berries (Vitis vinifera L.). Vitis 2006, 45, 115. [Google Scholar] [CrossRef]
Agronomy 11 00979 g001 550

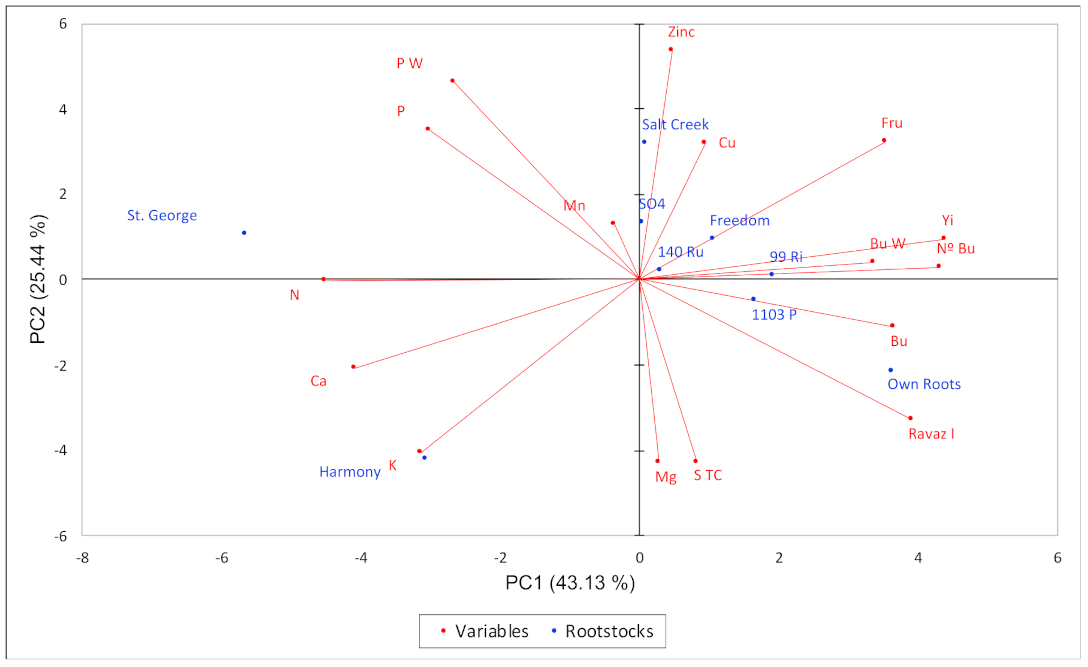

Figure 1. Principal component analysis (PCA) performed with yield, vigor, and nutritional variables obtained from Syrah grapevines grown ungrafted and grafted onto 1103 Paulsen, 140 Ruggeri, 99 Richter, Freedom, Harmony, Salt Creek, SO4 (Selection Oppenheim 4), and St. George (Rupestris du Lot). Footnote: The distribution of variables (red lines) and individual observations according to rootstocks (blue dots) on PC1 and PC2 are shown. Yi: yield, N° Bu: number of bunches per plant, Bu W: bunch weight, Bu: budburst, Fru: fruitfulness, P W: pruning weight, Ravaz I: Ravaz index, S TC: scion trunk circumference.
Figure 1. Principal component analysis (PCA) performed with yield, vigor, and nutritional variables obtained from Syrah grapevines grown ungrafted and grafted onto 1103 Paulsen, 140 Ruggeri, 99 Richter, Freedom, Harmony, Salt Creek, SO4 (Selection Oppenheim 4), and St. George (Rupestris du Lot). Footnote: The distribution of variables (red lines) and individual observations according to rootstocks (blue dots) on PC1 and PC2 are shown. Yi: yield, N° Bu: number of bunches per plant, Bu W: bunch weight, Bu: budburst, Fru: fruitfulness, P W: pruning weight, Ravaz I: Ravaz index, S TC: scion trunk circumference.
Agronomy 11 00979 g001
Agronomy 11 00979 g002 550

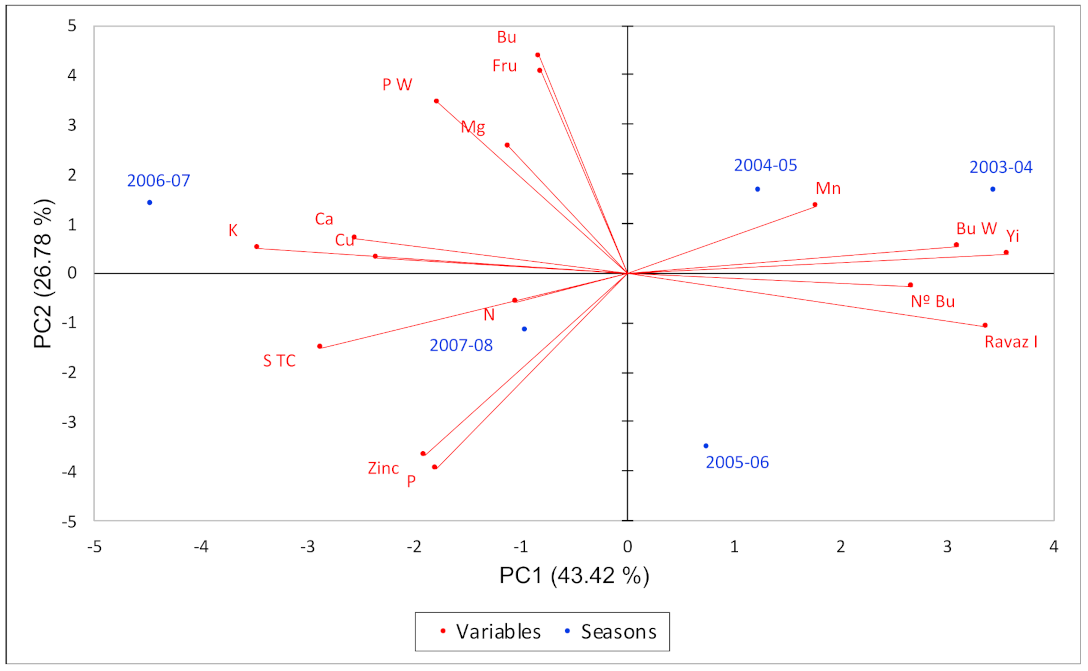

Figure 2. Principal component analysis (PCA) performed with yield, vigor, and nutritional variables obtained from Syrah grapevines according to the study seasons. Footnote: the distribution of variables (red lines) and individual observations according to seasons (blue dots) on PC1 and PC2 are shown. Yi: yield, N° Bu: number of bunches per plant, Bu W: bunch weight, Bu: budburst, Fru: fruitfulness, P W: pruning weight, Ravaz I: Ravaz index, S TC: scion trunk circumference.
Figure 2. Principal component analysis (PCA) performed with yield, vigor, and nutritional variables obtained from Syrah grapevines according to the study seasons. Footnote: the distribution of variables (red lines) and individual observations according to seasons (blue dots) on PC1 and PC2 are shown. Yi: yield, N° Bu: number of bunches per plant, Bu W: bunch weight, Bu: budburst, Fru: fruitfulness, P W: pruning weight, Ravaz I: Ravaz index, S TC: scion trunk circumference.
Agronomy 11 00979 g002
Table
Table 1. Bioclimatic indices calculated each season of study.
Table 1. Bioclimatic indices calculated each season of study.
SeasonGST (°C)CI (°C)HI (Heat Units)GDD (Heat Units)BEDD (Heat Units)SON Mean (Heat Units)SON Max (Heat Units)PP May–April (mm)
2003–200418.69.62385.01822.91557.31561.52371.793.3
2004–200518.710.12455.91854.41555.81537.12396.583.9
2005–200618.58.72416.31801.21533.81439.72273.266.4
2006–200718.39.02388.71756.21542.61552.22431.651.4
2007–200817.98.82311.51681.51473.01377.62209.317.8
30-years (mean) a18.510.02409.71808.21528.71493.22310.793.1
GST: growing season temperature [21]; CI: cool night index [22]; HI: heliothermal Index [23]; GDD: growing degree days [24]; BEDD: biologically effective degree days [25]; SON Mean: mean spring temperature summation [26]; SON Max: maximum spring temperature summation [26]. PP May–April: accumulated precipitation from May (year n) to April (year n + 1). a Mean of 1985–2015 years.
Table
Table 2. Description and abbreviations of the rootstocks under study.
Table 2. Description and abbreviations of the rootstocks under study.
RootstockAbbreviationsPedigreeOriginRootstock Features Assessed in Chile
1103 Paulsen1103 PV. berlandieri × V. rupestrisItalyIntermediate drought tolerance, poor resistance to nematodes, intermediate scion vigor
140 Ruggeri140 RuV. berlandieri × V. rupestrisItalyIntermediate drought tolerance, poor resistance to nematodes, intermediate scion vigor
99 Richter99 RiV. berlandieri × V. rupestrisFranceIntermediate drought tolerance, poor resistance to nematodes, high scion vigor
FreedomFreedomCouderc 1613 × V. champiniiUSAPoor drought tolerance, resistance to nematodes and scion vigor
HarmonyHarmonyCouderc 1613 × V. champiniiUSAPoor drought tolerance, resistance to nematodes and scion vigor
Salt CreekSalt CreekV. champiniiUSAPoor drought tolerance and resistance to nematodes, and high scion vigor
SO4SO4V. berlandieri × V. ripariaFrancePoor drought tolerance, low resistance to nematodes and intermediate scion vigor
Saint GeorgeSt. GeorgeV. rupestrisUSAPoor drought tolerance and resistance to nematodes, and high scion vigor
Rootstock feature information was obtained from Ibacache et al. [5].
Table
Table 3. Effect of rootstock on yield and its components of Syrah grapevines growing under hyper-arid conditions over five consecutive seasons.
Table 3. Effect of rootstock on yield and its components of Syrah grapevines growing under hyper-arid conditions over five consecutive seasons.
FactorYield (kg Vine)N° Bunches Per VineBunch Weight (g)Budburst (%)Fruitfulness (%)
Rootstock (R)
Own Roots7.7 ab47.7160.094.2173.1
1103 Paulsen7.9 a47.1166.195.0168.0
140 Ruggeri7.1 ab42.8168.594.1170.0
99 Richter7.4 ab45.4164.495.3171.3
Freedom7.4 ab44.1166.893.8168.9
Harmony6.6 ab41.8159.193.0156.2
Salt Creek7.6 ab45.7163.293.4171.1
SO47.4 ab46.0158.792.1167.3
St. George5.9 b38.7149.191.6164.3
Season (S)
2003–200410.086 a45.2 bc222.0 a94.6 b167.6 ab
2004–20058.049 b54.4 a150.0 b97.3 a174.8 a
2005–20067.583 b48.3 ab157.4 b87.5 d156.9 b
2006–20074.099 d34.1 d120.1 c97.3 a171.7 a
2007–20086.184 c39.7 cd159.2 b91.4 c167.9 ab
Signif a
R0.025 b0.120.670.0530.13
S<0.0001<0.0001<0.0001<0.00010.001
R × S0.860.980.880.640.93
a Significance (p-value) of rootstock (R), season (S), and R–S interactions. For a given factor and significance p < 0.05, different letters within a column represent significant differences (Tukey’s test, p < 0.05). b In red, p-value lower than 0.05.
Table
Table 4. Effect of rootstock on vine vigor, vine balance, and scion trunk circumference of Syrah grapevines growing under hyper-arid conditions over five consecutive seasons.
Table 4. Effect of rootstock on vine vigor, vine balance, and scion trunk circumference of Syrah grapevines growing under hyper-arid conditions over five consecutive seasons.
FactorPruning Weight (kg Per Vine)Ravaz IndexScion Trunk Circumference (cm)
Rootstock (R)
Own Roots1.57 c5.14 a13.98 a
1103 Paulsen2.02 abc4.34 ab13.54 ab
140 Ruggeri2.05 abc3.79 abc13.71 ab
99 Richter1.85 bc4.22 ab12.96 ab
Freedom1.96 abc3.89 abc12.74 b
Harmony1.88 bc3.86 abc13.90 ab
Salt Creek2.45 a3.22 bc13.24 ab
SO42.18 ab3.85 abc13.24 ab
St. George2.33 ab2.73 c12.98 ab
Season (S)
2003–20041.94 ab5.47 a7.48 d
2004–20052.20 a3.88 b13.23 c
2005–20061.74 b4.99 a13.43 c
2006–20072.20 a1.96 c15.73 b
2007–20082.07 ab3.16 b16.95 a
Signif a
R<0.0001 b0.0000.011
S0.001<0.0001<0.0001
R × S0.970.980.93
a Significance (p-value) of rootstock (R), season (S), and R–S interactions. For a given factor and significance p < 0.05, different letters within a column represent significant differences (Tukey’s test, p < 0.05). b In red, p-value lower than 0.05.
Table
Table 5. Effect of rootstock on petiole nutrient content of Syrah grapevines growing under hyper-arid conditions over five consecutive seasons.
Table 5. Effect of rootstock on petiole nutrient content of Syrah grapevines growing under hyper-arid conditions over five consecutive seasons.
FactorN (%)P (%)K (%)Ca (%)Mg (%)Zn (ppm)Mn (ppm)Cu (ppm)
Rootstock (R)
Own Roots0.84 c0.14 d2.62 bc1.44 d0.55 a48.9 bc45.9 bc8.00 ab
1103 Paulsen0.95 bc0.28 bc2.45 c1.64 c0.47 b43.6 cd60.0 abc7.75 ab
140 Ruggeri0.95 bc0.33 b2.28 c1.68 bc0.47 b44.5 cd82.0 a8.05 ab
99 Richter0.93 bc0.27 bc2.31 c1.46 d0.46 b49.0 bc53.4 bc6.60 b
Freedom0.93 bc0.23 c2.34 c1.54 cd0.35 c49.1 bc40.2 bc7.30 b
Harmony1.09 ab0.21 cd3.54 a1.92 a0.49 b35.3 d38.0 c6.30 b
Salt Creek1.01 abc0.32 b2.45 c1.57 cd0.37 c60.8 a47.5 bc9.60 a
SO40.91 bc0.25 bc2.24 c1.63 c0.32 c56.5 ab44.6 bc6.50 b
St. George1.18 a0.43 a3.01 b1.82 ab0.46 b51.9 abc61.8 ab7.45 b
Season (S)
2003–20041.01 ab0.21 b2.43 b1.63 b0.45 ab46.166.5 a7.19 bc
2004–20050.87 c0.22 b2.51 ab1.58 b0.43 bc47.448.2 b6.39 c
2005–20061.04 a0.34 a2.49 b1.63 b0.43 bc51.753.6 ab7.92 b
2006–20071.08 a0.28 a2.79 a1.73 a0.47 a49.852.7 ab9.81 a
2007–20080.89 bc0.32 a2.68 ab1.60 b0.41 c49.141.8 b6.22 c
Signif a
R<0.0001 b<0.0001<0.0001<0.0001<0.0001<0.0001<0.0001<0.0001
S<0.0001<0.00010.0050.000<0.00010.260.000<0.0001
R x S0.350.250.970.17<0.00010.760.950.15
a Significance (p-value) of rootstock (R), season (S), and R–S interactions. For a given factor and significance p < 0.05, different letters within a column represent significant differences (Tukey’s test, p < 0.05). b In red, p-value lower than 0.05.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Verdugo-Vásquez, N.; Gutiérrez-Gamboa, G.; Díaz-Gálvez, I.; Ibacache, A.; Zurita-Silva, A. Modifications Induced by Rootstocks on Yield, Vigor and Nutritional Status on Vitis vinifera Cv Syrah under Hyper-Arid Conditions in Northern Chile. Agronomy 2021, 11, 979. https://doi.org/10.3390/agronomy11050979

AMA Style

Verdugo-Vásquez N, Gutiérrez-Gamboa G, Díaz-Gálvez I, Ibacache A, Zurita-Silva A. Modifications Induced by Rootstocks on Yield, Vigor and Nutritional Status on Vitis vinifera Cv Syrah under Hyper-Arid Conditions in Northern Chile. Agronomy. 2021; 11(5):979. https://doi.org/10.3390/agronomy11050979

Chicago/Turabian Style

Verdugo-Vásquez, Nicolás, Gastón Gutiérrez-Gamboa, Irina Díaz-Gálvez, Antonio Ibacache, and Andrés Zurita-Silva. 2021. "Modifications Induced by Rootstocks on Yield, Vigor and Nutritional Status on Vitis vinifera Cv Syrah under Hyper-Arid Conditions in Northern Chile" Agronomy 11, no. 5: 979. https://doi.org/10.3390/agronomy11050979

APA Style

Verdugo-Vásquez, N., Gutiérrez-Gamboa, G., Díaz-Gálvez, I., Ibacache, A., & Zurita-Silva, A. (2021). Modifications Induced by Rootstocks on Yield, Vigor and Nutritional Status on Vitis vinifera Cv Syrah under Hyper-Arid Conditions in Northern Chile. Agronomy, 11(5), 979. https://doi.org/10.3390/agronomy11050979

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
