Article

Transcriptomic Changes Induced by Drought Stress in Hardneck Garlic during the Bolting/Bulbing Stage

by
Xiangjun Zhou
1,
Jorge Alberto Condori-Apfata
1,
Xiaoqin Liu
1,
Sandro Jhonatan Condori-Pacsi
2,
Maria Valderrama Valencia
2 and
Cankui Zhang
1,*
1
Department of Agronomy and Center for Plant Biology, Purdue University, West Lafayette, IN 47907, USA
2
Departamento Académico de Biología, Universidad Nacional de San Agustín, Arequipa 04001, Peru
*
Author to whom correspondence should be addressed.
Agronomy 2021, 11(2), 246; https://doi.org/10.3390/agronomy11020246
Submission received: 2 January 2021 / Revised: 20 January 2021 / Accepted: 26 January 2021 / Published: 29 January 2021
(This article belongs to the Special Issue Horticultural Genetics and Biotechnology)
Browse Figures
Review Reports Versions Notes

Abstract

:
Garlic (Allium sativum L.) is an economically important, monocotyledonous plant with a strong taste and odor. Drought stress adversely affects its growth, development, and yield, particularly during the bolting/bulbing stage. Herein we performed RNA-seq to assess transcriptomic changes induced by drought stress in bolting/bulbing hardneck garlic plants (Purple Glazer). We observed that drought stress significantly reduced photosynthesis rate, fresh weight, and leaf water content. Transcriptomic analysis of garlic leaves under normal conditions and drought stress led to the identification of 5215 differentially expressed genes (2748 up- and 2467 downregulated). The upregulated DEGs were primarily involved in “biological process”, “metabolic process”, “oxidation-reduction process”, carbohydrate and lipid metabolism, and “proteolysis”, whereas the downregulated DEGs were mainly involved in “biological process” and metabolism of various molecules. In addition, genes encoding abscisic acid biosynthetic and catabolic enzymes, heat shock proteins, and E3 ubiquitin ligases were significantly altered by drought stress, indicating involvement in drought tolerance. A further comparison with the DEGs related to salinity stress-treated garlic revealed 867 and 305 DEGs with a similar and reverse expression alteration tendency, respectively.

1. Introduction

Due to climate change and global warming, drought has become a significant adverse environmental factor, posing a major threat to agriculture. The development of drought-tolerant crops is crucial to world food security in the long term. Therefore, a comprehensive understanding of plant responses to drought stress is a prerequisite to develop drought-tolerant plants, particularly crops.
Plants display an array of physiological, biochemical, and molecular responses to survive drought stress. To reduce water loss, the closing of stomata and reduction in photosynthesis in leaves occur under water-limiting conditions [1]. This process is mainly mediated by abscisic acid (ABA), a plant hormone, which is derived from carotenoids, a group of natural pigments in plastids [2]. ABA plays a central role in drought tolerance by regulating stomatal closure, root growth and architecture, and transcription of stress-responsive genes [3]. Genes involved in ABA biosynthesis and signal transduction are evidently regulated by drought stress [4,5,6].
The generation of reactive oxygen species (ROS) in plants is another typical response to drought stress. Excessive ROS subsequently causes damage to lipids, proteins, and DNA molecules. On the other hand, plants synthesize antioxidant enzymes and other antioxidants to scavenge ROS [7]. Besides, abiotic stresses, including drought, lead to the accumulation of denatured or dysfunctional proteins, which are harmful to plant growth and development [8]. Heat shock proteins (HSPs) are a group of chaperones associated with protein folding, translocation, and homeostasis. They are produced in response to abiotic stresses, including drought, and are known to refold denatured proteins to their normal structures [9,10]. Plants also impose post-translational regulation through the 26S proteasome to cope with drought stress. E3 ubiquitin ligases, a major component of the 26S proteasome, reportedly regulate tolerance to drought and other abiotic stresses by targeting and degrading the transcription factors dehydration-responsive element binding protein2a [11] and wheat bel1-type homeodomain1 [12], cytosolic regulatory particle non-ATPase 12a [13], and aquaporin [14]. Despite common responses to drought, drought sensitivity and tolerance mechanisms differ in plants across species or during different developmental stages.
Garlic (Allium sativum L.) is an economically important, monocotyledonous plant with a unique smell and aroma. Being a shallow-rooted plant, garlic is sensitive to water stress. Proper irrigation is vital to its growth, development, and yield. The bolting/bulbing stage is the most critical period during which adequate water supply is a must [15]. Therefore, assessing transcriptomic changes induced by drought stress in bolting/bulbing garlic plants should lead to the elucidation of pertinent mechanisms involved in tolerance to drought during this critical stage.
In this study, we subjected bolting/bulbing hardneck garlic plants to drought stress for 7 days. Transcriptomic analysis of garlic leaves under normal conditions and drought stress was performed, resulting in the identification of 5215 differentially expressed genes (DEGs): 2748 and 2467 genes were up- and downregulated by >2 fold, respectively. Gene ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway analyses revealed that these genes were involved in diverse biological processes. Genes encoding ABA biosynthetic enzymes, HSPs, and E3 ubiquitin ligases seemed to be involved in drought tolerance. In addition, we identified commonly and reversely regulated genes affected by drought and salinity stress in garlic.

2. Materials and Methods

2.1. Plants and Growth Conditions

Bulbs of the garlic (A. sativum L.) cultivar “Purple Glazer” were purchased from a local market. Purple Glazer is a hardneck cultivar with purple bulb skin (Figure 1A). Healthy garlic cloves were planted in a field at Throckmorton Purdue Agricultural Center in November 2019.

2.2. Drought Stress Treatment and Physiological Measurements

Approximately 5-month-old garlic plants were transplanted into a greenhouse and allowed to grow for another 2 weeks at 25 °C and 14-h light/10-h dark cycle. The plants that started to bolt were exposed to drought stress (1 June 2020–8 June 2020) by withholding water, while well-watered plants served as control. Subsequently, we measured the photosynthesis rate of control and drought-treated plants using LI-COR 6400XT (LI-COR, Lincoln, NE), according to manufacturer instructions, followed by shoot height and shoot fresh weight (FW) measurement. Shoot dry weight (DW) was measured after shoots were dried at 80 °C for 3 days. Leaf water content was calculated using the formula [(FW − DW)/FW] × 100. All measurements were obtained from at least three plants. Statistical analysis was performed using Student’s t-test. Some leaves were collected in liquid nitrogen and stored at −80 °C for RNA extraction.

2.3. RNA Extraction and Library Construction

Total RNA was extracted from garlic leaf tissues using an E.Z.N.A.® Plant RNA Kit (Omega Bio-Tek Company, Norcross, GA, USA), according to manufacturer instructions. RNA quality and quantity were first estimated using a NanoDrop™ One/OneC Microvolume UV-Vis Spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA) and then on an Agilent 2100 Bioanalyzer System (Santa Clara, CA, USA). Only RNA samples with RNA integrity number of >8.0 were used for library construction. RNA-seq libraries of drought-treated and control garlic leaves were constructed using 4 µg total RNA with the TruSeq Stranded mRNA Sample Preparation Kit (Illumina Company, San Diego, CA, USA). Adaptor sequences are listed in Supplementary Table S1. The libraries were sequenced on an Illumina NovaSeq 6000 sequencing platform to generate 2 × 150 bp paired-end reads.

2.4. RNA-Seq Data Analysis and Functional Annotation

Raw RNA-seq reads were first processed by trimming the adaptor and low quality sequences using Trimmomatic [16]. The reads were then aligned to the rRNA database using Bowtie [17] allowing up to three mismatches [18]. The resultant rRNA-mapped reads were removed, and clean RNA-seq reads were mapped to the garlic reference genome using STAR [19,20]. Following alignments, raw counts for each gene were calculated and then normalized to fragments per kilobase of exon model per million mapped fragments (FPKM). We herein used FPKM values to measure gene expression levels; therefore, the reported LFCs are fold changes of mean FPKM values of drought-treated samples to those of control samples. The raw p-values were adjusted for multiple tests using the false discovery rate [21]. DEGs were identified using DESeq2 [22], with the criteria being log2(fold change) ≥1 or ≤−1 and adjusted p ≤ 0.05. We annotated the predicted protein-coding genes in the garlic genome by comparing their protein sequences to the GenBank non-redundant (NR) database using BLASTp (E-value cutoff = 1 × 10−5). We also compared protein sequences to the InterPro database using InterProScan [23]. GO annotations were assigned using Blast2GO [24] based on BLASTp results from the NR database and the output from InterProScan. Enriched GO terms were identified using the Blast2GO suite. Pathway annotation was performed with BlastKOALA [25], and significantly enriched pathways were identified using the hypergeometric test.

3. Results

3.1. Drought Stress Significantly Affected the Growth of Garlic Plants

To examine the impact of drought stress on garlic growth, garlic plants that started to bolt were transplanted into a greenhouse and subjected to drought stress by withholding water. On exposure to drought stress, the plants began to wilt; senescence occurred in the tips of leaves. Seven days post-treatment, the plants were clearly affected by drought conditions, showing wilted brown leaves. Under control, well-watered conditions, the plants showed normal growth (Figure 1B). At the end of the treatment, the photosynthesis rate, shoot height, shoot fresh weight, and leaf water content were 0.43 μmol m−2s−1, 36.2 cm, 18.4 g, and 81.2%, respectively, whereas under normal conditions, the values were 6.72 μmol m−2s−1, 52.6 cm, 35.4 g, and 86.1% (Figure 2), respectively, indicating that drought stress detrimentally influenced plant metabolism and growth.

3.2. RNA-Seq Analysis under Normal Conditions and Drought Stress

Six libraries for RNA-seq were prepared from three replicates of leaves collected under normal conditions and drought stress (Supplementary Table S1). A total of 424,788,158 raw reads and 388,865,998 clean reads were accordingly generated. Approximately 87.05–94.83% reads from each sample were mapped to the assembled garlic genome [19] (Supplementary Table S2), of which around 83.47% were aligned to the regions of the predicted protein-coding genes, while the remaining 16.53% were aligned to the potential non-coding regions (Supplementary Table S3).
Using the criteria adjusted p ≤ 0.05 and fold change ≥ 2.0, 5215 DEGs were identified, among which, 2748 genes were upregulated and 2467 were downregulated (Figure 3, Supplementary Table S4).

3.3. Functional Categorization of DEGs

GO annotation analysis of DEGs revealed that the upregulated DEGs were primarily involved in “biological process”, “metabolic process”, and “oxidation–reduction process” (Figure 4A). Besides, pathways associated with carbohydrate and lipid metabolism were upregulated, such as “carbohydrate metabolic process”, “cellular carbohydrate catabolic process”, “oligosaccharide metabolic process”, “monosaccharide metabolic process”, “lipid metabolic process”, and “cellular lipid metabolic process”, indicating that drought stress altered carbohydrate and lipid metabolism in garlic leaves (Figure 4A, Supplementary Table S5). The removal of denatured or oxidized proteins is important for plants to survive drought stress, and drought has been found to increase proteases and peptidases involved in this process [26]. In garlic leaves, “proteolysis” (75 genes) was enriched among the upregulated DEGs (Figure 4A).
The downregulated DEGs were mainly involved in “biological process” and metabolism of various molecules, such as “organic substance metabolic process”, “primary metabolic process”, “nitrogen compound metabolic process”, “macromolecule metabolic process”, and “organonitrogen compound metabolic process”, suggesting a decrease in these pathways within plant cells (Figure 4B). Moreover, the “photosynthesis”, “photosynthesis, light harvesting”, and “chlorophyll metabolic process” pathways were downregulated (Figure 4B), which was consistent with the decrease in the photosynthesis rate in garlic leaves upon exposure to drought stress (Figure 2A).

3.4. Altered Pathways in Garlic Leaves by Drought

KEGG pathway enrichment analysis showed that the pathways associated with metabolism (secondary metabolites, starch and sucrose, phenylpropanoid, glycerolipid, and so on) and signal transduction (plant hormone, estrogen, MAPK signaling pathways, and plant-pathogen interaction) were up-regulated in the leaves after drought treatment (Figure 5A, Supplemental Table S6). On the other hand, the “carbon fixation in photosynthetic organisms”, “photosynthesis”, “photosynthesis-antenna proteins”, “porphyrin and chlorophyll metabolism” were downregulated, in line with the reduced photosynthesis rate in leaves under drought conditions (Figure 5B). The other downregulated pathways included “Biosynthesis of amino acids”, “Plant hormone signal transduction”, “Glyoxylate and dicarboxylate metabolism”, “Ribosome biogenesis in eukaryotes”, and others (Figure 5B, Supplemental Table S6).

3.5. ABA Biosynthesis Pathway Was Substantially Enhanced in Drought-Treated Garlic Leaves

ABA is derived from carotenoids, which are a group of C40 natural pigments [2]. In the carotenoid and ABA biosynthesis pathway, beta-carotene hydroxylase (BCH) is responsible for the hydroxylation of beta-carotene [27], ABA deficient 4 (ABA4) catalyzes the isomerization of neoxanthin and violaxanthin [28,29], and 9-cis-epoxycarotenoid dioxygenase (NCED) acts as the key rate-limiting enzyme by cleaving 9-cis-violaxanthin and 9′-cis-neoxanthin [30]. ABA 8′-hydrolase catalyzes the first step in ABA degradation [31]. The expression levels of BCH (Asa2G00137), NCED (Asa7G02488, Asa7G02486, Asa7G02487, Asa7G02375, and Asa3G00834), ABA4 (Asa5G01287) were significantly upregulated, whereas those of ABA 8′-hydroxylase (Asa1G00338) were downregulated by drought (Figure 6), possibly resulting in elevated ABA accumulation in garlic leaves.

3.6. HSPs and E3 Ubiquitin Ligases Were Significantly Upregulated

HSPs function as molecular chaperones, mediating protein folding, assembly, translocation, and degradation under normal and stress conditions [32]. HSPs have been reported to be commonly induced by drought and other stresses, probably enhancing plant tolerance by re-establishing normal protein conformation and protein homeostasis [33]. In drought-treated garlic leaves, 124 genes encoding HSPs were significantly upregulated, including 62 class I HSPs, 22 70-kDA HSPs, 14 class II HSP-like, and other HSPs (Figure 7 and Supplementary Table S4). E3 ubiquitin ligase is the major component of the ubiquitin-mediated protein degradation pathway and determines substrate specificity [34]. The expression of 24 E3 ubiquitin ligase genes was induced by drought in garlic leaves (Figure 7 and Supplementary Table S4), indicating that ubiquitin-mediated protein degradation was significantly enhanced in response to drought.

3.7. Commonly and Reversely Regulated-DEGs in Garlic Leaves on Exposure to Drought and Salinity Stresses

Drought and salinity are two major abiotic stresses that impact agriculture. In a separate study, 3616 DEGs (1571 up- and 2045 downregulated) were identified by RNA-seq in garlic leaves exposed to salinity stress (GenBank accession no. PRJNA682570). We herein simply compared DEGs to identify common and unique genes altered by drought and salinity stresses. Only 9.3% (256 out of 2748 genes) genes upregulated under drought conditions were also upregulated in response to salinity stress, indicating that drought and salinity treatment activated distinct responses in garlic leaves. These genes were associated with, for example, “metabolic pathways”, “biosynthesis of secondary metabolites”, “protein processing in endoplasmic reticulum”, and “MAPK signaling pathway” (Figure 8). On the other hand, 24.8% (611 out of 2467) genes downregulated under drought conditions were also suppressed by salinity. These genes were associated with, for example, “metabolic pathways”, ” biosynthesis of secondary metabolites”, carbon metabolism, “photosynthesis”, “glyoxylate and dicarboxylate metabolism”, and “plant hormone signal transduction” (Figure 8), suggesting that both drought and salinity negatively affected the metabolism of various molecules, photosynthesis, as well as signal transduction. Interestingly, 136 genes involved in “ribosome biogenesis in eukaryotes”, “biosynthesis of secondary metabolites”, “starch and sucrose metabolism”, “RNA degradation”, “galactose metabolism”, and other pathways were upregulated under salinity stress but downregulated under drought conditions (Figure 8). On the contrary, 169 genes involved in “metabolic pathways”, “biosynthesis of secondary metabolites”, “tyrosine metabolism”, “glycerolipid metabolism”, “glycine, serine and threonine metabolism”, and other pathways were downregulated by salinity stress but upregulated under drought conditions (Figure 8).

4. Discussion

In the case of hardneck garlic accessions, scapes and bulbs initially form around the same time in May or June. This developmental stage has been reported to be affected by various environmental factors, such as temperature and photoperiod [35], and in garlic, it is the most sensitive stage to drought stress [15]. In this study, we performed RNA-seq to examine transcriptomic changes in garlic plants exposed to drought stress during the bolting/bulbing stage. Mapping the sequencing reads to the garlic reference genome and statistical analysis led to the identification of 5215 DEGs, providing insights into the molecular mechanisms involved in drought tolerance.
The primary regulation of gene expression by abiotic stresses occurs at the transcrip-tion level [36]. RNA processing follows, wherein pre-mRNAs become mature mRNAs, including the modification of RNA molecules and removal of introns by splicing. Alternative splicing under abiotic stress has been reported in previous RNA-seq studies [37,38], demonstrating that RNA-seq is a powerful method to study gene expression regulation at the transcriptional and post-transcriptional levels. In addition, it should be noted that pervasive expression of the eukaryotic genome produces a great number of non-protein-coding RNAs (ncRNAs) as well as protein-coding mRNAs [39]. ncRNAs occur at the low level in plant cells, but accumulating evidence indicates their involvement in plant growth, reproduction, and abiotic stress responses [40,41,42]. In a previous study, 57,561 protein-coding genes and 20,008 non-coding RNAs were identified in garlic [19]. Although the focus of this study was to identify protein-coding genes that were differentially expressed in response to drought stress, investigating differentially expressed ncRNAs under the same conditions is an interesting topic for future studies. ABA levels are induced by drought stress and play essential roles in drought tolerance [43]. The enhanced accumulation of ABA in response to drought is mainly due to elevated transcription of vital carotenoid and ABA biosynthetic genes. For example, BCH was found to be upregulated by water stress in rice [44]. NCED was strongly induced by drought stress in Arabidopsis [45], cowpea [46], peanut [47], wheat [48], rice [4], and tomato [49]. ABA4 expression was necessary to dehydration-induced ABA biosynthesis [28]. ABA levels in response to drought stress are also determined by ABA catabolism. ABA 8′-hydroxylase (CYP707A3) was found to determine ABA threshold levels during dehydration and after rehydration [50]. In response to drought, BCH, NCED, and ABA4 levels were significantly upregulated in garlic, whereas ABA 8′-hydroxylase level was downregulated. The reverse regulation of ABA biosynthesis and catabolism possibly led to enhanced accumulation of ABA in leaves, revealing that garlic probably utilizes the same mechanism to cope with drought stress. These genes can serve as targets for improving the tolerance of garlic plants to drought stress.
Drought and other abiotic stresses often cause protein denaturation and aggregation, which is toxic to plant cells [8]. Therefore, maintaining the conformation of proteins and preventing the aggregation of misfolded ones is critical for plant survival under drought or other stresses. One strategy that plants utilize is to produce HSPs, which facilitate refolding of denatured proteins [9,10]. Although HSPs are commonly induced by heat stress [51], they have also been reported to be upregulated by other abiotic stresses [52,53]. For example, OsHSP50.2, sHSP17.7, AtHsp90.2, AtHsp90.5, and AtHsp90.7 overexpression was found to enhance the tolerance of rice and Arabidopsis to drought, indicating that HSP production is one of adaptive mechanisms used by plants to tackle drought [54,55]. Likewise, we observed that 124 genes encoding various HSPs were significantly induced by drought stress in garlic (Figure 7 and Supplementary Table S4), indicating that refolding of denatured proteins is perhaps an essential mechanisms induced by garlic to tolerate drought stress.
The ubiquitin/26S proteasome is a major protein degradation system in the nucleus and cytosol of plant cells and is involved in various processes, such as light signaling, plant hormone signaling, and abiotic stress responses [56,57]. In this system, E1, E2, and E3 ubiquitin ligases mediate ubiquitin ligation to target proteins. The genome of Arabidopsis contains two E1, 37 E2, and >1300 E3 genes [58]. A large number of E3 ubiquitin ligases indicates their involvement in diverse processes. Indeed, the expression of 24 E3 ubiquitin ligase genes was induced by drought in garlic leaves (Figure 7 and Supplementary Table S4). These E3 ubiquitin ligases probably have two functions. The first is to remove denatured or dysfunctional proteins generated in response to drought. The α2 subunit of 26S proteasome was found to play a similar role in rice, conferring thermotolerance [59]. The second is to remove suppressors of drought signaling [60], regulating drought tolerance at the post-translational level in garlic.
Drought and salinity are significant abiotic stresses that pose a major threat to agriculture. Common physiological consequences imposed by them include cell dehydration and ROS production [61]. Herein we found that 16.6% (867 out of 5215 genes) of drought-regulated genes were altered by salinity stress in the same manner. In comparison, 5.8% (305 out of 5215 genes) of drought-regulated genes were reversely influenced by salinity. These genes possibly form the molecular basis of dissimilar and similar physiological responses to drought and salinity stresses. Further functional analysis of these genes should provide a novel strategy to produce garlic plants with better tolerance to both drought and salinity or improve drought or salinity tolerance without detrimental effects on other stress defense mechanisms.

5. Conclusions

Transcriptomic analyses of hardneck garlic at the bolting/bulbing stage suggested that ABA biosynthesis and protein homeostasis possibly play essential roles in drought tolerance, furthering our understanding of the underlying molecular mechanisms.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4395/11/2/246/s1, Table S1: Sample sequencing statistics, Table S2: Summary statistics of the RNA-seq results, Table S3: Garlic genes identified in the study, Table S4: The DEGs identified in the garlic leaves after drought treatment, Table S5: GO terms analysis of the DEGs from drought-treated leaves, Table S6: KEGG pathways enriched in drought treatment.

Author Contributions

Conceptualization, X.Z. and C.Z.; investigation, X.Z., J.A.C.-A., X.L., and S.J.C.-P.; resources, M.V.V.; writing—original draft preparation, X.Z.; writing—review and editing, C.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by Nexus Crops CRISPR and Phenomics: Individual and Institutional Capacity Building for Crop Science at Universidad Nacional de San Agustin (UNSA), Peru and the USDA National Institute of Food and Agriculture (Hatch project 1007567).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

RNA-Seq data in this study have been deposited in GenBank with BioProject ID. PRJNA683607.

Acknowledgments

We thank Zhangjun Fei for his help with bioinformatics analysis. We are grateful to Throckmorton Purdue Agricultural Center for helping us grow garlic.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cornic, G. Drought stress inhibits photosynthesis by decreasing stomatal aperture-not by affecting ATP synthesis. Trends Plant Sci. 2000, 5, 187–188. [Google Scholar] [CrossRef]
  2. Parry, A.D.; Horgan, R. Carotenoids and abscisic acid (ABA) biosynthesis in higher plants. Physiol. Plant 1991, 82, 320–326. [Google Scholar] [CrossRef]
  3. Sah, S.K.; Reddy, K.R.; Li, J. Abscisic acid and abiotic stress tolerance in crop plants. Front. Plant Sci. 2016, 7, 571. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Huang, Y.; Guo, Y.; Liu, Y.; Zhang, F.; Wang, Z.; Wang, H.; Wang, F.; Li, D.; Mao, D.; Luan, S.; et al. 9-cis-epoxycarotenoid dioxygenase 3 regulates plant growth and enhances multi-abiotic stress tolerance in rice. Front. Plant Sci. 2018, 9, 162. [Google Scholar] [CrossRef]
  5. Fujita, Y.; Nakashima, K.; Yoshida, T.; Katagiri, T.; Kidokoro, S.; Kanamori, N.; Umezawa, T.; Fujita, M.; Maruyama, K.; Ishiyama, K.; et al. Three SnRK2 protein kinases are the main positive regulators of abscisic acid signaling in response to water stress in Arabidopsis. Plant Cell Physiol. 2009, 50, 2123–2132. [Google Scholar] [CrossRef] [Green Version]
  6. Yoshida, T.; Fujita, Y.; Sayama, H.; Kidokoro, S.; Maruyama, K.; Mizoi, J.; Shinozaki, K.; Yamaguchi-Shinozaki, K. AREB1, AREB2, and ABF3 are master transcription factors that cooperatively regulate ABRE-dependent ABA signaling involved in drought stress tolerance and require ABA for full activation. Plant J. 2010, 61, 672–685. [Google Scholar] [CrossRef]
  7. Apel, K.; Hirt, H. Reactive oxygen species: Metabolism, oxidative stress, and signal transduction. Annu. Rev. Plant Biol. 2004, 55, 373–399. [Google Scholar] [CrossRef] [Green Version]
  8. Dos Reis, S.P.; Lima, A.M.; de Souza, C.R.B. Recent molecular advances on downstream plant responses to abiotic stress. Int. J. Mol. Sci. 2012, 13, 8628–8647. [Google Scholar] [CrossRef]
  9. Wang, W.; Vinocur, B.; Shoseyov, O.; Altman, A. Role of plant heat-shock proteins and molecular chaperones in the abiotic stress response. Trends Plant Sci. 2004, 9, 244–252. [Google Scholar] [CrossRef]
  10. Singh, R.K.; Jaishankar, J.; Muthamilarasan, M.; Shweta, S.; Dangi, A.; Prasad, M. Genome-wide analysis of heat shock proteins in C4 model, foxtail millet identifies potential candidates for crop improvement under abiotic stress. Sci. Rep. 2016, 6, 32641. [Google Scholar] [CrossRef] [Green Version]
  11. Qin, F.; Sakuma, Y.; Tran, L.S.; Maruyama, K.; Kidokoro, S.; Fujita, Y.; Fujita, M.; Umezawa, T.; Sawano, Y.; Miyazono, K.; et al. Arabidopsis DREB2A-interacting proteins function as RING E3 ligases and negatively regulate plant drought stress-responsive gene expression. Plant Cell 2008, 20, 1693–1707. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Guerra, D.; Mastrangelo, A.M.; Lopez-Torrejon, G.; Marzin, S.; Schweizer, P.; Stanca, A.M.; del Pozo, J.C.; Cattivelli, L.; Mazzucotelli, E. Identification of a protein network interacting with TdRF1, a wheat RING ubiquitin ligase with a protective role against cellular dehydration. Plant Physiol. 2012, 158, 777–789. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Cho, S.K.; Ryu, M.Y.; Song, C.; Kwak, J.M.; Kim, W.T. Arabidopsis PUB22 and PUB23 are homologous U-Box E3 ubiquitin ligases that play combinatory roles in response to drought stress. Plant Cell 2008, 20, 1899–1914. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Lee, H.K.; Cho, S.K.; Son, O.; Xu, Z.; Hwang, I.; Kim, W.T. Drought stress-induced Rma1H1, a RING membrane-anchor E3 ubiquitin ligase homolog, regulates aquaporin levels via ubiquitination in transgenic Arabidopsis plants. Plant Cell 2009, 21, 622–641. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Neeraj, S.; Sushila, K.; Neeraj, D.; Milind, P.; Minakashi, P. Garlic: A pungent wonder from nature. Int. Res. J. Pharm. 2014, 5, 523–529. [Google Scholar] [CrossRef]
  16. Bolger, A.M.; Lohse, M.; Usadel, B. Trimmomatic: A flexible trimmer for Illumina sequence data. Bioinformatics 2014, 30, 2114–2120. [Google Scholar] [CrossRef] [Green Version]
  17. Langmead, B. Aligning short sequencing reads with bowtie. Curr. Protoc. Bioinform. 2010, 32, 11.17.11–11.17.14. [Google Scholar] [CrossRef]
  18. Quast, C.; Pruesse, E.; Yilmaz, P.; Gerken, J.; Schweer, T.; Yarza, P.; Peplies, J.; Glöckner, F.O. The SILVA ribosomal RNA gene database project: Improved data processing and web-based tools. Nucleic Acids Res. 2013, 41, D590–D596. [Google Scholar] [CrossRef]
  19. Sun, X.; Zhu, S.; Li, N.; Cheng, Y.; Zhao, J.; Qiao, X.; Lu, L.; Liu, S.; Wang, Y.; Liu, C.; et al. A chromosome-level genome assembly of garlic (Allium sativum) provides insights into genome evolution and allicin biosynthesis. Mol. Plant 2020, 13, 1328–1339. [Google Scholar] [CrossRef]
  20. Dobin, A.; Davis, C.A.; Schlesinger, F.; Drenkow, J.; Zaleski, C.; Jha, S.; Batut, P.; Chaisson, M.; Gingeras, T.R. STAR: Ultrafast universal RNA-seq aligner. Bioinformatics 2013, 29, 15–21. [Google Scholar] [CrossRef]
  21. Benjamini, Y.; Hochberg, Y. Controlling the false discovery rate: A practical and powerful approach to multiple testing. J. R. Stat. Soc. 1995, 57, 289–300. [Google Scholar] [CrossRef]
  22. Love, M.I.; Huber, W.; Anders, S. Moderated estimation of fold change and dispersion for RNA-seq data with DESeq2. Genome Biol. 2014, 15, 550. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Jones, P.; Binns, D.; Chang, H.Y.; Fraser, M.; Li, W.; McAnulla, C.; McWilliam, H.; Maslen, J.; Mitchell, A.; Nuka, G.; et al. InterProScan 5: Genome-scale protein function classification. Bioinformatics 2014, 30, 1236–1240. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Götz, S.; García-Gómez, J.M.; Terol, J.; Williams, T.D.; Nagaraj, S.H.; Nueda, M.J.; Robles, M.; Talón, M.; Dopazo, J.; Conesa, A. High-throughput functional annotation and data mining with the Blast2GO suite. Nucleic Acids Res. 2008, 36, 3420–3435. [Google Scholar] [CrossRef] [PubMed]
  25. Kanehisa, M.; Sato, Y.; Morishima, K. BlastKOALA and GhostKOALA: KEGG tools for functional characterization of genome and metagenome sequences. J. Mol. Biol. 2016, 428, 726–731. [Google Scholar] [CrossRef] [Green Version]
  26. Wang, X.; Cai, X.; Xu, C.; Wang, Q.; Dai, S. Drought-responsive mechanisms in plant leaves revealed by proteomics. Int. J. Mol. Sci. 2016, 17, 1706. [Google Scholar] [CrossRef] [Green Version]
  27. Kim, J.; Smith, J.J.; Tian, L.; Dellapenna, D. The evolution and function of carotenoid hydroxylases in Arabidopsis. Plant Cell Physiol. 2009, 50, 463–479. [Google Scholar] [CrossRef] [Green Version]
  28. North, H.M.; De Almeida, A.; Boutin, J.P.; Frey, A.; To, A.; Botran, L.; Sotta, B.; Marion-Poll, A. The Arabidopsis ABA-deficient mutant aba4 demonstrates that the major route for stress-induced ABA accumulation is via neoxanthin isomers. Plant J. 2007, 50, 810–824. [Google Scholar] [CrossRef]
  29. Perreau, F.; Frey, A.; Effroy-Cuzzi, D.; Savane, P.; Berger, A.; Gissot, L.; Marion-Poll, A. ABSCISIC ACID-DEFICIENT4 has an essential function in both cis-violaxanthin and cis-neoxanthin synthesis. Plant Physiol. 2020, 184, 1303–1316. [Google Scholar] [CrossRef]
  30. Qin, X.; Zeevaart, J.A.D. The 9-cis-epoxycarotenoid cleavage reaction is the key regulatory step of abscisic acid biosynthesis in water-stressed bean. Proc. Natl. Acad. Sci. USA 1999, 96, 15354–15361. [Google Scholar] [CrossRef] [Green Version]
  31. Krochko, J.E.; Abrams, G.D.; Loewen, M.K.; Abrams, S.R.; Cutler, A.J. (+)-Abscisic acid 8′-hydroxylase is a cytochrome P450 monooxygenase. Plant Physiol. 1998, 118, 849–860. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Park, C.-J.; Seo, Y.-S. Heat shock proteins: A review of the molecular chaperones for plant immunity. Plant Pathol. J. 2015, 31, 323–333. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Augustine, S.M. Function of heat-shock proteins in drought tolerance regulation of plants. In Drought Stress Tolerance in Plants, Vol 1: Physiol.ogy and Biochemistry; Hossain, M.A., Wani, S.H., Bhattacharjee, S., Burritt, D.J., Tran, L.-S.P., Eds.; Springer International Publishing: Cham, Switzerland, 2016; pp. 163–185. [Google Scholar]
  34. Chen, L.; Hellmann, H. Plant E3 ligases: Flexible enzymes in a sessile world. Mol. Plant 2013, 6, 1388–1404. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Wu, C.; Wang, M.; Cheng, Z.; Meng, H. Response of garlic (Allium sativum L.) bolting and bulbing to temperature and photoperiod treatments. Biol. Open 2016, 5, 507–518. [Google Scholar] [CrossRef] [Green Version]
  36. Haak, D.C.; Fukao, T.; Grene, R.; Hua, Z.; Ivanov, R.; Perrella, G.; Li, S. Multilevel regulation of abiotic stress responses in plants. Front. Plant Sci. 2017, 8, 1564. [Google Scholar] [CrossRef]
  37. Zhu, G.; Li, W.; Zhang, F.; Guo, W. RNA-seq analysis reveals alternative splicing under salt stress in cotton, Gossypium davidsonii. BMC Genom. 2018, 19, 73. [Google Scholar] [CrossRef]
  38. Filichkin, S.A.; Hamilton, M.; Dharmawardhana, P.D.; Singh, S.K.; Sullivan, C.; Ben-Hur, A.; Reddy, A.S.N.; Jaiswal, P. Abiotic stresses modulate landscape of poplar transcriptome via alternative splicing, differential intron retention, and isoform ratio switching. Front. Plant Sci. 2018, 9, 5. [Google Scholar] [CrossRef] [Green Version]
  39. Dinger, M.E.; Amaral, P.P.; Mercer, T.R.; Mattick, J.S. Pervasive transcription of the eukaryotic genome: Functional indices and conceptual implications. Brief. Funct. Genom. 2009, 8, 407–423. [Google Scholar] [CrossRef]
  40. Di, C.; Yuan, J.; Wu, Y.; Li, J.; Lin, H.; Hu, L.; Zhang, T.; Qi, Y.; Gerstein, M.B.; Guo, Y.; et al. Characterization of stress-responsive lncRNAs in Arabidopsis thaliana by integrating expression, epigenetic and structural features. Plant J. 2014, 80, 848–861. [Google Scholar] [CrossRef]
  41. Wang, Y.; Fan, X.; Lin, F.; He, G.; Terzaghi, W.; Zhu, D.; Deng, X.W. Arabidopsis noncoding RNA mediates control of photomorphogenesis by red light. Proc. Natl. Acad. Sci. USA 2014, 111, 10359–10364. [Google Scholar] [CrossRef] [Green Version]
  42. Wang, D.; Qu, Z.; Yang, L.; Zhang, Q.; Liu, Z.-H.; Do, T.; Adelson, D.L.; Wang, Z.-Y.; Searle, I.; Zhu, J.-K. Transposable elements (TEs) contribute to stress-related long intergenic noncoding RNAs in plants. Plant J. 2017, 90, 133–146. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Bray, E.A. Drought- and ABA-induced changes in polypeptide and mRNA accumulation in tomato leaves. Plant Physiol. 1988, 88, 1210–1214. [Google Scholar] [CrossRef] [PubMed]
  44. Du, H.; Wang, N.; Cui, F.; Li, X.; Xiao, J.; Xiong, L. Characterization of the beta-carotene hydroxylase gene DSM2 conferring drought and oxidative stress resistance by increasing xanthophylls and abscisic acid synthesis in rice. Plant Physiol. 2010, 154, 1304–1318. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Iuchi, S.; Kobayashi, M.; Taji, T.; Naramoto, M.; Seki, M.; Kato, T.; Tabata, S.; Kakubari, Y.; Yamaguchi-Shinozaki, K.; Shinozaki, K. Regulation of drought tolerance by gene manipulation of 9-cis-epoxycarotenoid dioxygenase, a key enzyme in abscisic acid biosynthesis in Arabidopsis. Plant J. 2001, 27, 325–333. [Google Scholar] [CrossRef] [Green Version]
  46. Iuchi, S.; Kobayashi, M.; Yamaguchi-Shinozaki, K.; Shinozaki, K. A stress-inducible gene for 9-cis-epoxycarotenoid dioxygenase involved in abscisic acid biosynthesis under water stress in drought-tolerant cowpea. Plant Physiol. 2000, 123, 553–562. [Google Scholar] [CrossRef] [Green Version]
  47. Wan, X.R.; Li, L. Regulation of ABA level and water-stress tolerance of Arabidopsis by ectopic expression of a peanut 9-cis-epoxycarotenoid dioxygenase gene. Biochem. Biophys. Res. Commun. 2006, 347, 1030–1038. [Google Scholar] [CrossRef]
  48. Tong, S.M.; Xi, H.X.; Ai, K.J.; Hou, H.S. Overexpression of wheat TaNCED gene in Arabidopsis enhances tolerance to drought stress and delays seed germination. Biol. Plant 2017, 61, 64–72. [Google Scholar] [CrossRef]
  49. Thompson, A.J.; Jackson, A.C.; Parker, R.A.; Morpeth, D.R.; Burbidge, A.; Taylor, I.B. Abscisic acid biosynthesis in tomato: Regulation of zeaxanthin epoxidase and 9-cis-epoxycarotenoid dioxygenase mRNAs by light/dark cycles, water stress and abscisic acid. Plant Mol. Biol. 2000, 42, 833–845. [Google Scholar] [CrossRef]
  50. Umezawa, T.; Okamoto, M.; Kushiro, T.; Nambara, E.; Oono, Y.; Seki, M.; Kobayashi, M.; Koshiba, T.; Kamiya, Y.; Shinozaki, K. CYP707A3, a major ABA 8′-hydroxylase involved in dehydration and rehydration response in Arabidopsis thaliana. Plant J. 2006, 46, 171–182. [Google Scholar] [CrossRef]
  51. Iba, K. Acclimative Response to temperature stress in higher plants: Approaches of gene engineering for temperature tolerance. Annu. Rev. Plant Biol. 2002, 53, 225–245. [Google Scholar] [CrossRef] [Green Version]
  52. Scarpeci, T.E.; Zanor, M.I.; Valle, E.M. Investigating the role of plant heat shock proteins during oxidative stress. Plant Signal. Behav. 2008, 3, 856–857. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Ye, S.; Yu, S.; Shu, L.; Wu, J.; Wu, A.; Luo, L. Expression profile analysis of 9 heat shock protein genes throughout the life cycle and under abiotic stress in rice. Chin. Sci. Bull. 2012, 57, 336–343. [Google Scholar] [CrossRef] [Green Version]
  54. Sato, Y.; Yokoya, S. Enhanced tolerance to drought stress in transgenic rice plants overexpressing a small heat-shock protein, sHSP17.7. Plant Cell Rep. 2008, 27, 329–334. [Google Scholar] [CrossRef]
  55. Xiang, J.; Chen, X.; Hu, W.; Xiang, Y.; Yan, M.; Wang, J. Overexpressing heat-shock protein OsHSP50.2 improves drought tolerance in rice. Plant Cell Rep. 2018, 37, 1585–1595. [Google Scholar] [CrossRef]
  56. Vierstra, R.D. The ubiquitin–26S proteasome system at the nexus of plant biology. Nat. Rev. Mol. Cell Biol. 2009, 10, 385–397. [Google Scholar] [CrossRef] [PubMed]
  57. Stone, S.L. The role of ubiquitin and the 26S proteasome in plant abiotic stress signaling. Front. Plant Sci. 2014, 5, 135. [Google Scholar] [CrossRef]
  58. Smalle, J.; Vierstra, R.D. The ubiquitin 26S proteasome proteolytic pathway. Annu. Rev. Plant Biol. 2004, 55, 555–590. [Google Scholar] [CrossRef]
  59. Li, X.-M.; Chao, D.-Y.; Wu, Y.; Huang, X.; Chen, K.; Cui, L.-G.; Su, L.; Ye, W.-W.; Chen, H.; Chen, H.-C.; et al. Natural alleles of a proteasome α2 subunit gene contribute to thermotolerance and adaptation of African rice. Nat. Genet. 2015, 47, 827–833. [Google Scholar] [CrossRef]
  60. Lyzenga, W.J.; Stone, S.L. Abiotic stress tolerance mediated by protein ubiquitination. J. Exp. Bot. 2012, 63, 599–616. [Google Scholar] [CrossRef] [Green Version]
  61. Forni, C.; Duca, D.; Glick, B.R. Mechanisms of plant response to salt and drought stress and their alteration by rhizobacteria. Plant Soil 2017, 410, 335–356. [Google Scholar] [CrossRef]
Agronomy 11 00246 g001 550
Figure 1. Garlic cultivar (Purple Glazer) used in this study. (A). Garlic bulbs with purple skin. (B). Garlic plants grown under normal conditions (CK) and drought stress.
Figure 1. Garlic cultivar (Purple Glazer) used in this study. (A). Garlic bulbs with purple skin. (B). Garlic plants grown under normal conditions (CK) and drought stress.
Agronomy 11 00246 g001
Agronomy 11 00246 g002 550

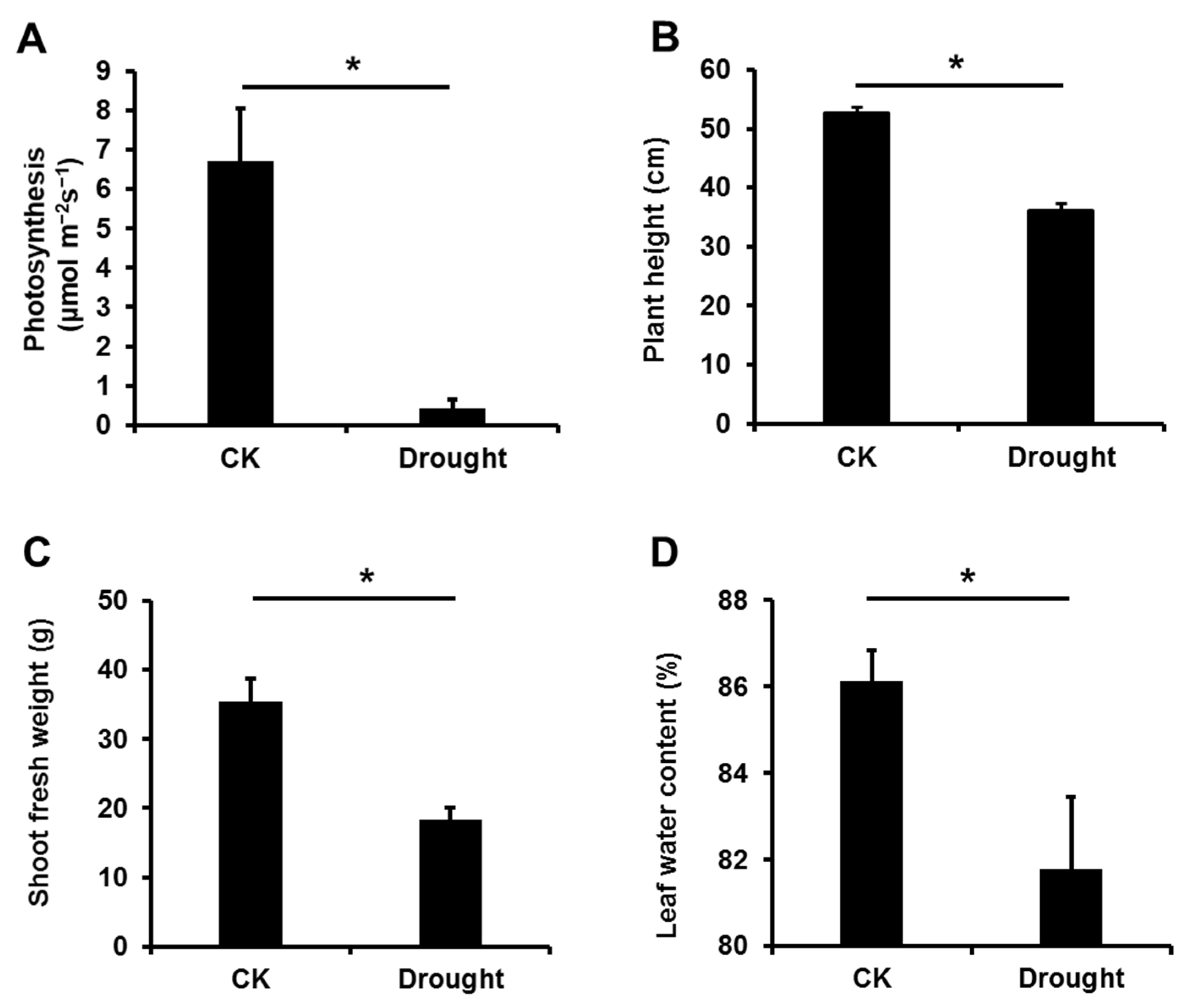

Figure 2. Physiological measurements performed using garlic plants at the end of drought treatment (A). Photosynthesis rate in leaves. (B). Plant height. (C). Shoot fresh weight. (D). Leaf water content. All measurements were obtained from at least three plants. Significance (*) was determined (t-test); p < 0.05 indicated statistical significance.
Figure 2. Physiological measurements performed using garlic plants at the end of drought treatment (A). Photosynthesis rate in leaves. (B). Plant height. (C). Shoot fresh weight. (D). Leaf water content. All measurements were obtained from at least three plants. Significance (*) was determined (t-test); p < 0.05 indicated statistical significance.
Agronomy 11 00246 g002
Agronomy 11 00246 g003 550
Figure 3. Differentially expressed genes (DEGs) were identified by comparing the transcriptomic profiles of drought-treated and control garlic leaves. The depicted plot was generated using an online platform (http://www.ehbio.com/Cloud_Platform/front/#/).
Figure 3. Differentially expressed genes (DEGs) were identified by comparing the transcriptomic profiles of drought-treated and control garlic leaves. The depicted plot was generated using an online platform (http://www.ehbio.com/Cloud_Platform/front/#/).
Agronomy 11 00246 g003
Agronomy 11 00246 g004 550

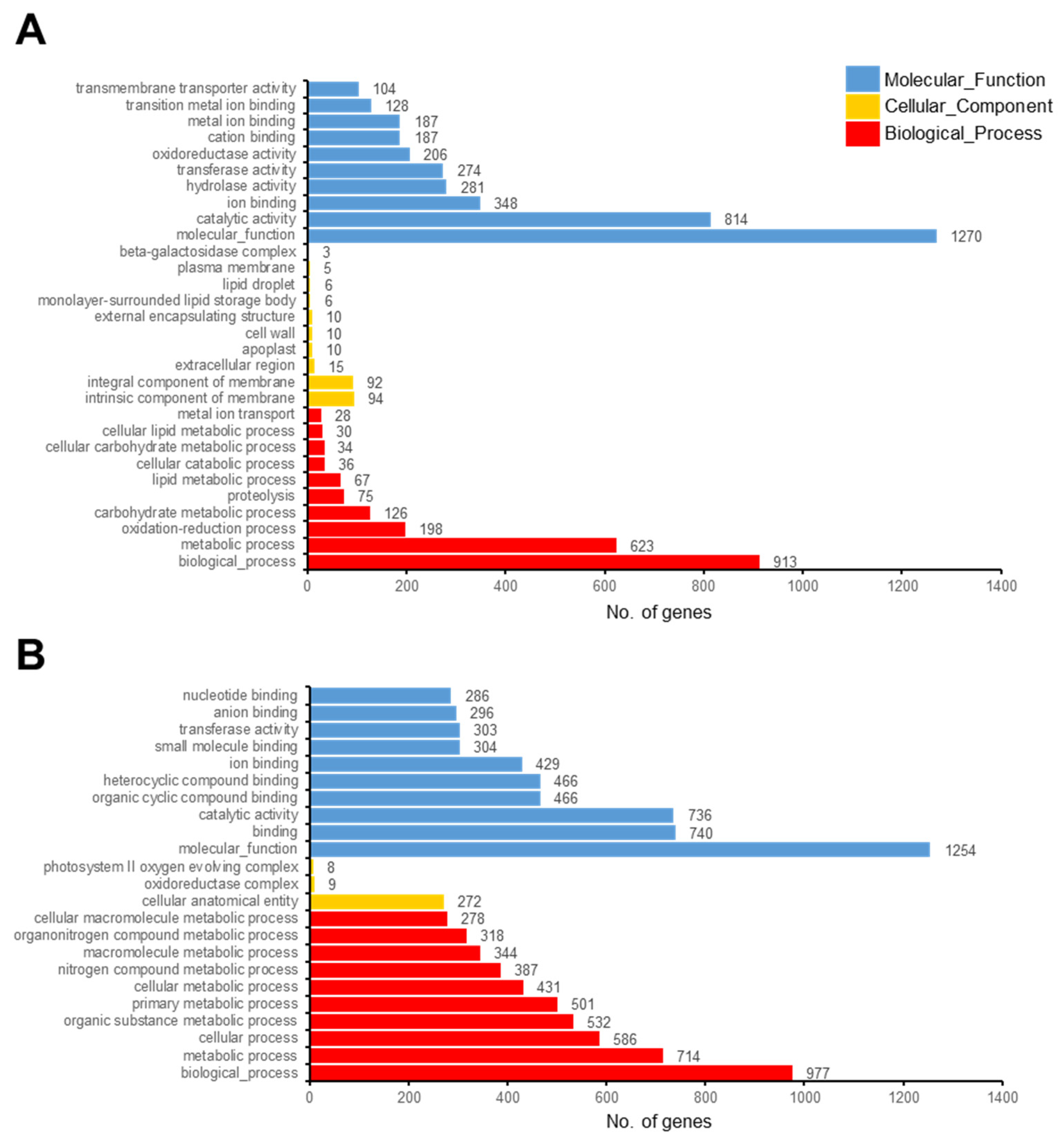

Figure 4. Functional categories of upregulated (A) and downregulated (B) genes in drought-treated garlic leaves. Top 10 biological process, cell component, and molecular function pathways are displayed.
Figure 4. Functional categories of upregulated (A) and downregulated (B) genes in drought-treated garlic leaves. Top 10 biological process, cell component, and molecular function pathways are displayed.
Agronomy 11 00246 g004
Agronomy 11 00246 g005 550

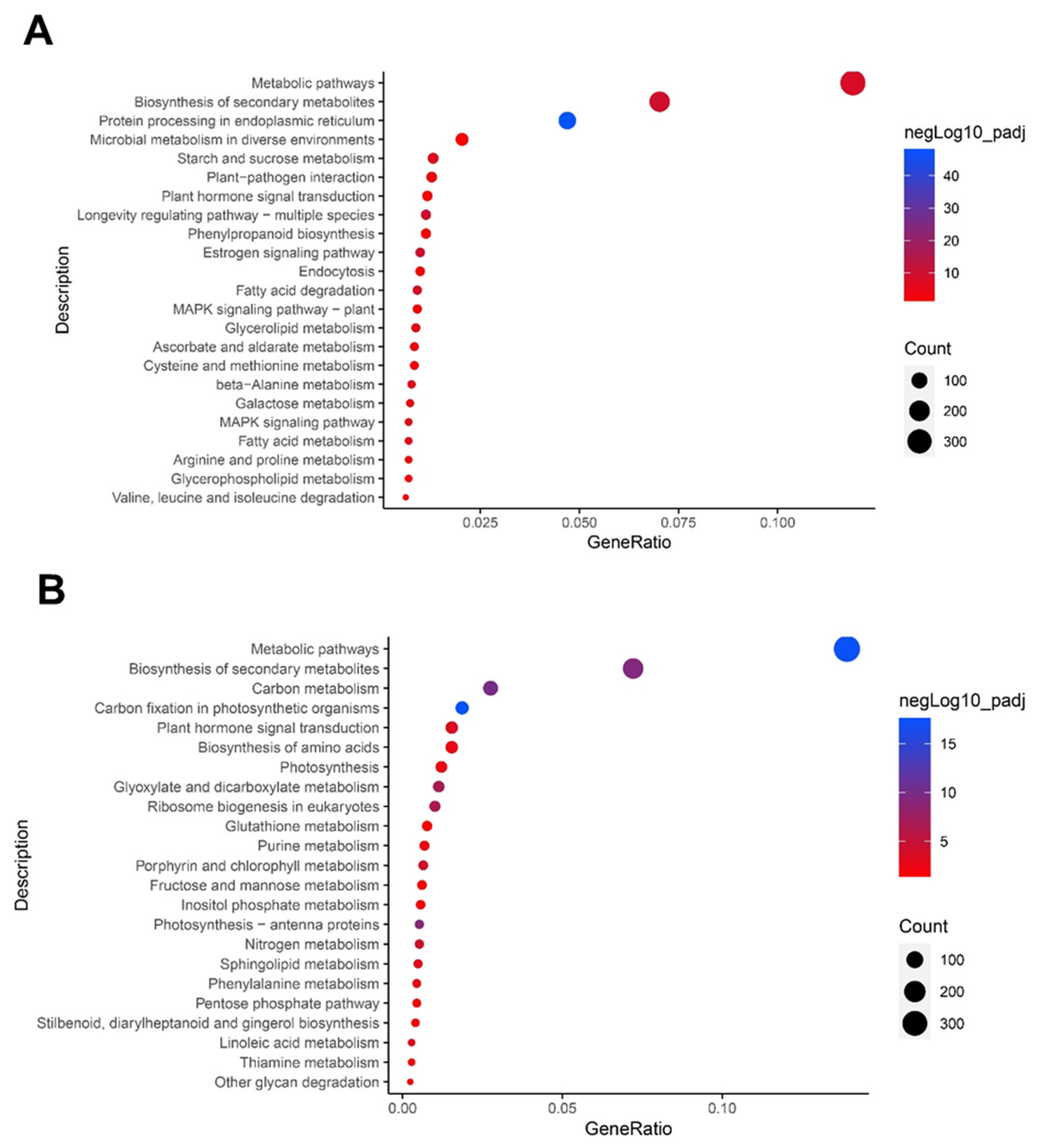

Figure 5. Upregulated (A) and downregulated Kyoto Encyclopedia of Genes and Genomes (KEGG) pathways (B) in drought-treated garlic leaves. Top 23 KEGG enriched pathways from upregulated differentially expressed genes (DEGs) and 23 from downregulated DEGs were selected.
Figure 5. Upregulated (A) and downregulated Kyoto Encyclopedia of Genes and Genomes (KEGG) pathways (B) in drought-treated garlic leaves. Top 23 KEGG enriched pathways from upregulated differentially expressed genes (DEGs) and 23 from downregulated DEGs were selected.
Agronomy 11 00246 g005
Agronomy 11 00246 g006 550

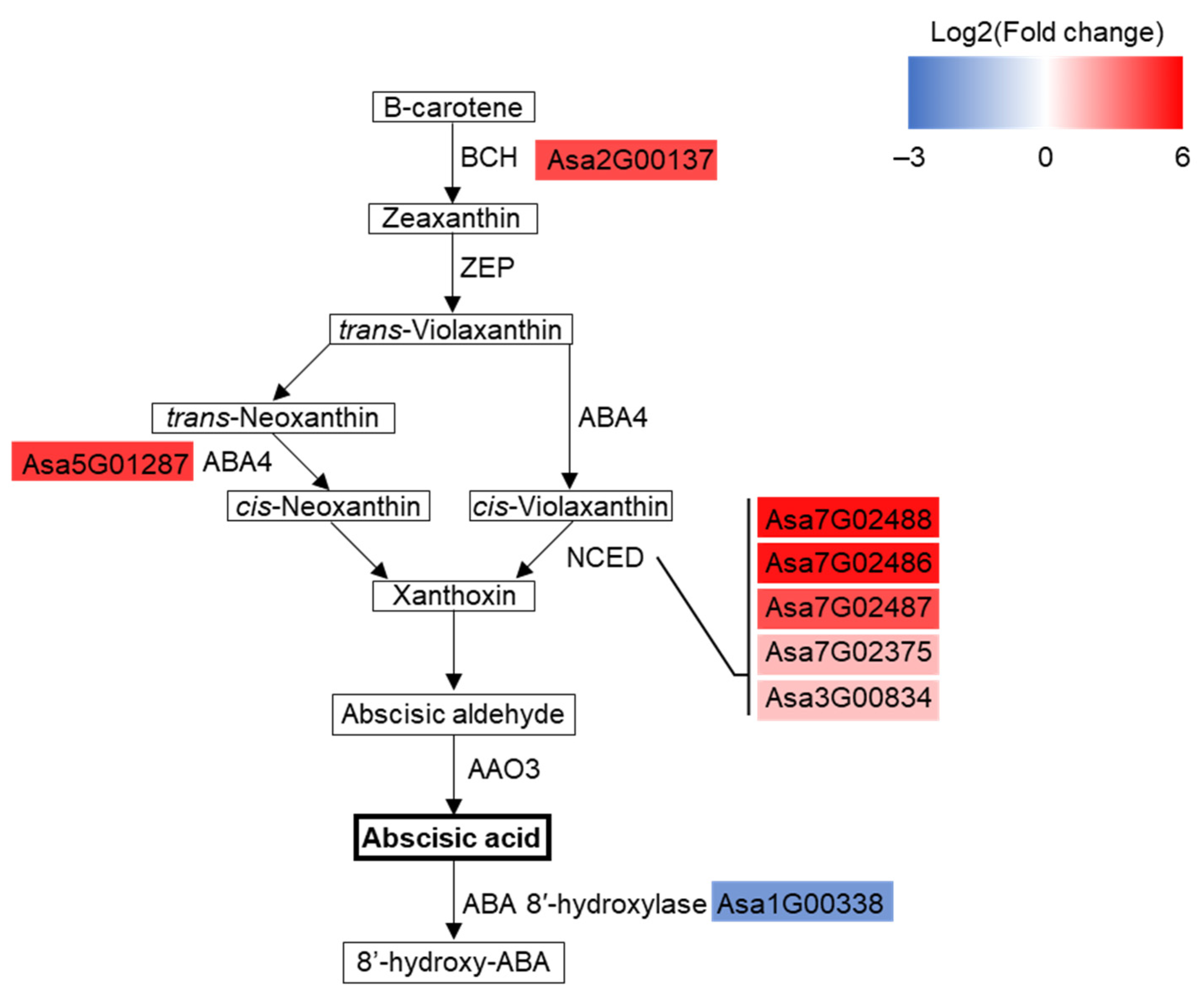

Figure 6. ABA biosynthetic and catabolic pathways in higher plants. BCH, beta-carotene hydroxylase; ZEP, zeaxanthin epoxidase; NCED, nine-cis-epoxycarotenoid dioxygenase; AAO3, aldehyde oxidase 3; ABA4, ABA deficient 4. The color scale indicates Log2 of fold change. The pathway was generated based on the Kyoto Encyclopedia of Genes and Genomes database.
Figure 6. ABA biosynthetic and catabolic pathways in higher plants. BCH, beta-carotene hydroxylase; ZEP, zeaxanthin epoxidase; NCED, nine-cis-epoxycarotenoid dioxygenase; AAO3, aldehyde oxidase 3; ABA4, ABA deficient 4. The color scale indicates Log2 of fold change. The pathway was generated based on the Kyoto Encyclopedia of Genes and Genomes database.
Agronomy 11 00246 g006
Agronomy 11 00246 g007 550

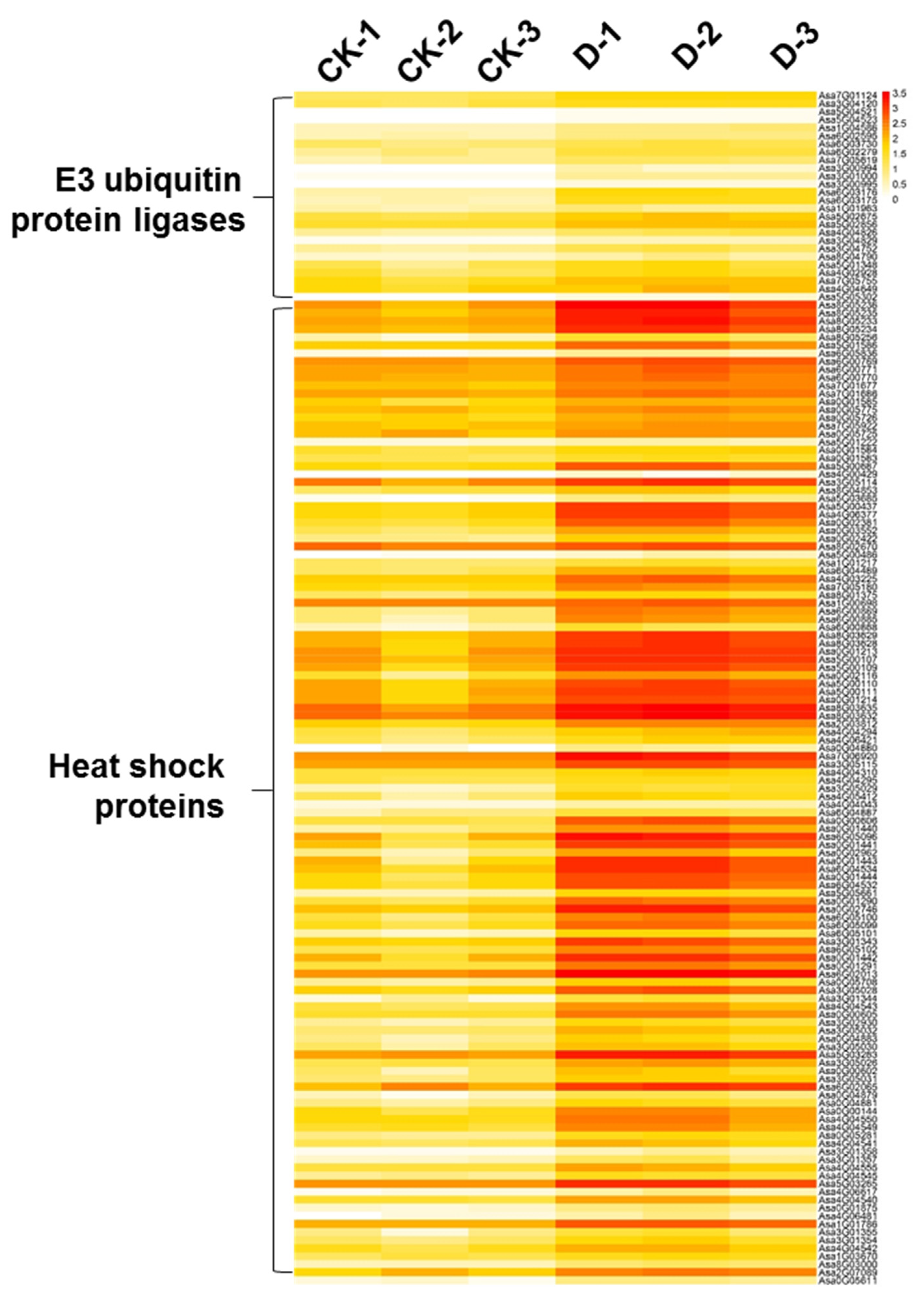

Figure 7. The heatmap shows the upregulation of E3 ubiquitin ligases and heat shock proteins in drought-treated garlic leaves. The color scale indicates log2 of normalized reads. CK, garlic plants grown under normal conditions; D, garlic plants grown under drought stress.
Figure 7. The heatmap shows the upregulation of E3 ubiquitin ligases and heat shock proteins in drought-treated garlic leaves. The color scale indicates log2 of normalized reads. CK, garlic plants grown under normal conditions; D, garlic plants grown under drought stress.
Agronomy 11 00246 g007
Agronomy 11 00246 g008 550

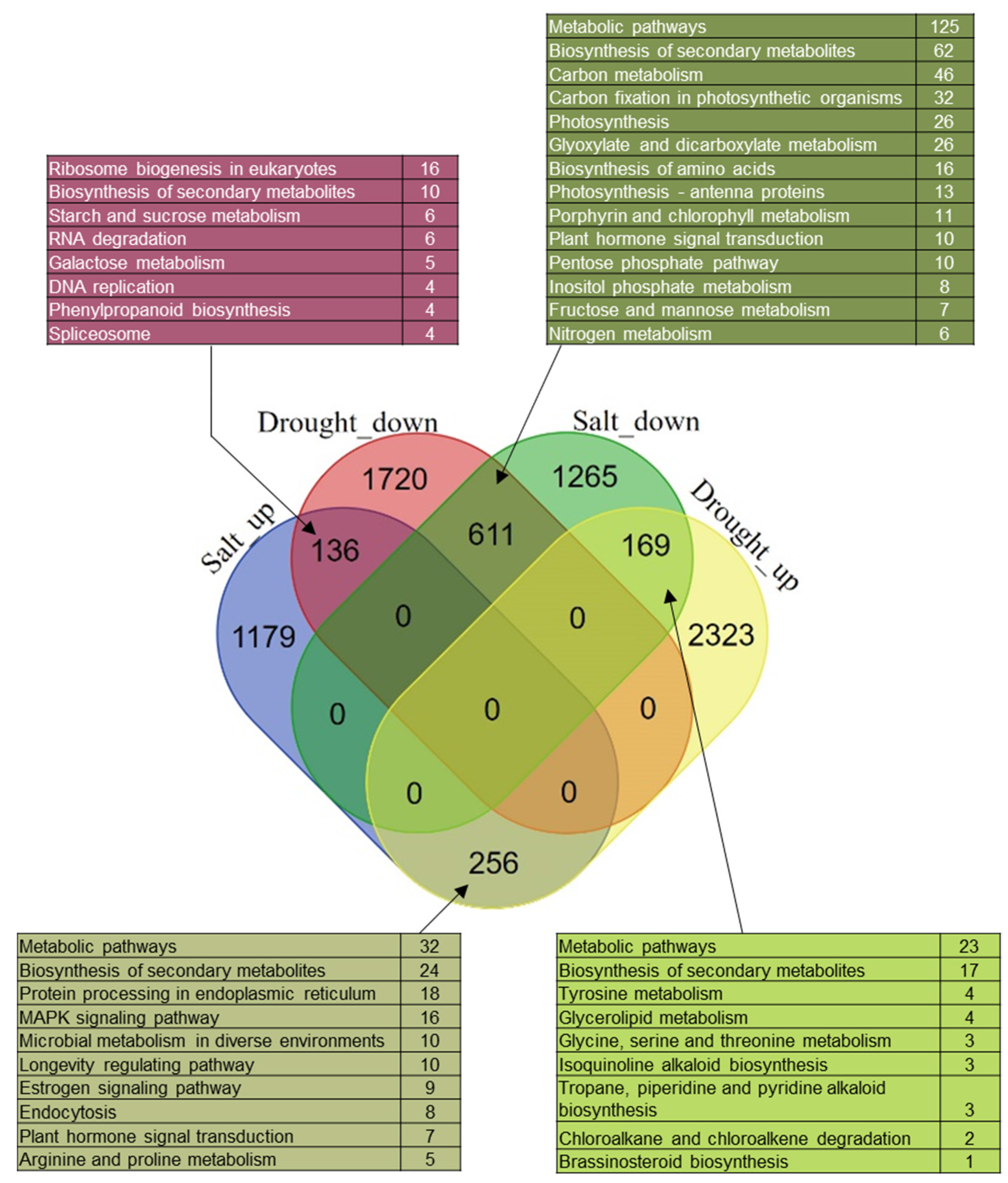

Figure 8. Commonly and reversely regulated genes by salinity and drought stresses in garlic leaves. Differentially expressed genes (DEGs) identified upon exposure to salinity and drought stresses were analyzed using a Venn diagram (http://bioinformatics.psb.ugent.be/webtools/Venn/). The Kyoto Encyclopedia of Genes and Genomes pathways that DEGs were assigned to are shown in tables.
Figure 8. Commonly and reversely regulated genes by salinity and drought stresses in garlic leaves. Differentially expressed genes (DEGs) identified upon exposure to salinity and drought stresses were analyzed using a Venn diagram (http://bioinformatics.psb.ugent.be/webtools/Venn/). The Kyoto Encyclopedia of Genes and Genomes pathways that DEGs were assigned to are shown in tables.
Agronomy 11 00246 g008
