Maize Hybrid Response to Sustained Moderate Drought Stress Reveals Clues for Improved Management

by
Samadangla Ao
1,
Michael P. Russelle
2,
Gary W. Feyereisen
3,
Tamás Varga
2 and
Jeffrey A. Coulter
4,*
1
Department of Botany, Kohima Science College, Jotsoma, Kohima, Nagaland 797002, India
2
Department of Soil, Water, and Climate, University of Minnesota, 439 Borlaug Hall, 1991 Upper Buford Circle, St. Paul, MN 55108, USA
3
United States Department of Agriculture–Agricultural Research Service Soil and Water Management Research Unit, 439 Borlaug Hall, 1991 Upper Buford Circle, St. Paul, MN 55108, USA
4
Department of Agronomy and Plant Genetics, University of Minnesota, 411 Borlaug Hall, 1991 Upper Buford Circle, St. Paul, MN 55108, USA
*
Author to whom correspondence should be addressed.
Agronomy 2020, 10(9), 1374; https://doi.org/10.3390/agronomy10091374
Submission received: 21 August 2020 / Revised: 10 September 2020 / Accepted: 10 September 2020 / Published: 12 September 2020
(This article belongs to the Special Issue Optimizing Plant Water Use Efficiency for a Sustainable Environment)
Browse Figures
Versions Notes

Abstract

:
Crop water productivity (CWP), irrigation water productivity (IWP), actual seasonal basal crop coefficient (Kab), and actual crop evapotranspiration (ETa) are essential parameters for accurate estimation of crop water requirement to prevent irrigation water waste. These parameters were evaluated by conducting three experiments using a drought-tolerant maize hybrid and a non-drought-tolerant (‘standard’) maize hybrid receiving 50, 100, and 150% of the recommended optimal nitrogen (N) fertilizer rate and grown under well-watered conditions, drought stress from the 14 leaf collar maize phenological stage (V14) to maize physiological maturity (R6), and drought stress from the blister maize phenological stage (R2) to R6. Across hybrids, ETa decreased with increased duration of drought stress. The drought-tolerant hybrid had 7 and 8% greater CWP and IWP, respectively, compared to the standard hybrid when drought stress began at V14. Mid-season Kab was 1.08, 0.89, and 0.73 under well-watered conditions and when drought stress began at R2 and V14, respectively. These results reveal that (i) maize achieved more effective physiological acclimation with earlier exposure to drought stress, (ii) grain yield of the drought-tolerant hybrid was unchanged by earlier, compared to later, onset of drought despite a 10% decrease in ETa, and (iii) two phases of acclimation were identified: Maize Kab declined upon exposure to drought but stabilized as the crop acclimated.

1. Introduction

Climate change is associated with increased frequency of drought, which is predicted to be more severe and widespread in the future [1]. According to DeLucia et al. [2], the irrigated area of the U.S. Corn Belt will need to expand at least three-fold into areas where rain usually suffices to maintain U.S. maize production at the same level (10.7 Mg ha−1). Drought adversely affects cereal yields worldwide, with maize (Zea mays L.) having greater sensitivity to drought stress than wheat (Triticum aestivum L.) [3,4]. Crop yield loss due to drought stress can be mitigated by irrigation, but the amount of water available for irrigation is limited. Therefore, judicious management of irrigation water requires accurate estimation of the factors used to determine water application [5]. There is great opportunity to improve the efficiency of agricultural water management through enhanced knowledge of crop water use or water productivity (WP) [6,7,8,9]. Crop water productivity (CWP) and irrigation water productivity (IWP) are measures of grain production per unit of crop transpiration and volume of irrigation, respectively [9,10,11].
The effects of drought stress on maize have been studied extensively across a wide range of growing environments [12,13,14]. Much of the research has investigated WP of maize under different water regimes [15,16,17]. Reduced CWP under dry conditions is often associated with relatively high water uptake but low grain yield [8]. Greater WP can be achieved when there is maximal soil water absorption for transpiration and minimal water loss through soil evaporation [18].
Compared to conventional irrigation, wherein water is applied as needed to reduce yield loss due to drought stress, deficit irrigation can limit unnecessary evaporation, runoff, and leaching [8]. Compared to irrigation at 100% of evapotranspiration requirement, irrigation at 75% of evapotranspiration requirement has been shown to increase CWP of maize with 20% less actual crop evapotranspiration (ETa) [13]. Djaman and Irmak [14] reported that CWP of maize was maximized at 93 and 100% of ETa of the fully irrigated treatment, while Panda et al. [15] concluded that deficit irrigation should be based on a 45% maximum allowable depletion of available soil water to achieve high maize grain yield and field water (precipitation plus irrigation) productivity. The phenological stage of crop development affects the amount and timing of water needed for deficit irrigation and thereby influences maize grain yield and WP [19,20]. With drought conditions throughout the reproductive phase of maize, irrigation at the milk and dough stages of kernel development has a greater beneficial effect on grain yield of maize than irrigation at later stages [19].
Maize WP increases with increasing nitrogen (N) supply for both deficit and full irrigation up to the N level required to achieve yield potential at that condition, beyond which an increase in N supply does not provide additional yield benefit [21]. Adequate N supply improves WP in maize in part by increasing the crop canopy, which facilitates greater interception of solar radiation and reduces soil evaporation [22]. Compared to no N fertilization, the application of 120 kg N ha−1 to maize was reported to have no effect on WP in water-limited conditions, but it increased WP by increasing the net photosynthetic rate when ample water was available [16].
Accurate estimation of reference evapotranspiration (ETo), crop evapotranspiration (ETc), and the crop coefficient (Kc) is vital for calculating the irrigation requirement. Reference ET is evapotranspiration from a grass reference surface under well-watered conditions, and ETc is water loss from a cropped field as a combination of soil surface evaporation and crop transpiration with agronomic management for full production potential [23]. Dual Kc improves the accuracy of ETc estimation because it separates the two independent factors representing the basal crop coefficient (Kcb) and evaporation coefficient (Ke). The Kcb is the ratio of ETc to ETo when the surface soil layer is dry, but when the subsurface layer beyond the zone of evaporation has adequate moisture for transpiration to occur at maximum potential [24]. When crops are grown under environmental stress, a stress coefficient (Ks) is used to calculate ETa [23]. The soil water balance approach, which is an assessment of the influx and efflux of water into the crop root zone during a period of time, can be used to estimate ETa [6,14,19]; however, ETa and Kcb vary with crop phenological stage, cultivar, plant-available soil water, and environmental conditions [6,7].
Regional and crop-specific ETa and Kc allow greater precision in crop water management [7,12,25]. Previous estimates of ETa and WP in maize have been based on full irrigation during the entire growing season, water limitation after the blister stage of maize phenological development (R2), and rainfed conditions, with little emphasis on Kc [14,15,26,27,28]. There is limited information available on Kc by the phenological development stage for maize under drought stress [25,29], and to our knowledge none exists for drought-tolerant maize hybrids. Globally, drought stress in maize occurs most frequently during the reproductive stages of development, and in some cases begins as early as the late vegetative stages [30,31,32,33]. Water requirements of maize are greatest during the late vegetative to early reproductive stages, with drought stress during these stages causing severe yield loss [34,35].
Long-term estimates of maize WP in the western U.S. Corn Belt and China show improvements in CWP over time, which have been attributed to improved cultivars and advances in soil, water, and crop management [36,37]. Improvements in maize grain yield have been associated with enhanced tolerance to drought stress [38,39], and drought-tolerant maize hybrids have potential to alleviate drought-induced yield loss [40,41,42,43]. Drought-tolerant hybrids have had greater grain yield and WP than standard hybrids with deficit irrigation at 50 and 75% of evapotranspiration requirements, although no yield difference was observed in the absence of drought or under severe drought [15,44].
The present study was designed to compare ETa, WP, and Kcb of a drought-tolerant maize hybrid and a standard maize hybrid under well-watered conditions and under moderate drought stress imposed during advanced phenological stages that coincide with natural and increasingly likely drought periods encountered in humid and sub-humid maize-producing regions across the globe.

2. Materials and Methods

2.1. Site Description, Experimental Design, and Cultural Practices

In 2013, three independent experiments were conducted at the University of Minnesota Sand Plain Research Farm near Becker, MN (approximately 45°23′17″ N, 93°53′20″ W; 295 m above sea level). The soil at the study sites was a Hubbord-Mosford loamy sand complex (sandy, mixed, frigid Entic Hapludolls and sandy, mixed, frigid Typic Hapludolls). The soil texture was loamy sand for the 0- to 45-cm depth layers and sand for the 45- to 100-cm depth layers. The mean content of sand, silt, and clay, respectively, was 860, 60, and 80 g kg−1 for the 0- to 45-cm soil depth and 930, 10, and 60 g kg−1 for the 45- to 100-cm soil depth. The soil water content was 0.176 m3 m−3 at field capacity and 0.084 m3 m−3 at permanent wilting point within the 0- to 45-cm depth, and 0.105 m3 m−3 at field capacity and 0.035 m3 m−3 at wilting point within the 45- to 100-cm soil depth [45].
The three experiments were established in close proximity in the same year to make use of spatial and temporal uniformity to increase the accuracy of the results. This enabled precise and timely irrigation application to simulate the drought stress conditions as desired in all three fields without the confounding effects of differences in weather and soil. Each experiment was planted to maize following different previous crops, which were three-year-old alfalfa (Medicago sativa L.), soybean [Glycine max (L.) Merr.], and winter rye (Secale cereale L.) following soybean. Alfalfa and winter rye were terminated with herbicide 10 days before maize planting. All experiments were moldboard plowed seven days before maize planting, then field cultivated and culti-packed on the day of planting. Each experiment evaluated all combinations of three durations of drought stress, two maize hybrids, and three N fertilizer rates using a split-plot arrangement of these 18 treatments in a randomized complete block design with four replications. Main plot treatments were a duration of drought stress and subplots were a factorial arrangement of hybrid and N fertilizer rate. Each main plot was 6.0 m wide by 11.9 m long, and each subplot was 3.0 m wide by 4.0 m long, with maize planted in rows spaced 76 cm apart. The three durations of drought stress were: (i) a well-watered control, restoring soil water content to field capacity at frequent intervals throughout the growing season; (ii) sustained moderate drought stress from the 14 leaf collar maize phenological stage (V14) to maize physiological maturity (R6); and (iii) sustained moderate drought from R2 to R6. Sustained moderate drought stress in this study resulted in maize leaf rolling beginning around mid-day on nearly every day during the drought-stress period, except on days immediately following irrigation or precipitation. The V14 and R2 stages were selected for the onset of drought stress because maize is most sensitive to drought during the late vegetative to early reproductive stages [34,35], and drought commonly begins around these stages in maize growing regions worldwide [30,31,32,33]. Two maize hybrids were used: (i) a designated drought-tolerant hybrid, NK Brand N42Z-3011A, reported to have non-transgenic drought tolerance with a relative maturity rating of 99 and maximum yield potential in all growing environments; and (ii) a comparable standard hybrid, NK Brand N36A-3000GT, reported to have a relative maturity rating of 96 and maximum yield in optimum growing conditions.
The three N fertilizer rates were sub-optimal, optimal, and supra-optimal, representing N rates that were 50, 100, and 150%, respectively, of the expected economically optimum N rate for grain yield. Optimum N fertilizer rates for grain yield were 123, 168, and 213 kg N ha−1 for maize following alfalfa, soybean, and winter rye, respectively, based on research summarized by Rehm et al. [46,47] and Kaiser et al. [48] for highly productive irrigated sandy soils. Nitrogen was applied as NH4NO3, with 45 kg N ha−1 broadcast immediately after planting and the remaining amount sidedressed as a surface band 10 cm to the side of each maize row at the six leaf collar maize phenological stage.
Maize was planted on 23 May 2013 in all the experiments. A plant density of 81,500 plants ha−1 was achieved by hand thinning at the one leaf collar maize phenological stage. Preemergence and postemergence herbicides were used to control weeds. Additional details on the experimental sites and cultural practices are provided by Ao et al. [49].

2.2. Soil Water Content Measurement and Irrigation Management

The soil water content was measured for the 0- to 20-, 20- to 40-, 40- to 60-, 60- to 80-, and 80- to 100-cm soil layers using a time domain reflectometry soil moisture sensor (TRIME-PICO IPH/T3, IMKO GmbH, Ettlingen, Germany) that was inserted into polyvinylchloride access tubes (Schedule 40, 5.25 cm id). The instrument was calibrated using bulk soil samples collected within the experimental plot area where maize followed soybean [49]. Five days after planting, the access tubes were inserted 1.0 m deep into the soil after boring holes with a reverse-taper bit on a hydraulically-driven soil tube (Giddings Machine Co., Windsor, CO, USA). Within a plot, the tubes were positioned between the center two maize rows at 9.5 and 28.5 cm from one of the rows. Due to time constraints for tube placement and frequent measurement of soil water content throughout the season, the access tubes were placed in the selected treatments that were chosen based on their potential to provide meaningful treatment comparisons. In the experiment where the previous crop was soybean, access tubes were placed in all replications of treatments of both hybrids receiving the optimal N rate and all three durations of drought stress. In the experiments where the previous crop was alfalfa or winter rye, access tubes were placed in all replications of treatments of the drought-tolerant hybrid receiving the optimal N rate and all three durations of drought stress, and in the treatment combination representing the optimal N rate, standard hybrid, and drought stress from V14 to R6.
At the time of maize emergence, three soil cores per block (i.e., replication) in each experiment were collected from the 0- to 1.0-m depth using a hydraulically driven soil tube with an inner diameter of 4.1 cm. Each soil core was separated into 20-cm increments and gravimetric soil water content was determined using the oven-drying method [50]. Gravimetric soil water content was then converted to volumetric soil water content and the sum of the values from the 0- to 1.0-m depth was considered as soil water storage at maize emergence. From the 12 leaf collar maize phenological stage (V12), prior to the application of different irrigation amounts to the drought stress treatments, until R6, soil water content was measured from plots with access tubes once per week unless precipitation occurred, in which case measurements were postponed to the day before the scheduled irrigation (six- to eight-day intervals). Total soil water content in the 0- to 1.0-m soil profile was used to calculate soil water deficit to determine irrigation water application from the 10 leaf collar maize phenological stage until R6, and for estimating ETa throughout the period of measurement [23,51,52] as described in the following sections. A sampling depth of 1.0 m was used for this study because (i) in these sand-dominated soils, the effective root zone is ≤1.0 m; and (ii) sand content in the 80- to 100-cm soil layer was 93% with a field capacity of 68 g kg−1 and a wilting point of 17 g kg−1; thus, plant available water is minimal in this soil layer and also in those below it. Actual crop evapotranspiration, Kcb, and CWP were calculated for the selected treatments containing access tubes for measurement of soil water content, while IWP was determined for all experimental treatments, representing all combinations of three water treatments, three N rates, and two hybrids in each experiment.
Uniform irrigation was applied in all drought stress treatments using a solid-set sprinkler system from the 3 to 10 leaf collar maize phenological stages, and using an on-surface drip irrigation system from V12 to the mid-dent maize phenological stage (R5.5) [53]. The drip irrigation system for each experiment had an automated shut-off valve to apply the precise amount of water in each treatment. The drip tapes were connected to polyethylene header pipes (3.85 cm id) spaced 11.9 m apart and located at the front of each main plot (i.e., drought stress treatment). There was one line of drip tape on each side of every maize row. Each line of drip tape was placed 19 cm from the maize row and had emitters spaced at 15 cm intervals to achieve uniform distribution of water. One maize row was planted between each pair of adjacent main plots to mitigate edge effects resulting from differential water application. These buffer rows were fertilized with the 50% N rate and did not receive drip irrigation. For treatments with drought stress beginning at V14 and R2, irrigation was limited prior to V14 (21 July) and R2 (12 August), respectively, to achieve the desired moderate drought stress at V14 and R2. Compared to the well-watered control, the treatments with drought stress commencing at V14 and R2 received reduced amounts of water through drip irrigation beginning at the 12 and 16 leaf collar maize phenological stages, respectively.
A modified checkbook method [54] was used to determine the irrigation amount to apply twice each week. Daily potential crop evapotranspiration was estimated using reference ETo [23], weekly volumetric soil moisture data, precipitation, and previous irrigation amounts. At each irrigation event, the amount of water applied in the well-watered treatment brought the soil moisture level back to field capacity, and the amount of water applied in the treatments with drought stress was 60 to 70% of that applied in the well-watered control [49]. Additionally, for every irrigation decision, a visual observation of maize and the weather forecast of the following few days were taken into consideration. Additional details on drip irrigation management for the treatments are described by Ao et al. [49].

2.3. Volumetric Soil Water Content Calculation

Volumetric soil water content was determined for each 20-cm increment within the upper 1.0 m of soil. The equivalent depth of soil water, θp (cm), for the entire measured depth of the soil profile was calculated as follows [52]:
θp = 20 (θ20 + θ40 + θ60 + θ80 + θ100)
where θ20, θ40, θ60, θ80, and θ100 (mm3 mm−3) are volumetric soil water content for the 0- to 20-, 20- to 40-, 40- to 60-, 60- to 80-, and 80- to 100-cm depths, respectively. This, along with ETc, precipitation, and irrigation application, were used to estimate drainage, soil water storage, and ETa.

2.4. Crop Coefficient, Soil Water Balance, and Evapotranspiration

Daily grass reference evapotranspiration was calculated using the Penman-Monteith equation [23,51]. Daily air temperature and precipitation were obtained from an onsite weather station, maintained and managed by the University of Minnesota. Solar radiation, wind speed, and relative humidity were obtained from the nearest USDA-Natural Resources Conservation Service Soil Climate Analysis Network (SCAN) weather station [55,56] located 6.4 km away at Crescent Lake, MN (SCAN Site Crescent Lake #1; 45°25′ N, 93°57′ W; 299 m above sea level) [57]. Vegetation at this SCAN weather station site is grass and the soil is classified as Hubbard sandy loam (sandy, mixed, frigid Entic Hapludolls). The soil texture is sandy loam for the 0- to 23-cm depth layer, loamy sand for the 23- to 38-cm depth layer, and sand for the 38- to 203-cm depth layers. The SCAN weather stations receive annual preventative maintenance and sensor repair [55]. Incoming hourly data from SCAN weather stations are automatically validated, and values occurring beyond pre-established limits are identified and subsequently evaluated for accuracy based on plots of data over time and comparisons with data for other weather variables from different sensors [56].
Daily ETc was estimated as the product of (KsKcb + Ke) and ETo [19,23], and was used to calculate deep percolation in the water balance equation. The Kcb was calculated using the dual Kc approach, accounting for the water-stress coefficient (Ks). Dual Kc is the sum of Kcb and Ke, reduced by water stress with drought conditions:
Kc = Kcb × Ks + Ke
where Kcb is the basal crop coefficient, Ks is the water stress coefficient, and Ke is the soil evaporation coefficient. All terms are unitless.
The basal crop coefficient was calculated for three phases of maize phenological development, representing initial (from the date of emergence to the three leaf collar stage), mid-season (from the 10 leaf collar stage to R5.5), and late-season (from R5.5 to R6) growth phases (Kcb ini, Kcb mid, and Kcb end, respectively) according to Allen et al. [23]. In all experiments, the maize canopy covered ≥80% of the soil surface at the 10 leaf collar stage of maize phenological development, supporting the use of this crop stage as the beginning of the mid-season growth phase [23]. During rapid canopy development, which in this study was taken from the 3 to 10 leaf collar maize phenological stages, Kcb is assumed to increase linearly between Kcb ini and Kcb mid, at which time the full canopy cover reduces Ke to minimum values [23]. The values for Kcb ini, Kcb mid, and Kcb end from Allen et al. [23] were used to calculate ETc. When the daily mean minimum relative humidity was different from 45% or when wind speed (u2) at 2 m was different from 2.0 m s−1, Kcb mid and Kcb end values were adjusted as:
Kcb = Kcb (Table) + [0.04 (u2 − 2) − 0.004 (RHmin − 45)] (h/3)0.3
where Kcb (Table) is the value for Kcb mid or Kcb end (if ≥0.45) from Allen et al. [23], u2 is the mean value for daily wind speed at a 2-m height over grass during the mid- or late-season growth phase (m s−1) for 1 m s−1 ≤ u2 ≤ 6 m s−1, RHmin is the mean daily minimum relative humidity during the mid- or late-season growth phase (%) for 20% ≤ RHmin ≤ 80%, and h is the mean height of maize during the mid- or late-season phase (m) for 20% ≤ RHmin ≤ 80%. The Ks was estimated according to Allen et al. [23] as:
Ks = (TAW − Dr)/[(1 − p) TAW]
for Dr > (p)TAW, where Ks is a dimensionless transpiration reduction factor based on soil water content (0–1), TAW is total available soil water in the crop root zone (mm), Dr is root zone depletion (mm), and p is fraction of TAW that a crop can extract from the root zone without suffering water stress. The value of p was assumed to be 0.59, based on the recommendation of Allen et al. [23] for maize on coarse-textured soils.
The soil evaporation coefficient describes the evaporation components of ETc. When surface soil is wet following rain or irrigation, Ke is maximum; when surface soil is dry, Ke is small or zero. The Ke was determined as [23]:
Ke = min (Kr (Kc max − Kcb), few Kc max)
where Kr is the dimensionless evaporation reduction coefficient, Kc max is the maximum value of Kc following precipitation or irrigation, and few is the portion of soil that is exposed to solar radiation and wetted. Additional details regarding these equations used for calculating Kcb, Ke, and Ks are provided by Allen et al. [23,51].
Actual ETa was calculated on six- to eight-day intervals using the water balance equation [23]:
ETa = P + I − R − D + C ± ΔSF ± ΔS
where P is precipitation, I is irrigation, R is surface runoff, D is deep percolation below the measured crop root zone, C is capillary rise, ΔSF is change in the horizontal subsurface water flux within the root zone, and ΔS is change in soil water storage during the measured time interval. All terms are in millimeters per unit time. The ΔS was determined using gravimetric soil moisture content measured at maize emergence and volumetric soil moisture content measured at regular intervals from V12 to R6 according to Equation (1).
Deep percolation was estimated using daily precipitation, soil water content at the time of planting, dates and amounts of irrigation water supplied, effective crop rooting depth, crop phenology, and soil properties. Deep percolation was calculated as follows [15]:
Dj = max (Pj + Ij − Rj − ETcj − ΔCDj–1, 0)
where Dj is deep percolation on day j, Pj is precipitation on day j, Ij is irrigation on day j, Rj is precipitation and/or irrigation runoff from the soil surface on day j, ETcj is crop evapotranspiration on day j, and ΔCDj-1 is cumulative depletion depth in the root zone at the end of day j–1. All terms are in millimeters per unit time. Surface runoff from the experimental sites was estimated using the curve number method, with a curve number of 75 based on land use and soil properties of the sites [58].
It was assumed that subsurface upward water flux and capillary rise were negligible in the sand and loamy sand soil. Therefore, the soil water balance equation for ETa calculation was reduced to:
ETa = P + I − R − D ± ΔS
For comparative purposes, actual seasonal basal crop coefficient (Kab) was determined following a modified approach used by previous researchers for Kcb calculation under deficit irrigation [59,60]. The Kab was calculated on six- to eight-day intervals using estimated ETo and evaporation (E) according to the equations from Allen et al. [23], and ETa was calculated from the field data for the well-watered control and the two treatments with sustained moderate drought stress as:
Kab = Kcb × Ks = (ETa − E)/ETo
where ETa is actual crop ET (mm d−1) and ETo is reference ET (mm d−1). Field-based Ks was computed using calculated ETa and estimated ETc based on Kcb and Allen et al. [23] as:
Ks = (ETa − E)/(ETc − E)
Crop water productivity and IWP of maize were calculated using modified equations from Payero et al. [19]:
CWP = GY/ETa
IWP = GY/I
where CWP is crop water productivity (kg m−3), GY is maize grain yield (g m−2), ETa is total seasonal actual crop evapotranspiration (mm), IWP is irrigation water productivity (kg m−3), and I is total seasonal irrigation for a given drought stress treatment (mm).
The date of emergence was 31 May for all treatments and the date of R6 was 24, 20, and 18 September for the well-watered control and the treatments with drought stress beginning at V14 and R2, respectively. Reference evapotranspiration, ETa, average Kab mid, CWP, and IWP were calculated using a spreadsheet software program from maize emergence to 24 September for all three durations of drought stress. Additionally, we calculated growth-stage-specific Kab using Kab computed at six- to eight-day intervals from the 10 leaf collar maize phenological stage to R6 from the experiment where maize followed soybean. All possible precautions were taken to achieve precision in the measurement of soil water content and calculation of water balance components [61,62]. However, this study used the soil water balance approach to estimate ETa, which is based on calculations that are reliant upon book values and assumptions. A more direct approach of measuring the influx and efflux of soil water into the crop root zone, such as weight-based lysimetry, may produce more representative estimates of ETa [61].

2.5. Maize Grain Yield Measurement

At R6, maize ears were harvested from the center 2.4 m of the two center rows of each plot and oven dried at 60 °C until constant mass, followed by shelling and weighing of grain. Maize grain yield was calculated at 155 g kg−1 moisture. A detailed summary of the results of maize grain yield and yield components was reported by Ao et al. [49]. The grain yield data used in this manuscript were (i) analyzed for the treatment combinations with calculated ETa, (ii) used to determine CWP for these same treatment combinations, and (iii) used with the irrigation amount to calculate IWP for all experimental treatments.

2.6. Statistical Analysis

Statistical analysis was performed for three datasets based on the treatments sampled, which represent: (i) all durations of drought stress for both hybrids at the optimal N rate from the experiment where maize followed soybean; (ii) all durations of drought stress for the drought-tolerant hybrid at the optimal N rate from all experiments; and (iii) drought stress from V14 to R6 for both hybrids at the optimal N rate from all experiments. Actual crop evapotranspiration, CWP, IWP, maize grain yield, and average Kab mid were analyzed for datasets (i), (ii), and (iii), and growth-stage-specific Kab was analyzed for dataset (i).
Data were analyzed with mixed-effect linear models using the MIXED procedure of SAS [63] at P ≤ 0.05. Block (nested within experiment), experiment (i.e., previous crop), and interactions with block were considered random effects, duration of drought stress and hybrid were considered fixed effects, and maize phenological stage for Kab was considered a fixed effect with repeated measurement. The UNIVARIATE procedure of SAS and scatterplots of residuals versus predicted values were used to assess the normality and homogeneity of variance [64]. Means from significant fixed effects were compared with pairwise t-tests using the PDIFF option of the MIXED procedure of SAS.

3. Results

3.1. Growing Conditions and Water Supply

With the exception of precipitation, weather conditions were within the range for favorable maize growth (Table 1) [65], thereby allowing the imposed drought stress treatments to be evaluated in the absence of other abiotic stresses. Seasonal average air temperature was 19.8 °C and maximum daily average air temperature for July through August was 29.0 °C. Average seasonal relative humidity was 71%, monthly average wind speed did not exceed 2 m s−1 except in June, and the average vapor pressure deficit in July through August was 1.11 kPa. Total seasonal ETo from maize emergence to R6 was estimated as 469 (Table 2). Compared to ETo, the estimated total seasonal ETc was 25 mm greater for the well-watered control and 59 and 21 mm less for the treatments where drought stress began at V14 and R2, respectively, when averaged across experiments. The range of ETc, 409 to 494 mm, estimated in this study was comparable to ETc under deficit irrigation estimated by Trout and DeJonge in a more arid climate with lower relative humidity and ETo [66].
Total precipitation from maize emergence to R6 averaged 258 mm across all treatments (Table 2). Total precipitation from the 13 leaf collar maize phenological stage to the dough stage of maize was 33 mm, with the highest daily amount of 9 mm near the tasseling stage (Figure 1). This low amount of precipitation during this period of maize growth, coupled with judicious irrigation amounts, enabled sustained moderate drought stress to be achieved in the treatments with drought stress from V14 to R6 and R2 to R6. Irrigation was applied from the three leaf collar stage of maize phenological development until R5.5 (Table 2 and Table 3; Figure 1), although soil water deficits may have occurred beyond this point (Figure 1). Averaged across experiments, total irrigation was 345, 224, and 177 mm for the well-watered control and treatments with drought stress beginning at R2 and V14, respectively (Table 2). A total of 105 mm of irrigation was applied from V14 to R6 in the treatment where drought stress began at V14. In the treatment where drought stress began at R2, 67 mm of irrigation was applied from R2 to R6. The approximate deep percolation water loss beyond the effective root zone was 150 mm in the well-watered control, and 35 and 31% less in the treatments where drought stress began at V14 and R2, respectively. This study considered the effective root zone to be 0 to 1.0 m, which is supported by the results of total root length density. Averaged across the experiments where maize followed soybean and winter rye, the well-watered control and the treatment with drought stress from V14 to R6, and both hybrids, total root length density of maize after harvest was 13.48, 10.04, 1.10, 0.44, and 0.10 cm cm−3 for the 0- to 15-, 15- to 30-, 30- to 45, 45- to 60-, and 60- to 90 cm soil layers, respectively, and the value of 0.10 cm cm−3 from the 60- to 90-cm soil layer was not significantly different from zero (P = 0.439) [67]. However, the measurement of soil water content below the 1.0-m depth in this study may have provided a more comprehensive assessment of soil water balance [14].

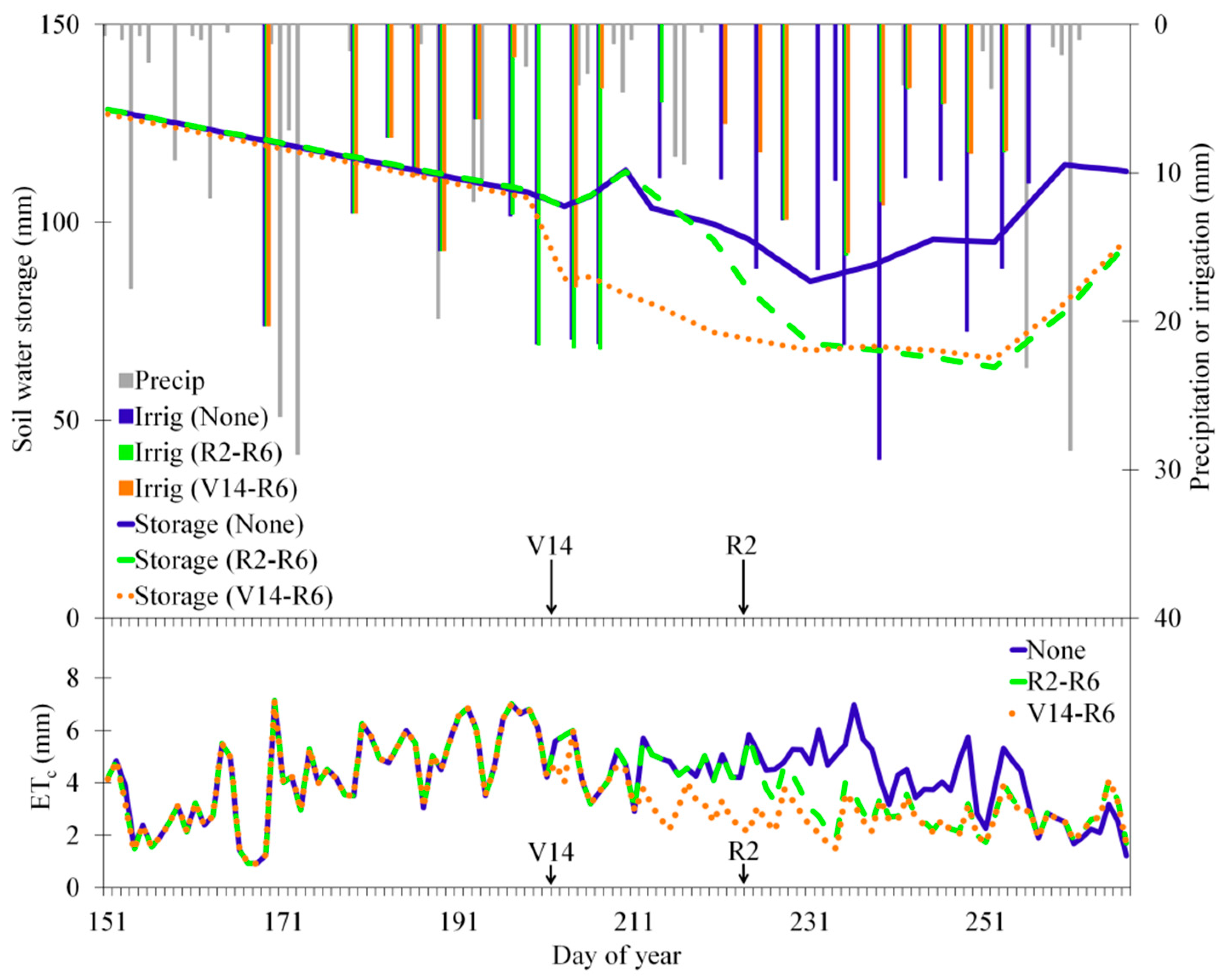

At the time of maize emergence, the soil was nearly at field capacity (only 9 mm soil water deficit) for all three drought stress treatments (Table 2, Figure 1). Across experiments, the average change in water storage from maize emergence to R6 was −18, −32, and −33 mm for the well-watered control and the treatments where drought stress began at V14 and R6, respectively. During the period of imposed drought stress, the average water storage was 75 and 72 mm, respectively, for the treatments where drought stress began at V14 and R2, and these values were 23 and 19% of total available water (Figure 1). During the milk stage of maize phenological development on 19 August and 26 August, soil water storage for the well-watered treatment was slightly less than the threshold below which evapotranspiration is reduced to less than potential values (90 mm). This occurred near the time when precipitation was absent for about three weeks, and may have resulted in a slight underestimation of irrigation amount to meet the crop evapotranspiration demand. The treatments with imposed drought stress from V14 to R6 and R2 to R6 experienced soil water storage that was near the permanent wilting point (57 mm) during the mid-R2 to early dent stages of maize phenological development from 16 August to 8 September. This may have caused maize in these treatments to experience more water stress near this time compared to other times during the period of imposed drought stress. The estimated cumulative growing season evaporation was 91, 98, and 98 mm for the well-watered control and the treatments where drought stress began at V14 and R2, respectively (Table 2). These values are comparable with the evaporation values reported by others from a semiarid area at the western edge of the central U.S. High Plains [66,68]. Additional details on growing conditions and water supply were reported by Ao et al. [49].

3.2. Actual Crop Evapotranspiration

Actual crop evapotranspiration and related CWP, IWP, and Kab were evaluated for treatment combinations where volumetric soil moisture measurement access tubes were placed (Table 4 and Table 5). In the experiment where maize followed soybean, seasonal ETa for the treatment with the optimal N rate was affected only by drought stress (Table 5). Averaged across hybrids in the experiment following soybean, seasonal ETa declined by 56 and 90 mm when drought stress began at R2 or V14 compared to the well-watered control, respectively (Table 4). Seasonal ETa for the drought-tolerant hybrid with the optimal N rate was influenced by drought stress (Table 5). Averaged across experiments, seasonal ETa of the drought-tolerant hybrid with the optimal N rate declined by 60 and 97 mm when drought stress began at R2 and V14, respectively, compared to the well-watered control. When drought stress commenced at V14 with the optimal N rate, seasonal ETa did not differ between hybrids and averaged 366 mm (Table 4). Maize grain yield is presented in Table 4 and Table 5 to assist in the interpretation of ETa, CWP, and IWP. A detailed description of grain yield in this study was reported by Ao et al. [49].

3.3. Water Productivity

Crop WP and IWP were influenced by drought stress (Table 5). Across hybrids in the experiment where maize followed soybean, CWP averaged 25% greater under well-watered conditions compared to when drought stress was imposed, and CWP did not differ between treatments with drought stress from V14 to R6 and R2 to R6 (Table 4). Across hybrids in the experiment where maize followed soybean, IWP averaged 23% greater when maize was exposed to drought stress beginning at V14 compared to the well-watered control and the treatment where drought stress began at R2. Across experiments for the drought-tolerant hybrid, CWP was 21 and 29% greater under well-watered conditions compared to when drought stress began at V14 and R2, respectively, and IWP with drought stress commencing at V14 averaged 23% greater compared to the well-watered control and the treatment with drought stress beginning at R2. Across experiments for the treatment where drought stress began at V14, CWP and IWP were 7 and 8% greater for the drought-tolerant hybrid than the standard hybrid, respectively, as a result of yield differences because hybrid did not affect ETa.

3.4. Basal Crop Coefficient

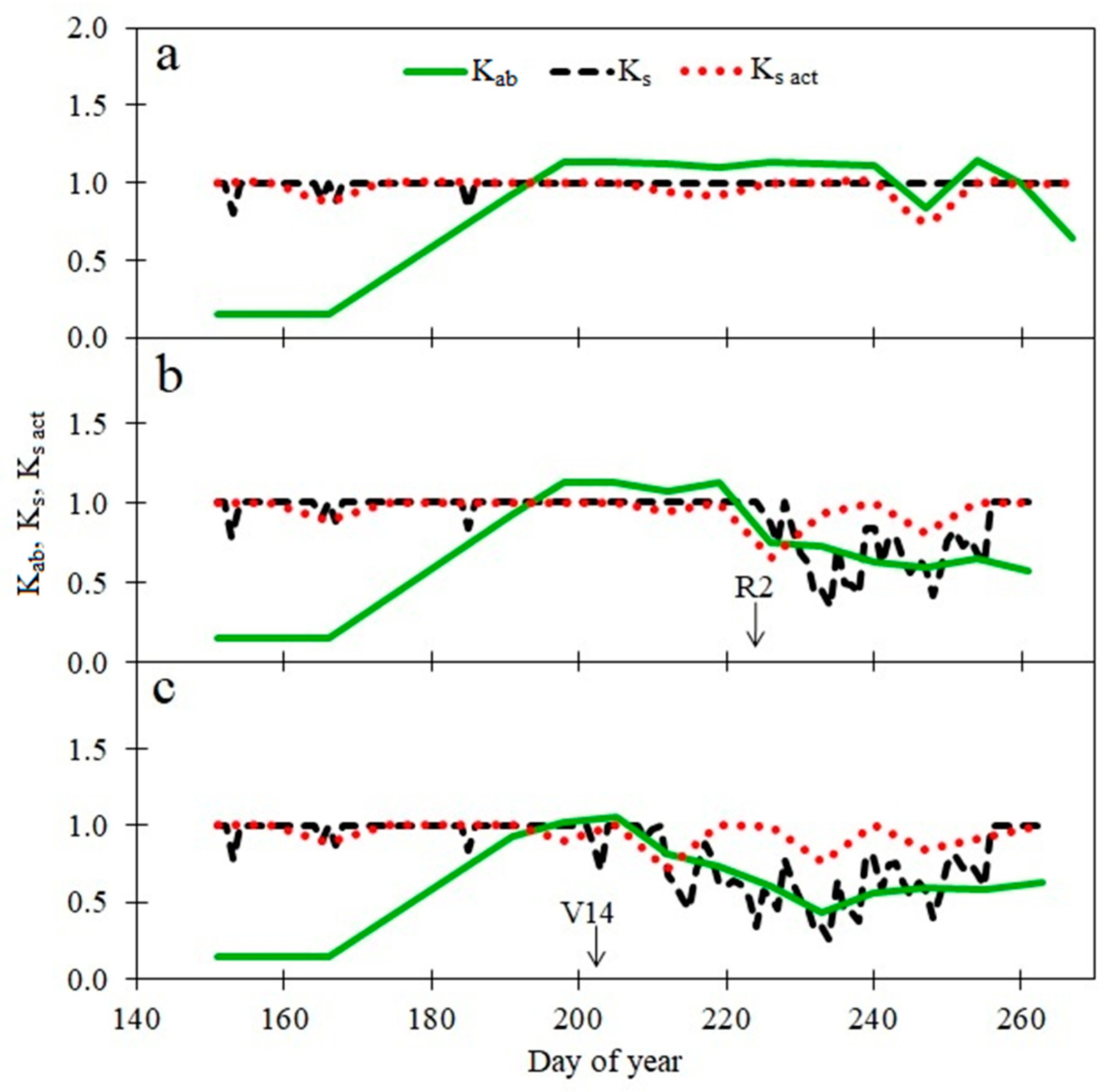

In the experiment where maize followed soybean and received the optimal N rate, Kab mid was influenced by the drought stress treatment, but not by hybrid or interactions with hybrid (Table 5). Averaged across hybrids in the experiment following soybean, Kab mid declined as the duration of drought stress increased (Table 4).
For the drought-tolerant hybrid receiving the optimal N rate, Kab mid was affected by the drought stress treatment (Table 5). Across previous crops for the drought-tolerant hybrid with the optimal N rate, Kab mid was greater under well-watered conditions than under drought stress (Table 4). Compared to the well-watered control, Kab mid declined by 0.36 and 0.21 when drought stress began at V14 and R2, respectively. With drought stress imposed at V14 and the optimal N rate, Kab mid did not differ between hybrids.
When maize followed soybean and received the optimal N rate, growth stage-specific Kab was influenced by the interaction between onset of moderate drought stress and phase of maize phenological development (P < 0.001). At each stage of maize development from V12 to R6, Kab was greatest in the absence of drought (Table 6). Both Kab and Ks declined below those of the well-watered control at the onset of each drought treatment (Figure 2). The field-based Ks act was slightly higher than the Ks estimated according to Allen et al. [23] during the period of sustained moderate drought stress. Imposition of drought stress at V14 decreased Kab more than drought stress imposed at R2 for most of the subsequent phenological stages.

4. Discussion

4.1. Maize Evapotranspiration

Results from our research support findings by many others that ETa is dependent on maize physiological requirements, maize phenological stage at the onset of drought, and environmental conditions. Our results for the well-watered treatment are consistent with those from Dietzel et al. [8], who reported a minimum threshold of 400 to 450 mm of seasonal ETa for optimum maize growth in the central U.S. Corn Belt, although this varies with seasonal ETo, which is influenced by climatic variables including season length, air temperature, relative humidity, and solar radiation [69]. The range of ETa in our experiments is also consistent with the range of 356 to 566 mm reported for a deficit irrigation study of maize in a temperate climate in Serbia [70]. However, in a longer growing season in the western U.S. Corn Belt with nearly twice as much rainfall, lower relative humidity, and higher solar radiation, Djaman and Irmak [14] reported substantially higher ETa (587 to 627 mm). Both ETa and maize grain yield were reduced by moderate drought, consistent with other reports [14,19]. However, our experiments showed that the grain yield was similar for the two treatments with imposed drought stress, despite lower ETa when drought stress began at V14 compared to R2. Thus, our results may indicate that maize achieves more effective physiological acclimation with earlier exposure to drought stress. This was especially apparent for the drought-tolerant hybrid, which produced a similar grain yield with 367 mm of ETa over the longer period of drought stress compared to 404 mm of ETa with later onset of stress. This implies that additional mid-season water application may not contribute to increased WP. This result is unexpected since the late vegetative to early reproductive period is often reported as the phase when maize is most sensitive to drought stress [34,35].

4.2. Maize Water Productivity

As found in the experiment where maize followed soybean, greater ETa in the absence of drought stress contributed to greater grain yield and greater CWP, supporting previous research showing that CWP is greater when maize is grown under well-watered compared to water deficit conditions [71,72,73]. However, CWP can be maximized under moderate drought stress [14,70,74] when the relative reduction in grain yield is less than the reduction in ETa under deficit irrigation [15,29,66]. In our experiments, the drought-tolerant maize hybrid had greater yield and thus CWP and IWP than the standard hybrid under drought stress, but only when drought was initiated at V14. When drought was delayed until R2, prolonged vegetative growth increased ETa and subsequent drought stress impaired grain production to a greater extent [49].
This difference between maize hybrids may reflect better physiological acclimation of the drought-tolerant hybrid to reduced ETa under water deficit conditions [17]. For the particular drought-tolerant hybrid in the present study, this occurred when extended moderate drought stress began at a late vegetative stage, but not with the later onset of drought. Adaptation of this hybrid to drought stress may have been due to greater stomatal conductance, higher radiation use efficiency, and reduced transpiration rate [70,75], the benefits of which would be enhanced during late vegetative growth [34]. Recognizing that the mechanisms of drought tolerance may differ among improved maize hybrids, we infer that hybrids with similar mechanisms as the one we evaluated may allow farmers to limit water application earlier in maize development than recommended by Payero et al. [19].

4.3. Basal Crop Coefficient

In the present study, Kab mid of maize was reduced with the earlier onset (increased duration) of drought stress. Compared to the treatment with drought stress beginning at R2, drought stress beginning at V14 resulted in smaller plants with less leaf area for transpiration [76] and more instances of lower ETa, which likely contributed to lower Kab mid. The treatment with later onset of drought stress had lower Kab mid compared to the well-watered control, possibly because the exposed leaf area for transpiration was reduced by drought stress-induced leaf rolling that we observed in the field [34]. In the absence of drought stress, Kab mid in this study (1.08) was similar to the values reported by previous researchers [23,25,77], slightly higher than the range of 0.96 to 1.02 found by Facchi et al. [78], and 0.18 lower than the grass-based crop coefficient of maize reported by Djaman and Irmak [59]. The lower Kab mid in the two drought stress treatments was associated with less total available water in the 0- to 1.0-m soil layer, which limits evapotranspiration and reduces ETa [23].
Growth stage-specific values of Kab throughout the growing season in this study exhibited greater fluctuation when maize was exposed to drought stress. The smaller Kab at V12 for the treatment with drought stress imposed at V14 compared to the other treatments was due to reduced irrigation beginning at the 11 leaf collar maize stage in order to create moderate drought stress by V14. Similarly, the 6% reduction in Kab at tasseling compared to the 16 leaf collar maize phenological stage in the treatment with drought stress from R2 to R6 reflects judicious management of irrigation in preparation for exposing maize to moderate drought stress at R2. The drop in Ks act for the well-watered treatment during the late reproductive period was likely caused by soil water storage during the milk stage of maize phenological development that was slightly less than the threshold below which evapotranspiration is reduced to less than potential values, and may have caused some stress in the well-watered treatment. For the treatments with imposed drought stress from V14 to R6 and R2 to R6, Ks act was only moderately depressed compared to the estimated Ks. This may have been due to the crop being able to physiologically adjust to reduce evapotranspiration [23].
The decline in Kab after imposition of drought stress coincided with the gradual decline in calculated Ks in both drought stress treatments. However, Kab did not continue to decline with numerous, periodic declines in Ks. These results suggest that change in Kab during the drought stress period occurred in two phases that can be categorized as a transitional or intermediate phase and an acclimated phase. During the transitional phase, Kab declined as the crop acclimated to increasing crop water stress (Ks). Once acclimated, little change in Kab occurred after sustained moderate drought stress conditions were established, even though Ks varied widely around a mean. This finding from the field supports the conclusions by Harb et al. [79], based on research conducted with Arabidopsis under highly controlled conditions. The initial decline in Kab could have been brought about by the abrupt reduction in soil moisture content that reduced plant water potential, which in turn triggered a physiological mechanism for stomatal control of transpiration and gradual acclimation of Kab to the newly adjusted soil moisture condition [80].
An important determinant of ETa for making irrigation decisions is Kab, which can vary depending on crop phenological stage and growing environment. Our results contribute to better estimation of Kab for more precise irrigation management, especially when maize experiences prolonged, moderate drought stress.

5. Conclusions

This research was conducted under conditions that may well become more common as climate change alters rainfall amounts and timing in many temperate, humid, and sub-humid areas. Using a soil with relatively limited water holding capacity and a precision drip irrigation system allowed us to control the severity of drought stress. We exposed a standard maize hybrid and a drought-tolerant maize hybrid to extended periods of moderate drought stress, evidenced by midday leaf rolling that was relieved overnight. Imposition of drought stress during late vegetative development improved CWP compared to stress initiated during early reproductive development, even though these treatments produced a similar grain yield. The drought-tolerant hybrid showed greater improvement in IWP with a longer duration of drought stress than the standard hybrid.
We observed two phases of the crop coefficient, Kab, in response to drought: an initial transitional phase represented by declining Kab, followed by an acclimated phase with stable Kab. If drought is prolonged, two subdivisions of Kab may be required to estimate irrigation requirements accurately. In addition, it appears that maize can achieve a more effective physiological acclimation with earlier exposure to drought stress, since grain yield did not differ between the shorter and longer drought periods we imposed.

Author Contributions

Conceptualization, J.A.C. and M.P.R.; methodology, J.A.C., M.P.R., G.W.F., T.V., and S.A.; validation, J.A.C., M.P.R., and G.W.F.; formal analysis, S.A., J.A.C., M.P.R., and G.W.F.; investigation, S.A., J.A.C., T.V., M.P.R., and G.W.F.; resources, J.A.C., M.P.R., and G.W.F.; data curation, S.A. and J.A.C.; writing—original draft preparation, S.A. and J.A.C.; writing—review and editing, J.A.C., M.P.R., G.W.F., T.V., and S.A.; visualization, J.A.C., M.P.R., G.W.F., S.A., and T.V.; supervision, J.A.C., M.P.R., and G.W.F.; project administration, J.A.C.; funding acquisition, J.A.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Minnesota Corn Research and Promotion Council, grant 4099-13SP.

Acknowledgments

The authors appreciate technical assistance from Eric Ristau, Ronald Faber, Todd Schumacher, Peter Boulay, and several others.

Conflicts of Interest

The authors declare no conflict of interest.
