Review

Managing Phosphorus Loss from Agroecosystems of the Midwestern United States: A Review

by
Gurbir Singh
1,
Gurpreet Kaur
1,*,
Karl Williard
2,
Jon Schoonover
2 and
Kelly A. Nelson
3
1
Delta Research and Extension Center, Mississippi State University, Stoneville, MS 38776, USA
2
Department of Forestry, Southern Illinois University, Carbondale, IL 62901, USA
3
Division of Plant Sciences, University of Missouri, Novelty, MO 63460, USA
*
Author to whom correspondence should be addressed.
Agronomy 2020, 10(4), 561; https://doi.org/10.3390/agronomy10040561
Submission received: 10 February 2020 / Revised: 3 April 2020 / Accepted: 4 April 2020 / Published: 13 April 2020
(This article belongs to the Section Soil and Plant Nutrition)
Browse Figures
Review Reports Versions Notes

Abstract

:
Best management practices (BMPs) are site-specific and their implementation, long-term management, and maintenance are important for successful reduction of phosphorus (P) loss into headwater streams. This paper reviews published research on managing P loss from agricultural cropping systems in the Midwestern United States and classified the available research based on BMPs and their efficacy in reducing P loss. This review paper also identifies the areas where additional research could provide insight for managing P losses. Our literature review shows that cover crops, reduced tillage, saturated buffers, and constructed wetlands are the most evaluated areas of current research. However, additional research is necessary on the site-specific area to measure the effectiveness of BMPs in managing P loss. The BMPs that serve as a sink of P need further evaluation in long-term field-scale trials. Studies evaluating adsorption and desorption mechanisms of P in surface and subsurface soils with materials or amendments that bind P in the soil are needed. The time required and pathways, where the flush of available P is lost or fixed in the soil matrix, need further investigation. Measured P loss from BMPs like bioreactors and saturated buffers supplemented with P adsorption materials or filters need to be simulated with models for their prediction and validation. Field evaluations of P index and critical source area concepts should be investigated for identifying problematic areas in the watersheds. Identification of overlapping areas of high P source and transport can help in strategic planning and layout, thereby resulting in reducing the cost of implementing BMPs at field and watershed scales.

1. Introduction

Phosphorus is one of the most limiting nutrients for crop production after nitrogen. Cereal crops have only 16% P fertilizer use efficiency globally as estimated by Dhillon et al. [1]. Over application of P fertilizer to crops has resulted in an estimated loss of about 10.5 million metric tons of P each year from agricultural fields that are equal to half of the P mined every year [2]. Managing P losses from anthropogenic inputs into ecosystems is a global issue; therefore, several reviews have been published to address this issue [3,4,5,6,7,8,9,10,11,12,13,14,15,16]. Sharpley et al. [3] highlighted some important areas for potential P research including identification of soil P levels that have a high risk of P loss into water bodies, targeting critical source areas for managing P loss at watershed scales and balancing economically and environmentally sustainable use of P fertilizer.
In the last two to three decades, a fair amount of research has focused on developing a toolbox of best management practices (BMPs) for managing N and P. However, water quality improvements using BMPs have shown mixed results. Reasons identified for the poor performance of implemented BMPs include legacy P inputs (P from a prior land application and nutrient management), climate fluctuations, ineffective conservation practices, mistakes in understanding pollution sources, poor experimental design, inadequate level or distribution of BMPs and inadequate P management policies [9,16]. In addition, poor experimental design in any research study might not be able to prove the efficiency of the BMP tested. Several BMPs have proven to reduce N and P losses from agricultural fields. These BMPs are classified into three categories including in-field, edge of the field and land-use changes. The BMPs for managing P losses have been explored and researched to a lesser extent compared to BMPs focused on N losses. The objectives of this article were to (1) review the published research on managing P loss from agricultural cropping systems in the Midwestern United States of America; (2) classify available research on the basis of BMPs and their efficacy in reducing P loss; and (3) highlight gaps where additional research is necessary for managing P losses with changing cropping systems.

2. Phosphorus Cycling and Fertilizer Recommendations

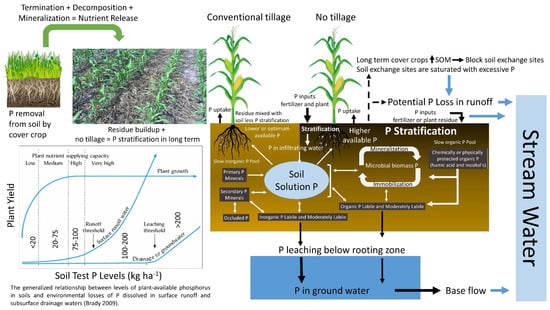

Phosphorus management requires a thorough understanding of P cycling including different biogeochemical forms of P, P storage or release from the soil, and hydrology of the landscape affecting water, runoff, and transport mechanisms (Figure 1) [13]. Historically, the goal of P fertilization to row crops was to reduce the limitation caused by P fertility issues to crop production [7]. As a result, the long-term crop rotation trials at the Morrow fields in Champaign, Illinois as well as at the Southern Illinois University Belleville Research Center in Bellville, Illinois reported to have increased soil test P (STP) [17,18]. In Missouri, 111 years of P fertilizer applications on the Sanborn field resulted in P accumulation in soil due to over-application and unrealistically high yield goals for the cropping systems evaluated [19]. Therefore, it is known that continuous additions of higher P inputs than what is exported in grain or silage will generally result in a buildup of P in soils. Another cause of the higher buildup of P in soil is outdated P recommendations to farmers [20]. Due to the cost and time involved in soil test P calibration-crop response trials, P recommendations have not been historically updated for several decades in the Midwestern USA [20]. Therefore, there is room for updating fertilizer P recommendations that can help minimize P build-up from crop production systems.

2.1. 4Rs of Phosphorus Management

Using the right source, rate, placement, and timing (4Rs) are critical for managing P losses from row crops. Several studies have examined the 4Rs of P management either collectively or individually [21,22,23,24,25,26,27,28,29]. Table 1 classifies research articles based on P application source, placement, rate, and time. In Iowa, results from 26 site-years of data from long and short-term P trials indicated that P increased yield in soils with low STP values (≤16 mg kg−1) and no response to P placement was detected at any of the optimum or high STP (≥20 mg kg−1) sites [23]. In Indiana, corn grain yield did not respond to P placement methods including deep banding, broadcast application [30]. However, Fernández and White [29] reported in Illinois that strip-till deep banded P fertilizer application produced greater kernels per row of corn, and 7.8% and 7.9% greater corn yield than no-till broadcast and shallow banded P applications, respectively. In Illinois, deep banding P increased STP levels beneath the row and lowered STP surface values compared to broadcast applications in soybean [31,32]. In the same study, authors reported that strip-tillage with deep-banded P resulted in better P uptake by soybean compared to no-till broadcast and deep banded P placement methods. The consensus among studies was that a yield response of corn or soybean was observed when STP values were very low to low (9–16 mg kg−1) and a yield increase to deep placement of P was seldom observed, with a few exceptions [22,24,25,33].
Phosphorus fertilizer application timing and source studies in Illinois have investigated diammonium-phosphate (DAP) or monoammonium-phosphate (MAP) sources and the interaction with application timing (fall or spring) [34]. Spring applications of P resulted in a greater yield response for corn (0.37 to 0.71 Mg ha−1) than fall applications [34]. In Iowa, P application for no-till corn and soybean was evaluated at 20 sites in three years for a fall and spring broadcast application of triple superphosphate (TSP) on soils with STP values ranging between 6 to 29 mg P kg−1 [35]. Yield response to P fertilizer application was observed for soils with STP values ≤21 mg P kg−1; however, the time of broadcast P fertilizer application had no effect on no-till crop yields [35].

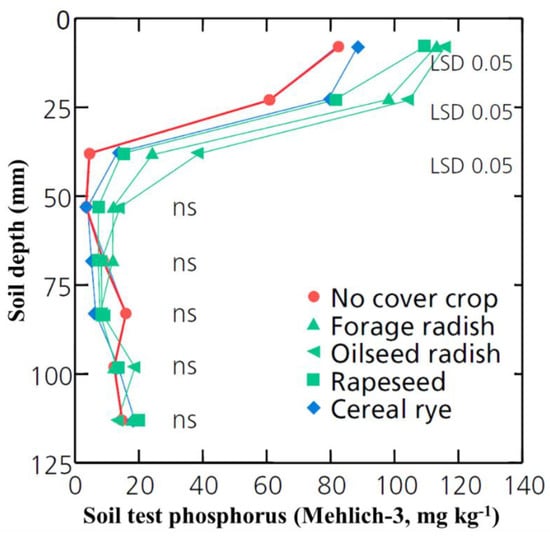

2.2. Phosphorus Stratification

To develop long-term economically and environmentally sound P management strategies, it is important to know about STP buildup with continued fertilizer applications, a decline in STP in the absence of P fertilizer application, and the critical soil test P level needed for a yield response (Table 2). Long-term study on P buildup for 8 yrs and then P decline for 36 yrs have reported corn and soybean to be at maximum yield potential when STP was >20 mg kg−1 [36]. In Minnesota, STP buildup rates during a 12-yr continuous P application study were estimated between 0.42 to 2.49 mg P kg−1 yr−1 at P application rates of 24 and 49 kg P ha−1 [37]. In the same study, the decline of STP during an 8-yr residual period (no P fertilizer applied) was estimated to be 3.3 and 0.4 mg P kg−1 yr−1 for initial STP levels of 40 and 10 mg P kg−1, respectively. Crop rotation effect on P stratification needs to be researched in the production systems including winter cover crops to provide improved P fertilizer recommendations to farmers implementing these systems.
Conservation tillage practices such as no-till along with higher rates of applied broadcast P fertilizer have resulted in vertical stratification of P at the soil surface [25,28,33,38,39,40]. To address the issue of P stratification, alternative P placement techniques for broadcast applications including deep banding have been developed to reduce or minimize the environmental risk of dissolved P losses in surface water runoff [41,42,43]. In addition to limiting P losses in the runoff, the subsurface placement of P might be beneficial in enhancing P availability to crops. For example, subsurface soil layers have greater water content which can increase P uptake by roots when P was banded into the soil profile [23,24,25,32,33]. In Illinois, Farmaha et al. [31] reported higher protein and oil yields of soybean with strip-tillage deep banded P compared to the no-till deep band and no-till surface broadcast P because of greater soil water availability in strip-tillage deep-banded P treatments. However, continuous deep banding of P fertilizer can result in a subsequent repeating pattern of high and low STP values that can develop across fields which might result in variability of P fertility across a field and can limit our ability to accurately assess P fertility status of a field [39]. Long-term studies on P stratification linked to the impairment of water quality are limited. In addition, studies on adsorption and desorption mechanisms regulating the stratification and release of P from different pools are not available.

2.3. Amendments, Enhanced Phosphorus Fertilizer, and Additives

Fertilizer amendments such as lime, gypsum, alum, steel furnace slag, and ferrous sulfate biochar, as well as products like Avail (Specialty Fertilizer Products, Leawood, KS) and P2O5-Max (P-Max, Rosen’s Inc., Fairmont, Minnesota, USA) have been used for managing the environmental loss of P or for increasing efficiency of applied P fertilizer [44,45,46,47,48,49,50]. Gypsum and lime are among the most studied amendments added to the soil for managing P (Table 3). Gypsum generally contains around 23.3% Ca and 18.6% S. Application of gypsum increases Ca levels in the soil solution and reduces soluble P loading from soil to surface waters by absorbing available P in soil solution with the Ca in gypsum [49,51,52,53]. Greenhouse and controlled environment experiments have reported a reduction of P loss by liming depended on initial STP status. Higher soil solution P concentrations with high STP may affect precipitation or co-sorption of Ca and P following liming. Higher pH as a result of liming decreases soil surface charges with increased pH causing P desorption that counters the increased sorption or co-precipitation with Ca [44,46,54]. During our literature review, we did not find any long-term field-scale studies evaluating the effectiveness of gypsum and lime amendments in reducing P loss to surface and subsurface waters. Therefore, research evaluating the impact of lime and gypsum application on surface and subsurface loss of P under commercial agricultural field conditions is necessary.
The P enhancers, Avail® (Specialty Fertilizer Products, Leawood, KS) and P2O5-Max (P-Max, Rosen’s Inc., Fairmont, MN), did not affect plant population, silage dry weights, grain moisture, grain yield, grain protein, grain oil, or grain starch concentrations in Missouri [47,55]. The P enhancers can increase P use efficiency and result in better nutrient management [47]. The non-response of crop yields to enhanced efficiency P fertilizers could be due to high STP of the sites selected [48]. In a meta-analysis of 503 field observations on Avail P fertilizer (maleic-itaconic copolymer acid marketed to enhance P fertilizers) applied to different crops, Hopkins et al. [48] reported an average yield increase of 2.1% while using Avail in soils testing low in STP resulted in 4.6% increase in crop yields. Slow-release P fertilizers, such as struvite and P-exchange layered double hydroxides (LDH) have been developed by recycling P from wastewater streams [56,57]. In simulated runoff studies, P loss from struvite and LDH was 1.9% and 2.4% of the applied P, respectively, whereas P loss from MAP was 42% of the applied P [57]. Slow-release P fertilizers have the potential to reduce the environmental loss of P and require further evaluation in the crop production systems.

3. Managing P Loss from the Surface and Sub-Surface Water Flow

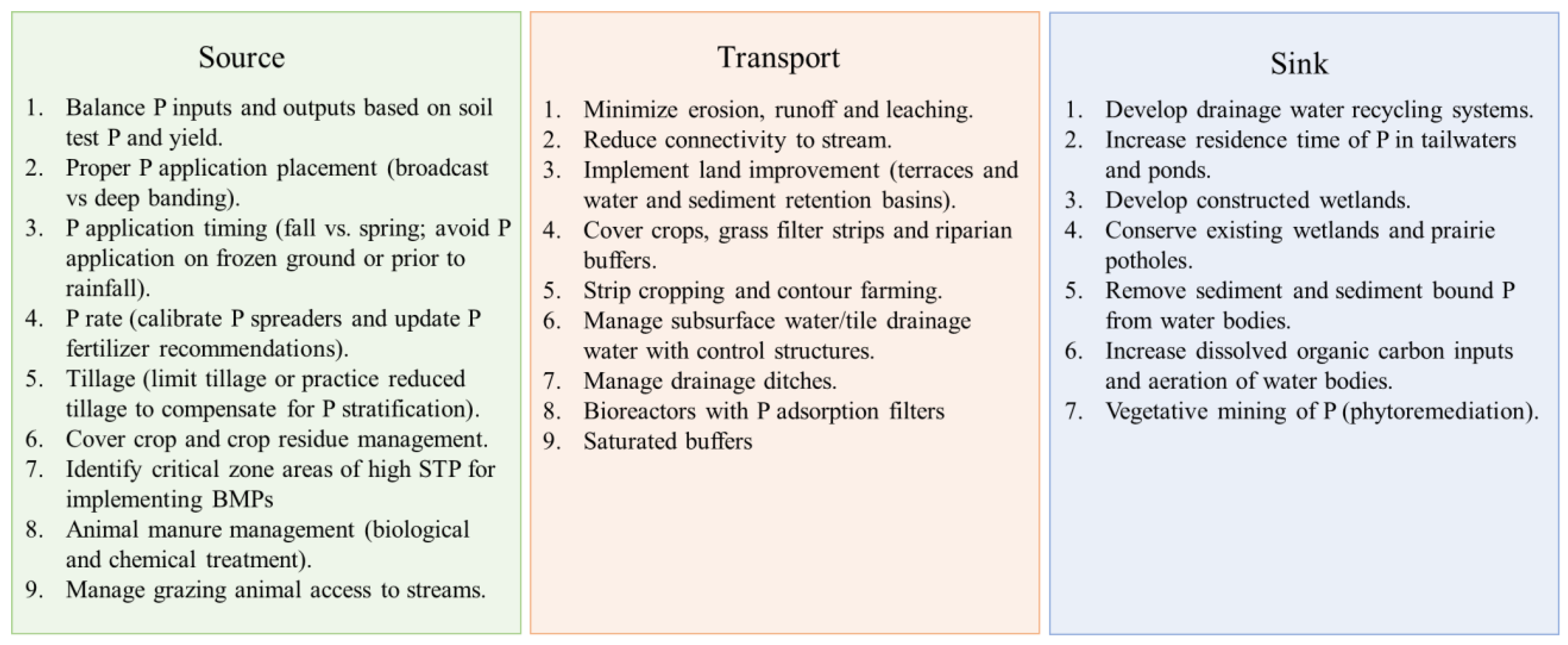

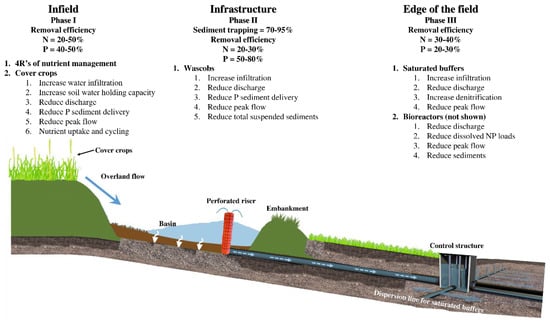

Several edge of field and infield BMPs have been identified for managing P loss [10,16,58] at the source, in the transport phase, or at the sink. Figure 2 highlights different P management practices that can be implemented to reduce P loss. The effects of BMPs on P retention in the field is highly variable and largely depends on the efficiency of a BMP in removing P, time period for which a BMPs is implemented, maintenance of a BMP, the targeted area of BMP, and most importantly soil P buildup due to higher fertilizer application amounts of P to soil also known as legacy P. The BMPs to manage surface and subsurface P loss to water bodies are discussed in the following sections.

3.1. Surface Water Management

Research studies have been reported on 4R’s of P management and the impact of tillage systems on crop production and runoff P loss in the central U.S. [28,29,31,32,34,41,59,60,61]. Many researchers have reported dissolved reactive phosphorus (DRP) to be greater in surface water runoff under no-till systems compared to other tillage systems [41,59,62]. Algoazany et al. [60] reported that soluble P concentration of surface water runoff ranged between 270 to 572 µg L−1 in a watershed under corn-soybean production. Yuan et al. [61] reported that strip till-deep placement of P fertilizer reduced DRP loads 69% to 72% compared with a no-till-broadcast application of P, while showing no differences in grain yield due to application method. Fall broadcast P fertilizer application increased DRP and total P concentrations compared to deep banding P, but there were no differences between P fertilizer placement treatments for a spring application [61].
Most of the research on surface losses of P has focused on the impacts of tillage on P loss and to a lesser extent on rate, time, or placement (Table 4 and Table 5). Phosphorus management studies have focused on crop growth and yields. Temporal changes in weather patterns influence phosphorus cycling (Figure 1); therefore, it is important to conduct studies year around to evaluate P loss in surface water runoff. The Measured Annual Nutrient loads from Agricultural Environments (MANAGE) database has classified peer-reviewed studies published on measured N and P loss in the U.S. The criteria for selecting N or P loss studies in the MANAGE database was that these studies were under cultivated agriculture, pasture, rangeland, or hay, having at least 0.009 ha in the area studied and measured nutrient loads from surface runoff due to natural rainfall [63]. The MANAGE database reported that 4% to 9% of applied fertilizer P was lost in surface water runoff [64].

3.1.1. Cover Crops and Tillage

Cover crops increase water infiltration, reduce surface water runoff, reduce sediment, and nutrient loss, improve soil structure, and increase residue cover [65,66,67,68]. Reductions in STP with the use of cover crops have been reported in many research studies [69,70,71,72,73] (Table 4). Villamil et al. [73] reported that inclusion of cereal rye and hairy vetch–cereal rye mix cover crops significantly reduced available P content in the soil compared to a crop rotation without a cover crop. The sampled topsoil depths had P stratification regardless of the cover crop treatments under the no-tillage system [73]. The redistribution of P to the surface with no-tillage was probably a direct result of surface-placement of crop residues that can result in accumulation of soil organic matter and microbial biomass in association with a lack of soil mixing. Grove et al. [40] also reported that stratification of STP was enhanced using cover crops on a silt loam soil (Figure 3).
Although reduced P loss in surface and sub-surface waters is often cited as an advantage of cover crop use [74,75], few studies have actually quantified cover crop impacts on P loss at a field or watershed scale [67,76,77]. Abel [76] reported a 52% reduction in total P losses during the first year of implementing cover crops in Kansas; however, Bruening [77] reported no reduction of total P loading in Illinois. Dissolved reactive phosphorus losses were not reduced in Kansas or Illinois after the implementation of cover crops for two years. Cover crops including weeds such as common chickweed (Stellaria media L.), Canada bluegrass (Poa compressa L.), and downy brome (Bromus tectorum L.) increased DRP in runoff from no-till soybean as compared to a no cover crop control [78]. In a runoff and tillage study in Minnesota, available P concentrations in surface water samples increased with an increase in residue cover [79]. In general, DRP losses increased in a no-tillage system and sediment-bound total-P increased in tilled crop production systems. Most of the studies that have evaluated cover crop impacts on P loss have been conducted as rainfall simulation studies [78,80,81]. Results from simulated rainfall studies indicated trends for P loss for field-scale conditions, but could not show losses that occur due to actual precipitation received. Therefore, cover crop and tillage effects on P loss should be studied using multi-year, field-scale, and watershed projects with natural rainfall. Cover crop effects on runoff and P loss will change throughout the year with the cover crop or grain crop growth. Field-scale data are needed to document the impact of cover crops on P loss to provide recommendations for their use as a BMP for managing P.
Topographic variation along with tillage practices in large agricultural fields can have a substantial impact on dynamics of soil P as well as the performance of cover crops [79,82,83,84]. Soil organic matter levels vary in response to topography. Soil organic matter is regarded as one of the main soil properties blocking iron and aluminum exchange sites of soil where available P can be attached which could result in increased organic and/or inorganic P losses [85,86,87,88]. Phosphorus loss due to the interaction between topography, tillage, and cover crops needs more exploration. Temporary immobilization of P in the cover crop biomass along with a surface cover of biomass may improve runoff water quality by decreasing sediment loss and sediment-bound P. However, P stratification in topsoil over long period of time due to higher biomass inputs of cover crops may act as a source of P resulting in greater DRP losses. Stratification of P in inorganic (soluble or loosely bound P, aluminum bound P, iron-bound P, reductant soluble P, calcium bound P) and organic (labile organic P, moderately labile organic P, humic and fulvic acid P) pools of P in soil have not been reported by any study under different cover crops and tillage systems.

3.1.2. Water and Sediment Control Basins (WASCoBs) and Terraces

Land improvements for soil conservation have been promoted in many Midwestern states of the U.S. Common conservation practices have cost-share programs in several states include installing terraces and WASCoBs. Water and sediment control basins are constructed along minor slopes or watercourses in order to capture runoff during storm events and then slowly discharge the runoff water through a stable outlet. The WASCoB reduces erosion and improves water quality by removing the total suspended solids and P load in runoff [89]. Research on terraces and WASCoBs has focused on the management of drainage water for erosion control (Table 5). Therefore, research on the benefits of improving water quality and managing nutrient loss in runoff was explored to a lesser extent in these land improvement conservation practices. A 5% decrease in peak stormwater flow by using WASCoBs was reported in Iowa [89]. Total suspended solids in surface water runoff were reduced up to 80% along with 85% reduction in phosphorus loads to surface waters with the use of WASCoBs [89]. Similarly, Edwards et al. [90] reported a 94% reduction in sediments, a 76% reduction in N loss and a 52% reduction in P loss by establishing a basin for trapping agriculture runoff water. Fiener et al. [91] monitored WASCoBs for eight years for sediment and nutrient retention, and 54–85% of sediments were retained in the WASCoBs basin. Peak runoff and peak concentrations of agrochemicals were reduced by at least 50% with the implementation of WASCoBs [91]. The eight-year study conducted by Minks et al. [92] showed a 260% reduction in suspended sediments by the use of sediment control structures [92].
In a comparison study of various conservation practices (no-tillage, contour farming, terraces, WASCoBs, vegetative filter strips), Czapar [93] observed that terraces and WASCoBs had the lowest soil loss (0.4 tons’ acre−1 yr−1) and total losses of N and P in soil and water were 7.28 kg N ha−1 and 1.8 kg P ha−1, respectively, compared to other conservation practices [93]. Terraces and WASCoBs were reported to reduce total-P loads and concentrations by 5.8 kg P ha−1 and 1.4 mg L−1, respectively, when compared to runoff water before and after installation [94,95]. However, it is important to point out that the dissolved fractions of N and P were not reduced using terraces or WASCoBs [95]. Using a modeling approach for tile-drained terraces, Gassman et al. [96] found an 80% reduction in sediment-bound P (APEX model), and 64% to 74% reduction of sediment and organic P, using the SWAT model.
In Nebraska, Mielke [97] studied the performance of WASCoBs for erosion control and drainage water management. Sediment trapping efficiency of WASCoBs exceeded 97% and the sediments that were discharged from the outlet had 12% silt and 88% clay in suspension after a two-hr runoff event measured at the outlets [97]. The authors of this study pointed out that the sediment trapping efficiency of the WASCoBs can be decreased by more than half if the newly built WASCoBs were not protected from erosion following construction. Therefore, it is important to tie infield BMPs focused on the surface cover, such as cover crops, with newly built terraces and WASCoBs to extend their life. This combination of multiple BMPs can also help nutrient retention in agriculture fields (Figure 4). Overall, there is a need to integrate the right (4Rs) fertilizer management systems along with other conservation strategies like cover crops, terraces, WASCoBs, saturated buffers, and bioreactors acting as staged water management systems to demonstrate that BMPs working in concert can systematically minimize nutrient loss (Figure 4).
Construction of terraces result in manmade topographic positions, which can be classified into the shoulder, backslope, footslope, and channel [98]. The change in the landscape can substantially influence crop yield and increased input of fertilizer amendments may be necessary to meet the production goals. In Missouri, channel slope compared to other landscape positions of the terraces showed a significant reduction in corn and soybean yields due to abiotic stress to the plants caused by waterlogging [98]. Research on supplementing channel slopes with subsurface tiles to improve drainage and changing the design of inlets to a blind inlet packed with steel slag or industrial material that removes P should be evaluated [16]. In a 7-year paired comparison of open and blind inlets of tile drains in Indiana, total P and DRP loads were 66% and 50% lower, respectively, from blind inlets than from open inlets [99]. In a similar study conducted in Minnesota, the conversion of an open inlet to blind inlets resulted in a decline in median total suspended solid concentrations from 97 to 8.3 mg L−1 and dissolved P concentrations from 0.099 and 0.064 mg L−1, respectively [99].
Terraces and WASCoBs with open and blind input of the tile lines must be evaluated for long-term profitability by establishing a cost for the reduction of P loading that occurs using these land improvement practices. It is important to point out that if there is no cost-share program to support these practices it could add substantial construction costs [16,95]. The P abatement costs for WASCoBs based on four studies was estimated by Liu et al. [16] and ranged between $1.88 to $1065.93 kg−1 P removed [93,94,100,101].

3.1.3. Vegetative Buffers

Vegetated buffer strips (VBS) consist of non-cultivated borders between surface waters and agricultural fields to improve water quality and biodiversity [102]. The main mechanisms for P retention in VBS are sediment deposition, water infiltration, nutrient adsorption, and plant absorption [103]. Dense aboveground vegetation and belowground root systems in a VBS first remove P from overland flow by deposition and infiltration. Aboveground vegetation in the VBS reduces flow velocity of surface water, available energy for particulate transfer and increases hydraulic roughness [104,105], whereas below-ground root systems increase soil permeability and porosity while increasing infiltration of overland water flow [106,107].
The effectiveness of VBS depends upon the vegetation characteristics (single species vs. multiple species, different crop or tree species, and plant density) [103,108], as well as width and slope before the surface water flow reaches buffer area [109]. For example, Abu-Zreig et al. [103] reported that the P removal efficiency of a VBS ranged from 31% in a 2-m VBS to 89% in a 15-m VBS. Abu-Zreig et al. [103] concluded that VBS width was the most important factor determining P trapping compared to other factors including the rate of inflow, type, and density of vegetation. A study conducted by Lyons et al. [110] found that forested riparian buffers were less effective than the grass riparian area in trapping total suspended sediments.
Vegetated buffers generally retain more particulate P than dissolved P from overland flow [102,111]. In a literature review on P retention of riparian buffers, Hoffmann et al. [111] reported that retention of total P and DRP by riparian buffers ranged between 41% and 95% and −71% to 95%, respectively. Stutter et al. [112] found increased inorganic P solubility indices, dissolved organic P, phosphatase enzyme activity, microbial diversity, and biomass P in VBS soils compared to soil in an adjacent field. Roberts et al. [102] concluded that the establishment of VBS increased labile organic and inorganic soil P fractions from previously immobilized soil P from fertilizer applications or sediment P from runoff by increasing soil P cycling rates and potentially increasing the amount of P available for leaching to water in streams.
In a literature review on the effectiveness of current conservation practices on P loss, Dodd and Sharpley [113] found that labile soil P forms accumulated over time in the buffer zones, including vegetative and grass filter strips, became the source of both organic and inorganic dissolved P. Remobilization of P assimilated by biological processes as from particulates to soluble P forms can occur by microbial turnover, decrease in microbial biomass, drying and rewetting cycles, and leaf senescence which can increase water-extractable P at the soil surface of VBS and increase the risk of dissolved P loss Roberts et al. [102]. However, Roberts et al. [102] mentioned that the increase in dissolved P from VBS was based on limited evidence and needed further investigation. Roberts et al. [102] concluded that VBS became a modified pathway in the transfer of P to surface water streams by altering the timing, extent and chemical form of the P that was delivered to streams, which could be due to differences in biological activity between the agricultural field and VBSs. Therefore, the VBS needs to be properly managed to improve P retention of all chemical forms including particulate P as well as soluble P forms from overland flow.
Additional research will help us to understand the interaction of vegetated buffers with different management practices including tillage, fertilizer applications, soil liming, and residue management in the agricultural fields. Research finding a balance between P uptake efficiency, P removal from the soil, and rate of biomass harvest from VBS should be supplemented with research on providing recommended actions for maintaining existing VBS. Designing VBS with an engineered P management structure having a P adsorption material to treat dissolved P and identifying plant species that increase P uptake from engineered structures and soil can be a potential option to reduce dissolved P losses.

3.2. Subsurface Water Management

The 2012 Agriculture Census reported that 19.65 million ha in the US had subsurface tile drainage [114,115]. In Illinois, around 35% of the 10 million ha of crop production area was tile-drained [116]. There are a few studies that have monitored P losses from tile drains. Hydrological modification of the agriculture landscape with tile drainage to target higher production goals has led to a decrease in the residence time of water in the soil profile. A long-term study on tile-drained water quality in the Little Vermilion River (LVR) watershed, IL, has provided results about DRP and total P losses [60,117]. Dissolved reactive phosphorus is usually high during precipitation events that followed the widespread application of P fertilizer on frozen soils [117]. In a 50-year analysis of published data on P loss in drainage water, Christianson et al. [118] reported that less than 2% of applied P was lost in drainage water and no-tillage significantly increased DRP loads in drainage water flow compared with conventional tillage. Phosphorus loading to subsurface tiles can be impacted by preferential flow in soil, soil P sorption capacity, soil redox conditions, soil-test P levels, tillage, cropping system, source, rate, placement, and timing of P application, drainage design/installation, and spatial/temporal variation and precipitation [119]. Additional research is needed on tile drain spacing, depth, and layout effects on P loss.
Several conservation practices like drainage water flow control structures, bioreactors, and saturated buffers have been promoted in the Midwestern U.S. to manage and connect tile drain water to the riparian buffer zone (Table 6). Some of these conservation practices are being researched for their feasibility; however, the question remains is how much water can be treated with these conservation practices. Additionally, what size of a precipitation event can be managed with these practices and how do these practices work in concert with other conservation practices like nutrient management planning, cover crops, and land improvement practices.

3.2.1. Controlled Drainage

Controlled drainage structures also known as inline water level control structures, can regulate subsurface tile drainage flow (Agri Drain Corp., Adair, IA). These structures, if actively operated, can efficiently manage the water table of the field [120,121,122]. Drainage water control structures have been shown to reduce N and P loading to streams by reducing the amount of discharge and increasing uptake of these nutrients by cash crops [120,121,122]. However, concern has existed over the potential for greater dissolved P losses with controlled drainage due to the reductive dissolution of P bonded to iron during periods of water stagnation. Based on a laboratory study, Valero et al. [123] concluded that elevated water tables caused by drainage water management could increase P export in subsurface drainage following the reductive dissolution of iron-bound P in waterlogged soils.
In contrast to Valero et al. [123], field trials in Missouri have documented some significant benefits of reduced P loading [121,122] and increased corn and soybean production with controlled drainage [124,125]. In a 4-year study, controlled drainage was reported to reduce flow-weighted DRP concentrations by 0.06 mg L−1 compared to free drainage [121]. Reduction in P loading by using control structures was due to a 63% reduction in annual drainage and increased P uptake by corn from water during the dry summer months, which further reduces the amount of P available for leaching to drainage tiles in the following spring [121]. Zhang et al. [126] also reported that controlled drainage with sub-irrigation was an effective way to reduce annual and cumulative losses of DRP, particulate P, and total P in tile drainage when compared to free drainage. Innovative techniques like P removal filters (sand enhanced with iron) can be connected to subsurface tiles and control drainage structures to further reduce P loading into streams [127].
Decisions for regulating the water table of a field can be input into a model to give recommendations on when to use stop logs in controlled drainage structures and when to release water from the fields to prepare them for planting. Several models have the potential to be used for modeling P losses in artificially drained fields [128]. Several components of these models need to be assessed before making the simulation. Phosphorus modeling components include partitioning of water and P into a runoff, macropore flow, and matrix flow. Once in the soil matrix, sorption and desorption of dissolved P, filtering of particulate P, and inputs–outputs of P need to be considered in the models. Multi-location and long-term field experiments are required for developing the models for managing artificially drained fields with control structures and reducing P losses from these drainage systems.

3.2.2. Bioreactors

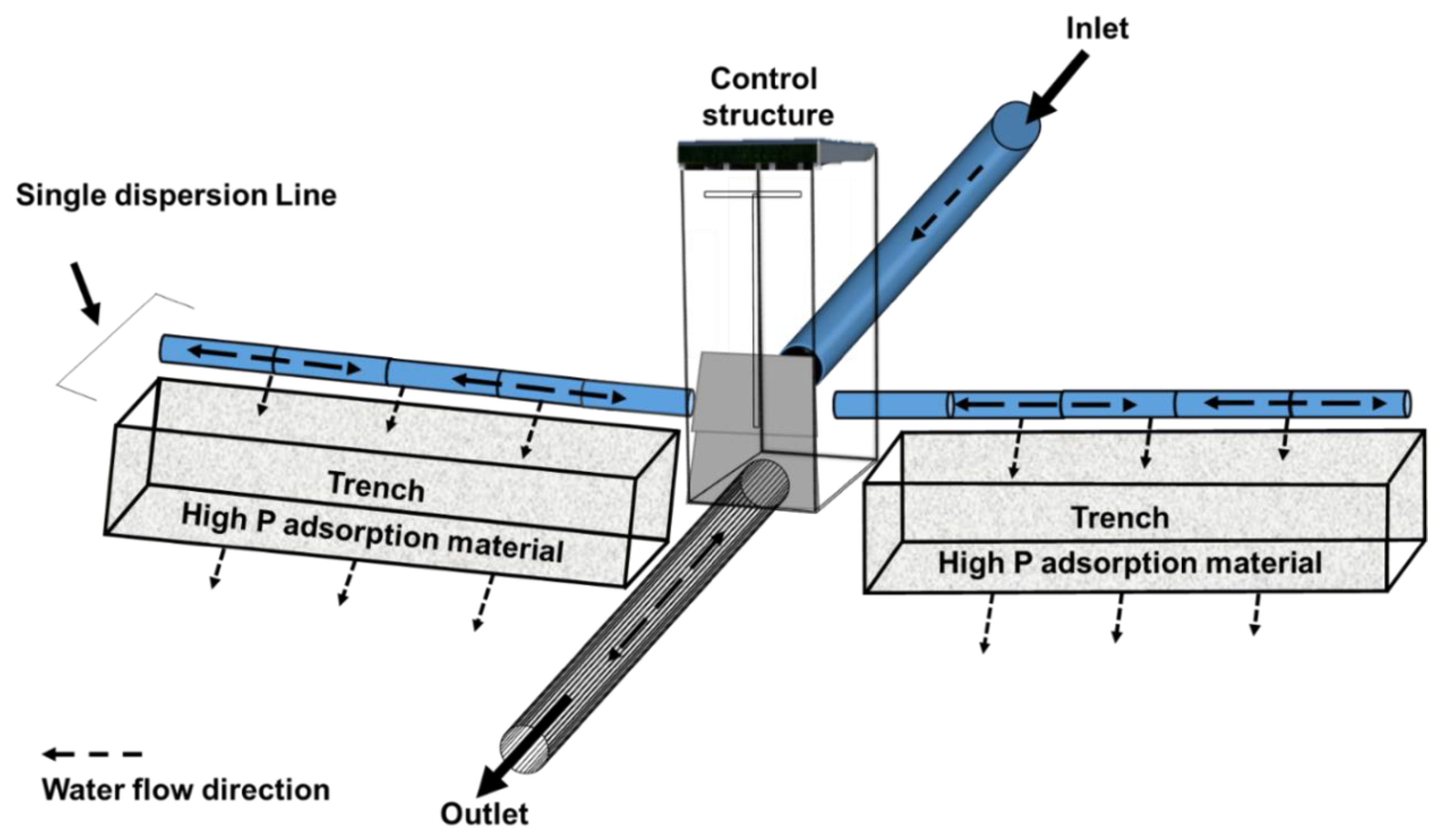

Bioreactors are the edge of field BMP that intercepts the drainage water from tile drains and removes excess nutrients from this drainage water before releasing it to surface water bodies. Bioreactors are traditionally designed for reducing N loading from drainage water; however, modifications in the bioreactor design have been evaluated for their feasibility in reducing P loss [129,130,131,132]. Phosphorus sorbing materials in the bioreactors should have high P bonding ability even at low P concentrations in the drainage water and sufficient hydraulic conductivity for high flow conditions [130]. Generally, P sorption ability is negatively correlated to hydraulic conductivity among P sorption materials [130]. A 65% reduction in P concentration was observed for laboratory-scale bioreactors with biochar [129]. Hua et al. [133] reported that a recycled steel by-product filter effectively removed phosphates from the effluent and the total phosphate adsorption capacity was 3.70 mg P g−1 under continuous flow conditions, compared to woodchip bioreactors. In addition to the removal of dissolved P, woodchip bioreactors coupled with a solid settling tank have the potential to remove particulate P from the tile drain water [134].
Field studies of bioreactors designed to treat N and P from tile drainage water have shown a reduction in dissolved and total P loading [135,136]. Husk et al. [136] evaluated bioreactors filled with a mixed media reactive to P for three years and found a 19 times higher reduction in total P loads with mixed-media bioreactors compared to a standard woodchip bioreactor. However, both types of bioreactors were not able to reduce the total P concentration below the critical environmental threshold level of 0.03 mg L−1 [136]. In South Dakota, a woodchip bioreactor supplemented with a P adsorption structure filled with mixed-media reduced dissolved P 10% to 90%, and P removal rates varied between 2.2 and 183.7 g m−3 day−1 during the study period [135].
Design criteria of bioreactors used for abatement of N and P should consider factors including the drained area, retention time of water needed for biochemical processes in the bioreactor, percent of flow that can be treated, stormflow and baseflow of waters during and after precipitation events, operating failure due to sedimentation, operating temperature, solution pH regulating sorption processes of P, life expectancy of filter material, and cost of N and P removal. Several engineered materials are being developed to remove P from effluent water including reduced graphene oxide membranes/filters, nanocrystalline zinc-iron layered double hydroxides and other metal hydroxides [2,137,138] which have P adsorption capacities as high as 140 mg P g−1 of material. Along with research needed on the design criteria of the bioreactors, research efforts need to be directed towards evaluating the engineered material at the field scale as well as testing bioreactors with other crop management practices.

3.2.3. Saturated Buffers

Vegetative buffers at the edge of the field with natural or planted vegetation have the potential to reduce sediment loss, nutrient transport to surface waters, and reduce N and P from shallow groundwater. In tile-drained areas of the Midwest, vegetative buffer areas are not effective because the tile lines bypass the buffer and discharge directly into streams or ditches. A practice that has shown to be a cost-effective method to remove NO3-N and dissolved P from tile drain water is saturated riparian buffers [139,140,141]. Saturated riparian buffers are used in situations where a field is bordered by a vegetated buffer, typically along a waterway or stream, and drained by a subsurface drain tile network. A saturated buffer is incorporated into an existing or newly established riparian buffer in which a shallow lateral line intercepts existing tile lines and disperses the water across the vegetated buffer. As the water flow is dispersed across the buffer, there is a high potential to reduce nutrient concentrations and loads by direct uptake of the vegetation in the buffer or through the conversion of NO3-N into nitrogen gas and for DRP adsorption to iron and aluminum exchange sites in the saturated buffer area. Drainage outflows are also reduced along with a reduction of the nutrient load because a portion of the water dispersed across the buffer is taken up and transpired by the vegetation. Overall, this practice requires a relatively low installation investment and very little management or maintenance costs.
The potential of saturated buffers for reducing P losses has been explored to a lesser extent [142]. Utt et al. [142] concluded that saturated buffers cannot appropriately treat P related water quality concerns since saturated buffers monitored for a reduction in dissolved P loss from the tile water showed no consistent trends. However, modification of saturated buffer designs including backfilling saturated buffer areas and tile lines with steel slag or industrial by-products of higher ion exchange potential should be explored [143]. McDowell et al. [143] used by-products from steel and energy industries to mitigate P loss from tile drains and reported that dissolved P and total P loads in tile drain were 0.27 and 1.07 kg P ha−1 lower than the control. The retention time of the water in the saturated buffer should be increased and industrial by-products/material that show promising results in reducing P loss in water can be engineered in the design of the saturated buffers. The adsorption and desorption isotherms of the material used in the saturated buffer design could be tested prior to their implementation (Figure 5).

3.2.4. Constructed Wetlands, Reservoirs, and Drainage Water Recycling

Constructed wetlands are strategically located in the agriculture landscape to store water, nutrients, and particulates for both short and long-term periods (Table 7) [144]. Research on constructed wetlands has shown 27% to 100% retention of P [145,146]. Constructed wetlands can store sediments as well as can serve as a sink for total and dissolved P; however, seasonal differences in P retention can be significant with higher retention of P during summer than in winter [145]. In Georgia, the water quality of inflow and outflow of a restored wetland was monitored for 8 years with a 66% reduction in dissolved P and total P loss [146]. Total P removal in the wetlands of the Des Plaines river wetlands demonstration project near Chicago, Illinois, USA ranged from 52% to 99% [147]. A wetland designed with a grassed buffer to remove sediments and total P from surface runoff removed 88% of 48 kg ha−1 total P load during a 2-yr study period [148]. In contrast, some of the constructed wetlands in Illinois and Maryland did not show a significant reduction in P [149,150,151]. A lack of P reduction in these studies was attributed to variation in seasonal precipitation contributing to runoff and discharge to these wetlands, and insufficient wetland acreage for sufficient P-binding/removal. Research on constructed wetlands is needed for developing mapping tools for strategic planning and layout of wetlands in agricultural watersheds and validating mapping tools and models with measured data. Additionally, research evaluating amendments like calcium that can be supplemented to increase P adsorption in wetlands, a life expectancy of constructed wetlands, and the economic benefit of P removal compared to construction cost should be evaluated in long-term studies [152].
Reservoirs and ponds at the farm scale serve an important role in reducing P loading into streams and rivers. Phosphorus removal by reservoirs or ponds depends on several factors including the concentration of soluble P in water discharged, concentration of soluble P in the overlying water column of the pond, hydraulic residence time of P in the pond, pH of pond water, concentration of P in underlying sediment, adsorption and desorption of P by pond sediments, weather parameters including light and temperature governing biochemical reactions, P uptake and assimilation by hydrophytes, and dissolved N and carbon in the water [153]. Reddy and Reddy [154] reported a longer hydraulic residence time for water was needed in ponds for P removal at high P loading compared to low P loading. In Minnesota, ponds supplemented with different species of duckweed (Lemnaceae) affected P absorption differently [155]. Lemna minor L. and Spirodela polyrhiza (L.) Schleid. were the most stable nutrient sinks and removed the largest amount of P from ponds during the 8 week study period [155]. On-farm stormwater retention ponds can serve as a sink for nutrients, enhance groundwater recharge, delay flooding potential, increase on-farm evaporation, and most importantly serve as a source of water to grow crops during drought years. Drainage water recycling research from farm ponds for crop production is limited. Long-term research on drainage water recycling is needed to demonstrate the economic benefit in terms of greater crop yields [124,125] and improved quality of discharged water from this practice [43,156].

4. Watershed Scale Studies and Critical Source Area Concept

Several catchment or watershed scale studies have evaluated P risk assessment after implementing BMPs [67,157,158]. Lemke et al. [158] reported no significant reduction in P loss in tile-drained sub-watersheds (4000 ha) of the Mackinaw River in Illinois after 7 years of implementing BMPs. The authors concluded that BMPs established during the study were not adequate to manage nutrient export from subsurface drainage tiles. Singh et al. [67] reported a significant reduction in discharge and total soluble solids by implementing cover crops for two years during the treatment period of headwater agricultural watersheds (<50 ha). No improvement in event mean Nitrate-N, ammonium-N, and dissolved P concentrations in stream water quality was reported [67]. Event means of dissolved P losses were increased by 60% during the cover crop treatment period. At the watershed scale, losses of legacy P can contribute to a possible lag time in response to restoration treatments or management systems [159]. Due to variability induced by several factors including hydrologic processes, landscape position, soil series, soil P status, crop P uptake, tillage, and crop rotations at the watershed scale, these studies need to be replicated or designed using a paired watershed approach to detect the impact of BMPs for improving water quality.

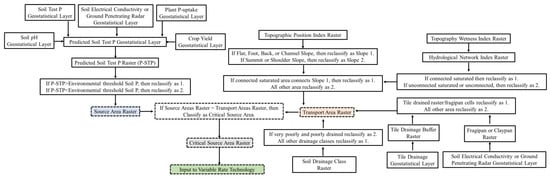

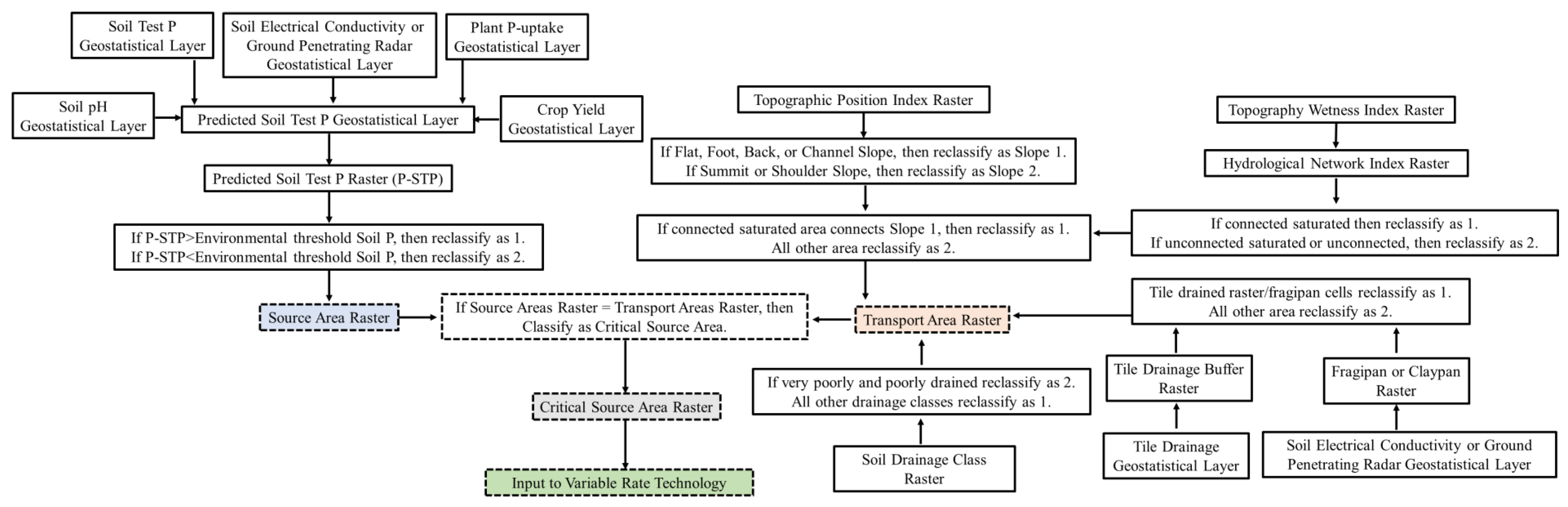

The critical source area of P export from agriculture watersheds can be defined as the area where a high concentration of soil P (source area) coincides with areas that have a high potential of runoff or subsurface flow of water (transport area) [160]. Many studies have found that large runoff amounts were contributed by less than 10% of the watershed area [161,162,163] and a significant part of the watershed had little impact on nutrient transport and loading to headwater streams. Therefore, critical areas can be targeted with the implementation of BMPs. Identifying areas in a field with high P status can be done with sampling for STP along with developing spatial P maps of the fields in watersheds using soil electric conductivity or ground penetrating radar models (Geonics, ON Canada or Veris, OR USA). High-resolution digital elevation models can be used for developing soil drainage class, topographic position index [164], topographic wetness index [165], and the network index [166] for identifying areas in the watershed that have surface hydrological connectivity. Additionally, soils that have a restrictive layer like a fragipan can be identified using ground sensing radars and soil electric conductivity to develop spatial maps of subsurface hydrological connectivity, which can contribute to increased P loading [161]. Soil P and surface/subsurface layers can be used to identify critical source areas (Figure 6). Weld et al. [167] evaluated the relationship between soil P and surface runoff P using the P index for identifying critical source areas. They reported that areas vulnerable to P loss were located along the stream channels where areas of runoff generation and areas of high soil P coexisted. In Illinois, Evans [163] developed an algorithm to identify critical source areas using topographic position index and soil test P and reported that critical source areas in row-cropped watersheds occurred near grass waterways and roadside drainage ditches. Research on identifying critical source areas in agricultural watersheds and sampling for P loss is needed to further validate the models predicting the critical source areas. The identified critical source areas can be targeted with BMPs and monitored for P reduction over time.

5. Phosphorus Index

The phosphorus index was introduced for the first time as a nutrient management tool in 1992 and modified versions have been adopted by many states in the US [168,169]. The intended goals of the P Index were to: assess the risk of P transport from fields to water bodies; identify critical parameters influencing P loss, and help to identify BMPs that would decrease P loss to water bodies. In the last 25 years, a considerable amount of research has been conducted on refining the P index [5]. Many of the P indices have been evaluated for their potential to predict site vulnerability to P loss by comparing simulated model outputs and validating in the field with measured data [170,171,172]. Nelson and Shober [172] reported that future research on P indexes should focus on (i) P Index evaluation, (ii) advancement of P indices, and (iii) interpretation and implementation of P Index results.
For example, the Illinois P index is an additive P index and was updated in 2013 to include site characteristics and source factors as two important components of the P index approach [173]. Due to legacy P inputs, a significant improvement in water quality has not been reported [6], which has raised concerns about the continued use of the P index approach. At this point, Illinois does not have any research evaluating the Illinois P index and research from P indexes in other states in the US have reported mixed results [170,171,174]. Therefore, research identifying parameters to be included in the P index of Illinois that can accurately assess the risk of P loss is needed. Additionally, there is a critical need to evaluate the Illinois P index and compare it to other P indices to determine if the Illinois P index appropriately identifies the impact of soil, climate, and management practices on P loss. Other states may have similar issues that need research to validate nutrient management tools.

6. Gap Analysis and Conclusion

Phosphorus application rate recommendations for corn–soybean are typically based on yield response to STP levels and no component of the environmental threshold for P loss is included in this recommendation. However, there are several potential areas where adopting BMPs that show a reduction in P loss can be implemented. The first step would be to target high P buildup areas where updated P fertilizer recommendations to farmers could be provided. Updating P fertilizer recommendations can result in direct benefits of minimizing P losses from crop production systems. Long-term studies on P stratification linked to the impairment of water quality and adsorption–desorption mechanisms regulating the stratification and release of P from different pools of soil to water are limited. To include an environmental threshold P loss potential of the fields, multi-location and long-term field experiments are required for developing the modeling approach. The modeling approach can identify critical source areas in the fields and can help in developing site-specific P fertilizer recommendations. Additionally, research on developing innovative, inexpensive, reliable, and rapid methods for estimating STP levels is needed that can be used in nutrient management stewardship.
Field-scale studies evaluating the effectiveness of lime, gypsum application, and slow-release P fertilizers on surface and subsurface loss of P under commercial agricultural field conditions are needed. Research on P source, rate, placement, and time can be further evaluated for their impact on managing P loss in surface water runoff and tile drain water. Simulated runoff studies are common and are a faster method to test BMPs recommended for managing P loss; however, the temporal changes in weather patterns govern P cycling. Therefore, year around, natural rainfall studies evaluating P loss in runoff water should be supported. Comprehensive cover crop and tillage effects on P loss must be studied using multi-year, field-scale and watershed projects because the effects, cover crops have on runoff and P loss will change throughout the year as a function of the cover crop or cash crop growth. Soil amendments and cover crop cropping systems that enhance P sequestration and timely mineralization of P that is available for cash crop uptake should be developed.
Several factors including preferential flow in soil, soil P sorption capacity, soil redox conditions, STP levels, tillage, cropping system, 4Rs of P, drainage design and installation, spatial-temporal variation, and precipitation can impact P loading to subsurface tiles. Utilizing GIS, remote sensing, and chemical–environmental tracers for identifying linkages of drainage water flow delivering P to headwater streams need to be addressed in future research so that models can be developed and validated in fields for managing P loss. New conservation practices including improved designs of controlled drainage, bioreactors, and saturated buffers need long-term monitoring at field and watershed scales.
An emphasis on watershed-scale studies that monitor long-term P fluxes should be supported with more funding. Since stream water quality may not respond to BMPs in the short-term, the length of the watershed scale studies needs to be considered due to legacy P impacts. Several BMPs discussed in this review can be either used singly or collectively for managing P loss. However, the efficiency of BMPs in reducing discharge and P loss is highly variable and there is a need to further explore BMPs to help facilitate the development of appropriate watershed management plans. The short- and long-term retention of P by BMPs should be evaluated and criteria to maintain and remove P from BMPs should be developed so that P is not exceeding the retention capacity of the designed BMP.

Author Contributions

Investigation, G.S., G.K.; data curation, G.S., G.K.; writing—original draft preparation, G.S., G.K.; writing—review and editing, G.S., G.K., K.W., J.S., K.A.N.; funding acquisition, G.S., K.W., J.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Illinois Nutrient Research & Education Council.

Conflicts of Interest

The authors declare no conflict of interest.
