Next Article in Journal
Probing the Nanoscopic Thermodynamic Fingerprint of Paramagnetic Ligands Interacting with Amphiphilic Macromolecules
Next Article in Special Issue
Membranes Based on Cellulose Nanofibers and Activated Carbon for Removal of Escherichia coli Bacteria from Water
Previous Article in Journal
Use of Vanadium Complexes Bearing Naphthalene-Bridged Nitrogen-Sulfonate Ligands as Catalysts for Copolymerization of Ethylene and Propylene
Article Menu
Issue 8 (August) cover image

Export Article

Open AccessArticle
Polymers 2017, 9(8), 326; https://doi.org/10.3390/polym9080326

Nanopaper Properties and Adhesive Performance of Microfibrillated Cellulose from Different (Ligno-)Cellulosic Raw Materials

1
Competence Centre for Wood Composites and Wood Chemistry, Wood K Plus, Linz 4040, Austria
2
Department of Materials Science and Process Engineering, BOKU—University of Natural Resources and Life Sciences, Vienna 1180, Austria
*
Author to whom correspondence should be addressed.
Received: 10 July 2017 / Revised: 26 July 2017 / Accepted: 27 July 2017 / Published: 31 July 2017
(This article belongs to the Special Issue Cellulose Nanomaterials)
Full-Text   |   PDF [5935 KB, uploaded 1 August 2017]   |

Abstract

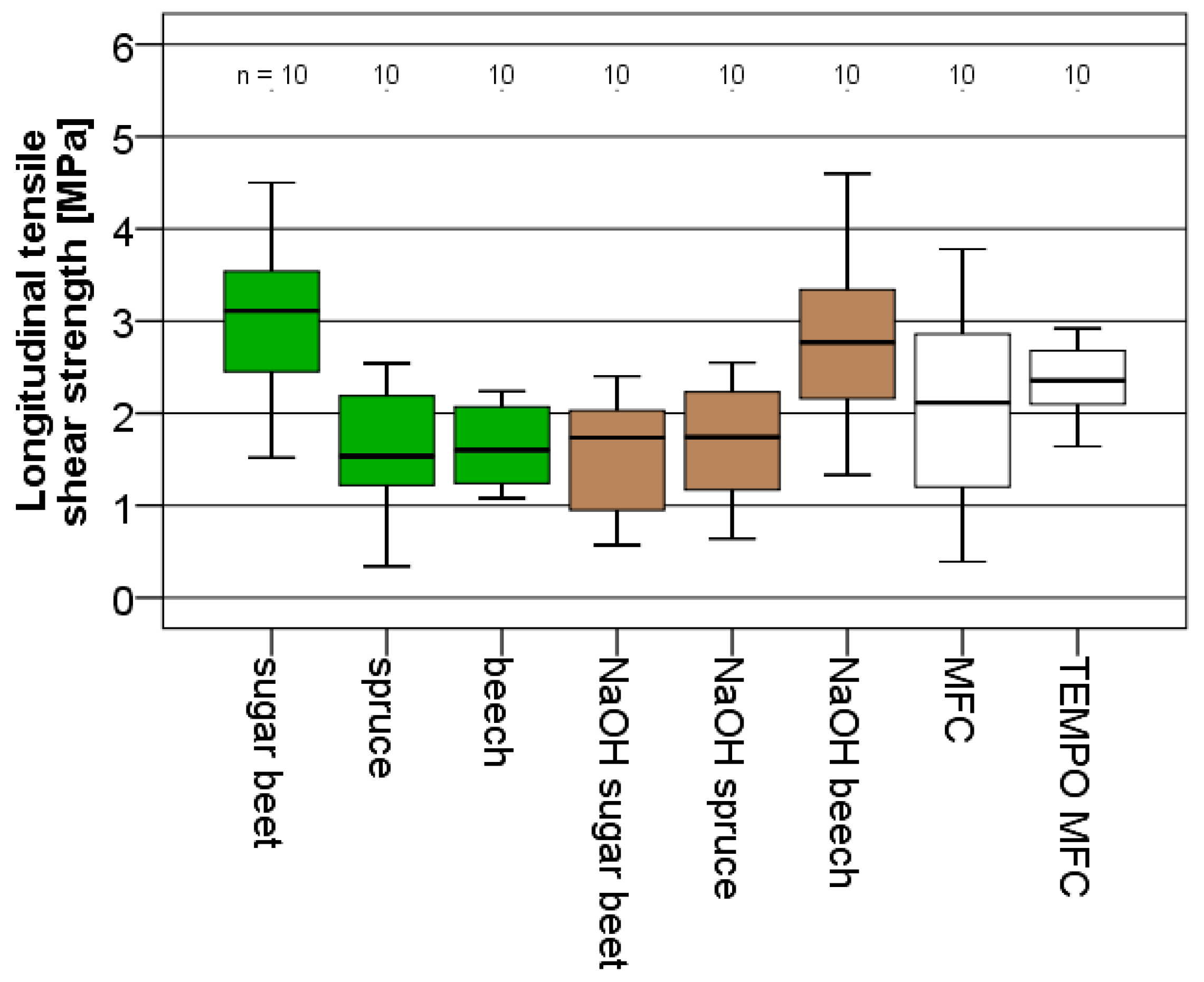

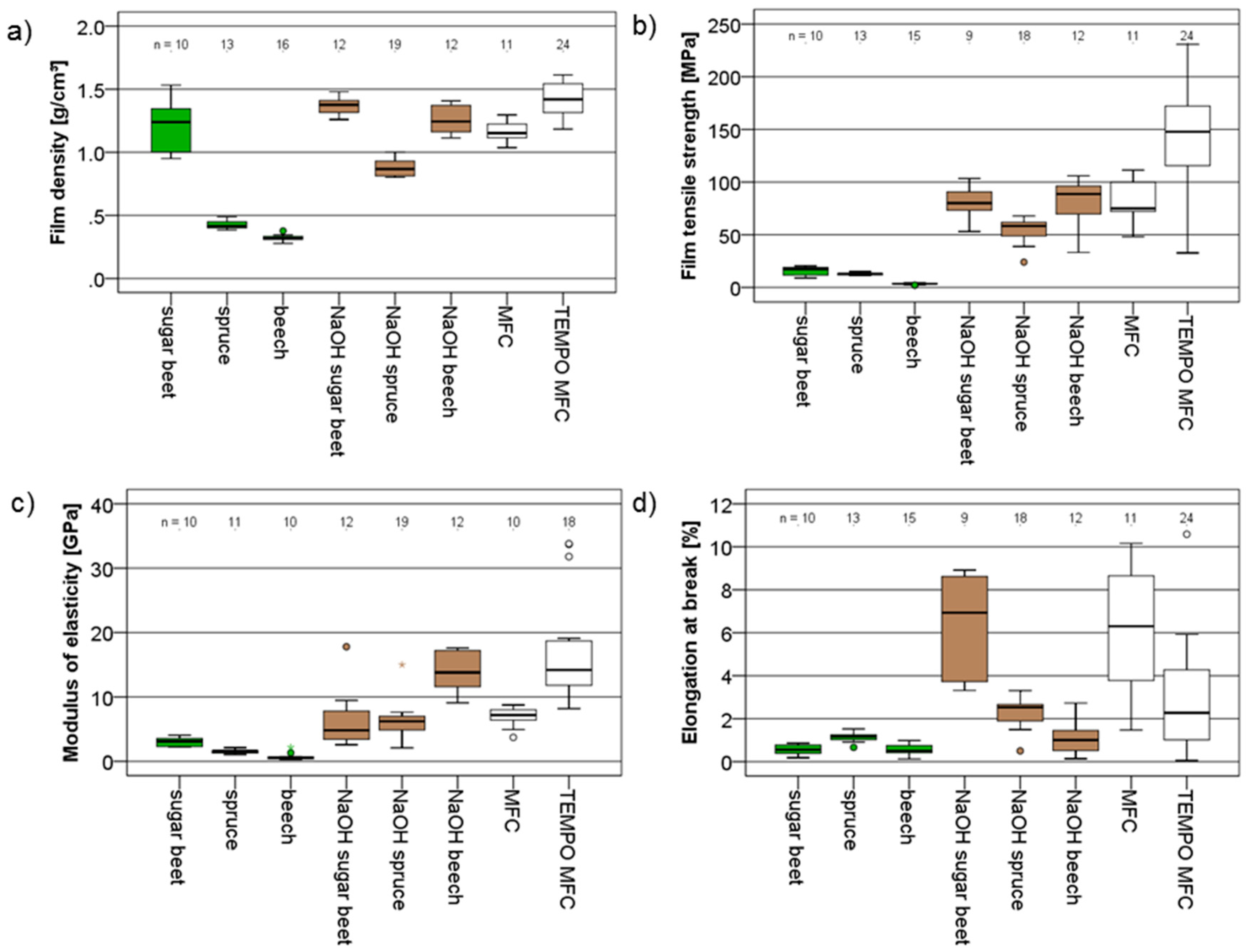

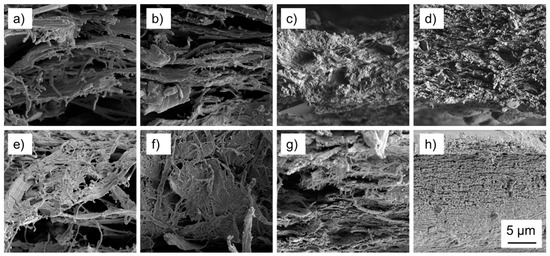

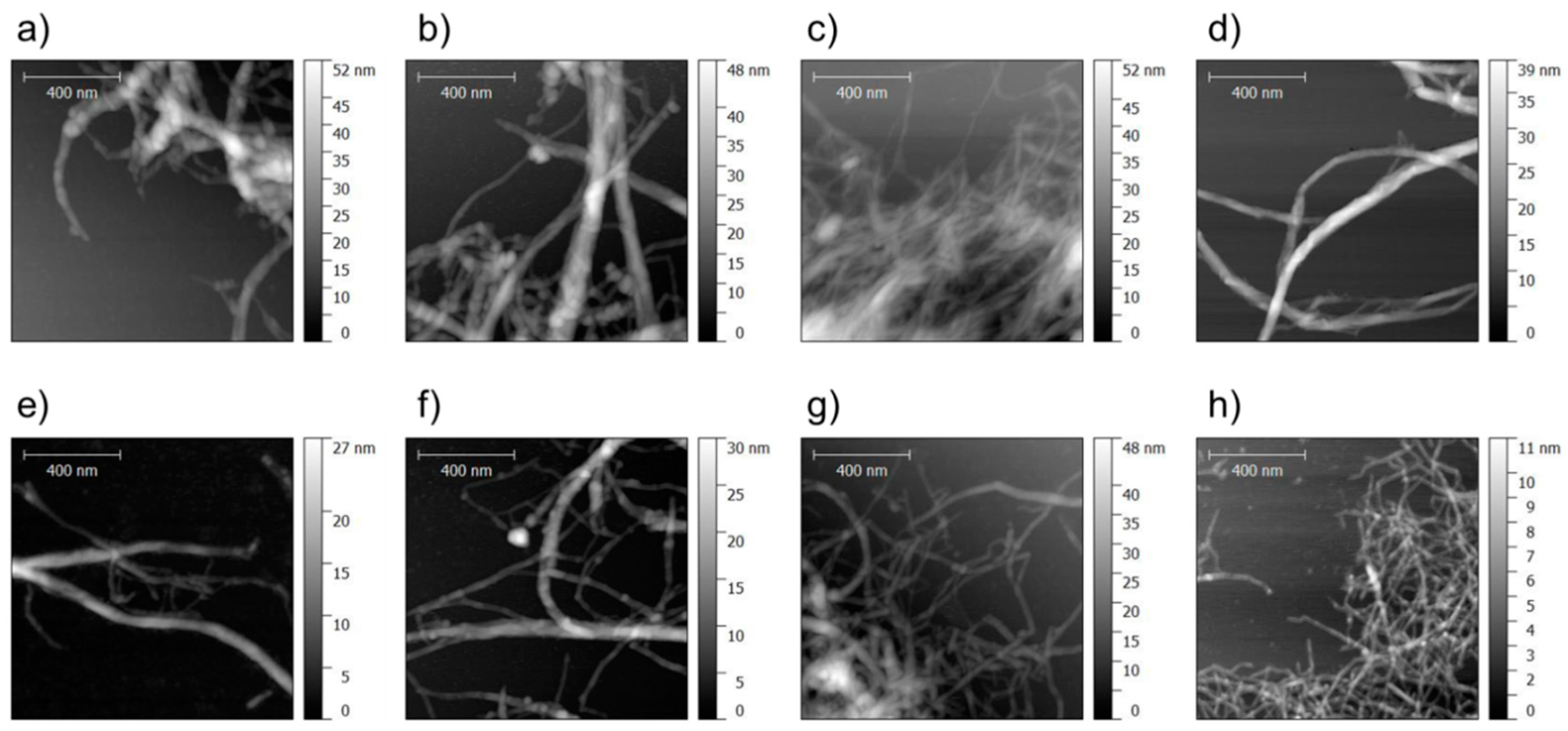

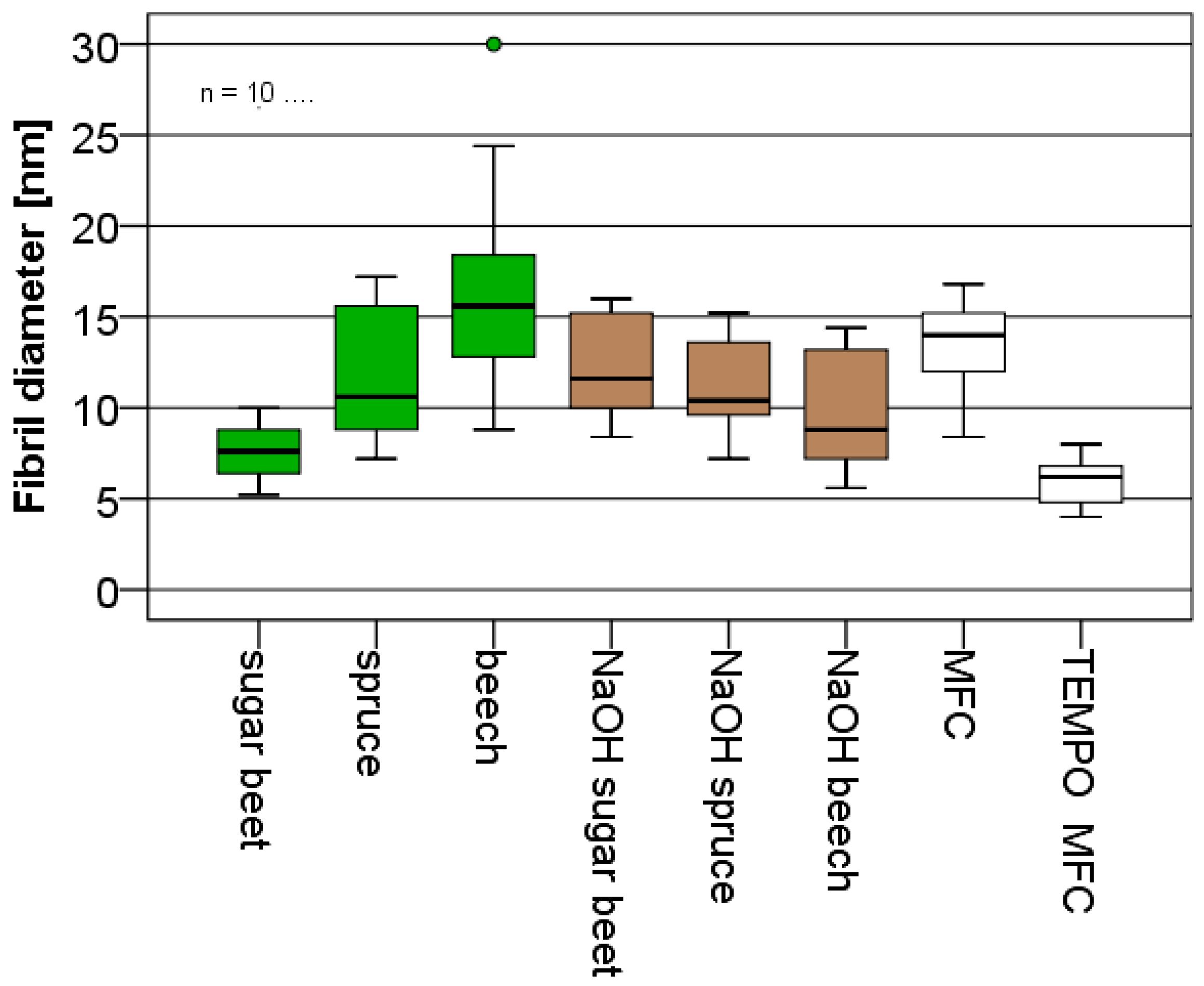

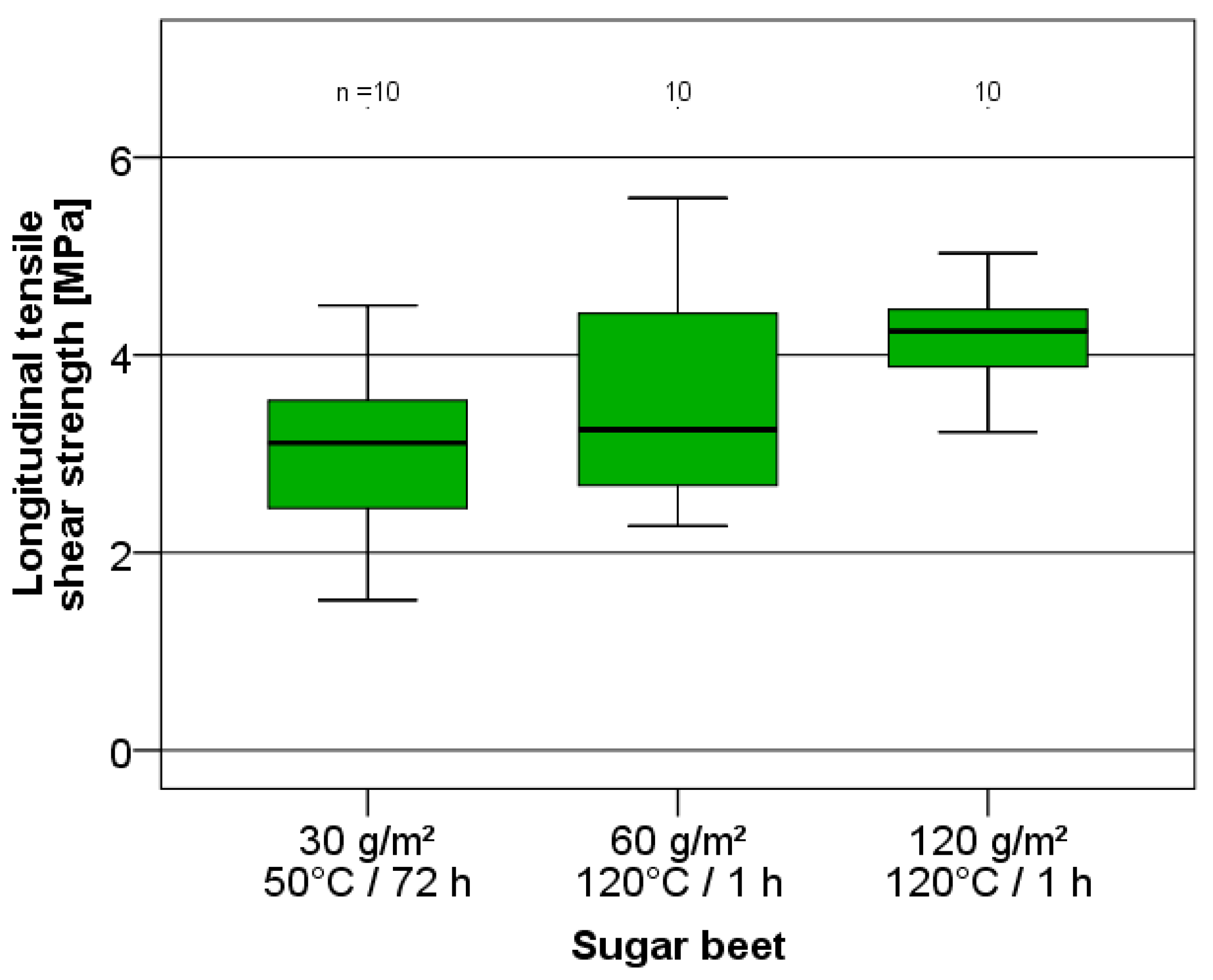

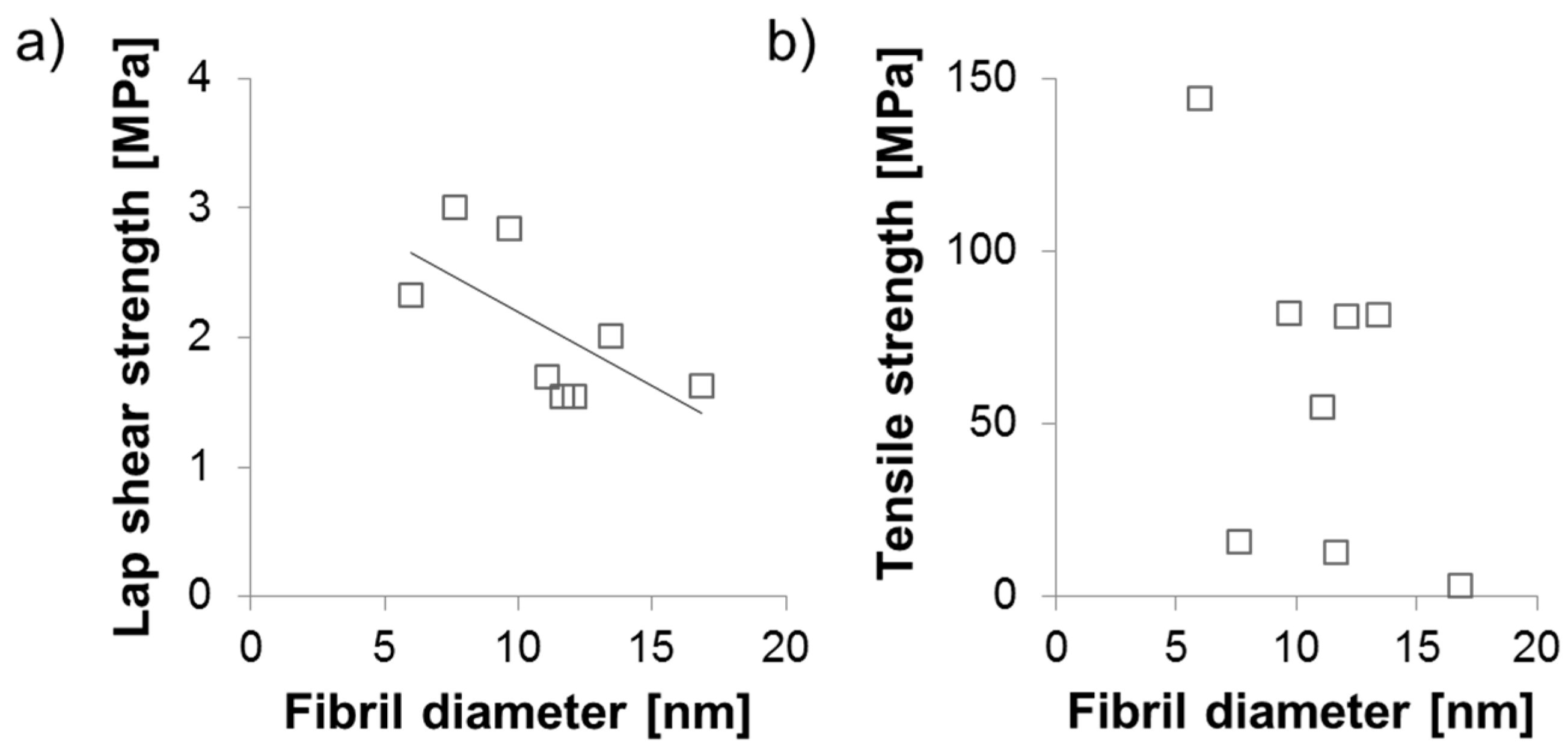

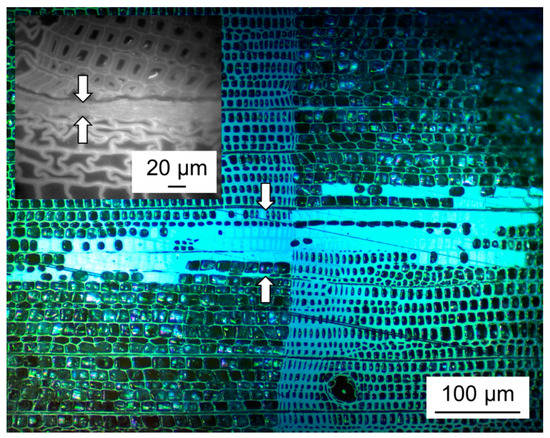

The self-adhesive potential of nanocellulose from aqueous cellulosic suspensions is of interest with regard to a potential replacement of synthetic adhesives. In order to evaluate the performance of microfibrillated cellulose from different (ligno-)cellulosic raw materials for this purpose, softwood and hardwood powder were fibrillated and compared to sugar beet pulp as a representative non-wood cellulose resource, and conventional microfibrillated cellulose produced from bleached pulp. An alkali pre-treatment of woody and sugar beet raw materials enhanced the degree of fibrillation achieved, same as TEMPO-mediated oxidation of microfibrillated cellulose. Nanopapers produced from fibrillated material showed highly variable density and mechanical performance, demonstrating that properties may be tuned by the choice of raw material. While nanopaper strength was highest for TEMPO-oxidated microfibrillated cellulose, fibrillated untreated sugar beet pulp showed the best adhesive performance. Different microscopic methods (AFM, SEM, light microscopy) examined the interface between wood and fibrillated material, showing particular distinctions to commercial adhesives. It is proposed that fibrillated material suspensions, which achieve bond strength up to 60% of commercial urea-formaldehyde adhesive, may provide a viable solution to bio-based adhesives in certain applications where wet-strength is not an issue. View Full-Text
Keywords: nanocellulose; sugar beet; wood; nanopaper; bio-adhesive nanocellulose; sugar beet; wood; nanopaper; bio-adhesive
Figures

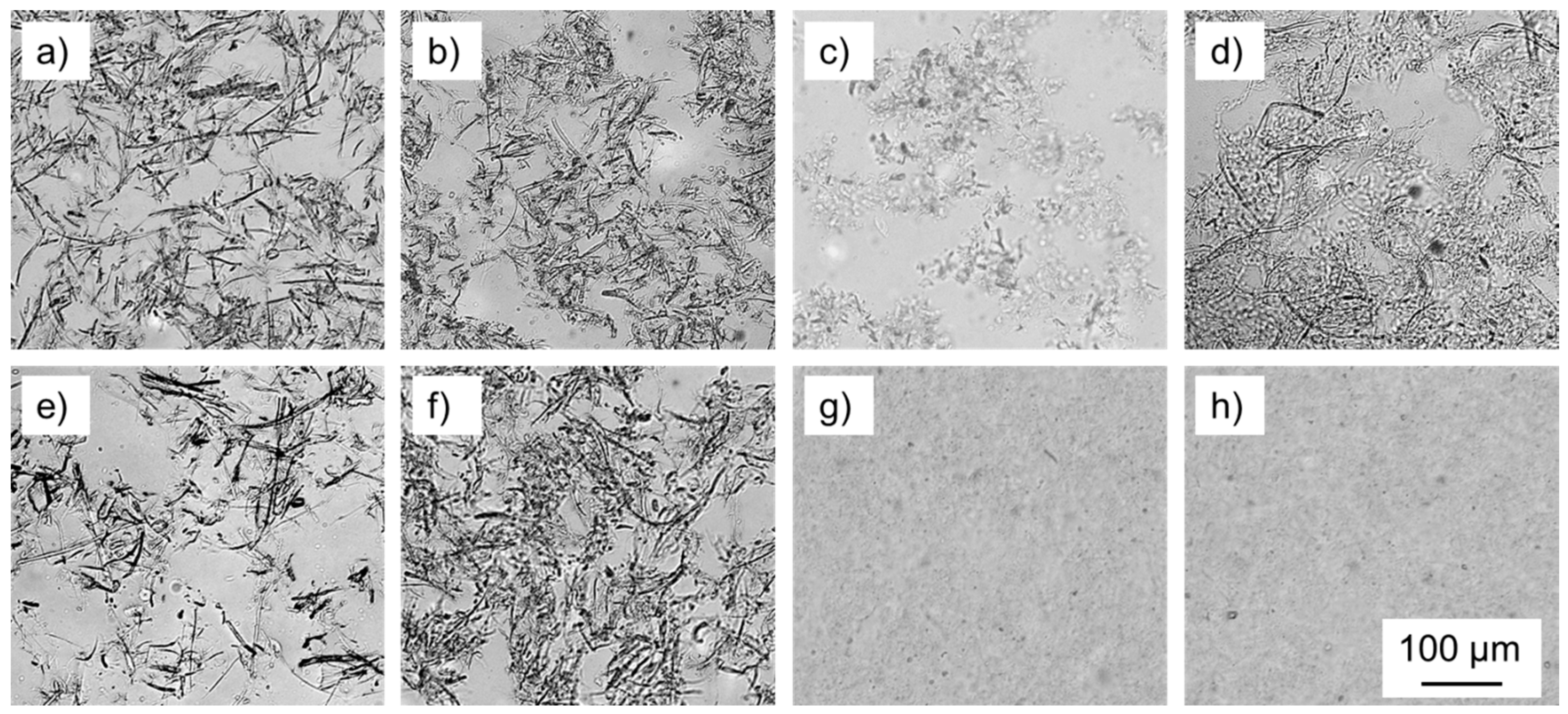

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Pinkl, S.; Veigel, S.; Colson, J.; Gindl-Altmutter, W. Nanopaper Properties and Adhesive Performance of Microfibrillated Cellulose from Different (Ligno-)Cellulosic Raw Materials. Polymers 2017, 9, 326.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
