Polymers 2017, 9(6), 233;

Photo-Induced Vertical Alignment of Liquid Crystals via In Situ Polymerization Initiated by Polyimide Containing Benzophenone

State Key Laboratory of Polymer Materials Engineering of China; College of Polymer Science and Engineering, Sichuan University, Chengdu 610065, China
Research Institute of Maoming Petrochemical Company, SINOPEC, Maoming 525021, China
Author to whom correspondence should be addressed.
Received: 25 May 2017 / Revised: 15 June 2017 / Accepted: 16 June 2017 / Published: 18 June 2017
(This article belongs to the Special Issue Photo-Responsive Polymers)
Full-Text   |   PDF [12131 KB, uploaded 19 June 2017]   |

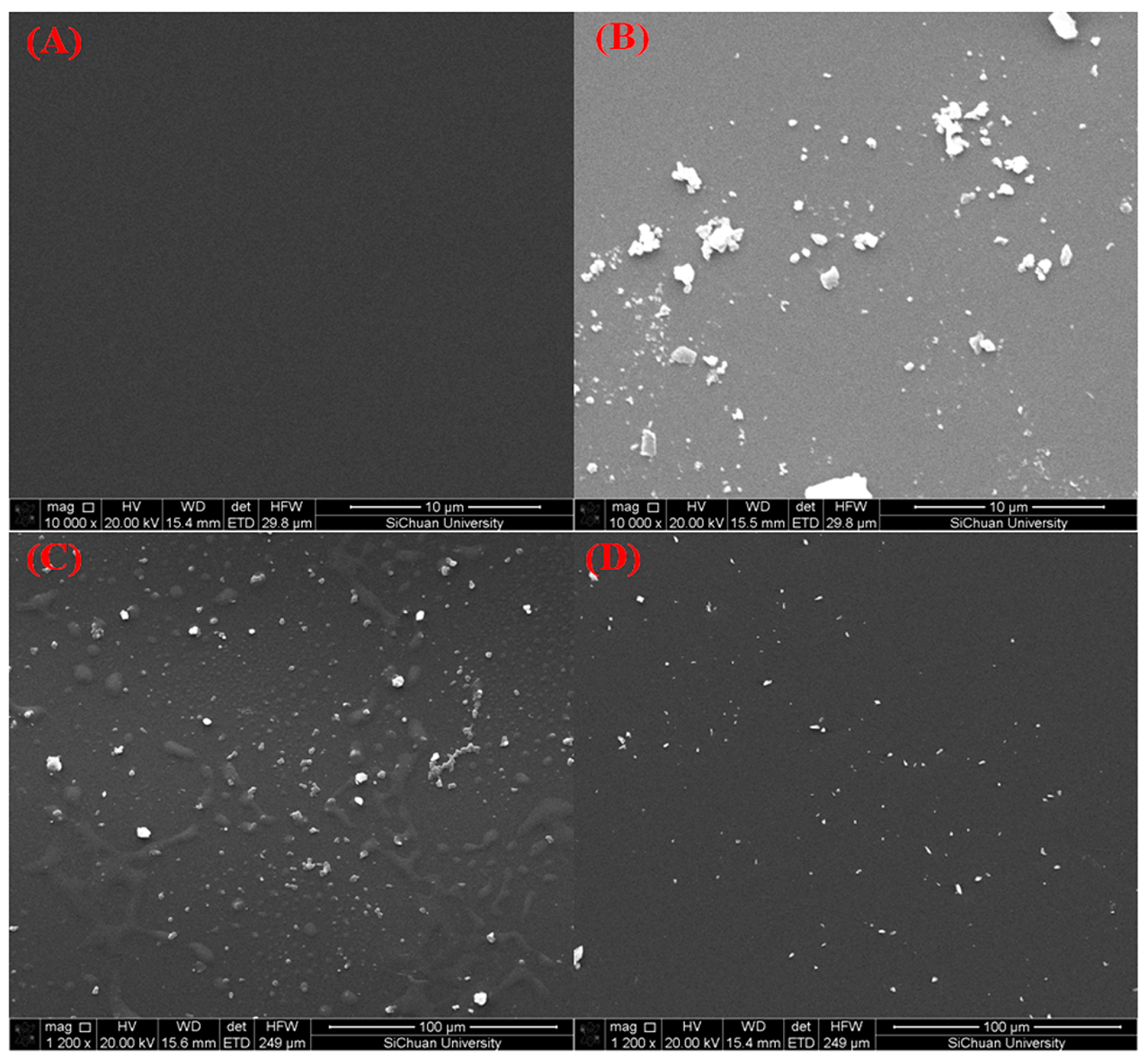

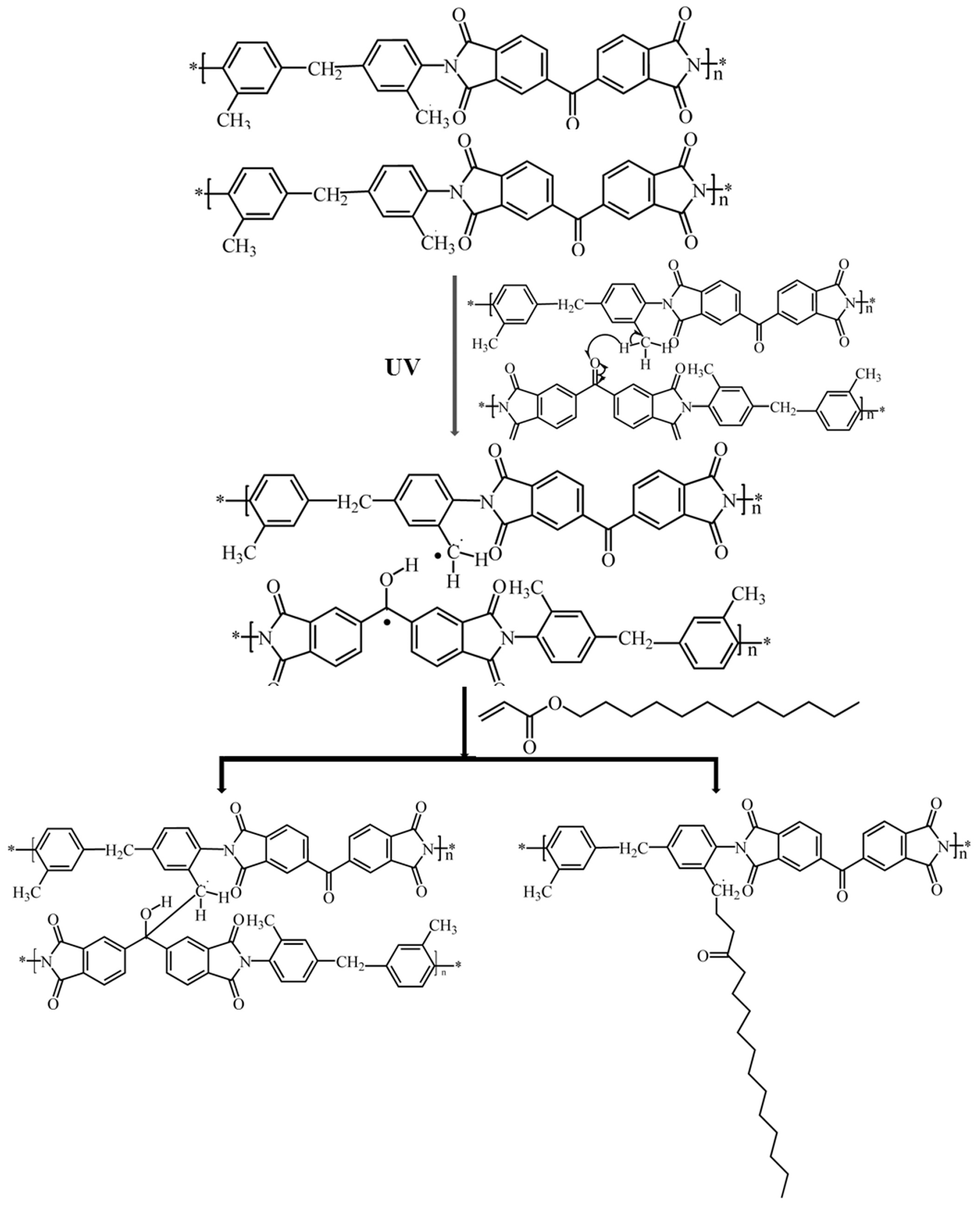

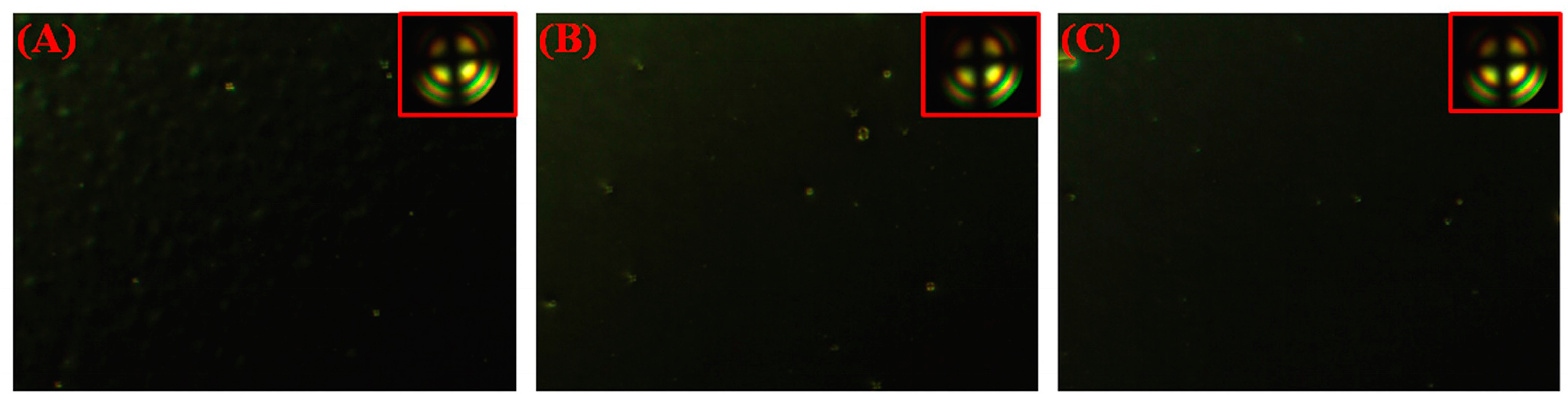

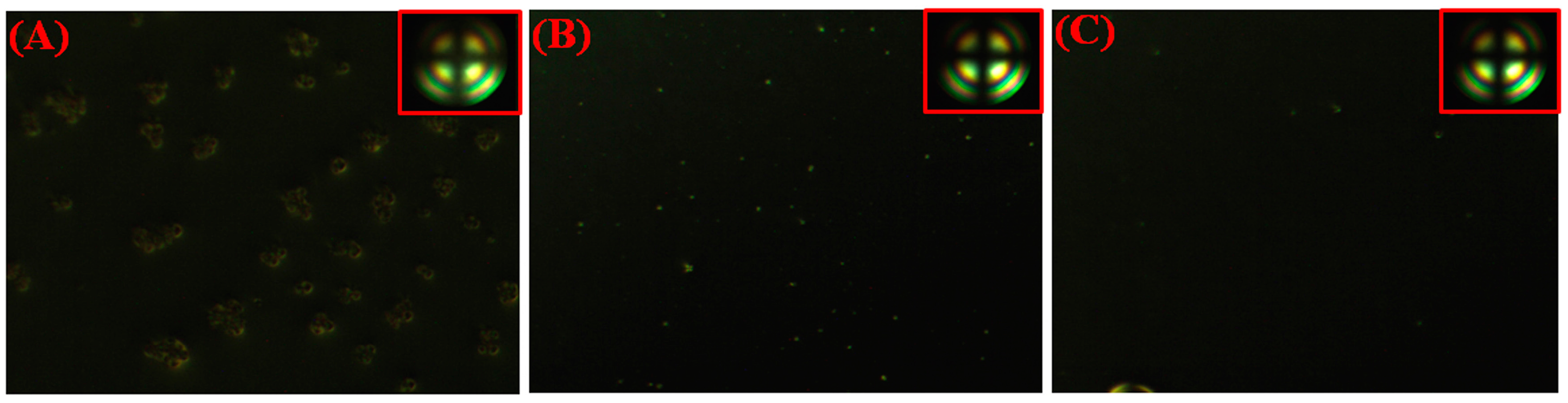

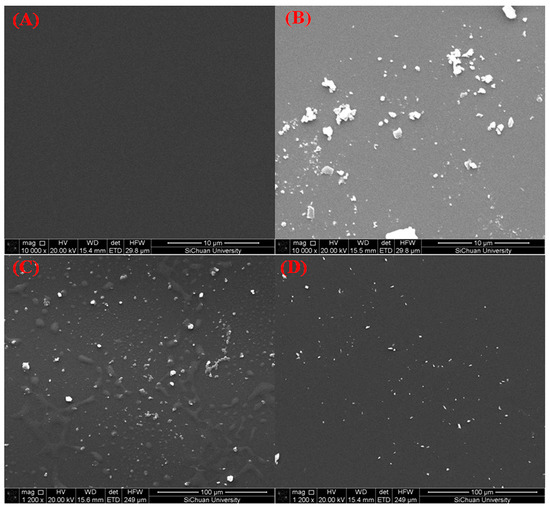

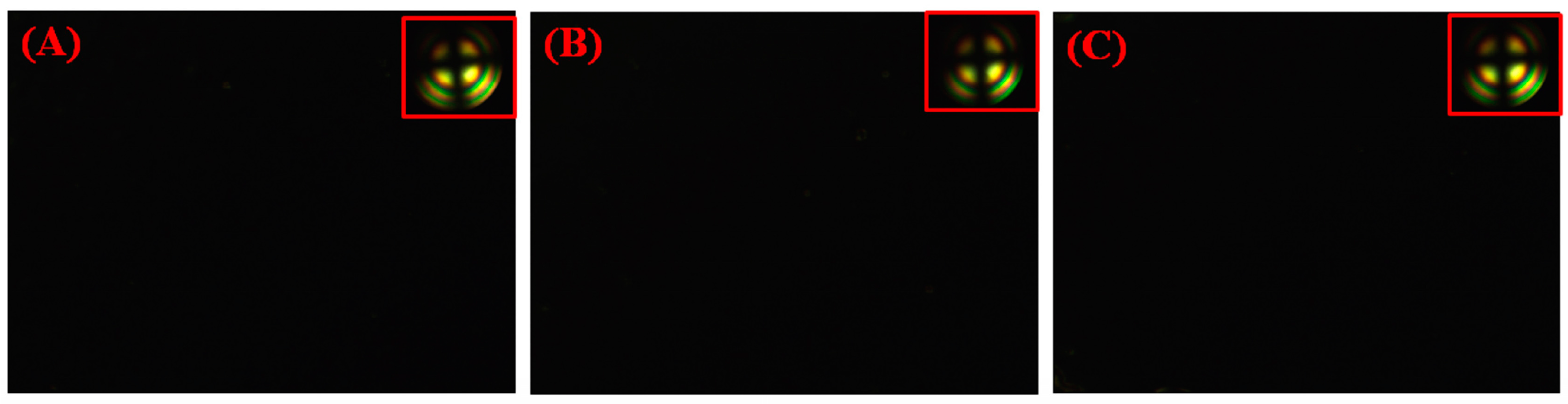

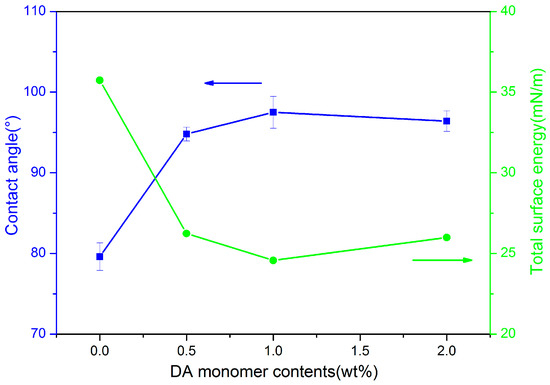

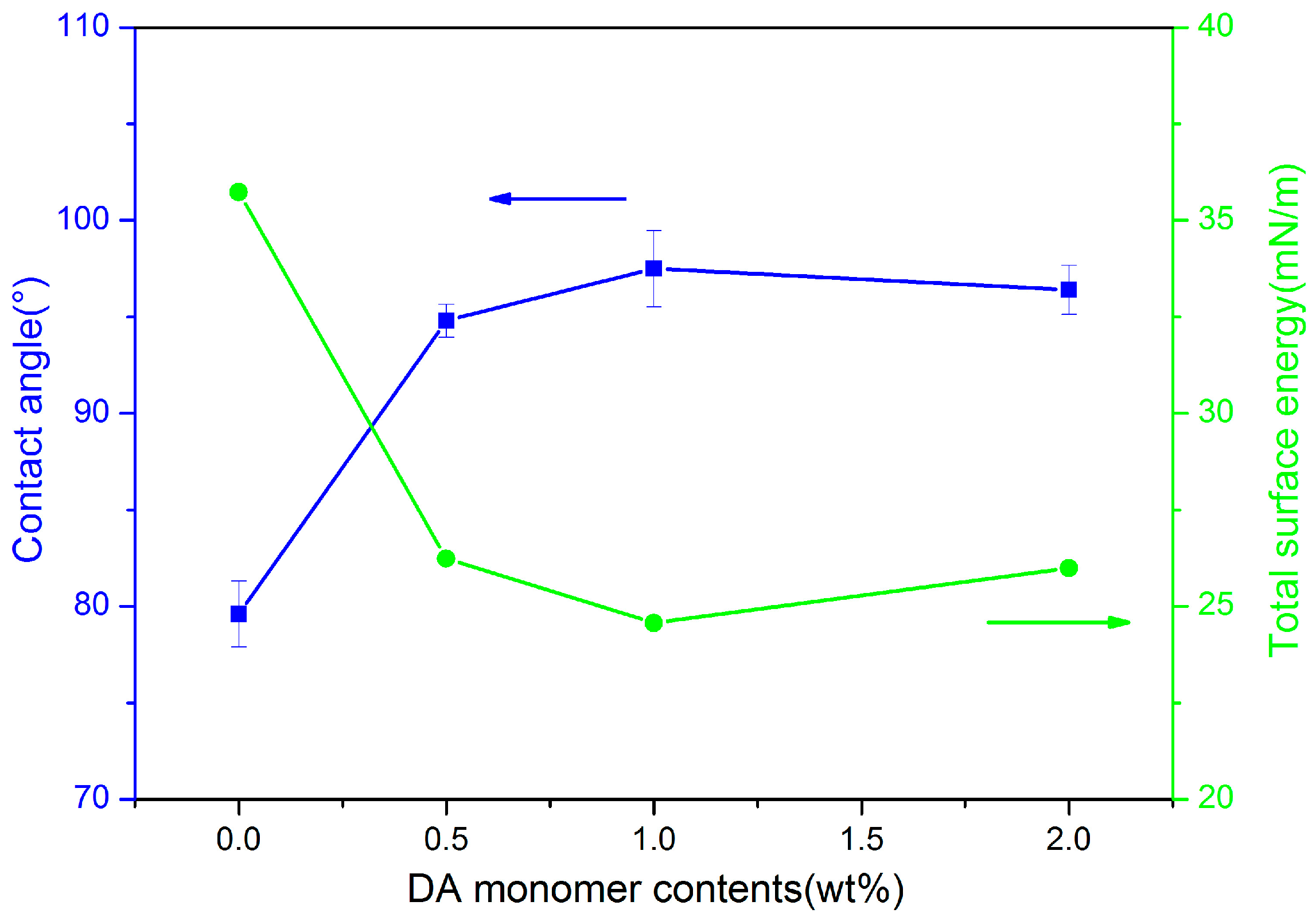

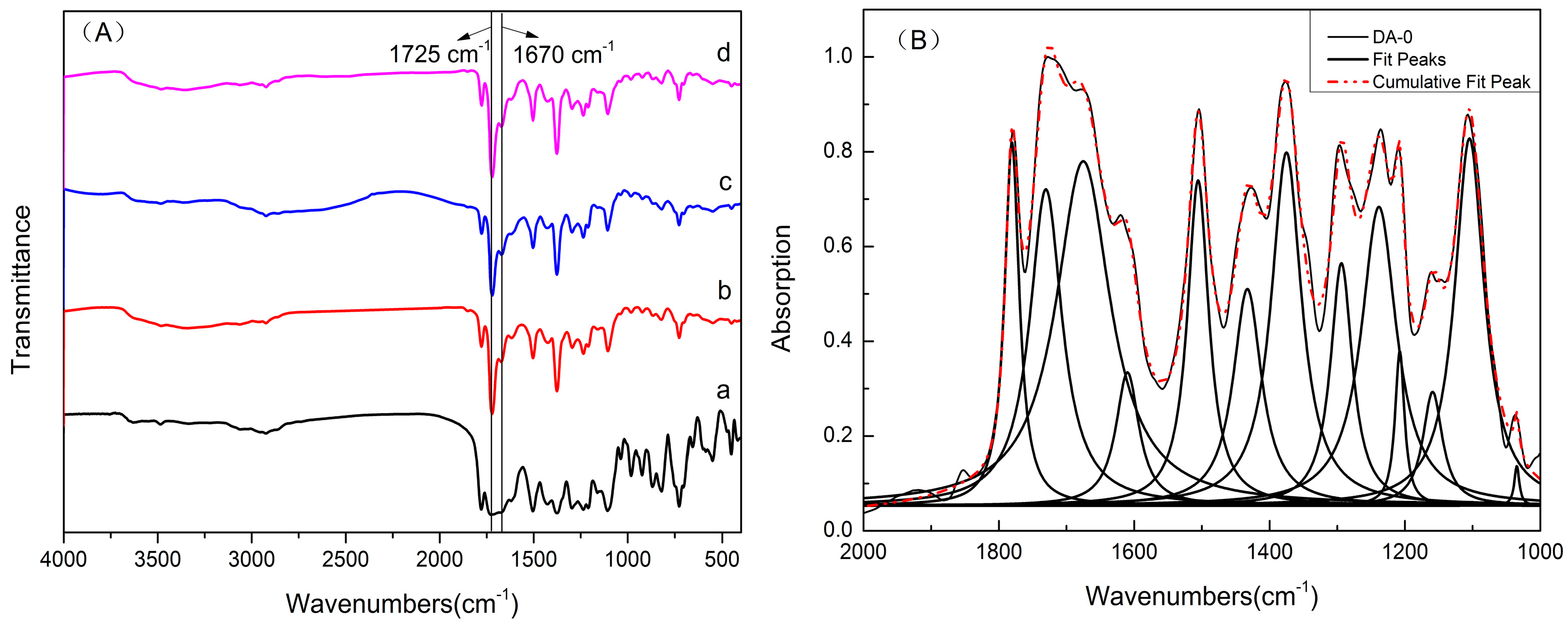

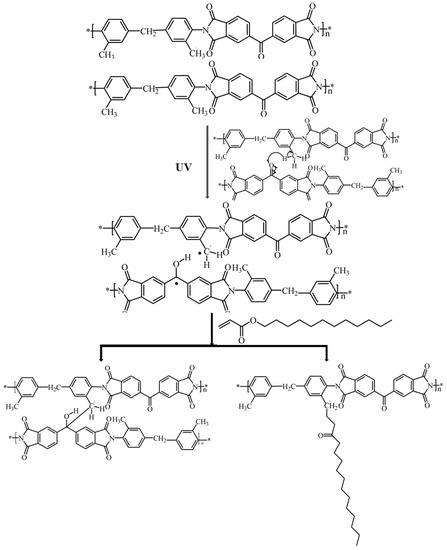

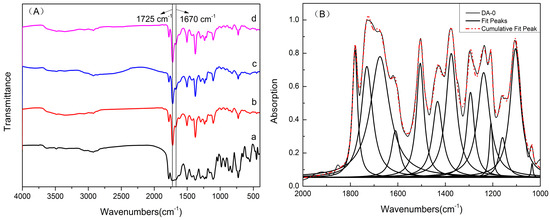

Vertical alignment of liquid crystal (LC) was achieved in an easy and effective way: in situ photopolymerization of dodecyl acrylate (DA) monomers initiated by polyimide based on 3,3′,4,4′-benzophenonetetracarboxylic dianhydride and 3,3′-dimethyl-4,4′-diaminodiphenyl methane (BTDA-DMMDA PI). The alignment behavior and alignment stabilities were characterized by a polarizing optical microscope (POM), which showed a stable vertical alignment after 12 h of thermal treatment. The chemical structures, morphology, and water contact angles of alignment films peeled from LC cells with and without DA monomers were analyzed by means of a Fourier transform infrared spectrometer (FTIR), a scanning electron microscope (SEM), and a contact angle tester, separately. The results confirmed that the DA monomers underwent self-polymerization and grafting polymerization initiated by the BTDA-DMMDA PI under ultraviolet irradiation, which aggregated on the surfaces of PI films. The water contact angles of the alignment films were about 15° higher, indicating a relative lower surface energy. In conclusion, the vertical alignment of LC was introduced by the low surface free energy of PI films grafted with DA polymer and intermolecular interactions between LC and DA polymers. View Full-Text
Keywords: vertical alignment; photopolymerization; alignment stability; surface free energy vertical alignment; photopolymerization; alignment stability; surface free energy

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Wang, F.; Shao, L.; Bai, Q.; Che, X.; Liu, B.; Wang, Y. Photo-Induced Vertical Alignment of Liquid Crystals via In Situ Polymerization Initiated by Polyimide Containing Benzophenone. Polymers 2017, 9, 233.
