Open AccessArticle
Polymers 2017, 9(11), 578; https://doi.org/10.3390/polym9110578

Wide Band Gap Polymer Based on Indacenodithiophene and Acenaphthoquinoxaline for Efficient Polymer Solar Cells Application

1
School of Materials Science and Engineering, Wuhan Institute of Technology, Wuhan 430205, China
2
School of Materials Science and Engineering, Harbin Institute of Technology, Harbin 150001, China
*
Authors to whom correspondence should be addressed.
Received: 9 September 2017 / Revised: 26 October 2017 / Accepted: 31 October 2017 / Published: 7 November 2017
(This article belongs to the Special Issue Conjugated Polymers 2016)
Full-Text   |   PDF [4208 KB, uploaded 7 November 2017]   |

Abstract

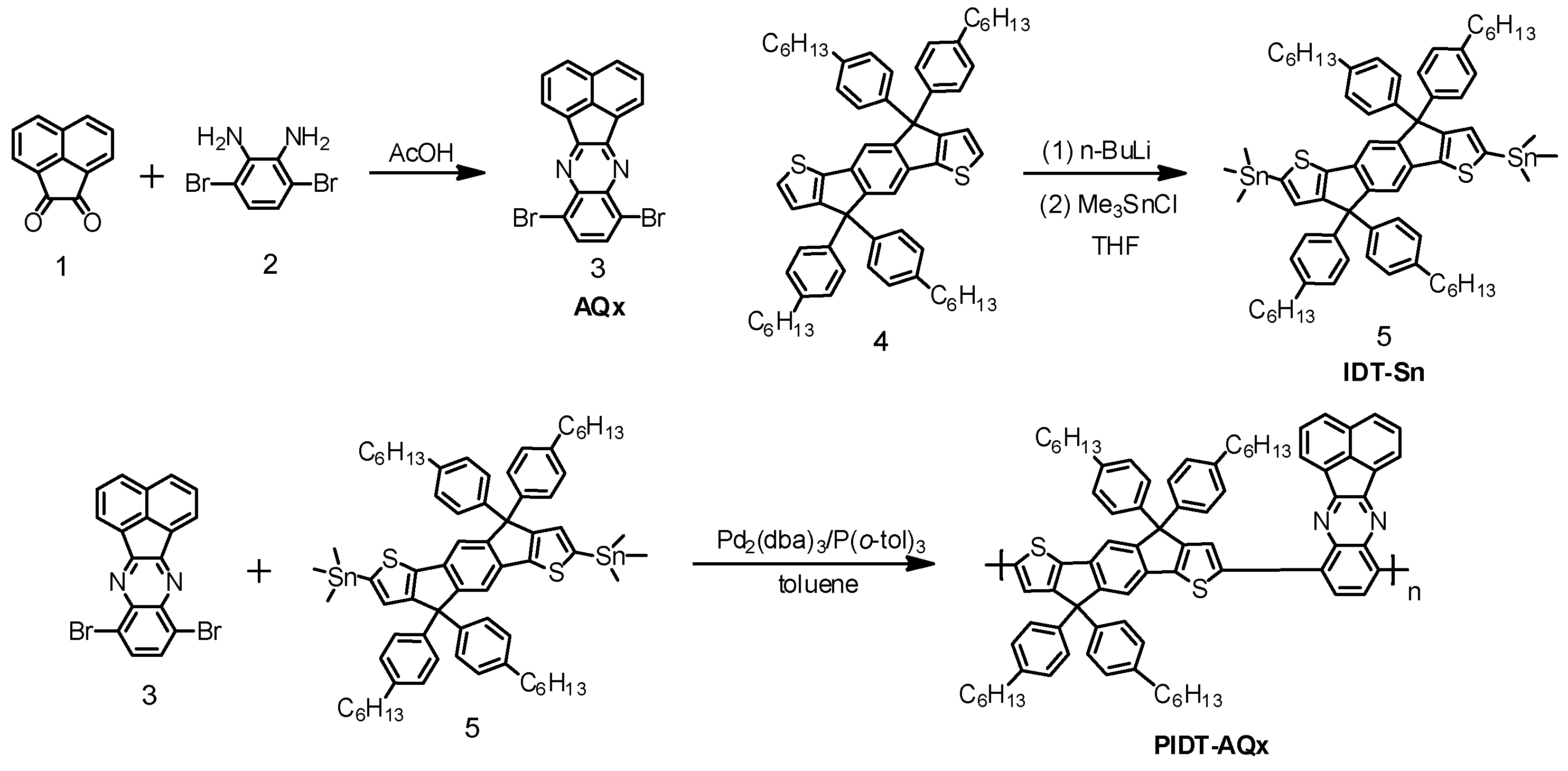

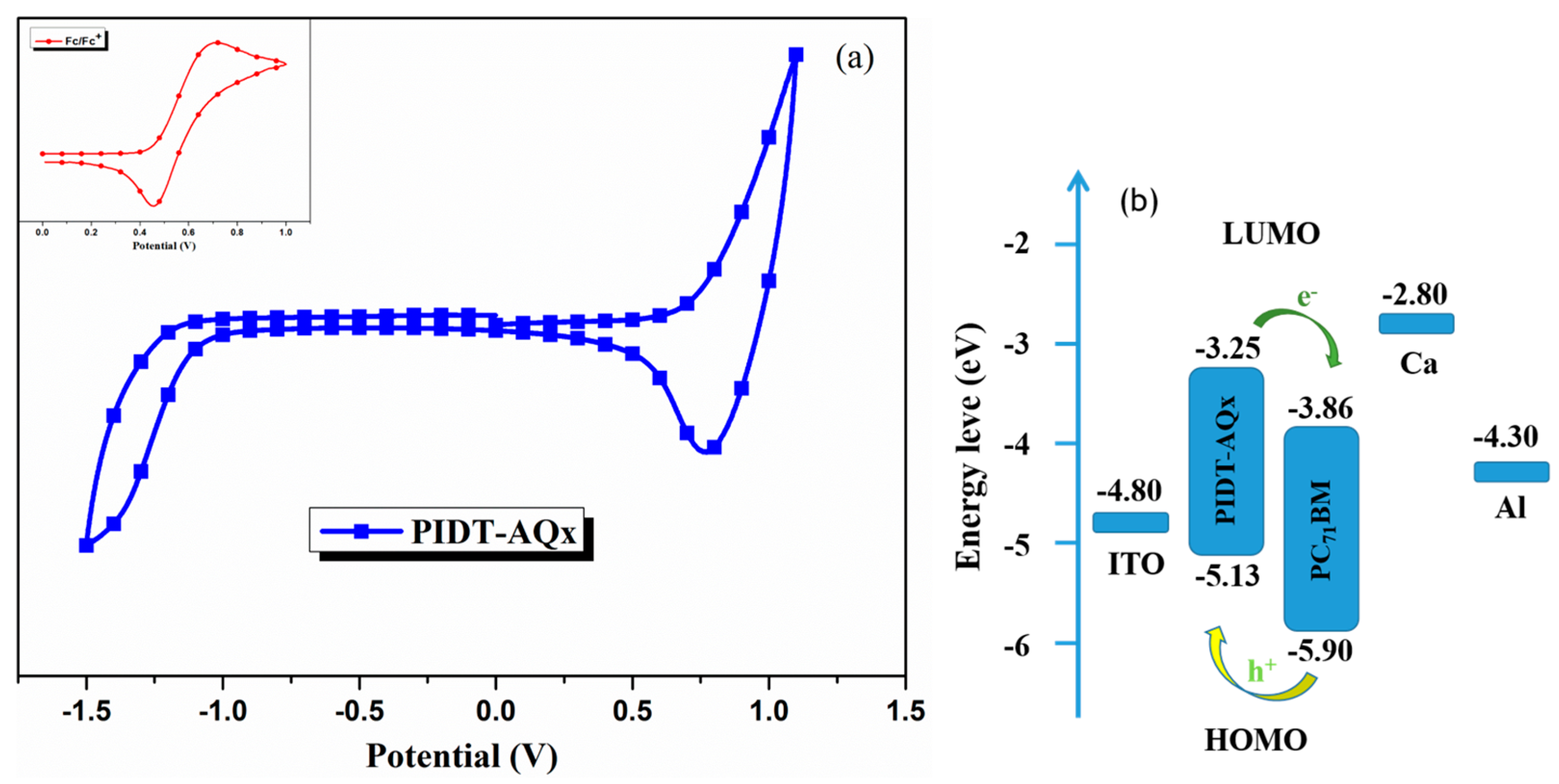

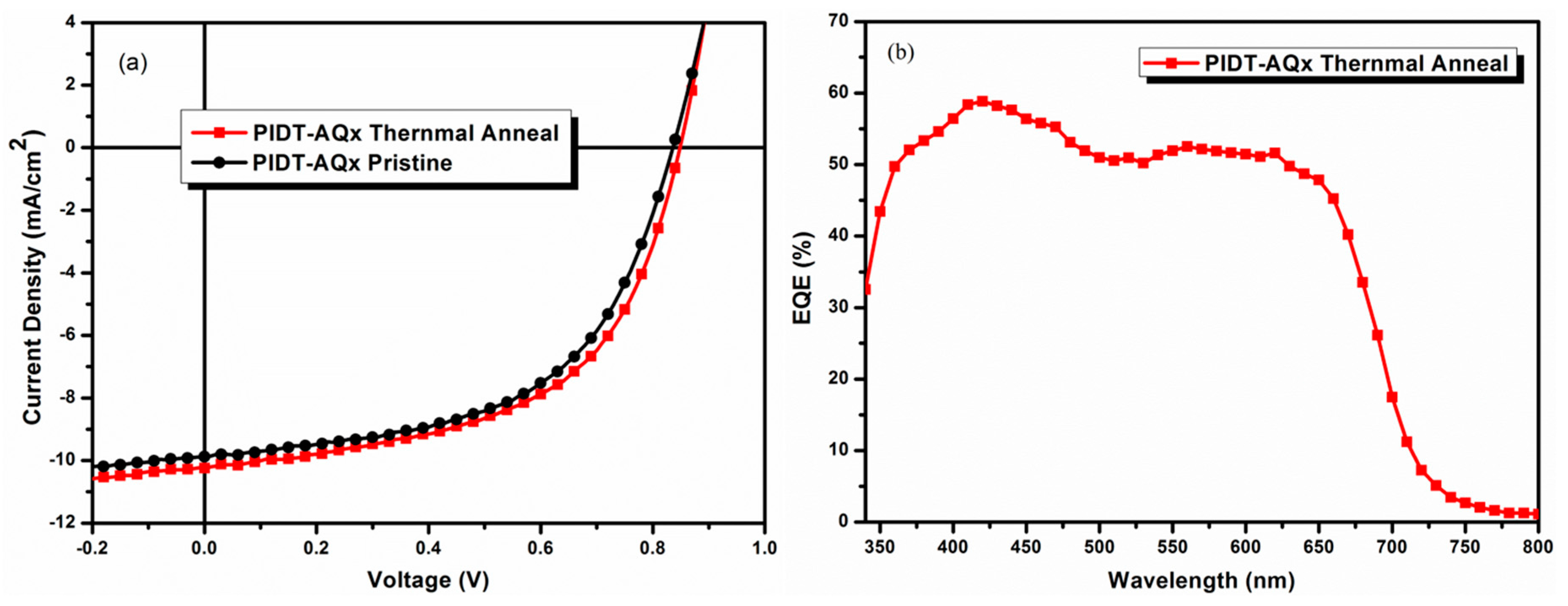

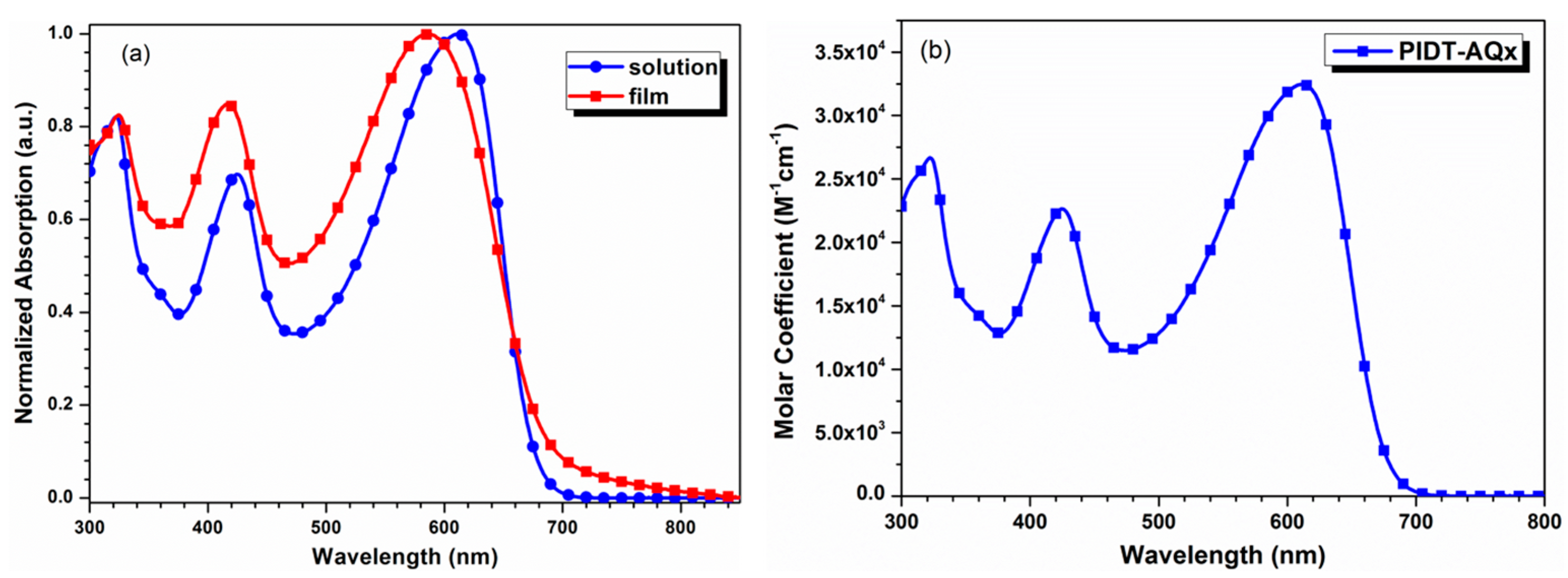

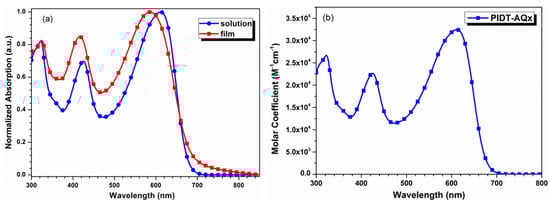

A new wide band gap polymer PIDT-AQx with indacenodithiophene (IDT) as the electron-rich unit and acenaphthoquinoxaline (AQx) as the electron-deficient unit has been designed and synthesized. The optical band gap of PIDT-AQx was 1.81 eV with a HOMO energy level of −5.13 eV. Polymer solar cells with the blend of PIDT-AQx/PC71BM as the active layer achieved a power conversion efficiency (PCE) of 4.56%, with an open-circuit voltage (Voc) of 0.84 V, a current density (Jsc) of 9.88 mA cm−2, and a fill factor (FF) of 55% without any solvent additives and pre- or post-treatments. The photovoltaic performance of PIDT-AQx could be slightly improved with a PCE up to 4.78% after thermal annealing due to enhanced Jsc. The results indicate that acenaphthoquinoxaline is a promising building block for developing conjugated polymers for efficient solar cells application. View Full-Text
Keywords: indacenodithiophene; acenaphthoquinoxaline; conjugated polymer; polymer solar cells indacenodithiophene; acenaphthoquinoxaline; conjugated polymer; polymer solar cells
Figures

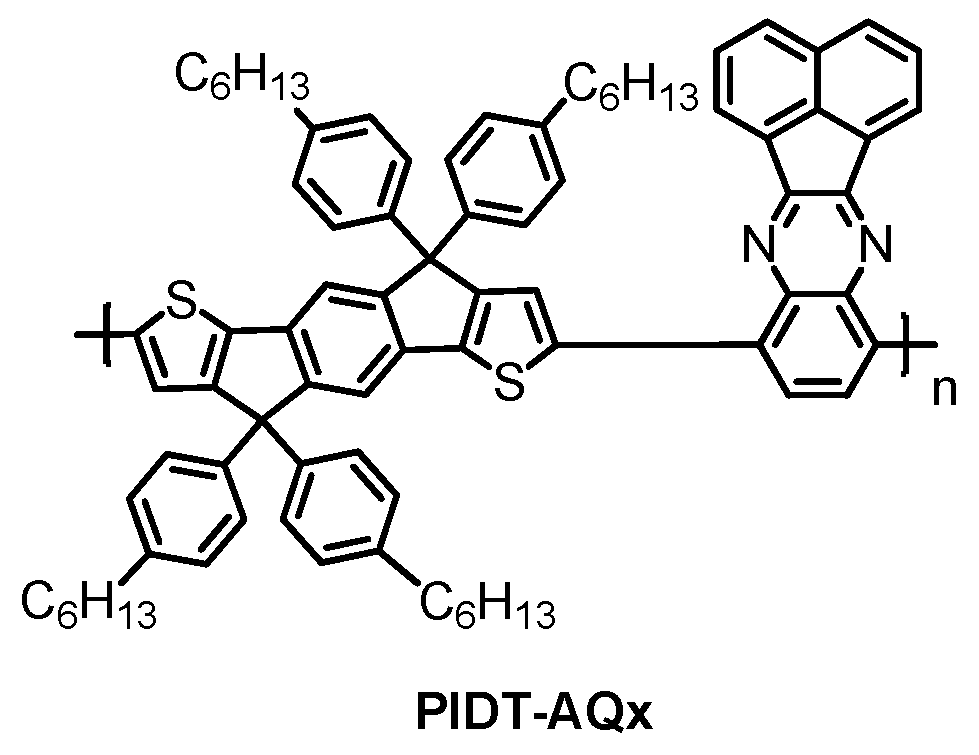

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
