Next Article in Journal
Wide Band Gap Polymer Based on Indacenodithiophene and Acenaphthoquinoxaline for Efficient Polymer Solar Cells Application
Next Article in Special Issue
MgCl2-Supported Titanium Ziegler-Natta Catalyst Using Carbon Dioxide-Based Poly(propylene ether carbonate) Diols as Internal Electron Donor for 1-Butene Polymerization
Previous Article in Journal
Reducing Water Sensitivity of Chitosan Biocomposite Films Using Gliadin Particles Made by In Situ Method
Previous Article in Special Issue
Cis-1,4-Polymerization of Isoprene by 1,3-Bis(oxazolinymethylidene)isoindoline-Ligated Rare-Earth Metal Dialkyl Complexes
Article Menu
Issue 11 (November) cover image

Export Article

Open AccessArticle
Polymers 2017, 9(11), 581;

Propene Polymerization with C1-Symmetric Fluorenyl-Metallocene Catalysts

CNR Istituto per lo Studio delle Macromolecole (ISMAC), Via E. Bassini, 15-20133 Milano, Italy
Total Petrochemicals Research, Zone Industrielle C, B-7181 Feluy, Belgium
Author to whom correspondence should be addressed.
Received: 11 October 2017 / Revised: 30 October 2017 / Accepted: 31 October 2017 / Published: 6 November 2017
(This article belongs to the Special Issue Olefin Polymerization and Polyolefin)
Full-Text   |   PDF [4132 KB, uploaded 7 November 2017]   |

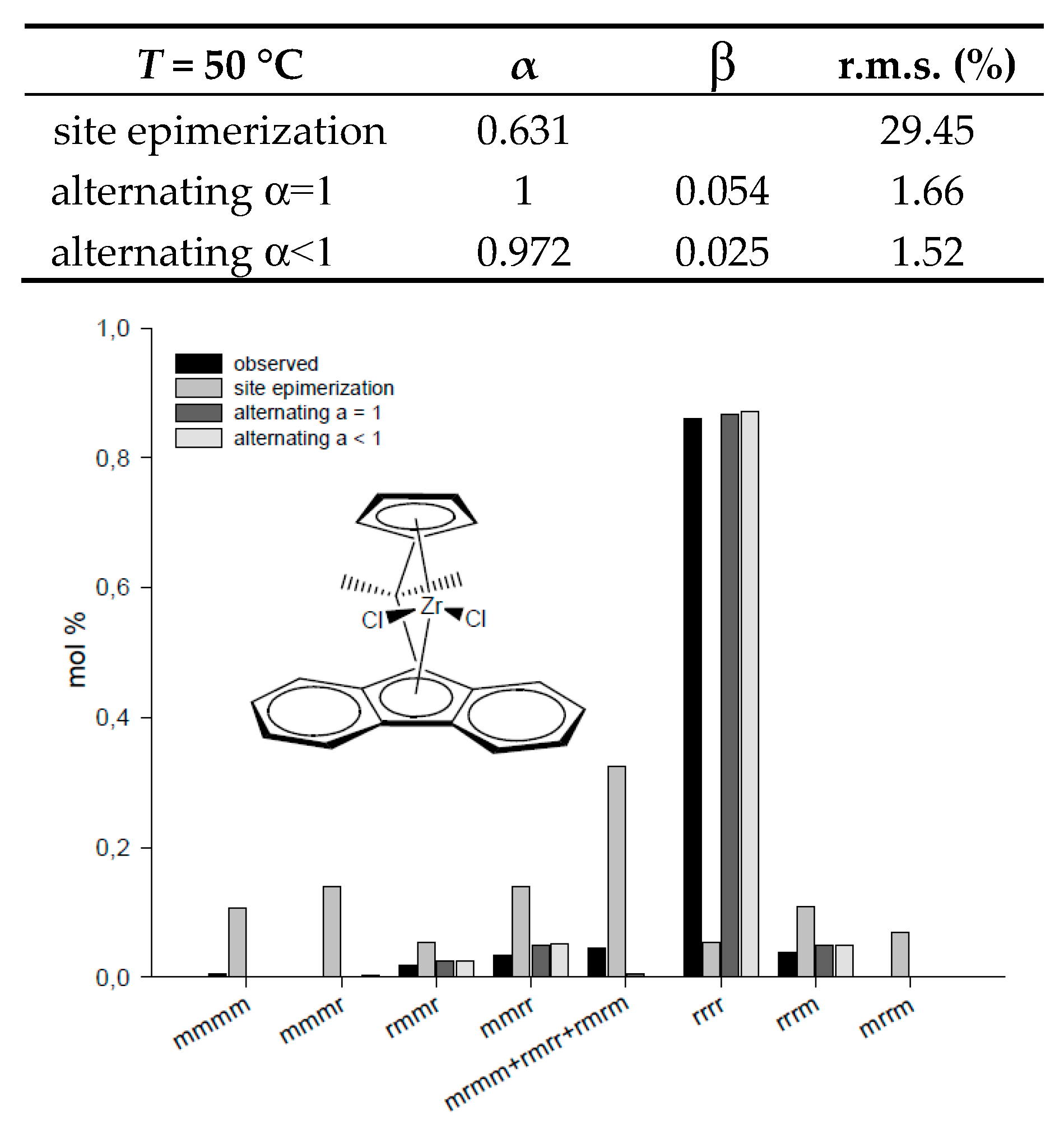

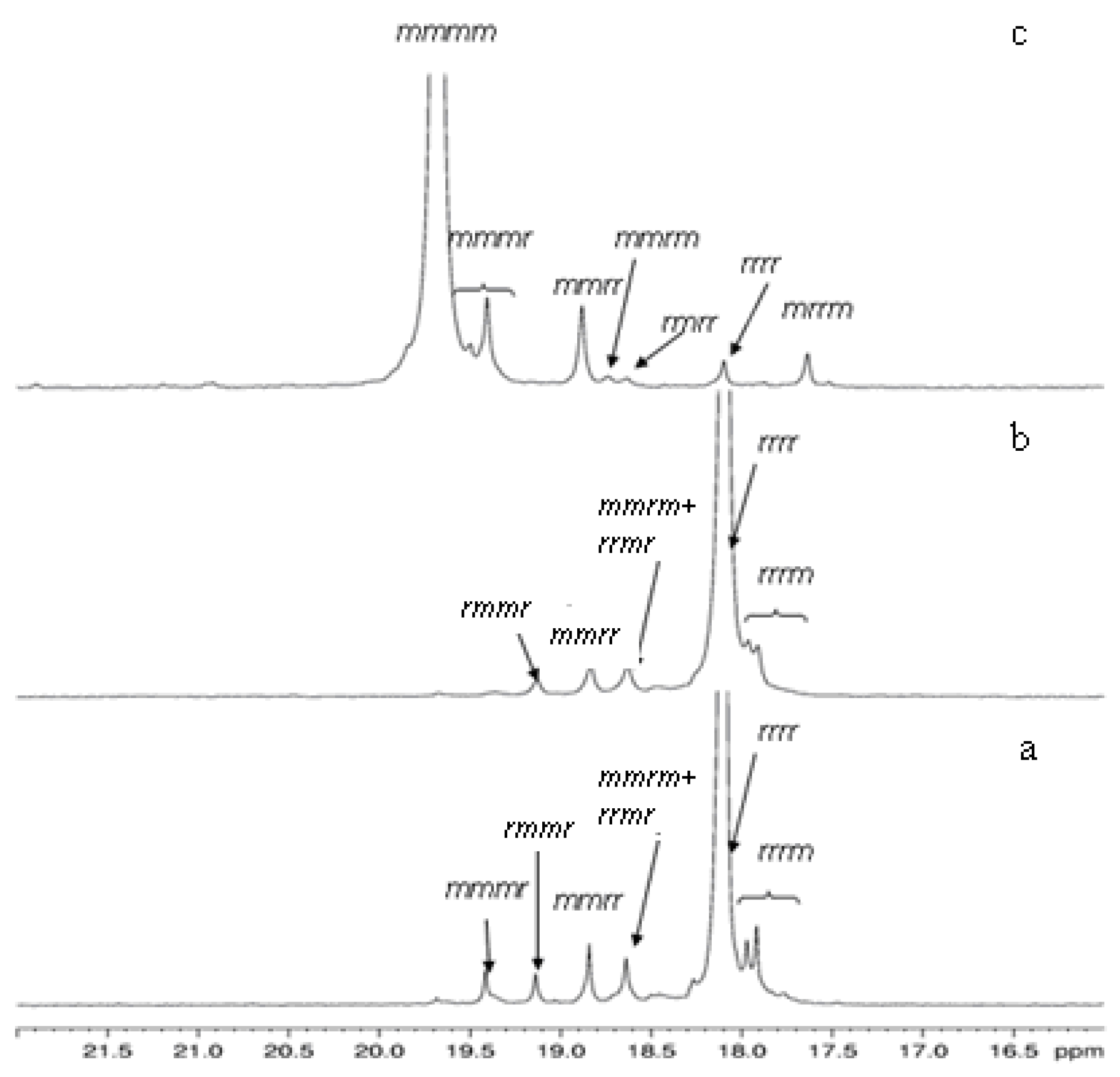

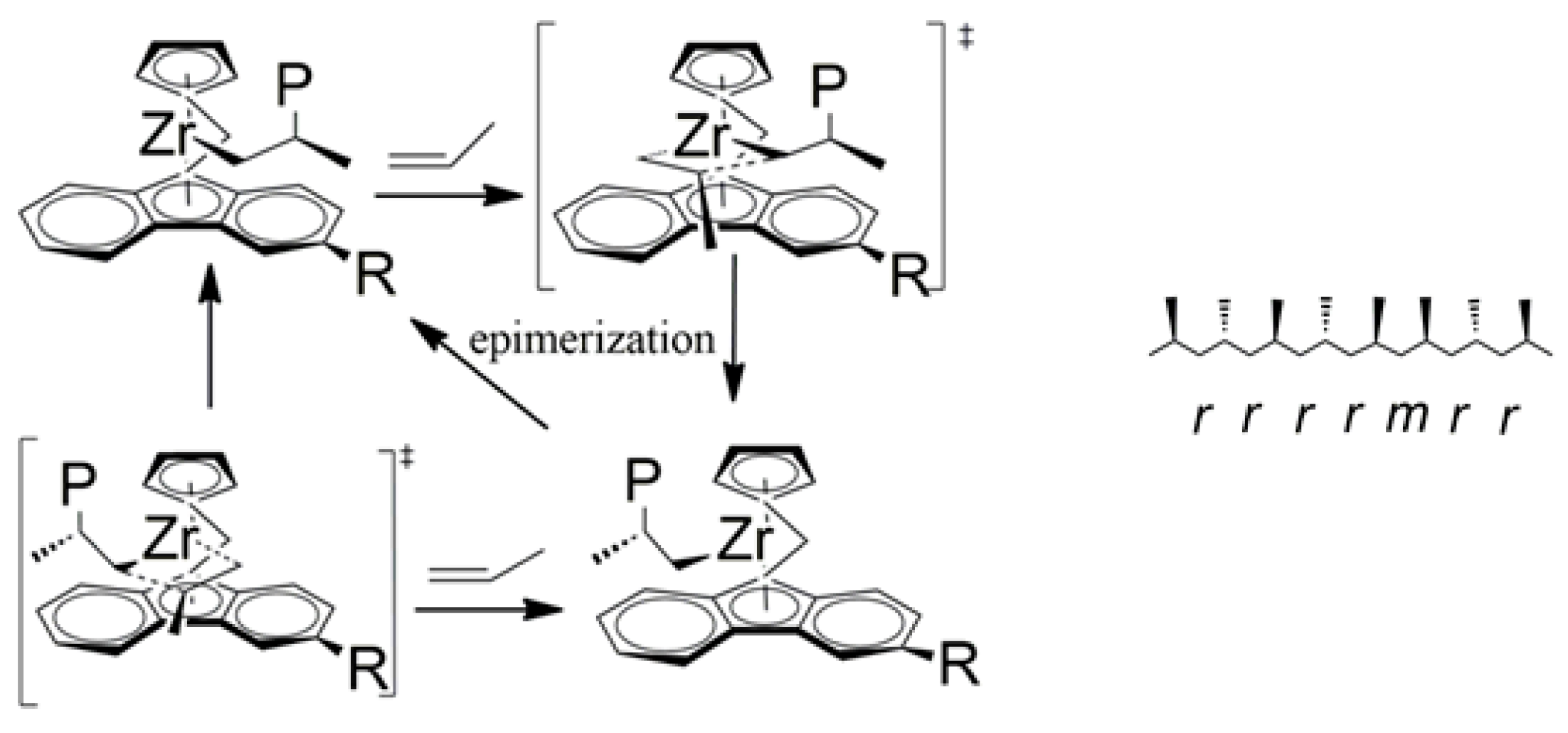

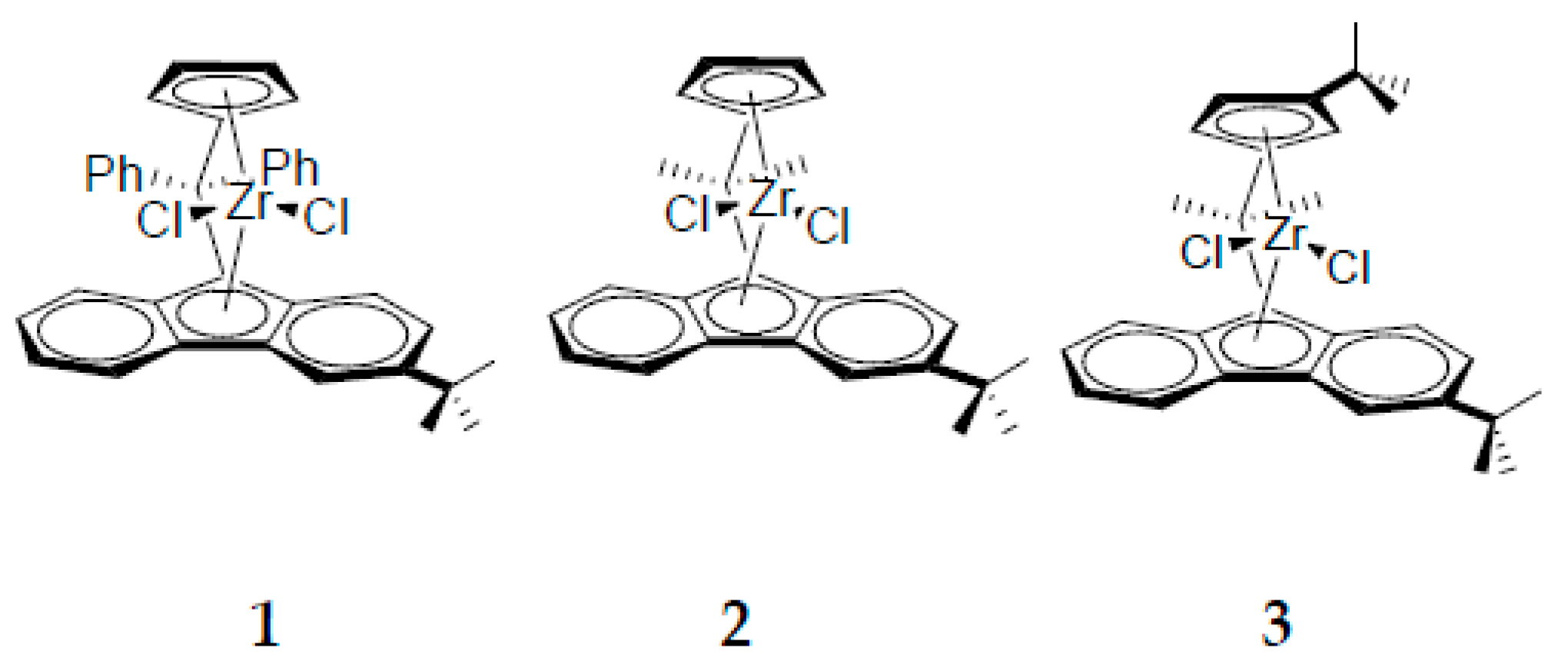

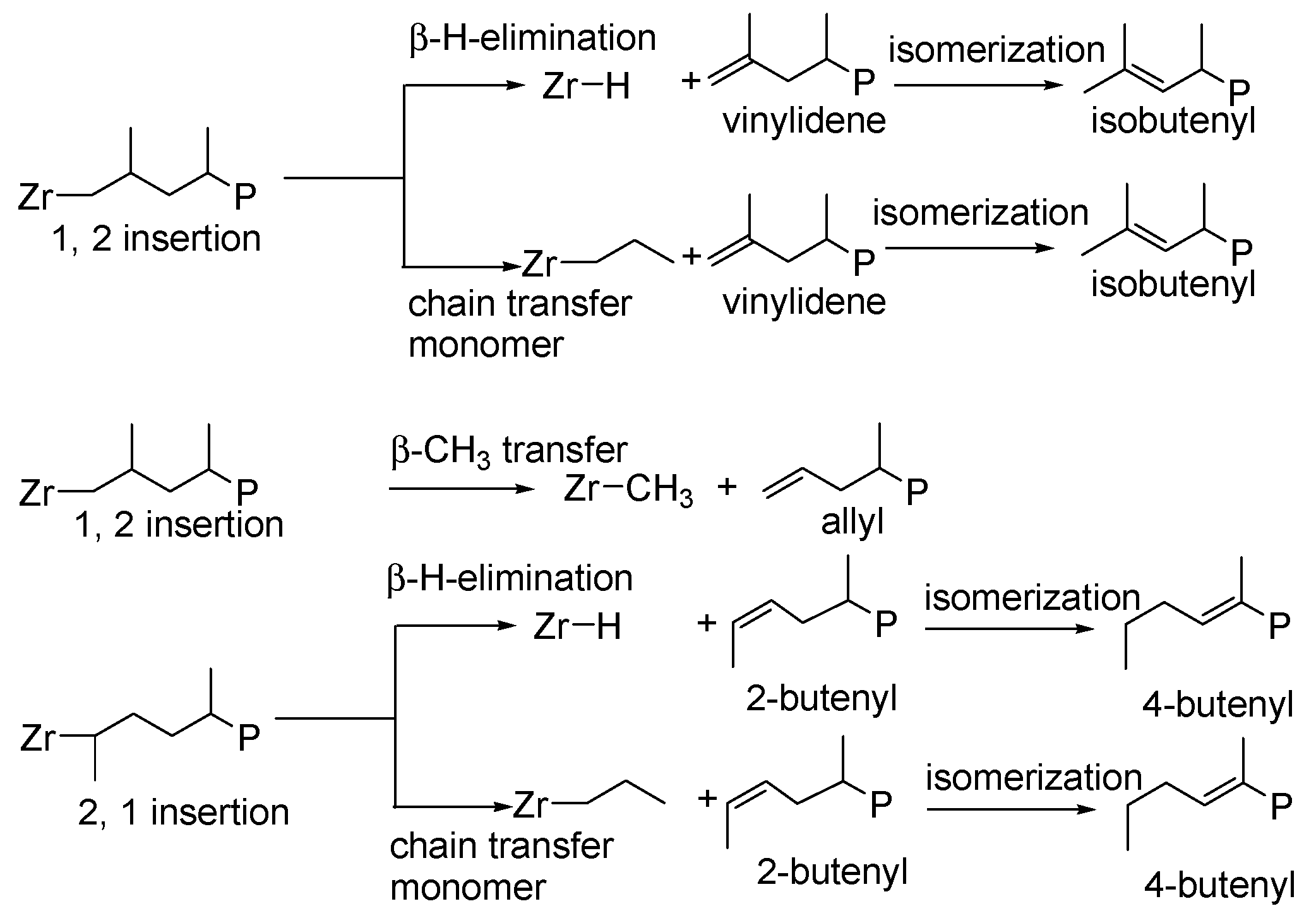

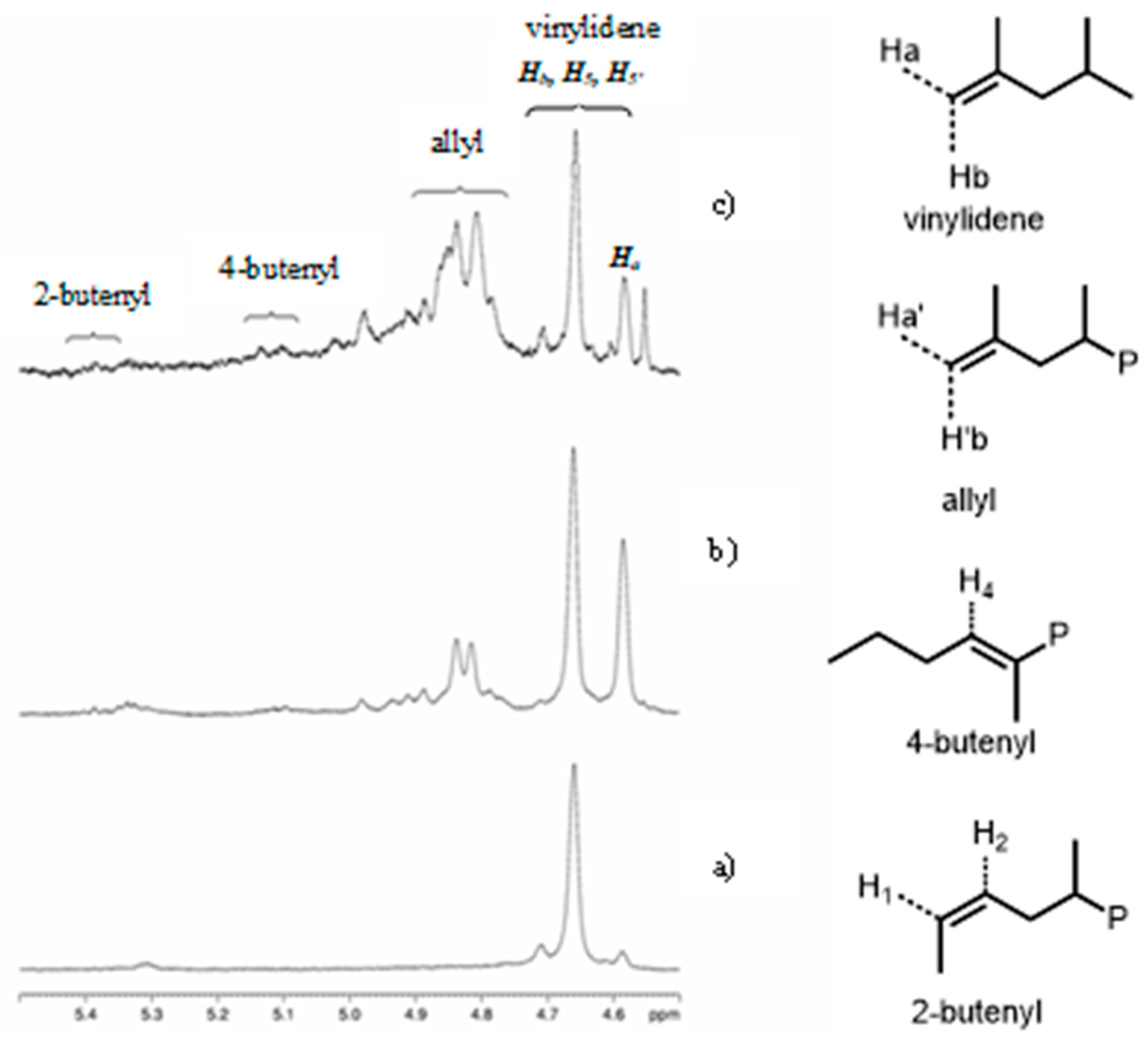

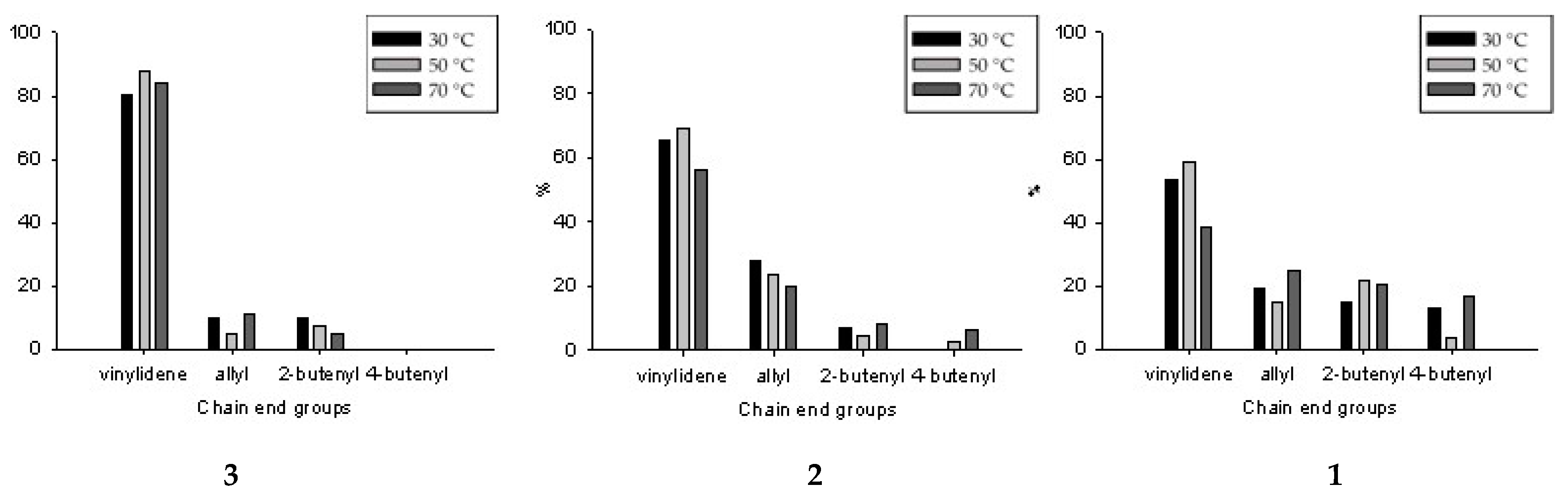

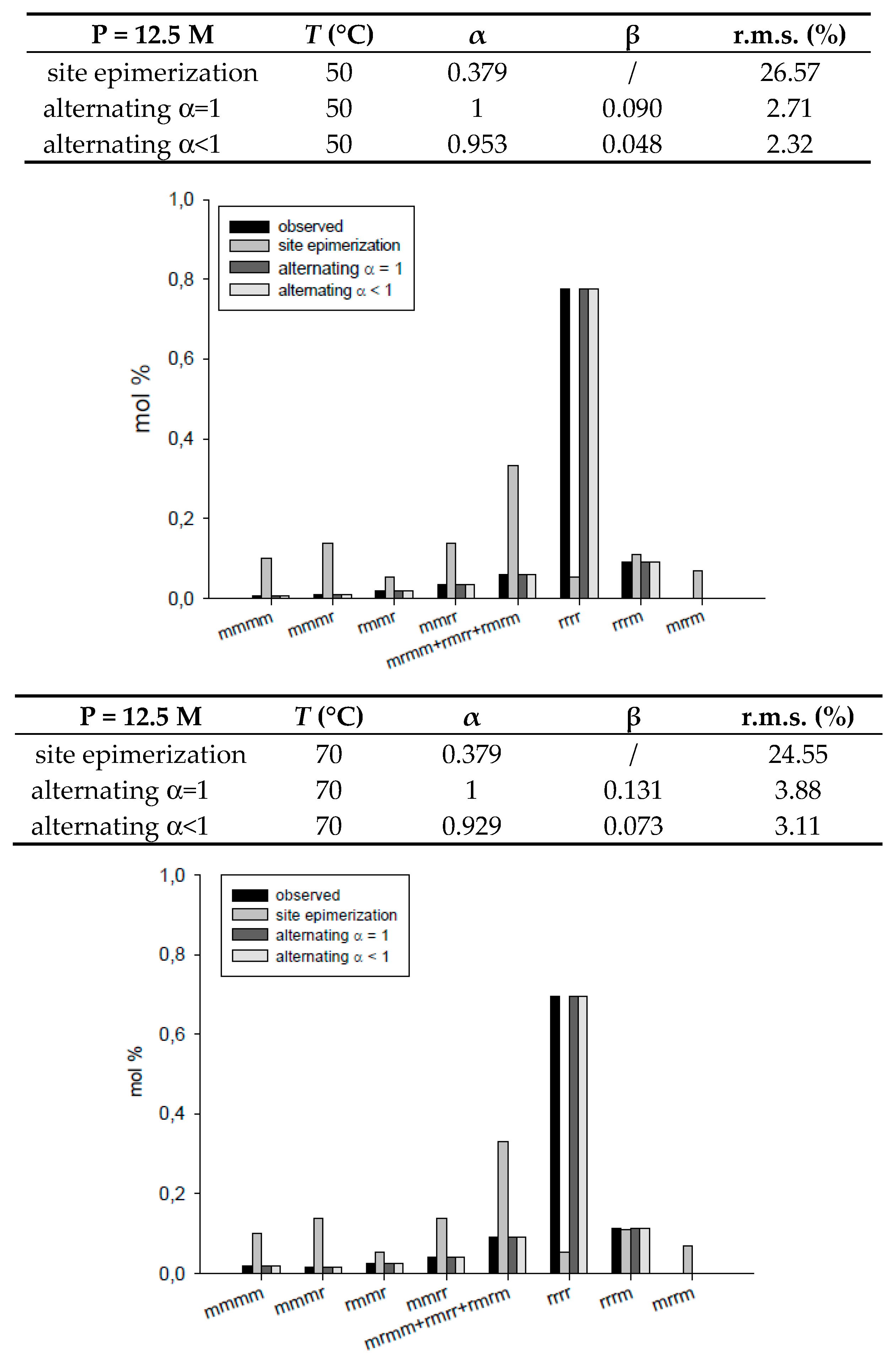

Propene homopolymers have been produced by employing three C1-symmetric metallocene molecules (1, 2 and 3), each having t-butyl substituent(s) on the Cp, on the fluorenyl or on both aromatic moieties activated with methylaluminoxane at different polymerization temperatures and monomer concentrations. Polymers’ microstructures determined by 13C NMR spectroscopy suggest that the otherwise dominant alternating mechanism governed by the chain migratory insertion is largely replaced by the competing site epimerization mechanism, as a direct result of the imposing steric bulk of the t-butyl substituent on one of the distal positions of the Cp moiety. This phenomenon is more pronounced with 3 when a second t-butyl is present in the same half-space of the molecule making the site epimerization mandatory. The lower activity of catalyst 3 with respect to catalyst 2 is also in line with the necessity for the polymer chain to back-skip (or the site to epimerize) to its original position before the subsequent monomer insertion. Chain end group analyses by 1H NMR spectroscopy have revealed that the formation of vinylidene end groups, either via β-H elimination or as a result of direct chain transfer to the monomer after an ordinary 1,2-insertion is the prevailing chain termination route. A correlation between the relative concentrations of vinylidene end groups of polypropene (PP) polymers produced with each catalyst and the corresponding polypropenes’ molar masses was found, indicating the lower the relative concentrations of vinylidene end groups, the higher the molar masses. View Full-Text
Keywords: propene; metallocene catalysts; microstructure propene; metallocene catalysts; microstructure

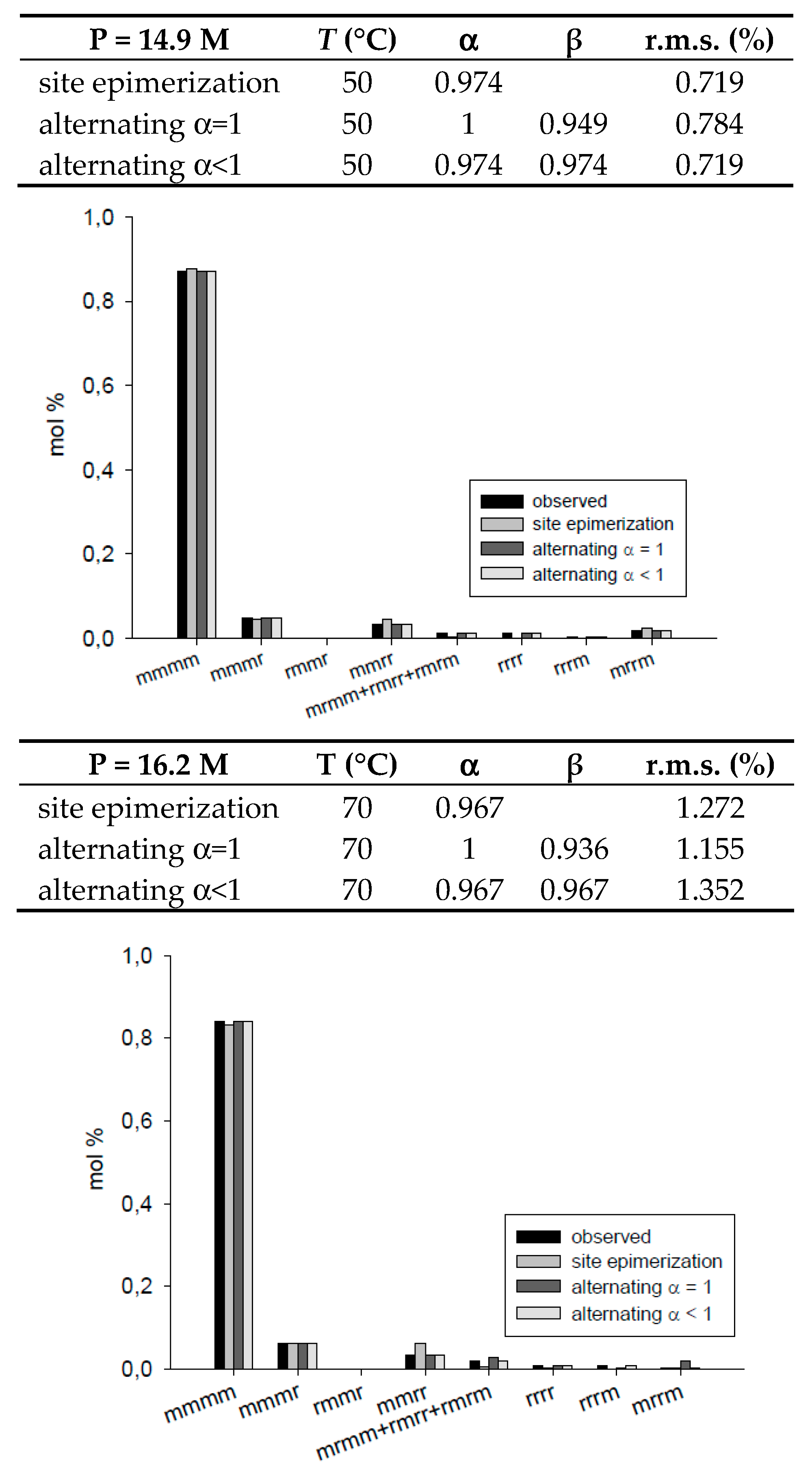

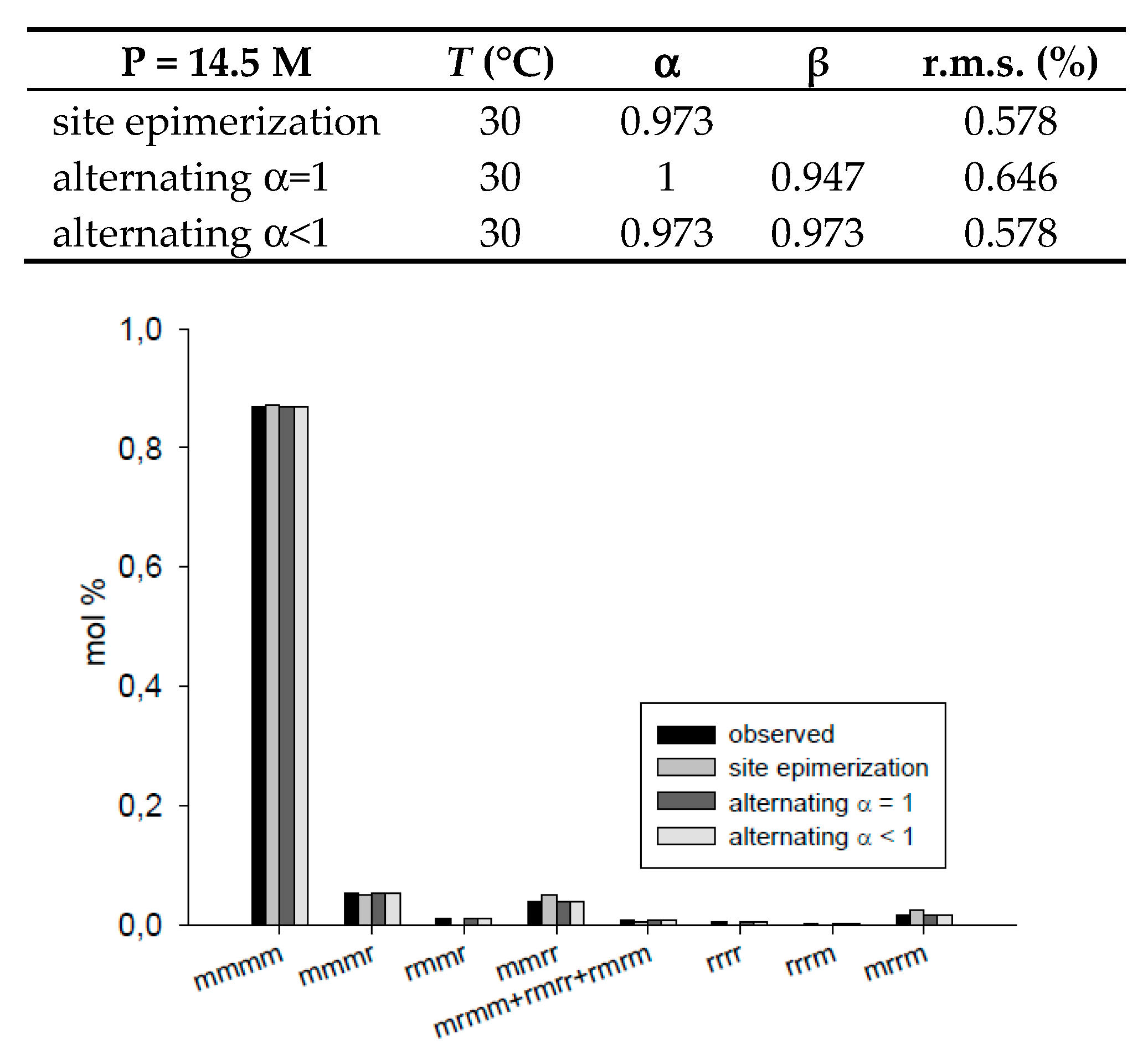

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Boggioni, L.; Cornelio, M.; Losio, S.; Razavi, A.; Tritto, I. Propene Polymerization with C1-Symmetric Fluorenyl-Metallocene Catalysts. Polymers 2017, 9, 581.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
