Experimental and Numerical Investigations on Compressive Performance of Additively Manufactured PLA Structures with Various Infill Patterns

by
Alexandra Llidó Barragán
1,*,
Aritz Unamuno Garay
1,
Santiago Ferrándiz-Bou
1,
Dana Luca Motoc
2 and
Cristina Pavón
1
1
Instituto Universitario de Investigación de Tecnología de Materiales, Universitat Politècnica de València, Plaza Ferrándiz y Carbonell, 03801 Alcoy, Spain
2
Department of Automotive and Transport Engineering, Transilvania University of Brasov (UniTBv), 1 Politehnicii Street, 500024 Brasov, Romania
*
Author to whom correspondence should be addressed.
Polymers 2026, 18(15), 1845; https://doi.org/10.3390/polym18151845
Submission received: 27 June 2026 / Revised: 22 July 2026 / Accepted: 25 July 2026 / Published: 28 July 2026
(This article belongs to the Special Issue Multi-Material Thermoplastic Additive Manufacturing: Interfaces, Architectured Structures and Performance)
Browse Figures
Versions Notes

Abstract

Additive manufacturing, particularly Fused Deposition Modeling (FDM), has emerged as a promising technology for construction applications due to its ability to fabricate complex geometries, optimize material usage, and enable customized designs. This study investigates the effects of different infill patterns and densities on the compressive behavior of polylactic acid (PLA) specimens to identify suitable configurations for industrial applications. Cubic specimens (50 mm × 50 mm × 50 mm) were designed in SolidWorks, sliced with PrusaSlicer using various conventional and bio-inspired infill patterns, and manufactured using a Prusa i3 MK3S printer. Compression tests were conducted to evaluate stiffness, strength, toughness, and deformation capacity. In addition, finite element method (FEM) simulations were carried out to predict the mechanical response under compressive loading. The results showed that the honeycomb infill pattern provided the best overall performance, combining moderate stiffness with high deformation capacity, reaching strains of approximately 40% before failure, and exhibiting superior energy absorption. Among the tested configurations, an infill density of 20% offered the best balance between mechanical performance, material consumption, and printing time. These findings demonstrate that honeycomb-based structures with moderate infill densities are promising candidates for lightweight engineering applications requiring high energy dissipation and damage tolerance.

1. Introduction

Additive Manufacturing (AM), also known as 3D printing, enables the fabrication of three-dimensional objects by depositing material layer by layer from a digital model [1]. Among the available AM technologies, Fused Filament Fabrication (FFF)—also referred to as Fused Deposition Modeling (FDM)—stands out for its low cost, accessibility, and versatility in processing a wide range of thermoplastic materials [2,3,4,5]. In FDM, a filament is melted through a heated nozzle and deposited onto a build platform, building the part layer by layer. Common materials include polylactic acid (PLA), acrylonitrile butadiene styrene (ABS), and glycol-modified polyethylene terephthalate (PETG) [6,7,8]. Among them, PLA is particularly favored due to its renewable origin, biodegradability, and good balance of processability and mechanical performance, making it suitable for functional prototypes, molds, and engineering components [9,10].
The mechanical performance of FFF-printed PLA parts is strongly governed by internal architecture parameters, particularly infill pattern, infill density, layer height, wall thickness, and printing speed, which control load transfer mechanisms and stress distribution within the printed structure [11,12]. While the influence of these parameters on tensile and impact behavior has been extensively studied, their effect on the compressive response is comparatively less explored, despite compression being a critical loading mode in structural, packaging, and energy-absorption applications.
The potential of cellular and multi-cellular architectures to enhance load distribution and energy absorption has been widely demonstrated, particularly in thin-walled and crashworthy systems [13,14,15,16,17,18]. These concepts have also increasingly been explored in additively manufactured thermoplastic structures, where the internal architecture can be tailored through infill-pattern design. Several studies have addressed compressive performance in FDM-printed structures. Kumar et al. [19] demonstrated that specific geometric designs significantly enhance the energy absorption capacity of 3D-printed polymer composites. In a more recent study, biomimetic hexagonal multi-cellular tubes fabricated by FDM were developed to enhance energy absorption and crashworthiness by optimizing cellular geometry [20]. Maurya et al. [4] reported that infill geometries, such as grid and honeycomb, can introduce dimensional deviations as density increases under compressive conditions. However, a systematic comparison of conventional and bio-inspired infill patterns—including honeycomb, grid, triangles, and gyroid—under uniaxial compression, combined with an assessment of manufacturing efficiency, remains insufficiently addressed in the literature.
Finite Element Analysis (FEA) has become a powerful tool for predicting the mechanical response of FDM-printed structures. Software such as ANSYS allows detailed simulation of stress distribution and deformation behavior, enabling the optimization of design parameters before physical fabrication. However, discrepancies between numerical predictions and experimental results may still arise due to the complexity of internal infill architectures and nonlinear failure mechanisms.
Although previous studies have investigated the influence of infill patterns and infill densities on the mechanical behavior of FDM-printed PLA components, a comprehensive assessment that simultaneously considers mechanical performance, finite element validation, and manufacturing efficiency under compressive loading remains limited.
This paper aims to experimentally and numerically evaluate the influence of different infill patterns and infill densities on the compressive behavior of FDM-printed PLA components using a combined experimental and finite element (FEM) approach. This work complements a previous investigation by the authors [21], which characterized the tensile and impact behavior of PLA+ specimens using a full-factorial design integrating ANOVA and machine learning; the present study extends that work by focusing on compressive loading and numerical simulation with ANSYS Mechanical. The main objective of this study is to identify the infill configuration that strikes the best balance among compressive strength, stiffness, energy absorption, deformation capacity, material consumption, and printing time, thereby offering practical design guidelines for lightweight engineering applications subjected to compressive loading.

2. Materials and Methods

2.1. Materials

This study used PLA-HD filament (1.75 mm diameter) supplied by Winkle (Salamanca, Spain) [22]. This commercial-grade PLA is an amorphous thermoplastic polymer with a glass transition temperature (Tg) of 55–60 °C, a melt flow rate of 8 g/10 min at 210 °C, and a density of 1.24 g/cm3. All specimens were manufactured using PLA-HD filament from the same supplier and batch. Different filament colors were used only for visual identification purposes and were not considered an experimental variable. Its reference mechanical properties include a Young’s modulus of 3500 MPa, a tensile strength of 45 MPa, and a Poisson’s ratio of 0.3, which were used as input parameters for the FEM simulations described in Section 2.4. The manufacturer recommends a nozzle temperature of 190–230 °C and a heated bed temperature of 50–70 °C. Before printing, the filament was stored in a dry environment to minimize moisture absorption, as hydrolytic degradation can affect melt viscosity and interlayer bonding in PLA-based systems. This material was selected to maintain continuity with the group’s ongoing research line [21], extending the mechanical characterization of FFF-printed PLA structures into the compressive domain.

2.2. Specimen Preparation and Experimental Procedures

Cubic specimens measuring 50 × 50 × 50 mm were designed in SolidWorks® 2025 software (Dassault Systèmes SolidWorks Corporation, Waltham, MA, USA). The models were exported in STL format and processed in PrusaSlicer version 2.9.4 (Prusa Research a.s., Prague, Czech Republic) to define printing parameters for each configuration. The specimens were fabricated from PLA-HD filament, as described in Section 2.1, on a Prusa i3 MK3S printer (Prusa Research a.s., Prague, Czech Republic).
The printing parameters employed in this study are summarized in Table 1. A layer height of 0.30 mm was selected, which is below the nozzle diameter (0.4 mm), ensuring adequate material flow and interlayer adhesion. The printer used for specimen fabrication is shown in Figure 1. All specimens were printed with the 50 mm dimension aligned with the build (Z) direction. During the compression tests, the load was applied parallel to the build direction.

2.3. Study of Infill Patterns

The CAD model was fabricated using four different infill patterns, namely grid, triangles, honeycomb, and gyroid, with an initial infill density of 20%, as illustrated in Figure 2. This density level was selected as the starting point based on findings from a previous study by the authors [21] in which a 20% infill represented a lightweight yet structurally relevant configuration across all evaluated patterns under tensile and impact loading conditions. The objective of this study was to evaluate the influence of infill geometry on the compressive mechanical behavior of printed specimens and to identify the configuration that best balances mechanical performance and manufacturing efficiency. In addition to uniaxial compression tests, printing time and material consumption were considered to assess the suitability of each infill pattern for potential industrial applications. The mechanical performance of the specimens was evaluated in terms of stiffness, compressive strength, and toughness.
The manufacturing specifications estimated by PrusaSlicer and the experimentally measured physical properties of the specimens are summarized in Table 2. Honeycomb (H), Grid (G), Triangles (T), and Gyroid (GY) denote the corresponding configurations evaluated in this study. The experimentally measured physical properties, including measured weight, effective density, and relative density, were determined from five specimens for each configuration, and the reported values represent their average. The measured density was calculated from the average specimen weight and the nominal specimen volume (50 × 50 × 50 mm3), while the relative density was obtained by normalizing the effective density with respect to the density of solid PLA (1.24 g/cm3). Although all specimens were fabricated with the same nominal infill density (20%), slight differences in measured weight and relative density were observed among the different configurations. These variations are attributed to the distinct internal architectures of each infill pattern, which modify the distribution of deposited material and the effective amount of polymer within the specimens.

2.4. Finite Element Method (FEM) Analysis

Before evaluating the effect of infill patterns under uniaxial compression, a finite element method (FEM) analysis was performed for the honeycomb, grid, and triangular geometries using ANSYS Workbench R2 2025 (Ansys Inc., Canonsburg, PA, USA) [23].
The gyroid pattern was excluded from the FEM analysis due to the complexity of its triply periodic minimal surface (TPMS) geometry, which requires significantly finer mesh discretization and substantially higher computational cost to achieve reliable stress field resolution. Its mechanical behavior is therefore characterized exclusively through experimental testing [24].
The CAD models were generated in SolidWorks® software by explicitly modeling the internal infill structures and subsequently imported into ANSYS in STEP format using the Explicit Dynamics module.
The PLA-HD material was defined as an isotropic elastic material with a Young’s modulus of 3500 MPa, a tensile strength of 45 MPa, and a Poisson’s ratio of 0.3 [25], consistent with the values reported in Section 2.1. Given that the objective of the present FEM analysis was to compare stress distributions and load transfer mechanisms among different infill geometries, a linear elastic material model was adopted. Therefore, the simulations were not intended to reproduce the complete nonlinear compressive response, including mechanisms such as yielding, fracture, buckling, or progressive collapse.
The uniaxial compression setup was represented using two rigid steel plates (Ø 125 mm, 20 mm thick) to reproduce the experimental boundary conditions. The lower plate was fully fixed, constraining all degrees of freedom (translations and rotations), while the upper plate was modeled as a rigid body subjected to an imposed displacement [26] of 2.5 mm, corresponding to an axial strain of approximately 5% relative to the specimen height of 50 mm. Frictionless contact conditions were assumed between the specimen and both plates to minimize external friction effects and focus on the intrinsic load transfer behavior and stress distribution of the infill architectures. Since the FEM analysis was intended for comparative evaluation rather than exact failure prediction, frictionless contact was considered an appropriate simplification. The frictionless contact regions between the structure and the loading plates are shown in Figure 3a, while the boundary conditions and finite element mesh are shown in Figure 3b.
The finite element discretization was performed using linear elements with an average element size of 3 mm, and the global mesh resolution was set to 4, as shown in Figure 3b. The resulting meshes comprised 60,856 elements for the honeycomb structure, 101,150 elements for the grid structure, and 62,162 elements for the triangular geometry. Mesh quality was assessed using the element quality metric, with average values of 0.58, 0.45, and 0.49 for the honeycomb, grid, and triangular structures, respectively, all within acceptable limits, confirming numerical stability. Due to the computational limitations of the student version of ANSYS, a formal mesh convergence analysis was not performed. However, the selected mesh density was considered adequate for the objectives of this study, capturing the main stress distribution features and load transfer mechanisms of the different infill geometries.
The analysis was carried out using an explicit formulation under quasi-static conditions, with a total simulation time of 0.1 s to ensure progressive load application and minimize dynamic inertial effects.
The validity of the quasi-static assumption was assessed using an energy-based criterion reported in the literature [27] and consistent with the recommendations provided in ANSYS Explicit Dynamics guidelines [28]. According to this criterion, the response is considered quasi-static when the ratio of kinetic energy to internal energy remains below 5% throughout the deformation process.

2.5. Mechanical Characterization

The mechanical characterization of the 3D-printed specimens was carried out using compression tests performed on an ELIB 30 universal electromechanical testing machine (Ibertest, Madrid, Spain) equipped with a 50 kN load cell (Figure 4). All tests were conducted in accordance with ISO 604:2002 [29] at a crosshead speed of 5 mm/min. For each infill configuration, five specimens were tested, and the reported mechanical parameters correspond to the average values obtained from these replicates. All experiments were performed at room temperature, and the stress–strain data were recorded during the compression tests.
The mechanical parameters were determined from the experimental stress–strain curves. The yield stress (σy) was defined as the stress value corresponding to the transition from the elastic to the plastic deformation region. The compressive modulus (Ec) was calculated from the slope of the initial linear elastic region of the stress–strain curve. The resilience (ER) was obtained from the area under the curve up to the yield point, representing the elastic energy absorbed by the specimen. The toughness (ET) was calculated as the area under the stress–strain curve up to failure, representing the total energy absorption capacity. The strain at break (εB) was defined as the strain measured at the specimen’s failure point. These parameters were used to evaluate the influence of infill architecture on the compressive mechanical response of the printed structures.

3. Results and Discussion

3.1. FEM-Based Simulation and Experimental Data on the Influence of Infill Patterns

In this study, sectional stress-contour images from FEM simulations with a prescribed displacement of 2.5 mm are presented to identify regions with the highest stress concentrations. These cut-plane representations provide insight into the internal stress distribution within each infill structure and highlight the critical areas where failure is likely to initiate, as shown in Figure 5.
The FEM results indicate that the honeycomb structure reaches a maximum von Mises stress of 231 MPa, exceeding the values obtained for the grid and triangular patterns (202 MPa and 196 MPa, respectively). Since the model assumes linear elastic behavior, the obtained stress values should be interpreted as indicators of relative stress concentration rather than absolute failure stresses. Regions with higher stress levels are considered potential critical locations where damage may initiate; however, the exact failure mechanisms cannot be predicted using the present linear elastic model. The honeycomb pattern exhibits a more homogeneous stress distribution with intermediate stress levels of around 147 MPa, suggesting efficient load redistribution. In contrast, the grid pattern shows pronounced stress concentrations at nodal and corner regions (up to 161 MPa), while the triangular pattern develops localized high-stress regions along primary load paths, both indicating preferential sites for damage initiation.
The numerical results reveal clear differences in stress distribution among the evaluated geometries.
The energy balance of the simulations confirmed the validity of the quasi-static assumption (Table 3). The Ec/Ei ratio remained below 0.01% in all cases, confirming that inertial effects are negligible [27]. Among the evaluated configurations, the honeycomb structure exhibited the highest elastic internal energy (232.61 J), followed by the grid (202.26 J) and triangular (191.32 J) patterns. These values should be interpreted as comparative indicators of elastic load transfer rather than direct predictions of experimental energy absorption capacity, which is evaluated from the compression tests.
The experimentally tested specimens are shown in Figure 6, and the corresponding stress–strain curves are presented in Figure 7a. The mechanical parameters are summarized in Table 4. All reported values correspond to the average of five specimens for each configuration. The deformation pattern of cellular structures is closely related to their energy absorption capacity, as it reflects the underlying mechanisms governing compressive deformation and energy dissipation [30]. The honeycomb structure exhibits the highest deformation capacity, reaching strains close to 40% before failure, with a compressive strength of 8.52 MPa and a toughness of approximately 3998 kJ/m3. The grid and triangular patterns reach higher compressive strengths (15.4 MPa and 11.7 MPa, respectively) but fail at strains below 10%. In comparison, the gyroid exhibits the lowest compressive strength (5.78 MPa) alongside the highest elastic modulus (302 MPa).
The stress–strain curves in Figure 7a show an initial linear elastic region followed by progressive damage accumulation. Cellular materials typically exhibit three deformation stages: (i) initial elastic deformation, (ii) a post-yield plateau associated with progressive collapse mechanisms, and (iii) densification. In the present study, only the initial elastic regime is fully developed in the present specimens, likely due to their relatively compact internal architecture. This is consistent with Mohotti et al. [31], who reported that multi-stage collapse is primarily observed in highly porous lattice structures.
Regarding energy absorption, the grid pattern shows the highest resilience (393 kJ/m3), while the honeycomb structure shows the highest toughness (3998 kJ/m3). As shown in Figure 7b, the grid and triangular configurations achieve the highest specific stiffness (≈0.89 and ≈0.80 MPa·m3/kg), whereas honeycomb and gyroid show lower values (≈0.54 and ≈0.59 MPa·m3/kg, respectively), despite the honeycomb pattern having the highest effective density (~395 kg/m3). The superior toughness and deformation capacity of the honeycomb structure are consistent with previous studies reporting enhanced energy absorption in 3D-printed multicellular architectures [20]. Furthermore, previous studies have demonstrated that variations in cellular and lattice geometry significantly influence the balance between compressive stiffness, load-bearing capacity, deformation, and energy absorption [32,33]. This is consistent with the present findings, where changes in infill architecture resulted in distinct combinations of compressive strength, stiffness, deformation capacity, and energy absorption.
Overall, both FEM and experimental results consistently identify the honeycomb pattern as having superior energy and deformation capacities due to its efficient load redistribution mechanism. In contrast, the grid and triangular configurations show higher stiffness and strength but reduced ductility, leading to premature failure. The gyroid structure presents intermediate behavior with lower strength but relatively high stiffness. Therefore, the most suitable infill configuration depends on the intended application. Honeycomb is preferable for applications requiring energy absorption, deformation capability, and damage tolerance, whereas the grid pattern is more appropriate for load-bearing applications where higher compressive strength, stiffness, and elastic energy storage are prioritized. This agrees with Al-Kharusi and Al Owiemri, who reported superior compressive performance of honeycomb due to more efficient stress distribution and load transfer [34]. Furthermore, the strong dependence of mechanical behavior on infill geometry, which governs deformation and failure mechanisms, agrees with the findings reported by Aboelella et al. [35].

3.2. Study of Infill Density

Based on the results obtained in Section 3.1, the honeycomb pattern was selected for the infill density study. The selected infill densities (5%, 10%, and 20%) were chosen to represent different levels of material utilization, ranging from highly lightweight configurations to a more mechanically robust condition. The 20% infill density was selected as the reference condition because it provides a balance between mechanical performance and material efficiency. Lower infill densities (10% and 5%) were included to evaluate the effect of material reduction on compressive behavior, energy absorption, and manufacturing efficiency. These configurations are shown in Figure 8, while the corresponding manufacturing characteristics estimated by PrusaSlicer and the experimentally measured physical properties of the honeycomb specimens, including measured weight, effective density, and relative density, are summarized in Table 5.

Influence of Infill Density

Figure 9 shows the honeycomb specimens with different infill densities (5%, 10%, and 20%) after compressive testing up to fracture, and Figure 10 presents the stress–strain curves obtained for the three specimens tested at each infill density. The results confirm a strong dependence of compressive behavior on infill density. The 20% configuration achieves the highest compressive strength (≈8.5 MPa) and the greatest deformation capacity (≈40% strain before failure). At lower densities, compressive strength drops to approximately 4.8 MPa at 10% and 4.0 MPa at 5%, accompanied by a reduction in strain-to-failure, indicating a progressive loss of structural ductility. The post-compression images also reveal localized collapse and damage within the honeycomb architecture, particularly in the H10 and H5 specimens, where openings and disrupted internal regions are evident (Figure 9).
This behavior can be attributed to a reduction in structural continuity within the internal honeycomb network as density decreases, thereby limiting load redistribution and the overall capacity to sustain compressive loading before failure. This finding is in agreement with previous studies reporting that higher infill percentages enhance internal connectivity and mechanical performance [34].
From a manufacturing perspective, reducing infill density yields significant gains in fabrication efficiency: printing time decreases from 210 min at 20% to 106 min at 10% and 77 min at 5%, with proportional reductions in material consumption. These trends are consistent with the experimentally measured properties reported in Table 5. The measured specimen weight decreases from 49.36 g for H20 to 34.18 g for H10 and 26.60 g for H5. Similarly, the effective density decreases from 395 kg/m3 to 273 kg/m3 and 213 kg/m3, while the relative density decreases from 0.319 to 0.220 and 0.172, respectively. Although the estimated and experimentally measured values differ slightly, both confirm a progressive reduction in material content as infill density decreases. However, this reduction in material content is accompanied by a substantial decrease in mechanical performance. Therefore, the 20% configuration represents the best balance among the tested densities, combining adequate compressive strength, high energy absorption, and reasonable manufacturing efficiency.

4. Conclusions

This study investigated the influence of infill pattern and infill density on the compressive mechanical behavior of FDM-printed PLA structures using a combined experimental and finite element (FEM) approach. The internal architecture strongly influenced the compressive response, with the honeycomb pattern exhibiting the highest deformation capacity and toughness, reaching approximately 40% strain before failure and a toughness of nearly 4000 kJ/m3. FEM analysis showed a more uniform stress distribution in the honeycomb structure compared to the grid and triangular geometries, providing mechanistic insight into the experimental observations that would not be accessible through testing alone. In contrast, the grid pattern achieved the highest stiffness and resilience (specific stiffness ≈ 0.89 MPa·m3/kg; resilience = 393 kJ/m3), while the triangular and gyroid structures showed intermediate and lower performance, respectively. Regarding infill density, a trade-off was identified between mechanical performance and manufacturing efficiency. Although reducing the density from 20% to 5% decreased printing time by ~63% and material consumption proportionally, it led to a substantial reduction in compressive strength and ductility. The 20% honeycomb configuration provided the best balance among the tested conditions.
Overall, honeycomb structures are more suitable for applications requiring energy absorption, deformation capability, and damage tolerance, whereas grid structures are preferable for lightweight structural applications requiring higher stiffness and compressive strength. These findings confirm that FEM simulation, combined with experimental validation, enables both the rationalization of failure mechanisms and the optimization of infill design. Future work should incorporate nonlinear material behavior and progressive damage criteria into the FEM model, as well as extend this characterization to a broader density range and dynamic loading conditions.

Author Contributions

A.L.B.: Investigation, Methodology, Data curation, Formal analysis, Writing—original draft preparation, and Validation. A.U.G.: Investigation, Methodology, Validation. S.F.-B.: Visualization, Writing—review and editing, Resources, Funding acquisition, and Project administration. D.L.M.: Validation, Visualization, Formal analysis. C.P.: Conceptualization, Supervision, Writing—review and editing, and Visualization. All authors have read and agreed to the published version of the manuscript.

Funding

This research is a part of the grant PID2023-152869OB-C22, funded by MCIN/AEI/10.13039/501100011033 and the European Union “NextGenerationEU”/PRTR.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Acknowledgments

Alexandra Llidó Barragán gratefully acknowledges the Universitat Politècnica de València for the support provided through the predoctoral grant PAID-01-22. Cristina Pavon also acknowledges the postdoctoral grant PAID-10-23 from the Universitat Politècnica de València.

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.

References

  1. Mansour, M.T.; Tsongas, K.; Tzetzis, D. 3D printed hierarchical honeycombs with carbon fiber and carbon nanotube reinforced acrylonitrile butadiene styrene. J. Compos. Sci. 2021, 5, 62. [Google Scholar] [CrossRef]
  2. Ghaffar, S.H.; Corker, J.; Fan, M. Additive manufacturing technology and its implementation in construction as an eco-innovative solution. Autom. Constr. 2018, 93, 1–11. [Google Scholar] [CrossRef]
  3. Rahim, T.N.A.T.; Abdullah, A.M.; Akil, H.M. Recent developments in fused deposition modeling-based 3D printing of polymers and their composites. Polym. Rev. 2019, 59, 589–624. [Google Scholar] [CrossRef]
  4. Maurya, S.; Malik, B.; Sharma, P.; Singh, A.; Chalisgaonkar, R. Investigation of different parameters of cube printed using PLA by FDM 3D printer. Mater. Today Proc. 2022, 64, 1217–1222. [Google Scholar] [CrossRef]
  5. Liu, Z.; Wang, Y.; Wu, B.; Cui, C.; Guo, Y.; Yan, C. A critical review of fused deposition modeling 3D printing technology in manufacturing polylactic acid parts. Int. J. Adv. Manuf. Technol. 2019, 102, 2877–2889. [Google Scholar] [CrossRef]
  6. Yeoh, C.K.; Cheah, C.S.; Pushpanathan, R.; Song, C.C.; Tan, M.A.; Teh, P.L. Effect of infill pattern on mechanical properties of 3D printed PLA and cPLA. IOP Conf. Ser. Mater. Sci. Eng. 2020, 957, 012064. [Google Scholar] [CrossRef]
  7. Camargo, J.C.; Machado, Á.R.; Almeida, E.C.; Silva, E.F.M.S. Mechanical properties of PLA-graphene filament for FDM 3D printing. Int. J. Adv. Manuf. Technol. 2019, 103, 2423–2443. [Google Scholar] [CrossRef]
  8. Grasso, M.; Azzouz, L.; Ruiz-Hincapie, P.; Zarrelli, M.; Ren, G. Effect of temperature on the mechanical properties of 3D-printed PLA tensile specimens. Rapid Prototyp. J. 2018, 24, 1337–1346. [Google Scholar] [CrossRef]
  9. Ali, W.; Ali, H.; Gillani, S.; Zinck, P.; Souissi, S. Polylactic acid synthesis, biodegradability, conversion to microplastics and toxicity: A review. Environ. Chem. Lett. 2023, 21, 1761–1786. [Google Scholar] [CrossRef]
  10. Taib, N.-A.A.B.; Rahman, R.; Huda, D.; Kuok, K.K.; Hamdan, S.; Bin Bakri, M.K.; Bin Julaihi, M.R.M.; Khan, A. A review on poly lactic acid (PLA) as a biodegradable polymer. Polym. Bull. 2023, 80, 1179–1213. [Google Scholar] [CrossRef]
  11. Ma, Q.; Rejab, M.R.M.; Kumar, A.P.; Fu, H.; Kumar, N.M.; Tang, J. Effect of infill pattern, density and material type of 3D printed cubic structure under quasi-static loading. Proc. Inst. Mech. Eng. C 2021, 235, 4254–4272. [Google Scholar] [CrossRef]
  12. Hanon, M.M.; Zsidai, L.; Ma, Q. Accuracy investigation of 3D printed PLA with various process parameters and different colors. Mater. Today Proc. 2021, 42, 3089–3096. [Google Scholar] [CrossRef]
  13. Chen, B.; Zou, M.; Liu, G.; Song, J.; Wang, H. Experimental study on energy absorption of bionic tubes inspired by bamboo structures under axial crushing. Int. J. Impact Eng. 2018, 115, 48–57. [Google Scholar] [CrossRef]
  14. Liu, K.; Yu, Z.; Wang, K.; Jing, L. Crashworthiness of bamboo-inspired circular tubes used for the energy absorber of rail vehicles. Acta Mech. Sin. 2022, 38, 122014. [Google Scholar] [CrossRef]
  15. Liu, L.; Li, L.; Guo, C.; Ge, Y.; Chen, Y.; Zhang, L. The design of a biomimetic hierarchical thin-walled structure inspired by a lotus leaf and its mechanical performance analysis. Materials 2023, 16, 4116. [Google Scholar] [CrossRef] [PubMed]
  16. Liu, L.; Li, L.; Guo, C.; Ge, Y.; Zhang, L. A study of the mechanical properties of naturally-inspired tubular structures designed for lightweight applications. Appl. Sci. 2023, 13, 6519. [Google Scholar] [CrossRef]
  17. Gao, Z.; Zhang, H.; Zhao, J.; Ruan, D. The axial crushing performance of bio-inspired hierarchical multi-cell hexagonal tubes. Int. J. Mech. Sci. 2023, 239, 107880. [Google Scholar] [CrossRef]
  18. Xie, Z.; Deng, X. Design of hierarchical multi-cell double circular tubes thin-walled structures for energy absorption. Mech. Adv. Mater. Struct. 2024, 32, 2493–2510. [Google Scholar] [CrossRef]
  19. Kumar, A.P.; Ma, Q. Quasi-static compressive performance of 3D printed polymer composite cellular cubic structures—An experimental study. Int. J. Prot. Struct. 2024, 15, 601–616. [Google Scholar] [CrossRef]
  20. Alagesan, P.K.; Krishnan, G.; Sahu, S.K.; Kumaresan Gladys, A.; Subbarayan, S.; Ma, Q. Crashworthiness performance of 3D printed thermoplastic polymer composite hexagonal multi-cellular tubes: A biomimetic approach for enhanced energy absorption. J. Thermoplast. Compos. Mater. 2026, 39, 1261–1290. [Google Scholar] [CrossRef]
  21. Llidó Barragán, A.; Unamuno Garay, A.; Ferrandiz, S.; López-Martínez, J.; Pavon, C. Mechanical characterization and ML-based prediction of 3D-printed PLA+: Effects of infill pattern, infill density, and orientation. Prog. Addit. Manuf. 2026, 11, 1–19. [Google Scholar] [CrossRef]
  22. Winkle. Filamento PLA HD para Impresión 3D. Available online: https://winkle.shop/filamento-impresora-3d/pla/filamento-pla-hd/ (accessed on 3 December 2025).
  23. ANSYS. Structural Analysis Software Solutions. Available online: https://www.ansys.com/products/structures (accessed on 20 April 2026).
  24. Qiu, N.; Wan, Y.; Shen, Y.; Fang, J. Experimental and numerical studies on mechanical properties of TPMS structures. Int. J. Mech. Sci. 2024, 261, 108657. [Google Scholar] [CrossRef]
  25. Menegozzo, M.; Cecchini, A.; Ogle, R.C.; Vaidya, U.K.; Acevedo-Figueroa, I.; Torres-Hernández, J.A. Scale effect assessment of innovative 3D-printed honeycomb under quasi-static compression. Aerospace 2023, 10, 242. [Google Scholar] [CrossRef]
  26. El-Asfoury, M.S.; El-Bedwehy, N.E.; Shazly, M.; Elkaseer, A. Orientation driven design and mechanical optimization of gyroid TPMS lattice structures. Sci. Rep. 2026, 16, 4373. [Google Scholar] [CrossRef] [PubMed]
  27. Rodrigo, C.; Xu, S.; Durandet, Y.; Fraser, D.; Ruan, D. Quasi-static and dynamic compression of additively manufactured functionally graded lattices: Experiments and simulations. Eng. Struct. 2023, 284, 115909. [Google Scholar] [CrossRef]
  28. ANSYS Innovation Space. Quasi-Static Response of Explicit Analysis. Available online: https://innovationspace.ansys.com/courses/courses/understanding-topics-in-ansys-ls-dyna-software-part-1/lessons/quasi-static-response-of-explicit-analysis-lesson-2/ (accessed on 21 April 2026).
  29. ISO 604:2022; Plastics—Determination of Compressive Properties. International Organization for Standardization: Geneva, Switzerland, 2022.
  30. Kumar, A.P.; Sundaram, M.S. An axial crushing characteristics of hybrid kenaf/glass fabric wrapped aluminium capped tubes under static loading. Int. J. Mech. Prod. Eng. Res. Dev. 2018, 8, 201–206. [Google Scholar] [CrossRef]
  31. Mohotti, D.; Weerasinghe, D.; Bogahawaththa, M.; Wang, H.; Wijesooriya, K.; Hazell, P.J. Quasi-static and dynamic compressive behaviour of additively manufactured Menger fractal cube structures. Def. Technol. 2024, 37, 39–49. [Google Scholar] [CrossRef]
  32. Zhao, D.; Wang, Z.; Zhou, Z.; Ruan, K.; Wang, S.; Ma, Q.; Zhang, X. Multiscale design of CFRPC sandwich structures with foam core: Microcellular optimization and compressive property evaluation. Polym. Compos. 2025, 46, 13907–13920. [Google Scholar] [CrossRef]
  33. Zhang, P.; Han, Z.; Ran, X.; Sun, S.; Fu, H. Path design and compression behavior of 3D printed continuous carbon fiber reinforced composite lattice sandwich structures. Compos. Struct. 2022, 296, 115893. [Google Scholar] [CrossRef]
  34. Al-Kharusi, M.S.M.; Al Owiemri, M.S. Effect of infill percentage and pattern variations on the compressive strength and material properties of 3D printed HDPE materials. Solid State Phenom. 2025, 379, 9–15. [Google Scholar] [CrossRef]
  35. Aboelella, M.G.; Ebeid, S.J.; Sayed, M.M. Layer combination of similar infill patterns on the tensile and compression behavior of 3D printed PLA. Sci. Rep. 2025, 15, 11759. [Google Scholar] [CrossRef] [PubMed]
Polymers 18 01845 g001

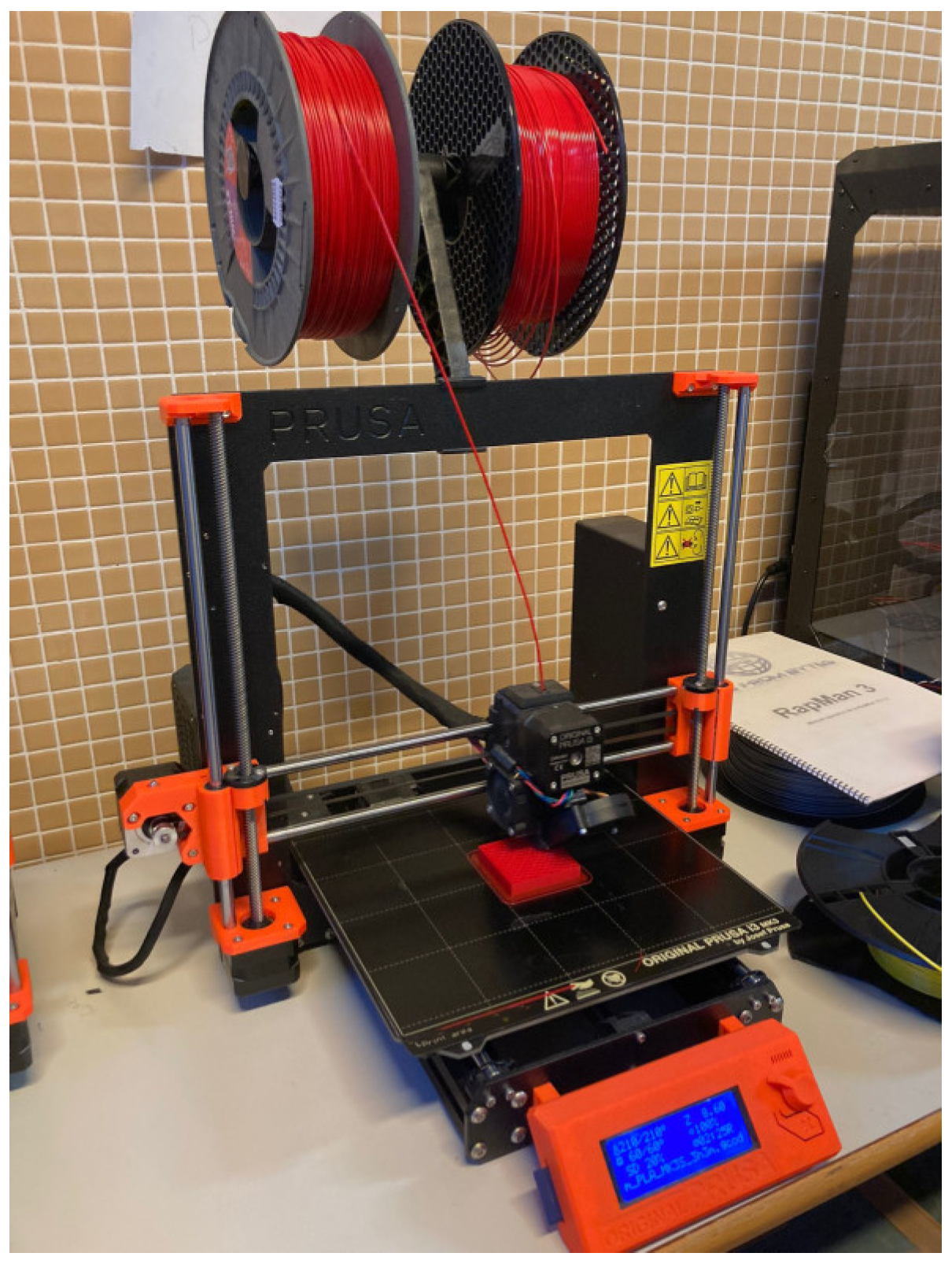

Figure 1. Prusa i3 MK3S printer.
Figure 1. Prusa i3 MK3S printer.
Polymers 18 01845 g001
Polymers 18 01845 g002

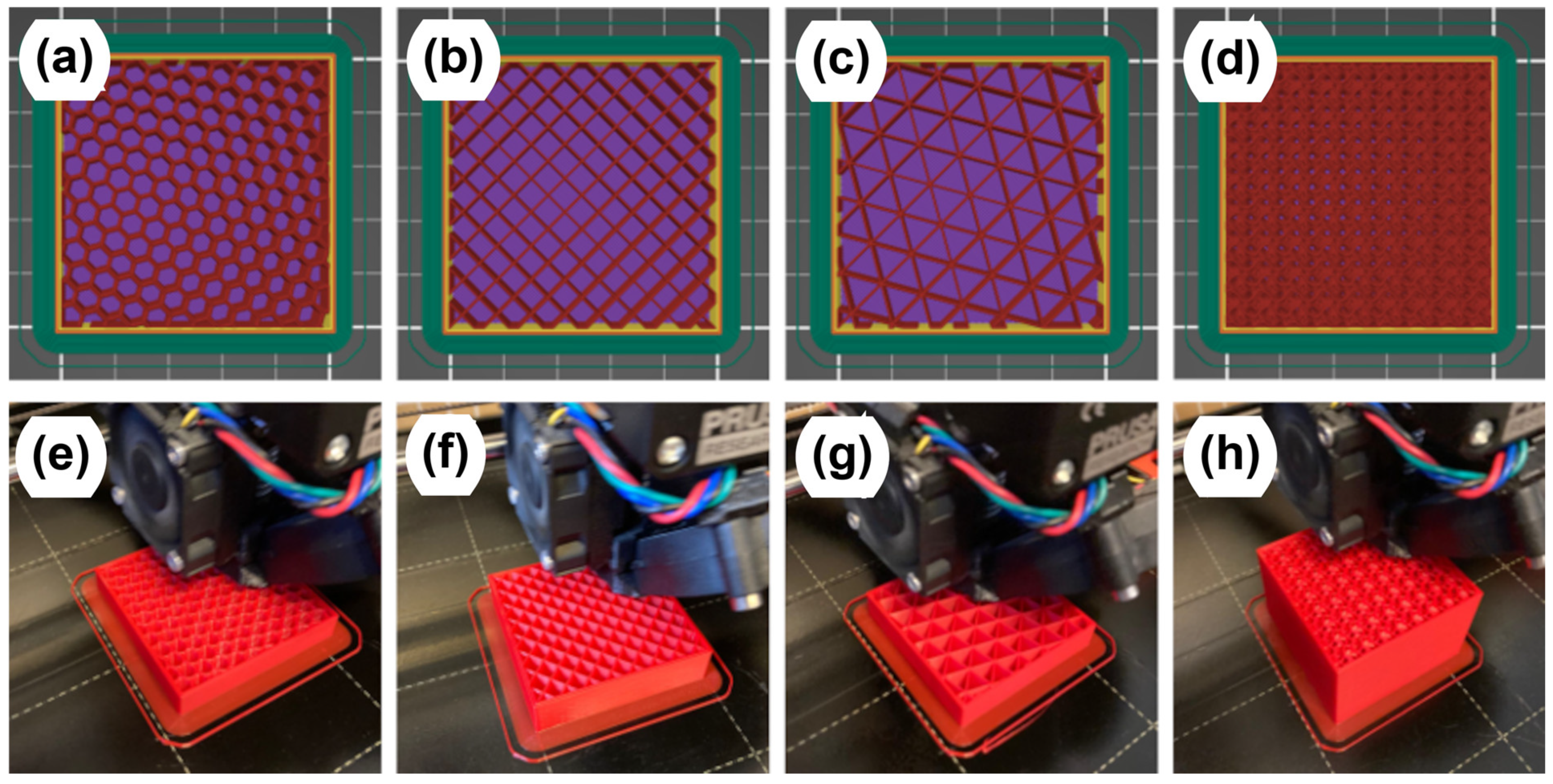

Figure 2. Infill patterns with an infill density of 20%: (a,e) honeycomb, (b,f) grid, (c,g) triangles, and (d,h) gyroid.
Figure 2. Infill patterns with an infill density of 20%: (a,e) honeycomb, (b,f) grid, (c,g) triangles, and (d,h) gyroid.
Polymers 18 01845 g002
Polymers 18 01845 g003

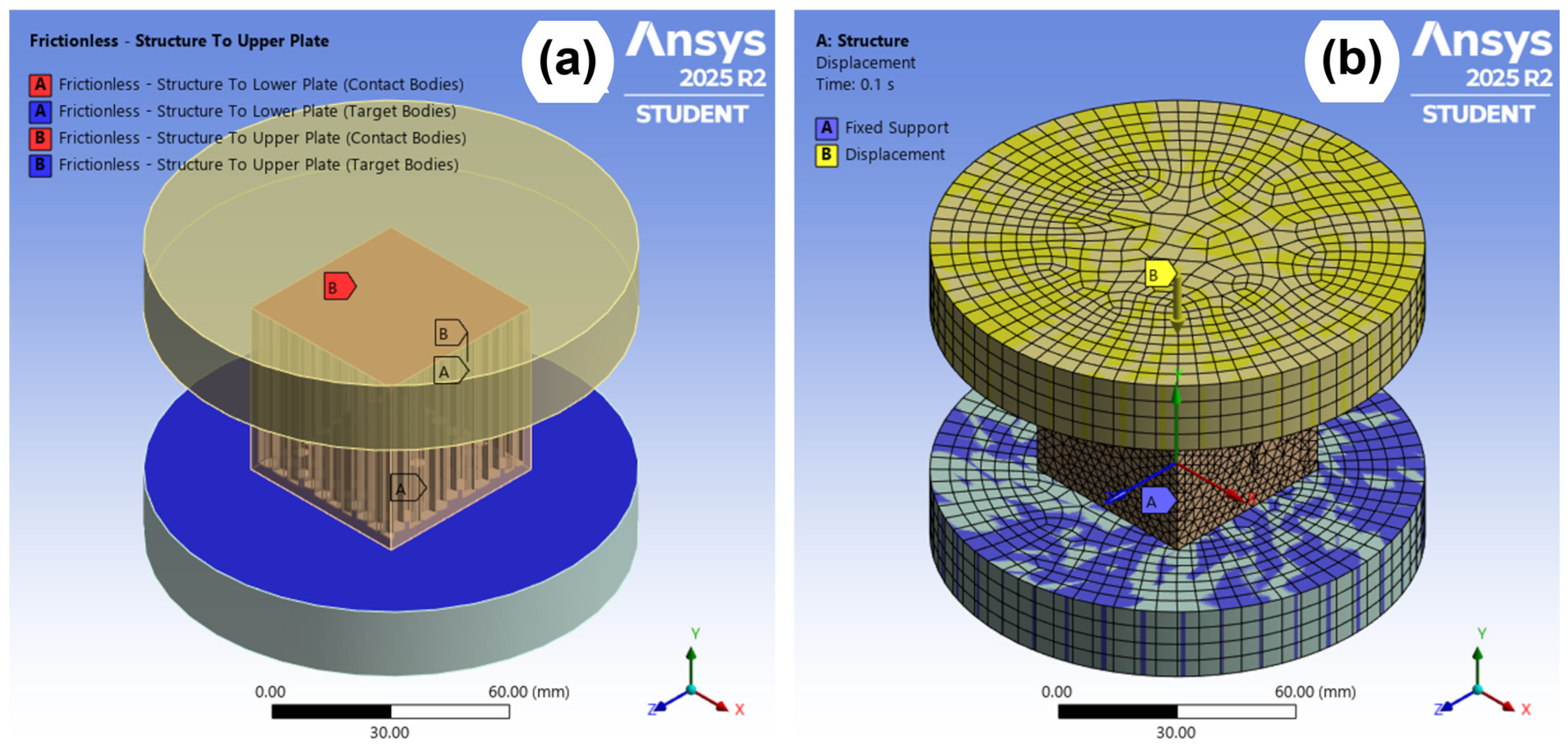

Figure 3. Finite element model: (a) frictionless contact regions between the structure and the lower and upper plates (target bodies (blue) and contact bodies (red)); and (b) boundary conditions (fixed support (purple) and imposed downward displacement (yellow)) and the finite element mesh with an average element size of 3 mm.
Figure 3. Finite element model: (a) frictionless contact regions between the structure and the lower and upper plates (target bodies (blue) and contact bodies (red)); and (b) boundary conditions (fixed support (purple) and imposed downward displacement (yellow)) and the finite element mesh with an average element size of 3 mm.
Polymers 18 01845 g003
Polymers 18 01845 g004

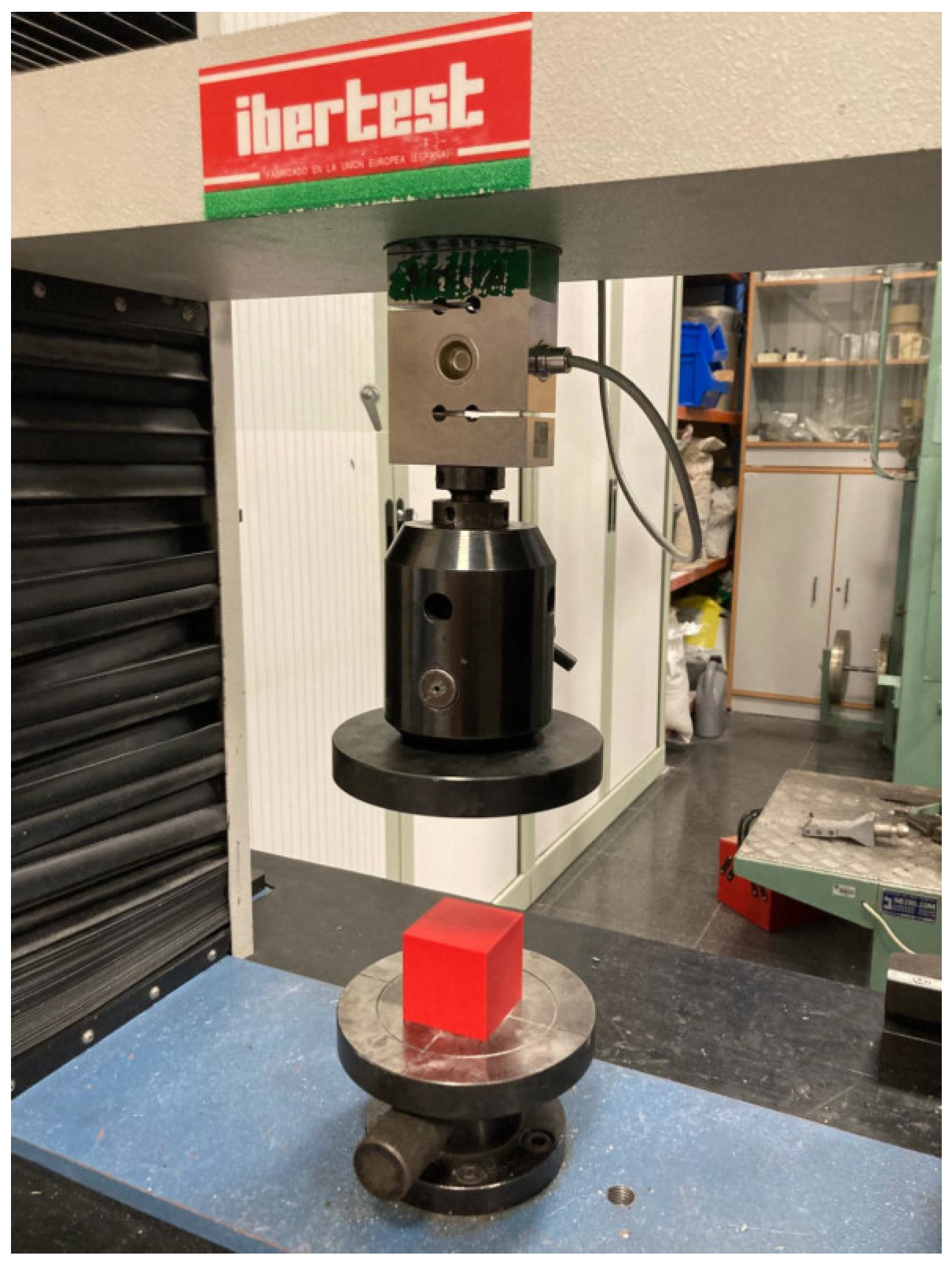

Figure 4. Electromechanical universal testing machine (ELIB 30) and uniaxial compression test of the structure.
Figure 4. Electromechanical universal testing machine (ELIB 30) and uniaxial compression test of the structure.
Polymers 18 01845 g004
Polymers 18 01845 g005

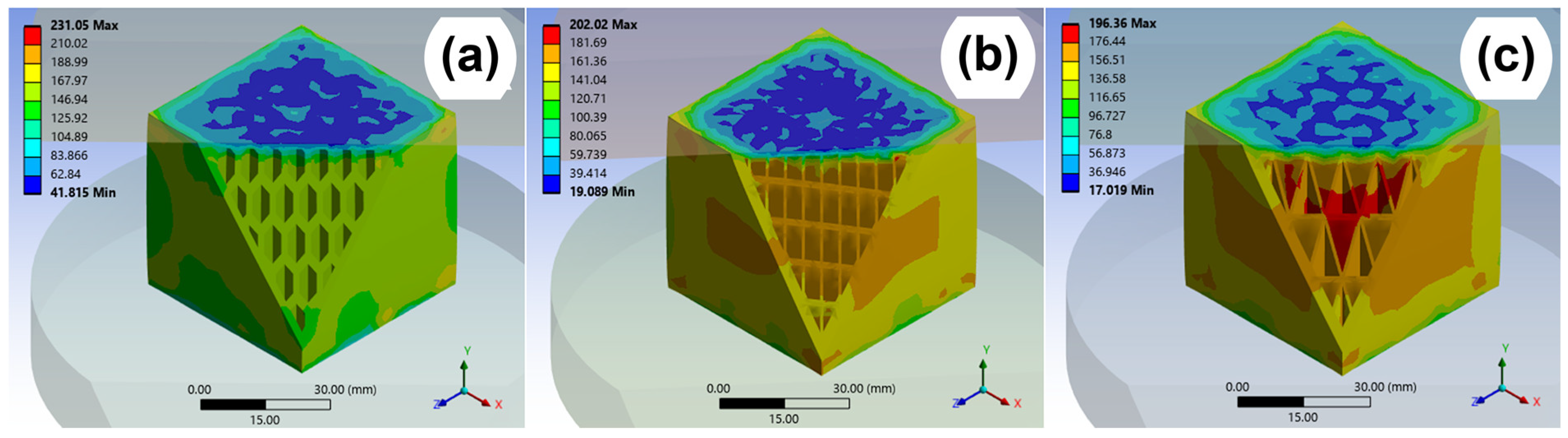

Figure 5. FEM-simulated sectional stress contours for (a) honeycomb, (b) grid and (c) triangles infill structures under compressive loading.
Figure 5. FEM-simulated sectional stress contours for (a) honeycomb, (b) grid and (c) triangles infill structures under compressive loading.
Polymers 18 01845 g005
Polymers 18 01845 g006

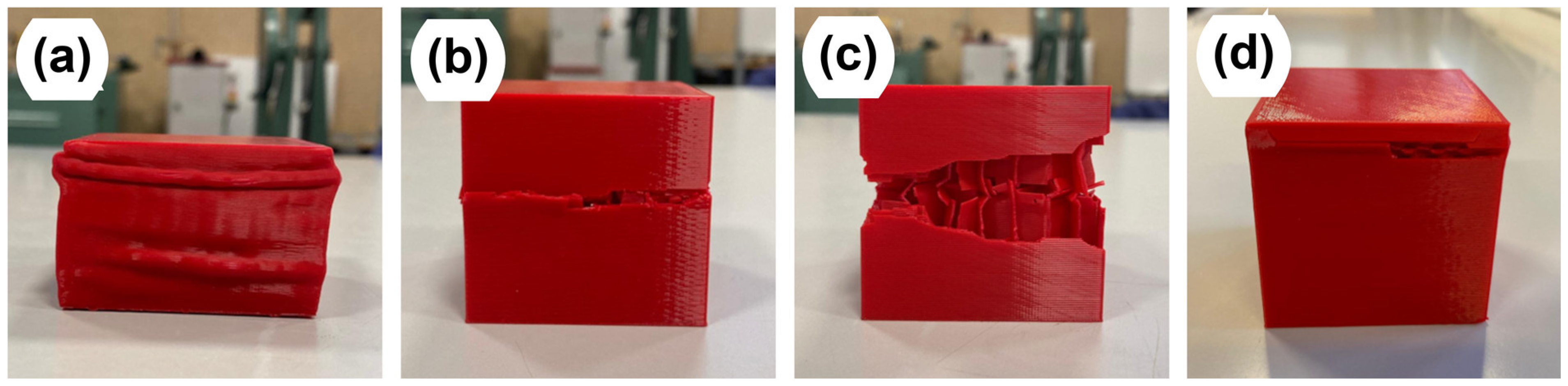

Figure 6. Images of specimens under compressive loading up to fracture: (a) honeycomb, (b) grid, (c) triangles, and (d) gyroid.
Figure 6. Images of specimens under compressive loading up to fracture: (a) honeycomb, (b) grid, (c) triangles, and (d) gyroid.
Polymers 18 01845 g006
Polymers 18 01845 g007

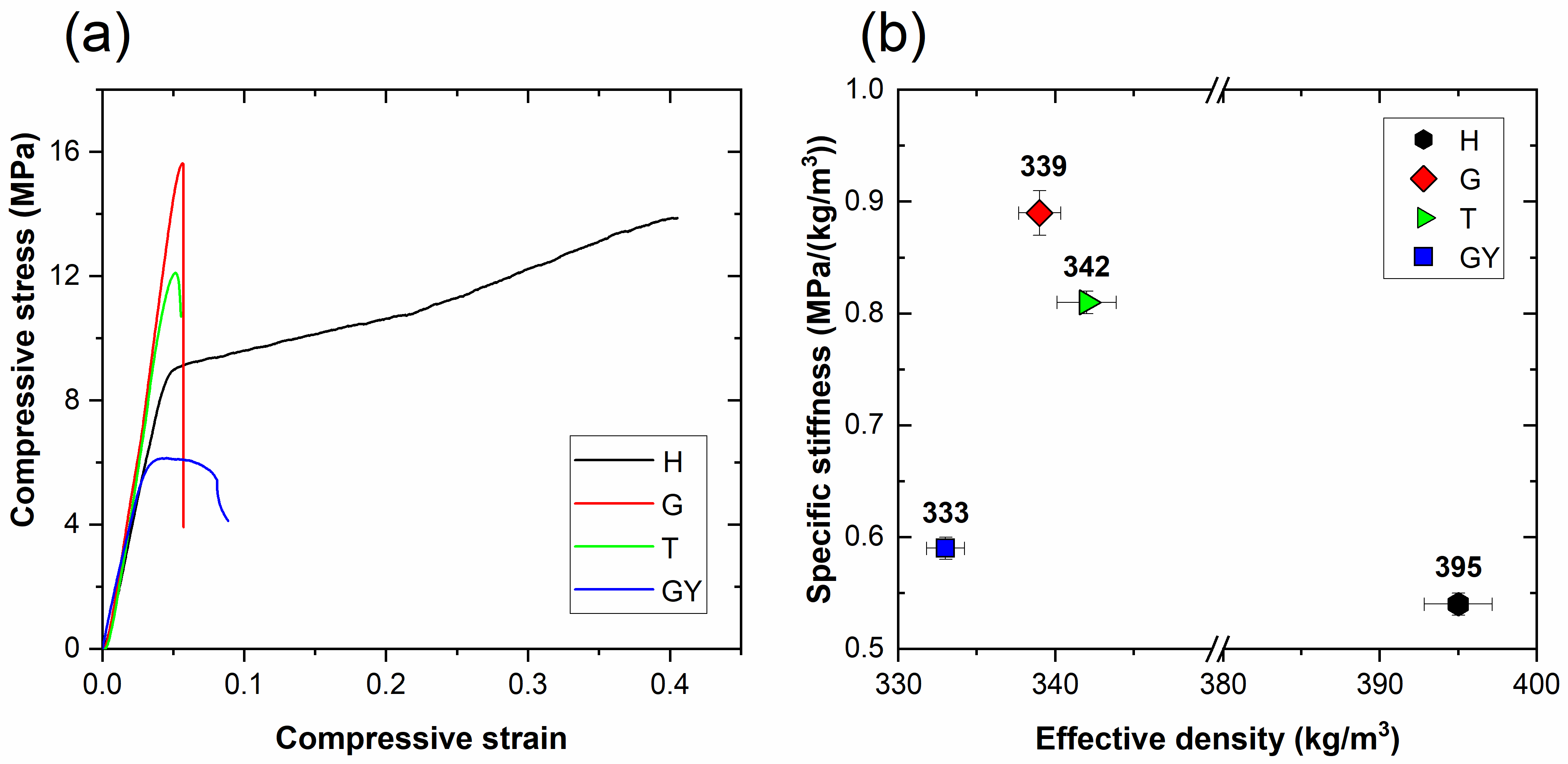

Figure 7. (a) Compressive stress–strain curves from experimental testing of 3D-printed infill patterns; (b) specific stiffness (effective modulus/effective density) as a function of effective density for each infill pattern.
Figure 7. (a) Compressive stress–strain curves from experimental testing of 3D-printed infill patterns; (b) specific stiffness (effective modulus/effective density) as a function of effective density for each infill pattern.
Polymers 18 01845 g007
Polymers 18 01845 g008

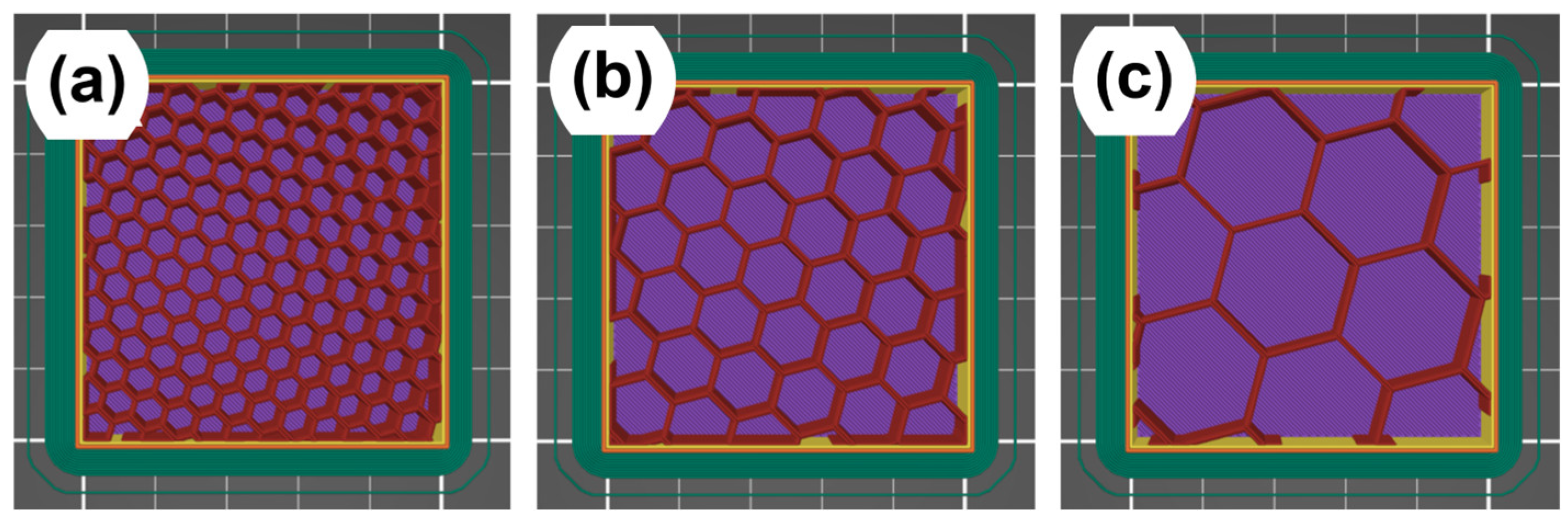

Figure 8. Infill density of honeycomb: (a) H20, (b) H10 and (c) H5.
Figure 8. Infill density of honeycomb: (a) H20, (b) H10 and (c) H5.
Polymers 18 01845 g008
Polymers 18 01845 g009

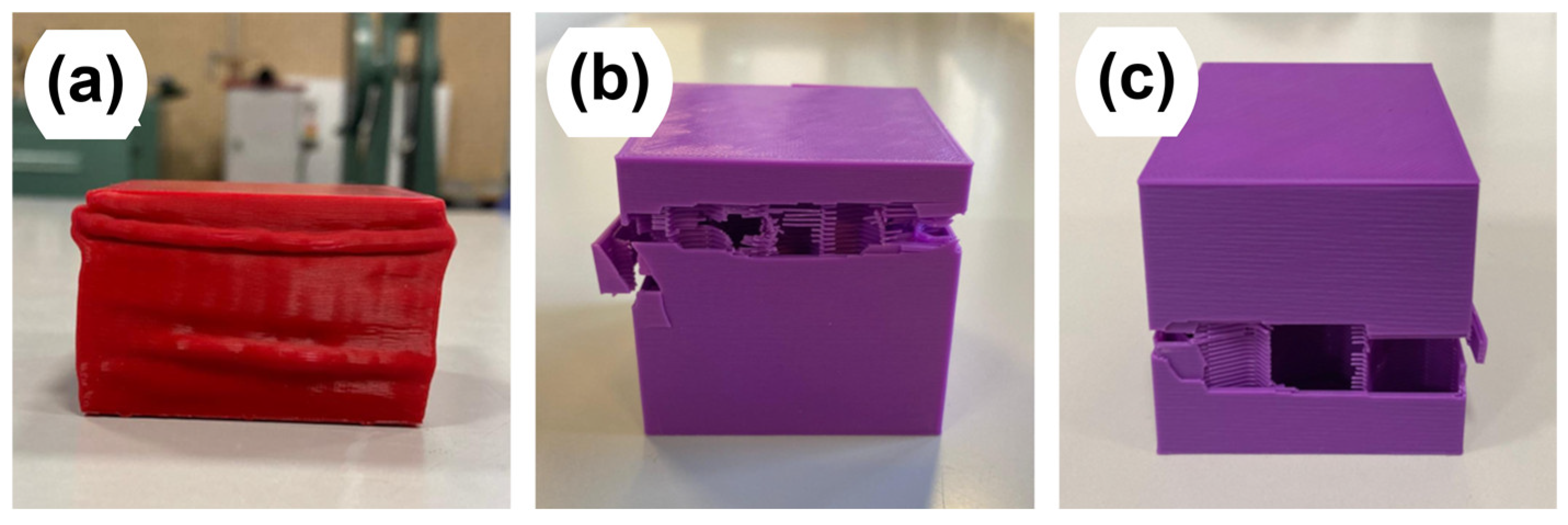

Figure 9. Images of honeycomb specimens with different infill densities under compressive loading up to fracture: (a) H20, (b) H10, and (c) H5. Different filament colors were used only for visual identification purposes and were not considered an experimental variable.
Figure 9. Images of honeycomb specimens with different infill densities under compressive loading up to fracture: (a) H20, (b) H10, and (c) H5. Different filament colors were used only for visual identification purposes and were not considered an experimental variable.
Polymers 18 01845 g009
Polymers 18 01845 g010

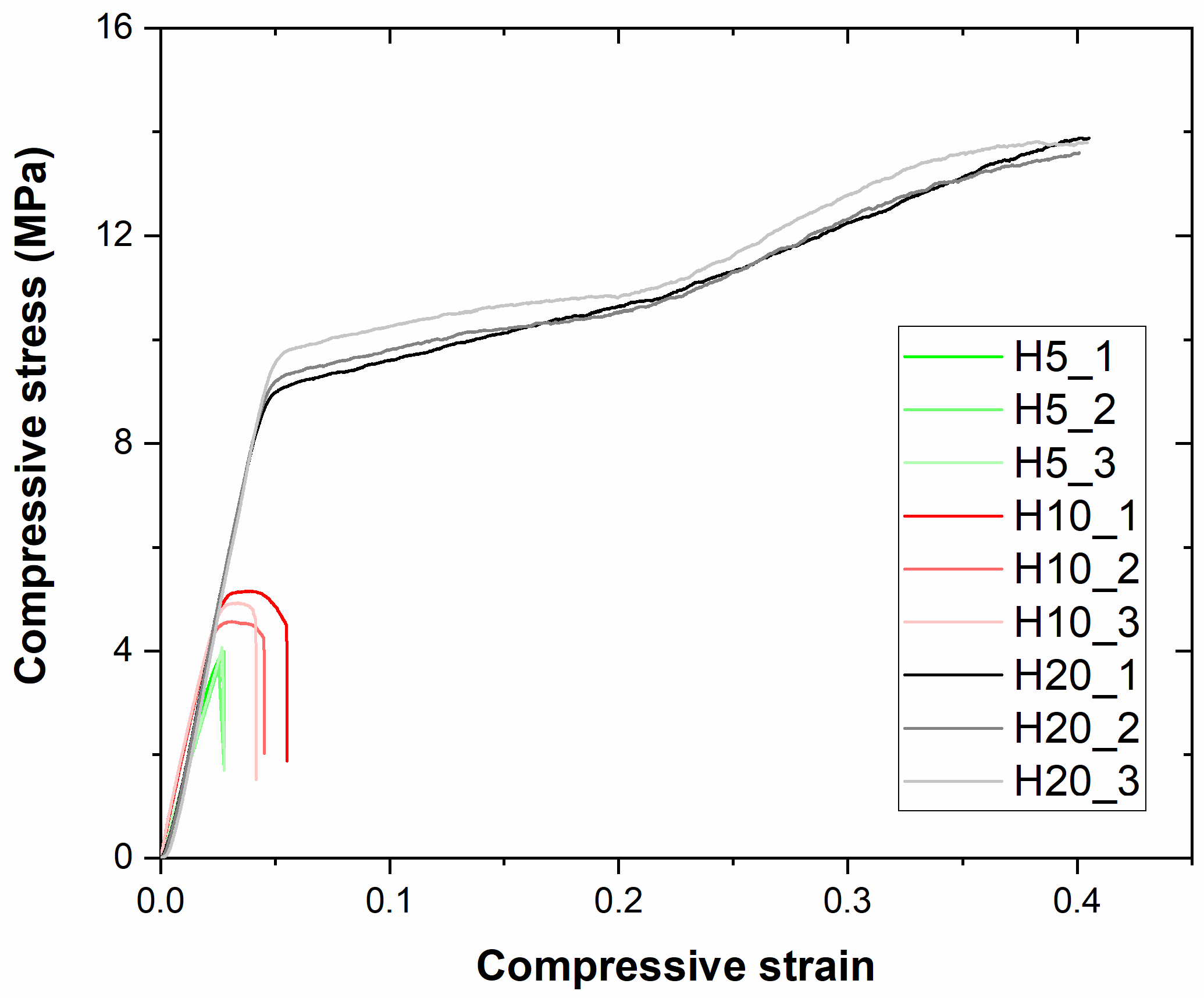

Figure 10. Compressive stress–strain curves of three specimens for each honeycomb infill density (5%, 10%, and 20%).
Figure 10. Compressive stress–strain curves of three specimens for each honeycomb infill density (5%, 10%, and 20%).
Polymers 18 01845 g010
Table 1. Printing parameters used for specimen fabrication.
Table 1. Printing parameters used for specimen fabrication.
PropertyValue
Nozzle Diameter (mm)0.4
Layer Height (mm)0.3
Extruder Temperature (°C)215
Bed Temperature (°C)60
Print Speed (mm/s)50
Number of perimeters2
Wall Thickness (mm)1.14
Top/Bottom Layers4/4
Extrusion Width (mm)0.5
Raster Angle (°)45
Base Layer TypeBrim
Table 2. Manufacturing specifications estimated by PrusaSlicer and experimentally measured physical properties for specimens printed with 20% infill density.
Table 2. Manufacturing specifications estimated by PrusaSlicer and experimentally measured physical properties for specimens printed with 20% infill density.
ParametersHGTGY
Time of print (min)21095105138
Weight of print (g)54.0546.9547.0545.25
Material length used (m)15.7815.7415.7815.17
Measured weight (g)49.36 ± 0.2742.34 ± 0.1742.70 ± 0.2341.64 ± 0.15
Effective density (kg/m3)395339342333
Relative density0.3190.2730.2760.269
Table 3. Energies and quasi-static verification.
Table 3. Energies and quasi-static verification.
PatternEc (J)Ei (J)Ec/Ei (%)
Honeycomb0.00793232.610.0034%
Grid0.00673202.260.0033%
Triangles0.00640191.320.00335%
Table 4. Mechanical properties of PLA-HD infill patterns.
Table 4. Mechanical properties of PLA-HD infill patterns.
Codeσy (MPa)σM (MPa)σB (MPa)εyεMEc (MPa)ER (kJ/m3)ET (kJ/m3)
H8.52 ± 1.1013.4 ± 0.81-0.044 ± 0.0060.398 ± 0.003212 ± 3.40212 ± 3.403998 ± 298
G15.4 ± 0.1115.5 ± 0.084.60 ± 0.560.054 ± 0.0020.056 ± 0.002302 ± 6.08393 ± 9.57448 ± 23.86
T11.7 ± 0.2611.7 ± 0.2410.33 ± 1.050.049 ± 0.0060.051 ± 0.001275 ± 2.16189 ± 40.75315 ± 32.75
GY5.78 ± 0.766.14 ± 0.795.31 ± 0.740.031 ± 0.0040.046 ± 0.003197 ± 2.70102 ± 24.21362 ± 107.30
Table 5. Printing characteristics estimated by PrusaSlicer and experimentally measured physical properties of honeycomb specimens manufactured with different infill densities.
Table 5. Printing characteristics estimated by PrusaSlicer and experimentally measured physical properties of honeycomb specimens manufactured with different infill densities.
ParametersH20H10H5
Time of print (min)21010677
Weight of print (g)54.0537.0827.55
Material length used (m)15.7812.439.24
Measured weight (g)49.36 ± 0.2734.18 ± 0.2226.6 ± 0.00
Effective density (kg/m3)395273213
Relative density0.3190.2200.172
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Llidó Barragán, A.; Unamuno Garay, A.; Ferrándiz-Bou, S.; Motoc, D.L.; Pavón, C. Experimental and Numerical Investigations on Compressive Performance of Additively Manufactured PLA Structures with Various Infill Patterns. Polymers 2026, 18, 1845. https://doi.org/10.3390/polym18151845

AMA Style

Llidó Barragán A, Unamuno Garay A, Ferrándiz-Bou S, Motoc DL, Pavón C. Experimental and Numerical Investigations on Compressive Performance of Additively Manufactured PLA Structures with Various Infill Patterns. Polymers. 2026; 18(15):1845. https://doi.org/10.3390/polym18151845

Chicago/Turabian Style

Llidó Barragán, Alexandra, Aritz Unamuno Garay, Santiago Ferrándiz-Bou, Dana Luca Motoc, and Cristina Pavón. 2026. "Experimental and Numerical Investigations on Compressive Performance of Additively Manufactured PLA Structures with Various Infill Patterns" Polymers 18, no. 15: 1845. https://doi.org/10.3390/polym18151845

APA Style

Llidó Barragán, A., Unamuno Garay, A., Ferrándiz-Bou, S., Motoc, D. L., & Pavón, C. (2026). Experimental and Numerical Investigations on Compressive Performance of Additively Manufactured PLA Structures with Various Infill Patterns. Polymers, 18(15), 1845. https://doi.org/10.3390/polym18151845

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Article metric data becomes available approximately 24 hours after publication online.
Back to TopTop
