The Effect of the Fresh Latex Ratio on the Processing and Dynamic Properties of Bio-Coagulated Natural Rubber

by
Jianwei Li
1,†,
Yun Li
2,†,
Li Ding
1,
Honghai Huang
1,
Tuo Dai
1,
Liguang Zhao
1,
Yingguang Xu
3,
Fan Wu
1 and
Hongxing Gui
1,*
1
Hainan Natural Rubber Technology Innovation Center, Rubber Research Institute, Chinese Academy of Tropical Agricultural Science, Haikou 571101, China
2
Mengla Tianye Rubber Sales Co., Ltd., Xishuangbanna 666100, China
3
Hainan Academy of Inspection and Testing, Haikou 571101, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work and should be considered co-first authors.
Polymers 2025, 17(11), 1435; https://doi.org/10.3390/polym17111435
Submission received: 27 March 2025 / Revised: 9 May 2025 / Accepted: 15 May 2025 / Published: 22 May 2025
(This article belongs to the Special Issue Additive Agents for Polymer Functionalization Modification)
Browse Figures
Versions Notes

Abstract

:
Natural rubber is a widely used biological polymer material because of its excellent comprehensive performance. Nevertheless, the performance of domestic natural rubber cannot meet the requirements for high-end products such as aviation tires, which has become a constraint on the innovation and upgrading of high-end manufacturing enterprises and the enhancement of global competitiveness in China. To solve the bottleneck problem of natural rubber processing technology, this study systematically analyzed the effects of different varieties of fresh latex ratios on the processing and dynamic properties of bio-coagulated natural rubber. By mixing PR107 and Reyan72059 fresh latex with Reyan73397 fresh latex according to proportion, the fresh latex was coagulated by enzyme-assisted microbials, and the effects of the fresh latex ratio on physical and chemical indexes, molecular weight distribution, vulcanization characteristics, processing properties, cross-link density and physical and mechanical properties of the natural rubber were analyzed. The results showed that the aging resistance of natural rubber coagulated with enzyme-assisted microbial decreased, and the aging resistance of natural rubber increased with the increase in the mixing ratio of PR107 and Reyan72059 fresh latex. The proportion of high molecular weight of the natural rubber coagulated with the enzyme-assisted microbial increased, and the fresh latex mixing had little effect on the molecular weight distribution curve. Under the carbon black formulation, the CRI of the enzyme-assisted microbial coagulated natural rubber compound was relatively larger. Under the same strain conditions, the H-3 compound (PR107:Reyan72059:Reyan73397 = 1:1:3) had the best viscoelasticity and the least internal resistance of rubber molecules. In addition, the cross-link density, tensile strength, elongation at break, and tear strength of H-3 vulcanized rubber were the largest, improved by 23.08%, 5.32%, 12.45% and 3.70% compared with the same H-2 vulcanized rubber. In addition, the heat generation performance was reduced by 11.86%, and the wear resistance improved.

1. Introduction

Natural rubber is a biological polymer material prepared from fresh latex through the processes of coagulation, pressure creping, washing, and drying [1,2], and it is irreplaceable in the field of high-end products such as aviation tires, high-speed railway vibration damping pads, and heavy-duty truck tire treads due to its excellent comprehensive performance. However, fresh rubber latex is affected by a combination of factors such as soil, climate, season, and variety during the synthesis of rubber tree milk tubes, which makes the quality of natural rubber vary significantly. Among these, the rubber tree variety is one of the key factors determining the quality of natural rubber. Studies have shown that there are great differences between different rubber tree varieties in terms of rubber hydrocarbon content, rubber particle size, non-rubber components, molecular weight size and distribution, gel structure, and other aspects [3,4,5,6,7,8,9,10,11,12,13]. At present, China’s existing high-performance natural rubber processing technology cannot meet the rubber requirements of high-end products, resulting in long-term dependence on imports of high-end products, which seriously affects the security of the supply of national strategic materials and industrial raw materials.
At present, high-performance natural rubber in China generally adopts a microbial coagulation of fresh latex, which avoids the addition of ammonia and acid to the fresh latex, and reduces environmental pollution, equipment corrosion, and human health damage and other issues. Moreover, the performance of the natural rubber prepared is superior to that of the natural rubber solidified with formic acid, but it still cannot match the imported grade I smoked sheet rubber [14]. Subsequently, the use of enzyme-assisted microorganisms to coagulate fresh latex has significantly increased the physical and mechanical properties of the prepared natural rubber [15], further enhancing the comprehensive performance of domestic natural rubber. However, the comprehensive performance still failed to meet the requirements of special rubber for high-end products. To solve the bottleneck problem of processing technology for domestic high-performance natural rubber, the effects of fresh latex ratio on the processing and dynamic properties of bio-coagulated natural rubber were studied. PR107 and Reyan72059 fresh latex were added to Reyan73397 fresh latex according to the ratio, and enzyme-assisted microbial coagulation was used to coagulate the mixed fresh latex. The effects of fresh latex ratio on the physical and chemical indexes, molecular weight size and distribution of raw rubber, vulcanization characteristics and processing properties of compound, physical and mechanical properties, heat generation performance and wear resistance of vulcanized rubber were analyzed. The corresponding relationship between fresh latex ratio and natural rubber performance was explored, and the optimal ratio of different varieties of fresh latex was screened. Based on the in-depth study of the effect of fresh latex ratio on the processing and dynamic performance of natural rubber, the comprehensive performance of natural rubber can be significantly improved by optimizing the ratio of fresh latex, so that its product performance can meet the demand for rubber used in aviation tires, high-speed railway vibration damping pads and other high-end products.

2. Materials and Methods

2.1. Materials and Instruments

PR107 and Reyan72059 fresh latex (dry rubber content 36.5%), Reyan73397 fresh latex (dry rubber content 35.0%), and microbial strains were provided by the Rubber Research Institute of the Chinese Academy of Tropical Agricultural Sciences, Haikou, Hainan, China; alkaline protease (200,000 µ/g) was provided by Beijing Coolaibo Science and Technology Co., Ltd., Beijing, China; and formic acid, zinc oxide, stearic acid, sulfur, carbon black, etc., are commercially available industrial compounds.
The equipment was sourced as follows: Electronic balance, Orebo FA2204 B. Rotorless rheometer, Goodtechwill testing machines (Qingdao) Co., Ltd. (Qingdao, China) M-3000A. Open-type rubber mixing machine, Guangdong Zhanjiang Machinery Factory JTC-752. Platen vulcanizing press, Guangdong Chaozhou Hongqiao Rubber Machinery Factory (Zhanjiang, China) 250KWXLB-D. Tensile testing machine, Goodtechwill testing machines (Qingdao) Co., Ltd. (Qingdao, China) AI-7000-SGD1. Nuclear magnetic resonance (NMR) cross-link density analyzer, Germany IIC company (Engen, Germany) XLDS-15. Rubber process analyser (RPA), Montech (Buchen, Germany) D-RPA3000. Electromagnetic dynamic mechanical testing system, Kyle Measurement and Control Technology Co., Ltd. (Wuhan, China) M-3000. Akron abrasion testing machine, Goodtechwill testing machines (Taiwan) Co., Ltd., GT-7012-A.

2.2. Methods

2.2.1. Natural Rubber Preparation

The dry rubber content of fresh latex was diluted to 23%, and the fresh latex was mixed according to the ratios in Table 1. The mixed fresh latex was stirred, and the coagulant was added uniformly. After the fresh latex had completely coagulated, the coagulum underwent maturation for 2 days, followed by creping, washing, and sheet hanging for 3 days, and then drying to prepare natural rubber samples. The samples were numbered H-1, H-2, H-3, H-4, and H-5. Acid coagulation and enzyme-assisted microbial coagulation of a single variety of natural rubber were used as control samples.

2.2.2. Preparation of Natural Rubber Compound

The natural rubber compound was prepared by taking 500 g raw rubber and using a carbon black formula (Table 2) according to the NY/T 1403-2007 [16] standard.
The compounds were vulcanized by using a platen vulcanizing press at 140 °C for 30 min to prepare vulcanized rubber test pieces (Figure 1). Heat generation and wear samples were prepared at 140 °C for t90 + 10 min.

2.3. Testing and Analysis

(1)
The plasticity initial value (P0), plastic retention rate (PRI), and Mooney viscosity of natural rubber were determined according to GB/T 3510-2006 [17], GB/T 3517-2014 [18], and GB/T 1232.1-2016 [19] standards.
(2)
The molecular weight distribution of natural rubber was determined by gel permeation chromatography. The test conditions were as follows: the sample concentration was 2 mg/mL, the mobile phase was tetrahydrofuran, and the standard sample was polystyrene.
(3)
The vulcanization characteristics of the natural rubber compound were determined by rotorless rheometer, with the following test conditions: test temperature of 160 °C, test time of 20 min, oscillation frequency of 1.7 Hz, and amplitude of ±0.5°.
(4)
The processing properties of the natural rubber vulcanized rubber were determined by rubber processing analysis. Strain scanning: frequency 0.5 Hz, temperature 100 °C, strain range 0~100%.
(5)
The cross-link density of the natural rubber vulcanized rubber was determined by a nuclear magnetic resonance cross-link density analyzer. The test conditions were as follows: resonance frequency 22.00 MHz, magnet strength 0.35 Tesla, experimental temperature 35.00 ± 0.01 °C.
(6)
The physical and mechanical properties of the natural rubber vulcanized rubber were determined by a tensile testing machine according to GB/T 528-2009 [20] and GB/T 528-2008 [21] standards, with a running speed of 500 mm/min.
(7)
The heat generation performance and wear resistance of the natural rubber vulcanized rubber were determined according to GB/T 1687.3-2016 [22] and GB/T 1689-2014 [23] standards.

3. Results and Analysis

3.1. Physical and Chemical Indexes of Natural Rubber

P0 reflects the size of rubber plasticity, PRI reflects the strength of rubber aging resistance, and ML(1+4) reflects the difficulty of rubber processing; the variation in physical and chemical indexes of natural rubber is shown below (Table 3). As can be seen from the table, the P0 and ML(1+4) of the H-1 sample are the smallest, while PRI is the largest, indicating that the plasticity of acid-solidified natural rubber is large, and the processing performance and aging resistance are better. The changes in P0 and ML(1+4) of the H-2~H-5 samples are small, while the PRI is gradually increasing, which indicates that the increase in the mixing ratio of PR107 and Hot Research 72059 fresh latex does not significantly affect the plasticity of natural rubber and the processing performance. The processing performance is not obvious, but it can significantly improve the aging resistance of natural rubber.

3.2. Molecular Weight Distribution of Natural Rubber

The molecular weight distribution curve of natural rubber is shown below (Figure 2). As can be seen from the figure, the molecular weight distribution curves of all samples are roughly similar, showing a typical single-peak distribution, with a peak value in the range of 6.0~6.5, indicating that the number of samples in this region of molecular weight accounts for the largest proportion of the total number of samples, which means that the number of samples in this region of molecular weight is the largest. Compared with the H-1 sample, the molecular weight distribution curves of H-2~H-5 samples were shifted to the right; that is, the proportion of the high molecular weight part increased, indicating that the coagulation process had a significant impact on the molecular weight distribution curve of natural rubber, which was due to the cross-link of natural rubber networks being increased by enzyme-assisted microbial coagulation [24,25]. The peak values of H-2~H-5 samples were almost similar, indicating that the mixing of different varieties of fresh latex had little effect on the molecular weight distribution curve of natural rubber, which shows that the effect of the coagulation process on the molecular weight distribution of the natural rubber is greater than that when mixing fresh latex.

3.3. Vulcanization Characteristics of the Natural Rubber Compound

The change in vulcanization characteristics of natural rubber compounds is shown below (Table 4). In the table, the minimum torque (ML) reflects the fluidity of the compound at a specific temperature, the maximum torque (MH) reflects the modulus of the compound, and ∆M reflects the degree of cross-link of the rubber. The scorching time (t10) reflects the early processing safety of the rubber, the positive vulcanization time (t90) reflects the time required for the rubber to reach the optimum degree of vulcanization, and the CRI reflects the rate of vulcanization of the rubber [26,27,28]. As can be seen from the table, compared with the H-1 compound, the ML, t10, t90, and CRI of the H-2 compound are relatively larger, indicating that the fluidity, processing safety, optimum vulcanization time, and vulcanization rate of the acid-coagulated natural rubber compound are higher, which is due to the significant influence of the coagulation manner of the fresh latex on the vulcanization characteristics of the natural rubber compound [26]. With the increase in the mixing ratio of PR107 and Reyan72059 fresh latex, the ∆M and CRI of H-2~H-5 compounds first increased and then decreased, indicating that the cross-link degree and vulcanization rate of the rubber compound could be improved by mixing ratio of different varieties of fresh latex.

3.4. Processing Properties of the Natural Rubber Compound

The changes in energy storage modulus (G′) and loss modulus (G″) of the natural rubber compound are shown as follows (Figure 3 and Figure 4). As can be seen from the Figures, at low strain, the G′ and G″ of the natural rubber compound are larger, indicating that the natural rubber compound has higher stiffness, elasticity, and energy dissipation capacity under low strain, because the carbon black filler network is not damaged under low strain, and only the orientation of the chain segments and the slip of the molecular chains occur [29]. With the gradual increase in strain, the G′ and G″ of the compound gradually decrease, and the rate of modulus change with strain also decreases, indicating that the elasticity of natural rubber blends decreases and the energy dissipation ability becomes poor, and the ability of the modulus to respond to strain is weakened, which is due to the carbon black filler network being destroyed under high strain, and the linear viscoelasticity gradually disappears [30]. Under the same strain condition, when the ratio of PR107, Reyan72059, and Reyan73397 fresh latex is 1:1:3, the G′ and G″ of the compound were the highest. With the increase in the addition amount of fresh latex of PR107 and Reyan72059, the G′ and G″ of the compound decrease, indicating that the appropriate mixing ratio of different varieties of fresh latex can improve the viscoelasticity of its compound rubber. This may be due to the mixing of different varieties of fresh latex changing the ratio of large and small rubber particles and the content of non-rubber components in natural rubber, etc., which increases the dispersibility of carbon black in the rubber, resulting in an increased interaction force between the carbon black and rubber [3,31,32,33].
The change in the natural rubber compound loss factor (tanδ) is shown below (Figure 5). Tanδ is the ratio of G″ to G′, which reflects the ratio of viscous to elastic behavior of the compound and the internal resistance of rubber molecules in viscous flow [30]. The higher tanδ indicates that with more significant viscous behavior and greater internal resistance of rubber molecules in viscous flow, more energy needs to be consumed to overcome this obstruction. The lower tanδ indicates that with more significant elastic behavior and less internal resistance of rubber molecules in viscous flow, less energy needs to be consumed to overcome this obstruction. As can be seen from the figure, tanδ increases with the increase in strain, and the ratio of the viscous behavior to the elastic behavior of natural rubber compound gradually increases, indicating that with the growth of strain, the greater the internal resistance of the rubber molecules in the viscous flow, which is due to the destruction of the carbon black filler network under the condition of high strain, resulting in weakening of the filler interaction. The amplitude of the decrease in G‘ gradually becomes smaller than the amplitude of the decrease in G′, which means that the rubber molecules need to consume more energy to overcome this resistance during the flow. Under the same strain conditions, the order of tanδ for the natural rubber compounds is roughly as follows: H-4 > H-5 > H-2 > H-1 > H-3. This indicates that when the ratio of PR107, Reyan72059, and Reyan73397 fresh latex is 1:1:3, the internal resistance of rubber molecules in the viscous flow of the H-3 compound is the smallest, which may be due to the appropriate mixing ratios of different varieties of fresh latex, the proportion of large and small rubber particles, and the content of non-rubber components in natural rubber to promote the dispersion of carbon black in the rubber and reduce the internal resistance of rubber molecules. This resistance requires less energy consumption [3,31,32,33].
The changes in complex viscosity (η*), dynamic viscosity (η′), and imaginary viscosity (η″) of the natural rubber compound are shown below (Figure 6, Figure 7 and Figure 8). η* reflects the viscoelasticity [34,35] of the compound under oscillating shear stress or strain, and is calculated using the following Formula (1):
η* = η′ − iη″
where η′ = G″/ω, which is related to the loss modulus and represents the viscous contribution, the energy dissipation part of the complex viscosity; i is the imaginary unit, which represents the imaginary part of the complex number; η″ = G′/ω, which is related to the storage modulus, and represents the contribution of elasticity and is the measure of elasticity and energy storage; and angular frequency (ω) represents the angular velocity of frequency. Its calculation Formula (2) is
Ω = 2πf
where f represents frequency in Hertz (Hz); 2π is the coefficient for converting frequency from Hertz to angular frequency.
η′ reflects the ability of the compound to dissipate energy under oscillatory shear; η″ reflects the ability of the compound to store and release energy under oscillatory shear [36]. As can be seen from the figures, with the gradual increase in strain, the η*, η′, and η″ of the natural rubber compound gradually decreased and the change trend was the same, which is consistent with the change trend of its rubber G′, G″, indicating that the viscoelasticity of the natural rubber compound gradually decreased under high strain, which is because the carbon black filler network was destroyed under high strain, resulting in the weakening of the interaction between fillers. The energy dissipation increases, but the energy dissipation capacity decreases. Under the same strain conditions, the order of η*, η′, η″ of the natural rubber compound is roughly H-3 > H-2 > H-1 > H-5 > H-4, indicating that when the mixing ratio of PR107, Reyan72059, and Reyan73397 fresh latex is 1:1:3, the viscoelasticity of the carbon black compound is the highest.

3.5. Cross-Link Density of Natural Rubber Vulcanized Rubber

Cross-link density refers to the number of cross-linked bonds per unit volume of natural rubber, which is closely related to the properties of its rubber [27]. The change in cross-link density of natural rubber vulcanized rubber is shown below (Figure 9). As can be seen from the figure, the cross-link density of natural rubber vulcanized rubber does not show a clear trend, consistent with the trend of ∆M of the compound, further indicating that cross-link density is a measure of the degree of cross-link of natural rubber. Under the conditions of carbon black formulation, the cross-link density of H-1 vulcanized rubber is greater than that of H-2 vulcanized rubber, indicating that the degree of cross-link of acid-coagulated natural rubber vulcanized rubber is higher, which was attributed to the better dispersion of carbon black in acid-solidified natural rubber [37,38]. With the addition of PR107 and Reyan72059 fresh latex, the cross-link density of H-3 vulcanized rubber increased and reached the maximum value, which increased by 23.08% compared with H-2 vulcanized rubber, while the cross-link density of H-4 and H-5 vulcanized rubber also increased, but with the increase in the proportion of PR107 and Reyan72059 fresh latex, the cross-link density of vulcanized rubber decreased. This shows that under the same coagulation process conditions, the mixing of different varieties of fresh latex can improve the degree of cross-link of the vulcanized rubber. This may be due to the mixing of different varieties of fresh latex changing the proportion of rubber particles and the content of non-rubber components in natural rubber, which is more conducive to the cross-linking of rubber molecular chains [3].

3.6. Physical and Mechanical Properties of Natural Rubber Vulcanized Rubber

The physical and mechanical properties of natural rubber vulcanized rubber were tested and changed as follows (Figure 10, Table 5). As can be seen from the table, under the conditions of carbon black formulation, the tensile strength and elongation at break of H-1 vulcanized rubber were higher than those of H-2 vulcanized rubber, consistent with the trend of cross-link density of the vulcanized rubber, indicating that acid-coagulated natural rubber has better compatibility with carbon black. Under the same coagulation process, the tensile strength, elongation at break, and tear strength of H-3 vulcanized rubber were the largest, and increased by 5.32%, 12.45%, and 3.70%, respectively, compared to H-2 vulcanized rubber, indicating that the proper mixing of different varieties of fresh latex was conducive to the improvement of the physical and mechanical properties of the vulcanized rubber. This is because the mixing of fresh latex changes the proportion of large and small rubber particles and the content of non-rubber components in natural rubber, increasing the dispersion of carbon black in rubber and improving the degree of cross-link of the vulcanized rubber [38,39]. With the increase in the proportion of PR107 and Reyan72059 fresh latex, the tensile strength and elongation at break of the vulcanized rubber gradually decrease, indicating that the mixing ratio of different varieties of fresh latex has a significant effect on the properties of the vulcanized rubber.

3.7. Heat Generation Performance of Natural Rubber Vulcanized Rubber

Heat generation performance is an important index in natural rubber research. For the material under dynamic load after cyclic compression deformation, most of the consumed power is converted into heat energy, and the formation of compression heat generation performance has an impact on the use of products, life, and so on. The change in heat generation performance of natural rubber vulcanized rubber is shown as follows (Figure 11). As can be seen from the figure, under the conditions of carbon black formulation, the heat generation performance of H-1 vulcanized rubber is lower than that of H-2 vulcanized rubber, indicating that acid-coagulated natural rubber vulcanized rubber generated heat to a relatively lower degree during compression. When the ratio of PR107, Reyan72059, and Reyan73397 fresh latex is 1:1:3, the heat generation performance of the vulcanized rubber is the smallest, being reduced by 11.86% compared with H-2 vulcanized rubber, indicating that the mixture of different varieties of fresh latex can effectively improve the heat generation performance of the vulcanized rubber. This may be due to the good dispersion of carbon black in the compound prepared by mixing different varieties of fresh latex: the cross-link density of vulcanized rubber is large, and the molecular chain movement is limited [3,38].

3.8. Wear Resistance of Natural Rubber Vulcanized Rubber

Abrasion is a microscopic breakage and shedding phenomenon that occurs on the surface of rubber due to friction, and wear resistance is an important technical index for rubber products. Akron abrasion is a measure of the strength of rubber’s resistance to rolling friction. The change in wear resistance of natural rubber vulcanized rubber is shown below (Figure 12). As can be seen from the figure, the wear resistance of H-1 vulcanized rubber is slightly less than that of H-2 vulcanized rubber, indicating that the wear resistance of acid-coagulated natural rubber vulcanized rubber is better, which is due to the uniform dispersion of carbon black in acid-coagulated natural rubber and has a relatively good reinforcing effect on its vulcanized rubber. With the addition of PR107 and Reyan72059 fresh latex, the wear resistance of the vulcanized rubber decreases, indicating that the mixing of different varieties of fresh latex can improve the wear resistance of vulcanized rubber, which may be because the mixing of different varieties of fresh latex is conducive to the dispersion of carbon black in the rubber [38,40]. However, with the increase in the proportion of PR107 and Reyan72059 fresh latex, the wear resistance of the vulcanized rubber increases, indicating that improving the wear resistance of the vulcanized rubber requires controlling the mixing ratio of different varieties of fresh latex in a suitable range.

4. Conclusions

In this study, using acid-coagulated and enzyme-assisted microbial coagulated single-variety natural rubber as controls, the effects of the mixing ratio of PR107, Reyan72059, and Reyan73397 fresh latex on the processing and dynamic properties of bio-coagulated natural rubber were systematically analyzed. The results showed that the aging resistance of enzyme-assisted microbial coagulated natural rubber decreased, but increased with the increase in the mixing ratio of PR107 and Reyan72059 fresh latex. Compared with acid-coagulated natural rubber, the proportion of high molecular weight of natural rubber coagulated by the enzyme-assisted microbial increased, and the mixing of fresh latex had little effect on the molecular weight distribution curve. Under the carbon black formulation, the enzyme-assisted microbial coagulated natural rubber compound exhibited a higher CRI than the acid-coagulated natural rubber compound. Under the same strain conditions, the H-3 compound (PR107:Reyan72059:Reyan73397 = 1:1:3) had the best viscoelasticity and the least internal resistance of rubber molecules. Compared with the control sample H-2 vulcanized rubber, the cross-link density, tensile strength, elongation at break, and tear strength of H-3 vulcanized rubber significantly increased and reached the maximum, while the heat generation performance significantly decreased and became minimal, and the wear resistance improved, indicating that adjusting the mixing ratio of different varieties of fresh latex can significantly improve the processing properties, physical and mechanical properties, and wear resistance of natural rubber, and the heat generation performance can be reduced. This study investigated the intrinsic relationship between the ratio of fresh latex and the performance of natural rubber, which is of great significance for optimizing the processing of natural rubber and improving the comprehensive performance of the product. At the same time, the study can analyze the mechanism of the influence of fresh latex ratio on the performance of natural rubber from the molecular level, revealing the intrinsic nature of changes in the performance of natural rubber, which will provide a solid theoretical basis and strong technical support for the precise regulation of natural rubber performance. This not only helps to develop natural rubber with excellent performance, but also opens up new ideas for the research and development of new processing technologies for high-end products, accelerates the localization process of high-end products, reduces the dependence on imported natural rubber, and injects new vitality into the high-quality development of China’s natural rubber industry.

Author Contributions

Conceptualization, J.L. and H.G.; methodology, J.L., L.D. and H.H.; vali-dation, J.L. and H.G.; formal analysis, J.L. and Y.X.; investigation, L.D.; resources, H.G.; data curation, J.L., Y.L. and F.W.; Writing—original draft preparation, J.L.; Writing—review and editing, J.L. and L.Z.; project administration, J.L., T.D. and F.W. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Hainan Province Science and Technology Special Fund (ZDYF2024TRXJ002; ZDYF2024XDNY284), the National Key R&D Program of China (2022YFD2301203), and the Earmarked Fund for China Agriculture Research System (CARS-33).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Acknowledgments

We would like to thank the Ministry of Agriculture and Rural Affairs of China and the Department of Science and Technology of Hainan Province for their support.

Conflicts of Interest

Author Yun Li was employed by the company Mengla Tianye Rubber Sales Co., Ltd. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as potential conflicts of interest.

References

  1. Hou, Z.F.; Zhou, D.W.; Chen, Q.; Xin, Z.X. Effect of different silane coupling agents in-situ modified sepiolite on the structure and properties of natural rubber composites prepared by latex compounding method. Polymers 2023, 15, 1620. [Google Scholar] [CrossRef] [PubMed]
  2. Dominic, M.; Joseph, R.; Begum, P.M.S.; Kanoth, B.P.; Chandra, J.; Thomas, S. Green tire technology: Effect of rice husk derived nanocellulose (RHNC) in replacing carbon black (CB) in natural rubber (NR) compounding. Carbohydr. Polym. 2020, 230, 115620. [Google Scholar] [CrossRef] [PubMed]
  3. He, S.M.; Zhang, F.Q.; Gu, F.S.; Zhao, T.Q.; Zhao, Y.F.; Liao, L.S.; Liao, X.X. Influence of Clones on Relationship between Natural Rubber and Size of Rubber Particles in Latex. Int. J. Mol. Sci. 2022, 23, 8880. [Google Scholar] [CrossRef] [PubMed]
  4. de Castro Sant’Anna, I.; Gouvêa, L.R.L.; Martins, M.A.; Scaloppi, E.J., Jr.; de Freitas, R.S.; de Souza Gonçalves, P. Genetic diversity associated with natural rubber quality in elite genotypes of the rubber tree. Sci. Rep. 2021, 11, 1081. [Google Scholar]
  5. Tang, C.R.; Yang, M.; Fang, Y.J.; Luo, Y.F.; Gao, S.H.; Xiao, X.H.; An, Z.W.; Zhou, B.H.; Zhang, B.; Tan, X.Y.; et al. The rubber tree genome reveals new insights into rubber production and species adaptation. Nat. Plants 2016, 2, 16073. [Google Scholar] [CrossRef]
  6. Xin, S.C.; Hua, Y.W.; Li, J.; Dai, X.M.; Yang, X.F.; Udayabhanu, J.; Huang, H.S.; Huang, T.D. Comparative analysis of latex transcriptomes reveals the potential mechanisms underlying rubber molecular weight variations between the Hevea brasiliensis clones RRIM600 and Reyan7-33–97. BMC Plant Biol. 2021, 21, 244. [Google Scholar] [CrossRef]
  7. Siriluck, L.; Karim, C.; Stéphane, D.; Christine, C.; Laurent, V.; Eric, D.; Jérôme, S.B.; Klanarong, S.; Frédéric, B. Mesostructure characterization by asymmetrical flow field-flow fractionation of natural rubber samples from different Hevea brasiliensis genotypes. Ind. Crops Prod. 2017, 109, 936–943. [Google Scholar]
  8. Saeedi, F.; Naghavi, M.R.; Jariani, M.S. Taraxacum kok-saghyz LE Rodin, as a novel potential source of natural rubber in Iran: A good candidate for commercial use. Iran. Polym. J. 2023, 32, 1257–1269. [Google Scholar] [CrossRef]
  9. Liengprayoon, S.; Char, C.; Vaysse, L.; Bonfils, F. A clearer understanding of the dynamic structuring of different natural rubber genotypes on a macroscopic and mesoscopic scale by asymmetrical-flow field-flow fractionation (A4F) analysis. Polym. Test. 2024, 140, 108614. [Google Scholar] [CrossRef]
  10. Adisak, K.; Nussana, L.; Ekwipoo, R.K. Exploring the influence of Hevea brasiliensis clones on the extraordinary properties of natural rubber vulcanizates. Polym. Bull. 2024, 81, 10991–11005. [Google Scholar]
  11. Yun, D.H.; Peng, W.F.; Lin, H.T.; Liao, J.H.; Liao, L.S. Accelerated Storage Induced Structural Evolution in Natural Rubber: A Comparative Study of Two Constant Viscosity Treatment Methods. Polymers 2025, 17, 960. [Google Scholar] [CrossRef] [PubMed]
  12. Elodie, N.N.D.; Angel, A.; Silvia, A.I.; Jetro, N.N. Rheological and thermal properties of purified raw natural rubber. J. Rubber Res. 2021, 24, 709–717. [Google Scholar]
  13. Kitpaosong, C.; Liengprayoon, S.; Durand, E.; Lerksamran, T.; Daval, A.; Gohet, E.; Tiva, L.K.; Chetha, P.; Mengchheang, K.; Phearun, P.; et al. Shedding light on the existence of Furan fatty acids in latex lipids across a wide diversity of Hevea brasiliensis genotypes. J. Bioresour. Bioprod. 2025, 10, 111–122. [Google Scholar] [CrossRef]
  14. Mo, Y.Y.; Yang, L. Global natural rubber industry situation in 2021and prospect in 2022. China Trop. Agric. 2022, 107, 5–11+53. [Google Scholar]
  15. Deng, D.Y.; Zhao, T.; Ding, L.; Li, J.W.; Huang, H.H.; Liao, J.H.; Gui, H.X. Effect of enzyme dosage assisted microbial coagulation on properties of natural rubber. China Elastom. 2023, 33, 1–4+39. [Google Scholar]
  16. NY/T 1403-2007; Evaluation Methods for Natural Rubber. Ministry of Agriculture of the People’s Republic of China: Beijing, China, 2007.
  17. GB/T 3510-2006; Rubber, Unvulcanized-Determination of Plasticity-Rapid Plastimeter Method. National Standard of the People’s Republic of China: Beijing, China, 2006.
  18. GB/T 3517-2014; Rubber, Raw Natural. Determination of Plasticity Retention Index (PRI). National Standard of the People’s Republic of China: Beijing, China, 2014.
  19. GB/T 1232.1-2016; Rubber, Unvulcanized—Determinations Using a Shearing-Disc Viscometer—Part 1: Determination of Mooney Viscosity. National Standard of the People’s Republic of China: Beijing, China, 2016.
  20. GB/T 528-2009; Rubber, Vulcanized or Thermoplastic-Determination of Tensile Stress-Strain Properties. National Standard of the People’s Republic of China: Beijing, China, 2009.
  21. GB/T 529-2008; Rubber, Vulcanized or Thermoplastic-Determination of Tear Strength (Trouser, Angle and Crescent Test Pieces). National Standard of the People’s Republic of China: Beijing, China, 2008.
  22. GB/T 1687.3-2016; Rubber, Vulcanized-Determination of Temperature Rise and Resistance to Fatigue in Flexometer Testing—Part 3: Compression Flexometer (Constant-Strain Type). National Standard of the People’s Republic of China: Beijing, China, 2016.
  23. GB/T 1689-2014; Rubber Vulcanized-Determination of Abrasion Resistance (Akron Machine). National Standard of the People’s Republic of China: Beijing, China, 2014.
  24. Nimpaiboon, A.; Sriring, M.; Sakdapipanich, J.T. Molecular structure and storage hardening of natural rubber: Insight into the reactions between hydroxylamine and phospholipids linked to natural rubber molecule. J. Appl. Polym. Sci. 2016, 133, 43753. [Google Scholar] [CrossRef]
  25. Li, S.D.; Yu, H.P.; Peng, Z.; Zhu, C.S.; Li, P.S. Study on thermal degradation of sol and gel of natural rubber. J. Appl. Polym. Sci. 2000, 75, 1339–1344. [Google Scholar] [CrossRef]
  26. Ke, D.B.; Wang, B.B.; Lin, H.T.; Zhang, F.Q.; Li, G.R.; Liao, J.H.; Liao, L.S. Effect of coagulation method on fatty acid content and properties of natural rubber. Polym. Mater. Sci. Eng. 2024, 40, 108–117. [Google Scholar]
  27. Dai, T.; Li, Y.; Huang, H.H.; Ding, L.; Li, J.W.; Geng, H.R.; Song, Y.Z.; Zhao, T.; Zhao, L.G.; Gui, H.X. A study on the preparation of environmentally friendly high-performance natural rubber using the interaction mechanism of alkaline protease and calcium ions. Polymers 2025, 17, 490. [Google Scholar] [CrossRef]
  28. Jia, P.; Hao, W.; Liu, S.G.; Li, S.; Hu, Y.H.; Feng, F.S.; Wu, J.X. Lanthanum histidine promotes the vulcanization of natural rubber. Chin. Rare Earths 2022, 43, 28–36. [Google Scholar]
  29. Chen, G.J.; Wang, B.B.; Lin, H.T.; Peng, W.F.; Zhang, F.Q.; Li, G.R.; Ke, D.B.; Liao, J.H.; Liao, L.S. Effect of nonisoprene degradation and naturally occurring network during maturation on the properties of natural rubber. Polymers 2022, 14, 2180. [Google Scholar] [CrossRef] [PubMed]
  30. Liu, Y.N.; Chen, Y.; Liu, H.C.; Wang, Q.F.; Wang, Y.Z.; Yu, H.P. Effect of the amount of lysozyme on the processing properties of natural rubber. Appl. Chem. Ind. 2017, 46, 611–613+619. [Google Scholar]
  31. Yu, B.Y.; Lin, H.J.; Xu, T.W.; Huang, R.Y. Establishment of carbon black particle distribution model and its optimized properties of natural rubber composites. Polym. Mater. Sci. Eng. 2023, 39, 97–105. [Google Scholar]
  32. Chen, G.J.; Wang, B.B.; Lin, H.T.; Zhang, F.Q.; Li, G.R.; Ke, D.B.; Liao, J.H.; Liao, L.S. Effect of structural and component changes on properties of natural rubber during maturation. Polym. Mater. Sci. Eng. 2022, 38, 41–48. [Google Scholar]
  33. Sarkawi, S.S.; Dierkes, W.K.; Noordermeer, J.W.M. The influence of non-rubber constituents on performance of silica reinforced natural rubber compounds. Eur. Polym. J. 2013, 49, 3199–3209. [Google Scholar] [CrossRef]
  34. Wang, Z.F.; Luo, W.J.; Fang, L.; Liao, S.Q.; Li, L.F.; Lin, H.; Li, S.D.; He, C.Z. Rheological behavior of raw natural rubber coagulated by microorganisms. Polímeros 2014, 24, 143–148. [Google Scholar] [CrossRef]
  35. Luo, W.J.; Li, S.D.; Liao, S.Q.; Fang, L.; Wang, Z.F. Characterization of the aging behavior of microorganism coagulated natural rubber. Adv. Mater. Res. 2011, 287, 1517–1520. [Google Scholar]
  36. Song, M.S.; Wu, S.Z.; Du, X.Y. Study on the rheological behavior for polymer melts and concentrated solutionsII. The material functions with gaussian chain constraints and a new method for determination of their parameters from flow curves. Polym. Mater. Sci. Eng. 1996, 6, 19–25. [Google Scholar]
  37. Feng, X.Y.; Wang, Y.G.; He, T.C.; Wang, K.; Pan, L.J.; Chen, S.Y.; Yi, Y.; Sun, H.G.; Zheng, Y.F.; Wei, L.; et al. Influence of processing techniques on carbon black dispersion and mechanical performance of polyisoprene-based rubbers. Chem. J. Chin. Univ. 2024, 45, 129–138. [Google Scholar]
  38. He, S.M.; Zhang, F.Q.; Liu, S.; Cui, H.P.; Chen, S.; Peng, W.F.; Chen, G.J.; Liao, X.X.; Liao, L.S. Influence of sizes of rubber particles in latex on mechanical properties of natural rubber filled with carbon black. Polymer 2022, 261, 125393. [Google Scholar] [CrossRef]
  39. Wei, Y.C.; Zhu, D.; Xie, W.Y.; Xia, J.H.; He, M.F.; Liao, S.Q. In-situ observation of spatial organization of natural rubber latex particles and exploring the relationship between particle size and mechanical properties of natural rubber. Ind. Crops Prod. 2022, 180, 114737. [Google Scholar] [CrossRef]
  40. Yang, Z.; Xiong, Y.Z. Research progress of wear resistance of rubber materials. Polym. Bull. 2020, 52, 15–30. [Google Scholar]
Polymers 17 01435 g001

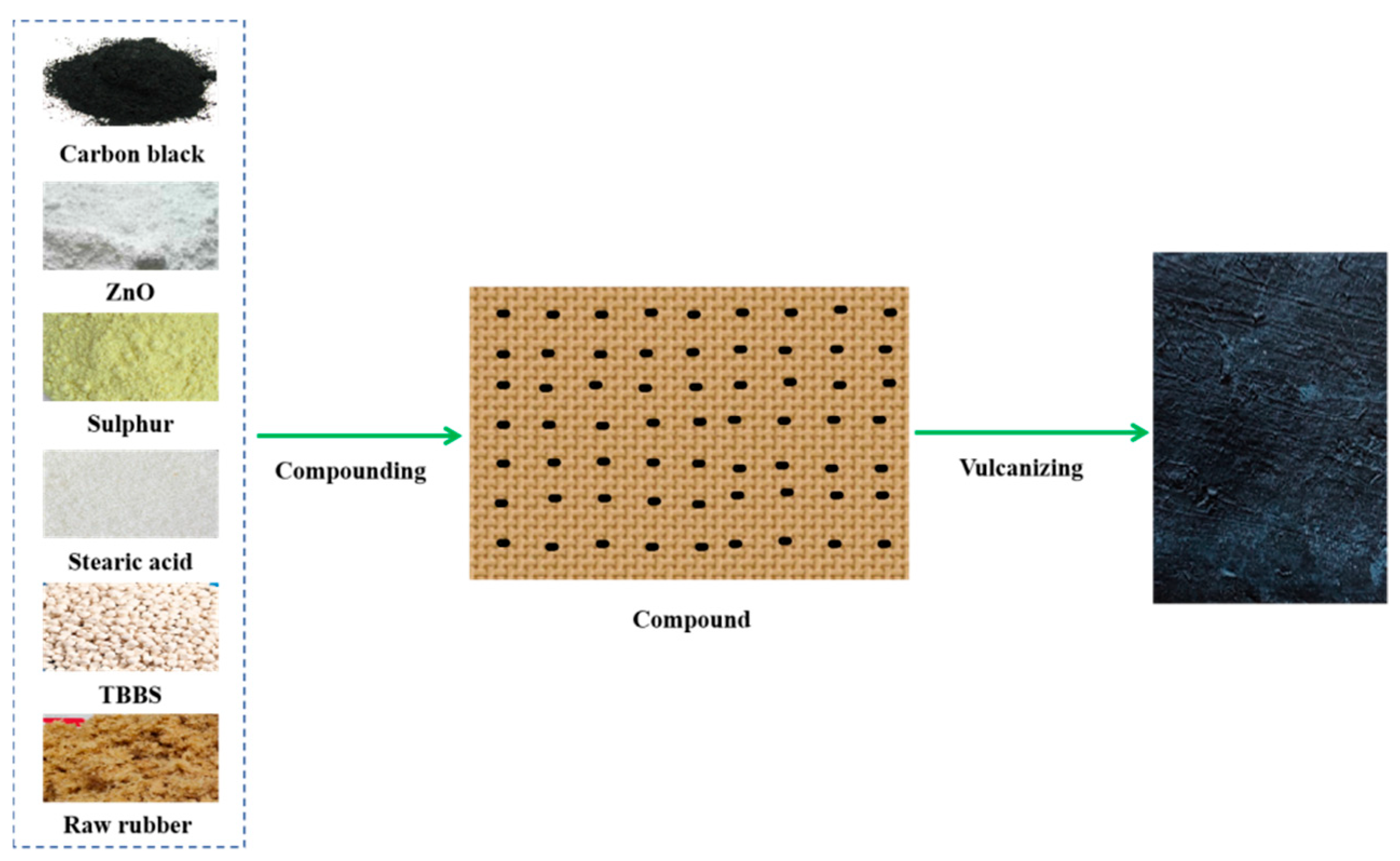

Figure 1. The preparation process of natural rubber vulcanized rubber.
Figure 1. The preparation process of natural rubber vulcanized rubber.
Polymers 17 01435 g001
Polymers 17 01435 g002

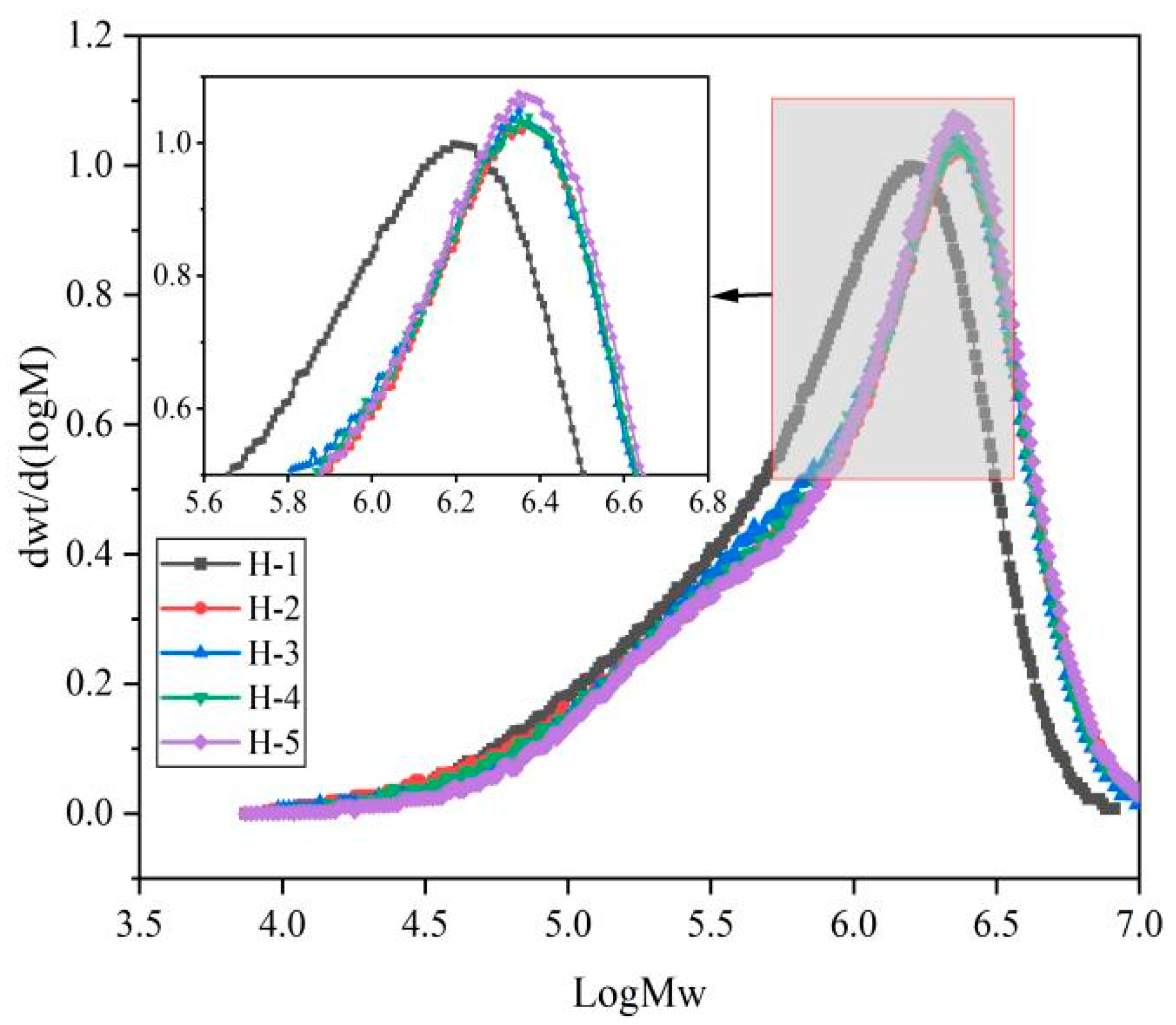

Figure 2. Molecular weight distribution of natural rubber.
Figure 2. Molecular weight distribution of natural rubber.
Polymers 17 01435 g002
Polymers 17 01435 g003

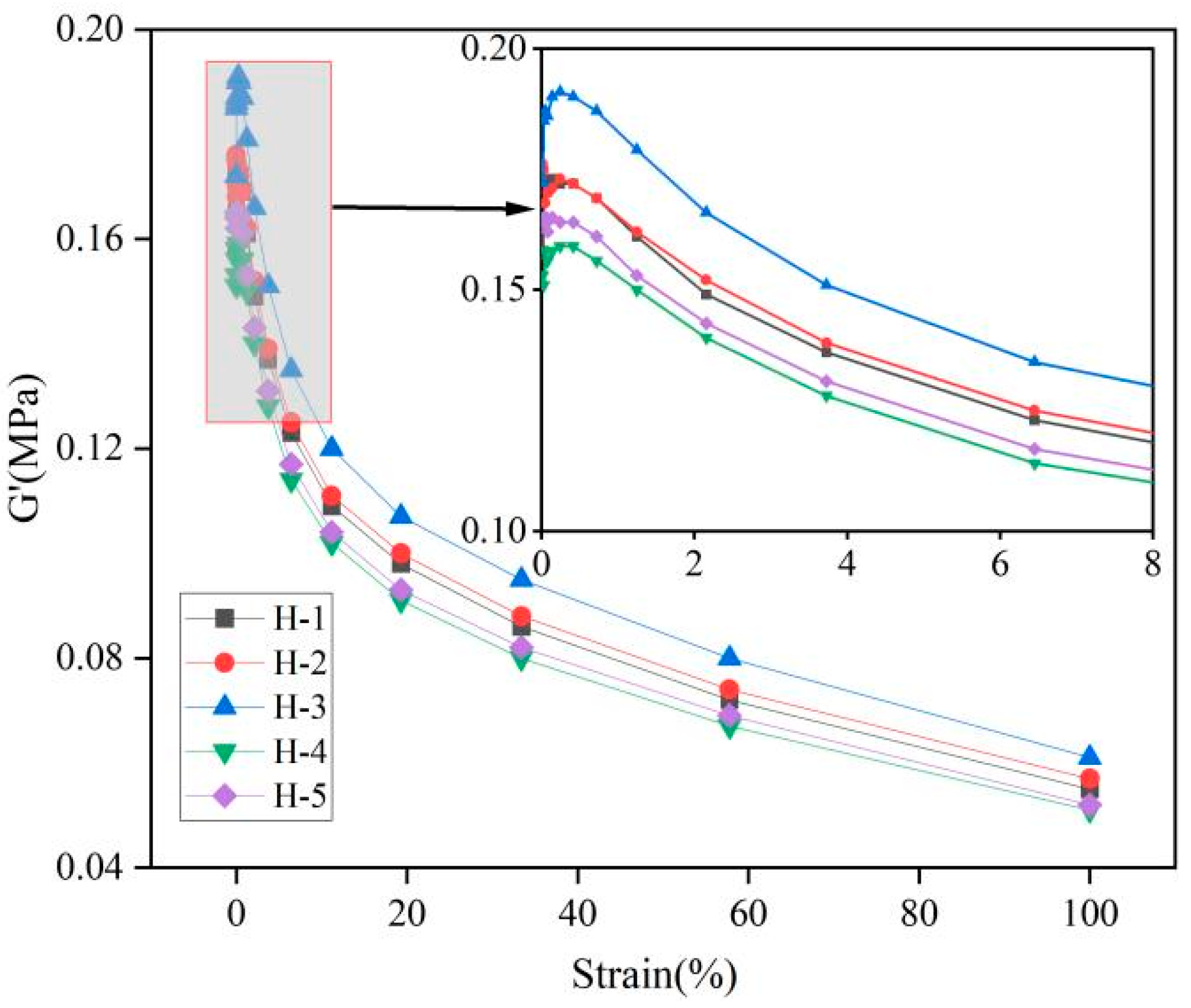

Figure 3. Responses of G′ against strain of natural rubber compound.
Figure 3. Responses of G′ against strain of natural rubber compound.
Polymers 17 01435 g003
Polymers 17 01435 g004

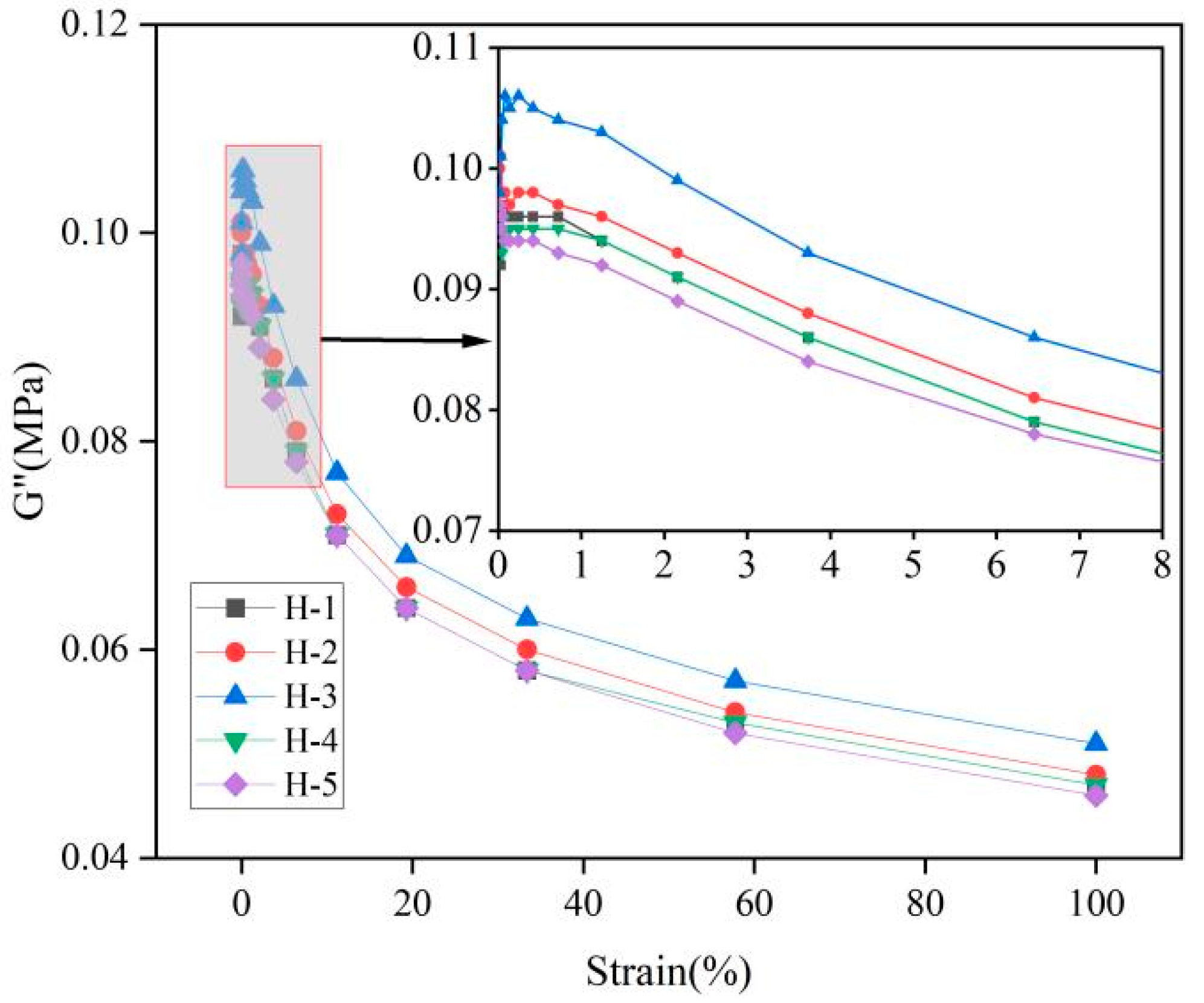

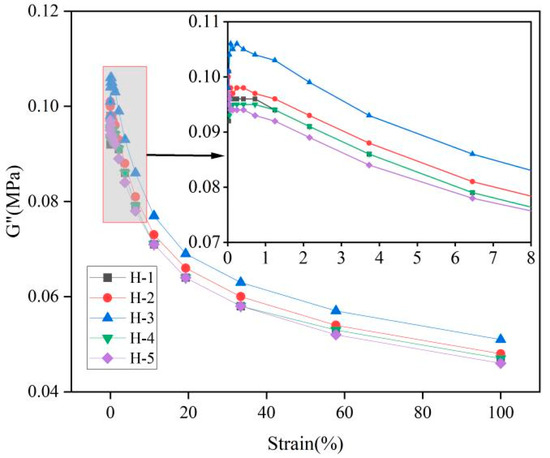

Figure 4. Responses of G″ against strain of natural rubber compound.
Figure 4. Responses of G″ against strain of natural rubber compound.
Polymers 17 01435 g004
Polymers 17 01435 g005

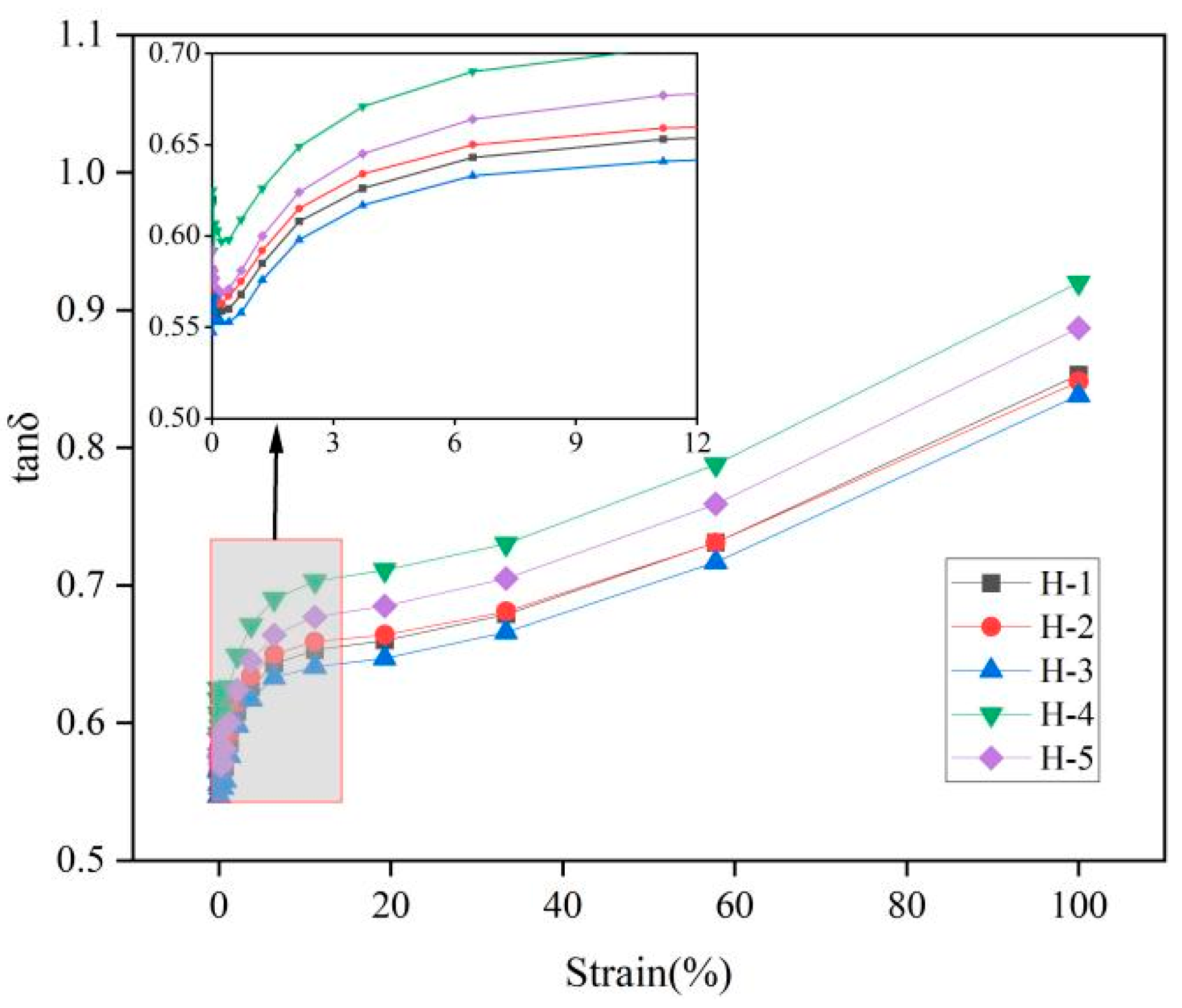

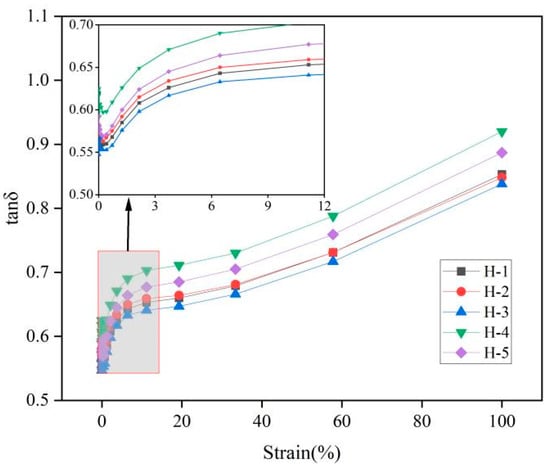

Figure 5. Responses of tanδ against strain of natural rubber compound.
Figure 5. Responses of tanδ against strain of natural rubber compound.
Polymers 17 01435 g005
Polymers 17 01435 g006

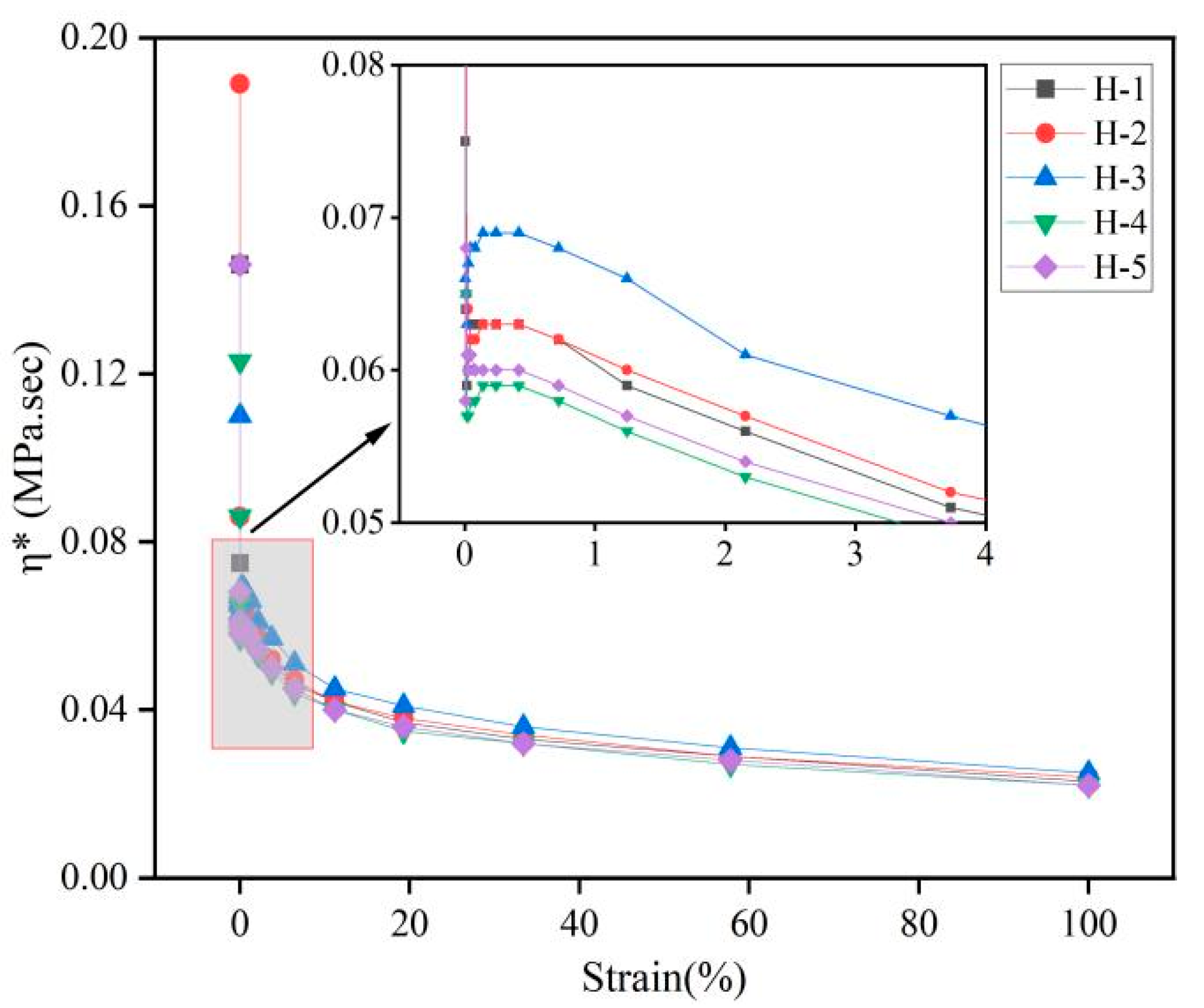

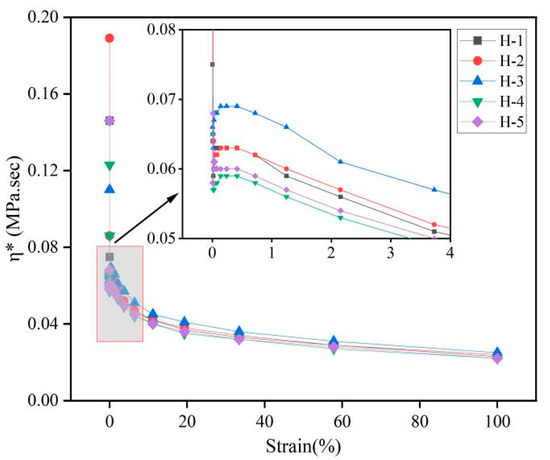

Figure 6. Responses of η* against strain of natural rubber compound.
Figure 6. Responses of η* against strain of natural rubber compound.
Polymers 17 01435 g006
Polymers 17 01435 g007

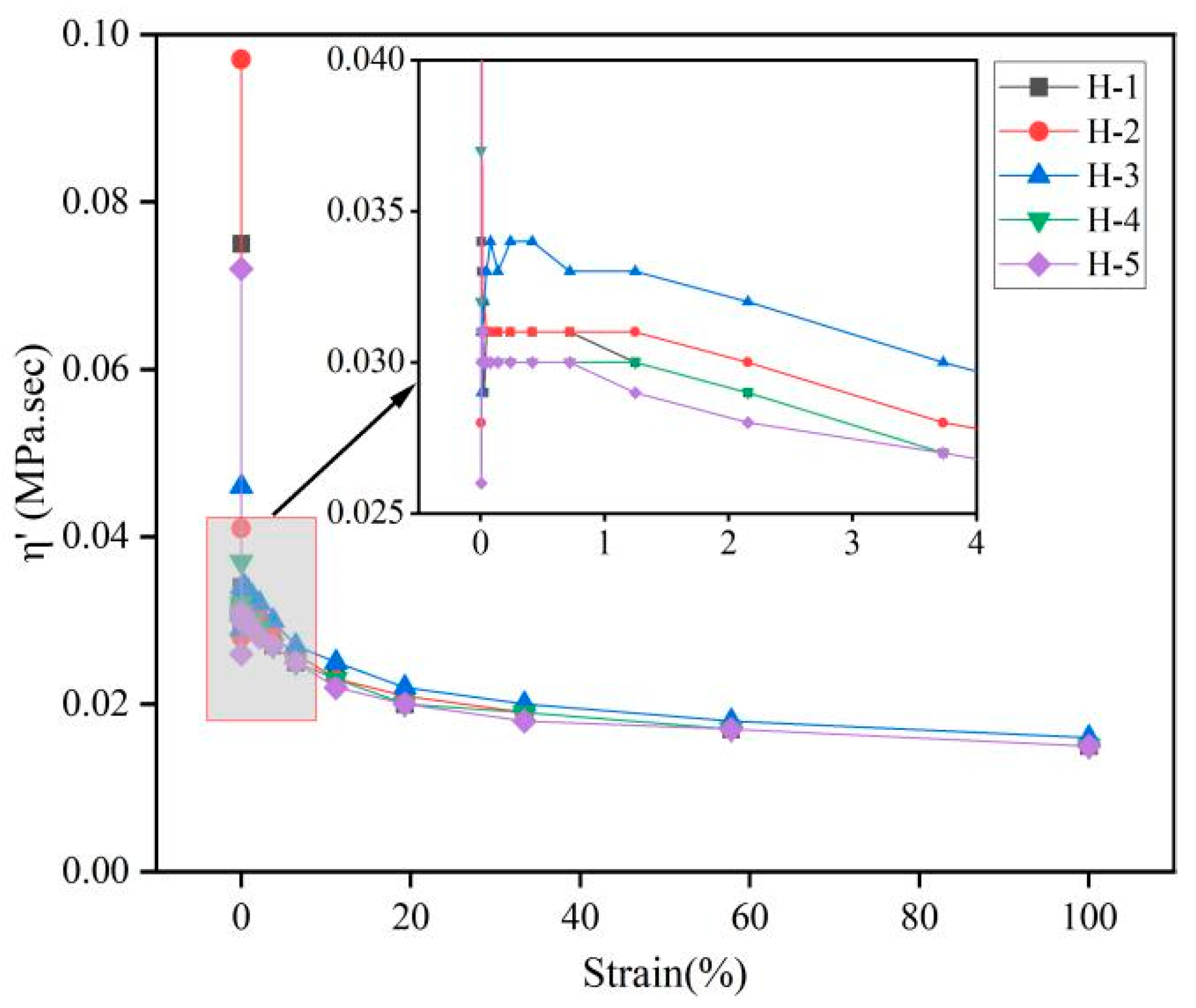

Figure 7. Responses of η′ against strain of natural rubber compound.
Figure 7. Responses of η′ against strain of natural rubber compound.
Polymers 17 01435 g007
Polymers 17 01435 g008

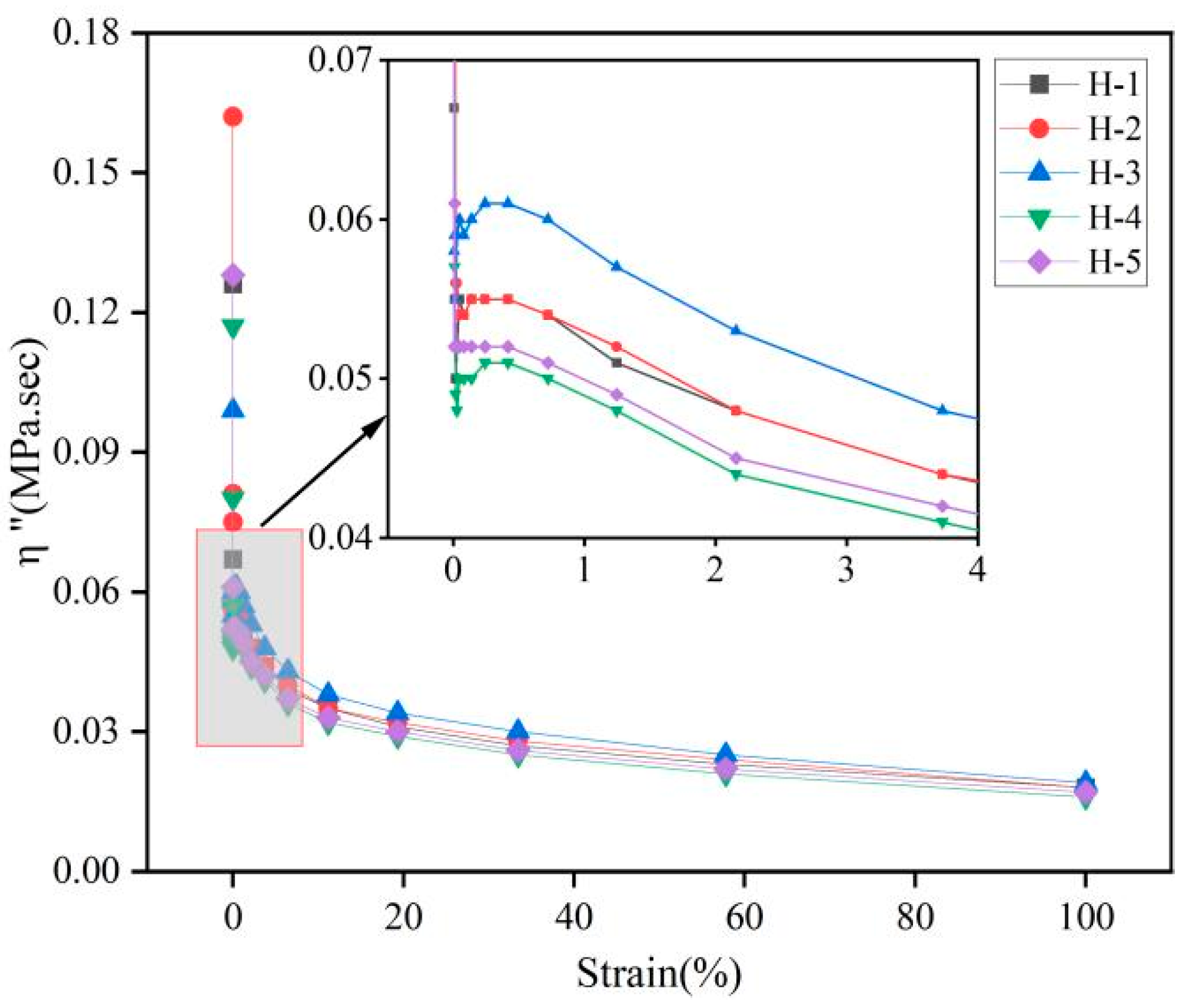

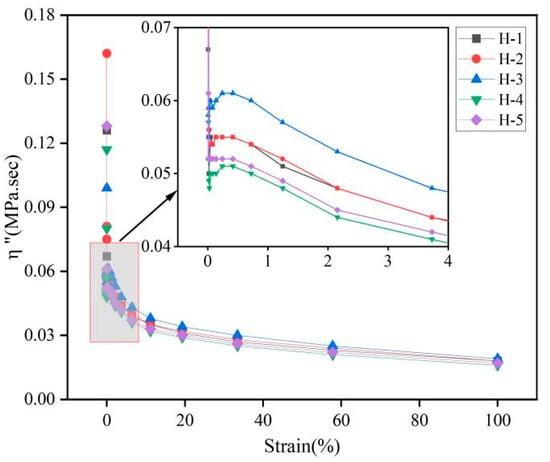

Figure 8. Responses of η″ against strain of natural rubber compound.
Figure 8. Responses of η″ against strain of natural rubber compound.
Polymers 17 01435 g008
Polymers 17 01435 g009

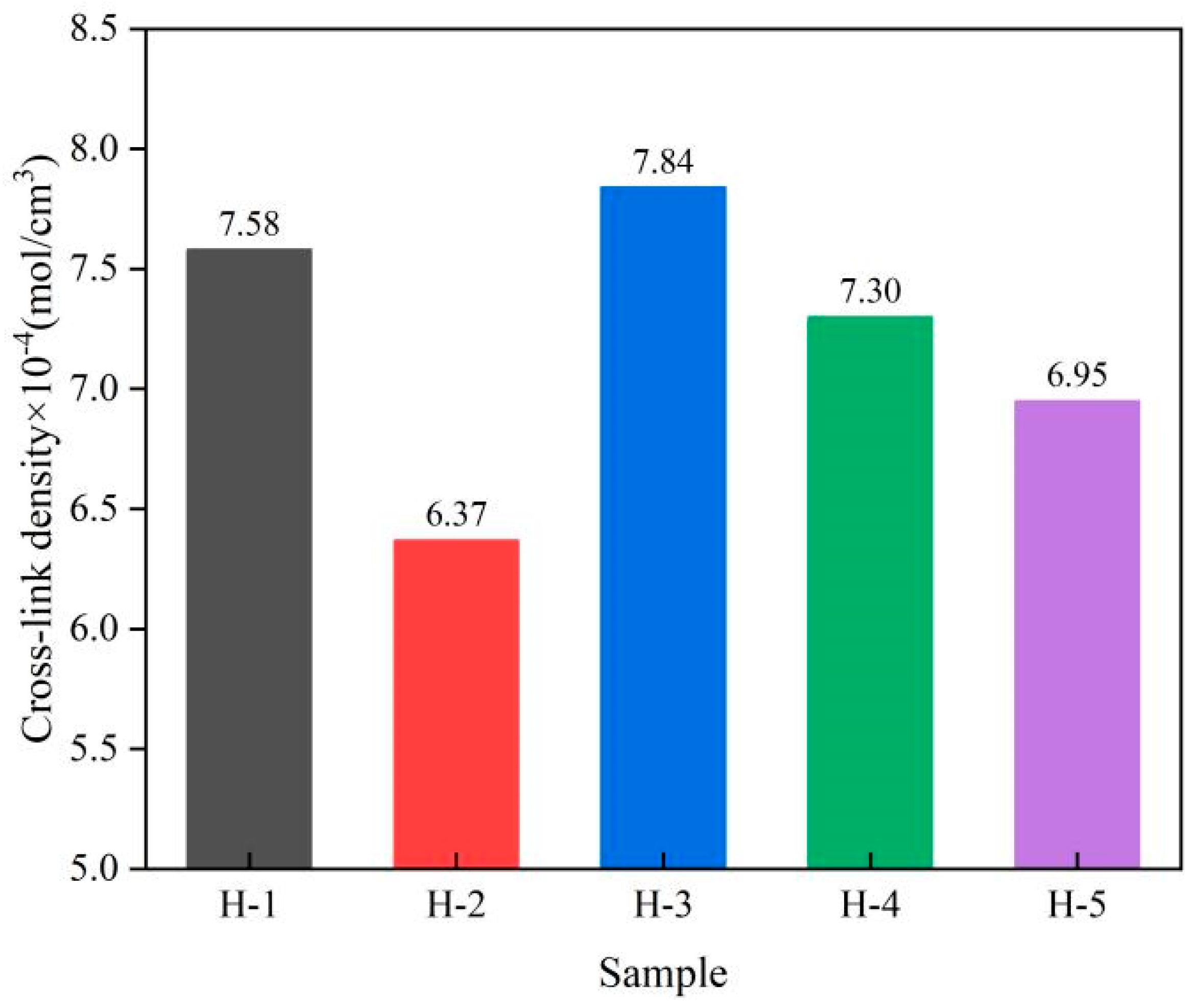

Figure 9. Cross-link density of natural rubber vulcanized rubber.
Figure 9. Cross-link density of natural rubber vulcanized rubber.
Polymers 17 01435 g009
Polymers 17 01435 g010

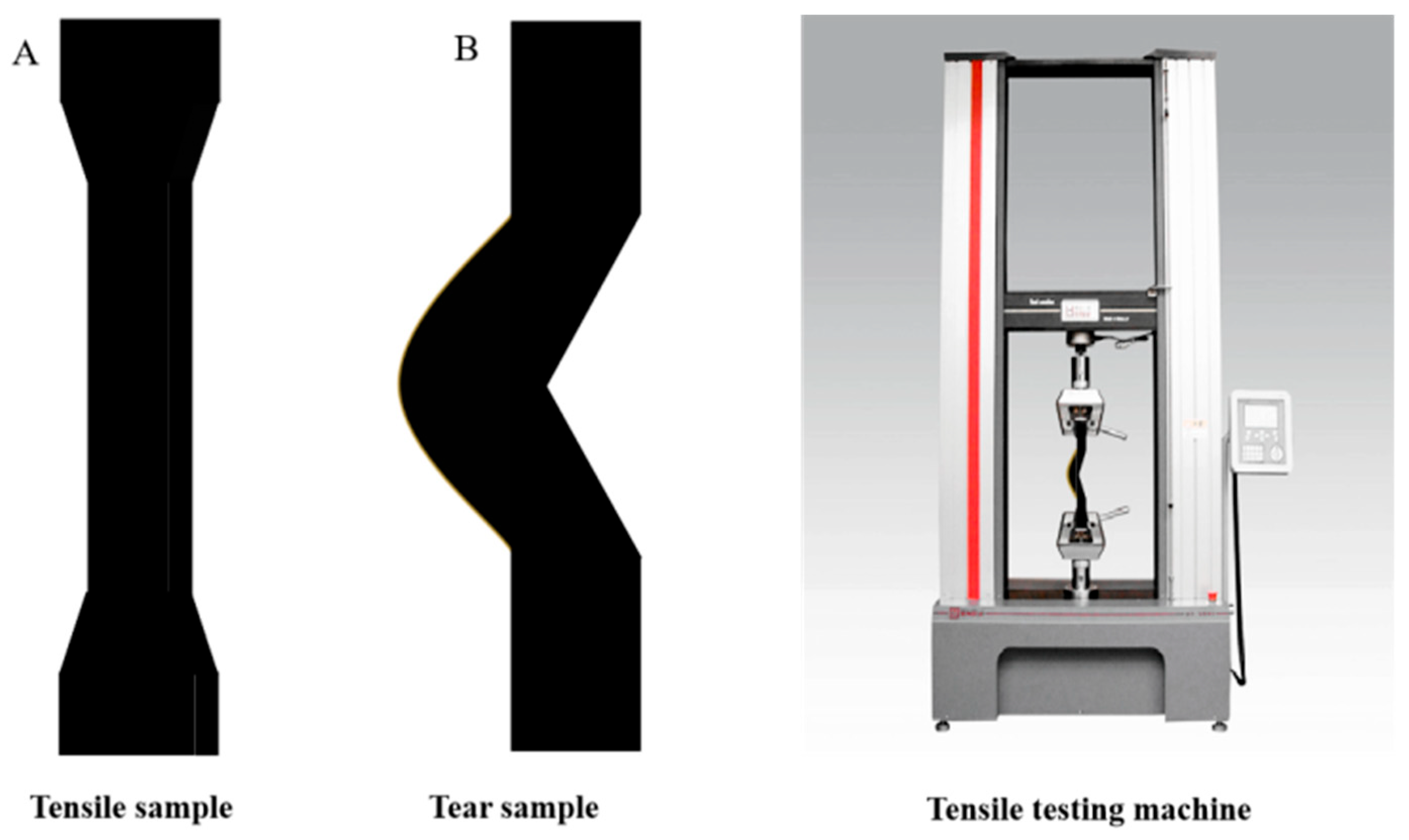

Figure 10. Testing of physical and mechanical properties of natural rubber vulcanized rubber. Tensile sample (A), tear sample (B) and testing of physical and mechanical properties of natural rubber vulcanized rubber.
Figure 10. Testing of physical and mechanical properties of natural rubber vulcanized rubber. Tensile sample (A), tear sample (B) and testing of physical and mechanical properties of natural rubber vulcanized rubber.
Polymers 17 01435 g010
Polymers 17 01435 g011

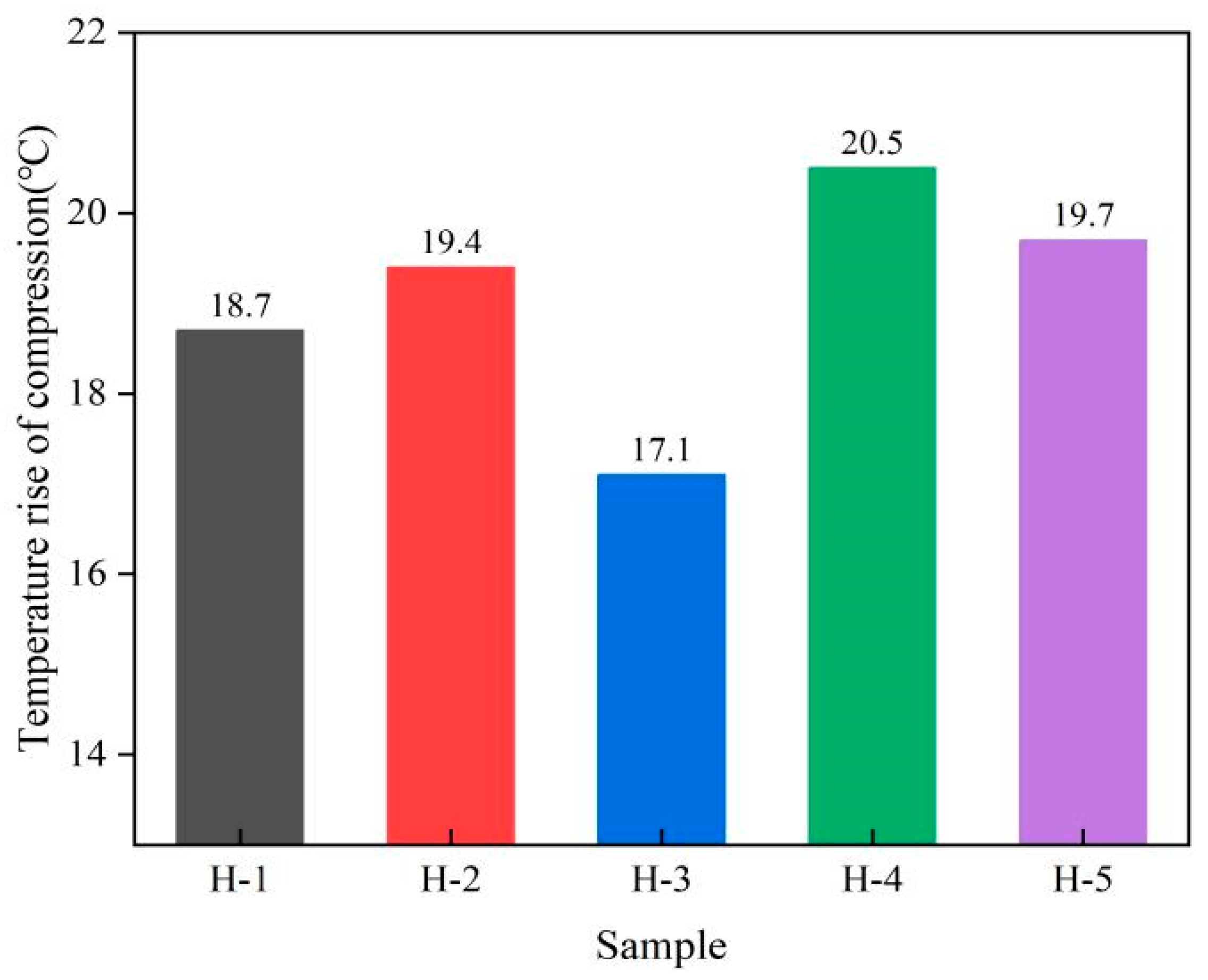

Figure 11. Heat generation performance of natural rubber vulcanized rubber.
Figure 11. Heat generation performance of natural rubber vulcanized rubber.
Polymers 17 01435 g011
Polymers 17 01435 g012

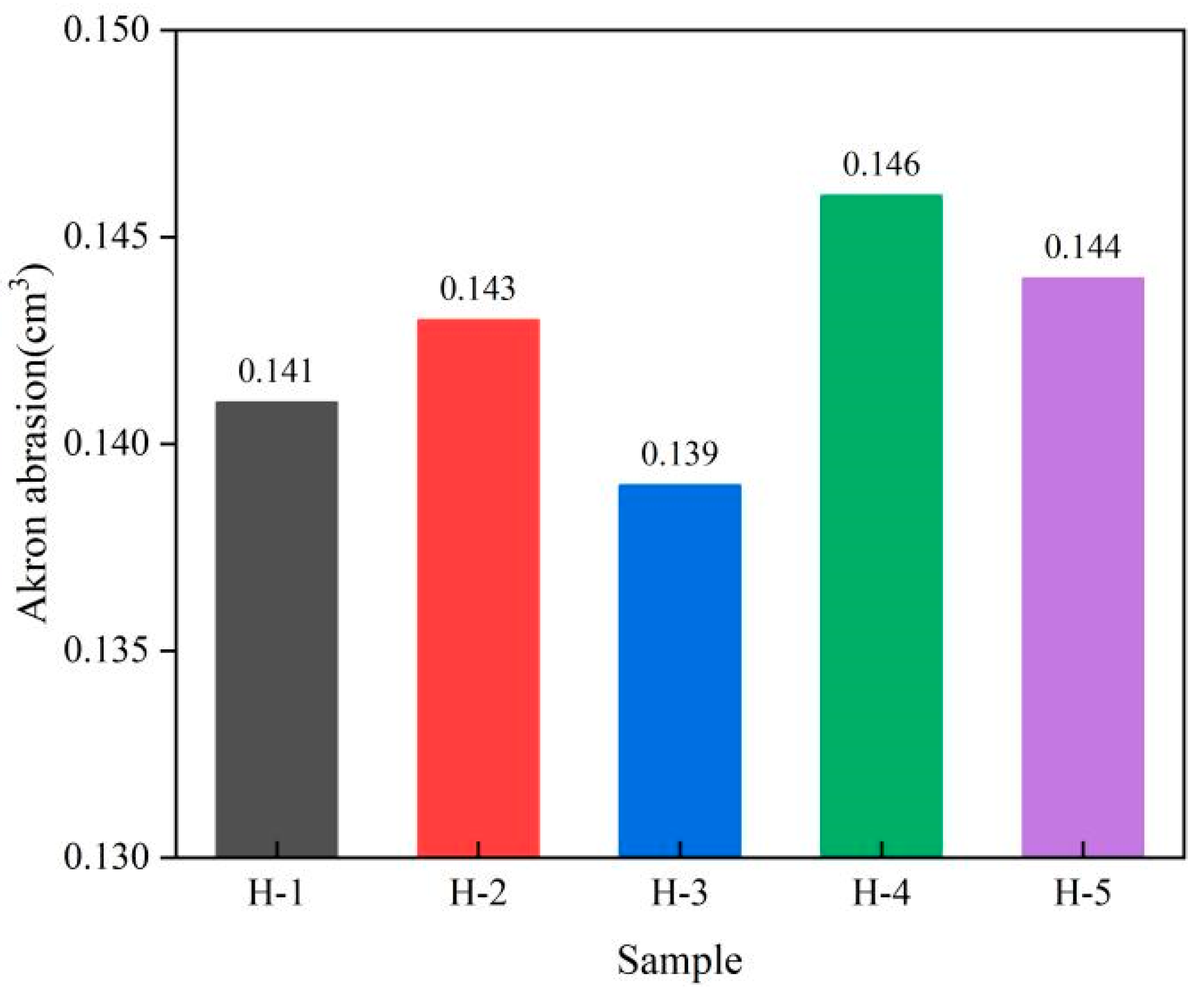

Figure 12. Akron abrasion of natural rubber vulcanized rubber.
Figure 12. Akron abrasion of natural rubber vulcanized rubber.
Polymers 17 01435 g012
Table 1. Ratio and coagulation method of fresh latex.
Table 1. Ratio and coagulation method of fresh latex.
SampleVarietyRatioCoagulation MethodEnzyme Amount
(%, w/w)		Microbial Amount
(%, w/w)
H-1733970Acid coagulation00
H-2733970Enzyme-assisted microbial coagulation0.0510
H-3107:72059:733971:1:3Enzyme-assisted microbial coagulation0.0510
H-4107:72059:733971:1:2Enzyme-assisted microbial coagulation0.0510
H-5107:72059:733971:1:1Enzyme-assisted microbial coagulation0.0510
Note: fresh latex ratio, in terms of latex mass; enzyme dosage, in terms of dry gel content; microbial coagulant dosage, in terms of fresh latex mass.
Table 2. The carbon black formulations of natural rubber.
Table 2. The carbon black formulations of natural rubber.
FormulationRaw RubberZinc OxideSulfurStearic AcidCarbon BlackTBBS 1
Mass, g1005.02.252.035.000.70
Preparation of natural rubber vulcanized rubber. 1 N-tert-butyl-2-benzothiazolinesulfonamide, powder, ether or ethanol insoluble content should be less than 0.3% (mass fraction). It should be stored in an airtight container at room temperature and tested for ether or ethanol insolubles every six months. If this content exceeds 0.75% by mass, the material should be discarded or recrystallised.
Table 3. Physical and chemical indexes of natural rubber.
Table 3. Physical and chemical indexes of natural rubber.
SampleP0PRI %ML(1+4)
H-139.73 ± 0.6183.7 ± 0.7581.67 ± 0.58
H-245.43 ± 0.6577.2 ± 0.8295.00 ± 1.00
H-344.97 ± 0.3177.37 ± 0.492.00 ± 0.00
H-446.40 ± 0.5378.5 ± 0.8993.67 ± 0.58
H-546.30 ± 0.3682.1 ± 0.4692.67 ± 1.53
Table 4. Vulcanization characteristics of the natural rubber compound.
Table 4. Vulcanization characteristics of the natural rubber compound.
SampleML/dN·mMH/dN·m∆M/dN·mt10/mint90/minCRI/s−1
H-12.0714.7912.722.739.300.25
H-22.4314.7212.292.909.350.26
H-32.1614.9612.802.678.770.27
H-42.0814.7312.652.859.270.26
H-52.4514.9512.502.929.350.26
Note: ∆M = MH − ML; CRI = 100/(t90 – t10).
Table 5. Physical and mechanical properties of natural rubber vulcanized rubber.
Table 5. Physical and mechanical properties of natural rubber vulcanized rubber.
SampleTensile Strength
/MPa		100%
Modulus
/MPa		300%
Modulus
/MPa		500%
Modulus
/MPa		Elongation at Break
/%		Permanent Set/%Tear Strength
/(kN/m)
H-127.63 ± 0.441.87 ± 0.027.70 ± 0.1217.46 ± 1.09667.21 ± 11.9226.67 ± 0.7488.49 ± 1.81
H-226.52 ± 0.842.55 ± 0.117.64 ± 0.1420.6 ± 0.72628.41 ± 14.6826.44 ± 0.4590.05 ± 1.17
H-327.93 ± 0.411.82 ± 0.107.48 ± 0.1217.17 ± 0.32706.67 ± 4.5828.81 ± 0.9993.51 ± 0.85
H-427.44 ± 0.411.83 ± 0.087.44 ± 0.0617.16 ± 0.52660.06 ± 16.6730.31 ± 0.8878.43 ± 0.81
H-526.92 ± 0.562.45 ± 0.1310.72 ± 0.8523.63 ± 0.45536.69 ± 14.7928.15 ± 0.880.13 ± 1.41
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Li, J.; Li, Y.; Ding, L.; Huang, H.; Dai, T.; Zhao, L.; Xu, Y.; Wu, F.; Gui, H. The Effect of the Fresh Latex Ratio on the Processing and Dynamic Properties of Bio-Coagulated Natural Rubber. Polymers 2025, 17, 1435. https://doi.org/10.3390/polym17111435

AMA Style

Li J, Li Y, Ding L, Huang H, Dai T, Zhao L, Xu Y, Wu F, Gui H. The Effect of the Fresh Latex Ratio on the Processing and Dynamic Properties of Bio-Coagulated Natural Rubber. Polymers. 2025; 17(11):1435. https://doi.org/10.3390/polym17111435

Chicago/Turabian Style

Li, Jianwei, Yun Li, Li Ding, Honghai Huang, Tuo Dai, Liguang Zhao, Yingguang Xu, Fan Wu, and Hongxing Gui. 2025. "The Effect of the Fresh Latex Ratio on the Processing and Dynamic Properties of Bio-Coagulated Natural Rubber" Polymers 17, no. 11: 1435. https://doi.org/10.3390/polym17111435

APA Style

Li, J., Li, Y., Ding, L., Huang, H., Dai, T., Zhao, L., Xu, Y., Wu, F., & Gui, H. (2025). The Effect of the Fresh Latex Ratio on the Processing and Dynamic Properties of Bio-Coagulated Natural Rubber. Polymers, 17(11), 1435. https://doi.org/10.3390/polym17111435

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
