Article

Hydrodeoxygenation of Lignin-Based Compounds over Ruthenium Catalysts Based on Sulfonated Porous Aromatic Frameworks

by
Maria A. Bazhenova
1,
Leonid A. Kulikov
1,*,
Daria A. Makeeva
1,
Anton L. Maximov
1,2 and
Eduard A. Karakhanov
1
1
Department of Petroleum Chemistry and Organic Catalysis, Lomonosov Moscow State University, Moscow 119991, Russia
2
Institute of Petrochemical Synthesis RAS, Moscow 119991, Russia
*
Author to whom correspondence should be addressed.
Polymers 2023, 15(23), 4618; https://doi.org/10.3390/polym15234618
Submission received: 27 October 2023 / Revised: 28 November 2023 / Accepted: 30 November 2023 / Published: 4 December 2023
(This article belongs to the Special Issue Porous Organic Polymer Materials: Synthesis, Characterization and Applications)
Browse Figures
Versions Notes

Abstract

:
Bifunctional catalysts are a major type of heterogeneous catalytic systems that have been widely investigated for biomass upgrading. In this work, Ru-catalysts based on sulfonated porous aromatic frameworks (PAFs) were used in the hydrodeoxygenation (HDO) of lignin-derived compounds: guaiacol, veratrole, and catechol. The relationship between the activity of metal nanoparticles and the content of acid sites in synthesized catalysts was studied. Herein, their synergy was demonstrated in the Ru-PAF-30-SO3H/5-COD catalyst. The results revealed that this catalytic system promoted partial hydrogenation of lignin-based compounds to ketones without any further transformations. The design of the Ru-PAF-30-SO3H/5-COD catalytic system opens a promising route to the selective conversion of lignin model compounds to cyclohexanone.

Graphical Abstract

1. Introduction

Nowadays, increasing attention is being paid to the development of technologies that ensure carbon neutral production of fuels and chemical compounds from renewable sources [1,2,3,4,5]. An example of such raw material is lignin, a complex and disordered polymer of aromatic nature, present in plants in significant quantities (about 25%). Lignin consists of phenylpropane derivatives containing hydroxyl and methoxy functional groups linked together by ether or carbon-carbon bonds. This structure allows us to consider lignin as a source of various value-added products: phenolic aldehydes [6], ketones [7], acids [8], cresol, and aromatic and saturated hydrocarbons [9,10,11]. The product of lignin pyrolysis, bio-oil, is a dark brown liquid consisting of hundreds of highly oxygenated organic compounds. However, the direct use of the lignin-derived bio-oil in petrochemical processing is complicated due to some issues: increased acidity and corrosiveness, high viscosity, low calorific value, and a tendency to reverse polymerization. One of the solutions is hydrodeoxygenation (HDO) of bio-oil, during which hydrogenation and removal of unsaturated and oxygen-containing compounds occurs. Thus, the development of technologies and catalytic systems for the processing of lignin-derived bio-oil is an urgent task.
Traditional catalysts of hydrodesulfurization (HDS) processes—Mo, Ni, and Co sulfides deposited on γ-alumina—can be applied for bio-oil HDO [12,13]. However, their use is accompanied by several problems, such as the formation of oxides and further deactivation of catalysts by water contained in bio-oil (up to 30%) and generated in the HDO process [14,15]. To prevent deactivation of sulfide catalysts, their sulfide form must be maintained during HDO, which is often achieved by adding an appropriate source of sulfur to the feed. This may lead, in its turn, to the emergence of technological difficulties and contamination of products. Catalysts based on noble metals such as Ru, Pt, Pd, and Rh can be used to overcome disadvantages of the traditional catalysts. First, metal loadings in such systems are usually much lower compared to those used in traditional metal sulfide catalysts, and they are also expected to be more stable in the presence of oxygen-containing compounds. Noble metal catalysts have a remarkable ability to activate and split hydrogen under mild conditions [16,17,18], which allows us to avoid high reaction temperatures and reduce the rate of coke deposition.
In general, catalysts based on supports with acidic properties are more active in HDO reactions. For example, it was shown that the presence of Brønsted acids leads to the significant increase in the yield of cyclohexane, the product of complete guaiacol HDO, from 20.1% for Ru/C to 99.9% for Ru/C+H3PO4 [19]. Similar effects were also noted for heterogeneous catalytic systems with grafted acid groups [20]. Thus, both Pd-PAF-30 and Pd-PAF-30-SO3H catalysts were tested in the vanillin hydrodeoxygenation [21]. It was demonstrated that modification of PAF-30 with sulfo groups greatly enhanced the activity of the catalyst in deoxygenation. The increase in deoxygenation activity of the catalysts investigated in HDO of guaiacol with the increase in concentration of acid sites was also observed [22]. The proximity of metal active sites and acid groups of support also may have additional synergistic effects on the catalytic activity [20,23,24,25], such as, for example, enhancement of the overall reaction rate [26,27].
A plethora of research on hydrodeoxygenation in the presence of noble metals supported on inorganic materials (silica, alumina, titanium oxide [28,29], and zeolites [30]) is presented in the literature. Catalysts based on inorganic supports demonstrate high catalytic activity, but even so, many of them are unstable under acidic and basic conditions and prone to deactivation resulted from coking. Only a small number of works are devoted to the study of HDO catalysts based on porous organic polymers (POPs). Despite this, their high specific surface areas and developed porosity alongside high thermal and mechanical stability makes them attractive in heterogeneous catalysis. In addition, the possibility to incorporate different functional groups in the structures of POPs allows us to tune the activity and selectivity of obtained catalytic system.
Recently, we reported HDO of bio-oil components using Pt and Ru catalysts based on Porous Aromatic Frameworks (PAFs), polymers with rigid structure consisting of interconnected aromatic rings [21,31,32,33,34]. We have shown that the presence of -SO3H groups increases the yield of cycloalkanes in HDO of guaiacol and its derivatives [35]. The purpose of the present study was to investigate the effect of the content and the mutual arrangement of metal and acid sites on the process of hydrodeoxygenation of guaiacol, veratrole, and catechol. To achieve this goal, two approaches to the synthesis of nanoparticles in the porous structure of PAFs with different content of acid sites were used: by wetness impregnation with (A) only RuCl3 solution and (B) with RuCl3 solution in the presence of 1,5-cyclooctadiene, which is able to complex with the metal and facilitate its incorporation into the pores of the support.

2. Materials and Methods

2.1. The Materials

The following reagents were used in this work: ethanol (high-purity grade Component-Reactiv); isopropyl alcohol (high-purity grade, Component-Reactiv); 1,5-cyclooctadiene (≥99%, Sigma-Aldrich, St. Louis, MO, USA), tetrahydrofuran (high-purity grade, Component-Reactiv); diethyl ether (high-purity grade, Component-Reactiv); dichloromethane (high-purity grade, Component-Reactiv); acetic acid (high-purity grade Ruskhim, Staraya Kupavna, Moscow region, Russia); chlorosulfonic acid (99%, Sigma-Aldrich, Darmstadt, Germany); sodium hydroxide (Reakhim, 99%); sodium borohydride (98%, Sigma-Aldrich, Germany); 2-methoxyphenol (99%, Sigma-Aldrich, Wuxi, China); 1,2-dimethoxybenzene (99%, Sigma-Aldrich, China); and 1,2-dihydroxybenzene (99%, Sigma-Aldrich, China). Component-Reactiv reagents were purchased from Moscow, Russia.

2.2. Synthesis

Porous aromatic framework PAF-30 was prepared by Suzuki cross-coupling reaction between tetrakis-(p-bromophenyl)methane and 4,4′-biphenyldiboronic acid according to the published procedure [36].
PAF-30-SO3H/X (X = 2.5, 5, 7.5). Sulfonation of PAF-30 was carried out in a 50 mL one-neck flask equipped with a magnetic stir bar. The suspension of PAF-30 (500 mg) in dichloromethane (25 mL) was cooled down to 0 °C, and chlorosulfonic acid (100, 167, or 250 μL for PAF-30-SO3H/2.5, PAF-30-SO3H/5, and PAF-30-SO3H/7.5, respectively) was added dropwise afterwards. The resulting mixture was stirred at room temperature for 24 h. After completion of the reaction, the suspension was poured into ice, then the solid product was filtered, washed with water, THF, and diethyl ether, and dried in a vacuum. Samples were named according to the theoretical sulfur content in synthesized porous polymers: 2.5 wt.% in PAF-30-SO3H/2.5, 5 wt.% in PAF-30-SO3H/5, and 7.5 wt.% in PAF-30-SO3H/7.5.
Ru-PAF-30-SO3H/X (X = 2.5, 5, 7.5) catalysts. RuCl3 (10.8 mg, 0.052 mmol) and 10 mL of ethanol were placed in a 25 mL one-neck flask equipped with a magnetic stir bar. After dissolution of all RuCl3, 100 mg of PAF-30-SO3H/X was added to the mixture and the resulting suspension was left to stir for 24 h. It was then cooled to 0 °C, and 15 mL of a cooled NaBH4 solution (400 mg, 21 mmol) in a water/methanol system (1:1) was added to the suspension dropwise under vigorous stirring; the reaction was then conducted for another 24 h. The resulting gray precipitate was filtered, washed with ethanol (50 mL), acetic acid (50 mL), water (2 × 50 mL), and ethanol (50 mL), and dried in a vacuum for 4 h. Acetic acid was used to remove the residual Na+ cations.
Ru-PAF-30-SO3H/X-COD (X = 2.5, 5, 7.5) catalysts. The procedure was the same as the one described above, except for the addition of 1,5-cyclooctadiene (0.125 mL) at the stage of the preparation of RuCl3 solution.

2.3. Characterization

Nitrogen adsorption isotherms were recorded on a Micromeritics Gemini VII 2390 instrument (Micromeritics, Norcross, GA, USA). All samples were degassed at 120 °C for 8 h before analysis. The surface area (SBET) was calculated using the Brunauer–Emmett–Teller (BET) method based on adsorption data in the relative pressure range P/P0 = 0.05-0.25. The total pore volume (Vtot) was determined by the amount of nitrogen adsorbed at a relative pressure of P/P0 = 0.965.
IR spectra were recorded with a Nicolet IR200 (Thermo Scientific, Waltham, MA, USA) instrument using multiple distortion of the total internal reflection method with multi-reflection HATR accessories, containing a 45° ZnSe crystal for different wavelengths with a resolution of 4 cm−1 in the range of 4000–500 cm−1. Spectra of the catalysts after the reaction were obtained by pressing the material into a tablet with KBr. All spectra were taken by an average of 100 scans.
Chemical composition (compositional weight percentage of carbon, hydrogen, and sulfur) was determined with CHNS elemental analyzer Thermo Flash 2000 in Center for Collective Usage ‘Analytical Center for the Problems of Deep Refining of Oil and Petrochemistry’ at the A.V. Topchiev Institute of Petrochemical Synthesis, RAS.
The ruthenium concentrations in the catalysts were measured by inductively coupled plasma atomic emission spectrometry (ICP-AES) on a SHIMADZU ICPE-9000 spectrometer.
Transmission electron microscopy (TEM) images were obtained using a JEOL JEM-2100/Cs/GIF microscope (JEOL, Tokyo, Japan) with a 0.19 nm lattice fringe resolution and an accelerating voltage of 200 kV. The processing of the micrographs and the calculation of the average particle size were conducted using the ImageJ 1.54g software program. The analysis was performed in the center “Materials Science and Metallurgy” of NUST MISiS.
XPS studies were performed on a PHI VersaProbe II 5000 instrument using excitation with Al Kα X-ray radiation at 1486.6 eV. The calibration of photoelectron peaks was based on the C1s line with a binding energy of 284.5 eV. The transmission energy of the energy analyzer was 160 eV (survey scans) and 23.5 eV (individual lines). Deconvolution of palladium high-resolution spectra was performed using CasaXPS v. 2.3.19PR1.0 software. The analysis was performed in the center “Materials Science and Metallurgy” of NUST MISiS.
The acidity measurement was carried out by acid-base titration. The acid catalyst was dispersed in a standard solution of NaCl (0.01 mol/L), and then in a standard solution of NaOH (0.01 mol/L) as titrant. Acid-base potentiometric titration was carried out using a PH-009(II) pH meter with the following characteristics: pH measurement ranges from 0.00 to 14.00; resolution 0.01 pH; accuracy ±0.01 pH.
Acidity was calculated by the following Equation (1):
A c i d i t y   m m o l g = C N a O H × V N a O H m P A F

2.4. Reaction Procedure and Product Analysis

Hydrodeoxygenation of lignin-based compounds was carried out in a stainless-steel batch reactor equipped with magnetic stirrer. To begin, 5 mg of the catalyst and 0.38 mol of a substrate in 500 µL of water were loaded in the reactor. Reactions were carried out for 2 h at a hydrogen pressure of 30 bar and a temperature of 250 °C. After completion of the reaction, the autoclave was cooled to room temperature and depressurized. Reaction products were analysed by gas chromatography. All experiments were performed at least twice; the experimental error did not exceed 5%.
The analysis of reaction products was carried out by gas chromatography-mass spectroscopy on a Leco Pegasus® GC-HRT 4D instrument with parallel detection of components on a time-of-flight mass spectrometer and a flame ionization detector. The analysis was carried out using equipment purchased at the support of the Moscow University Development Program. The structure of the components was determined by analyzing the mass spectra using the NIST v.2.3 library dated 4 May 2017.
The conversion was calculated using the following Formula (2):
η = C s u b s t r a t e i n i n t i a l − C s u b s t r a t e r e s i d u a l C s u b s t r a t e i n i n t i a l × 100 %
The yield of reaction product was calculated by the next Formula (3):
w   i = c   i ∑ c × 100 %

3. Results and Discussion

3.1. Characterization of the Materials

The initial polymer PAF-30 was synthesized from tetrakis-(p-bromophenyl)methane and 4,4-diphenyldiboric acid via Suzuki cross-coupling. PAF-30 was then modified with -SO3H groups by treating it with a solution of chlorosulfonic acid (100, 167 or 250 µL) in dichloromethane, resulting in PAF-30-SO3H/2.5, PAF-30-SO3H/5, and PAF-30-SO3H/7.5 materials containing 2.5, 5, and 7.5 wt. % of sulfur, respectively, according to theoretical calculations (Figure 1).
According to the data of low-temperature N2 adsorption-desorption (Figure 2), the adsorption isotherm of PAF-30 exhibits a steep increase at low p/p0 values. The hysteresis between adsorption and desorption branches indicates that PAFs consist not only of micro- but also of mesopores. For isotherms of sulfonated materials, the decrease in quantity of adsorbed nitrogen with an increase in sulfur content should be noted, which may indicate the blockage of porous structure with sulfo groups resulting in limited nitrogen diffusion. Introduction of functional groups also led to the reduction of total pore volume (Table 1). The acidity of sulfonated polymers, determined by acid-base titration, increased from 0 for PAF-30 to 2.34 mmol/g for PAF-30-SO3H/7.5, which also confirms the introduction of various amounts acidic -SO3H groups into the structure of frameworks.
Incorporation of the sulfo groups in the material was additionally confirmed by the appearance of novel absorption bands in the FTIR spectrum (Figure 3). New signals that appeared at 1193 and 1095 cm−1 can be attributed to the O=S=O symmetric and asymmetric stretching modes, respectively. Meanwhile, the bands at 631 and 1030 cm−1 correspond to the C-S and S-O stretching vibrations, respectively [37].
The presence of sulfo groups in the materials was confirmed using XPS. According to the analysis of survey spectra (Figure S1), the materials contain 1.0–3.9 at. % of sulfur (Table S1), and high-resolution XPS spectra of S2p region (Figure S2) contain peaks with binding energies of 169.6 eV and 168.4 eV, which correspond to 2p1/2 and 2p3/2 states of -SO3H groups, respectively [38,39].
Ruthenium catalysts were synthesized by incipient wetness impregnation method using RuCl3 solution—Ru-PAF-30-SO3H/2.5, Ru-PAF-30-SO3H/5, and Ru-PAF-30-SO3H/7.5 (Series A)—and with RuCl3 in the presence of 1,5-cyclooctadiene—Ru-PAF-30-SO3H/2.5-COD, Ru-PAF-30-SO3H/5-COD, and Ru-PAF-30-SO3H/7.5-COD (Series B). It is known that RuCl3 in an aqueous solution is presented in the form of sufficiently bulky oxygen-bridged complexes [40]. Due to their size, their diffusion into the pore space of the support may be impeded and, therefore, it may be difficult for them to reach acidic sulfo groups. The presence of relatively labile ligands like COD (1,5-cyclooctadiene) or COT (1,3,5-cyclooctatriene) may prevent the formation of such particles [41,42]. Thus, we assume that COD allows ruthenium to better penetrate the pores of the aromatic polymer due to the formation of a Ru–COD complex, which allows us to obtain small nanoparticles by the acid sites after the reduction.
TEM data for all three catalysts of Series A demonstrate ruthenium nanoparticles with average sizes of 2.6 nm, 3.7 nm, and 2.8 nm for Ru-PAF-30-SO3H/2.5, Ru-PAF-30-SO3H/5, and Ru-PAF-30-SO3H/7.5, respectively, unevenly distributed over the surface of PAFs (Figure 4). A large number of agglomerates of these nanoparticles was also detected for all three samples. The content of ruthenium in the catalysts was 1.47, 4.67, and 0.5 wt.% for Ru-PAF-30-SO3H/2.5, Ru-PAF-30-SO3H/5, and Ru-PAF-30-SO3H/7.5, respectively. Apparently, this method does not allow metal to be deposited into pores effectively, as most of the ruthenium was located on the polymer surface.
According to TEM data, for catalysts of Series B synthesized in the presence of 1,5-cyclooctadiene, particle size distribution depended heavily on a content of sulfo groups in the support (Figure 5). For Ru-PAF-30-SO3H/2.5-COD, small nanoparticles with an average size of 2.2 nm were mainly localized in the pore structure; agglomerates of nanoparticles were not detected. TEM microphotographs for Ru-PAF-30-SO3H/5-COD, with a higher concentration of -SO3H groups, demonstrated fewer nanoparticles with a slightly larger average size of 2.5 nm, also mainly localized in the pore structure. However, the formation of agglomerates on the surface of the support was also noted. For Ru-PAF-30-SO3H/7.5-COD catalyst with an even greater amount of sulfo groups, a further decrease in the number of nanoparticles as well as an increase in the proportion of agglomerates was observed due to the hindrance of metal diffusion into pores. The surface area of all catalysts declined after metal deposition, but in the case of catalysts synthesized using of 1,5-cyclooctadiene, the area decreased more significantly, even despite the lower metal content in the catalysts (Figure S3, Table 2). In addition, a significant decrease in the surface area of the Ru-PAF-30-SO3H/7.5 catalyst may indicate immobilization of ruthenium in the pores of the support or blocking of the pores by metal agglomerates.
The catalyst’s synthesis using 1,5-cyclooctadiene generally results in the formation of smaller particles. The average size of nanoparticles for samples synthesized without cyclooctadiene (series A) was 2.7–3.8 nm as opposed to 2.2–2.8 nm for samples synthesized in the presence of cyclooctadiene (series B). It should be noted, however, that metal content in samples of series B did not exceed 0.8 wt.%.
Thus, COD makes it possible to immobilize ruthenium closer to sulfo groups, whereas, in its absence, ruthenium is predominantly concentrated on the surface of PAF particles and further from acid sites. This can be clearly observed in the EDX microphotographs (Figure 6): in the case of the Ru-PAF-30-SO3H/5 catalyst, ruthenium and sulfur are spatially separated. At the same time, in the case of the Ru-PAF-30-SO3H/5-COD catalyst, ruthenium and sulfur are located closer to each other and their distribution in the material is more uniform.
Survey XPS spectra (Figure S4) confirm the presence of C, O, S, and Ru and the absence of Na in analyzed catalysts (Table S1). The analysis of the S2p spectra of catalysts shows no significant changes compared to the spectra of initial PAFs (Figure S5). At present, it is not possible to make a conclusion about the interaction of a -SO3H groups with supported ruthenium. However, there are some interesting differences between the two types of catalysts (synthesized with and without COD).
The resolved spectra of ruthenium (Figure 7) demonstrate three Ru-3d doublets (3d5/2, 3d3/2, Δ = 4.17 eV) with the binding energies of Ru 3d5/2 of ~280.1–281.2, ~281.2–281.4, and ~282.3–282.4 eV assigned to the metallic Ru0, RuO2, and RuO2 × H2O states, respectively (Table S2) [43]. Ru-PAF-30-SO3H/2.5 and Ru-PAF-30-SO3H/5 catalysts contain ruthenium in all of the chemical states listed above, and Ru-PAF-30-SO3H/7.5 contains approximately 87% of RuO2 and 13% of RuO2×H2O. The presence of the Ru0 phase in the Ru-PAF-30-SO3H/2.5 and Ru-PAF-30-SO3H/5 catalysts can be explained by the higher metal content and larger nanoparticle size in them, while in the Ru-PAF-30-SO3H/7.5 catalyst, all ruthenium is oxide state due to its lower content, the smaller size of nanoparticles, and their location predominantly on the surface of the support. At the same time, the catalysts synthesized using COD do not contain Ru0 at all, and the ratio RuO2 × H2O/RuO2 is higher. We believe that, in fact, the fraction of RuO2 × H2O state is lower and the binding energies for both RuO2 × H2O and RuO2 states are higher due to the proximity of ruthenium nanoparticles to -SO3H groups and interaction with them. However, due to the lack of exact electron binding energies, it is difficult to accurately deconvolve the spectra. Nevertheless, the difference between the XPS spectra of the two types of catalysts is clearly visible.

3.2. Catalytic Tests

Transformations of three model lignin-based bio-oil compounds—guaiacol, catechol, and veratrole—were studied using the obtained catalysts. J. Shangguan et al. [44] suppose that hydrodeoxygenation of guaiacol involves the formation of quasi-equilibrium intermediates as a result of the addition of several H-atoms, which then may undergo various transformations. These routes may occur either concomitantly or in sequence via multiple pathways. Hydrogen addition to the benzene ring results in the formation of 2-methoxycyclohexanol, hydrogenolysis of Car–OH bond produces anisole, while hydrogenolysis of Car–OCalk bond—phenol, and the one of CarO–Calk bond—catechol. Moreover, the primary products may also undergo further hydrodeoxygenation, producing cycloalkanes and cycloalkanols. This reaction scheme is very complex and poses significant challenges in studying the reaction pathways, so substrate transformations have been considered using simplified schemes to assess the impact of quantity and location of acid groups.

3.2.1. Investigation of the Influence of the Number of Acid Sites

For catalytic systems synthesized in this work, two main HDO pathways can be observed for guaiacol (Figure 8): (1) hydrogenation of the aromatic ring and (2) Car–OCalk cleavage followed by hydrogenation of resulting phenolic adduct [45]. For Ru-PAF-30-SO3H/2.5, the reaction proceeds predominantly along path (1) with the formation of 2-methoxycyclohexanol (56%), and the deoxygenation process (2) proceeds only until the formation of cyclohexanol (26%). The product of complete HDO, cyclohexane, is observed only in trace amounts (<2%). Most likely, the amount of acid sites in the catalyst is not enough to provide Calk–O cleavage from the saturated ring, so path (1) turns out to be preferable. Since, after saturation of the aromatic ring, further transformations become unlikely, the formation of the hydrodeoxygenation product, cyclohexanol, apparently follows path (2), and 2-methoxycyclohexanol does not undergo further transformations. Also, according to the literature data, the breaking of Car–O bond on Ru metal centers is easier than the Calk–O one [46,47].
Since Ru-PAF-30-SO3H/5 catalyst contains more sulfo groups that promote the cleavage of the Car–O bond, the amount of phenolic adduct in the reaction products increases [48], and due to the ease of its hydrogenation, the yield of cyclohexanol also increases [47]. In addition, the amount of sulfo groups in the catalyst becomes sufficient to carry out deoxygenation reactions, so the resulting cyclohexanol is further converted to cyclohexane via deoxygenation and hydrogenation [49]. With a further increase in the concentration of acid sites in the catalysts, cyclohexane becomes the main reaction product, but the conversion decreases. Thus, guaiacol HDO over Ru-PAF-30-SO3H/7.5 gives cyclohexane with 63% selectivity, but overall conversion was only 30% (Table 3). Apparently, due to the low metal loading and high -SO3H/Ru ratio in Ru-PAF-30-SO3H/7.5 catalyst, the rate of the hydrogenation reaction decreases, while rates of acid-promoted reactions become high, all hydrogenated products undergo further deoxygenation.
The conversion pathways for veratrol were similar to those observed for guaiacol: (1) hydrogenation of substrate to dimethoxycyclohexane, and (2) conversion to guaiacol followed by hydrogenation as described above, or demethoxylation to anisole. For catalyst Ru-PAF-30-SO3H/2.5, hydrogenation route (1) also turns out to be the most preferable, as in the case of guaiacol, and the main products were dimethoxycyclohexane (66%) and 2-methoxycyclohexanol (22%). As the number of acid sites in the catalyst increased, acid-promoted reactions (deoxygenation, isomerization) become preferable. Thus, the yields of dimethoxycyclohexane and 2-methoxycyclohexanol in veratrole HDO over Ru-PAF-30-SO3H/5 were 46% and 7%, respectively, while the yields of cyclohexanol and cyclohexane increased to 18%. With a further increase in the number of acid groups in the catalyst Ru-PAF-30-SO3H/7.5, the elimination of methoxy group from the saturated ring became even more prevalent, which resulted in the significant growth of the cyclohexane yield (57%).
In the case of catechol, either (1) hydrogenation of the substrate to 1,2-dihydroxycyclohexane occurs or (2) its deoxygenation to phenolic adduct, followed by further hydrogenation to cyclohexanol (Figure 8). For the catalyst Ru-PAF-30-SO3H/2.5, as in the case of two previous substrates, route (1) is preferred, giving 1,2-dihydroxycyclohexane with 47% yield. However, the yield of the deoxygenation product (cyclohexanol) is significantly higher (24%) compared to the other substrates. The reason of this phenomenon is most likely the strong donor effect of the -OH group, since it provides a much lower barrier for C–O hydrogenolysis [50]. HDO of catechol over Ru-PAF-30-SO3H/5 gives cyclohexanol as a main product (73%), while the yield of dihydroxycyclohexanol decreases to 13% Also, an increase in the number of acid sites in the catalyst contributes the cleavage of Calk-O bond with the formation of cyclohexane (12%). However, conversion of catechol drastically decreases when Ru-PAF-30-SO3H/7.5 was used as the catalyst. Unlike veratrole, the catechol molecule contains two -OH groups, which participate in the adsorption of the molecule on the surface of nanoparticles. Probably, due to this feature, adsorption of the catechol molecule requires more space on the surface of nanoparticles, and there may not be centers with the suitable size and geometry [44].

3.2.2. Investigation of the Influence of the Mutual Arrangement of Metal and Acid Centers

Catalysts synthesized using 1,5-COD have also been studied in the HDO of guaiacol, catechol and veratrole (Table 4, Figure 9). There are no significant differences in the composition of guaiacol HDO products with Ru-PAF-30-SO3H/2.5 and Ru-PAF-30-SO3H/2.5-COD catalysts, synthesized without and with 1,5-COD, respectively. The structure of the products remained the same (2-methoxycyclohexanol, cyclohexanol, cyclohexane), however, their ratio differed. Thus, the yield of 2-methoxycyclohexanol decreased (33% vs. 56% for the Ru-PAF-30-SO3H/2.5 catalyst), while the yield of cyclohexanol was higher (40% vs. 26% for the Ru-PAF-30-SO3H/2.5 catalyst). Differences in the product distribution may be due to the smaller average size of metal nanoparticles in the Ru-PAF-30-SO3H/2.5-COD catalyst (2.2 nm vs. 2.9 nm for the Ru-PAF-30-SO3H/2.5 catalyst), which leads to higher activity of the catalyst in HDO [51]. In the case of veratrole, the structure of the reaction products also remained the same, and their concentrations also differed. Thus, the yield of cyclohexane increased to 13% (vs. 3% for the Ru-PAF-30-SO3H/2.5 catalyst), while the yields of 1,2-dimethoxycyclohexane and 2-methoxycyclohexanol were lower (26% and 10% respectively). However, in the case of catechol, significant changes in the activity of the Ru-PAF-30-SO3H/2.5-COD catalyst and in the composition of the reaction products were observed. While the conversion of catechol on Ru-PAF-30-SO3H/2.5 was 99%, and the main products were 1,2-dihydroxycyclohexane (47%) and cyclohexanol (24%), reaction on Ru-PAF-30-SO3H/2.5-COD gives cyclohexanol with only 20% yield and 2-isopropoxyphenol (7%) as a side reaction product.
The Ru-PAF-30-SO3H/7.5-COD catalyst did not show activity in the hydrogenation of substrates, despite approximately the same ruthenium content as the Ru-PAF-30-SO3H/7.5 catalyst. Considering the significantly smaller surface area of this catalyst compared to both the original support and the Ru-PAF-30-SO3H/7.5 catalyst (Table 2), it is possible that the obtained results can be associated with difficulties in the diffusion of substrate molecules to ruthenium inside the catalyst pores due to the high concentration of sulfo groups.
Quite interesting results were obtained for the Ru-PAF-30-SO3H/5-COD catalyst. Despite the low metal content, the conversion of all three substrates on this catalyst was high (more than 70%). However, for all the substrates studied, the formation of carbonyl compounds (cyclohexanone and cyclopentanecarbaldehyde) in significant quantities was observed. We assume that this phenomenon may be associated with a fairly close arrangement of metal nanoparticles and Brønsted acid sites: sulfo groups interact with carbonyl compounds resulting from partial hydrogenation of substrates, deactivating the carbonyl group and preventing its further hydrogenation [52]. Most likely, under such conditions, desorption of the ketone becomes more preferable than its further hydrogenation. Selectivity to the carbonyl compounds, as well as conversion of substrates, decreases in the series catechol-guaiacol-veratrole.

3.2.3. Catalysts Recycling

The recyclability of the catalysts was also tested using Ru-PAF-30-SO3H/5 and Ru-PAF-30-SO3H/5-COD catalysts as an example (Table 5). In both cases, a decrease in the activity of the catalysts is observed. Possible reasons for the decrease in catalyst activity include leaching of ruthenium, the blockage of catalyst pores of with heavy molecules, and hydrolysis of sulfo-groups [53]. In case of the Ru-PAF-30-SO3H/5 catalyst, the yield of cyclohexane significantly decreases from 55 to 11%, whereas the yield of cyclohexanol increases slightly. Also, the presence of a small amount of heavy products was noticed after the third run. The Ru-PAF-30-SO3H/5-COD also loses its activity—however, the yield of all products, including alkylation products, decreases. To establish the reasons for the decrease in activity, the catalysts were studied after the 3rd cycle of tests using XPS, TEM and FTIR.
According to the TEM (Figure 10), both catalysts contain Ru nanoparticles after 3rd catalytic cycle. However, their number, especially in the case of Ru PAF 30-SO3H/5 catalyst, has become significantly smaller. According to ICP-AES, the metal content in the catalysts decreased and became 1.31 and 0.41 wt. % for Ru PAF 30-SO3H/5 and Ru-PAF-30-SO3H/5-COD, respectively. XPS spectra of C1s and Ru3d lines (Figure 11) show that ruthenium in both catalysts is completely reduced and is present in the Ru(0) phase. In addition, the presence of new components, presumably C-O and O-C=O, is observed in the spectra of both catalysts. Also, the intensity of these components is higher in the case of the Ru-PAF-30-SO3H/5-COD catalyst. The position of the S2p lines remains the same (Figure S6), and new signals do not appear.
Finally, the recycled catalysts were investigated using FTIR (Figure 12). In the case of both catalysts, the absorption bands characteristic of the original support was preserved. However, a significant change in the appearance of the FTIR spectra can also be observed. Most likely, this is due to the formation of condensation products of guaiacol and its hydrogenation products inside the pores of the catalyst, which also correlates with the results of XPS spectroscopy. However, it is interesting to evaluate the difference in the spectra of the catalysts. In the case of the Ru-PAF-30-SO3H/5-COD catalyst, the pores apparently contain products of cyclohexanone condensation, as indicated by the presence of characteristic absorption bands (the most indicative—1704 cm−1, 2800–2990 cm−1). In the case of Ru-PAF-30-SO3H/5 catalyst, these absorption bands are also present, but their intensity is much lower. At the same time, the FTIR spectrum contains new adsorption bands with maxima at 1393, 3028–3080, 1250, and 1903 cm−1, which may relate to derivatives of aromatic compounds. Unfortunately, even roughly establishing their composition seems quite problematic.
The catalytic performance of the synthesized catalysts was compared with other ruthenium catalysts based on both inorganic and carbon-based supports (Table S3). The synthesized catalysts exhibit in some cases similar activity, and in some cases, they are superior to the catalysts described in the literature. For instance, Ru-PAF-30-SO3H-5/COD was more effective and selective in cyclohexanone formation than Ru/HY catalyst, and Ru-PAF-30-SO3H/2.5-COD catalyst possessed the comparable activity with Ru-CARF catalyst even in more mild conditions.

4. Conclusions

In summary, porous aromatic frameworks modified with different concentration of sulfo groups were used to synthesize two series of Ru catalysts: series A—without the addition of 1,5-cyclooctadiene (COD), and series B—with the addition of 1,5-cyclooctadiene. The materials were characterized by FTIR, TEM, XPS, low temperature N2 adsorption and elemental analysis. It has been shown that the use of COD in the synthesis of catalysts (series B) makes it possible to obtain smaller metal nanoparticles located closer to acid sites, whereas series A catalysts contain Ru nanoparticles on the surface of the support. The catalysts of were active in HDO of guaiacol, veratrole and catechol, and the composition of reaction products depended on the method of synthesis of the catalyst and the selected support. Thus, increase in the number of acid groups in the catalysts enhances their activity in deoxygenation processes, but can be dramatically decrease their hydrogenation activity due to the blocking of metal sites by -SO3H groups. Also, in the case of the Ru-PAF-30-SO3H/5-COD catalyst, synthesized using COD, the main reaction products for all substrates were carbonyl compounds, which can be explained by the close location of metal nanoparticles and Brønsted acid sites in the catalyst. The catalysts can be used for at least three cycles, but they gradually lose activity as a result of leaching of ruthenium and the formation of high molecular weight products in the pores.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/polym15234618/s1, Figure S1: The XPS survey spectra for PAF-30-SO3H/X (X = 2.5, 5, 7.5); Figure S2: High-resolution XPS spectra of S2p region for PAF-30-SO3H/X (X = 2.5, 5, 7.5); Figure S3: N2 adsorption isotherms for synthesized catalysts; Figure S4: The XPS survey spectra for ruthenium catalysts; Figure S5: High-resolution XPS spectra of S2p region; Figure S6: High-resolution XPS spectra of S2p region for Ru-PAF-30-SO3H/5 (A) and Ru-PAF-30-SO3H/5 (B) catalysts after the 3rd catalytic run; Table S1: Components of the XPS spectra; Table S2: Peak parameters for XPS spectra of obtained ruthenium catalysts; Table S3: Guaiacol HDO over different catalysts. Refs. [54,55,56,57,58,59,60] are cited in the Supplementary Material.

Author Contributions

Investigation, M.A.B. and D.A.M.; conceptualization, E.A.K.; methodology, A.L.M.; formal analysis, L.A.K.; writing—original draft preparation, M.A.B.; writing—review and editing, L.A.K. and A.L.M.; visualization, D.A.M.; supervision, E.A.K. and A.L.M.; project administration, L.A.K.; funding acquisition, E.A.K. All authors have read and agreed to the published version of the manuscript.

Funding

The study was performed with financial support from the Russian Science Foundation (grant No. 20-19-00380).

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. He, M.; Sun, Y.; Han, B. Green Carbon Science: Efficient Carbon Resource Processing, Utilization, and Recycling towards Carbon Neutrality. Angew. Chem. 2022, 134, e202112835. [Google Scholar] [CrossRef]
  2. Yang, C.; Chen, H.; Peng, T.; Liang, B.; Zhang, Y.; Zhao, W. Lignin valorization toward value-added chemicals and fuels via electrocatalysis: A perspective. Chin. J. Catal. 2021, 42, 1831–1842. [Google Scholar] [CrossRef]
  3. Harth, F.M.; Likozar, B.; Grilc, M. Stability of solid rhenium catalysts for liquid-phase biomass valorization–various facets of catalyst deactivation and rhenium leaching. Mater. Today Chem. 2022, 26, 101191. [Google Scholar] [CrossRef]
  4. Phan, D.P.; Tran, M.H.; Lee, E.Y. Metal-organic framework-based materials as heterogeneous catalysts for biomass upgrading into renewable plastic precursors. Mater. Today Chem. 2023, 33, 101691. [Google Scholar] [CrossRef]
  5. Hu, Y.; Li, M.; Gao, Z.; Wang, L.; Zhang, J. Leaf-derived sulfonated carbon dots: Efficient and recoverable catalysts to synthesize 5-hydroxymethylfurfural from fructose. Mater. Today Chem. 2021, 20, 100423. [Google Scholar] [CrossRef]
  6. Pinto, P.C.R.; Da Silva, E.A.B.; Rodrigues, A.E. Insights into Oxidative Conversion of Lignin to High-Added-Value Phenolic Aldehydes. Ind. Eng. Chem. Res. 2010, 50, 741–748. [Google Scholar] [CrossRef]
  7. Dawange, M.; Galkin, M.V.; Samec, J.S.M. Selective Aerobic Benzylic Alcohol Oxidation of Lignin Model Compounds: Route to Aryl Ketones. ChemCatChem 2015, 7, 401–404. [Google Scholar] [CrossRef]
  8. Bai, Z.; Phuan, W.C.; Ding, J.; Heng, T.H.; Luo, J.; Zhu, Y. Production of Terephthalic Acid from Lignin-Based Phenolic Acids by a Cascade Fixed-Bed Process. ACS Catal. 2016, 6, 6141–6145. [Google Scholar] [CrossRef]
  9. Guo, X.; Wang, W.; Wu, K.; Huang, Y.; Shi, Q.; Yang, Y. Preparation of Fe promoted MoS2 catalysts for the hydrodeoxygenation of p-cresol as a model compound of lignin-derived bio-oil. Biomass Bioenergy 2019, 125, 34–40. [Google Scholar] [CrossRef]
  10. Zhang, X.; Wang, T.; Ma, L.; Zhang, Q.; Huang, X.; Yu, Y. Production of cyclohexane from lignin degradation compounds over Ni/ZrO2–SiO2 catalysts. Appl. Energy 2013, 112, 533–538. [Google Scholar] [CrossRef]
  11. Ma, D.; Lu, S.; Liu, X.; Guo, Y.; Wang, Y. Depolymerization and hydrodeoxygenation of lignin to aromatic hydrocarbons with a Ru catalyst on a variety of Nb-based supports. Chin. J. Catal. 2019, 40, 609–617. [Google Scholar] [CrossRef]
  12. Yoosuk, B.; Tumnantong, D.; Prasassarakich, P. Amorphous unsupported Ni–Mo sulfide prepared by one step hydrothermal method for phenol hydrodeoxygenation. Fuel 2012, 91, 246–252. [Google Scholar] [CrossRef]
  13. Wang, D.; Gong, W.; Zhang, J.; Han, M.; Chen, C.; Zhang, Y.; Wang, G.; Zhang, H.; Zhao, H. Encapsulated Ni-Co alloy nanoparticles as efficient catalyst for hydrodeoxygenation of biomass derivatives in water. Chin. J. Catal. 2021, 42, 2027–2037. [Google Scholar] [CrossRef]
  14. Lee, H.W.; Jun, B.R.; Kim, H.; Kim, D.H.; Jeon, J.K.; Park, S.H.; Ko, C.H.; Kim, T.W.; Park, Y.K. Catalytic hydrodeoxygenation of 2-methoxy phenol and dibenzofuran over Pt/mesoporous zeolites. Energy 2015, 81, 33–40. [Google Scholar] [CrossRef]
  15. Mortensen, P.M.; Grunwaldt, J.D.; Jensen, P.A.; Knudsen, K.G.; Jensen, A.D. A review of catalytic upgrading of bio-oil to engine fuels. Appl. Catal. A Gen. 2011, 407, 1–19. [Google Scholar] [CrossRef]
  16. Yohe, S.L.; Choudhari, H.J.; Mehta, D.D.; Dietrich, P.J.; Detwiler, M.D.; Akatay, C.M.; Stach, E.A.; Miller, J.T.; Delgass, W.N.; Agrawal, R.; et al. High-pressure vapor-phase hydrodeoxygenation of lignin-derived oxygenates to hydrocarbons by a PtMo bimetallic catalyst: Product selectivity, reaction pathway, and structural characterization. J. Catal. 2016, 344, 535–552. [Google Scholar] [CrossRef]
  17. Dong, P.; Lu, G.P.; Cai, C. Effective hydrodeoxygenation of dibenzofuran by a bimetallic catalyst in water. New J. Chem. 2016, 40, 1605–1609. [Google Scholar] [CrossRef]
  18. He, Z.; Wang, X. Hydrodeoxygenation of model compounds and catalytic systems for pyrolysis bio-oils upgrading. Catal. Sustain. Energy 2012, 1, 28–52. [Google Scholar] [CrossRef]
  19. Luo, B.; Li, R.; Shu, R.; Wang, C.; Zhang, J.; Chen, Y. Boric acid as a novel homogeneous catalyst coupled with Ru/C for hydrodeoxygenation of phenolic compounds and raw lignin oil. Ind. Eng. Chem. Res. 2020, 59, 17192–17199. [Google Scholar] [CrossRef]
  20. Yang, Z.; Luo, B.; Shu, R.; Zhong, Z.; Tian, Z.; Wang, C.; Chen, Y. Synergistic effect of active metal–acid sites on hydrodeoxygenation of lignin-derived phenolic compounds under mild conditions using Ru/C-HPW catalyst. Fuel 2022, 319, 123617. [Google Scholar] [CrossRef]
  21. Bazhenova, M.A.; Kulikov, L.A.; Bolnykh, Y.S.; Maksimov, A.L.; Karakhanov, E.A. Palladium catalysts based on porous aromatic frameworks for vanillin hydrogenation: Tuning the activity and selectivity by introducing functional groups. Catal. Commun. 2022, 170, 106486. [Google Scholar] [CrossRef]
  22. Yan, P.; Mensah, J.; Drewery, M.; Kennedy, E.; Maschmeyer, T.; Stockenhuber, M. Role of metal support during ru-catalysed hydrodeoxygenation of biocrude oil. Appl. Catal. B. 2021, 281, 119470. [Google Scholar] [CrossRef]
  23. Yati, I.; Ridwan, M.; Jeong, G.E.; Lee, Y.; Choi, J.W.; Yoon, C.W.; Suh, D.J.; Ha, J.M. Effects of sintering-resistance and large metal-support interface of alumina nanorod-stabilized Pt nanoparticle catalysts on the improved high temperature water gas shift reaction activity. Catal. Commun. 2014, 56, 11–16. [Google Scholar] [CrossRef]
  24. Dwiatmoko, A.A.; Kim, I.; Zhou, L.; Choi, J.W.; Suh, D.J.; Jae, J.; Ha, J.M. Hydrodeoxygenation of guaiacol on tungstated zirconia supported Ru catalysts. Appl. Catal. A Gen. 2017, 543, 10–16. [Google Scholar] [CrossRef]
  25. Song, W.; Liu, Y.; Baráth, E.; Zhao, C.; Lercher, J.A. Synergistic effects of Ni and acid sites for hydrogenation and C–O bond cleavage of substituted phenols. Green. Chem. 2015, 17, 1204. [Google Scholar] [CrossRef]
  26. Wang, X.; Lv, Y.; Zhu, S.; Wang, X.; Deng, C. Phosphoric acid modification of hβ zeolite for guaiacol hydrodeoxygenation. Catalysts 2021, 11, 962. [Google Scholar] [CrossRef]
  27. Duong, N.; Tan, Q.; Resasco, D.E. Controlling phenolic hydrodeoxygenation by tailoring metal–O bond strength via specific catalyst metal type and particle size selection. Comptes Rendus Chim. 2018, 21, 155–163. [Google Scholar] [CrossRef]
  28. Rochmadi, S.; Mulyono, P.; Aziz, M.; Budiman, A. Kinetic study of catalytic cracking of bio-oil over silica-alumina catalyst. Bioresources 2018, 13, 1917–1929. [Google Scholar] [CrossRef]
  29. Nie, L.; Resasco, D.E. Kinetics and mechanism of m-cresol hydrodeoxygenation on a Pt/SiO2 catalyst. J. Catal. 2014, 317, 22–29. [Google Scholar] [CrossRef]
  30. Tran, Q.K.; Han, S.; Ly, H.V.; Kim, S.S.; Kim, J. Hydrodeoxygenation of a bio-oil model compound derived from woody biomass using spray-pyrolysis-derived spherical γ-Al2O3-SiO2 catalysts. J. Ind. Eng. Chem. 2020, 92, 243–251. [Google Scholar] [CrossRef]
  31. Kulikov, L.; Kalinina, M.; Makeeva, D.; Maximov, A.; Kardasheva, Y.; Terenina, M.; Karakhanov, E. Palladium Catalysts Based on Porous Aromatic Frameworks, Modified with Ethanolamino-Groups, for Hydrogenation of Alkynes, Alkenes and Dienes. Catalysts 2020, 10, 1106. [Google Scholar] [CrossRef]
  32. Kulikov, L.A.; Bazhenova, M.A.; Bolnykh, Y.S.; Makeeva, D.A.; Terenina, M.V.; Kardasheva, Y.S.; Maximov, A.L.; Karakhanov, E.A. Alkylation of Guaiacol with Alcohols on Porous Aromatic Frameworks Modified with Sulfo Groups. Pet. Chem. 2022, 62, 1195–1203. [Google Scholar] [CrossRef]
  33. Ben, T.; Qiu, S. Porous aromatic frameworks: Synthesis, structure and functions. CrystEngComm 2012, 15, 17–26. [Google Scholar] [CrossRef]
  34. Maximov, A.; Zolotukhina, A.; Kulikov, L.; Kardasheva, Y.; Karakhanov, E. Ruthenium catalysts based on mesoporous aromatic frameworks for the hydrogenation of arenes, Reaction Kinetics. Mech. Catal. 2016, 117, 729–743. [Google Scholar] [CrossRef]
  35. Wang, F.; Mielby, J.; Richter, F.H.; Wang, G.; Prieto, G.; Kasama, T.; Weidenthaler, C.; Bongard, H.J.; Kegnæs, S.; Fürstner, A.; et al. A polyphenylene support for pd catalysts with exceptional catalytic activity. Angew. Chem. Int. Ed. 2014, 53, 8645–8648. [Google Scholar] [CrossRef] [PubMed]
  36. Yuan, Y.; Sun, F.; Ren, H.; Jing, X.; Wang, W.; Ma, H.; Zhao, H.; Zhu, G. Targeted synthesis of a porous aromatic framework with a high adsorption capacity for organic molecules. J. Mater. Chem. 2011, 21, 13498–13502. [Google Scholar] [CrossRef]
  37. Yang, J.; Huang, W.; Liu, Y.; Zhou, T. Enhancing the conversion of ethyl levulinate to γ-valerolactone over Ru/UiO-66 by introducing sulfonic groups into the framework. RSC Adv. 2018, 8, 16611–16618. [Google Scholar] [CrossRef]
  38. Pan, H.; Shen, S.; Li, T.; Wen, X.; Ma, X.; Zhou, Z.; Li, J.; Wang, C.; Jing, S. A simple strategy for the preparation of chlorine functionalized coal-based solid acid with rich carboxyl to improve the activity for hydrolysis of cellulose. Mol. Catal. 2020, 492, 111015. [Google Scholar] [CrossRef]
  39. Lin, X.; Cheng, S.; Wu, F.; Li, Y.; Zhuang, Q.; Dong, W.; Xie, A. Connecting of conjugate microporous polymer nanoparticles by polypyrrole via sulfonic acid doping to form conductive nanocomposites for excellent microwaves absorption. Compos. Sci. Technol. 2022, 221, 109350. [Google Scholar] [CrossRef]
  40. Lebedeva, A.; Albuquerque, B.L.; Domingos, J.B.; Lamonier, J.F.; Giraudon, J.M.; Lecante, P.; Denicourt-Nowicki, A.A. Roucoux, Ruthenium Trichloride Catalyst in Water: Ru Colloids versus Ru Dimer Characterization Investigations. Inorg. Chem. 2019, 58, 4141–4151. [Google Scholar] [CrossRef]
  41. Malenov, D.P.; Zarić, S.D. Stacking interactions of aromatic ligands in transition metal complexes. Coord. Chem. Rev. 2020, 419, 213338. [Google Scholar] [CrossRef]
  42. Pan, C.; Pelzer, K.; Philippot, K.; Chaudret, B.; Dassenoy, F.; Lecante, P.; Casanove, M.J. Ligand-stabilized ruthenium nanoparticles: Synthesis, organization, and dynamics. J. Am. Chem. Soc. 2001, 123, 7584–7593. [Google Scholar] [CrossRef] [PubMed]
  43. Morgan, D.J. Resolving ruthenium: XPS studies of common ruthenium materials. Surf. Interface Anal. 2015, 47, 1072–1079. [Google Scholar] [CrossRef]
  44. Shangguan, J.; Pfriem, N.; Chin, Y.H.C. Mechanistic details of CO bond activation in and H-addition to guaiacol at water-Ru cluster interfaces. J. Catal. 2019, 370, 186–199. [Google Scholar] [CrossRef]
  45. Luo, Z.; Zheng, Z.; Wang, Y.; Sun, G.; Jiang, H.; Zhao, C. Hydrothermally stable Ru/HZSM-5-catalyzed selective hydrogenolysis of lignin-derived substituted phenols to bio-arenes in water. Green. Chem. 2016, 18, 5845–5858. [Google Scholar] [CrossRef]
  46. Nakagawa, Y.; Ishikawa, M.; Tamura, M.; Tomishige, K. Selective production of cyclohexanol and methanol from guaiacol over Ru catalyst combined with MgO. Green. Chem. 2014, 16, 2197–2203. [Google Scholar] [CrossRef]
  47. Kulikov, L.A.; Makeeva, D.A.; Kalinina, M.A.; Cherednichenko, K.A.; Maximov, A.L.; Karakhanov, E.A. Pt and Ru catalysts based on porous aromatic frameworks for hydrogenation of lignin biofuel components. Pet. Chem. 2021, 61, 711–720. [Google Scholar] [CrossRef]
  48. Wang, Z.; Wang, A.; Yang, L.; Fan, G.; Li, F. Supported Ru nanocatalyst over phosphotungstate intercalated Zn-Al layered double hydroxide derived mixed metal oxides for efficient hydrodeoxygenation of guaiacol. Mol. Catal. 2022, 528, 112503. [Google Scholar] [CrossRef]
  49. Chen, S.; Wang, W.; Li, X.; Yan, P.; Han, W.; Sheng, T.; Deng, T.; Zhu, W.; Wang, H. Regulating the nanoscale intimacy of metal and acidic sites in Ru/γ-Al2O3 for the selective conversions of lignin-derived phenols to jet fuels. J. Energy Chem. 2022, 66, 576–586. [Google Scholar] [CrossRef]
  50. Shu, R.; Xu, Y.; Ma, L.; Zhang, Q.; Chen, P.; Wang, T. Synergistic effects of highly active Ni and acid site on the hydrodeoxygenation of syringol. Catal. Commun. 2017, 91, 1–5. [Google Scholar] [CrossRef]
  51. Dong, L.; Yin, L.L.; Xia, Q.; Liu, X.; Gong, X.Q.; Wang, Y. Size-dependent catalytic performance of ruthenium nanoparticles in the hydrogenolysis of a β-O-4 lignin model compound. Catal. Sci. Technol. 2018, 8, 735–745. [Google Scholar] [CrossRef]
  52. Wang, Z.; Ye, B.; Zhou, R.; Zhong, Z.; Chen, P.; Hou, Z. Selective hydrogenation of phenol to cyclohexanone over small amount of Ru-promoted Pd/ZrHP catalysts. Appl. Catal. A Gen. 2023, 657, 119144. [Google Scholar] [CrossRef]
  53. Kamal, S. Catalyst deactivation of cation-exchange resin in cross-aldol condensation of acetaldehyde to methyl pentenone. Flavour. Fragr. J. 2023, 38, 312–325. [Google Scholar] [CrossRef]
  54. Luska, K.L.; Migowski, P.; El Sayed, S.; Leitner, W. Synergistic Interaction within Bifunctional Ruthenium Nanoparticle/SILP Catalysts for the Selective Hydrodeoxygenation of Phenols. Angew. Chem. Int. Ed. 2015, 54, 15750–15755. [Google Scholar] [CrossRef] [PubMed]
  55. Dwiatmoko, A.A.; Zhou, L.; Kim, I.; Choi, J.W.; Suh, D.J.; Ha, J.M. Hydrodeoxygenation of Lignin-Derived Monomers and Lignocellulose Pyrolysis Oil on the Carbon-Supported Ru Catalysts. Catal Today. 2016, 265, 192–198. [Google Scholar] [CrossRef]
  56. Wang, H.; Ruan, H.; Feng, M.; Qin, Y.; Job, H.; Luo, L.; Wang, C.; Engelhard, M.H.; Kuhn, E.; Chen, X.; et al. One-Pot Process for Hydrodeoxygenation of Lignin to Alkanes Using Ru-Based Bimetallic and Bifunctional Catalysts Supported on Zeolite Y. ChemSusChem. 2017, 10, 1846–1856. [Google Scholar] [CrossRef] [PubMed]
  57. Boronoev, M.P.; Shakirov, I.I.; Ignat’eva, V.I.; Maximov, A.L.; Karakhanov, E.A. A Nanospherical Mesoporous Ruthenium-Containing Polymer as a Guaiacol Hydrogenation Catalyst. Pet. Chem. 2019, 59, 1300–1306. [Google Scholar] [CrossRef]
  58. Long, W.; Liu, P.; Xiong, W.; Hao, F.; Luo, H. Conversion of Guaiacol as Lignin Model Component Using Acid-Treated, Multi-Walled Carbon Nanotubes Supported Ru–MnO Bimetallic Catalysts. Can J. Chem. 2020, 98, 57–65. [Google Scholar] [CrossRef]
  59. Zasypalov, G.; Vutolkina, A.; Klimovsky, V.; Abramov, E.; Vinokurov, V.; Glotov, A. Hydrodeoxygenation of Guaiacol over Halloysite Nanotubes Decorated with Ru Nanoparticles: Effect of Alumina Acid Etching on Catalytic Behavior and Reaction Pathways. Appl. Catal. B 2024, 342, 123425. [Google Scholar] [CrossRef]
  60. Lin, B.; Li, R.; Shu, R.; Wang, C.; Yuan, Z.; Liu, Y.; Chen, Y. Synergistic Effect of Highly Dispersed Ru and Moderate Acid Site on the Hydrodeoxygenation of Phenolic Compounds and Raw Bio-Oil. J. Energy Inst. 2020, 93, 847–856. [Google Scholar] [CrossRef]
Polymers 15 04618 g001

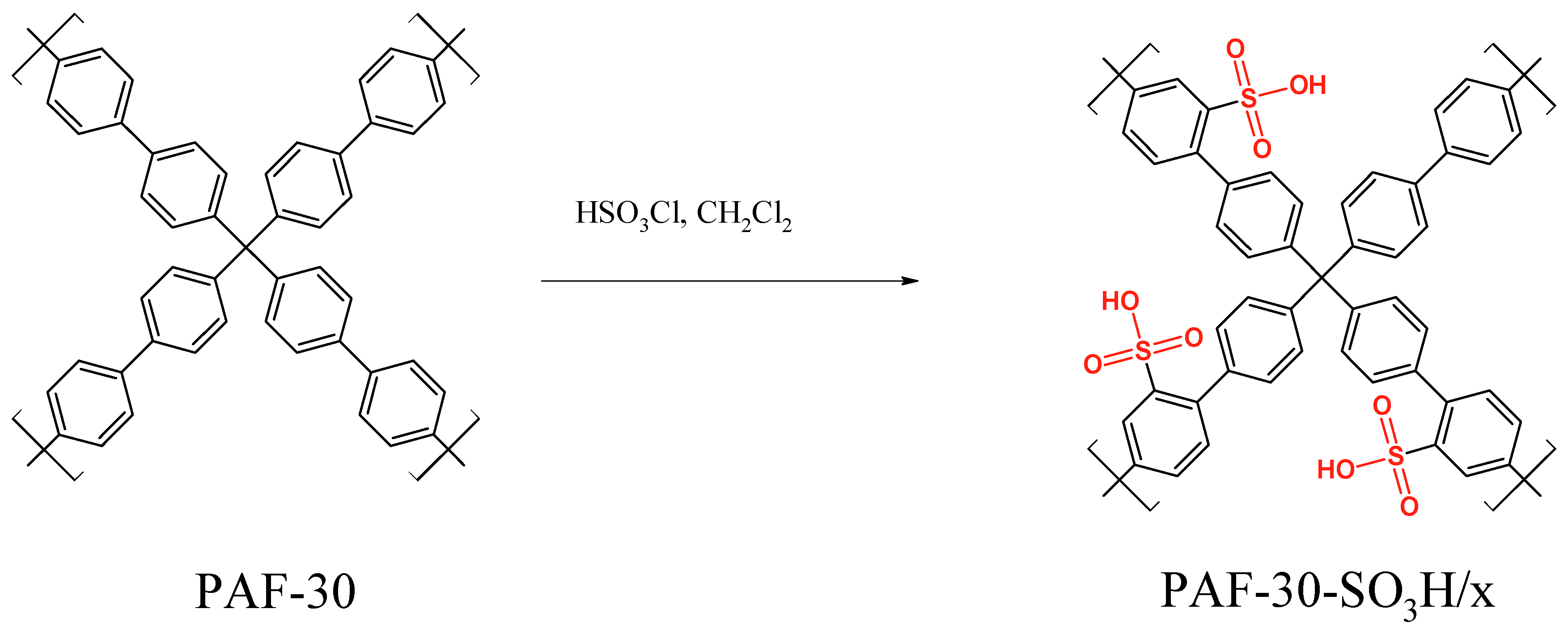

Figure 1. Synthesis of PAF-30-SO3H/x, where x = 2.5, 5 or 7.5.
Figure 1. Synthesis of PAF-30-SO3H/x, where x = 2.5, 5 or 7.5.
Polymers 15 04618 g001
Polymers 15 04618 g002
Figure 2. N2 adsorption isotherms for PAF-30, PAF-30-SO3H/2.5, PAF-30-SO3H/5, and PAF-30-SO3H/7.5.
Figure 2. N2 adsorption isotherms for PAF-30, PAF-30-SO3H/2.5, PAF-30-SO3H/5, and PAF-30-SO3H/7.5.
Polymers 15 04618 g002
Polymers 15 04618 g003

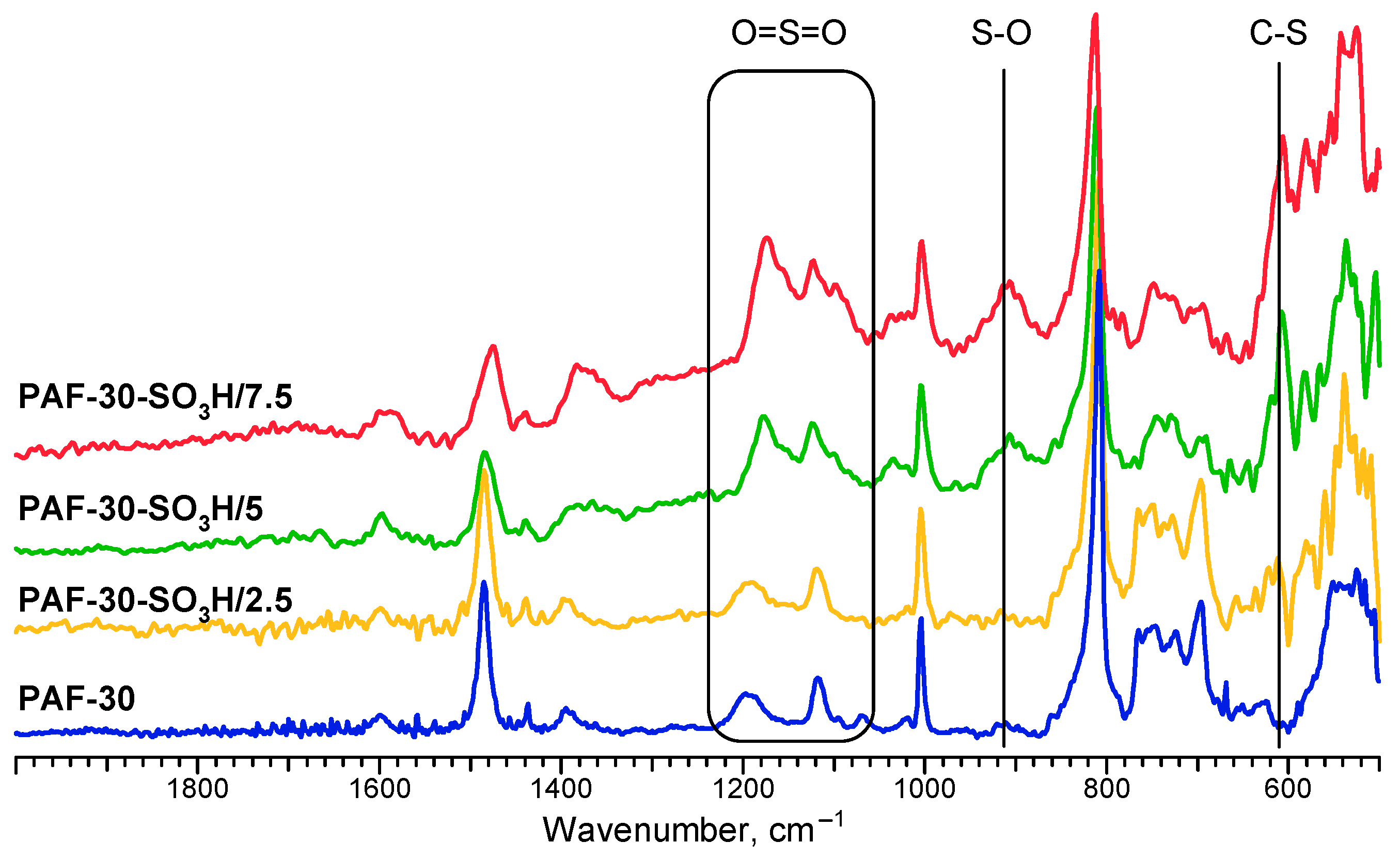

Figure 3. FTIR spectra of synthesized polymers.
Figure 3. FTIR spectra of synthesized polymers.
Polymers 15 04618 g003
Polymers 15 04618 g004

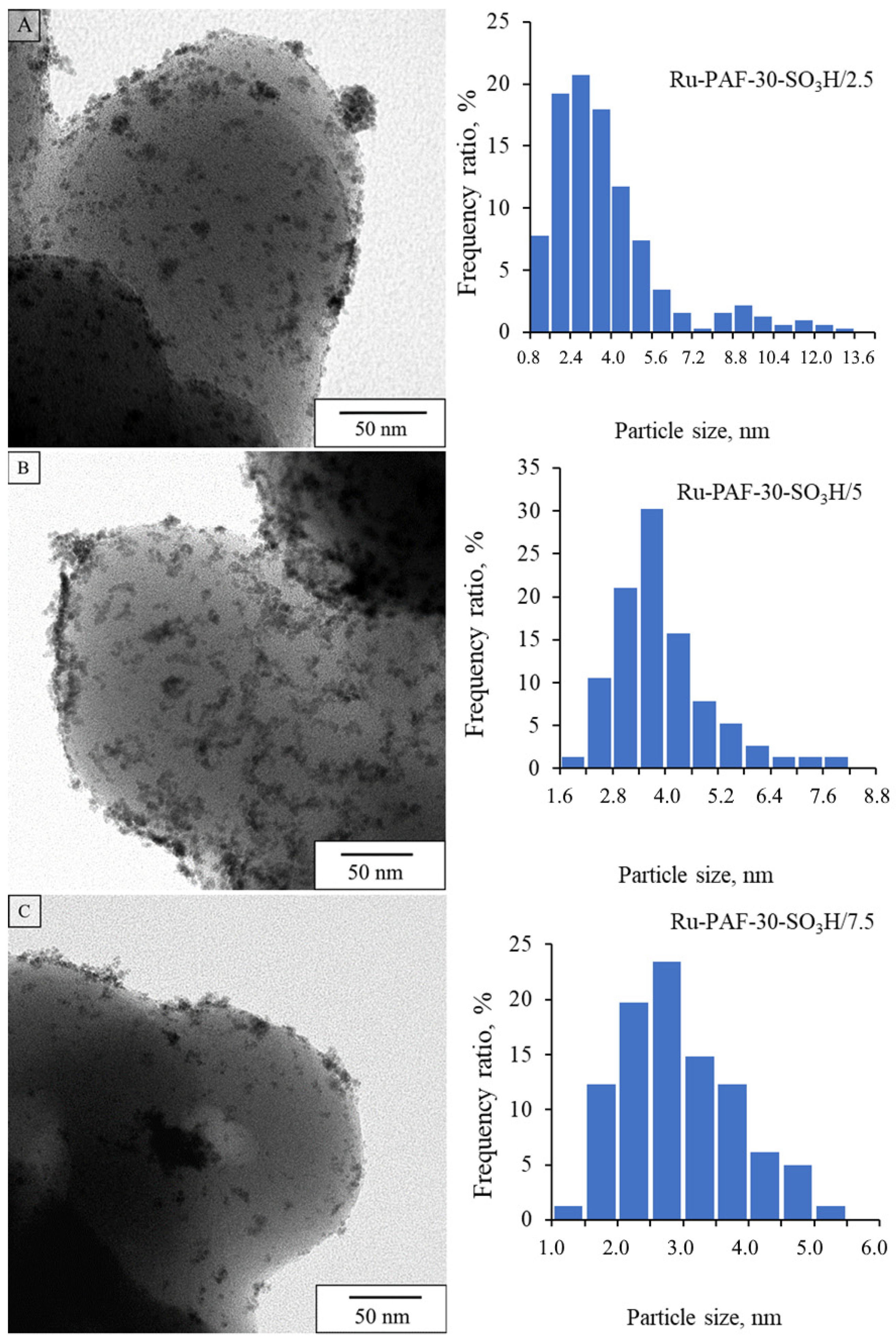

Figure 4. Transmission electron microscopy (TEM) microphotographs and particle size distribution for Ru-PAF-30-SO3H/2.5 (A), Ru-PAF-30-SO3H/5 (B), and Ru-PAF-30-SO3H/7.5 (C).
Figure 4. Transmission electron microscopy (TEM) microphotographs and particle size distribution for Ru-PAF-30-SO3H/2.5 (A), Ru-PAF-30-SO3H/5 (B), and Ru-PAF-30-SO3H/7.5 (C).
Polymers 15 04618 g004
Polymers 15 04618 g005

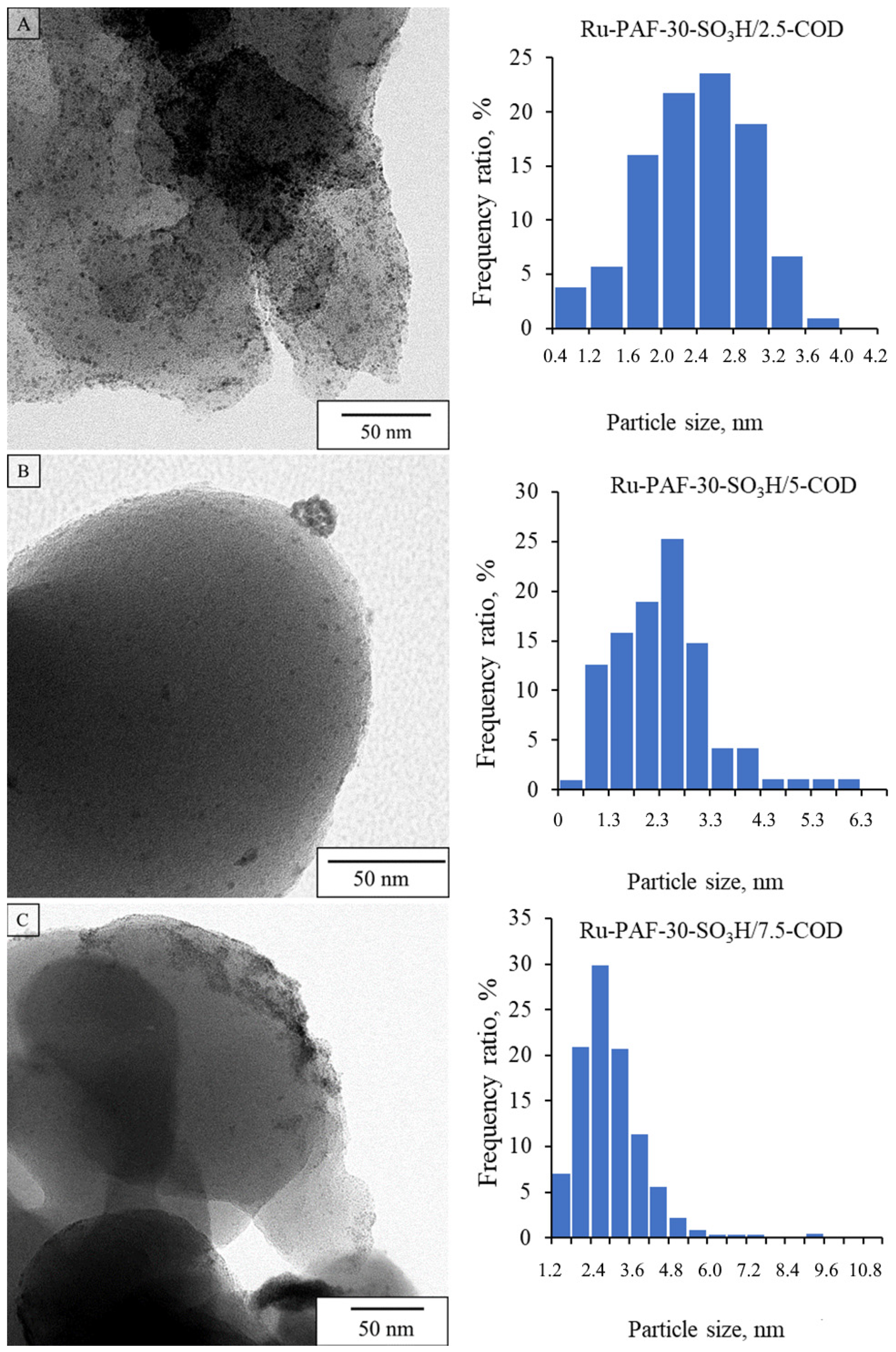

Figure 5. TEM microphotographs and particle size distribution for Ru-PAF-30-SO3H/2.5-COD (A), Ru-PAF-30-SO3H/5-COD (B), and Ru-PAF-30-SO3H/7.5-COD (C).
Figure 5. TEM microphotographs and particle size distribution for Ru-PAF-30-SO3H/2.5-COD (A), Ru-PAF-30-SO3H/5-COD (B), and Ru-PAF-30-SO3H/7.5-COD (C).
Polymers 15 04618 g005
Polymers 15 04618 g006

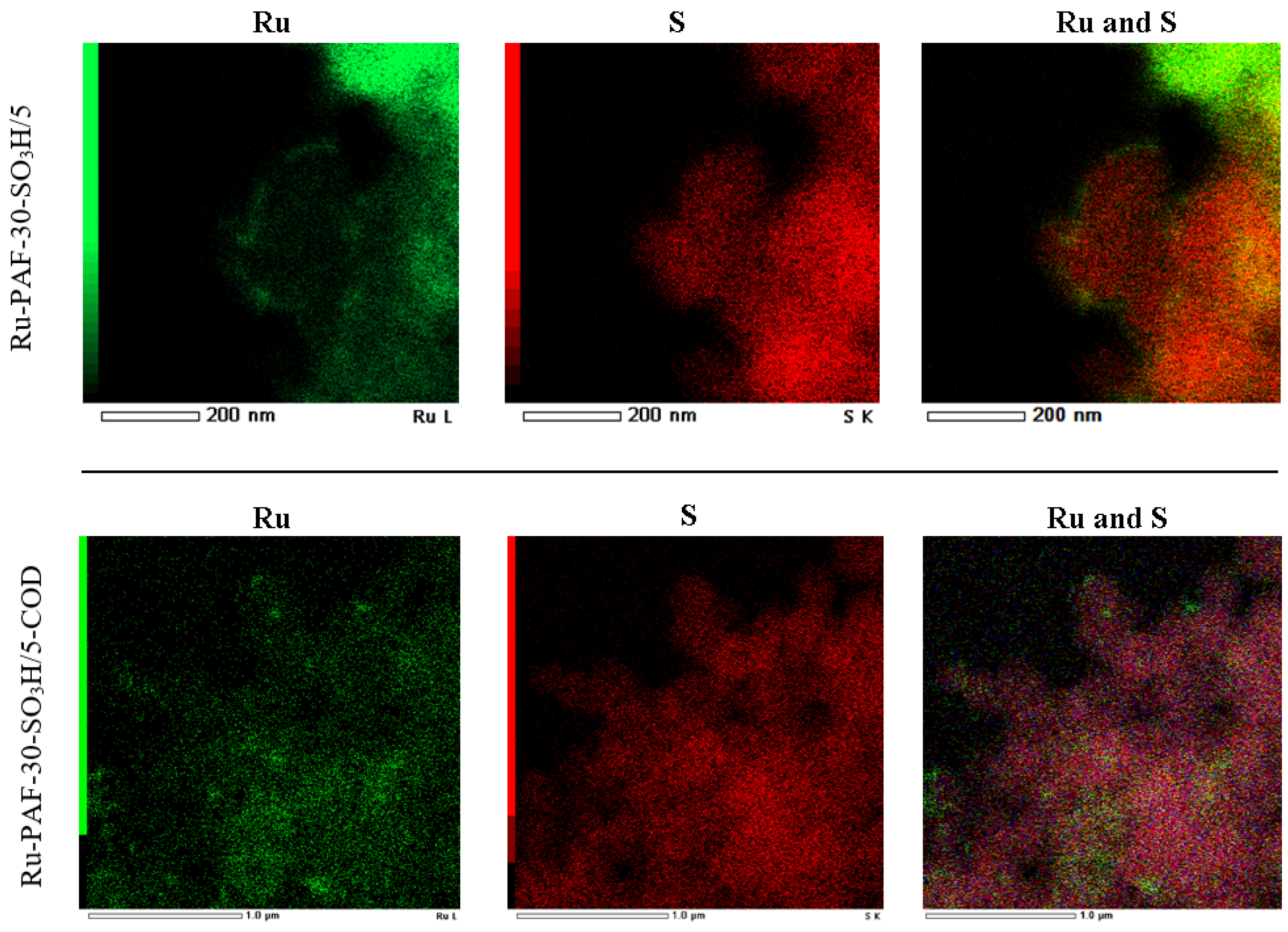

Figure 6. EDX mapping results for Ru-PAF-30-SO3H/5 and Ru-PAF-30-SO3H/5-COD.
Figure 6. EDX mapping results for Ru-PAF-30-SO3H/5 and Ru-PAF-30-SO3H/5-COD.
Polymers 15 04618 g006
Polymers 15 04618 g007aPolymers 15 04618 g007b

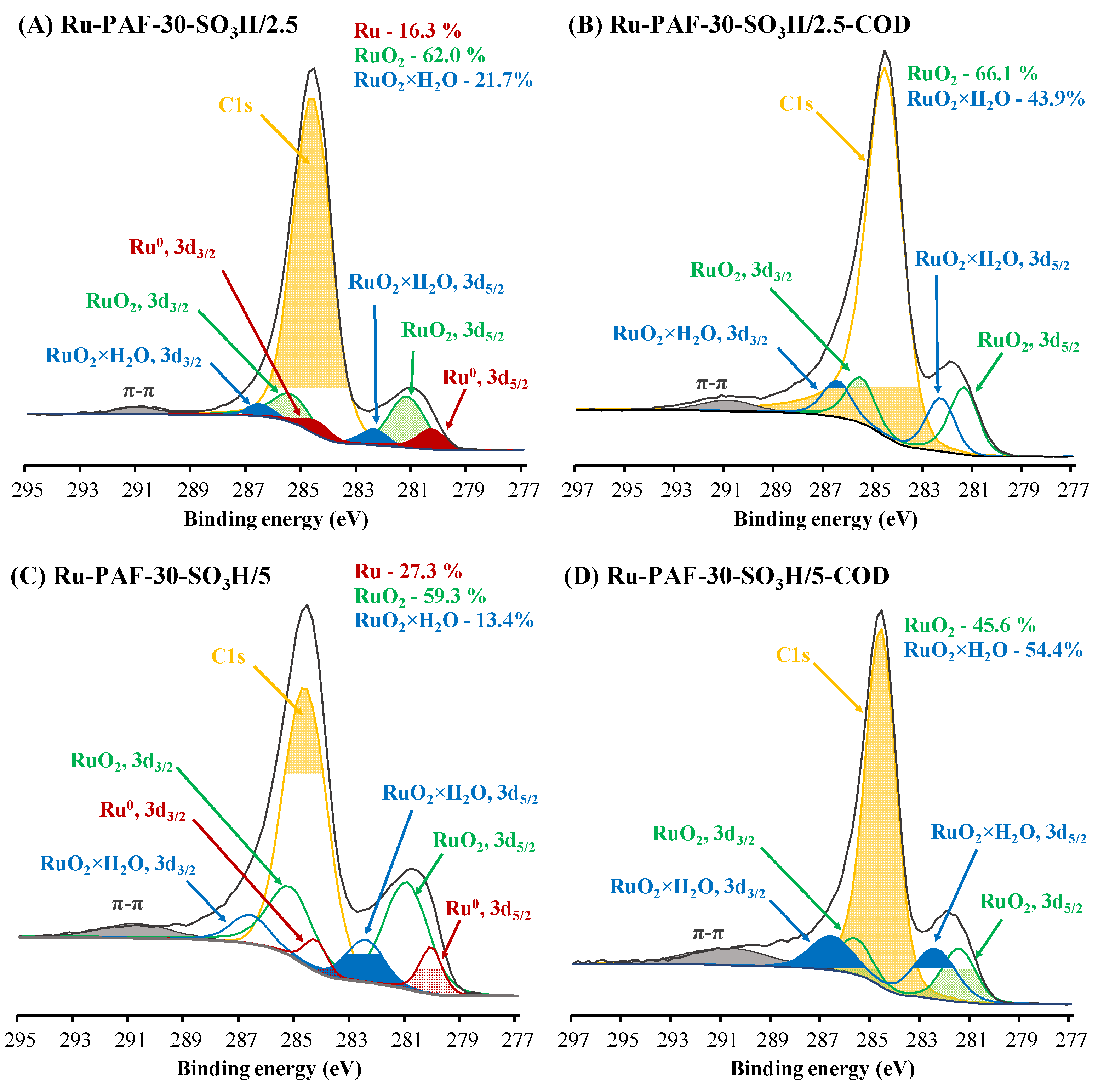

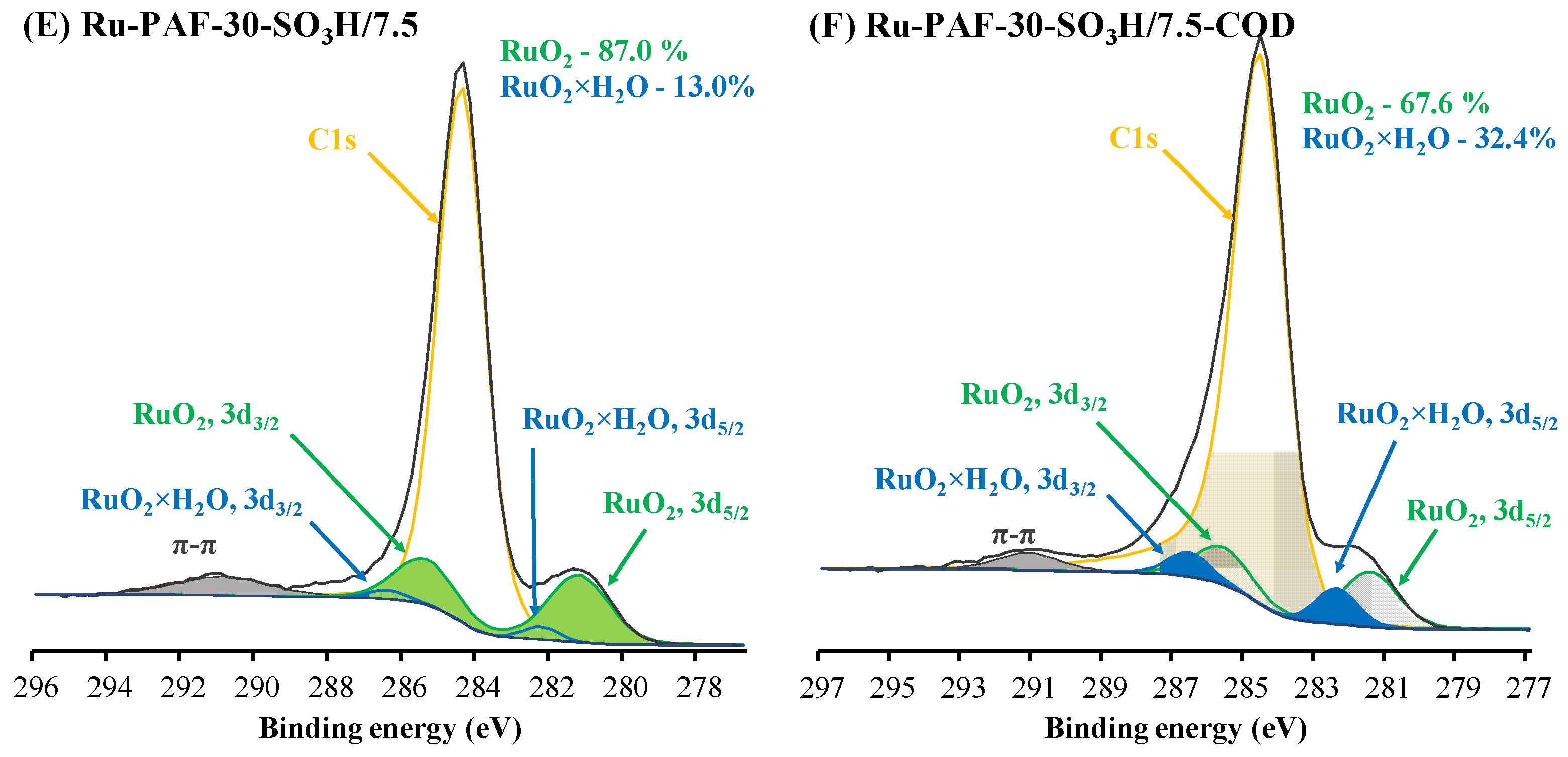

Figure 7. High-resolution XPS spectrum of C1s and Ru3d region.
Figure 7. High-resolution XPS spectrum of C1s and Ru3d region.
Polymers 15 04618 g007aPolymers 15 04618 g007b
Polymers 15 04618 g008

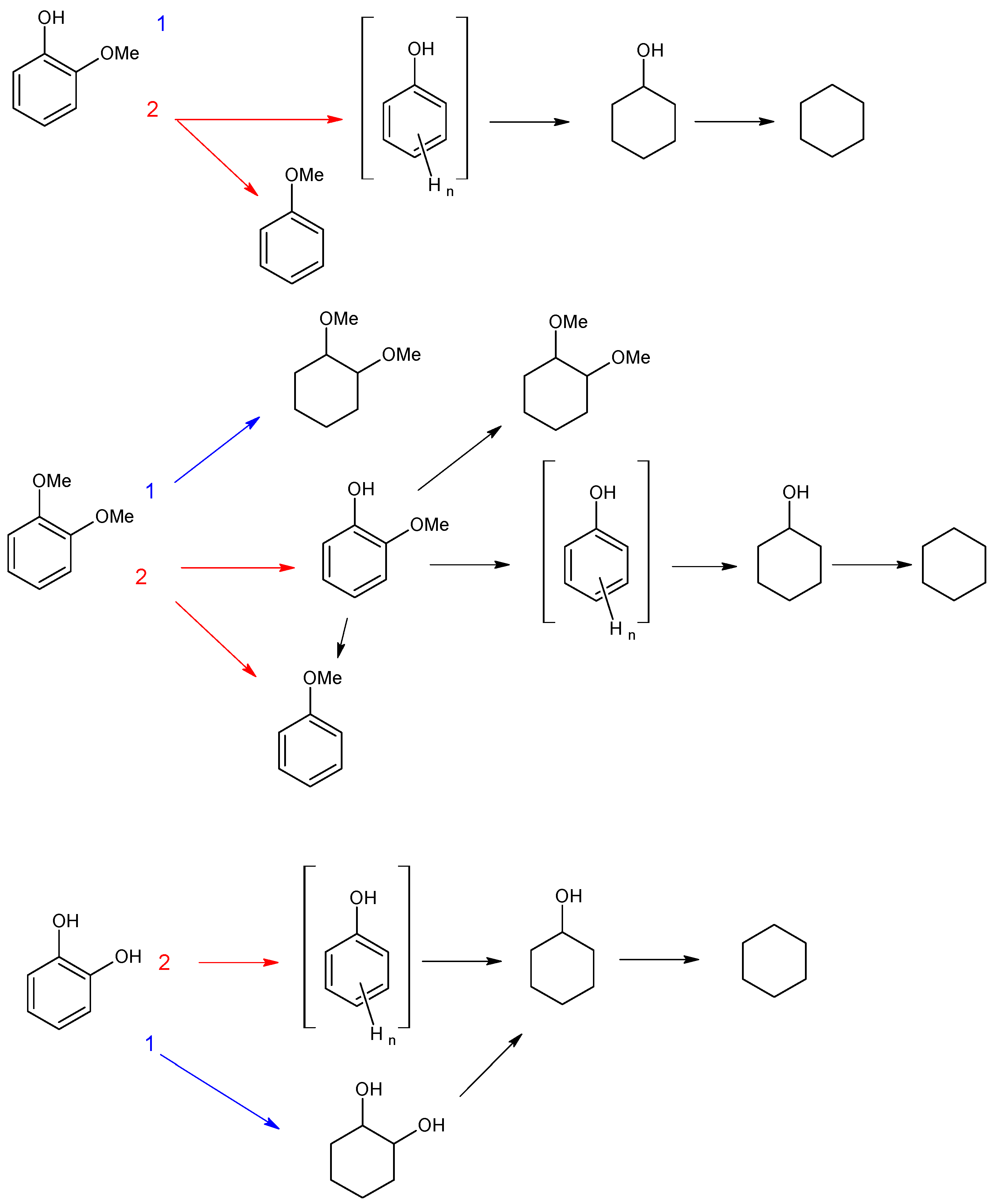

Figure 8. Suggested schemes of HDO of guaiacol, veratrole and catechol on the Ru-PAF-30-SO3H/2.5, Ru-PAF-30-SO3H/5 and Ru-PAF-30-SO3H/7.5 catalysts.
Figure 8. Suggested schemes of HDO of guaiacol, veratrole and catechol on the Ru-PAF-30-SO3H/2.5, Ru-PAF-30-SO3H/5 and Ru-PAF-30-SO3H/7.5 catalysts.
Polymers 15 04618 g008
Polymers 15 04618 g009

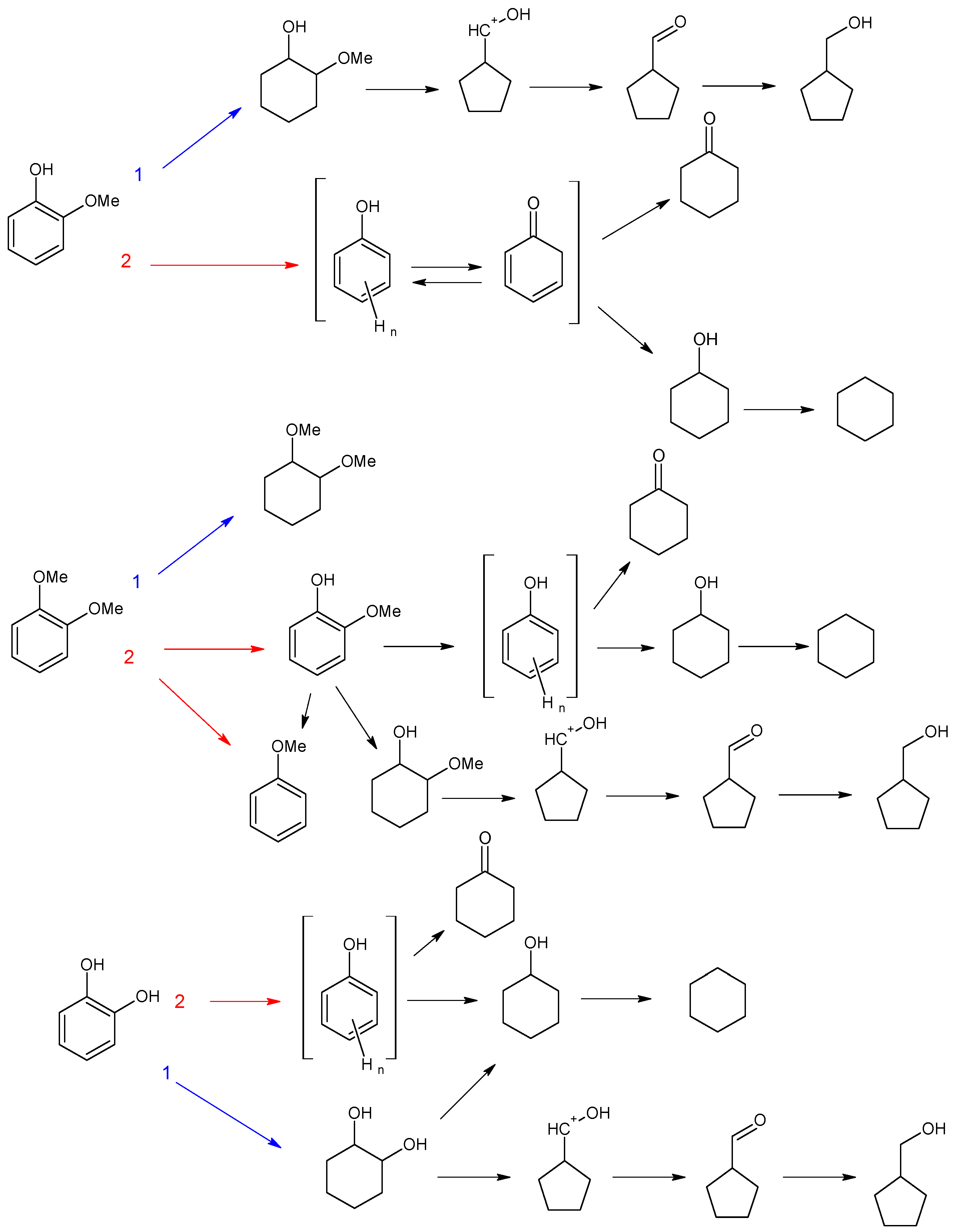

Figure 9. Suggested schemes of HDO of guaiacol, veratrole and catechol on the Ru-PAF-30-SO3H/2.5-COD, Ru-PAF-30-SO3H/5-COD and Ru-PAF-30-SO3H/7.5-COD catalysts.
Figure 9. Suggested schemes of HDO of guaiacol, veratrole and catechol on the Ru-PAF-30-SO3H/2.5-COD, Ru-PAF-30-SO3H/5-COD and Ru-PAF-30-SO3H/7.5-COD catalysts.
Polymers 15 04618 g009
Polymers 15 04618 g010

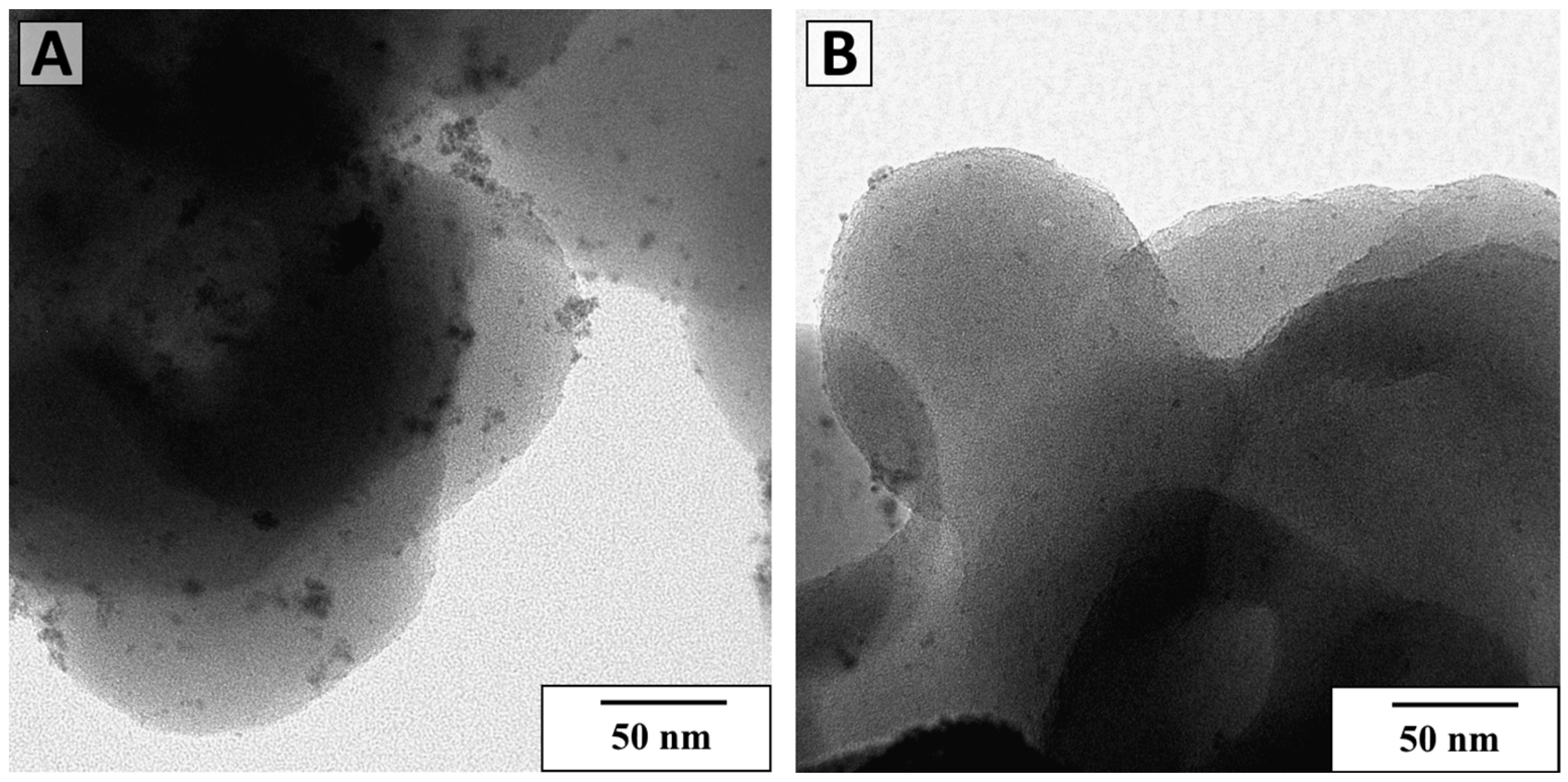

Figure 10. TEM microphotographs for Ru-PAF-30-SO3H/5 (A) and Ru-PAF-30-SO3H/5-COD (B) after 3rd catalytic cycle.
Figure 10. TEM microphotographs for Ru-PAF-30-SO3H/5 (A) and Ru-PAF-30-SO3H/5-COD (B) after 3rd catalytic cycle.
Polymers 15 04618 g010
Polymers 15 04618 g011

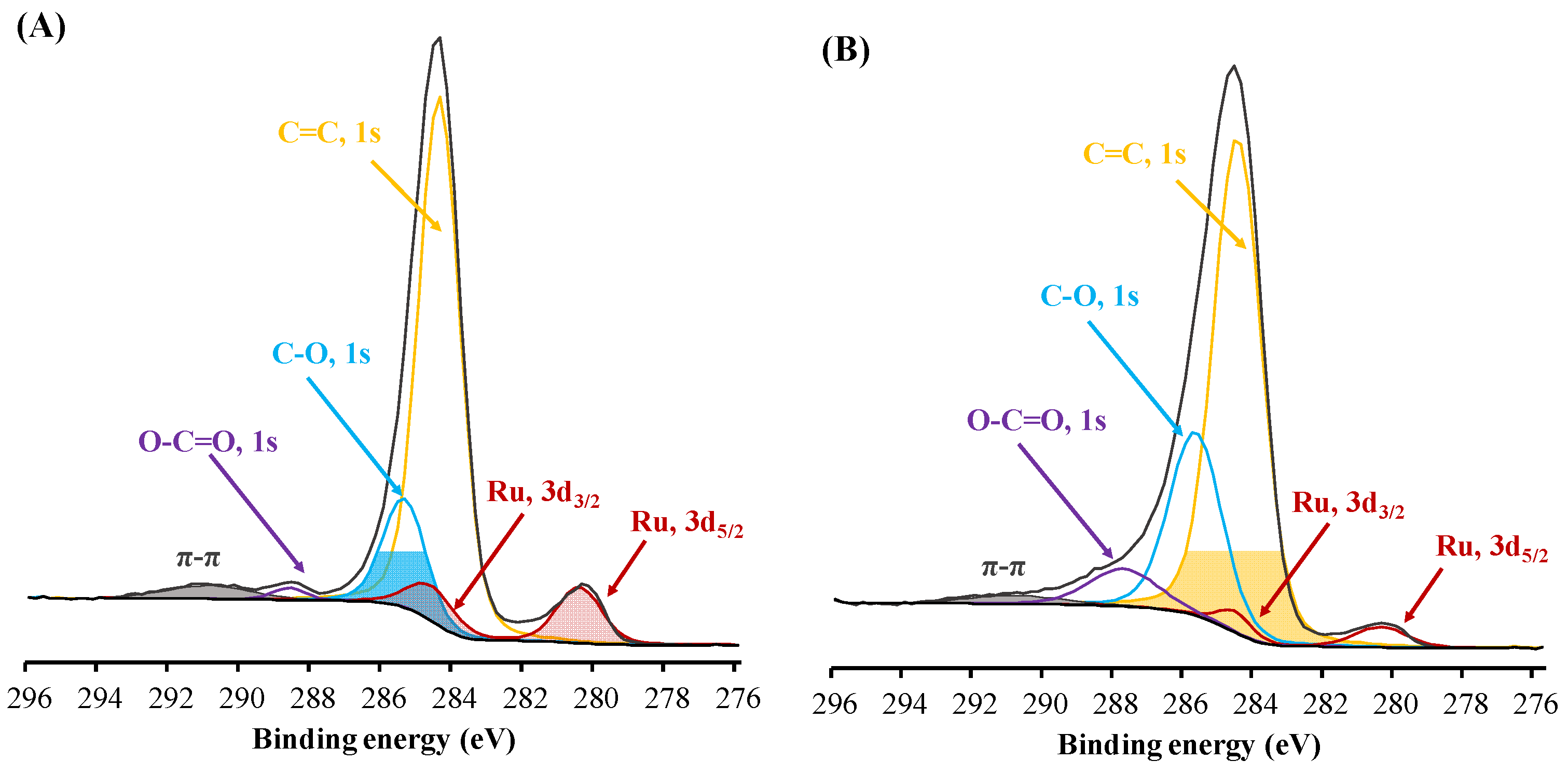

Figure 11. High-resolution XPS spectrum of C1s and Ru3d region for Ru-PAF-30-SO3H/5 (A) and Ru-PAF-30-SO3H/5-COD (B) after 3rd catalytic cycle.
Figure 11. High-resolution XPS spectrum of C1s and Ru3d region for Ru-PAF-30-SO3H/5 (A) and Ru-PAF-30-SO3H/5-COD (B) after 3rd catalytic cycle.
Polymers 15 04618 g011
Polymers 15 04618 g012

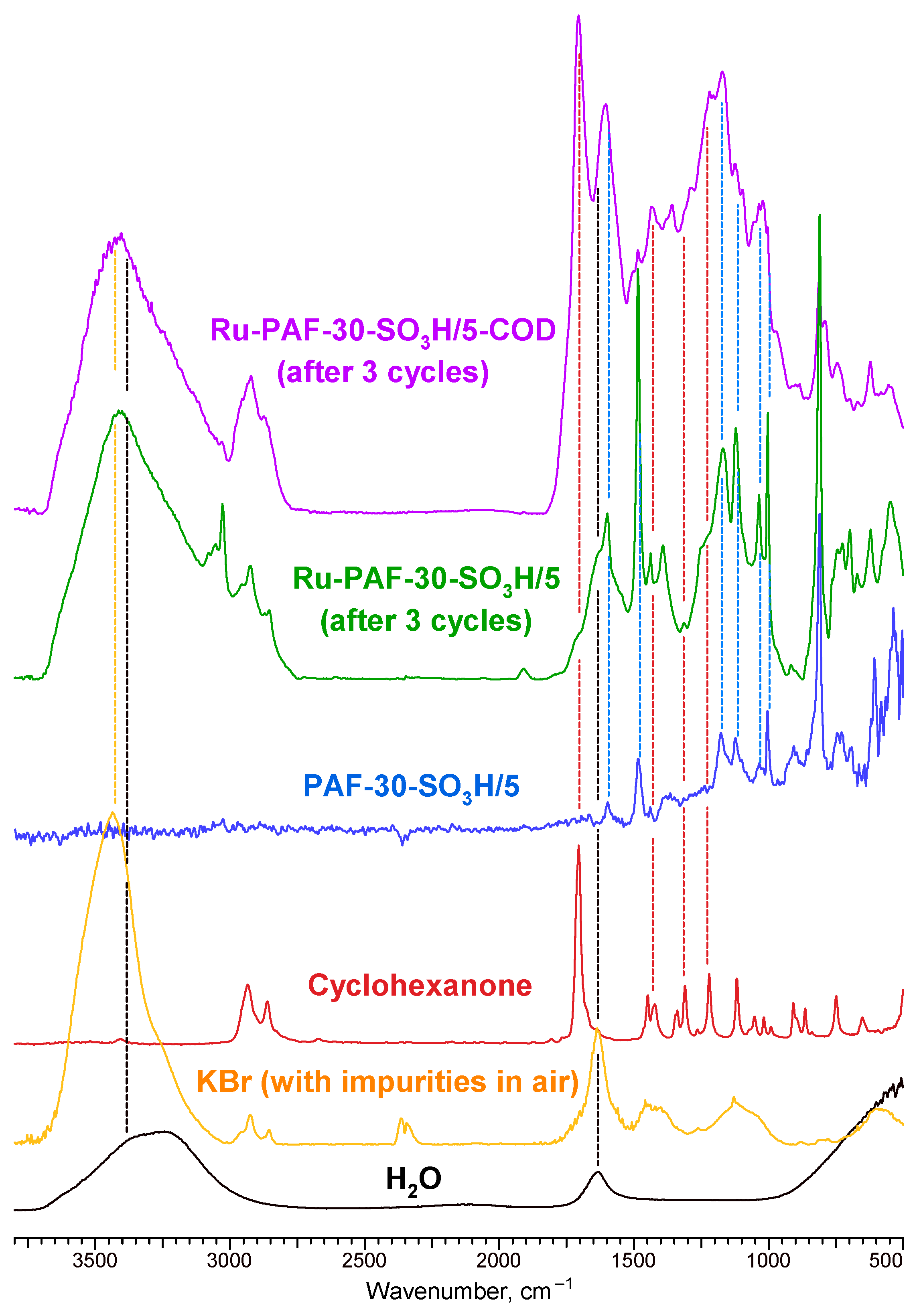

Figure 12. FTIR spectra of catalysts after 3rd catalytic cycle, PAF-30-SO3H/5, cyclohexanone, H2O and KBr (with impurities in air).
Figure 12. FTIR spectra of catalysts after 3rd catalytic cycle, PAF-30-SO3H/5, cyclohexanone, H2O and KBr (with impurities in air).
Polymers 15 04618 g012
Table 1. Textural properties, sulfur content, and acidity of the materials.
Table 1. Textural properties, sulfur content, and acidity of the materials.
MaterialSBET, m2/gTotal Pore
Volume, cm3/g		Sulfur Content, wt. %Acidity, mmol/g
PAF-304840.28--
PAF-30-SO3H/2.54270.192.50.82
PAF-30-SO3H/53690.0951.64
PAF-30-SO3H/7.51970.087.52.34
Table 2. Ruthenium content, average sizes of Ru nanoparticles in synthesized catalysts and their surface area.
Table 2. Ruthenium content, average sizes of Ru nanoparticles in synthesized catalysts and their surface area.
Catalystdav, nmRu Content, wt.%S/Ru, mol:molSBET, m2/g
Ru-PAF-30-SO3H/2.52.81.475.36410
Ru-PAF-30-SO3H/53.84.673.47359
Ru-PAF-30-SO3H/7.52.70.5047.28153
Ru-PAF-30-SO3H/2.5-COD2.20.799.98388
Ru-PAF-30-SO3H/5-COD2.50.7620.73354
Ru-PAF-30-SO3H/7.5-COD2.80.4750.2994
Table 3. Conversion and product yields of HDO of guaiacol, catechol and veratrole over Ru catalysts synthesized without 1,5-COD (Series A).
Table 3. Conversion and product yields of HDO of guaiacol, catechol and veratrole over Ru catalysts synthesized without 1,5-COD (Series A).
Polymers 15 04618 i001Polymers 15 04618 i002Polymers 15 04618 i003Polymers 15 04618 i004Polymers 15 04618 i005Conversion, %
* Ru-PAF-3063—34—97
Ru-PAF-30-SO3H/2.556—26284
Ru-PAF-30-SO3H/5352855100
Ru-PAF-30-SO3H/7.5—471930
Polymers 15 04618 i006Polymers 15 04618 i007Polymers 15 04618 i002Polymers 15 04618 i003Polymers 15 04618 i008Polymers 15 04618 i004Polymers 15 04618 i009Polymers 15 04618 i005Conversion, %
* Ru-PAF-30951——3——99
Ru-PAF-30-SO3H/2.56622—72—3100
Ru-PAF-30-SO3H/5467—61821897
Ru-PAF-30-SO3H/7.5222——115778
Polymers 15 04618 i010Polymers 15 04618 i011Polymers 15 04618 i012Polymers 15 04618 i013Polymers 15 04618 i004Polymers 15 04618 i014Polymers 15 04618 i005Polymers 15 04618 i015Conversion, %
* Ru-PAF-3058—141——0.2100
Ru-PAF-30-SO3H/2.5471342418299
Ru-PAF-30-SO3H/513——73112—99
Ru-PAF-30-SO3H/7.5————5——5
Reaction conditions: 250 °C; 2 h; 3 MPa H2; 500 μL water; 5 mg catalyst; and 0.38 mmol substrate; * to assess the effect of sulfo groups, the catalysts were additionally compared with the catalyst synthesized before [47].
Table 4. Conversion and product yields of HDO of guaiacol, catechol, and veratrole over Ru catalysts synthesized with 1,5-COD (Series B).
Table 4. Conversion and product yields of HDO of guaiacol, catechol, and veratrole over Ru catalysts synthesized with 1,5-COD (Series B).
Polymers 15 04618 i001Polymers 15 04618 i002Polymers 15 04618 i004Polymers 15 04618 i014Polymers 15 04618 i016Polymers 15 04618 i009Polymers 15 04618 i005Alkylation productsConversion, %
Ru-PAF-30-SO3H/2.5-COD3340———16—89
Ru-PAF-30-SO3H/5-COD——4481111983
Ru-PAF-30-SO3H/7.5-COD———————0
Polymers 15 04618 i006Polymers 15 04618 i007Polymers 15 04618 i002Polymers 15 04618 i008Polymers 15 04618 i004Polymers 15 04618 i014Polymers 15 04618 i016Polymers 15 04618 i009Polymers 15 04618 i017Polymers 15 04618 i005Conversion, %
Ru-PAF-30-SO3H/2.5-COD261076————1362
Ru-PAF-30-SO3H/5 -COD3———1827113879
Ru-PAF-30-SO3H/7.5-COD—————————0
Polymers 15 04618 i010Polymers 15 04618 i018Polymers 15 04618 i004Polymers 15 04618 i014Polymers 15 04618 i016Polymers 15 04618 i009Polymers 15 04618 i005Conversion, %
Ru-PAF-30-SO3H/2.5-COD720——1129
Ru-PAF-30-SO3H/5 -COD10—70155—100
Ru-PAF-30-SO3H/7.5-COD——————0
Reaction conditions: 250 °C; 2 h; 3 MPa H2; 500 μL water; 5 mg catalyst; and 0.38 mmol substrate.
Table 5. Conversion and product yields of guaiacol hydrogenation in recycling experiments with Ru-PAF-30-SO3H/5 and Ru-PAF-30-SO3H/5-COD catalysts.
Table 5. Conversion and product yields of guaiacol hydrogenation in recycling experiments with Ru-PAF-30-SO3H/5 and Ru-PAF-30-SO3H/5-COD catalysts.
Polymers 15 04618 i001Polymers 15 04618 i002Polymers 15 04618 i003Polymers 15 04618 i004Polymers 15 04618 i005Alkylation productsConversion, %
Ru-PAF-30-SO3H/5 Run 1352855—100
Run 239—1235—86
Run 327—1411658
Polymers 15 04618 i001Polymers 15 04618 i002Polymers 15 04618 i004Polymers 15 04618 i014Polymers 15 04618 i016Polymers 15 04618 i009Polymers 15 04618 i005Alkylation productsConversion, %
Ru-PAF-30-SO3H/5 -CODRun 1——4481111983
Run 242312—11152
Run 32212——2828
Reaction conditions: 250 °C; 2 h; 3 MPa H2; 500 μL water; 5 mg catalyst; and 0.38 mmol guaiacol.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Bazhenova, M.A.; Kulikov, L.A.; Makeeva, D.A.; Maximov, A.L.; Karakhanov, E.A. Hydrodeoxygenation of Lignin-Based Compounds over Ruthenium Catalysts Based on Sulfonated Porous Aromatic Frameworks. Polymers 2023, 15, 4618. https://doi.org/10.3390/polym15234618

AMA Style

Bazhenova MA, Kulikov LA, Makeeva DA, Maximov AL, Karakhanov EA. Hydrodeoxygenation of Lignin-Based Compounds over Ruthenium Catalysts Based on Sulfonated Porous Aromatic Frameworks. Polymers. 2023; 15(23):4618. https://doi.org/10.3390/polym15234618

Chicago/Turabian Style

Bazhenova, Maria A., Leonid A. Kulikov, Daria A. Makeeva, Anton L. Maximov, and Eduard A. Karakhanov. 2023. "Hydrodeoxygenation of Lignin-Based Compounds over Ruthenium Catalysts Based on Sulfonated Porous Aromatic Frameworks" Polymers 15, no. 23: 4618. https://doi.org/10.3390/polym15234618

APA Style

Bazhenova, M. A., Kulikov, L. A., Makeeva, D. A., Maximov, A. L., & Karakhanov, E. A. (2023). Hydrodeoxygenation of Lignin-Based Compounds over Ruthenium Catalysts Based on Sulfonated Porous Aromatic Frameworks. Polymers, 15(23), 4618. https://doi.org/10.3390/polym15234618

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
