3.1. Dielectric Properties

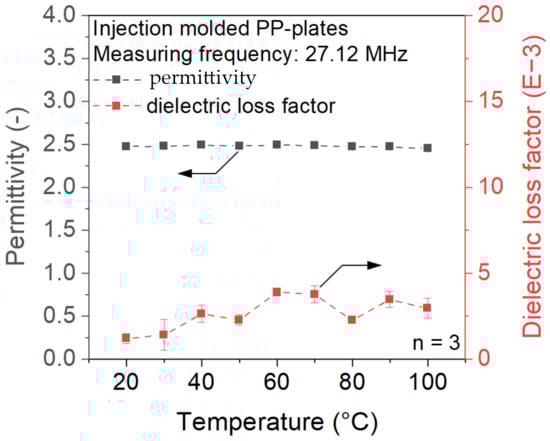

In the first step, the temperature-dependent dielectric properties of PP and PVA-based materials were investigated. As displayed in
Figure 2, the permittivity and dielectric loss factor of PP show no significant temperature dependence. The material permittivity remains in the range of 2.4 to 2.5, while the dielectric loss factor constantly stays below 5 mU. According to Abele [
19], a dielectric loss factor of at least 10 mU is required to achieve sufficient heating inside the electrical RF field. Due to the encapsulated air inside the beads, the ePP particles will show even lower dielectric values compared to
Figure 2. It can therefore be assumed that heating ePP within the electric field will not result in sufficient temperature development to achieve a welded joint.

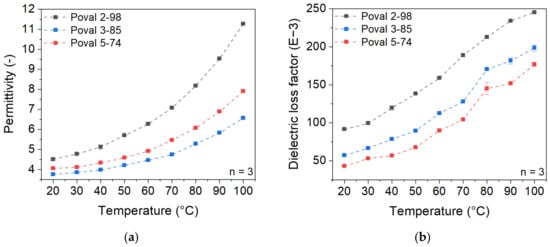

In contrast to nonpolar PP, the investigated coating materials based on different types of PVA show higher dielectric properties. Additionally, a strong temperature dependency of both permittivity and dielectric loss factor is detectable, as displayed in
Figure 3. Both properties increase with rising temperatures. An exponential increase can be observed in the permittivity, while the increase in the dielectric loss factor is approximately linear.
For the unmodified PVA materials, the permittivity and dielectric loss factor values show significant differences depending on the PVA type. Poval 2-98 with the highest percentage of OH- side groups, which describes the saponification degree, shows the highest values of permittivity and dielectric loss factor, while the least saponified PVA (Poval 5-74) has the lowest values. Poval 3-85 with an intermediate degree of OH- side groups ranges in between. At room temperature, permittivity values of 3.75 (Poval 5-74), 4.05 (Poval 3-85), and 4.51 (Poval 2-98) were measured. Due to the described exponential increase in permittivity, the difference in the measured values at 100 °C is clearly higher. So Poval 2-98 shows a maximum permittivity of 11.25, while Poval 5-74 only reaches 6.57. Regarding the dielectric loss factor, the curve slope of all three PVA materials is comparable. The degree of saponification only influences the vertical offset. At room temperature, the value rises with increasing amounts of OH- side groups. For Poval 5-74, a dielectric loss factor of 43.12 mU is measured. Poval 3-85 reaches a loss factor of 57.10 mU, and Poval 2-98 91.50 mU. The highest overall loss factor was 245.33 mU for Poval 2-98 at 100 °C.
The temperature dependency of both permittivity and dielectric loss factor can be explained due to the higher mobility at the molecular level. With increasing temperatures, the dipoles of the polymeric chain can align more easily with the external electrical field. At the same time, the number of dipoles is related to the PVA’s degree of saponification.

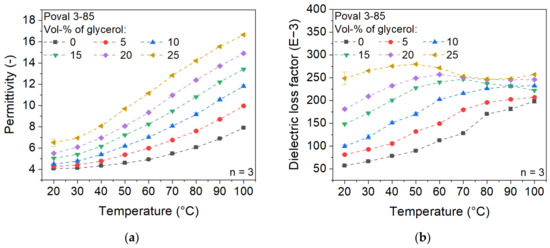

The influence of the added plasticizer on the dielectric properties of Poval 3-85 is displayed in
Figure 4. In relation to the permittivity, the glycerol used causes an increase in the value, which manifests as a vertical shift to higher values at the same temperature. While unmodified Poval 3-85 has a permittivity of 4.05 at 20 °C, the value is raised to 6.51 for Poval 3-85 with 25 vol-% glycerol. When the measuring temperature is increased, the unmodified PVA material shows an exponential increase in permittivity. The rising proportion of glycerol causes a constant change to become a more linear increase. In addition, glycerol causes a slight increase in the slope, resulting in a higher deviation of the various materials at 100 °C compared to 20 °C. At 100 °C, the permittivity ranges from 7.90 to 16.65 due to the influence of the amount of glycerol used.
Regarding the dielectric loss factor, the curves of the varying glycerol contents are different. For the unmodified PVA sample, the values increase with rising temperature within the investigated temperature range. With increasing glycerol content, the maximum increases slightly. At the same time, it shifts to lower temperatures. In addition, after reaching the maximum value, a decrease to an approximately constant value can be observed at high glycerol contents. However, the dielectric loss factor of the glycerol-modified PVA is always higher, independent of the glycerol content and the temperature.
The material behavior described can be explained by the plasticizing effect of glycerol on PVA. As the proportion of plasticizer increases, the mobility of the molecules also increases, which is reflected in enhanced dielectric properties. The described effects of glycerol are given for all three investigated PVA types. Therefore, a wide range of possible dielectric properties can be achieved by the combination of PVA and glycerol.
3.2. DSC

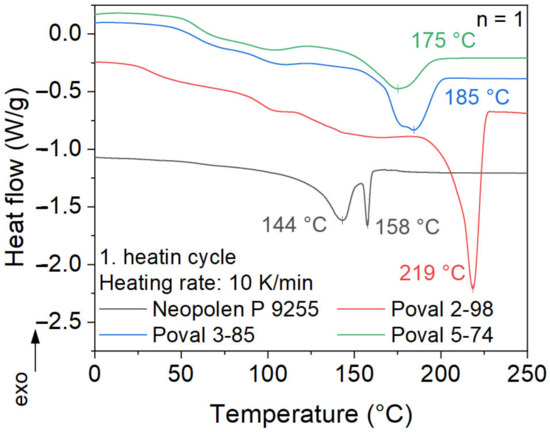

The melting behavior of ePP and all unmodified PVA materials is shown in
Figure 5. For the different PVA materials, a clear correlation between peak melting temperature and the degree of saponification is visible. Poval 5-74 shows the lowest melting peak temperature of 175 °C. With an increasing amount of OH- side groups, the melting temperature shifts to higher temperatures. This results in a variation of 42 °C between Poval 5-74 and Poval 2-98. The increased amount of OH- side groups in Poval 2-98 results in a much sharper and lower melting peak compared to the other PVAs. In addition, the melting enthalpy increases with a rising degree of saponification. This results in a higher required amount of total energy to melt Poval 2-98 compared to the other PVAs tested.
For the analyzed ePP, a double melting peak is measured. This behavior is typical for autoclave-foamed PP particles [
1]. The two melting peak temperatures are 143 °C and 158 °C. For the used heating rate of 10 K/min, the first peak shows a broad melting temperature range. Its onset temperature is around 120 °C. Additionally, higher heating rates may result in a slight shift of the first peak to even higher temperatures. Both peaks are related to crystalline phases in α modification with various degrees of perfection [
1]. In the commonly used manufacturing process of steam chest molding, heating to a temperature in between the two peaks is targeted [
20].

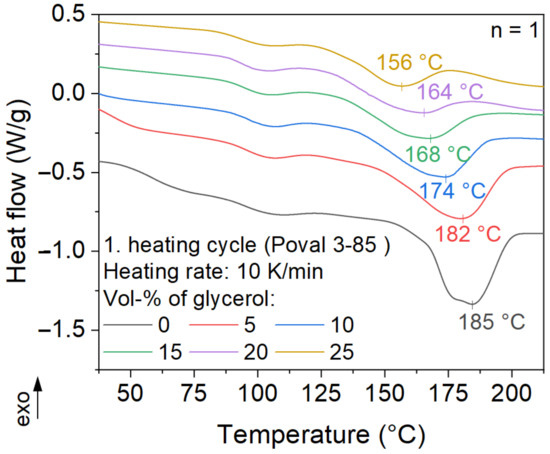

The modification of PVA with glycerol results in a shift of the melting peak to lower temperatures, as displayed in
Figure 6. While the unmodified Poval 3-85 has a melting peak at 185 °C, the peak temperature is lowered by nearly 30 °C to 156 °C by a glycerol content of 25 vol-%. At the same time, the melting enthalpy decreases with increasing glycerol content. On the one hand, this is related to the substitution of PVA by the plasticizer, resulting in an overall lower amount of crystallized material. On the other hand, a reduction in the intermolecular interaction of the PVA chains may be assumed. Thus, the modification of PVA with glycerol results in a lower total temperature and, at the same time, a reduced amount of energy consumed to transfer the material from a crystalline to a molten state. Both changes in melting behavior are advantageous regarding reduced energy consumption. This results in shorter possible cycle times and lower energy consumption.
3.3. Heating Trials

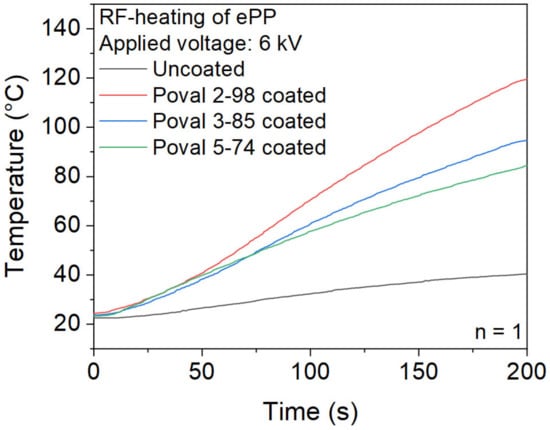

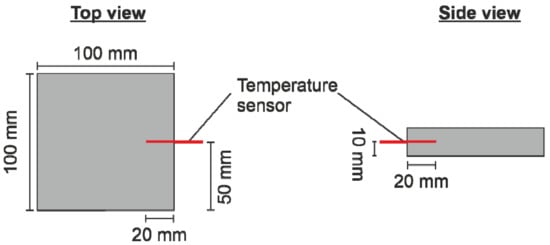

First, a comparison of uncoated ePP particles and glycerol-free PVA coatings is displayed in
Figure 7. It becomes clear that heating uncoated ePP foam particles for a maximum heating time of 200 s at a voltage of 6 kV results in a negligible temperature rise. The reached temperature of 40.4 °C is far from the required temperatures to achieve a partial melting of the ePP particles required for the welding. The reduced heating behavior correlates with the measured dielectric loss factor of the ePP base material.
In contrast, the ePP particles with a plasticizer-free PVA coating show significantly higher heating rates. However, there is a clear difference between the used PVA types. Since the parameters of the coating process are kept constant for all materials, the heating rates can also be correlated to the dielectric loss factors. Therefore, the coating based on Poval 2-98 with the highest dielectric loss factor results in the highest heating rate. The abort criterion of 120 °C was reached after a heating time of 200 s. Both the Poval 3-85 and Poval 5-74 coatings did not reach the 120 °C abortion criterion during the heating time of 200 s. However, the maximum temperatures reached differ. After 200 s of heating, a maximum temperature of 95 °C was measured for the Poval 3-85-coated foam particles. At the same time, the Poval 5-74-coated material was heated to a maximum temperature of 84 °C.

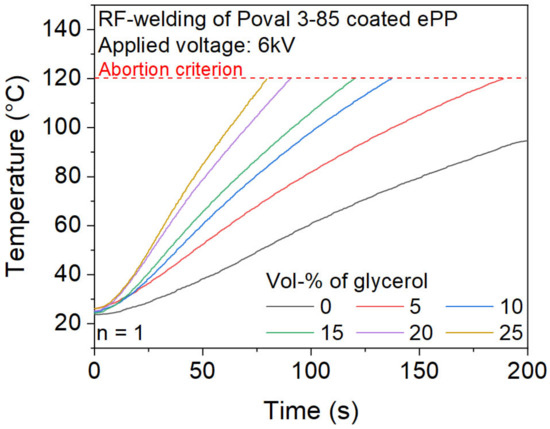

The increased values of the dielectric loss factor of Poval 3-85 due to the modification with glycerol are also reflected in the results of the temperature measurement inside the foam sample during the RF heating process, as displayed in
Figure 8. The modification with glycerol results in a significant increase in the heating rate due to an increased dielectric loss factor. The effect is consistent for the investigated glycerol content from 0 to 25 vol-%. While unmodified Poval 3 85 only achieves 95 °C within 200 s of heating, the addition of 5 vol-% of glycerol leads to a noticeable higher heating rate. This results in a heating time of 189 s until the upper temperature criterion of 120 °C is reached. With further increases in the glycerol content, the time to reach the 120 °C limit continuously decreases. For Poval 3-85 with 25 vol-% glycerol, heating to 120 °C is finished within 80 s.
The heating trials presented in
Figure 7 and
Figure 8 resulted in form-stable plates. Although the temperatures reached are too low to ensure sufficient melting of ePP or the coating material according to the previously performed DSC. A possible explanation could be locally higher temperatures at the contact areas of individual particles. The difference in measured and appearing temperatures might be caused by the comparably high mass of the temperature sensor in combination with the low thermal mass of the heatable coating material. Since the used mold is not tempered and has a comparable high mass, its temperature remains at values between 30 and 45 °C during the welding process. Due to the conduction of heat from the foam to the mold, the plate stays rather cold on the surface. This causes a bumpy appearance on the surface.
3.4. Optical Analysis of Particle Coherence

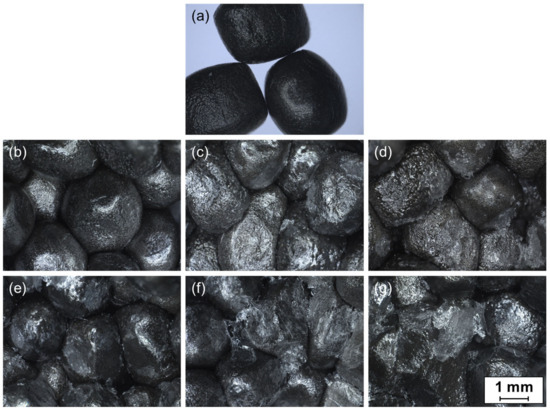

The microscopic images of unmodified ePP particles as well as of fracture surfaces from the inside of the welded plates for the three unmodified PVA and three Poval 3-85 modified coatings are shown in
Figure 9. In comparison to the unmodified particles, a shiny white finish is visible for all coated samples. The representative stereomicroscope images show that, independent of the coating material, the achieved temperatures were too low to melt the ePP material noticeably. The particles inside the sample appear as individual volumes separated from each other. No welding of the ePP foam particles was observed in any of the samples tested. The particles show a deformed appearance compared to their original spherical shape due to the compression force during the heating process.
In comparative observation of the unmodified PVA materials, hardly any additional material is visible on the particle surfaces for the Poval 2-98-coated foam beads (
Figure 9b). Only in a few spots, a white to transparent material can be identified. A connection between the particles is not visually recognizable. With a reduction in the PVA saponification level, the amount of transparent to whitish-colored material on the particle surface increases. For Poval 5-74 (
Figure 9d), the largest amount of protruding coating material is visible. In some areas, the coating seems to connect the individual particles with each other. In addition, the remains of the torn-off coatings seem to be recognizable. This might be connected with the significantly lower melting temperature of the PVA type.
The addition of glycerol to the PVA coating results in a higher amount of formed links between the foam particles, as shown in
Figure 9c compared to
Figure 9e–g for Poval 3-85. This could be due to the lower melting temperatures and the required amount of energy to melt the materials. At the same time, the increased heating ramps might lead to higher local temperatures at the contact area of individual particles.

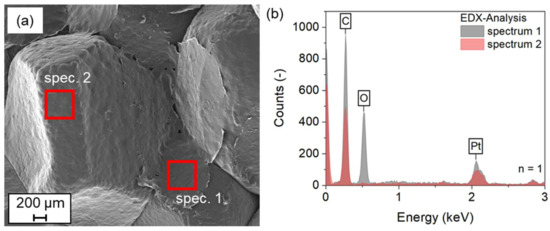

As shown in
Figure 10a, the SEM image allows a detailed optical analysis of the fracture surface. It can be seen that in some areas there is a continuous layer between the particles. However, this is not the case for all areas. Rather, it can be assumed that the coating is made of a particle that has been removed from the surface. At the same time, this means that a cohesive bond has formed between the coatings of the particles in contact. The formation of a network of coatings is the result. The fracture of the specimen, on the other hand, occurs along the interface between particles and coatings. This assumption can also be confirmed by EDX analysis. Oxygen can be detected in spectrum 1, which corresponds to the coating left behind by the torn-off particle. Spectrum 2, on the other hand, does not show any oxygen. Here, the surface of the ePP particle can be assumed. Since the temperatures required to melt the PVA material are above the measured 120 °C, the hypothesis of the occurrence of higher local temperatures at the contact area between the particles is supported. The higher temperatures could be achieved by the higher local amount of PVA material, with its high dielectric loss factor.
3.5. Compression Behavior
Based on the optically stable connections between the individual particles, the scope of the investigation was narrowed down to Poval 3-85 in combination with 10, 15, and 20 vol-% glycerol.

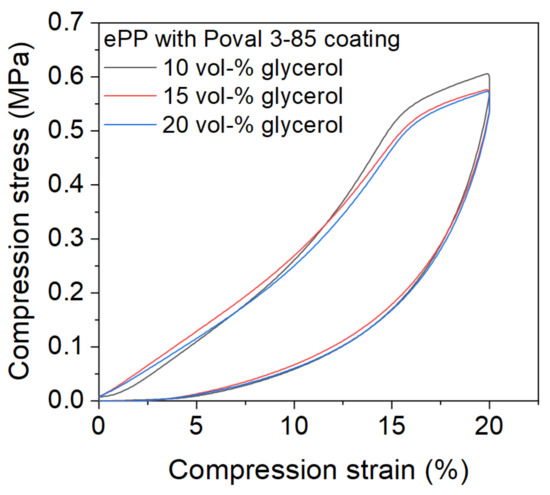

Figure 11 shows the compression behavior for the compression of up to 20% of the initial sample height after three initial compression cycles were preceded. Although the connection between the foam particles is based only on the PVA coating material, none of the samples were damaged due to the mechanical load. The curves initially show an almost linear increase in compressive stress. At 15% compression strain, a reduction in the slope can be observed. This behavior is due to the three preceding load cycles, which already slightly pre-compress the material. Subsequently, the value continues to increase with a reduced slope. The maximum value is reached at a compression strain of 20% for all three materials. All tested coating combinations resulted in comparable load behavior. In addition, the maximum compression stresses were similar.
Based on the results presented in this paper, it can be shown that the investigated approach of particle connection ensures sufficient mechanical stability in compression. In future investigations, a comparison to steam chest-molded samples is planned. Further investigations regarding tensile strength and rebound behavior are considered.
3.6. Recyclability of Welded Samples
The recycling tests of all Poval 3-85-based coatings show promising results, which are presented in the following. Independent of the amount of glycerol in the PVA coating, the plates were completely separated into individual ePP beads within the given time of 60 min. After the loose ePP beads were dried, the mass of the particles was lowered by 6.4% ± 0.3% compared to the mass of the plate. The reduced mass can be attributed to the dissolution of the PVA coating. Compared to unprocessed foam beads, the detached particles are slightly smaller. Some also show pressure marks caused by the compaction during the RF welding process.
Now there are two potential recycling options for the detached particles. In a second cycle, these particles could be recoated and processed into new geometries by RF welding. In this case, the water in which the coating was dissolved could be used as the basis for a new coating solution. This would ensure the complete recyclability of all materials used in cycles. Thus, compared to the fully welded geometries made out of particle foams, a significantly easier recycling of the used materials is possible. The second recycling option is to use the detached particles as pure post-consumer material for the manufacturing of other products.
