Synthesis of Layered Double Hydroxides with Phosphate Tailings and Its Effect on Flame Retardancy of Epoxy Resin

by
Hanjun Wu
1,2,3,
Wenjun Zhang
1,
Huali Zhang
1,*,
Pengjie Gao
4,
Lingzi Jin
1,
Yi Pan
1 and
Zhiquan Pan
1
1
Key Laboratory of Novel Biomass-Based Environmental and Energy Materials in Petroleum and Chemical Industry, Wuhan Institute of Technology, School of Chemistry and Environmental Engineering, Wuhan 430074, China
2
Key Laboratory for Green Chemical Process of Ministry of Education, Wuhan Institute of Technology, Wuhan 430074, China
3
Hubei Provincial Engineering Research Center of Systematic Water Pollution Control, China University of Geosciences, Wuhan 430074, China
4
Hubei Chuxing Chemical Industry Co., Ltd., Yichang 443311, China
*
Author to whom correspondence should be addressed.
Polymers 2022, 14(13), 2516; https://doi.org/10.3390/polym14132516
Submission received: 25 May 2022 / Revised: 11 June 2022 / Accepted: 14 June 2022 / Published: 21 June 2022
(This article belongs to the Special Issue Advanced Epoxy-Based Materials III)
Browse Figures
Review Reports Versions Notes

Abstract

:
In this work, phosphate tailings (PTs) were used as raw materials for the preparation of Ca-Mg-Al layered double hydroxides (LDHs-1) and Ca-Mg-Al-Fe layered double hydroxides (LDHs-2) by co-precipitation method. The as-prepared samples were characterized by FT-IR, SEM, XRD, and XPS and applied as a flame retardant to improve the fire safety of epoxy resin (EP). The results showed that both LDHs-1 and LDHs-2 exhibited layered structure and high crystallinity. Compared with neat EP, the value of limiting oxygen index (LOI) increased from 25.8 to 29.3 and 29.9 with 8 wt% content of LDHs-1 and LDHs-2, respectively. The flame retardant properties of the composite material were characterized by cone calorimeter (CC), and the results showed that the peak value of the smoke production rate (SPR) decreased more than 45% and 74%, total smoke production (TSP) reduced nearly 64% and 85% with the addition of LDHs-1 and LDHs-2. Meanwhile, the value of the total heat release (THR) reduced more than 28% and 63%. The conversion from LDHs to layered double oxide (LDO) might be conducive to the fire safety of EP. Moreover, the transformation of Fe-OH to Fe-O could promote the early cross-linking of polymer. In summary, LDHs-2 could significantly improve the carbonization process of EP and suppress the smoke released during the combustion process.

1. Introduction

Phosphate tailings (PTs) are one of the main by-products of phosphate flotation process, which can be divided into positive tailings and reverse tailings according to different flotation methods [1,2]. Meanwhile, all tailings were constitution with main chemical components (CaO, MgO, Al2O3, SiO2, P2O5) and microcomponents (K2O, Na2O, Fe2O3, etc.) [3,4,5]. In China, nearly two billion tons of tailings are produced annually [6,7]. As well, according to the existing phosphate flotation process, 0.44 tons of PTs are produced per ton of phosphate concentrate produced [8,9]. A large amount of PTs not only required a large amount of land storage and expenditure of management, but also caused serious environmental pollution, such as water contamination, air and soil pollution. Therefore, comprehensive utilization and recycling of PTs are very crucial for the sustainable development of phosphorus chemical industry.
Epoxy resin (EP) is widely applied in automotive, national defense, aerospace, and other industries based on its good mechanical properties and chemical stability. However, EP is limited in its application due to its flammability. Therefore, flame-retardant modification of EP is a feasible method to improve its safety and durability [10,11]. In addition, additives can effectively improve the mechanical properties of polymer materials, especially inorganic nanoparticles [12,13,14]. Currently, flame retardants are roughly divided into organic flame retardants and inorganic flame retardants. Among them, organic flame retardants have good flame retardant properties, but the general halogen, N, and P-containing organic flame retardants are in EP mixed combustion will bring a lot of black smoke, and may also emit a lot of toxic gas, which cause serious harm to environment and mankind health [15,16,17]. Thus, more and more researchers are paying attention to the development of inorganic flame retardants, such as modified carbon nanotubes [18], finely-ground ocher [19], filler-diorite [20], etc. Although the flame retardant performance of inorganic flame retardant is slightly inferior to that of organic flame retardant, it has good smoke suppression performance during combustion, which is beneficial to environmental protection [21,22].
Layered double hydroxides (LDHs) is a typical double metal hydroxide with a layered structure, which is similar to brucite, and its general chemical formula is [M2+1−x M3+x (OH)2]x + (An−)x/n•mH2O, where M2+ and M3+ represent the divalent and trivalent metal ions, An− is the interlayer anion [23,24,25,26]. LDHs have been widely reported as a new functional material and flame retardant because of their special anion exchangeability, tunable pore size, and variability. Mao et al. used dolomite as the raw material to prepare ternary hydrotalcites with good crystallinity through a simple co-precipitation method [27]. Shen et al. found that magnesium hydroxide (MH) blended with ethylene-vinyl acetate copolymer showed significant flame-retardant efficiency even when the dosage of MH was lowered to 20 parts per hundred resins [28]. Yang et al. studies showed that P3O105− pillared Mg/Al hydrotalcite doped polypropylene (PP) matrix had gained better flammability and mechanical properties than pure PP matrix [29]. PTs are rich in divalent and trivalent metal elements, and the use of PTs to prepare hydrotalcite will provide the possibility to reduce the amount of phosphate tailings and develop green flame-retardant materials.
Herein, the present work reported an efficient method to prepare LDHs from PTs by co-precipitation method. The thermal stability, flame retardancy, smoke/CO release rates of as-prepared LDHs/EP were all researched to determine the effect of LDHs on the flame retardant properties of EP composites. Meanwhile, the correlation mechanisms appeared in the studies of condensed phases and gaseous phases of EP. This raw material for the synthesis of green inorganic flame retardant with solid waste is expected to realize the reduction and resource utilization of phosphorus tailings, and effectively enhance the combustion safety of epoxy resin.

2. Materials and Methods

2.1. Materials

PTs were selected from a phosphorus chemical industry located in Yichang, Hubei province. Magnesium chloride hexahydrate (MgCl2·6H2O), aluminum chloride hexahydrate (AlCl3·6H2O), iron chloride hexahydrate (FeCl3·6H2O), sodium hydroxide (NaOH), hydrochloric acid (HCl) and 4,4′-Diamino diphenylmethane (DDM) were purchased from Sinopharm Chemical Reagent Co., Ltd. EP (production name: E-44) was purchased by Nantong Xingchen Synthetic Material Co., Ltd. (Jiangsu, China). Deionized water was used in all experimentations. The typical properties and specifications of EP and DDM were showed in Table 1.

2.2. Preparation of EP/LDHs Composites

2.2.1. Preparation of Ca-Mg-Al LDHs and Ca-Mg-Al-Fe LDHs

In this work, Ca-Mg-Al hydrotalcites (LDHs-1) and Ca-Mg-Al-Fe hydrotalcites (LDHs-2) were synthesized by acidolysis of PTs and co-precipitation method. Typically, 100 g of PTs was calcined at 900 °C for 3 h. A total of 50 g of calcined PTs were decentralization on 89.2 mL deionized water, and then added 89.2 mL HCl (w/w, 35%), strried for 30 min at 60 °C, followed by filtration obtain acid solution. Added NaOH solution (200 g/L) to the above acid solution for adjusting the pH vaule of 5, then filtration to get pure solution. Adjusted the molar ratio of Ca2+ to Mg2+ in pure solution was 0.5, Ca2+ and Mg2+ to Al3+ was 3, added 0.36 mol/L NaOH to adjusted pH value of 10, and then aged at 90 °C for 18 h, filtered, washed with distilled water, freeze dried, and the LDHs-1 was obtained. The preparation of LDHs-2 was similar to LDHs-1, the difference was to adjusted the molar ratio of Ca2+ to Mg2+ in pure solution was 1, Fe3+ to Al3+ was 1, Ca2+ and Mg2+ to Fe3+ and Al3+ was 2.

2.2.2. Preparation of EP/LDHs Composites

A total of 2 g of LDHs-1 and LDHs-2 dispersed to 20 g EP respectively, added 6 g DDM and stirred at 90 °C for 10 min. poured the mixture into the template, aged at 100 °C for 2 h and 150 °C for 2 h successively in the fluid bed. The composite materials of LDHs-1/EP and LDHs-2/EP were obtained after cooling to room temperature.

2.3. Characterization

The Fourier transform infrared spectroscopy (FT-IR) was performed using Nicolet iS50 (Thermo Scientific, Waltham, MA, USA). X-ray diffraction (XRD) was obtained (PANalytical, Holland) using Cu Kα ray with a scan speed of 2° (2θ) min−1. Scanning electron microscopy (SEM) images were investigated by SU 8010 (Hitachi, Tokyo, Japan), and the SEM accelerated voltage was 20 kV. The thermogravimetric analysis (TGA) was measured using TA Q5000 (TA Co., Newcastle, DE, USA) at the heating rate of 10 °C min−1 from room temperature to 1000 °C under N2 condition. Oxygen index tester (HC-2C, Nanjin, China) followed GB/T2406.2-2009 standards detected the level of burning materials. The degree of graphitization of residual carbon was determined via a Laser confocal Raman Spectrometer (SPEX.1403). The combustion heat release, smoke generation, effective combustion heat and smoke toxicity were test by using Cone calorimeter (FTT0007, West Sussex, UK) followed iso 5660 standards and 35 KW radiation intensity.

3. Results and Discussion

3.1. Characterization of LDHs-1 and LDHs-2

The XRD patterns of LDHs-1 and LDHs-2 were presented in Figure 1a. The clearly exposing planes of crystals were (003), (006) and (009) except for the obvious diffraction peaks of the LDHs phase, implying the successful preparation of LDHs-1 with typical layered structure [30]. The characteristic (009) diffraction peak of LDHs-2 can be identified at 28.6° [31,32], which generates from the addition of Fe. Compared with the XRD patterns of LDHs-1, the peak signal of LDHs-2 was messy. This may be due to the isomorphic substitution of Fe.
The FT-IR spectra was performed to detect the functional groups between LDHs-1 and LDHs-2 layers. As shown in Figure 1b, the absorption peak located at 3461 cm−1 was appeared in both LDHs-1 and LDHs-2, which might be explained by -OH stretching [33]. Compared with the free state stretching vibration peak (3600 cm−1) of -OH, this peak drifted to a lower wave number, which could be contribute to the hydrogen bonding between the inter layer H2O and the laminate -OH. The absorptions bands of -OH from the interlayer H2O of LDHs could be observed at 1630 cm−1. The appearance of the peak at 1372 cm−1 was explained by asymmetric stretching vibration of C-O in CO32− [33]. The peaks located between 400 cm−1 and 450 cm−1 were attributed to lattice oxygen vibrations of the cations of Mg2+, Ca2+, Al3+ and Fe3+, which were consistent with the infrared characteristic lines of LDHs-1 and LDHs-2, implying that the LDHs-1 and LDHs-2 might be synthesized successful [34].
The chemical state of the compositional elements in LDHs-1 and LDHs-2 were revealed by XPS. As shown in Figure 2, the binding energies of Mg 1s in LDHs-1 and LDHs-2 samples were 1303.7 eV and 1304.1 eV, indicating the existence of the Mg(II) [35]. The single peaks located at 351.6 eV and 351.8 eV assigned to the Ca 2p, means there was only one species of oxygen [36]. The peak points at 74.4 eV and 74.3 eV, attributed to Al 2p of LDHs-1 and LDHs-2, atttibuted to the existence of Al(III) in the form of Al-O [37]. The binding energies of Fe 2p1/2 and Fe 2p3/2 in LDHs-2 were 710.5 eV and 724.9 eV, respectively, represented two kinds of oxygen species in Fe2O3 [38]. The peak located at 531.65 eV and 531.8 eV assigned to O 1s of LDHs-1 and LDHs-2 could belong to the existence of O-metal [39].
FE-SEM was carried out to obtain the microstructure of the prepared samples, and the images were shown in Figure 3a,b. It can be seen that both LDHs-1 and LDHs-2 showed obvious layered structure. The fewer small flaky particles scattered on the surface and inter layers in Figure 3b, could be caused by incomplete crystallization of LDHs-2. Meanwhile, the obvious smooth surface layered morphology can be seen in Figure 3a,b, indicating that LDHs-1 and LDHs-2 had high crystallinity.
The thermal stability of LDHs-1 and LDHs-2 were investigated by TG-DWG, and shown in Figure 1c. There was a weight loss of LDHs-1 and LDHs-2 when the temperature was less than 200 °C, which were attributed to the removal of adsorbed water [40]. As well, the sharp weight loss of LDHs-1 and LDHs-2 when the temperature increased from 200 °C to 350 °C was explained by the removal of interlayer water. The endothermic section during 350–500 °C of LDHs-1 and LDHs-2, indicating that -OH and CO32− of the hydrotalcite layer had transformed to H2O and CO2 [41]. In other words, the structure of the hydrotalcite was destroyed, and multiple metal composite oxides were generated.

3.2. Evaluation of Flame Retardant Performance with EP/LDHs Composites

3.2.1. Thermal Behavior of EP/LDHs Composites

The thermal stability of LDHs-1/EP and LDHs-2/EP composites were investigated by TG under N2, as shown in Figure 4. The results indicated that the addition of LDHs-1 and LDHs-2 slightly reduced the initial weight loss of EP, resulting from the removal of LDHs interlayer H2O and adsorption of H2O. The carbon yield is a significant indicator to determine the thermal stability of composites. The carbon residue rate raised from 22% for pure EP to 25% for LDHs-1/EP and 28.5% for LDHs-2/EP, indicating that the addition of LDHs-1 and LDHs-2 clearly enhanced the thermal oxidation performance of the EP matrix, meanwhile, the LDHs-2 achieved better performance with higher char yield [42]. In summary, LDHs-1 and LDHs-2 both could enhance the thermal stability of EP composites.

3.2.2. Analysis of Limited Oxygen Index

The limited oxygen index (LOI) is one of the important indexes to evaluate the flame retardant properties of the material. Generally, the higher values of LOI represent the more difficult burning of material. The changed trend of LOI under different LDHs additions is shown in Figure S1 in Support Information (SI). With the increase of LDHs addition from 0 to 8%, the values of LOI increased from 25.8% to 29.3% (LDHs-1/EP) and 29.9% (LDHs-2/EP), which indicated that the composite material was gradually converted to refractory material. This might be contributed to the synergistic effect of LDHs and EP, and result in a decreased of total loading of flame retardant additives and the improvement of flame retardancy [43]. Compared with the reported halogen-free flame retardants [44] and organic flame retardants [45], the LOI value of LDHs-1/EP and LDHs-2/EP was slightly lower. However, LDHs-1 and LDHs-2 exhibited a better flame retardant effect compared with other reported inorganic flame retardants [46,47,48]. This may be caused by the partial substitution of calcium hydroxide for magnesium hydroxide in the hydrotalcite structure.

3.2.3. Analysis of Solid Phase Products of Composites after Combustion

The higher the graphitization degree of the carbon residue layer, the denser and better the heat resistance of carbon residue. Raman spectrum was applied to analyze the carbon yield and determine the carbonaceous quality of LDHs-1/EP and LDHs-2/EP. As shown in Figure 5, the appearance of the peaks at 1360 cm−1 and 1600 cm−1 may be explained by the vibration of the carbon atoms arriving at the disordered graphite (D band) and graphite carbons (G band). The graphitization degree of the materials can be indirectly reflected by the value of the area ratio of the D band and G band (ID/IG). Meanwhile, the higher ratio of ID/IG, the less graphitization degree and stronger thermal stability of carbon residue [42]. As shown in Figure 5a–c, pure EP performs a higher ratio of ID/IG (3.46) than that of LDHs-1/EP (2.32) and LDHs-2/EP (2.03). It could be because the EP matrix formed more residual carbon with a high graphitization degree under the promotion of LDHs-1 and LDHs-2. Meanwhile, the ratio of ID/IG for LDHs-2/EP was higher than that of LDHs-1/EP, indicating that the catalyzed carbon performance of LDHs-1 was better than LDHs-2 [43].
SEM images of the residual carbon were investigated to estimate the flame-retardancy mechanisms. It can be seen in Figure 6, that the fluffy tiny particles of carbon were scattered on the carbon layer of pure EP, while the carbon layers of LDHs-1/EP and LDHs-2/EP were tighter than that of pure EP. The flat carbon layer can effectively inhibit heat transfer and metabolite decomposition, thereby hindering combustion [49]. Moreover, the results showed that LDHs-1 and LDHs-2 had an obvious smoke suppression effect for EP, which was consistent with the results of cone calorimetry.

3.2.4. Thermal Behavior of Composite Combustion Analysis

Heat release rate (HRR), total heat release (THR), CO release rate, smoke production rate (SPR), and total smoke production (TSP) are key results acquired from cone calorimeter (CC) to evaluate inflaming retarding of materials. The CC was used in this study for exploring the thermal behavior of composite materials and the results are shown in Figure 7a,b. It could be seen that there were no significant changes in heat release rate peak (pHRR) of LDHs-1/EP, while more than 45% abatement in THR. Comparatively, there were a nearly 28% decrease in pHRR and a 63% reduction in THR of LDHs-2/EP. The reduced value of pHRR performance indicated that the addition of LDHs could inhibit the combustion of EP, and the flame retardancy of LDHs-2 was better than that of LDHs-1. The decrease of THR indicated that part of EP was incompletely combusted, which could be attributed to the char-forming process, catalyze effect, and the characteristics of LDHs-1/EP and LDHs-2/EP [50].
CO release is a significant element in assessing the safe combustion of EP combustion, which was attributed to the production from incomplete combustion of oxygen-containing groups [51]. The CO release curves of EP, LDHs-1/EP, and LDHs-2/EP were shown in Figure 7c–e. The CO release rate decreased from 10.47 kg/kg of EP to 6.78 kg/kg of LDHs-1/EP and 1.104 kg/kg of LDHs-2/EP. The decrease in CO production showed the enhancement of LDHs on combustion safety of EP. This was mainly because LDHs-1 and LDHs-2 catalyzed EP to reduce the incomplete combustion of oxygen-containing groups.
Smoke production is another important indicator for evaluating the safety of flame retardants. The smoke formation rate (pSPR) and the total smoke production (TSP) curves were shown in Figure 7f,g. Compared with EP, pSPR, and TSP reduced by nearly 45% and 74% for LDHs-1/EP, and 64% and 85% for LDHs-2/EP, respectively. The obvious reduction of pSPR and TSR indicated that LDHs-1 and LDHs-2 had a significant improvement in the combustion safety of EP, and the improvement of LDHs-2 was better than that of LDHs-1 [51].

3.2.5. Mechanism Analysis

Based on the analysis of thermal stability, solid-phase products and thermal behavior of composite combustion, the flame-retardant mechanisms for LDHs-1 and LDHs-2 may be explained by Figure S2. On the one hand, LDHs-1 and LDHs-2 will decompose during combustion and release CO2 and H2O, which will reduce the concentration of oxygen free radicals in the combustion area and achieve the effect of dilution and quenching [52]. On the other hand, the presence of LDHs-1 and LDHs-2 inhibited smoke and CO release and promoted the char-forming process based on their catalytic performance. LDHs were converted to corresponding oxide (LDO) during combustion, especially Fe-OH transform to Fe-O, which can catalyze the decomposition of EP and promote the early cross-linking of the molecular chain. The result is to improve the carbonization process of EP and suppress the smoke release during the combustion process [53]. Thus, the smoke depression performance of LDHs-2 was better than that of LDHs-1 [54,55]. The results indicated that LDHs-2 and LDHs-1 can effectively improve the fire safety of EP.

4. Conclusions

In summary, LDHs-1 and LDHs-2 were prepared from PTs by co-precipitation method and applied to enhance the flame retardancy of EP. The results indicated that the synthesized LDHs-1 and LDHs-2 displayed obviously layered structure and high crystallinity. The addition of both LDHs-1 and LDHs-2 can significantly improve the LOI and flame retardancy of EP. The CC results indicated that the that the smoke suppression of LDHs-2/EP was better than LDHs-1/EP, which might be caused by the conversion from LDHs to LDO in the combustion process. Moreover, the transformation of Fe-OH to Fe-O could promote the early cross-linking of polymer. The result is to improve the carbonization process of EP and suppress the smoke release during the combustion process. Consequently, this research will provide a possibility to prepare a new type of eco-friendly flame retardant materials by resource utilization of PTs.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/polym14132516/s1, Figure S1: LOI trends curves of LDHs-1/EP and LDHs-2/EP composites. Figure S2: Possible flammability and charring process of EP composites.

Author Contributions

Conceptualization: H.W.; methodology: W.Z.; investigation: P.G., L.J. and Y.P.; writing—original draft preparation: H.W.; writing—review and editing: H.Z.; funding acquisition: Z.P. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Innovative Team program of Natural Science Foundation of Hubei Province (2021CFA032), the Innovation Project of Key Laboratory of Novel Biomass-Based Environmental and Energy Materials in Petroleum and Chemical Industry (2022BEEA08) and Key Laboratory for Green Chemical Process of Ministry of Education (GCX202103), Guiding project of scientific research plan of Hubei Provincial Department of Education (B2021077) and State Key Laboratory of Silicate Materials for Architectures (Wuhan University of Technology).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors would like to thank the State Key Laboratory of Silicate Materials for Architectures (Wuhan University of Technology), and the Analytical Testing Center of WIT for supporting BET, FTIR, XRD, and SEM techniques.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wu, J.; Li, J.; Rao, F.; Yin, W. Mechanical property and structural evolution of alkali-activated slag-phosphate mine tailings mortars. Chemosphere 2020, 251, 126367. [Google Scholar] [CrossRef] [PubMed]
  2. Nie, Y.X.; Dai, J.F.; Hou, Y.D.; Zhu, Y.; Wang, C.; He, D.; Mei, Y. An efficient and environmentally friendly process for the reduction of SO2 by using waste phosphate mine tailings as adsorbent. J. Hazard. Mater. 2020, 388, 121748. [Google Scholar] [CrossRef] [PubMed]
  3. Perumal, P.; Piekkari, K.; Sreenivasan, H.; Kinnunen, P.; Illikainen, M. One-part geopolymers from mining residues—Effect of thermal treatment on three different tailings. Miner. Eng. 2019, 144, 106026. [Google Scholar] [CrossRef]
  4. Xiao, Y.H.; Xiang, C.P.; Lei, H.M.; Jin, S.; Yin, X.; Ding, Y.G.; Du, Z.P. Effect of change of Ca, P and Mg on the surface of catalyst prepared from phosphate tailing on urea alcoholysis. Catal. Commun. 2019, 128, 105712. [Google Scholar] [CrossRef]
  5. Chen, Y.L.; Wei, Z.A.; Irfan, M.H.; Xu, J.; Yang, Y. Laboratory investigation of the relationship between electrical resistivity and geotechnical properties of phosphate tailings. Measurement 2018, 126, 289–298. [Google Scholar] [CrossRef]
  6. Moukannaa, S.; Loutou, M.; Benzaazoua, M.; Vitola, L.; Alami, J.; Hakkou, R. Recycling of phosphate mine tailings for the production of geopolymers. J. Clean. Prod. 2018, 185, 891–903. [Google Scholar] [CrossRef]
  7. Chen, Q.S.; Zhang, Q.L.; Fourie, A.; Xin, C. Utilization of phosphogypsum and phosphate tailings for cemented paste backfill. J. Environ. Manag. 2017, 201, 19–27. [Google Scholar] [CrossRef]
  8. Yang, Y.H.; Wei, Z.A.; Chen, Y.L.; Li, Y.; Li, X. Utilizing phosphate mine tailings to produce ceramisite. Constr. Build. Mater. 2017, 155, 1081–1090. [Google Scholar] [CrossRef]
  9. Zheng, K.R.; Zhou, J.; Gbozee, M. Influences of phosphate tailings on hydration and properties of Portland cement. Constr. Build. Mater. 2015, 98, 593–601. [Google Scholar] [CrossRef]
  10. Hobbs, C.E. Recent Advances in Bio-Based Flame Retardant Additives for Synthetic Polymeric Materials. Polymers 2019, 11, 224. [Google Scholar] [CrossRef] [Green Version]
  11. Green, J. A Review of Phosphorus-Containing Flame Retardants. J. Fire Sci. 1992, 10, 470–487. [Google Scholar] [CrossRef]
  12. Zaghloul, M.M.Y.; Zaghloul, M.Y.M.; Zaghloul, M.M.Y. Experimental and modeling analysis of mechanical-electrical behaviors of polypropylene composites filled with graphite and MWCNT fillers. Polym. Test. 2017, 63, 467–474. [Google Scholar] [CrossRef]
  13. Zaghloul, M.M.Y.; Zaghloul, M.Y.M.; Zaghloul, M.M.Y. Developments in polyester composite materials-An in-depth review on natural fibres and nano fillers. Compos. Struct. 2021, 278, 114698. [Google Scholar] [CrossRef]
  14. Mohamed, Y.S.; EI-Gamal, H.; Zaghloul, M.M.Y. Micro-hardness behavior of fiber reinforced thermosetting composites embedded with cellulose nanocrystals. Alex. Eng. J. 2018, 57, 4113–4119. [Google Scholar] [CrossRef]
  15. Fuseini, M.; Zaghloul, M.M.Y.; Eikady, M.F.; EI-Shazly, A.H. Evaluation of synthesized polyaniline nanofibres as corrosion protection film coating on copper substrate by electrophoretic deposition. J. Mater. Sci. 2022, 57, 6085–6101. [Google Scholar] [CrossRef]
  16. Zaghloul, M.M.Y.; Mohamed, Y.S.; EI-Gamal, H. Fatigue and tensile behaviors of fiber-reinforced thermosetting composites embedded with nanoparticles. J. Compos. Mater. 2018, 53, 709–718. [Google Scholar] [CrossRef]
  17. Zaghloul, M.M.Y.; Martin Veidt, K.S.; Heitzmann, M.T. Wear behaviour of polymeric materials reinforced with man-made fibres: A comprehensive review about fibre volume fraction influence on wear performance. J. Reinf. Plast. Compos. 2022, 41, 215–241. [Google Scholar] [CrossRef]
  18. Bao, X.H.; Wu, F.Y.; Wang, J.B. Thermal Degradation Behavior of Epoxy Resin Containing Modified Carbon Nanotubes. Polymers 2021, 13, 3332. [Google Scholar] [CrossRef]
  19. Bekeshev, A.; Mostovoy, A.; Tastanova, L.; Kadykova, Y.; Kalganova, S.; Lopukhova, M. Reinforcement of Epoxy Composites with Application of Finely-ground Ochre and Electrophysical Method of the Composition Modification. Polymers 2020, 12, 1437. [Google Scholar] [CrossRef]
  20. Bekeshev, A.; Mostovoy, A.; Kadykova, Y.; Akhmetova, M.; Tastanova, L.; Lopukhova, M. Development and Analysis of the Physicochemical and Mechanical Properties of Diorite-Reinforced Epoxy Composites. Polymers 2021, 13, 2421. [Google Scholar] [CrossRef]
  21. Mostovoy, A.; Nurtazina, A.S.; Kadykova, Y.; Bekeshev, A.Z. Highly Efficient Plasticizers-Antipirenes for Epoxy Polymers. Inorg. Mater. Appl. Res. 2019, 10, 1135–1139. [Google Scholar] [CrossRef]
  22. Zhou, S.; Tao, R.; Dai, P.; Luo, Z.Y.; He, M. Two-step fabrication of lignin-based flame retardant for enhancing the thermal and fire retardancy properties of epoxy resin composites. Polym. Compos. 2020, 41, 2025–2035. [Google Scholar] [CrossRef]
  23. Tarasov, K.A.; O’Hare, D.; Isupov, V.P. Solid-state chelation of metal ions by ethylenediaminetetraacetate intercalated in a layered double hydroxide. Inorg. Chem. 2003, 42, 1919–1927. [Google Scholar] [CrossRef] [PubMed]
  24. Zou, Y.D.; Wang, X.X.; Ai, Y.J.; Liu, Y.; Li, J.; Ji, Y.; Wang, X. Coagulation behavior of graphene oxide on nanocrystallined Mg/Al layered double hydroxides: Batch experimental and theoretical calculation study. Environ. Sci. Technol. 2016, 50, 3658–3667. [Google Scholar] [CrossRef] [PubMed]
  25. Li, Z.H.; Shao, M.F.; Zhou, L.; Zhang, R.; Zhang, C.; Mei, M.; Evand, D.G.; Duan, X. Directed growth of metal-organic frameworks and their derived carbon-based network for efficient electrocatalytic oxygen reduction. Adv. Mater. 2016, 28, 2337–2344. [Google Scholar] [CrossRef]
  26. Li, J.; Fan, Q.H.; Wu, Y.J.; Wang, X.; Chen, C.; Tang, Z.; Wang, X. Magnetic polydopamine decorated with Mg-Al LDH nanoflakes as a novel bio-based adsorbent for simultaneous removal of potentially toxic metals and anionic dyes. J. Mater. Chem. A 2016, 4, 1737–1746. [Google Scholar] [CrossRef]
  27. Mao, N.; Zhou, C.H.; Keeling, J.; Fiore, S.; Zhang, H.; Chen, L.; Jin, G.C.; Zhu, T.T.; Tong, D.S.; Yu, W.H. Tracked changes of dolomite into Ca-Mg-Al layered double hydroxide. Appl. Clay Sci. 2018, 159, 25–36. [Google Scholar] [CrossRef]
  28. Shen, L.G.; Shao, C.R.; Li, R.J.; Xu, Y.C.; Li, J.X.; Lin, H.J. Preparation and characterization of ethylene–vinyl acetate copolymer (EVA)-magnesium hydroxide (MH)-hexaphenoxycyclotriphosphazene (HPCTP) composite flame-retardant materials. Polym. Bull. 2018, 76, 2399–2410. [Google Scholar] [CrossRef]
  29. Xu, S.; Zhang, M.; Li, S.Y.; Zeng, H.Y.; Du, J.Z.; Chen, C.R.; Pan, Y. Surface modification of phosphorus-containing hydrotalcite using rare-earth coupling agent and its application in polypropylene. Powder Technol. 2019, 342, 555–561. [Google Scholar] [CrossRef]
  30. Mantilla, A.; Jácome-Acatitla, G.; Morales-Mendoza, G.; Tzompantzi, F.; Gómez, R. Photoassisted degradation of 4-chlorophenol and p-cresol using MgAl hydrotalcites. Ind. Eng. Chem. Res. 2011, 50, 2762–2767. [Google Scholar] [CrossRef]
  31. Chuang, Y.H.; Tzou, Y.M.; Wang, M.K.; Liu, C.H.; Chiang, P.N. Removal of 2-chlorophenol from aqueous solution by Mg/Al layered double hydroxide (LDH) and modified LDH. Ind. Eng. Chem. Res. 2008, 47, 3813–3819. [Google Scholar] [CrossRef]
  32. Qiao, W.; Bai, H.; Tang, T.; Miao, J.; Yang, Q. Recovery and utilization of phosphorus in wastewater by magnetic Fe3O4/Zn-Al-Fe-La layered double hydroxides(LDHs). Colloids Surf. A 2019, 577, 118–128. [Google Scholar] [CrossRef]
  33. Zhang, Y.; Yang, J.Q.; Fan, F.Y.; Qing, B.; Zhu, C.; Shi, Y.; Fan, J.; Deng, X. Effect of divalent metals on the UV-shielding properties of MII/MgAl layered double hydroxides. ACS Omega 2019, 4, 10151–10159. [Google Scholar] [CrossRef] [PubMed]
  34. Wu, H.J.; Yang, X.F.; Zhang, H.L.; Shi, D.J.; Xia, Y.; Zhang, W.J.; Pan, Z.Q.; Wang, D.S. Removal of Tetracycline, 2,4-Dichlorophenol, and Glyphosate from Aqueous Solution by Novel Humic Acid-Modified g-C3N4-Supported Hydrotalcite-like Compounds: Kinetics, Isotherm, Thermodynamics, and Reusability Exploration. J. Chem. Eng. Data 2020, 65, 4914. [Google Scholar] [CrossRef]
  35. Gao, T.; Hou, S.; Huynh, K.; Wang, F.; Eidson, N.; Fan, X.; Han, F.; Luo, C.; Mao, M.; Li, X.; et al. Existence of solid electrolyte interphase in Mg batteries: Mg/S chemistry as an example. ACS Appl. Mater. Interfaces 2018, 10, 14767–14776. [Google Scholar] [CrossRef] [PubMed]
  36. Connell, J.G.; Genorio, B.; Lopes, P.P.; Strmcnik, D.; Stamenkovic, V.R.; Markovic, N.M. Tuning the reversibility of Mg anodes via controlled surface passivation by H2O/Cl- in organic electrolytes. Chem. Mater. 2016, 28, 8268–8277. [Google Scholar] [CrossRef]
  37. Gao, D.Q.; Zhang, J.; Yang, G.J.; Zhang, J.; Shi, Z.; Qi, J.; Zhang, Z.; Xue, D. Ferromagnetism in ZnO nanoparticles induced by doping of a nonmagnetic element: Al. J. Phys. Chem. C 2010, 114, 13477–13481. [Google Scholar] [CrossRef]
  38. Medić Ilić, M.; Bundaleski, N.; Ivanović, N.; Teodoro, O.M.N.D.; Rakočević, Z.; Minić, D.; Romčević, N.; Radisavljević, I. XPS measurements of air-exposed Cd(Zn)1-xFexTe1-ySey surfaces revisited. Vacuum 2020, 176, 109340. [Google Scholar] [CrossRef]
  39. Shadpour, M.; Zeinab, R.; Chaudhery, M.H. Current advances on polymer-layered double hydroxides/metal oxides nanocomposites and bionanocomposites: Fabrications and applications in the textile industry and nanofibers. Appl. Clay Sci. 2021, 206, 106054. [Google Scholar]
  40. Kim, Y.J.; Park, C.R. Analysis of problematic complexing behavior of ferric chloride with N,N-dimethylformamide using combined techniques of FT-IR, XPS, and TGA/DTG. Inorg. Chem. 2002, 41, 6211–6216. [Google Scholar] [CrossRef]
  41. Wu, H.J.; Zhang, H.L.; Zhang, W.J.; Yang, X.F.; Zhou, H.; Pan, Z.Q.; Wang, D.S. Preparation of magnetic polyimide@ Mg-Fe layered double hydroxides core-shell composite for effective removal of various organic contaminants from aqueous solution. Chemosphere 2019, 219, 66–75. [Google Scholar] [CrossRef] [PubMed]
  42. Wu, H.J.; Zhang, W.J.; Zhang, H.L.; Pan, Y.; Yang, X.F.; Pan, Z.Q.; Yu, X.J.; Wang, D.S. Preparation of the novel g-C3N4 and porous polyimide supported hydrotalcite-like compounds materials for water organic contaminants removal. Colloids Surf. A 2020, 607, 125517. [Google Scholar] [CrossRef]
  43. Gupta, S.S.; Sreeprasad, T.S.; Maliyekkal, S.M.; Das, S.K.; Pradeep, T. Graphene from sugar and its application in water purification. ACS Appl. Mater. Interfaces 2018, 4, 4156–4163. [Google Scholar] [CrossRef] [PubMed]
  44. Zaghloul, M.M.Y.; Zaghloul, M.M.Y. Influence of flame retardant magnesiumhydroxide on the mechanical properties of high density polyethylene composites. J. Reinf. Plast. Compos. 2017, 36, 1802–1816. [Google Scholar] [CrossRef]
  45. Zaghloul, M.M.Y. Mechanical properties of linear low-density polyethylene fire-retarded with melamine polyphosphate. J. Appl. Polym. Sci. 2018, 135, 46770. [Google Scholar] [CrossRef]
  46. Guo, X.; Wang, H.S.; Ma, D.L.; He, J.N.; Lei, Z.Q. Synthesis of a novel, multifunctional inorganic curing agent and its effect on the flame-retardant and mechanical properties of intrinsically flame retardant epoxy resin. Appl. Polym. Sci. 2018, 135, 46410. [Google Scholar] [CrossRef]
  47. Qian, X.D.; Song, L.; Yu, B.; Wang, B.B.; Yuan, B.H.; Shi, Y.Q.; Hu, Y.; Yuen, R.K.K. Novel organic-inorganic flame retardants containing exfoliated graphene: Preparation and their performance on the flame retardancy of epoxy resins. J. Mater. Chem. A 2013, 1, 6822–6830. [Google Scholar] [CrossRef]
  48. Shi, C.L.; Qian, X.D.; Jing, J.Y. Phosphorylated cellulose/Fe(3+)complex: A novel flame retardant for epoxy resins. Polym. Adv. Technol. 2021, 32, 183–189. [Google Scholar] [CrossRef]
  49. Zhu, Z.M.; Lin, P.L.; Wang, H.; Wang, L.X.; Yu, B.; Yang, F.H. A facile one-step synthesis of highly efficient melamine salt reactive flame retardant for epoxy resin. J. Mater. Sci. 2020, 55, 12836–12847. [Google Scholar] [CrossRef]
  50. Wang, L.; Yang, W.; Wang, B.; Wu, Y.; Hu, Y.; Song, L.; Yuen, R.K.K. The impact of metal oxides on the combustion behavior of ethylene-vinyl acetate coploymers containing an intumenscent flame retardant. Ind. Eng. Chem. Res. 2012, 51, 7884–7890. [Google Scholar] [CrossRef]
  51. Zhu, Z.M.; Wang, L.X.; Lin, X.B.; Dong, L.P. Synthesis of a novel phosphorus-nitrogen flame retardant and its application in epoxy resin. Polym. Degrad. Stabil. 2019, 169, 108981. [Google Scholar] [CrossRef]
  52. Du, D.; Li, E.; Ouyang, J. Nitrogen-doped reduced graphene oxide prepared by simultaneous thermal reduction and nitrogen doping of graphene oxide in air and its application as an electrocatalyst. ACS Appl. Mater. Interfaces 2015, 7, 26952–26958. [Google Scholar] [CrossRef] [PubMed]
  53. Peng, Y.; Niu, M.; Qin, R.H.; Xue, B.; Shao, M. Study on flame retardancy and smoke suppression of PET by the synergy between Fe2O3 and new phosphorus-containing silicone flame retardant. High Perform. Polym. 2020, 32, 871–882. [Google Scholar] [CrossRef]
  54. Chen, X.L.; Li, M.; Zhuo, J.L.; Ma, C.; Jiao, C. Influence of Fe2O3 on smoke suppression and thermal degradation properties in intumescent flame-retardant silicone rubber. J. Therm. Anal. Calorim. 2016, 123, 439–448. [Google Scholar] [CrossRef]
  55. Qian, Y.; Li, S.Q.; Chen, X.L. Preparation of mesoporous silica-LDHs system and its coordinated flame-retardant effect on EVA. J. Therm. Anal. Calorim. 2017, 130, 2055–2067. [Google Scholar] [CrossRef]
Polymers 14 02516 g001 550
Figure 1. (a) XRD curves, (b) FT-IR spectras and (c) TG-DWG images of LDHs-1 and LDHs-2.
Figure 1. (a) XRD curves, (b) FT-IR spectras and (c) TG-DWG images of LDHs-1 and LDHs-2.
Polymers 14 02516 g001
Polymers 14 02516 g002 550

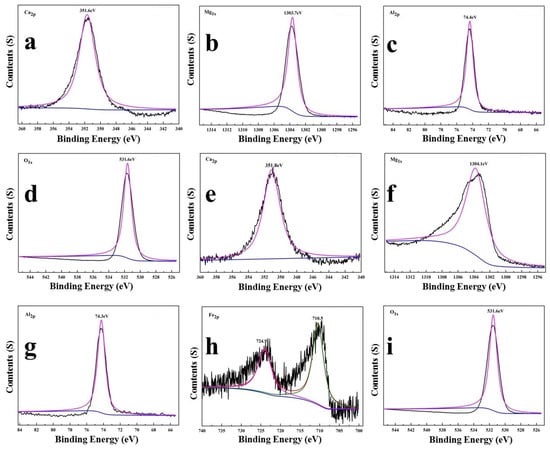

Figure 2. XPS survey (a) Ca 2p, (b) Mg 1s, (c) Al 2p, (d) O 1s for LDHs-1 and (e) Ca 2p, (f) Mg 1s, (g) Al 2p, (h) Fe 2p, (i) O 1s for LDHs-2.
Figure 2. XPS survey (a) Ca 2p, (b) Mg 1s, (c) Al 2p, (d) O 1s for LDHs-1 and (e) Ca 2p, (f) Mg 1s, (g) Al 2p, (h) Fe 2p, (i) O 1s for LDHs-2.
Polymers 14 02516 g002
Polymers 14 02516 g003 550

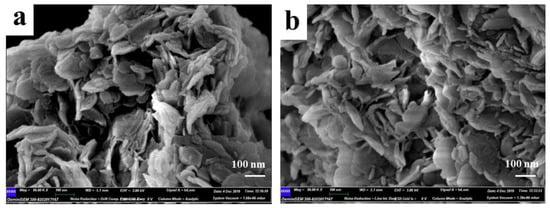

Figure 3. SEM images of (a) LDHs-1 and (b) LDHs-2.
Figure 3. SEM images of (a) LDHs-1 and (b) LDHs-2.
Polymers 14 02516 g003
Polymers 14 02516 g004 550

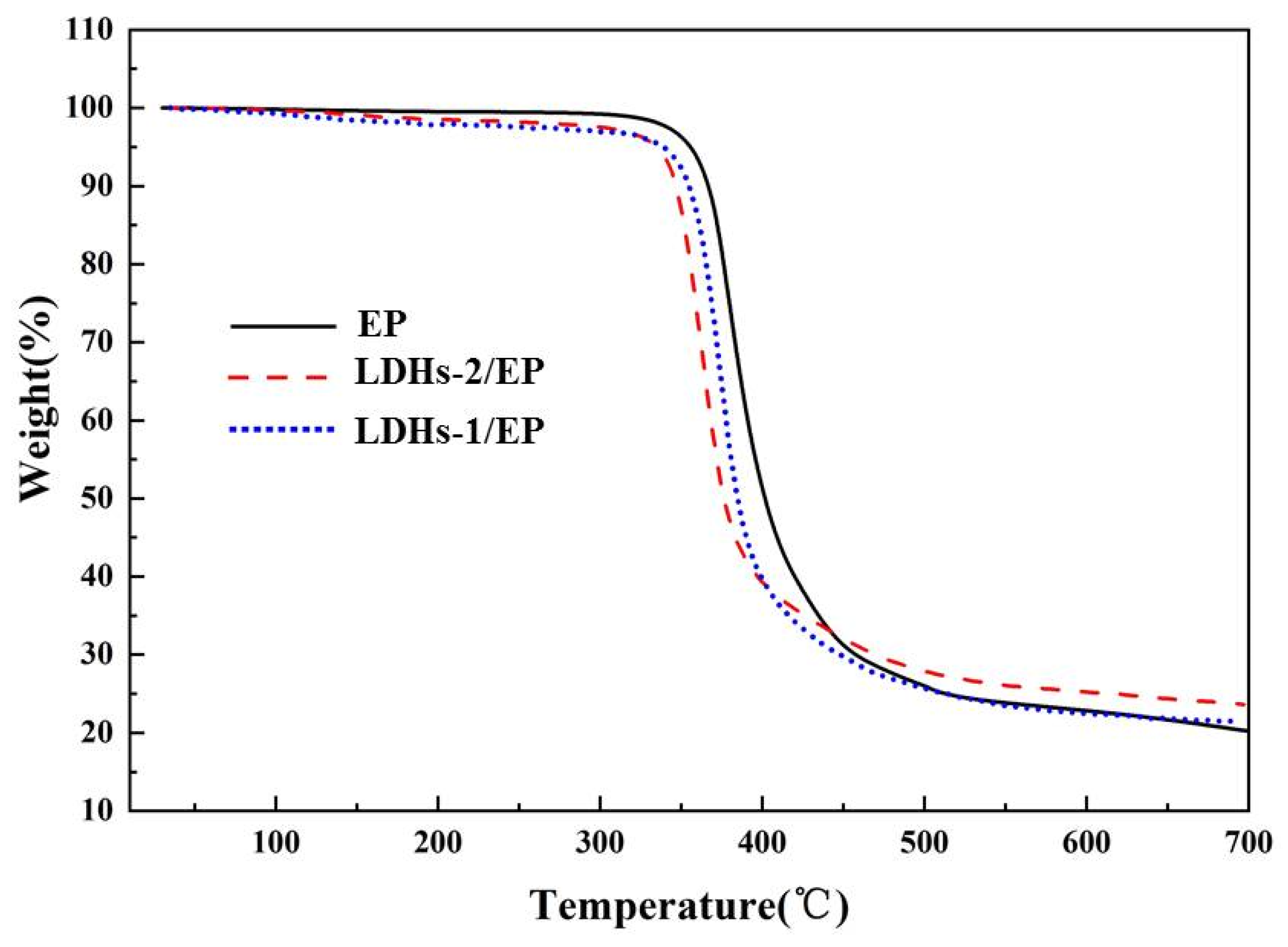

Figure 4. TG images of EP, LDHs-1/EP, and LDHs-2/EP.
Figure 4. TG images of EP, LDHs-1/EP, and LDHs-2/EP.
Polymers 14 02516 g004
Polymers 14 02516 g005 550

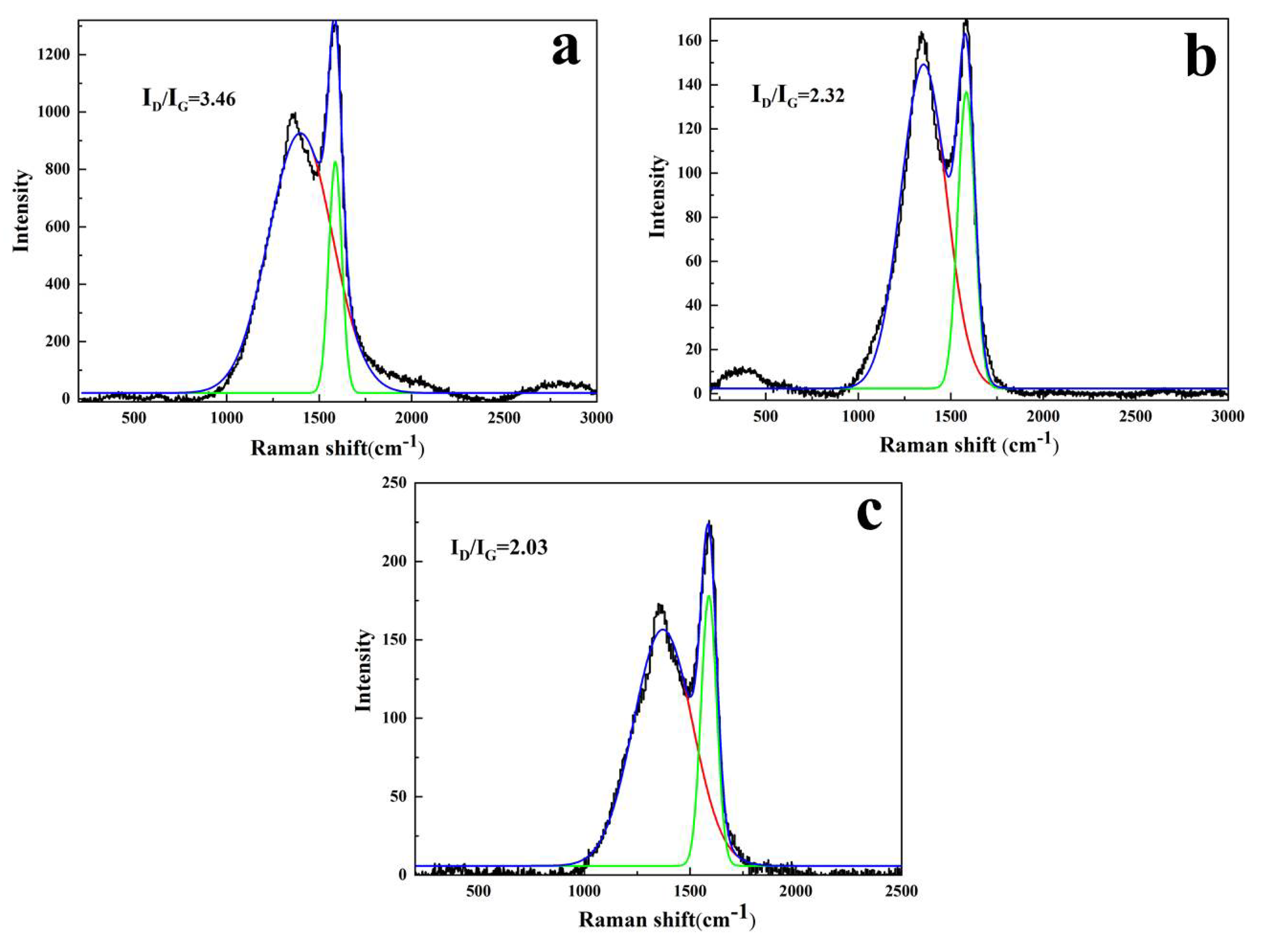

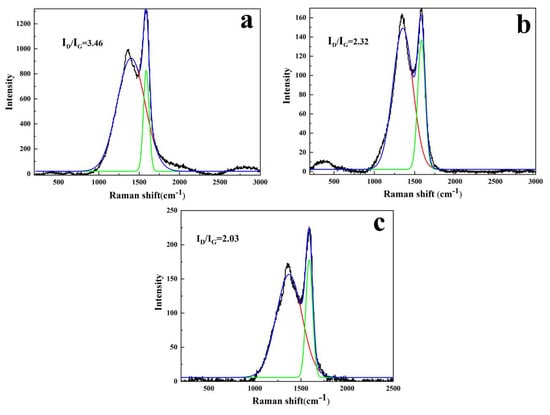

Figure 5. Raman images of (a) EP, (b) LDHs-1/EP and (c) LDHs-2/EP combustion products.
Figure 5. Raman images of (a) EP, (b) LDHs-1/EP and (c) LDHs-2/EP combustion products.
Polymers 14 02516 g005
Polymers 14 02516 g006 550

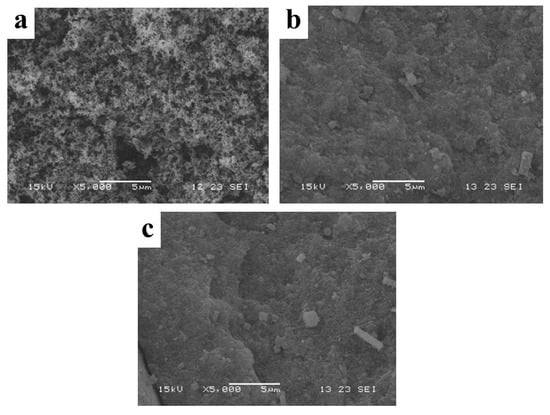

Figure 6. SEM images of (a) EP, (b) LDHs-1/EP and (c) LDHs-2/EP combustion products.
Figure 6. SEM images of (a) EP, (b) LDHs-1/EP and (c) LDHs-2/EP combustion products.
Polymers 14 02516 g006
Polymers 14 02516 g007 550

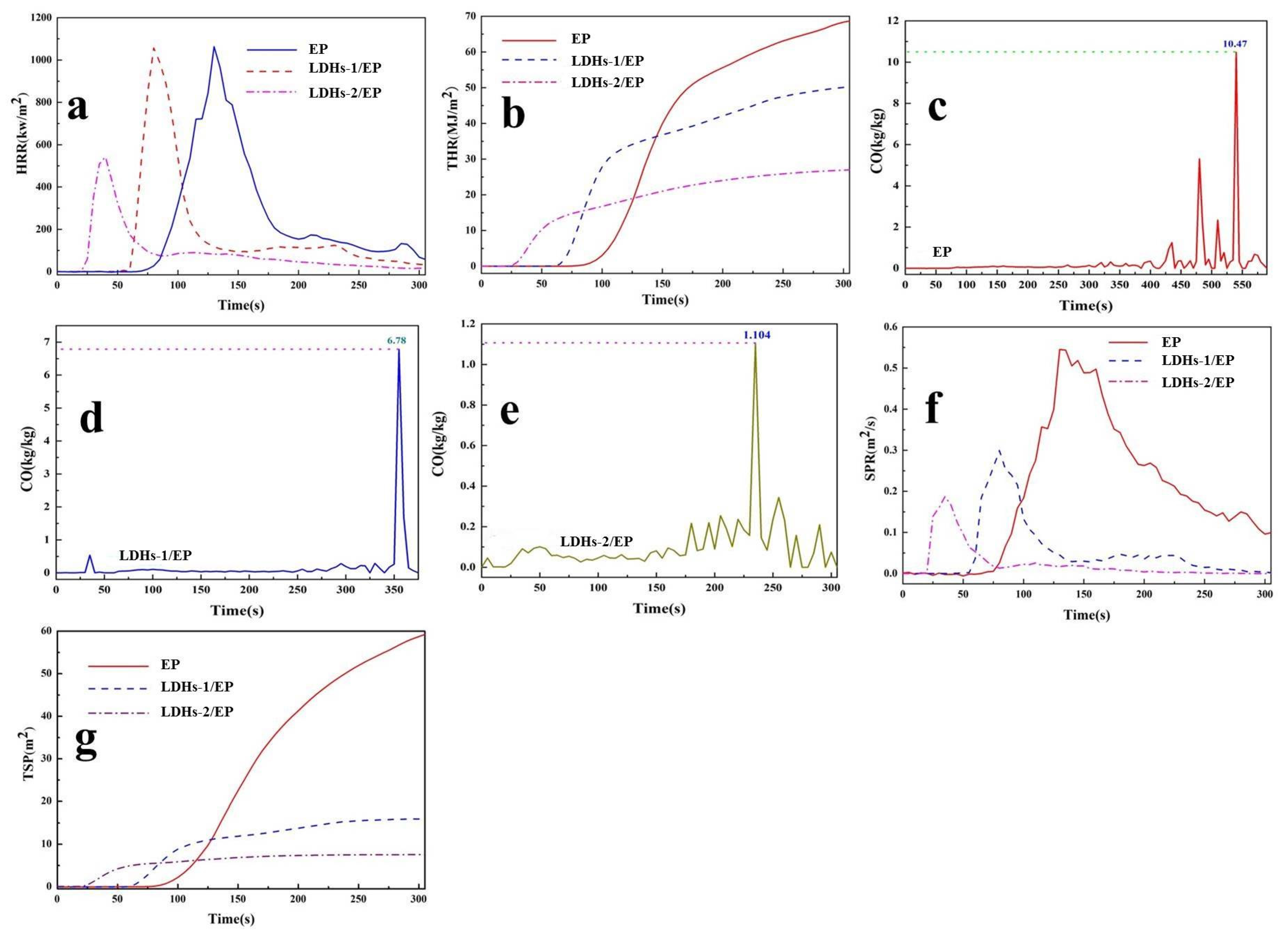

Figure 7. (a) HRR, (b) THR, (f) SPR, (g) TSP curves of EP, LDHs-1/EP and LDHs-2/EP; CO release rate curves of (c) EP, (d) LDHs-1/EP and (e) LDHs-2/EP.
Figure 7. (a) HRR, (b) THR, (f) SPR, (g) TSP curves of EP, LDHs-1/EP and LDHs-2/EP; CO release rate curves of (c) EP, (d) LDHs-1/EP and (e) LDHs-2/EP.
Polymers 14 02516 g007
Table
Table 1. Typical properties and specifications of EP and DDM.
Table 1. Typical properties and specifications of EP and DDM.
The Qualitative CharacteristicsValue
Properties of DDM
epoxide equivalent, g/mol168.23
softening point, °C25
boiling point, °C264.3
density, g/cm31.006
Properties of epoxy resin E-44
epoxide equivalent, g/mol210–244
epoxide number0.41–0.47
hydrolysable chlorine, %≤0.5
inorganic chlorine, mg/kg≤50
softening point, °C14–23
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
