An Investigation on the Thermally Induced Compatibilization of SBR and α-Methylstyrene/Styrene Resin

by
Arnaud Wolf
1,2,
João Paulo Cosas Fernandes
1,
Chuanyu Yan
1,2,
Reiner Dieden
1,
Laurent Poorters
3,
Marc Weydert
3 and
Pierre Verge
1,*
1
Luxembourg Institute of Science and Technology, L-4362 Esch-sur-Alzette, Luxembourg
2
University of Luxembourg, L-4365 Esch-sur-Alzette, Luxembourg
3
Goodyear Innovation Center, L-7750 Colmar-Berg, Luxembourg
*
Author to whom correspondence should be addressed.
Polymers 2021, 13(8), 1267; https://doi.org/10.3390/polym13081267
Submission received: 24 March 2021 / Revised: 9 April 2021 / Accepted: 9 April 2021 / Published: 13 April 2021
(This article belongs to the Special Issue Advanced Rubber Composite)
Browse Figures
Review Reports Versions Notes

Abstract

:
The miscibility between two polymers such as rubbers and performance resins is crucial to achieve given targeted properties in terms of tire performances. To this aim, α-methylstyrene/styrene resin (poly(αMSt-co-St)) are used to modify the viscoelastic behavior of rubbers and to fulfill the requirements of the final applications. The initial aim of this work was to understand the influence of poly(αMSt-co-St) resins blended at different concentrations in a commercial styrene-butadiene rubber (SBR). Interestingly, while studying the viscoelastic properties of SBR blends with poly(αMSt-co-St), crosslinking of the rubber was observed under conditions where it was not expected to happen. Surprisingly, after the crosslinking reactions, the poly(αMSt-co-St) resin was irreversibly miscible with SBR at concentrations far above its immiscibility threshold. A detailed investigation involving characterization technics including solid state nuclear magnetic resonance led to the conclusion that poly(αMSt-co-St) is depolymerizing under heating and can graft onto the chains of SBR. It results in an irreversible compatibilization mechanism between the rubber and the resin.

1. Introduction

The specifications of applicative materials are generally obtained by blending polymers of different chemical and physical characteristics [1,2,3,4]. Their miscibility is a crucial parameter to reach the targeted properties [5,6,7]. In the tire industry, rubbers are particularly subjected to an adjustment of their viscoelastic properties by their blending with another polymer [8,9,10]. Among them, poly(styrene-co-butadiene) rubber (SBR, Scheme 1A) is the main component of tire tread formulations thanks to its relatively high glass transition temperature (Tg) compared to other elastomers, as well as the temperature dependence of its loss factor [8,11]. Nevertheless, a modification of its viscoelastic properties is needed to fit the wet and dry grip requirements and to maximize its performance. Its blending with performance resins is a way to reach these specifications [12].
Performance resins regroup amorphous materials with a low average molecular weight (between 800 and 4000 g/mol). Three groups of synthetic performance resins can be found [13,14]: (i) Resins derived from naturally occurring terpenes produced from monomers isolated from pine trees, (ii) Coumarone-indene resins produced from monomers obtained by distillation of coal tar, and (iii) Aliphatic C5 and aromatic C9 hydrocarbon resins produced from monomers obtained via steam cracking of petroleum streams. These resins are widely used due to their efficiency to modify the viscoelastic behavior of rubbers to fulfil the requirements of the final applications [15,16,17,18,19,20,21,22].
Copolymers of α-methylstyrene and styrene (poly(αMSt-co-St)) belong to the group of aromatic C9 hydrocarbon resins (Scheme 1B) [13]. In spite of the extensive use of these resins, the literature is not rich in studies describing the resin concentration influence on the viscoelastic behavior of their blend with a rubber. The initial aim of this work was to fill this gap by assessing the viscoelastic properties of SBR and poly(αMSt-co-St) blends at different resin concentrations, from 25 to 150 parts per hundred rubber (phr). As the thermodynamic properties of polymer blends is highly dependent on the molecular weight [4,23,24,25], tailor-made and well-defined poly(αMSt-co-St) resins were prepared to avoid any side-effects from the molecular dispersity of the resin [26].
Commercial SBR formulations are known to be mixed with an antioxidant system to prevent their thermal degradation and self-crosslinking [9]. Interestingly, while studying the viscoelastic properties of SBR blends with poly(αMSt-co-St), crosslinking of the rubber was observed under conditions where it was not expected to happen. When a polymer crosslinks while dissolved in a second polymer, it leads to a phase separation. This phenomenon, called reaction-induced phase separation (RIPS), results in a narrowing of the miscible concentration range, together with the increase of the polymerization or crosslinking density [27,28,29,30,31,32,33,34]. Surprisingly, after the crosslinking reactions, the poly(αMSt-co-St) resin was miscible with SBR at concentrations far above the immiscibility threshold.
This work reports on the investigation of this behavior and attempts to provide an explanation.

2. Materials and Methods

2.1. Materials

For the resin synthesis, Styrene ≥ 99% (St, Sigma Aldrich) and α-methylstyrene ≥ 99% (αMSt, Sigma Aldrich BVBA, Diegem, Belgium) were distilled over calcium hydride (CaH2) under reduced pressure (~30 mbar) prior to reaction. Tetrahydrofuran (THF), cyclohexane and toluene (SLR grade, ThermoFisher Acros BVBA, Geel, Belgium) were purified through an MBraun SPS solvent purification system (alumina and 4 Å sieves columns). The solvent drums were degassed with flowing nitrogen (Alphagaz 2, Air Liquide, Rodange, Luxembourg) at least 30 min prior to the reaction. THF was distilled over sodium/benzophenone (Na(0), ≥99.8% oiled sticks in aluminum foil, and benzophenone, 99% ReagentPlus ®, Sigma Aldrich BVBA, Diegem, Belgium) by refluxing while a purple color was observed. Methanol (MeOH, ≥99.8% ExtraDry over molecular sieves, stored under argon, Acros organics BVBA, Geel, Belgium) and n-BuLi (2.5 M in hexane, stored under argon at 4 °C, Acros Organics BVBA, Geel, Belgium) were used as received.
For the resin/rubber blend preparation, styrene-butadiene rubber (SBR, Sprintan SLR4602, Trinseo BVBA, Luxembourg, Luxembourg) was used as received. Tetrahydrofuran (THF, SLR grade, ThermoFisher Acros BVBA, Geel, Belgium) was purified through an MBraun SPS solvent purification system (alumina and 4 Å sieves columns). Dicumyl peroxide (DCP, 98%, Sigma Aldrich BVBA, Diegem, Belgium) was purified by recrystallization from MeOH prior use. Hydroquinone (ReagentPlus® ≥ 99%, Sigma Aldrich BVBA, Diegem, Belgium) was used as received.
For the swelling test, toluene (SLR grade, ThermoFisher Acros BVBA, Geel, Belgium) was passed through an MBraun SPS solvent purification system (alumina and 4 Å sieves columns) prior to use.

2.2. Synthesis of Poly(αMSt-co-St) Resin

Poly(αMSt-co-St) resin with a molecular weight of 1820 g/mol was prepared via anionic copolymerization using the equimolar aliquot addition method, following a procedure reported previously [26]. Molecular characteristics are described in the Supplementary Materials (Section S1).

2.3. SBR/Poly(αMSt-co-St) Blending Procedure

Poly(αMSt-co-St) resin was mixed with SBR rubber via solution mixing. A summary of the blend’s composition is described in the Supplementary Materials (Section S2, Table S1). The preparation of SBR/poly(αMSt-co-St)150 is given as an example. Approximatively, 0.12 g of synthetized poly(αMSt-co-St) and 0.08 g of SBR (60:40 mixture, 150 phr) were weighed and dissolved in 5 mL of THF until complete homogenization. For rheological measurements, the solution was casted onto a poly(tetrafluoroethylene) (PTFE)-covered glass Petri dish and dried overnight under the hood at room temperature. This treatment was sufficient to remove the traces of solvent. A rubber film was thus recovered and compressed into a rubber ball.

2.4. Rheological Mesurements

The rheometer used was an MCR302 equipped with a heating chamber CTD450L (Anton Paar, Graz, Austria). The lower plate was a disposable PP25 and the upper plate was a PP8 (SN50810) measuring system from Anton Paar. The blend was first loaded at 25 °C under the parallel plates and squeezed to have a gap of 1 ± 0.3 mm. The blend was then trimmed to avoid any side effects during the measurements. For the rheological measurements of SBR/poly(αMSt-co-St) blends at different resin concentrations, the sample was first heated up to 160 °C and stabilized during~1 min, to remove any internal constraints due to the solvent casting method. The measurement started directly after the stabilization following a 5 °C/min cooling ramp until −50 °C. The applied shear during measurement was following a linear ramp from 1 to 0.02% from 160 to −10 °C. From −10 °C, the applied shear was set to 0.01% to avoid any ruptures due to the maximum torque limit of the instrument. To characterize SBR crosslinking and resin compatibilization by rheology, the SBR/poly(αMSt-co-St)150 blend was heated up to 215 °C with a temperature ramp of 5 °C/min. The blend was then cooled down directly after reaching 215 °C following a 5 °C/min cooling ramp until −80 °C. The applied shear during measurement was following a linear ramp from 0.1 to 2% from 25 to 215 °C, and from 2 to 0.1% from 215 °C to −10 °C. From −10 °C, the applied shear was constantly set to 0.02%. Due to thermal expansion of the sample, a dynamic normal force of ±0.25 N was applied to maintain contact with the sample in each case.

2.5. Gel Permeation Chromatography Measurements

Gel permeation chromatography was performed using an Agilent 1200 Series (Agilent, Diegem, Belgium) equipped with PLgel mixed-C and Mixed-D columns and with three separate detectors (light scattering, viscosimeter and refractive index RI detector). The samples were prepared according to following procedure. A solution of ±3 mg/mL was prepared by dissolving the polymer in THF (HPLC grade, 99.9%, extra pure, anhydrous, stabilized with 2,6-di-tert-butyl-4-methylphenol (BHT). After homogenization, the solution was filtered through an Agilent PTFE 0.2 µm filter to remove any dust or solid impurities. The solution was recovered in a 2 mL glass vial and placed in an automatic sample holder.
Prior to measurement, refractive index (RI) and viscosimeter detectors were purged and zero-tuned. The flow rate was set up at 1 mL/min constantly. The measurement started after the injection of 100 µL of prepared solution. The measurement was stopped after the delayed viscosimeter peak (35 min) to avoid interferences with the next sample. The molecular weight distributions were calculated thanks to a poly(styrene) standard calibration (Agilent EasyVial polymer standard, Diegem, Belgium) going from 100 g/mol to 300,000 g/mol.

2.6. Atomic Force Microscopy Measurements

A solution of SBR and poly(αMSt-co-St) in toluene was cast on a magnetic stainless-steel disc. The resin concentration was defined at 150 phr of poly(αMSt-co-St). The blend was dried overnight under the hood at room temperature. A thin film on the metal disc surface was recovered.
Images of the topography and nanomechanical properties of the samples were acquired using the bimodal AM-FM mode of the MFP-3D Infinity AFM (Asylum Research, Santa-Barbara, CA, USA). Two different setups were used to characterize the morphological changes at different temperatures and the nanomechanical properties at room temperature.
For morphological changes at different temperatures, AC160TS-R3 Olympus cantilevers (Asylum Research, Santa-Barbara, CA, USA) were used, mounted in a high temperature cantilever holder (PEEK). Since the holder is not adapted for quantitative nanomechanical analyses, only qualitative stiffness contrast was obtained. In AM-FM mode, the shift in contact resonance frequency of the second mode allows for the acquisition of complementary stiffness contrast simultaneously with the topography. For measurements at high temperature, a modular heating stage PolyHeater (Oxford Instruments, Gometz-la-Ville, France) was used, designed for high temperature polymer studies from ambient to 400 °C in air. The temperature was varied between 25 °C, 160 °C and 215 °C. Samples was imaged at 25 °C and 160 °C but due to the high mobility of the material at 215 °C, images could not be acquired at this temperature. Area of 10 × 10 μm2 were imaged with a resolution of 256 × 256 pixels at a scan rate of 3 Hz.
For quantitative measurements of the nanomechanical properties, AC160TS-R3 cantilevers were mounted on a dedicated AM-FM Probe Holder. Cantilever spring constants were measured as about 23 N/m using the GetReal™ Automated Probe Calibration feature and the first and second resonant frequencies were determined to be 240 kHz and 1.33 MHz, respectively. A relative calibration method was used to estimate the tip radius using a dedicated reference samples kit (Model: PFQNM-SMPKIT-12m, Bruker, Karlsruhe, Germany). The tip radius was adjusted to obtain the proper value of 2.7 GPa for the polystyrene reference, matching the deformation applied on the sample of interest. To ensure repulsive intermittent contact mode, the amplitude setpoint was chosen as Asetpoint/A0~0.5 to 0.7 so that the phase is well fixed below 70°. The reported average and standard deviation values of modulus consider at least 4 and up to 6 images in each sample for representative results.

2.7. Nuclear Magnetic Resonance Measurements

The liquid- and solid-state nuclear magnetic resonance (NMR) spectra were measured on a Bruker Avance III HD 600 MHz (proton Larmor frequency) spectrometer (Bruker, Karlsruhe, Germany). All the chemical shifts were referenced to tetramethylsilane (TMS) by referencing the residual d-chloroform signal to 7.26 ppm (liquid state) or setting the adamantane methylene signal to 37.77 ppm (solid state). For liquid-state NMR, ~20 mg of neat SBR was dissolved in ~600 µL of deuterated toluene-d8 (99.6%D, Sigma Aldrich BVBA, Diegem, Belgium) in a 5 mm NMR tube. 13C spectra with inverse gated 1H decoupling were performed on solution samples with a repetition delay of 6 s and a total accumulation of 10,240 scans. Prior to the swollen solid-state NMR experiments, samples were swollen and washed at least 3 times in 100 ml of toluene. To obtain the solid-state 13C NMR spectra, ~7 mg of crosslinked SBR (either with the resin CrR-SBR or with dicumyl peroxide CrDCP-SBR) was swollen by ~24 mg of toluene-d8 in a disposable HRMAS insert (B4493, Bruker), which was inserted into a 4 mm ZrO2 rotor and spun at 7 kHz spinning rate on a double-resonance MAS probe. One-dimensional 13C direct polarization with high-power decoupling NMR experiments were performed on the CrR-SBR and CrDCP-SBR samples with a repetition delay of 4 s, and a total accumulation of 3288 and 2499 scans, respectively.

3. Results

3.1. Viscoelastic Characterization of SBR/Poly(αMSt-co-St) Blends at Different Resin Concentrations

The viscoelastic properties of SBR/poly(αMSt-co-St) blends at different resin concentrations ranging from 25 to 150 phr were determined by rheological measurements. The blends were first heated up to 160 °C, then cooled down to −50 °C. The storage modulus (G’), loss modulus (G”) and loss factor were determined during the cooling ramp. Figure 1 represents the viscoelastic properties of SBR/poly(αMSt-co-St) blends at concentrations from 25 to 60 phr (Figure 1A) and from 60 to 150 phr (Figure 1B) compared to neat SBR (black curves).
The Tg of SBR was shifting depending on the resin concentration. Up to 60 phr, poly(αMSt-co-St) is fully miscible in SBR as only one Tg is detected. Between 60 and 80 phr, a second glass transition is starting to appear in the range of the resin Tg (around 80–120 °C), indicative of a phase separation. From 80 phr, the blend Tg is relatively constant and a clear biphasic behavior was observed. This value was taken as the immiscibility threshold of the resin in SBR. The results suggest that SBR is saturated with poly(αMSt-co-St) resin, and the excess of resin is phase-separating.

3.2. Evidence of SBR/Poly(αMSt-co-St)150 Blends Crosslinking and Enhanced Compatibility

SBR loaded with 150 phr of poly(αMSt-co-St) was selected to illustrate the SBR crosslinking and enhanced compatibility between both components, as an unambiguous phase separation was observed. When rheological measurements of SBR/poly(αMSt-co-St)150 were performed while heating up from 20 to 215 °C, an increase of G’ was observed. This trend was not expected since SBR alone did not show such behavior (Figure 2A, red curves). Surprisingly, the G’ increase was the result of the crosslinking of SBR, as attested by swelling measurements of the tested samples immersed in toluene. Indeed, after the test, the sample swelled more than 2000% in toluene (Table 1). From the Flory-Rehner equation, the SBR crosslink density was calculated to be equal to 2.18 × 10−4 mol/cm3, corresponding to one crosslink node every 85,000 g/mol of SBR. It is noteworthy that SBR alone heated up to 215 °C remains fully soluble in toluene, as well as SBR/resin blends heated up to 160 °C. The crosslinking of SBR in the presence of the resin indicates that a thermally induced reaction occurred during the measurement.
In addition, the measurement of the viscoelastic properties of SBR/poly(αMSt-co-St)150 heated up to 215 °C exhibited a significantly different behavior than SBR/poly(αMSt-co-St)150 heated only up to 160 °C. While the later revealed two glass transition temperatures indicating that the immiscibility threshold is passed (Figure 2B, blue curves), the blend heated up to 215 °C only had one relaxation (Figure 2B, black curves). This indicates that, after the thermal treatment at 215 °C, the miscibility of both components has been improved. The stability of this behavior was checked by successively re-measuring the sample three times with successful heating–cooling cycles between −50 and 160 °C (see Supplementary Materials, Section S3, Figure S1). In each case, just one single relaxation was observed, meaning this reaction was irreversible.

3.3. Atomic Force Microscopy Measurements of SBR/Poly(αMSt-co-St)150

The phase behavior of SBR/poly(αMSt-co-St)150 heated at either 160 °C or 215 °C was checked by following the evolution of the morphology by AFM. The control of the temperature was performed using a heating stage under the AFM head, for a duration of 20 min at each temperature.
Figure 3 shows images of SBR/poly(αMSt-co-St)150 taken at 25 °C and sequentially heated at 160 °C at the same location. At 25 °C (Figure 3A), the stiffness contrast images of the area show homogeneous properties with no phase separation. It was assumed that the absence of phase-separation before the heat treatment was attributed to the solvent-casted blend preparation, which may induce a non-equilibrium state of mixing. At 160 °C, a clear phase separation is revealed in the stiffness contrast. Indeed, the softer SBR matrix appears in dark brown and the stiffer poly(αMSt-co-St) resin in light yellow. With a scan line of 3 Hz and 256 × 256 pixels, each image was taken in less than three minutes. In image B, one can see that the size of the phase-separated resin changes from a few hundred of nanometers in the beginning of the image (top) to a few microns at the end of the image (bottom), i.e., the phase separation and coalescence of the poly(αMSt-co-St) resin happened during imaging. The same effect can be seen in images C and D, until the system reaches stability, with the phase-separated resin reaching several microns in diameter. The bright, rough particle (probably dust on the surface) is an indication of the thermal drift of the sample under the tip. The last image F was taken with the dust particle as a reference of the location for imaging after treatment, which was retrieved after cooling, confirming that the phase-separation is retained (see Supplementary Materials, Section S4, Figure S2). The same experiment was repeated to confirm the trends observed. Complementary images (see Supplementary Materials, Section S4, Figure S3) consistently show the phase separation and coalescence of the poly(αMSt-co-St) resin, with sizes varying from ~200 nm to 3 μm, which can be related to the local amount of resin at the imaged location, the thickness of the film and the duration of thermal treatment. These results agree with the rheological measurements performed at 160 °C which were showing the phase separation of poly(αMSt-co-St) at the same resin concentration (150 phr).
After proving the phase separation during heat treatment at 160 °C, a fresh sample (also at 150 phr resin loading) was thermally treated from 25 to 215 °C and images were taken at each step to follow the evolution of the morphology, as shown in Figure 4. The insets show representative images of the topography and stiffness contrast taken at each step. At 25 °C (Figure 4A), again no phase separation was seen in the stiffness contrast image. The sample was then heated at 200 °C/min up to 160 °C. The morphology observed on the images taken at 160 °C (Figure 4B) is similar to images recorded before on Figure 3. After slowly cooling back to 25 °C (Figure 4C), one can see by the stiffness contrast that the phase separation is maintained with the poly(αMSt-co-St) resin phase appearing as round domains of about 3 μm in diameter. Phase separation is also seen in topography, which is rougher compared to the images recorded before the treatment, following the stiffness difference between the phases. Due to the low viscosity of the material at high temperature, it was impossible to acquire images at 215 °C. Nevertheless, images of the material at 25 °C after the treatment at 215 °C for 20 min (Figure 4D), show no phase separation, with a smooth surface and a homogeneous stiffness contrast, in excellent agreement with the rheological measurements done after the treatment of the samples at 215 °C.
Finally, quantitative nanomechanical measurements were done in the neat materials and on the blend at different steps of thermal treatment. Results are shown in Table 2. It is worth noting that elastomers being viscoelastic materials, their viscoelastic properties are time-dependent and therefore are greatly affected by the frequency of analysis. According to the Time–Temperature Superposition (TTS) principle [35,36], high frequency viscoelastic behavior is equivalent to lower temperatures, as the polymer chains do not have enough time to respond to the solicitation. The AM-FM modulus measurements are taken at ~1.3 MHz (second resonance frequency of the cantilever), therefore the values are higher than the usually reported for elastomeric materials at room temperature [37]. Nevertheless, the enhancement effect of the addition of the poly(αMSt-co-St) resin in the viscoelastic properties of SBR is verified. Furthermore, the properties are also affected by the thermal treatments, which might be related to the increasing miscibility of the resin in the SBR matrix and crosslinking. Representative images and property histograms are shown in the Supplementary Materials (Section S4, Figure S4).

4. Discussion

The evolution of the viscoelastic properties of SBR with increasing resin concentration showed that poly(αMSt-co-St) possesses an immiscibility threshold around 80 phr. Above this concentration, SBR is saturated by the resin and the latter starts to phase-separate. Interestingly, after a heat treatment at 215 °C, SBR/poly(αMSt-co-St)150 revealed miscibility far above its immiscibility threshold. Rheological measurements, swelling tests and AFM supported the conclusion that SBR was crosslinking in the presence of poly(αMSt-co-St) when heated up to 215 °C and lead to the resin compatibilization. This compatibilization was found to be stable over time.
These behaviors were not expected to happen. Indeed, it is known that antioxidants are added to commercial SBR formulations to prevent their thermal degradation and self-crosslinking [9]. It has been reported that when a polymer crosslinks while dissolved in a blend with a second polymer, it leads to a phase separation [27,28,29,30,31,32,33,34]. This phenomenon, called reaction-induced phase separation (RIPS), results in a narrowing of the miscible concentration range, together with the increase of the crosslinking density, due to the reduction of the entropy of mixing. Surprisingly, the opposite behavior was observed in the case of SBR/poly(αMSt-co-St)150, suggesting another mechanism was occurring. The following discussion attempts to explain this behavior.
SBR alone is stable up to 225 °C (see Supplementary Materials, Section S5, Figure S5). However, poly(αMSt-co-St) resins are known to depolymerize under thermal conditions [38,39,40], leading to the formation of free-radicals by a mechanism of end-chain scission (Scheme 2A).
The alteration of the structural features of poly(αMSt-co-St) before and after a thermal heating of 24 h at 215 °C was shown by the determination of its molecular weight distribution (Figure 5). The gel permeation chromatography (GPC) traces depict a clear reduction of the resin molecular weight together with a significant increase of the dispersity (Ð) due to the thermal treatment, in accordance with a radical scission and depolymerization of the resin. The generation of free radicals from the thermal depolymerization of poly(αMSt-co-St) (Scheme 2A) could be the origin of the crosslinking of the rubber during the rheological tests. Indeed, the radical crosslinking mechanism of SBR is a well-known phenomenon [38,41,42,43,44,45]. The free radicals generated by poly(αMSt-co-St) thermal depolymerization may initiate the oxidative crosslinking of the rubber (Scheme 2B). This step, also called “oxidative hardening” of the rubber, results in a cascade of crosslinking reactions involving oxygen. The radical on the α-position of the vinyl double bond is also highly reactive toward the unsaturation present in SBR and is able to successively react with the [1,2]- and the [1,4]-butadiene units, to form a crosslinked network, as a results of [1,2]- and [1,4]-addition crosslinking reactions (Scheme 2C).
To prove that the crosslinking reaction follows a radical mechanism in SBR/poly(αMSt-co-St), a fresh blend was prepared with 30 phr of hydroquinone as antioxidant (SBR/poly(αMSt-co-St)150/AO30). Figure 6A,B represent the viscoelastic properties of SBR/poly(αMSt-co-St)150/AO30 during the heating and cooling ramps, respectively. The presence of hydroquinone clearly inhibits the crosslinking reaction as G’ was not increasing during the heating ramp (Figure 6A, red curve), as opposed to the blend prepared without (Figure 6A, black curve). This behavior indicates that the crosslinking of SBR was effectively inhibited in SBR/poly(αMSt-co-St)150/AO30. The conclusion was further confirmed by immersing SBR/poly(αMSt-co-St)150/AO30 in toluene, resulting in a complete dissolution, whereas SBR/poly(αMSt-co-St)150 was swelling. As hydroquinone prevents SBR/poly(αMSt-co-St) from crosslinking, it confirms that the mechanism is initiated and driven by free radicals, presumably coming from the thermal depolymerization of poly(αMSt-co-St) resin.
Interestingly, the SBR/poly(αMSt-co-St)150/AO30 blend still exhibits a clear phase separation of poly(αMSt-co-St) resin, even after the heat treatment at 215 °C. In addition, the resin was extracted from SBR/poly(αMSt-co-St)150/AO30 to assess the influence of the antioxidant on the resin depolymerization and revealed a quasi-identical molecular weight distribution. These results indicate that the compatibilization of SBR and poly(αMSt-co-St) is also driven by a radical mechanism and is not only due to a decrease of the resin molecular weight.
This compatibilization could be explained by similar observations performed during the preparation of interpenetrated polymer networks (IPN). IPN are a combination of two polymer networks, where at least one of the two polymers is crosslinked in the immediate presence of the other [46,47]. Several pairs of IPN have been made miscible, for instance by introducing a compatibilizer [48,49,50]. In such a situation, the addition of a compatibilizer generally aims at promoting the interactions at the interface between the two immiscible phases and to move their surface energies toward each other [51,52]. Among the different ways to compatibilize polymer blends or networks, the co-reaction of the two networks, or the partial grafting of one of the polymers to the second one, is a good way to enhance their chemical affinity, and their compatibility as well [4]. This last assumption stands as the most probable explanation of the compatibilization between SBR and poly(αMSt-co-St).
In an attempt to determine if the SBR structural features were modified during its crosslinking in the presence of poly(αMSt-co-St), solid-state NMR (ssNMR) was performed after the complete removal of the resin by solvent extraction. The crosslinked-SBR induced by the resin was named CrR-SBR. The same experiment was done on an SBR sample crosslinked by using dicumyl peroxide (DCP). The resulting product was named CrDCP-SBR (see Supplementary Materials, Section S7). Both crosslinked rubbers were compared to the neat SBR (liquid state NMR). Figure 7 shows a zoom of the 13C NMR in the aliphatic -CH2- carbon region of SBR. As depicted on Figure 7, the fingerprint of the aliphatic carbons of SBR was not affected significantly when the rubber was crosslinked with DCP (blue curve). On the other hand, when the rubber was crosslinked in the presence of the poly(αMSt-co-St) resin (red curve), a lot of changes were observed in this region. The major changes are highlighted in the black rectangles. These results point out that the poly(αMSt-co-St) resin could be involved in other reactions than initiating the rubber crosslinking reaction. Nevertheless, it is rather difficult to confirm that these changes are related to the grafting of poly(αMSt-co-St) fragments onto the SBR chains, but still provide evidence that SBR encountered structural changes which could explain the promoted miscibility between SBR and the poly(αMSt-co-St) resin.
In the light of all the elements gathered during this study, it can be concluded that the chemical modification encountered by the SBR chains could be the result of a modification due to the species coming from the depolymerization of poly(αMSt-co-St). By their reaction with the chains of SBR, they would modify the affinity of the rubber network toward poly(αMSt-co-St), improving the miscibility between the resin and SBR. This reaction could be a typical case of reactive compatibilization observed during the synthesis of interpenetrating polymer networks [4]. To further confirm the enhanced affinity of CrR-SBR compared to neat SBR toward poly(αMSt-co-St), CrR-SBR was immersed in a solution containing the equivalent of 150 phr of resin solubilized in toluene. Here, the aim was to reintroduce the resin into the network and to analyze its viscoelastic behavior. It was assumed that if the affinity of the rubber network toward poly(αMSt-co-St) was enhanced, it would result in a shift of the immiscibility threshold toward higher resin concentration.
The conditions of the experiments were fine-tuned for the crosslinked network CrR-SBR to be able to trap 150 phr of resin. The material after the re-introduction of the resin was renamed CrR-SBR/poly(αMSt-co-St)150, for the sake of clarity. Figure 8B represents the viscoelastic properties of the material compared to a normal SBR/poly(αMSt-co-St)150 blend before (blue curves) and after the thermal treatment leading to the enhanced compatibilization of the resin (black curves).
The Tg of CrR-SBR was similar to the neat SBR, indicating a low level of crosslinking density (see Supplementary Materials, Section S8, Figure S6). In CrR-SBR/poly(αMSt-co-St)150 (Figure 8A, red curves), the incorporation of the resin leads to drastic changes compared to SBR/poly(αMSt-co-St)150 after treatment at 160 °C (Figure 8A, blue curves). The viscoelastic behavior of CrR-SBR/poly(αMSt-co-St)150 is closer to the compatibilized case (Figure 8A, black curves), confirming the enhanced compatibility between the two materials [51,52].

5. Conclusions

In conclusion, these results demonstrate that the heating of blends of SBR and poly(αMSt-co-St) resins above 215 °C leads to their compatibilization. The reaction follows a radical pathway, resulting from the thermal depolymerization of poly(αMSt-co-St) as demonstrated by GPC measurements. The generated free radicals would trigger the grafting of the resin onto the SBR chains, resulting in an improvement of their compatibility, as attested by the shift of the immiscibility threshold from 80 phr to over 150 phr. To the best of our knowledge, such a thermally induced compatibilization has never been reported despite several decades of fundamental studies and industrial utilization of SBR and poly(αMSt-co-St) resins.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/polym13081267/s1, Figure S1: Evidence of the irreversibility of resin compatibilization in SBR after the heat treatment at 215 °C. Identical viscoelastic properties are retained after multiple heat-cool-heat measurements, Figure S2: Evidence of the resin/rubber phase separation at 160 °C and after cooling back the sample at 25 °C. Scale bars on the images correspond to 2 μm., Figure S3: Supplemental images taken at each temperature. Evidences of the phase separation in other sample location. Scale bars on the images correspond to 2 μm., Figure S4: Nanomechanical properties of the different samples, Figure S5: Thermal stability of neat SBR up to 225 °C, Figure S6: Comparison of the viscoelastic behavior of neat SBR versus CrR-SBR, Table S1: Summary of the poly(αMSt-co-St) resins blended in SBR.

Author Contributions

Methodology, A.W.; investigation, A.W.; AFM analysis, J.P.C.F.; NMR analyses, C.Y. and R.D.; validation, P.V., L.P. and M.W.; writing—original draft preparation, A.W.; writing—review and editing, P.V., L.P. and M.W.; supervision, P.V.; project administration, P.V., L.P. and M.W. All authors have read and agreed to the published version of the manuscript.

Funding

This project was supported by the Fonds National de la Recherche under award number IPBG16/11514551/TireMat-Tech.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article or Supplementary Materials.

Acknowledgments

The authors would like to thank the Luxembourg National Research Fund (FNR) for the funding of the project IPBG TireMat-Tech, SOiA (Grant number: IPBG16/11514551/TireMat-Tech).

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

Poly(αMSt-co-St), α-methylstyrene/styrene resin; SBR, styrene-butadiene rubber; Tg, glass transition temperature; phr, part per hundred of rubber; RIPS, reaction-induced phase separation; DCP, dicumyl peroxide; THF, tetrahydrofuran; PTFE, poly(tetrafluoroethylene); AFM, atomic force microscopy, AM-FM, amplitude modulation-frequency modulation; PEEK, poly(ether ether ketone); G’, storage modulus; G”, loss modulus; σim, immiscibility threshold; Ve, crosslink density; AO, antioxidant; GPC, gel permeation chromatography; IPN, interpenetrated network; ssNMR, solid-state nuclear magnetic resonance; CrDCP-SBR, styrene-butadiene rubber crosslinked with dicumyl peroxide; CrR-SBR, styrene-butadiene rubber crosslinked with α-methylstyrene/styrene resin.

References

  1. Paul, D.; Barlow, J. Polymer blends. J. Macromol. Sci. Macromol. Chem. 1980, 18, 109–168. [Google Scholar] [CrossRef]
  2. Paul, D.R.; Newman, S. Polymer Blends; Academic Press: New York, NY, USA, 1978; Volume 2, Available online: http://site.ebrary.com/id/10700820 (accessed on 22 April 2020).
  3. Painter, P.C.; Coleman, M.M. Essentials of Polymer Science and Engineering; DEStech Publications: Lancaster, PA, USA, 2009. [Google Scholar]
  4. Wilkie, C.A. Polymer Blends Handbook, 2nd ed.; Springer: Dordrecht, The Netherlands, 2014. [Google Scholar]
  5. Kawahara, S.; Akiyama, S.; Kano, Y. Miscibility and pressure-sensitive adhesive properties of poly (vinylethylene-co-1,4-butadiene)/terpene resin blends. Polymer 1991, 32, 1681–1687. [Google Scholar] [CrossRef]
  6. Fujita, M.; Kajiyama, M.; Takemura, A.; Ono, H.; Mizumachi, H.; Hayashi, S. Effects of miscibility on probe tack of natural-rubber-based pressure-sensitive adhesives. J. Appl. Polym. Sci. 1998, 70, 771–776. [Google Scholar] [CrossRef]
  7. Vleugels, N.; Pille-Wolf, W.; Dierkes, W.K.; Noordermeer, J.W.M. Understanding the Influence of Oligomeric Resins on Traction and Rolling Resistance of Silica-Reinforced Tire Treads. Rubber Chem. Technol. 2015, 88, 65–79. [Google Scholar] [CrossRef]
  8. Barlow, F.W. Rubber Compounding: Principles, Materials, and Techniques; Dekker, M., Ed.; EBSCO Information Services: New York, NY, USA, 1993; Available online: http://search.ebscohost.com/login.aspx?direct=true&scope=site&db=nlebk&db=nlabk&AN=47068 (accessed on 21 April 2020).
  9. Rodgers, B. Rubber Compounding: Chemistry and Applications; CRC Press: Boca Raton, FL, USA, 2016. [Google Scholar]
  10. Rodgers, B.; Waddell, W. Tire engineering. In The Science and Technology of Rubber; Elsevier: Amsterdam, The Netherlands, 2013; pp. 653–695. Available online: http://linkinghub.elsevier.com/retrieve/pii/B9780123945846000145 (accessed on 16 October 2017).
  11. Heinrich, G.; Vilgis, T. Why silica technology needs S-SBR in high performance tires? Kautsch. Gummi Kunstst. 2008, 61, 368–376. [Google Scholar]
  12. Hays, D.; Browne, A.L. The Physics of Tire Traction: Theory and Experiment; Springer: New York, NY, USA, 2013; Available online: https://public.ebookcentral.proquest.com/choice/publicfullrecord.aspx?p=5575702 (accessed on 9 April 2020).
  13. Kim, S.W.; Lee, G.H.; Heo, G.S. Identification of Tackifying Resins and Reinforcing Resins in Cured Rubber. Rubber Chem. Technol. 1999, 72, 181–198. [Google Scholar] [CrossRef]
  14. Powers, P.O. Resins Used in Rubber. Rubber Chem. Technol. 1963, 36, 1542–1570. [Google Scholar] [CrossRef]
  15. Class, J.B.; Chu, S.G. The viscoelastic properties of rubber–resin blends. I. The effect of resin structure. J. Appl. Polym. Sci. 1985, 30, 805–814. [Google Scholar] [CrossRef]
  16. Class, J.B.; Chu, S.G. The viscoelastic properties of rubber–resin blends. II. The effect of resin molecular weight. J. Appl. Polym. Sci. 1985, 30, 815–824. [Google Scholar] [CrossRef]
  17. Class, J.B.; Chu, S.G. The viscoelastic properties of rubber–resin blends. III. The effect of resin concentration. J. Appl. Polym. Sci. 1985, 30, 825–842. [Google Scholar] [CrossRef]
  18. Akiyama, S. Phase behavior and pressure sensitive adhesive properties in blends of poly (styrene-b-isoprene-b-styrene) with tackifier resin. Polymer 2000, 41, 4021–4027. [Google Scholar] [CrossRef]
  19. Aubrey, D.W.; Sherriff, M. Viscoelasticity of rubber-resin mixtures. J. Polym. Sci. Polym. Chem. Ed. 1978, 16, 2631–2643. [Google Scholar] [CrossRef]
  20. Aubrey, D.W.; Sherriff, M. Peel adhesion and viscoelasticity of rubber–resin blends. J. Polym. Sci. Polym. Chem. Ed. 1980, 18, 2597–2608. [Google Scholar] [CrossRef]
  21. Copley, B.C. Tackification Studies of Natural Rubber/Styrene-Butadiene Rubber Blends. Rubber Chem. Technol. 1982, 55, 416–427. [Google Scholar] [CrossRef]
  22. L’Heveder, S.; Sportelli, F.; Isitman, N.A. Investigation of solubility in plasticised rubber systems for tire applications. Plast. Rubber Compos. 2016, 45, 1–7. [Google Scholar] [CrossRef]
  23. Flory, P.J. Principles of Polymer Chemistry, 3rd ed.; Springer: New York, NY, USA, 1953. [Google Scholar]
  24. Rubinstein, M.; Colby, R.H. Polymer Physics; Oxford University Press: Oxford, UK; New York, NY, USA, 2003. [Google Scholar]
  25. Teraoka, I. Polymer solutions: An introduction to Physical Properties; Wiley: New York, NY, USA, 2002. [Google Scholar]
  26. Wolf, A.; Desport, J.S.; Dieden, R.; Frache, G.; Weydert, M.; Poorters, L.; Schmidt, D.F.; Verge, P. Sequence-Controlled α-Methylstyrene/Styrene Copolymers: Syntheses and Sequence Distribution Resolution. Macromolecules 2020, 53, 8032–8040. [Google Scholar] [CrossRef]
  27. Chen, W.; Kobayashi, S.; Inoue, T.; Ohnaga, T.; Ougizawa, T. Polymerization-induced spinodal decomposition of poly(ethylene-co-vinyl acetate)methyl methacrylate mixture and the influence of incorporating poly(vinyl acetate) macromonomer. Polymer 1994, 35, 4015–4021. [Google Scholar] [CrossRef]
  28. Yamanaka, K.; Takagi, Y.; Inoue, T. Reaction-induced phase separation in rubber-modified epoxy resins. Polymer 1989, 30, 1839–1844. [Google Scholar] [CrossRef]
  29. Yamanaka, K.; Inoue, T. Phase separation mechanism of rubber-modified epoxy. J. Mater. Sci. 1990, 25, 241–245. [Google Scholar] [CrossRef]
  30. Yamanaka, K.; Inoue, T. Structure development in epoxy resin modified with poly(ether sulphone). Polymer 1989, 30, 662–667. [Google Scholar] [CrossRef]
  31. Visconti, S.; Marchessault, R.H. Small Angle Light Scattering by Elastomer-Reinforced Epoxy Resins. Macromolecules 1974, 7, 913–917. [Google Scholar] [CrossRef]
  32. Okada, M.; Fujimoto, K.; Nose, T. Phase Separation Induced by Polymerization of 2-Chlorostyrene in a Polystyrene/Dibutyl Phthalate Mixture. Macromolecules 1995, 28, 1795–1800. [Google Scholar] [CrossRef]
  33. Kojima, T.; Ohnaga, T.; Inoue, T. Two-phases structure and mechanical properties of poly(methyl methacrylate)/poly(ethylene)-co-vinylacetate) alloys by polymerization-induced phase decomposition. Polymer 1995, 36, 2197–2201. [Google Scholar] [CrossRef]
  34. Manzione, L.T.; Gillham, J.K.; McPherson, C.A. Rubber-modified epoxies. I. Transitions and morphology. J. Appl. Polym. Sci. 1981, 26, 889–905. [Google Scholar] [CrossRef]
  35. Williams, M.L.; Landel, R.F.; Ferry, J.D. The Temperature Dependence of Relaxation Mechanisms in Amorphous Polymers and Other Glass-forming Liquids. J. Am. Chem. Soc. 1955, 77, 3701–3707. [Google Scholar] [CrossRef]
  36. Ferry, J.D. Viscoelastic Properties of Polymers, 3rd ed.; Wiley: New York, NY, USA, 1980. [Google Scholar]
  37. Mark, J.E. (Ed.) Polymer Data Handbook; Oxford University Press: New York, NY, USA, 1999. [Google Scholar]
  38. Bamford, C.H.; Tipper, C.F.H. Degradation of Polymers; Elsevier Scientific Publishing Co: Amsterdam, The Netherlands; New York, NY, USA, 1975. [Google Scholar]
  39. Guaita, M.; Chiantore, O. Molecular mass changes in the thermal degradation of poly-α-methylstyrene. Polym. Degrad. Stab. 1985, 11, 167–179. [Google Scholar] [CrossRef]
  40. Murakata, T.; Saito, Y.; Yosikawa, T.; Suzuki, T.; Sato, S. Solvent effect on thermal degradation of polystyrene and poly-α-methylstyrene. Polymer 1993, 34, 1436–1439. [Google Scholar] [CrossRef]
  41. Kruželák, J.; Sýkora, R.; Hudec, I. Vulcanization of Rubber Compounds with Peroxide Curing Systems. Rubber Chem. Technol. 2017, 90, 60–88. [Google Scholar] [CrossRef]
  42. Liu, X.; Zhou, T.; Liu, Y.; Zhang, A.; Yuan, C.; Zhang, W. Cross-linking process of cis-polybutadiene rubber with peroxides studied by two-dimensional infrared correlation spectroscopy: A detailed tracking. RSC Adv. 2015, 5, 10231–10242. [Google Scholar] [CrossRef]
  43. Sasuga, T.; Takehisa, M. Effect of high pressure on radiation-induced cross-linking of synthetic rubbers. J. Macromol. Sci. Part B 1975, 11, 389–401. [Google Scholar] [CrossRef]
  44. Xing, W.; Li, H.; Huang, G.; Cai, L.-H.; Wu, J. Graphene oxide induced crosslinking and reinforcement of elastomers. Compos. Sci. Technol. 2017, 144, 223–229. [Google Scholar] [CrossRef]
  45. Valentin, J.L.; Rodriguez, A.; Marcos-Fernandez, A.; González, L. Dicumyl peroxide cross-linking of nitrile rubbers with different content in acrylonitrile. J. Appl. Polym. Sci. 2005, 96, 1–5. [Google Scholar] [CrossRef]
  46. Sperling, L.H. Interpenetrating polymer networks: An overview. In Interpenetrating Polymer Networks; Klempner, D., Sperling, L.H., Utracki, L.A., Eds.; American Chemical Society: Washington, DC, USA, 1994; pp. 3–38. [Google Scholar] [CrossRef] [Green Version]
  47. Sperling, L.H. Interpenetrating Polymer Networks and Related Materials, 1st ed.; Springer: Berlin/Heidelberg, Germany, 1981. [Google Scholar]
  48. Kim, S.C.; Sperling, L.H. (Eds.) IPNs around the World: Science and Engineering; John Wiley: Chichester, UK; New York, NY, USA, 1997. [Google Scholar]
  49. Wu, X.; He, G.; Yan, X.; Li, X.; Xiao, W.; Jiang, X. Miscibility, morphology, and phase behavior of IPNs. In Micro- and Nano-Structured Interpenetrating Polymer Networks; Thomas, S., Grande, D., Cvelbar, U., Raju, K.V.S.N., Narayan, R., Thomas, S.P., Akhina, H., Eds.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2016; pp. 29–68. [Google Scholar] [CrossRef]
  50. Lipatov, I.S.; Alekseeva, T. Phase-Separated Interpenetrating Polymer Networks; Springer: Berlin, Germany; New York, NY, USA, 2007. [Google Scholar]
  51. Rigoussen, A.; Verge, P.; Raquez, J.-M.; Dubois, P. Natural Phenolic Antioxidants As a Source of Biocompatibilizers for Immiscible Polymer Blends. ACS Sustain. Chem. Eng. 2018, 6, 13349–13357. [Google Scholar] [CrossRef]
  52. Rigoussen, A.; Verge, P.; Raquez, J.-M.; Habibi, Y.; Dubois, P. In-depth investigation on the effect and role of cardanol in the compatibilization of PLA/ABS immiscible blends by reactive extrusion. Eur. Polym. J. 2017, 93, 272–283. [Google Scholar] [CrossRef]
Polymers 13 01267 sch001 550

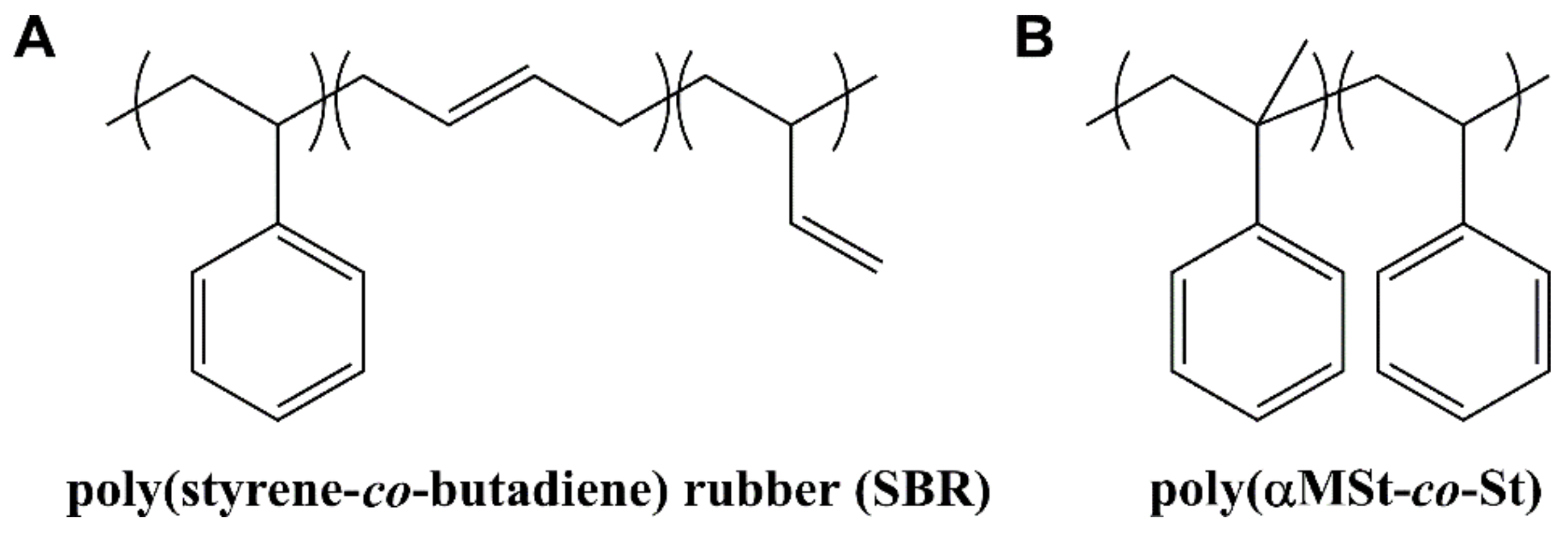

Scheme 1. Chemical structure of (A) poly(styrene-co-butadiene) rubber (SBR) and (B) poly(αMSt-co-St) resin.
Scheme 1. Chemical structure of (A) poly(styrene-co-butadiene) rubber (SBR) and (B) poly(αMSt-co-St) resin.
Polymers 13 01267 sch001
Polymers 13 01267 g001a 550Polymers 13 01267 g001b 550

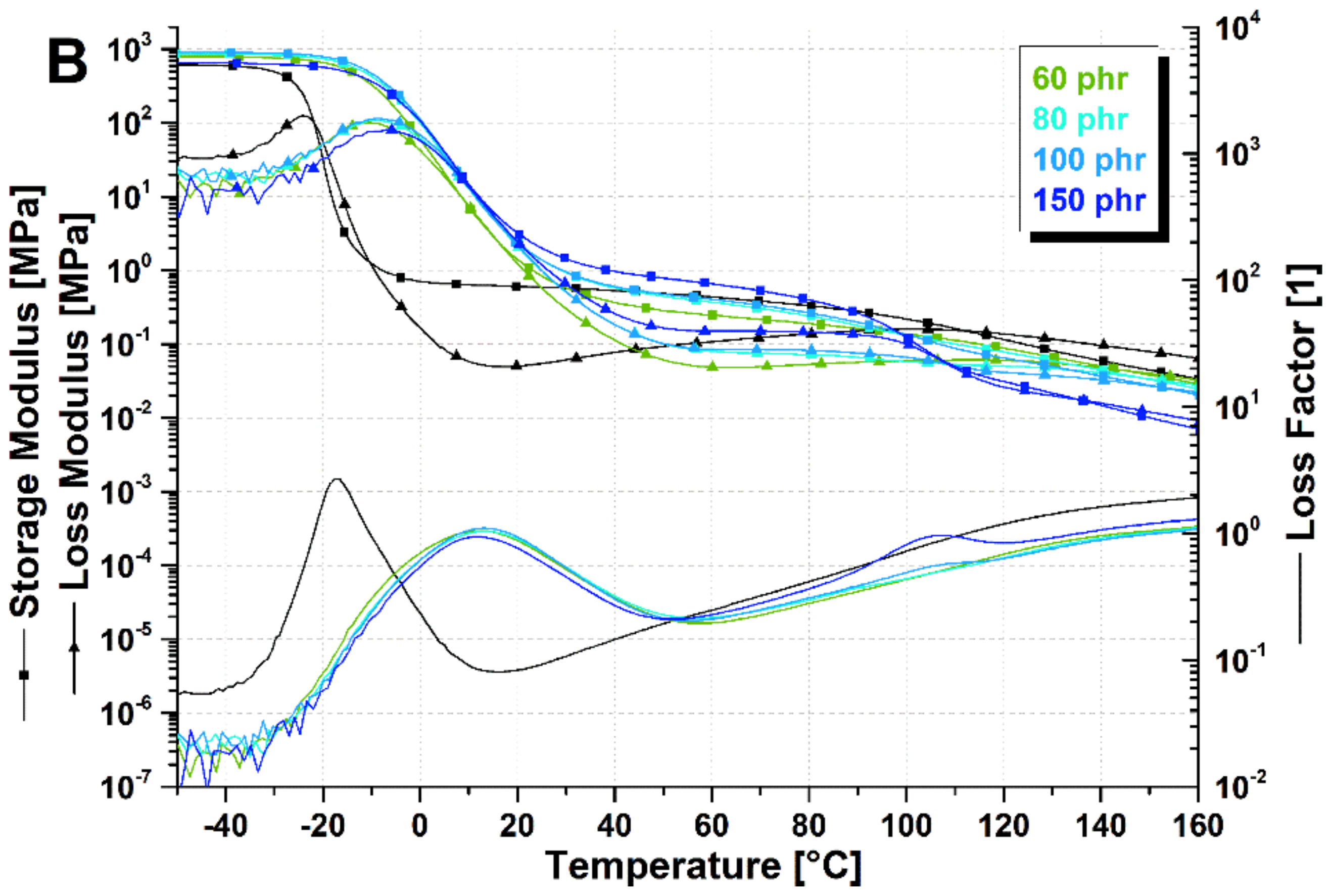

Figure 1. (A) Viscoelastic properties of styrene-butadiene rubber (SBR)/poly(αMSt-co-St) blends containing 25 to 60 phr of poly(αMSt-co-St) resin. (B) Viscoelastic properties of SBR/poly(αMSt-co-St) blends containing 60 to 150 phr of poly(αMSt-co-St) resin. Neat SBR is represented by the black curves. Properties measured during the cooling ramp (5 °C/min) from 160 °C to −50 °C.
Figure 1. (A) Viscoelastic properties of styrene-butadiene rubber (SBR)/poly(αMSt-co-St) blends containing 25 to 60 phr of poly(αMSt-co-St) resin. (B) Viscoelastic properties of SBR/poly(αMSt-co-St) blends containing 60 to 150 phr of poly(αMSt-co-St) resin. Neat SBR is represented by the black curves. Properties measured during the cooling ramp (5 °C/min) from 160 °C to −50 °C.
Polymers 13 01267 g001aPolymers 13 01267 g001b
Polymers 13 01267 g002 550

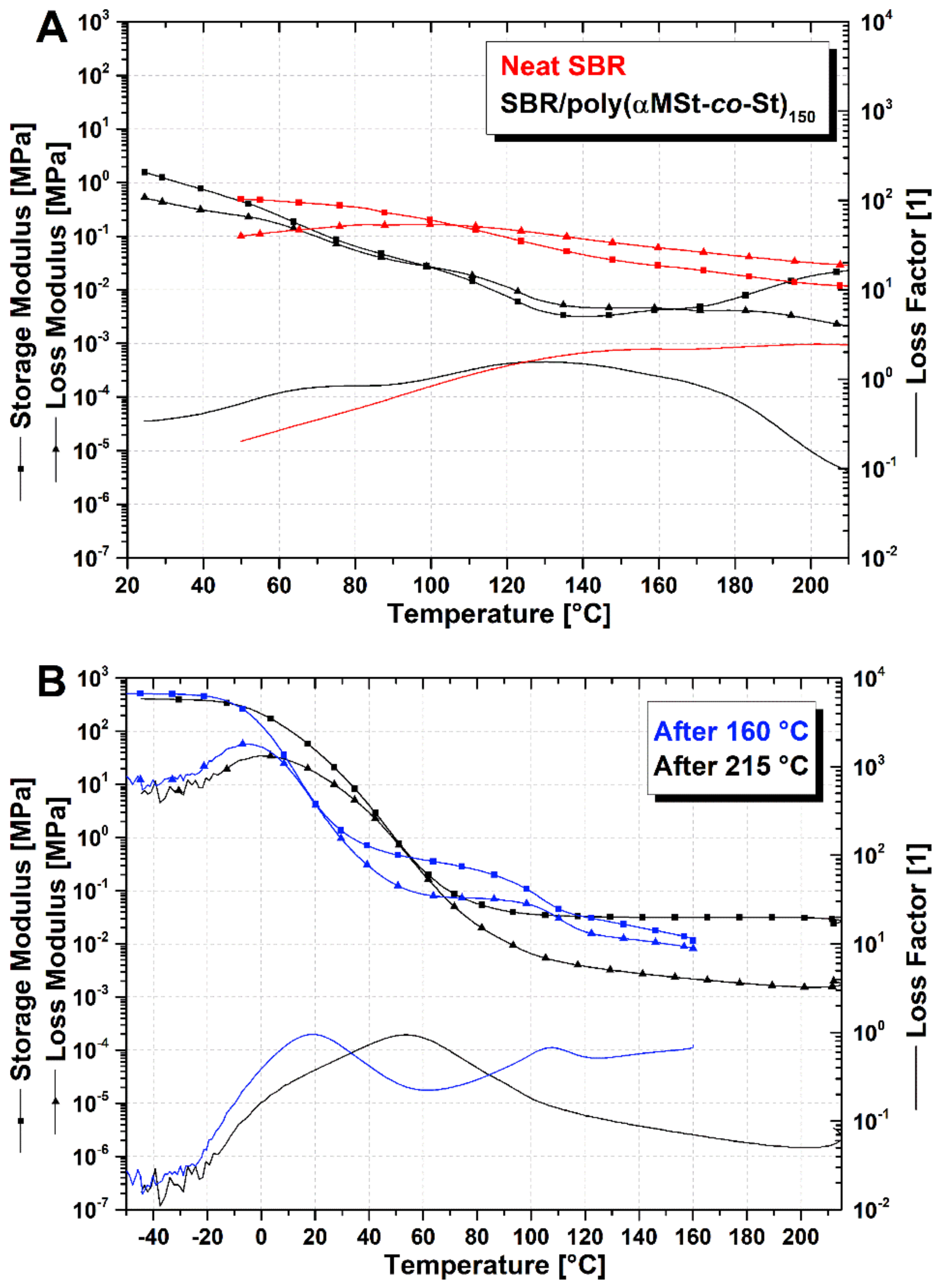

Figure 2. (A) Viscoelastic properties of neat SBR (red curves) and SBR/poly(αMSt-co-St)150 blend (black curves) while heating up (5 °C/min) from 20 to 215 °C. (B) Comparison of SBR/poly(αMSt-co-St)150 blend after heat treatment at 160 (blue curve) and 215 °C (black curve) during cooling ramp (5 °C/min) to −50 °C.
Figure 2. (A) Viscoelastic properties of neat SBR (red curves) and SBR/poly(αMSt-co-St)150 blend (black curves) while heating up (5 °C/min) from 20 to 215 °C. (B) Comparison of SBR/poly(αMSt-co-St)150 blend after heat treatment at 160 (blue curve) and 215 °C (black curve) during cooling ramp (5 °C/min) to −50 °C.
Polymers 13 01267 g002
Polymers 13 01267 g003 550

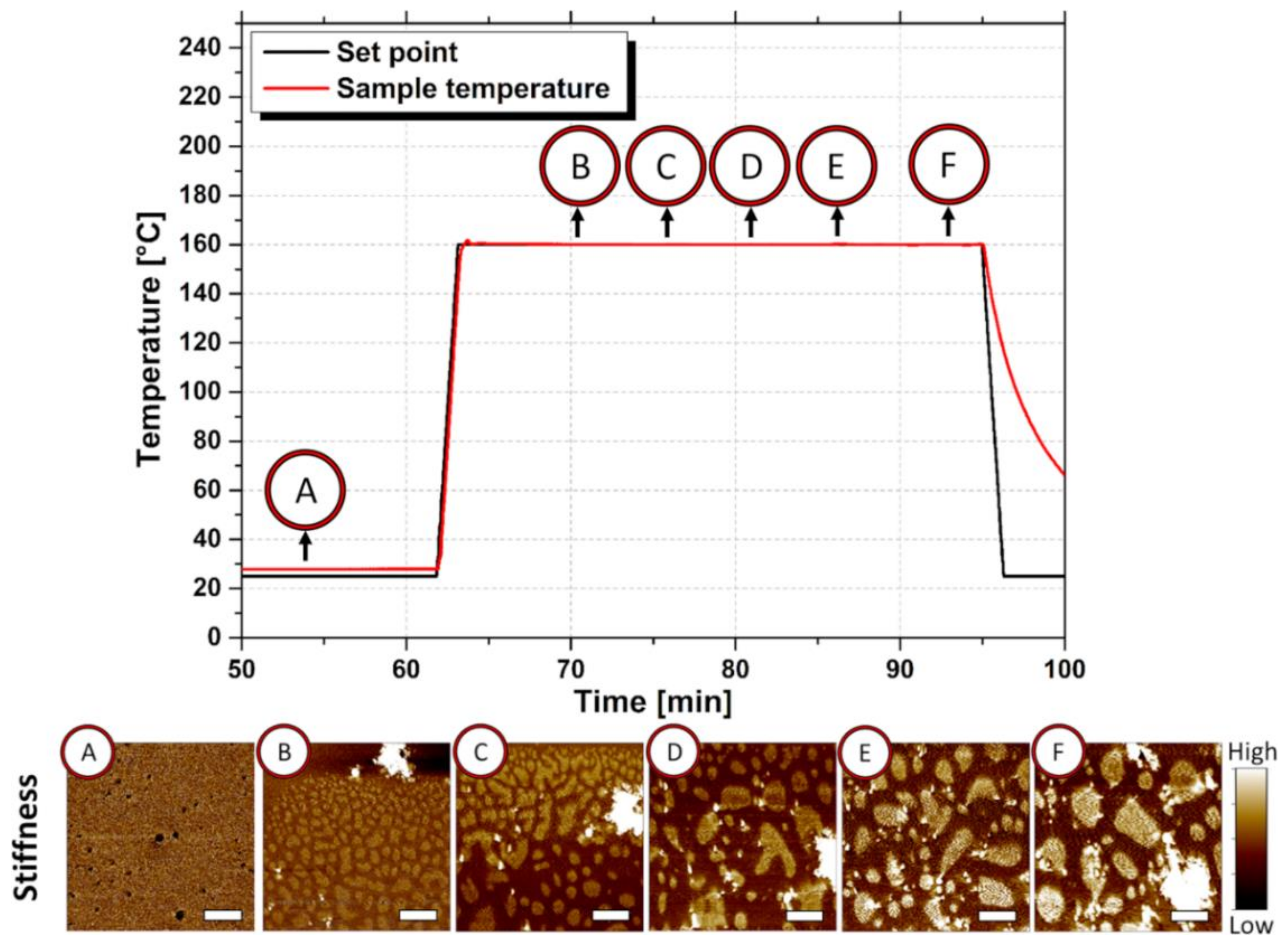

Figure 3. Temperature profile scheme and sequential stiffness contrast images of the SBR/poly(αMSt-co-St)150 blend showing the phase separation and coalescence of poly(αMSt-co-St) domains. Images taken at (A) 25 °C and (B–F) 160 °C at various time. Scale bars on the images correspond to 2 μm.
Figure 3. Temperature profile scheme and sequential stiffness contrast images of the SBR/poly(αMSt-co-St)150 blend showing the phase separation and coalescence of poly(αMSt-co-St) domains. Images taken at (A) 25 °C and (B–F) 160 °C at various time. Scale bars on the images correspond to 2 μm.
Polymers 13 01267 g003
Polymers 13 01267 g004 550
Figure 4. Temperature profile scheme and images of the topography and stiffness contrast of the SBR/poly(αMSt-co-St)150 blend taken at each step. Images taken at (A) 25 °C, (B) 160 °C, (C) 25 °C after heat treatment at 160 °C and (D) 25 °C after the heat treatment at 215 °C. Scale bars on the images correspond to 2 μm.
Figure 4. Temperature profile scheme and images of the topography and stiffness contrast of the SBR/poly(αMSt-co-St)150 blend taken at each step. Images taken at (A) 25 °C, (B) 160 °C, (C) 25 °C after heat treatment at 160 °C and (D) 25 °C after the heat treatment at 215 °C. Scale bars on the images correspond to 2 μm.
Polymers 13 01267 g004
Polymers 13 01267 sch002 550

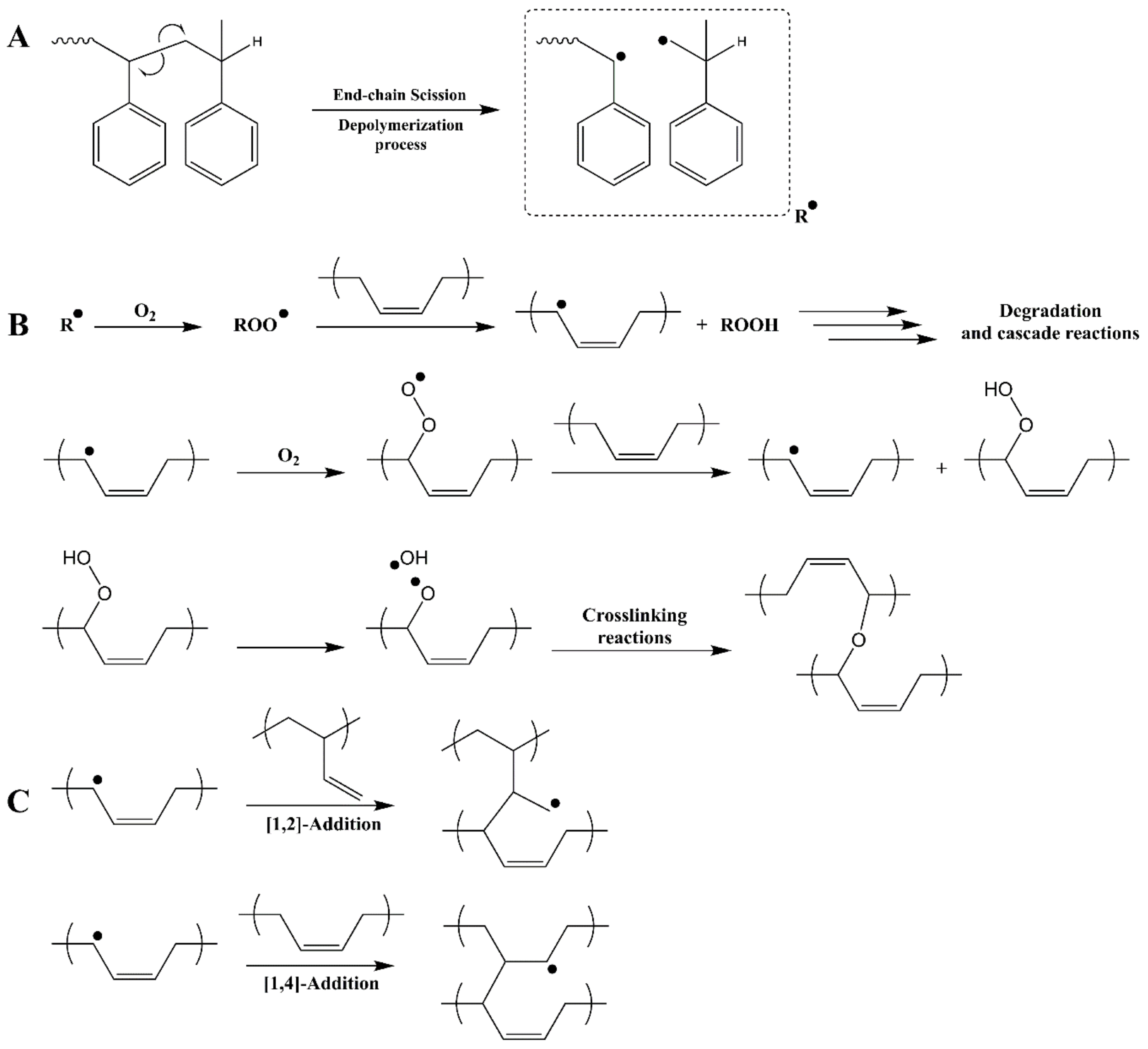

Scheme 2. (A) Thermal end-chain scission of poly(αMSt-co-St) resin. (B) Cascade of reactions leading to the oxidative crosslinking of SBR. (C) Representation of [1,2]- and [1,4]- addition crosslinking reactions. Scheme adapted from [41,42].
Scheme 2. (A) Thermal end-chain scission of poly(αMSt-co-St) resin. (B) Cascade of reactions leading to the oxidative crosslinking of SBR. (C) Representation of [1,2]- and [1,4]- addition crosslinking reactions. Scheme adapted from [41,42].
Polymers 13 01267 sch002
Polymers 13 01267 g005 550

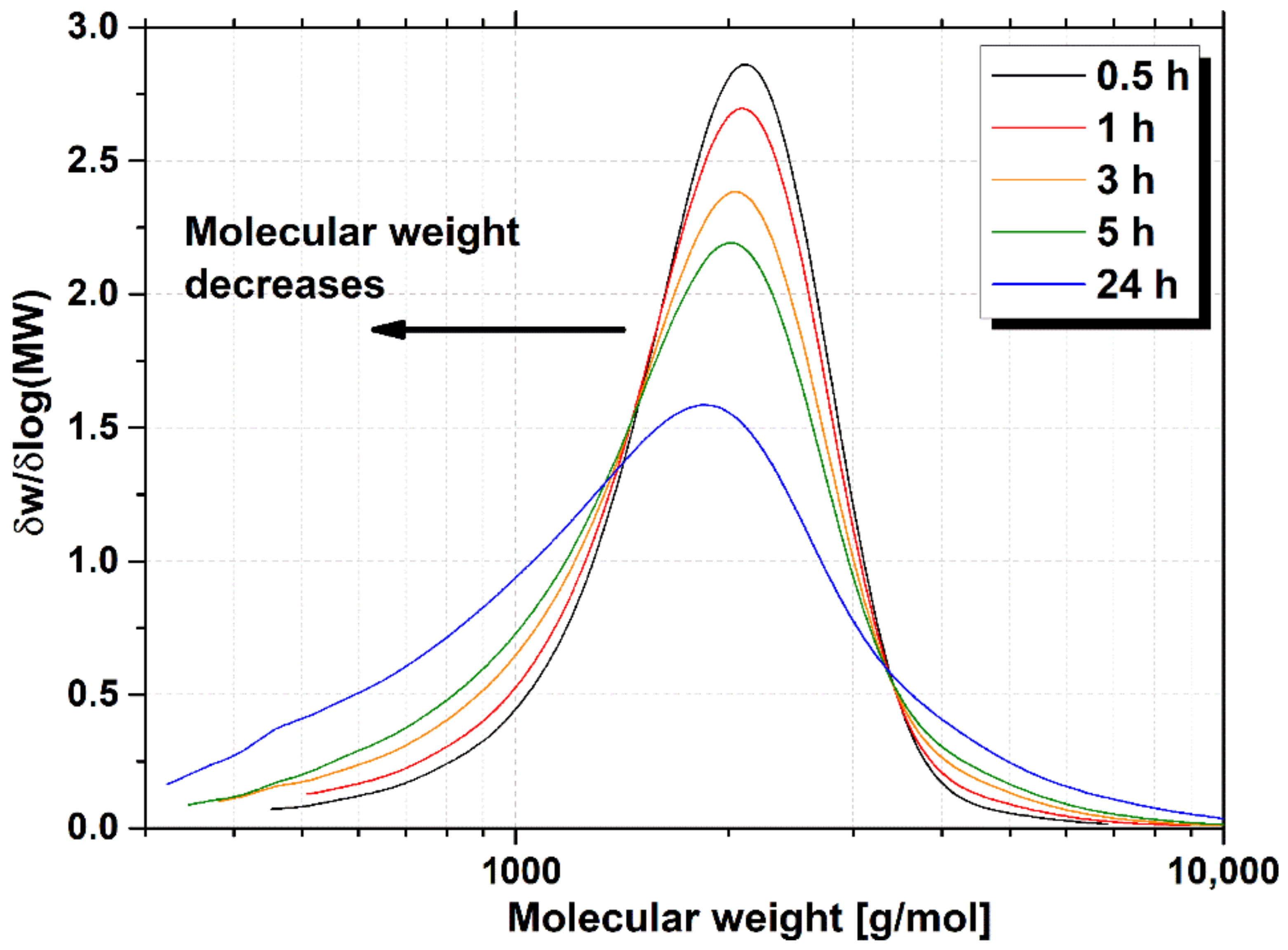

Figure 5. Evolution of the resin molecular weight after heat treatment at 215 °C as a function of time.
Figure 5. Evolution of the resin molecular weight after heat treatment at 215 °C as a function of time.
Polymers 13 01267 g005
Polymers 13 01267 g006 550

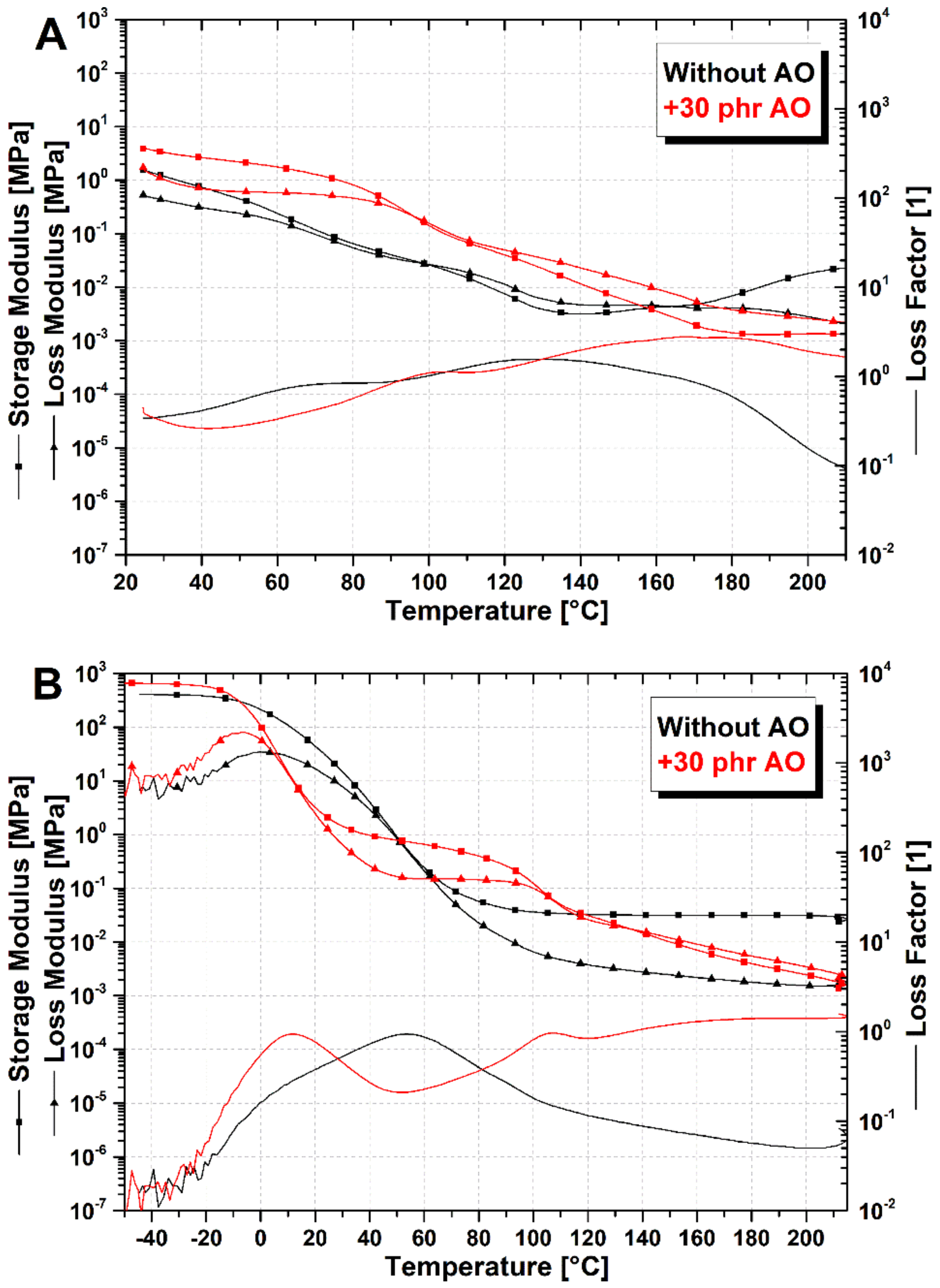

Figure 6. Viscoelastic properties of SBR/poly(αMSt-co-St)150 (black curves) and SBR/poly(αMSt-co-St)150/AO30 (red curves) blends during (A) heating up from 20 to 215 °C and (B) cooling down from 215 to −50 °C.
Figure 6. Viscoelastic properties of SBR/poly(αMSt-co-St)150 (black curves) and SBR/poly(αMSt-co-St)150/AO30 (red curves) blends during (A) heating up from 20 to 215 °C and (B) cooling down from 215 to −50 °C.
Polymers 13 01267 g006
Polymers 13 01267 g007 550

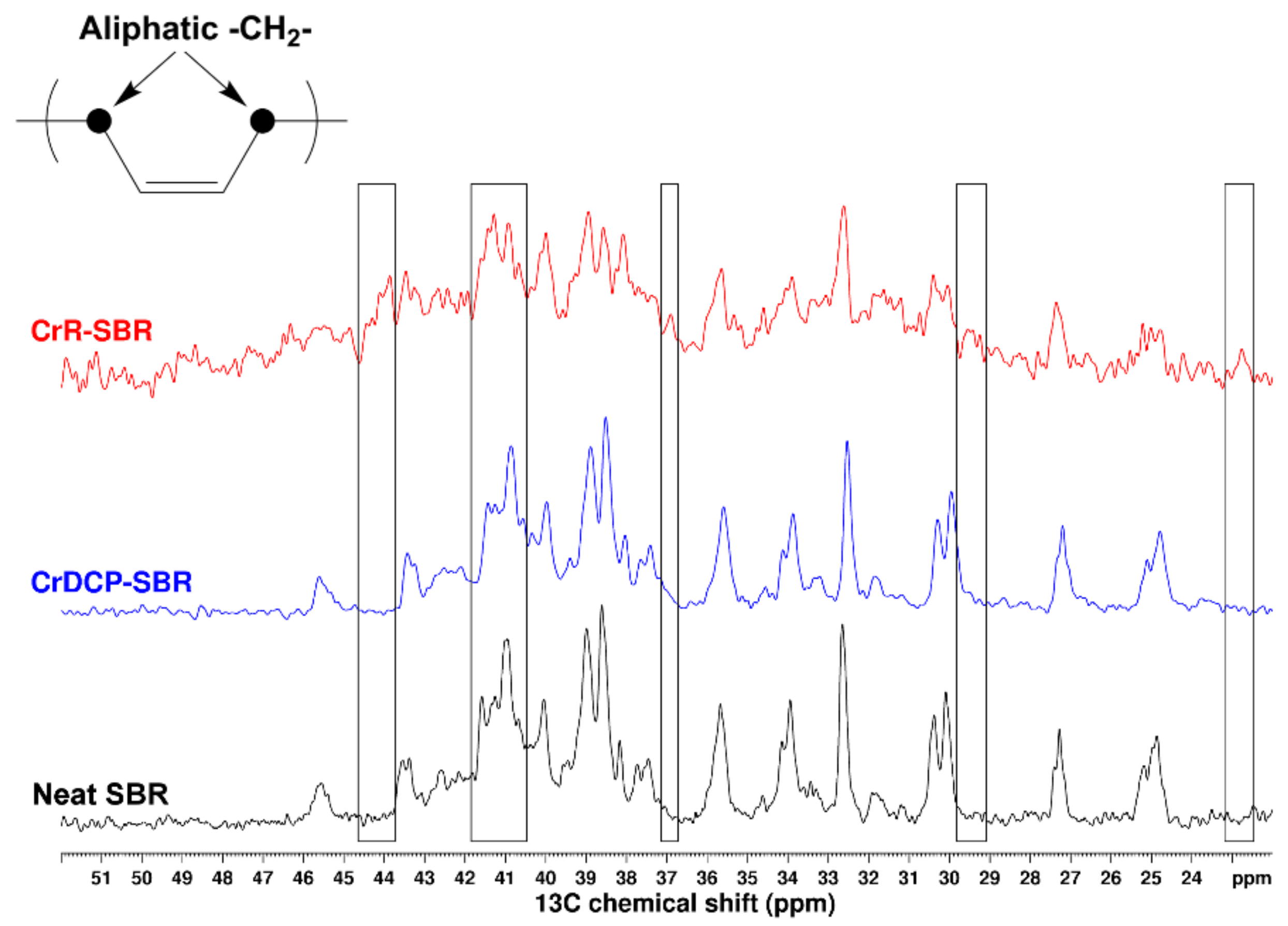

Figure 7. Solid-State 13C NMR spectra of CrR-SBR (red curve) and CrDCP-SBR (blue curve). For comparison, the 13C liquid NMR spectra of neat SBR is given (black curve).
Figure 7. Solid-State 13C NMR spectra of CrR-SBR (red curve) and CrDCP-SBR (blue curve). For comparison, the 13C liquid NMR spectra of neat SBR is given (black curve).
Polymers 13 01267 g007
Polymers 13 01267 g008 550
Figure 8. (A) Viscoelastic properties of CrR-SBR/poly(αMSt-co-St)150 (red curves) and SBR/poly(MSt-co-St)150 before (blue curves) and after the heat treatment at 215 °C (black curves). Measured during cooling ramp (5 °C/min) from 160 to −50 °C. (B) Schematic representation of blend state after each different step.
Figure 8. (A) Viscoelastic properties of CrR-SBR/poly(αMSt-co-St)150 (red curves) and SBR/poly(MSt-co-St)150 before (blue curves) and after the heat treatment at 215 °C (black curves). Measured during cooling ramp (5 °C/min) from 160 to −50 °C. (B) Schematic representation of blend state after each different step.
Polymers 13 01267 g008
Table
Table 1. Swelling test of SBR/poly(αMSt-co-St)150 blend after rheological test at 215 °C.
Table 1. Swelling test of SBR/poly(αMSt-co-St)150 blend after rheological test at 215 °C.
Sample + Heat Treatment 1Statem Swell (g)m Dry (g)m Toluene (g)%swellingVe × 104 (mol/cm3) 2
Neat SBR after 215 °CSoluble-----
SBR/poly(αMSt-co-St)150 after 160 °CSoluble-----
SBR/poly(αMSt-co-St)150 after 215 °CSwollen0.40620.01910.387120272.18
1 heat treatment is defined as the maximum temperature the sample has been exposed to. 2 Calculated with Flory–Rehner equation.
Table
Table 2. Nanomechanical measurements of modulus in AM-FM.
Table 2. Nanomechanical measurements of modulus in AM-FM.
Sample + Heat TreatmentModulus (GPa)Morphology
SBRAMS
Poly(αMSt-co-St)-3.6 ± 0.4Single phase
Neat SBR0.80 ± 0.05-Single phase
SBR/poly(αMSt-co-St)1501.15 ± 0.20-Single phase
SBR/poly(αMSt-co-St)150 after 160 °C1.80 ± 0.202.8 ± 0.4Dual phase
SBR/poly(αMSt-co-St)150 after 215 °C2.00 ± 0.35-Single phase
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wolf, A.; Fernandes, J.P.C.; Yan, C.; Dieden, R.; Poorters, L.; Weydert, M.; Verge, P. An Investigation on the Thermally Induced Compatibilization of SBR and α-Methylstyrene/Styrene Resin. Polymers 2021, 13, 1267. https://doi.org/10.3390/polym13081267

AMA Style

Wolf A, Fernandes JPC, Yan C, Dieden R, Poorters L, Weydert M, Verge P. An Investigation on the Thermally Induced Compatibilization of SBR and α-Methylstyrene/Styrene Resin. Polymers. 2021; 13(8):1267. https://doi.org/10.3390/polym13081267

Chicago/Turabian Style

Wolf, Arnaud, João Paulo Cosas Fernandes, Chuanyu Yan, Reiner Dieden, Laurent Poorters, Marc Weydert, and Pierre Verge. 2021. "An Investigation on the Thermally Induced Compatibilization of SBR and α-Methylstyrene/Styrene Resin" Polymers 13, no. 8: 1267. https://doi.org/10.3390/polym13081267

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
