Soft Polymer-Based Technique for Cellular Force Sensing

School of Engineering, University of Warwick, Coventry CV4 7AL, UK
Author to whom correspondence should be addressed.
Polymers 2021, 13(16), 2672;
Submission received: 21 July 2021 / Revised: 5 August 2021 / Accepted: 6 August 2021 / Published: 10 August 2021
(This article belongs to the Special Issue Advances in Bio-Based Polymeric Materials)


Soft polymers have emerged as a vital type of material adopted in biomedical engineering to perform various biomechanical characterisations such as sensing cellular forces. Distinct advantages of these materials used in cellular force sensing include maintaining normal functions of cells, resembling in vivo mechanical characteristics, and adapting to the customised functionality demanded in individual applications. A wide range of techniques has been developed with various designs and fabrication processes for the desired soft polymeric structures, as well as measurement methodologies in sensing cellular forces. This review highlights the merits and demerits of these soft polymer-based techniques for measuring cellular contraction force with emphasis on their quantitativeness and cell-friendliness. Moreover, how the viscoelastic properties of soft polymers influence the force measurement is addressed. More importantly, the future trends and advancements of soft polymer-based techniques, such as new designs and fabrication processes for cellular force sensing, are also addressed in this review.

1. Introduction

Advancements in synthetic techniques have provided the possibilities for tailoring the structural compositions and the material properties of polymeric materials. Moreover, accompanied by the improvements in the imaging resolutions and the accuracy in the characterisations of mechanical properties, soft polymer-based materials have been increasingly favoured in the studies of tissue engineering and cellular mechanics [1,2]. Such materials are prevalent in the studies aimed for cellular force sensing, as their highly customisable mechanical properties and non-toxic nature can provide great versatility in such applications. In addition to cytotoxicity, as reviewed by Mondschein et al. [3], the consideration of factors, e.g., hydrolytic and enzymatic degradation properties, as well as the mechanical properties of soft polymer-based material, are needed for their adoption in biological studies. Various fabrication approaches for soft polymeric materials have been developed regarding biological applications, including moulding [4,5], casting [6], particulate leaching [7], electrospinning [8], gas foaming [9], and 3D printing [10,11]. Each of these fabrication processes has unique advantages and limitations in various aspects key to applying soft polymer-based materials in cellular force sensing, such as architecture, dimension, porosity, permeability and diffusion capabilities.
During cellular activities, such as growth, proliferation, migration, and apoptosis, cells not only sense and respond to biochemical signals, but also form mechanical interactions with their living environment [12]. These interactions between cells and the structures proximately surrounding them are expressed in the form of cell-generated mechanical forces, e.g., contraction forces. At the tissue level, cell-generated forces govern tissue developments through driving the repositioning of materials, as well as the bending and stretching of structures. Meanwhile, the forces also influence cellular processes, such as receptor signalling and transcription at the subcellular level [13]. As the properties of soft polymer-based materials can be tuned based on the needs, they have unique advantages in the application of cellular force sensing. Hence, the sensing of cellular forces through the adoption of soft polymers not only extends our understanding of the biophysical properties of living cells, but also supports the development of novel techniques and materials in the field of tissue engineering and biomedicine. Traditional techniques, such as atomic force microscope-based force spectroscopy [14,15], optical tweezers [16,17], magnetic tweezers [18], and force probes [19], have been extensively applied in measuring cellular forces. These state-of-art techniques offer great measurement accuracy. However, in comparison to the force-sensing technique utilising soft polymers, they have shortfalls in cell-friendliness and the ability to measure cellular force in a 3D matrix.
Soft polymer-based materials adopted in sensing cellular force usually take the form of hydrogels, where they can provide the cells with a physiologically relevant biomimetic 3D matrix. Hydrogels are water-swollen crosslinked polymeric networks that promotes cell function. The soft polymeric hydrogels can be customised versatilely in terms of stiffness, viscoelasticity, fluid content, oxygen permeability, and porosity. It can also be functionalised with specific bioactive molecules in accommodating and promoting particular cell types and cellular activities. In order for the soft polymer to be applicable in cellular force sensing, it is crucial to match its mechanical properties to that of native tissues. Within the human body, the stiffness of the extracellular matrix (ECM), where cells reside, can vary by several orders of magnitude between the softest brain tissue to the hardest bone tissue. However, cell types of interest in cellular force sensing are usually sourced from tissues with Young’s modulus ranging upwards of hundreds of kilopascal (105 Pa), which falls within the elasticity range of soft polymeric materials. Thus, soft polymer-based materials shall serve as desirable materials for sensing cellular forces.
Over the year, both synthetic and natural soft polymers have been widely adopted for sensing cellular force. Based on synthetic material, techniques, such as deformable membrane (DM) [20,21], traction force microscopy (TFM) [22,23], and elastic-micropillar technique (EMP) [24], were developed. Meanwhile, naturally sourced polymers, such as collagen, agarose, and alginate, were also adopted with typical techniques of various collagen gel-based contraction assays (CGCA) [25,26,27,28] and culture force monitor (CFM) [29,30]. The working principles, merits and demerits of these techniques are summarised in Table 1.
Recently, a number of reviews have been undertaken considering the available tools in sensing cellular forces [13,31,32]. These reviews provided detailed insights on the state-of-the-art techniques for measuring cellular forces, emphasising the accurate determination of forces generated by cells. In comparison, this review focuses mainly on how soft polymers can be utilised and optimised in sensing the forces generated by various types of cells by creating a cell-friendly environment in mimicking the biomechanical and physiological conditions of the tissue matrix. The advantages and limitations of each technique in regard to their quantitativeness and cell-friendliness will also be presented in the current review. Moreover, assessments of the viscoelastic properties of soft polymer-based materials are addressed and the prospects of the future application of these materials in the studies of cellular force sensing are provided.

2. Soft Polymer-Based Cellular Force Sensing Technique

Human cells generate and reside in a complex bioactive hydrogel scaffold (i.e., ECM). It comprises structural proteins such as collagen, fibronectin, and laminin, offering a mechanically stable micro-environment. Hydrated proteoglycan fills up the pores created by the structural proteins, acting as a storage and a medium for the diffusion of homeostasis-critical soluble molecules [33]. Cells exert and transmit internal tension and forces to the outside environment through cell-to-matrix adhesions. Such adhesions mainly occur at the sites of focal adhesions (FA), where the extended ends of cytoskeletal proteins aggregate join with FA proteins (e.g., talin, vinculin) through transmembrane receptors (i.e., integrins) [34]. Integrins will then bind to ligands present in the ECM, forming connections enabling the transmission of mechanical signals. Similarly, such connections can be formed between the cells and the soft polymeric material, where the force generated by the cells can be translated into the deformation of the substrate, constituting the basis of soft polymer-based techniques in cellular force sensing. In general, these techniques share a common underlying methodology. The characterisation of the mechanical properties of the soft polymeric substrate in conjunction with the assessment of the level of deformation of the substrate due to cellular force exertion will yield the amount of force generated.

2.1. Synthetic Soft Polymer-Based Techniques

With the increasing knowledge of synthetic polymers, many soft polymers have been applied to study cellular forces. The synthetic soft polymers in such applications share the advantages of being relatively easy in terms of mechanical property characterisation and substrate functionalisation in adapting for various cell types and application scenarios.

2.1.1. Deformable Membrane (DM)

Harris et al. [20] developed a soft silicon rubber film-based technique to measure forces produced by cells. It was the first technique for assessing traction force produced by cells. When cells are seeded onto a thin silicon rubber film, the forces exerted by the cells cause visible wrinkles on the film. The length and patterns of the formed microscopic wrinkles are used to locate and follow the areas where cells are under contraction and extension. Moreover, the relative magnitude of force generated by different types of cells can be estimated [21]. Although it laid the foundation for measuring cellular force through the deformable substrate, this technique cannot quantitatively determine the magnitude and directions of the force. Further, the inhomogeneity of the thin film, such as surface defects and non-uniform thickness, can potentially introduce errors into the measurement [32].

2.1.2. Traction Force Microscopy (TFM)

By better quantifying the polymer substrate deformation with the displacement of embedded microbeads, 2D TFM addressed the limitations of the DM technique. Pelham et al. [22] used a soft collagen-coated polyacrylamide hydrogel to study the locomotion of fluorescent-labelled cells seeded on the substrate surface. Based on this, Munevar et al. [23] improved on the quantitation and introduced the TFM technique by embedding a large number of fluorescent microbeads for measuring substrate deformation through visualising the bead displacements as shown in Figure 1. A typical TFM analysis involves optically imaging the bead distribution at certain time frames during force being exerted onto the polymer substrate. A computer algorithm maps the bead displacements and quantitatively resolves the force by incorporating the characterised substrate stiffness.
Over the years, TFM gained popularity as a versatile technique in sensing forces at the cell–matrix interface. The application of the technique spans many cell types such as osteoblasts [35], keratinocyte [36], smooth muscle cells [37,38], and HeLa cells [39]. As the sizes of the embedded fluorescent beads (≤1 μm) are typically much smaller than the scale of cells (tens of μm), it allows force distribution to be mapped with subcellular resolution [13]. The high resolution can serve to determine the contribution of active cytoskeletal contraction to traction force generation [40]. Moreover, the applications of TFM can be extended to measuring forces at focal adhesions [41] and traction forces during migration [23,42], as well as elucidate how pathological events influence the traction force [43,44]. Recently, stemming from the traditional 2D TFM technique, a number of techniques for visualising cell adhesive forces at greatly enhanced resolution have been developed. The visualisation is achieved through functionalising the soft polymer substrate surface by immobilising extracellular tension sensors, specifically targeting the focal adhesion transmembrane receptors [45,46]. The tension sensors are fluorescently labelled so that the variation of force is converted to the change of luminescence of the tension sensors, which results in the significant improvement of force resolution compared to the conventional TFM [47,48].
Despite the advancements, the 2D nature of the technique makes it far from ideal for promoting the physiological behaviours of cells. The in vivo environment for most cells is a 3D matrix instead of the surface of a 2D substrate. As a consequence of many cellular processes, cells behave very differently in terms of their mechanical characteristics when moved from an environment of a 3D matrix to the surface of a 2D substrate [49]. Thus, 3D TFM is developed to provide an additional dimension to address the limitations in 2D TFM, investigating traction fields and sensing cellular forces in more physiologically relevant conditions (i.e., cells embedded in a fibrous matrix). In essence, 3D TFM provides an additional dimension in the vertical direction over the 2D TFM through embedding cells and tracker beads within the matrix and measuring its deformation with embedded beads in all three dimensions.
The needs for tracking fiduciary markers in 3D constitute the majority of the added difficulties to 3D TFM, yet so far, several approaches have been developed. Bloom et al. [50] tracked the displacements of embedded fluorescent beads along the z-axis (vertical direction) using the patterns of out-of-focus diffraction rings in the optical system generated by beads. The tracking of the beads through this method can be accomplished through ordinary microscopy techniques. This approach requires only 5 s to track the bead displacements around the vicinity of a single cell, minimising measurement error by effectively ‘freezing’ the cellular motion during the measurement period. However, the spatial resolution along the z-axis is relatively low, at around 120 nm [50]. Laser-scanning confocal microscopy has become prevalent in the study of cell morphology due to its high-resolution imaging capacity in 3D, which also makes it a viable tool for tracking beads in 3D TFM. Legant et al. [51] first demonstrated 3D traction force measurement with polyethene glycol (PEG) hydrogel and confocal microscopy. It offers excellent spatial resolution, yet the acquisition process is slow. When optimised for resolution versus acquisition speed, the acquisition time for an individual cell’s traction field is approximately 3 min [51]. During the scan, changes to the matrix by cellular activities are beyond negligible, inevitably introducing uncertainty to the reliability of the results. Moreover, the reconstruction process of confocal microscopy-based 3D TFM is often very computationally intense [52]. Moreover, as observed by Maskarinec et al. [53], laser beams used in confocal microscopy are phototoxic to cells. Hence, a minimum of 30 min is required for acquisition interval, limiting its potential in dynamic cellular force sensing. Optical coherence microscopy (OCM), a variant of optical coherence tomography, can also be applied to track the movements of beads in 3D. The OCM offers rapid volumetric acquisition and utilises near-infrared wavelengths to mitigate light scattering and phototoxicity. However, such a system has a lower spatial resolution and is prone to introducing speckles [54].
Although many improvements in mimicking the in vivo environments have been made in the transition from 2D to 3D TFM, it still does not adequately represent physiological conditions. Firstly, cells are usually seeded at a very low density onto the polymer substrates to avoid interference of traction fields surrounding individual cells and minimise matrix remodelling [53,55]. As the generation of cellular forces is primarily regulated via mechanosensing, very low cell density will unavoidably hinder such processes. Secondly, unlike that in the 2D TFM, the soft polymer-based matrix serves both as a measuring device and a matrix to sustain cellular activities. In such a configuration, the polymer matrix will inevitably be subjected to local degradation, precludes the reconstruction of the matrix deformation and resolving the cellular force generation [50]. Thirdly, as the cellular force is determined through the measured elasticity of a homogenous, isotropic, and linearly elastic substrate, any errors in the process can be carried on and cause discrepancies in the resolved force. Lastly, the tracking of fluorescent markers is computationally demanding and often discrete [56,57]. This is especially true in recently developed super-resolved TFM techniques [58,59] as the density of the fluorescent bead has been dramatically increased to achieve 50–100 nm spatial resolutions compared to the 1–5 μm in the traditional TFM [60,61,62]. In the light of this, new techniques based on particle image velocimetry (PIV) [63] and particle tracking [64] have been developed to reduce computational costs in 3D TFM. Moreover, the solutions towards adding time dependency of marker tracking have been developed by Barrasa-Fano et al. [65] based on MatLab.
Overall, as a synthetic soft polymer-based technique, the limitations of TFM techniques primarily stem from its unsatisfactory cell-friendliness as a result of the type of polymer material used (e.g., polyacrylamide, PEG). While offering favoured properties such as being non-cytotoxic, isotropic, homogeneous, and time-invariant, there is a minimal resemblance of the ECM in biochemical aspects [13]. Attempts to use more physiologically relevant soft polymeric materials such as pericellular collagen have been made [50,55]. However, the nonlinear fibrillar nature of the collagen matrix prevents the application of classical mechanical approaches in resolving forces from local matrix deformations [13].

2.1.3. Elastic Micro-Pillar Technique (EMP)

In 2003, Tan et al. [24] developed microfabricated soft polydimethylsiloxane (PDMS) elastomeric arrays, i.e., microneedle-like posts, to spatially track the forces produced by cells attached on their tips (Figure 2a). Such a technique was invented as an alternative to TFM, as the beam deflections caused by cellular forces can be measured optically. The cellular forces can be determined by applying elastic beam theory as described by Equation (1), provided that Young’s modulus and dimensions of the micro-pillars are characterised.
F = ( 3 E I   L 3 ) δ
where E, I, L, and δ are Young’s modulus, the moment of inertia, length, and the horizontal deflection of the micro-pillar.
The EMP technique has seen widespread applications on many different types of cells, such as epithelial cells [66], endothelial cells [67], fibroblasts [68], various myocytes [69,70,71,72,73], and dendritic cells [74]. Compared with the TFM technique, this technique excels in the customisability of the micro-pillars while keeping the surface properties constant [24]. By controlling the length and diameter of the pillars, alteration of pillar compliance can be achieved. At the same time, the spacing between the micro-pillars can be adjusted for different cells types (Figure 2b,c). Meanwhile, variation in the moment of inertia of the pillars can be achieved for forces in different directions by changing the cross-sectional profiles of the micro-pillar (Figure 2d). Furthermore, various designs of the micro-pillar array will also affect how cells attach to, spread across, and deflect the micro-pillars. As the pillars deflect independently upon force exertion, the deflections of the micro-pillars directly reflect the subcellular distribution of traction forces [24]. Additionally, the micro-pillar arrays can be fabricated cost-effectively through casting [32].
However, such a technique also has disadvantages. Firstly, the synthetic soft polymeric nature and the array topology may stimulate undesired cellular responses. Secondly, as the micro-pillar deflection is optically assessed, the material choices of polymer substrate are limited to optically transparent materials, such as polydimethylsiloxane (PDMS) and polymethylmethacrylate (PMMA). Lastly, the casting process inevitably causes defects in pillar fabrication [75].

2.2. Natural Soft Polymer-Based Techniques

The utilisation of natural soft polymer for cellular force sensing has a unique advantage of best mimicking the physiological environment and promoting natural cellular behaviours. However, unlike synthetic soft polymeric materials, the characterisation of the mechanical properties of the natural soft polymer is not as straightforward and more prone to cellular remodelling. Moreover, compared to synthetic soft polymeric materials, natural soft polymers have limited potential to tailor the internal structure and alter mechanical properties.

2.2.1. Collagen Gel-Based Contraction Assay (CGCA)

Within the body, cells are populated in the ECM, a 3D network of proteins (e.g., collagen, glycoproteins) and other biomolecules to provide structural and biochemical support to the cells [76,77]. Hence, the synthetic soft polymer-based cellular force sensing techniques lack cell-friendliness and may not truly reflect the in vivo cellular behaviours. As collagen is the most abundant matrix protein within the ECM [78], it undoubtedly becomes the prime candidate for designing hydrogel-based techniques for cellular force sensing.
In 1979, Bell et al. [79] introduced fibroblast-populated collagen lattice (FPCL) to study the contraction force generated by fibroblasts. They seeded fibroblasts into collagen hydrogel and measured cellular contraction force by observing gel shrinkage due to the force exerted onto the 3D cell-embedded collagen matrix. It provides excellent cell-friendliness over the synthetic polymer-based techniques in terms of sustaining three-dimensional physiological cellular interactions. Briefly, cells will form focal adhesions and exert traction force onto collagen fibrils during the spread within the collagen matrix. Since the collagen fibrils within the matrix are linked and intertwined, forces exerted onto individual fibrils will propagate and cumulate to cause global contraction of the collagen matrix. To construct the contraction assay, cells are seeded into the collagen solution with desired cell density and collagen concentration at 4 °C. The seeding is followed by a polymerisation period of approximately 20 min, after which culture media is added to provide nutrition to the embedded cells. The gel is often subsequently dislodged from the bottom of the Petri-dish and allowed to contract without constraints while suspended in media. The protocols regarding the construction of the assay are documented in detail by Ngo et al. [80].
Cell contraction is detected by measuring the percentage reduction of gel area after a period of culturing with optical systems [79]. Since the first introduction, several variations to the technique have been developed with varying timing of dislodgement (shown in Figure 3). The most common method is to dislodge the cell-embedded gels after polymerisation immediately (Figure 3a) and obtain measurements after a period of contraction. Such a method will result in the vast majority of the gel shrinkage being along the radial direction. Figure 3b demonstrates a variation of the methodology where no gel dislodge occurs. As the gel remains in contact with the rigid Petri-dish, the resultant tension within the gel will primarily reduce the gel thickness. In comparison, the former method provides a more straightforward measurement with an optical system than the latter. Figure 3c shows a combined method, where a period of culturing is allowed to elapse before dislodging. Such a method was invented and widely used to study how external stress affects cellular force generation, as internal stress accumulates due to the force exerted on the polymeric gel matrix prior to the dislodgement [81,82].
In the early 1990s, Moon et al. [26] developed a novel approach known as fibroblast-populated collagen microspheres (FPCM) to sense cellular force by probing the interactions between cells and collagen fibrils. In comparison, the FPCM is a spherical analogue of the traditional FPCL proposed by Bell et al. Instead of a disk-shaped hydrogel, a gel sphere is constructed by pipetting cell-containing gel solution into a silicone fluid at 37 °C. The novel approach provides several advantages over the traditional approach. Firstly, the spherical design offers a more straightforward way of assessing the forces exerted on the collagen gel. The measurement will be one-dimensional (i.e., axisymmetrical) instead of two-dimensional as required for the disk-shaped gel. The spherical geometry also enables the contraction of FPCM to be mathematically simplified, enabling the model to be described with only a spherically symmetric set of equations. Secondly, as Modis et al. [83] reported, the methodology applied in constructing traditional disk-shaped gel can lead to a significant local anisotropy in the collagen matrix. This is recognised to be a result of fibrillogenesis in the presence of bounding surfaces. Whereas the collagen microsphere in the FPCM technique is prepared by pipetting the gel solution into silicone fluid, the initial collagen fibril orientation is relatively isotropic. Lastly, the diameter of the yielded soft polymeric microspheres can be arbitrarily small with a typical value of 1 mm [26], allowing a minimised diffusion gradient for mass transport.
Due to the relative ease of fabricating and the cell-friendliness resulting from its natural soft polymer-based material, many studies have adopted CGCA for sensing cellular forces of cells of different physiological origins. The technique has seen extensive usages among the study of cellular forces in pathological states, such as cardiovascular disease [84], respiratory disease [85,86], eye disease [87], as well as cells during physiological events, such as ageing [88], and wound healing [89,90,91].
Despite its cell-friendly merit and the ability to simulate various physiological conditions, conventional CGCA techniques can only provide a qualitative assessment of cellular forces. The mechanical properties of the soft polymeric matrix, such as the elasticity of the collagen matrix, are unknown. Recently Jin et al. [27] developed a new nano-biomechanical technique on cell-embedded collagen hydrogels in combination with mathematical modelling, which measures both elasticity and geometrical changes of the polymeric gel in determining cellular forces (Figure 4). The new technique provides merits in quantitativeness without sacrificing cell-friendliness. With such a technique, the influences of matrix stiffness [92], and ageing [28] on cellular force generation were quantitatively studied.
Considering that cells constantly remodel their surrounding matrix, the capability of characterising matrix stiffness carries even greater importance in the natural polymer-based force sensing techniques. This is especially true for certain cell types, such as fibroblasts and chondrocytes, as their functions are primarily dependent on matrix remodelling and the dependency becomes pronounced during states such as ageing [93,94].

2.2.2. Culture Force Monitor (CFM)

As reviewed above, conventional CGCA techniques offer a cell-friendly and straightforward approach to assess cellular forces with 3D soft polymeric hydrogels. Apart from its non-quantitative feature, it also lacks measuring sensitivity as it cannot effectively display observable geometric change under small force output. To improve on the technique, Delvoye et al. [29] developed a CFM system to achieve direct measurements of cellular forces by attaching a force transducer on the edge of the cell-embedded collagen gel.

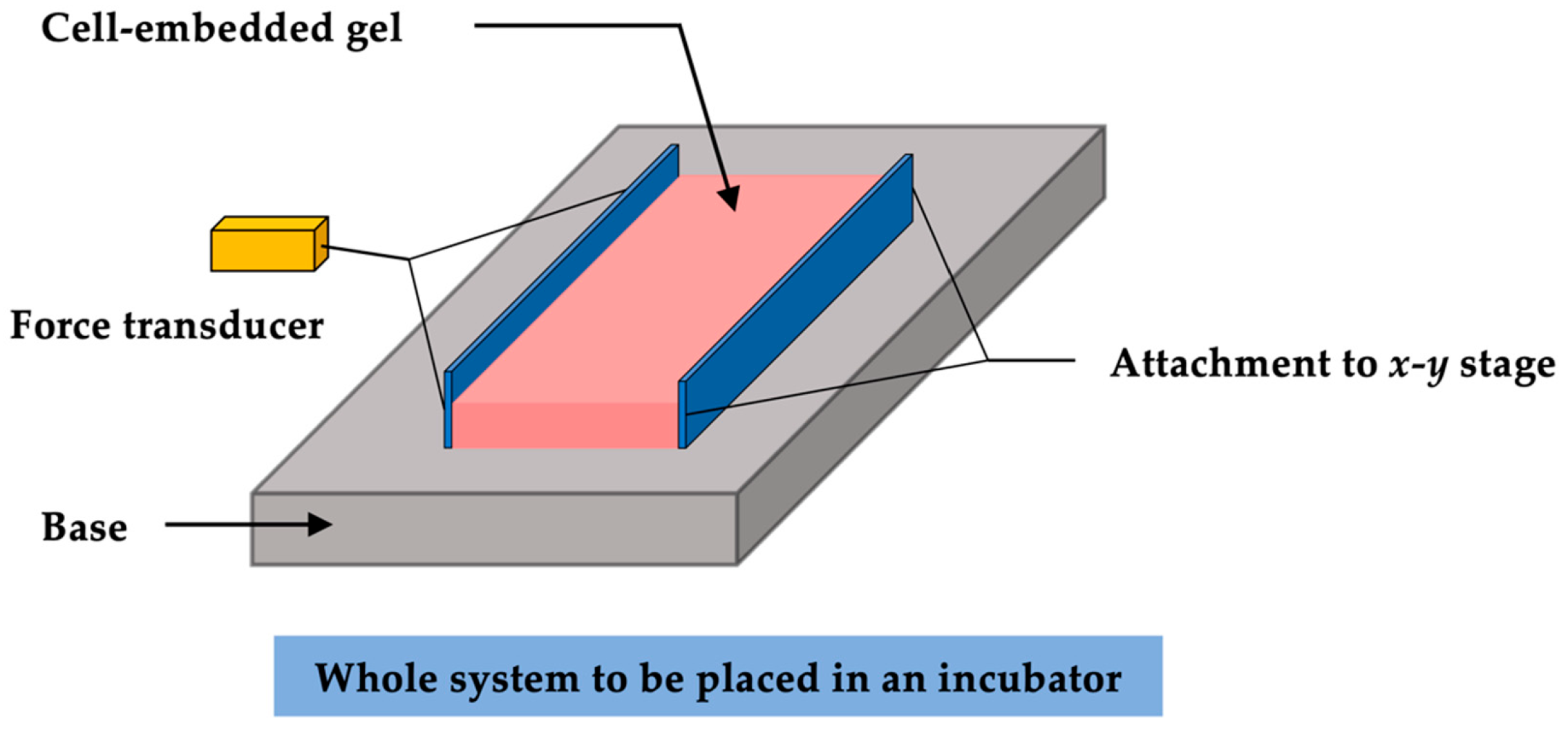

In a typical CFM system, the sample gel is fixed to two diametrically opposed plates connected to a force transducer and translational stage, respectively. The stage is used to pre-stretch the gel prior to the start of the measurement (Figure 5). The entire system is placed within a standard culturing incubator and a wireless transducer acquires the force measurements. Alternatively, needle-like force transducer probes can be attached isometrically on the free-floating collagen hydrogel and differential measurements can be taken between transducer pairs. Sensitivities up to 0.5 mm and 0.5 mN can be achieved on the displacement and force, respectively [30,95]. The most prominent benefit of the CFM technique is its ability to allow precise, high sensitivity measurements of multi-cellular force directly in a physiologically relevant environment (i.e., in hydrogel matrix) and continuously monitor the force changes throughout the culturing period. Moreover, the system enables the easy application of external mechanical stimuli, providing the ability for more complex experimental design [32]. Recently, significant progress has been made by Campbell et al. [30] and Peperzak et al. [96] to increase the efficiency of CFM. The multi-station dynamic CFM allows multiple gel samples to be measured simultaneously, significantly reducing the measuring time and providing better variable controls throughout the study. Many studies have adopted CFM to measure different cell types, such as fibroblasts [97,98], endothelial cells [98], and cardiac myocytes [99].
However, there are still several disadvantages associated with CFM. One of the main disadvantages is system complexity. The setup will inevitably disturb the normal cellular processes, adding uncertainties to the result and increasing infection in the measuring process. Moreover, axially constrained cellular force measurements, such as CFM experiments, often have a limited measurement time due to the eventual mechanical homeostasis [100]. Additionally, as the force is acquired from a discrete amount of force transducers, the interpretation of the result is dependent mainly on the transducer placement. Lastly, the setup for such a system is relatively complicated.

3. Dynamic Interactions between Cells and Soft Polymer-Based Matrix

Cells are continuously remodelling their surrounding matrix, altering the surrounding mechanical and chemical environment. These changes reciprocally regulate cellular processes through mechanosensing. Such a process provides the basis of matrix elasticity influencing cellular behaviours. It has been noticed that cell’s interactions with the ECM can result in the display of a different phenotype in vivo compared to that defined otherwise by their genotype [101]. Studies on glioma cells show that the interactions with a stiffer polymer matrix can promote cell division, where the division rate increased by five-fold compared with a softer matrix [102]. Moreover, the sudden changes in the stiffness of the soft polymer-based matrix are an important factor in promoting malignant transformation, tumorigenesis, metastasis [103]. The stiffness changes of matrix are also related to the changes of cytoskeletal tension in tumour cells [104]. Moreover, the behaviours of specific cells on a soft polymer substrate with altered stiffness is characteristic of particular phenotypes. For example, cancerous cells can be distinguished by their ability to grow on substrates softer than their corresponding healthy tissues [105]. Such a discovery suggests that a cell does not act as a solitary individual, and any cellular behaviour should be assessed in the context of the surrounding cells and their matrix. It also presented a promising perspective in applying soft polymer-based materials in the study of cellular behaviours as the dynamic matrix will trigger intercellular signal transduction in the regulation of cell behaviours.
The stiffness of a homogeneous soft polymeric material is dependent on the concentration of the polymer and the crosslinking density. The influences of polymer matrix stiffness can vary between different cell types. Marklein and Burdick [106] demonstrated increased proliferation and migration of mesenchymal stem cells (MSC) on 3D hyaluronic acid scaffolds with higher stiffness, while Banerjee et al. [107] concluded the opposite for neuronal stem cells. In terms of the cellular force measured using a soft polymer-based matrix, fibroblasts in stiffer collagen hydrogel have shown reduced contraction [92]. However, the influences of polymer matrix stiffness in cellular force sensing cannot be simply assessed in isolation. As a dynamic system, cells embedded in the soft polymeric matrix constantly remodel their surroundings, changing the matrix stiffness. The remodelling rate depends on the initial stiffness of the matrix, demonstrated separately by Zhu et al. [108] and Ahearne et al. [109] on fibroblasts with lung and corneal origins. Based on the mechanism of cell-mediated matrix contraction, if the polymer fibrils buckle under the force applied by the cells, they cannot reciprocally stimulate cellular force generation. The lack of stimulation will result in decreased cellular force output. It suggests that polymer matrix with low stiffness tends to reduce the cellular force generation as it is more likely for the polymer fibrils to buckle under increased traction force due to reduced fibril density. Moreover, the difference in matrix stiffness can affect properties key to cellular activities such as the number of focal adhesion sites, oxygen and nutrient permeability. Such a complication also indicates the benefits of adopting soft polymer-based techniques in cellular force sensing, where physiological cellular behaviours are preserved.

4. Viscoelastic Properties of the Soft Polymer Matrix

Viscoelasticity is essential for biological functioning as it plays an important role in the storage, transmission, and dissipation of forces and energy within living tissues [110,111]. Soft polymer-based techniques in sensing cellular force often require the construction of polymeric hydrogels. Polymeric hydrogels often contain a large amount of water, thus exhibit viscoelastic behaviours. Moreover, based on the molecular structures of their polymer chains, the viscoelastic properties vary. Collagen hydrogels are shown to be significantly viscoelastic among few commonly used natural hydrogels (e.g., agarose and alginate). How the viscoelasticity of the hydrogel affects the embedded cells remains unclear [112], yet it has been shown to promote cellular behaviours not seen on purely elastic matrix [113]. The effects of viscoelasticity on embedded cells have also been shown to change alongside cellular force exertion and matrix remodelling [109]. The application of soft polymer-based material in cellular force sensing requires accurate characterisation of the mechanical properties of the polymer matrix. As a soft polymer, often, the viscoelastic property manifests in its force-displacement response when applying such techniques. Therefore, characterisation of the viscoelastic properties of soft polymer-based material is essential when applying for sensing cellular forces.
Viscoelastic materials are materials that display both elastic and viscous characteristics simultaneously at a considerable level when undergoing deformation [114]. Similar to soft biological tissues, polymeric hydrogels are typical biphasic materials where a solid network forms the scaffold of the structure with water filling up the porous cavities [115]. It is commonly believed that the solid polymer network is responsible for the elastic characteristics of the hydrogel, whereas the network mobility and fluid flowing within the network contributes to the viscous properties of a viscoelastic material [116]. Within polymeric hydrogels, the interstitial fluid phase (e.g., water) can be categorised into two groups: ‘free-flowing’ and ‘fixed’. The ‘free-flowing’ water can easily undergo material exchanges and diffuse in and out of the hydrogel. The ‘trapped’ water (i.e., fixed phase) is tightly bound to hydrophilic fibrils through hydrogen bonding. It has an important role in stabilising the polymer matrix structure within the hydrogel and contributing greatly to the viscous properties of the hydrogel. At the same time, the hierarchical structure of polymer fibres provides the elastic strength of the hydrogel.
The major approaches for characterising viscoelastic behaviours are through measuring stress relaxation and creep responses. The stress relaxation test applies a fixed deformation to the sample and measures the stress-time response of the sample, while the creep test applies a fixed force and records the strain-time curve. The time-dependent stress and strain data from the tests is subsequently used to derive viscoelastic parameters from constitutive models. Tensile stress relaxation tests are among the most popular in determining the viscoelastic responses of materials, yet the nature of biomaterials, especially hydrogels, does not necessarily permit such tests to be performed.
In the last decade, many alternative mechanical testing approaches have been developed to suit the specific needs in characterising hydrogels materials. Ahearne et al. [117] demonstrated the mechanical characterisation of viscoelastic properties of biomimetic membranes through micro-shaft poking. They also proposed a novel method of dropping a stainless steel ball onto a thin, soft polymeric hydrogel film [118]. Cheng et al. [119] and Mattice et al. [120] demonstrated the technique for stress relaxation and creep tests with spherical indentation, allowing samples to be placed in an aqueous medium. Although, compared with other methods, the indentation methods are confined to measuring localised viscoelastic response rather than the entirety of the material, it offers the benefit of causing minimal disturbance to the soft polymeric hydrogel.
Many constitutive models were developed for describing the viscoelastic behaviour of materials. It has been well recognised that the Maxwell model [121] (Figure 6a) and Kelvin–Voigt model [122] (Figure 6b) offer simplicity cannot yet achieve satisfactory predictions on the stress relaxation behaviours on soft polymeric materials [123]. The standard linear solid (SLS) model [124,125] (Figure 6c) addresses the limitations of both Maxwell and Kelvin–Voigt models by combining the elements of the two. The application of the SLS model is suitable for both creep and stress relaxation analysis, which made it one of the most common viscoelastic models in studying highly hydrated soft polymer-based materials [115]. Moreover, a more general form of the linear viscoelastic model [126] (Figure 6d) is available by the addition of ‘Maxwell elements’ to the model. The addition enables the distribution of relaxation times in the model to achieve more realistic relaxation modelling. A study has shown that a generalised SLS model (i.e., Maxwell–Weichert model) can provide a more accurate representation of the relaxation response than the SLS model [117]. However, as extra calculations are required with more unknown parameters, the added complexity outweighs the gain of accuracy in characterising the viscoelastic properties of soft polymeric hydrogels.
The viscoelastic behaviours of soft polymer-based materials post additional complexities in characterising their mechanical properties to sense cellular force. This not only requires additional considerations towards the process of mechanical characterisation, but also demands a nonlinear mathematical model for the technique. A numerical simulation study conducted by Yu et al. [28] based on the finite element methods on the soft collagen gel suggests that with less than 10% strain in the deformation, the polymeric collagen hydrogel can be treated as a linear-elastic material. The methodology and findings provide a feasible route for tackling viscoelastic behaviours presented by soft polymer-based materials during the application in cellular force sensing.

5. Intricate Problems in Cellular Force Sensing

5.1. 2D Substrate or 3D Matrix

A common approach for in vitro study of cellular behaviours is to adopt a 3D cell-embedded polymeric hydrogels matrix. A difference can be found between the traditional 2D approach and the 3D hydrogel matrix in how cells sense the micro-environment. For instance, cells are only partially in contact with the substrate and the neighbouring cells on a 2D substrate, causing polarised mechano-transduction and unnatural behaviour of the cells [127]. The rest of the cell surface that is not in contact with the substrate and neighbouring cells directly contact the culturing media. Despite direct nutritional and waste exchange with the media, the homogeneous culture media does not create a concentration gradient of nutrients, growth factors, and cytokines as observed for in vivo conditions. It is shown that the dynamic spatial concentration gradients of soluble factors in the ECM have influences on cell migration, communication, and differentiation.
Thus, for the sensing of cellular forces, a 3D soft polymer-based culturing model should be used to best recapitulate the mechanical and biochemical stimulation present in native ECM. As natural soft polymers offer great cell-friendliness, the 3D scaffolds constructed with such soft polymeric materials can best mimic native ECM, promoting physiological behaviours of the cells. The benefits of using a 3D hydrogel-based technique in sensing and differentiating cellular forces in different physio-pathological states (e.g., ageing fibroblasts, chondrocytes) are especially prominent, as the ageing of fibroblasts is a complex process involving changes in many aspects which change its matrix remodelling and mechanosensing abilities [128].

5.2. Measurement Accuracy

Usually, quantitative analysis involves measuring the displacement response of an applied force to the soft polymer-based substrate, thus requiring measurement instruments with resolutions in the scale of milli-newton (mN) and micro-meter (μm) for force and displacement, respectively. At such a fine resolution, the instruments are inevitably prone to environmental perturbations. Moreover, in macro-scale mechanics, it can be reasonably assumed that materials are homogeneous and that the size and shape of the probe are negligible. In the cellular force sensing techniques that utilise a soft polymer-based matrix, the heterogeneity in the matrix caused by the cell remodelling and force exertion, as well as the geometrical profiles of the probe, can no longer be ignored. However, both issues can be addressed by applying a relatively simple mechanical model and making an appropriate assumption based on the aim of the study.

6. Prospects

Soft polymer-based materials have been widely used in sensing cellular forces to promote natural cellular behaviour by providing cells with physiological environments. As the fabrication approach and mechanical characterisation of soft polymer-based materials undergo further developments, the utilisation of soft polymer-based materials broadens. A few trends regarding future applications which can be envisaged are reported here.

6.1. Extended Choice of Natural Materials

Natural soft polymer material has the unique advantage of mimicking the physiological environment and promoting natural cellular behaviours. Conventionally, due to the obtainability and easiness of handling, the choices of natural polymers for cellular force sensing are limited to polymers such as collagen, agarose, and alginate. Recently, more naturally sourced soft polymers, such as fibrin [129,130,131], hyaluronic acid (HA) [132,133,134], and fibronectin [135], have been adopted in the construction of 3D soft scaffolds for tissue engineering. With the extended range of naturally sourced polymer materials, the potential of using soft polymer-based techniques in cellular sensing can be increased.

6.2. Bioactive Modification of Synthetic Materials

Soft polymeric hydrogel is an attractive material for mimicking natural ECM. However, the methodology can be further improved with bioactive modification to better address the biochemical composition of various tissue at different physiological and pathological states. Zhu et al. [136] reviewed that short peptide chains derived from ECM proteins such as laminin and fibronectin, are among the popular choices for bioactive modification of PEG hydrogels. Petrini et al. [137] have also reported the design and functionalisation of polyurethane hydrogels for tissue engineering. A broad range of potential studies can be conducted with the bioactive modification of the soft polymeric matrix. For example, the cell-embedded hydrogel can be bioactively modified to change the state of crosslinking based on the morphological or the physiological state of the embedded cells. The change of crosslinking structure of the hydrogel will intrinsically alter the mechanical properties of the hydrogel, which may trigger specific force response of the cells, adding diversity to the force sensing techniques based on soft polymer-based materials.

6.3. 3D Printing of the Soft Polymer Scaffold

3D bioprinting techniques have emerged in the past decades, capable of producing tailored structures within the biomimetic, complex, and cellularised 3D soft polymer scaffold appropriate for desired cell populations [138]. As reviewed by Li et al. [139], 3D printed soft polymer network can facilitate matrix remodelling, migration, and adhesion, which are desirable in cellular force sensing applications. Compared with the current soft polymeric assays, the 3D printed tissue-equivalent will be a significant leap in advancing the technique. It will ultimately represent the conditions of native tissues and promote cellular behaviours closest to in vivo conditions. Moreover, the customisability of 3D bioprinting has the potential for replicating pathological tissues, which could be the next advancement in polymeric material-based cellular force sensing

6.4. Improvements of Methodological Design on Soft Polymers

Several methodological approaches can be taken to improve the performance of soft polymers in force sensing applications. Firstly, the polymer matrix density and cell seeding density can be optimised to form a cell-friendly biomimetic 3D matrix. As shown in Figure 7, at both seeding densities of 50,000 cell ml−1 (low) and 100,000 cell ml−1 (medium), cells had enough space to spread and separate from each other, while at 200,000 cell ml−1 (high), they are generally aggregated and attached with neighbouring cells. A 26% reduction in contraction force generation was observed on samples with high density due to the saturation of adhesion sites on the collagen matrix [28]. The results show that the polymer matrix density and cell seeding density adopted in the techniques need to be extensively designed to provide cells with environments closest to in vivo conditions, improving their performance in cellular force sensing.
Secondly, as reviewed above, the viscoelasticity of the cellular matrix regulates fundamental cellular processes and promoting cellular behaviours otherwise not seen in both 2D and 3D cultures [113]. This offers a perspective in tuning the viscoelasticity of the soft polymer matrix to improve the force-sensing capability. The viscoelasticity of a polymer is primarily determined by the structure and level of crosslinking of the polymer network, as well as the type of crosslink bonds. In an ideal covalently crosslinked polymer network, the energy will only dissipate through the uncrosslinked loose ends of the polymer, while the non-ideally crosslinked polymers will lead to creeping [140,141]. Altering the ratio between monomer and crosslinker is a viable approach to change the crosslinking structure. As Charrier et al. [142] demonstrated on polyacrylamide hydrogels, the variation of storage and loss moduli can be tuned by this approach. Moreover, the strength of the crosslinking bond can also determine the viscoelastic properties of the soft polymer matrix as shown on PEG [143,144], alginate [145], and peptide-based hydrogels [146]. Crosslinking bond strength can be controlled through modifications to polymer chains, such as changing molecular weight, inserting inert molecules to control polymer section length and changing the affinity of weak bonds (e.g., hydrazine, boronate bond). By modifying polymer structures, the viscoelastic properties of the soft polymer can be customised to suit the needs of cellular force sensing better.
Lastly, soft polymers can be fabricated in conjunction with bioelectronics to convert the matrix deformation to electric signals. As reviewed by Boys and Owens [31], bioelectronics has great potential in cellular force sensing. Several innovative designs for the EMP technique have seen the usage of magnetised pillars in exerting forces on culturing cells [147,148], which propose a feasible methodology for using conducting soft polymers to sense substrate deformation in the form of capacitance or impedance changes.

7. Conclusions

This review described the importance of force generation in cellular activities and emphasised the necessity and importance of accurately determining cellular forces. We highlighted the advantages of utilising soft polymer-based materials based on their benefits in preserving dynamic cell–matrix interactions. We outlined the influences of the viscoelastic behaviours of the soft polymeric matrix on embedded cells and provided common approaches to characterising such behaviours. Lastly, we presented prospects on the future trends and advancements of polymer-based cellular force techniques, as well as several methodological designs for improving the performance of the soft polymers for cellular force sensing.

Author Contributions

Conceptualisation, Z.Y. and K.-K.L.; writing—original draft preparation, Z.Y.; writing—review and editing, K.-K.L.; supervision, K.-K.L. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Lee, C.H.; Singla, A.; Lee, Y. Biomedical applications of collagen. Int. J. Pharm. 2001, 221, 1–22. [Google Scholar] [CrossRef]
  2. Behring, J.; Junker, R.; Walboomers, X.F.; Chessnut, B.; Jansen, J.A. Toward guided tissue and bone regeneration: Morphology, attachment, proliferation, and migration of cells cultured on collagen barrier membranes. A systematic review. Odontology 2008, 96, 1–11. [Google Scholar] [CrossRef]
  3. Mondschein, R.J.; Kanitkar, A.; Williams, C.B.; Verbridge, S.S.; Long, T.E. Polymer structure-property requirements for stereolithographic 3D printing of soft tissue engineering scaffolds. Biomaterials 2017, 140, 170–188. [Google Scholar] [CrossRef] [PubMed]
  4. Abdallah, M.-N.; Abdollahi, S.; Laurenti, M.; Fang, D.; Tran, S.D.; Cerruti, M.; Tamimi, F. Scaffolds for epithelial tissue engineering customized in elastomeric molds. J. Biomed. Mater. Res. Part B Appl. Biomater. 2018, 106, 880–890. [Google Scholar] [CrossRef] [PubMed]
  5. Kemppainen, J.M.; Hollister, S.J. Tailoring the mechanical properties of 3D-designed poly(glycerol sebacate) scaffolds for cartilage applications. J. Biomed. Mater. Res. Part A 2010, 94A, 9–18. [Google Scholar] [CrossRef] [Green Version]
  6. Cheng, Q.; Huang, C.; Tomsia, A.P. Freeze Casting for Assembling Bioinspired Structural Materials. Adv. Mater. 2017, 29, 1703155. [Google Scholar] [CrossRef] [PubMed]
  7. Zhang, P.; Hong, Z.; Yu, T.; Chen, X.; Jing, X. In vivo mineralization and osteogenesis of nanocomposite scaffold of poly(lactide-co-glycolide) and hydroxyapatite surface-grafted with poly(l-lactide). Biomaterials 2009, 30, 58–70. [Google Scholar] [CrossRef]
  8. Lee, K.Y.; Jeong, L.; Kang, Y.O.; Lee, S.J.; Park, W.H. Electrospinning of polysaccharides for regenerative medicine. Adv. Drug Deliv. Rev. 2009, 61, 1020–1032. [Google Scholar] [CrossRef]
  9. Visser, C.W.; Amato, D.N.; Mueller, J.; Lewis, J.A. Architected Polymer Foams via Direct Bubble Writing. Adv. Mater. 2019, 31, 1904668. [Google Scholar] [CrossRef]
  10. Bajaj, P.; Schweller, R.M.; Khademhosseini, A.; West, J.L.; Bashir, R. 3D biofabrication strategies for tissue engineering and regenerative medicine. Annu. Rev. Biomed. Eng. 2014, 16, 247–276. [Google Scholar] [CrossRef] [Green Version]
  11. Martinez, P.R.; Goyanes, A.; Basit, A.W.; Gaisford, S. Fabrication of drug-loaded hydrogels with stereolithographic 3D printing. Int. J. Pharm. 2017, 532, 313–317. [Google Scholar] [CrossRef] [Green Version]
  12. Zheng, X.R.; Zhang, X. Microsystems for cellular force measurement: A review. J. Micromech. Microeng. 2011, 21, 54003. [Google Scholar] [CrossRef]
  13. Polacheck, W.J.; Chen, C.S. Measuring cell-generated forces: A guide to the available tools. Nat. Methods 2016, 13, 415–423. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Siamantouras, E.; Hills, C.E.; Squires, P.E.; Liu, K.K. Quantifying cellular mechanics and adhesion in renal tubular injury using single cell force spectroscopy. Nanomed. Nanotechnol. Biol. Med. 2016, 12, 1013–1021. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Yang, B.; Liu, Z.; Liu, H.; Nash, M.A. Next Generation Methods for Single-Molecule Force Spectroscopy on Polyproteins and Receptor-Ligand Complexes. Front. Mol. Biosci. 2020, 7, 85. [Google Scholar] [CrossRef] [PubMed]
  16. Harlepp, S.; Thalmann, F.; Follain, G.; Goetz, J.G. Hemodynamic forces can be accurately measured in vivo with optical tweezers. Mol. Biol. Cell 2017, 28, 3252–3260. [Google Scholar] [CrossRef]
  17. Arbore, C.; Perego, L.; Sergides, M.; Capitanio, M. Probing force in living cells with optical tweezers: From single-molecule mechanics to cell mechanotransduction. Biophys. Rev. 2019, 11, 765–782. [Google Scholar] [CrossRef]
  18. Smith, S.B.; Finzi, L.; Bustamante, C. Direct mechanical measurements of the elasticity of single DNA molecules by using magnetic beads. Science 1992, 258, 1122–1126. [Google Scholar] [CrossRef] [PubMed]
  19. Evans, E.; Ritchie, K.; Merkel, R. Sensitive force technique to probe molecular adhesion and structural linkages at biological interfaces. Biophys. J. 1995, 68, 2580–2587. [Google Scholar] [CrossRef] [Green Version]
  20. Harris, A.K.; Wild, P.; Stopak, D. Silicone rubber substrata: A new wrinkle in the study of cell locomotion. Science 1980, 208, 177–179. [Google Scholar] [CrossRef]
  21. Harris, A.K.; Stopak, D.; Wild, P. Fibroblast traction as a mechanism for collagen morphogenesis. Nature 1981, 290, 249–251. [Google Scholar] [CrossRef]
  22. Pelham, R.J.; Wang, Y.L. Cell locomotion and focal adhesions are regulated by substrate flexibility. Proc. Natl. Acad. Sci. USA 1997, 94, 13661–13665. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Munevar, S.; Wang, Y.L.; Dembo, M. Traction force microscopy of migrating normal and H-ras transformed 3T3 fibroblasts. Biophys. J. 2001, 80, 1744–1757. [Google Scholar] [CrossRef] [Green Version]
  24. Tan, J.L.; Tien, J.; Pirone, D.M.; Gray, D.S.; Bhadriraju, K.; Chen, C.S. Cells lying on a bed of microneedles: An approach to isolate mechanical force. Proc. Natl. Acad. Sci. USA 2003, 100, 1484–1489. [Google Scholar] [CrossRef] [Green Version]
  25. Vernon, R.B.; Gooden, M.D. An improved method for the collagen gel contraction assay. Vitr. Cell. Dev. Biol. Anim. 2002, 38, 97–101. [Google Scholar] [CrossRef]
  26. Moon, A.G.; Tranquillo, R.T. Fibroblast-populated collagen microsphere assay of cell traction force: Part 1. Continuum model. AIChE J. 1993, 39, 163–177. [Google Scholar] [CrossRef]
  27. Jin, T.; Li, L.; Siow, R.C.M.; Liu, K.-K. A novel collagen gel-based measurement technique for quantitation of cell contraction force. J. R. Soc. Interface 2015, 12, 20141365. [Google Scholar] [CrossRef]
  28. Yu, Z.; Smith, M.J.; Siow, R.C.M.; Liu, K.-K. Ageing modulates human dermal fibroblast contractility: Quantification using nano-biomechanical testing. Biochim. Biophys. Acta-Mol. Cell Res. 2021, 1868, 118972. [Google Scholar] [CrossRef]
  29. Delvoye, P.; Wiliquet, P.; Levêque, J.L.; Nusgens, B.V.; Lapière, C.M. Measurement of mechanical forces generated by skin fibroblasts embedded in a three-dimensional collagen gel. J. Investig. Dermatol. 1991, 97, 898–902. [Google Scholar] [CrossRef]
  30. Campbell, B.H.; Clark, W.W.; Wang, J.H.C. A multi-station culture force monitor system to study cellular contractility. J. Biomech. 2003, 36, 137–140. [Google Scholar] [CrossRef]
  31. Boys, A.J.; Owens, R.M. Measuring cellular contraction: Current progress and a future in bioelectronics. APL Mater. 2021, 9, 040903. [Google Scholar] [CrossRef]
  32. Rodriguez, M.L.; McGarry, P.J.; Sniadecki, N.J. Review on cell mechanics: Experimental and modeling approaches. Appl. Mech. Rev. 2013, 65, 060801. [Google Scholar] [CrossRef] [Green Version]
  33. Tibbitt, M.W.; Anseth, K.S. Hydrogels as extracellular matrix mimics for 3D cell culture. Biotechnol. Bioeng. 2009, 103, 655–663. [Google Scholar] [CrossRef] [Green Version]
  34. Lu, S.; Wang, Y. Chapter Two-Single-Cell Imaging of Mechanotransduction in Endothelial Cells. In Mechanotransduction; Engler, A.J., Kumar, S., Eds.; Academic Press: Cambridge, MA, USA, 2014; Volume 126, pp. 25–51. ISBN 1877-1173. [Google Scholar]
  35. Curtze, S.; Dembo, M.; Miron, M.; Jones, D.B. Dynamic changes in traction forces with DC electric field in osteoblast-like cells. J. Cell Sci. 2004, 117, 2721–2729. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Doyle, A.D.; Lee, J. Cyclic changes in keratocyte speed and traction stress arise from Ca2+-dependent regulation of cell adhesiveness. J. Cell Sci. 2005, 118, 369–379. [Google Scholar] [CrossRef] [Green Version]
  37. Ng, S.S.; Li, C.; Chan, V. Experimental and numerical determination of cellular traction force on polymeric hydrogels. Interface Focus 2011, 1, 777–791. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Zhang, Y.; Ng, S.S.; Wang, Y.; Feng, H.; Chen, W.N.; Chan-Park, M.B.; Li, C.; Chan, V. Collective cell traction force analysis on aligned smooth muscle cell sheet between three-dimensional microwalls. Interface Focus 2014, 4, 20130056. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Wang, Y.; Botvinick, E.L.; Zhao, Y.; Berns, M.W.; Usami, S.; Tsien, R.Y.; Chien, S. Visualizing the mechanical activation of Src. Nature 2005, 434, 1040–1045. [Google Scholar] [CrossRef]
  40. Iwadate, Y.; Yumura, S. Actin-based propulsive forces and myosin-II-based contractile forces in migrating Dictyostelium cells. J. Cell Sci. 2008, 121, 1314–1324. [Google Scholar] [CrossRef] [Green Version]
  41. Beningo, K.A.; Dembo, M.; Kaverina, I.; Small, J.V.; Wang, Y.L. Nascent focal adhesions are responsible for the generation of strong propulsive forces in migrating fibroblasts. J. Cell Biol. 2001, 153, 881–888. [Google Scholar] [CrossRef] [Green Version]
  42. Lombardi, M.L.; Knecht, D.A.; Dembo, M.; Lee, J. Traction force microscopy in Dictyostelium reveals distinct roles for myosin II motor and actin-crosslinking activity in polarized cell movement. J. Cell Sci. 2007, 120, 1624–1634. [Google Scholar] [CrossRef] [Green Version]
  43. Rösel, D.; Brábek, J.; Tolde, O.; Mierke, C.T.; Zitterbart, D.P.; Raupach, C.; Bicanová, K.; Kollmannsberger, P.; Paňková, D.; Veselý, P.; et al. Up-regulation of Rho/ROCK signaling in sarcoma cells drives invasion and increased generation of protrusive forces. Mol. Cancer Res. 2008, 6, 1410–1420. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Wang, H.B.; Dembo, M.; Wang, Y.L. Substrate flexibility regulates growth and apoptosis of normal but not transformed cells. Am. J. Physiol. Cell Physiol. 2000, 279, c1345–c1350. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Blakely, B.L.; Dumelin, C.E.; Trappmann, B.; McGregor, L.M.; Choi, C.K.; Anthony, P.C.; Duesterberg, V.K.; Baker, B.M.; Block, S.M.; Liu, D.R.; et al. A DNA-based molecular probe for optically reporting cellular traction forces. Nat. Methods 2014, 11, 1229–1232. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Morimatsu, M.; Mekhdjian, A.H.; Adhikari, A.S.; Dunn, A.R. Molecular tension sensors report forces generated by single integrin molecules in living cells. Nano Lett. 2013, 13, 3985–3989. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Jurchenko, C.; Salaita, K.S. Lighting Up the Force: Investigating Mechanisms of Mechanotransduction Using Fluorescent Tension Probes. Mol. Cell. Biol. 2015, 35, 2570–2582. [Google Scholar] [CrossRef] [Green Version]
  48. Yasunaga, A.; Murad, Y.; Li, I.T.S. Quantifying molecular tension—Classifications, interpretations and limitations of force sensors. Phys. Biol. 2019, 17, 11001. [Google Scholar] [CrossRef] [PubMed]
  49. Cukierman, E.; Pankov, R.; Stevens, D.R.; Yamada, K.M. Taking cell-matrix adhesions to the third dimension. Science 2001, 294, 1708–1712. [Google Scholar] [CrossRef]
  50. Bloom, R.J.; George, J.P.; Celedon, A.; Sun, S.X.; Wirtz, D. Mapping local matrix remodeling induced by a migrating tumor cell using three-dimensional multiple-particle tracking. Biophys. J. 2008, 95, 4077–4088. [Google Scholar] [CrossRef] [Green Version]
  51. Legant, W.R.; Miller, J.S.; Blakely, B.L.; Cohen, D.M.; Genin, G.M.; Chen, C.S. Measurement of mechanical tractions exerted by cells in three-dimensional matrices. Nat. Methods 2010, 7, 969–973. [Google Scholar] [CrossRef] [PubMed]
  52. Tu, Y.; Wang, X. Recent advances in cell adhesive force microscopy. Sensors 2020, 20, 7128. [Google Scholar] [CrossRef]
  53. Maskarinec, S.A.; Franck, C.; Tirrell, D.A.; Ravichandran, G. Quantifying cellular traction forces in three dimensions. Proc. Natl. Acad. Sci. USA 2009, 106, 22108–22113. [Google Scholar] [CrossRef] [Green Version]
  54. Mulligan, J.A.; Feng, X.; Adie, S.G. Quantitative reconstruction of time-varying 3D cell forces with traction force optical coherence microscopy. Sci. Rep. 2019, 9, 4086. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Koch, T.M.; Münster, S.; Bonakdar, N.; Butler, J.P.; Fabry, B. 3D traction forces in cancer cell invasion. PLoS ONE 2012, 7, e33476. [Google Scholar] [CrossRef] [Green Version]
  56. Wang, N.; Naruse, K.; Stamenović, D.; Fredberg, J.J.; Mijailovich, S.M.; Tolić-Nørrelykke, I.M.; Polte, T.; Mannix, R.; Ingber, D.E. Mechanical behavior in living cells consistent with the tensegrity model. Proc. Natl. Acad. Sci. USA 2001, 98, 7765–7770. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Schwarz, U.S.; Balaban, N.Q.; Riveline, D.; Bershadsky, A.; Geiger, B.; Safran, S.A. Calculation of forces at focal adhesions from elastic substrate data: The effect of localized force and the need for regularization. Biophys. J. 2002, 83, 1380–1394. [Google Scholar] [CrossRef] [Green Version]
  58. Colin-York, H.; Shrestha, D.; Felce, J.H.; Waithe, D.; Moeendarbary, E.; Davis, S.J.; Eggeling, C.; Fritzsche, M. Super-Resolved Traction Force Microscopy (STFM). Nano Lett. 2016, 16, 2633–2638. [Google Scholar] [CrossRef] [PubMed]
  59. Stubb, A.; Laine, R.F.; Miihkinen, M.; Hamidi, H.; Guzmán, C.; Henriques, R.; Jacquemet, G.; Ivaska, J. Fluctuation-Based Super-Resolution Traction Force Microscopy. Nano Lett. 2020, 20, 2230–2245. [Google Scholar] [CrossRef]
  60. Morimatsu, M.; Mekhdjian, A.H.; Chang, A.C.; Tan, S.J.; Dunn, A.R. Visualizing the Interior Architecture of Focal Adhesions with High-Resolution Traction Maps. Nano Lett. 2015, 15, 2220–2228. [Google Scholar] [CrossRef] [Green Version]
  61. Barnhart, E.; Lee, K.-C.; Allen, G.M.; Theriot, J.A.; Mogilner, A. Balance between cell−substrate adhesion and myosin contraction determines the frequency of motility initiation in fish keratocytes. Proc. Natl. Acad. Sci. USA 2015, 112, 5045–5050. [Google Scholar] [CrossRef] [Green Version]
  62. Legant, W.R.; Choi, C.K.; Miller, J.S.; Shao, L.; Gao, L.; Betzig, E.; Chen, C.S. Multidimensional traction force microscopy reveals out-of-plane rotational moments about focal adhesions. Proc. Natl. Acad. Sci. USA 2013, 110, 881–886. [Google Scholar] [CrossRef] [Green Version]
  63. Mpiv-MatLab PIV Toolbox. Available online: (accessed on 1 August 2021).
  64. The MatLab Particle Tracking Code Repository. Available online: (accessed on 1 August 2021).
  65. Barrasa-Fano, J.; Shapeti, A.; Jorge-Peñas, Á.; Barzegari, M.; Sanz-Herrera, J.A.; Van Oosterwyck, H. TFMLAB: A MATLAB toolbox for 4D traction force microscopy. SoftwareX 2021, 15, 100723. [Google Scholar] [CrossRef]
  66. Du Roure, O.; Saez, A.; Buguin, A.; Austin, R.H.; Chavrier, P.; Siberzan, P.; Ladoux, B. Force mapping in epithelial cell migration. Proc. Natl. Acad. Sci. USA 2005, 102, 2390–2395. [Google Scholar] [CrossRef] [Green Version]
  67. Liu, Z.; Sniadecki, N.J.; Chen, C.S. Mechanical forces in endothelial cells during firm adhesion and early transmigration of human monocytes. Cell. Mol. Bioeng. 2010, 3, 50–59. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Legant, W.R.; Chen, C.S.; Vogel, V. Force-induced fibronectin assembly and matrix remodeling in a 3D microtissue model of tissue morphogenesis. Integr. Biol. 2012, 4, 1164–1174. [Google Scholar] [CrossRef]
  69. West, A.R.; Zaman, N.; Cole, D.J.; Walker, M.J.; Legant, W.R.; Boudou, T.; Chen, C.S.; Favreau, J.T.; Gaudette, G.R.; Cowley, E.A.; et al. Development and characterization of a 3D multicell microtissue culture model of airway smooth muscle. Am. J. Physiol. Lung Cell. Mol. Physiol. 2013, 304, L4–L16. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  70. Rodriguez, A.G.; Han, S.J.; Regnier, M.; Sniadecki, N.J. Substrate stiffness increases twitch power of neonatal cardiomyocytes in correlation with changes in myofibril structure and intracellular calcium. Biophys. J. 2011, 101, 2455–2464. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  71. Sakar, M.S.; Neal, D.; Boudou, T.; Borochin, M.A.; Li, Y.; Weiss, R.; Kamm, R.D.; Chen, C.S.; Asada, H.H. Formation and optogenetic control of engineered 3D skeletal muscle bioactuators. Lab Chip 2012, 12, 4976–7985. [Google Scholar] [CrossRef] [Green Version]
  72. Boudou, T.; Legant, W.R.; Mu, A.; Borochin, M.A.; Thavandiran, N.; Radisic, M.; Zandstra, P.W.; Epstein, J.A.; Margulies, K.B.; Chen, C.S. A microfabricated platform to measure and manipulate the mechanics of engineered cardiac microtissues. Tissue Eng. Part A 2012, 18, 910–919. [Google Scholar] [CrossRef]
  73. Kajzar, A.; Cesa, C.M.; Kirchgeßner, N.; Hoffmann, B.; Merkel, R. Toward Physiological Conditions for Cell Analyses: Forces of Heart Muscle Cells Suspended Between Elastic Micropillars. Biophys. J. 2008, 94, 1854–1866. [Google Scholar] [CrossRef] [Green Version]
  74. Ricart, B.G.; Yang, M.T.; Hunter, C.A.; Chen, C.S.; Hammer, D.A. Measuring traction forces of motile dendritic cells on micropost arrays. Biophys. J. 2011, 101, 2620–2628. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Yang, M.T.; Sniadecki, N.J.; Chen, C.S. Geometric considerations of micro- To nanoscale elastomeric post arrays to study cellular traction forces. Adv. Mater. 2007, 19, 3119–3123. [Google Scholar] [CrossRef]
  76. Theocharis, A.D.; Skandalis, S.S.; Gialeli, C.; Karamanos, N.K. Extracellular matrix structure. Adv. Drug Deliv. Rev. 2016, 97, 4–27. [Google Scholar] [CrossRef] [PubMed]
  77. Bonnans, C.; Chou, J.; Werb, Z. Remodelling the extracellular matrix in development and disease. Nat. Rev. Mol. Cell Biol. 2014, 15, 786–801. [Google Scholar] [CrossRef] [PubMed]
  78. Di Lullo, G.A.; Sweeney, S.M.; Körkkö, J.; Ala-Kokko, L.; San Antonio, J.D. Mapping the ligand-binding sites and disease-associated mutations on the most abundant protein in the human, type I collagen. J. Biol. Chem. 2002, 277, 4223–4231. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  79. Bell, E.; Ivarsson, B.; Merrill, C. Production of a tissue-like structure by contraction of collagen lattices by human fibroblasts of different proliferative potential in vitro. Proc. Natl. Acad. Sci. USA 1979, 76, 1274–1278. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  80. Ngo, P.; Ramalingam, P.; Phillips, J.A.; Furuta, G.T. Collagen Gel Contraction Assay. In Cell-Cell Interactions: Methods and Protocols; Humana Press: Totowa, NJ, USA, 2006; pp. 103–109. ISBN 978-1-59745-113-0. [Google Scholar]
  81. Tomasek, J.J.; Haaksma, C.J.; Eddy, R.J.; Vaughan, M.B. Fibroblast contraction occurs on release of tension in attached collagen lattices: Dependency on an organized actin cytoskeleton and serum. Anat. Rec. 1992, 232, 359–368. [Google Scholar] [CrossRef]
  82. Ehrlich, H.P.; Rajaratnam, J.B.M. Cell locomotion forces versus cell contraction forces for collagen lattice contraction: An in vitro model of wound contraction. Tissue Cell 1990, 22, 407–417. [Google Scholar] [CrossRef]
  83. Módis, L. Organization of the Extracellular Matrix: A Polarization Microscopic Approach, 1st ed.; CRC Press: Boca Raton, FL, USA, 2018; ISBN 9781351075282. [Google Scholar]
  84. Travis, J.A.; Hughes, M.G.; Wong, J.M.; Wagner, W.D.; Geary, R.L. Hyaluronan enhances contraction of collagen by smooth muscle cells and adventitial fibroblasts role of CD44 and implications for constrictive remodeling. Circ. Res. 2001, 88, 77–83. [Google Scholar] [CrossRef] [Green Version]
  85. Fitts, R.H. The cross-bridge cycle and skeletal muscle fatigue. J. Appl. Physiol. 2008, 104, 551–558. [Google Scholar] [CrossRef] [Green Version]
  86. Horie, M.; Saito, A.; Yamauchi, Y.; Mikami, Y.; Sakamoto, M.; Jo, T.; Nakajima, J.; Takizawa, H.; Nagase, T.; Kohyama, T. Histamine induces human lung fibroblast-mediated collagen gel contraction via histamine H1 receptor. Exp. Lung Res. 2014, 40, 222–236. [Google Scholar] [CrossRef] [PubMed]
  87. Morales, S.A.; Mareninov, S.; Prasad, P.; Wadehra, M.; Braun, J.; Gordon, L.K. Collagen gel contraction by ARPE-19 cells is mediated by a FAK-Src dependent pathway. Exp. Eye Res. 2007, 85, 790–798. [Google Scholar] [CrossRef]
  88. Yamato, M.; Yamamoto, K.; Hayashi, T. Age-related changes in collagen gel contraction by cultured human lung fibroblasts resulting in cross-over of contraction curves between young and aged cells. Mech. Ageing Dev. 1993, 67, 149–158. [Google Scholar] [CrossRef]
  89. Hu, K.; Shi, H.; Zhu, J.; Deng, D.; Zhou, G.; Zhang, W.; Cao, Y.; Liu, W. Compressed collagen gel as the scaffold for skin engineering. Biomed. Microdevices 2010, 12, 627–635. [Google Scholar] [CrossRef] [PubMed]
  90. Tingstrom, A.; Heldin, C.H.; Rubin, K. Regulation of fibroblast-mediated collagen gel contraction by platelet-derived growth factor, interleukin-1 α and transforming growth factor-β1. J. Cell Sci. 1992, 102, 315–322. [Google Scholar] [CrossRef]
  91. Ehrlich, H.P.; Hunt, T.K. Collagen Organization Critical Role in Wound Contraction. Adv. Wound Care 2012, 1, 3–9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  92. Jin, T.; Li, L.; Siow, R.C.M.; Liu, K. Collagen matrix stiffness influences fibroblast contraction force. Biomed. Phys. Eng. Express 2016, 2, 047002. [Google Scholar] [CrossRef] [Green Version]
  93. Wilks, B.T.; Evans, E.B.; Nakhla, M.N.; Morgan, J.R. Directing fibroblast self-assembly to fabricate highly-aligned, collagen-rich matrices. Acta Biomater. 2018, 81, 70–79. [Google Scholar] [CrossRef] [PubMed]
  94. Chen, J.L.; Duan, L.; Zhu, W.; Xiong, J.; Wang, D. Extracellular matrix production in vitro in cartilage tissue engineering. J. Transl. Med. 2014, 12, 88. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  95. Eastwood, M.; McGrouther, D.A.; Brown, R.A. A culture force monitor for measurement of contraction forces generated in human dermal fibroblast cultures: Evidence for cell-matrix mechanical signalling. BBA Gen. Subj. 1994, 1201, 186–192. [Google Scholar] [CrossRef]
  96. Peperzak, K.A.; Gilbert, T.W.; Wang, J.H.C. A multi-station dynamic-culture force monitor system to study cell mechanobiology. Med. Eng. Phys. 2004, 26, 355–358. [Google Scholar] [CrossRef]
  97. Freyman, T.M.; Yannas, I.V.; Yokoo, R.; Gibson, L.J. Fibroblast contraction of a collagen-GAG matrix. Biomaterials 2001, 22, 2883–2891. [Google Scholar] [CrossRef]
  98. Kolodney, M.S.; Wysolmerski, R.B. Isometric contraction by fibroblasts and endothelial cells in tissue culture: A quantitative study. J. Cell Biol. 1992, 117, 73–82. [Google Scholar] [CrossRef]
  99. Zimmermann, W.H.; Fink, C.; Kralisch, D.; Remmers, U.; Weil, J.; Eschenhagen, T. Three-dimensional engineered heart tissue from neonatal rat cardiac myocytes. Biotechnol. Bioeng. 2000, 68, 106–114. [Google Scholar] [CrossRef]
  100. Eichinger, J.F.; Haeusel, L.J.; Paukner, D.; Aydin, R.C.; Humphrey, J.D.; Cyron, C.J. Mechanical homeostasis in tissue equivalents: A review. Biomech. Model. Mechanobiol. 2021, 20, 833–850. [Google Scholar] [CrossRef]
  101. Petersen, O.W.; Ronnov-Jessen, L.; Howlett, A.R.; Bissell, M.J. Interaction with basement membrane serves to rapidly distinguish growth and differentiation pattern of normal and malignant human breast epithelial cells. Proc. Natl. Acad. Sci. USA 1992, 89, 9064–9068. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  102. Ulrich, T.A.; De Juan Pardo, E.M.; Kumar, S. The mechanical rigidity of the extracellular matrix regulates the structure, motility, and proliferation of glioma cells. Cancer Res. 2009, 69, 4167–4174. [Google Scholar] [CrossRef] [Green Version]
  103. Jaalouk, D.E.; Lammerding, J. Mechanotransduction gone awry. Nat. Rev. Mol. Cell Biol. 2009, 10, 63–73. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  104. Huang, S.; Ingber, D.E. Cell tension, matrix mechanics, and cancer development. Cancer Cell 2005, 8, 175–176. [Google Scholar] [CrossRef] [Green Version]
  105. Discher, D.E.; Janmey, P.; Wang, Y.L. Tissue cells feel and respond to the stiffness of their substrate. Science 2005, 310, 1139–1143. [Google Scholar] [CrossRef] [Green Version]
  106. Marklein, R.A.; Burdick, J.A. Spatially controlled hydrogel mechanics to modulate stem cell interactions. Soft Matter 2010, 6, 136–143. [Google Scholar] [CrossRef]
  107. Banerjee, A.; Arha, M.; Choudhary, S.; Ashton, R.S.; Bhatia, S.R.; Schaffer, D.V.; Kane, R.S. The influence of hydrogel modulus on the proliferation and differentiation of encapsulated neural stem cells. Biomaterials 2009, 30, 4695–4699. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  108. Zhu, Y.K.; Umino, T.; Liu, X.D.; Wang, H.J.; Romberger, D.J.; Spurzem, J.R.; Rennard, I.; In, S.; Cellular, V.; Animal, D.B.; et al. Contraction of fibroblast-containing collagen cels: Initial collagen concentration regulates the degree of contraction and cell survival. In Vitro Cell. Dev. Biol. Anima. 2001, 37, 10–16. [Google Scholar] [CrossRef]
  109. Ahearne, M.; Wilson, S.L.; Liu, K.-K.; Rauz, S.; El Haj, A.J.; Yang, Y. Influence of cell and collagen concentration on the cell-matrix mechanical relationship in a corneal stroma wound healing model. Exp. Eye Res. 2010, 91, 584–591. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  110. Ewoldt, R.H.; Hosoi, A.E.; McKinley, G.H. Nonlinear viscoelastic biomaterials: Meaningful characterization and engineering inspiration. Integr. Comp. Biol. 2009, 49, 40–50. [Google Scholar] [CrossRef] [Green Version]
  111. Fratzl, P. Collagen: Structure and Mechanics; Springer: Boston, MA, USA, 2008; ISBN 9780387739052. [Google Scholar]
  112. Ahearne, M. Introduction to cell-hydrogel mechanosensing. Interface Focus 2014, 4, 20130038. [Google Scholar] [CrossRef]
  113. Chaudhuri, O.; Cooper-White, J.; Janmey, P.A.; Mooney, D.J.; Shenoy, V.B. Effects of extracellular matrix viscoelasticity on cellular behaviour. Nature 2020, 584, 535–546. [Google Scholar] [CrossRef]
  114. Xu, Q.; Engquist, B. A mathematical model for fitting and predicting relaxation modulus and simulating viscoelastic responses. Proc. R. Soc. Math. Phys. Eng. Sci. 2018, 474, 20170540. [Google Scholar] [CrossRef] [Green Version]
  115. Tirella, A.; Mattei, G.; Ahluwalia, A. Strain rate viscoelastic analysis of soft and highly hydrated biomaterials. J. Biomed. Mater. Res. Part A 2014, 102, 3352–3360. [Google Scholar] [CrossRef] [Green Version]
  116. Kalyanam, S.; Yapp, R.D.; Insana, M.F. Poro-viscoelastic behavior of gelatin hydrogels under compression-implications for bioelasticity imaging. J. Biomech. Eng. 2009, 131, 081005. [Google Scholar] [CrossRef] [Green Version]
  117. Ahearne, M.; Siamantouras, E.; Yang, Y.; Liu, K.-K. Mechanical characterization of biomimetic membranes by micro-shaft poking. J. R. Soc. Interface 2009, 6, 471–478. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  118. Ahearne, M.; Yang, Y.; El Haj, A.J.; Then, K.Y.; Liu, K.-K. Characterizing the viscoelastic properties of thin hydrogel-based constructs for tissue engineering applications. J. R. Soc. Interface 2005, 2, 455–463. [Google Scholar] [CrossRef]
  119. Cheng, L.; Xia, X.; Scriven, L.E.; Gerberich, W.W. Spherical-tip indentation of viscoelastic material. Mech. Mater. 2005, 37, 213–226. [Google Scholar] [CrossRef]
  120. Mattice, J.M.; Lau, A.G.; Oyen, M.L.; Kent, R.W. Spherical indentation load-relaxation of soft biological tissues. J. Mater. Res. 2006, 21, 2003–2010. [Google Scholar] [CrossRef]
  121. Friedrich, C. Relaxation and retardation functions of the Maxwell model with fractional derivatives. Rheol. Acta 1991, 30, 151–158. [Google Scholar] [CrossRef]
  122. Eldred, L.B.; Baker, W.P.; Palazotto, A.N. Kelvin-Voigt versus fractional derivative model as constitutive relations for viscoelastic materials. AIAA J. 1995, 33, 547–550. [Google Scholar] [CrossRef]
  123. Tanner, R.I. Engineering Rheology, 2nd ed.; Oxford University Press: Oxford, UK, 1982. [Google Scholar]
  124. Li, S.; Patwardhan, A.G.; Amirouche, F.M.L.; Havey, R.; Meade, K.P. Limitations of the standard linear solid model of intervertebral discs subject to prolonged loading and low-frequency vibration in axial compression. J. Biomech. 1995, 28, 779–790. [Google Scholar] [CrossRef]
  125. Abuzeid, O.M.; Eberhard, P. Linear Viscoelastic Creep Model for the Contact of Nominal Flat Surfaces Based on Fractal Geometry: Standard Linear Solid (SLS) Material. J. Tribol. 2007, 129, 461–466. [Google Scholar] [CrossRef]
  126. Wiechert, E. Gesetze der elastischen Nachwirkung für constante Temperatur. Ann. Phys. 1893, 286, 546–570. [Google Scholar] [CrossRef]
  127. Gieni, R.S.; Hendzel, M.J. Mechanotransduction from the ECM to the genome: Are the pieces now in place? J. Cell. Biochem. 2008, 104, 1964–1987. [Google Scholar] [CrossRef] [PubMed]
  128. Tigges, J.; Krutmann, J.; Fritsche, E.; Haendeler, J.; Schaal, H.; Fischer, J.W.; Kalfalah, F.; Reinke, H.; Reifenberger, G.; Stühler, K.; et al. The hallmarks of fibroblast ageing. Mech. Ageing Dev. 2014, 138, 26–44. [Google Scholar] [CrossRef] [PubMed]
  129. Ye, Q.; Zünd, G.; Benedikt, P.; Jockenhoevel, S.; Hoerstrup, S.P.; Sakyama, S.; Hubbell, J.A.; Turina, M. Fibrin gel as a three dimensional matrix in cardiovascular tissue engineering. Eur. J. Cardio-Thorac. Surg. 2000, 17, 587–591. [Google Scholar] [CrossRef]
  130. Shaikh, F.M.; Callanan, A.; Kavanagh, E.G.; Burke, P.E.; Grace, P.A.; McGloughlin, T.M. Fibrin: A natural biodegradable scaffold in vascular tissue engineering. Cells. Tissues. Organs 2008, 188, 333–346. [Google Scholar] [CrossRef] [PubMed]
  131. de la Puente, P.; Ludeña, D. Cell culture in autologous fibrin scaffolds for applications in tissue engineering. Exp. Cell Res. 2014, 322, 1–11. [Google Scholar] [CrossRef] [PubMed]
  132. Collins, M.N.; Birkinshaw, C. Hyaluronic acid based scaffolds for tissue engineering—A review. Carbohydr. Polym. 2013, 92, 1262–1279. [Google Scholar] [CrossRef]
  133. Seidlits, S.K.; Drinnan, C.T.; Petersen, R.R.; Shear, J.B.; Suggs, L.J.; Schmidt, C.E. Fibronectin–hyaluronic acid composite hydrogels for three-dimensional endothelial cell culture. Acta Biomater. 2011, 7, 2401–2409. [Google Scholar] [CrossRef]
  134. Perng, C.-K.; Wang, Y.-J.; Tsi, C.-H.; Ma, H. In Vivo Angiogenesis Effect of Porous Collagen Scaffold with Hyaluronic Acid Oligosaccharides. J. Surg. Res. 2011, 168, 9–15. [Google Scholar] [CrossRef]
  135. Trujillo, S.; Gonzalez-Garcia, C.; Rico, P.; Reid, A.; Windmill, J.; Dalby, M.J.; Salmeron-Sanchez, M. Engineered 3D hydrogels with full-length fibronectin that sequester and present growth factors. Biomaterials 2020, 252, 120104. [Google Scholar] [CrossRef]
  136. Zhu, J. Bioactive modification of poly(ethylene glycol) hydrogels for tissue engineering. Biomaterials 2010, 31, 4639–4656. [Google Scholar] [CrossRef] [Green Version]
  137. Petrini, P.; Farè, S.; Piva, A.; Tanzi, M.C. Design, synthesis and properties of polyurethane hydrogels for tissue engineering. J. Mater. Sci. Mater. Med. 2003, 14, 683–686. [Google Scholar] [CrossRef]
  138. Hong, S.; Sycks, D.; Chan, H.F.; Lin, S.; Lopez, G.P.; Guilak, F.; Leong, K.W.; Zhao, X. 3D Printing of Highly Stretchable and Tough Hydrogels into Complex, Cellularized Structures. Adv. Mater. 2015, 27, 4035–4040. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  139. Li, J.; Wu, C.; Chu, P.K.; Gelinsky, M. 3D printing of hydrogels: Rational design strategies and emerging biomedical applications. Mater. Sci. Eng. R Rep. 2020, 140, 100543. [Google Scholar] [CrossRef]
  140. Parada, G.A.; Zhao, X. Ideal reversible polymer networks. Soft Matter 2018, 14, 5186–5196. [Google Scholar] [CrossRef] [Green Version]
  141. Cameron, A.R.; Frith, J.E.; Cooper-White, J.J. The influence of substrate creep on mesenchymal stem cell behaviour and phenotype. Biomaterials 2011, 32, 5979–5993. [Google Scholar] [CrossRef]
  142. Charrier, E.E.; Pogoda, K.; Wells, R.G.; Janmey, P.A. Control of cell morphology and differentiation by substrates with independently tunable elasticity and viscous dissipation. Nat. Commun. 2018, 9, 449. [Google Scholar] [CrossRef] [Green Version]
  143. Tang, S.; Ma, H.; Tu, H.-C.; Wang, H.-R.; Lin, P.-C.; Anseth, K.S. Adaptable Fast Relaxing Boronate-Based Hydrogels for Probing Cell–Matrix Interactions. Adv. Sci. 2018, 5, 1800638. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  144. Marozas, I.A.; Anseth, K.S.; Cooper-White, J.J. Adaptable boronate ester hydrogels with tunable viscoelastic spectra to probe timescale dependent mechanotransduction. Biomaterials 2019, 223, 119430. [Google Scholar] [CrossRef] [PubMed]
  145. Zhao, X.; Huebsch, N.; Mooney, D.J.; Suo, Z. Stress-relaxation behavior in gels with ionic and covalent crosslinks. J. Appl. Phys. 2010, 107, 63509. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  146. Dooling, L.J.; Buck, M.E.; Zhang, W.-B.; Tirrell, D.A. Programming Molecular Association and Viscoelastic Behavior in Protein Networks. Adv. Mater. 2016, 28, 4651–4657. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  147. Sniadecki, N.J.; Anguelouch, A.; Yang, M.T.; Lamb, C.M.; Liu, Z.; Kirschner, S.B.; Liu, Y.; Reich, D.H.; Chen, C.S. Magnetic microposts as an approach to apply forces to living cells. Proc. Natl. Acad. Sci. USA 2007, 104, 14553–14558. [Google Scholar] [CrossRef] [Green Version]
  148. Lin, Y.-C.; Kramer, C.M.; Chen, C.S.; Reich, D.H. Probing cellular traction forces with magnetic nanowires and microfabricated force sensor arrays. Nanotechnology 2012, 23, 75101. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Figure 1. Schematics for TFM techniques (not to scale).
Figure 1. Schematics for TFM techniques (not to scale).
Polymers 13 02672 g001

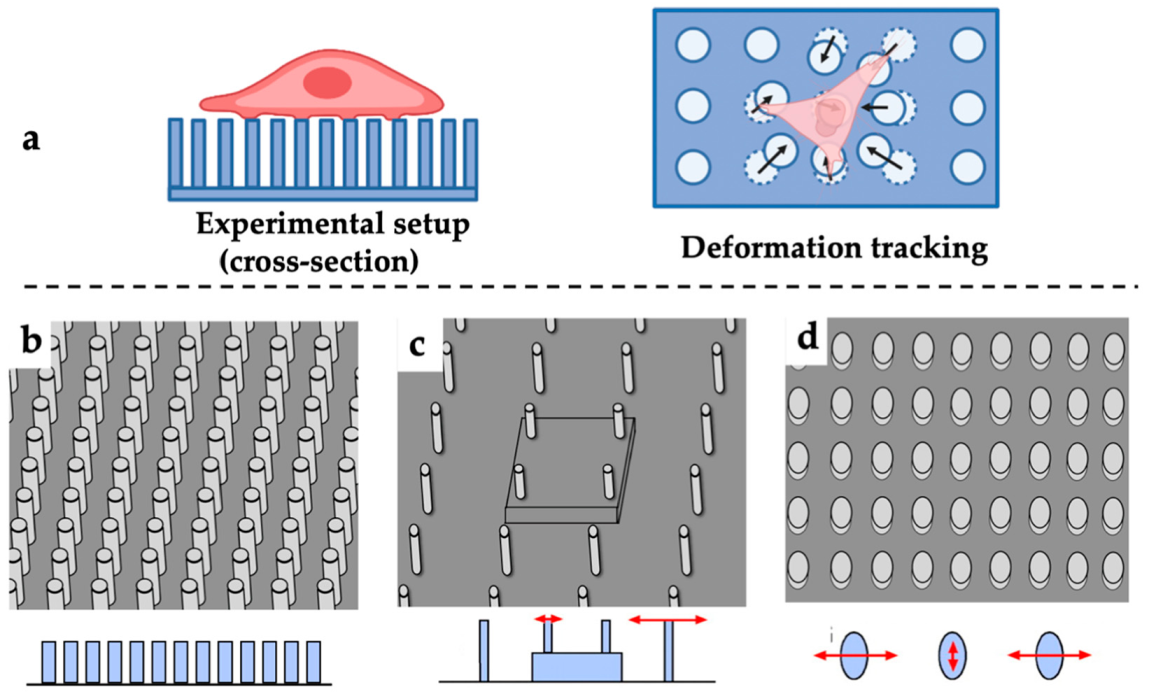

Figure 2. Schematics of EMP. (a) Methodology for cellular force sensing with EMP; (b) Tightly arranged short micro-pillars; (c) Loosely arranged micro-pillar matrix with varying heights; (d) Anisotropic pillar designs arrays.
Figure 2. Schematics of EMP. (a) Methodology for cellular force sensing with EMP; (b) Tightly arranged short micro-pillars; (c) Loosely arranged micro-pillar matrix with varying heights; (d) Anisotropic pillar designs arrays.
Polymers 13 02672 g002
Figure 3. Schematics showing the variation of contraction assays based on dislodge time. (a) Immediate dislodge; (b) No dislodge; (c) Dislodge after a period of time.
Figure 3. Schematics showing the variation of contraction assays based on dislodge time. (a) Immediate dislodge; (b) No dislodge; (c) Dislodge after a period of time.
Polymers 13 02672 g003

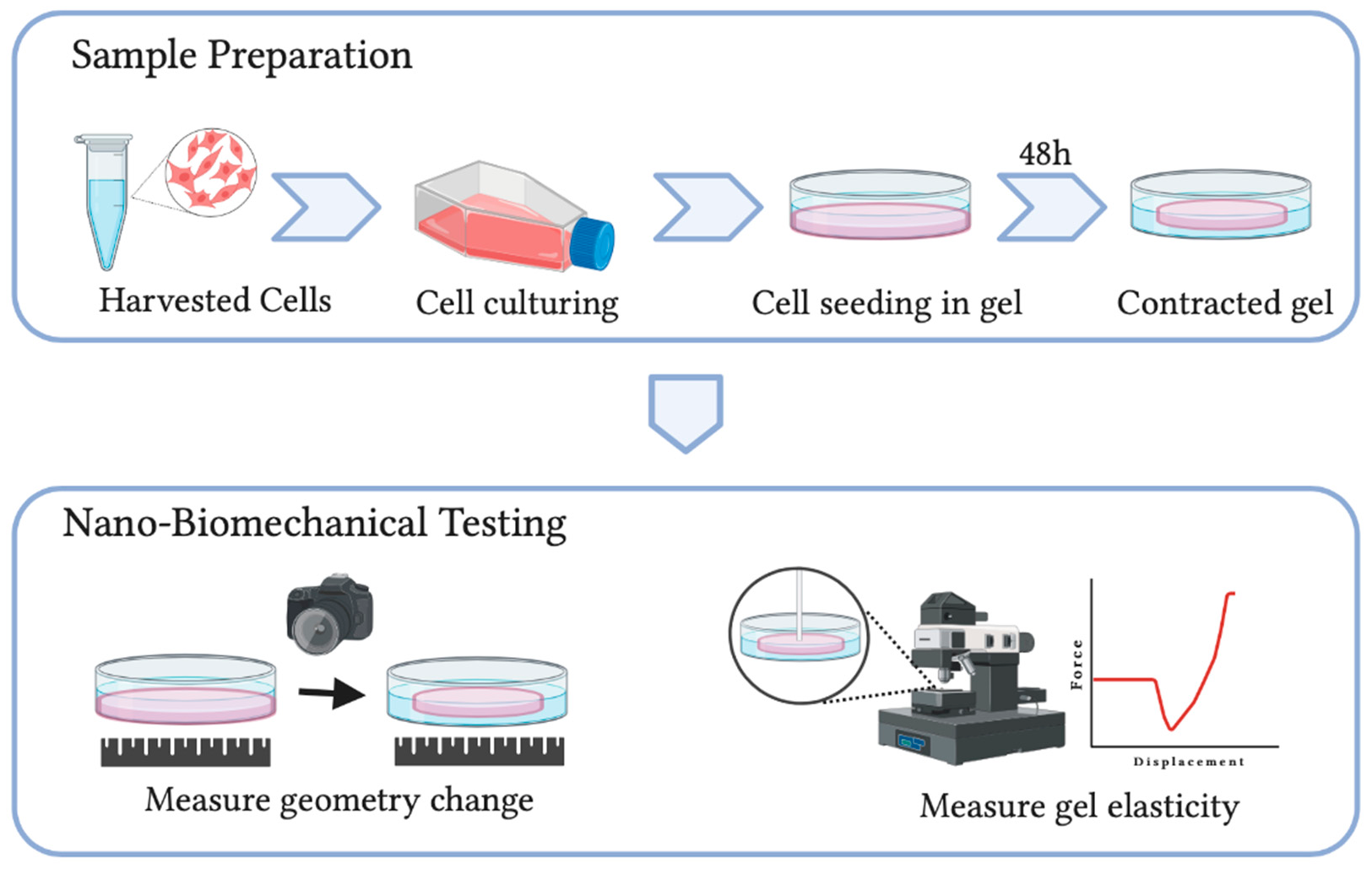

Figure 4. Schematic shows the methodology of the new nano-biomechanical technique for cellular force measurement.
Figure 4. Schematic shows the methodology of the new nano-biomechanical technique for cellular force measurement.
Polymers 13 02672 g004
Figure 5. Schematic diagram of a typical CFM system.
Figure 5. Schematic diagram of a typical CFM system.
Polymers 13 02672 g005

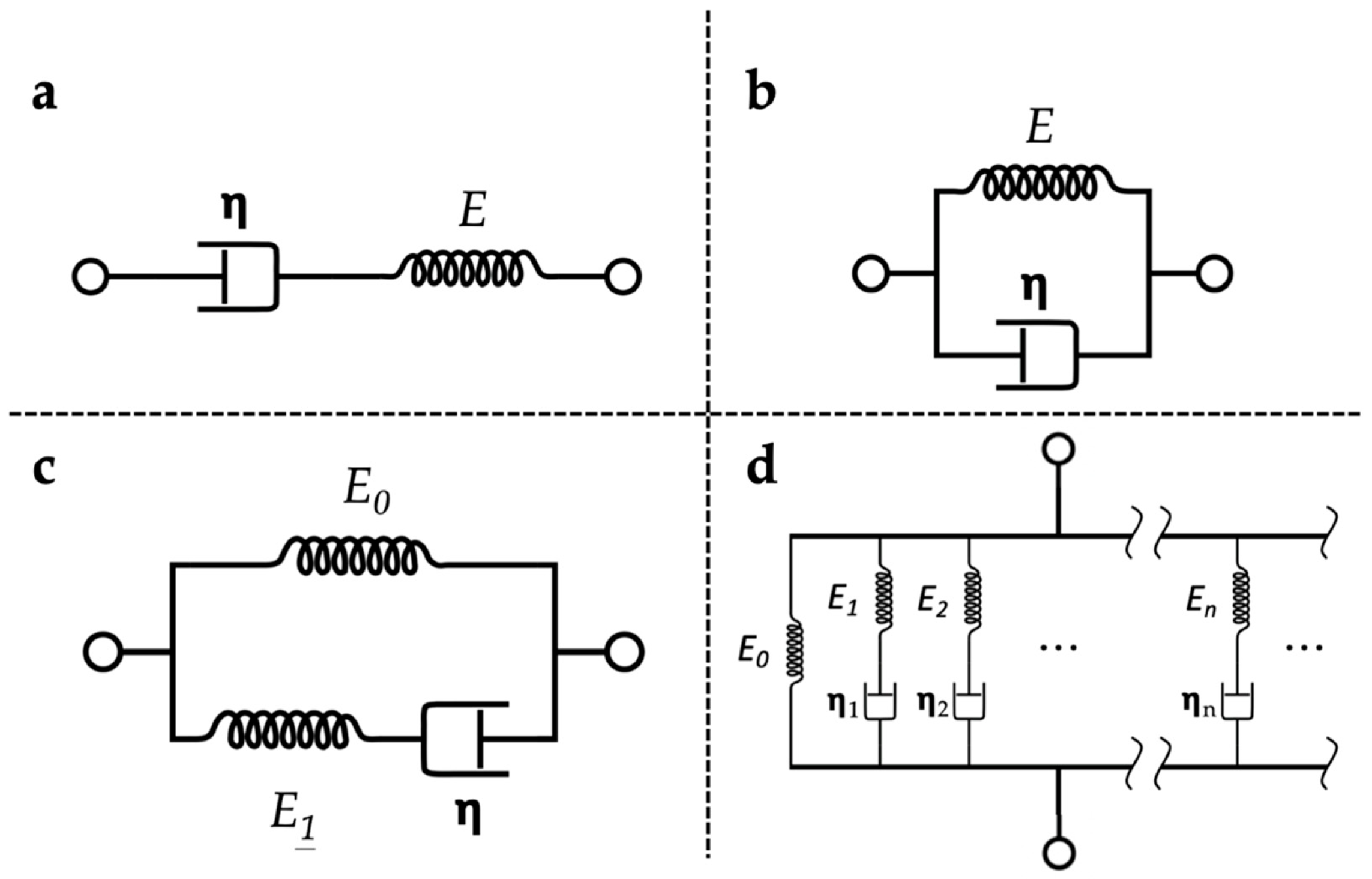

Figure 6. Schematics of typical constitutive models for viscoelastic materials. (a) Maxwell model; (b) Kelvin-Voigt model; (c) Standard linear solid (SLS) model; (d) Maxwell-Wiechet model. E and η are the elastic modulus of the elastic spring element and the viscosity of the damper element respectively.
Figure 6. Schematics of typical constitutive models for viscoelastic materials. (a) Maxwell model; (b) Kelvin-Voigt model; (c) Standard linear solid (SLS) model; (d) Maxwell-Wiechet model. E and η are the elastic modulus of the elastic spring element and the viscosity of the damper element respectively.
Polymers 13 02672 g006
Figure 7. Brightfield microscopy images of human dermal fibroblasts in collagen hydrogel matrix with three different seeding densities. Images showing cell morphology post 48h incubation period.
Figure 7. Brightfield microscopy images of human dermal fibroblasts in collagen hydrogel matrix with three different seeding densities. Images showing cell morphology post 48h incubation period.
Polymers 13 02672 g007
Table 1. Comparison of common soft polymer-based cellular force sensing techniques. (DM: deformable membrane; TFM: traction force microscopy; EMP: elastic-micropillar technique; CGCA: collagen gel-based contraction assays; CFM: culture force monitor; PEG: polyethene glycol; PDMS: polydimethylsiloxane; PMMA: polymethylmethacrylate).
Table 1. Comparison of common soft polymer-based cellular force sensing techniques. (DM: deformable membrane; TFM: traction force microscopy; EMP: elastic-micropillar technique; CGCA: collagen gel-based contraction assays; CFM: culture force monitor; PEG: polyethene glycol; PDMS: polydimethylsiloxane; PMMA: polymethylmethacrylate).
Polymer Origin Polymer TypePrinciplesAdvantages/
SyntheticDMSilicon rubberLength and patterns of wrinkles on film shows force generationSimple and cheap/
Not cell-friendly; not quantitative
2D TFMPoly-
acrylamide; PEG
Use fluorescent microbeads to track substrate deformation due to cells seeded on the surfaceHighly quantitative/
Not 3D; not cell-friendly
3D TFMTracking of matrix deformation due to embedded cells in 3D Highly quantitative, 3D/
Not mimicking in vivo environment; computationally extensive
EMPPDMS; PMMAOptically measure the deflection of micro-pillar array Highly quantitative/
Not 3D; not cell-friendly
NaturalCGCACollagen gelMeasure the geometry of cell-embedded collagen hydrogelHighly cell friendly; 3D/
CFMCollagen gelContinuously measure the force generated through attached strain gauges3D; qualitative/
Complex; disturbance to cells
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Yu, Z.; Liu, K.-K. Soft Polymer-Based Technique for Cellular Force Sensing. Polymers 2021, 13, 2672.

AMA Style

Yu Z, Liu K-K. Soft Polymer-Based Technique for Cellular Force Sensing. Polymers. 2021; 13(16):2672.

Chicago/Turabian Style

Yu, Zhuonan, and Kuo-Kang Liu. 2021. "Soft Polymer-Based Technique for Cellular Force Sensing" Polymers 13, no. 16: 2672.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
