Facile Synthesis of Lacunary Keggin-Type Phosphotungstates-Decorated g-C3N4 Nanosheets for Enhancing Photocatalytic H2 Generation

by
Na Lu
1,
Menghan Sun
1,
Xiaoming Wei
1,*,
Peng Zhang
2 and
Zhenyi Zhang
1,*
1
Key Laboratory of New Energy and Rare Earth Resource Utilization of State Ethnic Affairs Commission, Key Laboratory of Photosensitive Materials & Devices of Liaoning Province, School of Physics and Materials Engineering, Dalian Minzu University, 18 Liaohe West Road, Dalian 116600, China
2
School of Materials Science and Engineering, Zhengzhou University, Zhengzhou 450001, China
*
Authors to whom correspondence should be addressed.
Polymers 2020, 12(9), 1961; https://doi.org/10.3390/polym12091961
Submission received: 15 July 2020 / Revised: 21 August 2020 / Accepted: 25 August 2020 / Published: 29 August 2020
(This article belongs to the Special Issue Photovoltaic Semiconductor Materials)
Browse Figures
Versions Notes

Abstract

:
In this work, the lacunary Keggin-type phosphotungstates of [PW9O34]9- (PW9) clusters were loaded onto the g-C3N4 nanosheets (NSs) to synthesize the phosphotungstate clusters-decorated 2D heterojunction photocatalysts by using the electrostatic-force driven self-assembly process. The surface charge polarity of g-C3N4 NSs was changed from a negative to a positive charge through the acidizing treatment. The positively-charged g-C3N4 NSs allowed the negatively-charged PW9 clusters to be adsorbed and deposited onto the g-C3N4 NSs, forming the PW9/g-C3N4 heterojunction NSs. The as-synthesized samples were characterized by scanning electron microscopy (SEM), X-ray diffraction (XRD), Fourier-transform infrared (FTIR) spectroscopy, and UV-VIS absorption spectra, respectively. The photocatalytic activity tests indicated that, upon simulated sunlight irradiation, the photocatalytic H2-generation rate of PW9/g-C3N4 heterojunction NSs (~23.8 μmol h−1) was ~3.3 times higher than that of the pure g-C3N4 NSs (~7.3 μmol h−1). The enhanced photocatalytic activity of PW9 cluster-decorated g-C3N4 NSs could be attributed to the enhanced separation process of the photoinduced charge-carriers, due to the Z-scheme-mediate charge transfer behavior across their hetero-interface.

Graphical Abstract

1. Introduction

The continuous burning of unsustainable fossil energy sources, which emits large amounts of harmful gases, has induced a global energy crisis and environmental contamination. The development of green renewable energy sources to replace traditional fossil energy sources has become an urgent issue [1,2]. As a kind of pollution-free sustainable fuel, hydrogen (H2) has been regarded as an ideal candidate for the application of energy supply in future society [3,4]. Splitting water through the additional electric or photic energy is a common method to obtain the H2. Since the H2 generation from the photo-driven water splitting over the TiO2 semiconductor photocatalyst was first reported in 1972 [5], this photochemical reaction has been widely used in the research area of solar-to-fuels conversion, mainly owing to its low cost and low energy consumption [6,7,8]. However, because the classical photocatalyst of TiO2 nanostructures is a wide bandgap semiconductor (3.0–3.2 eV), it can only absorb the UV light that accounts for 3–5% in the solar spectrum [9,10]. Thus, the development of narrow bandgap semiconductors as the photocatalysts for H2 generation has emerged as a hot topic in the area of solar-to-fuels conversion.
As a polymeric semiconductor made of carbon and nitrogen elements, graphite C3N4 (g-C3N4) material has attracted increasing interest in the area of photocatalytic H2 generation [11,12]. This kind of metal-free semiconductor with a 2D nanosheet structure can open new prospects for the application of solar-to-fuels conversion because it is an abundant, cheap and stable semiconductor, with a suitable energy-level position for reducing protons. However, the fast recombination of the photoinduced charge-carriers often results in poor photocatalytic activity of the g-C3N4 NSs [13]. To overcome this problem, much effort has been contributed to couple the g-C3N4 NSs with an appropriate photoactive material to construct the 2D heterojunction photocatalyst toward high-efficient photocatalytic H2 generation.
As a class of polyoxometalates, lacunary Keggin-type phosphotungstates have been extensively investigated as photosensitizers for enhancing the photocatalytic activity of the semiconductor photocatalysts for H2O2 production, H2 generation, CO2 reduction, pollution degradation, and organic material synthesis [14,15,16]. Similar to the inorganic semiconductors, the phosphotungstates also have the photoinduced electron transition behavior from the HOMO (Highest Occupied Molecular Orbital) to LUMO (Lowest Unoccupied Molecular Orbital). In general, the charge-transfer from the ligand to metal (O to W) in the phosphotungstates enable them to possess a high light absorption coefficient. Meanwhile, the enriched metal nodes of such W in the phosphotungstates can boost the photoinduced multi-electron redox-processes for fulfilling the various photo-chemical reactions [17]. Furthermore, when the lacunary Keggin-type phosphotungstates are dissolved in a water solution, the negatively-charged phosphotungstates can be obtained due to the ionization effect, thereby leading the phosphotungstates to be easily absorbed onto the substrate with the positive charge [18,19]. Notably, the surface charge polarity of g-C3N4 NSs is controllable by the acidizing treatment. It is concluded that the lacunary Keggin-type phosphotungstates are one of the ideal guest photosensitizers for coupling with the g-C3N4 NSs host, through the electrostatic-force driven self-assembly process for enhancing the photocatalytic H2 generation of g-C3N4 NSs.
In this work, we adjusted the surface charge polarity of g-C3N4 to positive by using the acidizing treatment, and loaded the lacunary Keggin-type phosphotungstates of [PW9O34]9- (PW9) clusters onto the g-C3N4 NSs, forming the PW9/g-C3N4 heterojunction NSs, via a facile self-assembly process due to the electrostatic interaction. We expected to utilize the photoinduced electrons on the LUMO of PW9 component transfer to the valence band (VB) of g-C3N4 component for extending the lifetime of photoinduced electrons on the conduction band (CB) of g-C3N4 for executing protons reduction and improving the photocatalytic activity of the PW9/g-C3N4 heterojunction NSs for H2 generation. It is believed that our work will provide a new platform to construct the ultra-small polyoxometalates cluster-decorated g-C3N4 NSs for highly-efficient photocatalytic solar-to-fuels conversion.

2. Experimental

2.1. Synthesis of the PW9, g-C3N4 NS, and PW9/g-C3N4 Heterojunction NSs

The lacunary Keggin-type phosphotungstates of Na9[A-α-PW9O34]·7H2O (named as PW9) were synthesized by using the previously reported method [20]. The g-C3N4 was synthesized through the traditional thermal polymerization method by using the urea as the precursor [21]. To obtain the PW9/g-C3N4 heterojunction NSs, 100 mg of the g-C3N4 bulk was ground and then dispersed into deionized water under the ultrasonic treatment for 90 min at room temperature, thereby achieving the g-C3N4 nanosheets (NSs). Afterward, 1 M of HCl solution was added dropwise into the above g-C3N4 nanosheets-suspended water solution to adjust the surface charge polarity of the NSs. After that, 100 mg of the PW9 was dissolved into the above solution with vigorous stirring for 4 h. The precipitate in the solution was separated by centrifugation treatment. Finally, the obtained mixture was dried at 80 °C for 12 h, which was then under annealing at 300 °C for 2 h in vacuum. Thus, the PW9/g-C3N4 heterojunction NSs were synthesized.

2.2. Characterization

The structure and morphology of the as-synthesized samples were observed by scanning electron microscopy (Field Emission-SEM; S-4800, Hitachi, Tokyo, Japan) and transmission electron microscopy (TEM) (JEM-2100, JEOL, Tokyo, Japan). The X-ray diffraction (XRD) patterns of the as-fabricated samples were studied by X-ray diffractometer (XRD-6000, Shimadzu, Tokyo, Japan) with a Cu Kα line of 0.1541 nm and the radiation is from 10° to 65° at a scanning rate at 2°/min. The Fourier-transform infrared (FTIR) spectra were recorded on Magna 560 FTIR spectrometer (Thermo Nicolet Corporation, Madison, WI, USA) with a resolution of 1 cm−1. The UV-VIS absorption spectra of the samples were recorded on a Lambda 750 UV/VIS/NIR spectrophotometer (Perkin Elmer, Waltham, MA, USA). The specific surface areas of the as-prepared samples were measured with a Micromeritics ASAP-2020 instrument (USA), and analyzed by the Brunauer–Emmett–Teller (BET) method. The surface charge polarity of the samples was measured with a dynamic light scattering spectrophotometer and isoelectric point determination with zeta potential analysis (SZ-100, Horiba, Tokyo, Japan).

2.3. Photocatalytic H2 Generation

Five milligrams of the as-synthesized samples were dispersed into 10 mL of a water solution containing triethanolamine (TEOA, 15 vol.%) and chloroplatinic acid (H2PtCl6, 10 μL, 12 mM). Then, the mixture solution was sealed in a quartz reactor and then ventilated with argon gas for 10 min to drive away the residual air. Afterward, the reactor was exposed under simulated sunlight (300-W Xe lamp, PLS-SXE300UV, Beijing, China, coupled with an AM 1.5 filter, the wavelength range of light was from 320–2500 nm, the light density was 100 mW cm−2, and the photon flux of the lamp was 0.17 μmol s−1 m−2). The produced gas was periodically analyzed by a gas chromatograph (GC) equipped with a thermal conductivity detector (TCD) (Beifen-Ruili Analytical Instrument, SP-3420A, Beijing, China).

3. Results and Discussion

To synthesize the PW9/g-C3N4 heterojunction NSs, the g-C3N4 bulk was crushed into the g-C3N4 nanosheets (NSs), at first, through the ultrasonic method. Then the obtained g-C3N4 NSs underwent the acidizing treatment to adjust their surface charge polarity from −21 mV to +6.6 mV. Afterward, the positively-charged g-C3N4 NSs were suspended into the water solution of PW9 to enable the negatively-charged PW9 to be self-assembled onto the g-C3N4 NSs, based on the electrostatic force [22,23]. Finally, the target sample of PW9/g-C3N4 heterojunction NSs was synthesized for further investigation. Figure 1B shows the scanning electron microscopy (SEM) image of the pure g-C3N4 NSs. It can be seen that the sheet-like g-C3N4 has a relatively smooth surface. After PW9 loading, there was also no change on the surface roughness of the g-C3N4 NSs in the PW9/g-C3N4 composite NSs (Figure 1C). In order to further investigate the as-prepared PW9/g-C3N4 heterojunction NSs, the high-resolution transmission electron microscopy (HRTEM) and the dark-filed scanning mode TEM were carried out. Although the lattice-fringe spacing of both PW9 and g-C3N4 cannot be observed in HRTEM (Figure 1D), further investigation, by using dark-filed scanning mode TEM (STEM), indicated that the PW9 clusters with sizes of 3–5 nm were decorated on the surface of g-C3N4 NSs in their heterojunction NSs (Figure 1E). In addition, the specific surface areas of PW9/g-C3N4 heterojunction NSs (~68.7 m2/g) was similar to that of g-C3N4 (~53.1 m2/g), as shown in Figure S1.
The phase structures of the as-synthesized samples were identified through X-ray diffraction (XRD) patterns. As shown in Figure 2, the two intense diffraction peaks around 28°~30° can be observed on the XRD pattern of the PW9, which is in accordance with the feature peaks of the PW9 reported in the literature [24]. Meanwhile, the other peaks on the diffraction pattern of the Na-PW9 were also matched with that of the reported PW9, confirming the obtained lacunary Keggin-type phosphotungstates of PW9. In the case of g-C3N4 NSs, the two feature diffraction peaks, belonging to the periodic structure of intra-planar tri-s-triazine and the interlayer stacking of conjugated aromatic structures of g-C3N4 NSs were found at 13.1° and 27.4°, respectively [25,26,27,28]. This is in agreement with the graphite structure of carbon nitride. When the modification of g-C3N4 NSs with PW9 clusters took place, the feature peaks originated from the Na-PW9 with the center at 29.3° and the g-C3N4 NSs with centers at 13.1° and 27.4° and appeared on the XRD pattern of the formed composite. This result suggests that the g-C3N4 NSs were decorated with the lacunary Keggin-type phosphotungstates of PW9 clusters.
To further confirm the existence of the PW9 clusters on the g-C3N4 NSs, the Fourier-transform infrared (FTIR) spectra of the PW9/g-C3N4 heterojunction NSs along with the corresponding single hetero-components were tested, as shown in Figure 3. For the pure PW9, the classical stretching vibrations related to the W-O-W, W-O, and P-O bonds were positioned around the 804/890, 984, and 1077 cm−1, respectively [29,30]. It further proves the formation of lacunary Keggin-type phosphotungstates of PW9. In the case of pure g-C3N4 NSs, the vibration bands between 1200 and 1650 cm−1 were ascribed to the CN heterocycles [24,31]. The band at 811 cm−1 is attributed to the feature vibration mode of s-triazine ring unit [32]. These observations are consistent with the literatures. The feature stretching vibration bands of both PW9 and g-C3N4 could be found on the FTIR spectrum of the PW9/g-C3N4 heterojunction NSs, powerfully confirming the successful decoration of the PW9 clusters onto the g-C3N4 NSs. Notably, as compared with pure g-C3N4, the feature band at 811 cm−1 was slightly shifted to 809 cm−1, which might be the cause of the chemical interaction between PW9 and g-C3N4 produced by the electrostatic adsorption process.
The light absorption behaviors of the as-synthesized samples were evaluated through UV-VIS absorption spectra. As observed in Figure 4, the absorption edge of the pure PW9 is located around 350 nm, corresponding to the forbidden gap of ~3.5 eV between HOMO and LUMO of the PW9 [15,33]. Meanwhile, the absorption edge of pure g-C3N4 NSs appears at ~480 nm, suggesting the ~2.6 eV of the bandgap of the g-C3N4 NSs [34]. The above results indicate that the PW9 and g-C3N4 NSs are the UV and visible absorbers, respectively, during the photo-excitation process. After loading the PW9 clusters onto the surface of g-C3N4 NSs, the formed PW9/g-C3N4 heterojunction NSs displayed the blue-shift behavior of the absorption edge, due to the introduction of the UV-light-active PW9 hetero-component. By combining the results of the SEM, TEM, XRD, FTIR, and UV-VIS absorption spectra, we confirm that the PW9/g-C3N4 heterojunction NSs with a well-distribution of PW9 clusters were successfully synthesized by using the self-assembly process driven by the electrostatic force.
Photocatalytic activity of the as-synthesized PW9/g-C3N4 heterojunction NSs for H2 generation was assessed under simulated sunlight excitation in the presence of the sacrificial agent of triethanolamine (TEOA) to quench the photoinduced hole. As observed in Figure 5A, there is no observable H2 generation under simulated sunlight irradiation for 2 h, when using the single PW9 as the photocatalyst. Meanwhile, the pure g-C3N4 NSs only displayed a poor photocatalytic activity for H2 generation (~14.6 μmol in 2 h-irradiation). After self-assembling the PW9 clusters onto the g-C3N4 NSs to form the PW9/g-C3N4 heterojunction NSs, the photocatalytic activity of the heterojunction NSs for H2 generation remarkably increased to ~47.6 μmol in 2 h-irradiation. The H2 generation rate of the PW9/g-C3N4 heterojunction NSs was 3.3 times higher than that of the g-C3N4 NSs, as summarized in Figure 5B. Notably, this photocatalytic activity is almost the highest one among the values reported for other g-C3N4-based photocatalytic systems (Table 1). Moreover, the solar-to-hydrogen (STH) efficiency has become an important index for evaluating the photocatalytic activity of hydrogen production. The STH efficiency under simulated sunlight irradiation can be calculated according to the following equation [35,36]:
STH = Energy   of   generation   of   hydrogen   by   water   splitting Solar   energy   irradiating   the   reaction   cell × 100 %
After calculating, the STH of PW9/g-C3N4 heterojunction NSs was determined to be about 0.26% at room temperature.
It should be pointed out that the LUMO potential of PW9 does not satisfy the demand of proton reduction, while the g-C3N4 possesses a suitable conduction band (CB) potential for fulfilling the H2 generation [37,38]. Thus, we could deduce that the photocatalytic sites in the PW9/g-C3N4 heterojunction NSs should be located at the surface of g-C3N4 hetero-component [39,40]. Meanwhile, the PW9 hetero-component serves as the photosensitizer to boost the separation process of the photoinduced charge-carriers of the g-C3N4 hetero-component. According to the energy band structures of the reported Keggin-type phosphotungstates and g-C3N4 NSs, the LUMO position is a little higher than the valence band (VB) position of the g-C3N4 NSs, as illustrated in the inset of Figure 5B. Thus, when the PW9/g-C3N4 heterojunction NSs is excited by simulated sunlight that contains the photon energies in both UV and visible light regions, the photoinduced electron-hole pairs are generated on the LUMO and VB of the PW9 and g-C3N4 hetero-components, respectively [41,42]. Owing to the potential difference between the LUMO of PW9 and the VB of g-C3N4, the photoinduced electrons on the LUMO of PW9 could transfer to the VB of g-C3N4 in the heterojunction NSs, thereby extending the lifetimes of the photoinduced electrons on the CB of g-C3N4 for implementing the photocatalytic H2 generation [43]. In this way, the Z-scheme photocatalytic mechanism can be employed to explain the enhanced photocatalytic activity of the PW9/g-C3N4 heterojunction system.
If the Z-scheme electron-transfer process is the main factor for enhancing the photocatalytic activity of PW9/g-C3N4 heterojunction NSs, the hetero-interface combination force between these two hetero-components should have an influence on the photocatalytic H2 generation of the NSs. In order to investigate this hypothesis, we synthesized another heterojunction NSs of g-C3N4, decorated with the normal Keggin-type phosphotungstic acid (H3PW12O40) (PW12). Because the number of the negative charges in PW12 is less than that in PW9 when dissolving them in water solution, the combination force between the PW12 and g-C3N4 should be lower than that in the PW9 and g-C3N4 system. In theory, a strong combination force between the hetero-components would build a high-quality of the transport channel for electron transfer between the hetero-components [51,52]. Thus, the interfacial electron transfer process in the PW9/g-C3N4 heterojunction NSs should be more effective for driving the Z-scheme photocatalytic H2 generation as compared to the PW12/g-C3N4 heterojunction NSs (the insets of Figure 6) [53]. The comparison study of the photocatalytic activities of the above two heterojunction NSs indicated that the H2-generation activity of PW9/g-C3N4 heterojunction NSs (~47.6 μmol in 2 h irradiation) was ~1.3 times higher than that of the PW12/g-C3N4 heterojunction NSs (~35.3 μmol in 2 h irradiation). This evidence further confirms a fast Z-scheme charge-transfer process occurred in the intimate hetero-interface of PW9/g-C3N4 for enhancing the photocatalytic H2 generation.

4. Conclusions

In summary, the lacunary Keggin-type phosphotungstates/g-C3N4 heterojunction NSs were synthesized through self-assembling the PW9 clusters onto the g-C3N4 NSs, based on the electrostatic adsorption process. When adjusting the surface charge polarity of g-C3N4 NSs from the negative to the positive charge in the PW9-dissolved solution, it was found that the intimate hetero-interface between PW9/g-C3N4 heterojunction NSs could be built for boosting the Z-scheme charge-transfer process. Upon simulated sunlight irradiation, the lifetimes of the photoinduced electrons on the g-C3N4 hetero-component were prolonged in the heterojunction NSs. Thus, a ~3.3-fold enhancement of the photocatalytic activity for H2 generation was observed over the PW9/g-C3N4 heterojunction NSs as compared to the pure g-C3N4 NSs. Our work will provide a new platform to construct the ultra-small sized polyoxometalates clusters-based Z-scheme photocatalysts for enhancing the photocatalytic solar-to-fuels conversion.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/12/9/1961/s1, Figure S1: Nitrogen adsorption-desorption isotherms of the as-synthesized samples: (a) g-C3N4, (b) PW9/g-C3N4 heterojunction NSs.

Author Contributions

Conceptualization, N.L. and Z.Z.; methodology, N.L. and M.S.; data curation, N.L. and M.S.; funding acquisition, N.L. and Z.Z.; investigation, Z.Z. and P.Z.; supervision, Z.Z. and X.W.; validation, N.L. and M.S.; visualization, N.L. and P.Z.; writing—original draft, N.L. and X.W.; writing—review and editing, N.L. and Z.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work is supported by the National Natural Science Foundation of China (Grant No. 51872068, 51772041), the Natural Science Foundation of Liaoning Province (Grant No. 2017054190), the Program for Dalian Excellent Talents (Grant No. 2016RQ069), the Program for Liaoning Excellent Talents in University (LNET) (Grant No. LR2017004), LiaoNing Revitalization Talents Program (Grant No. XLYC1807176), Educational Committee Foundation of Liaoning Province (Grant No. LJYT201907), the Natural Science Foundation of Liaoning Province (Grant No. 2020-MZLH-15), and Dalian Science Foundation for Distinguished Young Scholars (Grant No. 2018RJ05). Zhenyi Zhang acknowledges the support from the Liaoning BaiQianWan Talents Program.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liu, J.; Liu, Y.; Liu, N.; Han, Y.; Zhang, X.; Huang, H.; Lifshitz, Y.; Lee, S.-T.; Zhong, J.; Kang, Z. Metal-free efficient photocatalyst for stable visible water splitting via a two-electron pathway. Science 2015, 347, 970–974. [Google Scholar] [CrossRef] [PubMed]
  2. Cao, S.; Low, J.; Yu, J.; Jaroniec, M. Polymeric Photocatalysts Based on Graphitic Carbon Nitride. Adv. Mater. 2015, 27, 2150–2176. [Google Scholar] [CrossRef] [PubMed]
  3. Amirav, L.; Alivisatos, A.P. Photocatalytic Hydrogen Production with Tunable Nanorod Heterostructures. J. Phys. Chem. Lett. 2010, 1, 1051–1054. [Google Scholar] [CrossRef]
  4. Bai, Y.; Wilbraham, L.; Slater, B.J.; Zwijnenburg, M.A.; Sprick, R.S.; Cooper, A.I. Accelerated Discovery of Organic Polymer Photocatalysts for Hydrogen Evolution from Water through the Integration of Experiment and Theory. J. Am. Chem. Soc. 2019, 141, 9063–9071. [Google Scholar] [CrossRef] [Green Version]
  5. Fujishima, A.; Honda, K. Electrochemical photolysis of water at a semiconductor electrode. Nature 1972, 238, 37–38. [Google Scholar] [CrossRef]
  6. Gul, I.; Sayed, M.; Shah, N.S.; Ali Khan, J.; Polychronopoulou, K.; Iqbal, J.; Rehman, F. Solar light responsive bismuth doped titania with Ti3+ for efficient photocatalytic degradation of flumequine: Synergistic role of peroxymonosulfate. Chem. Eng. J. 2020, 384, 123255. [Google Scholar] [CrossRef]
  7. Sayed, M.; Arooj, A.; Shah, N.S.; Khan, J.A.; Shah, L.A.; Rehman, F.; Arandiyan, H.; Khan, A.M.; Khan, A.R. Narrowing the band gap of TiO2 by co-doping with Mn2+ and Co2+ for efficient photocatalytic degradation of enoxacin and its additional peroxidase like activity: A mechanistic approach. J. Mol. Liq. 2018, 272, 403–412. [Google Scholar] [CrossRef]
  8. Sayed, M.; Gul, M.; Shah, N.S.; Khan, J.A.; Khan, Z.U.H.; Rehman, F.; Khan, A.R.; Rauf, S.; Arandiyan, H.; Yang, C.P. In-situ dual applications of ionic liquid coated Co2+ and Fe3+ co-doped TiO2: Superior photocatalytic degradation of ofloxacin at pilot scale level and enhanced peroxidase like activity for calorimetric biosensing. J. Mol. Liq. 2019, 282, 275–285. [Google Scholar] [CrossRef]
  9. Chen, X.; Mao, S.S. Titanium dioxide nanomaterials: Synthesis, properties, modifications, and applications. Chem. Rev. 2007, 107, 2891–2959. [Google Scholar] [CrossRef]
  10. Chiarello, G.L.; Dozzi, M.V.; Selli, E. TiO2-based materials for photocatalytic hydrogen production. J. Energy Chem. 2017, 26, 250–258. [Google Scholar] [CrossRef]
  11. Cao, S.; Yu, J. g-C3N4-Based Photocatalysts for Hydrogen Generation. J. Phys. Chem. Lett. 2014, 5, 2101–2107. [Google Scholar] [CrossRef] [PubMed]
  12. He, F.; Wang, Z.; Li, Y.; Peng, S.; Liu, B. The nonmetal modulation of composition and morphology of g-C3N4-based photocatalysts. Appl. Catal. B Environ. 2020, 269. [Google Scholar] [CrossRef]
  13. Hu, C.; Lin, Y.-R.; Yang, H.-C. Recent Developments in Graphitic Carbon Nitride Based Hydrogels as Photocatalysts. ChemSusChem 2019, 12, 1794–1806. [Google Scholar] [CrossRef] [PubMed]
  14. Balula, S.S.; Santos, I.C.M.S.; Cunha-Silva, L.; Carvalho, A.P.; Pires, J.; Freire, C.; Cavaleiro, J.A.S.; de Castro, B.; Cavaleiro, A.M.V. Phosphotungstates as catalysts for monoterpenes oxidation: Homo- and heterogeneous performance. Catal. Today 2013, 203, 95–102. [Google Scholar] [CrossRef]
  15. Meng, J.; Wang, X.; Yang, X.; Hu, A.; Guo, Y.; Yang, Y. Enhanced gas-phase photocatalytic removal of aromatics over direct Z-scheme-dictated H3PW12O40/g-C3N4 film-coatedoptical fibers. Appl. Catal. B Environ. 2019, 251, 168–180. [Google Scholar] [CrossRef]
  16. Wang, Y.; Liu, J.; Wang, Y.; Zhang, M. CO2 photoreduction to CO/CH4 over Bi2W0.5Mo0.5O6 solid solution nanotubes under visible light. RSC Adv. 2020, 10, 8821–8824. [Google Scholar] [CrossRef]
  17. Gagea, B.C.; Lorgouilloux, Y.; Altintas, Y.; Jacobs, P.A.; Martens, J.A. Bifunctional conversion of n-decane over HPW heteropoly acid incorporated into SBA-15 during synthesis. J. Catal. 2009, 265, 99–108. [Google Scholar] [CrossRef]
  18. Llanos, A.; Melo, L.; Avendano, F.; Montes, A.; Brito, J.L. Synthesis and characterization of HPW/MCM-41 (Si) and HPW/MCM-41 (Si/Al) catalysts: Activity for toluene alkylation with 1-dodecene. Catal. Today 2008, 133, 20–27. [Google Scholar] [CrossRef]
  19. Song, Y.X.; Xin, F.; Zhang, L.X.; Wang, Y. Oxidation of Cyclohexene in the Presence of Transition-Metal-Substituted Phosphotungstates and Hydrogen Peroxide: Catalysis and Reaction Pathways. ChemCatChem 2017, 9, 4139–4147. [Google Scholar] [CrossRef]
  20. Domaille, P.J.; Hervéa, G.; Téazéa, A. Vanadium(V) Substituted Dodecatungstophosphates. In Inorganic Syntheses; Ginsberg, A.P., Ed.; Wiley: New York, NY, USA, 1990; Volume 27, Chapter 17; pp. 96–104. [Google Scholar]
  21. Zhang, Z.; Huang, J.; Zhang, M.; Yuan, Q.; Dong, B. Ultrathin hexagonal SnS2 nanosheets coupled with g-C3N4 nanosheets as 2D/2D heterojunction photocatalysts toward high photocatalytic activity. Appl. Catal. B Environ. 2015, 163, 298–305. [Google Scholar] [CrossRef]
  22. Li, X.Y.; Ding, C.; Zhao, C.X.; Wang, F.; Li, C.L.; Yang, X.F. Activation of graphitic carbon nitride by solvent -mediated supramolecular assembly for enhanced hydrogen evolution. Appl. Surf. Sci. 2020, 525. [Google Scholar] [CrossRef]
  23. Huang, J.; Liu, T.; Wang, R.; Zhang, M.; Wang, L.; She, H.; Wang, Q. Facile loading of cobalt oxide on bismuth vanadate: Proved construction of p-n junction for efficient photoelectrochemical water oxidation. J. Colloid Interface Sci. 2020, 570, 89–98. [Google Scholar] [CrossRef] [PubMed]
  24. Wu, X.; Zhang, X.; Zhao, S.; Gong, Y.; Djellabi, R.; Lin, S.; Zhao, X. Highly-efficient photocatalytic hydrogen peroxide production over polyoxometalates covalently immobilized onto titanium dioxide. Appl. Catal. A Gen. 2020, 591, 117271. [Google Scholar] [CrossRef]
  25. Dante, R.C.; Chamorro-Posada, P.; Vázquez-Cabo, J.; Rubi?os-López, ó.; Sánchez-árevalo, F.M.; Huerta, L.; Martín-Ramos, P.; Lartundo-Rojas, L.; ávila-Vega, C.F.; Rivera-Tapia, E.D. Nitrogen-carbon graphite-like semiconductor synthesized from uric acid. Carbon 2017, 121, 368–379. [Google Scholar] [CrossRef] [Green Version]
  26. Wang, X.; Maeda, K.; Thomas, A.; Takanabe, K.; Xin, G.; Carlsson, J.M.; Domen, K.; Antonietti, M. A metal-free polymeric photocatalyst for hydrogen production from water under visible light. Nat. Mater. 2009, 8, 76–80. [Google Scholar] [CrossRef]
  27. Ge, J.; Zhang, L.; Xu, J.; Liu, Y.; Jiang, D.; Du, P. Nitrogen photofixation on holey g-C3N4 nanosheets with carbon vacancies under visible-light irradiation. Chin. Chem. Lett. 2020, 31, 792–796. [Google Scholar] [CrossRef]
  28. Zhu, Z.; Wang, B.; Yao, Q.; Zhou, Y.; Yang, H.; Liu, Y. H3PW12O40/mpg-C3N4 as an efficient and reusable catalyst in the alkylation of o-xylene and styrene. Appl. Organomet. Chem. 2019, 33. [Google Scholar] [CrossRef]
  29. Li, K.; Yan, L.; Zeng, Z.; Luo, S.; Luo, X.; Liu, X.; Guo, H.; Guo, Y. Fabrication of H3PW12O40-doped carbon nitride nanotubes by one-step hydrothermal treatment strategy and their efficient visible-light photocatalytic activity toward representative aqueous persistent organic pollutants degradation. Appl. Catal. B Environ. 2014, 156, 141–152. [Google Scholar] [CrossRef]
  30. Li, K.; Hu, J.; Li, W.; Ma, F.; Xu, L.; Guo, Y. Design of mesostructured H3PW12O40-silica materials with controllable ordered and disordered pore geometries and their application for the synthesis of diphenolic acid. J. Mater. Chem. 2009, 19, 8628–8638. [Google Scholar] [CrossRef]
  31. Lin, Z.; Wang, X. Nanostructure Engineering and Doping of Conjugated Carbon Nitride Semiconductors for Hydrogen Photosynthesis. Angew. Chem. Int. Ed. 2013, 52, 1735–1738. [Google Scholar] [CrossRef]
  32. Li, X.-H.; Wang, X.; Antonietti, M. Solvent-Free and Metal-Free Oxidation of Toluene Using O2 and g-C3N4 with Nanopores: Nanostructure Boosts the Catalytic Selectivity. ACS Catal. 2012, 2, 2082–2086. [Google Scholar] [CrossRef]
  33. Pinto, T.; Arquilliere, P.; Dufaud, V.; Lefebvre, F. Isomerization of n-hexane over Pt-H3PW12O40/SBA-15 bifunctional catalysts: Effect of the preparation method on catalytic performance. Appl. Catal. A Gen. 2016, 528, 44–51. [Google Scholar] [CrossRef]
  34. Cao, S.-W.; Liu, X.-F.; Yuan, Y.-P.; Zhang, Z.-Y.; Liao, Y.-S.; Fang, J.; Loo, S.C.J.; Sum, T.C.; Xue, C. Solar-to-fuels conversion over In2O3/g-C3N4 hybrid photocatalysts. Appl. Catal. B Environ. 2014, 147, 940–946. [Google Scholar] [CrossRef]
  35. Tian, B.; Tian, B.; Smith, B.; Scott, M.C.; Hua, R.; Lei, Q.; Tian, Y. Supported black phosphorus nanosheets as hydrogen-evolving photocatalyst achieving 5.4% energy conversion efficiency at 353K. Nat. Commun. 2018, 9, 1397. [Google Scholar] [CrossRef] [Green Version]
  36. Pablo, M.-R.; Jesús, M.-G.; Manuela, R.S. Polymeric Carbon Nitride-Based Composites for Visible-Light-Driven Photocatalytic Hydrogen Generation. In Hydrogen Production Technologies; Scrivener Publishing: Beverly, MA, USA, 2017; pp. 579–621. [Google Scholar] [CrossRef]
  37. Cao, S.-W.; Liu, X.-F.; Yuan, Y.-P.; Zhang, Z.-Y.; Fang, J.; Loo, S.C.J.; Barber, J.; Sum, T.C.; Xue, C. Artificial photosynthetic hydrogen evolution over g-C3N4 nanosheets coupled with cobaloxime. Phys. Chem. Chem. Phys. 2013, 15, 18363–18366. [Google Scholar] [CrossRef]
  38. Guo, Y.; Li, K.; Yu, X.; Clark, J.H. Mesoporous H3PW12O40-silica composite: Efficient and reusable solid acid catalyst for the synthesis of diphenolic acid from levulinic acid. Appl. Catal. B Environ. 2008, 81, 182–191. [Google Scholar] [CrossRef]
  39. Lu, N.; Zhao, Y.H.; Liu, H.B.; Guo, Y.H.; Yuan, X.; Xu, H.; Peng, H.F.; Qin, H.W. Design of polyoxometallate-titania composite film (H3PW12O40/TiO2) for the degradation of an aqueous dye Rhodamine B under the simulated sunlight irradiation. J. Hazard. Mater. 2012, 199, 1–8. [Google Scholar] [CrossRef]
  40. Svoboda, L.; Licciardello, N.; Dvorsky, R.; Bednar, J.; Henych, J.; Cuniberti, G. Design and Performance of Novel Self-Cleaning g-C3N4/PMMA/PUR Membranes. Polymers 2020, 12, 850. [Google Scholar] [CrossRef] [Green Version]
  41. Niu, P.; Zhang, L.; Liu, G.; Cheng, H.-M. Graphene-Like Carbon Nitride Nanosheets for Improved Photocatalytic Activities. Adv. Funct. Mater. 2012, 22, 4763–4770. [Google Scholar] [CrossRef]
  42. Wang, Q.; Wang, T.; Lv, Z.; Cui, M.; Zhao, Z.; Cao, X.; Wei, Q. TiO2 Sol-Gel Coated PAN/O-MMT Multi-Functional Composite Nanofibrous Membrane Used as the Support for Laccase Immobilization: Synergistic Effect between the Membrane Support and Enzyme for Dye Degradation. Polymers 2020, 12, 139. [Google Scholar] [CrossRef] [Green Version]
  43. Li, K.; Guo, Y.; Ma, F.; Li, H.; Chen, L.; Guo, Y. Design of ordered mesoporous H3PW12O40-titania materials and their photocatalytic activity to dye methyl orange degradation. Catal. Commun. 2010, 11, 839–843. [Google Scholar] [CrossRef]
  44. Wei, X.; Shao, C.; Li, X.; Lu, N.; Wang, K.; Zhang, Z.; Liu, Y. Facile in situ synthesis of plasmonic nanoparticles-decorated g-C3N4/TiO2 heterojunction nanofibers and comparison study of their photosynergistic effects for efficient photocatalytic H2 evolution. Nanoscale 2016, 8, 11034–11043. [Google Scholar] [CrossRef] [PubMed]
  45. Song, K.; Xiao, F.; Zhang, L.; Yue, F.; Liang, X.; Wang, J.; Su, X. W18O49 nanowires grown on g-C3N4 sheets with enhanced photocatalytic hydrogen evolution activity under visible light. J. Mol. Catal. A Chem. 2016, 418–419, 95–102. [Google Scholar] [CrossRef]
  46. Liu, J.; Liu, N.; Li, H.; Wang, L.; Wu, X.; Huang, H.; Liu, Y.; Bao, F.; Lifshitz, Y.; Lee, S. A critical study of the generality of the two step two electron pathway for water splitting by application of a C3N4/MnO2 photocatalyst. Nanoscale 2016, 8, 11956–11961. [Google Scholar] [CrossRef] [PubMed]
  47. Zhang, Z.; Liu, K.; Feng, Z.; Bao, Y.; Dong, B. Hierarchical Sheet-on-Sheet ZnIn2S4/g-C3N4 Heterostructure with Highly Efficient Photocatalytic H2 production Based on Photoinduced Interfacial Charge Transfer. Sci. Rep. 2016, 6, 19221. [Google Scholar] [CrossRef] [Green Version]
  48. Li, A.; Peng, Z.; Fu, X. Exfoliated, mesoporous W18O49/g-C3N4 composites for efficient photocatalytic H2 evolution. Solid State Sci. 2020, 106, 106298. [Google Scholar] [CrossRef]
  49. Yang, Y.; Mao, B.; Gong, G.; Li, D.; Liu, Y.; Cao, W.; Xing, L.; Zeng, J.; Shi, W.; Yuan, S. In-situ growth of Zn–AgIn5S8 quantum dots on g-C3N4 towards 0D/2D heterostructured photocatalysts with enhanced hydrogen production. Int. J. Hydrogen Energy 2019, 44, 15882–15891. [Google Scholar] [CrossRef]
  50. Jin, X.; Fan, X.; Tian, J.; Cheng, R.; Li, M.; Zhang, L. MoS2 quantum dot decorated g-C3N4 composite photocatalyst with enhanced hydrogen evolution performance. RSC Adv. 2016, 6, 52611–52619. [Google Scholar] [CrossRef]
  51. Li, L.; Wu, Q.Y.; Guo, Y.H.; Hu, C.W. Nanosize and bimodal porous polyoxotungstate-anatase TiO2 composites: Preparation and photocatalytic degradation of organophosphorus pesticide using visible-light excitation. Microporous Mesoporous Mater. 2005, 87, 1–9. [Google Scholar] [CrossRef]
  52. Blanco, M.; Monteserin, C.; Angulo, A.; Perez-Marquez, A.; Maudes, J.; Murillo, N.; Aranzabe, E.; Ruiz-Rubio, L.; Vilas, J.L. TiO2-Doped Electrospun Nanofibrous Membrane for Photocatalytic Water Treatment. Polymers 2019, 11, 747. [Google Scholar] [CrossRef] [Green Version]
  53. Chen, S.; Zhang, M.Y.; Ma, X.Z.; Li, L.; Zhou, X.J.; Zhang, Z.Y. Asymmetric supercapacitors by integrating high content Na+/K+-inserted MnO2 nanosheets and layered Ti3C2Tx paper. Electrochim. Acta 2020, 332, 135497. [Google Scholar] [CrossRef]
Polymers 12 01961 g001 550

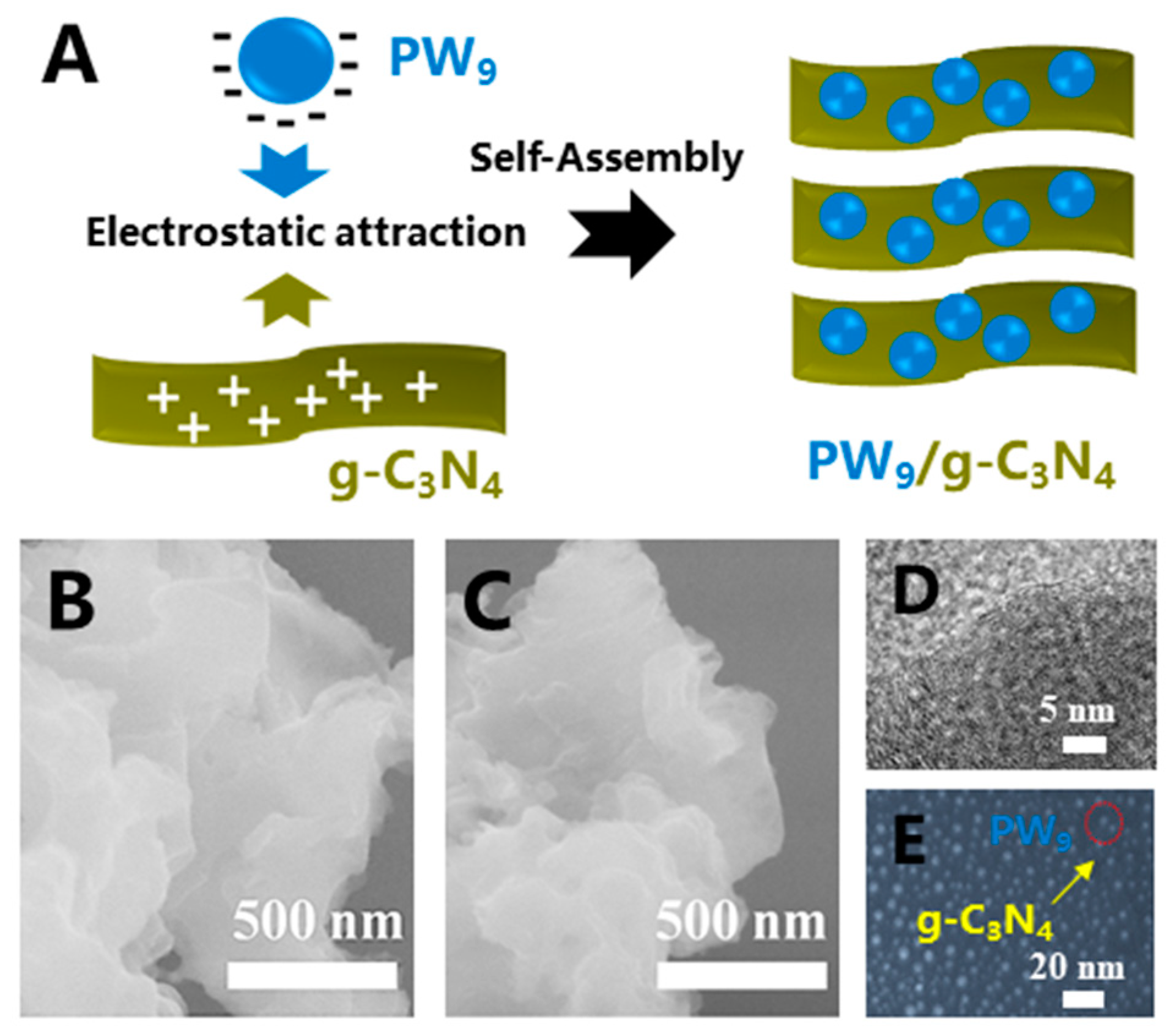

Figure 1. (A) Schematic diagram of the self-assembly process of the PW9/g-C3N4 heterojunction NSs, based on the electrostatic force between these two hetero-components; SEM images of (B) g-C3N4 NSs and (C) PW9/g-C3N4 heterojunction NSs; the HRTEM image (D) and the dark-field STEM image (E) of the heterojunction NSs.
Figure 1. (A) Schematic diagram of the self-assembly process of the PW9/g-C3N4 heterojunction NSs, based on the electrostatic force between these two hetero-components; SEM images of (B) g-C3N4 NSs and (C) PW9/g-C3N4 heterojunction NSs; the HRTEM image (D) and the dark-field STEM image (E) of the heterojunction NSs.
Polymers 12 01961 g001
Polymers 12 01961 g002 550

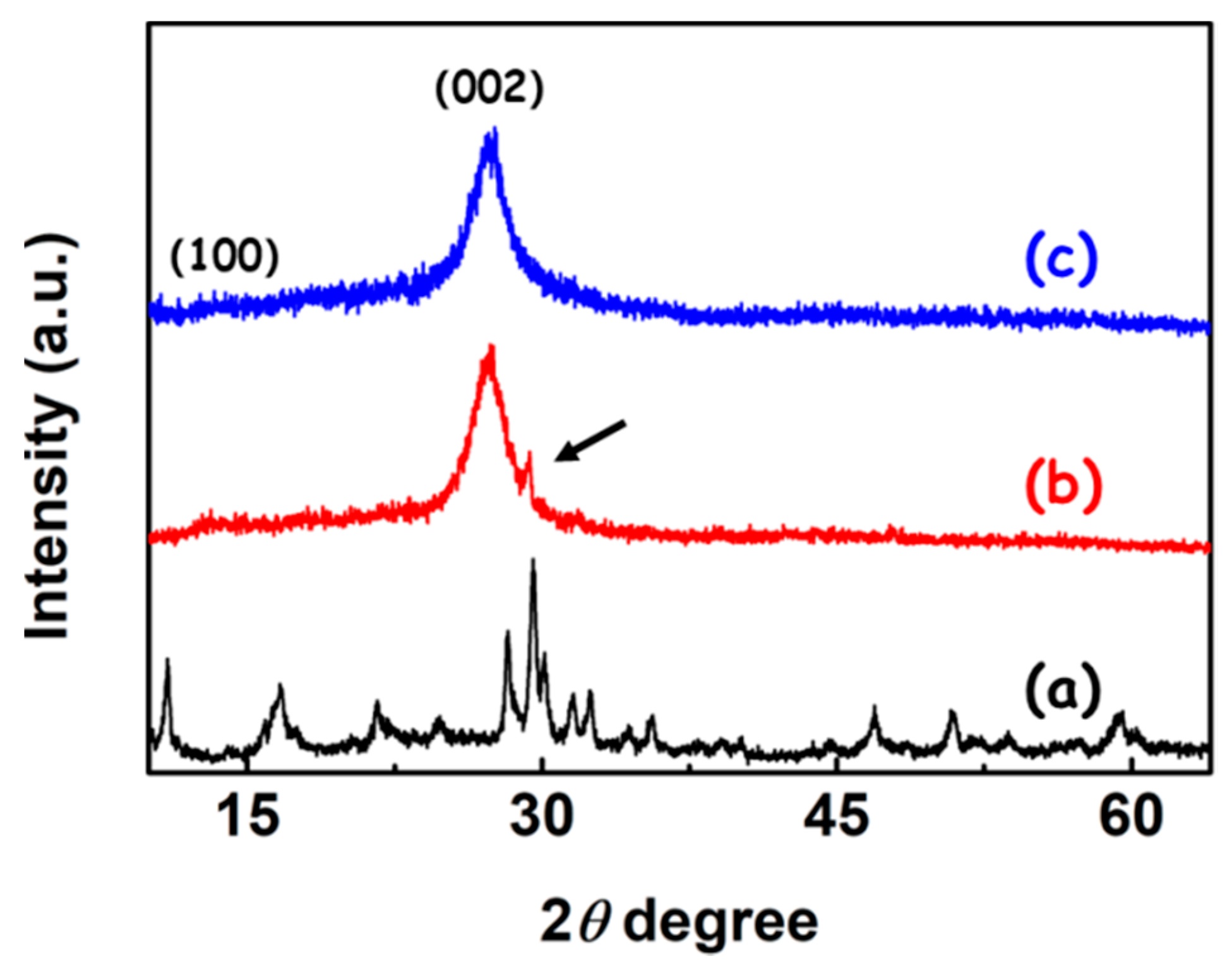

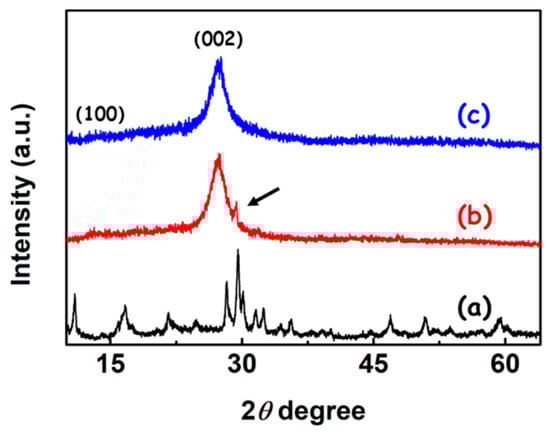

Figure 2. XRD patterns of the as-synthesized samples: (a) PW9; (b) PW9/g-C3N4 heterojunction NSs; (c) g-C3N4 NSs.
Figure 2. XRD patterns of the as-synthesized samples: (a) PW9; (b) PW9/g-C3N4 heterojunction NSs; (c) g-C3N4 NSs.
Polymers 12 01961 g002
Polymers 12 01961 g003 550

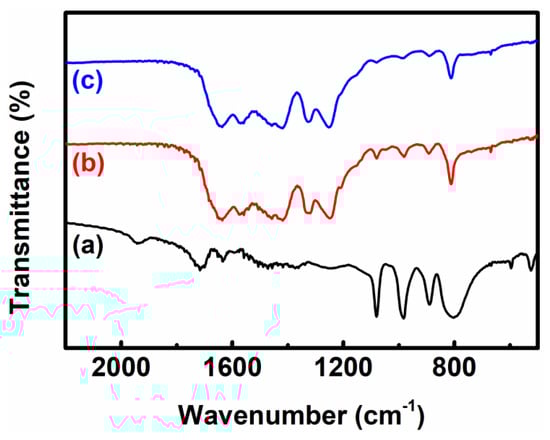

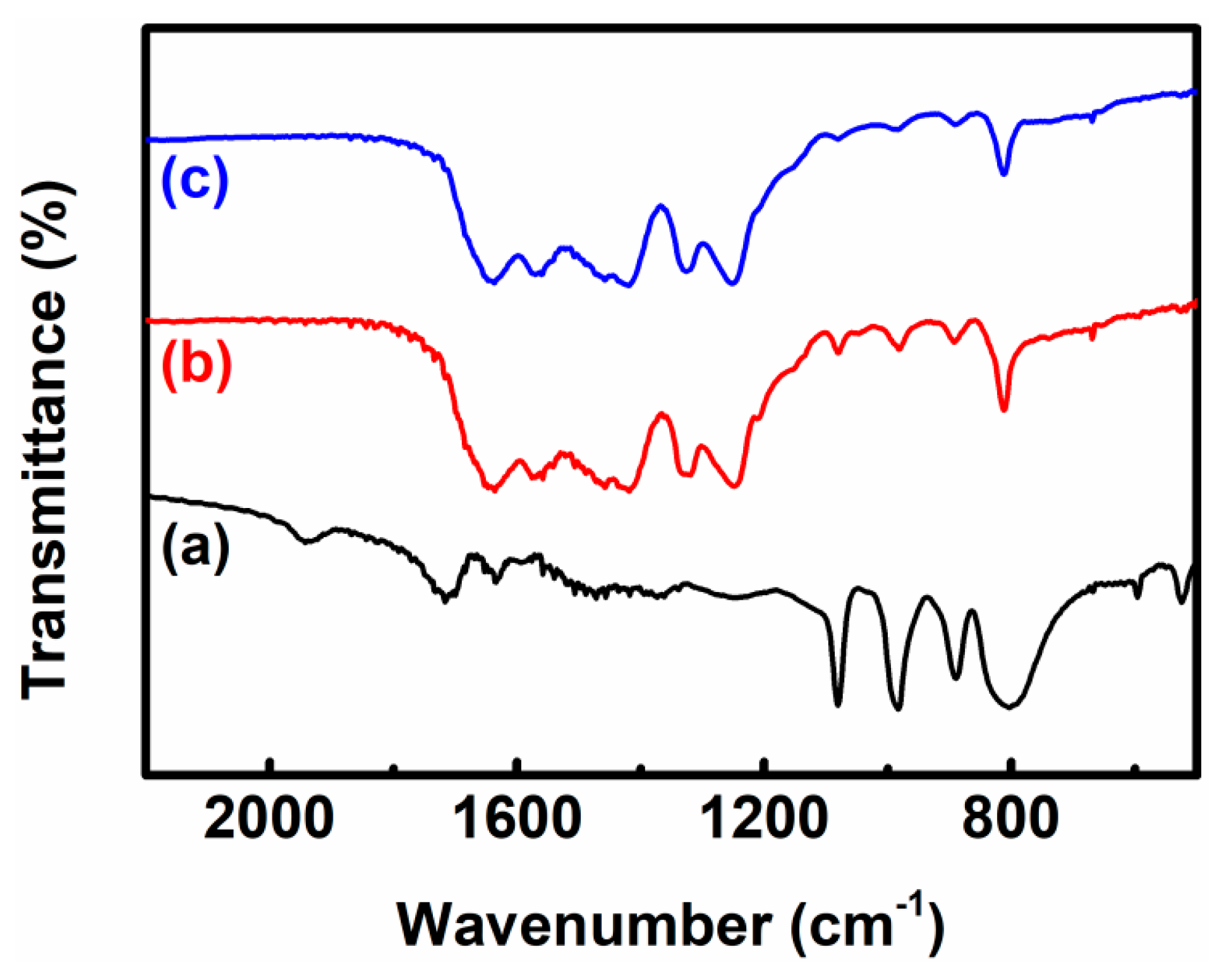

Figure 3. FTIR spectra of the as-synthesized samples: (a) PW9; (b) PW9/g-C3N4 heterojunction NSs; (c) g-C3N4 NSs.
Figure 3. FTIR spectra of the as-synthesized samples: (a) PW9; (b) PW9/g-C3N4 heterojunction NSs; (c) g-C3N4 NSs.
Polymers 12 01961 g003
Polymers 12 01961 g004 550

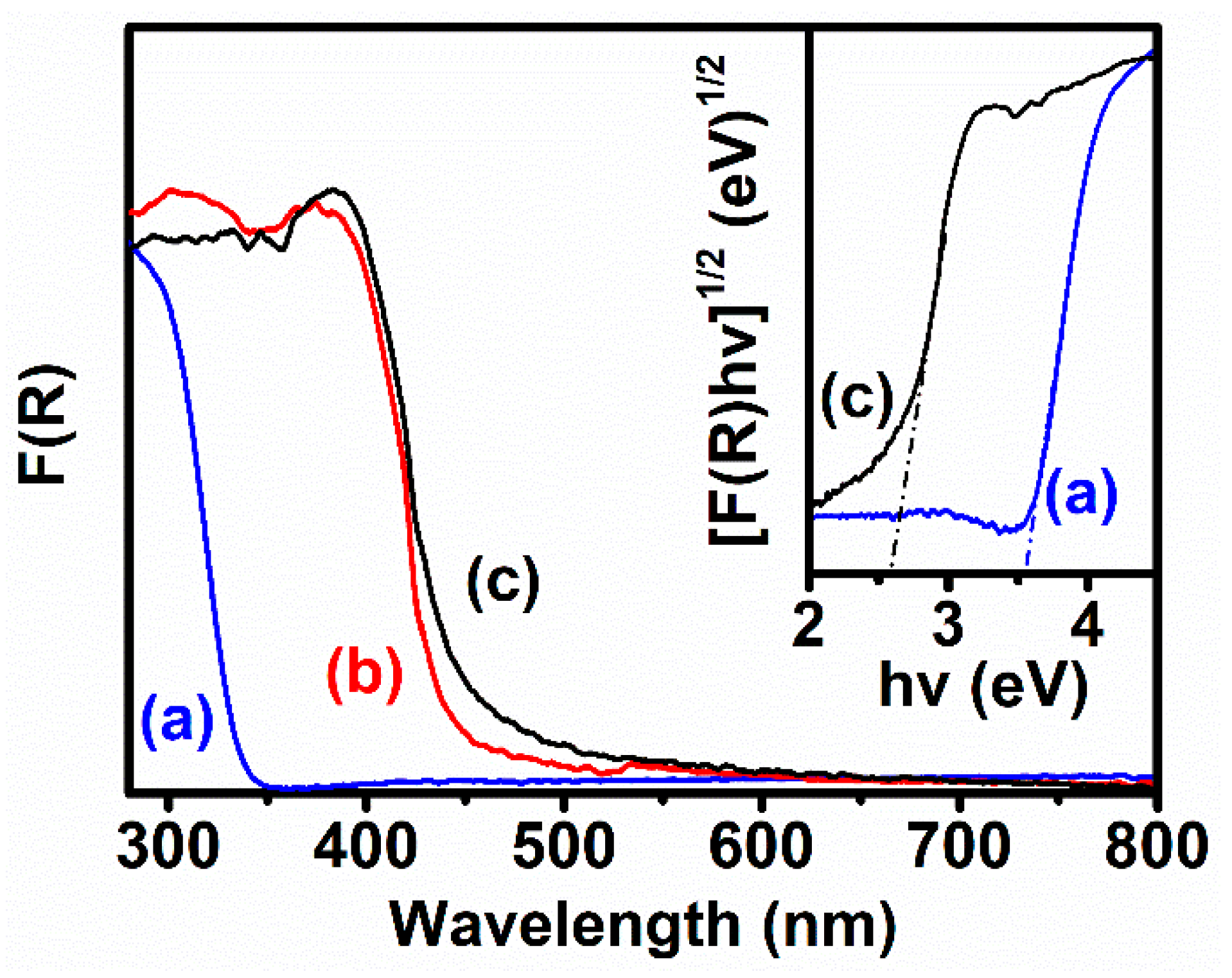

Figure 4. UV-VIS absorption spectra of the as-synthesized samples: (a) PW9; (b) PW9/g-C3N4 heterojunction NSs; (c) g-C3N4 NSs; the inset were plots of the [F(R)(hυ)]1/2 versus hυ of (a) PW9; (c) g-C3N4 NSs.
Figure 4. UV-VIS absorption spectra of the as-synthesized samples: (a) PW9; (b) PW9/g-C3N4 heterojunction NSs; (c) g-C3N4 NSs; the inset were plots of the [F(R)(hυ)]1/2 versus hυ of (a) PW9; (c) g-C3N4 NSs.
Polymers 12 01961 g004
Polymers 12 01961 g005 550

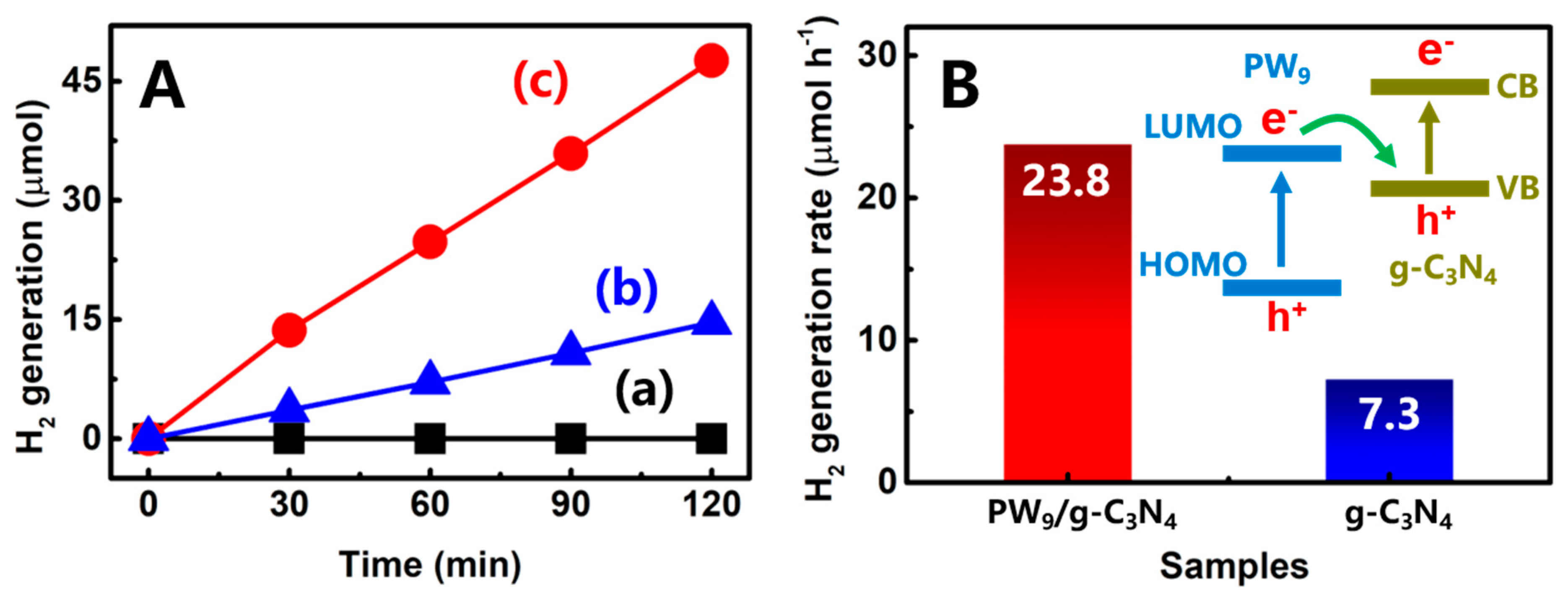

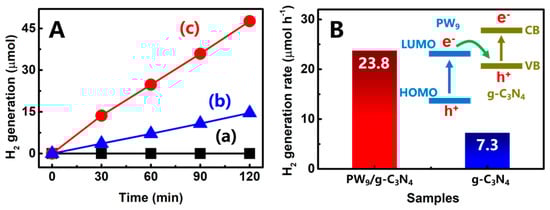

Figure 5. (A) Time-dependent photocatalytic H2-gereration plots over the different samples under simulated sunlight irradiation: (a) PW9; (b) g-C3N4 NSs; (c) PW9/g-C3N4 heterojunction NSs; (B) H2-generation rates of the PW9/g-C3N4 heterojunction and g-C3N4 NSs.
Figure 5. (A) Time-dependent photocatalytic H2-gereration plots over the different samples under simulated sunlight irradiation: (a) PW9; (b) g-C3N4 NSs; (c) PW9/g-C3N4 heterojunction NSs; (B) H2-generation rates of the PW9/g-C3N4 heterojunction and g-C3N4 NSs.
Polymers 12 01961 g005
Polymers 12 01961 g006 550

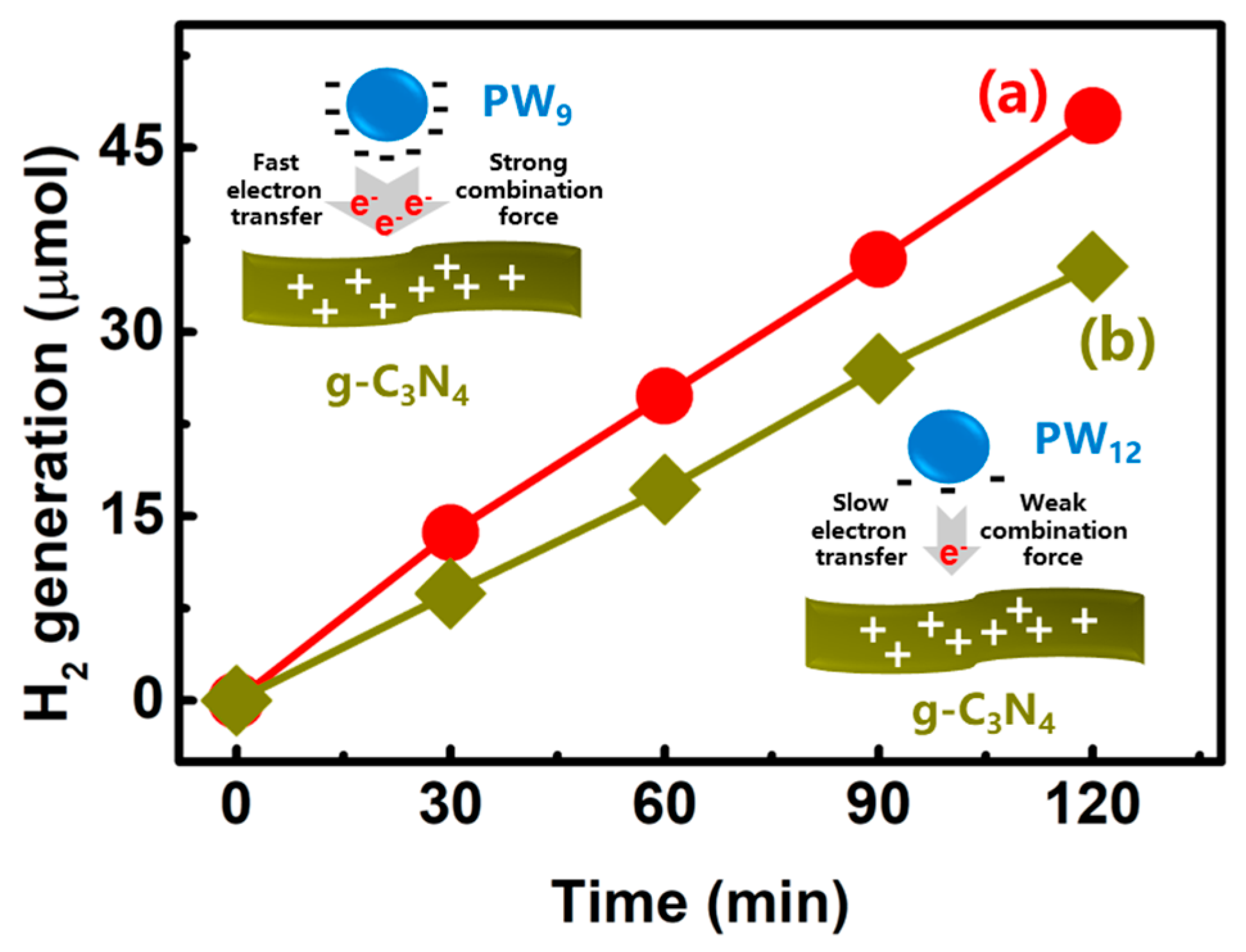

Figure 6. Time-dependent photocatalytic H2-generation plots over (a) PW9/g-C3N4 heterojunction NSs and (b) PW12/g-C3N4 heterojunction NSs upon simulated sunlight irradiation. The insets showing the interfacial adsorption and electron transfer abilities of the PW9/g-C3N4 heterojunction and PW12/g-C3N4 heterojunction NSs.
Figure 6. Time-dependent photocatalytic H2-generation plots over (a) PW9/g-C3N4 heterojunction NSs and (b) PW12/g-C3N4 heterojunction NSs upon simulated sunlight irradiation. The insets showing the interfacial adsorption and electron transfer abilities of the PW9/g-C3N4 heterojunction and PW12/g-C3N4 heterojunction NSs.
Polymers 12 01961 g006
Table
Table 1. Photocatalytic activity of reported g-C3N4-based photocatalysts for H2 evolution.
Table 1. Photocatalytic activity of reported g-C3N4-based photocatalysts for H2 evolution.
CatalystPrecursorLight SourceActivityRef.
Ag/g-C3N4/TiO2Melamine300 W Xe lamp with AM 1.5 filter1.5 μmol/h[44]
W18O49/g-C3N4Urea300 W Xe lamp with λ > 420 nm filter3.69 μmol/h[45]
g-C3N4/MnO2Urea300 W Xe lamp with λ > 420 nm filter5.53 μmol/h[46]
ZnIn2S4/g-C3N4Melamine300 W Xe lamp with λ > 420 nm filter14.1 μmol/h[47]
W18O49/g-C3N4Melamine300 W Xe lamp with λ > 420 nm filter18.25 μmol/h[48]
Zn-AgIn5S8/g-C3N4Urea300 W Xe lamp with λ > 420 nm filter17.32 μmol/h[49]
MoS2/g-C3N4Urea300 W Xe lamp with λ > 420 nm filter19.66 μmol/h[50]
PW9/g-C3N4Urea300 W Xe lamp with AM 1.5 filter23.8 μmol/hThis work
