Characterizing the Core-Shell Architecture of Block Copolymer Nanoparticles with Electron Microscopy: A Multi-Technique Approach

Université de Haute-Alsace, CNRS, IS2M UMR7361, F-68100 Mulhouse, France
Université de Strasbourg, CNRS, ICS UPR22, F-67034 Strasbourg, France
Author to whom correspondence should be addressed.
Polymers 2020, 12(8), 1656;
Received: 26 June 2020 / Revised: 16 July 2020 / Accepted: 17 July 2020 / Published: 25 July 2020
(This article belongs to the Special Issue Polymer Structure and Property II)


Electron microscopy has proved to be a major tool to study the structure of self-assembled amphiphilic block copolymer particles. These specimens, like supramolecular biological structures, are problematic for electron microscopy because of their poor capacity to scatter electrons and their susceptibility to radiation damage and dehydration. Sub-50 nm core-shell spherical particles made up of poly(hydroxyethyl acrylate)–b–poly(styrene) are prepared via polymerization-induced self-assembly (PISA). For their morphological characterization, we discuss the advantages, limitations, and artefacts of TEM with or without staining, cryo-TEM, and SEM. A number of technical points are addressed such as precisely shaping of particle boundaries, resolving the particle shell, differentiating particle core and shell, and the effect of sample drying and staining. TEM without staining and cryo-TEM largely evaluate the core diameter. Negative staining TEM is more efficient than positive staining TEM to preserve native structure and to visualize the entire particle volume. However, no technique allows for a satisfactory imaging of both core and shell regions. The presence of long protruding chains is manifested by patched structure in cryo-TEM and a significant edge effect in SEM. This manuscript provides a basis for polymer chemists to develop their own specimen preparations and to tackle the interpretation of challenging systems.

Graphical Abstract

1. Introduction

One major interest of amphiphilic block copolymers lies in their ability to form aggregates of high morphological complexity. In the literature, there is an abundance of studies using amphiphilic block copolymers of different compositions and block lengths that are able to self-assemble into a variety of supramolecular aggregates, such as spheres, rods, lamellae, and vesicles [1]. The manipulation of interfacial curvature plays a central role in the control of aggregate morphology. It should be noted that not all these block copolymer supramolecular structures can be deemed nano-objects (or nanoparticles)—only those whose three dimensions span from approximately 1 to 100 nm can be [2]. Spherical nanoparticles are the most common and investigated copolymer nano-objects [3]. Among the plethora of methods developed for the formation of spherical, amphiphilic block copolymer nanoparticles, nanoprecipitation and polymerization-induced self-assembly (PISA) are the most popular. Nanoprecipitation involves the dissolution of a preformed copolymer in an organic water-miscible solvent. Upon addition to the aqueous phase, the organic solvent immediately diffuses out, thus leading to the formation of nanoparticles. In PISA, a lyophilic block is chain-extended using a monomer whose corresponding homopolymer is insoluble in the chosen solvent [4]. After reaching some critical degree of polymerization (DP), the second block eventually becomes insoluble, thus resulting in a spontaneous copolymer self-assembly and the formation of block copolymer nanoparticles.
Regardless of the synthetic pathway, block copolymer nanoparticles have attracted much attention for a diverse range of applications [5] including therapeutics delivery [6,7], imaging contrast agents [8], nanostructured films [9], stimuli-responsive nanomaterials [10,11], and the templating of inorganic materials [12,13]. Crucial for many applications is the core-shell architecture in which the inner region—mainly composed of the lyophobic blocks of the amphiphile—is surrounded by a brush-like corona rich in lyophilic blocks [14]. Various examples have shown a strong link between core-shell morphology and nanoparticles’ properties. In the field of nano-delivery systems, for instance, the inner core is thus able to act as cargo space for the solubilization of lipophilic drugs, proteins, or nucleic acids [15]. In bioimaging, the hydrophobic core can serve as nano-depot for the accommodation of a fluorescent agent [16]. The engineering of the shell can be also utilized to attach bioactive ligands (antibodies, peptides, etc.) in order to facilitate cell entry for targeted drug delivery but also to prepare supported catalyst [17] or diagnostic systems [18]. Finally, latexes containing a soft shell and a hard core can be used as building block for the creation of nanostructured coatings with improved mechanical properties and film-forming ability [19].
Though a core-shell architecture has been claimed in many studies that have reported spherical block copolymer nanoparticles, morphological characterization is usually insufficient [20]. In most cases, the justification for core-shell structure is based only on thermodynamic incompatibility between blocks or their difference of solubility in the continuous phase. There are only few examples where core and shell components have been visually identified and differentiated, mostly through TEM [21,22,23]. Other imaging techniques such as SEM [24] or atomic force microscopy (AFM) [25] have been generally overlooked. Very recently, Gianneschi and coworkers showed the ability of liquid cell TEM to visualize copolymer micelles [26,27] and initiate their formation in situ [28]. The barriers to imaging particle core-shell architecture include small diameters (sometimes well below 100 nm), low differential contrasts, and limited thicknesses of the lyophilic shell. Considering the growing number of studies on particles prepared by PISA [29] and, more generally, the recent developments of polymeric micelles and nanoparticles in experimental medicine and pharmaceutical sciences [30], there is a need to carry out a thorough review of the imaging techniques to substantiate claims of core-shell architecture.
In this study, we started from soft poly(hydroxyethyl acrylate)-b-poly(styrene) (PHEA–b–PS) particles prepared via dispersion PISA. Relying on a recently published study on PHEAxb–PSy nanoparticles [12] (where x and y refer to the DP of the respective blocks), we chose a copolymer composition located in the spherical aggregate regime for reasons of simplification. Subsequently, model nano-objects with different lengths of PHEA shell-forming blocks were studied by three electron microscopy (EM) techniques: conventional TEM with and without staining, cryo-TEM, and SEM. The objectives of this present study were twofold: to learn which techniques are appropriate for imaging the core-shell architecture of PHEA–b–PS particles and, more generally, to define the best practices for the EM analysis of PISA-prepared particles. This is very important because the polymer community is currently making intensive use of EM to study soft block copolymer nanoparticles without always being aware of common errors in the interpretation of EM data like artefacts, sample reorganization induced by drying, and image distortion caused by radiation damage.

2. Materials and Methods

2.1. Materials

Ruthenium (III) chloride hydrate (Acros Organics; 35–40% Ru), sodium hypochlorite (Acros Organics; 10–15% active chlorine), uranyl acetate (Sigma-Aldrich), and diethyl ether (Sigma-Aldrich; ≥99%) were used as received. PHEAxb–PSy copolymer latexes had a solid content of 18.7 wt % and were dispersed in a mixture of methanol/water (95/5 wt %). PHEA23b–PS130, with the number average molecular weight Mn = 18.0 × 103 g mol−1 and molecular weight dispersity Đ = Mw/Mn = 1.11, were determined by size exclusion chromatography (SEC) in N,N-dimethylformamide. The DP of each block was calculated by 1H NMR spectroscopy in D2O (PHEA block) and CDCl3 (PS block). The z-average value of 79 nm was determined using dynamic light scattering (DLS). For PHEA85b–PS130, Mn = 23.1 × 103 g mol−1 and Mw/Mn = 1.43 were determined by SEC in DMF. The z-average hydrodynamic diameter was estimated at 40 nm (DLS data). For each diblock copolymer, SEC traces and DLS size distributions are provided in Figure S1 of the Supporting Information (SI). The synthesis protocol and complete details on characterization methods were described elsewhere [12], and they are briefly summarized in the SI.

2.2. Methods

DLS: The particle diameter and size distribution of diblock copolymer nano-objects were determined using a VASCO nanoparticle size analyzer (Cordouan Technologies, Pessac, France) with a 15 mW laser operating at a wavelength of 658 nm. The scattered light was detected at an angle of 135°. Prior to measurements, samples were diluted 20 times.
TEM: The TEM images of the copolymer nanoparticles were obtained with a JEOL ARM-200F instrument working at 200 kV. The images were recorded with Gatan camera (Orius 1000 model). Specimens were prepared on 400 mesh gold grids on which Formvar and carbon support films were applied (Agar scientific, ref. AGS162A4). The number average diameter ( D n =   D TEM / n where n is the number of particles) was determined by using 200 particles. The polydispersity index (PDI) (or dispersity, as recommended by IUPAC) was used to describe the breadth of particle size. The PDI is defined as D w / D n , where D w =   D n 4 /   D n 3 . The TEM grid underwent three types of specimen preparations before analysis.
For dried samples, latex samples were diluted 200 times with a methanol/water mixture (to get a concentration of 0.1 wt %), cast onto the TEM grid, and dried overnight at room temperature.
For positive staining TEM, ruthenium tetroxide (RuO4) vapors was produced in situ by reacting 0.5 mL of a 13 wt % aqueous solution of sodium hypochlorite with 150 mg of RuCl3∙3H2O in a 10-cm diameter petri dish. A TEM grid with the disposed sample (the preparation of the grid according to the same procedure as for dried samples/conventional TEM) was placed close to the reaction mixture, and a second petri dish of similar size was positioned above to form a closed chamber. The grid was left for 10 min. A scheme of the experimental set-up is available in the SI (Figure S2) [31].
For negative staining TEM, a rapid flushing method was implemented. The protocol was originally developed by Imai et al. [32] and more recently adapted by Scarff et al. [33]. The idea of the method is to minimize the time the sample has to interact with the support of the grid surface before fixation. The goal is to hinder structural changes in the specimen that could occur upon prolonged absorption time on the carbon film or through capillary action. Before sample application, the TEM grid was faced upon a microscope slide and then irradiated in a glow discharge unit (UV/Ozone ProCleaner Plus) for a minimum of 300 s to render it hydrophilic. As in a typical procedure, 70 µL of uranyl acetate (1 wt % solution in water) was drawn up into the tip of a 200 µL pipette; 10 µL of the air gap were subsequently drawn up, then a 20 µL of deionized water (acting as wash/mixing agent) followed by another air gap of 10 µL, and finally 10 µL of sample solution (1 wt %). The edge of the grid was gripped with a pair of negative pressure tweezers, holding the tweezers so that the grid was angled at approximately 45° facing away from the researcher. The entire content of the pipette tip was ejected across the face of the TEM grid. The excess of stain was removed by touching the torn edge of a piece of filter paper to the edge of the grid. The grid was left to dry over air. Due to difficulties to efficiently adsorb PHEA23b–PS130-based nanoparticles with the latter protocol, preparation conditions were changed: a 5 µL drop of ethanol was applied onto 400 mesh Cu grids covered with a plain carbon film. After a 1 min interaction, the excess was removed and a 5 µL drop of latex (0.1 wt %) was applied. After 1 min, the excess was removed by touching the torn edge of a piece of filter paper to the edge of the grid, and a 5 µL drop of 2 wt % uranyl acetate aqueous solution was immediately added. After 1 min, the grid was fully dried with a piece of filter paper, and a Tecnai G2 microscope (FEI) operating at 200 kV was used for the imaging of this PHEA23b–PS130 sample.
Cryo-TEM: Five microliters of the sample (0.1 wt %) were applied onto a 400 mesh Cu grid covered with a lacey carbon film that was freshly glow discharged to render it hydrophilic (Elmo, Cordouan Technologies). The grid was rapidly plunged into a liquid ethane slush by using a homemade freezing machine with a controlled temperature chamber. The grids were then mounted onto a Gatan 626 cryoholder and observed under low dose conditions on a Tecnai G2 microscope (FEI) operating at 200 kV. The images were recorded with a slow scan CCD camera (Eagle 2k2k FEI). The uncertainty of particle diameters were uPHEA85-b-PS130 = 1.30 nm and uPHEA23-b-PS130 = 1.70 nm.
SEM: High resolution SEM images were obtained with a JEOL JSM-7900F scanning electron microscope in gentle beam super high resolution (GBSH) mode. In this mode, an accelerating voltage of 5.5 kV and a specimen bias voltage of −5 kV specimen were applied. The scanning transmission electron microscopy (STEM) images were acquired at 30 kV on the same microscope using the DEBEN GEN5 annular STEM detector. The previously prepared TEM grids were reused for the SEM and STEM observations.

3. Results and Discussion

3.1. Synthesis of Amphiphilic Diblock Copolymer Nanoparticles PHEA-b-PS

Two types of model amphiphilic diblock copolymer nanoparticles, each containing a constant DP of PS core-forming block (130) and varying DPs of the PHEA stabilizing block (23 and 85), were synthesized with an alcohol-based PISA method described elsewhere [12]. The compounds had a relatively narrow molecular weight dispersity: Đ = Mw/Mn = 1.11 (PHEA23b–PS130) and 1.43 (PHEA85b–PS130). In light of the DLS data, the samples were found monodisperse, with z-averages (intensity weighted mean hydrodynamic diameter) of 79 nm (PHEA23b–PS130) and 40 nm (PHEA85b–PS130). Using Mie theory and the optical properties of nanoparticles, number-weighted average diameters were also estimated at 39 nm (PHEA23b–PS130) and 21 nm (PHEA85b–PS130)—essentially for a comparative purpose with EM data.
Due to the highly hydrophobic nature of PS, the growth of a polar PHEA block in a methanol/water mixture leads to the selective solvation of the chains, inducing phase separation and particle formation. As sketched schematically in Figure 1, the expected core shell architecture was thus made up of a hard lyophobic PS core, a soft lyophilic PHEA shell, and an interfacial region within which the composition varied continuously from one bulk phase to the other. The core-shell architecture of these two PHEA–b–PS diblock copolymer nanoparticles of PHEA85b–PS130 and PHEA23b–PS130 were systematically characterized using three different EM techniques—conventional TEM (unstained samples, positively stained samples, and negatively stained samples), cryo-TEM, and SEM—emphasizing their own advantages and limitations. A comparative study enabled to assess how the DP of the PHEA stabilizing block affected nanoparticle morphology.

3.2. Conventional TEM

3.2.1. Unstained Samples

We began with a TEM analysis of air-dried unstained specimens obtained from PHEA–b–PS diblock copolymer nanoparticles. Conventional TEM is indeed the most straightforward and widely applied method for studying the structure of PISA-derived particles, although it can also suffer from non-negligible problems. Its main obstacle is the poor contrast between the different morphological features. Contrast is hindered by the fact that most polymer blocks are amorphous, similar in electron density, and have a limited scattering cross-sections [34]. In addition, the need for specimen drying or high-energy radiation imposed by conventional TEM may create some artefacts by altering the sample’s structure, topography, or chemical composition. This may particularly be the case when block copolymer nanoparticles contain a polymer segment with a sub-ambient glass transition such as PHEA.
Figure 2 shows high magnification TEM images of PHEA85b–PS130 (Figure 2a) and PHEA23b–PS130 (Figure 2b) dried nanoparticles obtained without staining preparation. To prove that these micrographs are representative, low magnification images are available in the SI (Figure S3). The two objects commonly exhibit a spherical shape and a narrow particle size dispersity ( P D I ≤ 1.05). However, the particles also display a number of differences, particularly in regard to size, morphology, the state of aggregation, and surface structure, that merit more thorough discussion.
Size: In both instances, the number average diameters ( D n ) were well below 100 nm. PHEA85-b-PS130 featured significantly smaller sizes than PHEA23b–PS130: 19.7 ± 3.0 and 36.4 ± 4.8 nm, respectively. The difference of particle size can be attributed to the length of the lyophilic block that determined particle stability against coalescence. Measurement uncertainty was evaluated for each sample: uPHEA23-PS130 = 0.5 nm and uPHEA85-PS130 = 1.4 nm. The values showed that reliable particle sizing is possible. The fact that PHEA85b–PS130 particles appeared with less details and sharpness accounted for the higher uncertainty value.
Morphology: A close inspection of TEM images revealed differences other than particle diameters. While Figure 2a shows a single particle morphology, Figure 2b shows a vast majority of homogenous spherical particles (accounting for more than 95% of objects) and a few isolated vesicles readily recognizable through their inside space (lumen) appearing brighter (indicated by arrows in Figure 2b). The presence of this second minor population suggested the beginning of an order−order morphological transition induced by a decrease of the PHEA stabilizer DP from 85 to 23. As shown in previous reports [12], sphere-to-vesicle transitions could have resulted from the decrease of the effective volume fraction of the hydrophilic block, that hence increases the packing parameter, P, for the copolymer chains. We checked that a new decrease of stabilizing block DP from 23 to 17 resulted in the full transition to vesicle morphology (see the images of PHEA17b–PS136 particles in Figure S4 of the SI). This conclusively supported our hypothesis that a PHEA DP of 23 is probably close to the sphere/vesicle phase boundary.
Aggregation state: It is noteworthy that only the latex exhibiting the shortest PHEA block (Figure 2b) showed signs of coalescence. Our interpretation was that there were drying-induced artefacts due to insufficient steric stabilization. Firstly, because much less aggregated particles were visible when decreasing particle concentration (Figure S5 in the SI). Secondly, DLS data did not show any evidence of aggregates (Figure S1 in the SI).
Surface structure: Of particular interest is that no domain formation assigned to shell and core regions were visible in TEM images. However, clear differences in the aspect of particle surface could be seen. Only PHEA85b–PS130 particles boasting the long PHEA stabilizing block showed unsharp particle boundaries, while the PHEA23b–PS130 particles displayed relatively sharp margins. This result raises two questions. Firstly, were the dried samples representative for the native samples present in dispersion? Secondly, did visible particles boundaries reflect the entire core-shell architecture? Because the lyophilic PHEA phase had a sub-ambient T g PHEA (−7.3 °C) (see differential scanning calorimetry traces in Figure S6 and summary data in Table S1; the SI), the shell was susceptible to significant structural changes upon drying. Our assumption was that PHEA segments could collapse upon drying and form a thin film surrounding the PS core. Under these conditions, the poor mass–thickness contrast of the PHEA phase could have prevented its visualization, and only the PS core (or PS rich domains) may have been imaged. Because PS chains possess a much higher T g PS (99.0 °C), distortions induced by desolvation and exposure to electrons were minimized. Therefore, in conventional TEM, image contrast from the background originated from the locally increased thickness of the bumpy PS core. While the lyophilic shell cannot be unambiguously imaged, the lack of surface sharpness for PHEA85b–PS130 particles compared to PHEA23b–PS130 particles may have translated to a higher excluded volume for the longer PHEA block.
In summary, the TEM analysis of dried particle samples only evaluated the dimension of the core due to collapse of the lyophilic shell upon drying. Hence, the misinterpretation of TEM data could have resulted in errors in the determination of the particle diameter.

3.2.2. Positive Staining

To overcome the aforementioned limitations of conventional TEM, heavy-element-positive staining can be used in order to increase specimen contrast and possibly resolve the PHEA shell unseen with unstained samples. Only in a few isolated studies have staining methods been used to preferentially visualize one phase of core-shell copolymer nanoparticles [35,36,37,38,39]. In the case of positive stain EM, the higher contrast is generated primarily by the differential electron scattering due to more electron-dense stained regions inside the particles and a less electron-dense unstained surrounding environment.
Figure 3 shows the same PHEA85b–PS130 (Figure 3a) and PHEA23b–PS130 (Figure 3b) samples after RuO4-positive staining. RuO4 is a strong scattering agent that reacts with polymer regions inside the particle, thus improving the contrast [40]. Because of its high oxidative properties, RuO4 is presumed to stain both PHEA and PS domains by reacting, respectively, with hydroxyl groups and aromatic unsaturations [31,41,42]. Four different structural features can be highlighted:
Contrast: Regardless of the sample, the action of the stain considerably improved the image contrast against the support film. Image contrast against a grid background can be further enhanced after latex dialysis. In this case, the sample was devoid of soluble copolymer chains (Figure S7; the SI). As noted previously, PHEA23b–PS130 exhibited a pronounced tendency to form pools of clustered particles, while PHEA85b–PS130 particles were well separated.
Size: Interestingly, an increase of the average diameter D n RuO 4 was also observed compared to unstained analogues: 50% for PHEA85b–PS130 (31.1 ± 3.8 nm) and 15% for PHEA23b–PS130 (41.8 ± 7.2 nm). This increase was consistent with our hypothesis that the superficial PHEA-rich region (shell) might be undetected with the unstained specimen and required staining to be revealed. As further evidence, we noted that the size increase for PHEA85b–PS130 particles was much larger than for PHEA23b–PS130, which was consistent with the longer PHEA block and more extended lyophilic shell. It is worth noting that the diameter of the positively stained specimen significantly departed from the number-weighted mean diameters estimated by the DLS measurements: 21 nm (PHEA85b–PS130) and 39 nm (PHEA23b–PS130.). It has been well-reported that a direct comparison between the TEM of dried particles and DLS data involving solvated particles is not always relevant [43].
Halo: As shown in Figure 3a, the positively stained PHEA85b–PS130 showed a darker halo contouring the spherical particles. It is therefore tempting to interpret this feature as a sign of a core-shell architecture. However, the second sample with the short PHEA did not display the similar darker annular contrast, and a control experiment with pure PS nanoparticles (not dialyzed) of similar size subjected to the same staining procedure again showed the same artefact (Figure S8; the SI). The inner ring of darker contrast has been already described in the literature [44] and can be related to two issues: a higher stain concentration at particle surface that makes the particles boundaries more scattering [35] or the result of drying with the preferential adhesion of organic residue on particle surface against the TEM support [45]. In our case, the purification of particles by dialysis did not remove the dark ring (Figure S7; the SI), suggesting the minor role played by stain surface accumulation.
Morphology: Since RuO4 reacts with both polymer segments, it is not possible to achieve a non-ambiguous differentiation of the particle core and shell. In order to preferentially stain the shell, OsO4 was used because of its inefficiency to oxidize the PS phase. Unfortunately, the images (Figure S9; the SI) were similar to those of the unstained samples (Figure 2), indicating that OsO4 staining was ineffective and could not be selectively incorporated in one individual component.
In summary, an RuO4 stain cannot reveal the multiphase structure of composite PHEA–b–PS particles. However, this positive staining is able to shape boundaries of polymer particles, which is of high interest to get a complete picture of the particle. However, there are justified doubts about positive staining’s ability to preserve the native structure of the specimen, as well as a trend to overestimate particle diameter.

3.2.3. Negative Staining

Another complementary way to analyze soft nanomaterials is negative staining TEM, which has been very popular for biological structures but much less employed for polymer colloids [35,37]. In negative staining, the stain does not penetrate the particles; rather it adsorbs to the surface and is dissolved in the continuous phase. After solvent evaporation, the particles are enveloped by an amorphous matrix of an electron-dense stain compound, with the advantages of increasing the contrast; the image is therefore a kind of finger-print [46,47]. When it is properly performed, negative staining with uranyl acetate (UAc) can also preserve the sample’s integrity, morphology, and size.
Figure 4 represents typical TEM images of two negatively stained samples derived from PHEA85b–PS130 (Figure 4a) and PHEA23b–PS130 (Figure 4b) using UAc as the negative stain. A few remarks can be made as dominant characteristics of negatively stained images.
Contrast: As an indication that negative stain was successful, a contrast was produced between the background and the particles. The particles appeared as light areas because of their low electron scattering power relative to the dense surrounding stain, which scattered the electrons more and appeared darker. However, the negative stain was unable to penetrate the object, so internal structural details could not be deduced. Clearly, PHEA23b–PS130 was more amenable to visualization by this method than PHEA85b–PS130. In this case, the copolymer assemblies were more fragile because of a poorer steric stabilization caused by a shorter PHEA stabilizing block. As a result, the particles were more likely to collapse or disassemble upon adsorption, staining, or drying on the grid.
Size and shell thickness: The number average diameters D n UAc = 29.7 ± 4.2 nm (PHEA85b–PS130) and 41.3 ± 5.1 nm (PHEA23b–PS130) were substantially larger than those of the unstained samples. This suggested that a negative coating at particle surface may have been efficient in revealing the particle boundaries, which is a requirement for precise measurement of particle size. Slightly smaller values were found compared to positively stained samples for PHEA85b–PS130 (−5.1 nm) but not for PHEA23b–PS130. This could indicate that positive staining may have over-estimated the dimensions of the nano-objects but only when the shell was extended. By comparing the negatively stained images ( D n UAc ) where particles were presented in the most faithful way and the unstained image ( D n ) was only representative of the particle core, the thickness δ of the shell could be tentatively estimated (δ = ( D n UAc   D n ) / 2 ). For PHEA85b–PS130, δ ~ 5.0 ± 1.8 nm, while the δ of PHEA23b–PS130 was in the error range and could not be accessed with precision due to the limited extent of the PHEA domain. PHEA85-b-PS130 was composed of 85 repeat units for the lyophilic backbone segment, which translated to a maximum end-to-end distance of 15 nm for a fully stretched polymer chain. This value was thus much larger than that of the new region revealed by negative staining. Two reasons are suggested to explain this gap: Firstly, PHEA chains were not likely to be fully stretched because this conformation was entropically unfavorable, and secondly, this soft shell was susceptible to contraction by drying despite negative staining.
In summary, negative staining may be more efficient in preserving the pristine state of copolymer nanoparticles and may shape the particular boundaries in a more faithful manner than positive staining. A comparison with an unstained image can give an indirect access to shell thickness when spatial resolution is sufficient. However, no all specimens are amenable to visualization by negative staining, and core-shell phase differentiation remain inaccessible.

3.3. Cryo-TEM

Previous analyses have shown that PHEA–b–PS particles are problematic specimens for conventional TEM, in particular due their proneness to dehydration in the vacuum of the electron microscope. In what follows, the two same samples were analyzed by cryo-TEM, a useful technique to visualize particle in their dispersion state by rapid vitrification in a thin layer of solvent. Though cryo-TEM requires more complex specimen preparation, it is the only technique that is able to image nanoparticles in their native form.
Figure 5 represents two typical cryo-TEM images of PHEA85b–PS130 (Figure 5a) and PHEA23b–PS130 (Figure 5b) nanoparticles at low magnification.
Size: We noticed that the average diameter of the PHEA23b–PS130 particles (37.0 ± 5.5 nm) was relatively similar regardless of the preparation method: 36.4 nm with drying and 41.8 and 41.3 nm with positive and negative staining, respectively. In this case, the shell was thin (<2 nm), resulting in minimal size deviations between techniques that could resolve PHEA region (negative/positive staining TEM) and the others that could not. Conversely, PHEA85b–PS130 presented a more extended shell, and its apparent diameter was consistently more dependent on the EM preparation method. Interestingly, the particle size calculated from the cryo-TEM image (21.6 ± 3.2 nm) was relatively similar to that of unstained dried sample (19.7 nm) and, was therefore substantially lower than the diameters derived from positively stained TEM (31.1 nm) and negatively stained TEM (29.7 nm). This suggests that analysis of undried specimen by cryo-TEM also only evaluated the dimension of the core. This time, the explanation was not the collapse of the hydrophilic shell but the difference of the conformation between lyophilic and lyophobic chains. The PHEA chains were likely to be partially stretched, whereas the PS core was more closely packed due to its hydrophobic nature. The difference of chain density between core and shell chains accounted for the mass–thickness contrast of PHEA significantly smaller than that of PS, leading to a poorer capacity to scatter electrons.
Morphology: A more in-depth examination of the PHEA85b–PS130 specimen obtained at high magnification (see the inset of Figure 5a) revealed dark spots inside the particles. These features were not artefacts and could be rationalized on the basis of extended PHEA chains pointing in a direction parallel to the electron beam. Conversely, chains that were not parallel to the beam had a much lower scattering efficiency and could not be imaged. Due to fast vitrification, the PHEA molecules usually adopt random orientations in the amorphous ice layer; consequently, the PHEA chains at the edge of the particle were unlikely to adopt this particular orthogonal orientation, making the visualization of lyophilic shell impossible. In contrast, PHEA23b–PS130 did not display a similar patched structure since the short PHEA chains did not have a sufficient scattering efficiency. In the same sample, it was noteworthy that some isolated vesicles could be detected in the inset of Figure 5b, supporting that their presence in conventional TEM was not an artefact caused by drying or concentration effects. In addition, no sign of coalescence was visible (as noted previously in TEM images), thus confirming the previous assumption of drying-induced aggregation (vide supra).
Surface structure: Figure 5a shows that PHEA85b–PS130 particles presented a fuzzy surface that resembled an envelope, as opposed to the sharper surface of PHEA23b–PS130 (Figure 5b) and PS particles (Figure 5c) serving as benchmark. Used as benchmark latex, the particles appeared homogeneous with a smooth surface. The fog surface, together with the irregular shape of the copolymer nanoparticles, could be assigned to a brush structure with density fluctuation as opposed to a dense core. This feature was reminiscent of a core-shell architecture, although no indisputable proof was provided because no morphology domains could be imaged within the particle.
In summary, cryo-TEM cannot resolve the nanoparticle shell because the lyophilic PHEA in stretch conformation forms regions with a low chain density and therefore poor electron capacity. When a shell-forming block is long enough, its presence is manifested by an unsharp envelope and dark spots inside the PS core suggestive of chains perpendicular to the plane.

3.4. SEM

SEM has distinctive advantages compared to TEM and cryo-TEM; in particular, finer surface structure images can be obtained upon operating at lower accelerating voltages. Under these conditions, the penetration and diffusion area of incident electrons is shallow. Surface structures are thus gained because the number of secondary electrons emitted from the surface is maximized compared to backscattered electrons generated from within the specimen [48]. SEM can be employed to analyze nanoparticle size, shape, and surface structure.
Figure 6 displays SEM images of PHEA85b–PS130 (Figure 6a) and PHEA23b–PS130 (Figure 6b) nanoparticles. To ease interpretation, a control analysis with PS nanoparticles was also carried out (Figure 6c). To prove that these micrographs are representative, low magnification images are also available in the SI (Figure S10). In all instances, an accelerating voltage of 5.5 kV was used during image acquisition in order to emphasize surface structures. Thanks to a −5 kV specimen bias voltage, the electrons eventually struck the sample with a landing voltage of only 500 V, thus protecting it from damage.
Particle size: The number average particle diameters of PHEA85b–PS130 (22.9 ± 2.9 nm) and PHEA23b–PS130 (34.8 ± 5.3 nm), as well as size dispersities (PDI ≤ 1.04), were comparable to those of TEM (without staining) and cryo-TEM. This result suggested that SEM also failed to resolve the PHEA shell of the PHEA85b–PS130 specimen. However, particle core size and shape could be determined with precision. Like previous TEM images, the PHEA23b–PS130 latex exhibiting the shortest PHEA block showed signs of coalescence attributed to drying.
Surface structure: Using the PS latex as a benchmark, a thin bright corona attributed to edge effects are visualized in Figure 6c [49]. It is well-established that particle edges (see schematic explanation in Figure S11) allows for greater electron beam penetration into surface region. This results in the generation/escape of a larger number of secondary electrons, giving rise to a typical bright particle surface. By comparison, PHEA23b–PS130 (Figure 6b) displayed a much thicker bright corona due to the emission of more secondary electrons. PHEA85b–PS130 particles (Figure 6c) appeared even brighter because the surface may have had a higher secondary electron emitting capacity. The more pronounced brightening of the copolymer particles compared to the PS particles could be reconciled with the presence of protrusions onto the particle surface. The longer the PHEA chains, the greater the edge effect. Another non-direct indication of core-shell morphology relies on extremely blurred interphase, particularly for PHEA85b–PS130-based nanoparticles.
Scanning transmission electron microscopy (STEM): The same tandem of nanoparticles (PHEA85b–PS130 and PHEA23b–PS130) was also analyzed using an STEM detection mode. This transmission working mode is known to provide a better spatial resolution than SEM because of a stronger mass–thickness contrast. Accordingly, measurement uncertainties were of the same order of magnitude or even weaker than for TEM data: u PHEA 85 b PS 130 = 0.70 nm and u PHEA 23 b PS 130 = 0.85 nm. In addition, the accelerating voltage was much lower than in conventional TEM (30 kV versus 200 kV), implying fewer risks of damaging the sample, especially the PHEA layer. The results gathered in Table 1 show a strong resemblance between STEM and TEM size in regard to average particle diameter and measurement uncertainty. Again, staining revealed the entire particle volume without contrasting shells and cores, while non-stained samples showed only the PS core. All STEM images are available in Figure S12.
In summary, the edge effect in SEM might have been evidence of the presence of protruding PHEA chains at the particle surface (although more evidence is needed). Nevertheless, the PHEA shell could not be resolved in a way to allow for the precise determination of particle size and shape. Therefore, the apparent diameter was largely the particle core. Interestingly, the STEM mode could be considered a viable alternative to TEM to image the block copolymer nanoparticles.

4. Conclusions

Amphiphilic block polymer nanoparticles display a core-shell architecture, but the precise imaging of their multiphase structure has long been elusive and problematic. Herein, we reported the morphological characterization of two PHEAxb–PS130 copolymer nanoparticles bearing short and long PHEA stabilizing blocks (x = 23 and 85) using TEM, cryo-TEM, and SEM. The shell extent of PHEA23b–PS130 was too short to be resolved, regardless of the method. This explains why the particle size given by the three EM techniques were in the same average order. By contrast, the PHEA85b–PS130 particles boasting the longest PHEA stabilizing block showed significant differences depending on the technique. The TEM analysis of air-dried unstained sample could only image the particle core, and a blurred interface provided the hint of the shell existence. Staining is thus essential for shaping particle boundaries, and negative staining using uranyl acetate seems more amenable than positive staining (RuO4) to fix particles in their pristine form and then obtain a precise measurement of particle size. However, here, no staining method was able to reveal the multiphase structure. Cryo-TEM ensured that the specimens could be studied in their native form, but the solvophilic PHEA in stretch conformation exhibited too poor an electron capacity to allow for visualization, and only protruding chains appeared as dark spots from the particle interior. Like TEM and cryo-TEM, SEM could only evaluate the PS core. However, fine surface structures reminiscent of PHEA shell could be imaged through the “edge effect,” leading to highly bright particles with an unsharp interface. In conclusion, no technique allowed for a satisfactory imaging of core and shell regions, but their combination gave access to particle size, shell thickness, and specific morphological features suggestive of shell existence. We believe that these findings will open new avenue in the rational use of microscopy techniques for the analysis of soft self-assembled polymer nanostructures.

Supplementary Materials

The following are available online at, Figure S1: SEC traces and DLS size distributions of PHEAx-b-PSy copolymer nanoparticles; Figure S2: Schematic representation of positive staining set-up; Figure S3: Low magnification TEM images; Figure S4: TEM image of vesicles derived from PHEA17-b-PS136; Figure S5: TEM images of air-dried unstained PHEA23-b-PS130 nanoparticles at different concentrations; Figure S6: DSC traces of PHEAx-b-PSy diblock copolymer and individual blocks; Figure S7: Effect of dialysis on TEM images; Figure S8: TEM image of air-dried unstained PS latex; Figure S9: Positively stained TEM images; Figure S10: Low magnification SEM images; Figure S11: Representation of edge effect in SEM imaging; Figure S12: Series of STEM images of PHEAx-b-PSy spherical nanoparticles; and Table S1: Glass transition temperatures of copolymers.

Author Contributions

Investigation and writing—review and editing, visualization, V.T.; investigation and resources, L.J.; investigation and resources, L.V.; investigation and resources, M.S. conceptualization, supervision, and funding acquisition, J.P.; conceptualization, methodology, writing—review and editing, supervision, and funding acquisition, A.C. All authors have read and agreed to the published version of the manuscript.


This research was funded by the Ministry of Higher Education and Research in France (“Ministère de l’Enseignement Supérieur et de la Recherche”, MESR) for granting a PhD fellowship to Vitalii Tkachenko.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Letchford, K.; Burt, H. A review of the formation and classification of amphiphilic block copolymer nanoparticulate structures: Micelles, nanospheres, nanocapsules and polymersomes. Eur. J. Pharm. Biopharm. 2007, 65, 259–269. [Google Scholar] [CrossRef] [PubMed]
  2. Lee, B.K.; Yun, Y.H.; Park, K. Smart nanoparticles for drug delivery: Boundaries and opportunities. Chem. Eng. Sci. 2015, 125, 158–164. [Google Scholar] [CrossRef] [PubMed][Green Version]
  3. Nicolai, T.; Colombani, O.; Chassenieux, C. Dynamic polymeric micelles versus frozen nanoparticles formed by block copolymers. Soft Matter 2010, 6, 3111–3118. [Google Scholar] [CrossRef]
  4. Zehm, D.; Ratcliffe, L.P.D.; Armes, S.P. Synthesis of Diblock Copolymer Nanoparticles via RAFT Alcoholic Dispersion Polymerization: Effect of Block Copolymer Composition, Molecular Weight, Copolymer Concentration, and Solvent Type on the Final Particle Morphology. Macromolecules 2013, 46, 128–139. [Google Scholar] [CrossRef]
  5. Le, D.; Keller, D.; Delaittre, G. Reactive and Functional Nanoobjects by Polymerization-Induced Self-Assembly. Macromol. Rapid Commun. 2019, 40, 1800551. [Google Scholar] [CrossRef]
  6. Blackman, L.D.; Varlas, S.; Arno, M.C.; Houston, Z.H.; Fletcher, N.L.; Thurecht, K.J.; Hasan, M.; Gibson, M.I.; O’Reilly, R.K. Confinement of Therapeutic Enzymes in Selectively Permeable Polymer Vesicles by Polymerization-Induced Self-Assembly (PISA) Reduces Antibody Binding and Proteolytic Susceptibility. ACS Cent. Sci. 2018, 4, 718–723. [Google Scholar] [CrossRef]
  7. Xiong, X.-B.; Falamarzian, A.; Garg, S.M.; Lavasanifar, A. Engineering of amphiphilic block copolymers for polymeric micellar drug and gene delivery. J. Control. Release 2011, 155, 248–261. [Google Scholar] [CrossRef]
  8. Reisch, A.; Klymchenko, A.S. Fluorescent Polymer Nanoparticles Based on Dyes: Seeking Brighter Tools for Bioimaging. Small 2016, 12, 1968–1992. [Google Scholar] [CrossRef][Green Version]
  9. Chenal, M.; Rieger, J.; Véchambre, C.; Chenal, J.-M.; Chazeau, L.; Creton, C.; Bouteiller, L. Soft Nanostructured Films with an Ultra-Low Volume Fraction of Percolating Hard Phase. Macromol. Rapid Commun. 2013, 34, 1524–1529. [Google Scholar] [CrossRef]
  10. Cayre, O.J.; Chagneux, N.; Biggs, S. Stimulus responsive core-shell nanoparticles: Synthesis and applications of polymer based aqueous systems. Soft Matter 2011, 7, 2211–2234. [Google Scholar] [CrossRef]
  11. Bertrand, O.; Gohy, J.-F. Photo-responsive polymers: Synthesis and applications. Polym. Chem. 2017, 8, 52–73. [Google Scholar] [CrossRef]
  12. Tkachenko, V.; Matei Ghimbeu, C.; Vaulot, C.; Vidal, L.; Poly, J.; Chemtob, A. RAFT-photomediated PISA in dispersion: Mechanism, optical properties and application in templated synthesis. Polym. Chem. 2019, 10, 2316–2326. [Google Scholar] [CrossRef]
  13. Zhang, Y.; Wang, Z.; Matyjaszewski, K.; Pietrasik, J. Versatile PISA templates for tailored synthesis of nanoparticles. Eur. Polym. J. 2019, 110, 49–55. [Google Scholar] [CrossRef]
  14. Musyanovych, A.; Landfester, K. Core–Shell Particles. In Macromolecular Engineering; John Wiley & Sons, Ltd.: Weinheim, Germany, 2011; pp. 1209–1247. ISBN 978-3-527-63142-1. [Google Scholar]
  15. Biswas, S.; Kumari, P.; Lakhani, P.M.; Ghosh, B. Recent advances in polymeric micelles for anti-cancer drug delivery. Eur. J. Pharm. Sci. 2016, 83, 184–202. [Google Scholar] [CrossRef] [PubMed]
  16. Sun, G.; Berezin, M.Y.; Fan, J.; Lee, H.; Ma, J.; Zhang, K.; Wooley, K.L.; Achilefu, S. Bright fluorescent nanoparticles for developing potential optical imaging contrast agents. Nanoscale 2010, 2, 548–558. [Google Scholar] [CrossRef][Green Version]
  17. Keller, D.; Beloqui, A.; Martínez-Martínez, M.; Ferrer, M.; Delaittre, G. Nitrilotriacetic Amine-Functionalized Polymeric Core–Shell Nanoparticles as Enzyme Immobilization Supports. Biomacromolecules 2017, 18, 2777–2788. [Google Scholar] [CrossRef]
  18. Ladmiral, V.; Semsarilar, M.; Canton, I.; Armes, S.P. Polymerization-Induced Self-Assembly of Galactose-Functionalized Biocompatible Diblock Copolymers for Intracellular Delivery. J. Am. Chem. Soc. 2013, 135, 13574–13581. [Google Scholar] [CrossRef]
  19. Chenal, M.; Véchambre, C.; Chenal, J.-M.; Chazeau, L.; Humblot, V.; Bouteiller, L.; Creton, C.; Rieger, J. Mechanical properties of nanostructured films with an ultralow volume fraction of hard phase. Polymer 2017, 109, 187–196. [Google Scholar] [CrossRef][Green Version]
  20. Gosecka, M.; Gosecki, M. Characterization methods of polymer core–shell particles. Colloid Polym. Sci. 2015, 293, 2719–2740. [Google Scholar] [CrossRef]
  21. Fenyves, R.; Schmutz, M.; Horner, I.J.; Bright, F.V.; Rzayev, J. Aqueous Self-Assembly of Giant Bottlebrush Block Copolymer Surfactants as Shape-Tunable Building Blocks. J. Am. Chem. Soc. 2014, 136, 7762–7770. [Google Scholar] [CrossRef]
  22. Müllner, M.; Müller, A.H.E. Cylindrical polymer brushes—Anisotropic building blocks, unimolecular templates and particulate nanocarriers. Polymer 2016, 98, 389–401. [Google Scholar] [CrossRef]
  23. Gröschel, A.H.; Müller, A.H.E. Self-assembly concepts for multicompartment nanostructures. Nanoscale 2015, 7, 11841–11876. [Google Scholar] [CrossRef] [PubMed][Green Version]
  24. Wei, Z.; Gourevich, I.; Field, L.; Coombs, N.; Kumacheva, E. TEM Imaging of Polymer Multilayer Particles: Advantages, Limitations, and Artifacts. Macromolecules 2006, 39, 2441–2444. [Google Scholar] [CrossRef]
  25. Hu, X.; Tong, Z.; Lyon, L.A. Multicompartment Core/Shell Microgels. J. Am. Chem. Soc. 2010, 132, 11470–11472. [Google Scholar] [CrossRef] [PubMed]
  26. Touve, M.A.; Figg, C.A.; Wright, D.B.; Park, C.; Cantlon, J.; Sumerlin, B.S.; Gianneschi, N.C. Polymerization-Induced Self-Assembly of Micelles Observed by Liquid Cell Transmission Electron Microscopy. ACS Cent. Sci. 2018, 4, 543–547. [Google Scholar] [CrossRef]
  27. Parent, L.R.; Bakalis, E.; Proetto, M.; Li, Y.; Park, C.; Zerbetto, F.; Gianneschi, N.C. Tackling the Challenges of Dynamic Experiments Using Liquid-Cell Transmission Electron Microscopy. Acc. Chem. Res. 2018, 51, 3–11. [Google Scholar] [CrossRef]
  28. Parent, L.R.; Bakalis, E.; Ramírez-Hernández, A.; Kammeyer, J.K.; Park, C.; de Pablo, J.; Zerbetto, F.; Patterson, J.P.; Gianneschi, N.C. Directly Observing Micelle Fusion and Growth in Solution by Liquid-Cell Transmission Electron Microscopy. J. Am. Chem. Soc. 2017, 139, 17140–17151. [Google Scholar] [CrossRef]
  29. Lansalot, M.; Rieger, J. Polymerization-Induced Self-Assembly. Macromol. Rapid Commun. 2019, 40, 1800885. [Google Scholar] [CrossRef][Green Version]
  30. El-Say, K.M.; El-Sawy, H.S. Polymeric nanoparticles: Promising platform for drug delivery. Int. J. Pharm. 2017, 528, 675–691. [Google Scholar] [CrossRef]
  31. Li, W.S.J.; Ladmiral, V.; Takeshima, H.; Satoh, K.; Kamigaito, M.; Semsarilar, M.; Negrell, C.; Lacroix-Desmazes, P.; Caillol, S. Ferulic acid-based reactive core–shell latex by seeded emulsion polymerization. Polym. Chem. 2019, 10, 3116–3126. [Google Scholar] [CrossRef]
  32. Imai, H.; Shima, T.; Sutoh, K.; Walker, M.L.; Knight, P.J.; Kon, T.; Burgess, S.A. Direct observation shows superposition and large scale flexibility within cytoplasmic dynein motors moving along microtubules. Nat. Commun. 2015, 6. [Google Scholar] [CrossRef] [PubMed][Green Version]
  33. Scarff, C.A.; Fuller, M.J.G.; Thompson, R.F.; Iadaza, M.G. Variations on Negative Stain Electron Microscopy Methods: Tools for Tackling Challenging Systems. J. Vis. Exp. 2018, 57199. [Google Scholar] [CrossRef] [PubMed][Green Version]
  34. Yakovlev, S.; Libera, M. Dose-limited spectroscopic imaging of soft materials by low-loss EELS in the scanning transmission electron microscope. Micron 2008, 39, 734–740. [Google Scholar] [CrossRef] [PubMed]
  35. Gaillard, C.; Fuchs, G.; Plummer, C.J.G.; Stadelmann, P.A. The morphology of submicronsized core–shell latex particles: An electron microscopy study. Micron 2007, 38, 522–535. [Google Scholar] [CrossRef]
  36. Harris, J.R.; Roos, C.; Djalali, R.; Rheingans, O.; Maskos, M.; Schmidt, M. Application of the negative staining technique to both aqueous and organic solvent solutions of polymer particles. Micron 1999, 30, 289–298. [Google Scholar] [CrossRef]
  37. Ferguson, C.J.; Russell, G.T.; Gilbert, R.G. Synthesis of latices with polystyrene cores and poly(vinyl acetate) shells. 1. Use of polystyrene seeds. Polymer 2002, 43, 6371–6382. [Google Scholar] [CrossRef]
  38. Fairley, N.; Hoang, B.; Allen, C. Morphological Control of Poly(ethylene glycol)- block -poly(ε-caprolactone) Copolymer Aggregates in Aqueous Solution. Biomacromolecules 2008, 9, 2283–2291. [Google Scholar] [CrossRef]
  39. Geng, X.; Zhai, M.X.; Sun, T.; Meyers, G. Morphology Observation of Latex Particles with Scanning Transmission Electron Microscopy by a Hydroxyethyl Cellulose Embedding Combined with RuO4 Staining Method. Microsc. Microanal. 2013, 19, 319–326. [Google Scholar] [CrossRef]
  40. Trent, J.S. Ruthenium tetraoxide staining of polymers: New preparative methods for electron microscopy. Macromolecules 1984, 17, 2930–2931. [Google Scholar] [CrossRef]
  41. Antonietti, M.; Berton, B.; Göltner, C.; Hentze, H.-P. Synthesis of Mesoporous Silica with Large Pores and Bimodal Pore Size Distribution by Templating of Polymer Latices. Adv. Mater. 1998, 10, 154–159. [Google Scholar] [CrossRef]
  42. Pusch, J.; van Herk, A.M. Emulsion Polymerization of Transparent Core−Shell Latices with a Polydivinylbenzene Styrene and Vinyl Acetate. Macromolecules 2005, 38, 6909–6914. [Google Scholar] [CrossRef]
  43. Hanus, L.H.; Ploehn, H.J. Conversion of Intensity-Averaged Photon Correlation Spectroscopy Measurements to Number-Averaged Particle Size Distributions. 1. Theoretical Development. Langmuir 1999, 15, 3091–3100. [Google Scholar] [CrossRef]
  44. Renz, P.; Kokkinopoulou, M.; Landfester, K.; Lieberwirth, I. Imaging of Polymeric Nanoparticles: Hard Challenge for Soft Objects. Macromol. Chem. Phys. 2016, 217, 1879–1885. [Google Scholar] [CrossRef]
  45. Michen, B.; Geers, C.; Vanhecke, D.; Endes, C.; Rothen-Rutishauser, B.; Balog, S.; Petri-Fink, A. Avoiding drying-artifacts in transmission electron microscopy: Characterizing the size and colloidal state of nanoparticles. Sci. Rep. 2015, 5, 9793. [Google Scholar] [CrossRef] [PubMed][Green Version]
  46. Mackiewicz, M.; Stojek, Z.; Karbarz, M. Unusual swelling behavior of core-shell microgels built from polymers exhibiting lower critical solubility temperature. Eur. Polym. J. 2017, 95, 314–322. [Google Scholar] [CrossRef]
  47. Vanparijs, N.; Nuhn, L.; Paluck, S.J.; Kokkinopoulou, M.; Lieberwirth, I.; Maynard, H.D.; De Geest, B.G. Core/shell protein-reactive nanogels via a combination of RAFT polymerization and vinyl sulfone postmodification. Nanomedicine 2016, 11, 2631–2645. [Google Scholar] [CrossRef][Green Version]
  48. Vladár, A.E.; Hodoroaba, V.-D. Characterization of nanoparticles by scanning electron microscopy. In Characterization of Nanoparticles; Elsevier: Amsterdam, The Netherlands, 2020; pp. 7–27. ISBN 978-0-12-814182-3. [Google Scholar]
  49. Ul-Hamid, A. A Beginners’ Guide to Scanning Electron Microscopy; Springer International Publishing: Cham, Switzerland, 2018; ISBN 978-3-319-98481-0. [Google Scholar]

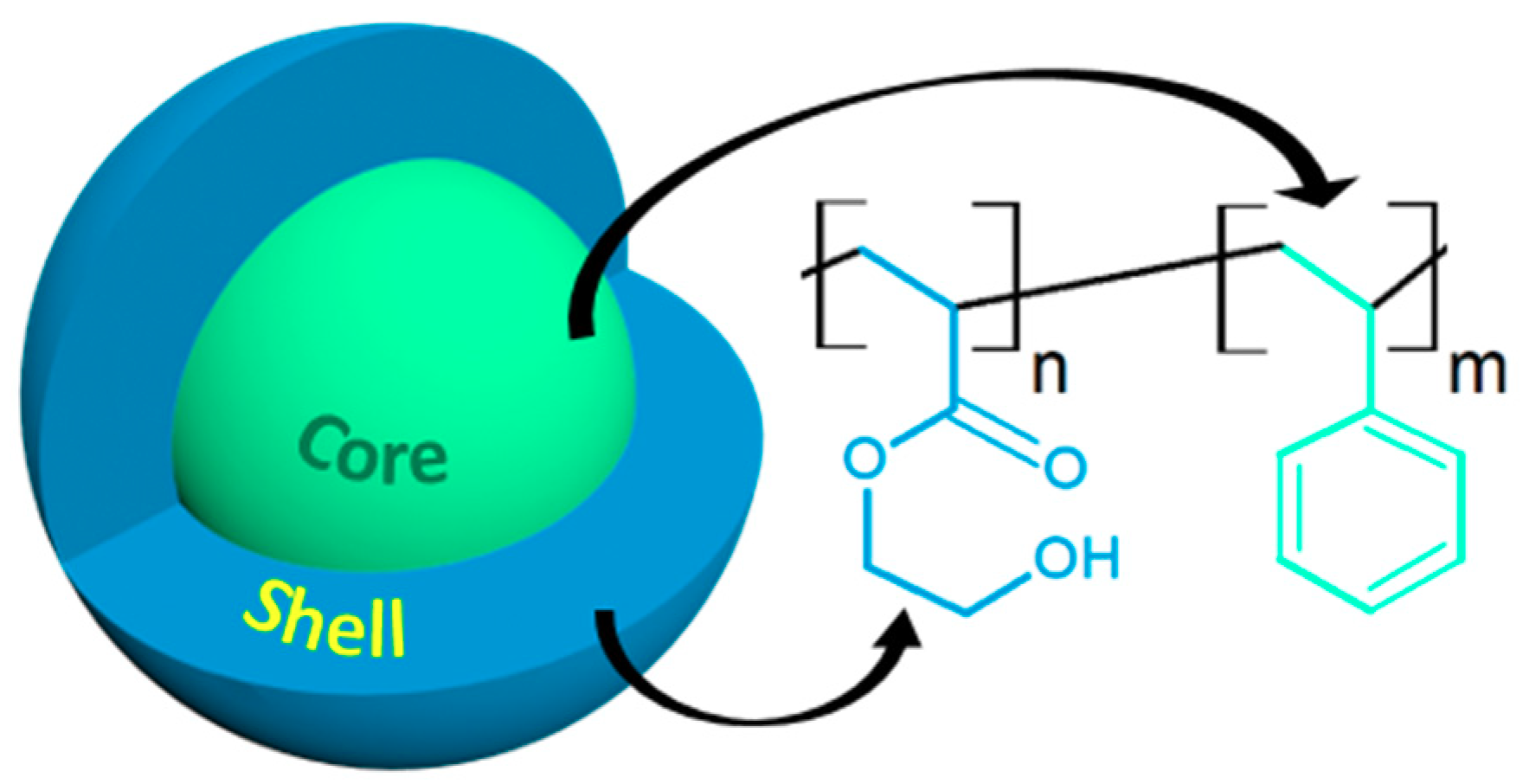

Figure 1. Schematic representation of poly(hydroxyethyl acrylate)–b–poly(styrene) (PHEA–b–PS) core-shell nanoparticles.
Figure 1. Schematic representation of poly(hydroxyethyl acrylate)–b–poly(styrene) (PHEA–b–PS) core-shell nanoparticles.
Polymers 12 01656 g001

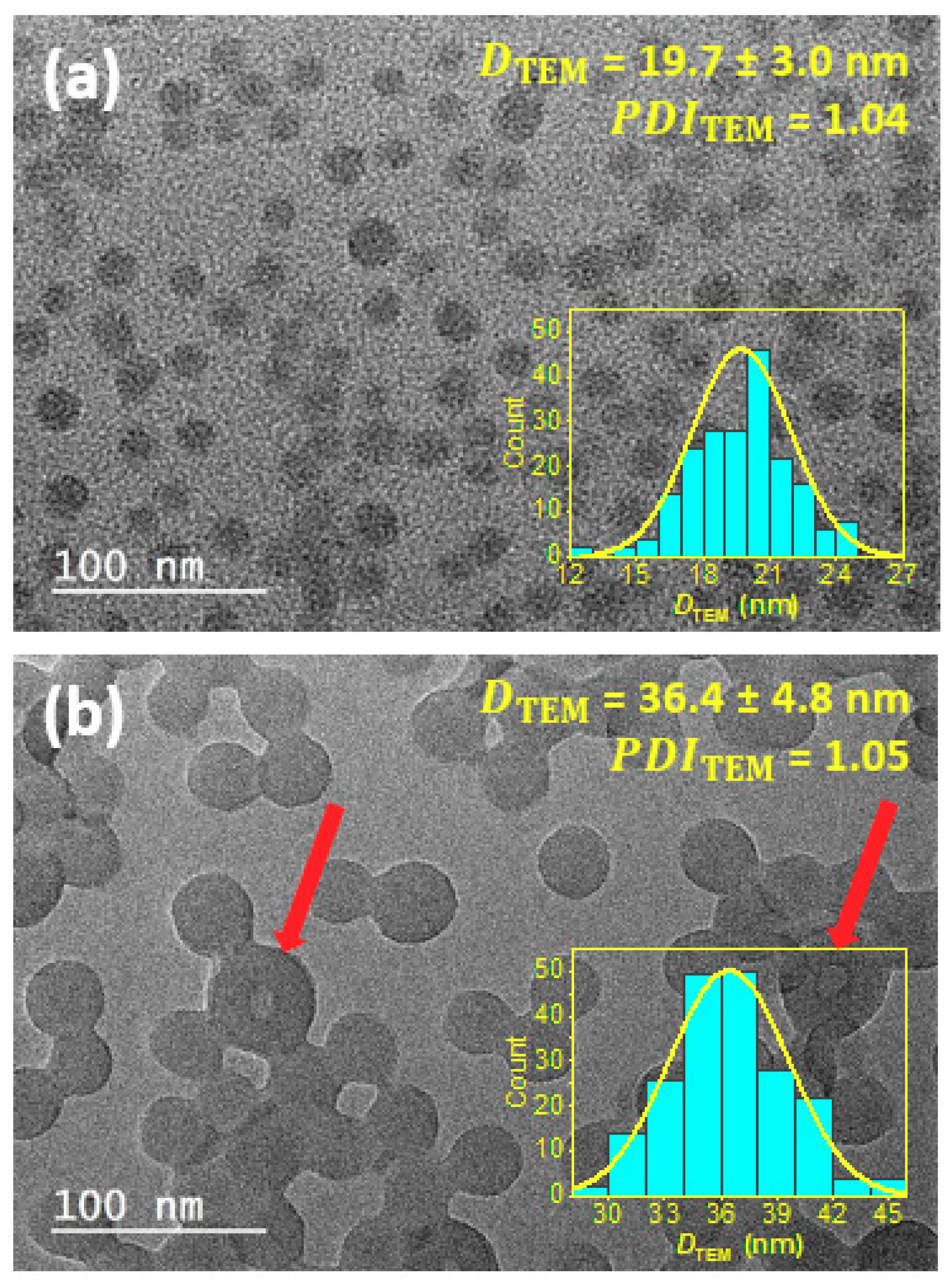

Figure 2. Conventional TEM images of (a) PHEA85b–PS130 and (b) PHEA23b–PS130 block copolymer nanoparticles. The inset shows the size distribution obtained from TEM measurements. The red arrows in (b) highlight vesicular structures.
Figure 2. Conventional TEM images of (a) PHEA85b–PS130 and (b) PHEA23b–PS130 block copolymer nanoparticles. The inset shows the size distribution obtained from TEM measurements. The red arrows in (b) highlight vesicular structures.
Polymers 12 01656 g002

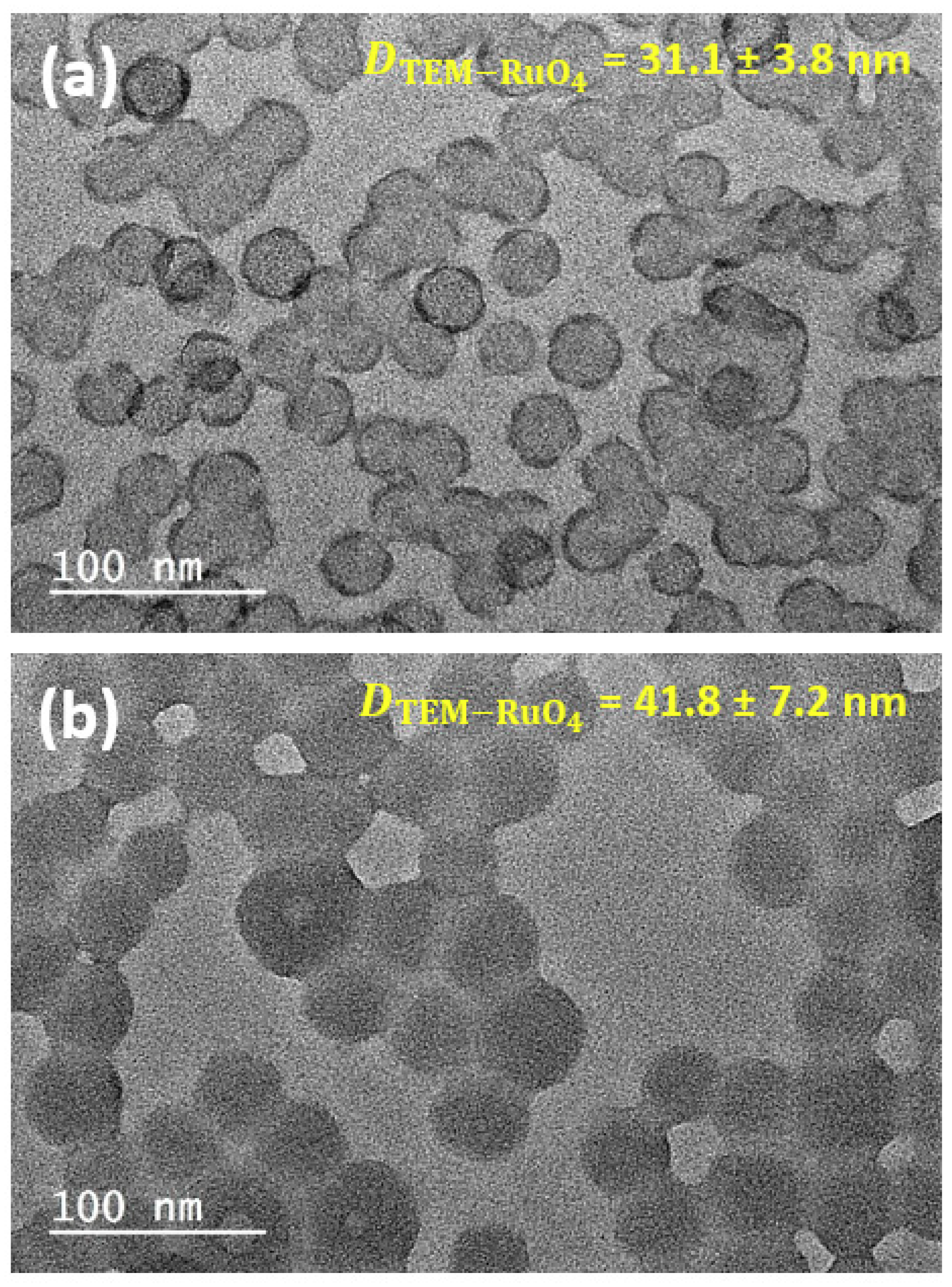

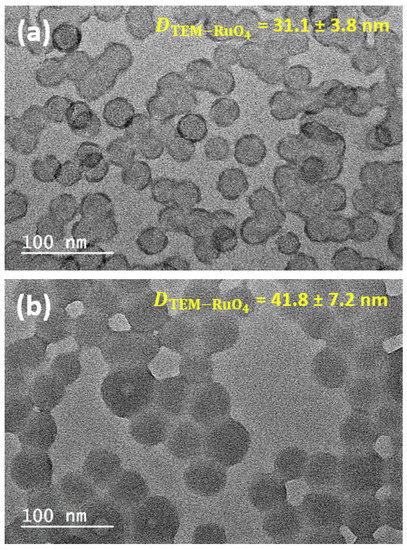

Figure 3. Positive staining electron microscopy (EM) images of (a) PHEA85b–PS130 and (b) PHEA23b–PS130.
Figure 3. Positive staining electron microscopy (EM) images of (a) PHEA85b–PS130 and (b) PHEA23b–PS130.
Polymers 12 01656 g003

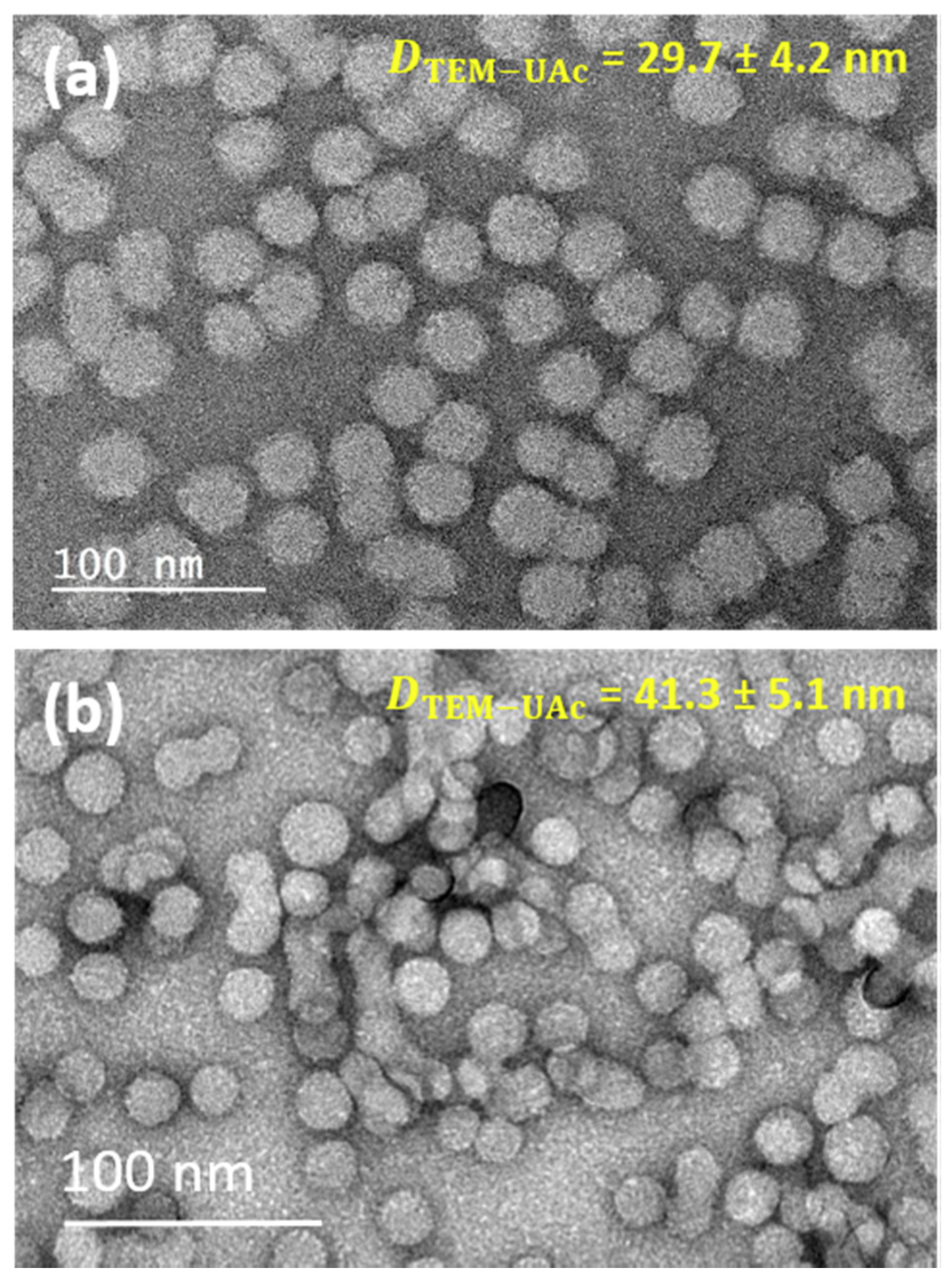

Figure 4. Negative stain electron microscopy of (a) PHEA85b–PS130 and (b) PHEA23b–PS130.
Figure 4. Negative stain electron microscopy of (a) PHEA85b–PS130 and (b) PHEA23b–PS130.
Polymers 12 01656 g004

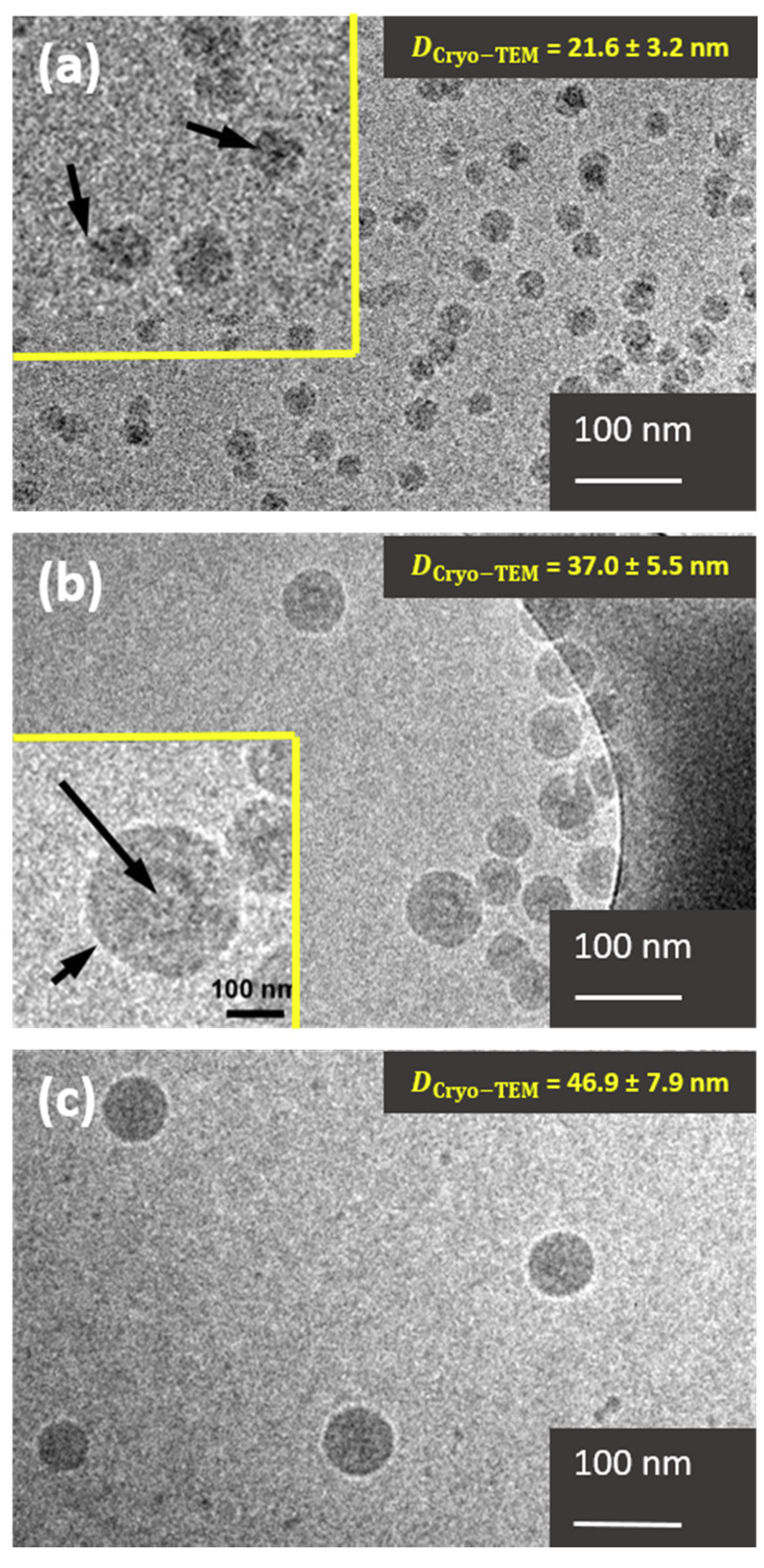

Figure 5. (a) Cryo-TEM image of PHEA85b–PS130 particles. Particle surface displays some dark spots, better seen in the inset. Indicated by arrows, these spots correspond to PHEA chains pointing parallel to the electron beam trough the continuous phase. (b) Cryo-TEM image of the PHEA23b–PS130 particles. Two particle morphologies can be distinguished: spherical particles and vesicles. The inset shows the vesicle. The darker rim corresponds to the PHEA chains (short arrow), then the light grey the PS, and finally, again, a darker thin rim for the PHEA chains in contact with the inner space (long arrow). (c) Pure PS nanoparticles.
Figure 5. (a) Cryo-TEM image of PHEA85b–PS130 particles. Particle surface displays some dark spots, better seen in the inset. Indicated by arrows, these spots correspond to PHEA chains pointing parallel to the electron beam trough the continuous phase. (b) Cryo-TEM image of the PHEA23b–PS130 particles. Two particle morphologies can be distinguished: spherical particles and vesicles. The inset shows the vesicle. The darker rim corresponds to the PHEA chains (short arrow), then the light grey the PS, and finally, again, a darker thin rim for the PHEA chains in contact with the inner space (long arrow). (c) Pure PS nanoparticles.
Polymers 12 01656 g005

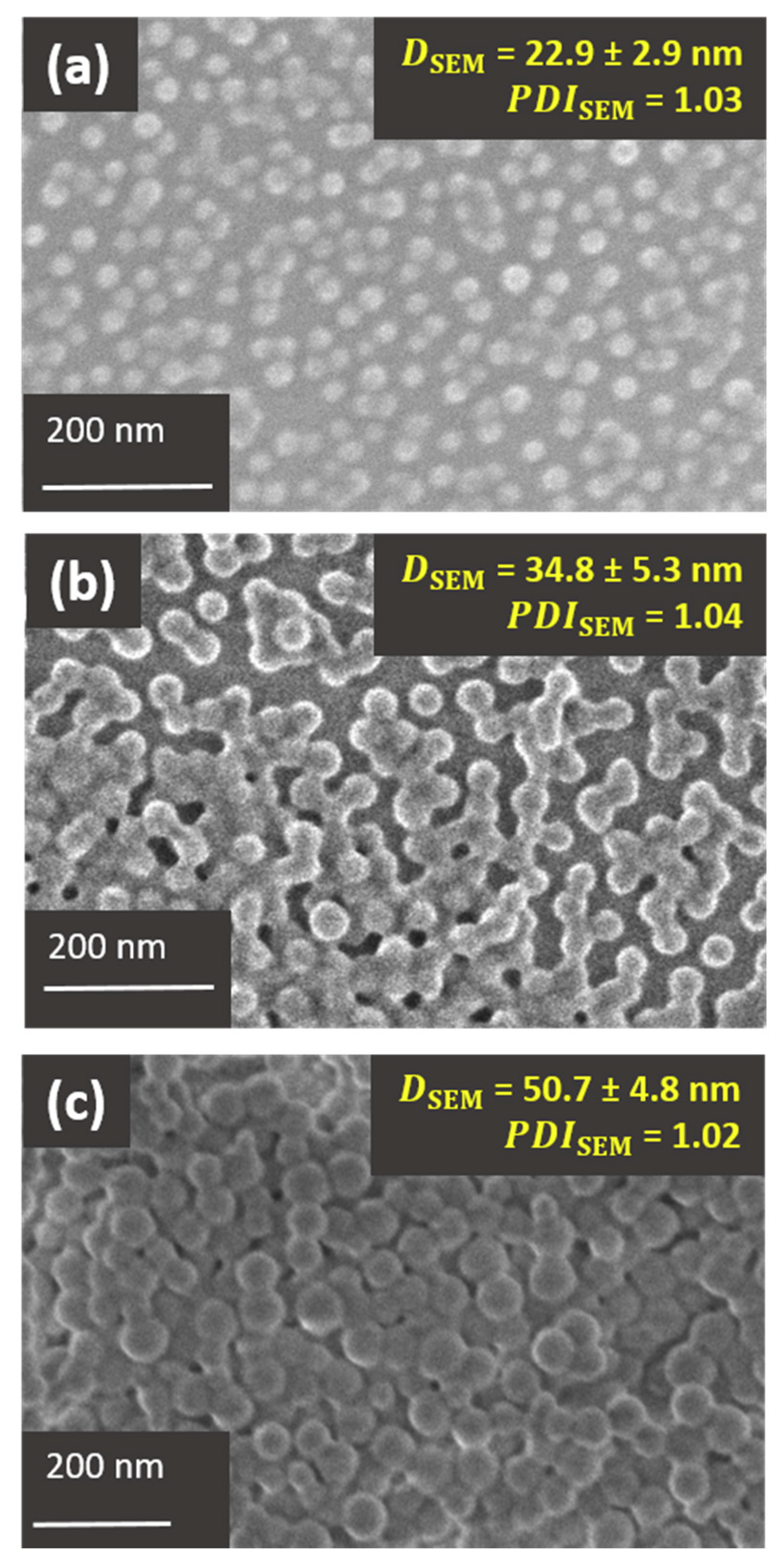

Figure 6. SEM images of (a) PHEA85b–PS130, (b) PHEA23b–PS130 diblock copolymer nanoparticles, and (c) PS latex used as model latex. All images were obtained at a landing voltage of 500 V.
Figure 6. SEM images of (a) PHEA85b–PS130, (b) PHEA23b–PS130 diblock copolymer nanoparticles, and (c) PS latex used as model latex. All images were obtained at a landing voltage of 500 V.
Polymers 12 01656 g006
Table 1. Comparison between particle size data determined by TEM and SEM.
Table 1. Comparison between particle size data determined by TEM and SEM.
Microscopic MethodPHEA85b–PS130PHEA23b–PS130
Dp, nm
TEM19.7 ± 3.036.4 ± 4.8
TEM with RuO4-positive staining31.1 ± 3.841.8 ± 7.2
STEM20.2 ± 1.734.8 ± 2.6
STEM with RuO4-positive staining28.1 ± 2.242.6 ± 4.0
