Antibacterial Activity of Biocellulose with Oregano Essential Oil against Cronobacter Strains

by
Gulden Nagmetova
1,2,
Anna Berthold-Pluta
3,
Monika Garbowska
3,
Askar Kurmanbayev
1 and
Lidia Stasiak-Różańska
3,*
1
National Center for Biotechnology, Laboratory of Ecological Biotechnology, 13/5, Kurgalzhynskoye Road, Nur-Sultan 010000, Kazakhstan
2
Department of General Biology and Genomics, L.N. Gumilyov Eurasian National University, Kazhymukan 13 St., Nur-Sultan 010000, Kazakhstan
3
Division of Milk Technology, Department of Food Technology and Assessment, Institute of Food Sciences, Warsaw University of Life Sciences—SGGW, Nowoursynowska 159C St., 02-787 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Polymers 2020, 12(8), 1647; https://doi.org/10.3390/polym12081647
Submission received: 10 July 2020 / Revised: 20 July 2020 / Accepted: 22 July 2020 / Published: 24 July 2020
(This article belongs to the Special Issue Polymeric Materials with Antibacterial Activity)
Browse Figures
Versions Notes

Abstract

:
Biocellulose, named “the biomaterial of the future”, is a natural and ecologically friendly polymer, produced by selected acetic acid bacteria strains. Biocellulose impregnated with antimicrobial agents can be used as a novel, safe, and biodegradable food packaging material, helping extend the shelf life of some products and may also have the chance to replace typical plastic packaging, which is a big environmental problem these days. This study aimed to evaluate if cellulose impregned with natural oregano essential oil could show antibacterial activity against Cronobacter strains, which can occur in food, causing diseases and food poisoning. Bacterial cellulose was obtained from two acetic bacteria strains, Gluconacetobacter hansenii ATCC 23769 and Komagataeibacter sp. GH1. Antibacterial activity was studied by the disc-diffusion method against chosen Cronobacter strains, isolated from the plant matrix. Oregano essential oil has been shown to penetrate into the structure of bacterial cellulose, and after applying cellulose to the solid medium, it showed the ability to migrate. Biopolymer from the strain K. sp. GH1 was able to better absorb and retain essential oregano oil (OEO) compared to bacterial cellulose (BC) produced by the G. hansenii ATCC 23769. Bacterial cellulose with oregano essential oil from strain Komagataeibacter GH1 showed generally greater inhibitory properties for the growth of tested strains than its equivalent obtained from G. hansenii. This was probably due to the arrangement of the polymer fibers and its final thickness. The largest zone of inhibition of strain growth was observed in relation to C. condimenti s37 (32.75 mm ± 2.8). At the same time, the control sample using filter paper showed an inhibition zone of 36.0 mm ± 0.7. A similar inhibition zone (28.33 mm ± 2.6) was observed for the C. malonaticus lv31 strain, while the zone in the control sample was 27.1 mm ± 0.7. Based on this study, it was concluded that bacterial cellulose impregnated with oregano essential oil has strong and moderate antimicrobial activity against all presented strains of the genus Cronobacter isolated from plant matrix. Obtained results give a strong impulse to use this biopolymer as ecological food packaging in the near future.

Graphical Abstract

1. Introduction

Biocellulose, also known as bacterial cellulose (BC), is one of the natural and environmentally friendly biopolymer produced by selected species of acetic acid bacteria and is a promising nano-biomaterial with unique properties [1,2].
It was shown that BC can be synthesized by various microorganisms as a porous material with high permeability to liquids and gases as well as high ability to absorb water (water content > 90%) [3,4]. The unique physical and mechanical properties of BC as well as chemical purity [5] served as the basis for its application in various fields which can be in the creation of high-quality audio membranes, electronic paper [6], or the production of dietary fiber and gelling substance in the food industry [7].
Bacterial cellulose is a non-toxic material, which is biocompatible with human and animal skin [8,9]. Fibrils of bacterial cellulose are 100 times thinner than in plant cellulose, creating a highly porous material that allows for the transfer of antibiotics or other medicines into the wound, while remaining an effective physical barrier against any external infections. BC is non-allergenic material, which can be easily sterilized without changing properties. It can be used as a substitute for skin in the treatment of extensive burns and non-woven coatings for chronic wounds. For this reason, cellulose is widely used to treat wounds [10].
Many researchers have studied the use of BC as a biological non-woven material with special emphasis on the use of packaging made from natural and biodegradable materials to reduce the use of synthetic materials that contribute to environmental pollution [11,12] and to extend the shelf life of food products [13].
Active packaging including antimicrobial ones is a type of packaging that has attracted the attention of both researchers and industry, and today has numerous commercial applications. Antimicrobial agents can be released by evaporation or enter food through diffusion and distribution, directly when applied to food surfaces, or indirectly when incorporated into carrier materials such as coatings or food wraps [14].
Natural or chemical antimicrobial compounds can be used to create active packaging based on antimicrobial properties. Due to the fact that using chemicals in food raises consumer concerns, extensive efforts are being made to exclude their use and replace them by natural ones, which show antimicrobial activity and can extend the shelf life of some products [15].
Essential oils are complex mixtures of strongly active compounds that are very volatile and sensitive to light, oxygen, moisture, and temperature. Loading inside nanocarriers can be a strategy to increase their stability and successfully use them in therapies and in industry [16]. There is significant research showing that essential oils extracted from plants have antibacterial effects. It was shown that wormwood essential oil has antibacterial activity against, among others, Candida parapsilosis, Enterococcus faecium, Escherichia coli, Pseudomonas aeruginosa, or Staphylococcus aureus [17]. Additionally, antimicrobial assays demonstrated that Pompia (citrus species belonging to Sardinian endemic biodiversity) and lemon juices have inhibitory and antibiofilm effects against chosen pathogenic bacteria such as P. aeruginosa, S. aureus, and Enterococcus faecalis [18].
One of the substance exhibiting antibacterial activity is oregano essential oil (OEO) [19]. Oregano oil is extracted from the oregano plant (Origanum vulgare), a perennial herb from the flowering plant family Lamiaceae. Oregano is an aromatic plant with decorative, culinary, and phytotherapeutic applications worldwide. In Europe, it is used traditionally in southern countries, especially, in the Mediterranean region. The antimicrobial activity of essential oils obtained from these plants has attracted the attention of scientists, as they can be used as an alternative to the growing resistance of traditional antibiotics to diseases caused by pathogens [20]. Oregano oil, used as a food flavoring, has a wide spectrum of antimicrobial activity due to its high content of phenolic derivatives such as carvacrol and thymol [21]. There are many scientific reports showing the chemical composition and antimicrobial properties of essential oils of various types of origanum and their use in various commercial preparations as antimicrobial and antioxidant agents [22].
Bacteria genus Cronobacter spp. have been isolated from food and environmental, human, and clinical sources. Cronobacter can occur in a wide variety of foods including plant materials, infant formula, cheese, dried foods and meats as well as water. [23]. The genus of Cronobacter has been associated with rare but life-threatening diseases mainly in newborns and infants including meningitis, septicemia, and necrotizing enterocolitis [24,25], but also in the elderly and immunocompromised adults including pneumonia, septicemia, osteomyelitis, splenic abscesses, and wound infections [26,27]. According to the molecular identification, the genus Cronobacter consists of seven species: C. sakazakii, C. turicensis s, C. malonaticus, C. condimenti, C. dublinensis, C. muytjensii, and C. universalis [28,29]. The first three are the most frequently isolated from human infections [30]. The recently reclassified species are C. zurichensis, C. helveticus, C. colletis, and C. pulveris [31].
The use of essential oils (EOs) or natural plant-derived compounds as food additives could be one of the possible ways to control Cronobacter spp. in various types of food products. The use of natural essential oils inscribes well into the “clean label” trend and allows a reduction to some extent of the amounts of chemical preserving agents. The literature data on the susceptibility of Cronobacter genus bacteria to inhibitory effects of EOs are limited and they mainly concern the C. sakazakii bacteria species. There are insufficient scientific reports that have investigated the inhibitory effects of several EOs and carvacrol, thymol, eugenol, and cinnamic acid/trans-cinnamaldehyde against C. sakazakii and C. malonaticus [32]. The knowledge about the potential susceptibility of other species from the genus Cronobacter to EOs and active substances of plant origin is still very scanty.
The main goal of this research was to study the antimicrobial activity of bacterial cellulose produced by Gluconacetobacter hansenii ATCC 23769 and Komagataeibacter sp. GH1 soaked with oregano essential oil against strains representing the genus of Cronobacter. The indirect aim was to check whether BC with OEO could in the future be an effective material for the production of active food packaging that could extend the shelf life of some products by preventing the growing of Cronobacter bacteria.

2. Materials and Methods

2.1. Microbial Strains and Culture Conditions

Bacterial cellulose was obtained from strains of Komagataeibacter sp. GH1 isolated and genetically characterized by our scientific team [33] and Gluconacetobacter hansenii ATCC 23769, obtained from the American Type Culture Collection. Strains were grown on Hestrin-Scharmm (BTL, Lodz, Poland) medium which contains (amounts in gL−1): 20, D-dextrose; 5, yeast extract; 5, peptone; 2.7, Na2HPO4; 1.5, citric acid; pH 6.0 [34]. The cultivation was carried out under static conditions at a 28 °C for seven days. After this time, BC was taken from the liquid surface and dedicated to further research.
In this study, the tested microorganisms were five strains of the genus Cronobacter: C. condimenti s37, C. muytjensii s50, C. sakazakii lv27, C. turicensis lv53, and C. malonaticus lv31. Those strains were isolated by our team from market products of plant origin [35]. The tested strains were stored at −48 °C. Prior to use, they were grown freshly on a tryptone soya broth (TSB, Argenta, Poznan, Poland) according to reference [36].

2.2. Purification and Preparation of Biocellulose Discs

Obtained biocellulose films were washed with distilled water, and then incubated in 1% NaOH at 90 °C for 45 min to remove bacterial cells and medium components. After this stage, the films were neutralized with acetic acid and washed with distilled water [37]. The purified BC films were sterilized in distilled water at 121 °C for 20 min. After sterilization, BC films were dried at 23 °C under laminar chamber. Thicknesses of each sample of BC from two different strains of acetic bacteria were measured at 10 different positions, using thickness gauge. The results were expressed as the mean values of ten determinations of the BC membranes [38]. Discs with an 8 mm diameter were cut. Discs of filter paper also had an 8 mm diameter.

2.3. Impregnation of Bacterial Cellulose and Filter Paper with Oregano Essential Oil

As an antimicrobial agent for impregnating the biocellulose films, undiluted volumes of OEO was used (origanum oil, Sigma-Aldrich, Steinheim, Germany, W282812, 100% pure essential oil). For impregnation of BC, discs were immersed in 5 mL OEO for 24 h at 23 °C in a tightly closed container to prevent evaporation of the oil. The discs were then taken out and wiped in sterile filter paper to remove the non-absorbed oil. Pure BC discs without oregano essential oil were used as a negative control and sterile filter paper with OEO as a positive control [39]. The impregnation of the filter paper with OEO was carried out under the same conditions as the impregnation of BC.
BC discs after impregnation with OEO were weighed on an analytical balance (accurate to 0.0001 g, Radwag, Warsaw, Poland). OEO holding capacity was calculated by the formula (1) [40]:
OEO holding capacity (%) = (Wh − Wd)/Wd × 100
where Wh is the weight of the hydrate BC disc and Wd is the weight of the dry BC disc; each measurement was carried out in triplicate.

2.4. Antimicrobial Activity of Bacterial Cellulose with Oregano Essential Oil

The antibacterial activity of BC impregnated with OEO was tested against five strains of Cronobacter sp. using the disc diffusion method. Bacterial inoculum was prepared from overnight culture on soybean agar with tryptone (TSA, Argenta, Poznan, Poland). Colonies were openly suspended in 0.85% physiological salt to obtain a turbidity comparable to the McFarland standard turbidity of 0.5 (approximately 8 log CFU mL−1). Aliquots (0.1 mL) were distributed over the surface of pre-dried tryptone soy agar plates using a sterile swabs. BC discs and discs of filter paper with an OEO and negative control without essential oil were placed onto plates with seeded bacteria and incubated for 24 h at 35 °C according to our previous methods [36], which was modified in this study. The diameters of the inhibition zones were measured in triplicate in millimeters using an electronic caliper. The measurement scale was as follows: strong inhibition zone of inhibition ≥ 20 mm (including disc diameter), moderate inhibition zone < 20–12 mm, and no inhibition zone < 12 mm. All analysis were carried out in triplicate. Valuesare presented as mean ± standard deviation.

2.5. Statistical Analysis

Results obtained were subjected to a statistical analysis using Statgraphics Plus software (Version 5.1, Warrenton, WV, USA). One-way (ANOVA) analysis of variance was done. Tukey’s test was used to compare the significance of differences between mean values (at a significance level of α = 0.05).

3. Results and Discussion

3.1. Oregano Essential Oil Holding Capacity

Bacterial cellulose has a nanoporous structure and has a high swelling ability, which allows saturating and releasing medicinal substances [41]. Therefore, we analyzed the ability of two kinds of biocellulose samples: one from G. hansenii ATCC 23769, and second from Komagataeibacter sp. GH1 to absorb and retain the oregano essential oil (Figure 1).
As a result of the work, it was determined that the BC films impregnated with OEO had good holding capacity. BC from the strain Komagataeibacter sp. GH1 was able to better absorb and retain OEO compared to BC produced by the G. hansenii ATCC 23769. Obtained results showed that BC from ATCC 23769 strain had less holding capacity, but it made this sample more predictable and consistent. It is likely that this difference in OEO holding capacity resulted from different arrangements of cellulose fibers as well as pore size and pore volume [42]. The differences in the OEO holding capacity could have been the consequence of differences in humidity during BC disc drying. BC samples were dried at different periods of time, although the same drying method was used, but no ambient humidity was measured. Based on the literature data, it can be assumed that this could have been a factor influencing the difference in holding capacity between BC obtained from ATCC 23769 and from GH1 strains [43,44].

3.2. Antimicrobial Activity of Bacterial Cellulose with Oregano Essential Oil

The results of the antimicrobial activity of BC impregnated with the OEO by the disc diffusion method are shown in Figure 2 and Table 1. The inhibition zone against C. malonaticus lv31 caused by the filter paper disc with OEO was shown on Figure 3.
It was found that BC films and filter paper impregnated with OEO showed a strong and moderate inhibition zone of inhibition against all five Cronobacter strains and the diameter was from 13.6 ± 0.8 to 36.0 ± 0.7 mm. Filter paper showed definitely better inhibition properties of test strain growth in comparison with BC in the case of C. condimenti s37, C. muytjensii s50, and C. sakazakii lv27 (36.0 ± 0.7; 35.8 ± 0.9; 33.5 ± 1.5, respectively) (Table 1). However, in the case of C. turicensis lv53 as well as C. malonaticus lv31, the diameter of zone inhibitions caused by soaked filter paper was smaller than with using impregned BC obtained from Komagataeibacter sp. GH1 (Table 1). Similar antimicrobial activity of OEO in the paper disc diffusion assay was obtained against Listeria monocytogenes, Salmonella typhimurium, Eschericha coli, Brochothrix thermosphacta, and Pseudomonas fluorescens. It was shown that the zone of inhibition of Salmonella typhimurium was 14.1 ± 0.8 mm [45], which was two times less than that of Cronobacter condimenti 32.75 ± 2.8 mm BC of GH1 in our study. It was shown that BC produced by Komogataeibacter sp. GH1, impregnated with OEO, showed a strong antimicrobial effect against all Cronobacter strains from 16.39 ± 0.7 mm to 32.75 ± 2.8 mm and the inhibition zones were similar against Enterococcus faecalis 16.3 ± 0.09 mm, Staphylococcus aureus 26.8 ± 0.08 mm, Staphylococcus epidermidis 16.8 ± 0.09 mm, Streptococcus mutans 16.5 ± 0.07 mm, Salmonella choleraesius 29.0 ± 0.08 mm [46], and against Citrobacter spp. 24.0 ± 0.5 mm, Salmonella Typhi 22.4 ± 1.5 mm, and Escherichia coli 19.0 ± 2.2 mm [47].
Bacterial cellulose obtained from Komagataeibacter sp. GH1 soaked with oregano essential oils showed better inhibition properties in comparison with the bacterial cellulose obtained from G. hansenii. This fact is probably connected with the thickness of each biopolymer, which was in a range of approximately 30–45 ± 0.2 μm for Komagataeibacter sp. GH1 and about 20–28 ± 0.4 μm for G. hansenii. It was shown that the thickness of bacterial cellulose can be different for each strain, even while keeping the same cultivation conditions. This parameter depends on calcium source and general medium components, strain and methods of drying [38]. Despite the cultivation of acetic bacteria under the same conditions and for the same period of time, the thickness of the membrane varied. You-Jin et al. demonstrated that the longer the cultivation time, the thicker the cellulose membrane and the better the absorption properties, so in the future, the cultivation time should be lengthened to obtain a more inhibitory effect [48].
The essential oils extracted from aromatic plants have bioactive components in their chemical composition, for example, monoterpenes, monoterpenoids, and phenylpropanoids. Their concentrations in the extracted oils depend strongly on the soil, climatic, and geographical conditions of the herbal culture growing. The study developed on hydroxyapatite coated with peppermint essential oil showed strong antimicrobial properties of this material against S. aureus (including the methicillin-resistant strain), E. faecium, and also P. aeruginosa [49].
Based on the obtained results, it can be concluded that the biologically active components of OEO can exhibit antimicrobial activity against several pathogenic bacteria. The largest diameter of the inhibition zone was observed in all samples with OEO against the C. condimenti s37 strain. However, filter paper as a carrier had higher inhibition zones compared to BC, but it should be taken into account that BC has higher mechanical strength compared to plant cellulose, so it is worth using this biomaterial in further research [50]. It was noted that cellulose type Iα has a stronger structure than cellulose Iβ. In bacterial cellulose, the type Iα content is approximately 60%, while that in cotton is 30%. BC has the best water-holding ability of 98%, while plant cellulose is 60% [51].
Although the filter paper soaked in OEO showed greater antimicrobial activity, the aim of the research undertaken was to strive to develop an active packaging prototype based on natural polymer. The research described in this manuscript provides valuable information that it is possible to soak bacterial cellulose with a natural biologically active substance and such a combination has a strong effect on inhibiting the growth of Cronobacter bacteria. BC is insoluble in water, unlike traditional paper, and has a definite advantage in mechanical strength. This is sufficient argument to continue work on the use of BC with OEO as active biodegradable packaging intended for contact with food.

4. Conclusions

Based on this study, it was concluded that bacterial cellulose impregnated with oregano essential oil has strong and moderate antimicrobial activity against all presented strains of the genus Cronobacter isolated from plant matrix. Bacterial cellulose of strain Komagataeibacter sp. GH1 was a better carrier of oregano essential oil as it has the best antagonistic activity compared to bacterial cellulose obtained from G. hansenii ATCC 23769 and strength compared to filter paper. Based on this conclusion, bacterial cellulose of strain Komagataeibacter sp. GH1 can be further investigated as food packaging to improve the safety and shelf-life of food.
Based on these results, it is worth providing similar research based on antimicrobial properties of bacterial cellulose with oregano essential oil. The next stage of research will concern the design of active packaging based on bacterial cellulose with oregano oil and carrying out load tests on the example of ready-to-eat vegetable lettuce. The obtained results give hope that in the future, it will be possible to replace synthetic materials (which are not environmentally friendly) with biodegradable materials such as bacterial cellulose enriched with active substances.

Author Contributions

G.N. performed the experiments, analyzed the data and wrote the paper. A.B.-P. provided the resources and analyzed the data. M.G. provided the resources and analyzed the data. A.K. wrote the original draft. L.S.-R. conceived and designed the experiment, wrote corrected manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding

Acknowledgments

This study was supported by the Institute of Food Sciences, Department of Food Technology and Assessment, Division of Milk Technology, Warsaw University of Life Sciences-SGGW, Warsaw, Poland.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kamarudin, N.S.B.; Rahman, N.A.; Kalil, S.M.; Kamarudin, S.K. Comparative study of biocellulose from Acetobacter Xylinum 0416 and commercial hard gelatine capsule. Int. J. Appl. Eng. Res. 2018, 13, 743–748. [Google Scholar]
  2. Kasim, N.; Rahman, N.A. Design and production control of biocellulose from Acetobacter xylinum. Indian J. Sci. Technol. 2016, 9, 1–10. [Google Scholar] [CrossRef] [Green Version]
  3. Nguyen, V.T.; Flanagan, B.; Gidley, M.J.; Dykes, G.A. Characterization of cellulose production by a Gluconacetobacter xylinus strain from Kombucha. Curr. Microbiol. 2008, 57, 449–453. [Google Scholar] [CrossRef]
  4. Zhuravleva, N.M.; Sazhin, B.I.; Smirnova, E.G.; Khripunov, A.K.; Tkachenko, T.V. Method to Produce Electric Insulation Paper. Patent 2415221, 27 March 2011. [Google Scholar]
  5. Phisalaphong, M.; Chiaoprakobkij, N. Applications and Products—Nata de Coco Bacterial Nanocellulose: A Sophisticated Multifunctional Material; CRC Press: Boca Raton, FL, USA, 2013; pp. 143–155. [Google Scholar]
  6. Esguerra, M.; Fink, H.; Laschke, M.W.; Jeppsson, A.; Delbro, D.; Gatenholm, P.; Menger, M.D.; Risberg, B. Intravital fluorescent microscopic evaluation of bacterial cellulose as scaffold for vascular grafts. J. Biomed. Mater. Res. Part A 2009, 9999, 140–149. [Google Scholar] [CrossRef]
  7. Patchan, M.W.; Chae, J.J.; Lee, J.D.; Calderon-Colon, X.; Maranchi, J.P.; McCally, R.L.; Schein, O.D.; Elisseeff, J.H.; Trexler, M.M. Evaluation of the biocompatibility of regenerated cellulose hydrogels with high strength and transparency for ocular applications. J. Biomater. Appl. 2015, 30, 1049–1059. [Google Scholar] [CrossRef]
  8. Czaja, W.; Krystynowicz, A.; Bielecki, S.; Brown, R.J. Microbial cellulose—The natural power to heal wounds. Biomaterials 2006, 27, 145–151. [Google Scholar] [CrossRef]
  9. Nogi, M.; Iwamoto, S.; Nakagaito, A.N.; Yano, H. Optically transparent nanofiber paper. Adv. Mater. 2009, 21, 1595–1598. [Google Scholar] [CrossRef]
  10. Czaja, W.K.; Young, D.J.; Kawecki, M.; Brown, R.M. The future prospects of microbial cellulose in biomedical applications. Biomacromolecules 2007, 8, 1–12. [Google Scholar] [CrossRef]
  11. Ferreira, A.R.V.; Alves, V.D.; Coelhoso, I.M. Polysaccharide-based membranes in food packaging applications. Membranes 2016, 6, 22. [Google Scholar] [CrossRef] [Green Version]
  12. De Azeredo, H.M.C.; Rosa, M.; Mattoso, L. Nanocellulose in bio-based food packaging applications. Ind. Crops Prod. 2017, 97, 664–671. [Google Scholar] [CrossRef]
  13. Alireza, D.; Ramin, K.; Hedayat, H.; Saeedeh, S.; Kiandokht, G. Physical, antioxidant and antimicrobial characteristics of carboxymethyl cellulose edible film cooperated with clove essential oil. Zahedan. J. Res. Med. Sci. 2014, 16, 34–42. [Google Scholar]
  14. Kapetanakou, A.; Karyotis, D.; Skandamis, P.N. Control of listeria monocytogenes by applying ethanol-based antimicrobial edible films on ham slices and microwave-reheated frankfurters. Food Microbiol. 2016, 54, 80–90. [Google Scholar] [CrossRef]
  15. Atarés, L.; Chiralt, A. Essential oils as additives in biodegradable films and coatings for active food packaging. Trends Food Sci. Technol. 2016, 48, 51–62. [Google Scholar] [CrossRef]
  16. Vanti, G.; Ntallis, S.G.; Panagiotidis, C.A.; Dourdouni, V.; Patsoura, C.; Bergonzi, M.C.; Lazari, D.; Bilia, A.R. Glycerosome of Melissa officinalis L. essential oil for effective anti-HSV Type 1. Molecules 2020, 25, 3111. [Google Scholar] [CrossRef]
  17. Raita, M.S.; Iconaru, S.L.; Groza, A.; Cimpeanu, C.; Predoi, G.; Ghegoiu, L.; Badea, M.L.; Chifiriuc, M.C.; Marutescu, L.; Trusca, R.; et al. Multifunctional Hydroxyapatite coated with Arthemisia absinthium composites. Molecules 2020, 25, 413. [Google Scholar] [CrossRef] [Green Version]
  18. Barberis, A.; Deiana, M.; Spissu, Y.; Azara, E.; Fadda, A.; Serra, P.A.; D’Hallewin, G.; Pisano, M.; Serreli, G.; Orrù, G.; et al. Antioxidant, antimicrobial, and other biological properties of Pompia juice. Molecules 2020, 25, 3186. [Google Scholar] [CrossRef]
  19. Cattelan, M.G.; De Castilhos, M.B.M.; Sales, P.J.P.; Hoffmann, F.L. Antibacterial activity of oregano essential oil against foodborne pathogens. Nutr. Food Sci. 2013, 43, 169–174. [Google Scholar] [CrossRef]
  20. Fournomiti, M.; Kimbaris, A.; Mantzourani, I.; Plessas, S.; Theodoridou, I.; Papaemmanouil, V.; Kapsiotis, I.; Panopoulou, M.; Stavropoulou, E.; Bezirtzoglou, E.E.; et al. Antimicrobial activity of essential oils of cultivated oregano (Origanum vulgare), sage (Salvia officinalis), and thyme (Thymus vulgaris) against clinical isolates of Escherichia coli, Klebsiella oxytoca, and Klebsiella pneumoniae. Microb. Ecol. Health Dis. 2015, 26, 883. [Google Scholar] [CrossRef]
  21. Preuss, H.G.; Echard, B.; Enig, M.; Brook, I.; Elliott, T.B. Minimum inhibitory concentrations of herbal essential oils and monolaurin for gram-positive and gram-negative bacteria. Mol. Cell. Biochem. 2005, 272, 29–34. [Google Scholar] [CrossRef]
  22. Castilho, P.C.; Savluchinske-Feio, S.; Weinhold, T.S.; Gouveia-Figueira, S.C. Evaluation of the antimicrobial and antioxidant activities of essential oils, extracts and their main components from oregano from Madeira Island, Portugal. Food Control. 2012, 23, 552–558. [Google Scholar] [CrossRef]
  23. Huang, Y.; Pang, Y.; Wang, H.; Tang, Z.; Zhou, Y.; Zhang, W.; Li, X.; Tan, D.; Li, J.; Lin, Y.; et al. Occurrence and Characterization of Cronobacter spp. in Dehydrated Rice Powder from Chinese Supermarket. PLoS ONE 2015, 10, e0131053. [Google Scholar] [CrossRef] [PubMed]
  24. Alsonosi, A.; Hariri, S.; Kajsík, M.; Orieskova, M.; Hanulik, V.; Röderová, M.; Petrželová, J.; Kollárová, H.; Drahovská, H.; Forsythe, S.J.; et al. The speciation and genotyping of Cronobacter isolates from hospitalised patients. Eur. J. Clin. Microbiol. Infect. Dis. 2015, 34, 1979–1988. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Mullane, N.R.; Iversen, C.; Healy, B.; Walsh, C.; Whyte, P.; Wall, P.G.; Quinn, T.; Fanning, S. Enterobacter sakazakii an emerging bacterial pathogen with implications for infant health. Minerva Pediatr. 2007, 59, 137–148. [Google Scholar] [PubMed]
  26. Healy, B.; Cooney, S.; O’Brien, S.; Iversen, C.; Whyte, P.; Nally, J.; Callanan, J.J.; Fanning, S. Cronobacter (Enterobacter sakazakii): An opportunistic foodborne pathogen. Foodborne Pathog. Dis. 2010, 7, 339–350. [Google Scholar] [CrossRef]
  27. Forsythe, S. Updates on the CronobacterGenus. Annu. Rev. Food Sci. Technol. 2018, 9, 23–44. [Google Scholar] [CrossRef]
  28. Iversen, C.; Mullane, N.; McCardell, B.; Tall, B.D.; Lehner, A.; Fanning, S.; Stephan, R.; Joosten, H. Cronobacter gen. nov., a new genus to accommodate the biogroups of Enterobacter sakazakii, and proposal of Cronobacter sakazakii gen. nov., comb. nov., Cronobacter malonaticus sp. nov., Cronobacter turicensis sp. nov., Cronobacter muytjensii sp. nov., Cronobacter dublinensis sp. nov., Cronobacter genomospecies 1, and of three subspecies, Cronobacter dublinensis subsp. dublinensis subsp. nov., Cronobacter dublinensis subsp. lausannensis subsp. nov. and Cronobacter dublinensis subsp. lactaridi subsp. nov. Int. J. Syst. Evol. Microbiol. 2008, 58, 1442–1447. [Google Scholar] [CrossRef]
  29. Stoop, B.; Lehner, A.; Iversen, C.; Fanning, S.; Stephan, R. Development and evaluation of rpoB based PCR systems to differentiate the six proposed species within the genus Cronobacter. Int. J. Food Microbiol. 2009, 136, 165–168. [Google Scholar] [CrossRef] [Green Version]
  30. Joseph, S.M.; Forsythe, S. Predominance of Cronobacter sakazakii sequence Type 4 in Neonatal infections. Emerg. Infect. Dis. 2011, 17, 1713–1715. [Google Scholar] [CrossRef]
  31. Grim, C.; Gopinath, G.R.; Mammel, M.K.; Sathyamoorthy, V.; Trach, L.H.; Chase, H.R.; Tall, B.D.; Fanning, S.; Stephan, R. Genome sequence of an enterobacter helveticus strain, 1159/04 (LMG 23733), isolated from fruit powder. Genome Announc. 2013, 1, e01038-13. [Google Scholar] [CrossRef] [Green Version]
  32. Lee, S.-Y.; Jin, H.-H. Inhibitory activity of natural antimicrobial compounds alone or in combination with nisin against Enterobacter sakazakii. Lett. Appl. Microbiol. 2008, 47, 315–321. [Google Scholar] [CrossRef]
  33. Nagmetova, G.Z.; Kurmanbayev, A.A. Isolation and identification of bacterial cellulose producers to obtain a biotechnological product promising for medicine and biotechnology. Eurasian J. Appl. Biotechnol. 2019, 2, 116–122. [Google Scholar]
  34. Hestrin, S.; Schramm, M. Synthesis of cellulose by Acetobacter xylinum. 2. Preparation of freeze-dried cells capable of polymerizing glucose to cellulose. Biochem. J. 1954, 58, 345–352. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Berthold-Pluta, A.; Garbowska, M.; Stefańska, I.; Pluta, A. Microbiological quality of selected ready-to-eat leaf vegetables, sprouts and non-pasteurized fresh fruit-vegetable juices including the presence of Cronobacter spp. Food Microbiol. 2017, 65, 221–230. [Google Scholar] [CrossRef] [PubMed]
  36. Berthold-Pluta, A.; Stasiak-Różańska, L.; Pluta, A.; Garbowska, M. Antibacterial activities of plant-derived compounds and essential oils against Cronobacter strains. Eur. Food Res. Technol. 2019, 245, 1137–1147. [Google Scholar] [CrossRef] [Green Version]
  37. Stasiak-Różańska, L.; Płoska, J. Study on the use of microbial cellulose as a biocarrier for 1,3-Dihydroxy-2-Propanone and its potential application in industry. Polymers 2018, 10, 438. [Google Scholar] [CrossRef] [Green Version]
  38. Al-Shamary, E.; Khalaf, A. Influence of fermentation condition and alkali treatment on the porosity and thickness of bacterial cellulose membranes. Online J. Sci. Technol. 2013, 3, 194–203. [Google Scholar]
  39. Junka, A.; Żywicka, A.; Chodaczek, G.; Dziadas, M.; Czajkowska, J.; Duda-Madej, A.; Bartoszewicz, M.; Mikołajewicz, K.; Krasowski, G.; Szymczyk, P.; et al. Potential of biocellulose carrier impregnated with essential oils to fight against biofilms formed on Hydroxyapatite. Sci. Rep. 2019, 9, 1–13. [Google Scholar] [CrossRef] [Green Version]
  40. Türkoglu, N.L. Development of biodegradable antibacterial cellulose based hydrogel membranes for wound healing. Int. J. Biol. Macromol. 2014, 67, 22–27. [Google Scholar] [CrossRef]
  41. Treesuppharat, W.; Rojanapanthu, P.; Siangsanoh, C.; Manuspiya, H.; Ummartyotin, S. Synthesis and characterization of bacterial cellulose and gelatin-based hydrogel composites for drug-delivery systems. Biotechnol. Rep. 2017, 15, 84–91. [Google Scholar] [CrossRef]
  42. Ul-Islam, M.; Khan, T.; Park, J.K. Water holding and release properties of bacterial cellulose obtained by in situ and ex situ modification. Carbohydr. Polym. 2012, 88, 596–603. [Google Scholar] [CrossRef]
  43. Rebelo, A.R.; Archer, A.J.; Chen, X.; Liu, C.; Yang, G.; Lin, Y. Dehydratation of bacterial cellulose and the water content effects on viscoelastic and electrochemical properties. Sci. Thechnol. Adx. Mater. 2018, 19, 203–211. [Google Scholar] [CrossRef]
  44. Schrecker, S.T.; Gostomski, P.A. Determining the water holding capacity of microbial cellulose. Biotechnol. Lett. 2005, 27, 1435–1438. [Google Scholar] [CrossRef] [PubMed]
  45. Mith, H.; Duré, R.; Delcenserie, V.; Zhiri, A.; Daube, G.; Clinquart, A. Antimicrobial activities of commercial essential oils and their components against food-borne pathogens and food spoilage bacteria. Food Sci. Nutr. 2014, 2, 403–416. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Busatta, C.; Mossi, A.J.; Rodrigues, M.R.A.; Oliveira, J.V.; Cansian, R.L. Evaluation of origanum vulgare essential oil as antimicrobial agent in sausage. Braz. J. Microbiol. 2007, 38, 610–616. [Google Scholar] [CrossRef] [Green Version]
  47. Nazia, M.A.C.; Sabahat, S.; Perween, T. Antibacterial effects of oregano (Origanum vulgare) against gram negative bacilli. Pak. J. Bot. 2007, 39, 609–613. [Google Scholar]
  48. Lee, Y.-J.; An, S.-J.; Bae, E.-B.; Gwon, H.-J.; Park, J.-S.; Jeong, S.I.; Jeon, Y.-C.; Lee, S.-H.; Lee, J.Y.; Huh, J.-B. the effect of thickness of resorbable bacterial cellulose membrane on guided bone regeneration. Materials 2017, 10, 320. [Google Scholar] [CrossRef] [Green Version]
  49. Badea, M.L.; Iconaru, S.L.; Groza, A.; Chifiriuc, M.C.; Beuran, M.; Predoi, M. Peppermint essential oil-doped Hydroxyapatite nanoparticles with antimicrobial properties. Molecules 2019, 24, 2169. [Google Scholar] [CrossRef] [Green Version]
  50. Mohamed, F. Synthesis of Bacterial Cellulose by Acetobacter xylinum sp. Using Watermelon Rind Waste for Biocomposite Application. Bachelors Thesis, University Malaysia Pahang, Pahang, Malasia, May 2010. [Google Scholar]
  51. Han, M. Biotechnology of Bacterial Cellulose Using the Strain-Producer Gluconacetobacter Hansenii GH-1/2008. Ph.D. Thesis, Lomonosov Moscow State University, Moscow, Russia, June 2013. [Google Scholar]
Polymers 12 01647 g001 550

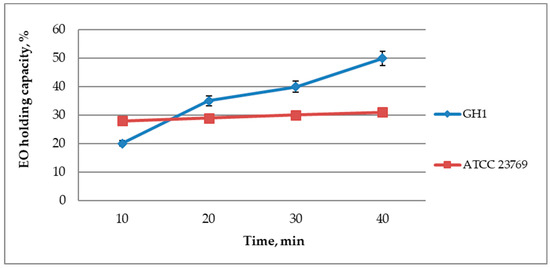

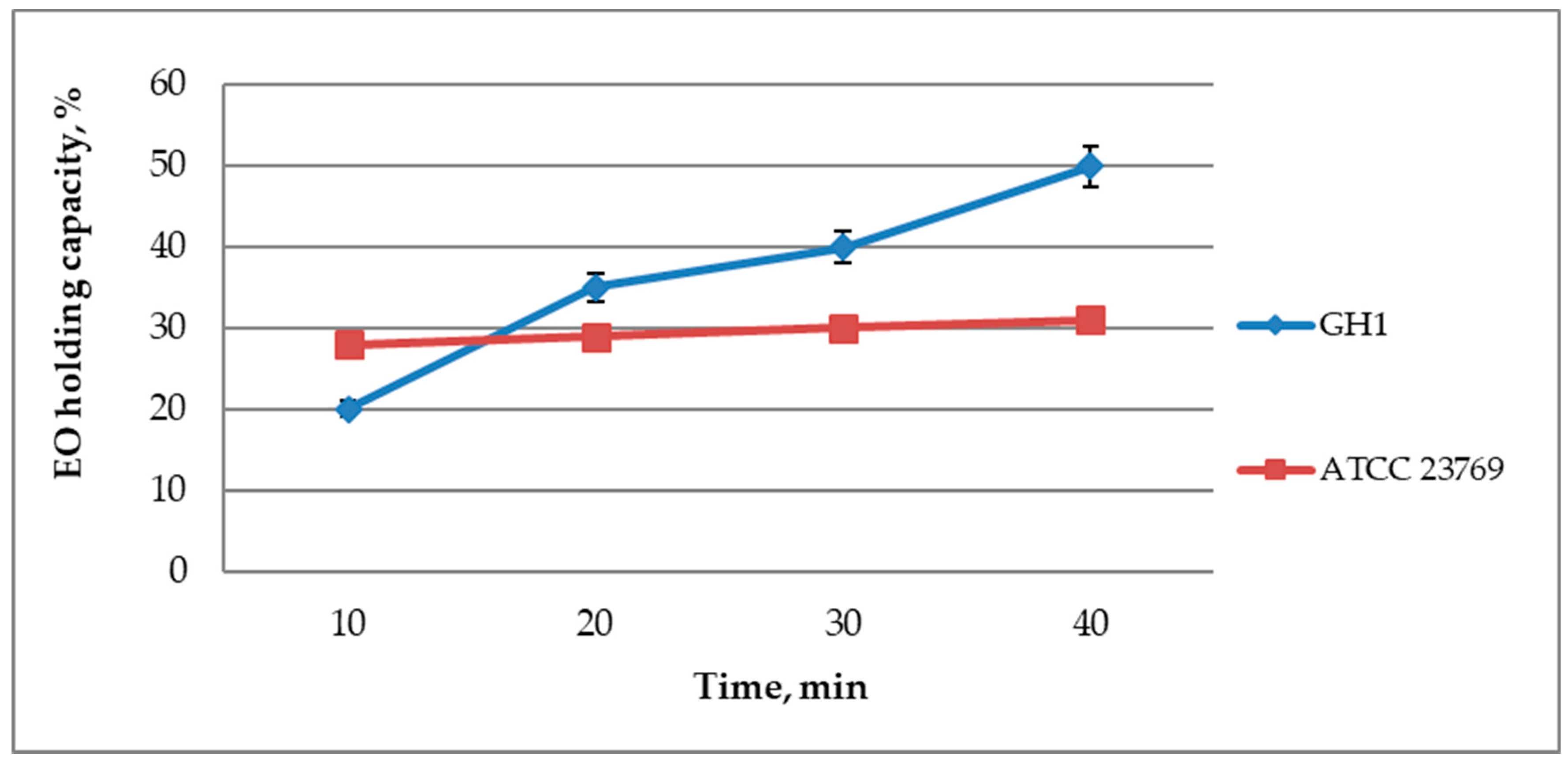

Figure 1. Oregano essential oil holding capacity. The data are presented as a mean ± standard deviation.
Figure 1. Oregano essential oil holding capacity. The data are presented as a mean ± standard deviation.
Polymers 12 01647 g001
Polymers 12 01647 g002 550
Figure 2. Inhibition zones against (a) C. condimenti s37, (b) C. muytjensii s50, (c) C. turicensis lv53, (d) C. malonaticus lv31, caused by BC discs with OEO produced by G. hansenii ATCC 23769 (’) produced by Komagataeibacter sp. GH1 (’’).
Figure 2. Inhibition zones against (a) C. condimenti s37, (b) C. muytjensii s50, (c) C. turicensis lv53, (d) C. malonaticus lv31, caused by BC discs with OEO produced by G. hansenii ATCC 23769 (’) produced by Komagataeibacter sp. GH1 (’’).
Polymers 12 01647 g002
Polymers 12 01647 g003 550
Figure 3. Inhibition zone against C. malonaticus lv31 caused by the filter paper disc with oregano essential oil.
Figure 3. Inhibition zone against C. malonaticus lv31 caused by the filter paper disc with oregano essential oil.
Polymers 12 01647 g003
Table
Table 1. Inhibition zone diameter and mean ± SD (mm) using the disc diffusion method.
Table 1. Inhibition zone diameter and mean ± SD (mm) using the disc diffusion method.
Cronobacter StrainsBC with OEO Produced by G. hansenii ATCC 23769BC with OEO Produced by Komagataeibacter sp. GH1Filter Paper
C. condimenti s3714.7 a ± 0.832.75 b ± 2.836.0 b ± 0.7
C. muytjensii s5014.5 a ± 0.517.23 b ± 0.835.8 c ± 0.9
C. sakazakii lv2714.1 a ± 0.416.39 a ± 0.733.5 b ± 1.5
C. turicensis lv5313.6 a ± 0.818.19 b ± 0.330.5 c ± 0.5
C. malonaticus lv3114.3 a ± 0.528.33 b ± 2.627.1 b ± 0.7
a, b, c means with different letters in a line are significantly different (p < 0.05, n = 3).
