Complex Temperature and Concentration Dependent Self-Assembly of Poly(2-oxazoline) Block Copolymers

Loan Trinh Che
Marianne Hiorth
Richard Hoogenboom
3,* and
Anna-Lena Kjøniksen
Department of Chemistry, University of Oslo, P.O. Box 1033 Blindern, 0315 Oslo, Norway
Department of Pharmacy, School of Pharmacy, University of Oslo, P.O. Box 1068 Blindern, 0316 Oslo, Norway
Supramolecular Chemistry Group, Centre of Macromolecular Chemistry (CMaC), Department of Organic and Macromolecular Chemistry, Ghent University, Krijgslaan 281 S4, B-9000 Ghent, Belgium
Faculty of Engineering, Østfold University College, P.O. Box 700, 1757 Halden, Norway
Authors to whom correspondence should be addressed.
Polymers 2020, 12(7), 1495;
Submission received: 4 June 2020 / Revised: 24 June 2020 / Accepted: 26 June 2020 / Published: 4 July 2020
(This article belongs to the Special Issue Thermoresponsive Polymers)


The effect of polymer concentration on the temperature-induced self-association of a block copolymer comprising a poly(2-ethyl-2-oxazoline) block and a random copolymer block consisting of 2-ethyl-2-oxazoline and 2-n-propyl-2-oxazoline (PEtO80-block-P(EtOxx-stat-PropO40-x) with x = 0, 4, or 8 were investigated by dynamic light scattering (DLS) and transmittance measurements (turbidimetry). The polymers reveal a complex aggregation behavior with up to three relaxation modes in the DLS data and with a transmittance that first goes through a minimum before it declines at high temperatures. At low temperatures, unassociated polymer chains were found to co-exist with larger aggregates. As the temperature is increased, enhanced association and contraction of the aggregates results in a drop of the transmittance values. The aggregates fragment into smaller micellar-like clusters when the temperature is raised further, causing the samples to become optically clear again. At high temperatures, the polymers aggregate into large compact clusters, and the samples become turbid. Interestingly, very large aggregates were observed at low temperatures when the polymer concentrations were low. The formation of these aggregates was also promoted by a more hydrophilic copolymer structure. The formation of large aggregates with an open structure at conditions where the solvent conditions are improved is probably caused by depletion flocculation of the smaller aggregates.

1. Introduction

Synthetic amphiphilic macromolecules are able to form self-assembled structures in aqueous media. These polymers are well known as emulsifiers and viscosity modifiers for industrial applications [1,2,3,4,5]. Stimuli-responsive amphiphilic copolymers are “smart” materials that have the ability to respond to external stimuli such as temperature, pH, electric or magnetic fields, light, and mechanical stress. Among them, temperature and pH responsive mechanisms have been considerably investigated during the past decades due to their potential for biomedical applications such as bio-sensors, implants, and drug-delivery devices [6]. Alteration of molecular interactions as a result of temperature changes provides systems that are useful in bio-related applications [7,8,9,10,11,12]. Thermoresponsive polymers in water may exhibit a lower critical solution temperature (LCST), i.e., an increased hydrophobicity at elevated temperatures, or an upper critical solution temperature (UCST) where the polymers exhibit enhanced associations when the temperature is decreased [13,14,15,16,17]. Many amphiphilic polymers undergo a micellization/demicellization by the alternation of the balance between hydrophilicity and hydrophobicity due to stimuli-induced collapse of one of the blocks. This has been used for the encapsulation of insoluble drugs [18], which can be released to a target area of the body. The hydrophobic blocks at the cores of the particles provide a suitable location for accommodation of poorly soluble drugs. The hydrophilic coronas stabilize the nanoparticles in aqueous environments. Many different thermoresponsive polymers such as poly(N-isopropylacrylamide) (PNIPAAM) [14,19,20], pol(oligoethyleneoxide (meth)acrylate)s [21,22,23], and poly(2-oxazoline)s [18,24,25,26,27,28] have been tested over the years for temperature-induced micellization. Among these polymers, poly(ethylene glycol) (PEG) is the most exploited polymer in the field of drug delivery and nanoparticle biocompatibilization [29], because of its low toxicity, high solubility, and non-immunogenicity [29,30,31,32,33] as well as its Food and Drug Administration (FDA) approval in pharmaceutical formulations. However, PEG also has some undesirable features, such as interactions with various immunological entities and redundant accumulation in the body [29]. Therefore, poly(2-alkyl-2-oxazoline)s (PAOx) polymers are proposed as promising alternatives to PEG, and more attention is directed towards the use of PAOx in biomedical applications [34,35,36].
PAOx are often used in adhesives [37,38,39], coatings [40] or ink formulations [41], as well as in drug delivery applications [18,34,35,36]. They are especially popular in the design of drug nanocarriers [42]. Studies of PAOx were already established more than 50 years ago [43,44,45,46,47]. However, during the last few decades, the interest in PAOx has increased considerably. The discovery of their potential use as biomaterials and thermoresponsive systems has led to an exponential growth in patent registration of the PAOx polymers in the last decade [35]. In addition, poly(2-ethyl-2-oxazoline) (PEtOx) has been approved by the FDA as an indirect additive used in food contact substances [25], and a PAOx based therapeutic has successfully completed Phase 1A clinical trials [48].
PAOx contains C–C–N as the repeating units of the backbone and amide side chains, and are therefore described as pseudo-polypeptides because of their similar isomeric structure [49]. Furthermore, PAOx polymers exhibit high functionalization possibilities and versatile chemistry [50]. Due to the versatility of PAOx, chemical functionalities can be introduced into the PAOx structure, either within the polymer backbone or at both chain ends. Accordingly, the polymers can be designed to achieve different architectures. This enables tailor-made physico-chemical properties such as thermal transitions, mechanical properties, solubility and surface energy [51,52].
In aqueous solutions, the water affinity of PAOx polymers depends on the type of alkyl side chain that is present. Poly(2-methyl-2-oxazoline) (PMeOx) is water-soluble in the entire temperature range of liquid water under atmospheric pressure. Poly(2-ethyl-2-oxazoline) (PEtOx) and poly(2-isopropyl-2-oxazoline) (PiPropOx) exhibit a LCST behavior in aqueous solution, whereas longer substituents result in hydrophobic polymers [24]. In the case of hydrophilic water-soluble polymers used for drug delivery, PMeOx and PEtOx are often compared to PEG due to similar hydrophilicity [16,53], biocompatibility [54], blood circulation times [53,55], and stealth behavior [16,53,55]. Moreover, it was found that PEtOx is more lipophilic than PMeOx and PEG, which can be advantageous for loading non-soluble drugs in a delivery system [16,56]. In addition, Viegas et al. reported that linear and branched PEtOx have a significantly lower viscosity than PEG, especially at higher molecular weights. This observation is important because it allows better pharmaceutical formulations, filterability, and syringeability of PEtOx in protein and peptides conjugations at higher concentrations [16].
Combining a hydrophilic PAOx block with a different hydrophobic PAOx block or other hydrophobic polymers is a straightforward way for the preparation of amphiphilic PAOx block copolymers. Aqueous solutions of PEtOx have a LCST in the range of 61–64 °C [57], while poly(2- PiPropOx exhibits a cloud point around 36–39 °C [58]. The latter transition temperature is very close to body temperature and therefore has promising possibilities for biomedical applications. Living cationic copolymerization of different types of 2-oxazoline monomers in a sequential manner yields well-defined, amphiphilic, block copolymers [24]. Accordingly, the LCST behavior can be tuned by varying the composition and the degree of polymerization in random PAOx copolymers to prepare thermoresponsive materials [59,60]. Kataoka et al. prepared a series of poly(2-n-propyl-2-oxazoline) (PnPropOx) mixed with a specific composition of EtOx, and reported that the LCST of the copolymers can be modulated over a broad range of temperature from 39 to 67 °C [24].
We have previously studied the behavior of PEtOx80-block-P(EtOxx-stat-PropOx40-x) with x = 0, 4 or 8 at a fixed concentration of 5 mg/mL in water [61]. The block copolymers respond to temperature changes and revealed a complex aggregation behavior that depends on the difference in hydrophilicity between the more hydrophilic PEtOx block and the PEtOx-stat-PropOx block. In order to gain a deeper understanding of the associating mechanism of these systems in dilute solution, a more detailed investigation on the effect of block copolymer concentration on the temperature-induced micellization behavior is carried out in this work by dynamic light scattering (DLS) and turbidimetry measurements. By studying the aggregation behavior of PEtOx-block-P(EtOx-stat-PropOx) in aqueous solution, we aim at developing a deeper insight into the factors that govern the dynamics of self-organization of this type of systems.

2. Materials and Methods

The synthesis and characterization of the studied block copolymers has been reported in our previous work [61]. The block copolymers consist of a more hydrophilic block of PEtOx with a degree of polymerization of 80 and a second more hydrophobic block consisting of PEtOx-stat-PropOx with a degree of polymerization of PEtOx80-block-PPropOx40 has Mn = 8700 g/mol and PDI = 1.22; PEtOx80-block-P(EtOx4-stat-PropOx36) has Mn = 8200 g/mol and PDI = 1.23; PEtOx80-block-P(EtOx8-stat-PropOx32) has Mn = 9200 g/mol and PDI = 1.20 [61]. Solutions of the polymers were prepared in deionized water, and were stirred at room temperature until all polymer was dissolved or dispersed.
Transmittance measurements: The transmittance of the polymer solutions (5 mg/mL) were determined by turbidity measurements using a Crystal 16 (Avantium Technologies, The Netherlands) connected to a Julabo FP40 cryostat. Turbidity of the solutions was measured by the transmission of red light through the sample vial as a function of the temperature while stirring. Solutions of the polymers were prepared in deionized water (Laborpure, Behr Labor Technik) and were stirred at room temperature until all polymer was dissolved or dispersed. The samples were measured from 20 to 80 °C with a heating rate of 1 °C/min.
Dynamic light scattering: The dynamic light scattering (DLS) experiments were performed with an ALV/CGS-8F goniometer system, with 8 fiber-optical detection units, from ALV-GmbH, Langen, Germany. Solutions of the polymers were prepared in deionized water (Laborpure, Behr Labor Technik) and were stirred at room temperature until all polymer was dissolved or dispersed Different sample solutions with altered concentrations (1, 2.5, 5, and 7.5 mg/mL) were filtered in an atmosphere of filtered air through a 5 μm filter (Millipore) directly into pre-cleaned 10 mm NMR tubes (Wilmad Glass Co. Vineland, NJ, USA) of highest quality. The samples were measured from 25 to 60 °C with a heating rate of 1 °C/min.
The DLS experiments probe the concentration fluctuations relaxation toward equilibrium at a length scale 1/q. The magnitude of the wave vector, q, is given by q = (4πn/λ)sin(θ/2), where λ is the wavelength of the incident light in a vacuum, θ is the scattering angle, and n is the refractive index of the medium. Assuming that the scattering of the incoming light exhibits Gaussian statistics, the experimentally recorded intensity autocorrelation function g2(q,t) is directly linked to the theoretically amenable first-order electric field autocorrelation function g1(q,t) through the Siegert [62] relationship: g2(q,t) = 1 + B|g1(q,t)|2, where B (≤1) is an empirical factor that depends on the experimental geometry.
Depending on the conditions, the correlation functions were found to exhibit either one, two or three relaxation modes. In this DLS study, the correlation functions that only showed a simple exponential decay were fitted by
g1(q,t) = exp[−(t/τse)β]
where τse represent an effective relaxation time and β express the width of the distribution of the relaxation times. The value of β is limited to the interval 0 < (β) ≤ 1.
In cases that are more complex it is often observed that the decay of the correlation functions exhibits two relaxation modes. The correlation functions were then fitted by the sum of a single and a stretched exponential:
g1(q,t) = Af exp(−t/τf) + As exp[−(t/τse)β]
where Af + As = The parameters Af and As are the amplitudes while τf and τse are the relaxation times for the fast and the slow relaxation modes, respectively.
In the analysis of the recent work, the correlation functions were also found to exhibit an additional third mode at very long times (Figure 1). The correlation function can be fitted by
g1(q,t) = Af exp(−t/τf) + As exp[− (t/τse)β] + Avs exp(−t/τvs)
where Af + As + Avs = The subscript f is associated with the fast mode, subscript s relates to the slow mode, and the subscript vs is connected to the very slow mode. The mean relaxation time is given by τ s = τ s e β Γ ( 1 β ) , where Γ is the gamma function. It was found that the stretched exponent of the fast mode and the very slow mode were very close to one, and therefore a single exponential was used in order to reduce the number of fitting parameters.
The third mode in the relaxation process were observed at the lowest concentration for all the investigated polymers. In the case of PEtOx80-block-P(EtOx8-stat-PropOx32) (the most hydrophilic of these polymers), this feature also appeared at the concentration of 2.5 mg/mL.
In order to determine the number of relaxation modes for each correlation function, residual plots have been employed. A plot of the residuals should always be used in order to check how well the analysis fits the data. In this way, the agreement between the methods of data analysis, the parameters received, and the measured data can be checked (Figure 1).
The q dependences of the inverse fast, slow, and very slow relaxation times can be quantified by τ f 1 ~ q α f , τ s 1 ~ q α s , and τ v s 1 ~ q α v s , respectively. The value of αf ≈ 2 at all conditions, except for the correlation functions that exhibit a trimodal distribution. For the cases where αf ≈ 2, it indicates the existence of a diffusive mode, and the Stokes–Einstein relationship can be used to calculate the hydrodynamic radius of the fast relaxation mode: R h , f = k B T 6 π η D f , where kB is the Boltzmann constant, T is the absolute temperature, and η is solvent viscosity. The mutual diffusion coefficient of the fast mode can be expressed as Df = 1/(τf q2). At low concentrations, in the presence of the trimodal distribution, the value of αf were found to alter between 2 to 4 and αs varied from 2 to At higher concentrations, the fast mode is diffusive, while the slow relaxation mode exhibits stronger q dependence at some temperatures. A q-dependency higher than 2 might be caused by interactions between the particles [63,64] or if qR >> 1 by the influence of internal motions within the particles [65,66,67]. The Stokes–Einstein relationship is not valid when αs > 2, and using it under these conditions will result in different sizes depending on the scattering angle employed in the measurements. However, even though the absolute values will not be correct, the trends in the data should indicate whether the sizes are increasing or decreasing. We have therefore chosen to represent the values calculated from the slow relaxation mode as an apparent hydrodynamic radius, Rh,s, using a scattering angle of 107°: R h , s = k B T 6 π η D s , where the mutual diffusion coefficient of the slow mode is Ds = 1/(τs q2). The amplitudes of the relaxation modes are angle dependent. The scattering angle of 107° was chosen since it was found to give the best resolution of the modes.

3. Results and Discussion

3.1. Turbidimetry

The thermoresponsive nature of these copolymers gives rise to a complex turbidity behavior [61]. As can be seen from Figure 2, the transmittance goes through a minimum value followed by an increase, before the transmittance decreases again to very low values. Previous studies on the 5.0 mg/mL samples [61] revealed that there is an aggregation induced decline in the transmittance due to collapse of the PEtOx-PropOx block, followed by fragmentation of the clusters into micellar-like entities causing a rise in the transmittance. At even higher temperatures, the system re-aggregates into large compact clusters due to collapse of the PEtOx block, causing very low transmittance values. Similar transmittance trends have also been observed for other thermoresponsive block copolymers [68,69,70,71,72,73].
A closer look at the transmittance values in Figure 2 reveals an intriguing trend at low temperatures, where the transmittance values do not follow the expected concentration dependency. The transmittance of a sample is dependent on the concentration, the size of the particles, and the difference in refractive index between the particles and the surrounding liquid [74]. The difference in refractive index can be related to how swollen/compact the particles are. A swollen particle contains a high amount of solvent resulting in an overall refractive index that is close to that of the solvent (hence little scattering), while a compact particle has a refractive index closer to that of the polymer leading to more scattering. Provided that the particles are not both very large and very compact, aggregation causes a decrease in the transmittance while swelling results in a higher transmittance [61,75]. If no changes in the aggregation or swelling behavior of the samples take place, the transmittance decreases as the concentration is raised. In addition, increasing the concentration often enhances aggregation [76], which will reduce the transmittance values further. It is therefore surprising to find the trend illustrated in Figure 3a where the transmittance values go through a maximum when the copolymer concentration is raised. This interesting behavior will be discussed in more detail below, in connection with the dynamic light scattering results.
Both higher concentrations and enhanced polymer hydrophobicity (higher amount of PropOx) causes lower transmittance values at the minimum (Figure 2 and Figure 3a,b). In addition, the minimum is shifted towards lower temperatures (Figure 2). This is reasonable since higher concentrations and enhanced hydrophobicity promote both aggregation of the samples and contraction of the aggregates, thereby reducing the transmittance of the samples [61,75].

3.2. Dynamic Light Scattering

The dynamic light scattering reveals a complex picture, where the correlation functions exhibit one, two, or even three modes, depending on temperature, type of polymer, and polymer concentration. Great care was taken to ensure that the correct number of modes was used in the fitting procedure (see experimental section for details). Figure 4 shows the hydrodynamic radius (Rh,f) determined from the fast relaxation mode. This mode appears at low temperatures for all the samples. The small sizes of a few nm suggest that we are probing unassociated unimers (single polymer chains). As expected for these small unimers, there is little size variation between the different polymers and concentrations. When the temperature is raised, Rh,f of some of the samples increases, indicating aggregation of the unimers into larger entities. At high temperatures, the unimers are no longer evident in the correlation functions, as enhanced aggregation leaves too few unimers in the solution to be detectable. An increased concentration and higher amount of PropOx (which is more hydrophobic than EtOx) promotes aggregation, and accordingly the temperature where Rh,f disappears from the correlation functions is reduced.
The species probed by the second relaxation mode, giving the apparent hydrodynamic radius Rh,s (open symbols in Figure 5) are much larger than the unimers. Accordingly, this mode probes large aggregates, illustrating that the copolymers exhibit associative interactions even at temperatures below the LCST. This is not uncommon for thermoresponsive polymers [73,77,78,79], and even double hydrophilic block copolymers have been observed to form aggregates in dilute aqueous solutions [80,81,82]. The latter was explained by differences in hydrophilicities between the two blocks, resulting in different water uptake [80]. It is reasonable to assume that similar effects influence the aggregation behavior of thermoresponsive copolymers below the LCST. The size of the aggregates will increase when the average number of polymers in each aggregate becomes higher. However, the associative forces that promote aggregation also favors contraction of the aggregates, which will reduce the sizes. Accordingly, the overall size of the aggregates is a result of these two competing mechanisms. At most conditions, the size of these aggregates is largest for the highest polymer concentration, which may be expected since a higher concentration promotes enhanced associations of the polymers. However, as is evident from Figure 5b, the lowest concentration does not necessarily have the smallest sizes. This discrepancy is probably caused by a higher degree of swelling of the aggregates for the lower concentrations.
When the temperature is raised, Rh,s is initially relatively constant, followed by a size reduction. The decreased sizes are caused by contraction of the aggregates, and are most pronounced for the highest concentration. During this contraction, there is a corresponding slight decrease of the transmittance, while the steep transmittance decline occurs at somewhat higher temperatures (Figure 2). The steep decline of the transmittance is due to the formation of aggregates that are both large and compact. The samples are simultaneously aggregating and contracting. During the first steep decline of the transmittance, most of the samples exhibit an increase of Rh,s. This indicates that the size increase from aggregation is faster than the size reduction of the contraction at this stage.
Around the same temperature as the transmittance starts to increase again after the minimum (Figure 2), a new mode appears in the correlation functions (Rh,x; filled symbols in Figure 5). At this stage, the large aggregates (Rh,s) gradually fragment into smaller micellar-like structures (Rh,x) [61]. This fragmentation is due to the much higher hydrophobicity of PropOx than EtOx in this temperature region [60]. Accordingly, the copolymers rearrange into micellar-like structures with the hydrophobic block containing PPropOx in the middle and the more hydrophilic PEtOx block pointing out towards the aqueous surroundings [61]. The smaller sizes of Rh,x causes the increase in the transmittance, and as more and more of the large aggregates fragment into smaller structures the transmittance continues to rise, and the samples becomes optically clear again. For several of the samples, Rh,x becomes smaller when the temperature is raised. This is probably caused by a contraction of the EtOx corona, which becomes more hydrophobic with increasing temperatures, possibly in combination with further dehydration of the PEtOx-PropOx core [61].
At even higher temperatures, the PEtOx block is also passing its LCST phase transition and phase separates from solution. At this stage, the associative forces between the polymers become dominant causing a re-aggregation, and a sharp drop in the transmittance (Figure 2). At these conditions, the samples exhibit multiple scattering, and the DLS data cannot be analyzed. Interestingly, this second drop in the transmittance is shifted towards higher temperatures for the most hydrophobic polymer (PEtOx80-b-PPropOx40) and for the highest concentrations. This is unexpected, since one would expect the aggregation to be promoted by enhanced hydrophobicity and increased concentrations. However, when the hydrophobic interactions of the P(EtOx-stat-PropOx) block increases, a higher amount of the polymer clusters will fragment into the micellar-like aggregates (Rh,x) with a PEtOx outer layer. These structures are stabilized by the PEtOx corona and therefore much less prone to aggregation than the more unstructured Rh,s aggregates [61].
The stretched exponent, β, provides information about how broad the size distribution of the aggregates is. β = 1 indicates a monodisperse distribution, and a broader size distribution will give lower values of β. Figure 6 shows β for the slow mode (Rh.s). The other modes exhibited a nearly monodisperse size distribution, with a stretched exponent very close to one (and the exponent was therefore fixed to one to reduce the number of fitting parameters). A narrow size distribution of Rh,f is expected, since the fast mode probes single chains of polymers with a relatively small polydispersity. Rh,x is due to micellar-like structures that is also expected to exhibit a narrow size distribution. The β values for Rh.s varies between 0.4 and 1, and is generally higher (narrower size distributions) at elevated temperatures where large and compact aggregates are formed. At low temperatures, β decreases when the concentration is raised for the most hydrophobic polymer (PEtOx80-b-PPropOx40), and β is also generally lower than for the other polymers in this temperature range. Accordingly, the aggregates formed at low temperatures have a wider size distribution when there are more hydrophobic interactions in the sample.
At the lowest concentrations, a relaxation mode (τvs) with extremely long relaxation times (large sizes) is observed (Figure 7). Both diluting the system and reducing the hydrophobicity of the statistical PEtOx-PropOx block will result in better solvent conditions for the polymer. Accordingly, the polymer is expected to swell more in the solvent, and have a reduced tendency of forming aggregates. The promotion of a relaxation mode with an extremely slow relaxation time is rather surprising at these conditions. Nonetheless, the decline in the transmittance at low concentrations (Figure 3a) is in accordance with the formation of large aggregates. Although the transmittance decreases for the lowest concentration, it does not become very low. At a constant concentration, the transmittance decreases with the size and compactness of the aggregates [61,75]. Accordingly, very large aggregates with only a moderate reduction of the transmittance indicate that the aggregates have an open structure. This raises the question of what kind of process would promote the formation of large aggregates with an open structure when the solvent conditions are improved.
Elongated or rod-like structures could cause a very slow relaxation mode. However, they should also induce a rotational mode with a q-dependency lower than 2 [83]. Since the q-dependency of the relaxation modes at these conditions was found to be larger than 2, we have ruled out the possibility of elongated or rod-like structures.
Better solvent conditions should allow for a larger portion of the polymer chains to be unassociated unimers in the solution. In addition, there should be fewer aggregates, which on average contain a smaller amount of polymer chains. Since the aggregates are also expected to be more swollen, the overall size of the aggregates could either increase (due to swelling) or decrease (due to fewer polymer chains in the aggregates). However, swelling of the aggregates is not expected to produce anything of the size scale that would result in the extremely slow relaxation times observed for the third mode. Swelling of the aggregates would also cause an increase of the transmittance [61,75] instead of the observed decline.
If the concentration of unassociated polymer in solution increases at better solvent conditions, depletion flocculation of the aggregates may occur when the critical flocculation concentration of free, unassociated polymer in solution is reached [84]. Depletion flocculation would cause the formation of loose aggregates with an open structure, which is in agreement with the optical clarity of the samples. Depletion flocculation can also explain the formation of very large structures, and the fact that these are promoted at better solvent conditions (low concentrations, smaller amounts of PropOX in the statistical PEtOx-PropOx block, and low temperatures).
As the temperature is raised, the solvent conditions for the temperature sensitive polymers becomes poorer, and the large flocks that gives rise to τvs disappear. For some of the samples, the values of τvs decrease when the temperature is raised, suggesting that the flocks become smaller before disappearing completely at even higher temperatures.

4. Conclusions

The complex temperature-dependent behavior of three block-copolymers PEtOx80-block-P(EtOxx-stat-PropOx40-x) with x = 0, 4, or 8 at different concentrations yields some very interesting results and insights into the process. The correlation functions from dynamic light scattering reveal the presence of four different kinds of structures, of which one to three may be present at the same time. This is summarized in Figure 8, where the temperature regions at which the different relaxation modes are present in the samples are indicated, and the structures causing the different relaxation modes are illustrated. At low temperatures, unimers (Rh,f) can be observed for all samples. At higher temperatures, the polymers become more hydrophobic leading to enhanced interactions and fewer unassociated unimers. Accordingly, Rh,f is no longer evident at higher temperatures. It disappears at lower temperatures when the hydrophobicity of the statistical PEtOx-PropOx block increases (higher amount of PropOx) and at higher concentrations.
Rh,s probes aggregates that are present throughout most of the considered temperature region. The sizes of these aggregates increase when the number of polymers they contain is raised, and decreases when the aggregates contract. Since the same forces that results in enhanced aggregation also promotes contraction, the overall sizes of Rh,s is a result of these two competing mechanisms. When the temperature is raised, the combined aggregation and contraction of the aggregates causes the samples to become more turbid (reduced transmittance).
At high temperatures, the aggregates (Rh,s) starts to fragment into smaller micellar-like structures (Rh,x). These structures are only evident at high temperatures. The fragmentation into smaller units results in a higher transmittance, and the samples become optically clear again. At even higher temperatures, the polymers become even more hydrophobic and re-associate into large aggregates due to collapse of the PEtOx block. At this stage the samples become very turbid (low transmittance), and multiple scattering prevents analyses of the DLS data.
A very slow relaxation mode is present at good solvent conditions, i.e., when the temperature is not too high for the lowest polymer concentration for all polymers, and also at the second lowest concentration for the most hydrophilic polymer. This mode is probably caused by depletion flocculation of aggregates (Rh,s) when the concentration of free unimers (Rh,f) becomes high enough.

Author Contributions

Conceptualization, L.T.C.; R.H. and A.-L.K.; methodology, L.T.C.; M.H. and A.-L.K.; investigation, L.T.C.; M.H. and A.-L.K.; writing—original draft preparation, L.T.C. and A.-L.K.; writing—review and editing, L.T.C.; M.H.; R.H. and A.-L.K. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Conflicts of Interest

R.H. is one of the founders of Avroxa BVBA that commercializes poly(2-oxazoline)s as Ultroxa®. The other authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.


  1. Findlay, P.H.; Rannard, S.P.; Royles, B.J.L.; Weaver, J.V.M. Amphiphilic Branched Polymers and Their Use as Emulsifiers. U.S. Patent 20110172314A1, 29 May 2008. [Google Scholar]
  2. Bobin, M.-F.; Michel, V.; Martini, M.-C. Study of formulation and stability of emulsions with polymeric emulsifiers. Colloids Surfaces A Physicochem. Eng. Asp. 1999, 152, 53–58. [Google Scholar] [CrossRef]
  3. Mathur, A.M.; Drescher, B.; Scranton, A.B.; Klier, J. Polymeric emulsifiers based on reversible formation of hydrophobic units. Nature 1998, 392, 367–370. [Google Scholar] [CrossRef]
  4. Alexandridis, P. Amphiphilic copolymers and their applications. Curr. Opin. Colloid Interface Sci. 1996, 1, 490–501. [Google Scholar] [CrossRef]
  5. Winnik, M.A.; Yekta, A. Associative polymers in aqueous solution. Curr. Opin. Colloid Interface Sci. 1997, 2, 424–436. [Google Scholar] [CrossRef]
  6. Talelli, M.; Barz, M.; Rijcken, C.J.; Kiessling, F.; Hennink, W.E.; Lammers, T. Core-crosslinked polymeric micelles: Principles, preparation, biomedical applications and clinical translation. Nano Today 2015, 10, 93–117. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Mura, S.; Nicolas, J.; Couvreur, P.; Patrick, C. Stimuli-responsive nanocarriers for drug delivery. Nat. Mater. 2013, 12, 991–1003. [Google Scholar] [CrossRef] [PubMed]
  8. Chen, C.-Y.; Kim, T.H.; Wu, W.-C.; Huang, C.-M.; Wei, H.; Mount, C.; Tian, Y.; Jang, S.-H.; Pun, S.H.; Jen, A.K.-Y. pH-dependent, thermosensitive polymeric nanocarriers for drug delivery to solid tumors. Biomaterials 2013, 34, 4501–4509. [Google Scholar] [CrossRef] [Green Version]
  9. Wei, H.; Cheng, S.-X.; Zhang, X.-Z.; Zhuo, R.-X. Thermo-sensitive polymeric micelles based on poly(N-isopropylacrylamide) as drug carriers. Prog. Polym. Sci. 2009, 34, 893–910. [Google Scholar] [CrossRef]
  10. Hu, J.; Liu, S. Responsive Polymers for Detection and Sensing Applications: Current Status and Future Developments. Macromolecules 2010, 43, 8315–8330. [Google Scholar] [CrossRef]
  11. Talelli, M.; Hennink, W.E. Thermosensitive polymeric micelles for targeted drug delivery. Nanomedicine 2011, 6, 1245–1255. [Google Scholar] [CrossRef]
  12. Shao, P.; Wang, B.; Wang, Y.; Li, J.; Zhang, Y. The Application of Thermosensitive Nanocarriers in Controlled Drug Delivery. J. Nanomater. 2011, 2011, 1–12. [Google Scholar] [CrossRef] [Green Version]
  13. Zhang, Q.; Weber, C.; Schubert, U.S.; Hoogenboom, R. Thermoresponsive polymers with lower critical solution temperature: From fundamental aspects and measuring techniques to recommended turbidimetry conditions. Mater. Horizons 2017, 4, 109–116. [Google Scholar] [CrossRef]
  14. Gil, E.; Hudson, S.M. Stimuli-reponsive polymers and their bioconjugates. Prog. Polym. Sci. 2004, 29, 1173–1222. [Google Scholar] [CrossRef]
  15. Ward, M.A.; Georgiou, T.K. Thermoresponsive Polymers for Biomedical Applications. Polymer 2011, 3, 1215–1242. [Google Scholar] [CrossRef] [Green Version]
  16. Viegas, T.X.; Bentley, M.D.; Harris, J.M.; Fang, Z.; Yoon, K.; Dizman, B.; Weimer, R.; Mero, A.; Pasut, G.; Veronese, F.M. Polyoxazoline: Chemistry, Properties, and Applications in Drug Delivery. Bioconjug. Chem. 2011, 22, 976–986. [Google Scholar] [CrossRef]
  17. Qiu, X.; Hu, S. “Smart” Materials Based on Cellulose: A Review of the Preparations, Properties, and Applications. Materials 2013, 6, 738–781. [Google Scholar] [CrossRef] [Green Version]
  18. Luxenhofer, R.; Han, Y.; Schulz, A.; Tong, J.; He, Z.; Kabanov, A.V.; Jordan, R. Poly(2-oxazoline)s as Polymer Therapeutics. Macromol. Rapid Commun. 2012, 33, 1613–1631. [Google Scholar] [CrossRef] [Green Version]
  19. Schild, H. Poly(N-isopropylacrylamide): Experiment, theory and application. Prog. Polym. Sci. 1992, 17, 163–249. [Google Scholar] [CrossRef]
  20. Aoshima, S.; Kanaoka, S. Synthesis of Stimuli-Responsive Polymers by Living Polymerization: Poly(N-Isopropylacrylamide) and Poly(Vinyl Ether)s. In Anionic Polymerization; Springer Science and Business Media LLC: Berlin/Heidelberg, Germany, 2007; Volume 210, pp. 169–208. [Google Scholar]
  21. Lee, J.-S.; Feijen, J. Polymersomes for drug delivery: Design, formation and characterization. J. Control. Release 2012, 161, 473–483. [Google Scholar] [CrossRef]
  22. Lutz, J.-F. Polymerization of oligo(ethylene glycol) (meth)acrylates: Toward new generations of smart biocompatible materials. J. Polym. Sci. Part A: Polym. Chem. 2008, 46, 3459–3470. [Google Scholar] [CrossRef]
  23. Lutz, J. Thermo-Switchable Materials Prepared Using the OEGMA-Platform. Adv. Mater. 2011, 23, 2237–2243. [Google Scholar] [CrossRef]
  24. Hoogenboom, R.; Schlaad, H. Bioinspired Poly(2-oxazoline)s. Polymer 2011, 3, 467–488. [Google Scholar] [CrossRef] [Green Version]
  25. Schlaad, H.; Diehl, C.; Gress, A.; Meyer, M.; Demirel, A.L.; Nur, Y.; Bertin, A. Poly(2-oxazoline)s as Smart Bioinspired Polymers. Macromol. Rapid Commun. 2010, 31, 511–525. [Google Scholar] [CrossRef] [PubMed]
  26. Luxenhofer, R.; Schulz, A.; Roques, C.; Li, S.; Bronich, T.K.; Batrakova, E.V.; Jordan, R.; Kabanov, A.V. Doubly amphiphilic poly(2-oxazoline)s as high-capacity delivery systems for hydrophobic drugs. Biomaterial 2010, 31, 4972–4979. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Hoogenboom, R. Poly(2-oxazoline)s: A Polymer Class with Numerous Potential Applications. Angew. Chem. Int. Ed. 2009, 48, 7978–7994. [Google Scholar] [CrossRef]
  28. Adams, N.; Schubert, U.S. Poly(2-oxazolines) in biological and biomedical application contexts. Adv. Drug Deliv. Rev. 2007, 59, 1504–1520. [Google Scholar] [CrossRef]
  29. Knop, K.; Hoogenboom, R.; Fischer, D.; Schubert, U.S. Poly(ethylene glycol) in Drug Delivery: Pros and Cons as Well as Potential Alternatives. Angew. Chem. Int. Ed. 2010, 49, 6288–6308. [Google Scholar] [CrossRef]
  30. Allen, T.M.; Cullis, P.R. Drug Delivery Systems: Entering the Mainstream. Science 2004, 303, 1818–1822. [Google Scholar] [CrossRef] [Green Version]
  31. Langer, R. Drug delivery and targeting. Nature 1998, 392, 5. [Google Scholar]
  32. Panyam, J.; Labhasetwar, V. Biodegradable nanoparticles for drug and gene delivery to cells and tissue. Adv. Drug Deliv. Rev. 2003, 55, 329–347. [Google Scholar] [CrossRef]
  33. Uhrich, K.E.; Cannizzaro, S.M.; Langer, R.S.; Shakesheff, K.M. Polymeric Systems for Controlled Drug Release. Chem. Rev. 1999, 99, 3181–3198. [Google Scholar] [CrossRef] [PubMed]
  34. Sedlacek, O.; Monnery, B.D.; Filippov, S.K.; Hoogenboom, R.; Hruby, M. Poly(2-Oxazoline)s—Are They More Advantageous for Biomedical Applications Than Other Polymers? Macromol. Rapid Commun. 2012, 33, 1648–1662. [Google Scholar] [CrossRef] [PubMed]
  35. De La Rosa, V.R. Poly(2-oxazoline)s as materials for biomedical applications. J. Mater. Sci. Mater. Electron. 2013, 25, 1211–1225. [Google Scholar] [CrossRef] [PubMed]
  36. Bauer, M.; Lautenschlaeger, C.; Kempe, K.; Tauhardt, L.; Schubert, U.S.; Fischer, D. Poly(2-ethyl-2-oxazoline) as Alternative for the Stealth Polymer Poly(ethylene glycol): Comparison of in vitro Cytotoxicity and Hemocompatibility. Macromol. Biosci. 2012, 12, 986–998. [Google Scholar] [CrossRef] [PubMed]
  37. Frechet, J.J.M.; Yui, K. Polymerizable Macromonomers and Polymers Prepared Therefrom. U.S. Patent 58,309,48A, 30 June 1995. [Google Scholar]
  38. Warchol, J.F.; Walton, C.D. Creping Adhesives Containing Oxazoline Polymer Blends and Use in Paper Product Applications. U.S. Patent 97-795911, 24 August 1998. [Google Scholar]
  39. Brinkhuis, R. Hyperbranched Esteroxazoline Polymers. WO2003054060A1, 21 December 2001. [Google Scholar]
  40. Davis, R.A.; Madison, N.L. Polyoxazoline-Modified, Paper Coating. U.S. Patent 44,367,89A, 24 August 1998. [Google Scholar]
  41. Warchol, J.F.; Walton, C.D. Creping Adhesives Containing Oxazoline Polymers and Methods of Use Thereof. U.S. Patent 58,377,68A, 8 December 1994. [Google Scholar]
  42. Hamidi, M.; Shahbazi, M.-A.; Rostamizadeh, K. Copolymers: Efficient Carriers for Intelligent Nanoparticulate Drug Targeting and Gene Therapy. Macromol. Biosci. 2011, 12, 144–164. [Google Scholar] [CrossRef]
  43. Tomalia, D.A.; Sheetz, D.P. Homopolymerization of 2-alkyl- and 2-aryl-2-oxazolines. J. Polym. Sci. Part A-1: Polym. Chem. 1966, 4, 2253–2265. [Google Scholar] [CrossRef]
  44. Litt, M.; Herz, J. Polymerization of cyclic imino ethers. J. Colloid Interface Sci. 1969, 31, 248–252. [Google Scholar] [CrossRef]
  45. Kagiya, T.; Narisawa, S.; Maeda, T.; Fukui, K. Ring-opening polymerization of 2-substituted 2-oxazolines. J. Polym. Sci. Part B Polym. Lett. 1966, 4, 441–445. [Google Scholar] [CrossRef]
  46. Levy, A.; Litt, M. Polymerization of cyclic iminoethers. III. Effect of ring substituents. J. Polym. Sci. Part A-1 Polym. Chem. 1968, 6, 57–62. [Google Scholar] [CrossRef]
  47. Levy, A.; Litt, M. Polymerization of cyclic iminoethers. V. 1,3-oxazolines with hydroxy-, acetoxy-, and carboxymethyl-alkyl groups in the 2 position and their polymers. J. Polym. Sci. Part A-1: Polym. Chem. 1968, 6, 1883–1894. [Google Scholar] [CrossRef]
  48. Moreadith, R.W.; Viegas, T.X.; Bentley, M.D.; Harris, J.M.; Fang, Z.; Yoon, K.; Dizman, B.; Weimer, R.; Rae, B.P.; Li, X.; et al. Clinical development of a poly(2-oxazoline) (POZ) polymer therapeutic for the treatment of Parkinson’s disease – Proof of concept of POZ as a versatile polymer platform for drug development in multiple therapeutic indications. Eur. Polym. J. 2017, 88, 524–552. [Google Scholar] [CrossRef]
  49. Aoi, K.; Suzuki, H.; Okada, M. Architectural control of sugar-containing polymers by living polymerization: Ring-opening polymerization of 2-oxazolines initiated with carbohydrate derivatives. Macromolecules 1992, 25, 7073–7075. [Google Scholar] [CrossRef]
  50. Verbraeken, B.; Monnery, B.D.; Lava, K.; Hoogenboom, R. The chemistry of poly(2-oxazoline)s. Eur. Polym. J. 2017, 88, 451–469. [Google Scholar] [CrossRef]
  51. Fox, M.E.; Szoka, F.C.; Fréchet, J.M.J. Soluble Polymer Carriers for the Treatment of Cancer: The Importance of Molecular Architecture. Accounts Chem. Res. 2009, 42, 1141–1151. [Google Scholar] [CrossRef] [Green Version]
  52. Glassner, M.; Vergaelen, M.; Hoogenboom, R. Poly(2-oxazoline)s: A comprehensive overview of polymer structures and their physical properties. Polym. Int. 2017, 67, 32–45. [Google Scholar] [CrossRef]
  53. Zalipsky, S.; Hansen, C.B.; Oaks, J.M.; Allen, T.M. Evaluation of Blood Clearance Rates and Biodistribution of Poly(2-oxazoline)-Grafted Liposomes§. J. Pharm. Sci. 1996, 85, 133–137. [Google Scholar] [CrossRef]
  54. Gaertner, F.C.; Luxenhofer, R.; Blechert, B.; Jordan, R.; Essler, M. Synthesis, biodistribution and excretion of radiolabeled poly(2-alkyl-2-oxazoline)s. J. Control. Release 2007, 119, 291–300. [Google Scholar] [CrossRef]
  55. Woodle, M.C.; Engbers, C.M.; Zalipsky, S. New Amphipatic Polymer-Lipid Conjugates Forming Long-Circulating Reticuloendothelial System-Evading Liposomes. Bioconjug. Chem. 1994, 5, 493–496. [Google Scholar] [CrossRef]
  56. He, Z.; Schulz, A.; Wan, X.; Seitz, J.; Bludau, H.; Alakhova, D.; Darr, D.B.; Perou, C.M.; Jordan, R.; Ojima, I.; et al. Poly(2-oxazoline) based micelles with high capacity for 3rd generation taxoids: Preparation, in vitro and in vivo evaluation. J. Control. Release 2015, 208, 67–75. [Google Scholar] [CrossRef] [Green Version]
  57. Lin, P.; Clash, C.; Pearce, E.M.; Kwei, T.K.; Aponte, M.A. Solubility and miscibility of poly(ethyl oxazoline). J. Polym. Sci. Part B: Polym. Phys. 1988, 26, 603–619. [Google Scholar] [CrossRef]
  58. Uyama, H.; Kobayashi, S. A Novel Thermo-Sensitive Polymer. Poly(2-iso-propyl-2-oxazoline). Chem. Lett. 1992, 21, 1643–1646. [Google Scholar] [CrossRef]
  59. Park, J.-S.; Kataoka, K. Precise Control of Lower Critical Solution Temperature of Thermosensitive Poly(2-isopropyl-2-oxazoline) via Gradient Copolymerization with 2-Ethyl-2-oxazoline as a Hydrophilic Comonomer. Macromolecules 2006, 39, 6622–6630. [Google Scholar] [CrossRef]
  60. Hoogenboom, R.; Thijs, H.M.L.; Jochems, M.J.H.C.; Van Lankvelt, B.M.; Fijten, M.W.M.; Schubert, U.S. Tuning the LCST of poly(2-oxazoline)s by varying composition and molecular weight: Alternatives to poly(N-isopropylacrylamide)? Chem. Commun. 2008, 5758–5760. [Google Scholar] [CrossRef] [PubMed]
  61. Trinh, L.T.T.; Lambermont-Thijs, H.M.L.; Schubert, U.S.; Hoogenboom, R.; Kjøniksen, A.-L. Thermoresponsive Poly(2-oxazoline) Block Copolymers Exhibiting Two Cloud Points: Complex Multistep Assembly Behavior. Macromolecules 2012, 45, 4337–4345. [Google Scholar] [CrossRef] [Green Version]
  62. Siegert, A.J.F. On the Fluctuations in Signals Returned by Many Independently Moving Scatterers; Radiation Laboratory Report; Report 465; Massachusetts Institute of Technology: Cambridge, MA, USA, 1943. [Google Scholar]
  63. Ngai, K. Dynamics of semidilute solutions of polymers and associating polymers. Adv. Colloid Interface Sci. 1996, 64, 1–43. [Google Scholar] [CrossRef]
  64. Tirado-Miranda, M.; Haro-Pérez, C.; Quesada-Pérez, M.; Callejas-Fernández, J.; Hidalgo-Alvarez, R. Effective charges of colloidal particles obtained from collective diffusion experiments. J. Colloid Interface Sci. 2003, 263, 74–79. [Google Scholar] [CrossRef]
  65. Ellis, A.R.; Schaller, J.K.; McKiernan, M.L.; Selser, J.C. Evidence for coupling between hydrodynamic interactions and excluded volume effects in polymer coils. J. Chem. Phys. 1990, 92, 5731–5743. [Google Scholar] [CrossRef]
  66. Zimm, B.H. Dynamics of Polymer Molecules in Dilute Solution: Viscoelasticity, Flow Birefringence and Dielectric Loss. J. Chem. Phys. 1956, 24, 269. [Google Scholar] [CrossRef]
  67. Rouse, P.E. A Theory of the Linear Viscoelastic Properties of Dilute Solutions of Coiling Polymers. J. Chem. Phys. 1953, 21, 1272. [Google Scholar] [CrossRef]
  68. Jia, Y.-G.; Zhu, X.X. Complex thermoresponsive behavior of diblock polyacrylamides. Polym. Chem. 2014, 5, 4358–4364. [Google Scholar] [CrossRef]
  69. Hua, F.; Jiang, X.; Zhao, B. Temperature-Induced Self-Association of Doubly Thermosensitive Diblock Copolymers with Pendant Methoxytris(oxyethylene) Groups in Dilute Aqueous Solutions. Macromolecules 2006, 39, 3476–3479. [Google Scholar] [CrossRef]
  70. Käfer, F.; Liu, F.; Stahlschmidt, U.; Jérôme, V.; Freitag, R.; Karg, M.; Agarwal, S. LCST and UCST in One: Double Thermoresponsive Behavior of Block Copolymers of Poly(ethylene glycol) and Poly(acrylamide-co-acrylonitrile). Langmuir 2015, 31, 8940–8946. [Google Scholar] [CrossRef] [PubMed]
  71. Kermagoret, A.; Fustin, C.-A.; Bourguignon, M.; Detrembleur, C.; Jérôme, C.; Debuigne, A. One-pot controlled synthesis of double thermoresponsive N-vinylcaprolactam-based copolymers with tunable LCSTs. Polym. Chem. 2013, 4, 2575–2583. [Google Scholar] [CrossRef]
  72. Zhang, B.; Tang, H.; Wu, P. In Depth Analysis on the Unusual Multistep Aggregation Process of Oligo(ethylene glycol) Methacrylate-Based Polymers in Water. Macromolecules 2014, 47, 4728–4737. [Google Scholar] [CrossRef]
  73. Zhu, K.; Pamies, R.; Al-Manasir, N.; Cifre, J.G.H.; De La Torre, J.G.; Nyström, B.; Kjøniksen, A.-L. The Effect of Number of Arms on the Aggregation Behavior of Thermoresponsive Poly( N -isopropylacrylamide) Star Polymers. ChemPhysChem 2020, 21, 1258–1271. [Google Scholar] [CrossRef]
  74. Lechner, M. Influence of Mie scattering on nanoparticles with different particle sizes and shapes: Photometry and analytical ultracentrifugation with absorption optics. J. Serbian Chem. Soc. 2005, 70, 361–369. [Google Scholar] [CrossRef]
  75. Jonassen, H.; Kjøniksen, A.-L. Optical-scattering method for the determination of the local polymer concentration inside nanoparticles. Phys. Rev. E 2011, 84, 022401. [Google Scholar] [CrossRef] [Green Version]
  76. Bai, Y.; Ma, X.; Wang, W.; Yin, Q.; Du, Z.; Wang, G. Synthesis, aggregation and dispersity properties of novels amphiphilic comb-like terpolymers. Colloids Surfaces A: Physicochem. Eng. Asp. 2017, 526, 40–47. [Google Scholar] [CrossRef]
  77. Zhu, K.; Pamies, R.; Kjøniksen, A.-L.; Nyström, B. Temperature-Induced Intermicellization of “Hairy” and “Crew-Cut” Micelles in an Aqueous Solution of a Thermoresponsive Copolymer. Langmuir 2008, 24, 14227–14233. [Google Scholar] [CrossRef]
  78. Motokawa, R.; Morishita, K.; Koizumi, S.; Nakahira, T.; Annaka, M. Thermosensitive Diblock Copolymer of Poly(N-isopropylacrylamide) and Poly(ethylene glycol) in Water: Polymer Preparation and Solution Behavior. Macromolecules 2005, 38, 5748–5760. [Google Scholar] [CrossRef]
  79. Lutz, J.; Weichenhan, K.; Akdemir, O.; Hoth, A. About the Phase Transitions in Aqueous Solutions of Thermoresponsive Copolymers and Hydrogels Based on 2-(2-methoxyethoxy)ethyl Methacrylate and Oligo(ethylene glycol) Methacrylate. Macromolecules 2007, 40, 2503–2508. [Google Scholar] [CrossRef]
  80. Casse, O.; Shkilnyy, A.; Linders, J.; Mayer, C.; Häussinger, D.; Völkel, A.; Thünemann, A.F.; Dimova, R.; Cölfen, H.; Meier, W.P.; et al. Solution Behavior of Double-Hydrophilic Block Copolymers in Dilute Aqueous Solution. Macromolecules 2012, 45, 4772–4777. [Google Scholar] [CrossRef]
  81. Schmidt, B.V.K.J. Double Hydrophilic Block Copolymer Self-Assembly in Aqueous Solution. Macromol. Chem. Phys. 2018, 219, 1700494. [Google Scholar] [CrossRef]
  82. Willersinn, J.; Schmidt, B.V.K.J. Self-Assembly of Double Hydrophilic Poly(2-ethyl-2-oxazoline)-b-poly(N-vinylpyrrolidone) Block Copolymers in Aqueous Solution. Polym. 2017, 9, 293. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  83. Rodríguez-Fernández, J.; Pérez-Juste, J.; Liz-Marzán, L.M.; Lang, P. Dynamic Light Scattering of Short Au Rods with Low Aspect Ratios. J. Phys. Chem. C 2007, 111, 5020–5025. [Google Scholar] [CrossRef] [Green Version]
  84. Jenkins, P.; Snowden, M. Depletion flocculation in colloidal dispersions. Adv. Colloid Interface Sci. 1996, 68, 57–96. [Google Scholar] [CrossRef]

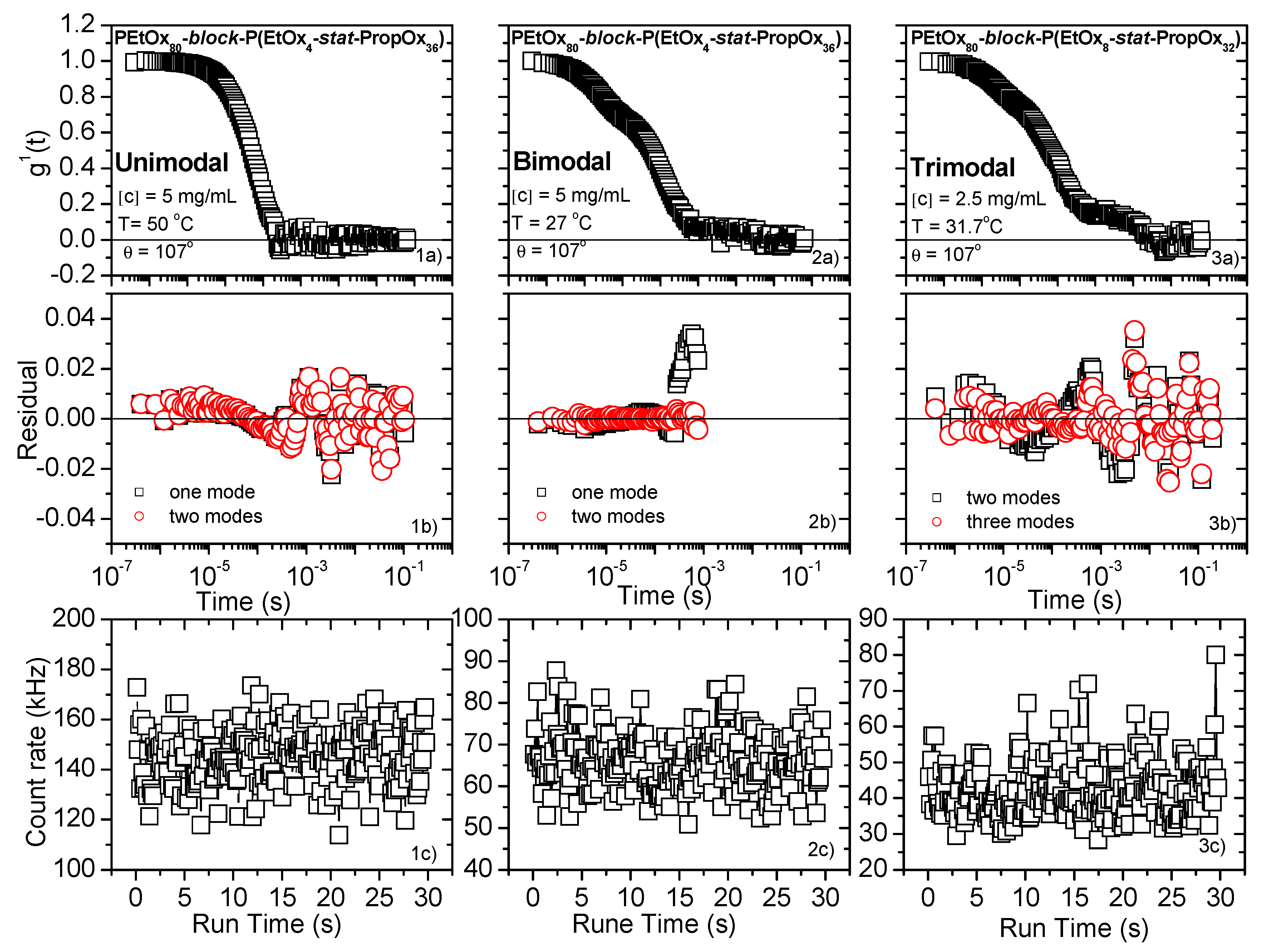

Figure 1. First-order electric field correlation function versus time and residual plots for some representative systems. (1ac) For a system that exhibits one relaxation mode. (2ac) For a system that displays two relaxation modes and (3ac) for a system that shows three relaxation modes. In the latest case, the count rate versus time was plotted to confirm there is no dust in the system and the third modes is a real physical process.
Figure 1. First-order electric field correlation function versus time and residual plots for some representative systems. (1ac) For a system that exhibits one relaxation mode. (2ac) For a system that displays two relaxation modes and (3ac) for a system that shows three relaxation modes. In the latest case, the count rate versus time was plotted to confirm there is no dust in the system and the third modes is a real physical process.
Polymers 12 01495 g001

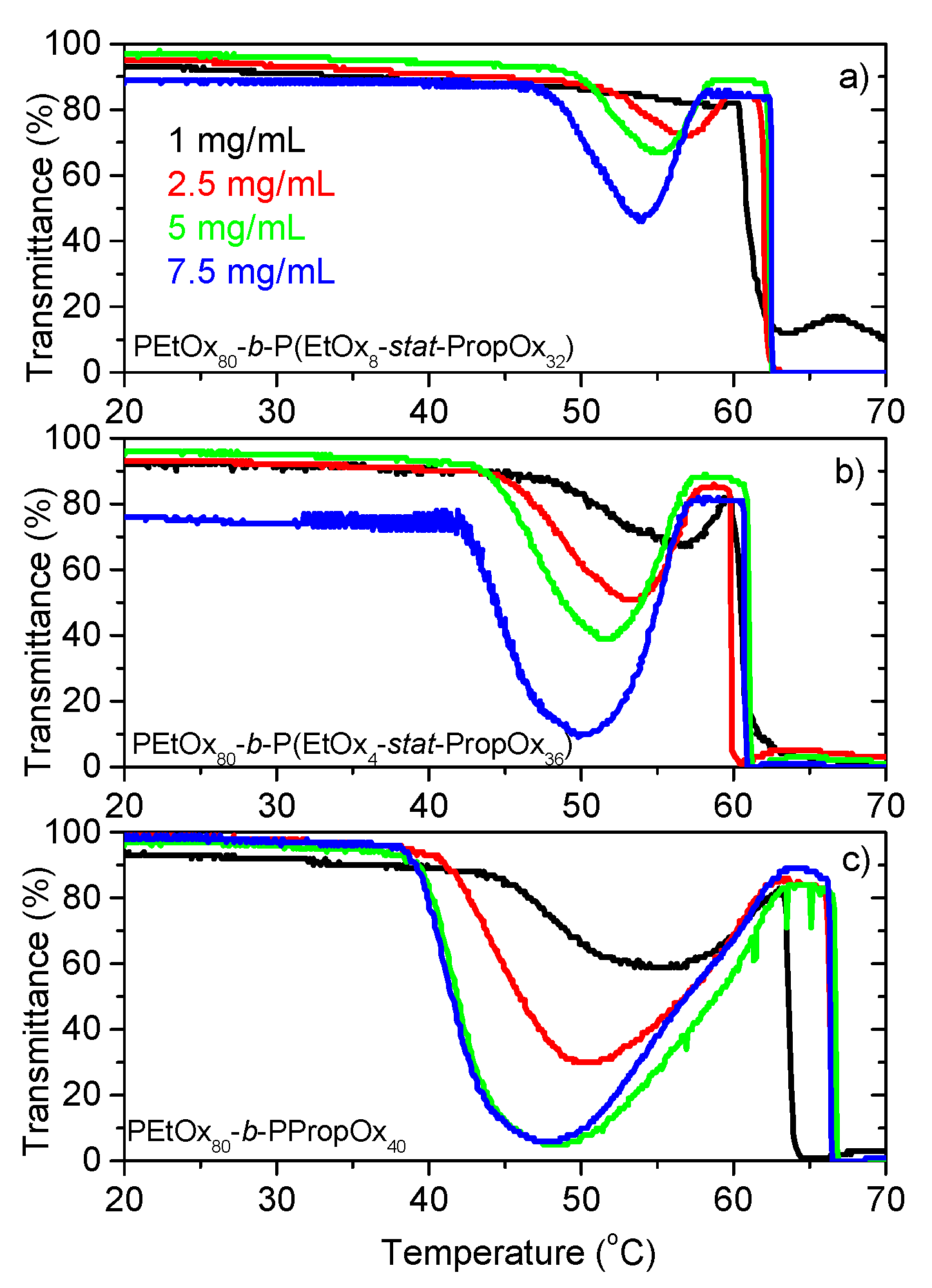

Figure 2. Turbidimetry of the indicated systems. Measured at a heating rate of 1.0 °C/min. (a) PEtOx80-block-P(EtOx8-stat-PropOx32) (b) PEtOx80-block-P(EtOx4-stat-PropOx36) (c) PEtOx80-block-PPropOx40.
Figure 2. Turbidimetry of the indicated systems. Measured at a heating rate of 1.0 °C/min. (a) PEtOx80-block-P(EtOx8-stat-PropOx32) (b) PEtOx80-block-P(EtOx4-stat-PropOx36) (c) PEtOx80-block-PPropOx40.
Polymers 12 01495 g002
Figure 3. (a) Transmittance of the indicated systems at 25 °C. (b) Transmittance values at first minimum.
Figure 3. (a) Transmittance of the indicated systems at 25 °C. (b) Transmittance values at first minimum.
Polymers 12 01495 g003

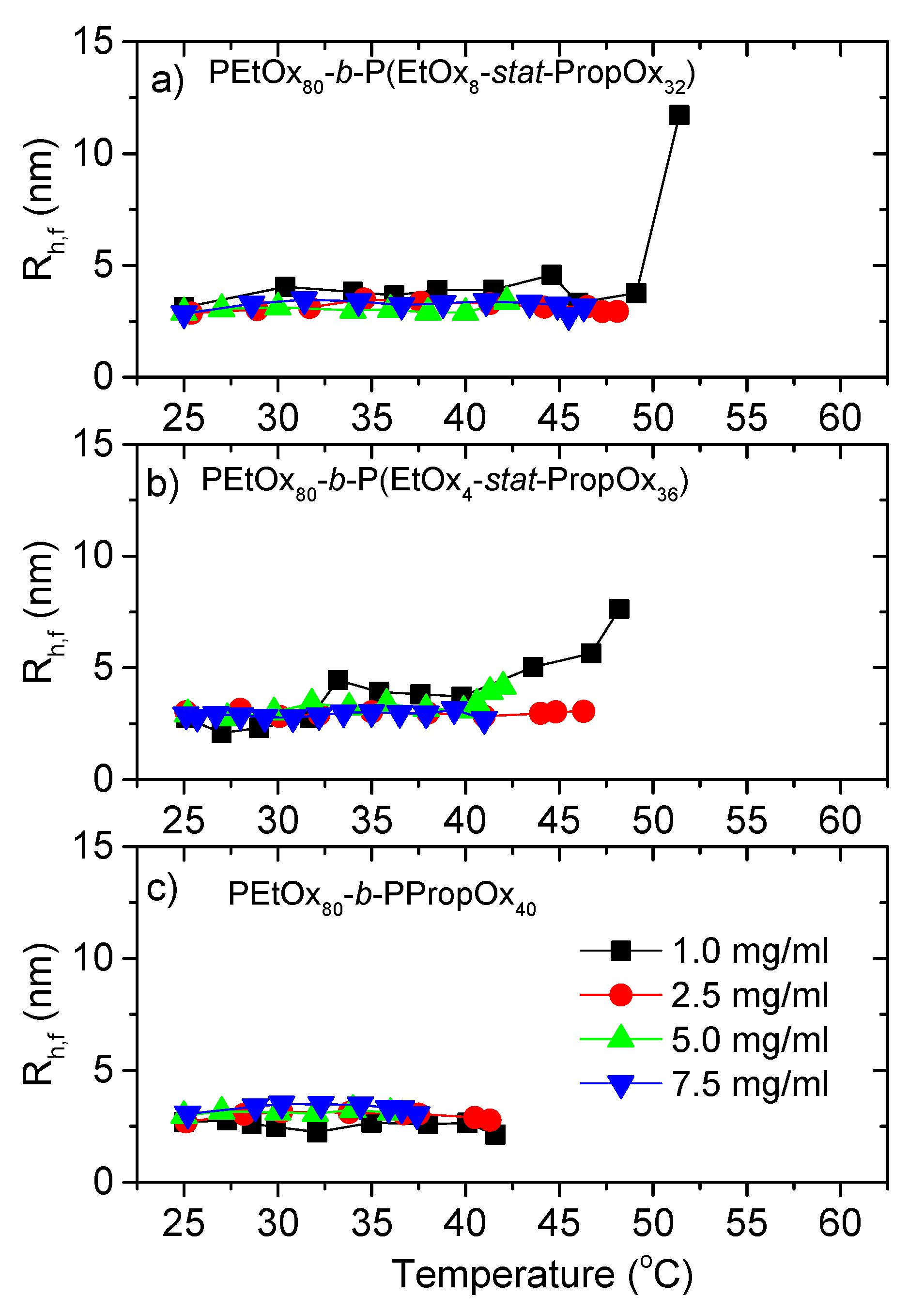

Figure 4. Hydrodynamic radius (Rh,f) determined from the fast relaxation mode as a function of temperature. Measured with a heating rate of 1 °C/min. The error bars are smaller than the size of the symbols. (a) PEtOx80-block-P(EtOx8-stat-PropOx32) (b) PEtOx80-block-P(EtOx4-stat-PropOx36) (c) PEtOx80-block-PPropOx40.
Figure 4. Hydrodynamic radius (Rh,f) determined from the fast relaxation mode as a function of temperature. Measured with a heating rate of 1 °C/min. The error bars are smaller than the size of the symbols. (a) PEtOx80-block-P(EtOx8-stat-PropOx32) (b) PEtOx80-block-P(EtOx4-stat-PropOx36) (c) PEtOx80-block-PPropOx40.
Polymers 12 01495 g004
Figure 5. Apparent hydrodynamic radius for the intermediate sized species. Rh,s in open symbols, and Rh,x in corresponding closed symbols. The missing data between 41 and 50 °C for 7.5 mg/mL PEtOX80-b-PPropOx40 is due to multiple scattering at these conditions, which prevents analysis of the data. Measured with a heating rate of 1 °C/min. The error bars are smaller than the size of the symbols. (a) PEtOx80-block-P(EtOx8-stat-PropOx32) (b) PEtOx80-block-P(EtOx4-stat-PropOx36) (c) PEtOx80-block-PPropOx40.
Figure 5. Apparent hydrodynamic radius for the intermediate sized species. Rh,s in open symbols, and Rh,x in corresponding closed symbols. The missing data between 41 and 50 °C for 7.5 mg/mL PEtOX80-b-PPropOx40 is due to multiple scattering at these conditions, which prevents analysis of the data. Measured with a heating rate of 1 °C/min. The error bars are smaller than the size of the symbols. (a) PEtOx80-block-P(EtOx8-stat-PropOx32) (b) PEtOx80-block-P(EtOx4-stat-PropOx36) (c) PEtOx80-block-PPropOx40.
Polymers 12 01495 g005
Figure 6. Stretched exponent, β, for the slow mode (Rh,s). (a) PEtOx80-block-P(EtOx8-stat-PropOx32) (b) PEtOx80-block-P(EtOx4-stat-PropOx36) (c) PEtOx80-block-PPropOx40.
Figure 6. Stretched exponent, β, for the slow mode (Rh,s). (a) PEtOx80-block-P(EtOx8-stat-PropOx32) (b) PEtOx80-block-P(EtOx4-stat-PropOx36) (c) PEtOx80-block-PPropOx40.
Polymers 12 01495 g006
Figure 7. Very slow relaxation time (τvs) of relaxation mode observed at the lowest concentrations. The data has been normalized to compensate for the temperature dependency of the solvent viscosity.
Figure 7. Very slow relaxation time (τvs) of relaxation mode observed at the lowest concentrations. The data has been normalized to compensate for the temperature dependency of the solvent viscosity.
Polymers 12 01495 g007
Figure 8. Temperature range in which the different relaxation modes are present, and sketch of the structures that gives rise to the different relaxation modes. Rh,f—black (2–12 nm), Rh,s—green (50–900 nm), Rh,x—red (17–48 nm); τvs—blue (>1 μm). (a) PEtOx80-block-P(EtOx8-stat-PropOx32) (b) PEtOx80-block-P(EtOx4-stat-PropOx36) (c) PEtOx80-block-PPropOx40.
Figure 8. Temperature range in which the different relaxation modes are present, and sketch of the structures that gives rise to the different relaxation modes. Rh,f—black (2–12 nm), Rh,s—green (50–900 nm), Rh,x—red (17–48 nm); τvs—blue (>1 μm). (a) PEtOx80-block-P(EtOx8-stat-PropOx32) (b) PEtOx80-block-P(EtOx4-stat-PropOx36) (c) PEtOx80-block-PPropOx40.
Polymers 12 01495 g008

Share and Cite

MDPI and ACS Style

Trinh Che, L.; Hiorth, M.; Hoogenboom, R.; Kjøniksen, A.-L. Complex Temperature and Concentration Dependent Self-Assembly of Poly(2-oxazoline) Block Copolymers. Polymers 2020, 12, 1495.

AMA Style

Trinh Che L, Hiorth M, Hoogenboom R, Kjøniksen A-L. Complex Temperature and Concentration Dependent Self-Assembly of Poly(2-oxazoline) Block Copolymers. Polymers. 2020; 12(7):1495.

Chicago/Turabian Style

Trinh Che, Loan, Marianne Hiorth, Richard Hoogenboom, and Anna-Lena Kjøniksen. 2020. "Complex Temperature and Concentration Dependent Self-Assembly of Poly(2-oxazoline) Block Copolymers" Polymers 12, no. 7: 1495.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
