Polystyrene Magnetic Nanocomposites as Antibiotic Adsorbents

PhD of Environmental Health, Infectious Diseases and Tropical Medicine Research Center, Resistant Tuberculosis Institute, Zahedan University of Medical Sciences, Zahedan 98167-43463, Iran
Department of Physics, Faculty of Science, University of Zabol, Zabol 538-98615, Iran
Department of Environmental Health, Zahedan University of Medical Sciences, Zahedan 98167-43463, Iran
Institute of Polymeric Materials, Faculty of Polymer Engineering, Sahand University of Technology, Tabriz 51335-1996, Iran
Department of Chemistry, International Hellenic University, Kavala 65404, Greece
Authors to whom correspondence should be addressed.
Polymers 2020, 12(6), 1313;
Submission received: 16 May 2020 / Revised: 4 June 2020 / Accepted: 5 June 2020 / Published: 9 June 2020


There are different ways for antibiotics to enter the aquatic environment, with wastewater treatment plants (WWTP) considered to be one of the main points of entrance. Even treated wastewater effluent can contain antibiotics, since WWTP cannot eliminate the presence of antibiotics. Therefore, adsorption can be a sustainable option, compared to other tertiary treatments. In this direction, a versatile synthesis of poly(styrene-block-acrylic acid) diblock copolymer/Fe3O4 magnetic nanocomposite (abbreviated as P(St-b-AAc)/Fe3O4)) was achieved for environmental applications, and particularly for the removal of antibiotic compounds. For this reason, the synthesis of the P(St-b-AAc) diblock copolymer was conducted with a reversible addition fragmentation transfer (RAFT) method. Monodisperse superparamagnetic nanocomposite with carboxylic acid groups of acrylic acid was adsorbed on the surface of Fe3O4 nanoparticles. The nanocomposites were characterized with scanning electron microscopy (SEM), X-ray diffraction (XRD) and vibrating sample magnetometer (VSM) analysis. Then, the nanoparticles were applied to remove ciprofloxacin (antibiotic drug compound) from aqueous solutions. The effects of various parameters, such as initial drug concentration, solution pH, adsorbent dosage, and contact time on the process were extensively studied. Operational parameters and their efficacy in the removal of Ciprofloxacin were studied. Kinetic and adsorption isothermal studies were also carried out. The maximum removal efficiency of ciprofloxacin (97.5%) was found at an initial concentration of 5 mg/L, pH 7, adsorbent’s dosage 2 mg/L, contact time equal to 37.5 min. The initial concentration of antibiotic and the dose of the adsorbent presented the highest impact on efficiency. The adsorption of ciprofloxacin was better fitted to Langmuir isotherm (R2 = 0.9995), while the kinetics were better fitted to second-order kinetic equation (R2 = 0.9973).

1. Introduction

Aside from the well-known pollutants and contaminants in the aquatic environment, compounds of emerging concern (CECs) may impact aquatic life even in very low concentrations [1]. Wastewater influents and effluents can contain CECs, due to their presence in everyday products, such as detergents, fabric coatings, pharmaceuticals, cosmetics, beverages and food packaging [2]. Pharmaceuticals are being detected in drinking and surface water, and although not very persistent, the continuous re-entering increases their abundance, and renders them pseudo-persistent [3]. Pharmaceuticals, include diverse types of compounds, e.g., antibiotics and show low biodegradability. CECs cannot be removed completely by wastewater treatment plants (WWTPs) [2], since WWTP were not designed to treat CECS. In some cases, even less than 10% of CECs is removed, making WWTP effluents a major factor for introducing CECs into the environment [2]. Recently, great attention is given to adsorption technique [4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19], which is easily applied to the last stage of wastewater treatment plants (WWTPs), with the aim of removing all residues that were not separated and removed from the previous stages.
In particular, special attention is given to find appropriate ways to effectively treat antibiotics from effluents, due to their strong resistance to various decontamination techniques [20]. Available statistics indicate that 100–200 tn of antibiotics are used annually worldwide. As a result, the risk of water resources contamination by these compounds is very high. The residue of those antibiotics in the form of major constituents or metabolites has also been observed in WWTP.
It is noteworthy to mention that the inability of WWTP to remove antibiotics leads to the discharge of those compounds into surface water and underground waters. The inadequate and incorrect use of those compounds, and their continuous entry into the environment, leads to biodistribution and faulty resistance [21,22]. Of the large antibiotic classes, fluoroquinolones are worth mentioning. Antibiotics in this family include Ciprofloxacin (CIP), epinephrine, and norfloxacin. The presence of fluorine atoms in combination with these antibiotics makes these compounds particularly stable, so they are considered to be very dangerous and toxic pollutants in the environment. CIP is detected in sewage and surface water in medical effluents and pharmaceutical plants. The antibiotic can be adsorbed into the sludge and, if applied as fertilizer, it is accumulated in the soil and enters into plants [23]. CIP was observed in surface waters and wastewaters at concentrations below 1 μg/L, while in medical wastewaters in 150 μg/L. Therefore, it is mandatory to find and apply an efficient method for ciprofloxacin removal.
The most important methods used to remove and separate the drug compounds from water and sewage include ozonation, nanofiltration, electron radiation, ion exchange, chemical coagulation and photocatalytic oxidation, all of which have high performance and operation costs [24,25,26,27,28,29]. Nowadays, nanotechnologies are mainly used in water and wastewater treatment, using materials like iron nanoparticles, zeolites and magnetic nanomaterials [30,31]. Among the various methods, adsorption is a simple, environmental friendly, fast, highly efficient and low-cost solution, making it one of the most favorable methods [32,33,34,35,36,37].
The removal of pharmaceuticals by adsorption has been the focus of many studies. So far, as adsorptive materials, activated carbon [38,39,40,41] or zeolites [42,43] have been widely used in wastewater treatment. The removal of pharmaceuticals by adsorption shows great potential, due to its easy application into existing water treatment processes. On the other hand, issues regarding adsorbent stability and regeneration costs lead to R&D of innovative and effective adsorbents from polymeric materials. Adsorption processes, such as activated carbon-based have high capital cost, and ineffectiveness and non-selectivity against vat and disperse dyes. Furthermore, saturated carbon regeneration is expensive and leads to adsorbent loss. Depending on the demand, cost, and the nature of the pollutant to be adsorbed, the adsorbents are either disposed or regenerated for future use. The regeneration process of adsorbents needs to be cheap and environmental friendly by recovering valuable adsorbates while reducing the need of virgin adsorbents.
In this study, a versatile synthesis of poly(styrene-block-acrylic acid) diblock copolymer/Fe3O4 magnetic nanocomposite (abbreviated as P(St-b-AAc)/Fe3O4)) was achieved for environmental applications with a focus on the removal of ciprofloxacin. The nanocomposites were characterized with SEM, XRD and VSM analysis. The nanoparticles were then applied to remove ciprofloxacin (antibiotic drug compound) from aqueous solutions, evaluating the effect of certain important parameters such as the solution’s pH, initial ciprofloxacin concentration, adsorbent dosage and contact time.

2. Materials and Methods

2.1. Materials

To begin, 4-cyano-4-[(phenylcarbothioyl) sulfanyl] pentanoic acid, as a RAFT agent, was synthesized [32]. Acrylic acid (AAc), styrene (St) monomers, 2, 2-azobisisobutyronitrile (AIBN), and dimethylformamide (DMF), FeCl2‧4H2O, 99% and FeCl3‧6H2O, 98% were purchased from Merck (Darmstadt, Germany).
The antibiotic model compound used in the present study is ciprofloxacin, purchased from Merck (Germany). Its molecular structure is presented in Figure 1. When it comes to ciprofloxacin’s dissociation and isoelectric constants, the isoelectric point has a value of pI = 7.14, which is calculated by the average of pKa1  =  6.09 and pKa2  =  8.62. This portrays the two ionizable functional groups of ciprofloxacin; the 6-carboxylic group and the N-4 of the piperazine substituent. pKa1 corresponds to the dissociation of a proton from the carboxyl group, and pKa2 corresponds to the dissociation of a proton from the N-4 in the piperazinyl group [44].

2.2. Synthesis of Poly(styrene) Homopolymer

RAFT agents (10 mg, 0.036 mmol), styrene monomer (4 mL, 34.96 mmol) and AIBN (3.0 mg, mmol) were added in a 100-mL flask; the reaction was achieved with three freeze pump-thaw cycles under a nitrogen atmosphere. The solution was put to an oil-bath with a temperature of 75 °C for 24 h. The flask was then quenched by cooling. The polystyrene homopolymer was precipitated in methanol. Finally, drying of the product under vacuum at 25 °C for 24 h took place [22].

2.3. Synthesis of Poly(styrene-block-acrylic acid), Sphere Superparamagnetic Iron Oxide Nanoparticles (SPIONs) and Poly(St-b-AAc)/Fe3O4 Supermagnetic Nanocomposite

Macro-RAFT agent (PSt, 200 mg, 19.8 mmol), AAc monomer (1.56 mL, 28.24 mmol), AIBN (3 mg, mmol) and DMF (10 mL) were charged in a two-neck reactor. The reaction was induced using three freeze pump-thaw cycles under a nitrogen atmosphere. The reaction solution was put to an oil-bath with a temperature of 75 °C for 24 h. The reaction mixture was then precipitated in cold diethyl ether (150 mL) and dried under vacuum at 25 °C. The SPIONs were synthesized using a co-precipitation method, as described in literature [22,45]. The poly(St-b-AAc)/Fe3O4 supermagnetic nanocomposite was synthesized as described in a previous study [46]. The final product is magnetic nanocomposite [22] and its structure is illustrated in Figure 2.
It merits clarification that the objective of using magnetic nanoadsorbents and not common adsorbents was the easier separation of solid adsorbent particles from the solution at the end of the process. Due to magnetic particles, using an external magnetic field, poly(St-b-AAc)/Fe3O4 was easily and fast separated from the aqueous solution after adsorption experiments. Also, the preparation of the polysterene nanocomposites was possible (instead of single magnetic particles Fe3O4), because it contains functional groups which increase its adsorption capacity.

2.4. Characterization of Nanoadsorbents

For the XRD patterns, a Bruker XRD diffractometer (Billerica, MA, USA) with CuKα radiation was used. SEM (model Mira 3XMU, TESCAN company, Brno, Czech Republic) was used to study the morphology of nanoparticles.

2.5. Preparation of CIP Solutions

Ciprofloxacin hydrochloride (purity 99.8%) was purchased from Alborz Pharmaceutical Company of Qazvin (Qazvin, Iran), and used to prepare the stock CIP solution (100 mg/L prepared with the fixed pre-weighted amount of CIP and the respective volume of Milli-Q ultra-pure water). The residual concentration of CIP after the adsorption experiments was analyzed by (using a) UV-vis spectrophotometer (model Hach DR5000, Duesseldorf, Germany). The concentration of CIP was measured based on previous studies at a wavelength of λmax = 274 nm [47].

2.6. Adsorption Experimental Design Method and Data Analysis

In this study, the 7.0.1 Design Expert software was used to determine the number of experiments and the amount of parameters, and to perform the final analysis of the data obtained after the process (Table 1). The measurement of the level of pollutant removal was carried out with the standard design of the statistical model of the CCD (RSM). The main parameters affecting the process are: the initial pH of the medium in the range of 4 to 10, the amount of nanoparticles used in the reaction of 1 to 3 mg/L, the initial concentration of antibiotic ranging from 5 to 25 mg/L, and the reaction time (15 to 60 min).
After the determination of optimal conditions and modeling of the process, the rate of CIP removal was investigated. Finally, the process efficiency in CIP removal was determined using the following equation. The removal (R, %) was also calculated based on the following formula:
Removal = ( C 0 C f C 0 ) × 100 % .
In this relation, R is the efficiency, C0 (mg/L) is the initial concentration of CIP, and Cf (mg/L) denotes the CIP concentration at the time of t. The amount of adsorbed CIP at equilibrium Qe (mg/g) was calculated from the following equation. In this relation, C0 (mg/L)is the initial concentration of CIP, Ce (mg/L) denotes the CIP concentration at the time of t, m (g) is the adsorbent mass, and V (L) is the sample volume:
Q e = ( C 0 C e ) V m .

3. Results

3.1. Characterizations

The morphologies of the P(St-b-AAc)/Fe3O4 nanocomposite are spherical, with Daverage of 30 nm (Figure 3). It is obvious that the size of spheres is not the same for all particles, due to possible aggregation, but the uniformity regarding the shape is almost the same (spherical).
The X-ray diffraction patterns (XRD) resulting from the P(St-b-AAc)/Fe3O4 superparamagnetic nanocomposite are indicated in Figure 4. The resulting peaks at 2θ equal to 30.28, 35.48, 43, 53.4, 57.16, and 63.04° correspond to (221), (312), (400), (421), (512), and (440) prisms of P(St-b-AAc)/Fe3O4 nanocomposite crystalline structure, respectively (Figure 4) [22].
The super paramagnetic behavior is demonstrated in Figure 5 with a VSM plot. The saturation magnetization of the P(St-b-AAc)/Fe3O4 supermagnetic nanocomposite was around 26 emu/g, which shows that the synthesized magnetic nanocomposite is superparamagnetic.
A Fourier-transform infrared spectroscopy of nanocomposites was conducted both prior and after adsorption of CIP, and the spectra are presented in Figure 6. Regarding the FTIR spectrum of CIP, a band around 3400 cm−1 represent the vibrational frequency of stretching of the N–H bond of the imino moiety on the piperazine group of CIP. Absorption bands at 1633 cm−1 and 1080 cm−1 represent a primary amine (N–H) bend of the pyridone moiety and the C–F functional group, respectively. On the other hand, the FTIR spectrum related to the CIP-adsorbed nanoadsorbent is, in turn, related to the addition of the nanocomposite to the CIP solution. The broad peaks at 3463 cm−1 are attributed to the stretching vibration of O–H bonds. O–H bonds were weaker and shifted down in the presence of ferrite nanoparticles. Similarly, the slight shift at around 1641 cm−1 may be related to the interaction of carboxylic groups of polymer with the amino group of CIP (Figure 6). Also, by comparing the FTIR spectra, the intensity of the peaks after adsorption has increased in comparison to those before adsorption, due to the presence of ferrite nanostructures in the CIP solution.

3.2. Data Analysis

For the efficacy evaluation of antibiotic removal of ciprofloxacin using composite P(St-b-AAc), a composite design (one of the response surface methods) was used, and the effects of initial antibiotic concentration parameters, pH, adsorbance dose and reaction time were investigated. The response rate is presented in Table 2. The validity of the presented models was analyzed by ANOVA.
In Table 3, the parameters A, B, C and D are the main effect of independent variables, which are the initial concentration of ciprofloxacin, pH, adsorbent dose, and contact time, respectively. The variable AB represents the effect of the initial concentration of ciprofloxacin (factor A) and pH (factor B), and variable A2 represents the square effect of factor A on the desired response.
The proposed model is presented as a modified model by removing non-significant variables via preserving the main effects of variables from the model for the antibiotic elimination efficacy in the following equation:
Y ( % ) = 67.11 9.43 X 1 4.7 X 2 + 6.26 X 3 + 3.71 X 4 3.9 X 2 2
In this regard, X1, X2, X3 and X4 are coded values of the initial concentrations of antibiotics, pH, adsorbent dose and reaction time. The linear regression is another test that was used to validate the model [48]. In this test, the coefficient of determination (R2 = 0.8753), the adjusted coefficient of determination (R2adj = 0.8493) and the prediction coefficient (R2pred = 0.7955) were calculated and reported. Also, in each model, there is very little difference between the values of R2, R2adj and R2pred is observed.

The Effect of Variables on the Process

In order to study the effects of each variable and the interactions or duplicate effects of variables on the response generated by the model, the graphs were based on the polynomial model of the model, using the test design software. According to Equation (3), the initial concentration of antibiotics has the most significant effect on the removal process, with a coefficient equal to 9.94 and the reaction time smallest effect than other parameters with a coefficient of 3.71. The effect of independent variables on the efficacy of antibiotic removal is shown in Figure 7, Figure 8 and Figure 9. Figure 7 shows the effect of the initial concentration of antibiotic and the pH of the solution. As shown from Figure 7, with the increase of antibiotic concentration, the removal efficiency decreases. In particular, with an increase of the antibiotic composition from 16.25 to 25 mg/L, the removal efficiency is reduced from 76.13 to 57.34%, respectively. The ideal efficiency was found to be at pH 6, while at pH > 6 and/or pH < 6, the efficiency is reduced.

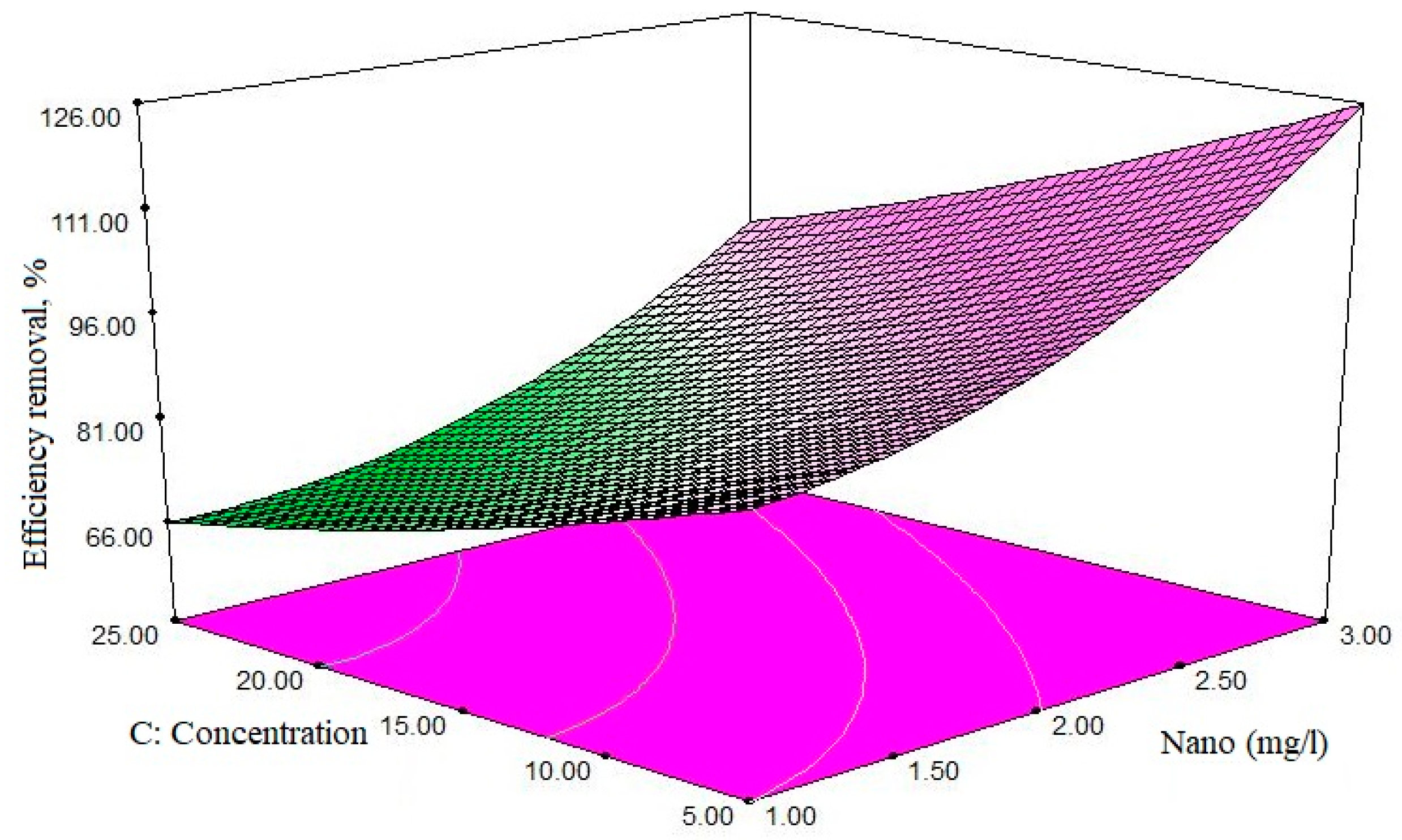

The effect of the initial concentration of antibiotics, and the amount of adsorbent, are presented in Figure 8. By increasing the amount of adsorbent effluent, the efficiency increases; for example, when the antibiotic concentration is used at a minimum level and the adsorbent content is 5.5 mg/L, the removal efficiency is approximately 76%. If the concentration is constant and the adsorbent amount is equal to 2 mg/L, the removal efficiency is 95.9%.
The effect of initial CIP concentration and the reaction time are shown in Figure 9. According to the graph, when the antibiotic concentration reaches maximum, and in after 26.5 min, 70.11% of the antibiotic is removed. But when the response time reaches the 2+ level (equal to 48.75 min), removal efficiency is increased to 98.77%.

4. Discussion

The contact time is an important factor that directly influences the whole process. In the present work, for a concentration of 5 mg/L, the adsorption process reaches equilibrium at about 37 min, and then shows a relatively stable trend. The effect of the pollutant’s initial concentration is affecting a lot the adsorption process. In this paper, the pollutant’s initial concentration was studied, ranging from 5 to 50 mg/L. As shown in Figure 7, the initial CIP concentration had a negative effect on the elimination efficiency, and by increasing the ciprofloxacin concentration from 16.25 to 25 mg/L, the elimination efficiency decreased from 84 to 57%. The decrease in removal efficiency when increasing initial concentration can be explained by the fact that the active sites are constant with a constant amount of adsorbent dose, but as the concentration of the adsorbent increases, the pollutant molecules (in the medium—water) saturate the available adsorption sites, thereby, the removal efficiency is lowered [49]. Bajpai et al. observed that by increasing the initial concentration of ciprofloxacin from 10 to 20 mg/L, the adsorption capacity increased from 3.74 to 11.32 mg/g [50].

4.1. Effect of pH Solution

In the purification processes, including adsorption, pH plays an important role. The Solution’s pH can affect the adsorbent’s surface load, the degree of ionization of various pollutants, the separation of functional groups on active adsorbent sites, as well as the structure of the antibiotic molecule; in effect, the solution’s pH affects the chemical environment of the aqueous and adsorption surface bonds. The pH changes were applied to the range of 4–10, and its effect on the removal efficiency was then analyzed. The removal process had the highest percentage at pH 6.2–7, while with the increase of pH, the removal efficiency decreased.
The effect of pH on the ciprofloxacin molecule has shown that in pH less than 6.2, the surface of the molecule appears cationic and positive due to the protonation of amino groups. At pH values higher than 8.6, the ciprofloxacin molecule is converted into anionic form, due to the loss of the proton from the carboxylic group in the antibiotic structure. In the range of 6.2 to 8.6, the deprotonation of carboxyl groups leads to negative carboxylate production. However, the amino group of proteins has a positive charge. In other words, it has a positive and a negative “head”. The stabilization and behavior of ciprofloxacin molecule from 6.2 to 7.8 have also been investigated [51]. Since the pH value at pHpzc at the isoelectric absorption point is 7.5, and is negatively charged at higher pH values, given that at pH values above 7.5, both the adsorbent and the antibiotic molecule are both negatively charged. At a pH of less than 6.2, the adsorbent and the antibiotic have positive charge, so in this range, the adsorption process occurs slower and reaches at minimum removal rate at pH = 6.2-6.8, because the unnamed bands reach the maximum electrostatic gravity.

4.2. Effect of Adsorbent’s Dose

Based on the findings of this study, the adsorbent dose was the most important factor affecting the efficiency of ciprofloxacin elimination. The study of the effect of adsorbent mass on adsorption processes is one of the most important issues to be considered. Adsorption dose was applied to the range of 1 to 3 mg/L, and its effect on the effectiveness of ciprofloxacin antibiotic removal was measured. Depending on the results obtained using constant concentrations of antibiotics, the increase in the dose of the adsorbent improves the removal efficiency. As shown in Figure 8, when the concentration of antibiotic is constant and equal to 16.25 mg/L, and the amount of adsorbent is 1.5 mg/L, the removal efficiency is 75.97%—and when the amount of adsorbent reaches 2 mg/L, the removal efficiency is improved, reaching 95.91%; at a constant concentration of antibiotic, by increasing the dose of adsorbent, the ratio of active sites on the adsorbent’s surface is high relative to the adsorbing molecules (pollutants), resulting in increased elimination efficiency. On the contrary, in low adsorbent amounts, the ratio of active sites to the adsorbent molecules is lower, and the adsorption decreases.
On the other hand, with the increase of adsorbent above the optimal amount, the adsorption capacity decreased below the maximum level of 15.25 mg/g, which is also due to the fact that by increasing the adsorbent dose, the total capacity of the active sites present in the adsorbent level is completely covered. If not, its adsorption capacity is reduced. This can be the use of available surface in the form of unsaturated attributed adsorbent. The results show that the adsorption pattern in the non-saturable adsorbent form causes undesirable use of existing spaces; this issue is very important in the design of the process economics, particularly in scaling-up.
In this study, 5 mg/L of antibiotic and 2 mg/L of adsorbent were introduced as the optimum amount, at maximum efficiency, with application of 2 mg/L of adsorbent, despite the increase in adsorbent content, other increase in cleavage removal efficiency has not shown any increase. In other words, the removal rate remains constant. It can be concluded that this amount of adsorbent adsorbs all the antibiotics in the solution. Therefore, the antibiotic concentration in the solution is so low that it is no longer “able to be adsorbed” easily. A study by Peasant et al. also showed that with the increase in the adsorbent dose (chitosan/zeolite composite), the dye removal increases, due to the increasing number of adsorption sites, while the increase of adsorbent’s dose reduces the adsorption capacity (from the maximum of 17.77 mg/g) [52].

4.3. Effect of Contact Time

An important issue when using the adsorption system is providing an effective contact time under specific conditions. In this paper, contact time was applied to the range of 15 to 60 min, and its effect on the ciprofloxacin antibiotic removal. Figure 7 shows that the adsorption process reaches equilibrium at different times. For a concentration of 5 mg/L, the adsorption process reaches equilibrium at about 37 min, and then shows a relatively stable trend. By increasing contact time, the probability of colliding with adsorbent molecules is also increased, and the efficiency of removal increased. Chang et al. (2012) obtained the equilibrium time for tetracycline removal by Monte Myrnolite for 8 h [53]. In another study by Liu et al. who removed tetracycline using zeolite= by increasing contact time, resulted in the removal efficiency also increased, and the time of equilibrium was 120 min [54].

4.4. Kinetics and Adsorption Isotherms

The adsorption kinetics depends on the adsorbent chemical and physical properties, which influence the adsorption mechanism. In this study, we have used different kinetic and isotherm adsorption models such as pseudo-first order, pseudo-second order, Langmuir, and Freundlich (Table 4).

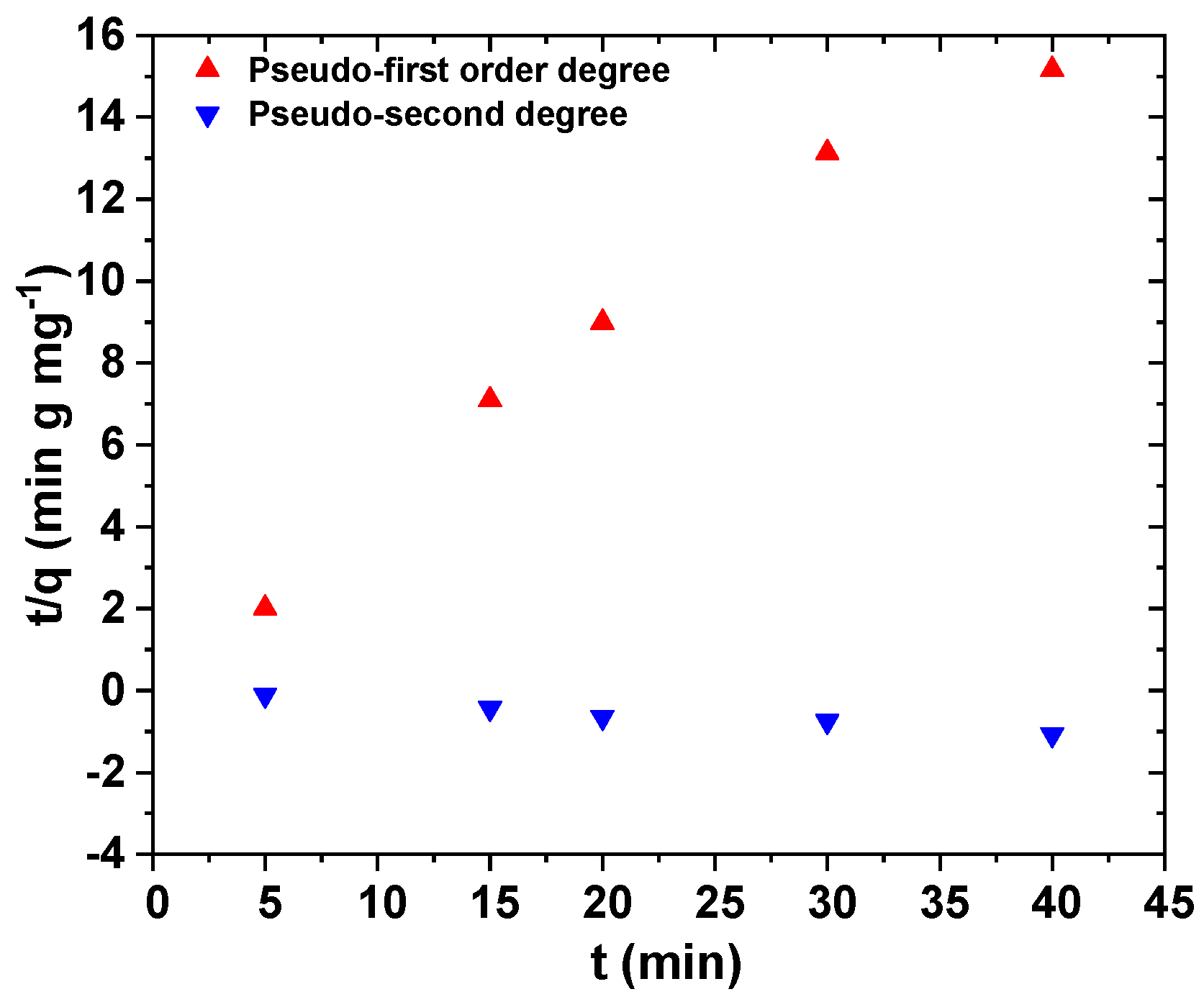

The pseudo-first and pseudo-second order kinetic equations are shown in Figure 10. Adsorption kinetics were used to determine the control mechanism of adsorption processes. Thus, in this figure, the experimental points were not shown, and only theoretical ones are presented. Based on Table 5, the best fitting was achieved with pseudo-second order equation (R2 = 0.9984).

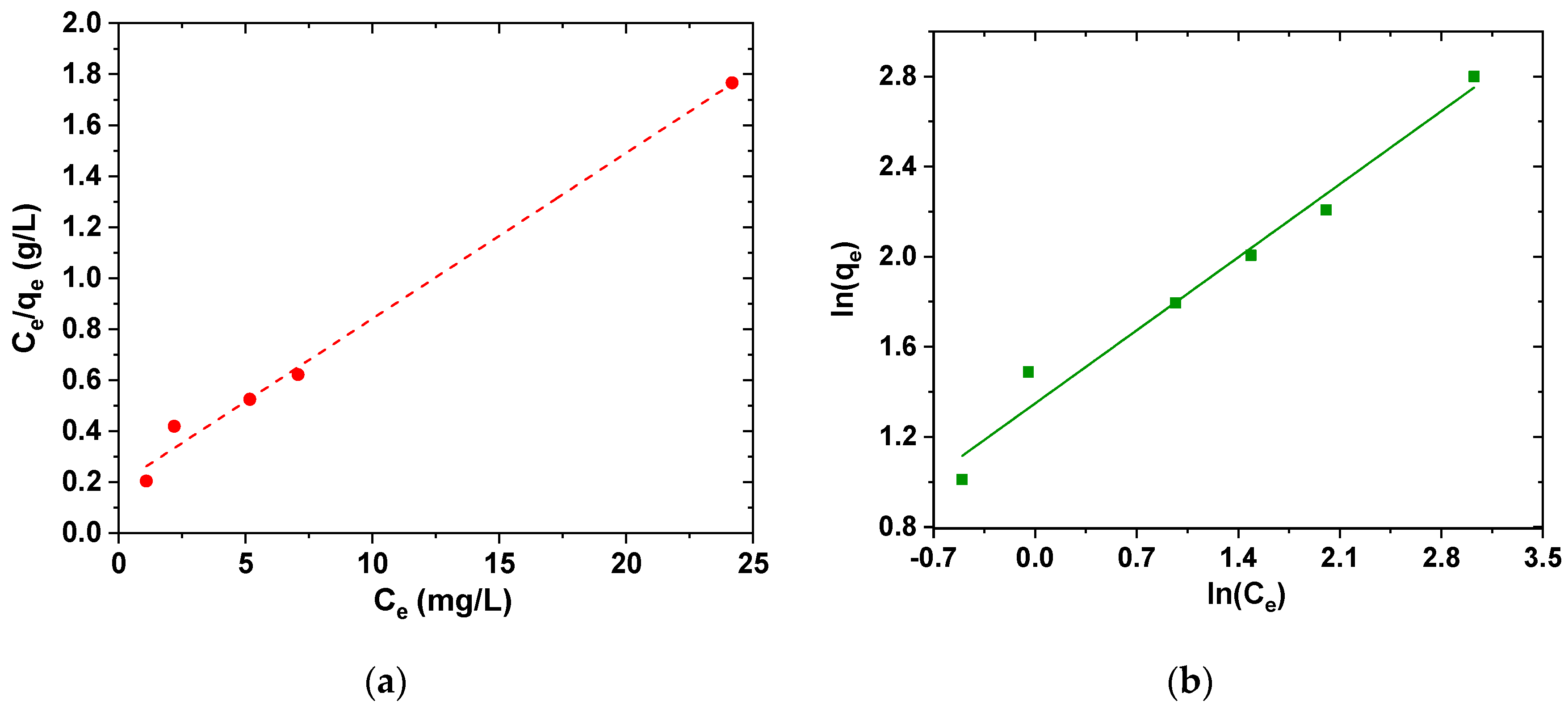

The isotherm of adsorption describes how the adsorbent and adsorbate interact. In this study, the experimental results were fitted to Freundlich and Langmuir isotherms. The Langmuir model is valid for single-layer adsorption on adsorbent surface, with limited and uniform adsorption locations, while the Freundlich isotherm is based on single-layer adsorption on heterogeneous adsorption sites with unequal and non-uniform energies. Figure 11 shows the relative isotherms.
In Freundlich isotherm, when KF increases, the adsorbent material adsorbed higher amounts of pollutant, and the value of n between 1 and 10 reflects the proper adsorption process. The parameters and coefficients are briefly summarized in Table 5. In this study, the calculated KF value is 4.75, and the value of n is 2.79, which is within the specified range. Therefore, the adsorption of ciprofloxacin on the adsorbent is well fitted to Langmuir model (Table 6), but it is fact that the data may suggest the presence of non-specific or multi-type interactions between the adsorbate molecules and the adsorptive sites.
A major concern regarding any synthesized adsorbent material is answering why this material was synthesized instead of another structure-type material? To respond, it is of fundamental importance to mention some facts. Nanoparticles have a unique combination of properties, such as small size, large surface area, catalytic potential, large number of active sites, high chemical reactivity; all of the above give nanoparticles high adsorption capacity [59]. Also, magnetic nanoadsorbents can be applied as cost-saving and effective materials to separate the materials (solid) from the liquid-phase (water) after the end of the adsorption process. Moreover, the relatively simple isolation of magnetic materials from the solution can aid to their regeneration and reuse [60]. Therefore, the magnetic nanoadsorbents can be good candidates for water/wastewater treatment. Based on the above, Poly(vinylimidazole-co-divinylbenzene) magnetic nanoparticles have been used for the adsorption of fluoroquinolones from aqueous environments [61]. Wang et al. also synthesized the easy to separate magnetic chalcogenide composite KMS-1/L-Cystein/Fe3O4 using L-cystein to connect KMS-1 and Fe3O4 nanoparticles for ciprofloxacin removal from aqueous solutions [62]. Table 7 shows a brief comparison of some other adsorbent materials tested for the removal of CIP. However, similar experimental conditions should be kept in order to compare two adsorbents (even for the treatment of the same pollutant). Parameters affecting adsorption are the contact time, the solutions’ pH, the initial concentration of the pollutant, temperature, adsorbate volume, agitation speed, the solution’s ionic strength, and adsorbent dosage. Any change to the abovementioned conditions will lead to different results, and the comparison can be made for adsorbent/adsorbate systems of the same study. Also, based on the interaction groups, a possible mechanism of adsorption is illustrated in Figure 12.

4.5. Aspects

It is known that activated carbon is a very popular adsorbent material, with the demand for virgin activated carbon expanding, since demand from water and wastewater treatment facilities has been steadily increasing. Together with the increase of wastewater treatment applications, the demand and production of activated carbon is also increasing. The largest quantities of activated carbon consumption are observed the U.S.A, Japan and then Europe [72]. Antibiotics are being detected in the aquatic environment. There are different ways for antibiotics to enter the aquatic environment with WWTP considered to be one of the main points of entrance. Even treated wastewater effluent can contain antibiotics, since WWTP cannot eliminate the presence of antibiotics. Compared to other tertiary treatments, adsorption can be a sustainable option for antibiotic removal from wastewaters. Activated carbon is used in the pharmaceutical for the removal of unwanted compounds [72]. Activated carbon possesses a plethora of disadvantages [73], such as high capital cost, ineffectiveness and non-selectivity against vat/disperse dyes. Furthermore, saturated carbon regeneration is expensive and leads to adsorbent loss. Depending on the demand, cost, and the nature of the pollutant to be adsorbed, the adsorbents are either disposed or regenerated for future use. Used adsorbents are considered hazardous waste, causing environmental and societal problems in various countries [74]. Heat accumulation and toxic adsorbates desorption could create hazardous conditions. In addition, odor can be caused by the dumping of adsorbents.
Since regeneration costs can be quite high, the reduction of consumption costs is the key to sustainable and industrial benefits. Substantial studies regarding the activated carbon-based adsorption of pollutants onto have been conducted, but research on regeneration methodologies remains limited [75]. Adsorbent regeneration capability cost analysis is necessary for the economic and environmental assessment of the adsorption process. For the spent adsorbent stabilizing or proper disposal seem to be difficult. The regeneration process of adsorbents from the points of view of sustainability and the environmental involves recovering valuable adsorbates, while reducing the need of virgin adsorbents, and this is extremely important. Studies on novel adsorbents, at full-scale adsorption systems, should be considered for potential industrial applications.

5. Conclusions

Antibiotics are still being detected in the effluents of WWTP, and adsorption seems to be a sustainable option for antibiotics removal from waters. Poly(St-b-AAc) diblock copolymers were prepared using the RAFT technique. This copolymer with acrylic acid group was adsorbed onto the surface of Fe3O4 nanoparticles, through the interaction with hydroxyl groups on the Fe3O4 nanoparticles’ surface. A magnetic nanocomposite ranged in 30 nm was then prepared. The VSM analysis showed the saturation magnetization (26 emu/g for P(St-b-AAc)/Fe3O4). The removal process was performed using P(St-b-AAc)/Fe3O4 to remove ciprofloxacin antibiotic from synthetic sewage. The effects of parameters such as initial concentration of antibiotic, pH, soluble dose and reaction time were studied. The primary concentration of antibiotics with the highest negative effect and adsorbent dose showed the most positive effect in the removal process. The results also indicated that 97.5% of antibiotics were removed under optimal conditions, which include an initial antibiotic concentration of 5 mg/L, pH 7, and an adsorbent dose of 2 mg/L for 37.5 min. The adsorption of CIP was better fitted to Langmuir isotherm (R2 = 0.9995), while the kinetics were better fitted to second-order kinetic equation (R2 = 0.9973). Future work should include multi-component pharmaceutical adsorption with continuous adsorption of wastewaters, taking into account adsorbent regeneration.

Author Contributions

Methodology, L.M., A.G., G.F. and R.K.; A.R. and G.Z.K. writing—original draft preparation and supervision. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Radjenovic, J.; Petrovic, M.; Barceló, J. Analysis of pharmaceuticals in wastewater and removal using a membrane bioreactor. Anal. Bioanal. Chem. 2006, 387, 1365–1377. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. González, O.; Bayarri, B.; Aceña, J.; Pérez, S.; Barceló, D. Treatment technologies for wastewater reuse: Fate of contaminants of emerging concern. Handb. Environ. Chem. 2015, 20, 95–100. [Google Scholar]
  3. Patel, M.; Kumar, R.; Kishor, K.; Mlsna, T.; Pittman, C.U.; Mohan, D. Pharmaceuticals of emerging concern in aquatic systems: Chemistry, occurrence, effects, and removal methods. Chem. Rev. 2019, 119, 3510–3673. [Google Scholar] [CrossRef] [Green Version]
  4. Chen, S.; Zhao, W. Adsorption of Pb2+ from aqueous solutions using novel functionalized corncobs via atom transfer radical polymerization. Polymers 2019, 11, 1715. [Google Scholar] [CrossRef] [Green Version]
  5. Pham, T.D.; Vu, T.N.; Nguyen, H.L.; Le, P.H.P.; Hoang, T.S. Adsorptive removal of antibiotic ciprofloxacin from aqueous solution using Protein-Modified nanosilica. Polymers 2020, 12, 57. [Google Scholar] [CrossRef] [Green Version]
  6. Ahmad, A.; Jamil, S.N.A.M.; Choong, T.S.Y.; Abdullah, A.H.; Mastuli, M.S.; Othman, N.; Jiman, N. Green flexible polyurethane foam as a potent support for Fe-Si adsorbent. Polymers 2019, 11, 2011. [Google Scholar] [CrossRef] [Green Version]
  7. Maponya, T.; Ramohlola, K.E.; Kera, N.; Modibane, K.D.; Maity, A.; Katata-Seru, L.; Hato, M.J. Influence of magnetic nanoparticles on modified polypyrrole/M-Phenylediamine for adsorption of Cr(VI) from aqueous solution. Polymers 2020, 12, 679. [Google Scholar] [CrossRef] [Green Version]
  8. Ren, L.; Yang, Z.; Huang, L.; He, Y.; Wang, H.; Zhang, L. Macroscopic poly schiff Base-Coated bacteria cellulose with high adsorption performance. Polymers 2020, 12, 714. [Google Scholar]
  9. Shaipulizan, N.S.; Jamil, S.N.A.M.; Kamaruzaman, S.; Subri, N.N.S.; Adeyi, A.A.; Abdullah, A.H.; Abdullah, L. Abdullah preparation of ethylene glycol dimethacrylate (EGDMA)-Based terpolymer as potential sorbents for pharmaceuticals adsorption. Polymers 2020, 12, 423. [Google Scholar] [CrossRef] [Green Version]
  10. Khan, M.A.; Siddiqui, M.R.; Otero, M.; Alshareef, S.A.; Rafatullah, M. Removal of rhodamine B from water using a solvent impregnated polymeric dowex 5wx8 resin: Statistical optimization and batch adsorption studies. Polymers 2020, 12, 500. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Sudre, G.; Siband, E.; Gallas, B.; Cousin, F.; Hourdet, D.; Tran, Y. Responsive adsorption of N-Isopropylacrylamide based copolymers on polymer brushes. Polymers 2020, 12, 153. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Zhang, W.; Yang, Z.-Y.; Cheng, X.-W.; Tang, R.-C.; Qiao, Y.-F. Adsorption, antibacterial and antioxidant properties of tannic acid on silk fiber. Polymers 2019, 11, 970. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Guo, W.; Xia, T.; Pei, M.; Du, Y.; Wang, L. Bentonite modified by allylamine polymer for adsorption of amido black 10B. Polymers 2019, 11, 502. [Google Scholar] [CrossRef] [Green Version]
  14. Kim, S.W.; Sohn, J.S.; Kim, H.K.; Ryu, Y.; Cha, S.W. Effects of gas adsorption on the mechanical properties of amorphous polymer. Polymers 2019, 11, 817. [Google Scholar] [CrossRef] [Green Version]
  15. Wang, C.; Zhao, J.; Zhang, L.; Wang, C.; Wang, S. Efficient and selective adsorption of gold ions from wastewater with polyaniline modified by trimethyl phosphate: Adsorption mechanism and application. Polymers 2019, 11, 652. [Google Scholar] [CrossRef] [Green Version]
  16. Huang, W.; Diao, K.; Tan, X.-C.; Lei, F.; Jiang, J.; Goodman, B.A.; Ma, Y.; Liu, S. Mechanisms of adsorption of heavy metal cations from waters by an amino bio-based resin derived from rosin. Polymers 2019, 11, 969. [Google Scholar] [CrossRef] [Green Version]
  17. Kong, W.; Chang, M.; Zhang, C.; Liu, X.; He, B.; Ren, J. Preparation of Xylan-G-/P(AA-co-AM)/GO nanocomposite hydrogel and its adsorption for heavy metal ions. Polymers 2019, 11, 621. [Google Scholar] [CrossRef] [Green Version]
  18. Sims, R.; Harmer-Bassell, S.; Gibson, C.T. The role of physisorption and chemisorption in the oscillatory adsorption of organosilanes on aluminium oxide. Polymers 2019, 11, 410. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Othman, N.A.F.; Selambakkannu, S.; Abdullah, T.A.T.; Hoshina, H.; Sattayaporn, S.; Seko, N. Selectivity of copper by Amine-Based ion recognition polymer adsorbent with different aliphatic amines. Polymers 2019, 11, 1994. [Google Scholar] [CrossRef] [Green Version]
  20. Dimitrakopoulou, D.; Rethemiotaki, I.; Frontistis, Z.; Xekoukoulotakis, N.; Venieri, D.; Mantzavinos, D. Degradation, mineralization and antibiotic inactivation of amoxicillin by UV-A/TiO2 photocatalysis. J. Environ. Manag. 2012, 98, 168–170. [Google Scholar] [CrossRef]
  21. Hernando, M.D.; Mezcua, M.; Fernández-Alba, A.R.; Barcelo, D. Environmental risk assessment of pharmaceutical residues in wastewater effluents, surface waters and sediments. Talanta 2006, 69, 334–342. [Google Scholar] [CrossRef]
  22. Ghamkhari, A.; Mohamadi, L.; Kazemzadeh, S.; Zafar, M.N.; Rahdar, A.; Khaksefidi, R. Synthesis and characterization of poly(Styrene-Block-Acrylic acid) diblock copolymer modified magnetite nanocomposite for efficient removal of penicillin G. Compos. Part B Eng. 2020, 182, 107643. [Google Scholar] [CrossRef]
  23. Carabineiro, S.; Thavorn-Amornsri, T.; Pereira, M.; Figueiredo, J. Adsorption of ciprofloxacin on Surface-Modified carbonmaterials. Water Res. 2011, 45, 4583–4591. [Google Scholar] [CrossRef] [PubMed]
  24. Avella, A.; Delgado, L.; Gorner, T.; Albasi, C.; Galmiche, M.; De Donato, P. Effect of cytostatic drug presence on extracellular polymeric substances formation in municipal wastewater treated by membrane bioreactor. Bioresour. Technol. 2010, 101, 518–526. [Google Scholar] [CrossRef] [PubMed]
  25. De Witte, B.; Van Langenhove, H.; Demeestere, K.; Saerens, K.; De Wispelaere, P.; Dewulf, J. Ciprofloxacin ozonation in hospital wastewater treatment plant effluent: Effect of pH and H2O2. Chemosphere 2010, 78, 1142–1146. [Google Scholar] [CrossRef]
  26. Sun, S.P.; Guo, H.Q.; Ke, Q.; Sun, J.H.; Shi, S.H.; Zhang, M.L. Degadation of antibiotic ciprofloxacin hydrochloride by photofenton oxidation process. Sci. Eng. 2009, 26, 753–759. [Google Scholar]
  27. Liao, R.; Yu, Z.; Gao, N.; Peng, P. Oxidative transformation of ciprofloxacin in the presence of manganese oxide. Eco Environ. Sci. 2011, 20, 1143–1146. [Google Scholar]
  28. Van Doorslaer, X.; Demeestere, K.; Heynderickx, P.M.; Van Langenhove, H.; Dewulf, J. UV-A and UV-C induced photolytic and photocatalytic degradation of aqueous ciprofloxacin and moxifloxacin: Reaction kinetics and role of adsorption. Appl. Catal. Environ. 2011, 101, 540–547. [Google Scholar] [CrossRef]
  29. Carabineiro, S.A.C.; Thavorn-Amornsri, T.; Pereira, M.F.R.; Serp, P.; Figueiredo, J.L. Comparison between activated carbon, carbon xerogel and carbon nanotubes for the adsorption of the antibiotic ciprofloxacin. Catal. Today 2012, 186, 29–34. [Google Scholar] [CrossRef]
  30. Mohammadi, L.; Bazrafshan, E.; Noroozifar, M.; Ansari-Moghaddam, A.; Barahuie, F.; Balarak, D. Adsorptive removal of benzene and toluene from aqueous environments by cupric oxide nanoparticles: Kinetics and isotherm studies. J. Chem. 2017, 2017, 1–10. [Google Scholar] [CrossRef] [Green Version]
  31. Mohammadi, L.; Bazrafshan, E.; Noroozifar, M.; Ansari-Moghaddam, A.; Barahuie, F.; Balarak, D. Removing 2,4-Dichlorophenol from aqueous environments by heterogeneous catalytic ozonation using synthesized MgO nanoparticles. Water Sci. Technol. 2017, 76, 3054–3068. [Google Scholar] [CrossRef] [PubMed]
  32. Do, Q.C.; Choi, S.; Kim, H.; Kang, S. Adsorption of lead and nickel on to expanded graphite decorated with manganese oxide nanoparticles. Appl. Sci. 2019, 9, 5375. [Google Scholar] [CrossRef] [Green Version]
  33. Rojas, J.; Suarez, D.; Moreno, A.; Silva-Agredo, J.; Torres-Palma, R.A. Kinetics, isotherms and thermodynamic modeling of liquid phase adsorption of crystal violet dye onto Shrimp-Waste in its raw, pyrolyzed material and activated charcoals. Appl. Sci. 2019, 9, 5337. [Google Scholar] [CrossRef] [Green Version]
  34. El-Azazy, M.; Dimassi, N.S.; El-Shafie, S.A.; Issa, A.A. Bio-Waste aloe vera leaves as an efficient adsorbent for titan yellow from wastewater: Structuring of a novel adsorbent using Plackett-Burman factorial design. Appl. Sci. 2019, 9, 4856. [Google Scholar] [CrossRef] [Green Version]
  35. Tuomikoski, S.; Kupila, R.; Romar, H.; Bergna, D.; Kangas, T.; Runtti, H.; Lassi, U. Zinc adsorption by activated carbon prepared from lignocellulosic waste biomass. Appl. Sci. 2019, 9, 4583. [Google Scholar] [CrossRef] [Green Version]
  36. Caban, R.T.; Vega-Olivencia, C.; Mina-Camilde, N. Adsorption of Ni2+ and Cd2+ from water by calcium alginate/spent coffee grounds composite beads. Appl. Sci. 2019, 9, 4531. [Google Scholar] [CrossRef] [Green Version]
  37. Wang, S.; Wang, N.; Yao, K.; Fan, Y.; Li, W.; Han, W.; Yin, X.; Chen, D. Characterization and interpretation of Cd (II) adsorption by different modified rice straws under contrasting conditions. Sci. Rep. 2019, 9, 17868. [Google Scholar] [CrossRef] [Green Version]
  38. Bui, T.X.; Choi, H. Adsorptive removal of selected pharmaceuticals by mesoporous silica SBA-15. J. Hazard. Mater. 2009, 168, 602–608. [Google Scholar] [CrossRef]
  39. Lorphensri, O.; Intravijit, J.; Sabatini, D.; Kibbey, T.; Osathaphan, K.; Saiwan, C. Sorption of acetaminophen, 17α-Ethynyl estradiol, nalidixic acid, and norfloxacin to silica, alumina, and a hydrophobic medium. Water Res. 2006, 40, 1481–1491. [Google Scholar] [CrossRef]
  40. Mestre, A.; Pires, J.; Nogueira, J.; Carvalho, A.P. Activated carbons for the adsorption of ibuprofen. Carbon 2007, 45, 1979–1988. [Google Scholar] [CrossRef]
  41. Baccar, R.; Sarrà, M.; Bouzid, J.; Feki, M.; Blánquez, P. Removal of pharmaceutical compounds by activated carbon prepared from agricultural by-product. Chem. Eng. J. 2012, 211, 310–317. [Google Scholar] [CrossRef]
  42. Fukahori, S.; Fujiwara, T.; Ito, R.; Funamizu, N. pH-Dependent adsorption of sulfa drugs on high silica zeolite: Modeling and kinetic study. Desalination 2011, 275, 237–242. [Google Scholar] [CrossRef]
  43. Martucci, A.; Pasti, L.; Marchetti, N.; Cavazzini, A.; Dondi, F.; Alberti, A. Adsorption of pharmaceuticals from aqueous solutions on synthetic zeolites. Microporous Mesoporous Mater. 2012, 148, 174–183. [Google Scholar] [CrossRef]
  44. Varanda, F.; De Melo, M.J.P.; Caço, A.I.; Dohrn, R.; Makrydaki, F.A.; Voutsas, E.; Tassios, D.; Marrucho, I.M. Solubility of antibiotics in different solvents. 1. hydrochloride forms of tetracycline, moxifloxacin, and ciprofloxacin. Ind. Eng. Chem. Res. 2006, 45, 6368–6374. [Google Scholar] [CrossRef]
  45. Ghamkhari, A.; Massoumi, B.; Jaymand, M. Novel ‘schizophrenic’ diblock copolymer synthesized via RAFT polymerization: Poly (2-succinyloxyethyl methacrylate)-b-poly[(N-4-vinylbenzyl),N,N-diethylamine]. Des. Monomers Polym. 2016, 20, 190–200. [Google Scholar] [CrossRef] [Green Version]
  46. Ghamkhari, A.; Ghorbani, M.; Aghbolaghi, S. A perfect Stimuli-Responsive magnetic nanocomposite for intracellular delivery of doxorubicin. Artif. Cells Nanomed. Biotechnol. 2018, 46, S911–S921. [Google Scholar] [CrossRef] [Green Version]
  47. Li, H.; Zhang, D.; Han, X.; Xing, B. Adsorption of antibiotic ciprofloxacin on carbon nanotubes: pH dependence and thermodynamics. Chemosphere 2014, 95, 150–155. [Google Scholar] [CrossRef]
  48. Yoosefian, M.; Ahmadzadeh, S.; Aghasi, M.; Dolatabadi, M. Optimization of electrocoagulation process for efficient removal of ciprofloxacin antibiotic using iron electrode; kinetic and isotherm studies of adsorption. J. Mol. Liq. 2017, 225, 544–553. [Google Scholar] [CrossRef]
  49. Zhao, Y.; Tong, F.; Gu, X.; Gu, C.; Wang, X.; Zhang, Y. Insights into tetracycline adsorption onto goethite: Experiments and modeling. Sci. Total Environ. 2014, 470, 19–25. [Google Scholar] [CrossRef]
  50. Bajpai, S.; Bajpai, M.; Rai, N. Sorptive removal of ciprofloxacin hydrochloride from simulated wastewater using sawdust: Kinetic study and effect of pH. Water SA 2012, 38, 673–682. [Google Scholar] [CrossRef] [Green Version]
  51. El-Shafey, E.-S.I.; Al Lawati, H.A.J.; Al-Sumri, A.S. Ciprofloxacin adsorption from aqueous solution onto chemically prepared carbon from date palm leaflets. J. Environ. Sci. 2012, 24, 1579–1586. [Google Scholar] [CrossRef]
  52. Dehghani, M.H.; Dehghan, A.; Alidadi, H.; Dolatabadi, M.; Mehrabpour, M.; Converti, A. Removal of methylene blue dye from aqueous solutions by a new chitosan/zeolite composite from shrimp waste: Kinetic and equilibrium study. Korean J. Chem. Eng. 2017, 34, 1699–1707. [Google Scholar] [CrossRef]
  53. Chang, P.-H.; Li, Z.; Jean, J.-S.; Jiang, W.-T.; Wang, C.-J.; Lin, K.-H. Adsorption of tetracycline on 2:1 layered Non-Swelling clay mineral illite. Appl. Clay Sci. 2012, 67, 158–163. [Google Scholar] [CrossRef]
  54. Liu, P.; Liu, W.-J.; Jiang, H.; Chen, J.-J.; Li, W.-W.; Yu, H.-Q. Modification of Bio-Char derived from fast pyrolysis of biomass and its application in removal of tetracycline from aqueous solution. Bioresour. Technol. 2012, 121, 235–240. [Google Scholar] [CrossRef]
  55. Lagergren, S. About the theory of So-Called adsorption of soluble substances. Handlingarl 1898, 24, 1–39. [Google Scholar]
  56. Ho, Y.; McKay, G. Pseudo-Second order model for sorption processes. Process. Biochem. 1999, 34, 451–465. [Google Scholar] [CrossRef]
  57. Freundlich, H. Over the adsorption in solution. Z. Phys. Chem. 1906, 57, 385–470. [Google Scholar]
  58. Langmuir, I. The adsorption of gases on plane surfaces of glass, mica and platinum. J. Am. Chem. Soc. 1918, 40, 1361–1403. [Google Scholar] [CrossRef] [Green Version]
  59. Liu, S.; Ma, C.; Ma, M.-G.; Xu, F. Chapter 12—Magnetic nanocomposite adsorbents. In Composite Nanoadsorbents; Kyzas, G.Z., Mitropoulos, A.C., Eds.; Elsevier: Amsterdam, The Netherlands, 2019; pp. 295–316. [Google Scholar]
  60. Malakootian, M.; Nasiri, A.; Mahdizadeh, H. Preparation of CoFe2O4/activated carbon@ chitosan as a new magnetic nanobiocomposite for adsorption of ciprofloxacin in aqueous solutions. Water Sci. Technol. 2018, 78, 2158–2170. [Google Scholar] [CrossRef]
  61. Huang, X.; Wang, Y.; Liu, Y.; Yuan, D. Preparation of magnetic poly (Vinylimidazole-Codivinylbenzene) nanoparticles and their application in the trace analysis of fluoroquinolones in environmental water samples. J. Sep. Sci. 2013, 36, 3210–3219. [Google Scholar]
  62. Wang, Y.X.; Gupta, K.; Li, J.R.; Yuan, B.; Yang, J.C.E.; Fu, M.L. Novel chalcogenide based magnetic adsorbent KMS-1/L-Cystein/Fe3O4 for the facile removal of ciprofloxacin from aqueous solution. Coll. Surf. Physicochem. Eng. Asp. 2018, 538, 378–386. [Google Scholar] [CrossRef]
  63. Peng, X.; Hu, F.; Lam, F.L.-Y.; Wang, Y.; Liu, Z.; Dai, H. Adsorption behavior and mechanisms of ciprofloxacin from aqueous solution by ordered mesoporous carbon and bamboo-based carbon. J. Colloid Interface Sci. 2015, 460, 349–360. [Google Scholar] [CrossRef] [PubMed]
  64. Chen, H.; Gao, B.; Li, H. Removal of sulfamethoxazole and ciprofloxacin from aqueous solutions by grapheme oxide. J. Hazard. Mater. 2015, 282, 201–207. [Google Scholar] [CrossRef]
  65. Wang, C.-J.; Li, Z.; Jiang, W.-T.; Jean, J.-S.; Liu, C.-C. Cation exchange interaction between antibiotic ciprofloxacin and montmorillonite. J. Hazard. Mater. 2010, 183, 309–314. [Google Scholar] [CrossRef] [PubMed]
  66. Yu, F.; Sun, S.; Han, S.; Zheng, J.; Ma, J. Adsorption removal of ciprofloxacin by Multi-Walled carbon nanotubes with different oxygen contents from aqueous solutions. Chem. Eng. J. 2016, 285, 588–595. [Google Scholar] [CrossRef]
  67. Gu, C.; Karthikeyan, K.G. Sorption of the antimicrobial ciprofloxacin to aluminum and iron hydrous oxides. Environ. Sci. Technol. 2005, 39, 9166–9173. [Google Scholar] [CrossRef]
  68. Genç, N.; Dogan, E.C.; Yurtsever, M. Bentonite for ciprofloxacin removal from aqueous solution. Water Sci. Technol. 2013, 68, 848–855. [Google Scholar] [CrossRef]
  69. Jiang, W.-T.; Chang, P.-H.; Wang, Y.-S.; Tsai, Y.; Jean, J.-S.; Li, Z.; Krukowski, K. Removal of ciprofloxacin from water by birnessite. J. Hazard. Mater. 2013, 250, 362–369. [Google Scholar] [CrossRef]
  70. Jalil, M.E.R.; Baschini, M.; Sapag, K. Influence of pH and antibiotic solubility on the removal of ciprofloxacin from aqueous media using montmorillonite. Appl. Clay Sci. 2015, 114, 69–76. [Google Scholar] [CrossRef]
  71. Jalil, M.R.; Baschini, M.; Sapag, K. Removal of ciprofloxacin from aqueous solutions using pillared clays. Materials 2017, 10, 1345. [Google Scholar] [CrossRef] [Green Version]
  72. Bansal, R.C.; Goyal, M. Activated Carbon Adsorption; Taylor & Francis: Boca Raton, FL, USA, 2005. [Google Scholar]
  73. Konaganti, V.K.; Kota, R.; Patil, S.; Madras, G. Adsorption of anionic dyes on chitosan grafted poly (alkyl methacrylate)s. Chem. Eng. J. 2010, 158, 393–401. [Google Scholar] [CrossRef]
  74. Miyake, Y. The soil purifying method that combine soil vapor extraction and activated carbon fiber. J. Resour. Environ. (Sigen Kankyo Taisaku) 1998, 33, 896–899. [Google Scholar]
  75. Mohan, D.; Pittman, C.U., Jr. Arsenic removal from water/wastewater using Adsorbents—A critical review. J. Hazard. Mater. 2007, 142, 1–53. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Chemical structure of CIP and its ionizable forms.
Figure 1. Chemical structure of CIP and its ionizable forms.
Polymers 12 01313 g001
Figure 2. Structure of the prepared poly(St-b-AAc)/Fe3O4.
Figure 2. Structure of the prepared poly(St-b-AAc)/Fe3O4.
Polymers 12 01313 g002
Figure 3. SEM image of P(St-b-AAc)/Fe3O4 nanocomposite.
Figure 3. SEM image of P(St-b-AAc)/Fe3O4 nanocomposite.
Polymers 12 01313 g003
Figure 4. XRD patterns P(St-b-AAc)/Fe3O4 magnetic nanocomposite.
Figure 4. XRD patterns P(St-b-AAc)/Fe3O4 magnetic nanocomposite.
Polymers 12 01313 g004
Figure 5. Magnetization curve of P(St-b-AAc)/Fe3O4 supermagnetic nanocomposite.
Figure 5. Magnetization curve of P(St-b-AAc)/Fe3O4 supermagnetic nanocomposite.
Polymers 12 01313 g005

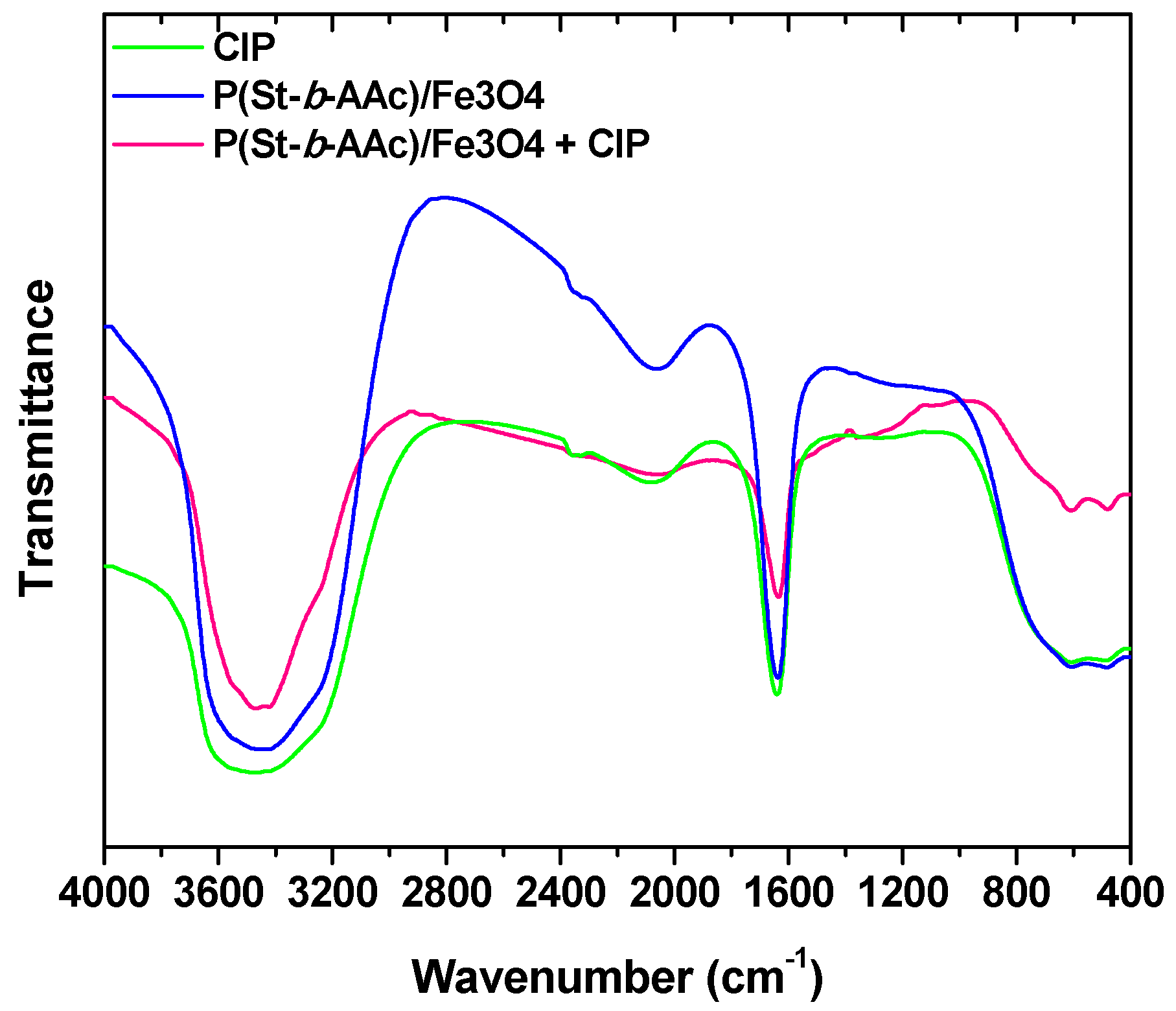

Figure 6. FTIR spectra of CIP, and P(St-b-AAc)/Fe3O4 (before and after adsorption).
Figure 6. FTIR spectra of CIP, and P(St-b-AAc)/Fe3O4 (before and after adsorption).
Polymers 12 01313 g006
Figure 7. The simultaneous effect of two variables; initial concentration of antibiotic and pH of solution; adsorbent dose of 2 mg/L and reaction time of 37.5 min.
Figure 7. The simultaneous effect of two variables; initial concentration of antibiotic and pH of solution; adsorbent dose of 2 mg/L and reaction time of 37.5 min.
Polymers 12 01313 g007
Figure 8. The simultaneous effect of two primary antibiotic and adsorbent dose variables: pH = 7 and reaction time of 37.5 min.
Figure 8. The simultaneous effect of two primary antibiotic and adsorbent dose variables: pH = 7 and reaction time of 37.5 min.
Polymers 12 01313 g008
Figure 9. The simultaneous effect of the two initial variables of antibiotic concentration and reaction time: pH = 7 and the adsorbent dose is 2 mg/L.
Figure 9. The simultaneous effect of the two initial variables of antibiotic concentration and reaction time: pH = 7 and the adsorbent dose is 2 mg/L.
Polymers 12 01313 g009
Figure 10. (Up triangle): pseudo-first order kinetic equation; (down triangle) pseudo-second order kinetic equation.
Figure 10. (Up triangle): pseudo-first order kinetic equation; (down triangle) pseudo-second order kinetic equation.
Polymers 12 01313 g010
Figure 11. Equilibrium results fitted to (a) Langmuir isotherm and (b) Freundlich isotherm.
Figure 11. Equilibrium results fitted to (a) Langmuir isotherm and (b) Freundlich isotherm.
Polymers 12 01313 g011

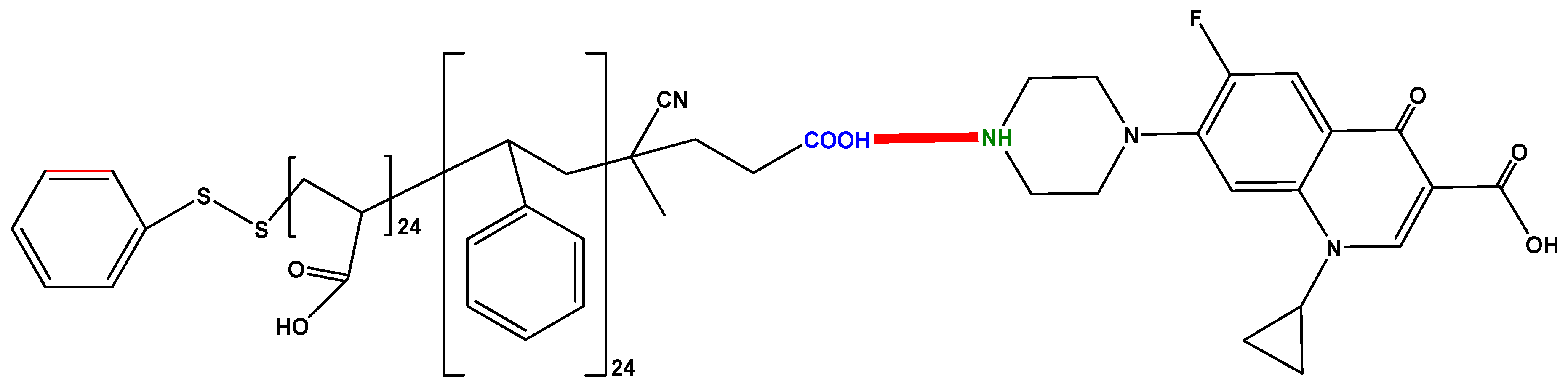

Figure 12. Possible adsorption interaction.
Figure 12. Possible adsorption interaction.
Polymers 12 01313 g012
Table 1. Design parameters together with the values and regions selected.
Table 1. Design parameters together with the values and regions selected.
ParametersLevel of Parameters
A: pH4710
B: Mass (mg)123
C: Concentration (mg/L)51525
D: Reaction time (min)1537.560
Table 2. Operational parameters and their efficacy in the removal of Ciprofloxacin antibiotic in different methods of performing runs.
Table 2. Operational parameters and their efficacy in the removal of Ciprofloxacin antibiotic in different methods of performing runs.
Removal (%)D (Time (min))C (Nano(g))B (pH)A (Initial Concentration)Run
Table 3. ANOVA for Response Surface Quadratic Model.
Table 3. ANOVA for Response Surface Quadratic Model.
SourceSum of Squaresp ValueF ValueMean Squaredf
Prob > F
Residual596.83 39.7915
Lack of fit541.990.04594.9454.210
Pure Error54.83 10.975significant
Cor. Total5088.97 29
Table 4. Equations used in this study.
Table 4. Equations used in this study.
Pseudo-first-order [55]
log ( q e q t ) = log ( q e ) t k 1 2.303
  • qe is the amount of mass absorbed in equilibrium state (mg/g)
  • qt is equal to (mg/g) the amount of mass absorbed at time t
  • k1 is the equilibrium of the first-order kinetic velocity (min−1)
Pseudo-second-order [56]
t q t = 1 k 2 q e 2 + t 1 q e
  • k2 is the constant of the equilibrium velocity of the quadratic kinetic equation (g mg−1 min−1)
Freundlich [57]
ln ( q e ) = ln ( K F ) + 1 n ln ( C e )
  • Ce is the equilibrium concentration in the solution after adsorption (mg/L)
  • n and KF are the Freundlich constants
Langmuir [58]
C e q e = 1 q m b + C e q m
  • qm represents absorption capacity (mg/g)
  • b is the Langmuir constant (L/mg)
Table 5. Parameters and related kinetic coefficients.
Table 5. Parameters and related kinetic coefficients.
Kinetic Constant RateR2Kinetic Model
0.0320 min−10.7862Pseudo-first order
1.91 g mg−1 min−10.9984Pseudo-second order
Table 6. Parameters and correlation coefficients of isotherm models.
Table 6. Parameters and correlation coefficients of isotherm models.
qm = 15.52 mg/gb = 0.689 L/mgR2 = 0.9918Langmuir isotherm
KF = 4.75 (mg1-n Ln/g)n = 2.79R2 = 0.9845Freundlich isotherm
Table 7. CIP adsorption capacities comparison from aqueous solutions using various adsorbents.
Table 7. CIP adsorption capacities comparison from aqueous solutions using various adsorbents.
AdsorbentQm (mg/g)Reference
Carbon nanotubes135[29]
Bamboo-based carbon modified153.17 [63]
Graphene oxide379[64]
Multi-walled nanotubes194[66]
Iron hydrous oxide25.76[67]
Aluminum hydrous oxide14.72[67]
Polystyrene nanocomposites P(St-b-AAc)/Fe3O415.52This study

Share and Cite

MDPI and ACS Style

Mohammadi, L.; Rahdar, A.; Khaksefidi, R.; Ghamkhari, A.; Fytianos, G.; Kyzas, G.Z. Polystyrene Magnetic Nanocomposites as Antibiotic Adsorbents. Polymers 2020, 12, 1313.

AMA Style

Mohammadi L, Rahdar A, Khaksefidi R, Ghamkhari A, Fytianos G, Kyzas GZ. Polystyrene Magnetic Nanocomposites as Antibiotic Adsorbents. Polymers. 2020; 12(6):1313.

Chicago/Turabian Style

Mohammadi, Leili, Abbas Rahdar, Razieh Khaksefidi, Aliyeh Ghamkhari, Georgios Fytianos, and George Z. Kyzas. 2020. "Polystyrene Magnetic Nanocomposites as Antibiotic Adsorbents" Polymers 12, no. 6: 1313.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
