Robust Silica-Cellulose Composite Aerogels with a Nanoscale Interpenetrating Network Structure Prepared Using a Streamlined Process

Sai, Huazheng; Zhang, Jing; Jin, Zhiqiang; Fu, Rui; Wang, Meijuan; Wang, Yutong; Wang, Yaxiong; Ma, Litong

doi:10.3390/polym12040807

Submit to this Journal Review for this Journal Edit a Special Issue

Article Menu

...

Open AccessArticle

Robust Silica-Cellulose Composite Aerogels with a Nanoscale Interpenetrating Network Structure Prepared Using a Streamlined Process

^1,2,3

^1,2,3,

^1,2,3,

^1,2,3,*,

^1,2,3,

^1,2,3,

^1,2,3 and

^1,2,3

School of Chemistry and Chemical Engineering, Inner Mongolia University of Science & Technology, Baotou 014010, China

Inner Mongolia Engineering Research Center of Comprehensive Utilization of Bio-coal Chemical Industry, Baotou 014010, China

Inner Mongolia Key Laboratory of Coal Chemical Engineering & Comprehensive Utilization, Baotou 014010, China

Author to whom correspondence should be addressed.

Polymers 2020, 12(4), 807; https://doi.org/10.3390/polym12040807

Received: 8 February 2020 / Revised: 19 March 2020 / Accepted: 23 March 2020 / Published: 3 April 2020

(This article belongs to the Special Issue Nanocellulose-Reinforced Composites: Challenges and Opportunities)

View Full-Text Download PDF

Browse Figures

Citation Export

Abstract

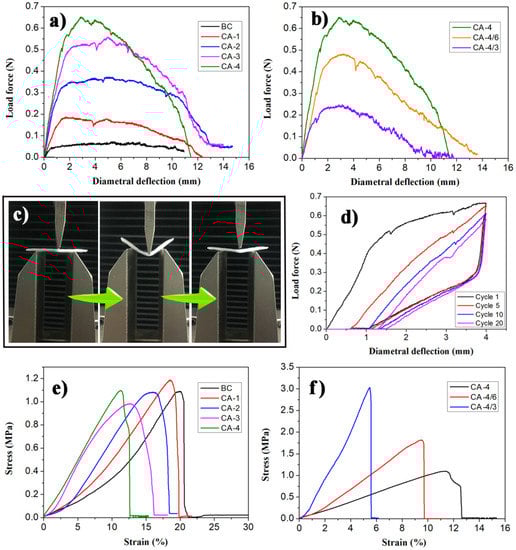

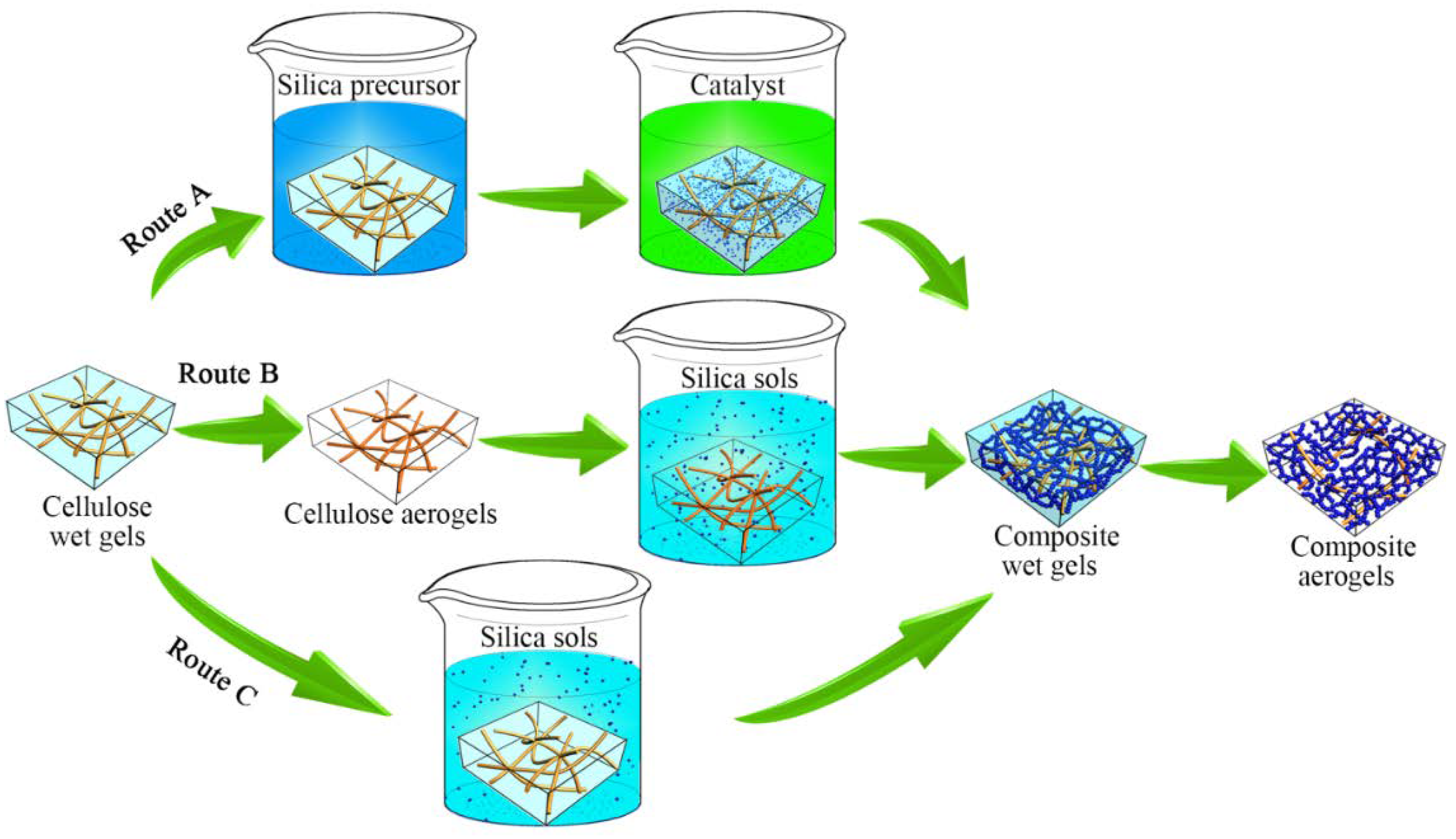

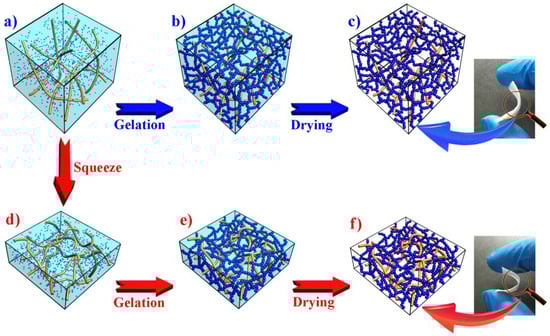

Silica aerogels can be strengthened by forming a nanoscale interpenetrating network (IPN) comprising a silica gel skeleton and a cellulose nanofiber network. Previous studies have demonstrated the effectiveness of this method for improving the mechanical properties and drying of aerogels. However, the preparation process is generally tedious and time-consuming. This study aims to streamline the preparation process of these composite aerogels. Silica alcosols were directly diffused into cellulose wet gels with loose, web-like microstructures, and an IPN structure was gradually formed by regulating the gelation rate. Supercritical CO₂ drying followed to obtain composite aerogels. The mechanical properties were further enhanced by a simple secondary regulation process that increased the quantity of bacterial cellulose (BC) nanofibers per unit volume of the matrix. This led to the production of aerogels with excellent bendability and a high tensile strength. A maximum breaking stress and tensile modulus of 3.06 MPa and 46.07 MPa, respectively, were achieved. This method can be implemented to produce robust and bendable silica-based composite aerogels (CAs). View Full-Text

Keywords: silica aerogels; bacterial cellulose; nanocomposites; interpenetrating network; bendable; mechanical properties

▼ Show Figures

Graphical abstract

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited

Supplementary Material

Supplementary File 1:
ZIP-Document (ZIP, 2395 KiB)
