Shape Tuning and Size Prediction of Millimeter-Scale Calcium-Alginate Capsules with Aqueous Core

1
Hubei Biomass Fibers and Eco-dyeing & Finishing Key Laboratory, School of Chemistry and Chemical Engineering, Wuhan Textile University, Wuhan 430200, China
2
School of Material Science and Engineering, Wuhan Textile University, Wuhan 430200, China
3
Institute for NanoScale Science & Technology, College of Science and Engineering, Flinders University, South Australia 5042, Australia
*
Authors to whom correspondence should be addressed.
Polymers 2020, 12(3), 688; https://doi.org/10.3390/polym12030688 (registering DOI)
Received: 26 February 2020 / Revised: 16 March 2020 / Accepted: 16 March 2020 / Published: 19 March 2020

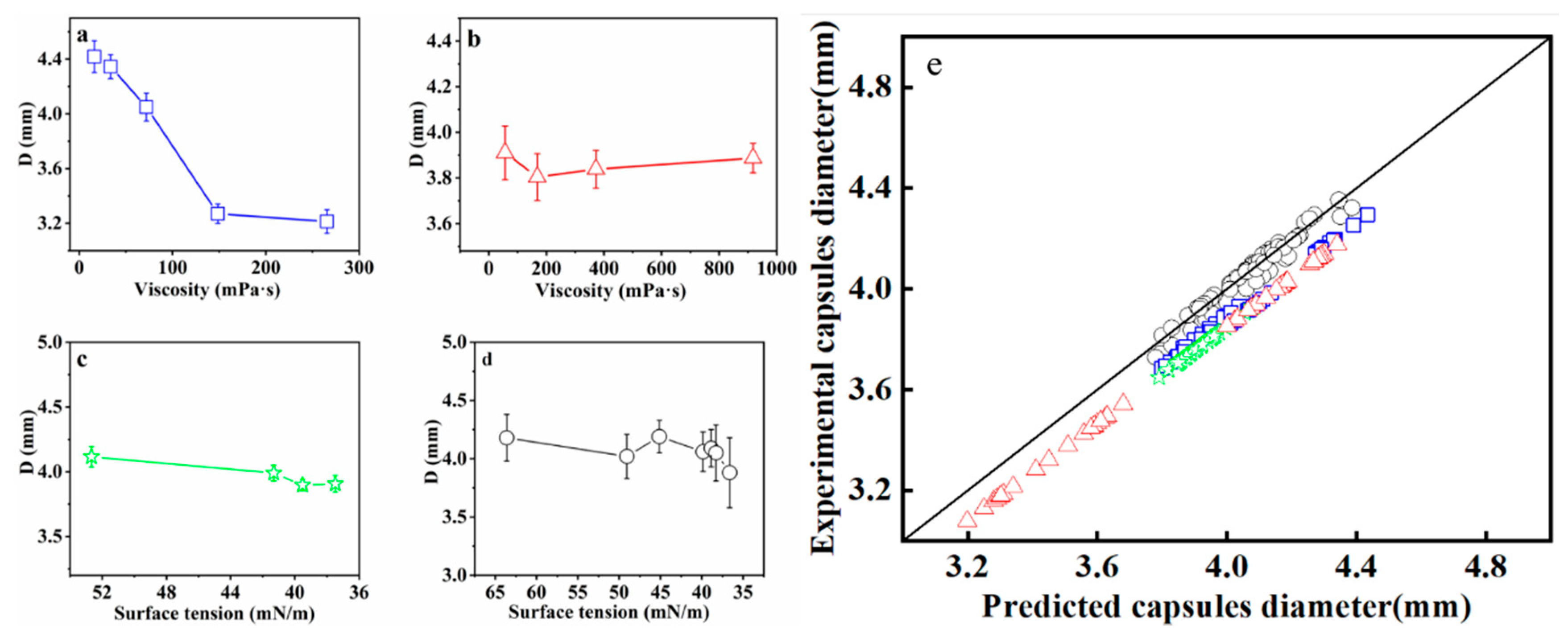

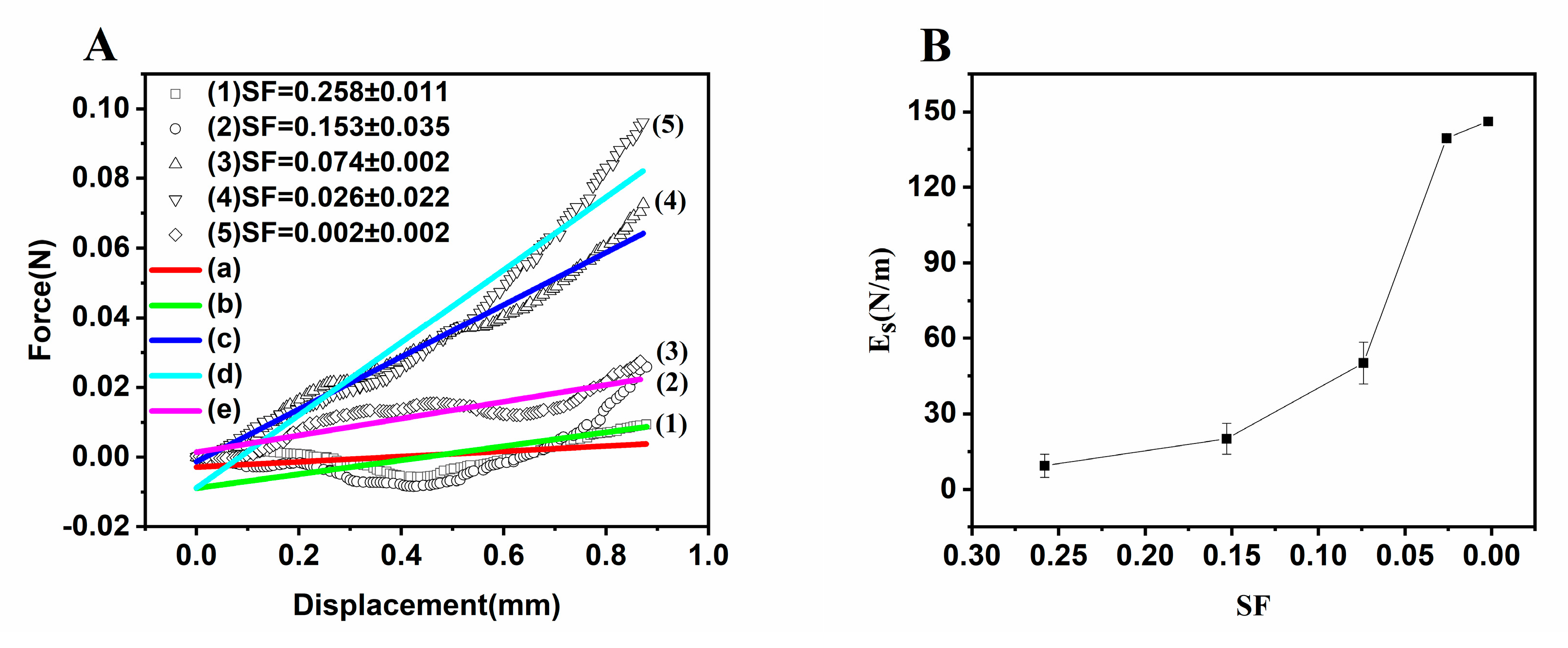

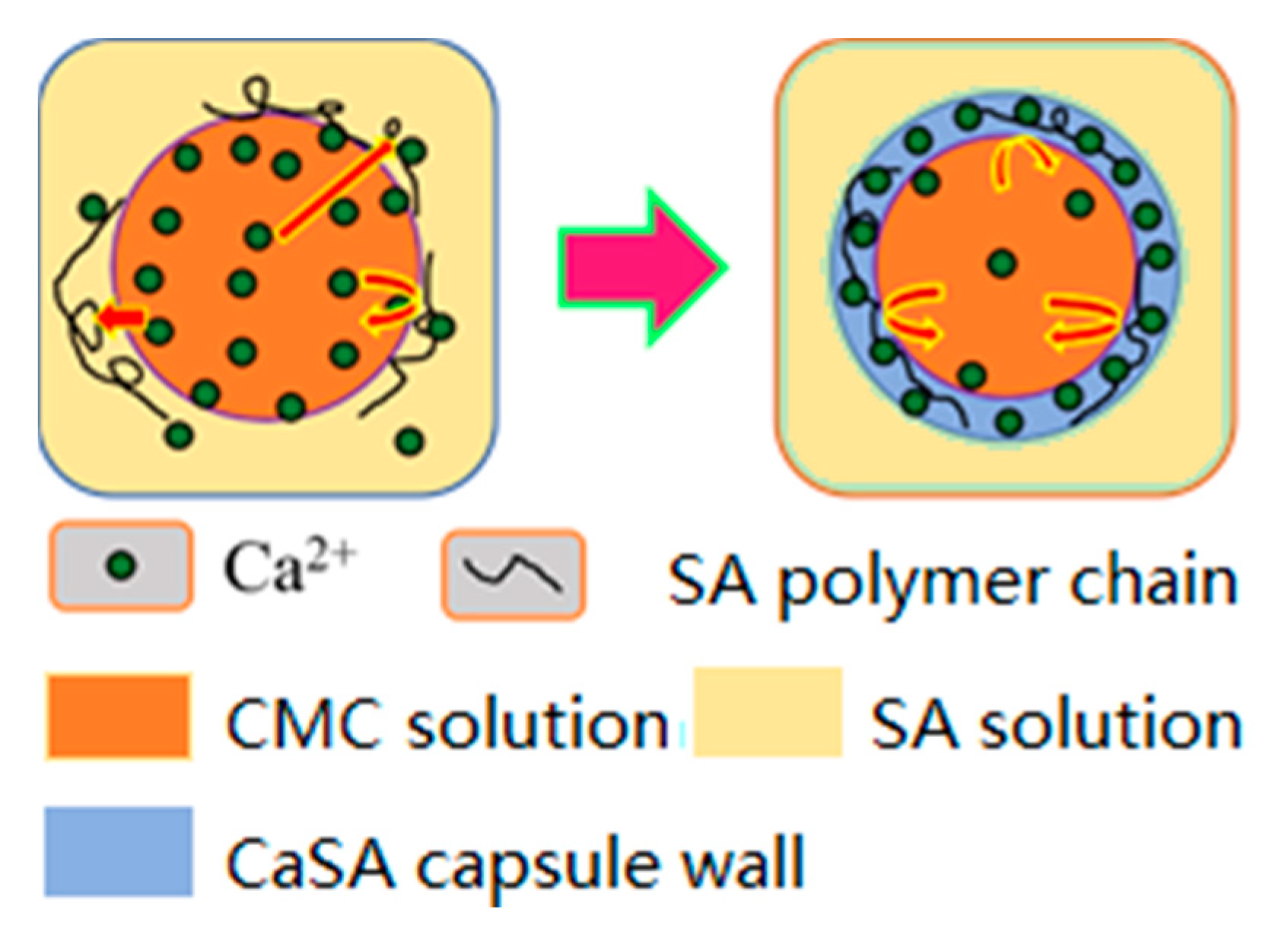

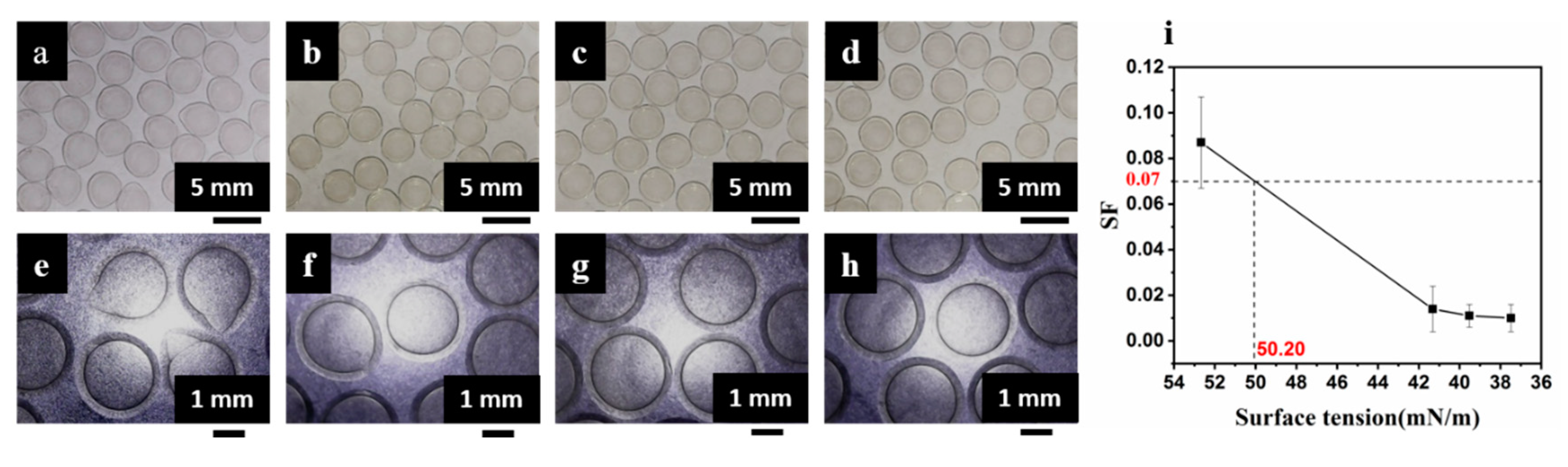

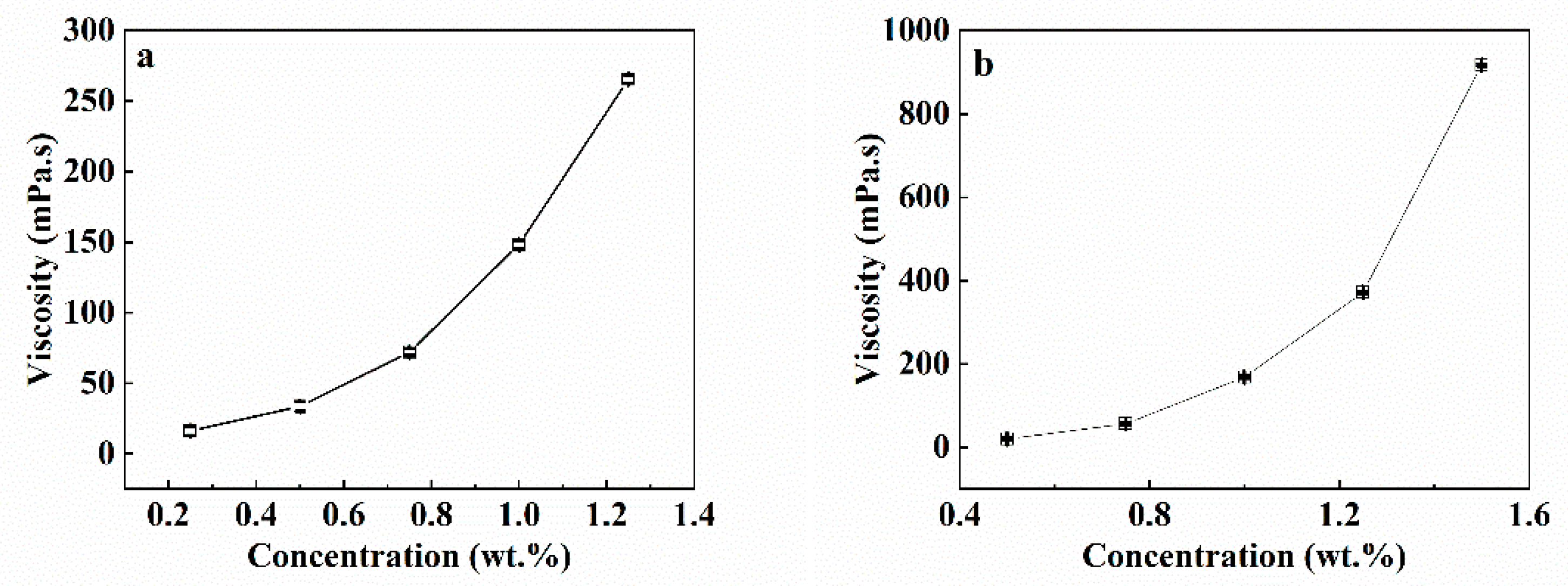

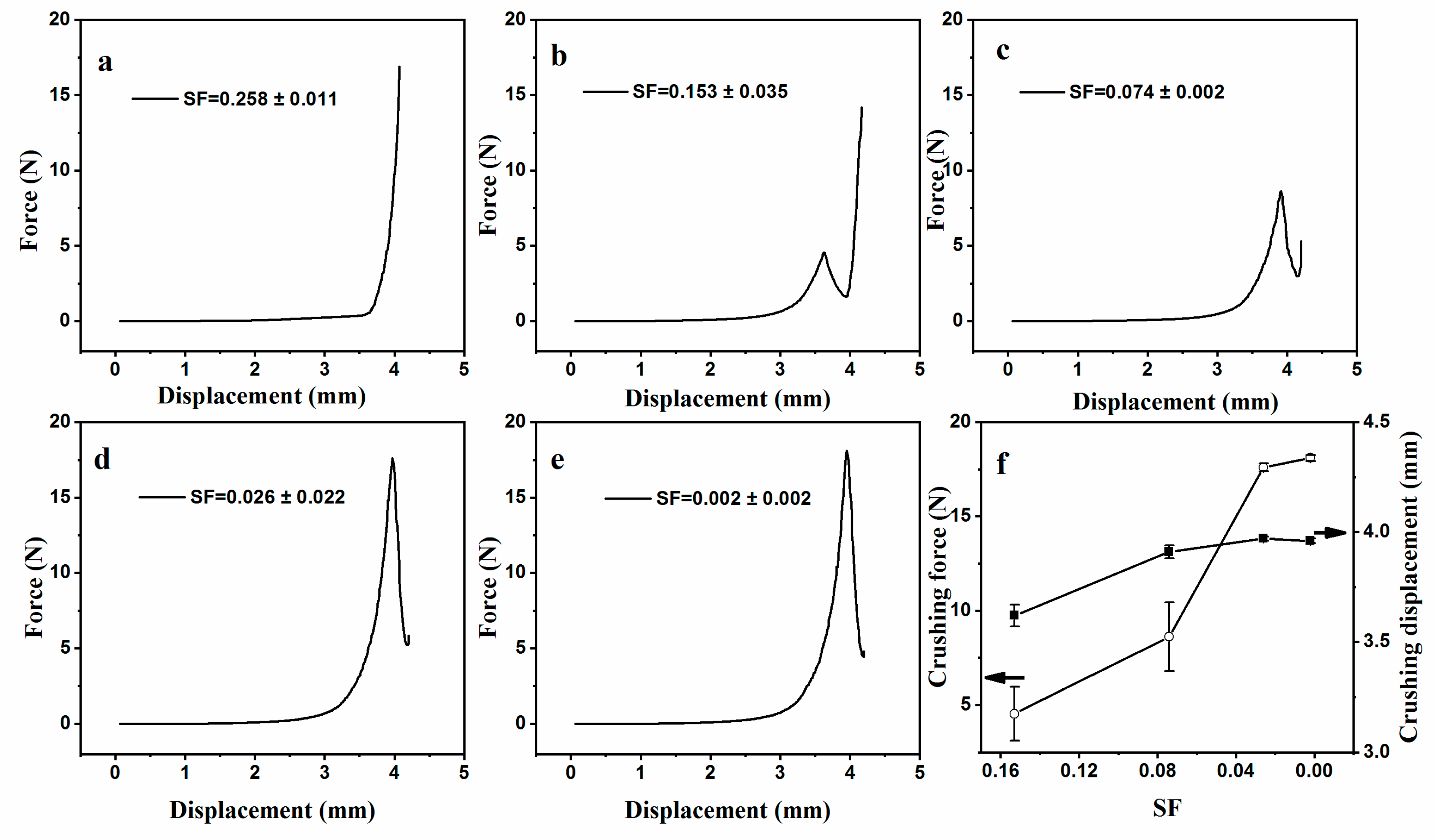

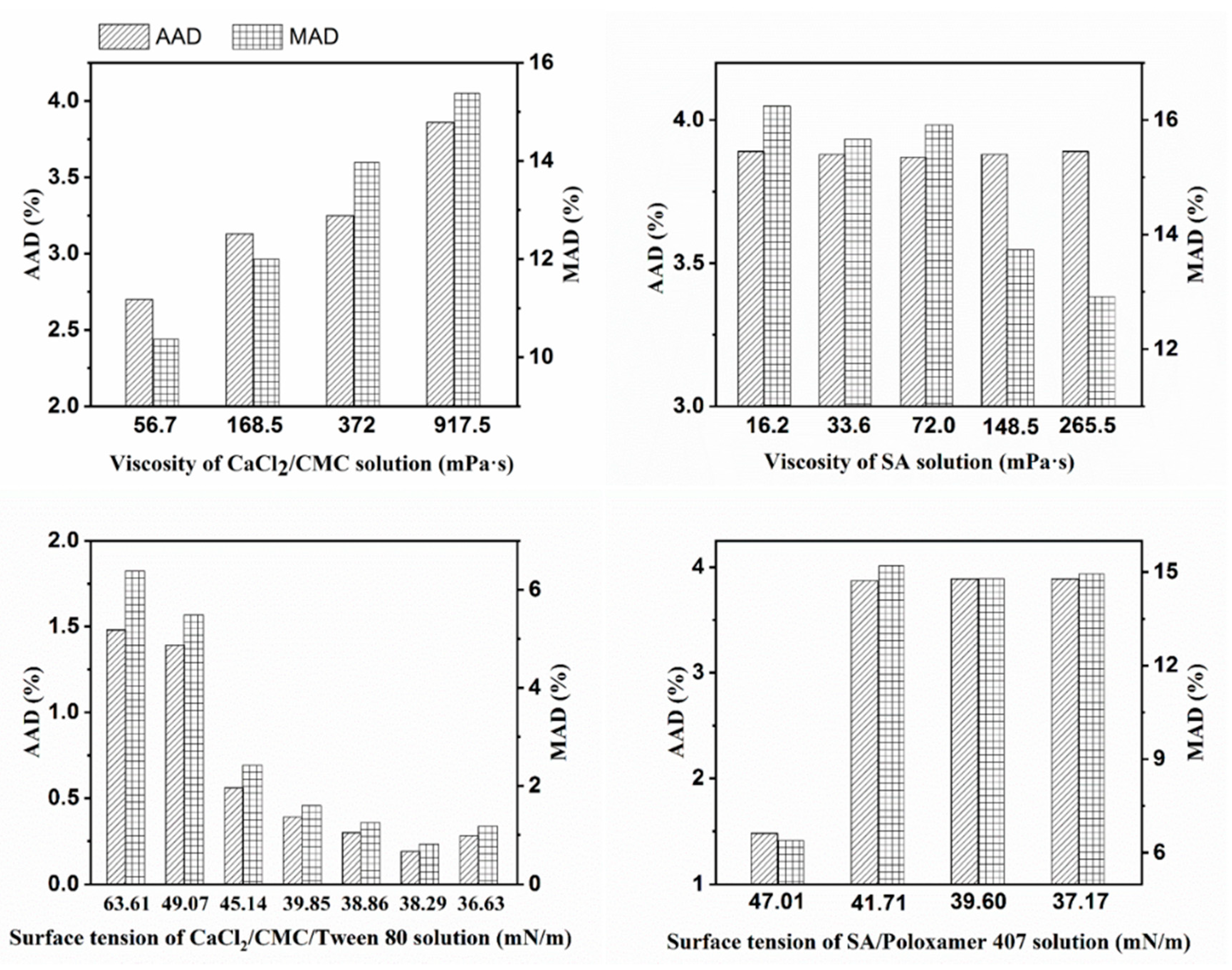

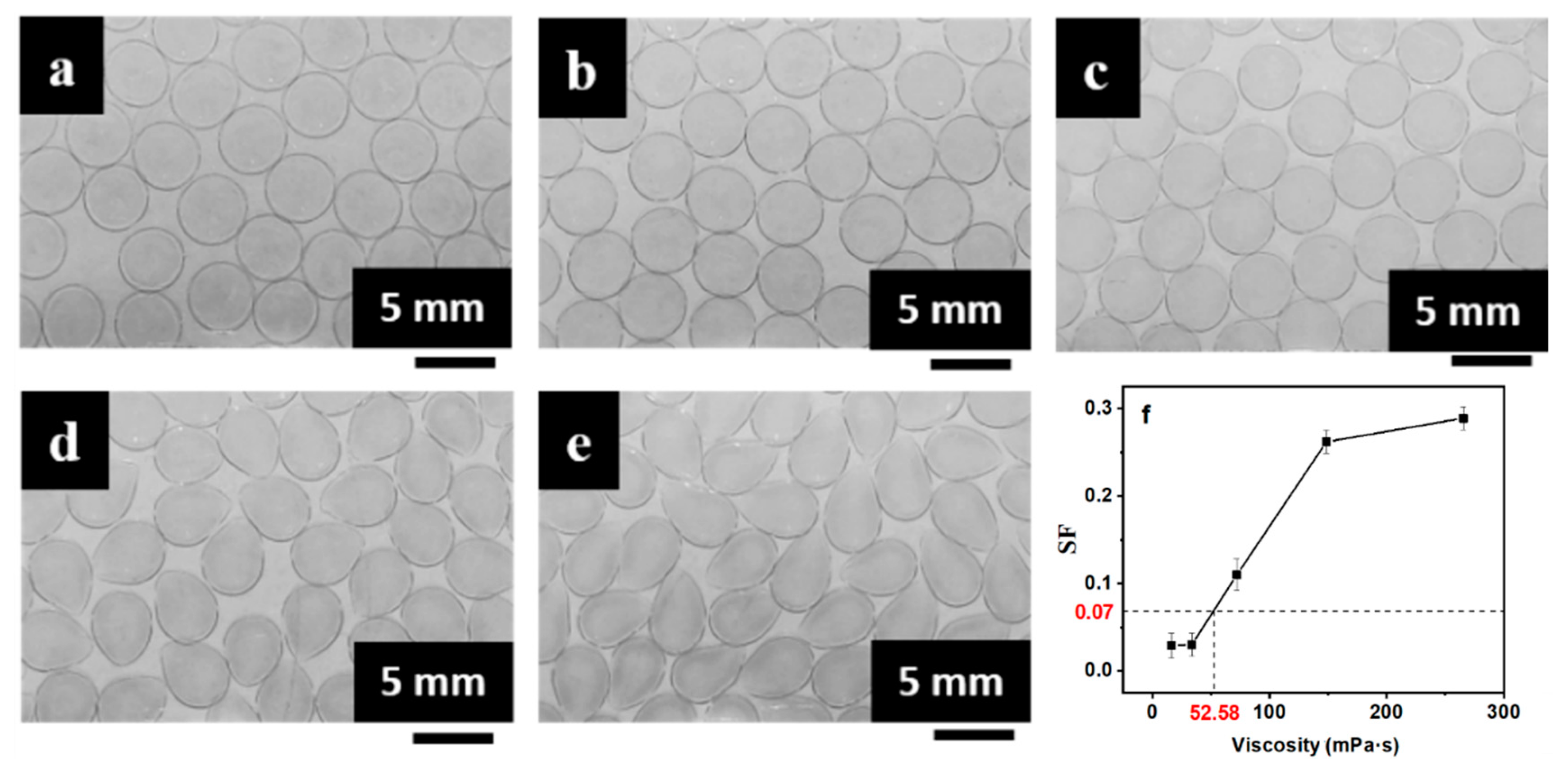

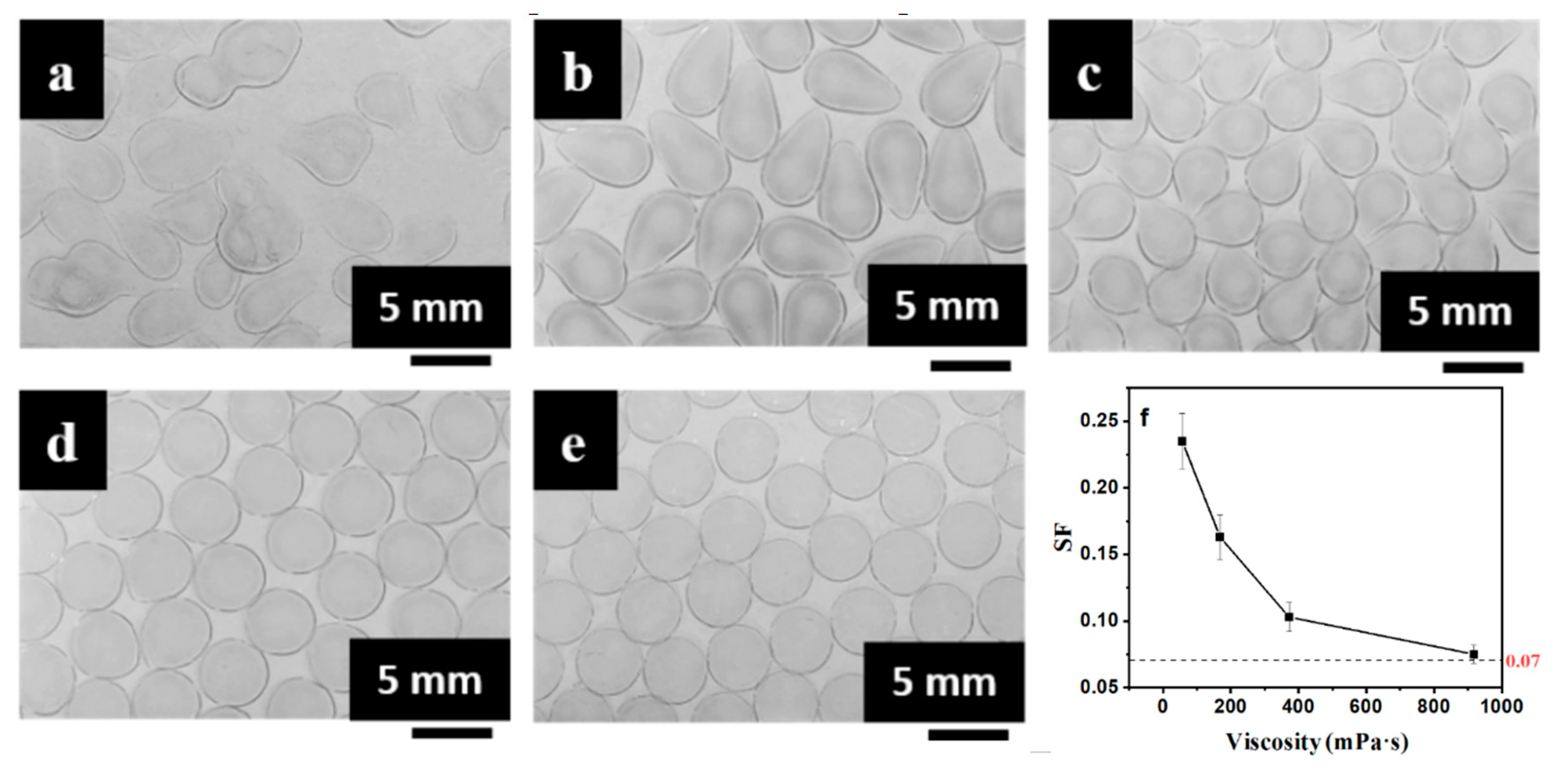

Controllable feature and size, good mechanical stability and intelligent release behavior is the capsule products relentless pursuit of the goal. In addition, to illustrate the quantitative relationship of structure and performance is also important for encapsulation technology development. In this study, the sphericity and size of millimeter-scale calcium sodium alginate capsules (mm-CaSA-Caps) with aqueous core were well tuned by manipulating the viscosity, surface tension, and density of CaCl2/carboxyl methyl cellulose (CMC) drops and sodium alginate (SA) solution. The well-tuned mm-CaSA-Caps showed significant mechanical and control-releasing property effects. The results showed that the prepared mm-CaSA-Caps were highly monodispersed with average diameter from 3.8 to 4.8 mm. The viscosity of the SA solution and the viscosity and surface tension of the CaCl2/CMC solution had significant effects on the mm-CaSA-Caps sphericity. Uniform and spherical mm-CaSA-Caps could be formed with high viscosity CaCl2/CMC solution (between 168.5 and 917.5 mPa·s), low viscosity SA solution (between 16.2 and 72.0 mPa·s) and decreased surface tension SA solution (by adding 0.01 wt.% poloxamer 407). The diameter of the mm-CaSA-Caps could be predicted by a modified Tate’s law, which correlated well with the experimental data. The Caps with sphericity factor (SF) < 0.07 had better mechanical stability, with the crushing force 2.91–15.5 times and the surface Young’s modulus 2.1–3.99 times higher than those of the non-spherical Caps (SF > 0.07). Meanwhile, the spherical Caps had a more even permeation rate, which was helpful in producing uniform and sustained releasing applications in foodstuff, medicine, agriculture and chemical industry. View Full-Text
Keywords: calcium-alginate capsules; size; sphericity; mechanical stability; drug release calcium-alginate capsules; size; sphericity; mechanical stability; drug release
Show Figures

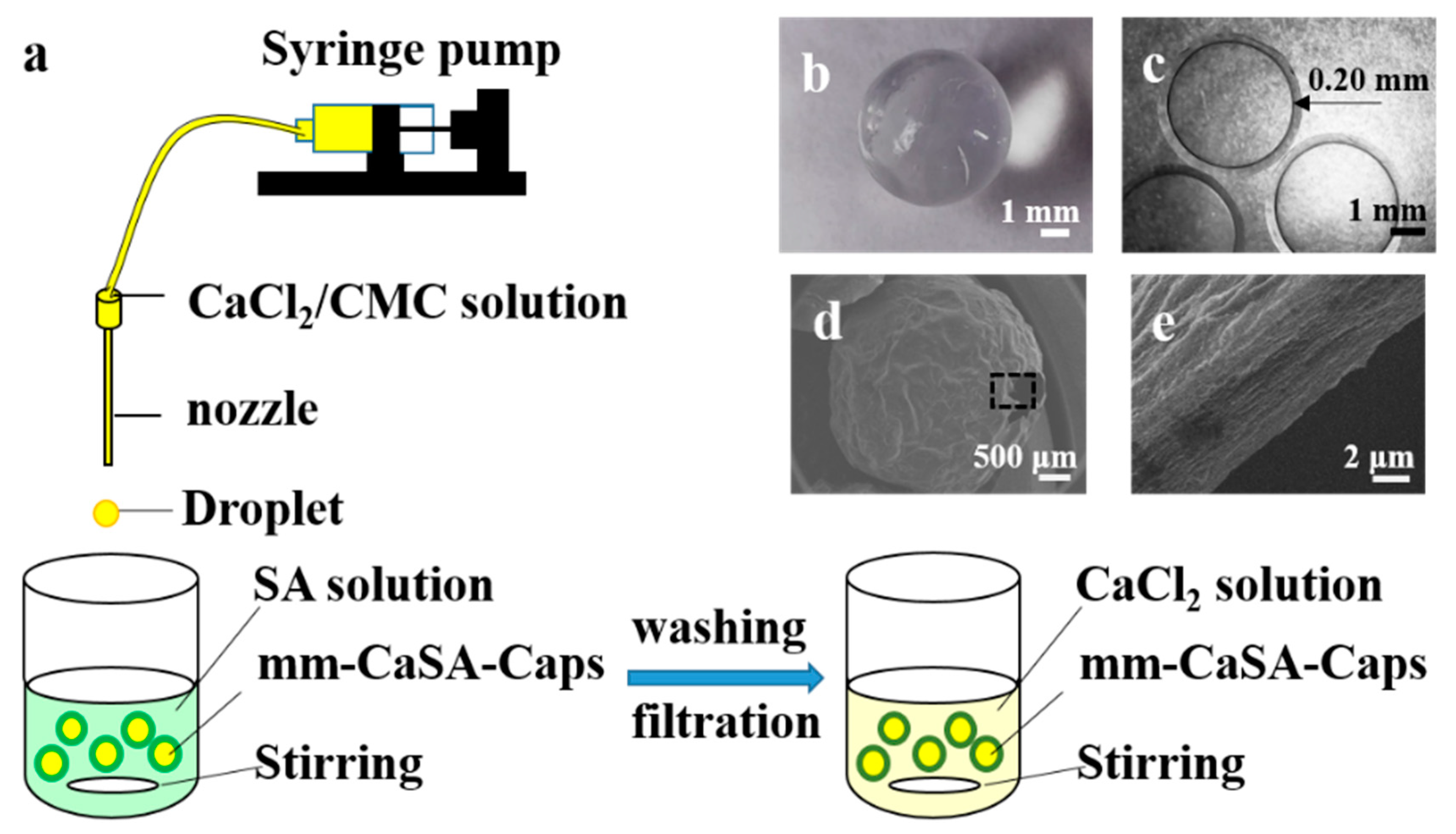

Figure 1

MDPI and ACS Style

Zhao, J.; Guo, Q.; Huang, W.; Zhang, T.; Wang, J.; Zhang, Y.; Huang, L.; Tang, Y. Shape Tuning and Size Prediction of Millimeter-Scale Calcium-Alginate Capsules with Aqueous Core. Polymers 2020, 12, 688.
