Dynamics of Confined Short-Chain alkanol in MCM-41 by Dielectric Spectroscopy: Effects of matrix and system Treatments and Filling Factor

by
Josef Bartoš
1,*,
Silvia Arrese-Igor
2,
Helena Švajdlenková
1,
Angela Kleinová
1 and
Angel Alegría
2,3
1
Polymer Institute of SAS, Dúbravská cesta, 9 845 41 Bratislava, Slovakia
2
Centro de Física de Materiales, CSIC-UPV/EHU, Paseo Manuel de Lardizabal 5, 20018 San Sebastián, Spain
3
Departamento de Física de Materiales, UPV/EHU, Apartado 1072, 20080 San Sebastián, Spain
*
Author to whom correspondence should be addressed.
Polymers 2020, 12(3), 610; https://doi.org/10.3390/polym12030610
Submission received: 20 December 2019 / Revised: 24 February 2020 / Accepted: 2 March 2020 / Published: 7 March 2020
(This article belongs to the Special Issue Synthesis, Characterization and Simulation of Soft Matter with EUSMI)
Browse Figures
Review Reports Versions Notes

Abstract

:
The dynamics of n-propanol confined in regular MCM-41 matrix with the pore size Dpore = 40 Å, under various matrix conditioning and sample confining conditions, using broadband dielectric spectroscopy (BDS), is reported. First, various drying procedures with the capacitor filling under air or N2 influence the BDS spectra of the empty MCM-41 and the confined n-PrOH/MCM-41 systems, but have a little effect on the maximum relaxation time of the main process. Finally, various filling factors of n-PrOH medium in the optimally treated MCM-41 system lead to unimodal or bimodal spectra interpreted in terms of the two distinct dynamic phases in the confined states.

Graphical Abstract

1. Introduction

The topic of bulk vs. confined organic materials is usually studied by a variety of classic experimental techniques. Changes in dynamics of various organic media as reflected by specific intrinsic probes of material, such as dynamic density fluctuations, reorientations of magnetic and electric dipoles are detected by means of neutron scattering (NS), nuclear magnetic resonance (NMR) or dielectric relaxation spectroscopy (BDS), respectively, are often observed (see general and special reviews [1,2,3,4,5,6,7,8,9]). These are related to phase transitions and eventually, to a formation of new phase(s) induced in confined organic medium (filler) by spatial restriction or/and by wall surface of confining inorganic matrix (confiner) [1,2,3,4] with their complex impacts into dynamic properties [5,6,7,8,9]. The overall confinement effect, as seen by these standard dynamic techniques, is considered to be a result of the complex mutual interplay of the following two main factors: (i) restricting geometric effects of the pores in a given matrix on the investigated medium and (ii) the mutual interaction effects of the medium’s entities with the pore surface wall of the matrix [1,2,3,4,5,6,7,8,9].
The bulk vs. confinement topic as the multiparameter problem includes a complex mutual action of many internal and external parameters. The most studied group of internal parameters concerns the confining matrix, such as pore size, pore size distribution, pore topology (mutual pore separation or interconnectivity) and pore surface composition and the confined organic medium, such as its size, shape and polarity, and proticity of the molecules. The group of external parameters includes those related to the matrix and confined system conditioning and preparation, such as thermal/time treatments of inorganic matrix in certain atmosphere, filling procedure of confined systems, again under a certain atmosphere, as well as degree of filling the pores (filling factor), of the previous specifically treated matrix with a given medium. One of the most often used model inorganic matrices based on silica such as irregular mesoporous silica gels (SG) and regular periodic mesoporous silicas (PMS), e.g., MCM-41 [10,11,12] and SBA-15 [13,14], has the hydrophilic character due to the presence of three basic kinds of polar silanol groups: isolated (free) silanol [O≡Si-OH], geminal silanol or silanediol [O=Si=(OH)2] and vicinal silanol [O≡Si-OH...HO-Si≡O], with their different adsorption ability to the environmental moisture (H2O from air) or other agents [15,16,17,18] and the capability of having various modification treatments [17,18]. Consequently, many BDS works addressed this important water-adsorption phenomenon in various silicas [19,20,21,22]. However, in spite of the importance of these external parameters, a relatively small amount of attention was devoted to systematic studies of their variations from the viewpoint of their impact into the dynamic response of the various confined organics [23,24]. This is also evident from the frequent absence of detailed descriptions of the empty matrix and confined system conditioning, as well as of the filling conditions during the preparation of the confined systems.
The knowledge situation is further complicated for the special group of H-bonded compounds, a very important class of organic media. Although the simpler poly alcohols, such as 1,2-ethanediol, ethylene glycol (EG), 1,2-propanediol, propylene glycol (PG) and 1,2,3-propanetriol, glycerol (GL) were among the first model organic media investigated after insertion into various inorganic silica matrices by BDS [25,26,27,28,29,30], BDS works on confined monohydroxy alcohols are rather limited [24,31,32,33]. This family of alcohols exhibits basically two peak features, where the main peak consists of two strongly superimposed subpeaks from the dominating Debye relaxation and the essentially less intense primary α one together with the well-separated secondary β process [34]. First, branched longer monohydroxy alkanols were studied where well-separated Debye- and α-processes were observed [31,32]. Later the first simplest members of the n-alkanol family, i.e., methanol and ethanol, were measured under confinement in MCM-41, showing a single global main peak, without any resolution of possible individual processes [24,33].
N-propanol, CH3CH2CH2OH, (n-PrOH) is a typical amphiphilic organic substance containing both the apolar alkyl group and the polar hydroxyl one in the molecule, with its ability to form intermolecular H-bonded associates (aggregates) in the liquid state [34]. Basic structural and dynamic properties of n-PrOH in the bulk state were investigated by classic structural X-ray and neutron diffraction (XD and ND) techniques, together with various Monte Carlo and molecular dynamics (MC and MD) simulations, as well as Empirical Potential Structure Refinement (EPSR) modeling [35,36,37,38], and by dynamics techniques, such as BDS and neutron scattering (NS) [39,40,41], so that the structural–dynamic state of the bulk liquid n-PrOH is quite well understood. On the other hand, a few works only were focused on dynamic behavior of small alkanols, such as n-PrOH confined in various microscopic porous inorganic matrices [42]. In addition, recently, some of us performed electron spin resonance (ESR) studies via spin probe method on the bulk n-PrOH [43] and on the respective saturated confined states in the irregular virgin silica gels (SGs) [44], as well as in the regular virgin MCM-41 [45], showing significant differences in the spin probe 2,2,6,6-tetramethyl-piperidinyl-1-oxy (TEMPO) dynamics, as well as in its dynamic heterogeneity with respect to the bulk n-PrOH medium.
In this contribution, we present the results of detailed systematic BDS studies of the relaxation dynamics of n-PrOH embedded in a periodic silica-based matrix. The MCM-41 type silica matrix with the defined pore size, pore topology and pore composition [10,11,12] was investigated in detail by a variation of external variables, such as (i) thermal, i.e., temperature/time treatment and capacitor filling of the empty MCM-41 matrix under various atmospheres, i.e., air and nitrogen; (ii) pore and capacitor filling of the n-PrOH/MCM-41 systems under various atmospheres; and (iii) different filling factor of the confined medium/matrix system for the most optimally treated empty MCM-41 matrix, as well as the most optimally prepared confined n-PrOH/MCM-41 system.

2. Materials and Methods

Anhydrous n-Propanol (n-PrOH) from Sigma-Aldrich, Inc., Germany, with a purity of 99.7% was used as confined organic medium (filler). Regular virgin Mobil Composition of Matter (MCM-41) silica matrix having regularly (parallelly) ordered cylinder-like channels with the mean pore size Dpore = 40 Å, from Sigma-Aldrich, Inc., Germany, was utilized as a confining inorganic material.

2.1. FTIR Measurements

First, the conditioning by drying procedure of the empty MCM-41 was monitored by Fourier transform middle-infrared (FT M-IR) spectroscopy. The empty MCM-41 matrix was undergone to stepwise drying for 0, 1, 3, 6 and 7 days, in the vacuum oven (VO), and subsequently immediately measured in FTIR spectrometer Nicolet 8700TM, Thermo Scientific, Madison, WI, USA, in transmission mode, under the standard air atmosphere. The analyzed samples in amounts below 2 mg were grounded in the ball mill, along with calcium bromide. Then the ground powder was molded into pellets. The corresponding spectra were taken throughout the whole middle infrared region (4000–400 cm−1) and normalized by converting to unit mass. The calcium bromide (KBr, CAS: 7758-02-3) used was a FTIR-grade product purchased from Sigma-Aldrich Chemie, Steinheim, Germany. The KBr was dried at 120 °C, in a common oven, in air atmosphere, before measurement. The resolution of spectra was set to 4 cm−1, and the number of scans was 32 in every case.
Next, the empty MCM-41 matrix was exposed to various conditioning treatments that consisted of three different drying procedures before BDS measurements. These sample preparations of MCM-41 matrix included the following: (i) drying at specific drying temperature of 120 °C, in the VO, for different drying times, 0,1,3,6 and 7 days, followed by filling the capacitor under air (O2 + N2 + moisture) atmosphere; (ii) drying at 120 °C for 1 day, in the VO, followed by filling the capacitor under inert nitrogen atmosphere in the glove box (GB); and finally (iii) drying at 120 °C directly in the BDS cell, under N2 atmosphere, for different drying times, 1–8 h with subsequent immediate BDS measurements at 150 K.

2.2. BDS Measurements

The confined n-PrOH/MCM-41 systems for BDS studies were prepared by adding n-PrOH into the MCM-41 powder, drop by drop, and stirring till the desired weight ratio was achieved (see Table 1). For the underfilled and saturated cases, capillary forces were allowed to fill the accessible pores of matrices with n-PrOH so that no liquid remained on the external surface of the silica grains. By further adding the n-PrOH medium, the overfilled state with the n-PrOH molecules in the inter-grain silica space was achieved. Two different environments were tested for capacitor preparation and for the n-PrOH filling of MCM-41 matrix: under regular air (mixture of N2+O2+moisture (H2O) in laboratory and under inert N2 atmosphere in the GB. The theoretical and real mass fractions of the filler for each filler/confiner system, as well as the ratios of the latter quantity to the former one, are listed in Table 1.
BDS measurements were performed by using a high-resolution Novocontrol dielectric analyzer in the range 10−1–107 Hz. Isothermal frequency scans were performed over the temperature interval from 100 to 300 K, with a temperature step of 5 K. The MCM-41 powder and n-PrOH containing MCM-41 powder samples and liquid samples were placed between two parallel plate capacitors, without or with a Teflon spacer, with a thickness of 100 μm, respectively.

3. Results

3.1. Effect of the Conditioning of the Empty MCM-41 Matrix on the M-IR and BDS Response.

First, we investigated the influence of various thermal treatments on the empty MCM-41 matrix by M-IR and BDS techniques. The treatments consisted of (i) drying the MCM-41 samples at a specific drying temperature, Td = 393 K (120 °C), for various drying times, td, in the VO or directly in the BDS cell; and (ii) subsequent sample preparation of the variously dried MCM-41 matrix into the M-IR cell, under air or into the capacitor of the BDS cell, under various atmospheres, i.e., under regular air or inert nitrogen (N2) in the GB.
Figure 1 shows the M-IR spectra of the MCM-41 as a function of drying time, td = 0, 1, 3, 6 and 7 days, in the VO, followed by sample preparation of the M-IR cell under air atmosphere. Here, the spectral bands at the wavenumbers of 1630 and ~3500 cm−1 are ascribed to the bound H2O molecules to the silanol groups of silica [15,16]. The presence of even a small amount of water at the surface of the silica matrix may significantly contribute to its dielectric response [19,20,21,22]. After drying the empty MCM-41 material in the VO for six days, followed by subsequent sample preparation of the M-IR cell under air atmosphere, the intensity of this particular peak becomes almost constant.
Figure 2 shows BDS spectra of the MCM-41 matrix samples under different drying and atmosphere conditions, at some representative temperature, T = 150 K. As it can be seen, the dielectric response of those samples exposed to air for capacitor preparation after six days of drying exhibits a relatively intense loss peak at fmax (150 K, air) ≈ 1 × 104 Hz. In contrast, the MCM-41 samples exposed to N2 for capacitor preparation after one day drying exhibit almost one order of magnitude lower intensity centered at a relatively lower fmax (150 K, N2) ≈ 3 Hz. These results indicate that the quality of atmosphere in contact with the matrix after drying is more determinant than the drying time on decreasing the amount of water molecules of the host matrix. Note that, according to M-IR data, the moisture content after one day of drying is higher than that after the three days’ one, when measured under the same air atmosphere conditions. Consistently, among those samples exposed to N2 after drying that dried inside the BDS cell under N2 flow shows the lowest signal, followed by that measured right after drying and preparing, and finally, that of a sample stored under N2 in the GB for five days before measurement (see Figure 2). It is worth noting that the stepwise drying of the MCM-41 silica reaches the stationary state (no appreciable evolution of the signal) after just two cumulative hours at 393 K.
These findings emphasize the important effect of matrix thermal treatment, atmosphere exposure and sample preparation conditions on the dielectric response of the empty MCM-41 matrix. Sample preparation details can be critical to understand certain surface effects and should be properly indicated and underlined in the future literature.

3.2. Effects of Preparation of the Confined n-PrOH/MCM-41 Systems under Various Atmospheres.

Although the last special drying treatment of MCM-41 matrix directly in the BDS cell is the most effective, it is technically impossible to apply this kind of treatment for own BDS measurements of any filled organic/MCM-41 system because of the inevitable short-term manipulations with the sample under air. Therefore, we have used the standard drying of the MCM-41 matrix in the VO and investigated the effects of both basic types of atmospheres (air and N2) during preparation of the confined n-PrOH/MCM-41 systems. Figure 3a–c presents the BDS spectra for the various n-PrOH/MCM-41 systems filled to the three different filling fractions under air or N2 atmosphere, respectively. Both spectral data at different atmospheres exhibit some similar and some different features. This is clearly demonstrated in Figure 4 and Figure 5, together with the respective spectral responses from the empty MCM-41 matrices at one selected representative temperature, i.e., 180 K in both linear and logarithmic representations of dielectric loss.
A similar feature in all of the confined n-PrOH/MCM-41 systems is the presence of a small and broad peak (peak 1) at higher frequencies and lowest temperatures. On the other hand, significant differences consist in the character of dielectric spectra for different filling factors, regardless of the used atmosphere. For the overfilled and the saturated n-PrOH/MCM-41 systems, we observe a bimodal form of the respective spectra with peaks 2 and 3 at higher or lower frequency, respectively. In addition, for both of these types of confined systems differing in their filling fraction, the opposite trend in the peak intensities is evident, i.e., higher intensity of peak 2 with respect to that of peak 3, in accord with intuitive expectation. Although, in the case of the confined samples exposed to air during sample preparation, peak 2 may contain partial contribution from the losses of the bare MCM-41 matrix—the relative intensities of peaks 1 and 2 are of the same order as those for samples prepared under N2 atmosphere, where the dielectric loss of the MCM-41 is minimized. On the other hand, the underfilled n-PrOH/MCM-41 samples exhibit broad unimodal spectra with one spectral feature (peak 3). In general, the characteristic timescales for each of the processes mentioned above are only slightly dependent on the atmosphere under which samples were prepared (pore filling and capacitor preparation).

3.3. Effects of the Filling Fraction in the Confined n-PrOH/MCM-41, N2 Systems under the Most Optimal Atmosphere Conditions.

From the previous test BDS measurements, it is evident that the most optimal confined n-PrOH/MCM-41 system treatment consists of drying the empty MCM-41 matrix in the VO at 120 °C for one day, with the subsequent pore and the capacitor fillings in the GB under N2 atmosphere. Figure 6 displays linear representations of the spectral evolution in all the three confined n-PrOH/MCM-41 differing in the filling fraction. As already mentioned in the previous section, the dramatic qualitative difference between the underfilled n-PrOH/MCM-41 and the saturated and overfilled n-PrOH/MCM-41 ones can be found. In contrast to logarithmic representation in Figure 3a,b, which emphases peak 1 at the lowest temperatures and the highest frequencies, linear representations of the LF-BDS spectra demonstrate more pronouncedly this difference in further peak features observed in intermediate temperatures of the BDS window. For the filling fraction 0.24, only one broad peak 3 at relatively lower frequencies exists, and in the latter ones, two peak features, i.e., peaks 3 and 2, are evident. Thus, in the saturated sample, peak 2 is relatively smaller than peak 3, and it appears over the intermediate temperature range at higher frequencies, while peak 3 is larger and situated at lower frequencies. Finally, for the overfilled system, the frequency positions of peaks 2 and 3 are similar as in the previous fully filled case, but their relative intensities are reversed.
Dielectric spectra for the most optimally treated MCM-41 matrix and the confined n-PrOH/MCM-41 systems were analyzed, using an additive model with the following relaxation function for the imaginary part of the dielectric permittivity ε″(ω):
ε″(ω) = −Im {Σi ΔεCC,i/[1 + (iωτCC,i)αCC,i]−iσ/ε0ωs}
The first term on the right-hand side of Equation (1) describes dielectric relaxation due to reorientation of molecules related to peaks i = 1, 2 and 3. We have adopted the Cole–Cole (CC) function [7] for relaxation function for each component, where ΔεCC,i and τCC,i represent a relaxation strength and characteristic times of ith dielectric relaxation with τmax,i = τCC,i, respectively. The exponent α (0 ≤ α ≤ 1) is a measure of relaxation time distribution of τCC,i; when α = 1, the CC function reduces to the Debye (D) function with no distribution of τi. The last term is an “apparent” conductivity term accounting for dc-conductivity and additional Maxwell–Wagner–Sillar effects (MWS), due to the presence of multiple interphases.
Figure 7 summarizes the maximum relaxation times, τmax, for all the three n-PrOH/MCM-41, N2 systems, as obtained from the detailed spectral fitting, using Equation (1), together with the peak maximum of the main peak (the so-called Debye relaxation) of the bulk n-PrOH, as determined from the peak maxima. In all the bulk and confined cases, the non-Arrhenius character of the corresponding timescales of one or two main peaks (peaks 3 and 2) over the measured frequency range of the BDS technique is observed with the fitting parameters from the Vogel–Fulcher–Tamman–Hesse (VFTH) equation listed in Table 2. In Table 2, the fitting parameters from the Arrhenius equation for the secondary process (peak 1) in the confined states (data not plotted in Figure 8) are also included together with those for the bulk state from the literature [39,40,41].
Two groups of the timescales are clearly evident. The lower-frequency peak 3 appears in all the three confined underfilled, saturated and overfilled n-PrOH/MCM-41 systems, while in the former case, it is slower than in the remaining cases with the rather comparable timescales. On the other hand, the higher-frequency peak 2 is observable only in the saturated and overfilled n-PrOH/MCM-41 systems, with its frequency position lower, but quite close to that of the main peak in the bulk n-PrOH medium. Moreover, a slight difference does exist between the two confined cases in the spirit that the overfilled sample lies mostly in between the saturated n-PrOH/MCM-41 system and the bulk n-PrOH.
Further, short-range low-T extrapolations of the corresponding VFTH equations provide the pseudo glass transition temperatures, “Tg”, operationally defined as the temperatures at which the peak maximum relaxation time reaches 100 s. In such a way determined “Tg” values for two basic relaxations in the confined n-PrOH/MCM-41 systems are as follows: “Tg”(peak 3) = 116 ± 1 K and “Tg”(peak 2) = 101.5 ± 0.5 K. The latter value is comparable with “Tg”(bulk) = 104.5 K, as determined for the main peak in the bulk n-PrOH medium. Note that, in the case of the bulk n-PrOH, the main peak consists of the dominating, slower Debye process and the smaller and faster primary α relaxation, which correlates with the calorimetric and mechanical data. Consequently, this latter process is related to the true glass transition temperature, Tg(bulk) = 99 K, being lower than the pseudo glass transition temperature, “Tg”(bulk) = 104.5 K [39,46,47,48].
Figure 8a,b displays two further relaxation parameters, i.e., relaxation strengths, ΔεCC,i, and shape parameters, αCC,i, of processes 3 and 2, as a function of temperature. By increasing the temperature, for the underfilled sample, the relaxation strength of process 3 remains quasi-constant. On the other hand, the mutually opposite trends in the relative strengths for processes 3 and 2 in the saturated and overfilled ones are observed. In particular, the corresponding quantities for process 3 decrease, while those for the process 2 increase with elevated temperature. Finally, the shape parameter gradually increases for the underfilled system, indicating the narrowing the relaxation-time distribution. As for the saturated and overfilled samples, a similar effect is found for the lower frequency process 3 with a quasi-saturation at higher-T region for the former, but with continuing narrowing for the later approaching that for the high-frequency process 2. As for the high-frequency process 2, for both the samples, the αCC,i values are more or less close and quasi-constant with an increasing temperature.

4. Discussion

On the basis of these experimental findings, we suggest the existence of one dynamic phase in the underfilled samples, in contrast to the presence of two distinguishable dynamic ones in the saturated and overfilled n-PrOH/MCM-41 systems almost independently on the preparation atmosphere. These distinct dynamic phases can be ascribed as follows (see also schematic heterogeneous dynamic model of protic polar organic medium in polar inorganic matrix in Figure 9).
In the underfilled n-PrOH/MCM-41 sample, the protic polar n-PrOH molecules are localized at the polar wall of the pore surface due to their H-bonding interaction with the silanol groups. Moreover, according to the very recent detailed systematic work, a series of the small molecular alkanols ranging from methanol to octanol, also including n-propanol, react with these surface silanol groups of the MCM-41 matrix, even at room temperature, under forming the corresponding polar alkoxy groups [49]. Thus, the true interface appears to contain three components, i.e., the rest adsorbed H2O molecules, the intermolecularly H-bonded n-PrOH ones and the alkoxy groups to the silica surface. As our filling fraction of 0.24 exceeds the monomolecular layer case, i.e., true interface sometimes called the contact layer, also the adjacent layers of the n-PrOH molecules named interphase contribute to the dielectric response. This formation of one or a few layers adjacent to the contact layer is supported by the amphiphilic character of the n-PrOH molecules, where the polar hydroxyl group –OH of the n-PrOH medium are attached directly via H-bonding to the polar silanol groups and even covalently via alkoxy groups ≡ SiO(CH2)2CH3. On the other side, the apolar propyl-CH2CH2CH3 parts of the n-PrOH molecules are directed into the pore, where it can preferentially interact with the same propyl groups from the first adjacent layer. This probably gave rise to the more denser interphase region with the higher orientational order which can be reduced in direction toward the central part of the pore of the MCM-41 matrix. In addition to the overwhelming amount of n-PrOH medium, the inevitable remaining H2O molecules from the used drying procedure under N2 atmosphere, as well as the potential alkoxy groups, also contribute, to a minor extent, to the total spectrum, as evidenced from Figure 2 and Figure 5.
Next, for the almost saturated n-PrOH/MCM-41 case, besides this combined interface and interphase slower regions, the additional faster dynamic component in the BDS spectra is attributed to the more distant n-PrOH molecules from the pore surface which are localized in the central part, i.e., the so-called “core” region of the pore of the MCM-41 matrix. As it is seen from Figure 7, the n-PrOH molecules in this central “core” region exhibit a somewhat slower dynamics compared to that in the bulk n-PrOH medium, so that they exhibit the bulk-like behavior.
Finally, in the overfilled n-PrOH/MCM-41 system with f = 0.46, an exceeding part of the n-PrOH medium over the saturated filling fraction 0.39 must be situated outside of the MCM-41 grains. Consequently, while the dynamics of the n-PrOH stemming from the confined part of the n-PrOH in the intrapores is rather similar to that from the saturated case, the dynamics of the exceeding part of the n-PrOH filler is a bit faster compared to the fully filled case, but still a bit slower than in the bulk n-PrOH medium. This is also due to some contribution from the n-PrOH molecules in the free space between the MCM-41 grains which are partially bonded to the outer surface of the MCM-41 grains. As the outer grain surface in the MCM-41 matrix is essentially smaller than the inner pore surface within the pores of the MCM-41 grains, the bounded n-PrOH in this outer interface (and eventually some interphase) will contribute in significantly smaller extent, so that the higher relative intensity of peak 2 compared to peak 3 stems from the n-PrOH medium in the intergrain (interpore) spaces with the bulk-like behavior (Figure 5 and Figure 8).
The fact that process 2 is narrow and its shape does not change appreciably with temperature supports the interpretation of this process as originated by bulk-like n-PrOH molecules. Concerning the relative strength of processes 2 and 3 and their temperature dependence, it is consistent with the expectation that the number of molecules behaving as bulk-like increases with temperature due to an increase of mobility and a decrease of the size or number of cooperating molecules. Consistently, the strength of process 3 in the underfilled sample remains more or less constant, as in this sample, molecules just belong to the first monolayer interface and to interphase, and their number is too low to switch to a bulk-like behavior as temperature increases. In line with these observations, the T-dependence of the characteristic times of process 2 is more “fragile”, and process 3 becomes “stronger” the lower the n-PrOH content.
In connection with the aforementioned findings and their interpretation in terms of distinct dynamic phases, it is of interest to see how the BDS spectra of the saturated n-PrOH/MCM-41, N2 sample evolves during simple gradual thermal treatment at 300 K, followed by that at 310 K, as performed directly in the BDS cell, i.e., during “drying”, the confined n-PrOH/MCM-41,N2 system due to the release of the n-PrOH medium. Figure 10a shows the spectral changes for the saturated sample first cooled and measured at the selected temperature of 175 K (scan 1) and after two heatings that followed, for seven minutes, at 300 K. While peak 3 remains the same during all the heating cycles (scans 2 and 3), peak 2 at almost the same position decreased due to evaporation of the n-PrOH medium from the central region of the pore of the MCM-41 matrix, where the n-PrOH molecules interact mutually by the weaker intermolecular forces than the ones bounded directly to and being more adjacent to the polar surface wall of the pores of the MCM-41 matrix. Comparison with the first scan of the overfilled n-PrOH/MCM-41, N2 sample (Figure 7) shows that the position of peak 3 is the same for both samples. In contrast, peak 2 is more intense, indicating somewhat looser dynamics for this process in the overfilled sample compared to the similar peak 2 in the saturated sample. This would be evidence of the excess n-PrOH medium localized outside the pores of the MCM-41 matrix. Next, the temperature of this partially dried sample was increased toward 310 K, and heating and cooling cycles were repeated 17 times, with subsequent detection of the spectra at 175 K (see Figure 10b). As it can be seen, peak 2 is gradually fully eliminated, and peak 3 is also gradually reduced, with a slight shift toward the lower frequencies. Thus, all these observations appear to be consistent with the picture of two distinct dynamic phases and support the proposed schematic model in Figure 9.

5. Conclusions

We presented a detailed investigation of the relaxation dynamics in the representative of short-chain n-alkanols, namely n-propanol confined in the regular MCM-41 matrix as a function of a series of external parameters by low-frequency dielectric spectroscopy. These external parameters concerned the following three issues: (i) conditioning the empty MCM-41 matrix and its subsequent filling into the capacitor under various atmospheres, i.e., air or N2; (ii) conditioning the empty MCM-41 matrix and subsequent filling the n-PrOH medium into the capacitor under various atmospheres; and finally (iii) variation of the filling factor for the most optimally treated MCM-41 matrix. In the first case, relatively large sensitivity of the BDS response of the empty MCM-41 to its various atmospheres, especially at the capacitor filling, was found. In the second one, in spite of this, the dynamics are not very essentially affected by the used environment at the pores, as well as at the capacitor filling. Finally, the filling factor has a paramount impact on the spectral form of the BDS response, indicating the spatial heterogeneity of the dynamics of the confined n-PrOH in MCM-41 matrix due to the presence of the two distinct dynamic phases.

Author Contributions

J.B. proposed the research topic, participated in BDS measurements, evaluated and analyzed the BDS spectra and formulated the manuscript; S.A.-I. and H.Š. performed detailed BDS measurement and evaluations; A.K. performed M-IR measurements; and A.A. participated at BDS experiments. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the EUSMI/Horizon 2020 grants: E181200215 and E 180300076 and E180300077 and by the Slovak Research and Development Agency (SRDA) under the contract No. APVV-16-0369. And J.B. was funded by the VEGA Agency, Slovakia with Grant No. 2/0030/16.

Conflicts of Interest

The authors declare no conflict of interests.

References

  1. Thompson, W.H. Perspective: Dynamics of confined liquids. J. Chem. Phys. 2018, 149, 170901. [Google Scholar] [CrossRef] [PubMed]
  2. Huber, P. Soft matter in hard confinement: Phase transition thermodynamics, structure, texture, diffusion and flow in nanoporous media. J. Phys. Cond. Matter 2015, 27, 103102. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Alba-Simionesco, C.; Coasne, B.; Dosseh, G.; Dudziak, G.; Gubbins, K.E.; Radhakrishnan, R.; Sliwinska–Bartkowiak, M. Effects of confinement on freezing and melting. J. Phys. Cond. Matter 2006, 18, R15–R68. [Google Scholar] [CrossRef] [PubMed]
  4. Alcoutlabi, M.; McKenna, G.B. Effects of confinement on material behavior at the nanometre size scale. J. Phys. Cond. Matter 2005, 17, R461–R524. [Google Scholar] [CrossRef]
  5. Kremer, F. Dynamics in Geometrical Confinement; Springer: Heidelbeg, Germany, 2014. [Google Scholar]
  6. Richert, R. Dynamics of nanoconfined supercooled liquids. Ann. Rev. Phys. Chem. 2011, 62, 65–84. [Google Scholar] [CrossRef]
  7. Kremer, F.; Schönhals, A. Broadband Dielectric Spectroscopy; Springer: Berlin, Germany, 2003. [Google Scholar]
  8. Schönhals, A.; Zorn, R.; Frick, B. Inelastic neutron scattering as a tool to investigate nanoconfined polymer systems. Polymer 2016, 105, 393–406. [Google Scholar] [CrossRef]
  9. Kruteva, M.; Wischnevski, A.; Richter, D. Polymer dynamics in nanoconfinement: Interfaces and interphases. Eur. Phys. J. Conf. 2015, 83, 02009. [Google Scholar] [CrossRef] [Green Version]
  10. Kresge, C.T.; Roth, W.J. The discovery of mesoporous molecular sieves from the twenty year perspective. Chem. Soc. Rev. 2013, 42, 3663–3670. [Google Scholar] [CrossRef]
  11. Beck, J.S.; Vartuli, J.C.; Roth, W.J.; Leonowicz, M.E.; Schmidt, K.D.; Chu, C.T.W.; Olson, D.H.; Sheppard, E.W.; McCullen, S.B.; Higgins, J.B.; et al. A New Family of Mesoporous Molecular Sieves Prepared with Liquid Crystal Templates. J. Am. Chem. Soc. 1992, 114, 10834–10843. [Google Scholar] [CrossRef]
  12. Kresge, C.T.; Leonowicz, M.E.; Vartuli, J.C.; Roth, W.J.; Beck, J.S. Ordered Mesoporous Molecular Sieves Synthetized by Liquid-Crystal Template Mechanism. Nature 1992, 359, 710–712. [Google Scholar] [CrossRef]
  13. Zhao, D.; Huo, O.; Feng, J.; Chmelka, B.F.; Stucky, G.D. Nonionic Triblock and Star Diblock Copolymer and Oligomeric Surfactant Syntheses of Highly Ordered, Hydrothermally Stable, Mesoporous Silica Structures. J. Amer. Chem. Soc. 1998, 120, 6024–6036. [Google Scholar] [CrossRef]
  14. Zhao, D.; Feng, J.; Huo, Q.; Melosh, N.; Fredrickson, G.H.; Chmelka, B.F.; Stucky, G.D. Triblock Copolymer Syntheses of Meso-porous Silica with Periodic 50 to 300 Angstrom Pores. Science 1998, 279, 548–552. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Vansant, E.F.; Van der Woort, P.; Vrancken, K.C. Characterization and Chemical Modification of the Silica Surface. Stud. Surf. Sci. Cat. 1995, 93, 3–556. [Google Scholar]
  16. Iler, R.K. The Chemistry of Silica; Chpt. 6; A Wiley Interscince Publication Press: New York, NY, USA, 1979. [Google Scholar]
  17. Zhao, X.S.; Lu, G.Q.; Whittaker, A.K.; Millar, G.J.; Zhu, H.Y. Comprehensive Study of Surface Chemistry of MCM-41 Using 29Si CP/MAS NMR, FTIR, Pyridine-TPD, and TGA. J. Phys. Chem. B 1997, 101, 6525–6531. [Google Scholar] [CrossRef]
  18. Chen, J.; Li, Q.; Xu, R.; Xiao, F. Distinguining the Silanol Groups in the Mesoporous Molecular Sieve MCM-41. Angew. Chem. Int. Ed. Engl. 1995, 34, 2694–2696. [Google Scholar] [CrossRef]
  19. Ryabov, Ya.; Gutina, A.; Arkhipov, V.; Feldman, Yu. Dielectric relaxation of Water Adsorbed in Porous Glass. J. Phys. Chem. B 2001, 105, 1845–1850. [Google Scholar] [CrossRef]
  20. Sjörström, J.; Swenson, J.; Bergman, R.; Kittaka, S. Investigating hydration dependence of dynamics of confined water: Monolayer, hydration water and Maxwell-Wagner processes. J. Chem. Phys. 2008, 128, 154503. [Google Scholar] [CrossRef] [Green Version]
  21. Banys, J.; Kinka, M.; Macutkevic, J.; Völkel, G.; Böhlmann, W.; Umaheswari, V.; Hartman, M.; Pöppl, A. Broadband dielectric spectroscopy of water confined in MCM-41 molecular sieve materials. J. Phys. Cond. Matter 2005, 17, 2843–2857. [Google Scholar] [CrossRef]
  22. Spanoudaki, A.; Albela, B.; Bonneviot, L.; Peyrard, M. The dynamics of water in nanoporous silica studied by dielectric spectroscopy. Eur. Phys. J. E 2005, 17, 21–27. [Google Scholar] [CrossRef]
  23. Cerveny, S.; Schwartz, G.A.; Otegui, J.; Colmenero, J.; Loichen, J.; Westermann, J.S. Dielectric Study of Hydration Water in Silica Nanoparticles. J. Phys. Chem. C 2012, 116, 24340–24349. [Google Scholar] [CrossRef] [Green Version]
  24. Kityk, A.V.; Huber, P.; Pelster, R.; Knorr, K. Spatial Variation of Molecular Dynamics in the Nanoconfined Glass-Former Methanol. J. Phys. Chem. C 2014, 118, 12548–12554. [Google Scholar] [CrossRef]
  25. Pissis, P.; Daoukaki-Diamanti, D.; Apekis, L.; Christodoulides, C. The glass transition on confined liquids. J. Phys. Cond. Matter 1994, 6, L325–L328. [Google Scholar] [CrossRef]
  26. Gorbatschow, W.; Arndt, M.; Stannarius, R.; Kremer, F. Dynamics of H-bonded liquids confined to nanopores. Europhys. Lett. 1996, 35, 719–724. [Google Scholar] [CrossRef]
  27. Huwe, A.; Arndt, M.; Kremer, F.; Haggenmueller, C.; Behrens, P. Dielectric investigations of the molecular dynamics of propanediol in mesoporous silica materials. J. Chem. Phys. 1997, 107, 9699–9701. [Google Scholar] [CrossRef]
  28. Pelster, R. Dielectric spectroscopy of polar compounds. Phys. Rev. B 1999, 59, 9214–9228. [Google Scholar] [CrossRef]
  29. Kremer, F.; Huwe, A.; Arndt, M.; Behrens, P.; Schwieger, W. How many molecules form a liquid? J. Phys. Cond. Matter 1999, 11, A175–A188. [Google Scholar] [CrossRef]
  30. Fischer, J.K.H.; Sippel, P.; Denysenko, D.; Lunkenheimer, P.; Volkmer, D.; Loidl, A. Metal-organic frameworks as host materials of confined supercooled liquids. J. Chem. Phys. 2015, 143, 154505. [Google Scholar] [CrossRef] [Green Version]
  31. Janssen, H.; Swensson, J. The slow dielectric Debye relaxation of mono alcohols in confined geometries. J. Chem. Phys. 2011, 134, 104504. [Google Scholar] [CrossRef] [Green Version]
  32. Gainaru, C.; Schildmann, S.; Böhmer, R. Surface and confinement effects on the dielectric relaxation of a Monohydroxy alcohol. J. Chem. Phys. 2011, 135, 174510. [Google Scholar] [CrossRef]
  33. Takahara, S.; Kittaka, S.; Mori, T.; Kuroda, Y.; Takamuku, T.; Yamaguchi, T. Neutron Scattering and Dielectric Studies on Dynamics of Methanol and Ethanol Confined in MCM-41. J. Phys. Chem. C 2008, 112, 14385–14393. [Google Scholar] [CrossRef]
  34. Böhmer, R.; Gainaru, C.; Richert, R. Structure and dynamics of monohydroxy alcohols—Milestones towards their microscopic understanding, 100 years after Debye. Phys. Rep. 2014, 545, 125–195. [Google Scholar] [CrossRef]
  35. Sillrén, P.; Swenson, J.; Mattsson, J.; Bowron, D.; Matic, A. The temperature dependent structure of liquid 1-propanol as studied by neutron diffraction and EPSR simulations. J. Chem. Phys. 2013, 138, 214501. [Google Scholar] [CrossRef] [PubMed]
  36. Sillrén, P.; Bielecki, J.; Mattsson, J.; Börjesson, L.; Matic, A. A statistical model of hydrogen bond networks in liquid alcohols. J. Chem. Phys. 2012, 136, 094514. [Google Scholar] [CrossRef] [PubMed]
  37. Vrhovšek, A.; Gereben, O.; Jamnik, A.; Pusztai, L. Hydrogen Bonding and Molecular Aggregates in Liquid Methanol, Ethanol and 1-Propanol. J. Phys. Chem. B 2011, 115, 13473–13488. [Google Scholar] [CrossRef]
  38. Vrhovšek, A.; Gereben, O.; Pothoczki, S.; Tomšič, M.; Jamnik, A.; Kohara, S.; Pusztai, L. An approach towards understanding the structure of complex molecular systems: The case of lower aliphatic alcohols. J. Phys. Cond. Matter 2010, 22, 404214. [Google Scholar] [CrossRef]
  39. Hansen, C.; Stickel, F.; Berger, T.; Richert, R.; Fischer, E.W. Dynamics of glass-forming liquids. III. Comparing the dielectric α-and β-relaxation of 1-propanol and o-terphenyl. J. Chem. Phys. 1997, 107, 1086–1093. [Google Scholar] [CrossRef]
  40. Kudlik, A.; Tschirwitz, C.; Benkhof, S.; Blochowicz, T.; Rössler, E. Slow secondary relaxation process in supercooled liquids. Europhys. Lett. 1997, 40, 649–654. [Google Scholar] [CrossRef]
  41. Sillrén, P.; Matic, A.; Karlsson, M.; Koza, M.; Maccarini, M.; Fouquet, P.; Götz, M.; Bauer, T.; Gulich, R.; Lunkenheimer, P.; et al. Liquid 1-propanol studied by neutron scattering, near-infrared and dielectric spectroscopy. J. Chem. Phys. 2014, 140, 124501. [Google Scholar] [CrossRef] [Green Version]
  42. Cabrillo, C.; Barroso-Bujans, F.; Fernandez-Perea, R.; Fernandez-Alonso, F.; Bowron, D.; Bermejo, F.J. Adsorbate-induced bilayer orderning of 1-propanol-graphiteoxide intercalates. Carbon 2016, 100, 546–555. [Google Scholar] [CrossRef]
  43. Bartoš, J.; Švajdlenková, H.; Šauša, O.; Lukešová, M.; Ehlers, D.; Michl, M.; Lunkenheimer, P.; Loidl, A. Molecular probe dynamics and free volume in organic glass-formers and their relationships to structural relaxation: 1-propanol. J. Phys. Cond. Matter 2016, 28, 015101. [Google Scholar] [CrossRef]
  44. Bartoš, J.; Lukešová, M.; Švajdlenková, H.; Šauša, O. Bulk and confined non-polar and polar chain-like organics by external probing ESR technique. AIP Conf. Proceed. 2018, 1981, 020081. [Google Scholar]
  45. Bartoš, J.; Švajdlenková, H.; Šauša, O. Molecular probe mobility and free volume heterogeneities in n-propanol confined in regular MCM-41 matrix by ESR and PALS. RSC Advances 2020, 10, 2283–2294. [Google Scholar] [CrossRef] [Green Version]
  46. Murthy, S.N.; Tyagi, M. Experimental study of the high frequency relaxation process in monohydroxy alcohols. J. Chem. Phys. 2002, 117, 3837–3847. [Google Scholar] [CrossRef]
  47. Wang, L.-M.; Richert, R. Dynamics of glass-forming liquids. IX. Structural versus dielectric relaxation in monohydroxy alcohols. J. Chem. Phys. 2004, 121, 11170–11176. [Google Scholar] [CrossRef] [PubMed]
  48. Wang, L.-M.; Tian, Y.; Liu, R.; Richert, R. Calorimetric versus kinetic glass transition in viscous mono-hydroxy alcohols. J. Chem. Phys. 2008, 128, 084503. [Google Scholar] [CrossRef] [PubMed]
  49. Björklund, S.; Kocherbitov, V. Alcohols react with MCM-41 at room temperature and chemically modify mesoporous silica. Sci. Rep. 2017, 7, 9960. [Google Scholar] [CrossRef] [Green Version]
Polymers 12 00610 g001 550

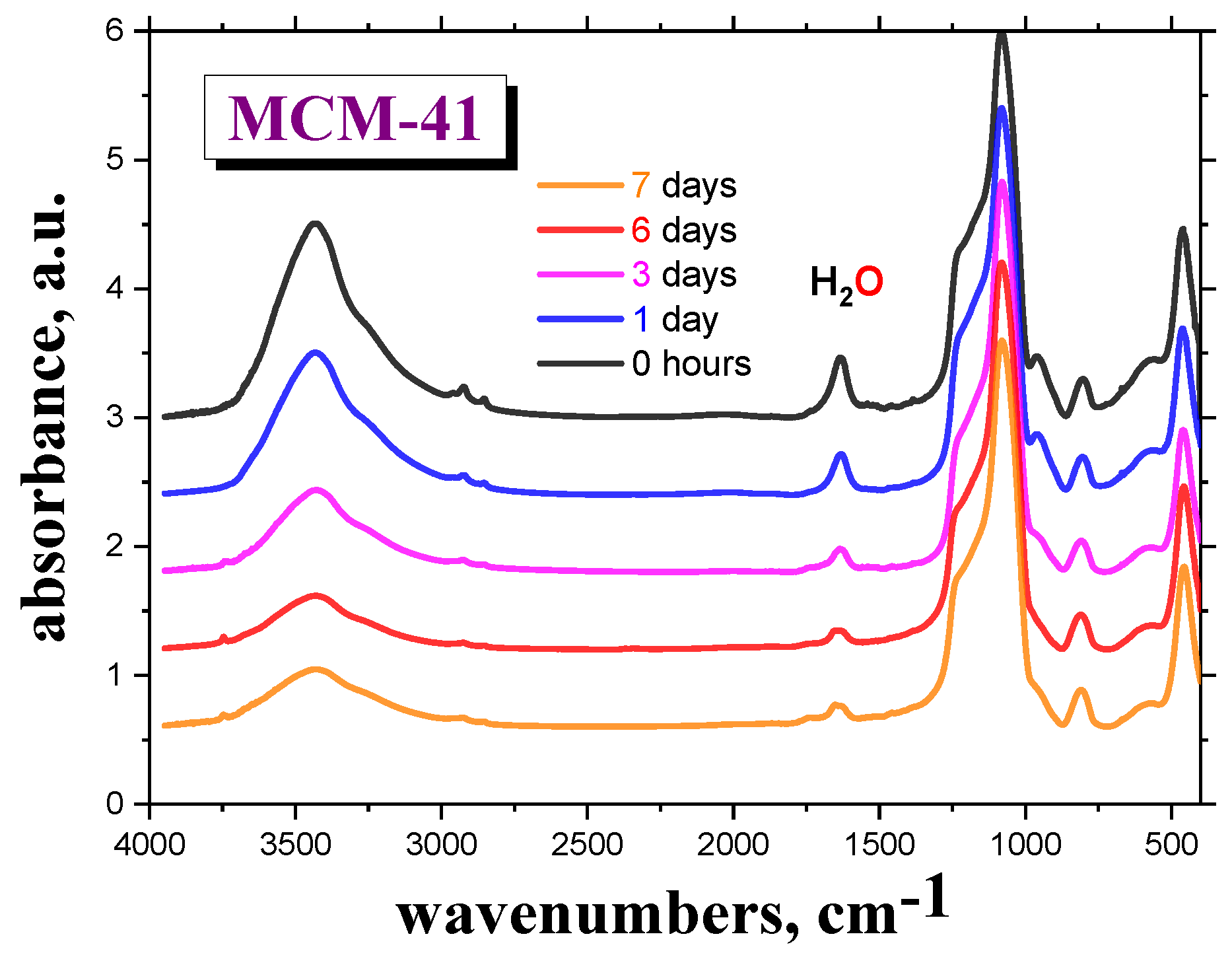

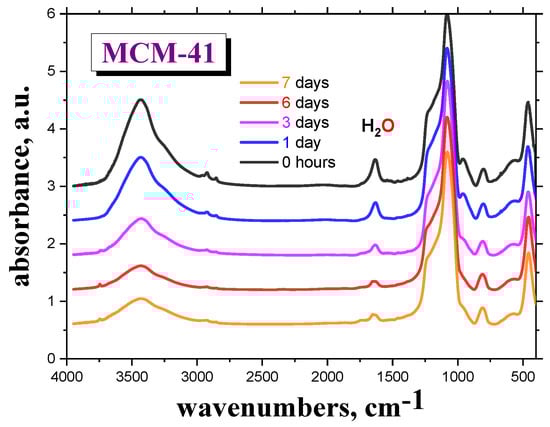

Figure 1. M-IR spectra of the empty MCM-41 dried in the VO at specific drying temperature, Td = 120 °C, for various drying times, td = 0, 1, 3, 6 and 7 days. Filling the M-IR cell was carried out at RT, under air atmosphere. The peaks at ν~1630 and ~3500 cm−1 belong to the bonded H2O to the silanol groups of MCM-41 matrix [15,16].
Figure 1. M-IR spectra of the empty MCM-41 dried in the VO at specific drying temperature, Td = 120 °C, for various drying times, td = 0, 1, 3, 6 and 7 days. Filling the M-IR cell was carried out at RT, under air atmosphere. The peaks at ν~1630 and ~3500 cm−1 belong to the bonded H2O to the silanol groups of MCM-41 matrix [15,16].
Polymers 12 00610 g001
Polymers 12 00610 g002 550

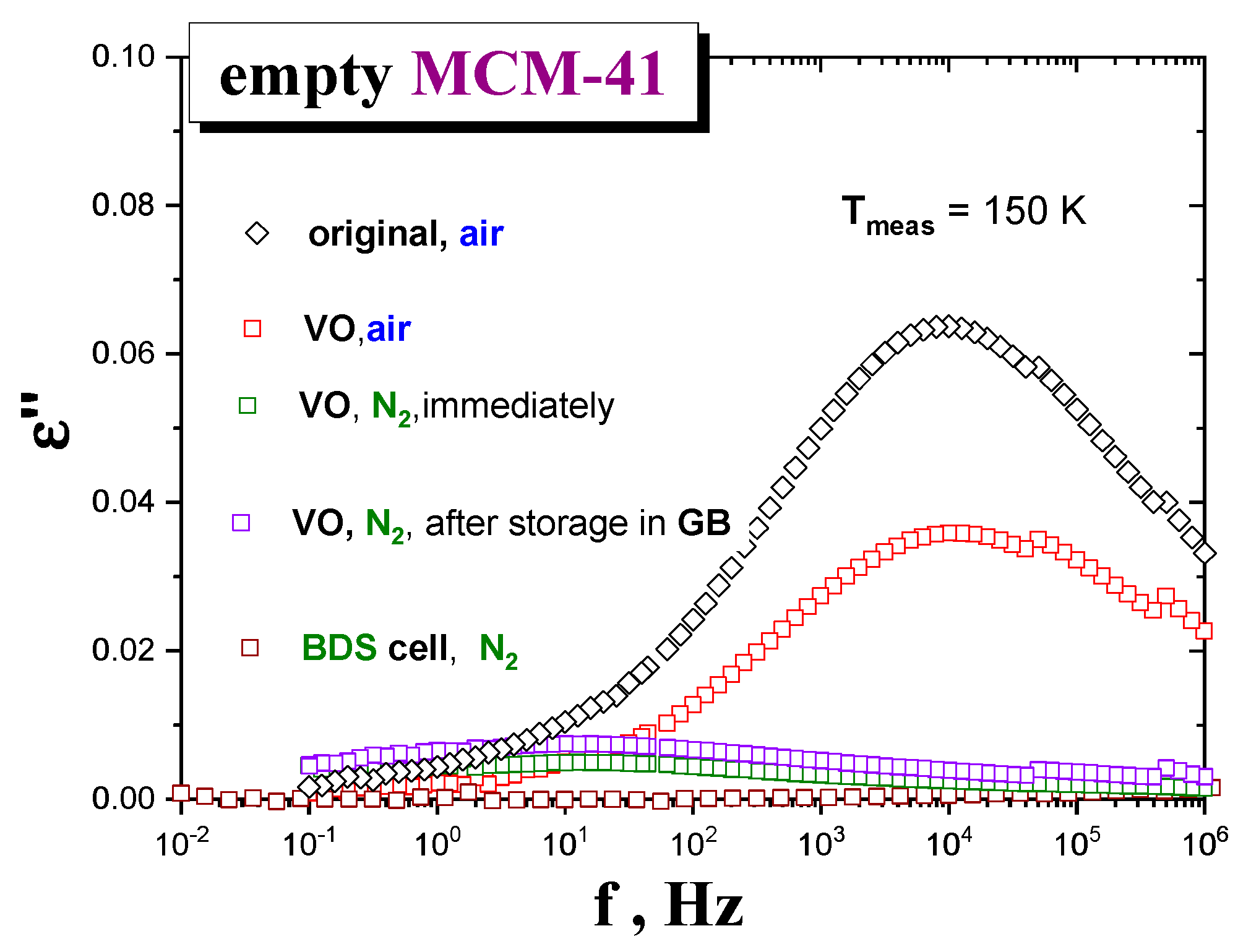

Figure 2. Comparison of the BDS spectra recorded at 150 K of the empty MCM-41 in the original (untreated) state (black diamonds) and in a series of thermally treated empty MCM-41 samples by drying and subsequent manipulation, i.e., loading into the capacitor by various ways: (a) dried in the VO at 120 °C for six days and subsequently filled into the capacitor under the air (N2 + O2 + moisture) atmosphere (red squares); (b) dried in the VO at 120 °C for one day and subsequently filled into the capacitor under N2 in the GB and measured (i) immediately (green squares) and (ii) after five days’ storage in the GB (blue squares) and finally; (c) dried at 120 °C for 2 h, directly in the BDS cell, under N2 (brown squares). All the empty MCM-41 samples were undergone by the same cooling treatment with −2 K/min from RT down to 100 K and subsequently measured isothermally with ΔT = 5 K from 100 up to 300 K.
Figure 2. Comparison of the BDS spectra recorded at 150 K of the empty MCM-41 in the original (untreated) state (black diamonds) and in a series of thermally treated empty MCM-41 samples by drying and subsequent manipulation, i.e., loading into the capacitor by various ways: (a) dried in the VO at 120 °C for six days and subsequently filled into the capacitor under the air (N2 + O2 + moisture) atmosphere (red squares); (b) dried in the VO at 120 °C for one day and subsequently filled into the capacitor under N2 in the GB and measured (i) immediately (green squares) and (ii) after five days’ storage in the GB (blue squares) and finally; (c) dried at 120 °C for 2 h, directly in the BDS cell, under N2 (brown squares). All the empty MCM-41 samples were undergone by the same cooling treatment with −2 K/min from RT down to 100 K and subsequently measured isothermally with ΔT = 5 K from 100 up to 300 K.
Polymers 12 00610 g002
Polymers 12 00610 g003 550

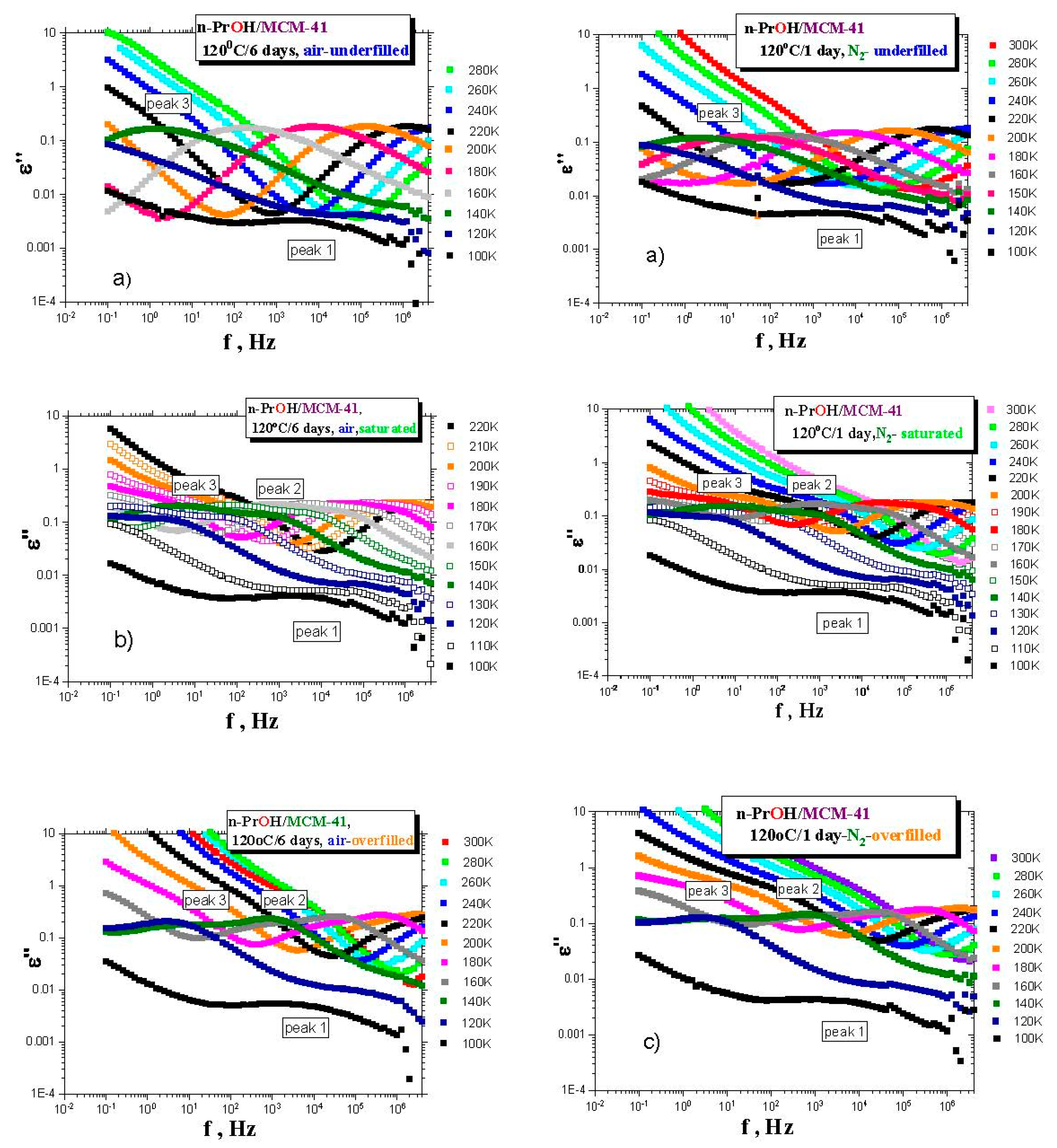

Figure 3. BDS spectral evolutions for the confined n-PrOH/MCM-41 underfilled (a), saturated (b) and overfilled (c) systems prepared by drying of the MCM-41 at 120 °C for six days in the VO and subsequent loading of the n-PrOH medium into the capacitor under air (left column) and drying of the MCM-41 at 120 °C for one day in the VO and subsequent loading of the n-PrOH medium into the capacitor under N2 (right column) The samples were cooled with −2 K/min from RT down to 100 K and subsequently, isothermally heated with ΔT = 5 K from 100 K up to 280–300 K.
Figure 3. BDS spectral evolutions for the confined n-PrOH/MCM-41 underfilled (a), saturated (b) and overfilled (c) systems prepared by drying of the MCM-41 at 120 °C for six days in the VO and subsequent loading of the n-PrOH medium into the capacitor under air (left column) and drying of the MCM-41 at 120 °C for one day in the VO and subsequent loading of the n-PrOH medium into the capacitor under N2 (right column) The samples were cooled with −2 K/min from RT down to 100 K and subsequently, isothermally heated with ΔT = 5 K from 100 K up to 280–300 K.
Polymers 12 00610 g003
Polymers 12 00610 g004 550

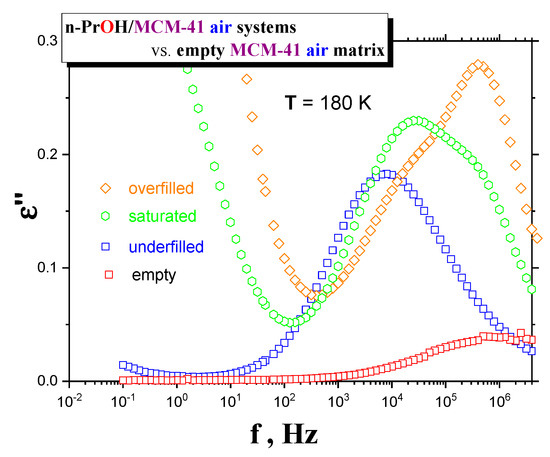

Figure 4. Comparison of the BDS spectra at 180 K of empty MCM-41 matrix vs. underfilled, saturated and overfilled n-PrOH/MCM-41, air systems after cooling with −2 K/min from RT down to 100 K and subsequently isothermal measured with ΔT = 5 K step up to 300 K.
Figure 4. Comparison of the BDS spectra at 180 K of empty MCM-41 matrix vs. underfilled, saturated and overfilled n-PrOH/MCM-41, air systems after cooling with −2 K/min from RT down to 100 K and subsequently isothermal measured with ΔT = 5 K step up to 300 K.
Polymers 12 00610 g004
Polymers 12 00610 g005 550

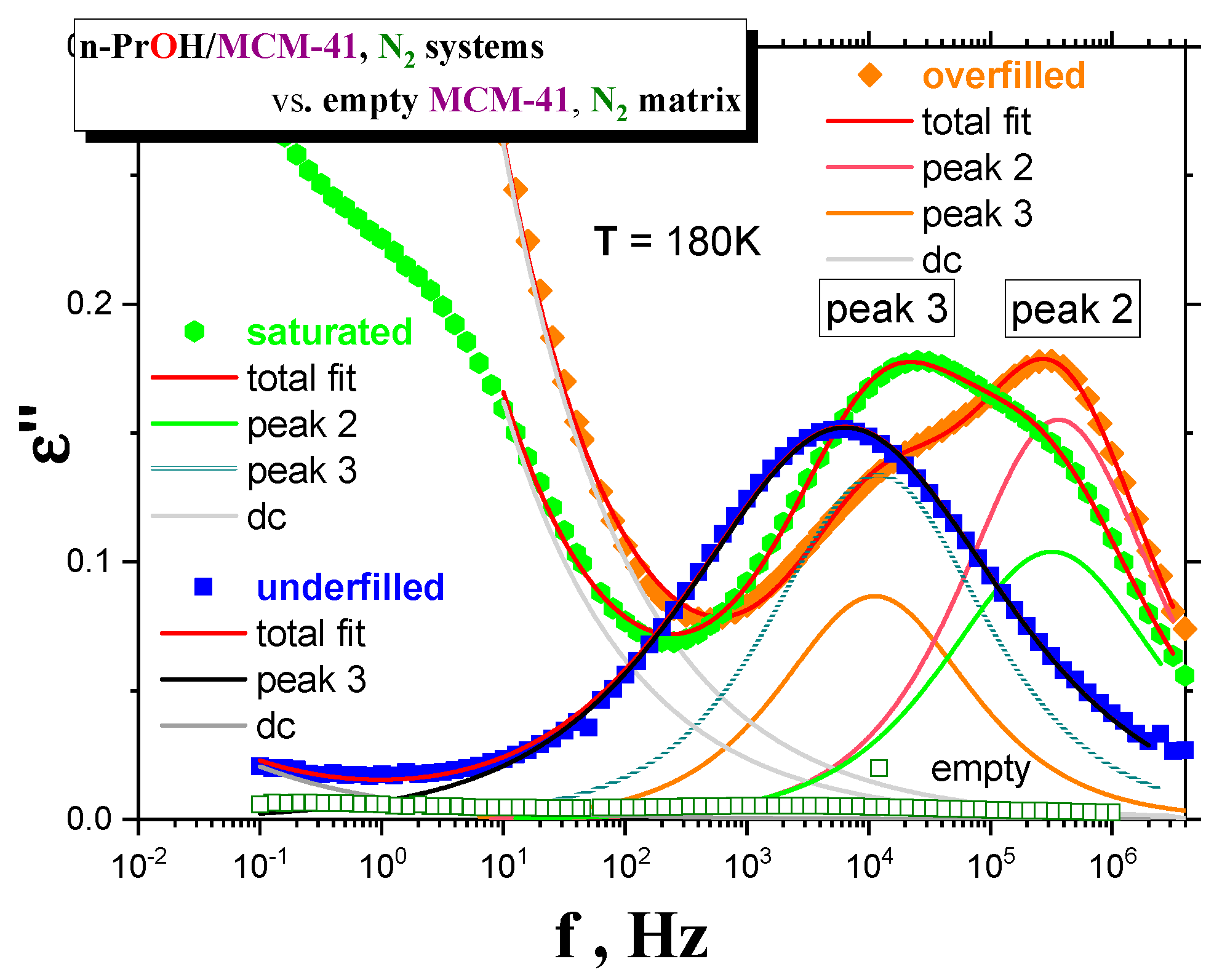

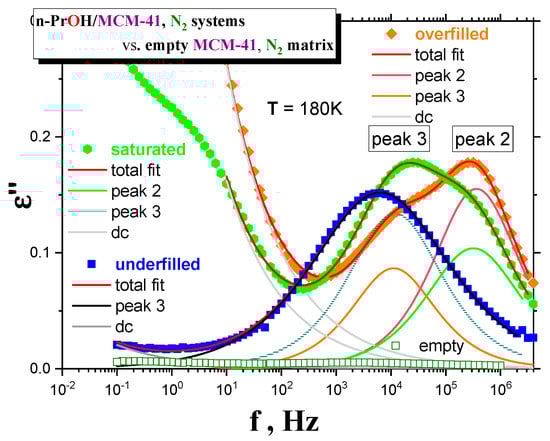

Figure 5. Comparison of the BDS spectra at 180 K for underfilled, saturated and overfilled n-PrOH/MCM-41, N2 systems, as well as for empty MCM-41, N2 and n-PrOH after cooling with −2 K/min from RT down to 100 K and subsequently isothermal heated with ΔT = 5 K step up to 300 K. Spectral fits using Equation (1) are included.
Figure 5. Comparison of the BDS spectra at 180 K for underfilled, saturated and overfilled n-PrOH/MCM-41, N2 systems, as well as for empty MCM-41, N2 and n-PrOH after cooling with −2 K/min from RT down to 100 K and subsequently isothermal heated with ΔT = 5 K step up to 300 K. Spectral fits using Equation (1) are included.
Polymers 12 00610 g005
Polymers 12 00610 g006 550

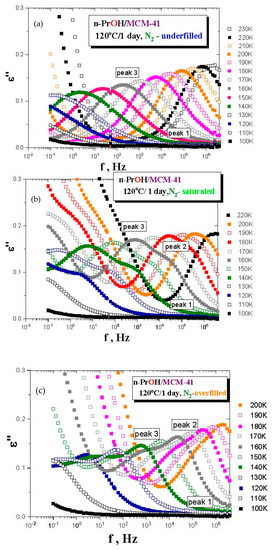

Figure 6. Temperature evolution in the confined n-PrOH/MCM-41, N2 systems: underfilled (a), saturated (b) and overfilled (c), up to 230 and 200 K for the first two or the last filling factor.
Figure 6. Temperature evolution in the confined n-PrOH/MCM-41, N2 systems: underfilled (a), saturated (b) and overfilled (c), up to 230 and 200 K for the first two or the last filling factor.
Polymers 12 00610 g006
Polymers 12 00610 g007 550

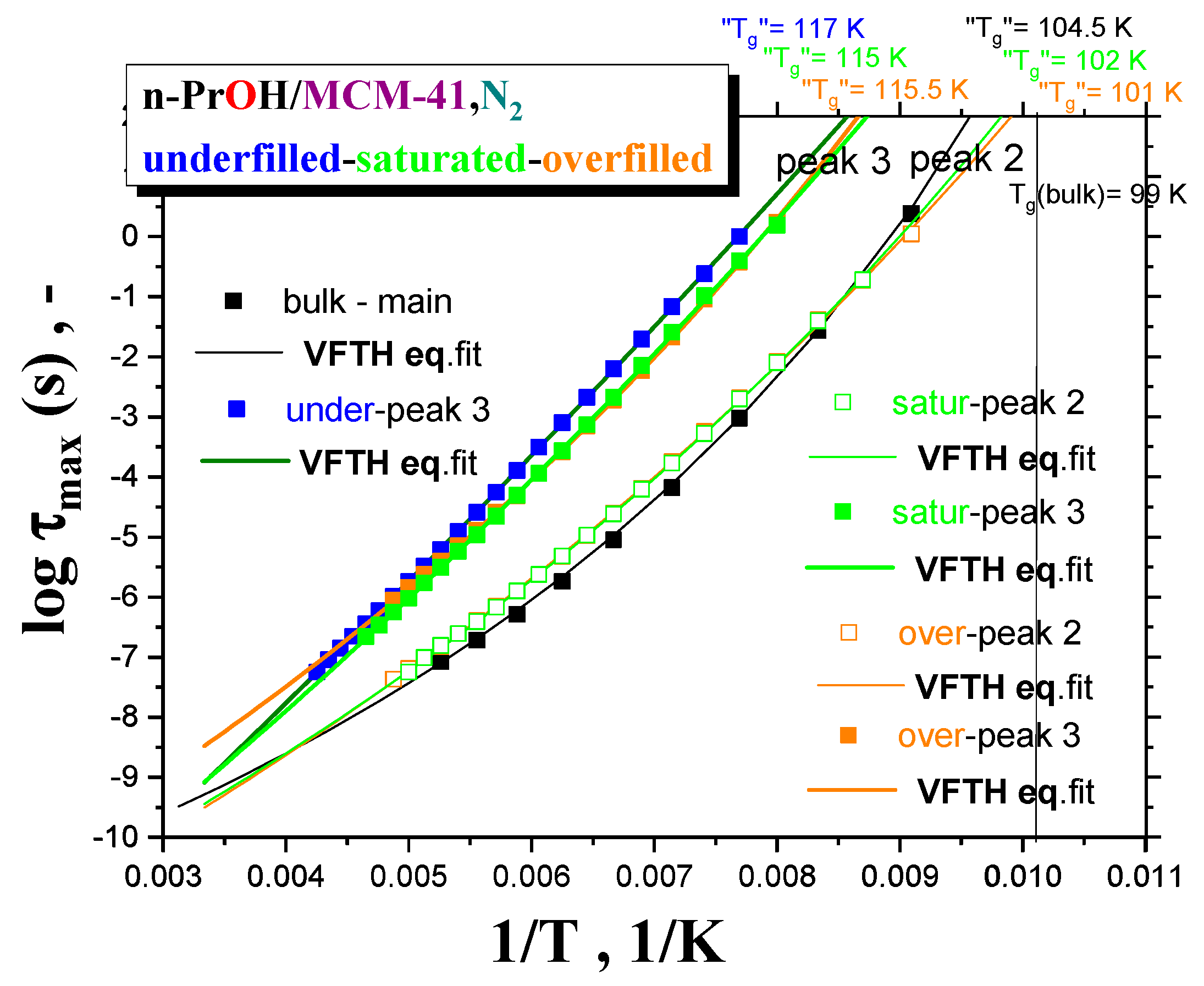

Figure 7. Arrhenius plot of the maximum relaxation times in all the three variously filled n-PrOH/MCM-41, N2 systems, determined from the unimodal spectra for the underfilled n-PrOH/MCM-41, N2 system and from the bimodal ones for the saturated and overfilled n-PrOH/MCM-41, N2 ones, together with the corresponding VFTH equation fits with parameters in Table 2.
Figure 7. Arrhenius plot of the maximum relaxation times in all the three variously filled n-PrOH/MCM-41, N2 systems, determined from the unimodal spectra for the underfilled n-PrOH/MCM-41, N2 system and from the bimodal ones for the saturated and overfilled n-PrOH/MCM-41, N2 ones, together with the corresponding VFTH equation fits with parameters in Table 2.
Polymers 12 00610 g007
Polymers 12 00610 g008 550

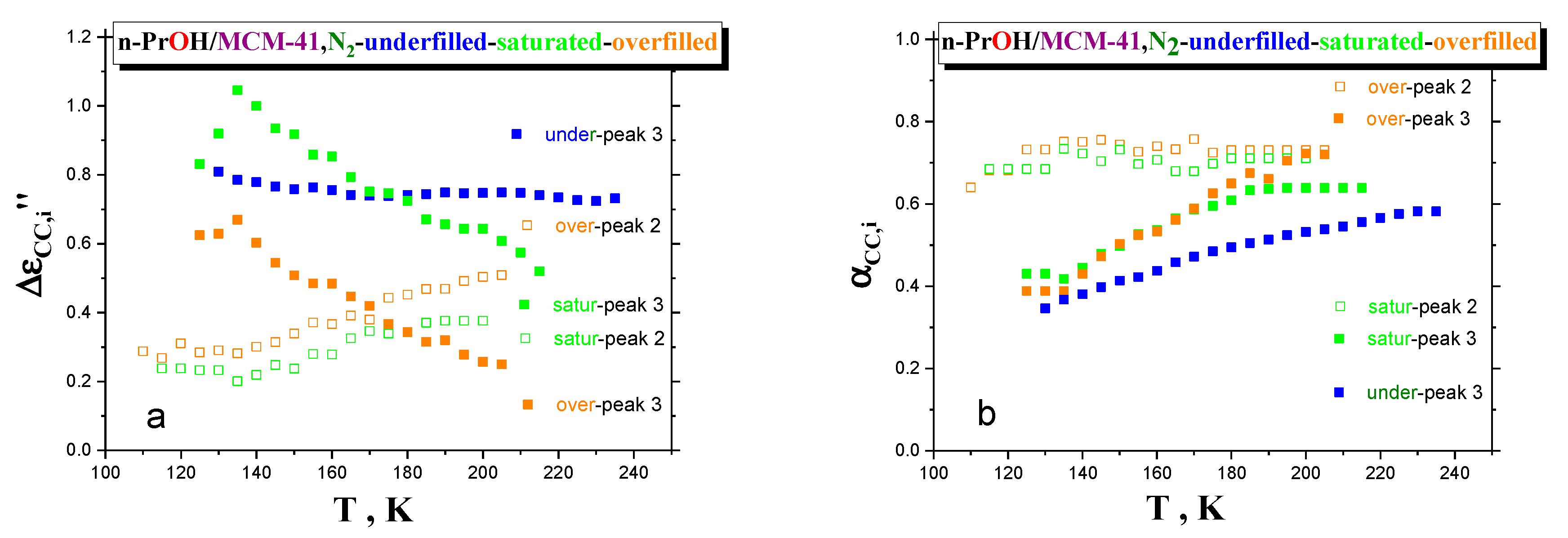

Figure 8. Temperature dependences of the relaxation strength (a) and shape parameter (b) for all the three variously filled confined n-PrOH/MCM-41, N2 systems.
Figure 8. Temperature dependences of the relaxation strength (a) and shape parameter (b) for all the three variously filled confined n-PrOH/MCM-41, N2 systems.
Polymers 12 00610 g008
Polymers 12 00610 g009 550

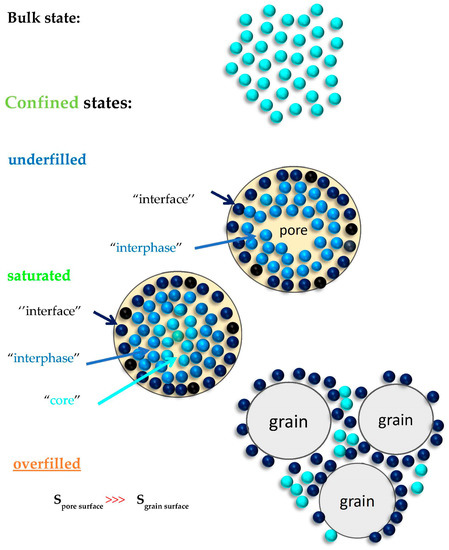

Figure 9. Schematic heterogeneous dynamic model of protic polar organic medium in polar inorganic matrix. Three basic structural-dynamic features in three confined n-PrOH/MCM-41 systems are as follows: (i) “interface” formed by the monomolecular layer of the polar molecules of n-PrOH medium, the rest polar H2O molecules directly anchored to the polar ≡ SiOH groups at the pore surface of MCM-41 matrix, as well as by the possible alkoxy-groups; (ii) “interphase”, i.e., quasi-ordered layer of the amphiphilic polar molecules of n-PrOH medium; and (iii) “core”, i.e., the bulk-like polar molecules of n-PrOH medium at the central part of pore of the MCM-41 matrix (see the text). Note that, while in the first two underfilled and saturated cases the pore vs. n-PrOH medium particle sizes relationships are depicted more or less realistically from the mutual size viewpoint, in the overfilled one, the mutual relationships between the n-PrOH medium molecules and the grain sizes are oversimplified due to the essential difference between their dimensions: Dgrain(a few μms) >>> Dn-PrOHvdW,eq (a few nms).
Figure 9. Schematic heterogeneous dynamic model of protic polar organic medium in polar inorganic matrix. Three basic structural-dynamic features in three confined n-PrOH/MCM-41 systems are as follows: (i) “interface” formed by the monomolecular layer of the polar molecules of n-PrOH medium, the rest polar H2O molecules directly anchored to the polar ≡ SiOH groups at the pore surface of MCM-41 matrix, as well as by the possible alkoxy-groups; (ii) “interphase”, i.e., quasi-ordered layer of the amphiphilic polar molecules of n-PrOH medium; and (iii) “core”, i.e., the bulk-like polar molecules of n-PrOH medium at the central part of pore of the MCM-41 matrix (see the text). Note that, while in the first two underfilled and saturated cases the pore vs. n-PrOH medium particle sizes relationships are depicted more or less realistically from the mutual size viewpoint, in the overfilled one, the mutual relationships between the n-PrOH medium molecules and the grain sizes are oversimplified due to the essential difference between their dimensions: Dgrain(a few μms) >>> Dn-PrOHvdW,eq (a few nms).
Polymers 12 00610 g009
Polymers 12 00610 g010 550

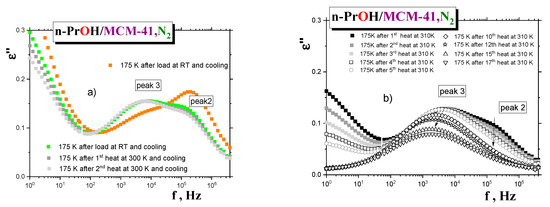

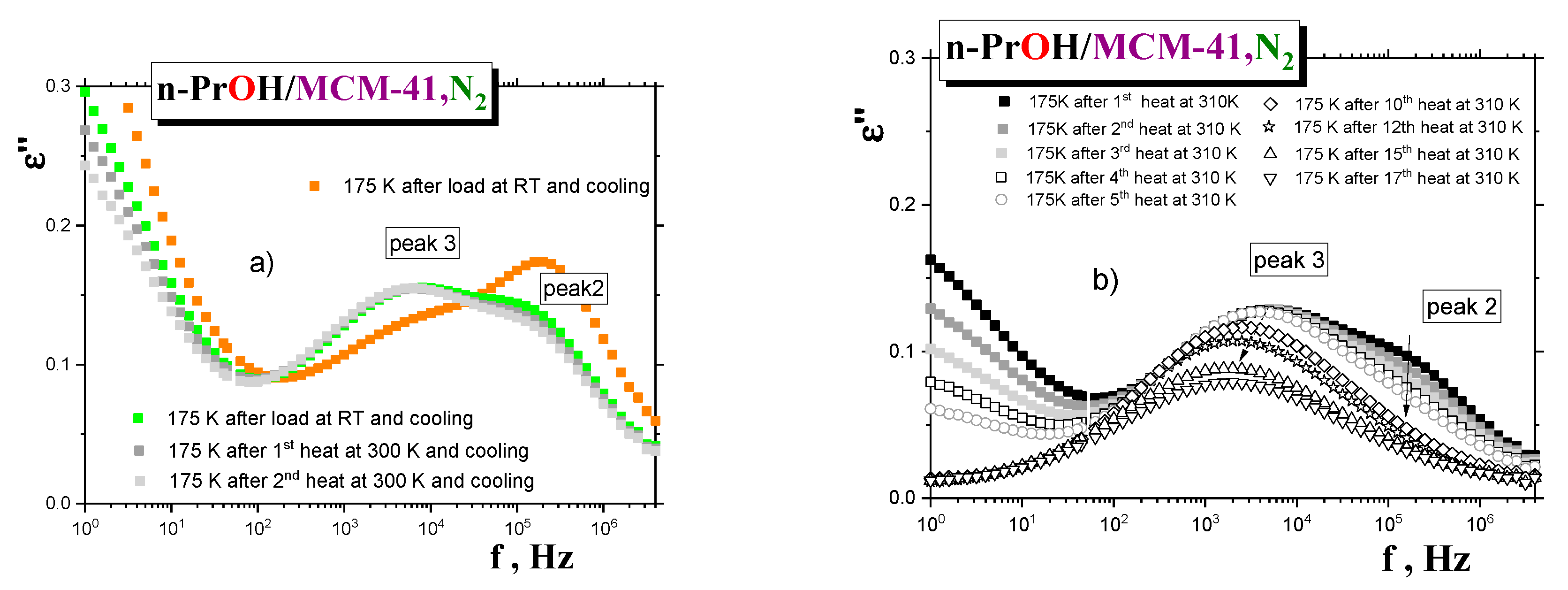

Figure 10. Spectral evolution of the originally saturated n-PrOH/MCM-41, N2 system, after two heating-cooling cycles at 300 K (a) and after following seventeen-fold heating-cooling ones at 310 K (b). BDS spectrum for the overfilled sample is added for comparison.
Figure 10. Spectral evolution of the originally saturated n-PrOH/MCM-41, N2 system, after two heating-cooling cycles at 300 K (a) and after following seventeen-fold heating-cooling ones at 310 K (b). BDS spectrum for the overfilled sample is added for comparison.
Polymers 12 00610 g010
Table
Table 1. Matrix and confined n-PrOH/MCM-41 systems.
Table 1. Matrix and confined n-PrOH/MCM-41 systems.
MatrixPore Diameter
Dpore, Å		Pore Volume
Vpore, cm3/g		Pore Area
Spore, m2/g		Fn-PrOH,theo *Fn-PrOH,real **X ***
%
MCM-41
underfilled		400.8010980.390.23560.3
MCM-41
saturated		400.8010980.390.35992.1
MCM-41
overfilled		400.8010980.390.456116.9
* Fn-PrOH,theo = mn-PrOH/(mn-PrOH+mMCM-41), the theoretical mass fraction of n-PrOH medium with respect to the n-PrOH/MCM-41 system estimated using the density of n-PrOH at room temperature, ρn-PrOH(RT) = 0.803 g/cm3 under the complete accessibility condition of all the regular pores for the n-PrOH medium, ** Fn-PrOH,sat = mn-PrOH/(mn-PrOH+mMCM-41), the real experimental mass fraction of n-PrOH in the n-PrOH/MCM-41 system corresponding to the three different filling situations of the n-PrOH in the n-PrOH/MCM-41system, *** X = (Fn-PrOH,sat/Fn-PrOH,theo) × 100%.
Table
Table 2. Fitting parameters from the VFTH equation: τmax = τ∞exp[B/(T−T0)] for the main peak features (peaks 3 and 2) and the Arrhenius equation: τmax = τ∞exp[B/T] for the secondary peak one (peak 1) in the bulk n-PrOH and the confined n-PrOH/MCM-41, N2 systems.
Table 2. Fitting parameters from the VFTH equation: τmax = τ∞exp[B/(T−T0)] for the main peak features (peaks 3 and 2) and the Arrhenius equation: τmax = τ∞exp[B/T] for the secondary peak one (peak 1) in the bulk n-PrOH and the confined n-PrOH/MCM-41, N2 systems.
SystemPeakΔT (K)log τ∞B (K)T0 (K)
Bulk177–121−14.210750
2110–190−11.9630.359
Confined
underfilled1100–125−16.11208.10
3130–235−15.41801.712.9
saturated1100–140−20.11803.90
2115–200−12.9912.840.7
3125–215−14.41468.525.1
overfilled1100–140−14.81094.30
2110–205−13.2982.536.4
3125–205−12.6105043.1

Share and Cite

MDPI and ACS Style

Bartoš, J.; Arrese-Igor, S.; Švajdlenková, H.; Kleinová, A.; Alegría, A. Dynamics of Confined Short-Chain alkanol in MCM-41 by Dielectric Spectroscopy: Effects of matrix and system Treatments and Filling Factor. Polymers 2020, 12, 610. https://doi.org/10.3390/polym12030610

AMA Style

Bartoš J, Arrese-Igor S, Švajdlenková H, Kleinová A, Alegría A. Dynamics of Confined Short-Chain alkanol in MCM-41 by Dielectric Spectroscopy: Effects of matrix and system Treatments and Filling Factor. Polymers. 2020; 12(3):610. https://doi.org/10.3390/polym12030610

Chicago/Turabian Style

Bartoš, Josef, Silvia Arrese-Igor, Helena Švajdlenková, Angela Kleinová, and Angel Alegría. 2020. "Dynamics of Confined Short-Chain alkanol in MCM-41 by Dielectric Spectroscopy: Effects of matrix and system Treatments and Filling Factor" Polymers 12, no. 3: 610. https://doi.org/10.3390/polym12030610

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
