Next Article in Journal
A Review of Wood Biomass-Based Fatty Acids and Rosin Acids Use in Polymeric Materials
Next Article in Special Issue
Characteristics of Glycerolized Chitosan: NH4NO3-Based Polymer Electrolyte for Energy Storage Devices with Extremely High Specific Capacitance and Energy Density Over 1000 Cycles
Previous Article in Journal
Structure and Functions of Cocoons Constructed by Eri Silkworm
Previous Article in Special Issue
The Study of Plasticized Solid Polymer Blend Electrolytes Based on Natural Polymers and Their Application for Energy Storage EDLC Devices
Article

3D Polyaniline Nanofibers Anchored on Carbon Paper for High-Performance and Light-Weight Supercapacitors

1
National Centre of Excellence in Physical Chemistry 1, University of Peshawar, Peshawar 25120, Pakistan
2
Karlsruhe Institute of Technology (KIT), Institute for Applied Materials, 76131 Karlsruhe, Germany
3
Institute of Chemical Science, University of Peshawar, Peshawar 25120, Pakistan
*
Authors to whom correspondence should be addressed.
Polymers 2020, 12(11), 2705; https://doi.org/10.3390/polym12112705
Received: 26 October 2020 / Revised: 11 November 2020 / Accepted: 13 November 2020 / Published: 16 November 2020
(This article belongs to the Special Issue Polymer Materials for Electrochemical Applications)

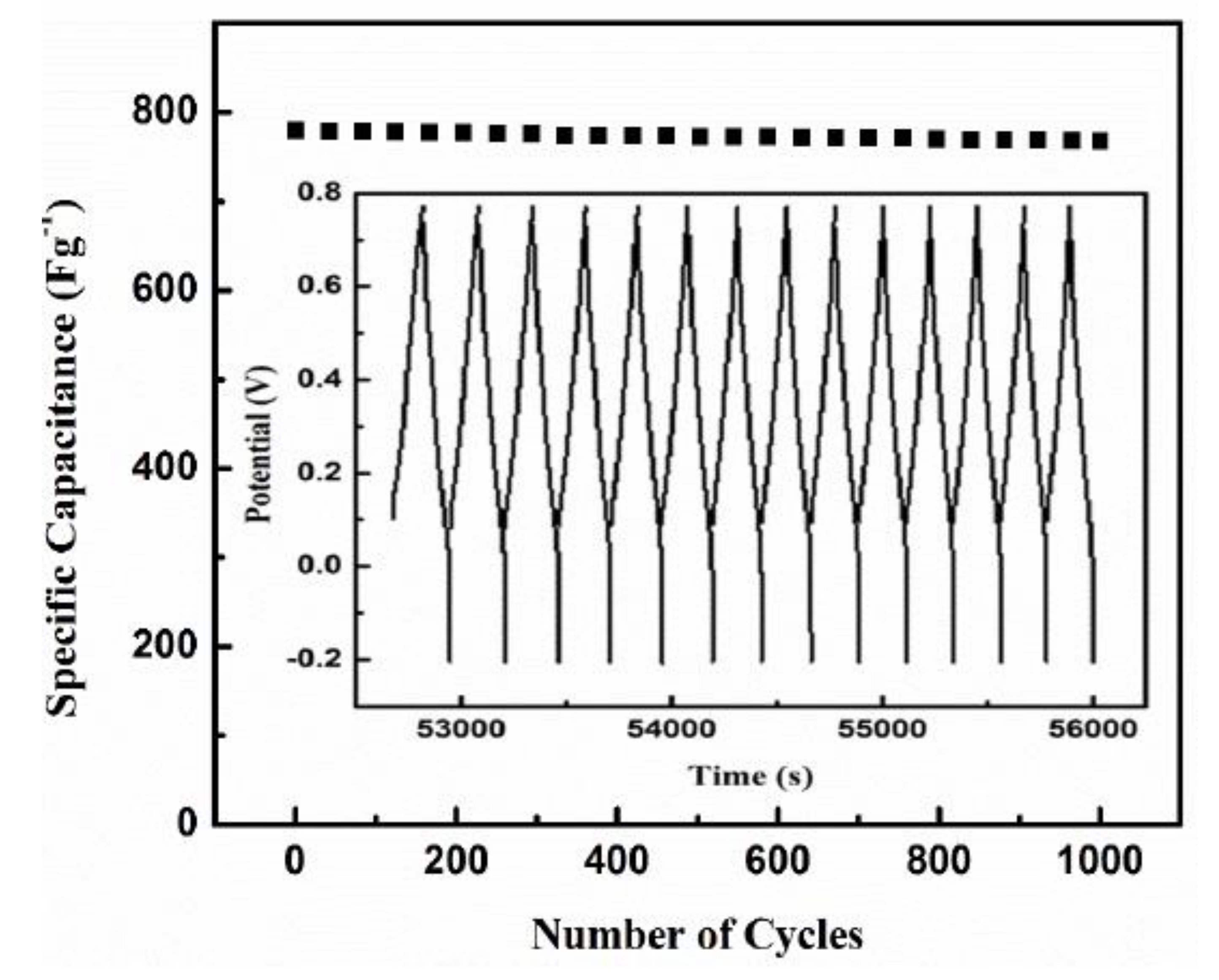

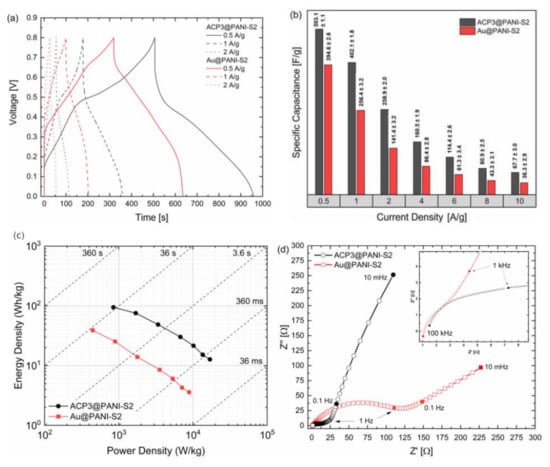

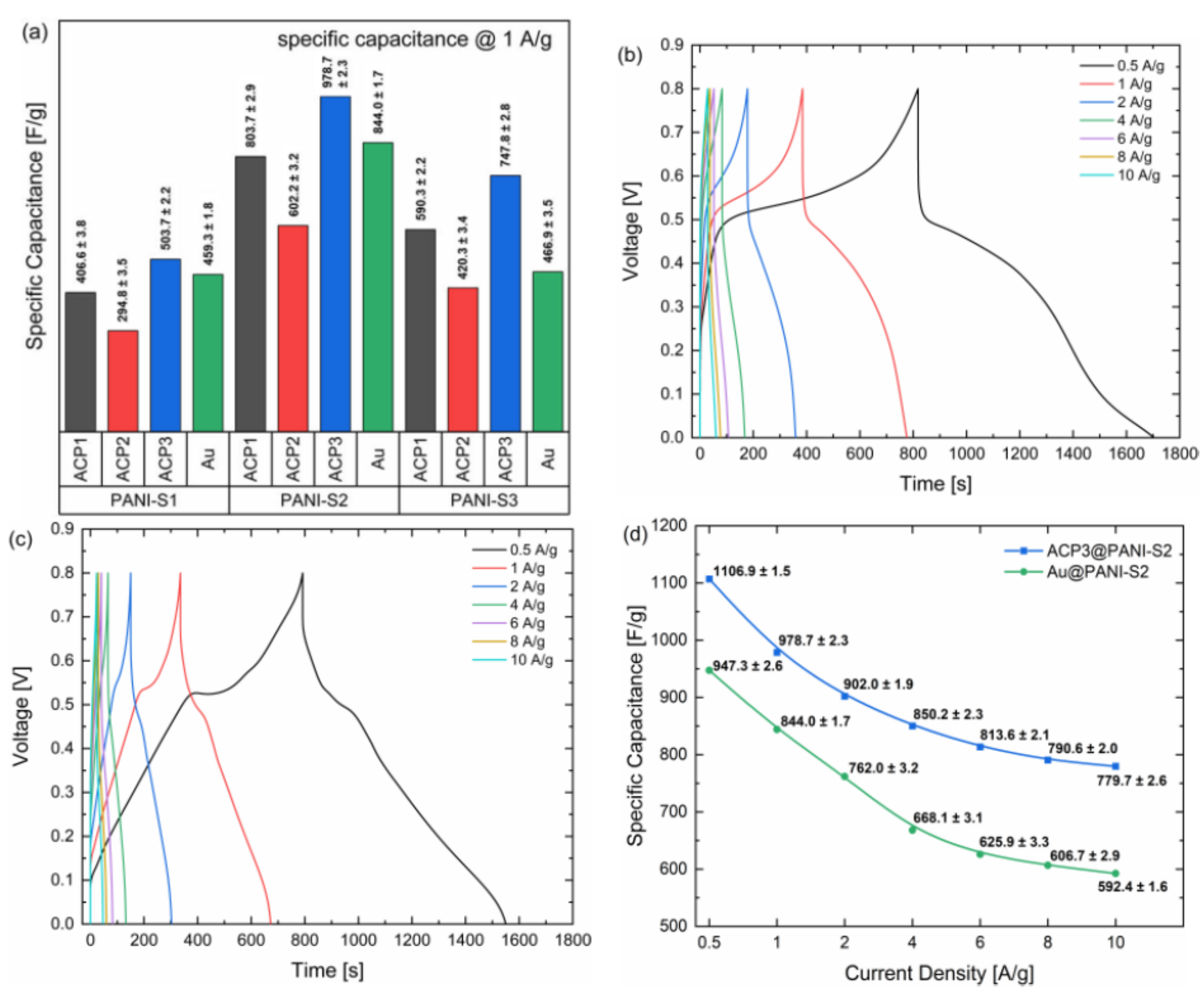

In the field of advanced energy storage, nanostructured Polyaniline (PANI) based materials hold a special place. Extensive studies have been done on the application of PANI in supercapacitors, however, the structure–property relationship of these materials is still not understood. This paper presents a detailed characterization of the novel sodium phytate doped 3D PANI nanofibers anchored on different types of carbon paper for application in supercapacitors. An excellent relationship between the structures and properties of the synthesized samples was found. Remarkable energy storage characteristics with low values of solution, charge transfer and polarization resistance and a specific capacitance of 1106.9 ± 1.5 F g−1 and 779 ± 2.6 F g−1 at current density 0.5 and 10 Ag−1, respectively, was achieved at optimized conditions. The symmetric supercapacitor assembly showed significant enhancement in both energy density and power density. It delivered an energy density of 95 Wh kg−1 at a power of 846 W kg−1. At a high-power density of 16.9 kW kg−1, the energy density can still be kept at 13 Wh kg−1. Cyclic stability was also checked for 1000 cycles at a current density of 10 Ag−1 having excellent retention, i.e., 96%. View Full-Text
Keywords: polyaniline; supercapacitors; nanofibers; sodium phytate; activated carbon paper polyaniline; supercapacitors; nanofibers; sodium phytate; activated carbon paper

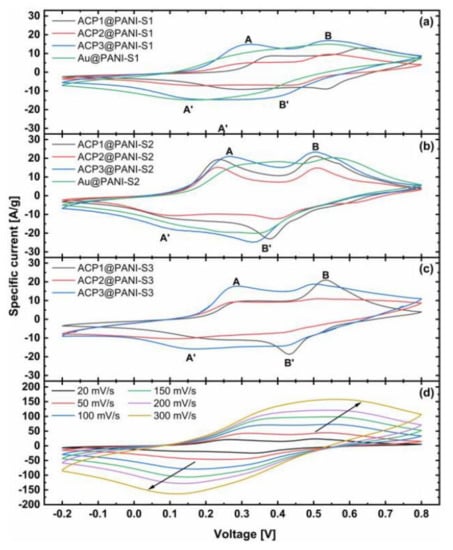

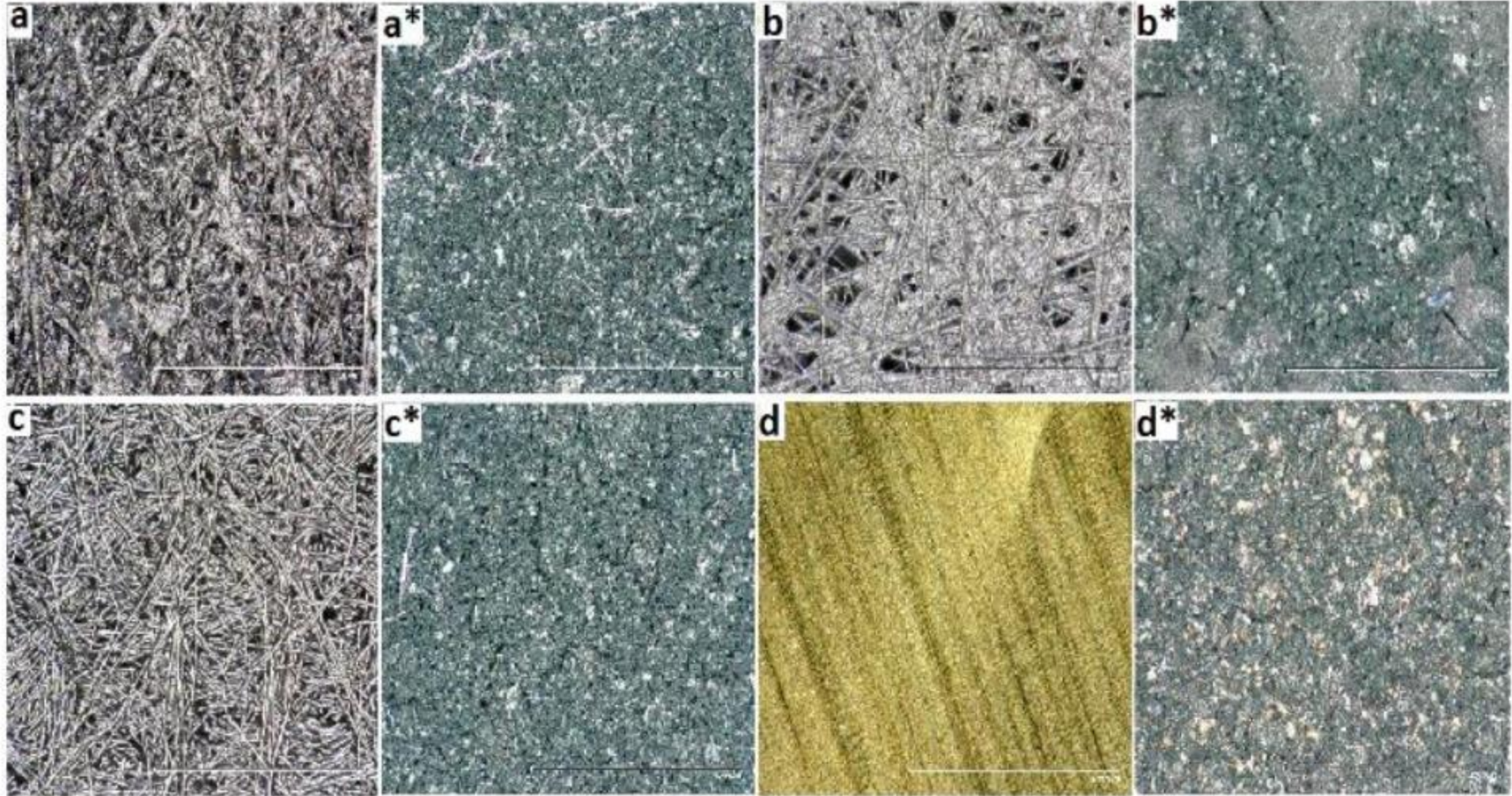

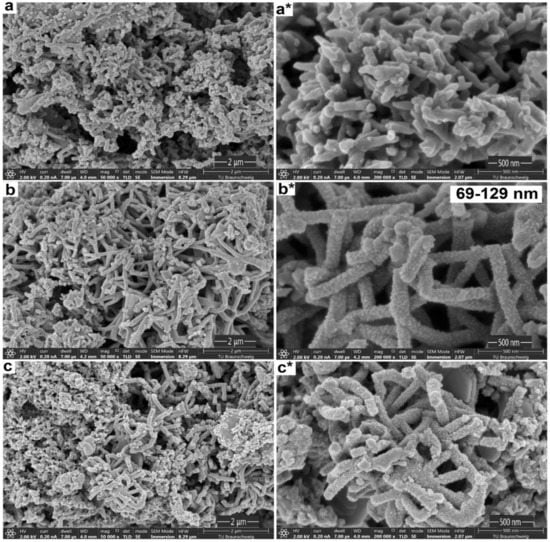

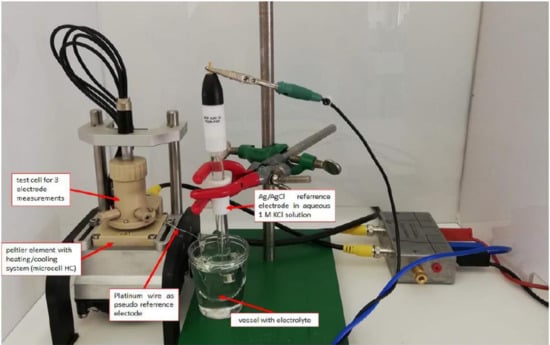

Show Figures

Graphical abstract

MDPI and ACS Style

Rahman, S.u.; Röse, P.; Surati, M.; Shah, A.u.H.A.; Krewer, U.; Bilal, S. 3D Polyaniline Nanofibers Anchored on Carbon Paper for High-Performance and Light-Weight Supercapacitors. Polymers 2020, 12, 2705. https://doi.org/10.3390/polym12112705

AMA Style

Rahman Su, Röse P, Surati M, Shah AuHA, Krewer U, Bilal S. 3D Polyaniline Nanofibers Anchored on Carbon Paper for High-Performance and Light-Weight Supercapacitors. Polymers. 2020; 12(11):2705. https://doi.org/10.3390/polym12112705

Chicago/Turabian Style

Rahman, Sami u., Philipp Röse, Mit Surati, Anwar u.H.A. Shah, Ulrike Krewer, and Salma Bilal. 2020. "3D Polyaniline Nanofibers Anchored on Carbon Paper for High-Performance and Light-Weight Supercapacitors" Polymers 12, no. 11: 2705. https://doi.org/10.3390/polym12112705

Find Other Styles
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
