Characteristics of Glycerolized Chitosan: NH4NO3-Based Polymer Electrolyte for Energy Storage Devices with Extremely High Specific Capacitance and Energy Density Over 1000 Cycles
Abstract
:1. Introduction
2. Materials and Methods
2.1. Sample Preparation
2.2. X-ray Diffraction (XRD) Study
2.3. Field Emission Scanning Electron Microscopy (FESEM)
2.4. Electrochemical Impedance Spectroscopy (EIS)
2.5. Transference Number Measurement (TNM)
2.6. Linear Sweep Voltammetry (LSV)
2.7. EDLC Fabrication
3. Results and Discussion

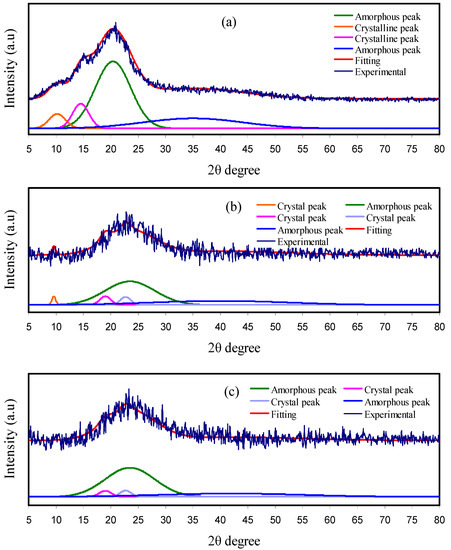

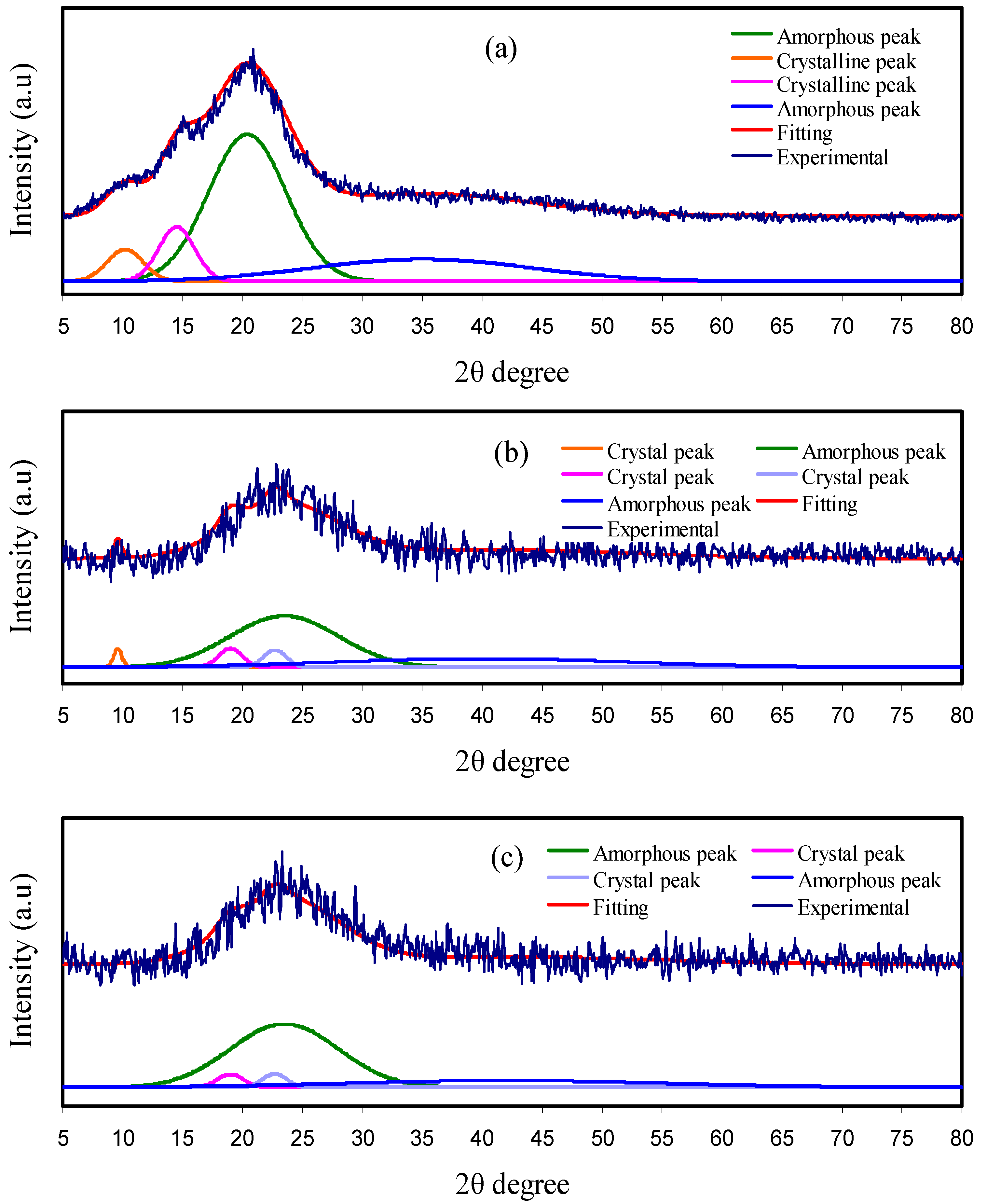

3.1. X-ray Diffraction (XRD)

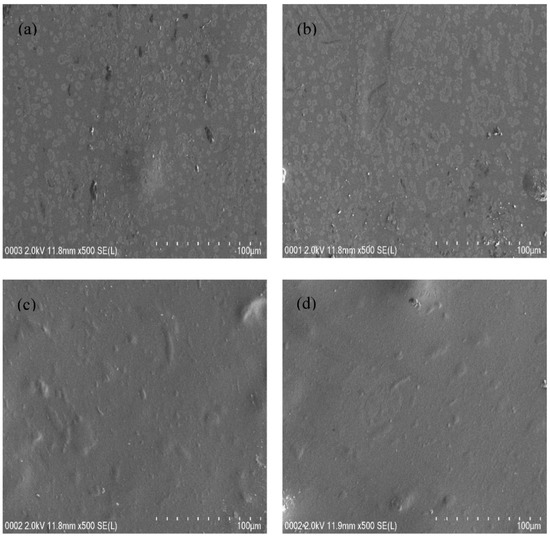

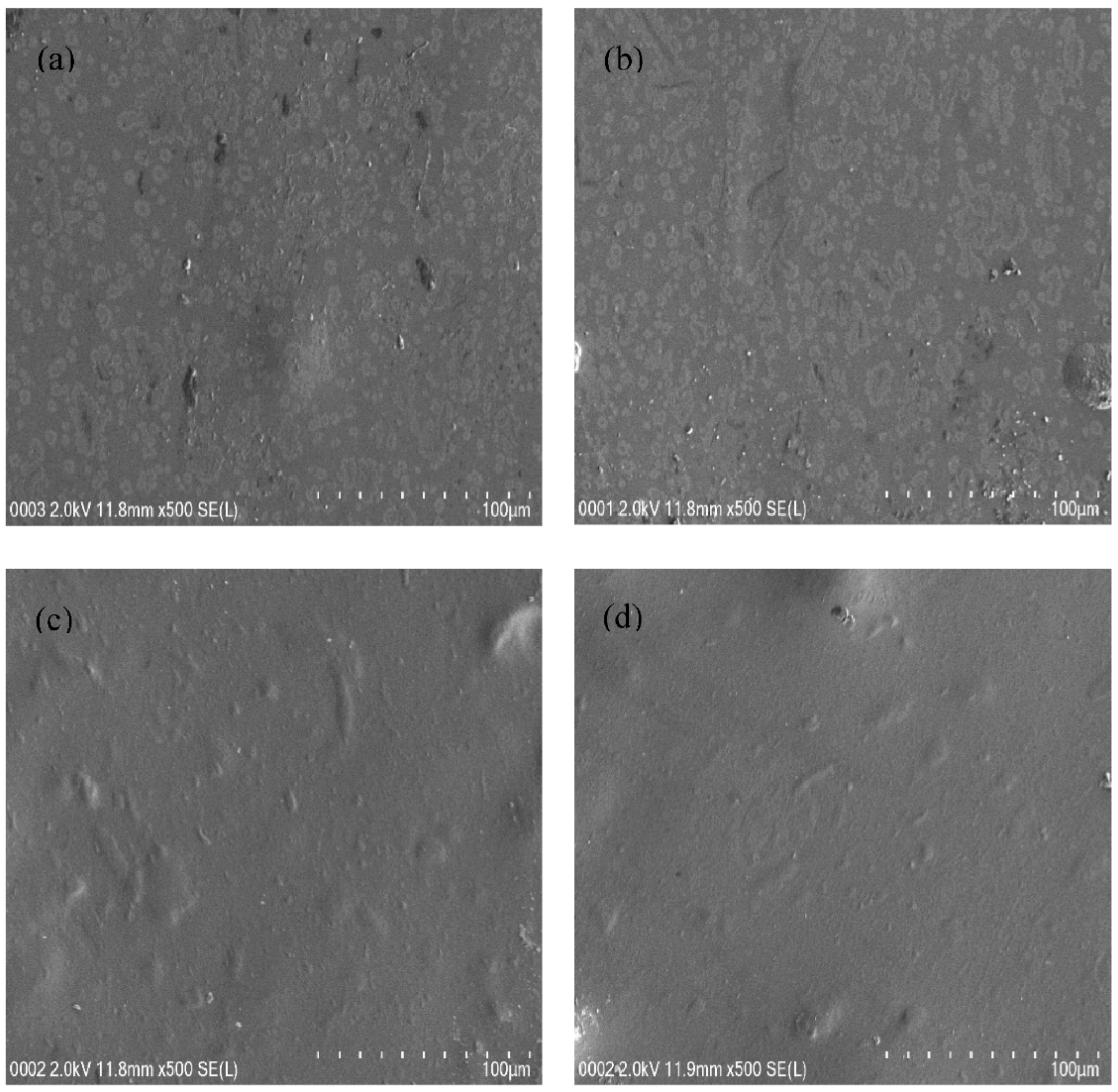

3.2. Field Emission Scanning Electron Microscopy (FESEM)

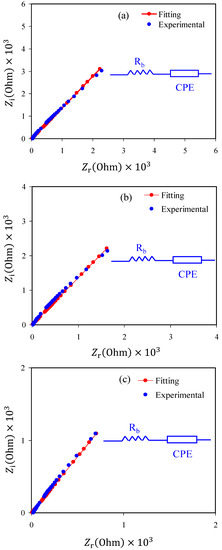

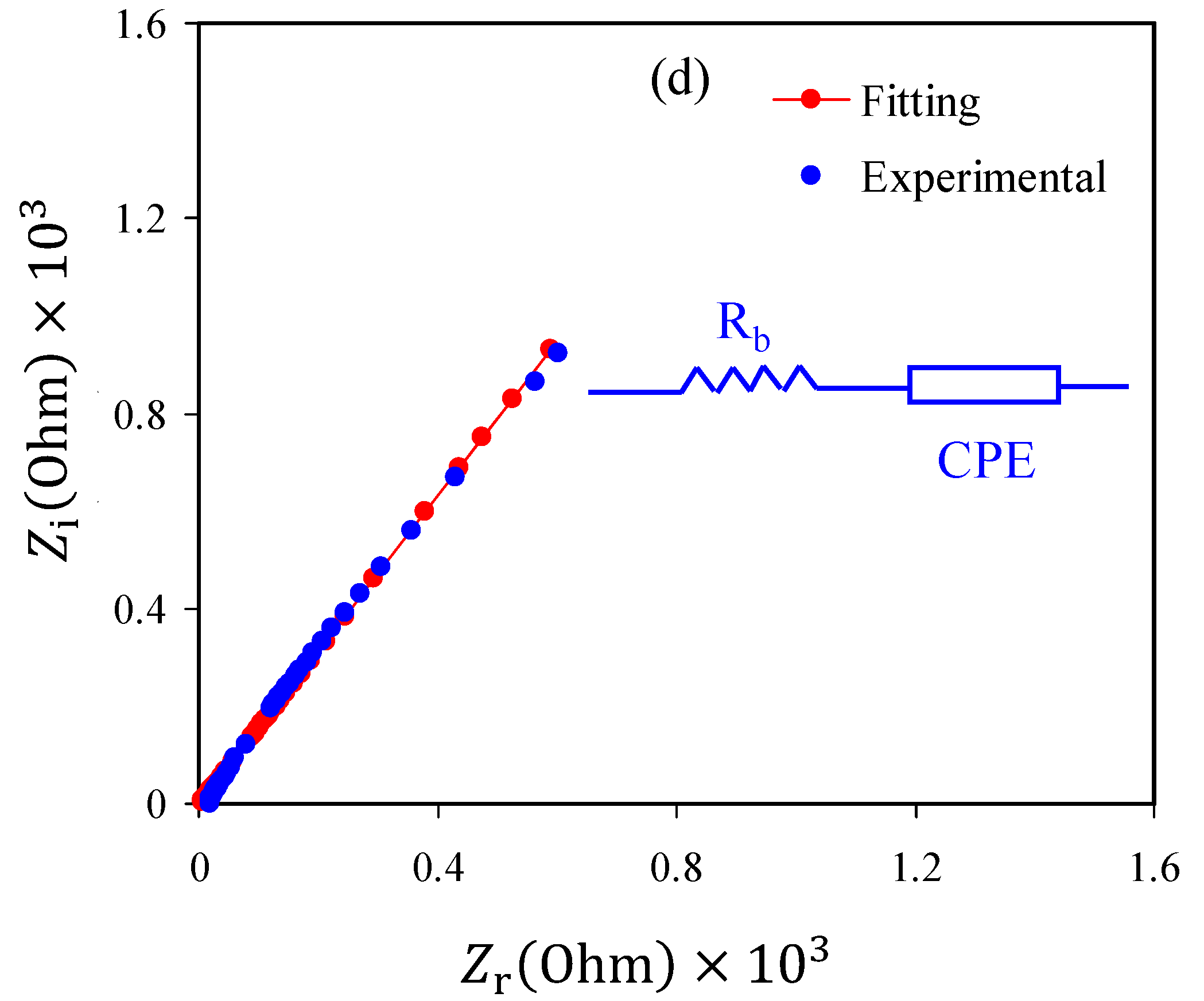

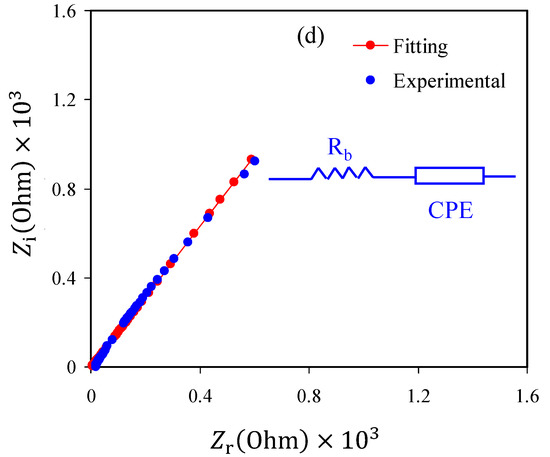

3.3. Impedance and Ion Transport Parameters Study
3.4. Electrochemical Investigations

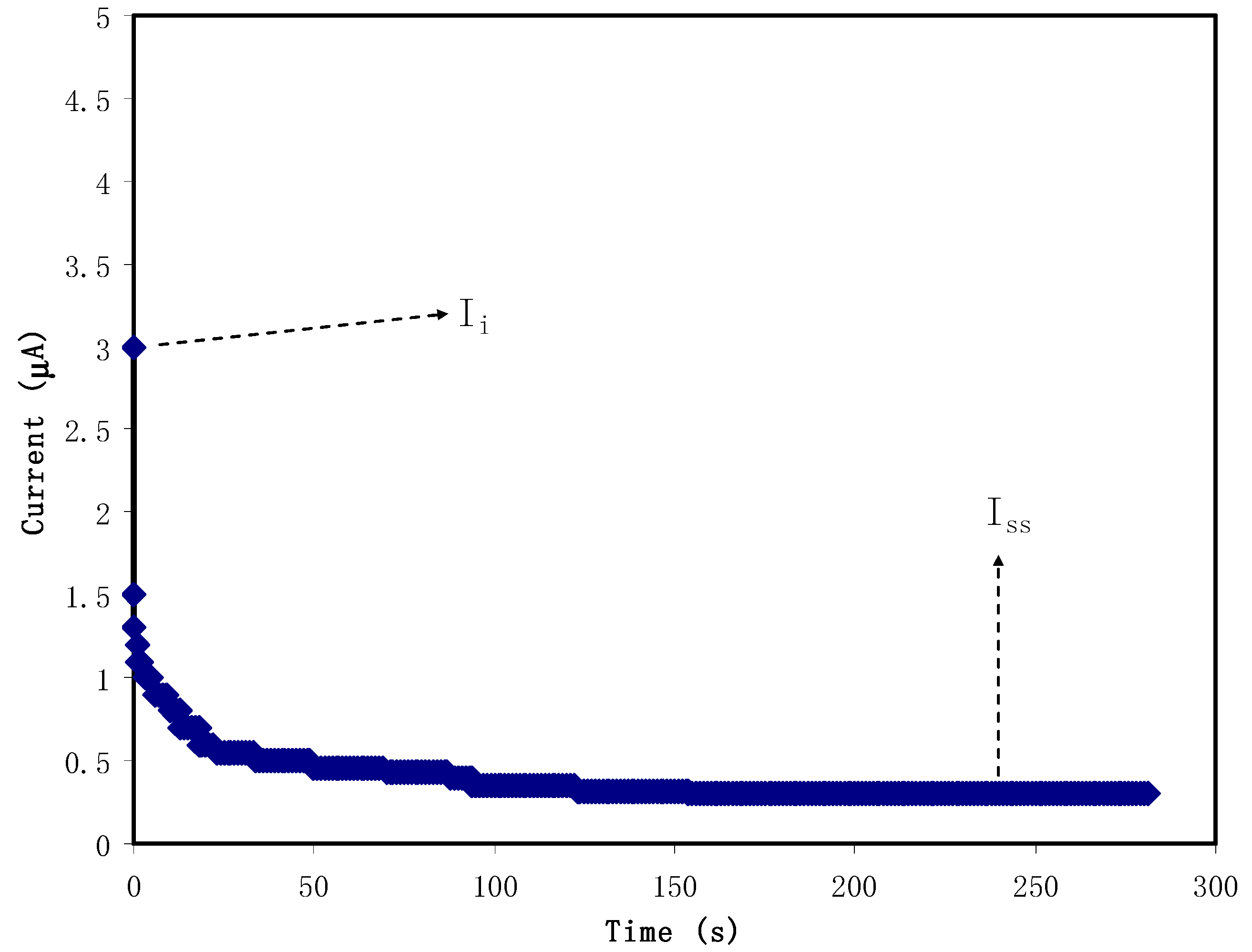

3.4.1. Transference Number Measurement

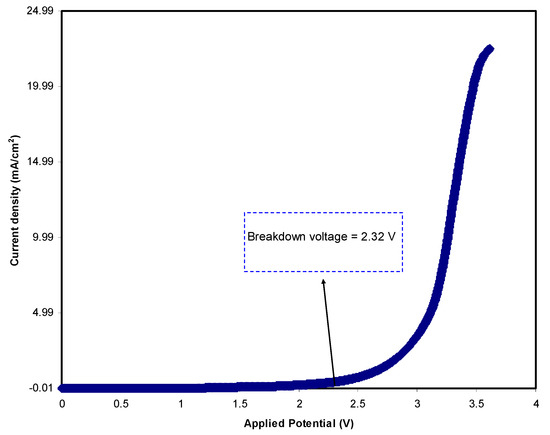

3.4.2. LSV Analysis
3.5. EDLC Studies

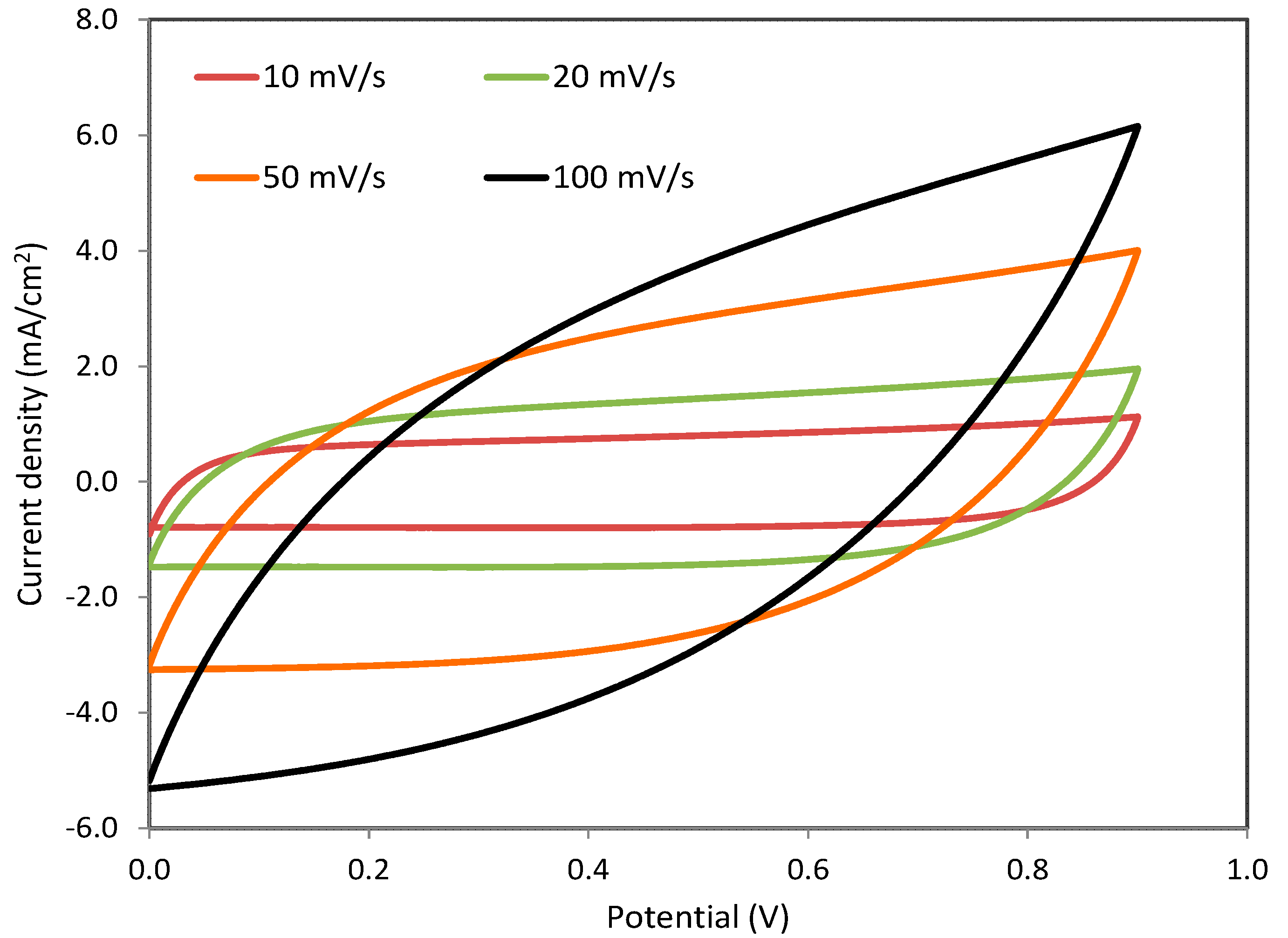

3.5.1. Cyclic Voltammetry (CV)

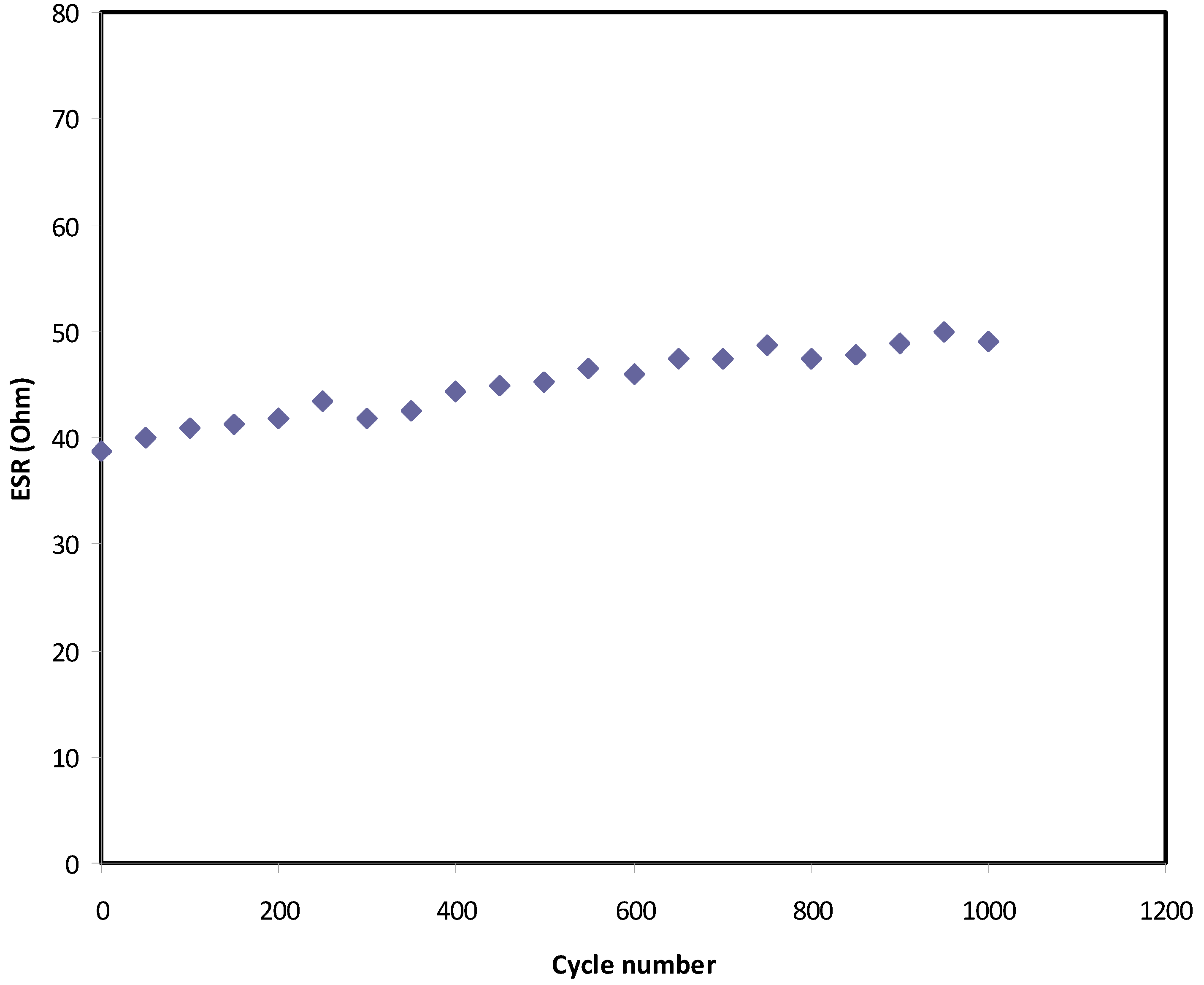

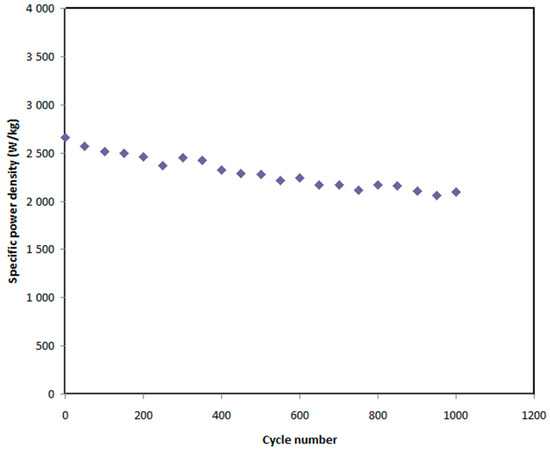

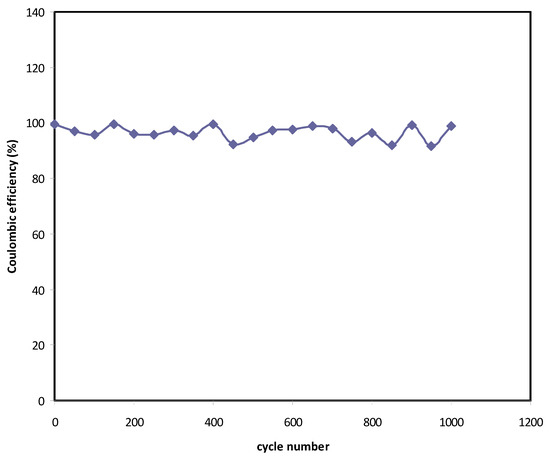

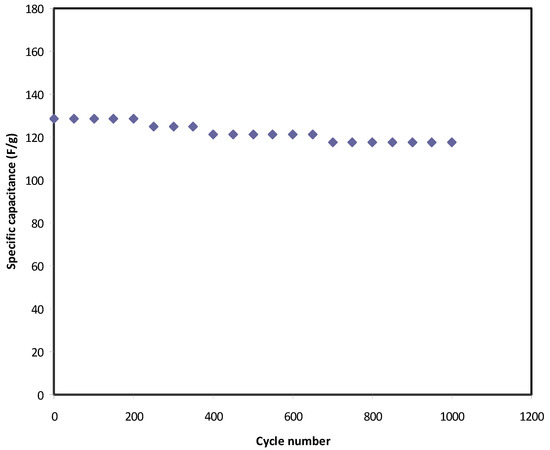

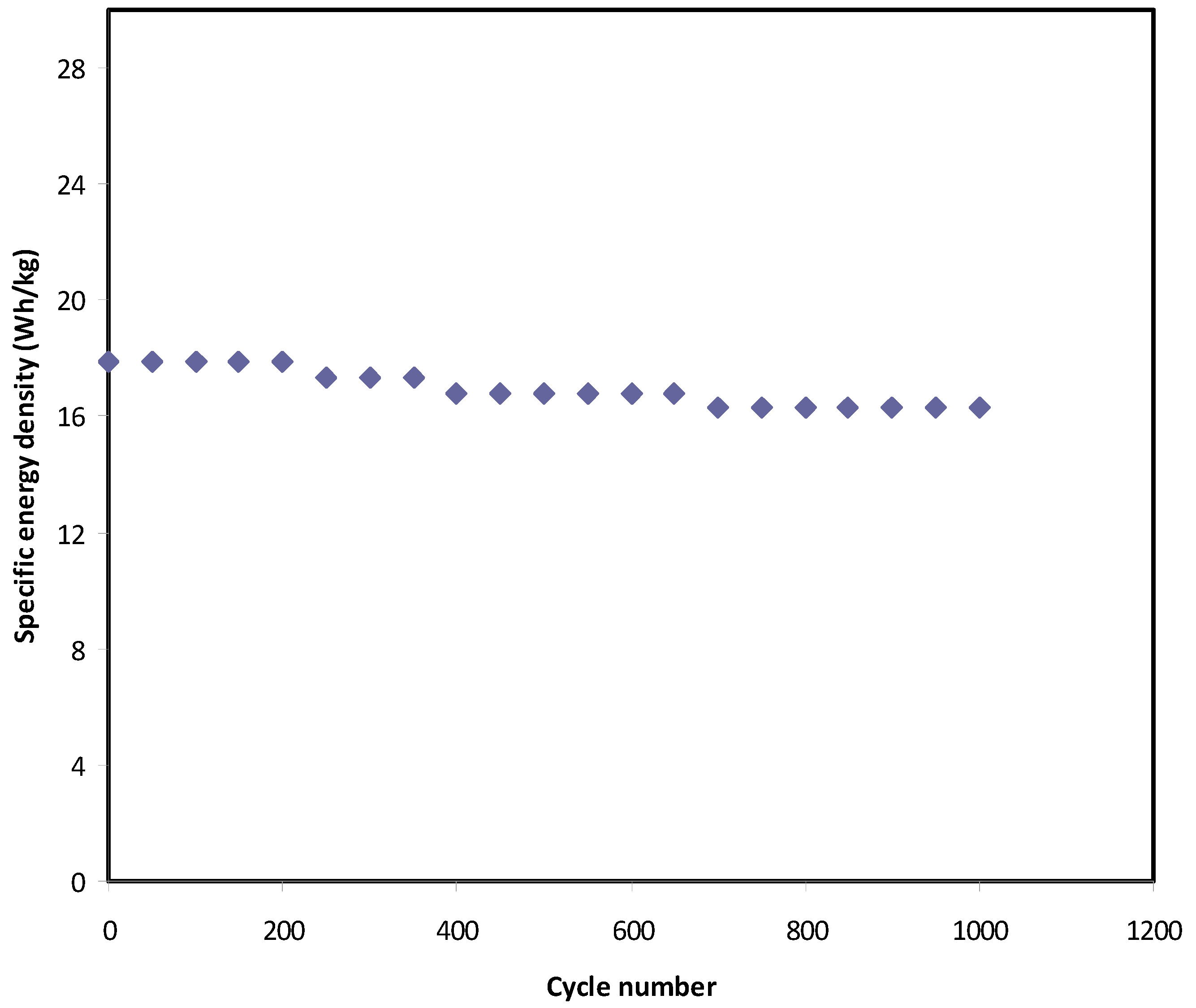

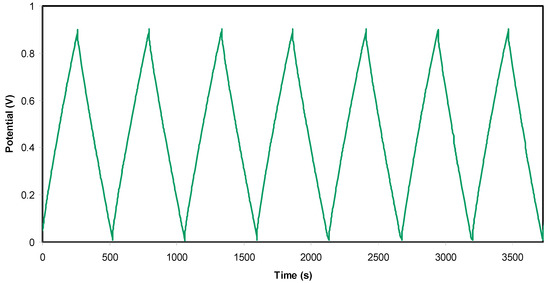

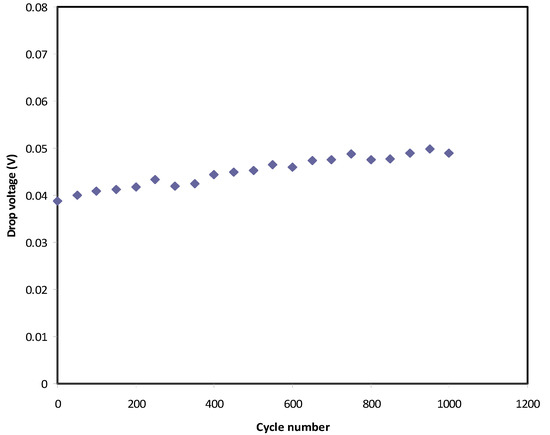

3.5.2. Galvanostatic Charge-Discharge Study
4. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
