Comparative Experimental and Theoretical Study of Mg, Al and Zn Aryloxy Complexes in Copolymerization of Cyclic Esters: The Role of the Metal Coordination in Formation of Random Copolymers

by
Ilya Nifant’ev
1,2,3,*,
Pavel Komarov
2,
Valeriya Ovchinnikova
2,
Artem Kiselev
2,3,
Mikhail Minyaev
2,4 and
Pavel Ivchenko
1,2,*
1
Department of Chemistry, M.V. Lomonosov Moscow State University, Leninskie Gory 1–3, 119991 Moscow, Russia
2
A.V. Topchiev Institute of Petrochemical Synthesis RAS, Leninsky Avenue 29, 119991 Moscow, Russia
3
Faculty of Chemistry, National Research University Higher School of Economics, Miasnitskaya Str. 20, 101000 Moscow, Russia
4
N.D. Zelinsky Institute of Organic Chemistry RAS, Leninsky pr. 47, 119991 Moscow, Russia
*
Authors to whom correspondence should be addressed.
Polymers 2020, 12(10), 2273; https://doi.org/10.3390/polym12102273
Submission received: 20 September 2020 / Revised: 29 September 2020 / Accepted: 30 September 2020 / Published: 2 October 2020
(This article belongs to the Special Issue Controlled Polymerization)
Browse Figures
Versions Notes

Abstract

:
Homogeneity of copolymers is a general problem of catalytic coordination polymerization. In ring-opening polymerization of cyclic esters, the rational design of the catalyst is generally applied to solve this problem by the equalization of the reactivities of comonomers—however, it often leads to a reduction of catalytic activity. In the present paper, we studied the catalytic behavior of BnOH-activated complexes (BHT)Mg(THF)2nBu (1), (BHT)2AlMe (2) and [(BHT)ZnEt]2 (3), based on 2,6-di-tert-butyl-4-methylphenol (BHT-H) in homo- and copolymerization of L-lactide (lLA) and ε-caprolactone (εCL). Even at 1:5 lLA/εCL ratio Mg complex 1 catalyzed homopolymerization of lLA without involving εCL to the formation of the polymer backbone. On the contrary, Zn complex 3 efficiently catalyzed random lLA/εCL copolymerization; the presence of mono-lactate subunits in the copolymer chain clearly pointed to the transesterification mechanism of copolymer formation. Both epimerization and transesterification side processes were analyzed using the density functional theory (DFT) modeling that confirmed the qualitative difference in catalytic behavior of 1 and 3: Mg and Zn complexes demonstrated different types of preferable coordination on the PLA chain (k2 and k3, respectively) with the result that complex 3 catalyzed controlled εCL ROP/PLA transesterification, providing the formation of lLA/εCL copolymers that contain mono-lactate fragments separated by short oligo(εCL) chains. The best results in the synthesis of random lLA/εCL copolymers were obtained during experiments on transesterification of commercially available PLLA, the applicability of 3/BnOH catalyst in the synthesis of random copolymers of εCL with methyl glycolide, ethyl ethylene phosphonate and ethyl ethylene phosphate was also demonstrated.

Graphical Abstract

1. Introduction

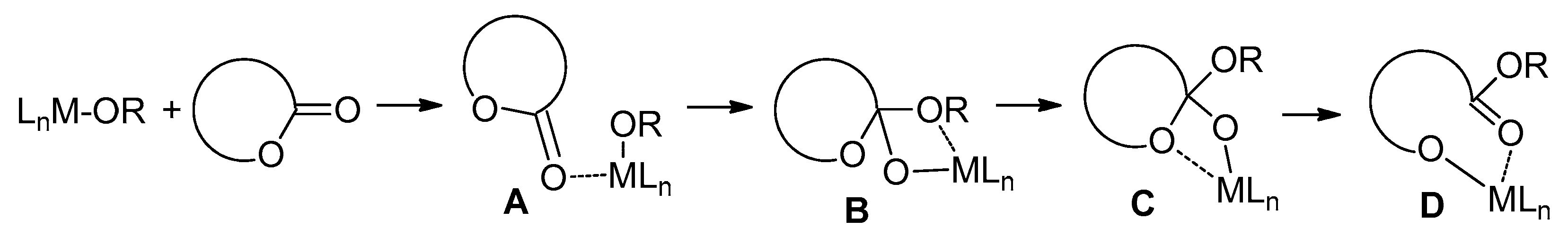

Catalytic ring-opening polymerization (ROP) of cyclic esters is the basis for the efficient synthetic approach to actual biodegradable and biocompatible materials [1,2,3,4,5,6,7]. Both organocatalysts [8,9,10,11,12,13,14,15] and coordination catalysts [16,17,18,19,20] have been efficiently used in ROP. The reaction mechanism of the coordination ROP, catalyzed by metal alkoxy complexes, is traditionally viewed as a repeating sequence of monomer coordination, alkoxy insertion and ring-opening (Scheme 1); these processes are influenced by both the metal nature and ligand environment at the metal center [16,17,18,19,20,21].
Polylactide (PLA) and poly(ε-caprolactone) (PCL), obtained by catalytic ROP of the corresponding cyclic esters, lactide (LA) and ε-caprolactone (εCL) (Scheme 2A) [1,4,8,15,20,22,23,24], have currently received great attention in biomedical applications [25,26,27,28,29,30,31,32]. Due to the contrasting physical properties of polylactide (PLA) and poly-ε-caprolactone (PCL), random copolymers of LA and εCL have generally proved useful for the development of polymer materials with desired mechanical characteristics and biodegradation rate [33,34,35,36,37,38]. However, the inherent difference in reactivity of LA and εCL usually leads to the formation of diblock or gradient copolymers, since in most cases LA was polymerized primarily [39,40,41,42,43,44,45]. Occasionally, only PLA was formed when the mixtures of LA and εCL were used as a comonomer feed [46,47].
Apart from practical use, the formation of random LA/εCL copolymers is of considerable interest for the theory of coordination ROP catalysis. There are basically three approaches to random LA/εCL copolymers. The first approach (Scheme 2B) is to adjust the reactivity ratios of LA and εCL to nearly equal with a formation of the random copolymer in the course of living ROP; this approach can be potentially implemented via the catalyst’s design. This approach had been realized, more or less successfully, when used with sterically hindered complexes of Al [44,48,49,50,51,52,53,54,55,56,57,58,59,60,61], Zn [43,62,63,64,65,66], Ti [67,68,69,70,71,72,73], Zr [70,71], Hf [70], Mo [74], Mg or alkali-earth metals [45,75] and lanthanides [76,77,78]. The formation of random copolymers with the catalysis by metal chelates was usually attributed to higher inhibition of the coordination of LA relative to εCL due to higher steric hindrance for LA coordination [50,79]. This interpretation appears to be incomplete bearing in mind a higher donor number of lactones in comparison with lactides [80,81], a considerable advantage of LA over εCL in coROP can be attributed to the formation of highly stable chelate metal complexes after LA ring-opening that inhibit subsequent ring-opening of εCL [82,83]: this suggestion was confirmed experimentally and theoretically for aryloxy complexes of Mg [47].

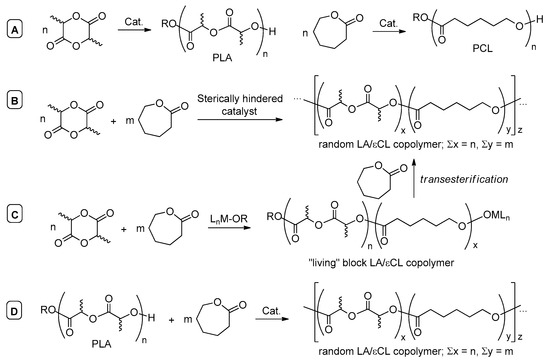

The second approach (Scheme 2C) employs transesterification of the initially formed PLA by εCL. This approach should consider the competition between living coordination ROP and transesterification. Similar competition was studied experimentally and theoretically for 1,5,7-triazabicyclo[4.4.0]dec-5-ene catalyzed polymerization of cyclic phosphates [84]. Apparently, transesterification takes place in LA/εCL copolymerization, catalyzed by Al iminophenolates [52], Sn alkoxides [34,37] and Bi derivatives [85,86,87,88]. Not long ago, Yao et al. reported an efficient application of the similar approach in the synthesis of random LA/εCL copolymers from polylactide (PLA) and εCL using La and Yb complexes with chelating ONNO ligands [89]. This third approach (Scheme 2D) to random lactide/lactone copolymers seems to be attractive, but the use of lanthanide catalysts is limited by moderate toxicity of La [90,91] and Yb [92]; additionally, the relative content of monolactate subunits in copolymers was relatively low.
In the recent years, the promising catalytic properties in ROP of different cyclic esters were demonstrated for the complexes of ‘biometals’ (Na, Mg, Ca, Zn and Al) with bulky phenols such as 2,6-di-tert-butyl-4-methylphenol (BHT-H) [81,93,94,95,96,97,98,99]. These synthetically available complexes represent a suitable model for the understanding fundamentals of co-ROP [47].
In the present paper, we report the results of the experimental and theoretical study of the catalytic behavior of Mg, Zn and Al phenolates in the synthesis of random copolymers of εCL with L-lactide (lLA) and other prospective ROP comonomers, bearing in mind underestimated side processes of transesterification and enolization. Our research resulted in the development of an efficient catalytic method of the synthesis of highly statistical biodegradable εCL-based copolymers that are potentially suitable for different applications.

2. Materials and Methods

2.1. Materials

n-Hexane was stored over Na and distilled before use. THF and toluene were refluxed over Na/benzophenone and distilled under argon. lLA (Merck, Darmstadt, Germany) was purified by recrystallization and subsequent sublimation in vacuo. εCL (Merck) was distilled before use under argon over CaH2. Benzyl alcohol (BnOH, Merck, 99%) was distilled over BaO and stored under argon. Poly(L-lactide) (PLLA, Mn 7.8 × 104 Da) was purchased from FDPlast company (Moscow, Russian Federation). Metal complexes (BHT)Mg(THF)2nBu (1) [97], (BHT)2AlMe (2) [100] and [(BHT)ZnEt]2 (3) [101] and cyclic esters 3-methyl-1,4-dioxane-2,5-dione (MeGL) [102], 3-phenyl-1,4-dioxane-2,5-dione (PhGL) [102], 2-ethyl-1,3,2-dioxaphospholane 2-oxide (EtEP) [103] and 2-ethoxy-1,3,2-dioxaphospholane 2-oxide (EtOEP) [104] were synthesized according to previously reported procedures.

2.2. Instruments and Methods

The 1H and 13C NMR spectra were recorded on a Bruker AVANCE 400 or on Bruker Avance III (600 MHz) spectrometers (Bruker Corporation, Billerica, MS, USA). CDCl3 (Cambridge Isotope Laboratories, Inc., Tewksbury, MA, USA, D 99.8%) was used as purchased. The chemical shifts are reported in ppm relative to the solvent residual peaks.
Size exclusion chromatography (SEC) of polymer samples was performed using an Agilent PL-GPC 220 chromatograph equipped with a PLgel column (Agilent Technologies, Santa Clara, CA, USA) and THF was used as the eluent (1 mL/min). The measurements were recorded with universal calibration based on a polystyrene standard at 40 °C.
Differential scanning calorimetry (DSC) experiments were performed on the TGA/DSC1 apparatus (Mettler Toledo, Columbus, OH, USA).

2.3. Preparation and X-ray Diffraction Study of the Complex 4

Zn complex 4 was prepared using the previously reported method [105]. Single crystals of the complex 4 were obtained by low-temperature crystallization from hexane/THF solution. X-ray diffraction data were collected at 100 K on a Bruker Quest D8 diffractometer using MoKα radiation (λ = 0.71073 Å). The intensity data were integrated by the SAINT program [106] and corrected for absorption and decay using SADABS [107]. The structure was solved by direct methods using SHELXT [108] and refined on F2 using SHELXL-2018 [109]. All non-hydrogen atoms were refined with anisotropic displacement parameters. Hydrogen atoms were placed in ideal calculated positions and refined as riding atoms with relative isotropic displacement parameters. The Mercury program [110] was used for molecular graphics. The structure has been deposited at the Cambridge Crystallographic Data Center (CCDC) with the reference CCDC number 2021607; it also contains the supplementary crystallographic data. These data can be obtained free of charge from the CCDC [111]. Crystal data, data collection and structure refinement details for 4 are summarized in Table S1 in the Supplementary Materials, bond lengths are presented in Table S2 in the Supplementary Materials.

2.4. Polymerization Experiments

2.4.1. Homopolymerization of lLA and εCL

lLA (1.44 g, 10 mmol; Table 1, Entries 1–6) or εCL (1.14 g, 10 mmol; Table 1, Entries 7–12) was placed under argon into a flame-dried vial. Toluene (7 mL) was added and the mixture was heated with stirring to the target temperature (oil bath). In a separate vial, the precatalyst (1–4, 0.1 mmol) was dissolved in toluene (0.5 mL) and BnOH (10.8 mg, 0.1 mmol) was added. After 1 min, this mixture was added through the septum to the first vial, and the total volume of the mixture was latched to 10 mL. After 2 h, 0.1 mL of AcOH was added. After sampling of the organic phase, CH2Cl2 (10 mL) was added, the organic phase was poured into MeOH (150 mL). The product was separated by centrifugation, washed by MeOH (3 × 10 mL), hexane (10 mL) and dried in vacuo. Conversion of monomers and composition of the copolymers was determined by 1H NMR spectroscopy, from the ratio of the integrated values of the CH2O signals of the εCL (m, 4.2 ppm) and PCL units (t, 4.07–4.14 ppm) as well as methine signals of lLA (4.75 ppm) and PLA units (5.05–5.25 ppm; see Section 3.4). The 1H spectra of the samples are presented in the Supplementary Materials.

2.4.2. Copolymerization of lLA and εCL

The experiments were performed by the same manner, using lLA (0.72 g, 5 mmol) and εCL (0.57 g, 5 mmol; Table 2, Entries 1–6) or lLA (0.72 g, 5 mmol) and εCL (2.85 g, 25 mmol; Table 2, Entries 7–10) loading. The sampling of the reaction mixture was done after 1, 3 and 5 h. Separation of copolymers was made as described in Section 2.4.1. 1H and 13C NMR spectra of copolymers are presented in the Supplementary Materials.

2.4.3. Synthesis of Random lLA/εCL Copolymers Using PLLA

The experiments on transesterification were performed using commercial PLLA (Mn 7.8 × 104 Da, 0.72 g, 5 mmol of dilactate) and εCL (2.85 g, 25 mmol; Table 3, Entries 1 and 2) loading. The sampling of the reaction mixture was done after 5 and 15 h. Separation of copolymers was made as described in Section 2.4.1. 1H and 13C NMR spectra of copolymers are presented in the Supplementary Materials.

2.4.4. Copolymerization of εCL with Other Comonomers

In these experiments (Table 3, Entries 3–6) we used 5 mmol loadings of comonomers (0.65 g for MeGL, 1.03 g for MePhGL, 0.68 g for EtEP and 0.76 g for EtOEP), the loading of εCL remained unchanged (2.85 g, 25 mmol). The sampling of the reaction mixture was done after 1, 3 and 5 h. Separation of copolymers was made as described in Section 2.4.1. 1H and 31P NMR spectra of copolymers are presented in the Supplementary Materials.

2.5. DFT Calculations

Molecular structures of stationary points and transition states were optimized using the density functional theory (DFT). The initial Cartesian coordinates of the stationary points had been drafted by PRIRODA software [112] using the 3ζ basis. The final calculations (structure optimization and determination of the thermodynamic parameters) were carried out using the Gaussian 09 program [113] for the gas phase at 298.15 K. The B3PW91 hybrid exchange-correlation functional [114,115] and DGTZVP basis [116,117] were used in the optimizations, the RMS force criterion was 3 × 10−4. More detailed data (molecular plots, Cartesian coordinates and energy characteristics of the optimized structures) are presented in the Supplementary Materials.

3. Results and Discussion

3.1. Homopolymerization of lLA and εCL

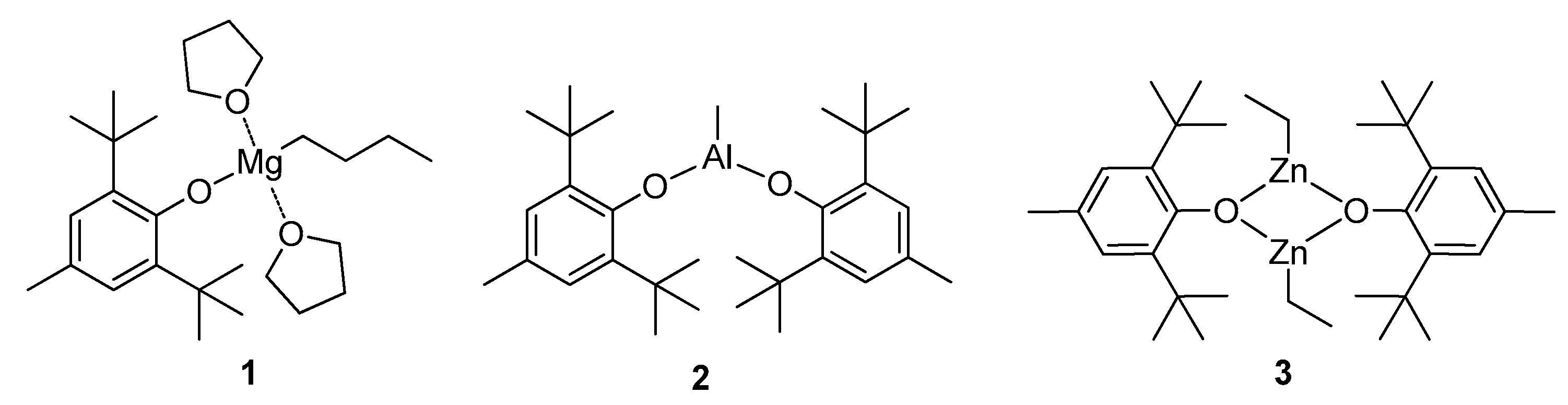

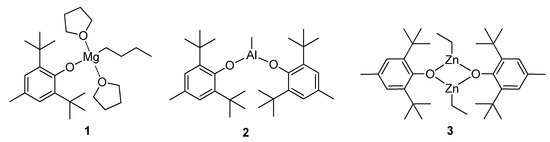

To estimate the catalytic performance of the BHT derivatives of Mg, Zn and Al, we chose the complexes (BHT)Mg(THF)2nBu (1) [97], (BHT)2AlMe (2) [100] and [(BHT)ZnEt]2 (3) [101] (Scheme 3). In our experiments on homopolymerization of lLA and εCL, we used activation of alkyl complexes 1–3 by BnOH.
At room temperature only complex 1 proved to be an efficient initiator of the ROP of lLA, complex 2 was inactive, 3 demonstrated very low activity (Table 1, Entries 1–3, respectively). When the temperature was increased to 100 °C, Zn complex 3 efficiently catalyzed the formation of PLLA (Table 1, Entry 6), but Al complex 2 demonstrated low activity. In marked contrast, the complex 2 (along with 1, see Figure S1 in the Supplementary Materials) was active at 20 °C in homopolymerization of εCL (Table 1, Entries 7 and 8), while Zn complex 3 did not show any activity (Table 1, Entry 9). At 100 °C high conversion of εCL was achieved after 2 h for all complexes (Table 1, Entries 10–12, see Figure S2 in the Supplementary Materials for 3).
The samples of PLLA (Table 1, Entries 1, 6 and 4) demonstrated substantially different thermal properties. The value of the melting point (Tm) of PLLA, obtained in the presence of 1 at ambient temperature (Table 1, Entry 1), was 161.4 °C, which is comparable with Tm = 165.2 °C of PLLA, obtained in the presence of Zn catalyst 3 at 100 °C (Table 1, Entry 6, Figure S3B in the Supplementary Materials). However, Tm of PLLA, synthesized in the presence of 1 at 100 °C (Table 1, Entry 4), was 147.1 °C (Figure S3A in the Supplementary Materials). We proposed that such behavior might be caused by partial disorder in the PLLA microstructure. Analysis of the 13C NMR spectra of PLLA samples 4 and 6 (Table 1) confirmed our assumption. In the region of the signals of carbonyl groups for PLLA, obtained in the presence of 1/BnOH, we observed additional signals that can be attributed to stereoerrors in isotactic PLLA chain (Figure 1). We propose that partial epimerization of CHMe fragments can be explained by enolization of the PLLA chain under the influence of the active BHT-Mg-OR species (see Section 3.3).

3.2. Copolymerization of lLA and εCL

To compare catalytic behavior of the complexes 1–3 in copolymerization of lLA and εCL, we performed a series of experiments using the 1:1 comonomer ratio (Table 2, Entries 1–6). At 20 °C, after activation of Mg complex 1 by BnOH we observed fast polymerization of lLA, while εCL did not form a polymer even in trace amounts. Under these conditions, Al complex 2 was inert, Zn complex 3 catalyzed very slow formation of lLA oligomer without polymerization of εCL. At 100 °C, Mg complex 1 continued to be inactive towards εCL. Similar to the homopolymerization experiment (Table 1, Entry 4), the value of Tm of PLLA (154.2 Tm of PLLA) was substantially lower than the reference value (165 °C). Aluminum complex 2 at 100 °C (Table 2, Entry 5) formed low molecular weight PLLA, εCL was not polymerized. The most interesting preliminary results on lLA/εCL copolymerization at 100 °C were obtained for Zn complex 3 (Table 2, Entry 6). 1H NMR spectrum of the reaction mixture demonstrates the presence of relatively long PLLA fragments and, on the other hand, PCL fragments were absent (no CH2C(O) signals at 2.3 ppm). Therefore, the product of the reaction was a random, not gradient, lLA/εCL copolymer. This conclusion is also supported by a large decline of Tg and Tm values (18.5 °C and 133.8 °C, respectively, see Figure S4 in the Supplementary Materials) in comparison with the reference values for PLLA (60–65 °C and 165 °C, respectively).
Thus, Mg and Zn BHT complexes 1 and 3 demonstrated qualitatively different catalytic behavior. The complex 1/BnOH, being a highly active catalyst of the homopolymerization of lLA and εCL, was unable to polymerize εCL in the presence of lactide even at elevated temperatures. In contrast with 1, the use of the zinc catalyst 3/BnOH allowed one to obtain random lLA/εCL copolymers, although with low content of 6-oxyhexanoate fragments. Aluminum complex 2 was far below both 1 and 3 by catalytic activity.
To improve confidence in our evaluation of the catalytic behavior of 1–3 and in order to obtain random lLA/εCL copolymers with higher 6-oxyhexanoate content, we made a series of copolymerization experiments at 100 °C using the 1:5 lLA/εCL ratio (Table 2, Entries 7–9). Under these conditions, 1/BnOH continued to polymerize lLA but with a much reduced rate (Table 2, Entry 7), copolymerization of εCL was detected only in trace amounts after 15 h. Tm of PLLA obtained after 15 h was 134.6 °C. Conversion of lLA in the presence of 2/BnOH after 1 h was only 30% (Table 2, Entry 8a), however, minimal insertion of εCL was detected. After 15 h, the full conversion of lLA and nearly complete conversion of εCL were achieved (Table 2, Entry 8d).
Zinc complex 3 has proven to be much more efficient in the synthesis of lLA/εCL copolymer in comparison with Al complex 2. After 1 h, after nearly complete polymerization of lLA, the conversion of εCL amounted to more than 20% (Table 2, Entry 9a). After 15 h, the conversion of εCL was almost completed with a formation of highly statistical copolymer (Table 2, Entry 9d). Tm of this copolymer was 35.7 °C (see Figure S5 in the Supplementary Materials); the closeness of this value to the human body temperature deserves special attention in the context of possible biomedical applications of random lLA/εCL copolymers. It is quite obvious that the formation of lLA/εCL copolymers when using 2 and 3 is due to transesterification of the initially formed PLLA in combination with polymerization of εCL.

3.3. Synthesis, Molecular Structure and Catalytic Behaviour of the Zn Chelate Complex 4

Lower catalytic activity in both polymerization and transesterification of 2 in comparison with 3 can be explained not only by the nature of the metal (Al or Zn), but also by the qualitatively different ligand environment in Al complex 2 containing two bulky BHT ligands that occupy two coordination sites. To evaluate the impact of the additional metal–ligand bonding on the catalytic behavior of the zinc complexes in ROP, we prepared chelate complex 4 (Scheme 4).

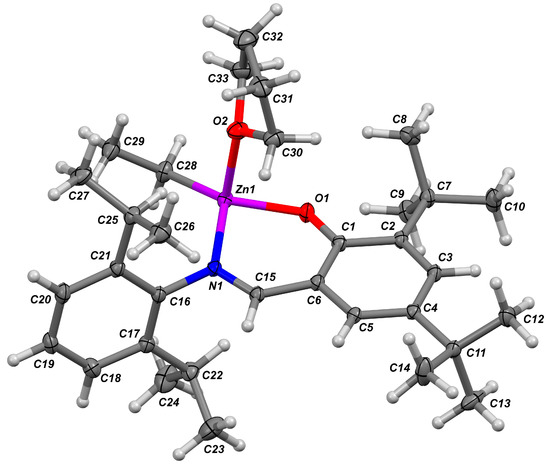

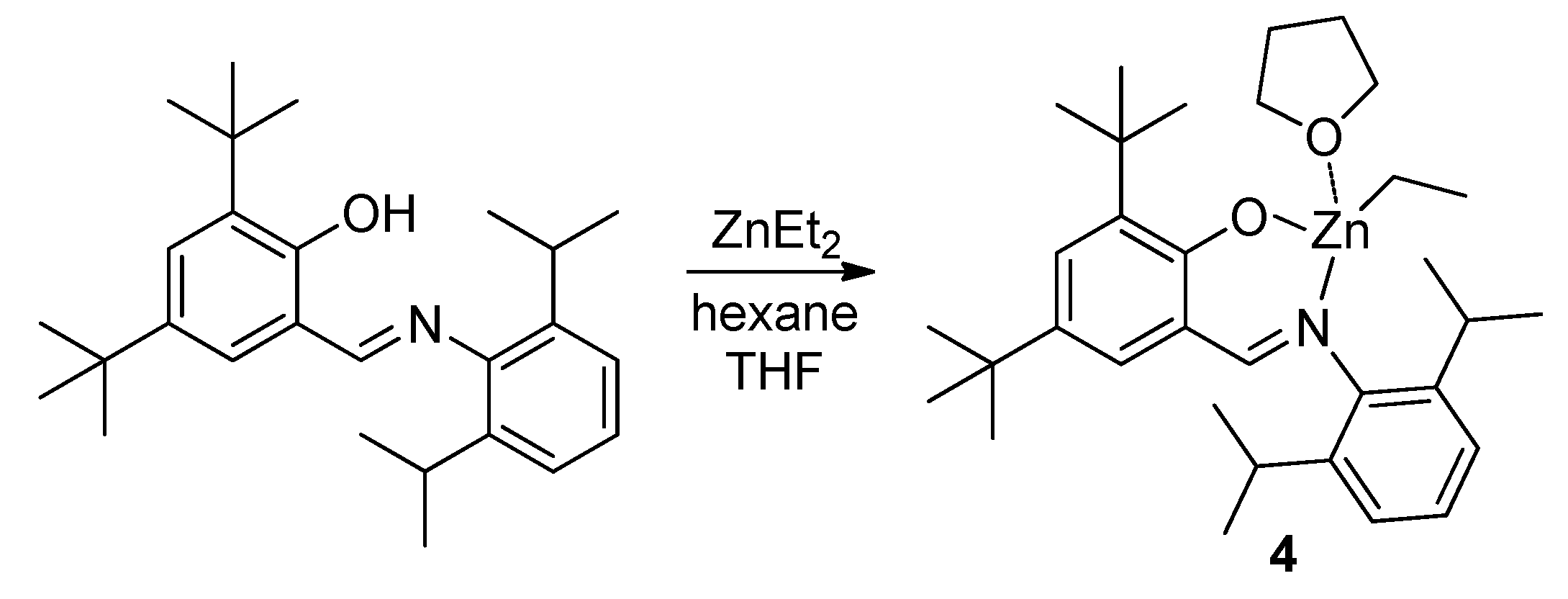

The complex 4 was obtained earlier by Darensbourg et al. in aliphatic reaction media [105]. To establish the ability of the Zn atom to binding with donor ROP substrates, we prepared single crystals of 4 by low-temperature crystallization from hexane solution in the presence of donor solvent, THF. X-ray diffraction analysis of 4 (Figure 2, see also Figure S6 in the Supplementary Materials for ORTEP drawing) confirmed the monomeric nature of the complex, we found that the Zn atom was bonded to one THF molecule. The Zn environment in 4 was best described as a distorted trigonal pyramid (coordination number is 4; see Table 4 for Zn-L bond distances), where Zn was located nearly within the plane defined by atoms O1, N1 and C28 (the deviation was 0.3096(9) Å). Atoms C1–C6 and C15 were also situated in the same plane. Such an unusual Zn environment is mainly caused by the presence of the flat fragment in the C27H38NO ligand and by the steric influence of the bulky (2,6-iPr2C6H4) substituent located close to the Zn atom.
In lLA/εCL copolymerization, the complex 4/BnOH (Table 2, Entry 10) has been less active in comparison with 3/BnOH. The almost complete conversion of lLA was observed in one hour, however, the conversion of εCL was only 3%. After 5 h, 78% of εCL polymerized, but the polymer mostly comprised of long PLLA and PCL fragments (see Section 3.4). We thought that the low activity of 4 in transesterification is attributable to bidentate nature of the iminophenolate ligand hampering the coordination of PLLA chain at Zn atom (see Section 3.5).

3.4. Microstructure and Thermal Properties of lLA/εCL Copolymers

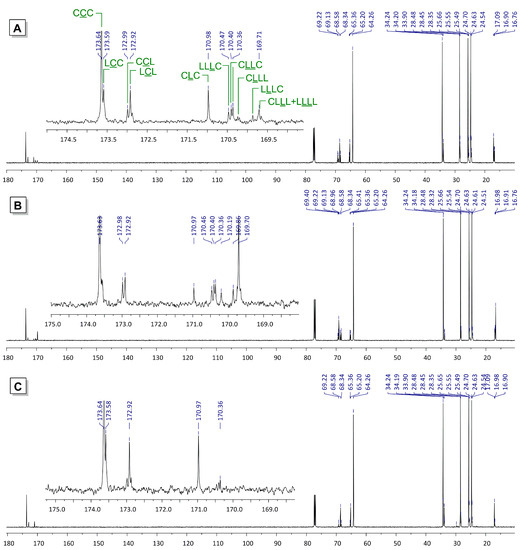

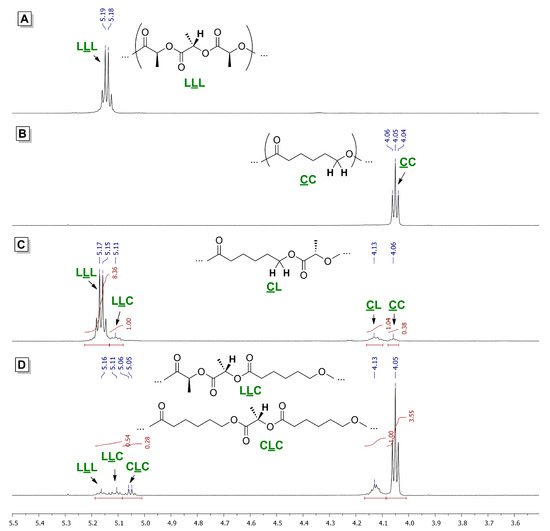

The microstructure of lLA/εCL copolymers was analyzed by 1H and 13C NMR spectroscopy. 1H NMR spectra of homo- and copolymers of lLA and εCL are presented in Figure 3. In these spectra, a few significant signals could be distinguished, making it possible to determine both comonomer ratios and some comonomer sequences. The first group is related to the signals of methine proton in lactate fragments. These signals are quadruplets with characteristic chemical shifts that can be attributed to LLL, LLC and CLC fragments (δ = 5.17, 5.11 and 5.05 ppm, respectively). Note that the presence of the signal of CLC fragment clearly points to the transesterification of PLLA chain during copolymerization, the share of these mono-lactate fragments in the PLLA fraction of the copolymer is presented in Table 2. The second characteristic group of the signals is triplets related to the –CH2O– group of 6-oxyhexanoate fragments. Triplet at 4.13 ppm is related to the CL fragment, triplet at 4.05 ppm is a signal of methylene protons of the CC fragment. The ratio of the integral intensities of these signals allows one to determine the average sequence length (ASL) of PCL fragments in the copolymer by the ratio: ASLC = (ICC + ICL)/ICL (see Table 2).

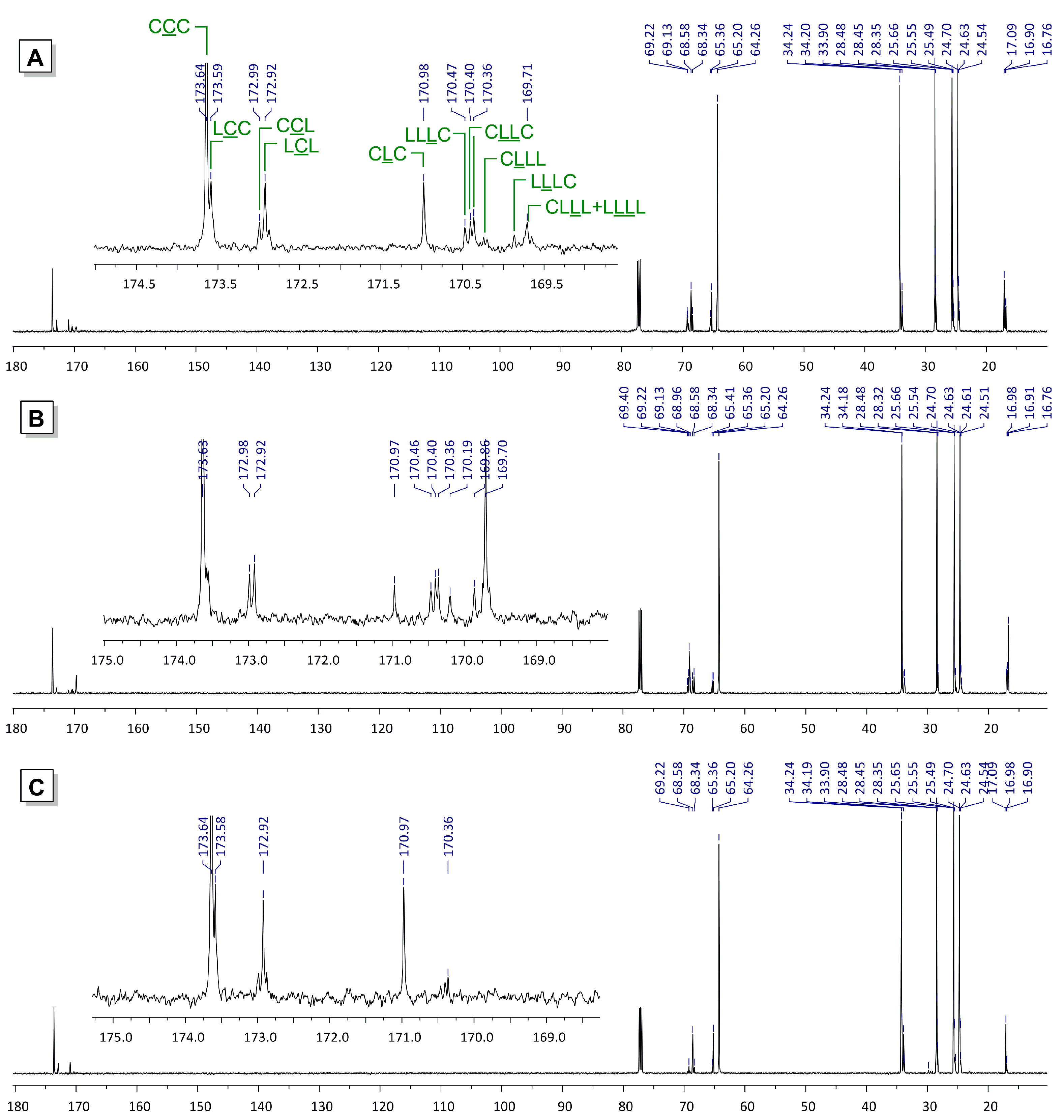

Detailed and consistent analysis of 13C NMR spectra of lLA/εCL copolymers was reported earlier, the most suitable interval for the detailed analysis of the copolymer’s microstructure is the area 169–174 ppm of the signals of carbonyl groups [42,49,52,53,61,62,72]. The view of the 13C NMR spectra of lLA/εCL copolymers (Figure 4A,B) confirmed the difference in catalytic behavior of the Zn complexes 3 and 4. The presence of the signal of CLC triads at 171 ppm resulting from the cleavage of the lactyl–lactyl bond in the dilactate unit [51] is a criterion for the transesterification during ROP. This signal presents in both spectra, however, it is this signal that is most intensive for the copolymer, obtained in the presence of 3. In contrast, during catalysis by chelate complex 4, longer oligolactate and oligo(6-oxyhexanoate) fragments were formed, which confirms the lower efficiency of 4 as a transesterification catalyst.
Another important point is the relative high intensity of the LCL signal in the 13C NMR spectrum of copolymer, formed in the presence of 3. High content of LCL fragments reflects a high probability of transesterification of the PLLA chain after one single coordination and ring-opening of the εCL molecule. This important feature is discussed below from the point of view of the reaction mechanism (see Section 3.5). A random character of the copolymer can be confirmed by the value of the glass transition point Tg that is predicted by the empirical Fox Equation (1) [40],
1 T g = W 1 T g 1 + W 2 T g 2
where Tg1 and Tg2 are glass transition points of homopolymers (60–65 °C for PLLA and −65 to −60 °C for PCL), W1 and W2 are mass fractions of the comonomers in the copolymer. For the LA/εCL copolymer with a relatively low εCL rate (Table 2, Entry 6) the DSC curve displayed a glass transition temperature at 18.5 °C, which was close to the theoretical value for the random LA/εCL copolymer (20 °C for 26% mol εCL). For LA/εCL copolymers obtained at the 1:5 LA/εCL molar ratio, calculated Tg was –46 °C. The experimental DSC curve of the copolymer, obtained using this comonomer ratio in the presence of 3 (Table 2, Entry 9c), comprised of a crystallization peak at 9.6 °C and melting peak at 33.8 °C, glass transition was not detected down to −50 °C (see Figure S5 in the Supplementary Materials).

3.5. Mechanistic Insights of the Formation of lLA/εCL Copolymers

Recently, we studied BHT-Mg catalyzed ROP of different cyclic substrates at the B3PW91/DGTZVP level of the density functional theory (DFT); to reduce the calculation time, 2,6-di-tert-butylphenoxy (DBP) complexes were applied as initiator models [47,81,118,119]. In the present work, we also used DBP derivatives of Mg and Zn as a model catalytic species and transition states, derived from 1 and 3, respectively, and chose the same B3PW91/DGTZVP basis set to compare new and previously obtained results. Polymerization experiments have shown that Al complex 2 demonstrated interim characteristics between 1 and 3, and we ruled out this complex from the theoretical investigations.
Copolymerization experiments have shown that under the mild conditions in the mixture of lLA and εCL after activation by the BnOH Mg complex 1 catalyzed formation of PLLA without marked polymerization of εCL. The Zn complex 3 was able to catalyze copolymerization, but only at elevated temperature. In the modeling of copolymerization and transesterification we considered tetrahedral metal complexes, stabilized by the formation of five-membered chelate, as a starting stationary points. The reaction mixture contained three components that can coordinate the metal center, namely, lLA, εCL and PLA. For the simulation of the PLA fragment we used (S,S)-MeOC(O)CHMeOC(O)CHMeOMe ((S,S)-1-methoxy-1-oxopropan-2-yl 2-methoxypropanoate, MOMP, Scheme 5) and found two possible coordination modes for MOMP. Our calculations showed that the k2-coordinated MOMP complex was more stable for Mg; in the case of Zn k3-coordination is preferable. This finding is highly important for the analysis of transesterification and other side processes (see below).

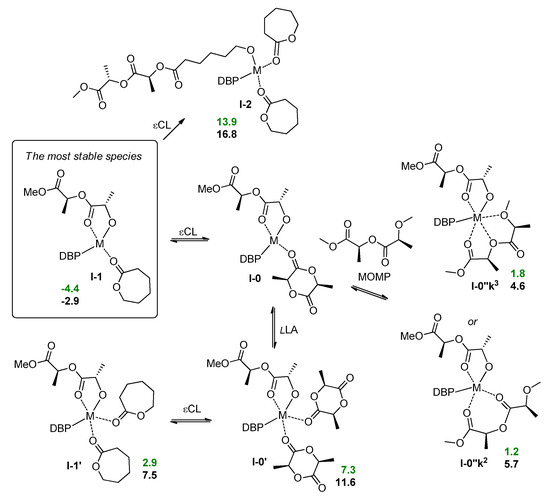

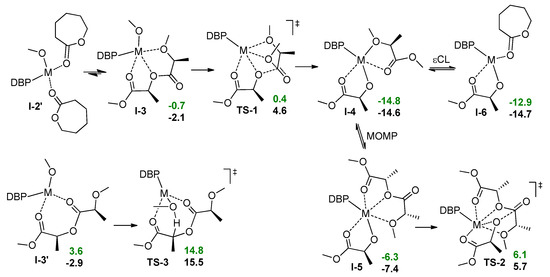

Tetrahedral complexes with εCL I-1 seemed to be low-energy ground states for lLA/εCL copolymerization. Starting from these complexes, we analyzed the change of the free energies and free enthalpies for the ring-opening of εCL molecule, and found that the formation of the product I-2 (Scheme 5) is an endergonic process both for Mg and Zn. Therefore, the ring-opening of the first εCL molecule after polymerization of lLA needs for the compensation, and the formation of stable chelate, metal lactate complex, in further transformations appears to be a favorable reaction pathway. Additionally, note that the presence of εCL in the reaction mixture should slow down ROP of lLA by the mechanism of concurrent inhibition. This conclusion is supported by the results of our experiment on lLA/εCL copolymerization at the 1:5 comonomer using 1/BnOH as a catalyst (Table 1, run 7).
In theory, following ring-opening of εCL in I-2 may offset the endergonic effect after the first insertion and ring-opening of the first εCL molecule. However, the coordination of εCL in the reaction mixture is competing with coordination of the PLA chain. Using a simplified model (MeO fragment instead of ring-opened εCL, Scheme 6) we optimized the geometries of DBP-metal complexes with two εCL molecules and with MOMP (PLA model) in the k3-coordination mode (Scheme 6, I-2’ and I-3, respectively) and found MOMP coordination to be an exergonic process. We have therefore tried to analyze the possible ways of the transformations of the complexes I-3 with MOMP, and suddenly found transition states TS-1 with unusual geometry (Figure 5A): in contrast with conventional TS of the first stage of coordination ROP, in TS-1 the oxygen atom of the reactive carbonyl group is not coordinated at the metal center. Going through minimal activation barriers (1.1 and 6.8 kcal/mol for Mg and Zn, respectively), the MOMP complexes transform into transesterification products I-4, this process is highly exergonic.
Obviously, the complexes I-4 are still reactive. First, these complexes can undergo further transesterification. We replaced (S)-methyl 2-methoxypropanoate in I-4 by MOMP obtaining the complex I-5 (Scheme 6) and calculated the activation barriers of transesterification of PLA by lactate via TS-2 (Scheme 6) amounting to 12.4 and 13.1 kcal/mol for Mg and Zn, respectively. Hence, in the absence of lactide, the catalytic process may continue as transesterification of PLA, the living ROP turns into immortal fragmentation of PLA, accompanied by broadening of molecular weight distribution (MWD). Second, (S)-methyl 2-methoxypropanoate can be replaced by the εCL molecule with a formation of I-6 (Scheme 6). Such a replacement was found to be substantially endergonic for Mg and slightly exergonic for Zn.
In that way, the results of our calculations predicted qualitatively different behavior for Mg and Zn complexes in the mixture of LA and εCL. The Mg complex, after polymerization of LA, continues to be a moderately active catalyst of transesterification of PLA under the action of the lactate fragment, resulting in PLA with broader MWD as a single reaction product. Zn complex that retains the ability to coordinate εCL molecule, involves εCL to transesterification that includes intermediate ring-opening of lactone. This process results in the formation of random LA/εCL copolymer.
In concluding the discussion of the results of DFT modeling, we wish to draw attention to another important issue, namely, epimerization of PLLA during polymerization. We mentioned above that MOMP can coordinate metal atoms in k2- and k3-coordination modes (Scheme 5), the first mode was preferable for the Mg complex. We optimized the geometries of the complexes I-3’ with the formula (DBP)M(OMe)(k2-MOMP) (M = Mg, Zn) and found the presence of promising MeO–HC(Me) contact in the Mg complex (d = 2.06 Å, Figure 5B); such contact was absent in the Zn complex. The transition states that correspond to the enolization process TS-3 (Figure 5C) were found by scanning of C–H bond distances, the free activation energies were 11.2 and 18.4 kcal/mol for Mg and Zn, respectively. Taking into account substantial difference in TS-3 for Mg and Zn, such enolization seems to be feasible for Mg derivative. In addition, the presence of the MeO–HC(Me) contact in starting the Mg complex I-3’ should facilitate enolization due to a high Arrhenius factor.

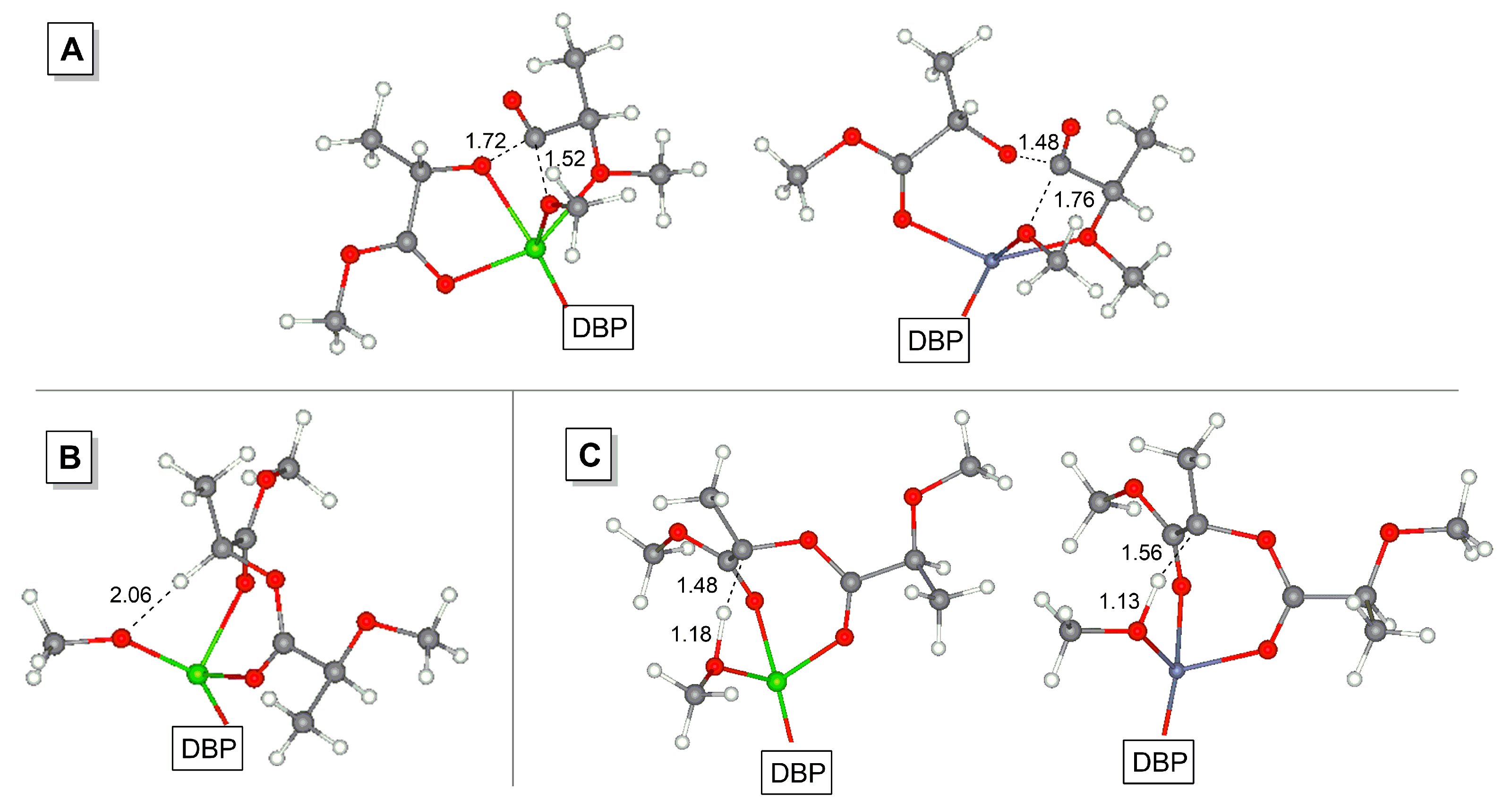

Optimization of the Mg lactate complex (DBP)M(OCHMeC(O)OMe)(k2-MOMP) I-3’’ (as even more specific model complex for the study of enolization during lLA homopolymerization) also detected MeO–HC(Me) contact (d = 2.10 Å), the free activation energy of the enolization via TS-3’’ was 17.6 kcal/mol (see Supplementary Materials for details). Therefore, one would expect to observe epimerization during lLA polymerization, catalyzed by the BHT-Mg catalyst 1. This conclusion is in good agreement with 13C NMR spectral data and DSC analysis of PLLA samples obtained in the presence of 1.

3.6. Synthesis of Random εCL Copolymers Using PLLA and Other Comonomers

Since the formation of random lLA/εCL copolymers in the presence of 3 follows homopolymerization of lLA even at low lLA/εCL ratios (Table 2, Entry 9), we proposed that these copolymers could be efficiently synthesized from PLLA (Scheme 7). In our experiment (Table 3, Entries 1,2), we used commercial PLLA containing 500 dilactyl subunits (Mn 7.8 × 104 Da), the ratio LL/εCL/3/BnOH was 50:250:1:1. The reaction was conducted at 100 °C (Table 2, Entries 7–10). After 15 h the reaction was completed, the product contained about 2/3 of lactate subunits as a CLC fragments (see Figure 4C). The average sequence length of PCL fragment was 6, which confirms highly statistical character of the copolymer (see also Figures S7–S9 in the Supplementary Materials).

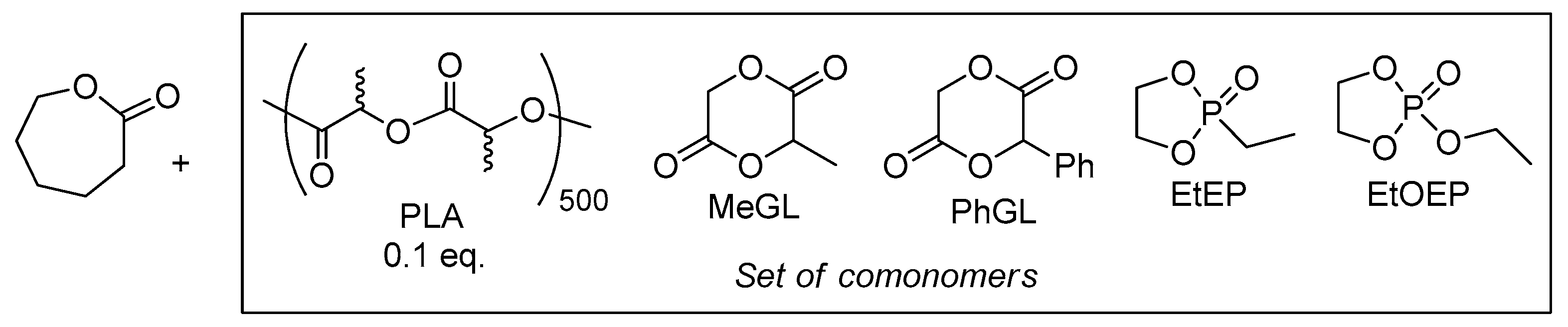

We proposed that substituted glycolides are also able to form random copolymers with εCL, and studied copolymerization of εCL with two monosubstituted glycolides, namely, MeGL and PhGL (Scheme 7). The reaction with MeGL after 5 h resulted in the formation of the random copolymer (ASLC = 3.6, Table 3, Entry 3c, see Figures S10 and S11 in the Supplementary Materials). During the reaction with PhGL (Table 3, Entries 4a–c) we observed a fast formation of low molecular weight poly(PhGL) and homopolymerization of PCL, bimodal MW distribution of the reaction products was confirmed by SEC. We were assuming that failure in the synthesis of PhGL/εCL copolymer was owing to the formation of Zn enolates, stabilized by conjugation with phenyl groups.
Since phosphate- and phosphonate-containing polymers were of considerable interest for biomedical applications due to biocompatibility and biodegradability [120,121,122,123,124], we studied copolymerization of εCL with two substituted 1,3,2-dioxaphospholane 2-oxides, EtEP and EtOEP (Scheme 7). The fast formation of the random copolymer was detected when EtEP was used as the comonomer (Table 3, Entries 5a–c). This copolymer was formed within 1 h, and there was no significant change in the view of 1H and 31P NMR spectra of the reaction mixture for an additional four hours (see Figures S12–S14 in the Supplementary Materials). Copolymerization of εCL with EtOEP occurred in a similar manner, but with lower εCL conversions (Table 3, runs 6a–c), the formation of the random copolymer has been confirmed by 1H, 13C and 31P NMR spectra (see Figures S15–S17 Supplementary Materials).

4. Conclusions

Aryloxy complexes of Mg, Al and Zn demonstrated different catalytic behavior in homopolymerization and copolymerization of lLA and εCL. BHT-Mg complex 1, being a highly efficient catalyst of homopolymerization of both lLA and εCL, was not suitable for the synthesis of random copolymers. As an example, for the mixture of lLA and εCL in the presence of 1/BnOH we observed slowed-down homopolymerization of lLA, almost without εCL polymerization. In addition, in the presence of 1 we detected substantial epimerization of PLLA during lLA homopolymerization. BHT-Zn complex 3 at elevated temperatures efficiently catalyzed homopolymerization of lLA and εCL, and furthermore, polymerization of lLA was not accompanied by side reactions. The complex 3 has proved to be efficient catalyst for the synthesis of a random lLA/εCL copolymer, the presence of mono-lactate fragments in the copolymer backbone clearly indicates that the formation of the copolymer occurs by the transesterification mechanism. Since the feasibility of such a mechanism depends on the ability of the metal atom to bonding with the PLA chain, we studied catalytic activity of Zn iminophenolate 4 in lLA/εCL coROP, establishing a negative impact of additional ligand coordination on the catalytic activity of the Zn complex. The fundamental difference in catalytic behavior of 1 and 3 was verified using DFT simulation of lLA/εCL copolymerization and related processes of transesterification and enolization of PLLA. The difference in preferable PLA coordination modes, k2-coordination for Mg and k3-coordination for Zn, explained the difference in the catalytic behavior of the complexes, namely, PLLA enolization for 1 and εCL ring-opening/PLLA transesterification for 3.
Copolymers, obtained by coROP of lLA and εCL at the 1:5 comonomer ratio, had a high content of CLC fragments, which was increased up to 2/3 when PLLA was used as a source of lactate. Hence, we developed an efficient method of the synthesis of εCL-based lLA/εCL copolymers, which allowed us to introduce more hydrophobic lactate fragments “by the piece”.
By replacing lLA with comonomers of glycolide and cyclophosphate families, we successfully obtained random copolymers of εCL with MeGL, EtEP and EtOEP as novel prospective biodegradable materials.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4360/12/10/2273/s1, Figure S1: 1H NMR spectrum of the reaction mixture of εCL polymerization, catalyzed by 1/BnOH (Table 1, Entry 7, εCL/1/BnOH ratio 100:1:1), Figure S2: 1H NMR spectrum of the reaction mixture of εCL polymerization, catalyzed by 3/BnOH (Table 1, Entry 12, εCL/3/BnOH ratio 100:1:1), Figure S3: DSC curves (second heat) of PLLA obtained in the presence of 1/BnOH (A) and 3/BnOH (B) (Table 1, Entries 4 and 6, respectively), Figure S4: DSC curve (second heat) of lLA/εCL copolymer obtained in the presence of 3/BnOH at 1:1 lLA/εCL ratio (Table 2, Entry 6), Figure S5: DSC curves (second heat) of lLA/εCL copolymers obtained in the presence of 3/BnOH at 1:5 lLA/εCL ratio after 5 h (top) and 15 h (bottom) (Table 2, Entries 9c and 9d, respectively), Figure S6: Molecular structure of the complex 4. The probability for thermal ellipsoids is set to the 50% level, Figure S7: 1H NMR spectrum (CDCl3, 600 MHz) of lLA/εCL copolymer obtained by transesterification of PLLA (Table 4, Entry 2, reprecipitated from MeOH), Figure S8: 13C NMR spectrum (CDCl3, 151 MHz) of lLA/εCL copolymer obtained by transesterification of PLLA (Table 4, Entry 2, reprecipitated from MeOH), Figure S9: DSC curves (second heat) of lLA/εCL copolymers obtained in the presence of 3/BnOH by transesterification of PLLA after 5 h (top) and 15 h (bottom) (Table 4, Entries 1 and 2, respectively), Figure S10: 1H NMR spectrum (CDCl3, 600 MHz) of MeGL/εCL copolymer (Table 4, Entry 3c, reprecipitated from MeOH), Figure S11: 13C NMR spectrum (CDCl3, 151 MHz) of MeGL/εCL copolymer (Table 4, Entry 3c, reprecipitated from MeOH), Figure S12: 1H NMR spectrum (CDCl3, 600 MHz) of EtEP/εCL copolymer (Table 4, Entry 5c), Figure S13: 13C NMR spectrum (CDCl3, 151 MHz) of EtEP/εCL copolymer (Table 4, Entry 5c), Figure S14: 31P NMR spectra (CDCl3, 162 MHz) of EtEP/εCL copolymerization probes after 1, 3 and 5 h (Table 4, Entries 5a–c), Figure S15: 1H NMR spectrum (CDCl3, 400 MHz) of EtOEP/εCL copolymer (Table 4, Entry 6c, reprecipitated from MeOH), Figure S16: 13C NMR spectrum (CDCl3, 101 MHz) of EtOEP/εCL copolymer (Table 4, Entry 6c, reprecipitated from MeOH), Figure S17: 31P NMR spectrum (CDCl3, 162 MHz) of EtOEP/εCL copolymer (Table 4, Entry 6c, reprecipitated from MeOH), Table S1: Crystal data and structure refinement for 4, Table S2: Bond lengths, Å; DFT calculations data: plots of the molecular geometries, energies and Cartesian coordinates for stationary points and transition states mentioned in the article.

Author Contributions

Conceptualization, I.N. and P.I.; Methodology, I.N. and P.I.; Software, P.I.; Validation, I.N., P.K. and P.I.; Formal Analysis, M.M. and P.I.; Investigation, P.K., V.O., A.K. and M.M.; Resources, I.N.; Data Curation, P.I.; Writing—Original Draft Preparation, P.I.; Writing—Review and Editing, I.N., P.K. and P.I.; Visualization, P.I.; Supervision, I.N.; Project Administration, I.N.; Funding Acquisition, I.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Russian Science Foundation, grant number 16-13-10344. The studies on the polymer thermal behavior were carried out within the State Program of TIPS RAS.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Jérôme, C.; Lecomte, P. Recent advances in the synthesis of aliphatic polyesters by ring-opening polymerization. Adv. Drug Del. Rev. 2008, 60, 1056–1076. [Google Scholar] [CrossRef]
  2. Tian, H.; Tang, Z.; Zhuang, X.; Chen, X.; Jing, X. Biodegradable synthetic polymers: Preparation, functionalization and biomedical application. Prog. Polym. Sci. 2012, 37, 237–280. [Google Scholar] [CrossRef]
  3. Nuyken, O.; Pask, S.D. Ring-Opening Polymerization—An Introductory Review. Polymers 2013, 5, 361–403. [Google Scholar] [CrossRef] [Green Version]
  4. Lecomte, P.; Jérôme, C. Recent Developments in Ring-Opening Polymerization of Lactones. Adv. Polym. Sci. 2012, 245, 173–218. [Google Scholar] [CrossRef]
  5. Thomas, C.M. Stereocontrolled ring-opening polymerization of cyclic esters: Synthesis of new polyester microstructures. Chem. Soc. Rev. 2010, 39, 165–173. [Google Scholar] [CrossRef] [PubMed]
  6. Walsh, D.J.; Hyatt, M.G.; Miller, S.A.; Guironnet, D. Recent Trends in Catalytic Polymerizations. ACS Catal. 2019, 9, 11153–11188. [Google Scholar] [CrossRef]
  7. Brannigan, R.P.; Dove, A.P. Synthesis, properties and biomedical applications of hydrolytically degradable materials based on aliphatic polyesters and polycarbonates. Biomater. Sci. 2017, 5, 9–21. [Google Scholar] [CrossRef] [PubMed]
  8. Kamber, N.E.; Jeong, W.; Waymouth, R.M.; Pratt, R.C.; Lohmeijer, B.G.G.; Hedrick, J.L. Organocatalytic Ring-Opening Polymerization. Chem. Rev. 2007, 107, 5813–5840. [Google Scholar] [CrossRef]
  9. Kiesewetter, M.K.; Shin, E.J.; Hedrick, J.L.; Waymouth, R.M. Organocatalysis: Opportunities and Challenges for Polymer Synthesis. Macromolecules 2010, 43, 2093–2107. [Google Scholar] [CrossRef]
  10. Fevre, M.; Pinaud, J.; Gnanou, Y.; Vignolle, J.; Taton, D. N-Heterocyclic carbenes (NHCs) as organocatalysts and structural components in metal-free polymer synthesis. Chem. Soc. Rev. 2013, 42, 2142–2172. [Google Scholar] [CrossRef]
  11. Dove, A.P. Organic Catalysis for Ring-Opening Polymerization. ACS Macro Lett. 2012, 1, 1409–1412. [Google Scholar] [CrossRef]
  12. Hu, S.; Zhao, J.; Zhang, G.; Schlaad, H. Macromolecular architectures through organocatalysis. Prog. Polym. Sci. 2017, 74, 34–77. [Google Scholar] [CrossRef]
  13. Khalil, A.; Cammas-Marion, S.; Coulembier, O. Organocatalysis Applied to the Ring-Opening Polymerization of β-Lactones: A Brief Overview. J. Polym. Sci. Part A Polym. Chem. 2019, 57, 657–672. [Google Scholar] [CrossRef]
  14. Bossion, A.; Heifferon, K.V.; Meabe, L.; Zivic, N.; Taton, D.; Hedrick, J.L.; Long, T.E.; Sardon, H. Opportunities for organocatalysis in polymer synthesis via step-growth methods. Prog. Polym. Sci. 2019, 90, 164–210. [Google Scholar] [CrossRef]
  15. Nifant’ev, I.; Ivchenko, P. DFT Modeling of Organocatalytic Ring-Opening Polymerization of Cyclic Esters: A Crucial Role of Proton Exchange and Hydrogen Bonding. Polymers 2019, 11, 2078. [Google Scholar] [CrossRef] [Green Version]
  16. Sarazin, Y.; Carpentier, J.-F. Discrete Cationic Complexes for Ring-Opening Polymerization Catalysis of Cyclic Esters and Epoxides. Chem. Rev. 2015, 115, 3564–3614. [Google Scholar] [CrossRef]
  17. Jianming, R.; Anguo, X.; Hongwei, W.; Hailin, Y. Review—Recent development of ring-opening polymerization of cyclic esters using aluminum complexes. Design. Monomers Polym. 2014, 17, 345–355. [Google Scholar] [CrossRef] [Green Version]
  18. Kremer, A.B.; Mehrkhodavandi, P. Dinuclear catalysts for the ring opening polymerization of lactide. Coord. Chem. Rev. 2019, 380, 35–57. [Google Scholar] [CrossRef]
  19. Lyubov, D.M.; Tolpygin, A.O.; Trifonov, A.A. Rare-earth metal complexes as catalysts for ring-opening polymerization of cyclic esters. Coord. Chem. Rev. 2019, 392, 83–145. [Google Scholar] [CrossRef]
  20. Nifant’ev, I.; Ivchenko, P. Coordination Ring-Opening Polymerization of Cyclic Esters: A Critical Overview of DFT Modeling and Visualization of the Reaction Mechanisms. Molecules 2019, 24, 4117. [Google Scholar] [CrossRef] [Green Version]
  21. Zhang, X.; Fevre, M.; Jones, G.O.; Waymouth, R.M. Catalysis as an Enabling Science for Sustainable Polymers. Chem. Rev. 2018, 118, 839–885. [Google Scholar] [CrossRef] [PubMed]
  22. Arbaoui, A.; Redshaw, C. Metal catalysts for ε-caprolactone polymerisation. Polym. Chem. 2010, 1, 801–826. [Google Scholar] [CrossRef]
  23. Zhong, Z.; Dijkstra, P.J.; Feijen, J. Controlled synthesis of biodegradable lactide polymers and copolymers using novel in situ generated or single-site stereoselective polymerization initiators. J. Biomater. Sci. Polym. Ed. 2004, 15, 929–946. [Google Scholar] [CrossRef] [PubMed]
  24. Hillmyer, M.A.; Tolman, W.B. Aliphatic polyester block polymers: Renewable, degradable, sustainable. Acc. Chem. Res. 2014, 47, 2390–2396. [Google Scholar] [CrossRef]
  25. Albertsson, A.-C.; Varma, I.K. Recent Developments in Ring Opening Polymerization of Lactones for Biomedical Applications. Biomacromolecules 2003, 4, 1466–1486. [Google Scholar] [CrossRef]
  26. Slomkowski, S. Biodegradable Polyesters for Tissue Engineering. Macromol. Symp. 2007, 253, 47–58. [Google Scholar] [CrossRef]
  27. Naira, L.S.; Laurencin, C.T. Biodegradable polymers as biomaterials. Prog. Polym. Sci. 2007, 32, 762–798. [Google Scholar] [CrossRef]
  28. Vert, M. Aliphatic Polyesters: Great Degradable Polymers That Cannot Do Everything. Biomacromolecules 2005, 6, 538–546. [Google Scholar] [CrossRef]
  29. Maitz, M.F. Applications of synthetic polymers in clinical medicine. Biosurface Biotribology 2015, 1, 161–176. [Google Scholar] [CrossRef] [Green Version]
  30. Pappalardo, D.; Mathisen, T.; Finne-Wistrand, A. Biocompatibility of resorbable polymers: A historical perspective and framework for the future. Biomacromolecules 2019, 20, 1465–1477. [Google Scholar] [CrossRef] [Green Version]
  31. Woodruff, M.A.; Hutmacher, D.W. The return of a forgotten polymer—Polycaprolactone in the 21st century. Prog. Polym. Sci. 2010, 35, 1217–1256. [Google Scholar] [CrossRef] [Green Version]
  32. Sisson, A.L.; Ekinci, D.; Lendlein, A. The contemporary role of ε-caprolactone chemistry to create advanced polymer architectures. Polymer 2013, 54, 4333–4350. [Google Scholar] [CrossRef] [Green Version]
  33. Liu, W.; Feng, Z.; Ou-Yang, W.; Pan, X.; Wang, X.; Huang, P.; Zhang, C.; Kong, D.; Wang, W. 3D printing of implantable elastic PLCL copolymer scaffolds. Soft Matter 2020, 16, 2141–2148. [Google Scholar] [CrossRef] [PubMed]
  34. Ruengdechawiwat, S.; Somsunan, R.; Molloy, R.; Siripitayananon, J.; Franklin, V.J.; Topham, P.D.; Tighe, B.J. Controlled Synthesis and Processing of a Poly(L-lactide-co-ε-caprolactone) Copolymer for Biomedical Use as an Absorbable Monofilament Surgical Suture. Adv. Mater. Res. 2014, 894, 172–176. [Google Scholar] [CrossRef]
  35. Fernández, J.; Etxeberria, A.; Sarasua, J.-R. Synthesis, structure and properties of poly(L-lactide-co-ε-caprolactone) statistical copolymers. J. Mechan. Behavior Biomed. Mater. 2012, 9, 100–112. [Google Scholar] [CrossRef]
  36. Fernández, J.; Larrañaga, A.; Etxeberria, A.; Wang, W.; Sarasua, J.R. A new generation of poly(lactide/ε-caprolactone) polymeric biomaterials for application in the medical field. J. Biomed. Mater. Res. Part A 2014, 102, 3573–3584. [Google Scholar] [CrossRef]
  37. Ruengdechawiwat, S.; Siripitayananon, J.; Molloy, R.; Somsunan, R.; Topham, P.D.; Tighe, B.J. Preparation of a poly(L-lactide-co-caprolactone) copolymer using a novel tin(II) alkoxide initiator and its fiber processing for potential use as an absorbable monofilament surgical suture. Int. J. Polym. Mat. Polym. Biomat. 2016, 65, 277–284. [Google Scholar] [CrossRef] [Green Version]
  38. Phetsuk, S.; Molloy, R.; Nalampang, K.; Meepowpan, P.; Topham, P.D.; Tighe, B.J.; Punyodom, W. Physical and thermal properties of l-lactide/ϵ-caprolactone copolymers: The role of microstructural design. Polym. Int. 2020, 69, 248–256. [Google Scholar] [CrossRef]
  39. Vion, J.M.; Jerome, R.; Teyssie, P.; Aubin, M.; Prudhomme, R.E. Synthesis, characterization, and miscibility of caprolactone random copolymers. Macromolecules 1986, 19, 1828–1838. [Google Scholar] [CrossRef]
  40. Vanhoorne, P.; Dubois, P.; Jerome, R.; Teyssie, P. Macromolecular engineering of polylactones and polylactides. 7. Structural analysis of copolyesters of ε-caprolactone and L- or D,L-lactide initiated by triisopropoxyaluminum. Macromolecules 1992, 25, 37–44. [Google Scholar] [CrossRef]
  41. Choi, E.-J.; Park, J.-K.; Chang, H.-N. Effect of polymerization catalysts on the microstructure of P(L-LA-co -εCL). J. Polym. Sci. Patr B Polym. Phys. 1994, 32, 2481–2489. [Google Scholar] [CrossRef]
  42. Matsubara, K.; Eda, K.; Ikutake, Y.; Dan, M.; Tanizaki, N.; Koga, Y.; Yasuniwa, M. Aluminum complex initiated copolymerization of lactones and DL-lactide to form crystalline gradient block copolymers containing stereoblock lactyl chains. J. Polym. Sci. Part A Polym. Chem. 2016, 54, 2536–2544. [Google Scholar] [CrossRef]
  43. Bai, J.; Xiao, X.; Zhang, Y.; Chao, J.; Chen, X. β-Pyridylenolate zinc catalysts for the ring-opening homo- and copolymerization of ε-caprolactone and lactides. Dalton Trans. 2017, 46, 9846–9858. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Huang, H.-C.; Li, Z.-J.; Wang, B.; Chen, X.; Li, Y.-S. Synthesis of lactide/ɛ-caprolactone quasi-random copolymer by using rationally designed mononuclear aluminum complexes with modified β-ketiminato ligand. J. Polym. Sci. Part A Polym. Chem. 2018, 56, 203–212. [Google Scholar] [CrossRef]
  45. Harinath, A.; Bhattacharjee, J.; Sarkar, A.; Nayek, H.P.; Panda, T.K. Ring Opening Polymerization and Copolymerization of Cyclic Esters Catalyzed by Group 2 Metal Complexes Supported by Functionalized P–N Ligands. Inorg. Chem. 2018, 57, 2503–2516. [Google Scholar] [CrossRef]
  46. Wang, Y.; Xiang, D.; Ren, R.; Luo, J.; Sun, W.; Shen, Z. L-lactide homopolymerization and copolymerization with ɛ-caprolactone by tetrahydrosalen stabilized yttrium borohydride complex. Chin. J. Polym. Sci. 2014, 32, 1500–1506. [Google Scholar] [CrossRef]
  47. Nifant’ev, I.; Shlyakhtin, A.; Kosarev, M.; Gavrilov, D.; Karchevsky, S.; Ivchenko, P. DFT Visualization and Experimental Evidence of BHT-Mg-Catalyzed Copolymerization of Lactides, Lactones and Ethylene Phosphates. Polymers 2019, 11, 1641. [Google Scholar] [CrossRef] [Green Version]
  48. Florczak, M.; Duda, A. Effect of the Configuration of the Active Center on Comonomer Reactivities: The Case of ε-Caprolactone/l,l-Lactide Copolymerization. Angew. Chem. Int. Ed. 2008, 47, 9088–9091. [Google Scholar] [CrossRef]
  49. Li, G.; Lamberti, M.; Pappalardo, D.; Pellecchia, C. Random Copolymerization of ε-Caprolactone and Lactides Promoted by Pyrrolylpyridylamido Aluminum Complexes. Macromolecules 2012, 45, 8614–8620. [Google Scholar] [CrossRef]
  50. Nomura, N.; Akita, A.; Ishii, R.; Mizuno, M. Random Copolymerization of ε-Caprolactone with Lactide Using a Homosalen−Al Complex. J. Am. Chem. Soc. 2010, 132, 1750–1751. [Google Scholar] [CrossRef]
  51. Wang, Y.; Ma, H. Exploitation of dinuclear salan aluminum complexes for versatile copolymerization of ε-caprolactone and L-lactide. Chem. Commun. 2012, 6729–6731. [Google Scholar] [CrossRef] [PubMed]
  52. Li, L.; Liu, B.; Liu, D.; Wu, C.; Li, S.; Liu, B.; Cui, D. Copolymerization of ε-Caprolactone and l-Lactide Catalyzed by Multinuclear Aluminum Complexes: An Immortal Approach. Organometallics 2014, 33, 6474–6480. [Google Scholar] [CrossRef]
  53. Sun, Z.; Duan, R.; Yang, J.; Zhang, H.; Li, S.; Pang, X.; Chen, W.; Chen, X. Bimetallic Schiff base complexes for stereoselective polymerisation of racemic-lactide and copolymerisation of racemic-lactide with ε-caprolactone. RSC Adv. 2016, 6, 17531–17538. [Google Scholar] [CrossRef]
  54. Kan, C.; Ma, H. Copolymerization of L-lactide and ε-caprolactone catalyzed by mono-and dinuclear salen aluminum complexes bearing bulky 6,6′-dimethylbipheyl-bridge: Random and tapered copolymer. RSC Adv. 2016, 6, 47402–47409. [Google Scholar] [CrossRef]
  55. Pilone, A.; De Maio, N.; Press, K.; Venditto, V.; Pappalardo, D.; Mazzeo, M.; Pellecchia, C.; Kol, M.; Lamberti, M. Ring-opening homo- and co-polymerization of lactides and ε-caprolactone by salalen aluminum complexes. Dalton Trans. 2015, 44, 2157–2165. [Google Scholar] [CrossRef]
  56. Yang, J.; Sun, Z.; Duan, R.; Li, L.; Pang, X.; Chen, X. Copolymer of lactide and ε-caprolactone catalyzed by bimetallic Schiff base aluminum complexes. Sci. China Chem. 2016, 59, 1384–1389. [Google Scholar] [CrossRef]
  57. Chandanabodhi, D.; Nanok, T. A DFT study of the ring-opening polymerization mechanism of l-lactide and ε-caprolactone using aluminium salen-type initiators: Towards an understanding of their reactivities in homo- and copolymerization. Mol. Catal. 2017, 436, 145–156. [Google Scholar] [CrossRef]
  58. Meléndez, D.O.; Castro-Osma, J.A.; Lara-Sánchez, A.; Rojas, R.S.; Otero, A. Ring-opening polymerization and copolymerization of cyclic esters catalyzed by amidinate aluminum complexes. J. Polym. Sci. Part A Polym. Chem. 2017, 55, 2397–2407. [Google Scholar] [CrossRef]
  59. Shi, T.; Luo, W.; Liu, S.; Li, Z. Controlled random copolymerization of rac-lactide and ɛ-caprolactone by well-designed phenoxyimine Al complexes. J. Polym. Sci. Part A Polym. Chem. 2018, 56, 611–617. [Google Scholar] [CrossRef]
  60. García-Valle, F.M.; Cuenca, T.; Mosquera, M.E.G.; Milione, S.; Cano, J. Ring-Opening Polymerization (ROP) of cyclic esters by a versatile aluminum Diphenoxyimine Complex: From polylactide to random copolymers. Eur. Polym. J. 2020, 125, 109527. [Google Scholar] [CrossRef]
  61. Chumsaeng, P.; Haesuwannakij, S.; Virachotikul, A.; Phomphrai, K. Random copolymerization of l-lactide and ε-caprolactone by aluminum alkoxide complexes supported by N2O2 bis(phenolate)-amine ligands. J. Polym. Sci. Part A Polym. Chem. 2019, 57, 1635–1644. [Google Scholar] [CrossRef]
  62. Honrado, M.; Otero, A.; Fernández-Baeza, J.; Sánchez-Barba, L.F.; Garcés, A.; Lara-Sánchez, A.; Rodríguez, A.M. Copolymerization of Cyclic Esters Controlled by Chiral NNO-Scorpionate Zinc Initiators. Organometallics 2016, 35, 189–197. [Google Scholar] [CrossRef]
  63. Lin, L.; Xu, Y.; Wang, S.; Xiao, M.; Meng, Y. Ring-opening polymerization of l-lactide and ε-caprolactone catalyzed by versatile tri-zinc complex: Synthesis of biodegradable polyester with gradient sequence structure. Eur. Polym. J. 2016, 74, 109–119. [Google Scholar] [CrossRef]
  64. Wyrębiak, R.; Oledzka, E.; Figat, R.; Sobczak, M. Application of Diethylzinc/Propyl Gallate Catalytic System for Ring-Opening Copolymerization of rac-Lactide and ε-Caprolactone. Molecules 2019, 24, 4168. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Fang, C.; Ma, H. Ring-opening polymerization of rac-lactide, copolymerization of rac-lactide and ε-caprolactone by zinc complexes bearing pyridyl-based tridentate amino-phenolate ligands. Eur. Polym. J. 2019, 119, 289–297. [Google Scholar] [CrossRef]
  66. Keram, M.; Ma, H. Ring-opening polymerization of lactide, ε-caprolactone and their copolymerization catalyzed by β-diketiminate zinc complexes. Appl. Organomet. Chem. 2017, 31, e3893. [Google Scholar] [CrossRef]
  67. Webster, R.L.; Noroozi, N.; Hatzikiriakos, S.G.; Thomson, J.A.; Schafer, L.L. Titanium pyridonates and amidates: Novel catalysts for the synthesis of random copolymers. Chem. Commun. 2013, 49, 57–59. [Google Scholar] [CrossRef]
  68. Lapenta, R.; Mazzeo, M.; Grisi, F. Monoamidinate titanium complexes: Highly active catalysts for the polymerization and copolymerization of L-lactide and ε-caprolactone. RSC Adv. 2015, 5, 87635–87644. [Google Scholar] [CrossRef]
  69. Gilmour, D.J.; Webster, R.L.; Perrya, M.R.; Schafer, L.L. Titanium pyridonates for the homo- and copolymerization of rac-lactide and ε-caprolactone. Dalton Trans. 2015, 44, 12411–12419. [Google Scholar] [CrossRef] [Green Version]
  70. Pappuru, S.; Chakraborty, D.; Sundar, J.V.; Roymuhury, S.K.; Ramkumar, V.; Subramanian, V.; Chand, D.K. Group 4 complexes of salicylbenzoxazole ligands as effective catalysts for the ring-opening polymerization of lactides, epoxides and copolymerization of ε-caprolactone with L-lactide. Polymer 2016, 102, 231–247. [Google Scholar] [CrossRef]
  71. Della Monica, F.; Luciano, E.; Buonerba, A.; Grassi, A.; Milione, S.; Capacchione, C. Poly(lactide-co-ε-caprolactone) copolymers prepared using bis-thioetherphenolate group 4 metal complexes: Synthesis, characterization and morphology. RSC Adv. 2014, 4, 51262–51267. [Google Scholar] [CrossRef]
  72. Dakshinamoorthy, D.; Peruch, F. Block and random copolymerization of ε-caprolactone, L-, and rac-lactide using titanium complex derived from aminodiol ligand. J. Polym. Sci. Part A Polym. Chem. 2012, 50, 2161–2171. [Google Scholar] [CrossRef]
  73. Sun, Z.; Zhao, Y.; Santoro, O.; Elsegood, M.R.J.; Bedwell, E.V.; Zahra, K.; Walton, A.; Redshaw, C. Use of titanocalix[4]arenes in the ring opening polymerization of cyclic esters. Catal. Sci. Technol. 2020, 10, 1619–1639. [Google Scholar] [CrossRef]
  74. Maruta, Y.; Abiko, A. Random copolymerization of ε-caprolactone and l-lactide with molybdenum complexes. Polym. Bull. 2014, 71, 989–999. [Google Scholar] [CrossRef]
  75. Slattery, R.M.; Stahl, A.E.; Brereton, K.R.; Rheingold, A.L.; Green, D.B.; Fritsch, J.M. Ring opening polymerization and copolymerization of L-lactide and ɛ-caprolactone by bis-ligated magnesium complexes. J. Polym. Sci. Part A Polym. Chem. 2019, 57, 48–59. [Google Scholar] [CrossRef] [Green Version]
  76. Shao, J.; Zhou, H.; Wang, Y.; Luo, Y.; Yao, Y. Lanthanum complexes stabilized by a pentadentate Schiff-base ligand: Synthesis, characterization, and reactivity in statistical copolymerization of ε-caprolactone and l-lactide. Dalton Trans. 2020, 49, 5842–5850. [Google Scholar] [CrossRef]
  77. Fadlallah, S.; Jothieswaran, J.; Capet, F.; Bonnet, F.; Visseaux, M. Mixed Allyl Rare-Earth Borohydride Complexes: Synthesis, Structure, and Application in (Co-)Polymerization Catalysis of Cyclic Esters. Chem. Eur. J. 2017, 23, 15644–15654. [Google Scholar] [CrossRef]
  78. Ouyang, H.; Yuan, D.; Nie, K.; Zhang, Y.; Yao, Y.; Cui, D. Synthesis and Characterization of Dinuclear Salan Rare-Earth Metal Complexes and Their Application in the Homo- and Copolymerization of Cyclic Esters. Inorg. Chem. 2018, 57, 9028–9038. [Google Scholar] [CrossRef]
  79. Chen, Y.-H.; Chen, Y.-J.; Tseng, H.-C.; Lian, C.-J.; Tsai, H.-Y.; Lai, Y.-C.; Hsu, S.C.N.; Chiang, M.Y.; Chen, H.-Y. Comparing L-lactide and ε-caprolactone polymerization by using aluminum complexes bearing ketiminate ligands: Steric, electronic, and chelating effects. RSC Adv. 2015, 5, 100272–100280. [Google Scholar] [CrossRef]
  80. Gutmann, V. Solvent effects on the reactivities of organometallic compounds. Coord. Chem. Rev. 1976, 18, 225–255. [Google Scholar] [CrossRef]
  81. Nifant’ev, I.E.; Shlyakhtin, A.V.; Bagrov, V.V.; Minyaev, M.E.; Churakov, A.V.; Karchevsky, S.G.; Birin, K.P.; Ivchenko, P.V. Mono-BHT heteroleptic magnesium complexes: Synthesis, molecular structure and catalytic behavior in the ring-opening polymerization of cyclic esters. Dalton Trans. 2017, 46, 12132–12146. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  82. Balasanthiran, V.; Chisholm, M.H.; Choojun, K.; Durr, C.B. Ethyl 2-hydroxy-2-methylpropanoate derivatives of magnesium and zinc. The effect of chelation on the homo- and copolymerization of lactide and ε-caprolactone. Dalton Trans. 2014, 43, 2781–2788. [Google Scholar] [CrossRef] [PubMed]
  83. Chumsaeng, P.; Haesuwannakij, S.; Bureekaew, S.; Ervithayasuporn, V.; Namuangruk, S.; Phomphrai, K. Polymerization of ε-Caprolactone Using Bis(phenoxy)-amine Aluminum Complex: Deactivation by Lactide. Inorg. Chem. 2018, 57, 10170–10179. [Google Scholar] [CrossRef] [PubMed]
  84. Nifant’ev, I.E.; Shlyakhtin, A.V.; Tavtorkin, A.N.; Kosarev, M.A.; Gavrilov, D.E.; Komarov, P.D.; Ilyin, S.O.; Karchevsky, S.G.; Ivchenko, P.V. Mechanistic study of transesterification in TBD-catalyzed ring-opening polymerization of methyl ethylene phosphate. Eur. Polym. J. 2019, 118, 393–403. [Google Scholar] [CrossRef]
  85. Kricheldorf, H.R.; Bornhorst, K.; Hachmann-Thiessen, H. Bismuth(III) n-Hexanoate and Tin(II) 2-Ethylhexanoate Initiated Copolymerizations of ε-Caprolactone and l-Lactide. Macromolecules 2005, 38, 5017–5024. [Google Scholar] [CrossRef]
  86. Fernández, J.; Meaurio, E.; Chaos, A.; Etxeberria, A.; Alonso-Varona, A.; Sarasua, J.R. Synthesis and characterization of poly (l-lactide/ε-caprolactone) statistical copolymers with well resolved chain microstructures. Polymer 2013, 54, 2621–2631. [Google Scholar] [CrossRef]
  87. Bonné, C.; Pahwa, A.; Picard, C.; Visseaux, M. Bismuth tris-silylamide: A new non-toxic metal catalyst for the ring opening (co-)polymerization of cyclic esters under smooth conditions. Inorg. Chim. Acta 2017, 455, 521–527. [Google Scholar] [CrossRef]
  88. Balasanthiran, V.; Beilke, T.L.; Chisholm, M.H. Use of over the counter oral relief aids or dietary supplements for the ring-opening polymerization of lactide. Dalton Trans. 2013, 42, 9274–9278. [Google Scholar] [CrossRef]
  89. Ouyang, H.; Nie, K.; Yuan, D.; Zhang, Y.; Cui, D.; Yao, Y. A convenient method to prepare random LA/CL copolymers from poly(L-lactide) and ε-caprolactone. Sci. China Chem. 2018, 61, 708–714. [Google Scholar] [CrossRef]
  90. González, V.; Vignati, D.A.L.; Pons, M.-N.; Montarges-Pelletier, E.; Bojic, C.; Giamberini, L. Lanthanide ecotoxicity: First attempt to measure environmental risk for aquatic organisms. Environ. Pollut. 2015, 199, 139–147. [Google Scholar] [CrossRef]
  91. Herrmann, H.; Nolde, J.; Berger, S.; Heise, S. Aquatic ecotoxicity of lanthanum—A review and an attempt to derive water and sediment quality criteria. Ecotoxic. Environ. Safety 2016, 124, 213–238. [Google Scholar] [CrossRef] [Green Version]
  92. Cui, J.; Zhang, Z.; Bai, W.; Zhang, L.; He, X.; Ma, Y.; Liu, Y.; Chai, Z. Effects of rare earth elements La and Yb on the morphological and functional development of zebrafish embryos. J. Environ. Sci. 2012, 24, 209–213. [Google Scholar] [CrossRef]
  93. Chen, H.-Y.; Mialon, L.; Abboud, K.A.; Miller, S.A. Comparative Study of Lactide Polymerization with Lithium, Sodium, Magnesium, and Calcium Complexes of BHT. Organometallics 2012, 31, 5252–5261. [Google Scholar] [CrossRef]
  94. Fang, H.-J.; Lai, P.-S.; Chen, J.-Y.; Hsu, S.C.N.; Peng, W.-D.; Ou, S.-W.; Lai, Y.-C.; Chen, Y.-J.; Chung, H.; Chen, Y.; et al. ε-Caprolactone polymerization under air by the biocatalyst: Magnesium 2,6-di-tert-butyl-4-methylphenoxide. J. Polym. Sci. Part A Polym. Chem. 2012, 50, 2697–2704. [Google Scholar] [CrossRef]
  95. Wilson, J.A.; Hopkins, S.A.; Wright, P.M.; Dove, A.P. ‘Immortal’ ring-opening polymerization of ω-pentadecalactone by Mg(BHT)2(THF)2. Polym. Chem. 2014, 5, 2691–2694. [Google Scholar] [CrossRef]
  96. Wilson, J.A.; Hopkins, S.A.; Wright, P.M.; Dove, A.P. Synthesis of ω-Pentadecalactone Copolymers with Independently Tunable Thermal and Degradation Behavior. Macromolecules 2015, 48, 950–958. [Google Scholar] [CrossRef]
  97. Nifant’ev, I.E.; Shlyakhtin, A.V.; Tavtorkin, A.N.; Ivchenko, P.V.; Borisov, R.S.; Churakov, A.V. Monomeric and dimeric magnesium mono-BHT complexes as effective ROP catalysts. Catal. Commun. 2016, 87, 106–111. [Google Scholar] [CrossRef]
  98. Minyaev, M.E.; Churakov, A.V.; Nifant’ev, I.E. Structural diversity of polynuclear MgxOy cores in magnesium phenoxide complexes. Acta Cryst. 2017, C73, 854–861. [Google Scholar] [CrossRef]
  99. Minyaev, M.E.; Nifant’ev, I.E.; Shlyakhtin, A.V.; Ivchenko, P.V.; Lyssenko, K.A. Phenoxide and alkoxide complexes of Mg, Al and Zn and their use for ring-opening polymerization of ε-caprolactone with initiators of different nature. Acta Cryst. 2018, C74, 548–557. [Google Scholar] [CrossRef]
  100. Akatsuka, M.; Aida, T.; Inoue, S. Alcohol/methylaluminum diphenolate systems as novel, versatile initiators for synthesis of narrow molecular weight distribution polyester and polycarbonate. Macromolecules 1995, 28, 1320–1322. [Google Scholar] [CrossRef]
  101. Descour, C.; Sciarone, T.J.J.; Cavallo, D.; Macko, T.; Kelchtermans, M.; Korobkov, I.; Duchateau, R. Exploration of the effect of 2,6-(t-Bu)2-4-Me-C6H2OH (BHT) in chain shuttling polymerization. Polym. Chem. 2013, 4, 4718–4729. [Google Scholar] [CrossRef]
  102. Lozhkin, B.; Shlyakhtin, A.; Bagrov, V.; Ivchenko, P.; Nifant’ev, I. Effective stereoselective approach to substituted 1,4-dioxan-2,5-diones as prospective substrates for ring-opening polymerization. Mendeleev Commun. 2018, 28, 61–63. [Google Scholar] [CrossRef]
  103. Nifant’ev, I.E.; Shlyakhtin, A.V.; Bagrov, V.V.; Komarov, P.D.; Kosarev, M.A.; Tavtorkin, A.N.; Minyaev, M.E.; Roznyatovsky, V.A.; Ivchenko, P.V. Controlled ring-opening polymerisation of cyclic phosphates, phosphonates and phosphoramidates catalysed by hereroleptic BHT-alkoxy magnesium complexes. Polym. Chem. 2017, 8, 6806–6816. [Google Scholar] [CrossRef]
  104. Xiao, C.-S.; Wang, Y.-C.; Du, J.-Z.; Chen, X.-S.; Wang, J. Kinetics and Mechanism of 2-Ethoxy-2-oxo-1,3,2-dioxaphospholane Polymerization Initiated by Stannous Octoate. Macromolecules 2006, 39, 6825–6831. [Google Scholar] [CrossRef]
  105. Darensbourg, D.J.; Rainey, P.; Yarbrough, J. Bis-Salicylaldiminato Complexes of Zinc. Examination of the Catalyzed Epoxide/CO2 Copolymerization. Inorg. Chem. 2001, 40, 986–993. [Google Scholar] [CrossRef]
  106. Bruker. APEX-III; Bruker AXS Inc.: Madison, WI, USA, 2019. [Google Scholar]
  107. Krause, L.; Herbst-Irmer, R.; Sheldrick, G.M.; Stalke, D. Comparison of silver and molybdenum microfocus X-ray sources for single-crystal structure determination. J. Appl. Cryst. 2015, 48, 3–10. [Google Scholar] [CrossRef] [Green Version]
  108. Sheldrick, G.M. SHELXT—Integrated space-group and crystal-structure determination. Acta Cryst. 2015, A71, 3–8. [Google Scholar] [CrossRef] [Green Version]
  109. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Cryst. 2015, C71, 3–8. [Google Scholar] [CrossRef]
  110. Macrae, C.F.; Sovago, I.; Cottrell, S.J.; Galek, P.T.A.; McCabe, P.; Pidcock, E.; Platings, M.; Shields, G.P.; Stevens, J.S.; Towler, M.; et al. Mercury 4.0: From visualization to analysis, design and prediction. J. Appl. Cryst. 2020, 53, 226–235. [Google Scholar] [CrossRef] [Green Version]
  111. CCDC Access Structures. Available online: https://www.ccdc.cam.ac.uk/structures/ (accessed on 1 October 2020).
  112. Laikov, D.N.; Ustynyuk, Y.A. PRIRODA-04: A quantum-chemical program suite. New possibilities in the study of molecular systems with the application of parallel computing. Russ. Chem. Bull. 2005, 54, 820–826. [Google Scholar] [CrossRef]
  113. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 09, Revision, A.01; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  114. Perdew, J.P.; Wang, Y. Accurate and Simple Analytic Representation of the Electron-Gas Correlation Energy. Phys. Rev. B 1992, 45, 13244–13249. [Google Scholar] [CrossRef] [PubMed]
  115. Becke, A.D. Density-functional thermochemistry. III. The role of exact exchange. J. Chem. Phys. 1993, 98, 5648–5652. [Google Scholar] [CrossRef] [Green Version]
  116. Sosa, C.; Andzelm, J.; Elkin, B.C.; Wimmer, E.; Dobbs, K.D.; Dixon, D.A. A local density functional study of the structure and vibrational frequencies of molecular transition-metal compounds. J. Phys. Chem. 1992, 96, 6630–6636. [Google Scholar] [CrossRef]
  117. Godbout, N.; Salahub, D.R.; Andzelm, J.; Wimmer, E. Optimization of Gaussian-type basis sets for local spin density functional calculations. Part I. Boron through neon, optimization technique and validation. Can. J. Chem. 1992, 70, 560–571. [Google Scholar] [CrossRef] [Green Version]
  118. Nifant’ev, I.; Shlyakhtin, A.; Kosarev, M.; Karchevsky, S.; Ivchenko, P. Mechanistic Insights of BHT-Mg-Catalyzed Ethylene Phosphate’s Coordination Ring-Opening Polymerization: DFT Modeling and Experimental Data. Polymers 2018, 10, 1105. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  119. Nifant’ev, I.E.; Shlyakhtin, A.V.; Kosarev, M.A.; Komarov, P.D.; Karchevsky, S.G.; Ivchenko, P.V. Data for theoretical study of the mechanisms of ring-opening polymerization of methyl ethylene phosphate. Data Brief 2019, 26, 104431. [Google Scholar] [CrossRef]
  120. Wang, Y.-C.; Yuan, Y.-Y.; Du, J.-Z.; Yang, X.-Z.; Wang, J. Recent progress in polyphosphoesters: From controlled synthesis to biomedical applications. Macromol. Biosci. 2009, 9, 1154–1164. [Google Scholar] [CrossRef]
  121. Steinbach, T.; Wurm, F.R. Poly(phosphoester)s: A new platform for degradable polymers. Angew. Chem. Int. Ed. 2015, 54, 6098–6108. [Google Scholar] [CrossRef]
  122. Yilmaz, Z.E.; Jérôme, C. Polyphosphoesters: New trends in synthesis and drug delivery applications. Macromol. Biosci. 2016, 16, 1745–1761. [Google Scholar] [CrossRef]
  123. Bauer, K.N.; Tee, H.T.; Velencoso, M.M.; Wurm, F.R. Main-chain poly(phosphoester)s: History, syntheses, degradation, bio-and flame-retardant applications. Prog. Polym. Sci. 2017, 73, 61–122. [Google Scholar] [CrossRef]
  124. Appukutti, N.; Serpell, C.J. High definition polyphosphoesters: Between nucleic acids and plastics. Polym. Chem. 2018, 9, 2210–2226. [Google Scholar] [CrossRef]
Polymers 12 02273 sch001 550
Scheme 1. Coordination ring-opening polymerization of cyclic esters: (A) monomer coordination; (B) nucleophilic addition to carbonyl group; (C) coordination of endocyclic oxygen and (D) ring-opening.
Scheme 1. Coordination ring-opening polymerization of cyclic esters: (A) monomer coordination; (B) nucleophilic addition to carbonyl group; (C) coordination of endocyclic oxygen and (D) ring-opening.
Polymers 12 02273 sch001
Polymers 12 02273 sch002 550
Scheme 2. Homopolymerization (A) and random copolymerization (B) of LA and εCL, formation of random LA/εCL copolymers via transesterification of PLA (C,D).
Scheme 2. Homopolymerization (A) and random copolymerization (B) of LA and εCL, formation of random LA/εCL copolymers via transesterification of PLA (C,D).
Polymers 12 02273 sch002
Polymers 12 02273 sch003 550
Scheme 3. Metal complexes 1–3 studied in homo- and copolymerization of lLA and εCL.
Scheme 3. Metal complexes 1–3 studied in homo- and copolymerization of lLA and εCL.
Polymers 12 02273 sch003
Polymers 12 02273 g001 550

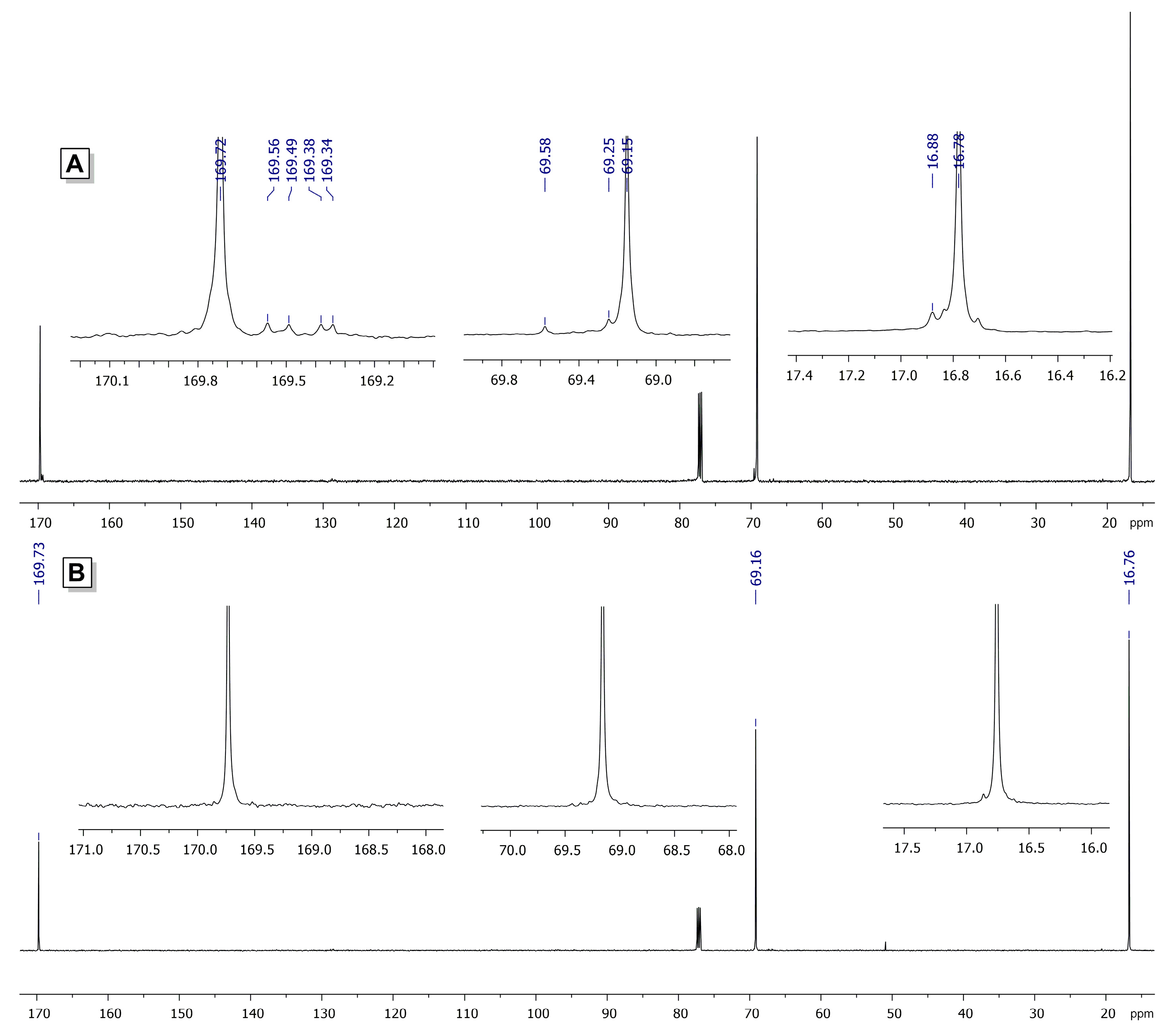

Figure 1. 13C NMR spectra (CDCl3, 20 °C) of PLLA obtained in the presence of 1 (A) and 3 (B).
Figure 1. 13C NMR spectra (CDCl3, 20 °C) of PLLA obtained in the presence of 1 (A) and 3 (B).
Polymers 12 02273 g001
Polymers 12 02273 sch004 550
Scheme 4. Synthesis of zinc complex 4.
Scheme 4. Synthesis of zinc complex 4.
Polymers 12 02273 sch004
Polymers 12 02273 g002 550
Figure 2. Molecular structure of the complex 4. The probability for thermal ellipsoids is set to the 50% level.
Figure 2. Molecular structure of the complex 4. The probability for thermal ellipsoids is set to the 50% level.
Polymers 12 02273 g002
Polymers 12 02273 g003 550
Figure 3. 1H NMR spectra (CDCl3, 20 °C, 600 MHz) of PLLA (A), PCL (B) and lLA/εCL copolymers obtained at the 1:5 lLA/εCL ratio using complexes 1 (C) and 3 (D).
Figure 3. 1H NMR spectra (CDCl3, 20 °C, 600 MHz) of PLLA (A), PCL (B) and lLA/εCL copolymers obtained at the 1:5 lLA/εCL ratio using complexes 1 (C) and 3 (D).
Polymers 12 02273 g003
Polymers 12 02273 g004 550
Figure 4. 13C NMR spectra (CDCl3, 20 °C, 151 MHz) of the products of lLA/εCL copolymerization using 3 (A) and 4 (B) as a catalysts, and transesterification of PLLA by εCL in the presence of 3 (C).
Figure 4. 13C NMR spectra (CDCl3, 20 °C, 151 MHz) of the products of lLA/εCL copolymerization using 3 (A) and 4 (B) as a catalysts, and transesterification of PLLA by εCL in the presence of 3 (C).
Polymers 12 02273 g004
Polymers 12 02273 sch005 550
Scheme 5. Calculated thermodynamic data for ligand exchange and εCL ring-opening during lLA/εCL copolymerization. The values of the free energies (kcal/mol) relative to I-0 are colored by green for Mg and by black for Zn.
Scheme 5. Calculated thermodynamic data for ligand exchange and εCL ring-opening during lLA/εCL copolymerization. The values of the free energies (kcal/mol) relative to I-0 are colored by green for Mg and by black for Zn.
Polymers 12 02273 sch005
Polymers 12 02273 sch006 550
Scheme 6. Calculated thermodynamic data for ligand exchange and transesterification during lLA/εCL copolymerization. The values of the free energies (kcal/mol) relative to I-2’ are colored by green for Mg and by black for Zn.
Scheme 6. Calculated thermodynamic data for ligand exchange and transesterification during lLA/εCL copolymerization. The values of the free energies (kcal/mol) relative to I-2’ are colored by green for Mg and by black for Zn.
Polymers 12 02273 sch006
Polymers 12 02273 g005 550
Figure 5. Optimized geometries of the transition states of PLA transesterification TS-1 (A) and enolization TS-3 (C) for M = Mg (left) and Zn (right); close contact in Mg-MOMP complex I-3’ (B). Interatomic distances are given in Å.
Figure 5. Optimized geometries of the transition states of PLA transesterification TS-1 (A) and enolization TS-3 (C) for M = Mg (left) and Zn (right); close contact in Mg-MOMP complex I-3’ (B). Interatomic distances are given in Å.
Polymers 12 02273 g005
Polymers 12 02273 sch007 550
Scheme 7. Comonomers studied in the synthesis of random copolymers with εCL in the presence of 3/BnOH.
Scheme 7. Comonomers studied in the synthesis of random copolymers with εCL in the presence of 3/BnOH.
Polymers 12 02273 sch007
Table
Table 1. Homopolymerization results for complexes 1–3 (1 M monomer solutions in toluene, [Mon]/[Precat]/[BnOH] ratio 100:1:1, 2 h).
Table 1. Homopolymerization results for complexes 1–3 (1 M monomer solutions in toluene, [Mon]/[Precat]/[BnOH] ratio 100:1:1, 2 h).
EntryPrecat.MonomerT, °CConv., %Mn (theo), ×103 Da 1Mn (SEC), ×103 Da 2ĐM2
11lLA20>9914.5212.521.97
22lLA200---
33lLA205---
41lLA100>9914.5213.321.85
52lLA10021---
63lLA100>9914.5212.542.03
71εCL20>9911.4113.501.40
82εCL20>9911.4124.291.49
93εCL200---
101εCL100>9911.416.921.50
112εCL1009410.738.111.55
123εCL1009911.308.302.19
1 Calculated by the formula Mn (theo) = M(monomer) × Conv. + 108.14, where 108.14 is M of the initiator BnOH. 2 Determined by SEC vs polystyrene standards and corrected by a factors of 0.56 (PCL) and 0.58 (PLA).
Table
Table 2. LA/εCL copolymerization results for complexes 1–3.
Table 2. LA/εCL copolymerization results for complexes 1–3.
EntryPre-Cat.lLA/εCL/
Cat/BnOH Ratio		[lLA], mol/L[εCL], mol/LT, °Ct, hConversion, % 1Mn (theo), ×103 Da 2Mn (SEC), ×103 Da 3ĐM3CLC, % 4ASLC 5
lLAεCL
1150/50/1/10.50.5202>9907.108.301.570-
2250/50/1/10.50.520200---0-
3350/50/1/10.50.5202~50---0-
4150/50/1/10.50.51002>9907.109.701.480-
5250/50/1/10.50.51002250---0-
6350/50/1/10.50.5100299368.2713.151.450~1.0
7a150/250/1/10.52.510018306.095.771.280-
7b38606.315.461.440-
7c58706.387.301.350-
7d158936.528.581.34<11.4
8a250/250/1/10.52.510013033.133.391.130-
8b3781710.589.001.15<13.2
8c5>997929.8619.761.57107.1
8d15>999835.2831.901.94146.8
9a350/250/1/10.52.51001992213.5211.971.57111.7
9b3>995823.8613.782.06213.3
9c5>998230.7120.471.72314.0
9d15>999634.7126.071.77324.6
10a450/250/1/10.52.510019437.7413.071.260-
10b3>994319.5121.731.6575.7
10c5>997829.5735.401.72116.4
1 Determined by the analysis of 1H NMR spectra of the reaction mixtures. 2 Calculated by the formula Mn (theo) = Σ(M(monomer) × Conversion) + 108.14, where 108.14 is M of the initiator BnOH. 3 Determined by SEC vs. polystyrene standards and corrected by a factor of 0.57 (average value for PCL/PLA). 4 Percentage of mono-lactate fragments CLC in PLLA (see Section 3.4). 5 ASLC—average sequence length of the PCL fragment in the copolymer, calculated by integration of –CH2O– signals at 4.05 ppm (CC sequence) and 4.13 ppm (CL sequence, see Section 3.4).
Table
Table 3. Copolymerization results for εCL using 3/BnOH catalysis (0.5 M comonomer and 2.5 M εCL solutions in toluene, [Comon]/[εCL]/[3]/[BnOH] 50:250:1:1, 100 °C).
Table 3. Copolymerization results for εCL using 3/BnOH catalysis (0.5 M comonomer and 2.5 M εCL solutions in toluene, [Comon]/[εCL]/[3]/[BnOH] 50:250:1:1, 100 °C).
RunComonomerReaction Time, hConversion, %Mn (theo), ×103 Da 1Mn (SEC), ×103 Da 2ĐM2ASLC 3
Comon.εCL
1PLLA5-9734.9922.961.746.0
215-9935.5627.251.855.9
3aMeGL194~16.515.591.37~1
3b3>995823.1614.251.863.1
3c5>999132.5823.591.793.6
4aPhGL1>99210.291.543.20-
4b3>99511.141.493.56-
4c5>991213.141.515.64-
5aEtEP1>99>9935.1623.021.4820
5b3>99>9935.1619.231.9419
5c5>99>9935.1624.011.6014.5
6aEtOEP1>998130.8336.121.916.8
6b3>998231.1134.552.125.2
6c5>998431.6838.772.424.5
1 Calculated by the formula Mn (theo) = M(comonomer) × Conversion + M(εCL) × Conversion + 108.14, where 108.14 is M of the initiator BnOH. 2 Determined by SEC vs. polystyrene standards and corrected by a factor of 0.56 (PCL). 3 ASLC—average sequence length of PCL fragment in copolymer, calculated by integration of –CH2O– signals at 4.05 ppm (CC sequence) and signal of C-comonomer fragment.
Table
Table 4. The Zn-L bond distances.
Table 4. The Zn-L bond distances.
BondDistance, Å
Zn-O11.9265(10)
Zn-C281.9733(15)
Zn1-N12.0591(13)
Zn1-O22.2274(12)

Share and Cite

MDPI and ACS Style

Nifant’ev, I.; Komarov, P.; Ovchinnikova, V.; Kiselev, A.; Minyaev, M.; Ivchenko, P. Comparative Experimental and Theoretical Study of Mg, Al and Zn Aryloxy Complexes in Copolymerization of Cyclic Esters: The Role of the Metal Coordination in Formation of Random Copolymers. Polymers 2020, 12, 2273. https://doi.org/10.3390/polym12102273

AMA Style

Nifant’ev I, Komarov P, Ovchinnikova V, Kiselev A, Minyaev M, Ivchenko P. Comparative Experimental and Theoretical Study of Mg, Al and Zn Aryloxy Complexes in Copolymerization of Cyclic Esters: The Role of the Metal Coordination in Formation of Random Copolymers. Polymers. 2020; 12(10):2273. https://doi.org/10.3390/polym12102273

Chicago/Turabian Style

Nifant’ev, Ilya, Pavel Komarov, Valeriya Ovchinnikova, Artem Kiselev, Mikhail Minyaev, and Pavel Ivchenko. 2020. "Comparative Experimental and Theoretical Study of Mg, Al and Zn Aryloxy Complexes in Copolymerization of Cyclic Esters: The Role of the Metal Coordination in Formation of Random Copolymers" Polymers 12, no. 10: 2273. https://doi.org/10.3390/polym12102273

APA Style

Nifant’ev, I., Komarov, P., Ovchinnikova, V., Kiselev, A., Minyaev, M., & Ivchenko, P. (2020). Comparative Experimental and Theoretical Study of Mg, Al and Zn Aryloxy Complexes in Copolymerization of Cyclic Esters: The Role of the Metal Coordination in Formation of Random Copolymers. Polymers, 12(10), 2273. https://doi.org/10.3390/polym12102273

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
