Article

Synthesis of Well-Defined Alternating Copolymer Composed of Ethylmaleimide and Hydroxy-Functionalized Vinyl Ether by RAFT Polymerization and Their Thermoresponsive Properties

by
Jin Motoyanagi
*,
Ayaha Oguri
and
Masahiko Minoda
*
Faculty of Molecular Chemistry and Engineering, Graduate School of Science and Technology, Kyoto Institute of Technology, Matsugasaki, Sakyo-ku, Kyoto 606-8585, Japan
*
Authors to whom correspondence should be addressed.
Polymers 2020, 12(10), 2255; https://doi.org/10.3390/polym12102255
Submission received: 30 August 2020 / Revised: 18 September 2020 / Accepted: 28 September 2020 / Published: 1 October 2020
(This article belongs to the Special Issue Controlled Polymerization)
Browse Figures
Review Reports Versions Notes

Abstract

:
Here we report the controlled synthesis of alternating copolymers by reversible addition-fragmentation chain transfer (RAFT) polymerization of hydroxy-functionalized vinyl ether (DEGV) and ethylmaleimide (EtMI) using dithiocarbonate derivative (CPDB) as the RAFT reagent. The resulting alternating copolymer poly[ethylmaleimide-alt-(diethylene glycol mono vinyl ether)] (poly(MalMI-alt-DEGV)) had a relatively narrow molecular weight distribution (Mw/Mn < 1.4). These polymers are fully soluble in cold water (5 °C) and an aqueous solution of poly(MalMI-alt-DEGV) became turbid upon heating (using an incident wavelength of 600 nm and 1.0 mg mL−1 (0.1 wt %) polymer concentration), indicating phase separation above the cloud point temperature (Tcp). The Tcp of the polymer solution ranged from 15–35 °C, depending on the molecular weight and molecular weight distribution of the polymer.

1. Introduction

Recent advances in controlled polymerization techniques have enabled the preparation of various well-defined polymers with predetermined molecular weights and low polydispersity. These controlled polymerization techniques have been used to prepare complex polymeric structures such as diblock, comb-like, and star-shaped constructions, paving the way for new functional materials with applications essential for advanced technologies [1,2,3,4]. However, synthetic polymers are still inferior to natural biological macromolecules in terms of monomer sequence. To address this, many recent studies have reported new methods for the synthesis of polymers with controlled monomer sequences [5,6,7,8,9,10] that show different thermal responses in solution and different phase transitions in the bulk relative to the corresponding random copolymer [11,12,13].
Hydroxy-containing vinyl polymers are well-known synthetic biocompatible materials useful in industrial, commercial, medical, and food applications [14,15,16]. Most hydroxy-containing copolymers obtained by copolymerization with hydrophobic units are lower critical solution temperature (LCST)-type thermoresponsive materials which are soluble in water, but become insoluble above a certain temperature (cloud point temperature; Tcp) upon heating. Such thermoresponsive polymers are of great interest for nanotechnology and biomedical applications [17,18,19,20]. Consequently, controlling the Tcp by designing the molecular structure of the hydroxy-containing amphiphilic polymer has become an important issue.
Here we report that novel well-defined alternating copolymers of hydroxy-containing vinyl ether monomer (DEGV) and ethylmaleimide (EtMI) obtained by reversible addition-fragmentation chain transfer (RAFT) polymerization exhibit thermoresponsive properties, depending on the molecular weight and polydispersity of the polymer. Quite recently, it has been reported that a series of alternating copolymers consisting of vinyl phenol and n-alkyl maleimide showed an upper critical solution temperature (UCST-type) thermal response in aromatic solvents [21], motivating us to synthesize an amphiphilic copolymer which has pendant hydrophilic hydroxy groups and hydrophobic short alkyl chains. We anticipated that this polymer would exhibit LCST-type thermoresponsive properties in aqueous systems. First, we analyzed the polymerization behavior of DEGV and EtMI via RAFT polymerization using dithiocarbonate derivative (CPDB) as the RAFT reagent. In general, functional group-appended poly(vinyl ether)s (polyVEs) are typically synthesized by cationic polymerization rather than radical polymerization due to their low radical reactivity, but this approach requires protection and deprotection steps to produce polyVEs with pendant polar functional groups such as OH or CO2H. The synthesis of hydroxy-containing vinyl ether polymers by RAFT homopolymerization without the use of protecting groups has been extensively investigated by Sugihara to produce various hydroxy-containing polyVEs [22]. However, the synthesis of alternating hydroxy-containing copolymers has not been reported to date. Here, we investigated the RAFT copolymerization of DEGV and EtMI to synthesize alternating copolymers (Scheme 1) comprising a hydroxy-containing unit positioned adjacent to an EtMI unit. In addition, the thermo-responsive properties of the obtained copolymers were examined by changes in the solubility of aqueous solutions as a function of temperature.

2. Materials and Methods

2.1. Chemicals and Reagents

Unless otherwise stated, all commercial reagents were used as received. N-Ethylmaleimide (EtMI; Tokyo Chemical Industry Co., Ltd., Tokyo, Japan, 98%) and 2,2′-azobis(isobutyronitrile) (AIBN; FUJIFILM Wako Pure Chemical Corporation, Osaka, Japan, 98%) were used as received. Diethylene glycol mono vinyl ether (DEGV; Maruzen Petrochemical Co., Ltd., Tokyo, Japan, 99.4%) was dried overnight over KOH pellets, and distilled twice over CaH2. 2-Cyano-2-propyl benzodithioate (CPDB) was prepared according to the literature [23].

2.2. Methods

1H and 13C NMR spectra were recorded at 25 °C on a Bruker model AC-500 spectrometer (Bruker, Billerica, MA, USA), operating at 500 and 125 MHz, respectively, where chemical shifts (δ in ppm) were determined with respect to non-deuterated solvent residues as internal standards. Analytical size exclusion chromatography (SEC) was performed in tetrahydrofuran (THF) at 40 °C, using 8.0 mm × 300 mm gel columns (Shodex KF-804 × 2) on a TOSOH model DP-8020 (TOSOH, Tokyo, Japan) with an RI-8022 RI detector (TOSOH, Tokyo, Japan). The number-average molecular weight (Mn) and polydispersity ratio (Mw/Mn) were calculated from the chromatographs with respect to 15 polystyrene standards (Scientific Polymer Products, Inc., Ontario, NY, USA; Mn = 580–670,000, Mw/Mn = 1.01–1.07). Elemental analyses were recorded on a Yanaco CHN CORDER MT-5 instrument (Yanaco, Tokyo, Japan). UV-vis spectra were recorded using a quartz cell of 1 cm path length on a SHIMADZU Type UV-2550 spectrometer (SHIMADZU, Kyoto, Japan).

2.3. Copolymerization of DEGV and EtMI under RAFT Polymerization Conditions

RAFT copolymerization of DEGV and EtMI was carried out with CPDB as a chain transfer agent and AIBN as an initiator. To a solution of DEGV (100 mg, 760 μmol), EtMI (95 mg, 760 μmol), and CPDB (3.4 mg, 15 μmol) in 1,2-dichloroethane (770 mg) was added AIBN (2.4 mg, 15 μmol) in a glass tube ([DEGV]0/[EtMI]0/[AIBN]0/[CPDB]0 = 50/50/1/1). The resulting solution was degassed by three freeze-pump-thaw cycles, and then the glass tube was sealed under vacuum and heated at 60 °C for 1–8 h and quenched by rapid cooling. The reaction mixture was analyzed by SEC and 1H NMR spectroscopy. The THF solution of reaction mixture was poured into a large amount of hexane to precipitate the polymers to remove the unreacted monomers. The resultant polymer was collected by centrifugation and dried under reduced pressure. The isolated polymer structure was analyzed by 1H NMR measurement.

3. Results and Discussion

3.1. Copolymerization of DEGV and EtMI under RAFT Polymerization Conditions

First, DEGV and EtMI were copolymerized using AIBN with or without CPDB (a chain transfer agent widely used in RAFT polymerization [23,24,25,26]) as the RAFT agent. The reaction was conducted in 1,2-dichloroethane at 60 °C ([DEGV]0/[EtMI]0/[AIBN]0/[CPDB]0 = 50/50/1/1 or 50/50/1/0, [DEGV]0 + [EtMI]0 = 20 wt %). SEC curves of the obtained polymers with or without CPDB were unimodal, but their molecular weight (MW) and molecular weight distribution (MWD) profiles were clearly different: polymers obtained with CPDB had lower MW and narrower MWD than polymers obtained without CPDB (polymer (with CPDB): Mn = 7100, Mw/Mn = 1.38; polymer (without CPDB): Mn = 47,000, Mw/Mn = 2.91) (Figure 1). Since the average molecular weight of the polymer product is reduced by chain transfer reactions [27,28], CPDB apparently acts as a chain transfer agent in this copolymerization system. Next, we investigated the RAFT copolymerization behavior in detail. As shown in Figure 2b, consumption of the two vinyl groups was individually followed using 1H NMR spectroscopy and smoothly increased at almost the same rate to around 80% within 8 h. SEC traces of the obtained copolymers were unimodal and shifted to a higher molecular weight region as polymerization proceeded while maintaining Mw/Mn values of ca. 1.4 or below (Figure 2a,c). The Mn of the resultant copolymers increased in direct proportion to the monomer conversion and was in good agreement with the calculated values (Figure 2c). These results suggested that the RAFT copolymerization strategy used in this study could provide an alternating sequence of DEGV and EtMI in a controlled manner. Poly(DEGV-co-EtMI) was purified by subjecting the reaction mixture to reprecipitation from THF into hexane to remove unreacted monomers, followed by centrifugation. Figure 3 shows the 1H NMR spectrum of the isolated copolymer (conversion of the two vinyl groups = 78%, Mn = 8500; Mw/Mn = 1.41). In addition to the signals from the broad aliphatic protons arising from repeating DEGV and EtMI units at δ 0.9–4.5 ppm, the aromatic protons were clearly observed at δ 7.4, 7.6, and 7.8 ppm and were assignable to the dithiobenzoate moiety at the w-terminus. The integration ratio for the characteristic signals (peak d and peaks e,h,j–m in Figure 3) supported the formation of a copolymer comprising DEGV and EtMI with a 1:1 composition ratio. The RAFT copolymerization results for DEGV:EtMI = 1:1 are summarized in Table 1. All the obtained copolymers had similar composition ratios of DEGV/EtMI ≈ 45/55, irrespective of the monomer conversion. Using elemental analysis, the composition ratios were determined by comparing the nitrogen and carbon atom content since only the EtMI unit contains nitrogen atoms (Table 1). The composition ratios determined by 1H NMR and elemental analysis and the conversion ratios of the monomers are in good agreement with each other. 13C NMR spectroscopy was used to verify the sequence of the DEGV and EtMI units in the obtained copolymer (Figure 4). The signals from the methyl carbon and the carbonyl carbon of the EtMI unit were compared with those for the EtMI homopolymer (polyEtMI) [29,30]. The methyl carbon signals from the EtMI units in the obtained copolymer appeared at around δ 12.7 ppm (peak 1), in sharp contrast to polyEtMI, where they appeared around δ 12.5 ppm (peak 1’). In addition, the signals at δ 174–180 ppm assigned to the carbonyl carbon in the obtained copolymer were quite different from those of polyEtMI. Given the polymerization behavior indicating similar consumption of the two co-monomers, these NMR data support an alternating sequence of DEGV and EtMI.

3.2. Thermoresponsive Behavior of Poly(DEGV-alt-EtMI) in an Aqueous Medium

The resultant poly(DEGV-alt-EtMI) was poorly soluble in water at room temperature but dissolved to give a clear solution on cooling to 0 °C, demonstrating the possibility of an LCST-type thermoresponsive polymer. We determined the Tcp values for the polymer by investigating the thermoresponsive behavior of aqueous solutions upon heating. Furthermore, since poly(DEGV-alt-EtMI) was synthesized by RAFT polymerization, we could easily prepare polymers with different polymer chain lengths. Using the alternating copolymers shown in Table 2 (entries 1–3), we also investigated the dependence of the polymer chain length on the temperature response. The temperature of an aqueous solution of poly(DEGV-alt-EtMI) sample (0.1 wt %) was gradually increased at a constant rate and the optical transparency of the solution was monitored by the change in transmittance at 600 nm (Figure 5a). Poly(DEGV-alt-EtMI) comprising a longer polymer chain (Mn = 8500) showed a sharp decrease in transmittance and a Tcp (transmittance of 50%) of about 18 °C. In contrast, a polymer comprising shorter polymer chains (Mn = 3300) did not cause a sharp drop in transmittance but rather a gradual decrease, resulting in a higher Tcp of 33 °C. These results suggest that low molecular weight polymers show a phase transition temperature dependent on the molecular weight, whereas polymers with molecular weights above a certain level do not change the phase transition temperature. Next, we investigated the relationship between molecular weight distribution (MWD) and thermoresponsive behavior. We prepared poly(DEGV-alt-EtMI) with a wider MWD than the poly(DEGV-alt-EtMI) obtained by RAFT polymerization by copolymerizing DEGV and EtMI under conventional radical polymerization conditions with 1-dodecanethiol as a chain transfer agent (Table 2, entries 4 and 5). Interestingly, the transmittance changes of aqueous solutions of these copolymers upon heating were similar and not dependent on molecular weight, in contrast to copolymers with a narrow MWD (Figure 5b). Furthermore, comparison of two polymer solutions with similar molecular weights but different MWDs showed that the polymer with a wide MWD exhibited a sharp change in transmittance with temperature and the phase transition temperature decreased by ca. 20 degrees. This was as expected: a copolymer with a wide MWD contains a large amount of relatively high molecular weight copolymer which becomes hydrophobic at lower temperature [31,32], resulting in a lower phase transition temperature. These results suggest that the phase transition temperature can be controlled by controlling the molecular weight and the MWD by RAFT polymerization.

4. Conclusions

We succeeded in the synthesis of new alternating copolymers [poly(DEGV-alt-EtMI)] by RAFT copolymerization of a hydroxy appended VE (DEGV) and EtMI. Aqueous solutions of poly(DEGV-alt-EtMI)s showed thermoresponsive behavior, became cloudy at temperatures above Tcp, and Tcp was closely related to the molecular weights and molecular weight distributions of poly(DEGV-alt-EtMI).

Author Contributions

J.M. and M.M. conceived the project, designed the experiments, directed the research, and wrote the manuscript. A.O. performed the experiments. All authors discussed the results and edited the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

We are indebted to Maruzen Petrochemical Co. (Tokyo, Japan) for donating 2-hydoxyethyl vinyl ether.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hsieh, H.L.; Quirk, R.P. Anionic Polymerization: Principles and Practical Applications; Marcel Dekker: New York, NY, USA, 1996; Chapter 14; pp. 369–392. [Google Scholar]
  2. Iha, R.K.; Wooley, K.L.; Nyström, A.M.; Burke, D.J.; Kade, M.J.; Hawker, C.J. Applications of Orthogonal “Click” Chemistries in the Synthesis of Functional Soft Materials. Chem. Rev. 2009, 109, 5620–5686. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Feng, C.; Li, Y.; Yang, D.; Hu, J.; Zhang, X.; Huang, X. Well-defined graft copolymers: From controlled synthesis to multipurpose applications. Chem. Soc. Rev. 2011, 40, 1282–1295. [Google Scholar] [CrossRef] [PubMed]
  4. Polymeropoulos, G.; Zapsas, G.; Ntetsikas, K.; Bilalis, P.; Gnanou, Y.; Hadjichristidis, N. 50th Anniversary Perspective: Polymers with Complex Architectures. Macromolecules 2017, 50, 1253–1290. [Google Scholar] [CrossRef]
  5. Badi, N.; Lutz, J.F. Sequence control in polymer synthesis. Chem. Soc. Rev. 2009, 38, 3383–3390. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Ouchi, M.; Badi, N.; Lutz, J.; Sawamoto, M. Single-chain technology using discrete synthetic macromolecules. Nature Chem. 2011, 3, 917–924. [Google Scholar] [CrossRef]
  7. Lutz, J.F.; Ouchi, M.; Liu, D.R.; Sawamoto, M. Sequence-Controlled Polymers. Science 2013, 341, 1238149. [Google Scholar] [CrossRef]
  8. Lutz, J.F. Sequence-Controlled Polymers; Wiley-VCH: Weinheim, Germany, 2018. [Google Scholar]
  9. Otsubo, T.; Tanaka, T.; Motoyanagi, J.; Minoda, M. An Alternating Glycopolymer Composed of Carbohydrate-carrying Maleimide and OH-functionalized Vinyl Ether—A New Synthetic Strategy for Glycosaminoglycan Mimics—. Chem. Lett. 2019, 48, 465–467. [Google Scholar] [CrossRef]
  10. Minoda, M.; Otsubo, T.; Yamamoto, Y.; Zhao, J.; Honda, Y.; Tanaka, T.; Motoyanagi, J. The First Synthesis of Periodic and Alternating Glycopolymers by RAFT Polymerization: A Novel Synthetic Pathway for Glycosaminoglycan Mimics. Polymers 2019, 11, 70. [Google Scholar] [CrossRef] [Green Version]
  11. Ouchi, M.; Nakano, M.; Nakanishi, T.; Sawamoto, M. Alternating Sequence Control for Carboxylic Acid and Hydroxy Pendant Groups by Controlled Radical Cyclopolymerization of a Divinyl Monomer Carrying a Cleavable Spacer. Angew. Chem. Int. Ed. 2016, 55, 14584–14589. [Google Scholar] [CrossRef]
  12. Kametani, Y.; Sawamoto, M.; Ouchi, M. Control of the Alternating Sequence for N-Isopropylacrylamide (NIPAM) and Methacrylic Acid Units in a Copolymer by Cyclopolymerization and Transformation of the Cyclopendant Group. Angew. Chem. Int. Ed. 2018, 57, 10905–10909. [Google Scholar] [CrossRef]
  13. Nishimori, K.; Ouchi, M. AB-alternating copolymers via chain-growth polymerization: Synthesis, characterization, self-assembly, and functions. Chem. Commun. 2020, 56, 3473–3483. [Google Scholar] [CrossRef] [PubMed]
  14. Deller, R.C.; Vatish, M.; Mitchell, D.A.; Gibson, M.I. Synthetic polymers enable non-vitreous cellular cryopreservation by reducing ice crystal growth during thawing. Nat. Commun. 2014, 5, 3244. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Wichterle, O.; Lim, D. Hydrophilic Gels for Biological Use. Nature 1960, 185, 117–118. [Google Scholar] [CrossRef]
  16. Weaver, J.V.M.; Bannister, I.; Robinson, K.L.; Bories-Azeau, X.; Armes, S.P.; Smallridge, M.; McKenna, P. Stimulus-Responsive Water-Soluble Polymers Based on 2-Hydroxyethyl Methacrylate. Macromolecules 2004, 37, 2395–2403. [Google Scholar] [CrossRef]
  17. Stuart, M.A.C.; Huck, W.T.S.; Genzer, J.; Müller, M.; Ober, C.; Stamm, M.; Sukhorukov, G.B.; Szleifer, I.; Tsukruk, V.V.; Urban, M.; et al. Emerging applications of stimuli-responsive polymer materials. Nat. Mater. 2010, 9, 101–113. [Google Scholar] [CrossRef]
  18. Roy, D.; Brooks, W.L.A.; Sumerlin, B.S. New directions in thermoresponsive polymers. Chem. Soc. Rev. 2013, 42, 7214–7243. [Google Scholar] [CrossRef]
  19. Alarcón, C.d.l.H.; Pennadam, S.; Alexander, C. Stimuli responsive polymers for biomedical applications. Chem. Soc. Rev. 2005, 34, 276–285. [Google Scholar] [CrossRef]
  20. Sugihara, S.; Yoshida, A.; Fujita, S.; Maeda, Y. Design of Hydroxy-Functionalized Thermoresponsive Copolymers: Improved Direct Radical Polymerization of Hydroxy-Functional Vinyl Ethers. Macromolecules 2017, 50, 8346–8356. [Google Scholar] [CrossRef]
  21. Nishimori, K.; Cazares-Cortes, E.; Guigner, J.-M.; Tournilhac, F.; Ouchi, M. Physical gelation of AB-alternating copolymers made of vinyl phenol and maleimide units: Cooperation between precisely incorporated phenol and long alkyl pendant groups. Polym. Chem. 2019, 10, 2327–2336. [Google Scholar] [CrossRef] [Green Version]
  22. Sugihara, S.; Yoshida, A.; Kono, T.; Takayama, T.; Maeda, Y. Controlled Radical Homopolymerization of Representative Cationically Polymerizable Vinyl Ethers. J. Am. Chem. Soc. 2019, 141, 13954–13961. [Google Scholar] [CrossRef]
  23. Alberti, A.; Benaglia, M.; Laus, M.; Sparnacci, K. A New Facile Synthesis of Tertiary Dithioesters. J. Org. Chem. 2002, 67, 7911–7914. [Google Scholar] [CrossRef] [PubMed]
  24. Moad, G.; Rizzardo, E.; Thang, S.H. Living Radical Polymerization by the RAFT Process—A First Update. Aust. J. Chem. 2006, 59, 669–692. [Google Scholar] [CrossRef]
  25. Moad, G.; Rizzardo, E.; Thang, S.H. Living Radical Polymerization by the RAFT Process—A Second Update. Aust. J. Chem. 2009, 62, 1402–1472. [Google Scholar] [CrossRef]
  26. Moad, G.; Rizzardo, E.; Thang, S.H. Living Radical Polymerization by the RAFT Process—A Third Update. Aust. J. Chem. 2012, 65, 985–1076. [Google Scholar] [CrossRef]
  27. Rudin, A.; Choi, P. The Elements of Polymer Science & Engineering, 3rd ed.; Elsevier: New York, NY, USA, 2013; pp. 341–389. [Google Scholar]
  28. Heuts, J.P.A.; Davis, T.P.; Russell, G.T. Comparison of the Mayo and Chain Length Distribution Procedures for the Measurement of Chain Transfer Constants. Macromolecules 1999, 32, 6019–6030. [Google Scholar] [CrossRef]
  29. Matsuoto, A.; Kubota, T.; Otsu, T. Radical polymerization of N-(alkyl-substituted phenyl)maleimides: Synthesis of thermally stable polymers soluble in nonpolar solvents. Macromolecules 1990, 23, 4508–4513. [Google Scholar] [CrossRef]
  30. Nakayama, Y.; Smets, G. Radical and anionic homopolymerization of maleimide and N-n-butylmaleimide. J. Polym. Sci. A Polym. Chem. 1967, 5, 1619–1633. [Google Scholar] [CrossRef]
  31. Xia, Y.; Yin, X.; Burke, N.A.D.; Stöver, H.D.H. Thermal Response of Narrow-Disperse Poly(N-isopropylacrylamide) Prepared by Atom Transfer Radical Polymerization. Macromolecules 2005, 38, 5937–5943. [Google Scholar] [CrossRef]
  32. Furyk, S.; Zhang, Y.; Ortiz–Acosta, D.; Cremer, P.S.; Bergbreiter, D.E. Effects of end group polarity and molecular weight on the lower critical solution temperature of poly(N-isopropylacrylamide). J. Polym. Sci. A Polym. Chem. 2006, 44, 1492–1501. [Google Scholar] [CrossRef]
Polymers 12 02255 sch001 550

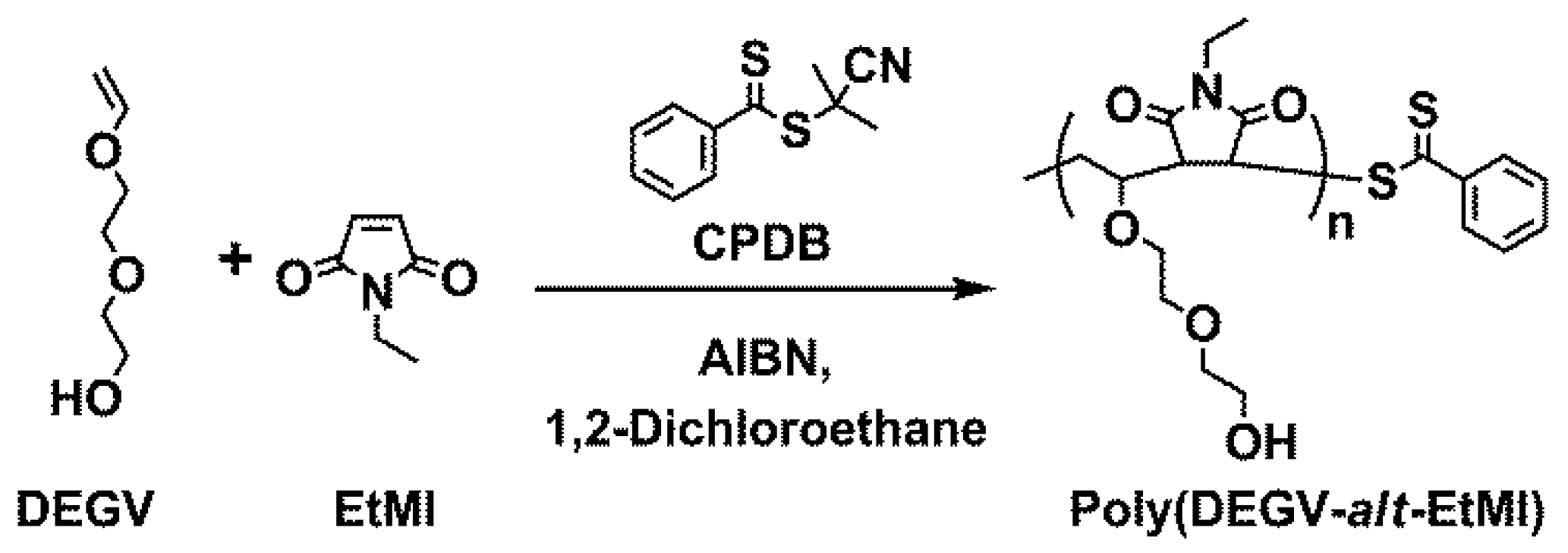

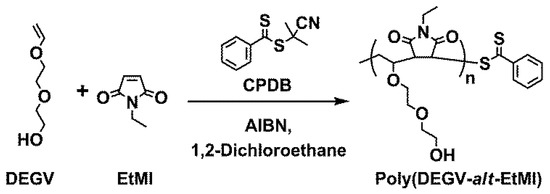

Scheme 1. Synthesis of the alternating copolymer poly(DEGV-alt-EtMI) by reversible addition-fragmentation chain transfer (RAFT) polymerization.
Scheme 1. Synthesis of the alternating copolymer poly(DEGV-alt-EtMI) by reversible addition-fragmentation chain transfer (RAFT) polymerization.
Polymers 12 02255 sch001
Polymers 12 02255 g001 550

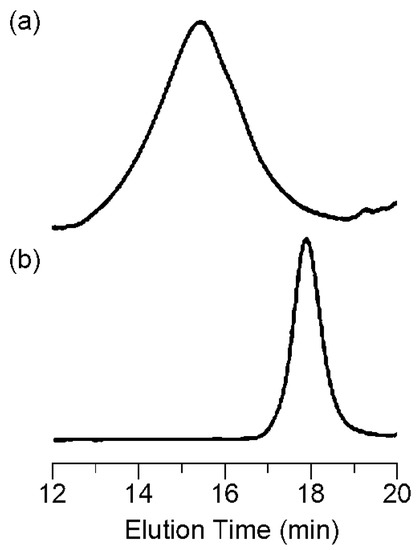

Figure 1. Size exclusion chromatography (SEC) curves of poly(DEGV-alt-EtMI) obtained by radical copolymerization (a) without and (b) with RAFT agent using THF as the eluent.
Figure 1. Size exclusion chromatography (SEC) curves of poly(DEGV-alt-EtMI) obtained by radical copolymerization (a) without and (b) with RAFT agent using THF as the eluent.
Polymers 12 02255 g001
Polymers 12 02255 g002 550

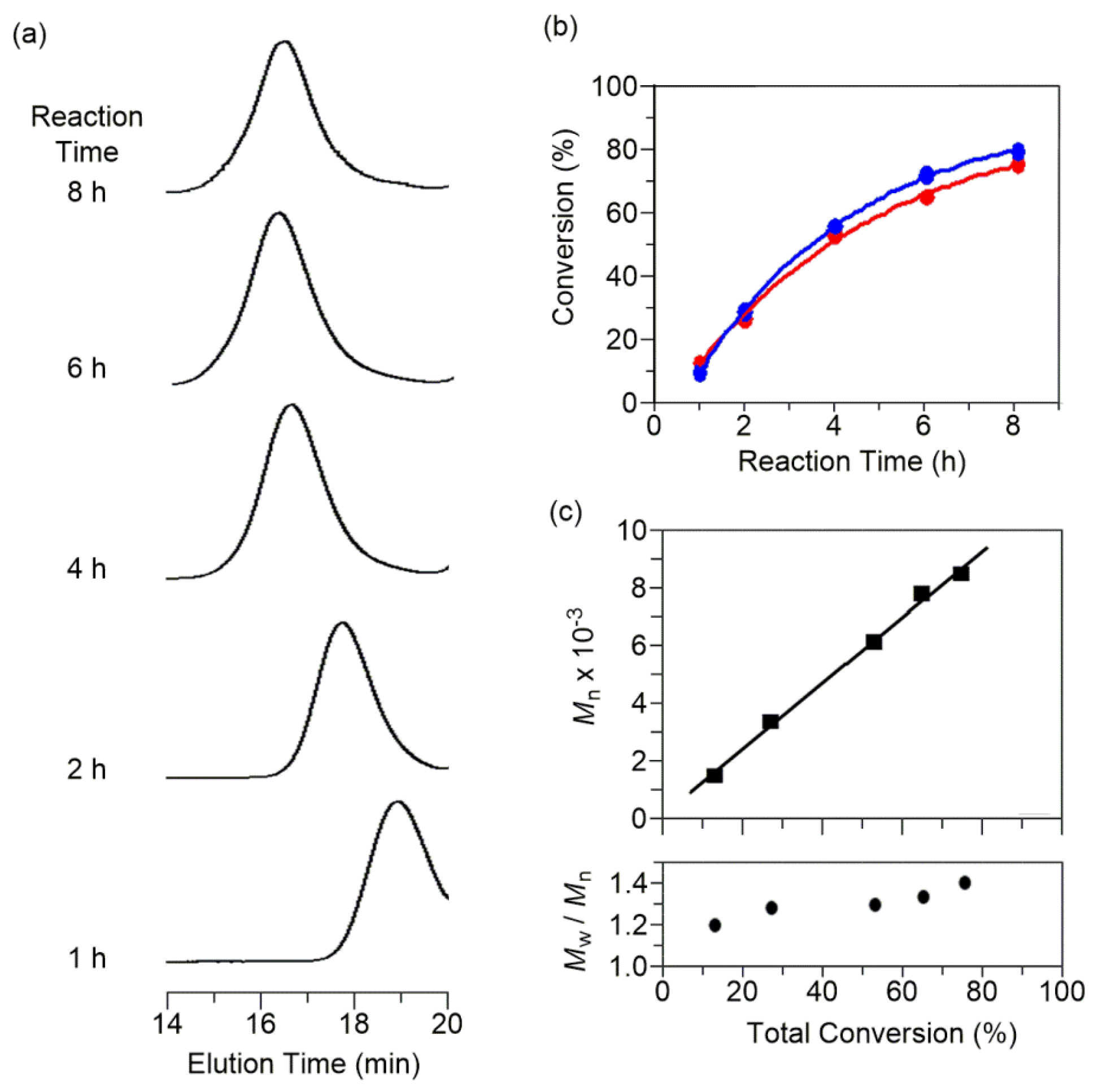

Figure 2. (a) SEC curves for poly(DEGV-alt-EtMI) measured in THF, (b) time-monomer conversion curves for the RAFT copolymerization of DEGV and EtMI with CPDB, and (c) Mn and Mw/Mn values of poly(DEGV-alt-EtMI) plotted against total monomer conversion.
Figure 2. (a) SEC curves for poly(DEGV-alt-EtMI) measured in THF, (b) time-monomer conversion curves for the RAFT copolymerization of DEGV and EtMI with CPDB, and (c) Mn and Mw/Mn values of poly(DEGV-alt-EtMI) plotted against total monomer conversion.
Polymers 12 02255 g002
Polymers 12 02255 g003 550

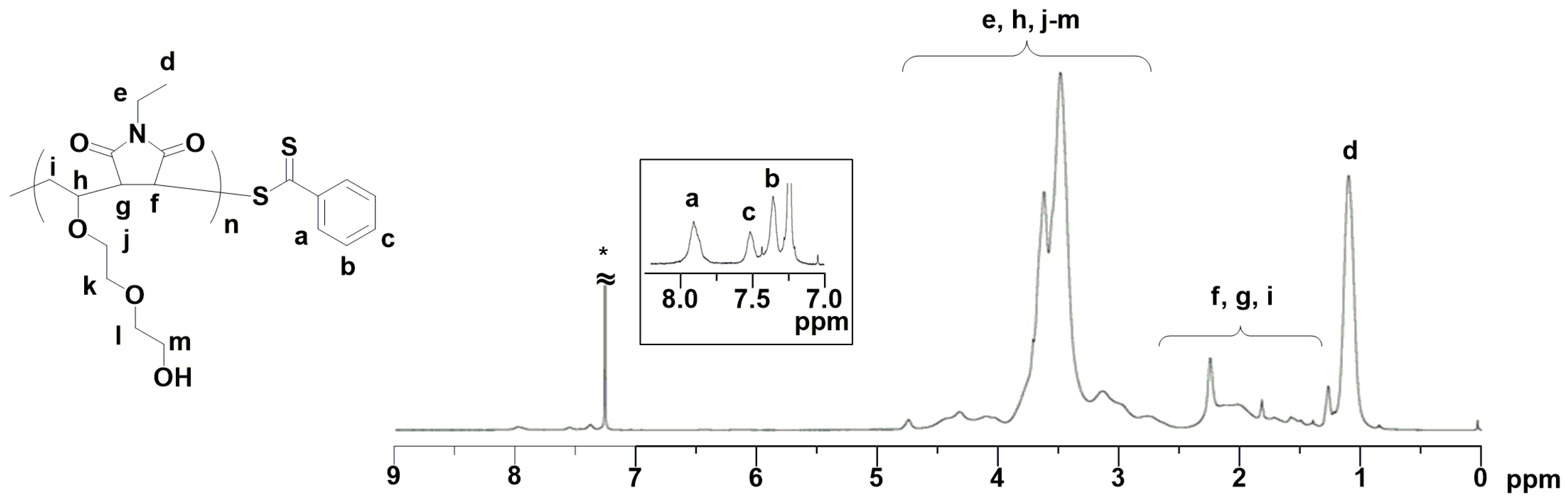

Figure 3. 1H NMR spectrum of poly(DEGV-alt-EtMI) in CDCl3.
Figure 3. 1H NMR spectrum of poly(DEGV-alt-EtMI) in CDCl3.
Polymers 12 02255 g003
Polymers 12 02255 g004 550

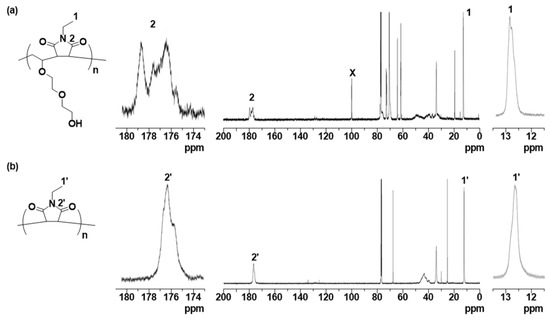

Figure 4. 13C NMR spectrum of (a) poly(DEGV-alt-EtMI) and (b) polyEtMI in CDCl3.
Figure 4. 13C NMR spectrum of (a) poly(DEGV-alt-EtMI) and (b) polyEtMI in CDCl3.
Polymers 12 02255 g004
Polymers 12 02255 g005 550

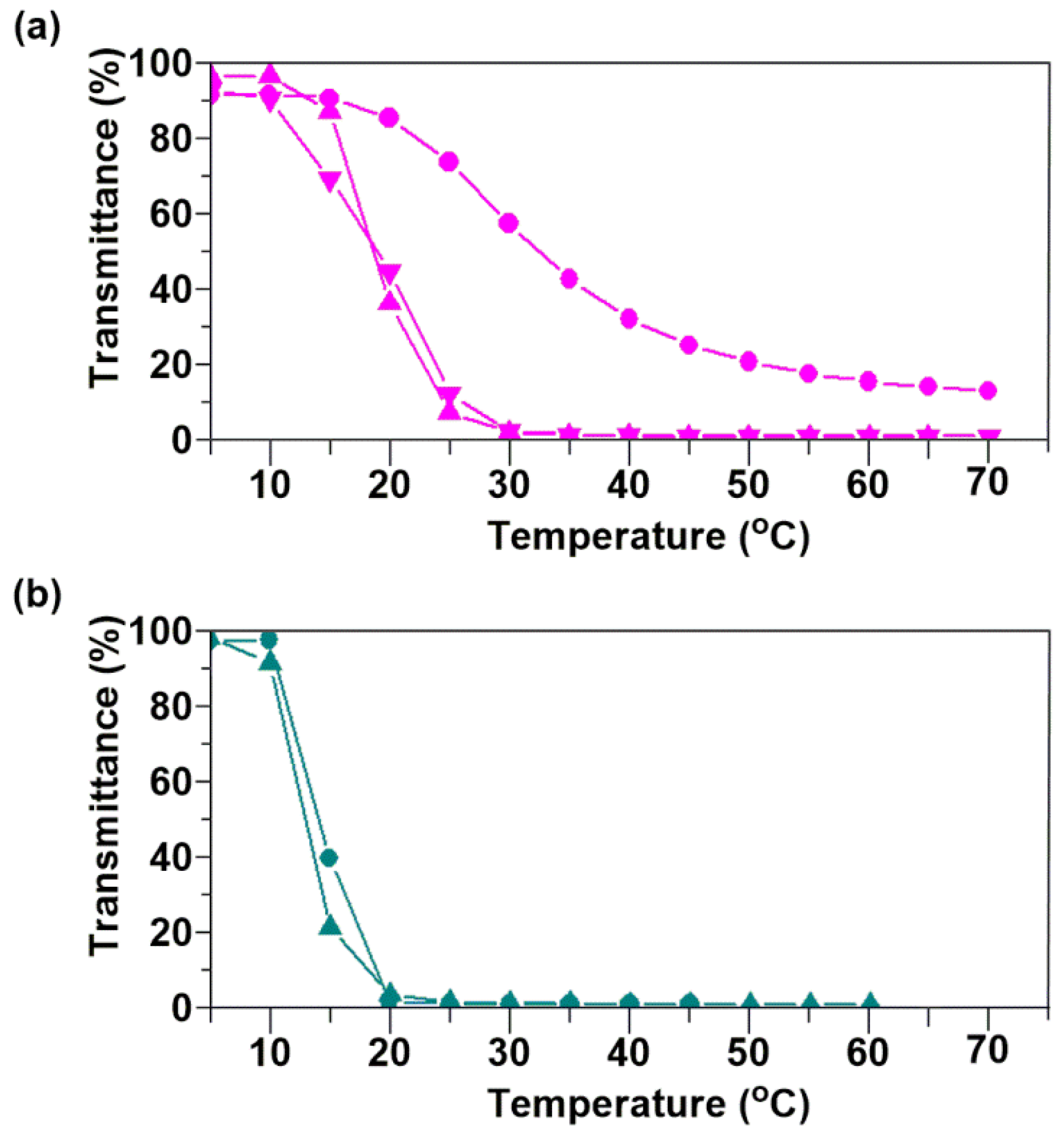

Figure 5. Temperature-dependent optical transmittance of the aqueous solutions of poly(DEGV-alt-EtMI) obtained using (a) CPDB (●; entry 1, ▼; entry 2 and ▲; entry 3 in Table 2) and (b) 1-dodecanethiol (●; entry 4 and ▲; entry 5 in Table 2) (concentration of polymers = 0.1 wt %).
Figure 5. Temperature-dependent optical transmittance of the aqueous solutions of poly(DEGV-alt-EtMI) obtained using (a) CPDB (●; entry 1, ▼; entry 2 and ▲; entry 3 in Table 2) and (b) 1-dodecanethiol (●; entry 4 and ▲; entry 5 in Table 2) (concentration of polymers = 0.1 wt %).
Polymers 12 02255 g005
Table
Table 1. RAFT copolymerization of DEGV and EtMI 1.
Table 1. RAFT copolymerization of DEGV and EtMI 1.
Reaction
Time
(h)		Conversion (%) 2Mn3Mw/Mn3Composition Ratio (%) 2Composition Ratio (%) 4
DEGVEtMIDEGVEtMIDEGVEtMI
1131014001.2045554060
2272933001.2846543763
4535661001.3043574258
6657278001.3444564456
8757985001.4149514456
1 Polymerization conditions: 1,2-dichloroethane, 60 °C, [DEGV]0 + [EtMI]0 = 20 wt %, [DEGV]0/[EtMI]0/[AIBN]0/[CPDB]0 = 50/50/1/1. 2 Determined by 1H NMR. 3 Estimated by PSt-calibrated SEC. 4 Determined by elemental analysis.
Table
Table 2. Thermoresponsive behavior of aqueous solutions poly(DEGV-alt-EtMI).
Table 2. Thermoresponsive behavior of aqueous solutions poly(DEGV-alt-EtMI).
EntryMn1Mw/Mn1Tcp (°C)
1 233001.2833
2 261001.3021
3 285001.4121
4 334001.9215
5 489002.0414
1 Estimated by PSt-calibrated SEC. 2 Copolymerization was conducted with CPDB in 1,2-dichloroethane at 60 °C, [DEGV]0/[EtMI]0/[AIBN]0/[CPDB]0 = 50/50/1/1, [DEGV]0 + [EtMI]0 = 20 wt %. 3 Copolymerization was conducted with 1-dodecanethiol in 1,2-dichloroethane at 60 °C, [DEGV]0/[EtMI]0/[AIBN]0/[1-dodecanethiol]0 = 50/50/10/4, [DEGV]0 + [EtMI]0 = 20 wt %. 4 Copolymerization was conducted with 1-dodecanethiol in 1,2-dichloroethane at 60 °C, [DEGV]0/[EtMI]0/[AIBN]0/[1-dodecanethiol]0 = 50/50/1/2, [DEGV]0 + [EtMI]0 = 20 wt %.
