Next Article in Journal
Improving UV Resistance of Aramid Fibers by Simultaneously Synthesizing TiO2 on Their Surfaces and in the Interfaces Between Fibrils/Microfibrils Using Supercritical Carbon Dioxide
Next Article in Special Issue
Enthalpy Relaxation, Crystal Nucleation and Crystal Growth of Biobased Poly(butylene Isophthalate)
Previous Article in Journal
Research Progress on Polymer Solar Cells Based on PEDOT:PSS Electrodes
Previous Article in Special Issue
Synthesis and Properties of Cyclopentyl Cardo-Type Polyimides Based on Dicyclopentadiene
Open AccessArticle

Comprehensive Analysis of Mechanical Properties of CB/SiO2/PVDF Composites

1
College of Aerospace and Civil Engineering, Harbin Engineering University, Harbin 150001, China
2
College of Equipment Engineering, Shenyang Ligong University, Shenyang 110000, China
*
Author to whom correspondence should be addressed.
Polymers 2020, 12(1), 146; https://doi.org/10.3390/polym12010146 (registering DOI)
Received: 3 December 2019 / Revised: 25 December 2019 / Accepted: 5 January 2020 / Published: 7 January 2020
(This article belongs to the Special Issue Polymer Structure and Properties)

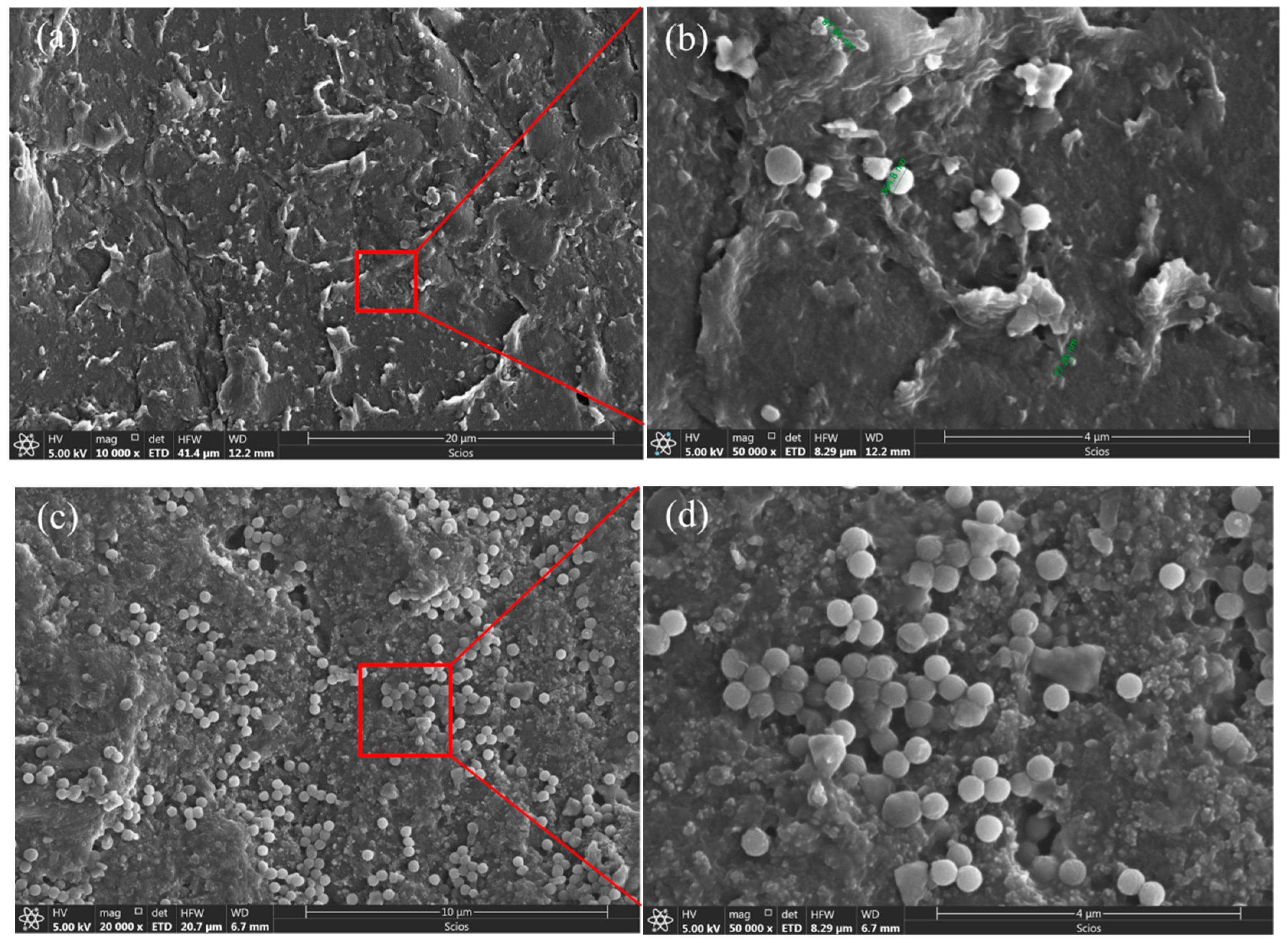

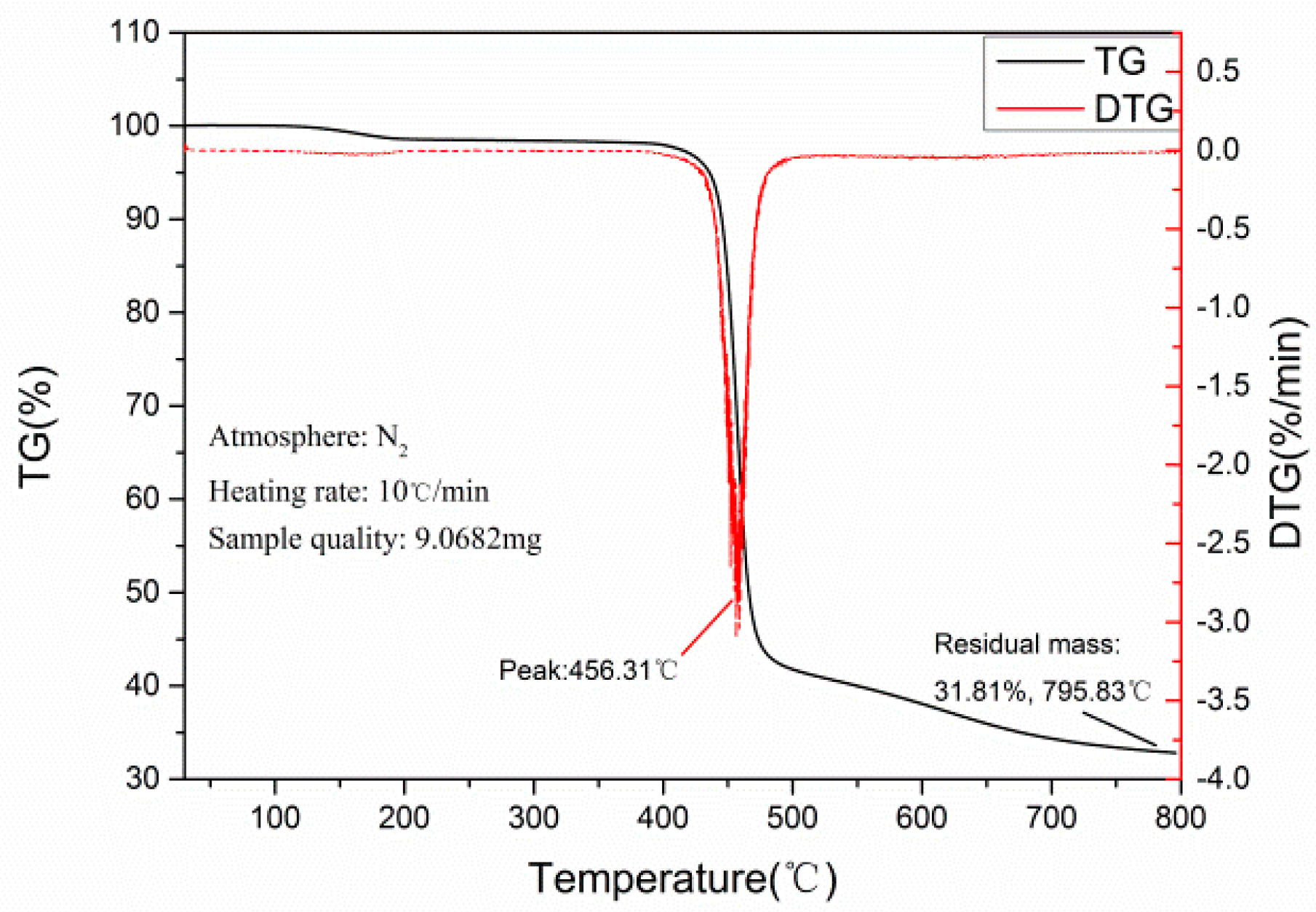

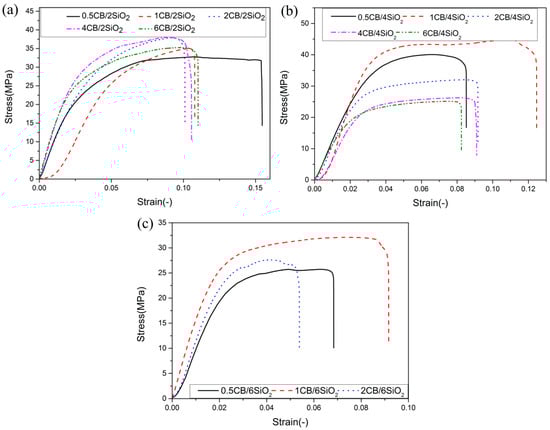

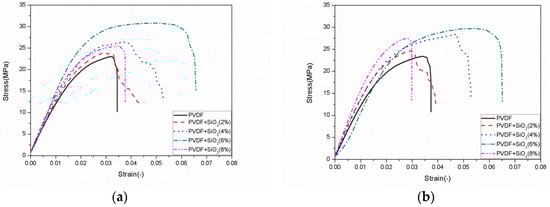

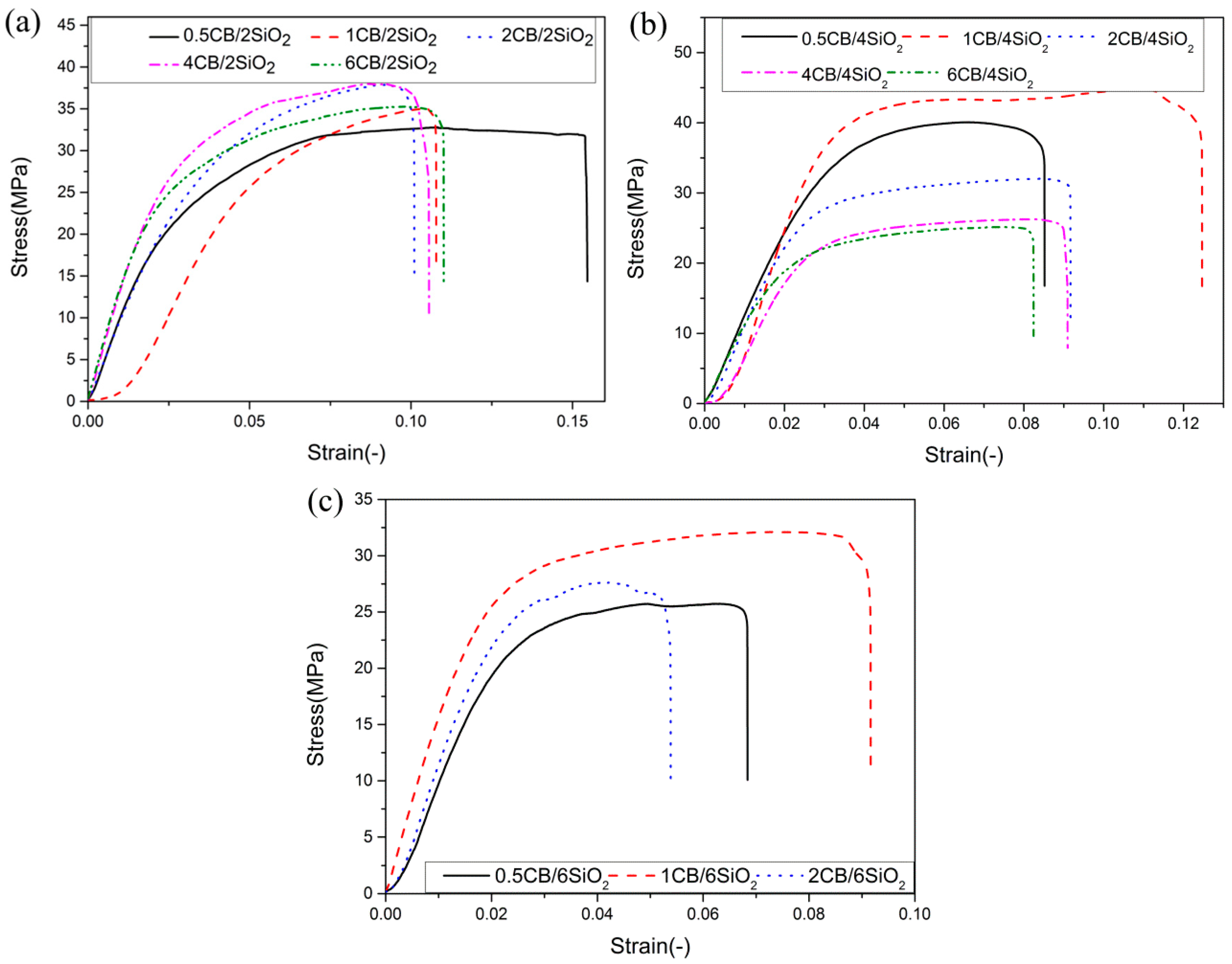

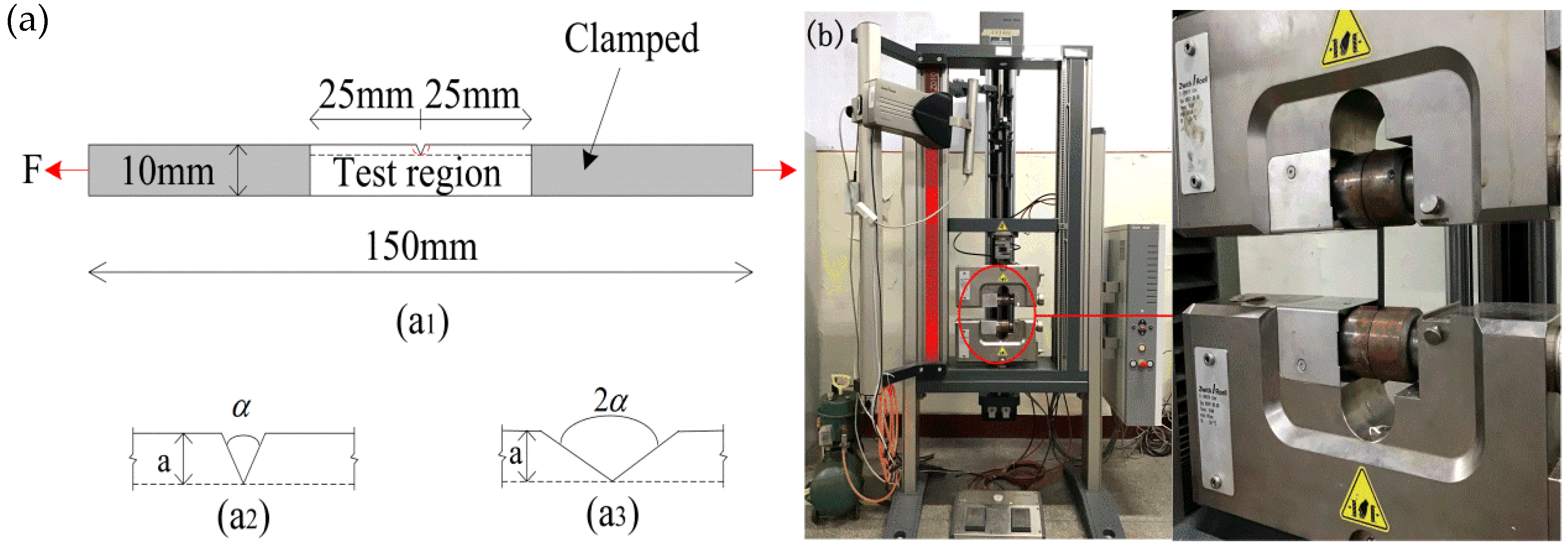

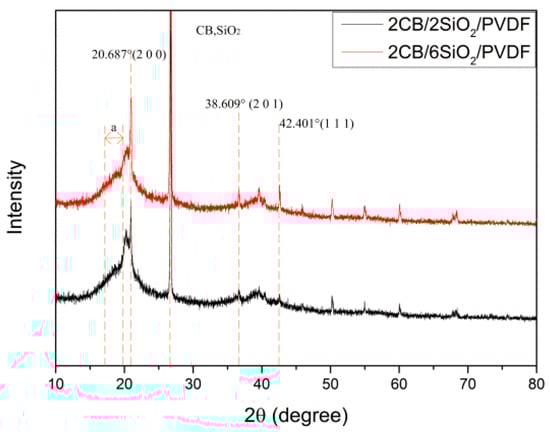

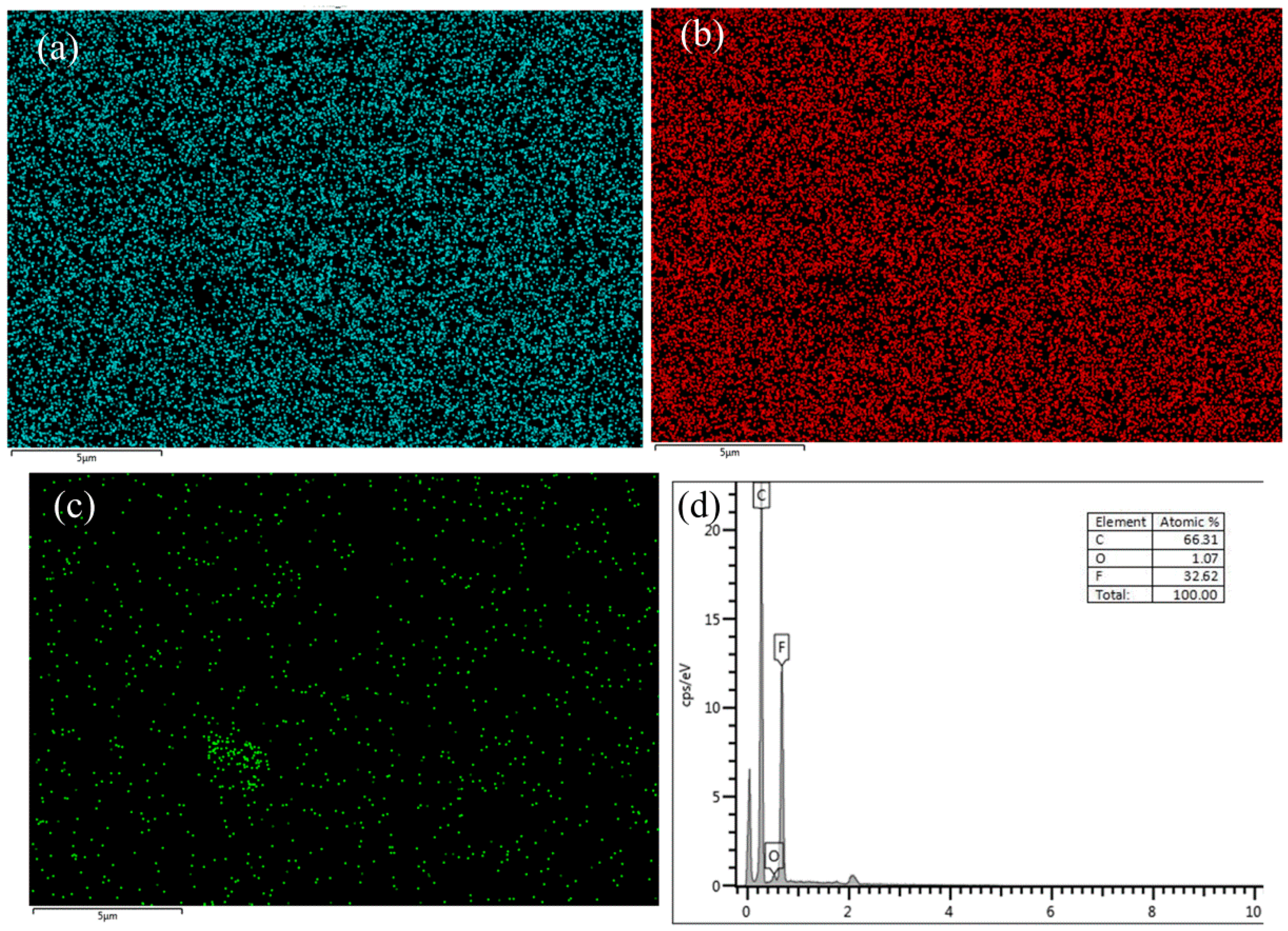

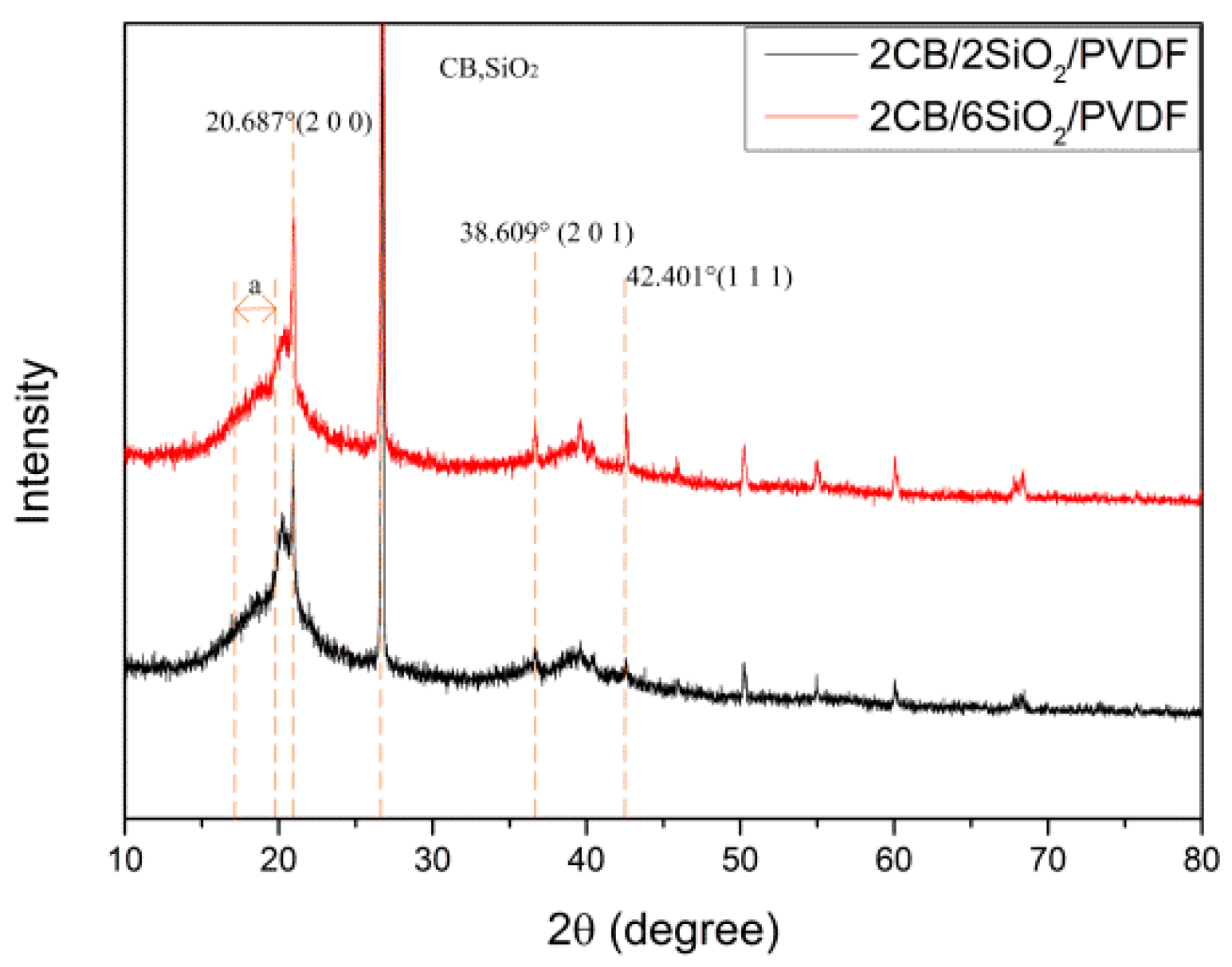

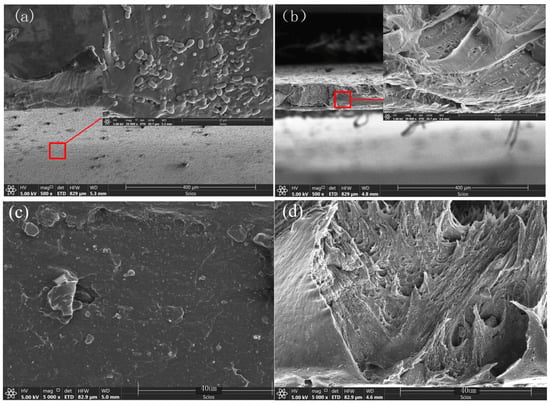

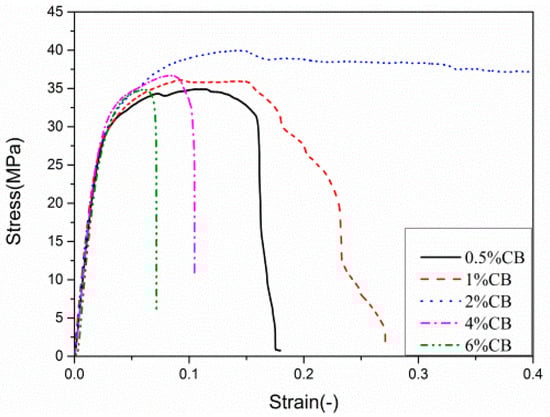

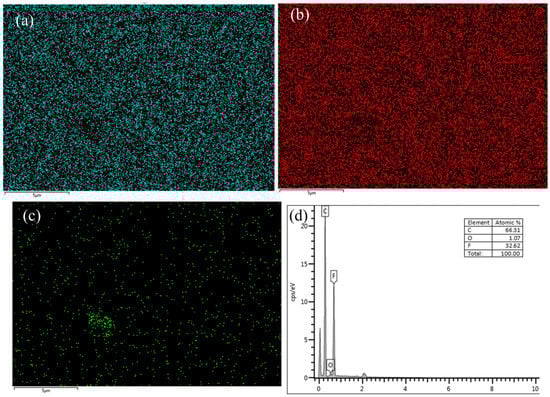

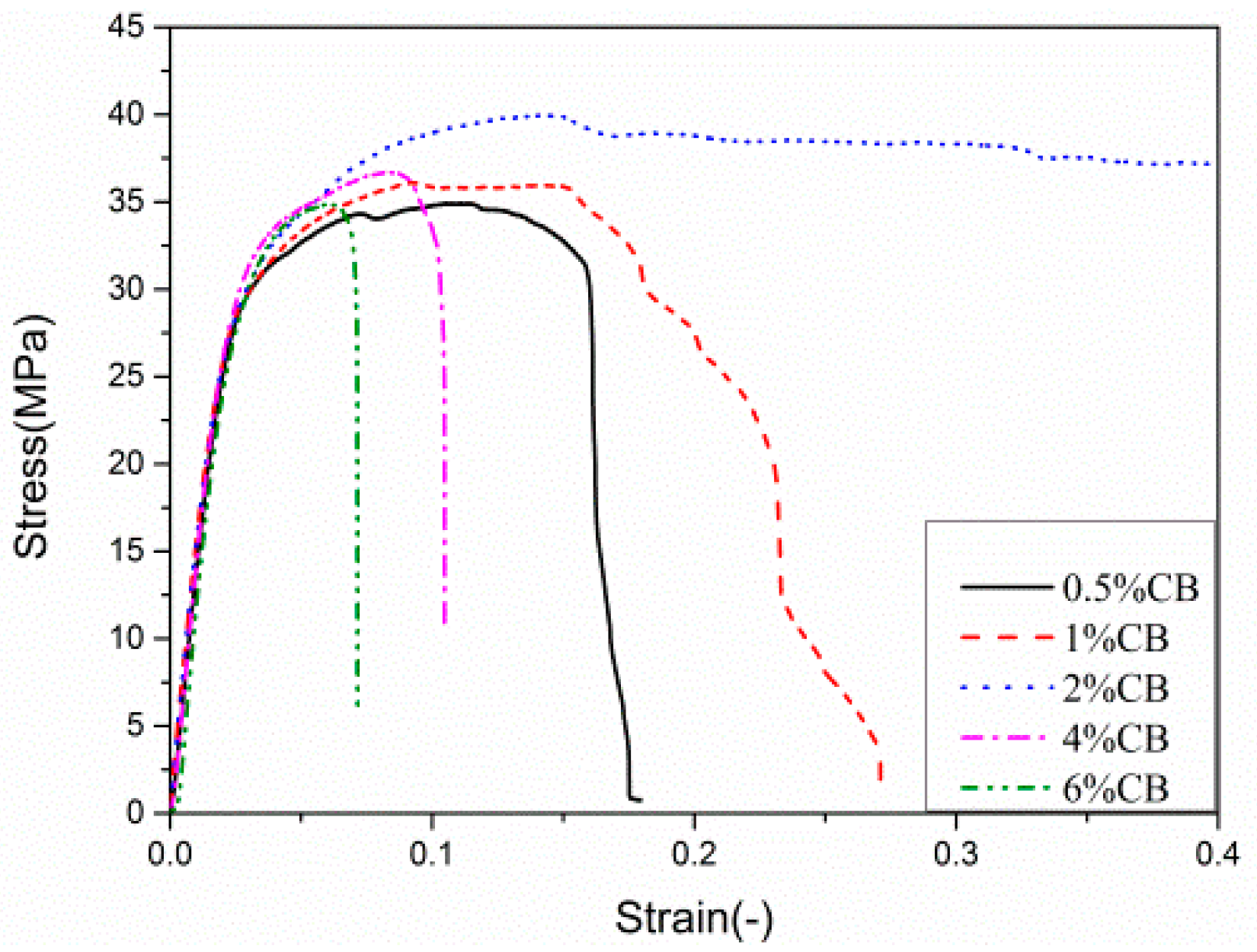

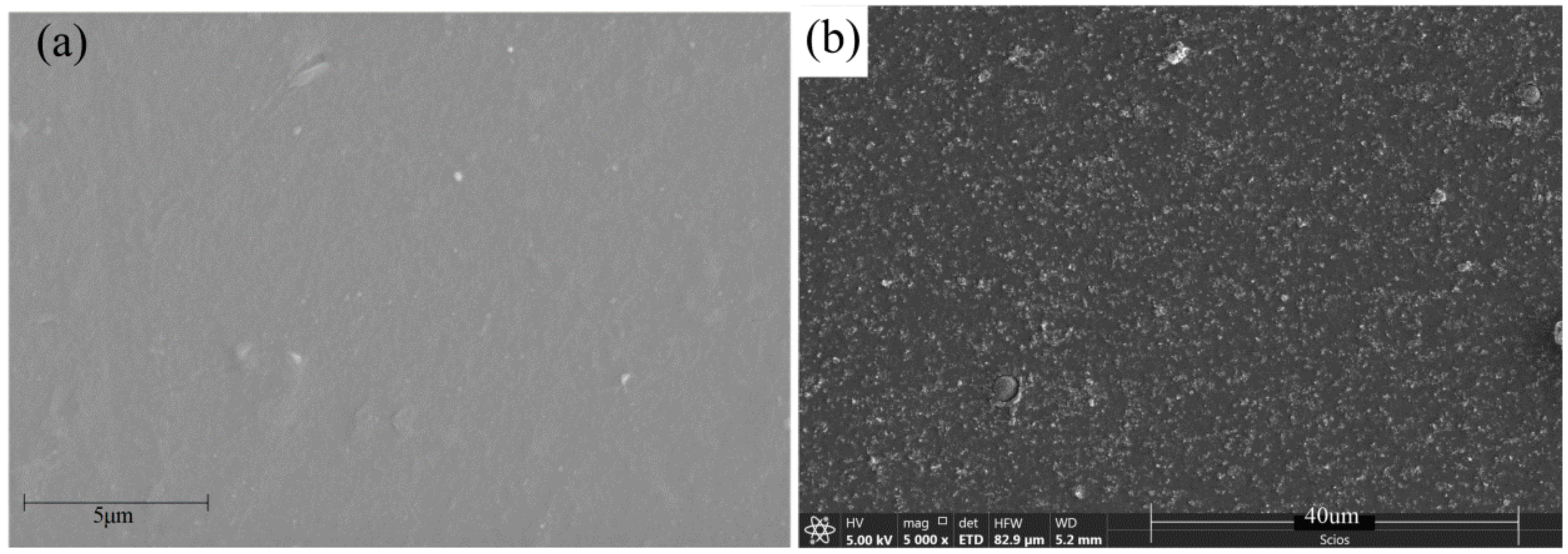

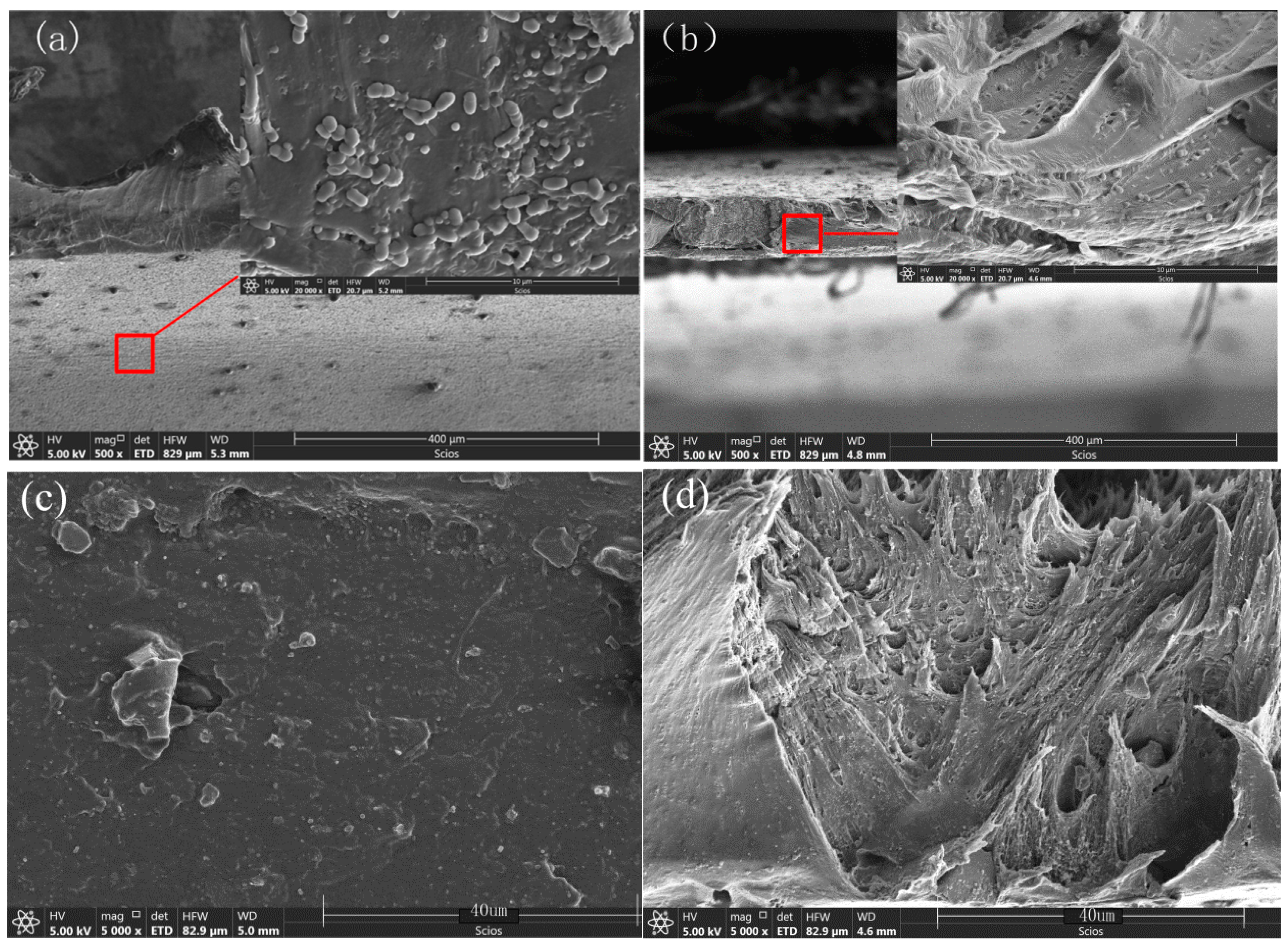

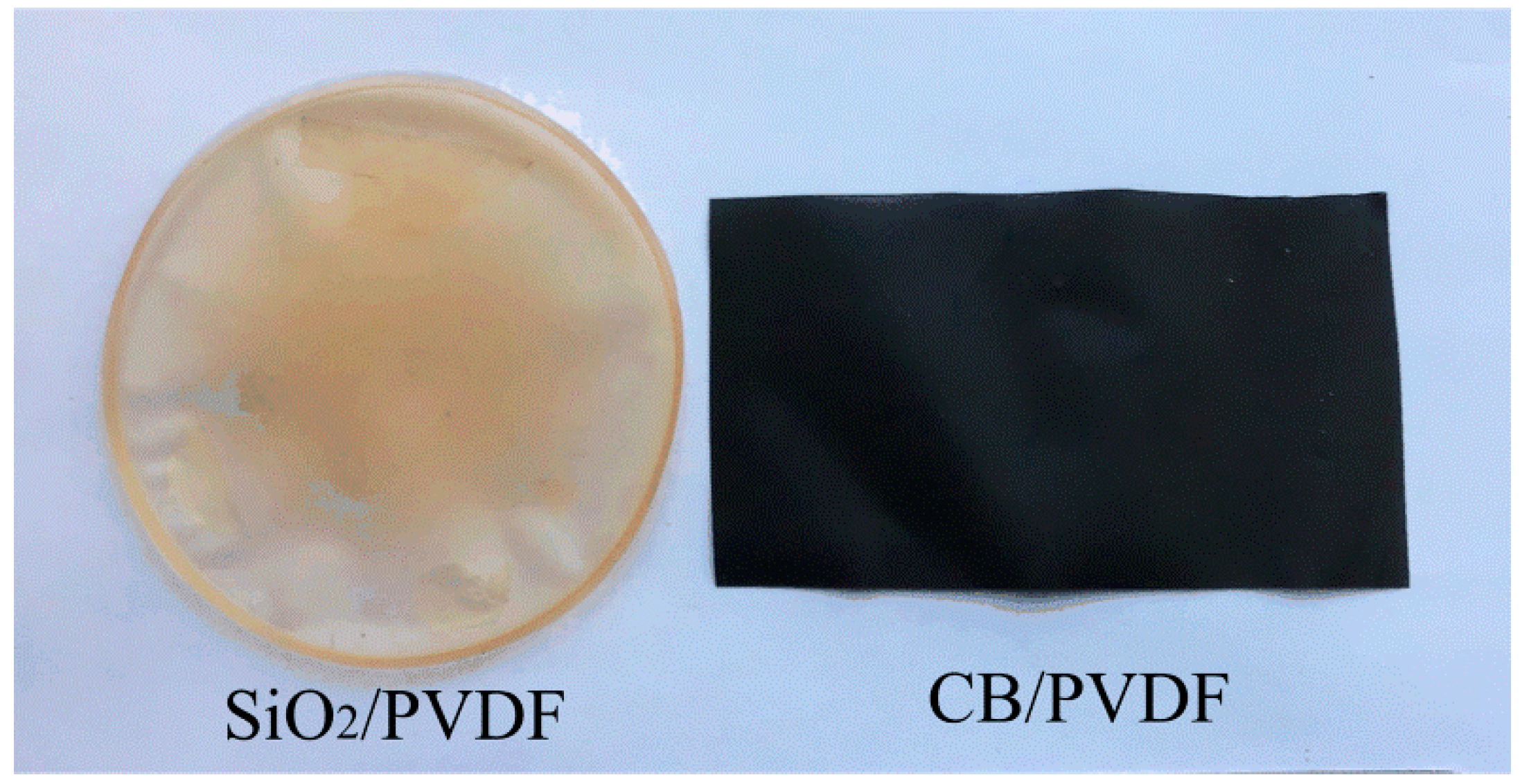

Damage is a key problem that limits the application of polymer membranes. In this paper, conductive carbon black (CB) and silicon dioxide (SiO2)-reinforced polyvinylidene fluoride (PVDF) composites were prepared using a solution mixing method. Through a uniaxial tensile test, the fracture and damage characteristics of the material were analyzed. When the structure had inevitable notch damage, changing the notch angle was very helpful for the material to bear more load. In addition, when there were two kinds of fillers in the PVDF matrix at the same time, there was an interaction between particles. The microstructure of the composite was characterized by scanning electron microscopy (SEM), energy-dispersive spectrometry (EDS), and thermogravimetric (TG) analysis. The experimental results indicate that, when the ratio of CB:SiO2:PVDF was 1:4:95, the general mechanical properties of the composite were the best. View Full-Text
Keywords: CB/SiO2/PVDF composite materials; uniaxial tensile test; mechanical properties; microstructure characterization CB/SiO2/PVDF composite materials; uniaxial tensile test; mechanical properties; microstructure characterization
Show Figures

Graphical abstract

MDPI and ACS Style

Kong, F.; Chang, M.; Wang, Z. Comprehensive Analysis of Mechanical Properties of CB/SiO2/PVDF Composites. Polymers 2020, 12, 146.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
