Abstract

:
In the past few decades, organic thermoelectric materials/devices, which can exhibit remarkable potential in green energy conversion, have drawn great attention and interest due to their easy processing, light weight, intrinsically low thermal conductivity, and mechanical flexibility. Compared to traditional batteries, thermoelectric materials have high prospects as alternative power generators for harvesting green energy. Although crystalline inorganic semiconductors have dominated the fields of thermoelectric materials up to now, their practical applications are limited by their intrinsic fragility and high toxicity. The integration of organic polymers with inorganic nanoparticles has been widely employed to tailor the thermoelectric performance of polymers, which not only can combine the advantages of both components but also display interesting transport phenomena between organic polymers and inorganic nanoparticles. In this review, parameters affecting the thermoelectric properties of materials were briefly introduced. Some recently developed n-type and p-type thermoelectric films and related devices were illustrated along with their thermoelectric performance, methods of preparation, and future applications. This review will help beginners to quickly understand and master basic knowledge of thermoelectric materials, thus inspiring them to design and develop more efficient thermoelectric devices.

1. Introduction

Flexible wearable electronic devices have attracted great interest and have gradually emerged in daily life due to their light weight, easy skin attachment potential and the ability to withstand mechanical deformation [1,2,3,4,5,6,7,8]. The devices currently in use generally require externally powered drives, which greatly limit the advantages in wearability. The emergence of organic thermoelectric materials essentially addresses this issue owing to their unique ability in converting heat difference to electric voltage [9,10,11,12,13,14,15,16,17].
Thermoelectric materials are designed according to the thermoelectric effect, known as the Seebeck effect, which was originally discovered by Alessandro Volta in 1794 and rediscovered and named by Thomas Johann Seebeck in 1821 [18,19,20]. Thermoelectric devices are playing an increasingly crucial role in harvesting green energy for future wearable electronic devices owing to the fact that they can produce energy without shifting mechanical components, hence, guaranteeing high reliability [21,22,23,24,25,26]. The thermoelectric material efficiency is evaluated by a dimensionless figure-of merit, ZT = S2σTκ−1, where the κ is the thermal conductivity, σ is the electrical conductivity, and S is the Seebeck coefficient [27,28,29,30]. The strong interdependence of these three parameters, introduced in the following section, makes optimization to obtain a high ZT value challenging. In the case of organic thermoelectric materials, owing to their intrinsically low thermal conductivity, their thermoelectric efficiency can be expressed in a new criterion called the power factor, PF = S2σ [31,32,33,34].
Thermoelectric materials contain traditional semiconductor-based inorganic and recently developed polymer-based organic materials. Inorganic thermoelectric materials, such as SnSe [35,36,37], PbTe [38,39,40], CuS [41], PbS [42,43,44], PbSe [45,46], Bi2Te3 [47,48], Te [49], BiSbTe [50], and SnTe [51] exhibited higher thermoelectric efficiency than those of the organic thermoelectric materials. Zhao et al. [35] developed SnSe single crystals with an unprecedented ZT value of 2.6 ± 0.3 at 923 K measured along the b-axis of the room temperature orthorhombic unit cell. Along the c-axis, the ZT value was measured to be 2.3 ± 0.3. The super-high ZT value was attributed to the ultralow lattice thermal conductivity of SnSe caused by anharmonicity. Wu et al. [52] reported that 2.5% K-doped PbTe0.7S0.3 achieves a ZT value of >2 with the temperature ranging from 673 to 923 K and has a relatively high average ZT value of 1.56 in the temperature region of 300–900 K. The author attributed the high ZT value to the synergistically optimized thermal and electrical transport properties, hierarchical architecting, and band-structure engineering. Although most of the inorganic thermoelectric materials yield ZT values greater than 1, their applications are limited on account of their intrinsic demerits, such as their heavy weight, high cost, processing difficulty, and toxicity.
Conversely, polymer-based organic thermoelectric generators, which contain unique merits such as low cost, light weight, convenient processing, mechanical flexibility, and low thermal conductivity, have been promoted as a new generation of thermoelectric candidates [53,54,55,56,57,58,59]. However, these organic thermoelectric devices are still not practically employed or applied owing to their low thermoelectric efficiency or ZT value. With effort, great progress has been achieved, and some recently developed organic thermoelectric materials have exhibited similar thermoelectric performance to those of traditional inorganic thermoelectric materials. Non-conducting polymers and conducting polymers are both used to prepare organic thermoelectric devices, but conducting polymers play the dominant role. Poly(3-hexylthiophene) (P3HT) [60], poly(3-octylthiophene) [61], and polyvinylidene fluoride [62,63] are three commonly used non-conducting polymers, while conducting polymers include poly(3-methylthiophene) [64,65], polyacetylene [66,67], poly(aniline) [68,69], polypyrrole [34,70], polythiophenes [58,71], polyphenylenevinylene [72], and poly(3,4-ethylenedioxythiophene) [73,74,75,76], and their chemical structures are shown in Table 1.
In this review, we introduced the effect of parameters on the thermoelectric efficiency and summarized the recently studied organic thermoelectric materials. In our previously published review paper, carbon-based thermoelectric materials were mainly introduced [31]. Carbon materials are usually non-toxic, light, and environmentally friendly, with excellent reinforcement ability [77,78,79,80,81,82,83,84,85,86,87,88,89,90]. This review gives more attention to summarizing inorganic particle-based organic thermoelectric materials that have been developed in recent years. Their designing philosophy and unique performance were sketched, and the future outlook of thermoelectric materials was briefly presented.

2. Parameters Affecting Thermoelectric Efficiency

As introduced in the last section, the ability of a thermoelectric device to generate thermoelectric power can be evaluated by the dimensionless figure of merit, ZT = S2σTκ−1. Consequently, the Seebeck coefficient S, thermal conductivity κ, and electrical conductivity σ are three inherent and also predominant parameters that essentially affect the thermoelectric efficiency of a given material. To obtain ideal thermoelectric energy conversion efficiency, thermoelectric materials with a high Seebeck coefficient, high electrical conductivity, and low thermal conductivity are required at the specified temperature [91,92,93,94,95,96]. However, it is extremely difficult to optimize the thermoelectric efficiency by independently adjusting these three parameters, as these three parameters display a triangular relationship. Thus, the adjustment should be judiciously optimized to obtain high-performance thermoelectric devices. Up to now, the highest ZT value of the available materials achieved is approximately 1 at room temperature.
As introduced, the Seebeck coefficient (V/K) of a thermoelectric material is the magnitude of an induced thermoelectric voltage in response to different temperatures at both sides of the material. It can be defined by the equation, S = −ΔV/ΔT, where ΔV is the thermoelectric voltage, and ΔT is the temperature difference between the two ends of the thermoelectric material. Thermoelectric materials charged with negative carriers, such as electrons, exhibit a negative Seebeck coefficient, while materials charged with positive carriers, such as holes, exhibit a positive Seebeck coefficient [97,98,99,100]. The Seebeck coefficient of a specified material is not stable at different external temperatures, but at a specific temperature, it depends on the chemical composition of the materials. In quantum theory, the Seebeck coefficient is an entropy measure for a carrier with a unit charge [101,102].
Electrical conductivity, which is positively correlated with thermoelectric efficiency, is another crucial factor in obtaining higher thermoelectric efficiency. It can be expressed by the equation σ = μqn, where q is the elementary charge, n is the charge carrier density, and μ is the electron mobility [103,104]. This equation applies to both the electron-flow-based n-type semiconductors and hole-flow-based p-type semiconductors. The charge carrier density is the number of charge carriers per volume. The hole or electron mobility is determined by the scattering time. Ionized impurity scattering caused by ionization occurring in the lattice and acoustic phonon scattering occurring during phonon collisions in a non-linear interaction are the most crucial scattering sources [31,105].
Thermal conduction is achieved by the transfer of a particle’s vibration energy to its adjacent particles without matter motion, which takes place mainly through collision [106] The thermal conductivity (k) is realized by the phonon synergy (kL) and electron transport (ke), k = kL + ke. In solid materials, such as in conductors and polymer composites, thermal conduction is the main method of heat transfer. However, the mechanism for thermal conduction in solids is complex, requiring the consideration of many parameters, such as size, proportion, thickness, morphological aspects, defects, orientation and alignment, and interfacial thermal resistance, and their effect on thermal conduction has been comprehensively illustrated in our previous studies [107,108,109]. In perfectly crystalline and rigid samples, thermal conduction can be elucidated by the following visualized phenomenon: the atoms on one side of the material obtain thermal energy, and the vibrational energy is transferred to the adjacent atoms via diffusion with a common vibrational mode through the entire crystal. In amorphous and disordered polymers, the thermal conduction mechanism is much more complex. The heat energy is first absorbed by the surface atoms and then transferred to the adjacent ones in a much slower speed, which usually causes disordered rotations and vibrations of other atoms around their equilibrium position, followed by scattering to its adjacent chains [106]. In crystalline particle-reinforced polymer composites, the thermal conduction mechanism is even more complex and does not involve just the simple addition of conduction in a crystalline particle and in a disordered polymer. Additional factors such as the concentration of the crystalline particle, particle dispersion, particle networks in the polymer matrix, processing, particle alignment, and interfacial thermal resistance should be considered.

3. Recently Developed Thermoelectric Materials

3.1. Recently Developed p-Type Organic Thermoelectric Materials

Holes and electrons are two typical carriers in thermoelectric materials, and holes are the dominant carriers in p-type organic thermoelectric materials. Under specific conditions, CNT [110,111], bismuth antimony telluride [112], Bi2S3 [113], Bi2Te3 [114], and graphene (oxide) [33,115,116] are some of the most used p-type thermoelectrical materials. In this section, some recently developed p-type thermoelectric materials were briefly introduced.
In the study of Cho et al. [21], ordered polyelectrolyte nanocomposites were deposited through layers of polyaniline (PANi), graphene, and double-walled CNT (DWNT) using a layer-by-layer assembly. The resistance of PANi/DWNT and PANi/graphene decreased as a function of deposited bilayers because more layers can provide more efficient electron transport. With 40 bilayers, the electrical conductivity of PANi/DWNT reached 840 S/cm. In contrast, PANi/graphene with 40 bilayers exhibited a relatively low electrical conductivity of 0.14 S/cm because of the low loading of graphene. The PANi/graphene/PANi/DWNT sheet decreased to 19.8 Ω sq−1 at 40 quadlayers, owing to the connectivity of the DWNT/graphene network. With the increase in the number of cycles, graphene and DWNT can help to bridge the 3D polymer-filler network, demonstrating more efficient electron transport. The quadlayer-polyelectrolyte carbon nanocomposites with 40, 50, and 60 cycles exhibited electrical conductivities of 1080 S/cm, 1025 S/cm, and 1015 S/cm, respectively, suggesting that the organic composites have a carbon content above the percolation threshold with a uniformly aligned network structure. The Seebeck coefficient of all prepared sheets is positive, showing that the sheets are all p-type. PANi/DWNT and PANi/graphene exhibited Seebeck coefficients of 95 and 25 µV/K, respectively, at 40 bilayers. The PANi/graphene/PANi/DWNT bilayer sheet exhibited a Seebeck coefficient of 130 µV/K at 40 bilayers, and its corresponding power factor was calculated to be 1825 μW/m K−2, which is the highest value ever reported.
Moriarty et al. [117] prepared organic thermoelectric nanomaterials using the liquid-phase exfoliation method. Briefly, SWCNT was stabilized by poly(3,4-ethylenedioxythiophene):poly(styrene sulfonate) (PEOT:PSS) in solutions (1 mg/mL) with sonication treatment, followed by vacuum-filtering using PVDF membranes. The thickness of the membranes can be controlled by the amount of dispersion filtered. The thermal conductivity of the prepared membranes varied in a small range 0.444–0.687, with the SWCNT concentration varying from 20–95 wt %. The electrical conductivity increased with the SWCNT concentration, reaching a maximum value of 4 × 105 S/m at the SWCNT concentration of 95 wt %, orders of magnitude higher than those of organic materials. The intrinsically high electrical conductivity of CNT, attributed to its highly conductive π-conjugated pathways, which can promote electron transport, is the main reason for the obtained high electrical conductivity of the nanomaterials. The Seebeck coefficient of the prepared materials changed from 26 µV/K to 14 µV/K with increased SWCNT concentrations. A small energy barrier is assumed to hinder the transport of low-energy electrons across junctions of nanotubes, resulting in an insensitive thermopower. This energy barrier for electron transport could be affected by the stabilizer of CNT. A power factor of 140 μW/m K−2 was obtained when the nanocomposite was incorporated by 85 wt % of SWCNT, and this value was competitive with other organic thermoelectric materials. In the end, a ZT value of 0.03 was calculated at 300 K for 40 wt % SWCNT film, demonstrating that this organic thin film can realize the energy transformation from waste heat to electricity.
Hong et al. [118] prepared high-performance thermoelectric poly(3-hexylthiophene)/CNT (P3HT/CNT) nanocomposites and flexible P3HT/CNT organic thermoelectric generators by a spray-printing method. The spray-printed P3HT/CNT films exhibited excellent thermoelectric performance. Because of the p-type characteristics of both P3HT and CNT, the prepared films exhibited positive Seebeck coefficients. The Seebeck coefficient decreased with increasing CNT content, while the electrical conductivity increased. The increased power factor was attributed to the significantly increased electrical conductivity. With 50% CNT at room temperature, the electrical conductivity, Seebeck coefficient, and power factor of the nanocomposite film were determined to be 224 ± 19 S/cm, 102 ± 3 μV/K, and 231 ± 19 μW/mK−2, respectively. An organic thermoelectric generator (Figure 1a) composed of P3HT/CNT nanocomposite, which was spray-printed on a polyimide substrate, was prepared. Its output-power–output-current and output-voltage–output-current curves are shown in Figure 1b. The open-circuit voltage was determined to be 41.8 mV, the internal resistance was 13.5 kΩ, and the maximum output power was 32.7 nW. All these values were near the calculated values.
Cho et al. [119] prepared a printable thermoelectric generator that was composed of organic material, graphene, PANi, and DWNT using a layer-by-layer assembly technique. The DWNT and graphene were stabilized by PEDOT:PSS, an intrinsically conductive polymer. The electrical conductivity of PANi/DWNT-PEDOT:PSS and PANi/graphene-PEDOT:PSS increased as a function of the number of deposition cycles. The PANi/graphene-PEDOT:PSS/PANi/DWNT-PEDOT:PSS quadlayers showed the highest electrical conductivity, and at 80 quadlayers, its electrical resistance decreased to 5.3 Ω/sq. The increase in the electrical conductivity with the number of deposition cycles suggests that a more interconnected network was formed for electron transport. In the case of the Seebeck coefficient, all the samples exhibited gradually increasing Seebeck coefficient with number of deposited layers. The PANi/DWNT-PEDOT:PSS, PANi/graphene-PEDOT:PSS, and PANi/graphene-PEDOT:PSS/PANi/DWNT-PEDOT:PSS quadlayers exhibited Seebeck coefficients of 58, 92, and 120 μV/K, respectively, at 80 quadlayers, which are relatively high values for organic thermoelectric materials. The power factors showed trends similar to that of the electrical conductivity. At 80 quadlayers, PANi/graphene-PEDOT:PSS showed a low power factor of 0.14 μW/mK−2, while PANi/DWNT-PEDOT:PSS exhibited a much higher power factor of 1230 μW/mK−2 at room temperature. The PANi/graphene-PEDOT:PSS/PANi/DWNT-PEDOT:PSS quadlayers exhibited the highest power factor of 2710 μW/mK−2, which is also the highest value reported to date.

3.2. Recently Developed n-Type Organic Thermoelectric Materials

Organic thermoelectric materials in the past few decades have emerged as green energy materials. P-type thermoelectric materials have been widely reported; however, development of their n-type counterpart was relatively difficult because of the difficulties in n-type doping of organic materials. N-type thermoelectric materials are still of huge interest because of their strong demand for thermoelectric devices with light weight, flexibility, and easy processing into versatile shapes.
Wan et al. [120] prepared n-type flexible thermoelectric materials using a novel and facile electrochemical intercalation and solvent exchange approach. Briefly, TiS2, used as a host material, was employed as a cathode in electrochemical cells. The dissolved organic salt solution (hexylammonium (HA) chloride dissolved in dimethylsulfoxide (DMSO)) was used as the electrolyte. Given an electric potential, a hybrid-layered superlattice of organic cations and inorganic TiS2 was prepared. The in-plane thermoelectric results of TiS2[(HA)0.08(H2O)0.22(DMSO)0.03] and crystal TiS2 without organic intercalation were presented in Figure 2. Crystal TiS2 exhibited a high Seebeck coefficient of −171 µV/K despite the fact that its concentration reached as high as 3.4 × 1020 cm−3. The electrical conductivity decreased from approximately 300 S/cm to 220 S/cm with increasing the temperature from 300 to 360 K. After intercalating the hexylammonium ions, the Seebeck coefficient was significantly decreased to −78 µV/K, while the electrical conductivity increased to 790 S/cm at 300 K. This mechanism can be explained that the negative charge inside TiS2 was balanced by the hexylammonium ions during the electrochemical process, leading to the decreased Seebeck coefficient. The total carrier density was then increased to 7.59 × 1020 cm−3, which is almost double that in crystal TiS2, resulting in increased electrical conductivity. The thermal conductivity for TiS2[(HA)0.08(H2O)0.22(DMSO)0.03] was determined to be 0.69 W/mK, which was significantly reduced compared to that of TiS2 (4.45 W/mK). In the end, the calculated in-plane ZT value for TiS2[(HA)0.08(H2O)0.22(DMSO)0.03] reached 0.28 at 373 K, which was triple that of TiS2, and this value is the highest for n-type flexible thermoelectric materials.
Wu et al. [121] proposed a novel approach to fabricate an n-type SWCNT by doping diethylenetriamine (DETA) on the pristine SWCNT (p-type) and subsequent treatment by CaH2. The n-type DETA-CaH2-SWCNT was fabricated with a thickness of 13 µm. The thermoelectric performances of SWCNT, DETA-CNT, and DETA-CaH2-SWCNT were determined. The pristine CNT exhibited a Seebeck coefficient of 43 µV/K, while the DETA-doped CNT showed a negative Seebeck coefficient of −33.0 µV/K, and the CNT subsequently treated by CaH2 exhibited higher n-type characteristics with a Seebeck coefficient of −41 µV/K. The electrical conductivity of the pristine CNT which is in network form is as high as 650 S/cm, while DETA-SWCNT and DETA-CaH2-SWCNT show significantly decreased electrical conductivities of 230 and 165 S/cm, respectively. These values are much higher than the n-type of CNT, modified by PEI, which is usually near 39 S/cm. DETA-SWCNT and DETA-CaH2-SWCNT exhibited power factors of 25 and 27 μW/mK−2, respectively. The mechanism of the p- to n-type CNT conversion can be explained by the switching of the concentration of carrier type (electrons and holes) [122]. In pristine CNT, the holes are dominant carriers and, thus, exhibits p-type behavior. Meanwhile after doping, the Fermi level shifts upwards toward the conduction band of the SWCNTs because of the charge transfer interaction between the CNT and dopants. Thus, the Fermi level shifts much closer to the conduction band, resulting in the conversion into n-type-conducting CNT. Using the p-type and n-type thermoelectric units prepared in this study, the author assembled the modules. The pristine CNT and DETA-CaH2-SWCNT are employed as the p-type and n-type units, respectively. An open circuit voltage with improved temperature differences, load circuit voltage and output power with enhanced load resistance were measured. With the increase in the temperature difference, the open circuit voltages increased linearly for all thermoelectric couples. When the temperature difference values reached 55 and 110 K, the voltages for the module reached 62 and 125 mV, respectively, which are the highest performance of all organic thermoelectric modules to date. The load circuit voltage significantly increased with the load resistance, while the current decreased significantly. The output power showed a maximum when the resistance reached approximately 1500 Ω. The maximum output thermoelectric power was 649 nW when the temperature gradient was 55 K for the module containing 14 couples.
Ferhat et al. [123] prepared a flexible inkjet-printed thermoelectric film using hybrid organic/inorganic and organic materials. The group designed a novel method to fabricate a solution-processable thermoelectric material using in-situ oxidation polymerization and interaction. Briefly, the PEDOT molecules were inserted in the nanotemplates of vanadium pentoxide (V2O5⋅nH2O) to increase the charge carrier concentration. The group successfully demonstrated the printability of (PEDOT)xV2O5 by adapting the hybrid (PEDOT)xV2O5 material to the inkjet printing technology. The thermoelectric performance of V2O5⋅nH2O and (PEDOT)xV2O5 were studied. The electrical conductivity increased by three orders of magnitude from 10−4 S/cm to 0.5 S/cm at a molar ratio of 0.6. The Seebeck coefficient decreased from −480 µV/K to −30 µV/K with the increased EPDOT molar ratio. To optimize the thermoelectric material and obtain the highest power factor, the molar ratio was tuned. The results showed that the power factor increased rapidly with added EDOT, and the highest power factor value reached 2 μW/mK−2 when the molar ratio was 0.1. The power factor was then decreased rapidly with increased EDOT monomer ratio.
Cho et al. fabricated an n-type thermoelectric material by depositing polyethylenimine-stabilized double-walled CNT (DWCNT) layers and GO in a layer-by-layer fashion. PEI/GO and DWCNT-PEI/GO bilayer systems were assembled. The sequence for the bilayer deposition of PEI/GO includes the alternating adsorption of negatively charged GO and positively charged PEI. The prepared film exhibited good flexibility, able to withstand high levels of twisting, bending, and wrapping without damage or cracking. The thermoelectric properties of the PEI/GO and DWNT–PEI/GO and their thermally reduced PEI/rGO, DWNT–PEI/GO, and DWNT–PEI/rGO were studied. The electrical resistance of PEI/rGO films decreased with the increase in the number of deposition layers, while the Seebeck coefficient increased to −40 µV/K at 30 bilayers, resulting in a power factor of 0.62 μW/mK2. The addition of the DWCNT remarkably improved the thermoelectric performance, and the electrical conductivity reached 27.3 S/cm with a Seebeck coefficient of −30 µV/K, reaching a power factor of 2.5 μW/mK2 before thermal reduction. After thermal conduction, the electrical conductivity reached 460 S/cm, and the Seebeck coefficient reached −93 µV/K. A power factor of 400 μW/mK2 was calculated, which was the highest value for an n-type organic thermoelectric material ever reported. Because of the small thickness of the film, the thermal conductivity could not be determined. A ZT value of 0.35 was expected, assuming a thermal conductivity of 0.34 W/mK. Compared to the traditional thermoelectric materials, it is interesting to see both the electrical conductivity and Seebeck coefficient increase with the number of deposited layers.

3.3. Recently Developed Organic Thermoelectric Devices

Thermoelectric devices or thermoelectric generators are assemblies of thermoelectric modules that are composed of n- and p-type thermoelectric materials or legs. A schematic diagram of a thermoelectric module composed of p-doped and n-doped semiconductors is shown in Figure 3. Thermoelectric generators with high thermoelectric performance have been commercially produced. In this section, some recently designed thermoelectric devices were introduced as well as their thermoelectric performance and advanced preparation technologies.
In the Hewitt study [124], an individual organic thermoelectric film composed of polyvinylidene fluoride/MWCNT that is layered into multiple modules was prepared. The power output significantly increased as the thermoelectric voltage generated by the composites was the sum of the contribution of each layer. At the same temperature, the Seebeck coefficient increased with number of layers, while the electrical conductivity decreased. Both the Seebeck coefficient and electrical conductivity for a specific sample increased with the temperature. A measurement of the power output on a 72-layer fabric was conducted as a function of load resistance at a temperature difference of 50 K. The result showed that a maximum power output of 137 nW was obtained when the load resistance was 1270 Ω. Then, the power output decreased on account of the exponentially larger load resistance. To obtain a higher power output, increasing the temperature difference and the number of conduction layers are two key factors. Theoretically, a fabric with 300 layers with a temperature difference of 100 K can reach a power output of 5 µW. Because of its lighter, cheaper, and easy-to-process material, this fabric shows promise in application to portable lightweight electronics.
Thin p- and n-type organic semiconductor films for thermoelectrical applications are fabricated by doping tetrathiotetracene (TTT) [125]. To obtain p-type materials, TTT was doped with iodine during vacuum deposition, while for n-type thin films, thermal co-deposition in vacuum of tetracyanoquinodimethane (TCNQ) and TTT was used. The Seebeck coefficient and electrical conductivity of the prepared films were characterized, and the results showed that both varied with doping level. The p-type TTT/iodide thin films exhibited a Seebeck coefficient of 63 µV/K, electrical conductivity of 130 S/s, and power factor of 0.52 μW/mK−2. The n-type TCNQ/TTT film exhibited a Seebeck coefficient of −75 µV/K, electrical conductivity of 57 S/s, and power factor of 0.33 μW/mK−2. A planar thermoelectric generator was prepared, and the electrical conductivity of the p-type material was 88 C/m, while the n-type material exhibited a conductivity of 12 S/m. The corresponding Seebeck coefficients were 62 and 118 µV/K, resulting in polymer factors of 0.33 and 0.16 μW/mK−2, respectively. Under ambient conditions, the thermoelectric generator exhibited a maximum power of 0.55 pW at 0.9 mV with a temperature gradient of 10 °C. After two weeks, the reduction in the power generation was less than 10%.
Kim et al. [110] prepared CNT/PEDOT:PSS nanocomposite materials with CNT loading ranging from 10 to 50 wt %, using a wet-spinning process in a solvent/coagulation system as organic thermoelectric generators. The diameter of the prepared thermoelectric materials was 500–600 µm. The CNT/PEDOT:PSS exhibited p-type characteristics, as both CNT and PEDOT:PSS have p-type characteristics. The Seebeck coefficient of the PEDOT:PSS and its CNT-based composites was in the range of 15–18 µV/K, and the CNT concentration can significantly affect the electrical conductivity of the thermoelectrical materials. By increasing the CNT concentration, the electrical conductivity was considerably increased, because at higher CNT concentration, more CNT-CNT junctions were formed. At 50 wt % concentration of CNT, the electrical conductivity reached approximately 400 S/cm, and the power factor calculated from the electrical conductivity and Seebeck coefficient reached 10.1 ± 4.5 μW/mK−2 at a CNT content of 40 wt %. The n-type fibers were fabricated by post-hydrazine treatment. The results showed that the hydrazine concentration could distinctly affect the thermoelectric performance of the CNT/PEDOT:PSS materials. The Seebeck coefficient increased with the hydrazine concentration, and it was interesting to find that the Seebeck coefficient of CNT/PEDOT:PSS composites exhibited a negative value of −29 µV/K. The electrical conductivity roughly decreased with increasing hydrazine concentration. The optimized p- and n-type power factors were calculated to be 83.2 ± 6.4 μW/mK−2 and 35.6 ± 5.2 μW/mK2, respectively, at a hydrazine concentration of 0.1 wt %. An organic thermoelectric generator was assembled with twelve pairs of n- and p-type thermoelectric fibers. A temperature difference of 10 K was applied at the two ends of the thermoelectric generators, and a maximum output power of 0.430 μW was obtained.
In the study of Tian et al. [126], a facile exfoliation-and-reassembly method to fabricate a flexible n-type TiS2/organic hybrid film for low-temperature thermoelectric application was developed. The TiS2 power was ground with hexylamine in an agate mortar with a molar ratio of 1:4, resulting in a metallic brown powder. As a function of annealing time, the electrical conductivity decreased from 757 to 660 S/cm, while the Seebeck coefficient increased by 25–30%. Based on the electrical conductivity and Seebeck coefficient, the power factor was calculated as a function of annealing time. The calculated results showed that the power factor after annealing increased by 45%, and the highest power factor obtained was approximately 210 μW/mK2 at room temperature. The thermal conductivity of the TiS2 superlattice was 0.37 W/mK along the in-plane direction and 0.07 W/mK along the out-of-plane direction at 298 K. The in-plane ZT value was calculated to be 0.17 at room temperature. A prototype thermoelectric module, as shown in Figure 4, composed of five pairs of thermoelectric legs, was assembled. The resistance of this device was about 250 Ω, and the power output was shown in Figure 4b. With a temperature difference of 70 K, the devices generated a voltage of 33 mV and a power factor of 0.9 μW. At temperature gradients of 10 and 70 K, the power density was calculated to be 0.05 and 2.5 W, respectively, as shown in Figure 4c.
Tellurium (Te) nanomaterial has gained great attention because of its excellent thermoelectric properties; however, their practical applications have been less studied. In the Li et al. study [29], a thermoelectric device composed of n-type and p-type Te-based nanowire film legs was built for the first time. Te and Bi2Te3 nanowires were synthesized by a facial solution method. Then, a thermoelectric film containing PEDOT:PSS/Te nanowires was prepared to obtain superior thermoelectric performance and improved environmental stability. The Seebeck coefficients of the Te and Bi2Te3 films with annealing were 553 and −163 µV/K, respectively. The negative Seebeck coefficient value represents that Bi2Te3 is n-type, owing to the changes in the inherent Fermi level when the Bi atom is wrapped in the Te atomic surface [127]. The power factor of the prepared Bi2Te3 nanowires was found to be 78 μW m−1 K−2, exhibiting an advantage for application as thermoelectric materials. With a PEDOT:PSS content of 50 wt %, the electrical conductivity of the PEDOT:PSS/Te film reached 285 S/cm, which was almost three orders of magnitude higher than that of the Te nanowires. The Seebeck coefficient of the PEDOT:PSS/Te exhibited the opposite trend with the electrical conductivity. It is known that the Seebeck coefficient depends strongly on the density of the states of the bands close to the Fermi surface, and the PEDOT:PSS can change the Fermi level of the Te nanowires by classical interface effects and quantum size effects. A power factor of 28.5 μW m−1 K−2 was calculated for a PEDOT:PSS content of 10 wt % at room temperature for the PEDOT:PSS/Te film. A thermoelectric device composed of 6 pairs of PEDOT:PSS/Te and Bi2Te3 nanowire films was fabricated, and it is shown in Figure 5a. The output voltages of this thermoelectric device are shown in Figure 5b. It can be seen that a maximum value of 56 mV is obtained for the thermoelectric devices at a temperature difference of 60 K. The internal resistance of the fabricated device is shown in Figure 5c. The internal resistance gradually increased with the temperature difference. The calculated output power densities of this device are shown in Figure 5d. The output power densities of the device increased with the temperature difference; at a temperature difference of 60 K, a maximum output power density of 32 μW cm−2 was obtained.
Conductive polymers have been widely employed in developing high-performance thermoelectric materials. In the Toshima et al. study [128], a novel organic hybrid thermoelectric material was prepared for constructing a flexible thermoelectric generator using nanotechnology instead of conductive polymers with high power output. The thermoelectric material was composed of polymer complex, poly(vinyl chloride) (PVC), and CNT. The n-type semiconducting polymer complex, poly(nickel 1,1,2,2-ethenetetrathiolate) (PETT), which could help to disperse the CNT in hybrid film was successfully prepared. Besides the CNT dispersion, the nanoparticles can also enhance the carrier transport among the CNT to increase the electrical conductivity of the hybrid films, leading to an improvement in thermoelectric properties. The prepared hybrid films exhibited steady Seebeck coefficients regardless of the CNT concentration. However, the electrical conductivity was significantly affected by the CNT concentration. It was also found that the films treated with methanol exhibited higher electrical conductivity than the pristine films. A power factor of 58.6 μW m−1 K−2 was obtained. Based on a thermal conductivity value of 0.06 W/K, the maximum thermoelectric ZT value of the three-component hybrid films was anticipated to be 0.31 at 340 K. A thermoelectric device composed of 5 uni-legs was prepared by printing technology on a polyimide substrate. With an ambient temperature of 100 K, the maximum power reached 3.88 μW under matching conditions from the current–power curves in the in-plane direction.

4. Conclusions and Prospects

Thermoelectric materials have drawn tremendous interest during the past few decades because of their ability to harvest energy from waste heat by green energy conversion. Although the inorganic conductors dominated the thermoelectric area up to now, their applications were limited due to their intrinsic defects. Consequently, it is urgent to develop organic polymer-based thermoelectric materials or devices that are non-toxic, convenient to process, mechanically flexible, and exhibit low thermal conductivity. In this review, parameters that could affect the thermoelectric efficiency were introduced. Some recently developed promising organic thermoelectric materials and devices were summarized regarding their thermoelectric performance, advanced preparation technologies, and influential factors. This brief review is beneficial for beginners to quickly master the fundamental knowledge of thermoelectric materials, thus inspiring them to develop more efficient thermoelectric devices.
As mentioned in this paper, organic thermoelectric materials have exhibited various merits, but their thermoelectric efficiency is still too low to be commercially applied and produced. More work is essential to develop highly efficient thermoelectric materials for wearable green energy generators. Particularly, the adjustment of the interactions among the electric conductivity, Seebeck coefficient, and thermal conductivity should be optimized, and the fundamental understanding of the relations between structure and property should be further studied. In the quest for green energy from thermoelectric materials, more organic n-type materials should be developed. Novel designs for organic thermoelectric devices are expected. The unique energy-harvesting characteristics of organic thermoelectric material without shifting matter yield much promise as a crucial element of wearable electrical materials in future.

Acknowledgments

This work was supported by the Technological Innovation R&D Program (S2598148) funded by the Small and Medium Business Administration (SMBA, Korea) and and the Commercialization Promotion Agency for R&D Outcomes (COMPA) funded by the Ministry of Science and ICT (MSIT) [2018_RND_002_0064, Development of 800 mAh/g-1 pitch carbon coating material].

Conflicts of Interest

The authors declare no conflict of interest

References

  1. Wang, F.; Tao, X.-M.; Li, Q.; Shu, L.; Zeng, W.; Chen, S. Fiber-Based Wearable Electronics: A Review of Materials, Fabrication, Devices, and Applications. Adv. Mater. 2014, 26, 5310–5336. [Google Scholar]
  2. Russ, B.; Glaudell, A.; Urban, J.J.; Chabinyc, M.L.; Segalman, R.A. Organic thermoelectric materials for energy harvesting and temperature control. Nat. Rev. Mater. 2016, 1, 16050. [Google Scholar] [CrossRef]
  3. Kim, J.; Kumar, R.; Bandodkar, A.J.; Wang, J. Advanced Materials for Printed Wearable Electrochemical Devices: A Review. Adv. Electron. Mater. 2017, 3, 1600260. [Google Scholar] [CrossRef]
  4. Heo, J.S.; Eom, J.; Kim, Y.H.; Park, S.K. Recent Progress of Textile-Based Wearable Electronics: A Comprehensive Review of Materials, Devices, and Applications. Small 2018, 14, 1703034. [Google Scholar] [CrossRef]
  5. Amjadi, M.; Kyung, K.U.; Park, I.; Sitti, M. Stretchable, Skin-Mountable, and Wearable Strain Sensors and Their Potential Applications: A Review. Adv. Funct. Mater. 2016, 26, 1678–1698. [Google Scholar] [CrossRef]
  6. Di, J.; Zhang, X.; Yong, Z.; Zhang, Y.; Li, D.; Li, R.; Li, Q. Carbon-Nanotube Fibers for Wearable Devices and Smart Textiles. Adv. Mater. 2016, 28, 10529–10538. [Google Scholar] [CrossRef] [PubMed]
  7. Ostfeld, A.E.; Lochner, C.M.; Pierre, A.; Arias, A.C.; Khan, Y. Monitoring of Vital Signs with Flexible and Wearable Medical Devices. Adv. Mater. 2016, 28, 4373–4395. [Google Scholar]
  8. Yang, Q.-H.; Huang, Z.-H.; Xu, C.; Zhao, X.; Kang, F.; Li, Y.; Dong, L. Flexible electrodes and supercapacitors for wearable energy storage: A review by category. J. Mater. Chem. A 2016, 4, 4659–4685. [Google Scholar]
  9. Siddique, A.R.M.; Mahmud, S.; Heyst, B. Van A review of the state of the science on wearable thermoelectric power generators (TEGs) and their existing challenges. Renew. Sustain. Energy Rev. 2017, 73, 730–744. [Google Scholar] [CrossRef]
  10. Zhang, X.; Zhao, L.D. Thermoelectric materials: Energy conversion between heat and electricity. J. Mater. 2015, 1, 92–105. [Google Scholar] [CrossRef] [Green Version]
  11. Tan, G.; Zhao, L.D.; Kanatzidis, M.G. Rationally Designing High-Performance Bulk Thermoelectric Materials. Chem. Rev. 2016, 116, 12123–12149. [Google Scholar] [CrossRef]
  12. Champier, D. Thermoelectric generators: A review of applications. Energy Convers. Manag. 2017, 140, 167–181. [Google Scholar] [CrossRef]
  13. Gayner, C.; Kar, K.K. Recent advances in thermoelectric materials. Prog. Mater. Sci. 2016, 83, 330–382. [Google Scholar] [CrossRef]
  14. Zhu, T.; Liu, Y.; Fu, C.; Heremans, J.P.; Snyder, J.G.; Zhao, X. Compromise and Synergy in High-Efficiency Thermoelectric Materials. Adv. Mater. 2017, 29, 1605884. [Google Scholar] [CrossRef]
  15. Tang, X.; Sun, Z.; Dong, X.; Liu, Y.; Li, C.; He, D.; Ji, P.; Shen, B.; Zhou, H.; Shi, J.; et al. Superparamagnetic enhancement of thermoelectric performance. Nature 2017, 549, 247–251. [Google Scholar]
  16. Kanimba, E.; Tian, Z. A New Dimensionless Number for Thermoelectric Generator Performance. Appl. Therm. Eng. 2019, 152, 858–864. [Google Scholar] [CrossRef]
  17. Khan, Z.U.; Edberg, J.; Hamedi, M.M.; Gabrielsson, R.; Granberg, H.; Wågberg, L.; Engquist, I.; Berggren, M.; Crispin, X. Thermoelectric Polymers and their Elastic Aerogels. Adv. Mater. 2016, 28, 4556–4562. [Google Scholar] [CrossRef]
  18. Cai, Y.; Wang, Y.; Liu, D.; Zhao, F.Y. Thermoelectric cooling technology applied in the field of electronic devices: Updated review on the parametric investigations and model developments. Appl. Therm. Eng. 2019, 148, 238–255. [Google Scholar] [CrossRef]
  19. Cao, X.; Jie, Y.; Wang, N.; Wang, Z.L. Triboelectric Nanogenerators Driven Self-Powered Electrochemical Processes for Energy and Environmental Science. Adv. Energy Mater. 2016, 6, 1600665. [Google Scholar] [CrossRef]
  20. Yen, P.H.; Wang, J.C. Power generation and electric charge density with temperature effect of alumina nanofluids using dimensional analysis. Energy Convers. Manag. 2019, 186, 546–555. [Google Scholar] [CrossRef]
  21. Cho, C.; Stevens, B.; Hsu, J.H.; Bureau, R.; Hagen, D.A.; Regev, O.; Yu, C.; Grunlan, J.C. Completely organic multilayer thin film with thermoelectric power factor rivaling inorganic tellurides. Adv. Mater. 2015, 27, 2996–3001. [Google Scholar] [CrossRef] [PubMed]
  22. Xiang, J.; Drzal, L.T. Templated growth of polyaniline on exfoliated graphene nanoplatelets (GNP) and its thermoelectric properties. Polymer 2012, 53, 4202–4210. [Google Scholar] [CrossRef]
  23. Xu, K.; Chen, G.; Qiu, D. Convenient construction of poly(3,4-ethylenedioxythiophene)-graphene pie-like structure with enhanced thermoelectric performance. J. Mater. Chem. A 2013, 1, 12395–12399. [Google Scholar] [CrossRef]
  24. Huang, F.; Bi, H.; Wang, Q.; Wang, L.; Yao, Q.; Chen, L. Large thermoelectric power factor in polyaniline/graphene nanocomposite films prepared by solution-assistant dispersing method. J. Mater. Chem. A 2014, 2, 11107. [Google Scholar]
  25. Jiang, Q.; Liu, C.; Song, H. Improved thermoelectric performance of PEDOT:PSS films prepared by polar-solvent vapor annealing method. J. Mater. Sci. Mater. Electron. 2013, 24, 4240–4246. [Google Scholar] [CrossRef]
  26. Orr, B.; Akbarzadeh, A.; Mochizuki, M.; Singh, R. A review of car waste heat recovery systems utilising thermoelectric generators and heat pipes. Appl. Therm. Eng. 2016, 101, 490–495. [Google Scholar] [CrossRef]
  27. Mittal, G.; Rhee, K.Y.; Park, S.J.; Hui, D. Generation of the pores on graphene surface and their reinforcement effects on the thermal and mechanical properties of chitosan-based composites. Compos. Part B Eng. 2017, 114, 348–355. [Google Scholar] [CrossRef]
  28. Dun, C.; Hewitt, C.A.; Huang, H.; Xu, J.; Zhou, C.; Huang, W.; Cui, Y.; Zhou, W.; Jiang, Q.; Carroll, D.L. Flexible n-type thermoelectric films based on Cu-doped Bi2Se3 nanoplate and Polyvinylidene Fluoride composite with decoupled Seebeck coefficient and electrical conductivity. Nano Energy 2015, 18, 306–314. [Google Scholar] [CrossRef]
  29. Li, C.; Jiang, F.; Liu, C.; Wang, W.; Li, X.; Wang, T.; Xu, J. A simple thermoelectric device based on inorganic/organic composite thin film for energy harvesting. Chem. Eng. J. 2017, 320, 201–210. [Google Scholar] [CrossRef]
  30. Zheng, X.F.; Yan, Y.Y.; Simpson, K. A potential candidate for the sustainable and reliable domestic energy generation-Thermoelectric cogeneration system. Appl. Therm. Eng. 2013, 53, 305–311. [Google Scholar] [CrossRef]
  31. Zhang, Y.; Heo, Y.; Park, M.; Park, S. Recent Advances in Organic Thermoelectric Materials: Principle Mechanisms and Emerging Carbon-Based Green Energy Materials. Polymers 2019, 11, 167. [Google Scholar] [CrossRef]
  32. Wang, L.; Wang, D.; Zhu, G.; Li, J.; Pan, F. Thermoelectric properties of conducting polyaniline/graphite composites. Mater. Lett. 2011, 65, 1086–1088. [Google Scholar] [CrossRef]
  33. Zhao, Y.; Tang, G.S.; Yu, Z.Z.; Qi, J.S. The effect of graphite oxide on the thermoelectric properties of polyaniline. Carbon 2012, 50, 3064–3073. [Google Scholar] [CrossRef]
  34. Wu, J.; Sun, Y.; Pei, W.B.; Huang, L.; Xu, W.; Zhang, Q. Polypyrrole nanotube film for flexible thermoelectric application. Synth. Met. 2014, 196, 173–177. [Google Scholar] [CrossRef]
  35. Zhao, L.-D.; Lo, S.-H.; Zhang, Y.; Sun, H.; Tan, G.; Uher, C.; Wolverton, C.; Dravid, V.P.; Kanatzidis, M.G. Ultralow thermal conductivity and high thermoelectric figure of merit in SnSe crystals. Nature 2014, 508, 373–377. [Google Scholar] [CrossRef] [PubMed]
  36. Zhao, L.D.; Tan, G.; Hao, S.; He, J.; Pei, Y.; Chi, H.; Wang, H.; Gong, S.; Xu, H.; Dravid, V.P.; et al. Ultrahigh power factor and thermoelectric performance in hole-doped single-crystal SnSe. Science 2016, 351, 141–144. [Google Scholar] [CrossRef]
  37. Zhao, L.D.; Chang, C.; Tan, G.; Kanatzidis, M.G. SnSe: A remarkable new thermoelectric material. Energy Environ. Sci. 2016, 9, 3044–3060. [Google Scholar] [CrossRef]
  38. Pei, Y.; Lalonde, A.; Iwanaga, S.; Snyder, G.J. High thermoelectric figure of merit in heavy hole dominated PbTe. Energy Environ. Sci. 2011, 4, 2085–2089. [Google Scholar] [CrossRef]
  39. Pei, Y.; Lensch-Falk, J.; Toberer, E.S.; Medlin, D.L.; Snyder, G.J. High thermoelectric performance in PbTe due to large nanoscale Ag2Te precipitates and la doping. Adv. Funct. Mater. 2011, 21, 241–249. [Google Scholar] [CrossRef]
  40. Zheng, J.-C.; He, J.; Wen, J.; Kanatzidis, M.G.; Zhu, Y.; Girard, S.N.; Sootsman, J.R.; Dravid, V.P. On the Origin of Increased Phonon Scattering in Nanostructured PbTe Based Thermoelectric Materials. J. Am. Chem. Soc. 2010, 132, 8669–8675. [Google Scholar]
  41. He, Y.; Day, T.; Zhang, T.; Liu, H.; Shi, X.; Chen, L.; Snyder, G.J. High thermoelectric performance in non-toxic earth-abundant copper sulfide. Adv. Mater. 2014, 26, 3974–3978. [Google Scholar] [CrossRef] [PubMed]
  42. Kanatzidis, M.G.; He, J.; Johnsen, S.; Androulakis, J.; Dravid, V.P.; Todorov, I.; Chung, D.Y. Nanostructures Boost the Thermoelectric Performance of PbS. J. Am. Chem. Soc. 2011, 133, 3460–3470. [Google Scholar]
  43. Wang, H.; Schechtel, E.; Pei, Y.; Snyder, G.J. High thermoelectric effi ciency of n-type PbS. Adv. Energy Mater. 2013, 3, 488–495. [Google Scholar] [CrossRef]
  44. Girard, S.N.; He, J.; Zhou, X.; Shoemaker, D.; Jaworski, C.M.; Uher, C.; Dravid, V.P.; Heremans, J.P.; Kanatzidis, M.G. High performance Na-doped PbTe-PbS thermoelectric materials: Electronic density of states modification and shape-controlled nanostructures. J. Am. Chem. Soc. 2011, 133, 16588–16597. [Google Scholar] [CrossRef]
  45. Wang, H.; Pei, Y.; Lalonde, A.D.; Snyder, G.J. Heavily doped p-type PbSe with high thermoelectric performance: An alternative for PbTe. Adv. Mater. 2011, 23, 1366–1370. [Google Scholar] [CrossRef]
  46. Zhang, Q.; Wang, H.; Liu, W.; Wang, H.; Yu, B.; Zhang, Q.; Tian, Z.; Ni, G.; Lee, S.; Esfarjani, K.; et al. Enhancement of thermoelectric figure-of-merit by resonant states of aluminium doping in lead selenide. Energy Environ. Sci. 2012, 5, 5246–5251. [Google Scholar] [CrossRef] [Green Version]
  47. Hu, L.; Zhu, T.; Liu, X.; Zhao, X. Point defect engineering of high-performance bismuth-telluride-based thermoelectric materials. Adv. Funct. Mater. 2014, 24, 5211–5218. [Google Scholar] [CrossRef]
  48. Zhang, G.; Kirk, B.; Jauregui, L.A.; Yang, H.; Xu, X.; Chen, Y.P.; Wu, Y. Rational synthesis of ultrathin n-type Bi2Te3 nanowires with enhanced thermoelectric properties. Nano Lett. 2012, 12, 56–60. [Google Scholar] [CrossRef]
  49. Lin, S.; Li, W.; Chen, Z.; Shen, J.; Ge, B.; Pei, Y. Tellurium as a high-performance elemental thermoelectric. Nat. Commun. 2016, 7, 10287. [Google Scholar] [CrossRef] [Green Version]
  50. Zheng, Y.; Zhang, Q.; Su, X.; Xie, H.; Shu, S.; Chen, T.; Tan, G.; Yan, Y.; Tang, X.; Uher, C.; et al. Mechanically robust BiSbTe alloys with superior thermoelectric performance: A case study of stable hierarchical nanostructured thermoelectric materials. Adv. Energy Mater. 2015, 5, 1401391. [Google Scholar] [CrossRef]
  51. Tan, G.; Zhao, L.D.; Shi, F.; Doak, J.W.; Lo, S.H.; Sun, H.; Wolverton, C.; Dravid, V.P.; Uher, C.; Kanatzidis, M.G. High thermoelectric performance of p-type SnTe via a synergistic band engineering and nanostructuring approach. J. Am. Chem. Soc. 2014, 136, 7006–7017. [Google Scholar] [CrossRef] [PubMed]
  52. Zhao, L.-D.; Pei, Y.L.; Kanatzidis, M.G.; Wu, D.; He, J.Q.; Wu, H.J.; Tong, X.; Zheng, F.S. Broad temperature plateau for thermoelectric figure of merit ZT>2 in phase-separated PbTe0.7S0.3. Nat. Commun. 2014, 5, 4515. [Google Scholar]
  53. Culebras, M.; Choi, K.; Cho, C. Recent Progress in Flexible Organic Thermoelectrics. Micromachines 2018, 9, 638. [Google Scholar] [CrossRef]
  54. Liang, L.; Gao, C.; Chen, G.; Guo, C.Y. Large-area, stretchable, super flexible and mechanically stable thermoelectric films of polymer/carbon nanotube composites. J. Mater. Chem. C 2016, 4, 526–532. [Google Scholar] [CrossRef]
  55. Qu, S.; Ming, C.; Yao, Q.; Lu, W.; Zeng, K.; Shi, W.; Shi, X.; Uher, C.; Chen, L. Understanding the Intrinsic Carrier Transport in Highly Oriented Poly(3-hexylthiophene): Effect of Side Chain Regioregularity. Polymers 2018, 10, 815. [Google Scholar] [CrossRef]
  56. Chen, G.; Xu, W.; Zhu, D. Recent advances in organic polymer thermoelectric composites. J. Mater. Chem. C 2017, 5, 4350–4360. [Google Scholar] [CrossRef]
  57. Wang, H.; Yi, S.I.; Pu, X.; Yu, C. Simultaneously improving electrical conductivity and thermopower of polyaniline composites by utilizing carbon nanotubes as high mobility conduits. ACS Appl. Mater. Interfaces 2015, 7, 9589–9597. [Google Scholar] [CrossRef]
  58. Wang, L.; Liu, Y.; Zhang, Z.; Wang, B.; Qiu, J.; Hui, D.; Wang, S. Polymer composites-based thermoelectric materials and devices. Compos. Part B Eng. 2017, 122, 145–155. [Google Scholar] [CrossRef] [Green Version]
  59. Fan, Z.; Du, D.; Guan, X.; Ouyang, J. Polymer films with ultrahigh thermoelectric properties arising from significant seebeck coefficient enhancement by ion accumulation on surface. Nano Energy 2018, 51, 481–488. [Google Scholar] [CrossRef]
  60. Hong, C.T.; Lee, W.; Kang, Y.H.; Yoo, Y.; Ryu, J.; Cho, S.Y.; Jang, K.S. Effective doping by spin-coating and enhanced thermoelectric power factors in SWCNT/P3HT hybrid films. J. Mater. Chem. A 2015, 3, 12314–12319. [Google Scholar] [CrossRef]
  61. Kymakis, E.; Amaratunga, G.A.J. Electrical properties of single-wall carbon nanotube-polymer composite films. J. Appl. Phys. 2006, 99, 084302. [Google Scholar] [CrossRef]
  62. Zhou, C.; Dun, C.; Ge, B.; Wang, K.; Shi, Z.; Liu, G.; Carroll, D.L.; Qiao, G. Highly robust and flexible n-type thermoelectric film based on Ag2Te nanoshuttle/polyvinylidene fluoride hybrids. Nanoscale 2018, 10, 14830–14834. [Google Scholar] [CrossRef] [PubMed]
  63. Dun, C.; Hewitt, C.A.; Huang, H.; Xu, J.; Montgomery, D.S.; Nie, W.; Jiang, Q.; Carroll, D.L. Layered Bi2Se3 nanoplate/polyvinylidene fluoride composite based n-type thermoelectric fabrics. ACS Appl. Mater. Interfaces 2015, 7, 7054–7059. [Google Scholar] [CrossRef]
  64. Hu, Y.; Zhu, D.; Zhu, Z.; Liu, E.; Lu, B.; Xu, J.; Zhao, F.; Hou, J.; Liu, H.; Jiang, F. Electrochemical Treatment for Effectively Tuning Thermoelectric Properties of Free-Standing Poly(3-methylthiophene) Films. ChemPhysChem 2016, 2256–2262. [Google Scholar] [CrossRef]
  65. Li, J.; Lai, C.; Jia, X.; Wang, L.; Xiang, X.; Ho, C.L.; Li, H.; Wong, W.Y. Effect of electron donor/acceptor substituents on the Seebeck coefficient and thermoelectric properties of poly(3-methylthiophene methine)s/graphite composites. Compos. Part B Eng. 2015, 77, 248–256. [Google Scholar] [CrossRef]
  66. Wang, H.L.; Wang, M.X.; Qian, C.; Hong, X.K.; Zhang, D.B.; Liu, Y.S.; Yang, X.F. Spin thermoelectric effects in organic single-molecule devices. Phys. Lett. Sect. A Gen. At. Solid State Phys. 2017, 381, 1738–1744. [Google Scholar] [CrossRef]
  67. Kroon, R.; Mengistie, D.A.; Kiefer, D.; Hynynen, J.; Ryan, J.D.; Yu, L.; Müller, C. Thermoelectric plastics: From design to synthesis, processing and structure-property relationships. Chem. Soc. Rev. 2016, 45, 6147–6164. [Google Scholar] [CrossRef]
  68. Horta-Romarís, L.; González-Rodríguez, M.V.; Lasagabáster, A.; Rivadulla, F.; Abad, M.J. Thermoelectric properties and intrinsic conduction processes in DBSA and NaSIPA doped polyanilines. Synth. Met. 2018, 243, 44–50. [Google Scholar] [CrossRef]
  69. Roussel, F.; Chen Yu King, R.; Kuriakose, M.; Depriester, M.; Hadj-Sahraoui, A.; Gors, C.; Addad, A.; Brun, J.F. Electrical and thermal transport properties of polyaniline/silver composites and their use as thermoelectric materials. Synth. Met. 2015, 199, 196–204. [Google Scholar] [CrossRef]
  70. Li, C.; Ma, H.; Tian, Z. Thermoelectric properties of crystalline and amorphous polypyrrole: A computational study. Appl. Therm. Eng. 2017, 111, 1441–1447. [Google Scholar] [CrossRef]
  71. Glaudell, A.M.; Cochran, J.E.; Patel, S.N.; Chabinyc, M.L. Impact of the doping method on conductivity and thermopower in semiconducting polythiophenes. Adv. Energy Mater. 2015, 5, 1401072. [Google Scholar] [CrossRef]
  72. Oshima, K.; Sadakata, S.; Asano, H.; Shiraishi, Y.; Toshima, N. Thermostability of hybrid thermoelectric materials consisting of poly(Ni-ethenetetrathiolate), polyimide and carbon nanotubes. Materials 2017, 10, 824. [Google Scholar] [CrossRef]
  73. Kim, Y.; Kim, M.; Seong, H.G.; Jung, J.Y.; Baeck, S.H.; Shim, S.E. Roles of silica-coated layer on graphite for thermal conductivity, heat dissipation, thermal stability, and electrical resistivity of polymer composites. Polymer 2018, 148, 295–302. [Google Scholar] [CrossRef]
  74. Weathers, A.; Khan, Z.U.; Brooke, R.; Evans, D.; Pettes, M.T.; Andreasen, J.W.; Crispin, X.; Shi, L. Significant electronic thermal transport in the conducting polymer poly(3,4-ethylenedioxythiophene). Adv. Mater. 2015, 27, 2101–2106. [Google Scholar] [CrossRef] [PubMed]
  75. Khan, Z.U.; Bubnova, O.; Jafari, M.J.; Brooke, R.; Liu, X.; Gabrielsson, R.; Ederth, T.; Evans, D.R.; Andreasen, J.W.; Fahlman, M.; et al. Acido-basic control of the thermoelectric properties of poly(3,4-ethylenedioxythiophene)tosylate (PEDOT-Tos) thin films. J. Mater. Chem. C 2015, 3, 10616–10623. [Google Scholar] [CrossRef] [Green Version]
  76. Petsagkourakis, I.; Pavlopoulou, E.; Portale, G.; Kuropatwa, B.A.; Dilhaire, S.; Fleury, G.; Hadziioannou, G. Structurally-driven enhancement of thermoelectric properties within poly(3,4-ethylenedioxythiophene) thin films. Sci. Rep. 2016, 6, 30501. [Google Scholar] [CrossRef] [PubMed]
  77. Zhang, Y.; Park, S.J. Enhanced interfacial interaction by grafting carboxylated-macromolecular chains on nanodiamond surfaces for epoxy-based thermosets. J. Polym. Sci. Part B Polym. Phys. 2017, 55, 1890–1898. [Google Scholar] [CrossRef]
  78. Zhang, Y.; Choi, J.R.; Park, S.J. Interlayer polymerization in amine-terminated macromolecular chain-grafted expanded graphite for fabricating highly thermal conductive and physically strong thermoset composites for thermal management applications. Compos. Part A Appl. Sci. Manuf. 2018, 109, 498–506. [Google Scholar] [CrossRef]
  79. Zhang, Y.; Park, S.J. In situ shear-induced mercapto group-activated graphite nanoplatelets for fabricating mechanically strong and thermally conductive elastomer composites for thermal management applications. Compos. Part A Appl. Sci. Manuf. 2018, 112, 40–48. [Google Scholar] [CrossRef]
  80. Fan, Y.; Li, X.; Jang, S.H.; Lee, D.H.; Li, Q.; Cho, U.R. Reinforcement of solution styrene-butadiene rubber by incorporating hybrids of rice bran carbon and surface modified fumed silica. J. Vinyl Addit. Technol. 2018, 24, E194–E200. [Google Scholar] [CrossRef]
  81. Kamran, U.; Heo, Y.; Lee, J.W.; Park, S. Functionalized Carbon Materials for Electronic Devices: A Review. Micromachines 2019, 10, 234. [Google Scholar] [CrossRef] [PubMed]
  82. Li, M.-C.; Zhang, Y.; Cho, U.R. Mechanical, thermal and friction properties of rice bran carbon/nitrile rubber composites: Influence of particle size and loading. Mater. Des. 2014, 63, 565–574. [Google Scholar] [CrossRef]
  83. Kamran, U.; Heo, Y.-J.; Lee, J.W.; Park, S.-J. Chemically modified activated carbon decorated with MnO2 nanocomposites for improving lithium adsorption and recovery from aqueous media. J. Alloys Compd. 2019, 794, 425–434. [Google Scholar] [CrossRef]
  84. Zhang, Y.; Choi, J.R.; Park, S.-J. Thermal conductivity and thermo-physical properties of nanodiamond-attached exfoliated hexagonal boron nitride/epoxy nanocomposites for microelectronics. Compos. Part A Appl. Sci. Manuf. 2017, 101, 227–236. [Google Scholar] [CrossRef]
  85. Zhang, Y.; Rhee, K.Y.; Park, S.J. Nanodiamond nanocluster-decorated graphene oxide/epoxy nanocomposites with enhanced mechanical behavior and thermal stability. Compos. Part B Eng. 2017, 114, 111–120. [Google Scholar] [CrossRef]
  86. Zhang, Y.; Park, S.-J. Imidazolium-optimized conductive interfaces in multilayer graphene nanoplatelet/epoxy composites for thermal management applications and electroactive devices. Polymer 2019, 168, 53–60. [Google Scholar] [CrossRef]
  87. Zhang, Y.; Park, M.; Park, S.-J. Implication of thermally conductive nanodiamond-interspersed graphite nanoplatelet hybrids in thermoset composites with superior thermal management capability. Sci. Rep. 2019, 9, 2893. [Google Scholar] [CrossRef] [PubMed]
  88. Zhang, Y.; Rhee, K.Y.; Hui, D.; Park, S.J. A critical review of nanodiamond based nanocomposites: Synthesis, properties and applications. Compos. Part B Eng. 2018, 143, 19–27. [Google Scholar] [CrossRef]
  89. Zhang, Y.; Ge, X.; Deng, F.; Li, M.-C.; Cho, U.R. Fabrication and Characterization of Rice Bran Carbon/Styrene Butadiene Rubber Composites Fabricated by Latex Compounding Method. Polym. Compos. 2017, 38, 2594–2602. [Google Scholar] [CrossRef]
  90. Fan, Y.; Cho, U.R. Effects of graphite and boron nitride based fillers on mechanical, thermal conductive, and thermo-physical properties in solution styrene-butadiene rubber. Polym. Compos. 2019, 40, E1426–E1433. [Google Scholar] [CrossRef]
  91. Chen, Y.C.; Lee, S.C.; Liu, T.H.; Chang, C.C. Thermal conductivity of boron nitride nanoribbons: Anisotropic effects and boundary scattering. Int. J. Therm. Sci. 2015, 94, 72–78. [Google Scholar] [CrossRef]
  92. Perumal, S.; Roychowdhury, S.; Biswas, K. Reduction of thermal conductivity through nanostructuring enhances the thermoelectric figure of merit in Ge1-xBixTe. Inorg. Chem. Front. 2016, 3, 125–132. [Google Scholar] [CrossRef]
  93. Kim, C.; Baek, J.Y.; Kim, D.H.; Kim, J.T.; Lopez, D.H.; Kim, T.; Kim, H. Decoupling of thermal and electrical conductivities by adjusting the anisotropic nature in tungsten diselenide causing significant enhancement in thermoelectric performance. J. Ind. Eng. Chem. 2018, 60, 458–464. [Google Scholar] [CrossRef]
  94. Du, Y.; Niu, H.; Li, J.; Dou, Y.; Shen, S.; Jia, R.; Xu, J. Morphologies Tuning of Polypyrrole and Thermoelectric Properties of Polypyrrole Nanowire/Graphene Composites. Polymers 2018, 10, 1143. [Google Scholar] [CrossRef]
  95. Du, Y.; Li, H.; Jia, X.; Dou, Y.; Xu, J.; Eklund, P. Preparation and Thermoelectric Properties of Graphite/poly(3,4-ethyenedioxythiophene) Nanocomposites. Energies 2018, 11, 2849. [Google Scholar] [CrossRef]
  96. Song, H.; Cai, K.; Wang, J.; Shen, S. Influence of polymerization method on the thermoelectric properties of multi-walled carbon nanotubes/polypyrrole composites. Synth. Met. 2016, 211, 58–65. [Google Scholar] [CrossRef]
  97. Huen, P.; Daoud, W.A. Advances in hybrid solar photovoltaic and thermoelectric generators. Renew. Sustain. Energy Rev. 2017, 72, 1295–1302. [Google Scholar] [CrossRef]
  98. Hao, F.; Qiu, P.; Tang, Y.; Bai, S.; Xing, T.; Chu, H.S.; Zhang, Q.; Lu, P.; Zhang, T.; Ren, D.; et al. High efficiency Bi2Te3-based materials and devices for thermoelectric power generation between 100 and 300 °C. Energy Environ. Sci. 2016, 9, 3120–3127. [Google Scholar] [CrossRef]
  99. Hao, S.; Shi, F.; Dravid, V.P.; Kanatzidis, M.G.; Wolverton, C. Computational Prediction of High Thermoelectric Performance in Hole Doped Layered GeSe. Chem. Mater. 2016, 28, 3218–3226. [Google Scholar] [CrossRef]
  100. Song, H.; Ding, G.; Yan, P.; Ge, X.; Gao, G.; Qin, D. Monolayer PdSe2: A promising two-dimensional thermoelectric material. Sci. Rep. 2018, 8, 2764. [Google Scholar]
  101. Broch, K.; Venkateshvaran, D.; Lemaur, V.; Olivier, Y.; Beljonne, D.; Zelazny, M.; Nasrallah, I.; Harkin, D.J.; Statz, M.; Di Pietro, R.; Kronemeijer, A.J.; Sirringhaus, H. Measurements of Ambipolar Seebeck Coefficients in High-Mobility Diketopyrrolopyrrole Donor–Acceptor Copolymers. Adv. Electron. Mater. 2017, 3, 1700225. [Google Scholar] [CrossRef]
  102. Liu, R.; Chen, H.; Zhao, K.; Qin, Y.; Jiang, B.; Zhang, T.; Sha, G.; Shi, X.; Uher, C.; Zhang, W.; et al. Entropy as a Gene-Like Performance Indicator Promoting Thermoelectric Materials. Adv. Mater. 2017, 29, 1702712. [Google Scholar] [CrossRef] [PubMed]
  103. Zhang, Q.; Sun, Y.; Xu, W.; Zhu, D. Organic Thermoelectric Materials: Emerging Green Energy Materials Converting Heat to Electricity Directly and Efficiently. Adv. Mater. 2014, 26, 6829–6851. [Google Scholar] [CrossRef]
  104. Yao, H.; Fan, Z.; Cheng, H.; Guan, X.; Wang, C.; Sun, K.; Ouyang, J. Recent Development of Thermoelectric Polymers and Composites. Macromol. Rapid Commun. 2018, 39, 1700727. [Google Scholar] [CrossRef] [PubMed]
  105. Mao, J.; Shuai, J.; Song, S.; Wu, Y.; Dally, R.; Zhou, J.; Liu, Z.; Sun, J.; Zhang, Q.; dela Cruz, C.; et al. Manipulation of ionized impurity scattering for achieving high thermoelectric performance in n-type Mg3Sb2-based materials. Proc. Natl. Acad. Sci. USA 2017, 114, 10548–10553. [Google Scholar] [CrossRef]
  106. Burger, N.; Laachachi, A.; Ferriol, M.; Lutz, M.; Toniazzo, V.; Ruch, D. Review of thermal conductivity in composites: Mechanisms, parameters and theory. Prog. Polym. Sci. 2016, 61, 1–28. [Google Scholar] [CrossRef]
  107. Zhang, Y.; Heo, Y.-J.; Son, Y.-R.; In, I.; An, K.-H.; Kim, B.-J.; Park, S.-J. Recent advanced thermal interfacial materials: A review of conducting mechanisms and parameters of carbon materials. Carbon 2019, 142, 445–460. [Google Scholar] [CrossRef]
  108. Chen, J.; Xiao, P.; Xiong, X. The mechanical properties and thermal conductivity of carbon/carbon composites with the fiber/matrix interface modified by silicon carbide nanofibers. Mater. Des. 2015, 84, 285–290. [Google Scholar] [CrossRef]
  109. Han, Z.; Fina, A. Thermal conductivity of carbon nanotubes and their polymer nanocomposites: A review. Prog. Polym. Sci. 2011, 36, 914–944. [Google Scholar] [CrossRef] [Green Version]
  110. Kim, J.Y.; Lee, W.; Kang, Y.H.; Cho, S.Y.; Jang, K.S. Wet-spinning and post-treatment of CNT/PEDOT:PSS composites for use in organic fiber-based thermoelectric generators. Carbon 2018, 133, 293–299. [Google Scholar] [CrossRef]
  111. Choi, Y.; Kim, Y.; Park, S.G.; Kim, Y.G.; Sung, B.J.; Jang, S.Y.; Kim, W. Effect of the carbon nanotube type on the thermoelectric properties of CNT/Nafion nanocomposites. Org. Electron. Phys. Mater. Appl. 2011, 12, 2120–2125. [Google Scholar] [CrossRef]
  112. Poudel, B.; Chen, G.; Ren, Z.; Yu, B.; Ma, Y.; Wang, D.; Hao, Q.; Lan, Y. Enhanced Thermoelectric Figure-of-Merit in p-Type Nanostructured Bismuth Antimony Tellurium Alloys Made from Elemental Chunks. Nano Lett. 2008, 8, 2580–2584. [Google Scholar]
  113. Biswas, K.; Zhao, L.-D.; Kanatzidis, M.G. Tellurium-Free Thermoelectric: The Anisotropic n-Type Semiconductor Bi2S3. Adv. Energy Mater. 2012, 2, 634–638. [Google Scholar] [CrossRef]
  114. Zhang, B.; Sun, J.; Katz, H.E.; Fang, F.; Opila, R.L. Promising thermoelectric properties of commercial PEDOT:PSS materials and their Bi2Te3 powder composites. ACS Appl. Mater. Interfaces 2010, 2, 3170–3178. [Google Scholar] [CrossRef] [PubMed]
  115. Dey, A.; Bajpai, O.P.; Sikder, A.K.; Chattopadhyay, S.; Shafeeuulla Khan, M.A. Recent advances in CNT/graphene based thermoelectric polymer nanocomposite: A proficient move towards waste energy harvesting. Renew. Sustain. Energy Rev. 2016, 53, 653–671. [Google Scholar] [CrossRef]
  116. Gao, C.; Chen, G. Conducting polymer/carbon particle thermoelectric composites: Emerging green energy materials. Compos. Sci. Technol. 2016, 124, 52–70. [Google Scholar] [CrossRef]
  117. Moriarty, G.P.; De, S.; King, P.J.; Khan, U.; Via, M.; King, J.A.; Coleman, J.N.; Grunlan, J.C. Thermoelectric behavior of organic thin film nanocomposites. J. Polym. Sci. Part B Polym. Phys. 2013, 51, 119–123. [Google Scholar] [CrossRef]
  118. Hong, C.T.; Kang, Y.H.; Ryu, J.; Cho, S.Y.; Jang, K.S. Spray-printed CNT/P3HT organic thermoelectric films and power generators. J. Mater. Chem. A 2015, 3, 21428–21433. [Google Scholar] [CrossRef]
  119. Cho, C.; Wallace, K.L.; Tzeng, P.; Hsu, J.H.; Yu, C.; Grunlan, J.C. Outstanding Low Temperature Thermoelectric Power Factor from Completely Organic Thin Films Enabled by Multidimensional Conjugated Nanomaterials. Adv. Energy Mater. 2016, 6, 1502168. [Google Scholar] [CrossRef]
  120. Wan, C.; Gu, X.; Dang, F.; Itoh, T.; Wang, Y.; Sasaki, H.; Kondo, M.; Koga, K.; Yabuki, K.; Snyder, G.J.; et al. Flexible n-type thermoelectric materials by organic intercalation of layered transition metal dichalcogenide TiS2. Nat. Mater. 2015, 14, 622–627. [Google Scholar] [CrossRef]
  121. Wu, G.; Gao, C.; Chen, G.; Wang, X.; Wang, H. High-performance organic thermoelectric modules based on flexible films of a novel n-type single-walled carbon nanotube. J. Mater. Chem. A 2016, 4, 14187–14193. [Google Scholar] [CrossRef]
  122. Janas, D. Powerful doping of chirality-sorted carbon nanotube films. Vacuum 2018, 149, 48–52. [Google Scholar] [CrossRef]
  123. Domain, C.; Ferhat, S.; Noël, D.; Vidal, J.; Lucas, B.; Ratier, B. Organic thermoelectric devices based on a stable n-type nanocomposite printed on paper. Sustain. Energy Fuels 2017, 2, 199–208. [Google Scholar]
  124. Hewitt, C.A.; Kaiser, A.B.; Roth, S.; Craps, M.; Czerw, R.; Carroll, D.L. Multilayered carbon nanotube/polymer composite based thermoelectric fabrics. Nano Lett. 2012, 12, 1307–1310. [Google Scholar] [CrossRef] [PubMed]
  125. Pudzs, K.; Vembris, A.; Rutkis, M.; Woodward, S. Thin Film Organic Thermoelectric Generator Based on Tetrathiotetracene. Adv. Electron. Mater. 2017, 3, 1600429. [Google Scholar] [CrossRef] [Green Version]
  126. Tian, R.; Wan, C.; Wang, Y.; Wei, Q.; Ishida, T.; Yamamoto, A.; Tsuruta, A.; Shin, W.; Li, S.; Koumoto, K. A solution-processed TiS2/organic hybrid superlattice film towards flexible thermoelectric devices. J. Mater. Chem. A 2017, 5, 564–570. [Google Scholar] [CrossRef]
  127. Chen, G. Heat Transfer in Nanostructures for Solid-State Energy Conversion. J. Heat Transf. 2019, 124, 242–252. [Google Scholar] [CrossRef]
  128. Toshima, N.; Oshima, K.; Anno, H.; Nishinaka, T.; Ichikawa, S.; Iwata, A.; Shiraishi, Y. Novel Hybrid Organic Thermoelectric Materials: Three-Component Hybrid Films Consisting of a Nanoparticle Polymer Complex, Carbon Nanotubes, and Vinyl Polymer. Adv. Mater. 2015, 27, 2246–2251. [Google Scholar] [CrossRef]

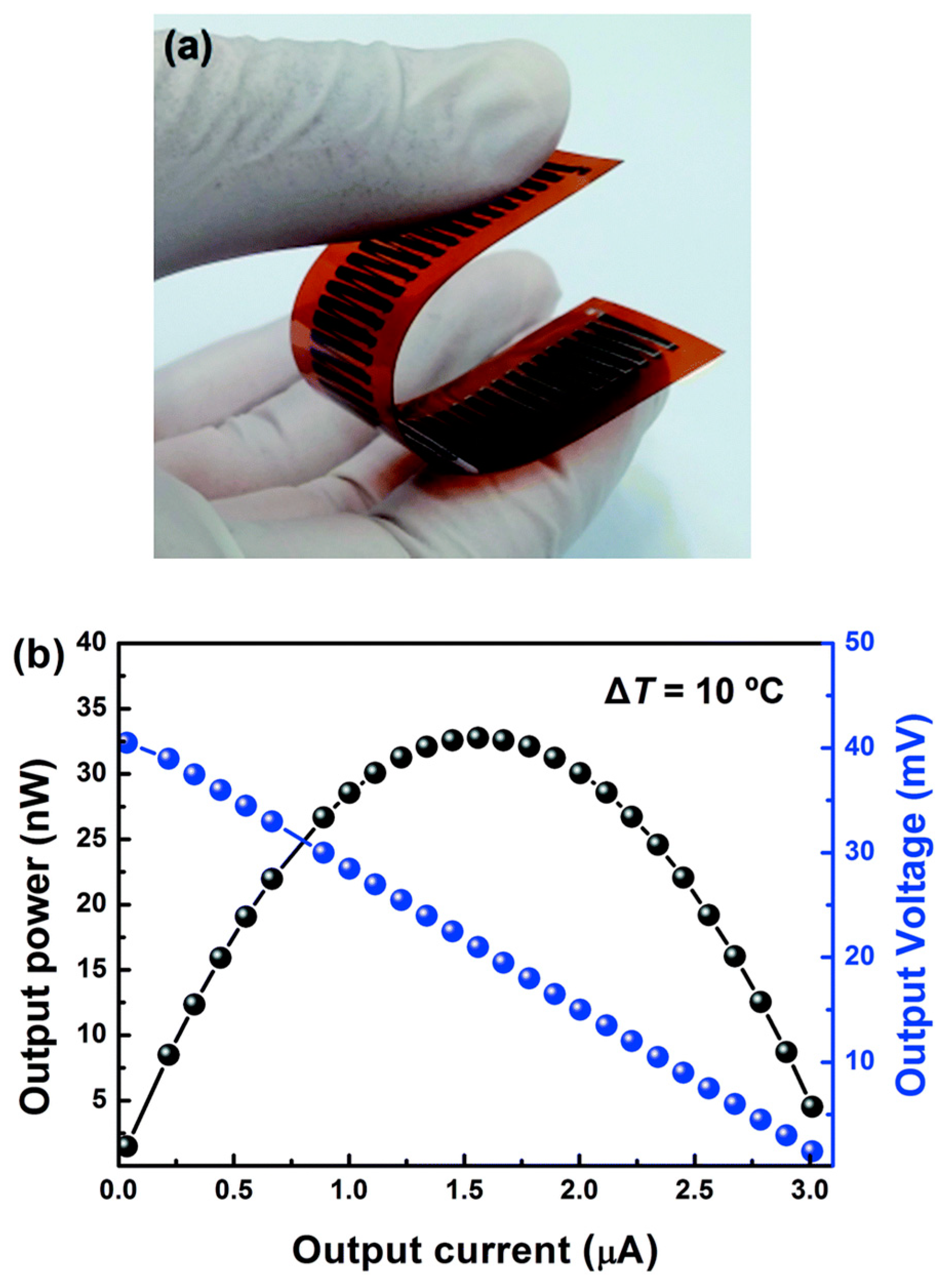

Polymers 11 00909 g001 550
Figure 1. Photograph (a,b) output-power–output-current and output-voltage–output-current curves of the spray-printed flexible CNT/P3HT organic thermoelectric devices.
Figure 1. Photograph (a,b) output-power–output-current and output-voltage–output-current curves of the spray-printed flexible CNT/P3HT organic thermoelectric devices.
Polymers 11 00909 g001

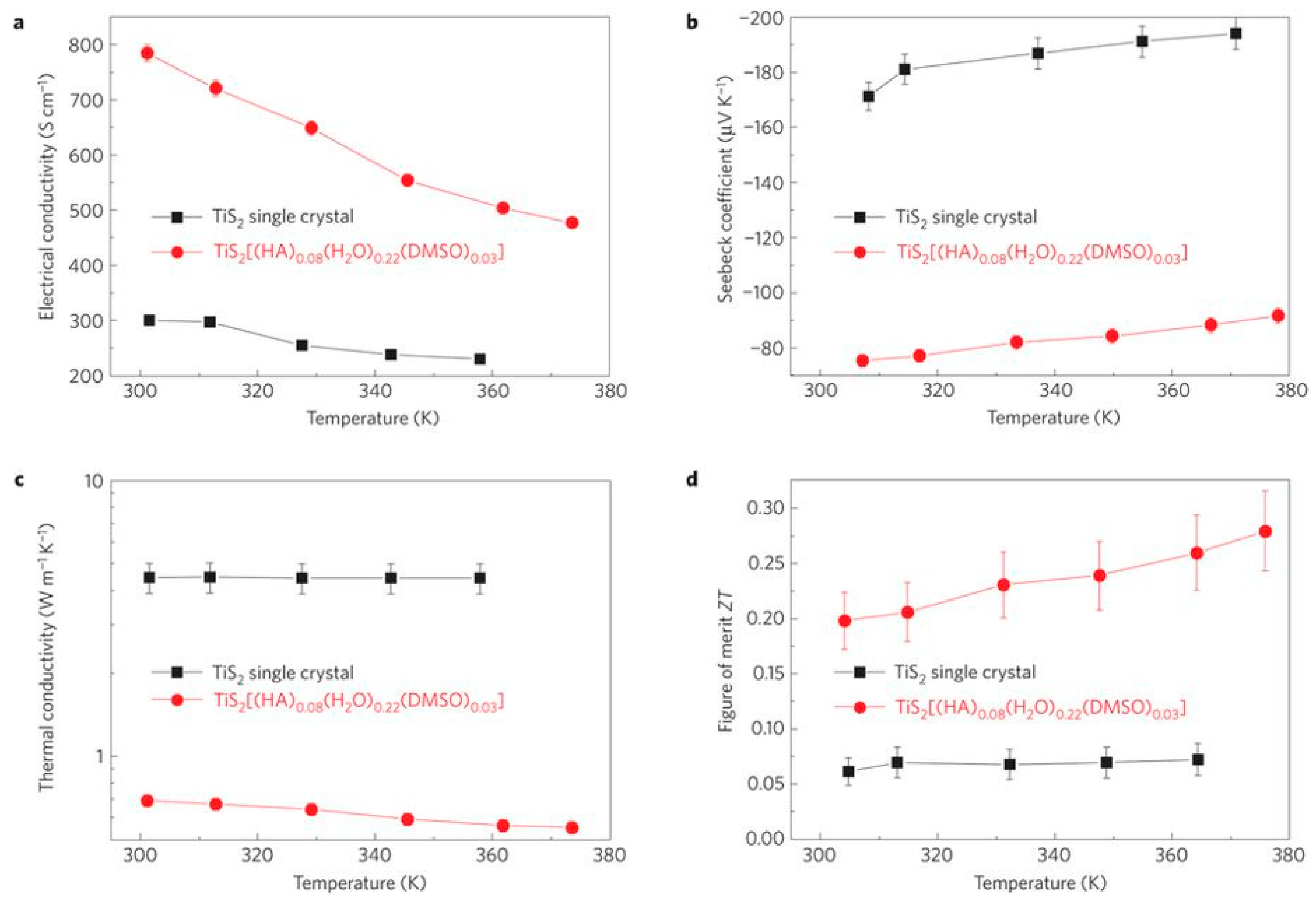

Polymers 11 00909 g002 550
Figure 2. (a) In-plane electrical conductivity; (b) Seebeck coefficient; (c) thermal conductivity; and (d) in-plane ZT.
Figure 2. (a) In-plane electrical conductivity; (b) Seebeck coefficient; (c) thermal conductivity; and (d) in-plane ZT.
Polymers 11 00909 g002

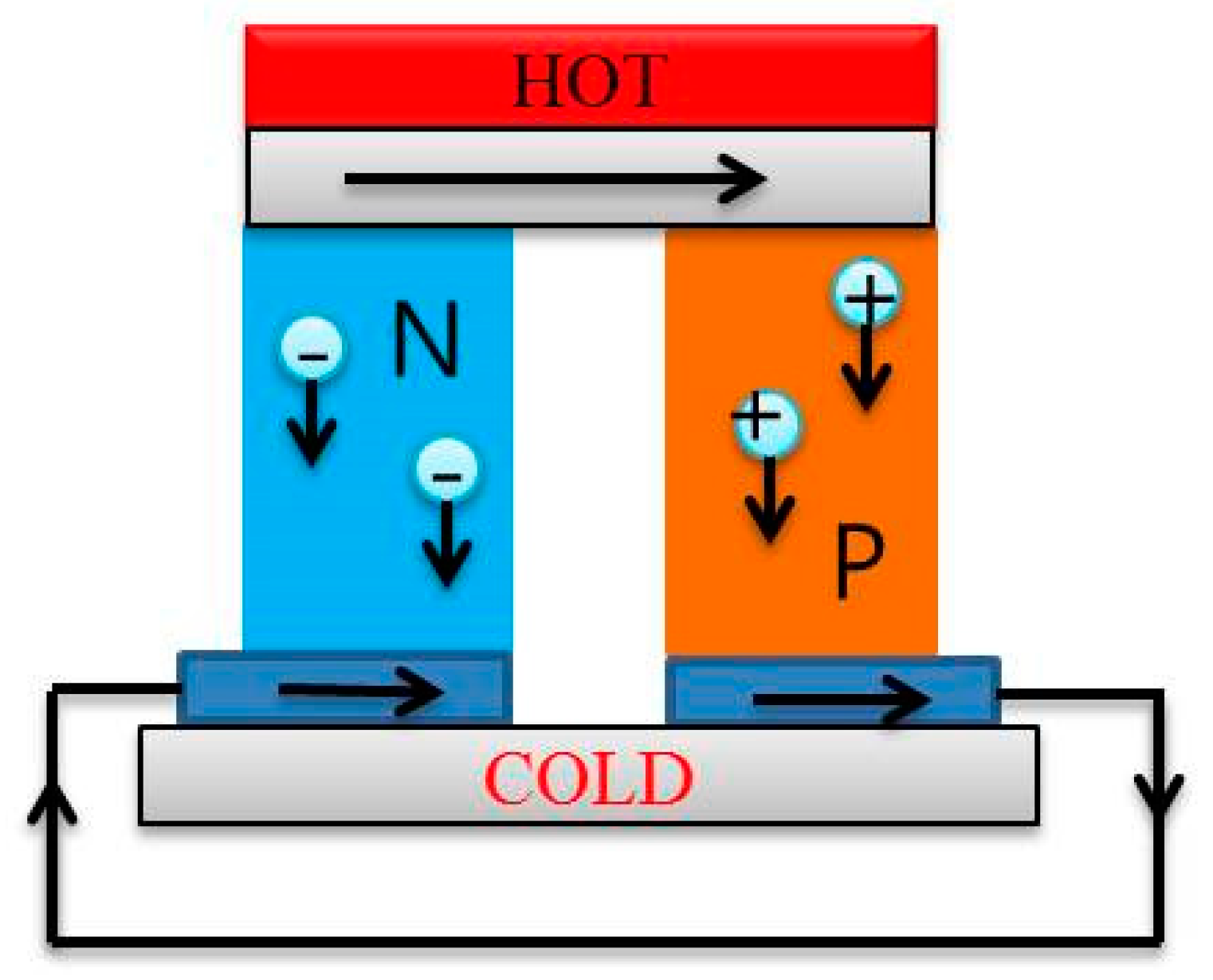

Polymers 11 00909 g003 550
Figure 3. A thermoelectric module composed p-doped and n-doped semiconductors.
Figure 3. A thermoelectric module composed p-doped and n-doped semiconductors.
Polymers 11 00909 g003

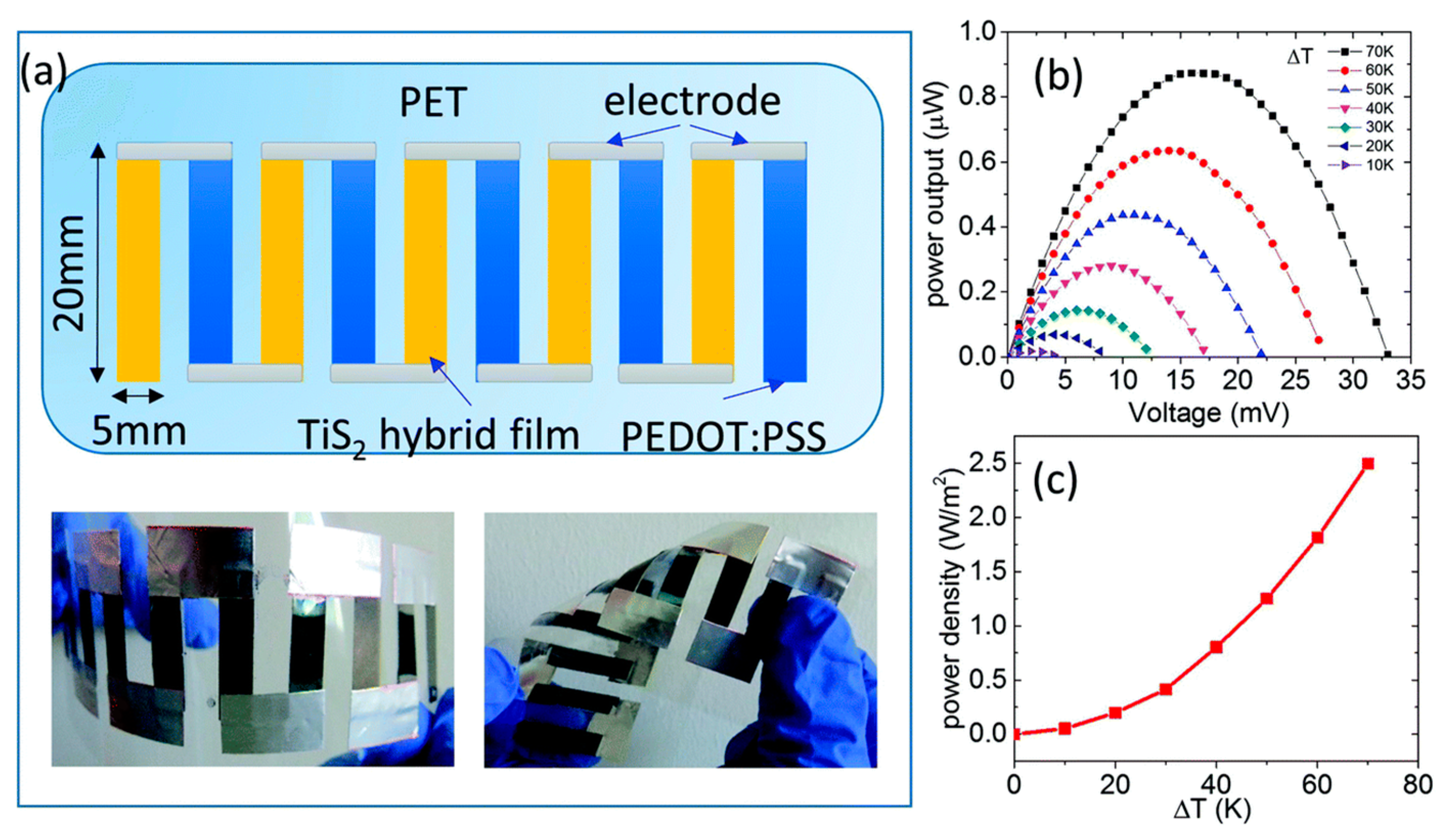

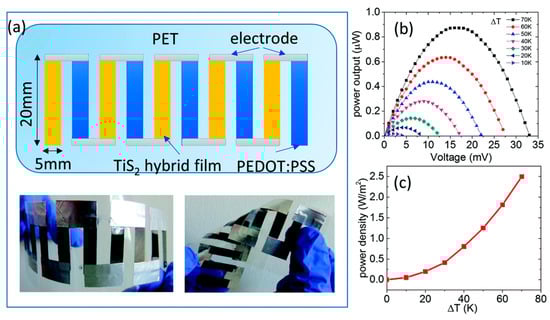

Polymers 11 00909 g004 550
Figure 4. (a) The prototype thermoelectric devices, (b) the generated power output at different temperature gradients, (c) the calculated power density as a function of the temperature gradient.
Figure 4. (a) The prototype thermoelectric devices, (b) the generated power output at different temperature gradients, (c) the calculated power density as a function of the temperature gradient.
Polymers 11 00909 g004

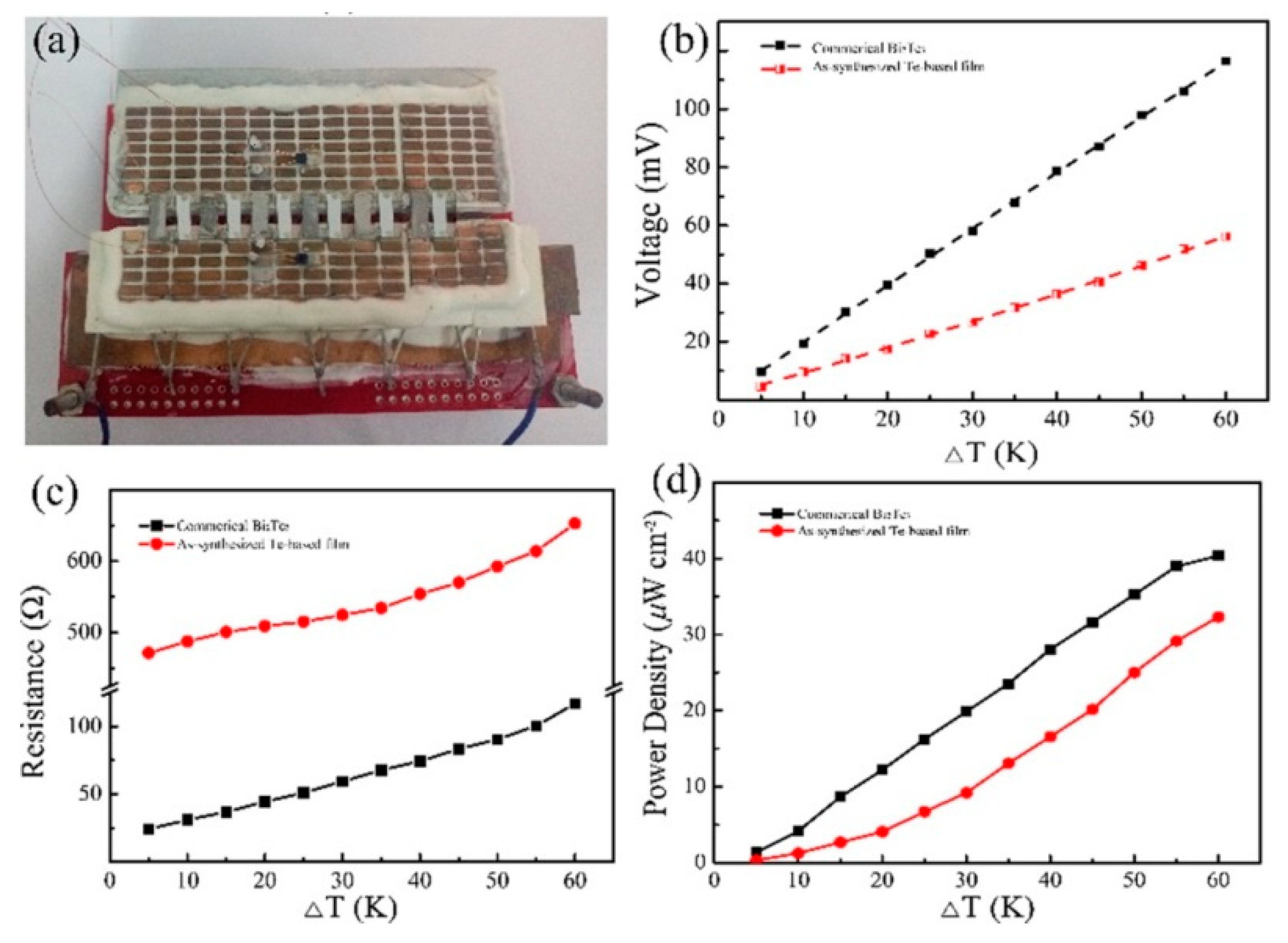

Polymers 11 00909 g005 550
Figure 5. Thermoelectric device (a), temperature difference dependent output voltages (b), electrical resistances (c), and output powers density (d).
Figure 5. Thermoelectric device (a), temperature difference dependent output voltages (b), electrical resistances (c), and output powers density (d).
Polymers 11 00909 g005
Table
Table 1. Chemical structures of typical organic thermoelectric polymers.
Table 1. Chemical structures of typical organic thermoelectric polymers.
MaterialsChemical Structures
Poly(vinylidene fluoride) Polymers 11 00909 i001
Polypyrrole Polymers 11 00909 i002
Poly(3,4-ethylenedioxythiophene) Polymers 11 00909 i003
Polythiophene Polymers 11 00909 i004
Poly(3-methylthiophene) Polymers 11 00909 i005
Poly(2,7-Carbazolylenevinylene) Polymers 11 00909 i006
Poly(3-octylthiophene) Polymers 11 00909 i007
poly(3-hexylthiophene) Polymers 11 00909 i008
Polyaniline Polymers 11 00909 i009

Share and Cite

MDPI and ACS Style

Zhang, Y.; Park, S.-J. Flexible Organic Thermoelectric Materials and Devices for Wearable Green Energy Harvesting. Polymers 2019, 11, 909. https://doi.org/10.3390/polym11050909

AMA Style

Zhang Y, Park S-J. Flexible Organic Thermoelectric Materials and Devices for Wearable Green Energy Harvesting. Polymers. 2019; 11(5):909. https://doi.org/10.3390/polym11050909

Chicago/Turabian Style

Zhang, Yinhang, and Soo-Jin Park. 2019. "Flexible Organic Thermoelectric Materials and Devices for Wearable Green Energy Harvesting" Polymers 11, no. 5: 909. https://doi.org/10.3390/polym11050909

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
